Sleek and attractive, the
FL3690 is ANSI Grade 1
(500,000 cycles) and UL
listed. With durable
anodized nishes and high
performance coatings on
solid metal end caps, these
devices are made for tough,
high trafc conditions.
When used with the
appropriate H or HL Series
entrance system from YKK AP
America Inc., the FL Series is
approved for hurricane impact
and blast resistance.
Contact your YKK AP
distributor for more detail.
Series 3690 Concealed Vertical
Rod Device Specification
Exit Device shall be First Choice Building
Products series FL3690 Concealed Vertical
Rod Narrow Stile model utilizing a low
prole touch bar projecting less than three
inches (3˝) from the face of the door. The
device shall use 3/8˝ steel vertical rods
operating hardened steel latch bolts with
the top latch engaging a stainless steel,
top jamb mounted strike with rotational
adjustment for proper door alignment.
The device shall be active the full length
between door stiles and mount to the
door using metal covers and end caps.
The device push bar and base shall be
6063, T-6 hardened aluminum in anodized
nishes. The device shall be capable of
operation by external key cylinder with
Night Latch or Hold Back settings. The
device shall be capable of disengagement
by single point, quarter turn dogging.
FL3690 Series
Concealed Vertical Rod Exit Device
FL 3690 – YKK AP Impact & Blast
www.firstchoicebuildingproducts.com
First Choice Building Products • Phone (800) 793-4544 • Fax (800) 867-5016
Statewide Florida Product
Approval including High Velocity
Hurricane Zone (HVHZ)
• FL 16554
Model 35H and 50H to 90 psf
Miami Dade & Broward Counties
Florida Product Approval
Wind Zone 3
• FL 16981
Model 35HL and 50HL to 50 psf
Wind Zone 3
FL3690 Series
Concealed Vertical Rod Exit Device

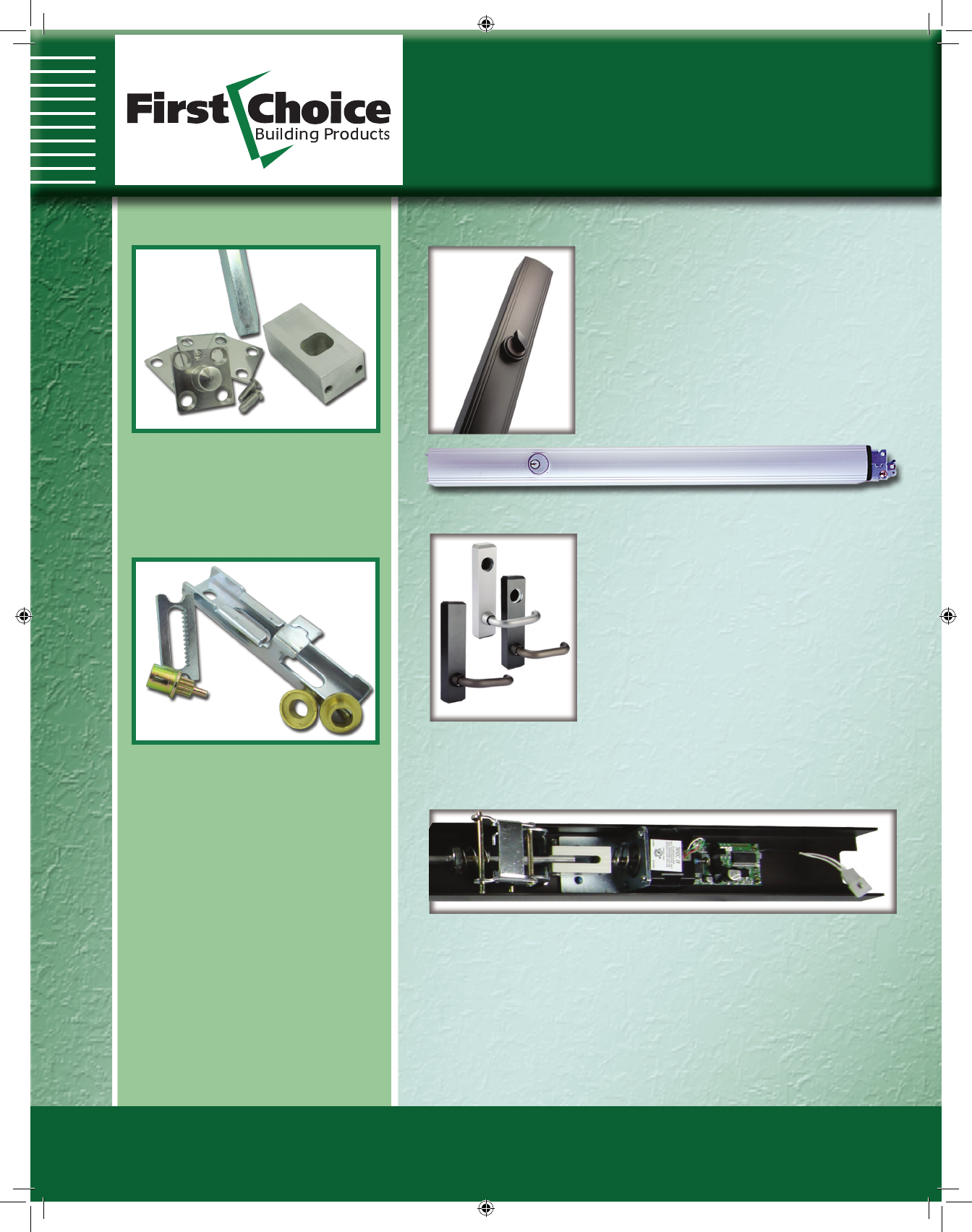

Accessories
Marked with a directional arrow, the stainless
steel top strike can be rotated to inure a tight
fit between door and frame. The 1/2”
projection of the steel bottom latch provides
maximum engagement with the threshold
for solid security.
For secure access from the outside be sure
to include the CVR Cylinder Kit designed for
standard rim cylinders.
For access convenience, the simple rack
and pinion design can be set for Night
Latch (always locked when key is
removed) or Hold Back (can be left
unlatched after key is removed).
Interior Cylinder Dogging
The CD36 cylinder dogging function is
available for the model 3690 CVR exit device
and eliminates the need for special hex keys
to put the device into hold open mode.
Thumb-turn cylinders are also available for
keyless dogging.
Series L3 Levers
Utilizing a unique gear system these levers
will operate with the 3690 CVR device.
Manual levers can be set for both Hold Back
or Night Latch. All levers are designed for most
common mortise cylinders. A security collar is
included.
The electric levers are low voltage and can
be operated by remote devices such as card
readers, code key devices and remote mounted
switches. Power requirements are 24v DC with
easy hook up at the lever. Available in painted
nishes to match clear and dark bronze
anodized
