First Computer CT2WG CT2 Notebook Computer with WLAN User Manual CT2 English Manual Final
First International Computer Inc CT2 Notebook Computer with WLAN CT2 English Manual Final
Manual
1
FIC
CT2
User Guide
Notebook User Guide
2
Copyright©2005
All Rights Reserved - Printed in Taiwan
Notebook Computer User Guide
Original Issue: 2005/03
This manual guides you in setting up and using your new notebook computer.
Information in this manual has been carefully checked for accuracy and is
subject to change without notice.
No part of this manual may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopy,
recording, or otherwise, without prior written permission.
Trademarks
Product names used herein are for identification purposes only and may be the
trademarks of their respective companies.
Microsoft, Windows XP, and Windows Sound System are trademarks of
Microsoft Corporation.
Intel ®, Intel ® Celeron ® M Processor are registered trademark of Intel
Corporation.
Sound Blaster, Sound Blaster Pro are trademarks of Creative Technology.
All other brands or product names mentioned in this manual are trademarks or
registered trademarks of their respective companies.
Notebook User Guide
3
FCC Information to User
Safety and Care Instructions
No matter what your level of experience with computers, please make sure you
read the safety and care instructions. This information can help protect you
and your computer from possible harm.
Radio and television interference
Warning: Use the specified shielded power cord and shielded signal cables
with this computer, so as not to interfere with radio and television reception. If
you use other cables, it may cause interference with radio and television
reception.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does not cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encourage to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the device and receiver
• Connect the device into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
Notebook User Guide
4
You may find helpful the following booklet, prepared by the Federal
Communications Commission: Interference Handbook (stock number 004-
000-00345-4). This booklet is available from the U.S. Government Printing
Office, Washington, DC20402
Warning: The user must not modify or change this computer without
approval. Modification could void authority to this equipment.
FCC RF Exposure
FCC RF Radiation Exposure Statement:
This Transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 20 centimeters between the radiator and your
body.
15.247 (b)(4), the EUT meets the requirement that it be operated in a manner
that ensures the public is not exposed to radio frequency energy levels in
excess of the Commission’s guidelines (1.1307, 1.1310, 2.1091 and 2.1093)
Canadian Department of Communications Compliance
Statement
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Shielded Cables Notice
All connections to other computing devices must be made using shielded
cables to maintain compliance with FCC regulations.
Notebook User Guide
5
Peripheral Devices Notice
Only peripherals (input/output devices, terminals, printers, etc) certified to
comply with Class B limits may be attached to this equipment. Operation with
non-certified peripherals is likely to result in interference to radio and TV
reception.
Optical Disk Drive Notice
The optical disk drive is Class 1 Laser Product.
Caution
Changes or modifications not expressly approved by the manufacturer may
void the user’s authority, which is granted by the Federal Communications
Commission, to operate this computer.
Use Conditions
This part complies with Part 15 of the FCC Rules. Operation is subject to the
following conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
European Notice
For the following equipment: Notebook PC
Is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member
States relating to Electromagnetic Compatibility (89/336/EEC), Low voltage
Directive (73/23/EEC) and the Amendment Directive
Notebook User Guide
6
(93/68/EEC), the procedures given in European Council Directive
99/5/EC and 89/3360EEC.
The equipment was passed. The test was performed according to the
following European standards:
EN 300 328-2 V.1.2.1 (2001-12)
EN 301 489-1 V.1.3.1 (2001-09) / EN 301 489-17 V.1.1.1 (2000-09)
EN 50371: 2002
EN 55022: 2001
EN 55024: 2001
EN 60950: 2000
EN 61000-3-2: 2000
EN 61000-3-3: 1995 + A1: 2001
802.11b Restrictions:
- European standards dictate maximum radiated transmit power of 100mW
EIRP
and frequency range 2.400-2.4835GHz;
- In France, the equipment must be restricted to the 2.4465-2.4835GHz
frequency range and must be restricted to indoor use."
For DVD Players with both 525p and 625p progressive scan
outputs:
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION
TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS
Notebook User Guide
7
PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN
THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’
OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER,
PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’
“This product incorporates copyright protection technology that is protected
by U.S. patents and other intellectual property rights. Use of this copyright
protection technology must be authorized by Macrovision, and is intended for
home and other limited viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is prohibited.”
“U.S. Patent Nos. 4,631,603; 4,819,098; 4,907,093; 5,315,448; and 6,516,132.”
Notebook User Guide
8

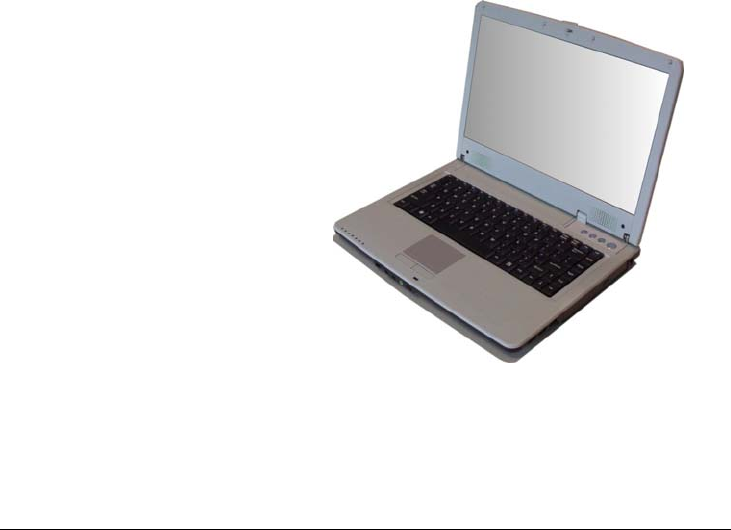

About Your Notebook Computer
Congratulation for having purchased your new Professional
Multimedia Notebook. This notebook incorporates the
strongest features, which integrate the latest technologies
available in the notebook industry.
Your new notebook computer not only drives today
multimedia applications but also be ready for tomorrow
exciting new software.
This Professional Multimedia Notebook is a freedom,
flexibility, and functionality notebook which users are
demanding for a long time.
Notebook User Guide
9
About Your User Guide
Welcome to your Professional Multimedia Notebook User
Guide. This manual covers everything you need to know in
learning how to use your computer. This manual also assumes
that you know the basic concepts of Windows and the PC. You
will start doing a lot of great and fun things with your computer.
This manual is divided into eight chapters.
Chapter 1 gives introduction on your computer features.
Chapter 2 provides step-by-step instructions to help you
begin using your notebook as quickly as possible.
Chapter 3 describes how to operate the standard features of
your computer.
Chapter 4 illustrates how to integrate video and sound chips
into impressive presentation.
Chapter 5 illustrates how to connect external device to your
computer.
Chapter 6 explains how to use the System BIOS Setup
program.
Chapter 7 explains how to use the internal module options of
your computer.
Chapter 8 offers instructions on how to care and maintain
your notebook.
Notebook User Guide
10
Table of Contents
ABOUT YOUR NOTEBOOK COMPUTER.......................................... 8
ABOUT YOUR USER GUIDE................................................................. 9
1 INTRODUCTION............................................................................. 15
1.1 FEATURE HIGHLIGHT .................................................................... 16
1.2 UNPACKING THE COMPUTER ......................................................... 18

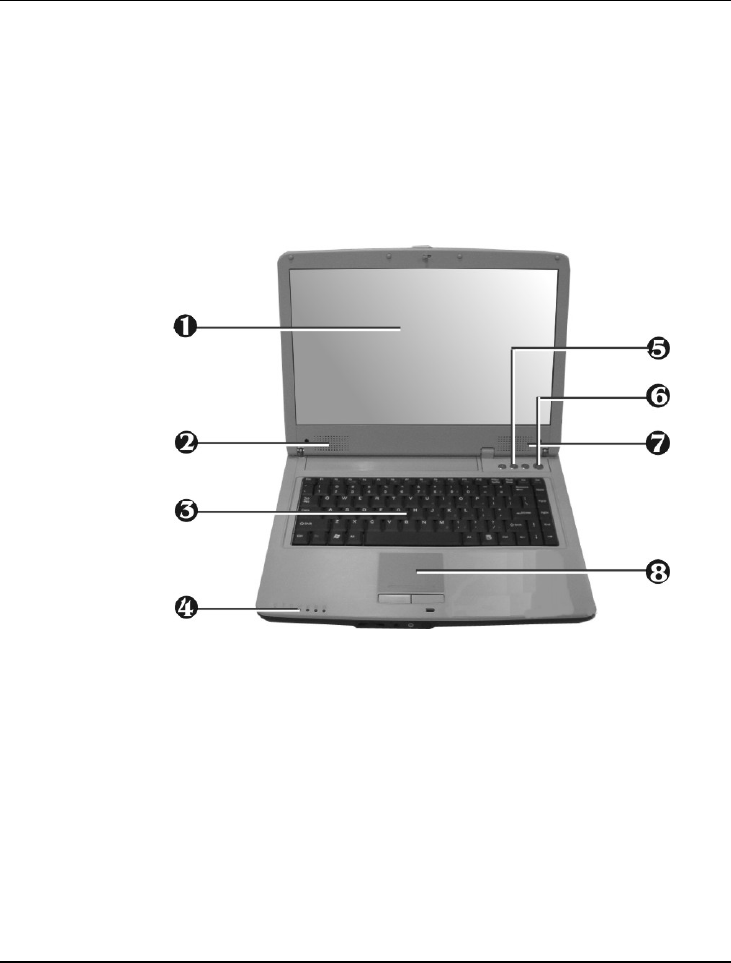

1.3 THE INSIDE OF THE NOTEBOOK ..................................................... 20

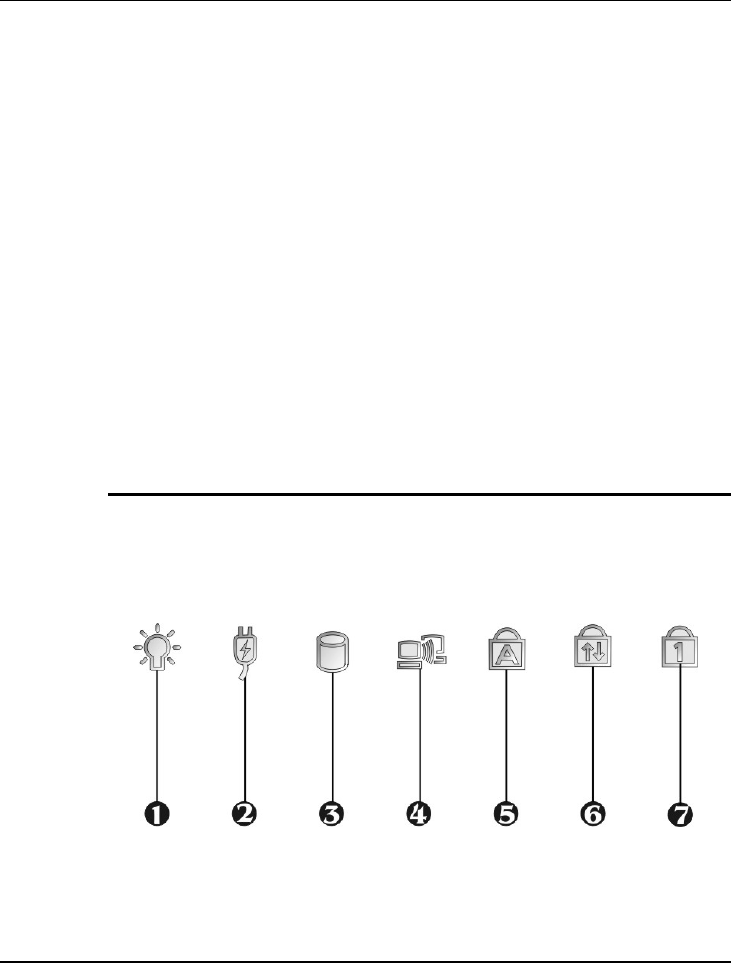

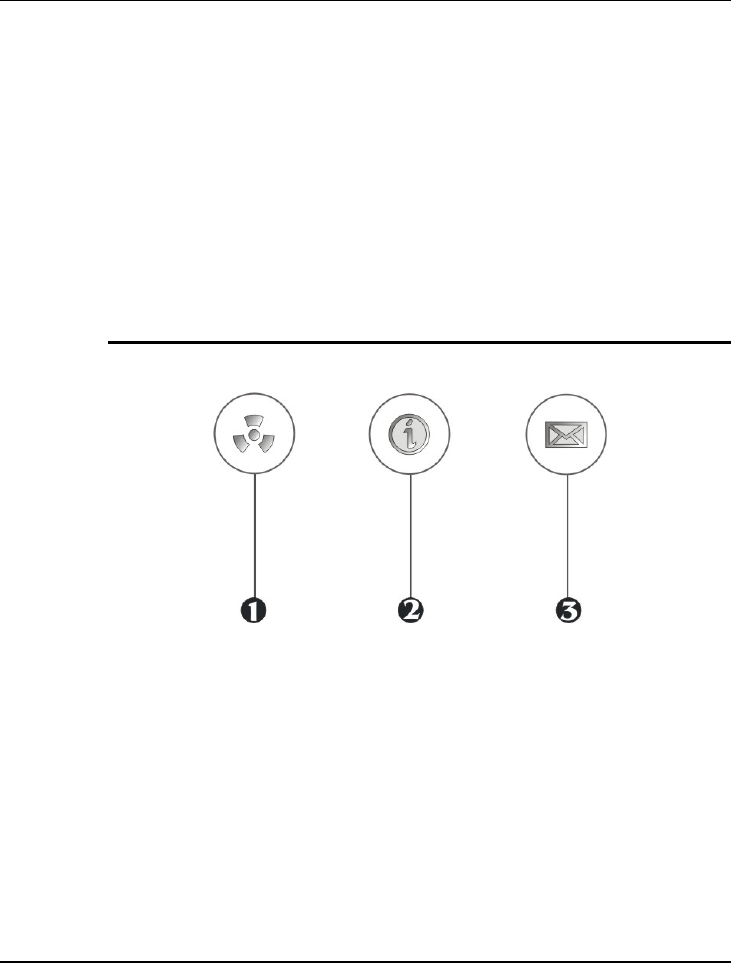

Notebook Status Icons .................................................................. 22
The Function of Easy Buttons ...................................................... 24

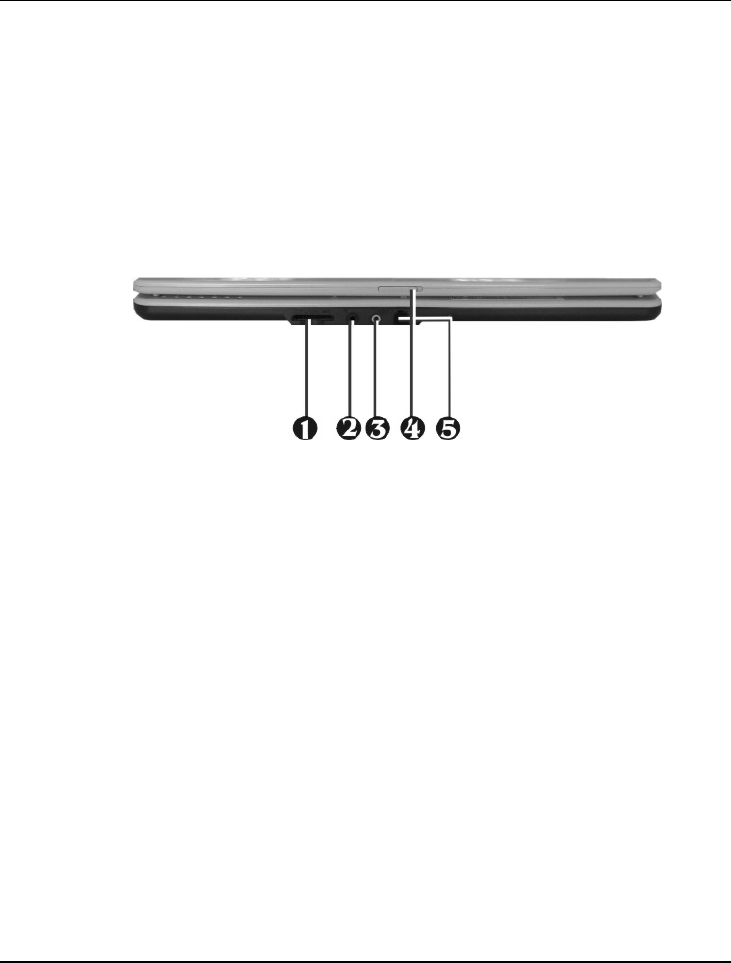

1.4 THE FRONT SIDE OF THE NOTEBOOK............................................. 25

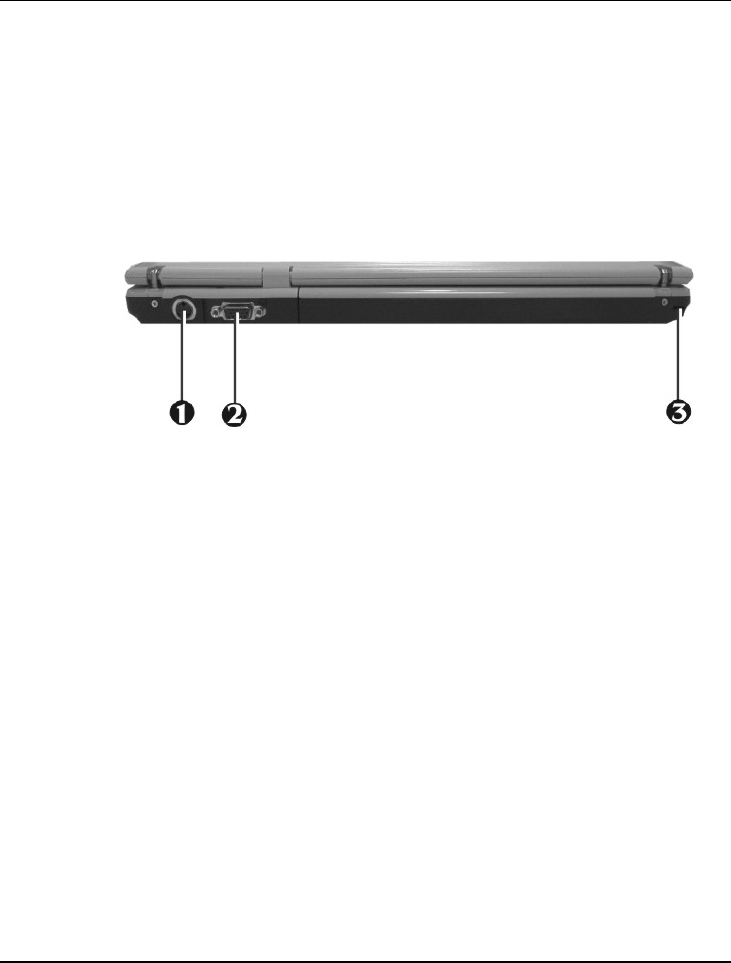

1.5 THE REAR SIDE OF THE NOTEBOOK............................................... 27

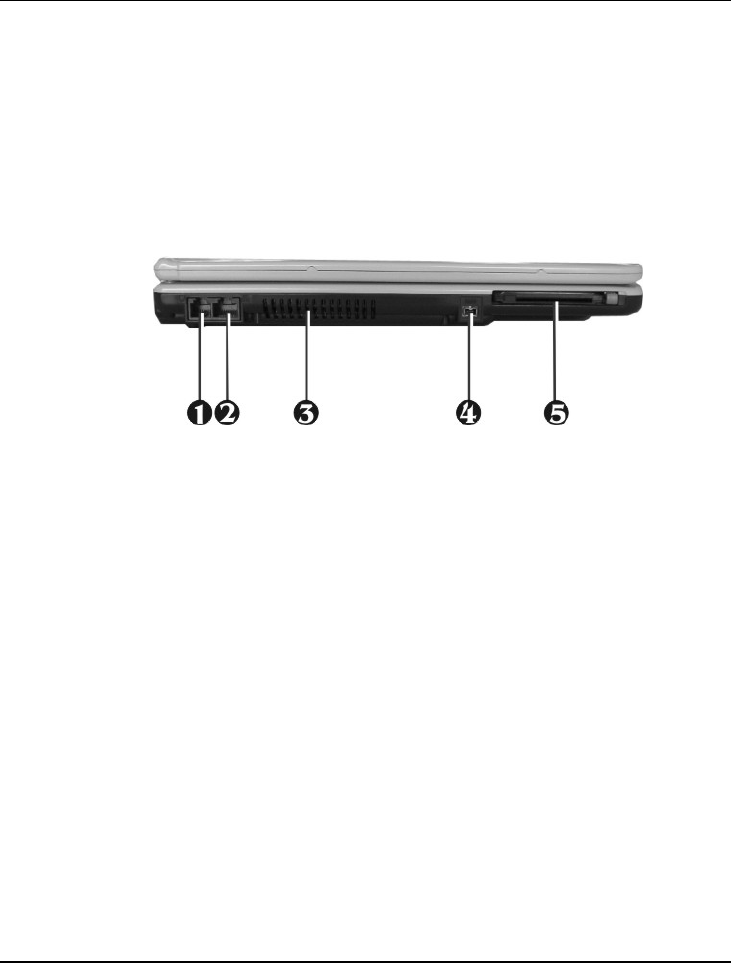

1.6 THE LEFT SIDE OF THE NOTEBOOK................................................ 28
1.7 THE RIGHT SIDE OF THE NOTEBOOK ............................................. 29

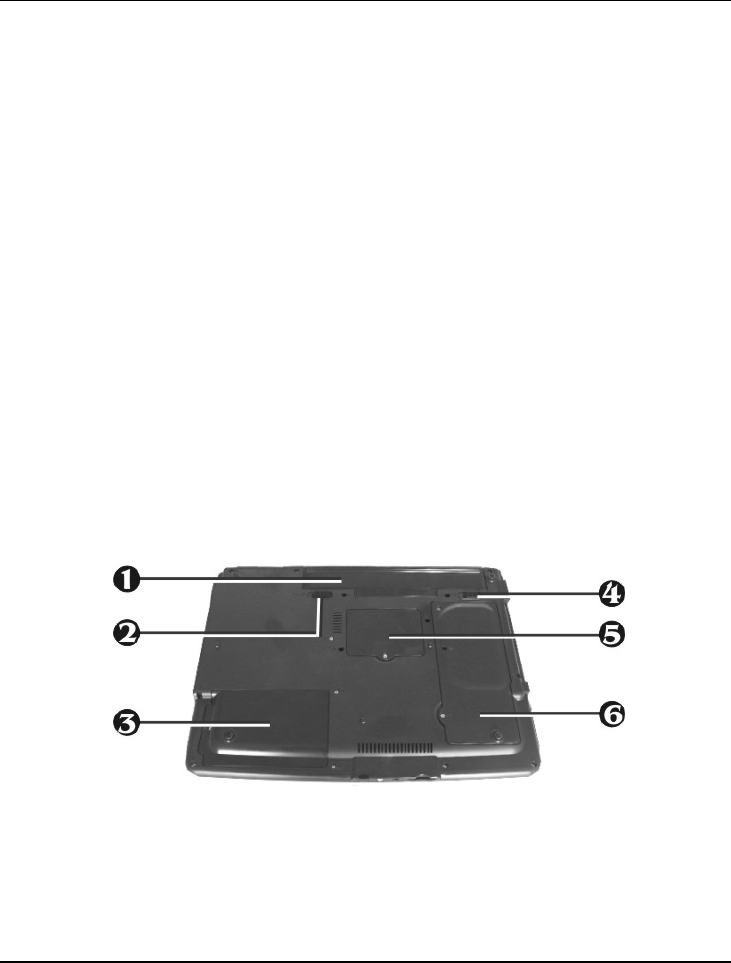

1.8 THE UNDERSIDE OF THE NOTEBOOK ............................................. 30

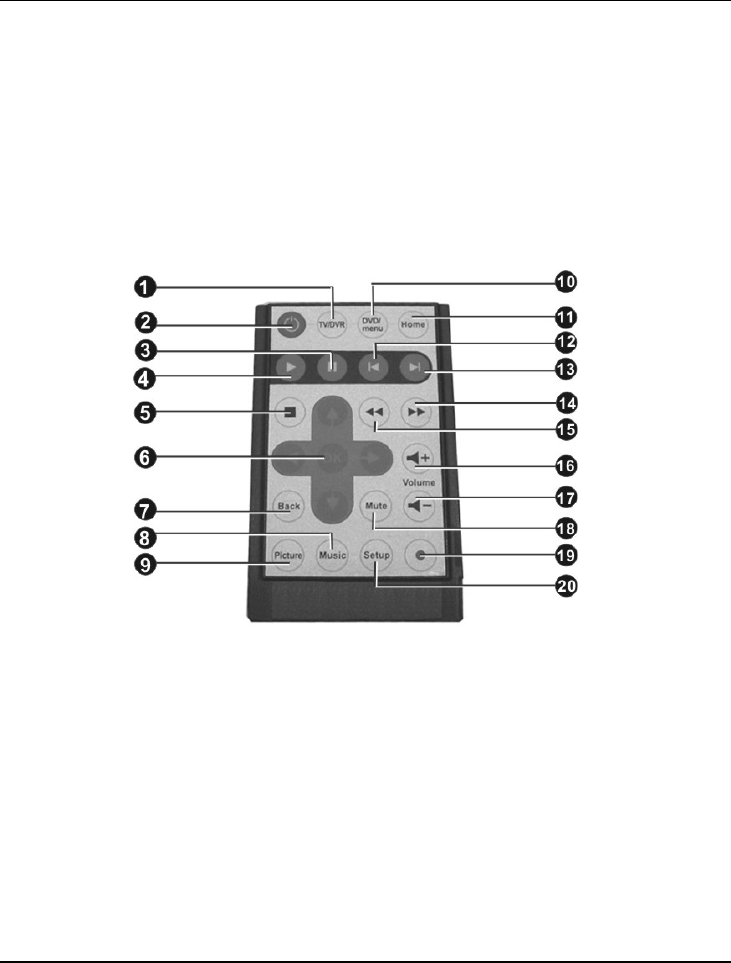

1.9 INFRARED REMOTE CONTROL ....................................................... 31
1.10 NOTEBOOK ACCESSORIES.............................................................. 33
1.11 NOTEBOOK OPTIONS ..................................................................... 34
2 GETTING STARTED...................................................................... 37
2.1 USING THE BATTERY PACK ........................................................... 38
Extending Battery Life.................................................................. 40

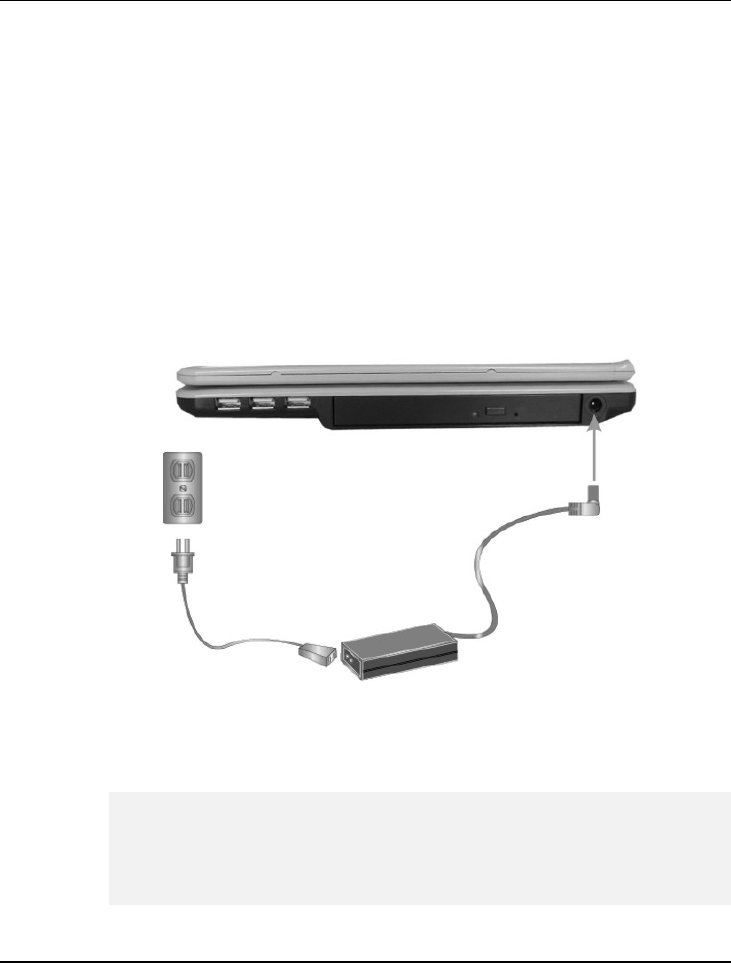

2.2 CONNECTING THE AC POWER SOURCE.......................................... 41
2.3 STARTING YOUR COMPUTER......................................................... 42
2.4 ADJUSTING THE DISPLAY CONTROLS ............................................ 43
2.5 INSTALLING THE NOTEBOOK DEVICE DRIVERS ............................. 43
Installing Windows XP from Optical Disk Drive......................... 44
Enable DMA channel for best performance................................. 44
driver installation note:................................................................ 45
Notebook User Guide
11
Installing the Chipset Driver........................................................ 45
Installing ENE- KBC driver ......................................................... 46
Installing the VGA Device Driver ................................................46
Installing the Audio Device Driver............................................... 47
Installing the Modem Device Driver............................................47
Installing the LAN Device Driver................................................. 48
Installing ALPS - Touch Pad driver............................................. 48
Installing the Card Reader Device Driver ................................... 48
Installing the Wireless LAN Device Driver.................................. 49
Installing the Bluetooth Utility.................................................... 50
2.6 TURNING OFF YOUR COMPUTER.................................................... 50
3 USING YOUR NOTEBOOK...........................................................53
3.1 STARTING YOUR OPERATING SYSTEM........................................... 54

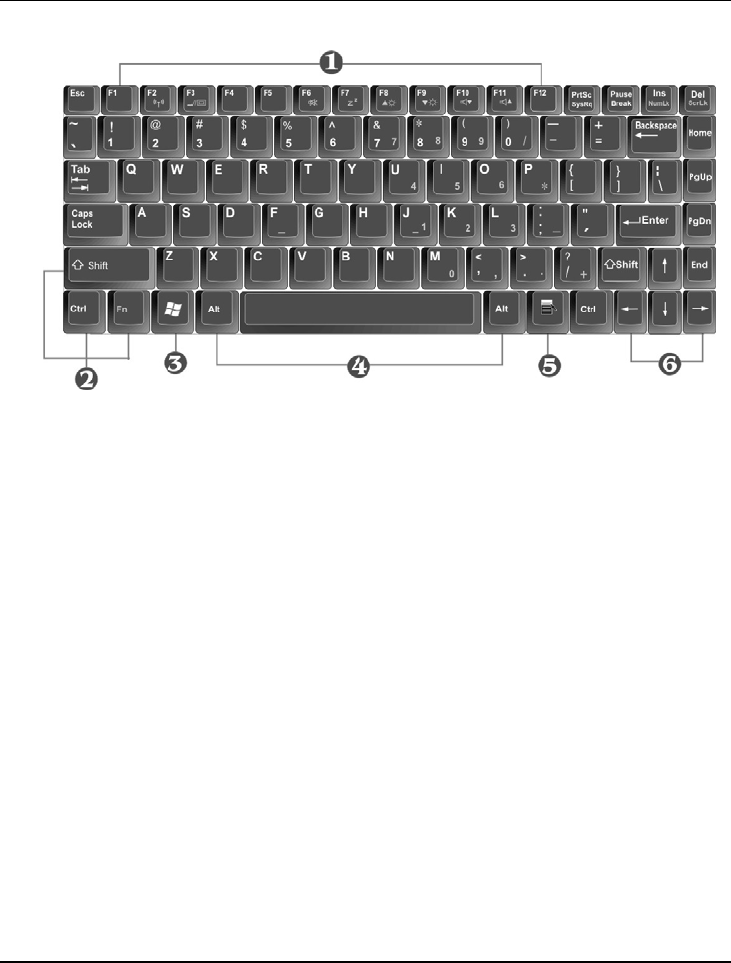

3.2 UNDERSTANDING THE KEYBOARD FUNCTIONS.............................. 54
Basic Keyboard Functions ........................................................... 57

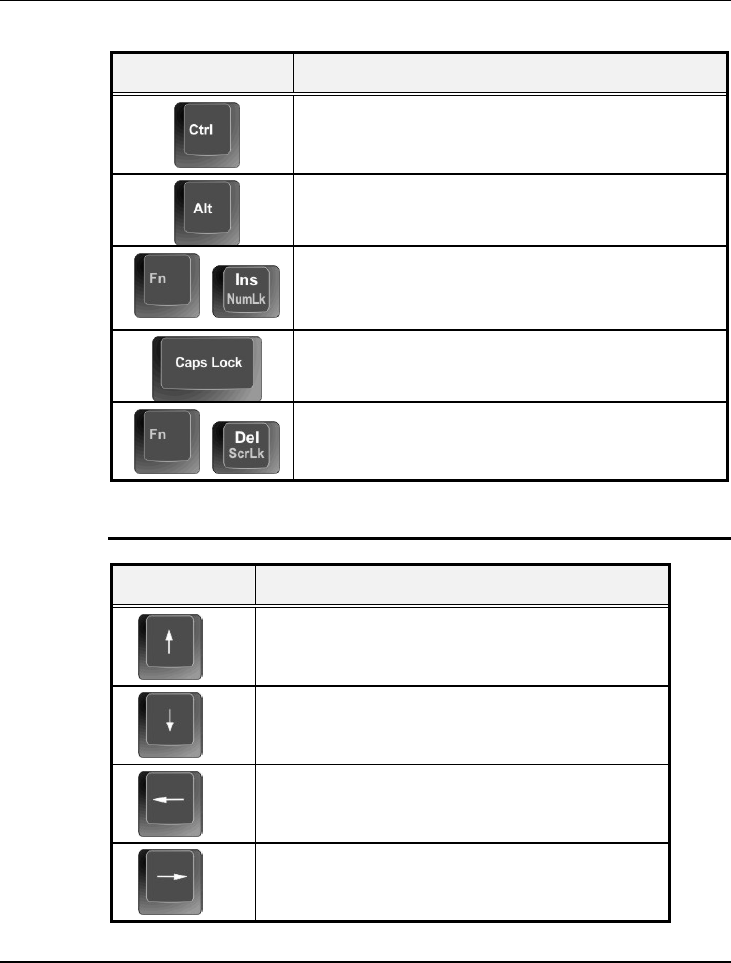

Cursor Control Keys..................................................................... 58

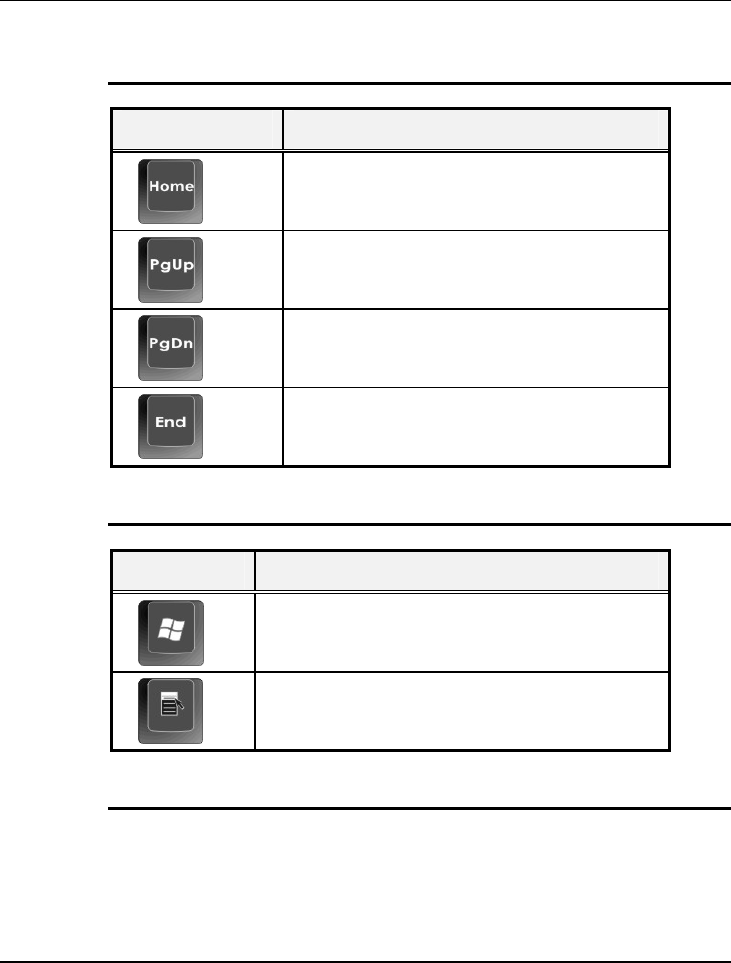

Screen Control Keys..................................................................... 59
Windows Hot Keys........................................................................ 59
Special Function Keys.................................................................. 59

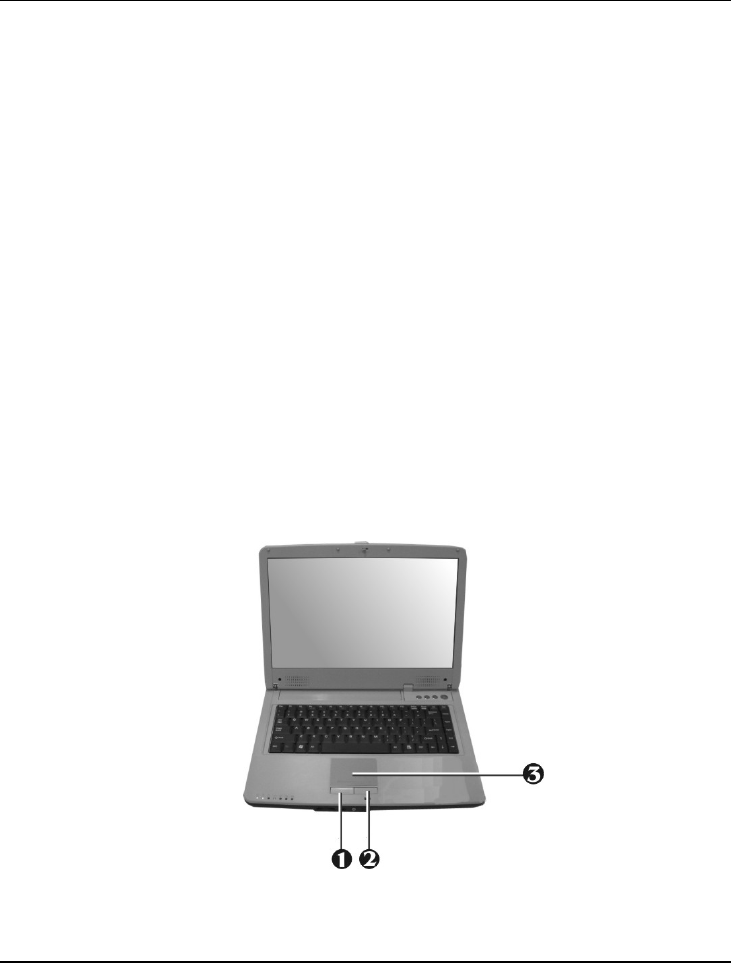

3.3 USING THE GLIDE PAD POINTING DEVICE ....................................... 61
3.4 CONFIGURING YOUR SCREEN DISPLAY ......................................... 62
Possible Display Configurations.................................................. 63
Changing the Display Properties under Windows.................................. 64
3.5 KNOWING THE POWER SAVING FEATURES .................................... 64
3.6 WORKING WITH THE BUILT-IN HDD............................................... 66
3.7 HOW TO ACCESS THE OPTICAL DRIVE........................................... 66
3.8 USING PCMCIA CARDS................................................................ 68
What is PCMCIA?........................................................................ 68
What is CardBus?......................................................................... 70

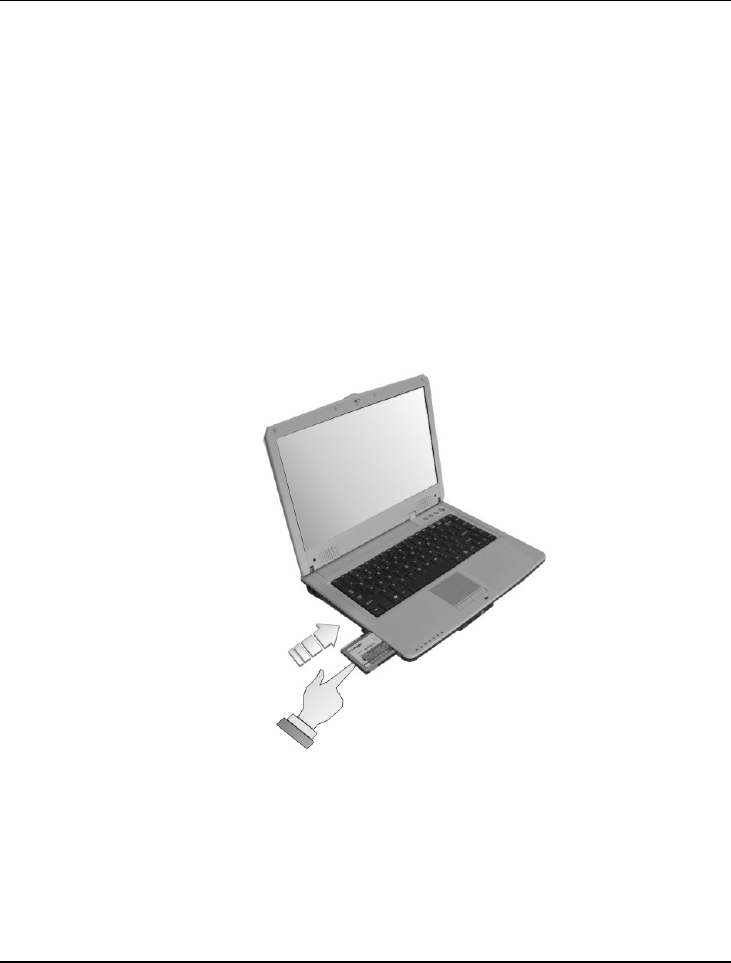

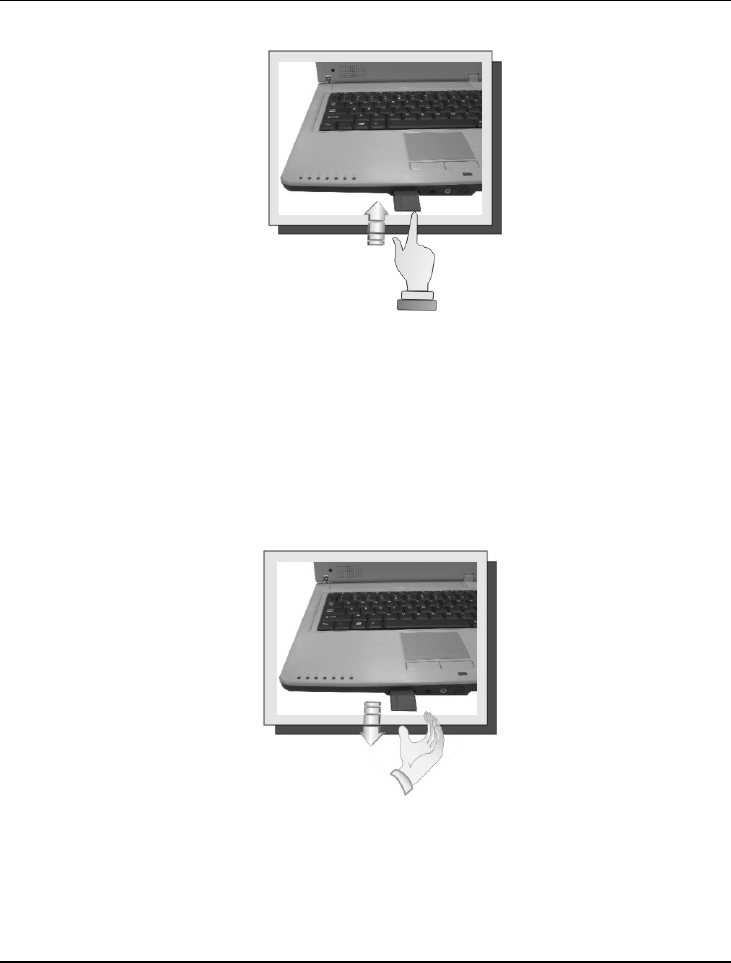

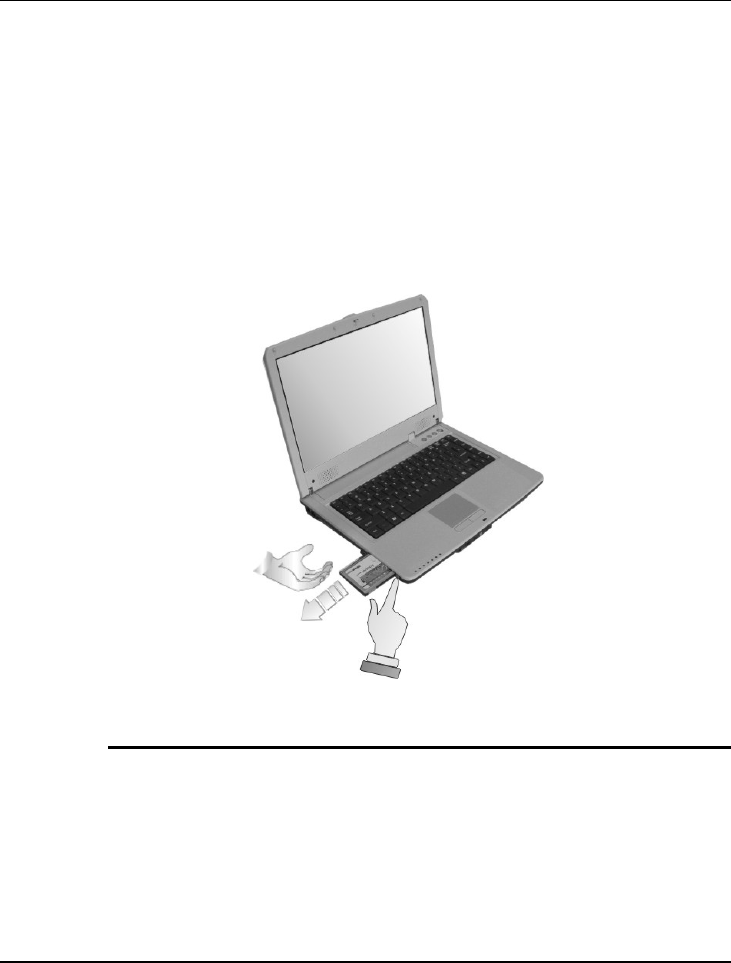

Inserting and Removing a PCMCIA Card.................................... 70
Notebook User Guide
12
Making PC Cards Work ............................................................... 72
Hot Swapping PC Cards .............................................................. 73
3.9 USING FLASH MEMORY CARDS..................................................... 73
What is Flash Memory Card? ...................................................... 73
4 FUN WITH MULTIMEDIA............................................................ 77
4.1 NOTEBOOK MULTIMEDIA FEATURES............................................. 78
4.2 AUDIO SOUND SYSTEM FEATURES ................................................ 78

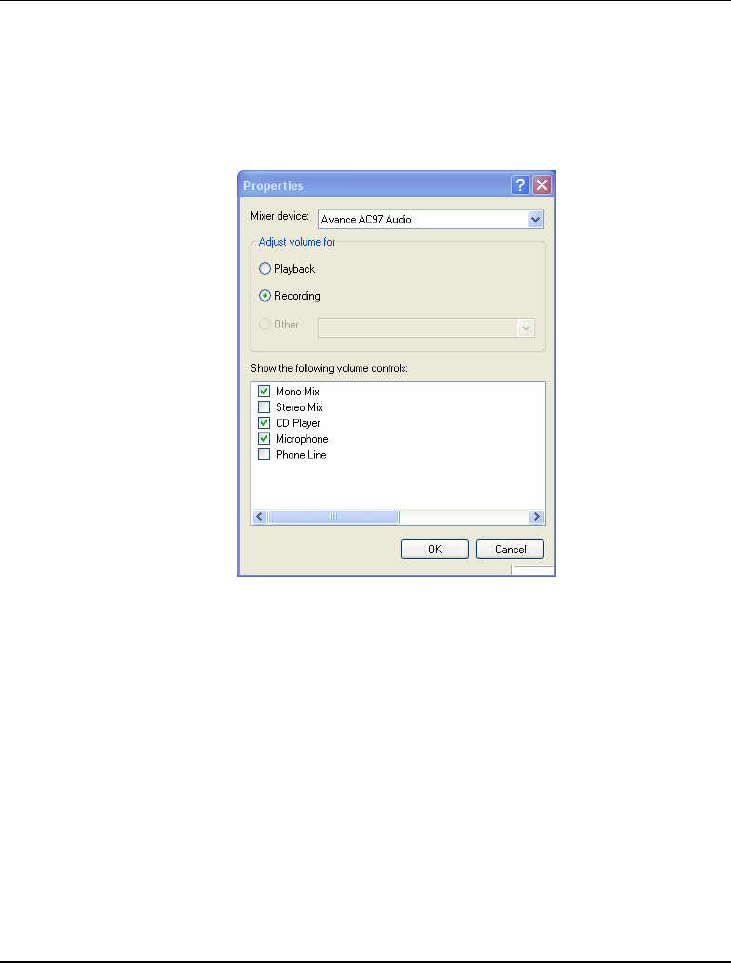

4.3 SETTING UP THE AUDIO DRIVER PROPERTIES ............................... 79
4.4 WINDOWS MULTIMEDIA PROGRAMS ............................................. 79
4.5 RECORDING SOUNDS ..................................................................... 80
Using an External Microphone.................................................... 83
Using the Built-in Combo Drive................................................... 83
4.6 PLAYING AUDIO AND SOUND ........................................................ 84

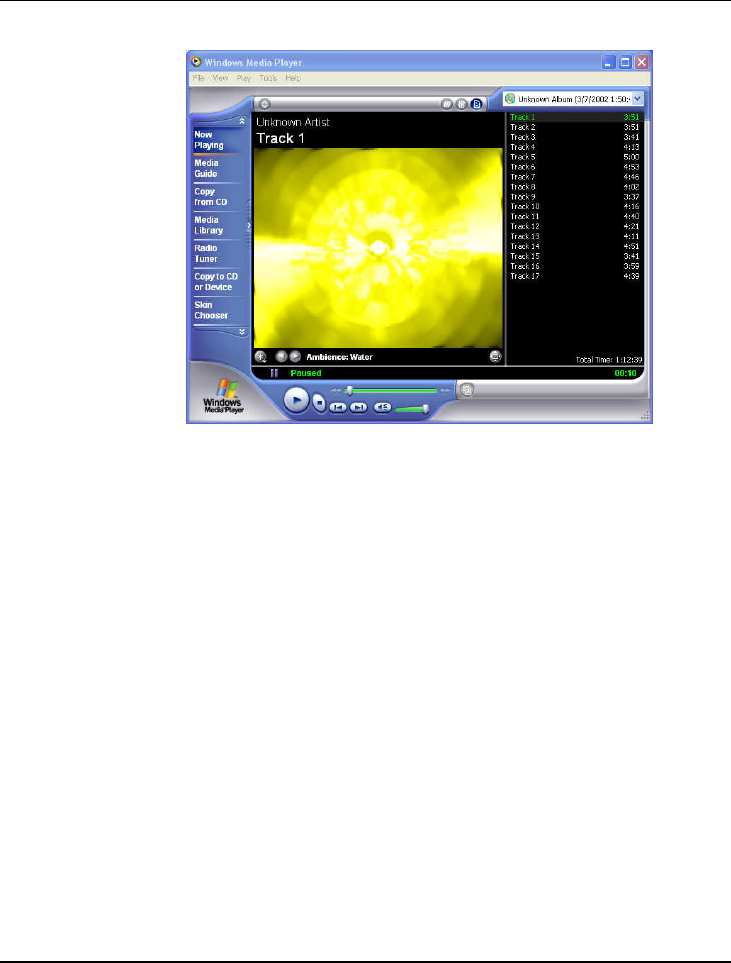

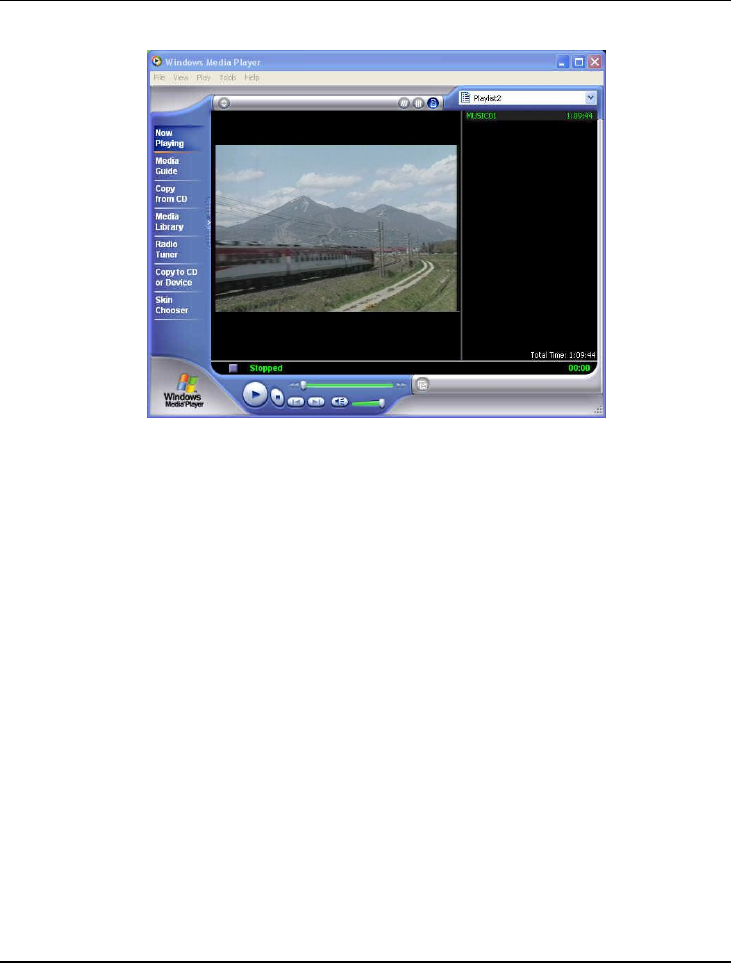

Using the Windows Media Player................................................ 85
4.7 PLAYING VIDEO AND MPEG FILES ............................................... 85
4.8 USING DVD .................................................................................. 86
5 CONNECTING TO PERIPHERALS............................................. 91
5.1 USING THE USB PORT................................................................... 92
5.2 USING AN EXTERNAL MONITOR PORT.................................................. 92
5.3 USING THE IEEE 1394 PORT ......................................................... 94

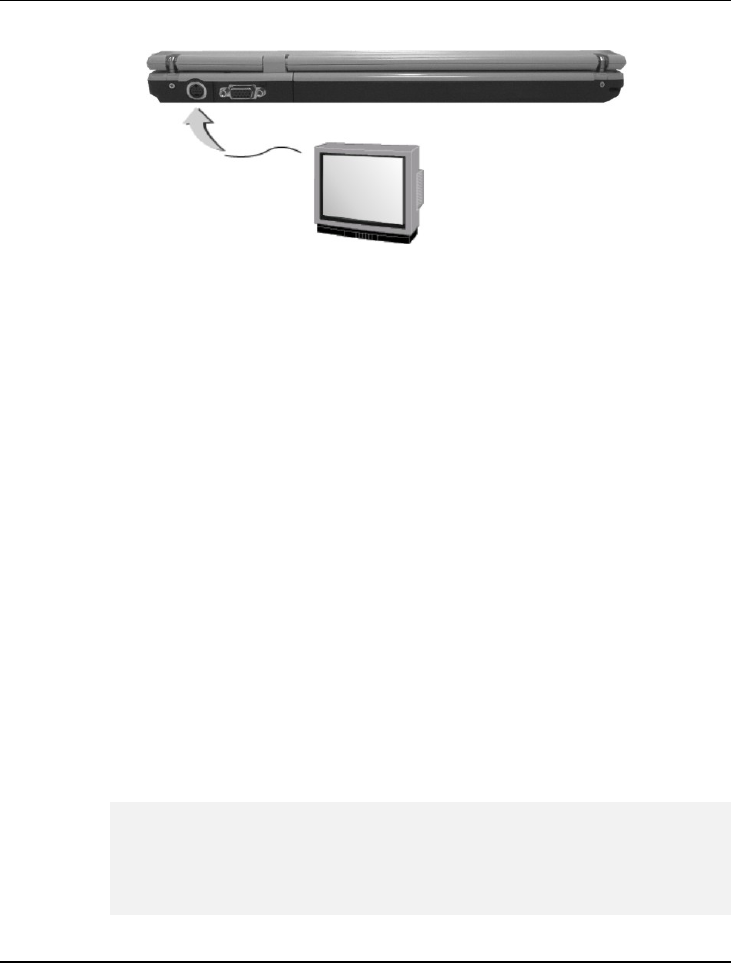

5.4 USING THE TV PORT........................................................................ 95
5.5 USING THE EXTERNAL AUDIO SYSTEM ......................................... 96

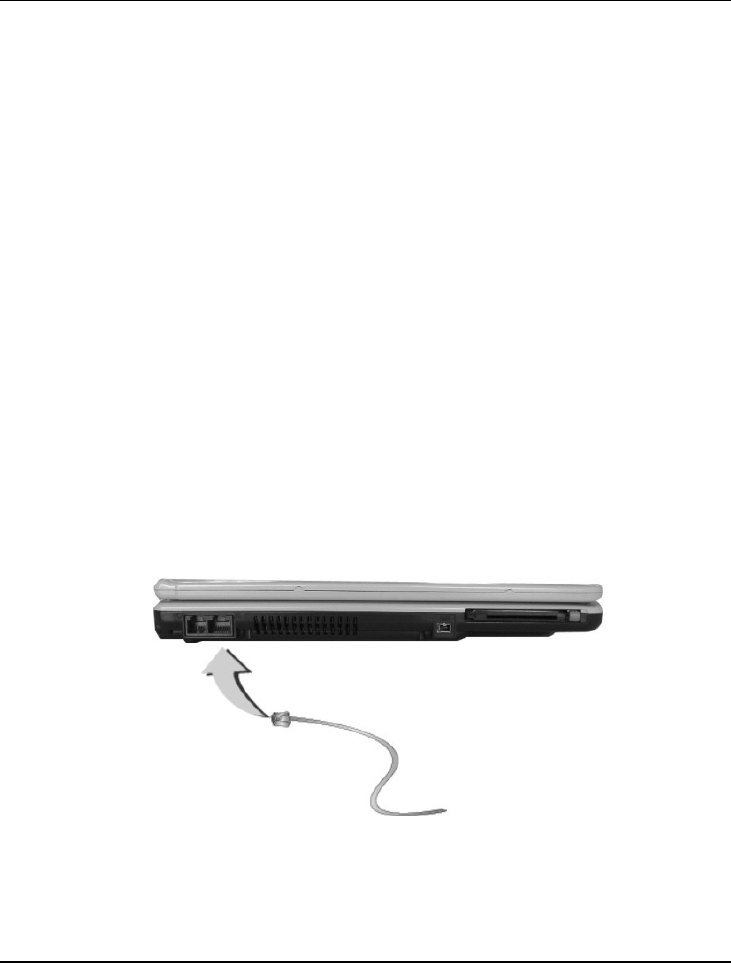

5.6 USING THE LAN PORT .................................................................. 97
5.7 USING THE WIRELESS LAN........................................................... 98
5.8 USING THE MODEM PORT.............................................................. 98
6 CUSTOMIZING YOUR NOTEBOOK ........................................ 101
6.1 RUNNING THE BIOS SETUP PROGRAM ........................................ 102
6.2 USING THE MAIN MENU SETUP................................................... 104
Notebook User Guide
13
6.2.1 Internal HDD Sub-Menu................................................. 106
6.3 USING THE ADVANCED CMOS SETUP......................................... 107
6.4 SECURITY MENU SETUP .............................................................. 109
6.5 USING THE BOOT SETUP .............................................................. 111
6.6 HOW TO EXIT THE SETUP PROGRAM............................................ 112
6.7 HOW TO UPGRADE THE BIOS...................................................... 113
7 USING OPTIONS ........................................................................... 115
SYSTEM UPGRADE................................................................................. 116
Memory Upgrade........................................................................ 116

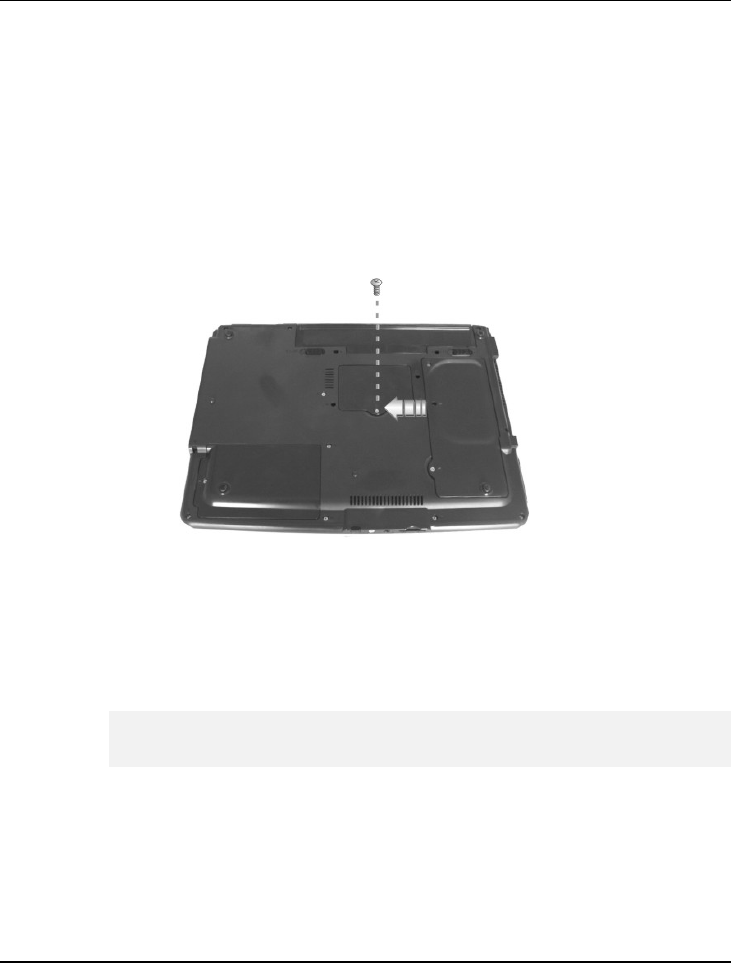

Installing Memory Module ......................................................... 116
Upgrade Hard Disk .................................................................... 118
Wireless Module Installation...................................................... 119
8 CARING FOR YOUR NOTEBOOK............................................ 121
8.1 IMPORTANT SAFETY INSTRUCTIONS ............................................ 122
8.2 CLEANING YOUR COMPUTER....................................................... 124
8.3 MAINTAINING THE LCD QUALITY............................................... 125
8.4 MAINTAINING YOUR HARD DISK ................................................ 125
8.5 BATTERY CARE GUIDELINES ....................................................... 126
8.6 WHEN YOU TRAVEL.................................................................... 127
APPENDIX A SYSTEM SPECIFICATION................................... 129
Processor Unit............................................................................ 130
System Memory........................................................................... 130
LCD Display............................................................................... 130
VGA System ................................................................................ 130
Storage........................................................................................ 131
Audio System .............................................................................. 131
PCMCIA ..................................................................................... 131
Glide Pad.................................................................................... 131
Notebook User Guide
14
Keyboard .................................................................................... 132
Flash BIOS ................................................................................. 132
I/O Ports..................................................................................... 132
Wireless devices ......................................................................... 132
AC/DC Power Supply Adapter................................................... 132
Battery ........................................................................................ 133
Weight and Dimension ............................................................... 133
Introduction1
15
1 Introduction
Your Notebook PC is a fully Windows compatible
portable personal computer. With the latest features
in mobile computing and multimedia technology, this
notebook makes a natural traveling companion. With
leap of technology and compact, your Notebook PC
runs on a whole wide range of general business,
personal productivity, entertainment, and professional
applications. It is ideal for use in the office, at home,
and on the road.
Your Notebook PC makes an ideal choice for use in
the office, the schoolroom, at home, on the road and
all other occasions.
Notebook User Guide
16
1.1 Feature Highlight
Before we go to identify each part of your Notebook PC, we will first
introduce you to other notable features of your computer.
Processing Unit
• Your notebook runs on Intel® Celeron® M Dothan microprocessor that
is integrated with 1MB L2 Cache. Check with your dealer on the CPU
type and speed.
• Fully compatible with an entire library of PC software based on operating
systems such as Windows XP.
Memory
This notebook provides two memory slots for installing DDR SDRAM 200-
pin SODIMM modules up to 1GB using 256MB, 512MB DDR SDRAM
modules.
Wide Screen LCD Display
Provides extraordinary 14.0"(15:9) wide screen LCD display. It is the best
choice for you to watch DVD movie.
Infrared Remote Control (BTO)
A infrared remote control is included with this notebook, and it is stored in the
PCMCIA slot. You can use this infrared remote control to control DVDs,
CDs, and MP3 without touching the computer.
Wireless LAN
Built-in Mini PCI Wireless LAN module, IEEE 802.11b/g
Introduction1
17
DVD Multi
DVD Multi is a standard that certifies DVD drives between three DVD
formats. A DVD Multi drive can read and write DVD-R, DVD-RW, and
DVD-RAM.
PCMCIA
Provides one PCMCIA slot that allows you to insert one Type II card.
IEEE 1394 (BTO)
Provides one IEEE 1394 port for fast data transmission by external hard disk
or digital video (DV).

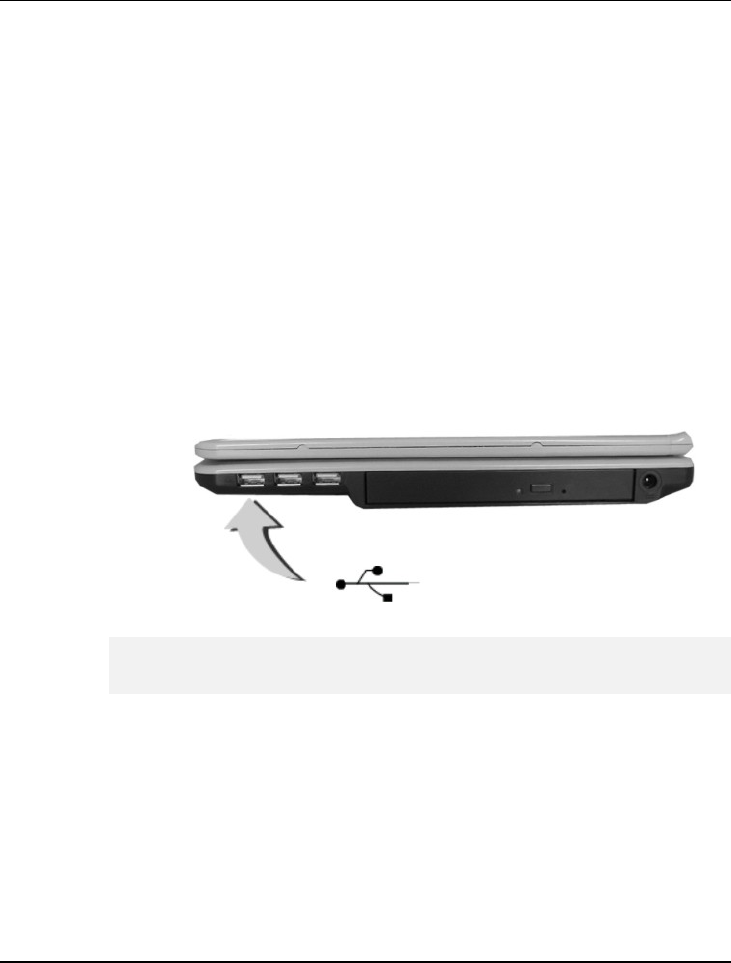

USB 2.0
Provides three USB2.0 ports for fastest I/O data transmission.
Graphic System
Provides blazing graphics controller embedded in VIA PN800 chipset
PCI Local Bus Architecture
• 32-bit PCI Enhanced IDE optimizes the data transfer between the CPU
and hard disk drives. Support ultra DMA ATA-100 PIO Mode up to PIO
Mode 4, bus mastering for LBA Scheme.
• 32-bit PCMCIA CardBus PCI technology that is also backward
compatible with 16-bit PC cards.
Audio System
Full-duplex 16-bit stereo audio system output. Sound Blaster compatible.
Notebook User Guide
18
Flash BIOS
Flash BIOS allows you to easily upgrade the System BIOS using the Phoenix
Flash utility program.
Power and System Management
• Integrated SMM (System Management Mode) on system chipset that shuts
down components not in use to reduce power consumption. To execute
power management, you can set up the parameter in Power Options
properties by pointing your mouse to Control Panel of Windows.
• Suspend hot-key allows you to suspend the system operation instantly and
resume at the press of the power button.
• System Password for User and Supervisor included on the BIOS SETUP
Program to protect unauthorized use of your computer.
1.2 Unpacking the Computer
Your computer comes securely packaged in a sturdy cardboard shipping
carton. Upon receiving your computer, open the carton and carefully remove
the contents. In addition to this User Guide, the shipping carton should also
contain the following items:
; The Notebook Computer
; An AC Adapter and AC Power Cord
; Li-Ion Battery Pack
; Utility Diskettes/CD
Introduction1
19
; Hardcopy User Guide/E-book
; Quick Setup Manual
Carefully inspect each component to make sure that nothing is missing and/or
damaged. If any of these items is missing or damaged, notify your dealer
immediately. Be sure to save the shipping materials and the carton in case you
need to ship the computer or if you plan to store the computer away sometime
in the future.
Notebook User Guide
20
1.3 The Inside of the Notebook
The notebook computer is compact with features on every side. First, look
at the inside of the system. The following sections describe inside features.
1. Color LCD Display 2. Built-in Stereo Speaker
3. Keyboard 4. LED Indicators
5. Easy Buttons 6. Power On/Resume Button
7. Built-in Stereo Speaker 8. Touchpad Pointing Device
• Color LCD Display
The notebook computer comes with a color LCD that you can adjust for a
comfortable viewing position. The LCD is 14” TFT color LVDS with
1280x768 WXGA (Wide XGA) resolution panels. The features of the
Color LCD Display are summarized as follows:
Introduction1
21
TFT color LVDS with 14” 1280x768 WXGA (Wide XGA)
resolution panels.
Capable of displaying 16M colors (32-bit true color) on either size
panels.
LCD display control hot-keys allows you to adjust the brightness of
the LCD.
Simultaneous display capability for LCD and external desktop
computer monitor.
• Built-in Stereo Speakers
Integrated left and right mini stereo speakers for sound and audio output
for your multimedia presentations or listening pleasure.
• Keyboard
Standard QWERTY-key layout and full-sized 87 keys keyboard with
Windows system hot-keys, embedded numeric keypad, 8 hot keys,
inverted "T" cursor arrow keys, and separate page screen control
keys.
Wide extra space below the keyboard panel for your wrist or palm to
sit-on comfortably during typing.
• LED Indicators
Keeps you informed of your notebook computer’s current power status
and operating status. Description of the status icons appears in the latter
part of this section.

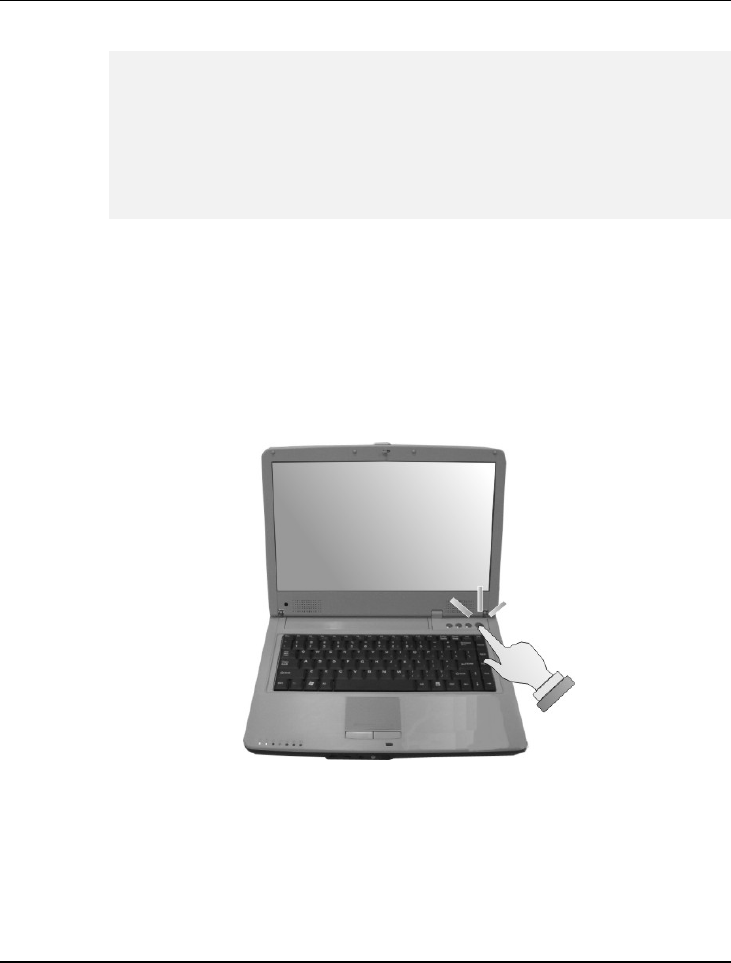

• Easy Buttons
There are three easy buttons used for accessing CPU Throttlingt,
Accessing E-mail and Internet functions instantly and easily. Description
of the easy buttons appears in the latter part of this section.
Notebook User Guide
22
• Power On/Resume Button
Switches the computer power on and off, or resumes whenever it is in
Suspend mode.
• Touchpad Pointing Device
Microsoft mouse compatible with two Touchpad click buttons. The two
select buttons located at each side support tapping selection and dragging
functions. These buttons work like a standard computer mouse. Simply
move your fingertip over the Glide Pad to control the position of the
cursor. Use the selection buttons below the Glide Pad to select menu
items.
• Power On/Resume Button
Switches the computer power on and off, or resumes whenever it is in
Suspend mode.
NOTEBOOK STATUS ICONS
The Status LED Panel keeps you informed of the notebook’s current power
and operating status. Each LED is marked with an icon to designate the
system status.
1. Power Indicator 2. Battery Charging LED
3. Drive Access 4. Wireless LAN Access
Introduction1
23
5. Caps Lock 6. Scroll Lock
7. Num Lock
• Power Indicator
Lets you know that power to the system is turned on. This LED is
positioned so that you can see the power state whether the LCD panel is
opened or closed.
Lights green when the system is powered on.
Lights green blinking when the system is in Standby mode.
Lights orange when the battery power is low.
• Battery Charging LED
Lights to indicate battery in charging status.
Lights orange to indicate that the battery is in charging.
Lights orange blinking when the batter charging is in error.
Lights green to indicate the battery is fully charged or no battery
installed.
• Drive Access
When LED in green light indicates that the system is accessing the Hard
Disk.
• Wireless LAN access
When LED in green light indicates that the wireless LAN module is
activated. When LED lights off, it indicates that the function is disabled.
• Caps Lock
When LED in green light indicates that the Caps Lock key on the
keyboard is activated. When activated, all alphabet keys typed in will be in
uppercase or capital letters.
Notebook User Guide
24
• Scroll Lock
When LED in green indicates that the Scroll Lock key on the keyboard is
activated. The Scroll Lock key has different functions depending on the
software you are using.
• Num Lock
When LED in green light indicates that the Num Lock key on the
keyboard is activated. When activated, the embedded numeric keypad will
be enabled.
THE FUNCTION OF EASY BUTTONS
1. CPU Throttling 2. Internet Button 3. E-Mail Button
• CPU Throttling
Press this button to decrease the CPU performance speed in order to save
power for extending battery life and operation time.
• Internet Button
This technology is designed specifically for providing a very convenient
way in connecting Internet only by pressing Internet button as shown in
the graphics. Just Press this button to open the Internat Explorer directly.
Introduction1
25
• E-mail Button
This is the most convenient way to access the outlook 2000/2003... utility
just by pressing this button. You can simplify several procedures in
entering into Outlook 2000/2003... environment.
1.4 The Front Side of the Notebook
1. 4-in-1 Card slot. 2. Microphone Jack
3. Headphone Jack 4. Cover Switch
5. IR Port
• 4 in 1 card slot
The card slot supports SD, MMC, MS (Memory Stick) and MS_Pro flash
memory card format. You can use either of the 4 types flash memory
cards for extra storage media. Please pay attention to correct direction
when you insert the flash memory card. For more detail of flash card, you
can refer to Chapter 3.9
• Microphone Jack
Allows you to connect an external microphone for monophonic sound
recording directly into your notebook computer.
Notebook User Guide
26
• Headphone Jack (with SPDIF out)
Lets you plug in a stereo headphone, powered speakers, or earphone set
with 1/8 inch phono plug for personal listening. (The SPDIF transmits
digitized audio signal by optical fiber. The external audio amplifier can get
the best audio quality without loss.)
• Cover Switch
The cover (LCD panel) is locked when it is closed. Slide the button right
aside to release the latch for opening the cover of the computer.
• IR Port
Wireless data/files transferring between your notebook computer and an
IR-equipped device or notebook computer. You can also control DVDs,
CDs, MP3 without touching the computer and print to an IR-equipped
printer without using cables.
Introduction1
27

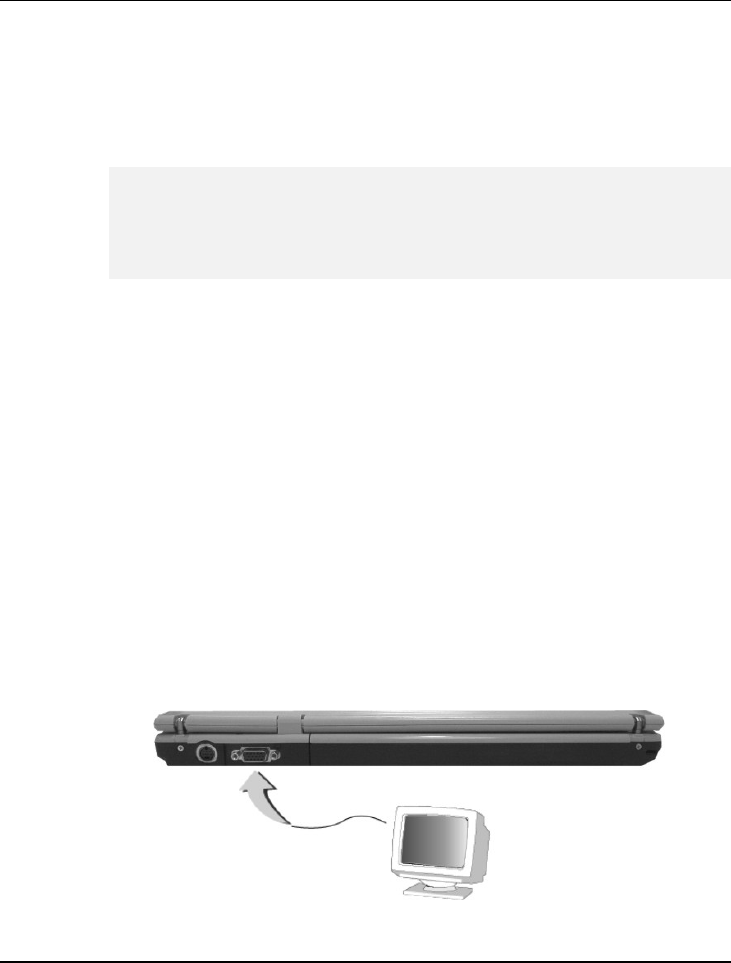

1.5 The Rear Side of the Notebook
The system ports at the back of your notebook computer can connect various
devices. Each port is described as followings.
1. TV Port (S-video) 2. VGA Port
3. Kensington Lock Hole
• TV Port
Lets you connect to the S-Video TV connector for presentation or VCD,
DVD watching.
• VGA Port
Lets you attach an external monitor or projector for wider display. You
can run the LCD display and the external monitor simultaneously or
switch it to monitor only using the display hot-key.
• Locking Device Keyhole
Lets you attach a Kensington security system or a compatible lock to
physically secure your notebook computer.
Notebook User Guide
28
1.6 The Left Side of the Notebook
The left side of your notebook computer provides the features shown in the
following figure.
1. Modem Port 2. LAN Port
3. Air Outlet Vent 4. IEEE 1394
5. PCMCIA slot
Left Side Features
• Modem Port
A 56K internal fax/data modem is installed. It keeps you connected to the
outside world through phone line.
• LAN Port
An internal 10Base-T/100Base-TX LAN module connects your computer
to other computers/networks through a local area network (LAN).
• Air-Outlet Vent
Emits the heat out of your computer and keeps it within operating
temperature.
Introduction1
29

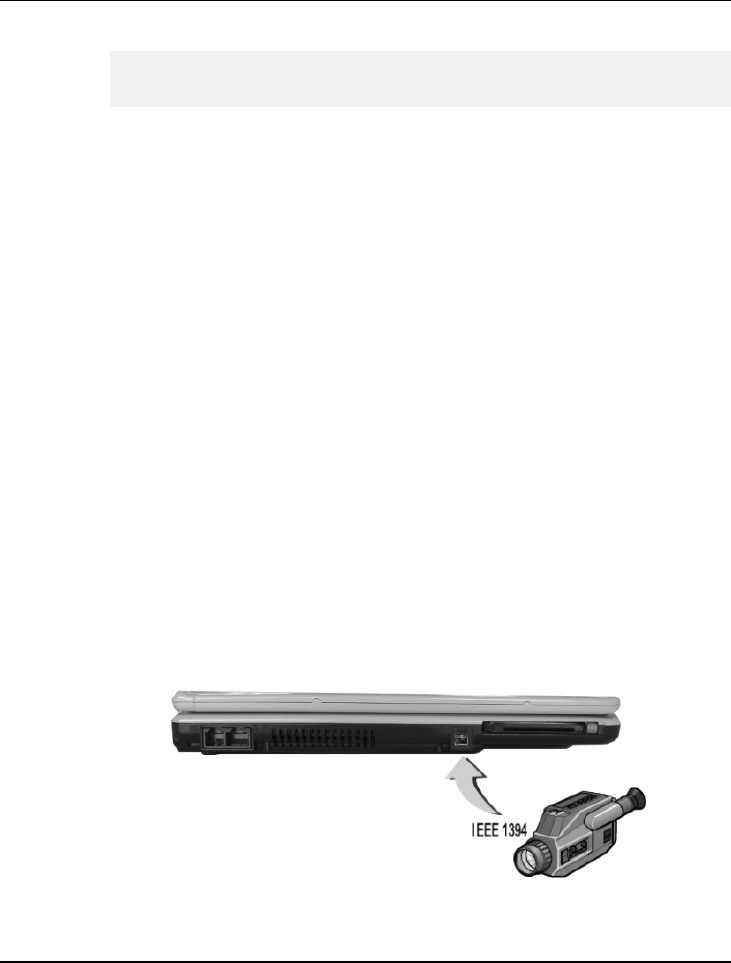

• IEEE 1394
IEEE 1394 port is a high speed I/O port that can transfer high levels of
data in real-time, such as external hard disk, Digital Video Camera.
• PCMCIA Slot
An Infrared Remote Control is stored in this slot while shipping. Besides,
this slot functions as a normal PCMCIA slot.
Lets you connect various PC cards such as memory card
Supports both 3V, 5V 32-bit CardBus and 16-bit PC cards.

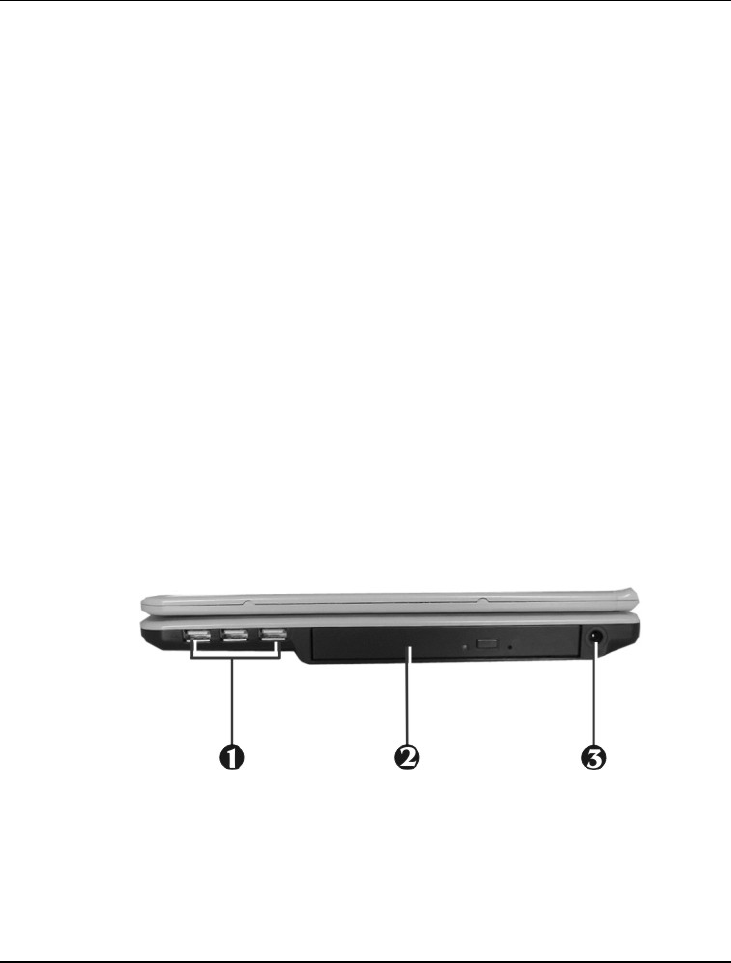

1.7 The Right Side of the Notebook
The right side of the notebook computer offers the features shown in the
following figure.
1. USB 2.0 Ports 2. Optical Disk Drive 3.DC Power Port
Right Side Features
Notebook User Guide
30
• USB 2.0 Ports
The Universal Serial Bus (USB) port allows you to connect USB 2.0-
compliant devices (for example, printers, scanners and so on) to your
notebook computer.
• Optical Disk Drive
Allows you to load and start programs from a compact disc (CD) or a
digital video disc (DVD) and play conventional audio CDs. It also can
make CD/DVD by using CD-R/RW. or DVD-R/RW.
• DC Power Port
Lets you connect the AC power adapter in supplying continuous power to
your notebook and recharging the battery.
1.8 The Underside of the Notebook
The bottom of the notebook computer offers the following features.
1. Battery Bay 2. Battery Release Latch
3. Hard Disk Compartment 4. Battery Lock Latch
5. Memory Compartment 6. Wireless LAN Compartment
Introduction1
31
Bottom of the System
• Battery Bay
Equipped with a choice of Lithium-Ion (Li-Ion) battery pack.
• Battery Release Latch
Push the latch to the left end to remove the battery pack.

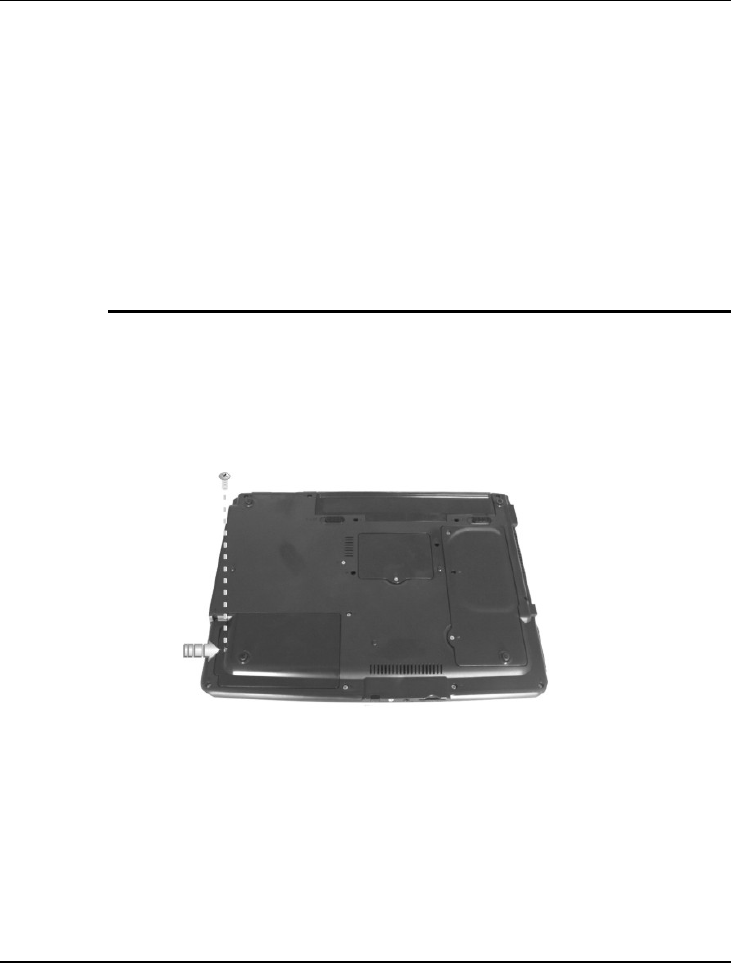

• Hard Disk Compartment
Open this cover of this compartment to replace with other Hard Disk
Drive. Please refer to Chapter 7 for how to replace it.
• Battery Lock Latch
Push the latch to the lock side to secure the battery. This action only
available when the battery release latch has located to the right side.
• Memory Compartment
Remove the screw to find two SO-DIMM memory slots. One memory
slot is empty for upgrade usage.
• Wireless LAN Compartment
This compartment is for installing Wireless LAN module to enable the
Wireless LAN function. We strongly suggest that Wireless LAN module
should be installed only by certified dealer.
1.9 Infrared Remote Control
A infrared remote control is included with this notebook, and it is stored in the
PCMCIA slot. While the multimedia features give users a range of options for
entertainment, you can use this infrared remote control to control DVDs, CDs,
MP3 without touching the computer.
Notebook User Guide
32
The infrared remote control that fits just perfectly in you hand is for power,
volume up/down, six music/video media buttons (play, fwd, rwd, stop, etc),
4-way thumb joystick, and other keyboard functions. You will no longer to
move your body to control the software by touching ing the notebook, just lay
on your couch and enjoy the convenience that the IR remote control brings to
you.
1. TV/DVR Start TV/DVR
2. Power Shut down your computer
3. Pause Pause
4. Play Play
5. Stop Stop
6. 4-way Thumb Joystick Position your cursor
7. Back Back to previous page
8. Picture Begin to show pictures
9. Music Begin to play music
10. DVD/menu Start DVD
11. Home Return to the home page
Introduction1
33
12. Prev Back to previous chapter
13. Next Go to next chapter
14. Fwd Fast Forward
15. Rew Fast Backward
16. Volume up Increase the volume
17. Volume down Decrease the volume
18. Mute Mute the sound
19. Record Begin to record
20. Setup Open setup window
This Infrared Remote Control is for Windows Medis Player only, so the
three buttons “TV/DVR”, “DVD/menu”, “Home” is not valid.
The full functions of the Infrared Remote Control will be supported if the
Software of InterVideo Thearer Home (optional) has been installed.
1.10 Notebook Accessories
AC Adapter
The AC Adapter supplies external power to your notebook computer and
charges the internal battery pack simultaneously. The AC adapter has an auto-
switching design that can connect to any 100VAC ~ 240VAC power outlets.
You just change the power cord if you are going to use your notebook in other
countries with different connector outlets.
When you connect the AC adapter, it charges the battery whether or not the
notebook computer is powered on.
Notebook User Guide
34
Battery Pack
Aside from the AC adapter, your computer can also be powered through the
internal battery pack. The battery pack uses rechargeable Lithium-Ion (Li-Ion)
battery cells that provide long computing hours when fully charged and power
management enabled. You should always leave the battery inside your
computer even when using the AC adapter as it also acts as a back-up power
supply in case power from the AC adapter is cut off. It is also very important
to have the battery pack always charged to prevent battery cell degradation.
1.11 Notebook Options

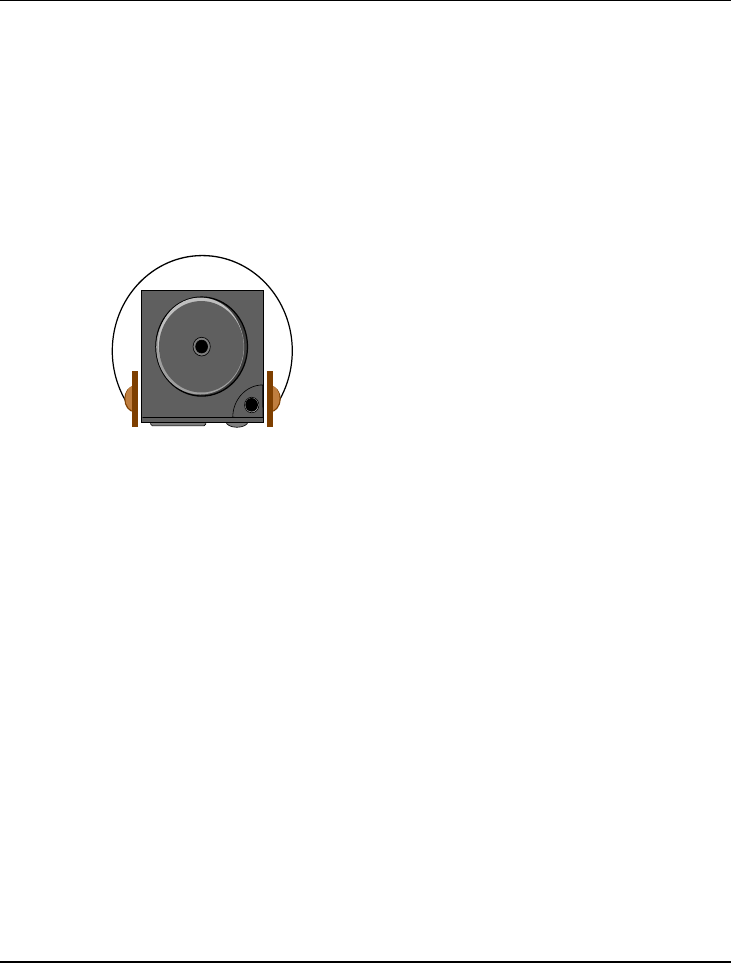

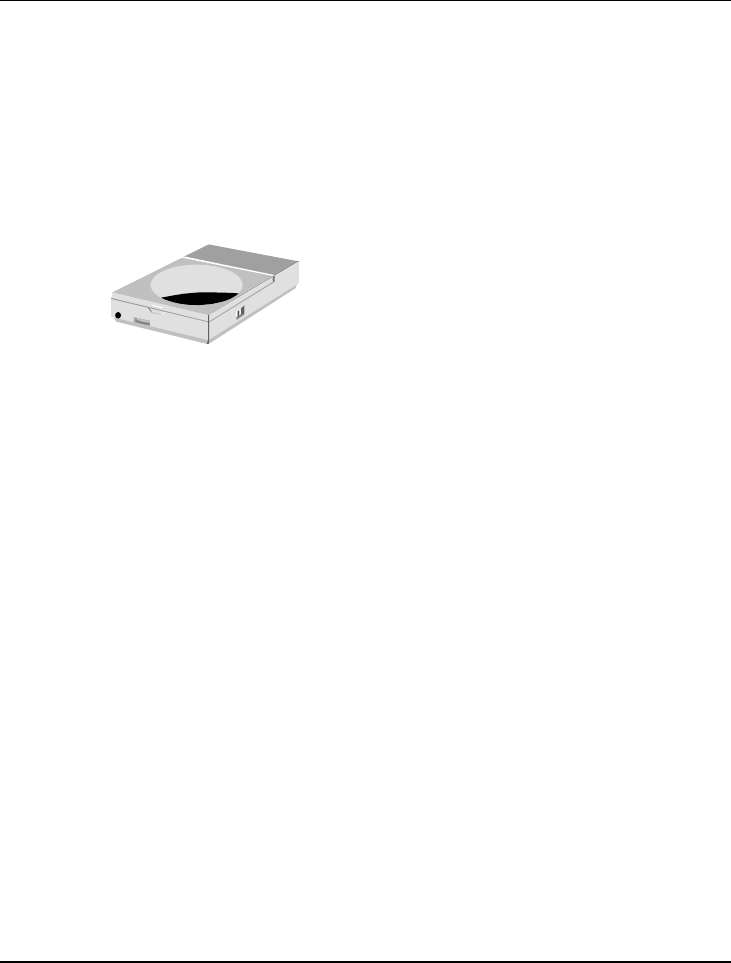

DVD/CD-RW Combo Device Pack
This device pack can write data to CD-R or CD-RW CD for you to backup the
data and also can read DVD/CD title.
DVD dual (Dual Rewritable DVD combo) Device Pack
This device pack combines following two standard packs. Using the suitable
media, you can make any format of CD or DVD as you want.
DVD-RW combo:
This device pack can write data to CD-R or CD-RW and DVD-R or DVD-
RW media and also can read DVD/CD title. This media is commonly used on
DVD video player.
DVD+RW combo:
This device pack can write data to CD-R or CD-RW and DVD+R or
DVD+RW media for you to backup the data and also can read DVD/CD
title. This media is commonly used on newer DVD video player.
DVD Multi
Introduction1
35
DVD Multi is a standard that certifies DVD drives for media compatibility
between three DVD formats. A DVD Multi drive can read and write DVD-R,
DVD-RW, and DVD-RAM, all of which are supported by the DVD Forum.
Getting Started 2
37
2 Getting Started
Your Notebook is designed and pre-configured for
easy setup and use. This chapter describes the
installation steps you should follow to get the
notebook up and running as quickly as possible.
Contact your dealer if they have pre-installed all the
needed drivers to fully operate your computer or if
there is an update on the driver installation of the
notebook.
Notebook User Guide
38
2.1 Using the Battery Pack
The notebook is designed to operate with one of the following power sources:
• With AC power using the AC adapter connected to an electrical outlet.
• With a Lithium-Ion (Li-Ion) battery pack.
You should use the AC adapter whenever it is possible, relying on the battery
pack only when AC power is unavailable.
Before you use your notebook computer, install and recharge the battery pack
first. The rechargeable Li-Ion battery pack allows you to operate the notebook
without an external power source. When you connect the AC power adapter,
the battery immediately starts to recharge. Normal battery charging time is 2
hours for Lithium-Ion (Li-Ion) battery pack when your computer is turned off.
For maximum battery performance, fully discharge the battery first before
recharging it when you start to use it first time. To do so, unplug the AC
adapter, turn off power management features (through Setup and Windows),
and turn on the system. Once the battery is fully discharged, plug in the AC
adapter and recharge the battery. You can also do it by using the Battery
Refresh function in BIOS setup menu that is described on chapter 6.6
If you do not discharge the battery completely, it fails to accept a full recharge.
Li-Ion battery is vulnerable, do not charge it with other power adapter, or it
may cause fire or explosion.
Getting Started 2
39

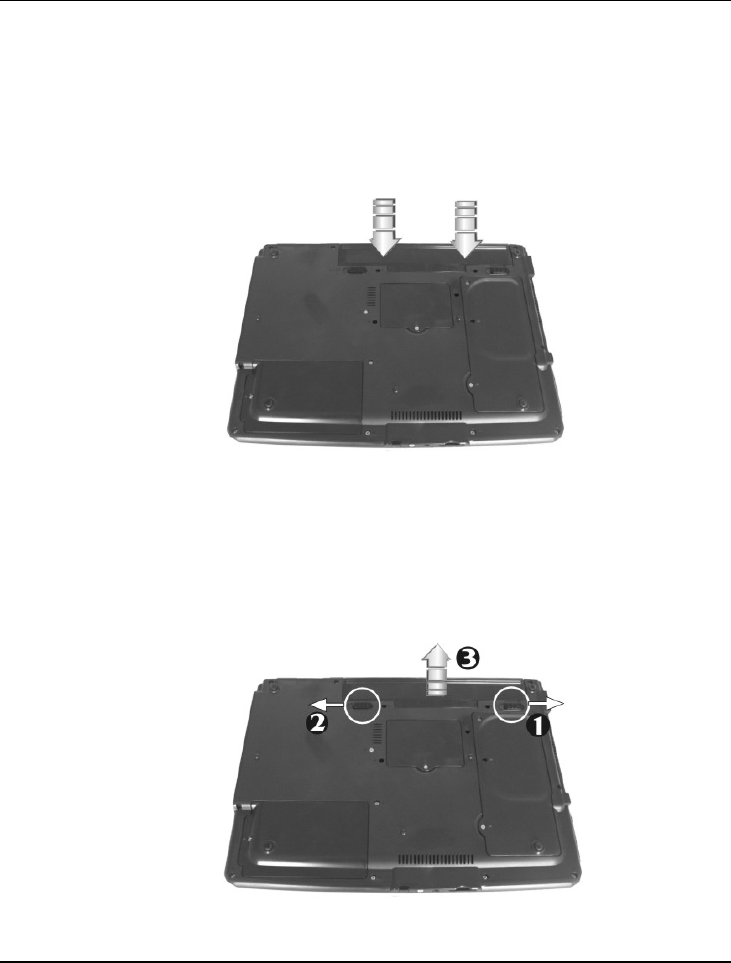

Installing the Battery Pack
This notebook provides the most convenient way to install the battery pack
into your computer. With the extended nose directed toward the
compartment, insert and push the battery pack.
Removing the Battery Pack
To remove the battery pack, slide the lock latch to the end of left side to
unlock the battery pack (1), and push Battery release latch to left (2). At the
same time, remove the battery pack (3), and then take out the battery pack
with your fingers.
Notebook User Guide
40
Replacing the Battery Pack
When your notebook estimates that the battery only has enough charge to
continue for a few minutes, it will alert you with a battery low warning beep. If
you are consuming a lot of power by using the audio system, the PCMCIA
slots, the hard disk drives, and Combo drive, your notebook might run out of
charge much sooner than you expect. You should always respond to the
battery low indication by connecting to AC power or turning off your
notebook, or suspending your notebook to disk. If you do not do so, the
notebook will automatically suspend to disk and turn off. The contents of the
memory will store in the hard disk drive. You will be unable to restart the
notebook until you have connected to the AC adapter or installed a charged
battery. To replace the battery pack, refer to the previous sections on
"Installing the Battery Pack" and "Removing the Battery Pack."
For Window XP, the suspend mode (Hibernate or Standby) can be chosen
at Power Options of Windows's Control Panel)
Be sure to save your data before replacing the battery pack or connecting
the AC adapter. Failure to do so can result in data loss.
EXTENDING BATTERY LIFE
It is important to be aware of the simple things for extending the life of the
system main battery while you are on the road. You should find a working
place where the external lighting is not too bright and turn down the screen
brightness. Also, you can choose the available mode on the Power
Management item of the Control Panel in Windows.
Getting Started 2
41
2.2 Connecting the AC Power Source
The AC adapter provides external power source to your computer and charges
the internal battery pack at the same time. The AC adapter also has an auto-
switching design that can connect to any 100VAC ~ 240VAC power outlets.
To connect the power adapter:
1. Plug the AC power cord into the power socket of the AC power adapter.
2. Plug the other end of the AC power cord to a live AC wall outlet.
3. Plug the connector of the AC adapter to the DC-IN port found at the
right side of the computer.
Whenever possible, it is advisable to always have the AC adapter connected
to the notebook and the battery pack installed. This ensures continuous
power supply and prevents any data loss incurring from sudden power
breakdown.
Notebook User Guide
42
y For the power supply of this equipment, an approved power cord has to
be used.
y Make sure the socket and any extension cord(s) you use can support
the total current load of all the connected devices.
y Before cleaning the computer, make sure it is disconnected from any
external power supplies (i.e. AC adapter).
2.3 Starting Your Computer
The Power/Resume button is found on the top of the base unit. Press the
Power/Resume button to start your computer and check that if the Power
LED turns on.
After a few seconds, the computer’s display will turn on and your computer
will begin to execute the Power On Self Test or POST to check if all system
components are running properly. Any error found during the test will be
displayed on the screen and may generate short beep sound as well.
Getting Started 2
43
After the test, the screen will also display a message "press <F2> to enter
SETUP". You don’t need to run this program at the moment as your dealer
already made the necessary settings for your computer optimal operation.
Refer to Chapter 6 on running the SETUP program later.
After the test has completed, your computer will start to search and boot up
the operating system from your hard drive. The notebook computer normally
comes with a Windows operating system pre-installed in your hard drive.
Consult the Windows manual on how to use the program. If not, contact your
dealer for assistance.
2.4 Adjusting the Display Controls
The LCD brightness adjustment is controlled by <Fn> +<F8> and <Fn> +
<F9> keys respectively. You need to press these hot-key controls after
powering on your notebook to suit your viewing pleasure.
The Brightness hot-key control adjusts the brightness on the LCD. The
brightness hot-key control will not set the LCD completely dark or bright; it
provides sufficient lighting to the LCD to match the external lighting of the
surrounding. The brighter the room, the more you need to increase the
brightness of the LCD.
2.5 Installing the Notebook Device
Drivers
If you already have an operating system installed into your notebook
computer, it is best to install the needed device drivers for using the built-in
devices of your computer. Before installing the drivers, check with your dealer
Notebook User Guide
44
first if they have already installed all the drivers along with the operating
system. If not, follow the procedures below:
INSTALLING WINDOWS XP FROM OPTICAL DISK DRIVE
To install Windows XP directly from your optical disk drive, please go to Boot
menu of BIOS setup menu. Use arrow key to select "CD-ROM Drive", then
use "+" or "-" to move it to the top. Go to Exit menu and select "Exit
Saving Changes". Accordingly, insert the Windows XP installation CD into
optical disk drive with following the instructions on the screen to finish the
installation.
ENABLE DMA CHANNEL FOR BEST PERFORMANCE
This Notebook supports DMA function for fastest data bus transmission. The
Windows system does not enable this function after you had installed the
Windows system. You must enable this function manually to make this
notebook running smoothly, especially in music listening and DVD, VCD
playback.
Enable DMA for Windows XP
1. Please click the following buttons with the procedure Start --> Setting-->
Control Panel --> System --> Hardware --> Device Manager.
2. Select and click IDE ATA/ATAPI Controller, you will find Primary
IDE Channel and Secondary IDE channel. Please click Primary IDE
Channel first.
3. Click Advanced setting Tab. Please change the selection of Transfer
Mode to DMA if available on both Device 0 and Device 1. Then Click
OK to return to the Device Manager box.
Getting Started 2
45
4. Change the setting of Secondary IDE Channel with following the
previous steps that was set to Primary IDE Channel.
5. Restart your notebook to let the setting take effect.
DRIVER INSTALLATION NOTE:
Please be notified that when you install the driver utility, it should be install
the CHIPSET Driver first. *
Please install ENE KBC driver previously before install Alps touch pad
driver.
INSTALLING THE CHIPSET DRIVER
Your notebook computer uses the advanced chipset. Installing the driver to
enhance the stability and performance.
Installing Chipset device driver for Windows XP
1. Click the Start button, then point to Run. The Run dialog box appears.
2. Click the Browse button and specify the directory as.
"E:\Drivers\WinXP\Chipset\Setup.exe".
3. Implement the setup program to install this driver. The Welcome dialog
box appears.
4. Click Next continuously to install this driver when screen displays this
command.
5. Press OK to restart your system.
Notebook User Guide
46
INSTALLING ENE- KBC DRIVER
Installing ENE-KBC driver for Windows XP
1. Click the Start button, then point to Run. The Run dialog box appears.
2. Click the Browse button and specify the directory as.
"E:\Drivers\WinXP\KBC\Setup.exe".
3. Implement the setup program to install this driver. The Welcome dialog
box appears.
4. Click Next to process the further step continuously when screen displays
this command.
5. Press Finish to restart your system.
INSTALLING THE VGA DEVICE DRIVER
Following is the procedure for installing the Video Accelerator 3D Adapter
VGA driver to your computer:
Installing VGA device driver for Windows XP
1. Click the Start button, then point to Run. The Run dialog box appears.
2. Click the Browse button and specify the directory as.
"E:\Drivers\WinXP\VGA\Setup.exe".
3. Implement the setup program to install this driver. The Welcome dialog
box appears.
4. Click Next to install this driver when screen displays this command.
5. Press Finish to restart your system.
Getting Started 2
47
INSTALLING THE AUDIO DEVICE DRIVER
Your notebook computer uses the Audio controller.
Installing Audio device driver for Windows XP
1. Click the Start button, then point to Run. The Run dialog box appears.
2. Click the Browse button and specify the directory as.
"E:\Drivers\WinXP\Audio\Setup.exe"
where the audio driver is located.
3. Implement the setup program to install this driver. The Welcome dialog
box appears.
4. Click Next to process the further step continuously when screen displays
this command.
5. Press Finish to restart your system.
INSTALLING THE MODEM DEVICE DRIVER
Please follow the procedures below for installing the Data Fax Modem driver:
Installing Modem driver for Windows XP
1. Click the Start button and then click Run. The Run dialog box appears.
2. Click Browse button and navigate to the directory as
"E:\Drivers\WinXP\Modem\setup.exe"
where the modem driver is located.
3. Click ＞＞ to install this driver when screen displays this command.
4. Press 9 to finish the installation.
Notebook User Guide
48
INSTALLING THE LAN DEVICE DRIVER
Please follow the procedures below for installing the LAN driver:
Installing LAN driver for Windows XP
1. Click the Start button, then point to Run to appear the Run dialog box.
2. Click the Browse button to specify the directory as
"E:\Drivers\WinXP\Lan\winsetup.exe"
3. Click OK to finish the installation.
INSTALLING ALPS - TOUCH PAD DRIVER
Installing ALPS - Touch Pad driver for Windows XP
1. Click the Start button, then point to Run. The Run dialog box appears.
2. Click the Browse button and specify the directory as.
"E:\Drivers\WinXP\Touch Pad\Setup.exe".
3. Implement the setup program to install this driver. The Welcome dialog
box appears.
4. Click Next to process the further step continuously when screen displays
this command.
5. Press Finish to restart your system.
INSTALLING THE CARD READER DEVICE DRIVER
Please follow the procedures below for installing the Card Reader driver:
Installing the Card Reader driver for Windows XP
1. Click the Start button, then point to Run. The Run dialog box appears.
Getting Started 2
49
2. Click the Browse button and specify the directory as.
"E:\Drivers\WinXP\Card Reader\Setup.exe".
3. Click Next to process the further step continuously when screen displays
this command.
4. Press Finish to finish the installation.
INSTALLING THE WIRELESS LAN DEVICE DRIVER
Please follow the procedures below for installing the Wireless LAN driver:
Installing the Wireless LAN driver for Windows XP
1. Click the Start button, then point to Run. The Run dialog box appears.
2. Click the Browse button and specify the directory as.
"E:\Drivers\WinXP\Wireless LAN\ Setup.exe ".
3. Implement the setup program to install this driver. The Welcome dialog
box appears.
4. Click Next to process the further step continuously when screen displays
this command.
5. Click Yes to process the further step continuously when screen displays
License Agreement.
6. Click Next to process the further step continuously when screen displays
this command.
7. Press Finish to finish the installation.
Notebook User Guide
50
INSTALLING THE BLUETOOTH UTILITY
Please follow the procedures below for installing the Bluetooth Utility
Installing the Bluetooth utility for Windows XP
1. Click the Start button, then point to Run. The Run dialog box appears.
2. Click the Browse button and specify the directory as.
"E:\Drivers\WinXP\Bluetooth Utility\Setup.exe ".
3. Click OK to process the further step continuously when screen displays
Choose Setup Language.
4. Implement the setup program to install this driver. The Welcome dialog
box appears.
5. Click Next to process the further step continuously when screen displays
this command.
6. Select I accept the terms in the license agreement then press Next.
7. Press Finish to restart your system.
8. Click Install to process the further step continuously when screen
displays Ready to Install the Program.
9. Press Finish then Yes to restart your system.
2.6 Turning off Your Computer
If you are not going to use the computer for a while, it is best to turn off the
power of the computer for longer use. Before turning off the power, you need
to close first all application programs and shutdown the operating system.
After turning off the computer, make it a habit to leave the LVDS panel open
for a while whenever used for an extended period of time. This allows the
Getting Started 2
51
inside parts of the computer to cool off. Closing the panel will force the heat
up against the LCD screen, which may degrade the LCD when done regularly.
More importantly, never close the LVDS panel for a long period of time when
computer is on and power saving features are disabled.
Using Your Notebook 3
53
3 Using Your Notebook
This chapter describes how to operate the standard
built-in features of the notebook that you normally would
use in your day-to-day computer work. If you are new to
computers and to your operating system, you also need to
read the manual for the operating system on how to work
with your computer. It is very important to familiarize
yourself well with the operating system. The succeeding
chapters not only guide you to go beyond the basics, but
also try other exciting features.
Notebook User Guide
54

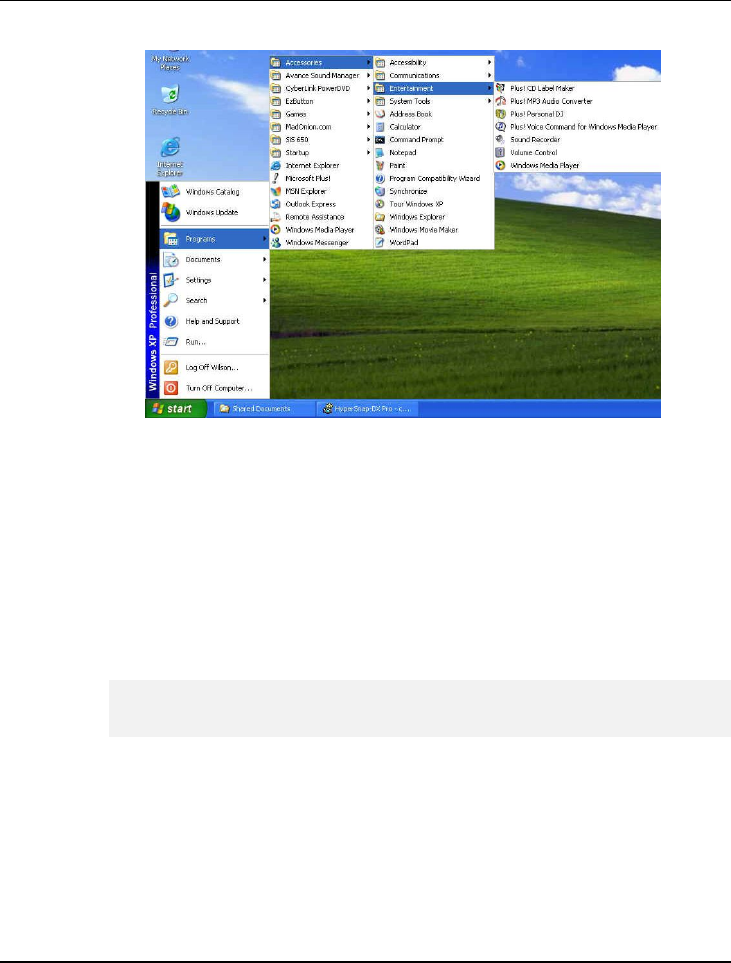

3.1 Starting Your Operating System
The operating system is a must ingredient in using your computer. Without an
operating system, it is like playing chess without the chessboard. It is the
platform for all your software application programs to run on. The most
popular operating system today is Microsoft Windows. You should have
installed one operating system by your dealer unless you are an expert
computer user and would need a more powerful operating system. If you have
an operating system already installed in your computer, then you would be up
and running after you power on your computer and boot up the system. Check
your operating system manual on how to run it.
3.2 Understanding the Keyboard
Functions
Your notebook computer is equipped with an 87 keys keyboard that provides
all the functionality of a full-sized 101 or 102-key keyboard. Aside from the
standard typewriter-layout keyboard of your computer, there are a number of
extra features and function controls on the built-in keyboard including
Windows system hot keys.
Using Your Notebook 3
55
1. Function Keys 2. Control Keys
3. Windows Start Menu Key 4. Control Keys
5. Windows Shortcut Key 6. Cursor Control Keys
Keyboard
Key features and operations are described below:
• Function Keys
Function keys are application-driven, like F1 through F12 can be found on
the keyboard. These keys work together with the Fn key to activate special
functions. Some keys (printed in blue on keypad) are preprogrammed with
dual functions.
• Control keys — Ctrl, Alt, Fn, and Shift are controls used in conjunction
with other keys to change their functions. To use control keys, press and
hold the control key while pressing another key. For example, "Press Ctrl-
C" means to hold down the Ctrl key and type the letter C. Key
combinations work especially to the application you are running.
Notebook User Guide
56
• Windows keys
Use the following two keys to facilitate your work:
Start Menu key
Displays the Start menu.
Shortcut/Application key
Provides quick access to shortcut menus. This key acts like a right
mouse button.
• Cursor Control keys
Cursor control keys let you position the cursor on the screen where you
want. In the screen, the cursor is a blinking underline, block, or vertical
bar depending on the application. The cursor indicates where the next text
typed is inserted.
• Typewriter keys
Typewriter keys (also called alphanumeric keys) are used to enter text and
characters. Keys with blue print on them behave differently when
combined with control keys.
Using Your Notebook 3
57
BASIC KEYBOARD FUNCTIONS
Keypad Function Description
<Enter> key. Execute a command. Within many
text editing application programs, the <Enter> key
inserts a hard carriage return, just like what ordinary
typewriter does.
<Esc> key. Press this key to cancel or escape from
a command or function.
<Ins> key. Known as the Insert key. Press this key
to toggle the keyboard data entry from insert to type
over mode.
<PrtScr> key. Known as the Print Screen key. Press
this key to map the whole screen to share memory for
your specific usage.
<Del> key. Known as the Delete key. Press this key
to delete the character to the right of the cursor, or
delete marked texts or items.
<Pause> key. Press this key to temporarily halt
execution of a command. Pressing any other key to
resume execution of a command.
<Backspace> key. Press this key to delete the
character to the left of the cursor.
<Shift> key. Press this key in combination with
alphabet letters to produce uppercase letters in
typing. Use this key in combination with those two-
character keys (found on the second row of the
keyboard) to produce the upper marked keys. Also
used in most application program in combination
with other keys to execute a certain command.
<Tab> key. Press this key to move the cursor to the
next tab stop on the right. This key works much the
same as in ordinary typewriter.
Notebook User Guide
58
Keypad Function Description
<Ctrl> key. Known as the Control key. Used in
most application program in combination with other
keys to execute a certain command.
<Alt> key. Known as the Alternate key. Used in
most application program in combination with other
keys to execute a certain command.
+
<Fn> + <Num Lock> key. Activates the
embedded 15-key numeric keypad. The keys are
color coded blue.
<Caps Lock> key. Used in most application
program to always activate uppercase alphabet
characters.
+
<Fn> + <Scroll Lock> key. Used in most
application program to scroll the screen without
having to move the cursor.
CURSOR CONTROL KEYS
Keypad Function Description
Up arrow key. Moves the cursor up one line at a
time.
Down arrow key. Moves the cursor down one
line at a time.
Left arrow key. Moves the cursor to the left one
space at a time.
Right arrow key. Moves the cursor to the right
one space at a time.
Using Your Notebook 3
59
SCREEN CONTROL KEYS
Keypad Function Description
<Home> key. Moves the cursor to the
beginning of a screen or line.
<PgUp> key. Moves the cursor up one
screen at a time
<PgDn> key. Moves the cursor down one
screen at a time
<End> key. Moves the cursor to the end of a
screen or line.
WINDOWS HOT KEYS
Keypad Function Description
<Start> key. Pulls up the Windows Start menu.
<Right Click> key. Performs a mouse right-click
function for Windows system.
SPECIAL FUNCTION KEYS
The notebook has special system function keys that activate key serving dual
functions. When pressed in conjunction with the <Fn> key, these keys set
specific system parameters and are sometimes referred to as "hot keys".
Notebook User Guide
60
Keypad Function Description
+
Enable or Disables the built-in wireless
LAN.
+
Switches display between LCD, CRT, or
LCD and CRT simultaneously.
+
To shut down or resume the built-in
system speaker volume.
+
Press this key to activate the system into
the suspend mode.
+
Increases the brightness of LCD display
incrementally.
+
Decreases the brightness of LCD display
incrementally.
+
Decreases the audio volume of the
notebook incrementally.
+
Increases the audio volume of the
notebook incrementally.
Using Your Notebook 3
61
3.3 Using the Glide Pad Pointing Device
Your computer comes with a built-in Glide Pad pointing device that is found
on the center of the palm-rest surface.
The Glide Pad offers a number of options that let you customize how it
functions. To access these options, locate the Control Panel and double click
on the Mouse icon. The options let you control the size and color of the
cursor, cursor speed, the accepted double-click speed, and selection button
orientation.
The Glide Pad works a mouse pointing device replacement that is used under
Windows-based operating system. You can use the standard Microsoft driver
that is compatible with the Glide Pad device and is normally used under
Windows-based operating system. However, if you want to utilize the added
features of the Glide Pad, you may want to try installing its own device driver
that comes with added utilities for enhancing the function of the device.
1. Left Selection Button 2. Right Selection Button
Notebook User Guide
62
3. Glide Pad
Glide Pad Features
Here how to use the Glide Pad pointing device:
1. The rectangular surface acts like a miniature duplicate of your display
screen. To move the mouse cursor, place the finger lightly on the sensor
pad and move in the desired direction. If you reach the end of the pad, lift
your finger and place it back down on the other side of the pad.
2. To select an item, click on the item by pressing the left button control or
by simply tapping on the surface once. A light, quick tap always works
best. To execute an item, click the left button twice or do a quick double
tap on the surface.
3. To simulate holding the mouse button down (dragging an icon or
selection), use the tap-and-drag gesture. This feels much like a double-
click, except that the finger remains on the pad after the second tap: Tap,
lift, tap, hold and move. The simulated button remains held as long as the
finger remains on the pad.
4. When you press both the Left and Right click button at the same time, the
auto Scroll function will be activated.
Avoid spilling any liquid on the Glide pad surface and always keep the
Glide pad surface and pointing finger dry from sweat built-up. Also do not
expose Glide pad to any magnetic source object.
3.4 Configuring Your Screen Display
The VGA display function of your notebook is based on a high performance
AGP local bus controller and is fully VGA compatible. This controller offers a
Using Your Notebook 3
63
large set of extended functions and higher resolutions especially useful when
you are connecting an external high-resolution and high-frequency CRT or
LCD.
Please Refer to Section 5 "Installing the Notebook Device Drivers" of Chapter
2 in this manual for the procedures on how to install the VGA device driver
under Windows. After installing the VGA driver, you would then configure the
display resolution or screen size to match your LCD display panel. This
notebook computer model provides 14” 1280x768 WXGA (Wide XGA) or
14.1” 1280x800 (Wide XGA) resolution panels. You would also probably want
to set the amount of color output to display sharper images and photos.
POSSIBLE DISPLAY CONFIGURATIONS
The table below shows you the possible display resolution you can set when
using either the LCD display or the external monitor (CRT):
Display Possible Resolution Maximum Colors
14” 1280x768
WXGA LCD
800x600
1024x768
1280x768
16 million colors
16 million colors
CRT Only 800x600
1024x768
1152 x 768
1280x1024
16 million colors
16 million colors
16 million colors
65,536 or 64K colors is also equivalent to 16-bit high color while 16 million or
16M colors is equivalent to 32-bit true color.
You can use the <Fn> + <F3> hot-key to switch the display between LCD
only, CRT only, or both LCD and CRT display.
Notebook User Guide
64
CHANGING THE DISPLAY PROPERTIES UNDER WINDOWS
To change the display properties of your screen under Windows system, just
right-click on the desktop area and select Properties or go to the Control Panel
and click on the Display icon. The Display Properties dialog box will appear on
your screen. Click on the Settings tab to set your desired configuration. Make
sure to follow the configuration table above.
If you cannot configure the display properties, change the display driver
first as mentioned on Section 5 "Installing the Notebook Device Drivers" of
Chapter 2 in this manual. Consult your dealer for the latest Windows VGA
driver.
3.5 Knowing the Power Saving Features
One of the great features in your notebook computer aside from its superior
performance is the ability to save energy power. Your computer is designed to
incorporate intelligent and advanced power management functions that turn
off power of most components when system is idle or not in use. This feature
not only gives you longer battery hours but cooler systems and components as
well. For more information on how to control the power management features
of your computer, refer to Power Options function in Control Panel of
Windows.
The definitions of Standby Mode, Hibernation Mode, and Shutdown are
depicted as follows:
Standby Mode
Standby Mode is mainly for power saving. When the Standby Mode is
activated, your display and hard drive are shut down and all open applications
Using Your Notebook 3
65
and documents are stored in RAM (Random Access Memory). This allows
your notebook to wake up quickly, but a low level of power is required to
maintain this suspended state. How quickly your system powers down into
Standby mode is up to you by setting proper times in Power Options of
Control Panel in Window. While the notebook is in Standby mode, the LED
of power indicator flashes. To resume your working again, you can press the
power button to return your work to the screen where you left off.
Hibernation Mode
In Hibernation mode, all system devices are powered down and the contents
of RAM are stored on your hard drive. Hibernate mode uses less power than
Standby mode, but takes a bit longer time to resume. When your notebook
goes into hibernation, Windows saves your entire desktop state before
powering down your computer. You don’t need to save and close each
document before you put your notebook into hibernation. When you press
power button again, system will bring your notebook out of hibernation. You'll
find your applications and documents open on your desktop exactly as you left
them.
Hibernation is enabled by default. To verify that Hibernation is enabledd,
Click
Start
, point to
Settings
, and then click
Control Panel.
Choose
Power Options
icon, then click on the
Hibernate tab
. IF the chock box
of Enable Hibernate is selected, the Hibernation mode is enabled.
Shutdown
All power has been turned off from the notebook. This means that no power
including external AC power source and battery power source will be consume
by the notebook.
Notebook User Guide
66
3.6 Working with the Built-in HDD
Your notebook computer is equipped with a built-in large capacity 2.5 inch
IDE hard disk drive where you store or install your computer operating system
and all application software programs. You need to format the hard disk
before using. The internal hard disk is normally assigned as Drive C after
formatting. Sometimes divided into two partitions, adding a Drive D. Since
your computer supports different hard disk capacities (up to 60 GB), you also
need to setup the disk type first on your computer’s BIOS SETUP program
before formatting the disk drive. Your computer supports Auto-detect hard
disk type, so you do not need to set it manually. Your dealer should already
have done all of this for you. You can refer to Chapter 6 on how to run the
BIOS SETUP program.
You can increase the system’s storage capacity by replacing the standard hard
disk drive with a drive of greater storage capacity.
If you wish to replace your hard disk, contact your local dealer for more
information about this dealer-installable device.
Always turn off your computer first before removing the hard disk drive.
Failure to do so will damage the computer and the hard disk. Avoid jarring
or moving the computer while the hard disk is still being accessed.
3.7 How to Access the Optical Drive
Your system ships with an optical disk drive installed on the right side of your
computer. You would normally use the drive for installing operating system
and software application programs.
To insert and remove a disc on the drive:
Using Your Notebook 3
67
1. Make sure the computer is turned on. Press the eject button found on the
door cover of the combo drive. The CD tray mechanism will pop-out
slightly and slowly pull out the whole length of the tray.
2. Place the disc on top of the CD tray with the label side facing up. Gently
press the compact disc onto the center spindle to secure the disc.
3. To remove the disc, press on the center spindle and pull up the disc from
the side until the disc snaps out of the spindle lock.
If the eject function is disabled by software or a power failure occurs, the
Emergency Eject Hole allows you to manually remove a CD from the
reader.
4. To close the combo drive, simply push the CD tray inside. The combo
drive LED will activate when the disc is detected. Wait until the LED has
turned off and then start to read the disc.
Notebook User Guide
68
How to care the CD
When you handle CDs, pay attention to the following guidelines:
• Always pick up the CD by its edges.
• Avoid scratching or soiling either side of the CD.
• Do not write with the hard ball-point pen or apply labels on either side of
the CD.
• Keep the CD away from direct sunlight or high temperatures.
• Clean fingerprints or dust from the CD by wiping it with a soft cloth.
The above points also apply to other optical storage media.
The Combo drive is a Class 1 Laser Product.
3.8 Using PCMCIA Cards
WHAT IS PCMCIA?
PCMCIA or Personal Computer Memory Card International Association is a
non-profit trade association that defines the industry standard for the PC Card
technology. The goal of PCMCIA is to ensure that any PC Card can work in
any mobile computer built with a PCMCIA slot.
A PC Card is a peripheral device that can add a wide variety of capabilities to
your computer including memory, mass-storage, LAN, fax/modem, wireless
communications, and multimedia. The PCMCIA standardized PC Card is
roughly the dimension of a credit card, and has a standardized 68-pin
connector at one end. The main benefits of the PC Card are its low-power
consumption, small size and ruggedness.
Using Your Notebook 3
69
To allow manufacturers to add functions and technologies in the PC Card
form factor, PCMCIA has defined two PC Card types:
Type Thickness Sample Devices
Type II 5.0 mm Fax/Modem & Network Cards
Type III 10.5 mm Hard Disks (ATA Cards)
Type II Cards
Type II card has a thickness of 5.0 millimeters (mm). Type II cards are often
storage or communications devices such as Flash Memory, LAN, and Small
Computer System Interface (SCSI). Typical Type II cards include input/output
(I/O) features such as modems and LANs. The features for Type II Cards
include following characters:
• Type II Extended Cards
Many PC cards are Type II extended cards. The extended card has an
additional physical component that protrudes beyond the traditional card
size. The extension can be as large as 40 mm deep by 9.65 mm high. This
extension provides room for additional electronics as well as a location for
external connectors. The GPRS card is an example. The extended part is
for additional electronics and antenna.
• Communication Cards
Both network PC cards and fax/modem cards can use with your
notebook computer. However, if you use built-in LAN/Modem options
of this computer, it is not necessary to use those cards. If you start the
LAN/Modem application without inserting the fax/modem card or had
the built-in LAN/Modem options installed, the application typically does
not find the card.
Notebook User Guide
70
• Storage Cards
When you insert a storage PC card, PC card Adapter for other memory
card (i.e. Compact Flash card, Smart Media card...) or small hard drive
card in the notebook computer, it appears as a unique drive depending on
the type of card you are using.
The following table provides sample drive designations.
Sample Drive Designations
Drive letter Location/Device
C: Internal hard disk
D: Internal hard disk, 2nd partition
E: CD/DVD/RW/Combo drive
F: Slot 0, high-speed memory card
Type III Cards
Type III cards are thicker (10.5 mm) than Type II cards and allow no
extensions. This notebook does not support Type III Card.
WHAT IS CARDBUS?
CardBus is the high-performance 32-bit PCI bus master interface from
PCMCIA. It runs up to 33MHz clock speed and operates at only 3.3V. Your
notebook computer incorporates the CardBus inside the PC card slot. Aside
from 3.3V CardBus PC cards, you can also insert 5V 16-bit PC cards that can
also be detected and used by your computer.
INSERTING AND REMOVING A PCMCIA CARD
Your computer includes hot swapping capability, that allows you to exchange
cards while the computer is turn on and start using it immediately.
Using Your Notebook 3
71
Inserting PC Cards
To insert a PC card into the PCMCIA slot:
1. Locate the PC card slot cover on the left side of the computer.
2. Insert the side of PC card with the 68-pin socket into the PC slot. The
face label of the card should also be facing up.
3. When the full length of the card is almost inside the slot, push firmly but
slowly, to ensure full connection with the computer. The PC card will be
detected and once the needed driver is installed, it will generate a beep
sound to indicate that the card is detected.
Removing PC Cards
To remove a PC card from the PCMCIA slot, you should first disable the
PCMCIA card setting in the system as described followings:
1. Double click the PC card icon on the right bottom side of the task bar.
Notebook User Guide
72
2. Select the socket from the list that you want to remove, and click Stop
button. The system then disables the function of PCMCIA card.
3. Then you can remove the inserted PC card, push the button found on the
right side of the PC slot to release the eject button. Then push it again to
release the PC card.
4. When the PC card has moved out a space out of the slot, hold the edges
of the card and slowly slide it out.
MAKING PC CARDS WORK
Since PC cards come in different types and brands, making every card work on
your computer may not that be easy. PC cards like network, SCSI or
multifunction cards (MFC) need additional driver installation and configuration
in making the card work. This additional driver may already be built-in under
Windows that Windows will try to detect and prompts you if you want to
install the driver. If the driver is not included under Windows, you will need to
Using Your Notebook 3
73
insert the driver CD provided by the PC card manufacturer into the combo
drive and install to Windows system. You need to read the manual guide of the
PC card on how to configure and operate the card.
Some PC cards require additional system resources. Before inserting a PC
card you may have to disable either the USB port, or the 56K internal
modem. Check the Windows device manager to ensure that there are no
conflicts of resource amount those devices.
HOT SWAPPING PC CARDS
Just like floppy disk drive, your PCMCIA slot allows you to replace one PC
card with another even while your computer is on. However, you need to
remember the rule that if the PC card is in use, you must not remove it.
PC cards draw power even when not in use. To save energy, press the
button to disconnect the card when it is not in use.
3.9 Using Flash Memory Cards
WHAT IS FLASH MEMORY CARD?
Flash Memory is a memory storage media. It is used by most digital camera,
moreover, it can replace the traditional floppy disk. Flash memory card is built
with different form factor and brand name. Their size is smaller than PCMCIA
card. This computer supports most of the flash memory card, including SD,
MMC, MS (Memory Stick), and MS_Pro card.
The 4 in 1 card slot is used by the following cards as SD, MS (Memory Stick ),
MMC, and MS_Pro.
Notebook User Guide
74
For a single moment, only one card can be inserted into the 4 in 1 card or
CF slot
Inserting Flash Memory Card
To insert a flash memory card into the slot is similar to PCMCIA card. You
only need to pay more attention whenever insert the flash memory card into
the slot with the correct side.
For MMC and SD card, you should position the copper connector at the
bottom side. For Memory Stick card, you should position the copper
connector at the topside. All of these cards should be located at the center of
the slots in inserting.
Slot Card type Copper connector
4 in 1 SD (Secure Digital)
MMC (MultiMedia Card)
MS (Memory Stick)
MS_Pro
Bottom side
Bottom
Top side
Top side
Only one correct side can be accepted for the 4 in 1 card slots. If you cannot
insert the card into the 4 in 1 slot or you had inserted the card but it is not
recognized by the computer, please remove the card and turn the card upside
down and insert it again. To prevent the damage made both on card and the
slot, never forced an entry into the slot with incorrect side.
Using Your Notebook 3
75
Removing Flash Memory Card
It is similar to PCMCIA card for removing a flash memory card from the slot.
You should first disable the card setting in the system as described in the
PCMCIA chapter.
To remove the flash memory card, you should only pull out the card by finger,
there is no release button for flash memory slot.
Fun with Multimedia 4
77
4 Fun with Multimedia
This chapter lets you make full use of all the
multimedia features of your computer in having fun
and excitement during work or leisure. You will learn
how to mix and match the built-in sound system, use
Combo drive in creating an exciting full multimedia
presentation.
Notebook User Guide
78
4.1 Notebook Multimedia Features
Your notebook computer is rich in multimedia features that make your
computing fun, comfortable, exciting and easy. Your computer is well able to
perform all multimedia tasks through the following:
• Intel® Celeron ® M Processor Dothan
• Up to 1GB DDR SDRAM
• DVD/CD-RW Combo or DVD Dual/Multi (Optional)
• Integrated VIA PN800 graphics engine.
• 16-bit Audio Sound System with built-in speaker and microphone.
4.2 Audio Sound System Features
Your computer has a built-in 16-bit stereo sound controller that allows you to
record, store, and playback voice, music and other sound effects with built-in
mixer controls. An integrated full-duplex microphone and twin mini-speakers
are also built-in into your computer to allow you to record and playback sound
anytime and anywhere.
On the front side of your computer, you will find the audio ports that include
the following:
• External 1/8-inch microphone jack that connects external microphone for
recording purpose.
• Earphone or headphone jack for personal listening.
• SPDIF out port for digitized audio signal transmission.
Fun with Multimedia 4
79
• Sound volume adjust by K/B hot-key
4.3 Setting Up the Audio Driver
Properties
Before you can start using the audio capabilities of your computer, you need
first to setup properly the audio driver after installing Windows. If you bought
your computer with Windows pre-installed, it is most likely that your dealer
have configured the sound driver for you. If not, you must refer to Chapter 2
on how to setup the sound drivers for Windows.
4.4 Windows Multimedia Programs
Windows provides several multimedia programs that you can run with the
built-in features of your computer. Pointing the Start button, Programs,
Accessories, then Entertainment, you will find the Multimedia programs
group. (The section below use Window XP as examples)
Notebook User Guide
80
Figure 4-1 Entertainment Programs Group
The standard multimedia components are as follows:
• Windows Media Player - for playing sound, video and animation files
• Sound Recorder - for recording sounds and playback
• Volume Control - for adjusting the volume of mixer
For more information on how to operate these multimedia components, run
the program and click on the Help menu.
4.5 Recording Sounds
Your computer allows you to record voice and other sounds in several ways
and stores them as files on your hard disk. These voice or sound files can then
Fun with Multimedia 4
81
be played back through the internal speaker or earphone jack using an external
speaker, headphone, or earphone set. You can also use the files as voice
annotations on many applications for more real presentation. This section will
describe briefly how you can record sounds under Windows operating system.
To record sounds, you need to run the Sound Recorder program from the
Multimedia program groups. The control buttons of the Sound Recorder are
simple to understand which comprise of the Fast Rewind, Fast Forward, Play,
Stop, and Record buttons. Click the Help menu on how to operate the Sound
Recorder.

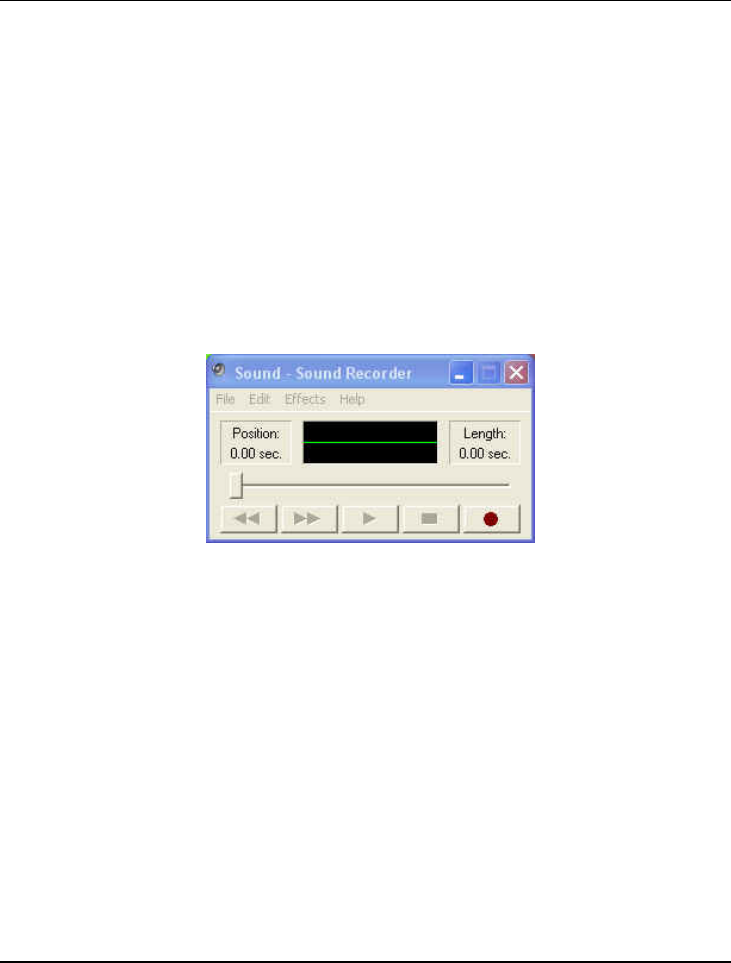

Figure 4-2 Sound Recorder
The Sound Recorder also allows you to record sound from different input
audio source like the following:
• From the external microphone
• From the Combo drive
Since you could record sound from different input sources, you must first set
the proper audio input recording device under the Recording Control panel.
To do this:
1. Double-click on the Volume Control on the taskbar or click Start button,
then point to Programs, Accessories, Entertainment and then click on
Volume Control.
Notebook User Guide
82
2. Click Properties in the Options main menu.
3. Click the round button for Recording and tick off each component that
list in the "Shows the following Volume Controls" box.
Figure 4-3 Audio Properties
4. Click OK and the Recording Control dialog box will appear. Here, you
will select the input device for the recording source. If you want to record
from the Combo drive with audio music, you must click on CD Player.
Fun with Multimedia 4
83

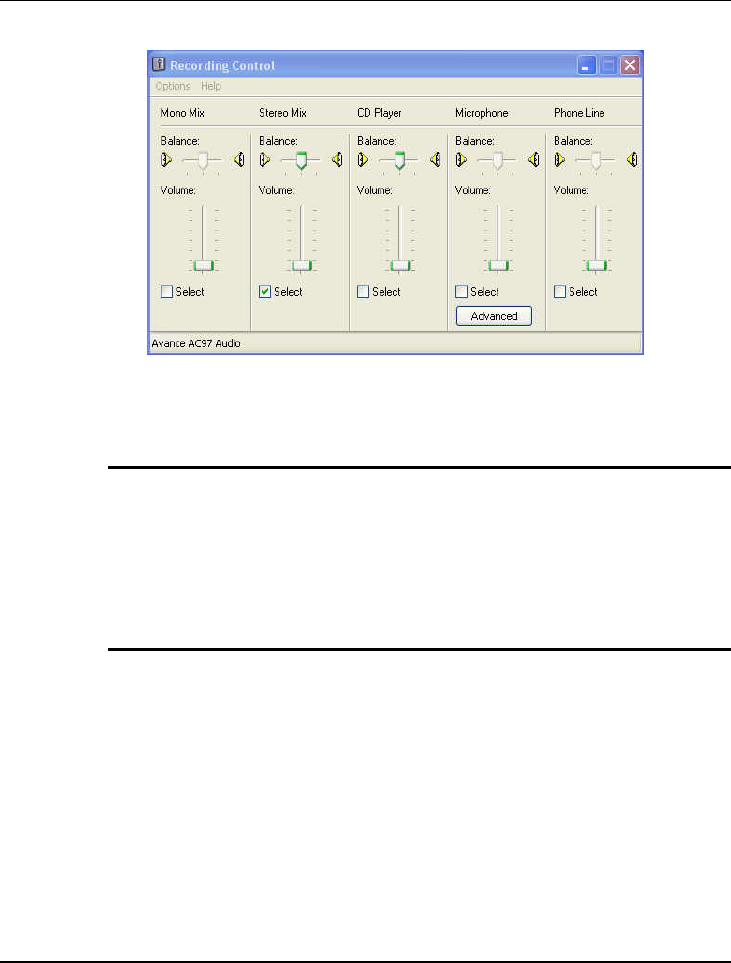

Figure 4-4 Recording Volume Control
USING AN EXTERNAL MICROPHONE
Your computer allows you to connect an external microphone for high quality
recording. The external microphone jack is found on the left side of your
computer. Use only microphone with 1/8-inch mini-jack connector. Follow
the same procedure for recording voice.
USING THE BUILT-IN COMBO DRIVE
You would normally use the Combo drive for recording audio music from the
Audio CD. Follow these steps:
1. Activate CD Player volume on the Recording Control as discussed earlier.
2. Run the Sound Recorder program.
3. Insert the audio CD into the Combo drive. Unless you have disabled the
CD auto-insertion notification for supporting Suspend mode, the CD
Player should automatically run after you have inserted an audio compact
disc and will start playing the audio CD.
Notebook User Guide
84
Figure 4-5 Play Audio CD by Windows Media Player
4. Select the starting point where you want to start recording.
5. Switch to the Sound Recorder and press the Record button.
6. Switch immediately to the Windows Media Player and press the Play
button. You can adjust the volume control so you can also hear the music
while in recording.
4.6 Playing Audio and Sound
Your computer has built-in twin speakers to playback audio and sound. You
can also adjust the volume manually by adjusting the volume control hotkeys
found on the right bottom side of the keyboard.
Fun with Multimedia 4
85
For more quality sound output, you can choose to connect an external
amplified speaker or earphone from headphone jack. Always minimize the
volume first before placing the phone set to your ear.
USING THE WINDOWS MEDIA PLAYER
The easiest way to playback multimedia media files is to run the Windows
Media Player. Follow these steps:
1. Click on Start, point to Programs, Accessories, and then
Entertainment.
2. Click on Windows Media Player to start program.
3. Click on the File menu and select the file you want to play.
4. When the file is recognized and open, click on the Play button to start
playback.
4.7 Playing Video and MPEG Files
Your computer is capable of running video motion files as well as MPEG
(Motion Picture Expert Group) files on CD, DVD, or CD-RW. By using
software MPEG program, you can watch real full-motion picture on your
computer. You can also run the Windows Media Player under the
Entertainment programs group as well to show all media device programs.
Notebook User Guide
86
Figure 4-6 Windows Media Player
4.8 Using DVD
DVD is the breakthrough in superb full-motion picture playback. One disc can
contain at least 4.7GB of information, capable of holding one full-length
movie with soundtracks, subtitles, and different languages. Much more, the
DVD-ROM drive of your computer is backward compatible with CD-ROM
drive so it allows you to use any CD as well. It also works the same as the CD-
ROM.
To playback DVD titles, you would need a software MPEG-2 program and the
DVD-ROM drive at least. Your Notebook computer has installed Windows
XP for operation system and its Windows Media Player supports DVD’s
playback..
Fun with Multimedia 4
87
You can use Windows Media Player to watch DVDs on your Notebook
computer. Like a conventional DVD player, by using the Player, you can skip
to specific titles and chapters, play sequences in slow motion, gain access to
special features, and switch audio and caption languages. In addition to these
conventional DVD player tasks, you can also retrieve information about each
disc from the Internet.
Figure 4-7 To play a DVD
On the Play menu, point to DVD, VCD or CD Audio, and then click the drive
that contains the DVD. In the Playlist pane, click a DVD title, or chapter
name, if appropriate.
To eject a disc, on the Play menu, click Eject. If you have discs in multiple
drives, point to Eject, and then click the name of the disc that you want to
eject. To play a selected title in a DVD repeatedly, on the Play menu, click
Repeat. A check mark appears next to the command to indicate it is turned on.
Notebook User Guide
88
For best DVD playback, please enable the DMA function of this notebook,
for how to enable the DMA channel on both DVD/CD-ROM drive and
Hard Disk, please refer to driver installation on section 5 of chapter 2.
Moreover, you can enable Hardware Accelerator if the software MPEG-2
player you are using has supported this function.
4.9 Using rewritable Optical Disk Drive
DVD/CD-RW Combo or DVD+RW combo drive is a device that can write
digital data to CD-R and CD-RW or DVD+R and DVD+RW media. With
this device, you can backup your own data to CD-R or CD-RW disc for mass
data storage and safely retaining. The CD-R disc can be written several times
until the CD-R is full; the CD-RW disc, furthermore, can write and erase data
repeatedly. Please refer to the related user manual about the CD-RW software.
Please pay attention to the copyright of the software or data you want to
backup. Backup or distribute the software or data might be illegal
according the restriction of the law.
Fun with Multimedia 4
89
Connecting to Peripherals 5
91
5 Connecting to Peripherals
This chapter describes how you attach peripheral
devices to your notebook. You can attach a printer
or mouse; connect an external monitor and
keyboard, or any other peripheral device. You will
learn how to use these peripheral devices with the
step-by-step instructions depicted in this chapter.
Notebook User Guide
92
5.1 Using the USB Port
USB or Universal Serial Port is a peripheral bus standard developed by
Compaq, DEC, IBM, Intel, Microsoft, NEC and Northern Telecom. Personal
computers equipped with USB will allow computer peripherals to automatically
configure as soon as they are physically attached - without the need to reboot
or run setup. USB will also allow multiple devices to run simultaneously on a
computer, with peripherals such as floppy drive, mouse, digital cameras,
scanners, printers, CD-RW drives, modems, keyboards, games devices and
acting as additional plug-in sites, or hubs.
Depending on your operational requirements, you may need to disable
other ports in order to release system resource for the USB port.
5.2 Using an External Monitor Port
Your computer has a 15-pin Monitor port for supporting any external CRT or
LCD color monitor. You need a display signal cable (usually provided with the
monitor). One end of the cable must have a 15-pin connector for the system.
Connecting to Peripherals 5
93
To connect an external monitor:
1. Turn off your computer and make sure the monitor power switch is
turned off.
The notebook computer must be powered off or suspended while the
monitor is being connected. Although you can connect the external Monitor
without power off the computer and the external monitor, however, it is
harmful to both devices and it shortens the life of these devices.
2. Connect the connector cable of the monitor to the VGA port at the back
of your computer. Secure the cable connection with the screws provided.
3. Connect the monitor power cable and plug it into a properly grounded
wall outlet.
4. Turn on the power of the monitor.
5. Turn on your computer. Both the LCD panel and the monitor screen will
show the display. Your computer is set at default to run at simultaneous
display mode.
6. If you only want to show the display on the external monitor or projector
and shut off the LCD display, you can use the <Fn> + <F3> hot-key to
switch display type between LCD and external monitor. Keep pressing the
hot-key until you get the display to external monitor only.
Notebook User Guide
94
Refer to Chapter 3 regarding the possible External CRT resolutions and
how to change the display properties.
5.3 Using the IEEE 1394 Port
IEEE 1394 is a new I/O standard that is supported by Win98 (second edition)
or later Windows versions. With supporting high-speed transmission and
delivering data at a guaranteed rate, you can record digital video clips and
download them directly via a super-speed IEEE 1394 port at the left of the
notebook. IEEE 1394 becomes an ideal for devices that need to transfer high
levels of data in real-time.
With built-in IEEE 1394 port, this computer enables the peripheral devices in
transmitting digital video data or data backup. To install the IEEE 1394 port
driver, please refer to Win98 (second edition) or later Windows version. The
Windows system will automatically recognize it in installing a suitable driver for
it. For other version of Windows, please visit Microsoft's web site for more
information about it.
Moreover, you should install the driver of peripheral device to connect with
the IEEE 1394 port, for details please refer to the manual that comes with
your peripheral device.
Connecting to Peripherals 5
95
Please make sure that the external IEEE 1394 HDD box you purchase on
local electronic store should provide external power adapter. There are
different types of IEEE1394 HDD box and hard disk from different
manufactures, the power consumption has varied range. If the power of the
external IEEE 1394 HDD is supplied from the USB of this notebook, it may
not run properly.
5.4 Using the TV Port
Also found at the rear side of your computer is one TV port (s-video).
To display your computer screen on the TV, please connect the TV port of
this notebook to the Video Input of the TV set. You can press <Fn> + <F3>
key continually to switch between TFT, external monitor, TFT + external
monitor and TV only. Keep pressing the hot-key until you get the display to
external TV only.
Or you can setup the detail by operate the computer as follows.
1. Turn off your computer and plug one end of the s-video jack cable to the
end to the input video jack of your television set.
2. Turn on your computer and your television set.
3. Click the Start button, then point to Settings, and click Control Panel.
Notebook User Guide
96
4. Double-click on the Display icon and point to Setting tab.
5. Double-click Advanced button and point to Intel(R) Extreme Graphics
tab and then click Graphics Properites...
6. In the Device tab, select the Telvision icon and change the related detail
setting if you want. Click OK finally. Windows now automatically detect
the TV port and enable this function.
5.5 Using the External Audio System
At the rear side of your computer, you will find the built-in audio ports. You
can connect Microphone jacks, earphone or powered speaker.
To connect to a audio jack:
1. Locate the audio port (Microphone, Headphone) that you want to use to
the target device.
2. Plug the jack into the port on the front sides of the system.
If you use external speakers and experience the sound distortion or
feedback, please lower the volume. Some factors is caused by too close
locating the microphone and speakers from each other, moving away the
external audio option from the unit may also help.
Connecting to Peripherals 5
97
5.6 Using the LAN Port
This notebook comes with an internal 10Base-T/100Base-TX LAN module
that connects your computer to other computers/networks through a local
area network (LAN) and supports data transfer rates at 10Mbps and can be up
to 100Mbps. The 10Base-T standard also called Twisted Pair Ethernet is
connected with RJ-45 connectors. The 100Base-TX is based on the older
Ethernet standard. Because it is 10 times faster than Ethernet, it is often
referred to as Fast Ethernet.
The built-in LAN module provides a standard RJ-45 connector.
To connect the twisted-pair cable to your LAN port:
1. Locate the twisted-pair cable in the accessories box in notebook shipping
carton. Each end of the cable has a RJ-45 connector.
2. Connect one end of the cable into the network wall outlet or HUB.
3. Connect the other end of the cable into the computer RJ-45 LAN port.
Notebook User Guide
98
5.7 Using the Wireless LAN
Wireless LAN is the major breakthrough in computer communication
technology. It lets user connect to the LAN environment without using any
wire to traditional RJ-45 jack. User can enjoy the wireless connection within
the range of Access Point (AP) of LAN.
Access Point (AP) is the wireless transmission and receiving device, it generally
connects to the server of a LAN environment or act as a LAN hub with
wireless connection. Access point can be set in an office environment, airport,
major railway station, etc. that depends on the construction of each country. In
most case, you probably can use it at office, please consult with the network
department of your company for more details.
This computer integrates built-in 802.11b/g wireless LAN module. IEEE
802.11b standard supports 11 Mbps wireless connection speed. However,
IEEE 802.11g supports 54Mbps wireless connection speed, and is backward
compatible with the slower 802.11b. You can connect to the wireless LAN
Access Point without insert extra wireless LAN card into the PCMCIA slot.
Wireless LAN module is similar to LAN module. You need to install software
driver before using it. Please refer to chapter 2.5 on how to install the driver.
5.8 Using the Modem Port
This notebook comes equipped with a 56K internal fax/data modem that
allows you to communicate with others via fax, email, or to connect to an
online service or bulletin board.
The built-in fax/data modem provides on standard phone connector.
To connect the analog phone cable to your modem:
Connecting to Peripherals 5
99
1. Locate the analog phone cable in the accessories box in notebook
shipping carton. Each end of the cable has a RJ-11 connector.
2. Connect one end of the cable into a standard wall outlet.
3. Connect the other end of the cable into the computer modem port.
The speed of data transmission is dependent on the quality of telephone
lines. Digitally terminated lines improve the speed of data transmission.
Contact your service provider for more information.
The analog phone cable is an industry standard cable. Longer cables are
available at your local electronics store.
Customizing Your Notebook 6
101
6 Customizing Your Notebook
Your computer uses the Phoenix BIOS Setup
program that allows you to set several system
configuration in changing the way your computer
performs. This includes you r system time and date,
disk drive configuration and password setup. This
information is then stored in the CMOS RAM and
will remain permanent unless you change it again.
This chapter discusses on how you will activate the
BIOS Setup program and change the system
configuration to suit your desired operation. You
must be careful to set the configuration properly in
order for your computer to run smoothly. If you are
not sure of any settings, contact your dealer.
Notebook User Guide
102
6.1 Running the BIOS Setup Program
Your computer is likely to have been properly setup and configured by your
dealer prior to delivery. However, you may find it necessary to use the
computer’s BIOS (Basic Input-Output System) Setup program to change
system configuration information, such as the current date and time, or your
hard disk drive type. The Setup program can be accessed when you power on
the system and pressing the <F2> function key.
The settings that you specify within the Setup program are recorded in a
special area memory called the CMOS RAM. This memory is backed up by a
battery so that is will not be erased when you turn off or reset the system.
Whenever you turn on the computer, the system will read the settings stored in
the CMOS RAM and compare them to the equipment check conducted during
the Power On Self Test (POST). If an error occurs, an error message will be
displayed on the screen, and you will then be prompted to run the Setup
Program.
As the POST (Power-On Self Test) executes during the boot up process, the
screen will display the following message:
Press <F2> to Enter SETUP
Press the <F2> key to run the BIOS Setup program. The BIOS Setup
program is organized into five menus which you can select using the <-- and --
> keys. To move from one option to another, you use the up and down arrow
keys while using the <F5> and <F6>, or <+>and <-> keys to change the
settings. On the right hand side of the screen are some brief help descriptions
of each item you want to change.
On the BIOS Setup program, you will find the following parts on the screen:
Customizing Your Notebook 6
103
• Item Specific Help
The right side of the screen. This area describes each parameter and its
available settings.
• Menu Bar
The top line of the screen. Each of the five selections displays its own
screen.
• Parameters
The left side of the screen. This area lists the parameters and their current
settings.
• Key Status Bar
The bottom part of the screen. These lines display the keys available to
move the cursor, select a particular function and so forth.
To exit the BIOS Setup program, simply press the <Esc> key and select from
the Exit menu whether you want to Save changes and exit; Discard Changes
and exit.
Notebook User Guide
104
6.2 Using the Main Menu Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
S
y
stem Time:
[
17 :54 :32
]
<Tab>
,
<Shif
t
-Tab>
,
System Date: [02/24/2005] or <Enter> selects
field.
4IDE Channel 0 Master [40008MB]
IDE Channel 1 Master Installed CD/ DVD
System Memory: 640 KB
Extended Memory: 194560 KB
CPU Type: Celeron ® M Processor
CPU Speed: 1300 MHz
BIOS Version: 0.3A-0033-0812
F1 Help Ç È Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Å--> Select Menu Enter Select Sub-Menu F10 Save and Exit
• System Time
Allows you to change the system time using the hour:minute:second
format of the computer.
Enter the current time for reach field and use the <Tab>,
<Shift>+<Tab>, or <Enter> key to move from one field or back to
another.
You can also change the system time from your operating system.
Customizing Your Notebook 6
105
• System Date
Allows you to set the system date using the month/date/year format.
Enter the current time for reach field and use the <Tab>,
<Shift>+<Tab>, or <Enter> key to move from one field or back to
another.
You can also change the system time from your operating system.
• IDE Channel 0 Master
This field display various parameters for the hard disk drive. If type [Auto]
is selected, the system automatically sets these parameters. If type [User] is
selected, Cylinders, Heads and Sectors and other value can be edited.
• IDE Channel 1 Master
This field is for information only as the BIOS automatically detects the
optical drive.
• System Memory
This field reports the amount of base (or conventional) memory found by
the BIOS during Power-On Self-Test (POST).
• Extended Memory
This field reports the amount of extended memory found by the BIOS
during Power-On Self-Test (POST).
• CPU Type
This field reports the CPU type information detected by the BIOS during
Power-On Self-Test (POST).
• CPU Speed
This field reports the CPU speed information detected by the BIOS
during Power-On Self-Test (POST).
• BIOS Version
This field is for information only as the BIOS displays the BIOS version
during the Power-On Self-Test (POST).
Notebook User Guide
106
6.2.1 INTERNAL HDD SUB-MENU
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Primary Master: [40008MB] Item Specific Help
T
yp
e:
[
Auto
]
User =
y
ou enter
LBA Format parameters of hard-disk
Total Sector: 78140160 drive installed at this
Maximum Capacity: 40008MB Connection.
Auto = autotypes Hard-
Multi-Sector Transfers: [16 Sectors] disk drive installed here.
LBA Mode Control: [Enabled] 1-39 = you select
32 Bit I/O: [Disabled] pre-determined type of
Transfer Mode: [FPIO 4 / DMA 2] hard-disk drive installed
Ultra DMA Mode: [Mode 5] here.
Smart Monitoring: Enable CD-ROM = a CD- ROM
drive is installed here.
ATAPI Removable=
removable disk drive is
installed here.
F1 Help Ç È Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Å--> Select Menu Enter Select Sub-Menu F10 Save and Exit
Use the Type field to select the drive type installed. You can select different
drive types as CD-DVD, User, Auto or None by pressing <Space> bar. Set
this option to Auto so your computer will automatically detect the drive type
during power on. Set this option to None when your computer is not installed
any devices. Press <Esc> to return to the Main Menu.
Customizing Your Notebook 6
107
6.3 Using the Advanced CMOS Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Quiet Boot [Disabled]
Summary Screen [Disabled] Select boot screen
using options:
Frame Buffer Size: [64Mb] [Disabled]
Aperture Size: [256M] - Logo screen
Legacy USB Support [Enabled]
LAN Boot Control: [Disabled] [Enabled]
- POST screen
F1 Help Ç È Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Å--> Select Menu Enter Select Sub-Menu F10 Save and Exit
• Quiet Boot
Lets you specify the boot screen to Logo screen or POST screen by
choosing Disabled or Enabled, respectively.
• Summary Screen
Displays system configuration on boot.
• Frame Buffer Size:
Lets you specify the speed of AGP rate for video devices. Please set it to
default value.
Notebook User Guide
108
• Aperture Size:
Lets you specify the memory size of the Graphics Engine. Please set it to
default value.
• Legacy USB Support
Enable or disable the USB Bus support when in connection with USB
device.
• LAN Boot Control:
Lets you specify Enabled or Disabled for booting the notebook from
Network.
Customizing Your Notebook 6
109
6.4 Security Menu Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Su
p
ervisor Password Is: Clea
r
User Password Is: Clear Supervisor Password
controls access to the
Set Supervisor Password [Enter] setup utility.
Set User Password [Enter]
Fixed disk boot sector [Normal]
Password on boot [Disabled]
F1 Help Ç È Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Å--> Select Menu Enter Select Sub-Menu F10 Save and Exit
• Supervisor Password Is
Set/Clear selections show that the notebook is under controlled by
Supervisor Password or not.
• User Password Is
Set/Clear selections show that the notebook is under controlled by User
Password or not.
Notebook User Guide
110
• Set Supervisor Password
Supervisor password gives you the authority in accessing the setup utility.
You also need to enter this password in system booting and resuming
from suspend mode. When you press <Enter> in this field, the Set
Supervisor Password dialog box appears. Enter a new password with up
to 8 alpha-numeric characters, and then re-enter it for confirmation.
• Set User Password
This field is only available when Supervisor Password has set. Enter the
user password when boot the system or resume from suspend mode. But
if the Write Protect is set in the Fixed disk boot sector field, you should
enter a supervisor password to access the fixed disk when boot the system
or resume from suspend mode.
• Fixed Disk Boot Sector
If you set this field to Write Protect, the write protect boot sector on hard
disk will protect against viruses. In this situation, only the supervisor can
access the Boot Sector of fixed disk.
• Password on Boot
If you set this field to Enabled, your computer will always ask for the
password every time you boot your computer.
Customizing Your Notebook 6
111
6.5 Using the Boot Setup
This item allows you to set the search drive sequence where the system will try
to boot up first.
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Boot Device Priority Item Specific Help
1: CD-ROM/DVD-ROM
2: Hard Drive Keys used to view or
3: USB Floppy Drive Configure devices:
4: USB Storage Disk Up or Down arrows
5: Boot from LAN Select a device.
<+> and <-> moves
the device up or down.
F1 Help Ç È Select Item -/+ Change Values F9 Setup Defaults
Esc Exit Å--> Select Menu Enter Select Sub-Menu F10 Save and Exit
This page allows you to set the search drive sequence where the system will try
to boot up first.
To select the boot device, you can use the up or down arrow key, then press
<+> to move up the device in the list or press <-> to move down the device
in the list. To exit from this menu, press <Esc>.
Notebook User Guide
112
6.6 How to Exit the Setup Program
There are two choices to escape from the Setup program.
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Exit Saving Changes Exit S
y
stem Setu
p
Exit Discarding Changes and save your
Load Setup Defaults changes to CMOS.
Discard Changes
Save Changes
Battery Refresh
F1 Help Ç È Select Item F5/F6 Change Values F9 Setup Defaults
Esc Exit Å--> Select Menu Enter Execute Command F10 Save and Exit
• Exit Saving Changes
Saves all changes to CMOS while running the BIOS setup program and
exit from the system setup program.
• Exit Discarding Changes
Allows you to discard all changes made while running the BIOS setup
program and exit from the system setup program.
• Load Setup Defaults
Lets you load the default values for all setup items.
• Discard Changes
Reverts to previously selected settings.
Customizing Your Notebook 6
113
• Save Changes
Saves Setup data to CMOS.
• Battery Refresh
Conditions the battery so that the battery can be fully charged.
6.7 How to Upgrade the BIOS
Your computer uses EPROM Flash BIOS chip that allows you to easily
upgrade the BIOS program. When you update the BIOS, any customized
settings you made are lost.
To upgrade the BIOS:
1. Insert the BIOS Update diskette into the diskette drive.
2. Power on the system with the diskette in the diskette drive.
3. On the DOS prompt, type the following command.
A:\>Phlash XXXXXX.ROM (BIOS filename) or
A:\>XXXXXX.BAT (Batch file for BIOS file)
4. Press <Enter> to run this BIOS utility. After the system has been
successfully run this program, a message similar to the following appears:
Flash memory has been successfully programmed,
press any key to restart the system. If the
system does not restart, turn it off, then turn
on again.
5. Press any key to restart this system.
Contact your dealer for the latest BIOS update file.
Using Options 7
115
7 Using Options
This chapter describes the advanced features and
expandable architecture in your notebook. You can
upgrade your system for specific requirements.
Notebook User Guide
116
System Upgrade
This section provides some steps in doing system upgrade for your notebook
computer. The upgrade procedures include the following:
MEMORY UPGRADE
Your notebook computer offers 200-pin SODIMM (Small Outline Dual Inline
Memory Module) at least 256MB DDR-SDRAM. The memory compartment
is located inside your computer. The table below lists the possible
combinations of different memory module and memory size.
Please contact dealer for changing or adding DDR-SDRAM module. It is
not available for users to change it by themselves.
Based Memory Installing Memory Total
256 MB 0 MB 256 MB
256 MB 256 MB 512 MB
256 MB 512 MB 768 MB
512 MB 0 MB 512 MB
512 MB 256 MB 768 MB
512 MB 512 MB 1024 MB
INSTALLING MEMORY MODULE
Your computer comes with standard 256 MB, 512MB of synchronous DDR
SDRAM. You can increase system memory to a maximum of 1048 MB in the
system, by installing two small outline double inline memory modules (SO-
DIMMs) with installed base memory in the system.
Using Options 7
117
The 256MB, 512MB memory modules are available:
To install the memory module:
1. Make sure the system is powered off, the battery also is removed and that
no peripheral devices are attached.
2. Turn the computer upside-down and locate the screw that secures the
DIMM door at the underside of the notebook.
3. Remove the screw and open the DIMM cover by your finger.
4. Locate the memory module into the empty memory module sockets.
(Your system comes with one memory module already installed in the
socket.)
Avoid touching the exposed components inside the system. Doing so may
damage the system.
5. Insert the connector of the memory module into the socket. Make sure
the notch of the memory module fits the nose of the socket.
y Hold the memory module at a 30-degree angle and push its
connector into the memory socket of the notebook.
Notebook User Guide
118
y Press down on the edge of the memory module until the locking
tabs on both sides is locked.
6. Put the DIMM door back and secure the screw on the DIMM door.
7. Turn the system over.
To remove a memory module, push the locking tabs aside from the memory
module until the module pops up. Then, remove the memory module.
UPGRADE HARD DISK
Your notebook computer offers one 2.5" format, 9.5mm height hard disk. If
the volume does not fit your need or it is crashed, you can upgrade it by
replacing with new hard disk. Please do the following steps to change it.
1. Remove the screws and open the cover by lifting its upper side cover.
2. Take out the hard disk from the compartment by finger carefully
3. Remove the connector from the hard disk gently.
4. Remove the crane screws located at each side of the hard disk.
5. Rotate and tighten the crane screws to the new hard disk.
6. Attach the connector to the new hard disk precisely.
Using Options 7
119
7. Place the hard disk back to the compartment.
8. Cover the lid, then rotate and tighten the screws.
9. Set the boot device as DVD/CD-RW Combo drive and Primary Master
as Auto on BIOS setup menu. Please refer to Chapter 6 about the setting
of BIOS setup menu. Then, boot the system by using WinXP CD-ROM
and the system will detect the hard disk automatically and prompt you
how to format the new disk.
Please tighten the screws located at each side of the hard disk before
operating the hard disk. Any vibration may cause damage for the running
hard disk.
Please contact dealer or certified technician for changing the hard disk
drive. The damage of changing HDD resulting from users may not be
under warranty
WIRELESS MODULE INSTALLATION
This computer uses mini-PCI wireless LAN module at the bottom of this
notebook for wireless connection.
Please contact dealer for adding or changing this module. Any damage that
caused by inappropriately adding or changing this module will not be under
warranty
Caring for Your Notebook 8
121
8 Caring for Your
Notebook
Your Notebook PC is a fully IBM compatible
portable personal computer with the latest features in
mobile computing and multimedia technology.
Lightweight and compact, your Notebook PC runs on
a whole wide range of general business, personal
productivity, and professional applications, it is ideal
for use in the office, at home, and on the road.
Your Notebook PC also allows you for several levels
of customization and expansion that are previously
available only on desktop PCs.
Notebook User Guide
122
8.1 Important Safety Instructions
Portable computers take the most beating from end users. This section gives
you detailed information about how to maintain a safe working environment
while using the notebook computer. You can maintain its condition and
performance by following these guidelines. Please read it carefully to ensure
maximum safety.
• Before cleaning the notebook computer, make sure it is disconnected
from any external power supplies (i.e. AC adapter, car adapter and so on).
• When cleaning, do not use liquid or sprayed detergent for cleaning.
Instead, use moisture sheet or a cloth for cleaning.
• The socket-outlet shall be installed near the notebook computer and shall
be easily accessible.
• Please keep the notebook computer from humidity.
• Lay the notebook computer on a reliable surface when installing. A drop
or fall may cause injury.
• The openings on the enclosure are for air convection hence the notebook
computer can be protected from overheating. DO NOT COVER THE
OPENINGS.
• Be careful of using power supply. The notebook computer has specific
power requirements.
• Use only a power adapter approved for use with this notebook computer.
• The power adapter may have a 2-prong plug. This is an important safety
feature. A compatible outlet is required. If it is not available, find a
qualified electrician to install one.
Caring for Your Notebook 8
123
• While unplugging the power cord, disconnect it by the plug head, not by
its wire.
• Make sure the socket and any extension cords you may use can support
the total current load of all the connected devices.
• Though your AC adapter is suitable for universal international voltage, it
still requires a stable and continual power supply. Make sure the voltage of
the power source when connect the notebook computer to the power
outlet. If your are unsure of your local power specifications, consult your
dealer or local power company.
• Place the power cord in such a way that people can not step on it. Do not
place anything over the power cord.
• All cautions and warnings on the notebook computer should be noted.
• If the notebook computer is not in use for a long time, disconnect it from
mains to avoid possible damage by transient over-voltage.
• Never pour any liquid into openings as this may cause fire or electrical
shock.
• Never open the body of notebook computer. For safety reason, the
notebook computer should only be opened by qualified service personnel.
• If one of the following situations arises, have the notebook computer
checked by service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the notebook computer.
The notebook computer has been exposed to moisture.
The notebook computer has not worked well or you can not get it
work according to user’s manual.
Notebook User Guide
124
The notebook computer has dropped and damaged.
The notebook computer has obvious sign of breakage.
• Do not leave this notebook computer in an environment unconditioned.
Storage temperature above 60ºC (140ºF) may damage the notebook
computer.
• An approved power cord has to be used for the notebook computer’s
power supply. For a rated current up to 6A and an equipment weight
more than 3 kg, a power cord not lighter than H05VV-F, 2G, 0.75mm2,
has to be used.
• To avoid any damage happened to the internal device, you should first
disconnect the AC adapter and remove the battery pack from the
notebook when replacing any internal device.
The sound pressure level at the operator's position according to IEC 60704-1
is equal or less than 70dB(A).
8.2 Cleaning Your Computer
When it is necessary to clean the plastic case and keyboard, use a soft, lint-free
cloth, slightly dampened with a mild detergent solution or use the contents of
any commercially available computer cleaning kit.
Never use alcohol, petroleum-based solvents, or harsh detergents to clean the
notebook. Also never spray any liquids directly on the computer case,
keyboard, or screen. If the liquid-crystal display (LCD) screen has become
smeared or dusty, clean the screen by first applying a mild glass cleaner to a
soft, clean, lint-free cloth, and gently wipe the glass. Never apply liquids
directly on the screen surface. Moreover, do not use paper towels to clean the
display screen. Paper can scratch the display screen matte.
Caring for Your Notebook 8
125
8.3 Maintaining the LCD Quality
When it comes to screen problems, heat plays a big part. After a good working
session, the typical routine is to shut the machine and close the cover. But the
display surface - no matter what type it is - and the components inside the
computer radiates heat; when you close the cover, you trap the heat against the
screen. Leave the computer's cover open for about ten minutes while the heat
disperses. Make this a habit.
You should also enable the power management of your computer to turn off
the LCD power and display when the system is in inactivity for some time.
Adding screen savers is also acceptable.
Follow the safety guidelines mentioned earlier and how to clean your
computer.
8.4 Maintaining Your Hard Disk
Losing your data has the same consequences as a system break down. Users
must make it a habit of doing hard disk maintenance every week or so. Here is
some maintenance you could do:
• Always back up your data files from your hard disk.
• Install the virus detecting program to monitor virus that could tamper
your files.
• Use SCANDISK once in a while to correct any errors found in the
directory and File Allocation Table. This will also free up space from any
unused sectors.
• Never move or raise the computer while the hard disk is being accessed,
most especially don't jar the hard disk as this may cause a hard disk crash.
Notebook User Guide
126
• Use hard disk maintenance programs like Disk Defragmenter of
Windows. These reorganize your hard disk by eliminating fragmentation
and improving your hard disk access time.
• Install a system password in your computer so others won't be able to use
the hard disk.
8.5 Battery Care Guidelines
The battery pack furnished with the computer requires reasonable care and
handling to ensure efficient operation and maximum life. There is a risk of fire
and chemical burn if the battery pack is handled improperly.
To ensure that the battery pack endures normal life cycle, always observe the
following precautions when handling the battery pack:
• Handle batteries carefully. Do not try to disassemble, crush, puncture,
open, drop, mutilate, short external contacts, disposed of in water or fire,
or expose it to temperatures higher than 60 C.
• Recharge batteries only as described in this manual and only in ventilated
areas. Never use an external charger other than the one supplied with your
computer.
• Do not leave batteries in hot locations for more than a day or two.
• Do not leave your battery in your computer for longer than 1 month
without plugging in the power adapter.
• Do not leave battery in storage for more than 2 months without
recharging it to prevent over discharge. Over discharge will hurt the
battery
• Dispose dead battery properly to protect the environment. The batteries
contain hazardous chemicals and should not be thrown out with
household or office trash.
Caring for Your Notebook 8
127
• You should always discharge your battery before recharging it on either of
these two conditions: first, this is the first time you start to use your
battery; second, you had not charge the battery for more than 2 months.
To discharge the battery, please execute the "Battery Refresh" function in
the BIOS Setup Utility.
8.6 When You Travel
For safety and convenience when traveling, please follow these instructions:
• Back up all needed files on your hard disk before traveling.
• Recharge your battery overnight to ensure full battery power before you
leave.
• Don't forget to bring along the AC adapter and extra battery pack.
• Try to bring backup software as well.
• Check the voltage rating and the outlet type of your destination. If the
power cord of the adapter is different, then you need to purchase a
suitable one. Consult your dealer.
• Carry your computer in its carrying case or in a briefcase. Never check-in
the computer as a luggage.
• Remember to apply those power saving features and techniques to save
battery power.
Notebook User Guide
128
System Specification A
129
APPENDIX A
System Specification
This appendix gives information on the technical
and hardware specifications of your computer. Please
note that the information mentioned here may not be
exactly the same with your computer as specification
is subject to change without notice or modifying this
manual.
Designed with an advanced modular architecture,
your Notebook PC also allows you for several levels
of customization and expansion that are previously
available only on desktop PCs.
Notebook User Guide
130
PROCESSOR UNIT
• Intel® Celeron® M Processor Dothan
• Above 1.3 GHz CPU
• 1MB integrated L2 cache for the processor
SYSTEM MEMORY
• Two 200-pin memory slots
• User-upgradeable to maximum 1GB using 200-pin SODIMM 256MB,
512MB modules
• DDR -400 SDRAM modules
LCD DISPLAY
• 14" WXGA (15:9) Color TFT LCD
• Maximum 16M true colors on all LCD display
VGA SYSTEM
• Integrated VIA PN800 graphic engine
• Simultaneous LCD and external monitor (CRT) display
• Maximum 16 million colors on LCD display at 1280x768 resolution for
14" LCD
• Maximum 16 million colors on external monitor or projector at
1280x1024 resolution (Non-Interlaced)
System Specification A
131
STORAGE
• 2.5” Format 9.5mm High HDD Module; Bus Mastering, Ultra DMA
ATA-100 Support for LBA Scheme
• Enhanced IDE bootable DVD-ROM drive module
• Optional DVD/CD-RW Combo drive
• Optional DVD Dual/Multi drive
• 4-in-1 (SD, MS, MMC, and MS_Pro) card reader
AUDIO SYSTEM
• Full-duplex 16-bit stereo speaker with wavetable support
• H/W Audio Sound Blaster 16 compatible
• Built-in dual speakers
• Audio input jacks for microphone (MIC)
• Audio output jack for external speaker or headphone (Line-Out)
• Digitized audio SPDIF port for high quality signal transmission.
• Sound volume adjust by K/B Hot-Keys
PCMCIA
• 32-bit CardBus PCI Local Bus PCMCIA controller
• Supports 1 x Type II PC card
• Supports 32-bit Cardbus Cards, and 16-bit PC Cards
GLIDE PAD
Integrated Glide Pad (Serial/USB mouse) pointing device with 2 click buttons
Notebook User Guide
132
KEYBOARD
• Full-sized 87-keys keyboard with Windows systems hot-keys, inverted T-
cursor keys, 8 hot keys, 12 function keys, and embedded numeric keypad
• Provides international language keyboard
FLASH BIOS
512K Flash ROM BIOS for easy BIOS upgrade
I/O PORTS
• 1 x 15-pin VGA port
• 1x TV-Out Port (S-Video)
• 3 x Universal Serial Bus (USB 2.0)
• 1 x IEEE 1394 port (BTO)
• 1 x IR (Infrared) port
• 1 x LAN port
• 1 x Modem port
WIRELESS DEVICES
• Build-in Mini PCI 802.11b/g Wireless LAN Solution (BTO)
• 1 x Infrared Remote Control (BTO)
• Bluetooth (BTO)
AC/DC POWER SUPPLY ADAPTER
Universal auto-switching (100V~240V) 65W adapter, 20 Volt
System Specification A
133
BATTERY
• Rechargeable 6 Cells Li-ion battery pack with Smart Battery function
• Approximately 4 Hours (by average JEITA) Battery Life
WEIGHT AND DIMENSION
• 335.5 (W) x 238.9 (D) x 24.9 (H) ~33.1 mm
• Approximately 2.3 kg
Notebook User Guide
134
