User Manual 2 of 2
Fun with Multimedia 4
75
Notebook User Guide
76
4Fun with Multimedia
This chapter lets you make full use of all the
multimedia features of your computer in having fun
and excitement during work or leisure. You will learn
how to mix and match the built-in sound system, use
CD/DVD/CD-RW/Combo drive in creating an
exciting full multimedia presentation.
Fun with Multimedia 4
77
4.1 Notebook Multimedia Features
Your notebook computer is rich in multimedia features that make your
computing fun, comfortable, exciting and easy. Your computer is well able to
perform all multimedia tasks through the following:
• Intel Pentium 4/Intel Mobile Pentium 4 microprocessor.
• 128/256/512/1024/2048 MB RAM.
• CD-ROM Drive, DVD-ROM Drive, CD-RW or CD-RW/DVD combo.
• AGP VGA Graphics Controller.
• 16-bit Plug-and-Play Audio Sound System with built-in speaker and
microphone.
4.2 Audio Sound System Features
Your computer has a built-in 16-bit stereo sound controller that allows you to
record, store, and playback voice, music and other sound effects with built-in
mixer controls. An integrated full-duplex microphone and twin mini-speakers are
also built-in into your computer to allow you to record and playback sound
anytime and anywhere.
On the left side of your computer, you will find the audio ports that include the
following:
• Stereo Line-In Jack for connecting an external audio device such as CD player,
a tape deck, or a synthesizer as an input source.
• External 1/8-inch microphone jack that connects external microphone for
recording purpose.
Notebook User Guide
78
• Earphone or headphone jack for personal listening.
• Built-in two hotkeys for Volume Control
4.3 Setting Up the Audio Driver
Properties
Before you can start using the audio capabilities of your computer, you need first
to setup properly the audio driver after installing Windows. If you bought your
computer with Windows pre-installed, it is most likely that your dealer have
configured the sound driver for you. If not, you must refer to Chapter 2 on how
to setup the sound drivers for Windows.
4.4 Windows Multimedia Programs
Windows provides several multimedia programs that you can run with the built-
in features of your computer. Pointing the Start button, Programs,
Accessories, then Entertainment, you will find the Multimedia programs
group. (The section below use Window XP as examples)
Fun with Multimedia 4
79

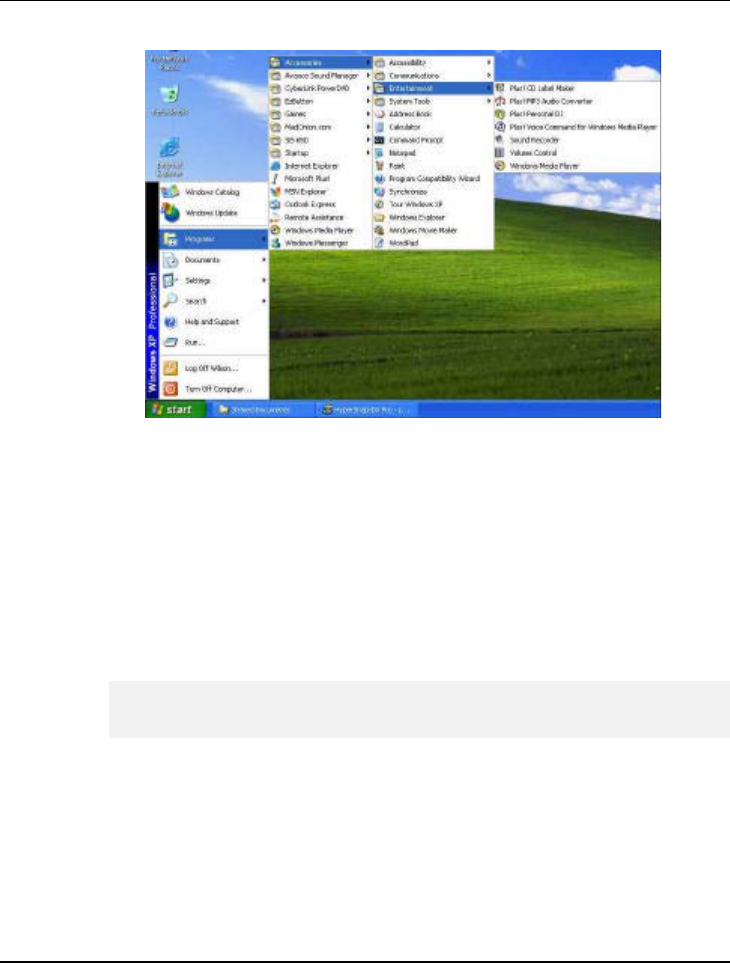

Figure 4-1 Entertainment Programs Group
The standard multimedia components are as follows:
• Windows Media Player - for playing sound, video and animation files
• Sound Recorder - for recording sounds and playback
• Volume Control - for adjusting the volume of mixer
For more information on how to operate these multimedia components,
run the program and click on the Help menu.
4.5 Recording Sounds
Your computer allows you to record voice and other sounds in several ways and
stores them as files on your hard disk. These voice or sound files can then be
Notebook User Guide
80
played back through the internal speaker or earphone jack using an external
speaker, headphone, or earphone set. You can also use the files as voice
annotations on many applications for more real presentation. This section will
describe briefly how you can record sounds under Windows operating system.
To record sounds, you need to run the Sound Recorder program from the
Multimedia program groups. The control buttons of the Sound Recorder are
simple to understand which comprise of the Fast Rewind, Fast Forward, Play,
Stop, and Record buttons. Click the Help menu on how to operate the Sound
Recorder.
Figure 4-2 Sound Recorder
The Sound Recorder also allows you to record sound from different input audio
source like the following:
• From the external microphone
• From the CD/DVD/CD-RW/Combo drive
Since you could record sound from different input sources, you must first set the
proper audio input recording device under the Recording Control panel. To do
this:
1. Double-click on the Volume Control on the taskbar or click Start button,
then point to Programs, Accessories, Entertainment and then click on
Volume Control.
Fun with Multimedia 4
81
2. Click Properties in the Options main menu.
3. Click the round button for Recording and tick off each component that list
in the "Shows the following Volume Controls" box.

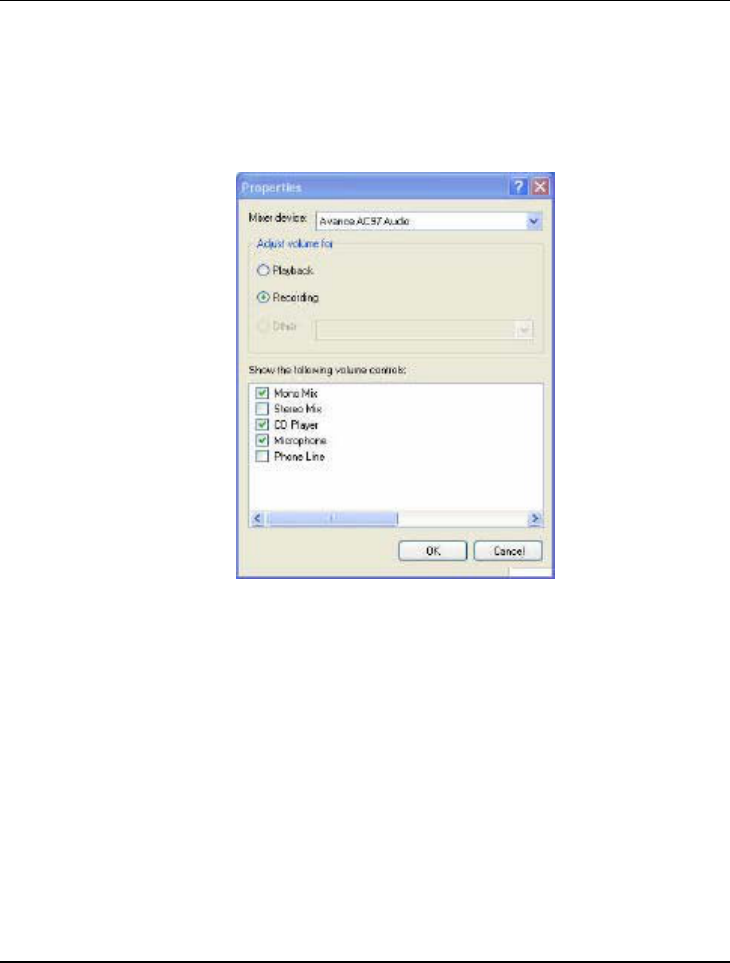

Figure 4-3 Audio Properties
4. Click OK and the Recording Control dialog box will appear. Here, you will
select the input device for the recording source. If you want to record from
the CD/DVD/CD-RW/Combo drive with audio music, you must click on
CD Player.
Notebook User Guide
82

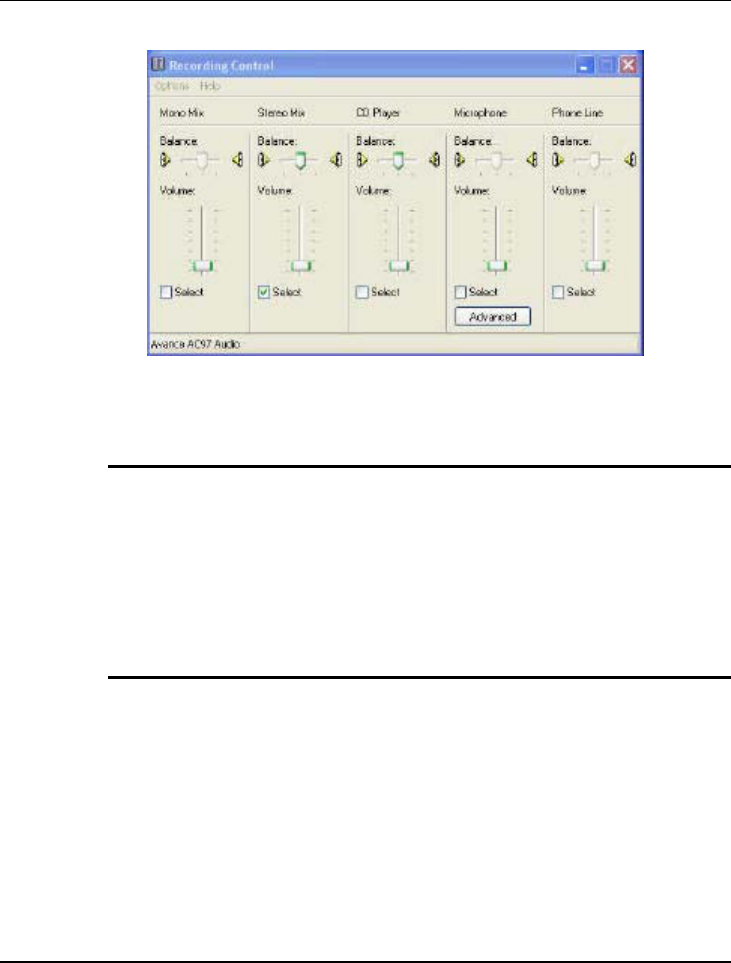

Figure 4-4 Recording Volume Control
USING AN EXTERNAL MICROPHONE
Your computer allows you to connect an external microphone for high quality
recording. The external microphone jack is found on the left side of your
computer. Use only microphone with 1/8-inch mini-jack connector. Follow the
same procedure for recording voice.
USING THE BUILT-IN CD-ROM/DVD-ROM/CD-
RW/COMBO DRIVE
You would normally use the CD-ROM/DVD-ROM/CD-RW/Combo drive for
recording audio music from the Audio CD. Follow these steps:
1. Activate CD Player volume on the Recording Control as discussed earlier.
2. Run the Sound Recorder program.
Fun with Multimedia 4
83
3. Insert the audio CD into the CD/DVD/CD-RW/Combo drive. Unless
you have disabled the CD auto-insertion notification for supporting
Suspend mode, the CD Player should automatically run after you have
inserted an audio compact disc and will start playing the audio CD.
Figure 4-5 Play Audio CD by Windows Media Player
5. Select the starting point where you want to start recording.
6. Switch to the Sound Recorder and press the Record button.
7. Switch immediately to the Windows Media Player and press the Play
button. You can adjust the volume control so you can also hear the music
while in recording.
Notebook User Guide
84
4.6 Playing Audio and Sound
Your computer has built-in twin speakers to playback audio and sound. You can
also adjust the volume manually by adjusting the volume control hotkeys found
on the keyboard of your computer.
For more quality sound output, you can choose to connect an external amplified
speaker or earphone from headphone jack. Always minimize the volume first
before placing the phone set to your ear.
USING THE WINDOWS MEDIA PLAYER
The easiest way to playback multimedia media files is to run the Windows Media
Player. Follow these steps:
1. Click on Start, point to Programs,Accessories, and then Entertainment.
2. Click on Windows Media Player to start program.
3. Click on the File menu and select the file you want to play.
4. When the file is recognized and open, click on the Play button to start
playback.
4.7 Playing Video and MPEG Files
Your computer is capable of running video motion files as well as MPEG
(Motion Picture Expert Group) files on CD, DVD, or CD-RW. By using
software MPEG program, you can watch real full-motion picture on your
computer. You can also run the Windows Media Player under the Entertainment
programs group as well to show all media device programs.
Fun with Multimedia 4
85

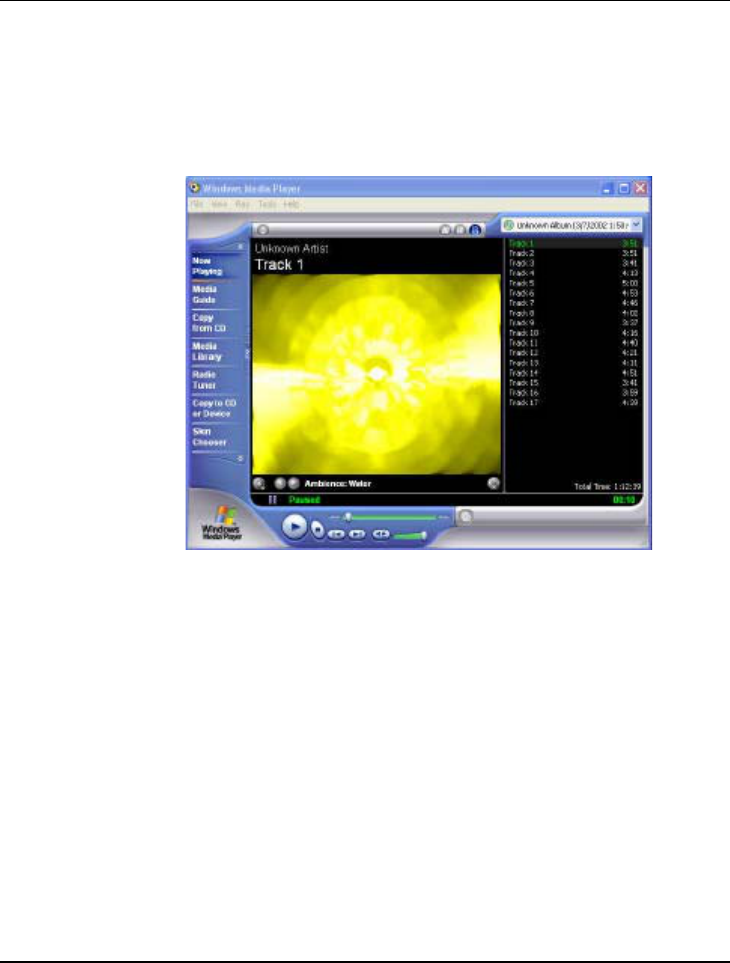

Figure 4-6 Windows Media Player
4.8 Using DVD
DVD is the breakthrough in superb full-motion picture playback. One disc can
contain at least 4.7GB of information, capable of holding one full-length movie
with soundtracks, subtitles, and different languages. Much more, the DVD-ROM
drive of your computer is backward compatible with CD-ROM drive so it allows
you to use any CD as well. It also works the same as the CD-ROM.
To playback DVD titles, you would need a software MPEG-2 program and the
optional DVD-ROM Device Pack.
Notebook User Guide
86
For best DVD playback, please enable the DMA function of this
notebook, for how to enable the DMA channel on both CD-ROM and
Hard Disk, please refer to driver installation on section 6 of chapter 2.
Moreover, you can enable Hardware Accelerator if the software MPEG-
2 player you are using has supported this function.
4.9 Using CD-RW, CD-RW/DVD
combo
CD-RW, CD-RW/DVD combo drive is a device that can write digital data to
CD-RW and CD-R compact disk (CD). With this device, you can backup your
own data to CD-R or CD-RW disc for mass data storage and safely retaining. The
CD-R disc can be written several times until the CD-R is full; the CD-RW disc,
furthermore, can write and erase data repeatedly. Please refer to the related user
manual about the CD-RW software.
Please pay attention to the copyright of the software or data you want to
backup. Backup or distribute the software or data might be illegal
according the restriction of the law.
Connecting to Peripherals 5
87
5 Connecting to Peripherals
This chapter describes how you attach peripheral
devices to your notebook. You can attach a printer or
mouse; connect an external monitor and keyboard, or
any other peripheral device. You will learn how to use
these peripheral devices with the step-by-step
instructions depicted in this chapter.
Notebook User Guide
88

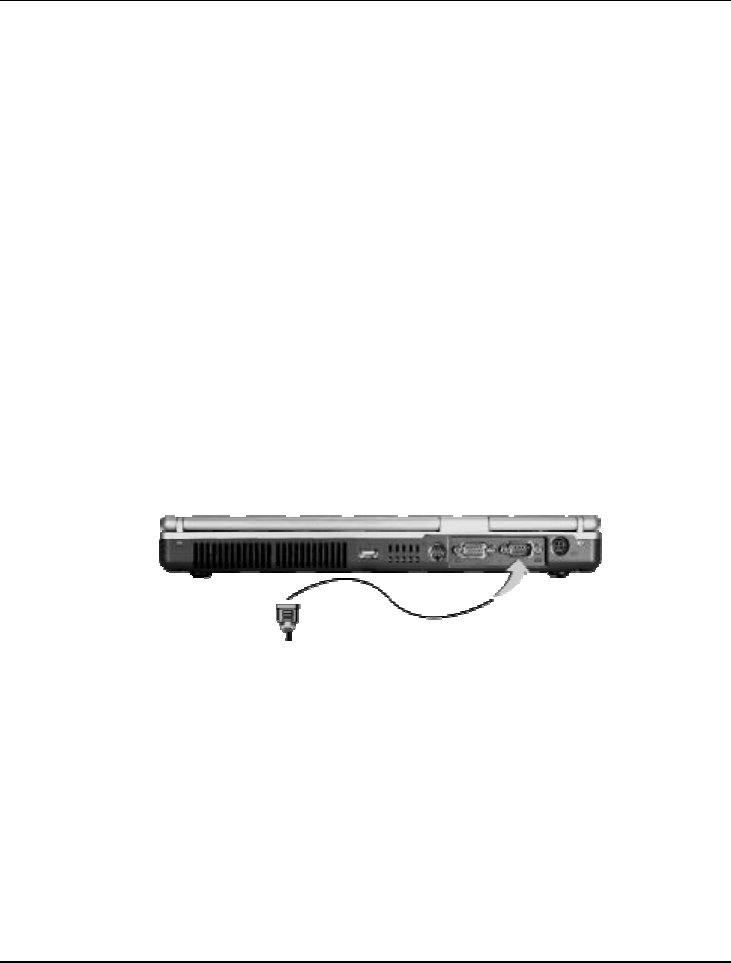

5.1 Using a Serial Port
Your computer has one 9-pin male serial port for connecting an external serial
GPS or PDA. The serial (RS232) port of your computer is normally referred to as
COM1.
For advanced system like Windows XP, the system can detect and install suitable
driver for the serial mouse automatically when you plug the mouse connector to
the computer. If the system you are using does not support this function, please
install the driver as follows
1. Turn off your computer.
2. Plug the serial mouse connector to the serial port at the back of your
computer. Secure the connection with the screws provided.
3. Turn on the computer.
4. Click the Start button, then point to Settings, and click Control Panel
5. Double-click on the Add New Hardware icon to appear the Add New
Hardware Wizard.
6. Follow the relative steps when screen shows up to guide you in executing
the specific procedures.
7. When system has rebooted, Windows will automatically detect the serial
mouse.
Connecting to Peripherals 5
89
5.2 Using the USB Port
USB or Universal Serial Port is a peripheral bus standard developed by Compaq,
DEC, IBM, Intel, Microsoft, NEC and Northern Telecom. Personal computers
equipped with USB will allow computer peripherals to automatically configure as
soon as they are physically attached - without the need to reboot or run setup.
USB will also allow multiple devices to run simultaneously on a computer, with
peripherals such as floppy drive, mouse, digital cameras, scanners, printers, CD-
ROM drives, modems, keyboards, games devices and acting as additional plug-in
sites, or hubs.
Depending on your operational requirements, you may need to disable
other ports in order to release system resource for the USB port.

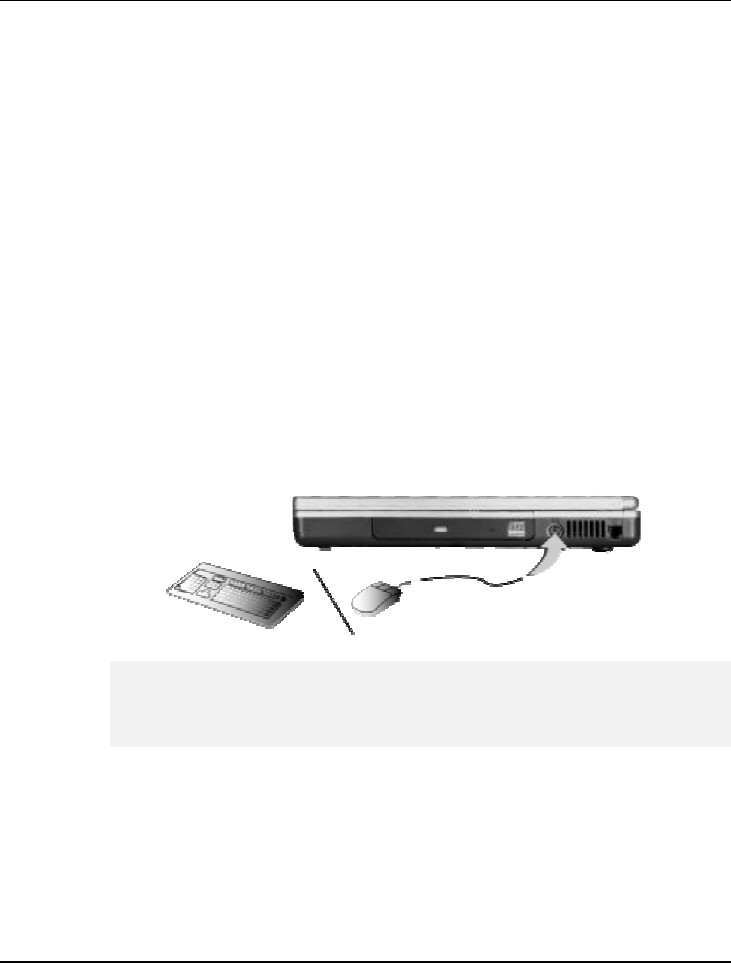

5.3 Using an External Keyboard (PS/2)
At the right side of your computer, you will find the 6-pin mini-DIN PS/2
keyboard and mouse port. This port allows you to connect an external full-sized
PS/2 desktop keyboard as well as an external PS/2 mouse. If you want to use
both the external PS/2 mouse and keyboard, you would need to buy a PS/2 Y-
cable.
Notebook User Guide
90
You can also purchase a keyboard adapter from your computer dealer that allows
you to connect standard 5-pin DIN-type desktop keyboards. To connect the
external keyboard:
For advanced system like Windows XP, the system can detect and install suitable
driver for the PS/2 mouse automatically when you plug the mouse connector to
the computer. If the system you are using does not support this function, please
install the driver as follows
1. Turn off your computer.
2. Connect the PS/2 keyboard directly to the PS/2 port. If you are using 5-pin
DIN-type keyboard, plug the keyboard to the keyboard adapter first and
then to the PS/2 port. Windows keyboard are also supported.
3. Turn on your computer. Both the built-in keyboard and the external
keyboard are active and can be used simultaneously.
Do not disconnect or connect the external keyboard when power is on.
Turn off the computer first. You can connect an external keyboard or
keypad only while the system is in Suspend mode.
Connecting to Peripherals 5
91
5.4 Using an External Monitor Port
Your computer has a 15-pin Monitor port for supporting any external CRT or
LCD color monitor. You need a display signal cable (usually provided with the
monitor). One end of the cable must have a 15-pin connector for the system.
To connect an external monitor:
1. Turn off your computer and make sure the monitor power switch is turned
off.
The notebook computer must be powered off or suspended while the
monitor is being connected. Although you can connect the external
Monitor without power off the computer and the external monitor,
however, it is harmful to both devices and it shortens the life of these
devices.
2. Connect the connector cable of the monitor to the VGA port at the back of
your computer. Secure the cable connection with the screws provided.
3. Connect the monitor power cable and plug it into a properly grounded wall
outlet.
4. Turn the power of the monitor.
5. Turn on your computer. Both the LCD panel and the monitor screen will
show the display. Your computer is set at default to run at simultaneous
display mode.
6. If you only want to show the display on the external monitor (CRT/LCD)
and shut off the LCD display, you can use the <Fn> + <F3> hot-key to
switch display type between LCD and CRT. Keep pressing the hot-key until
you get the display to external CRT/LCD only.
Notebook User Guide
92
Refer to Chapter 3 regarding the possible External CRT resolutions and
how to change the display properties.
5.5 Using the IR Port
Your computer can equip with an industry standard IR port that allows enhanced
wireless connection with infrared built-in devices like PDAs, printers, and
portable computers. The IR port is Infrared Data Association (IrDA) compatible
that makes use of the second COM port or COM2 of your computer. The
transfer rate for SIR is 115.2Kbit/sec. The transfer rate for FIR is 4Mbit/sec.

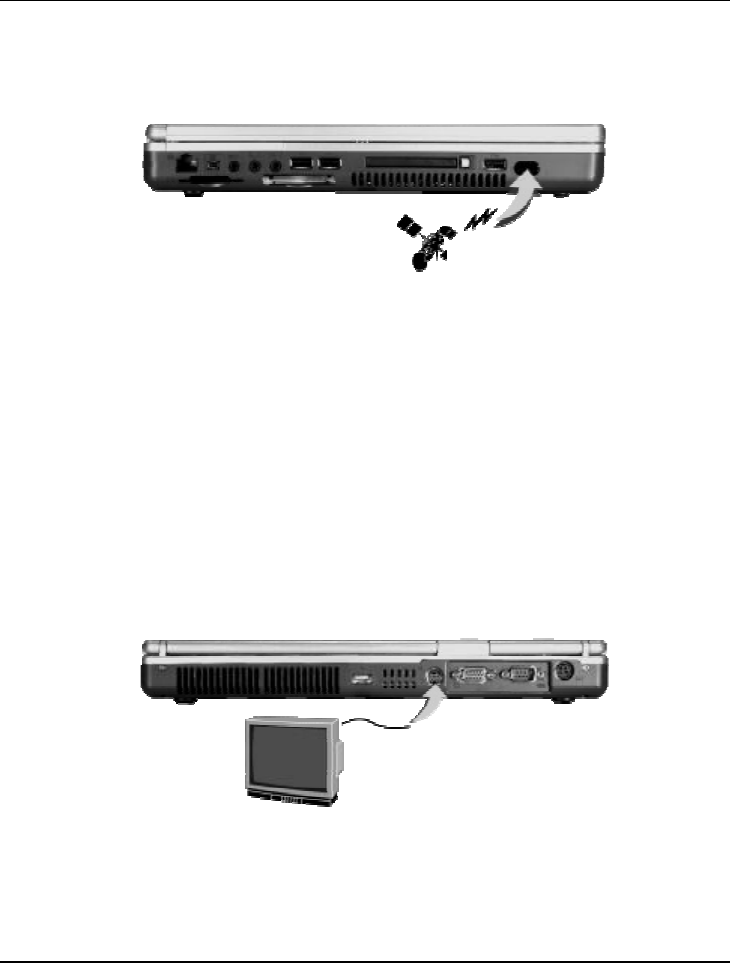

To connect to another IR equipped device:
1. Properly position both your computer and the target device. Place the target
device in line with your notebook and should be within 80cm (30-inches)
from each other. You should refer to the User Guide of the target device on
how to enable its IR function.
2. Turn on your computer.
3. After setting up both devices to enable IR function, run the external device's
application that you wanted to connect to the IR port.
4. Set the transmission protocol or device to COM2 or specified by Windows
system. Make sure that this does not conflict with any pre-installed
Connecting to Peripherals 5
93
fax/modem PC.
5.6 Using the TV Port
Also found at the back of your computer is one S-Video port.
To display your computer screen on the TV:
1. Turn off your computer and plug one end of the RCA jack cable to the end
to the input video jack of your television set.
2. Turn on your computer and your television set.
3. Click the Start button, then point to Settings, and click Control Panel.
4. Double-click on the Display icon and point to Setting tab.
5. Double-click Advanced button and point to nView tab.
Notebook User Guide
94
6. In the Display item, select the TV as display and click the check box of
Make this the primary display, then click OK. Windows now
automatically detect the TV port and enable this function.

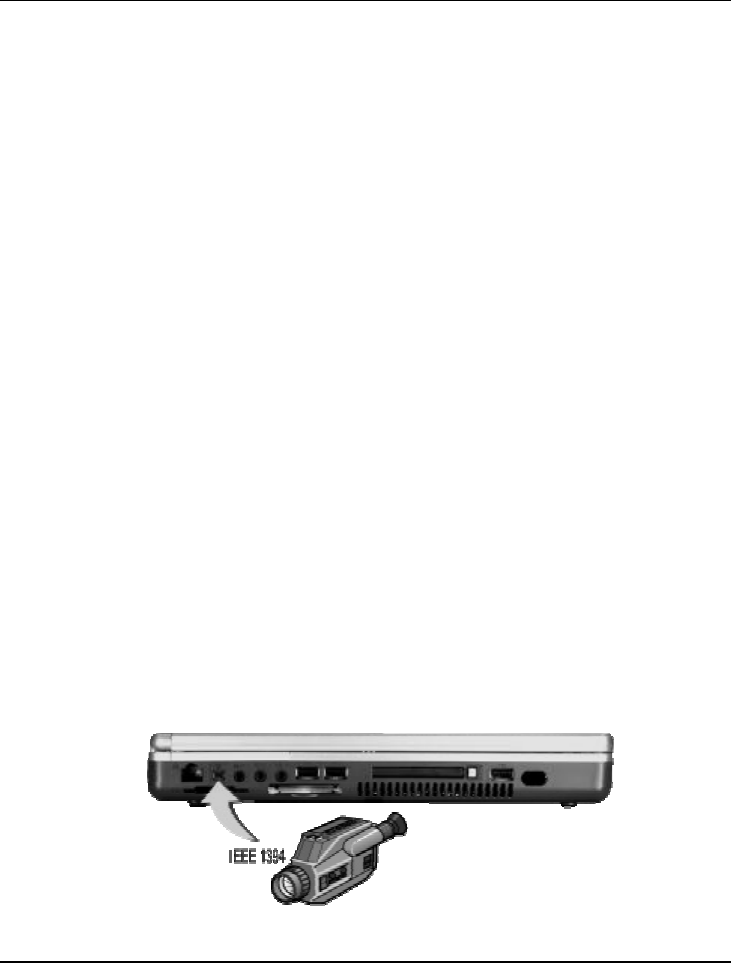

5.7 Using the IEEE 1394 Port
IEEE 1394 is a new I/O standard that is supported by Win98 (second edition)
or later Windows version. With supporting high-speed transmission and
delivering data at a guaranteed rate, you can record digital video clips and
download them directly via a super-speed IEEE 1394 port at the left side of the
notebook. IEEE 1394 becomes an ideal for devices that need to transfer high
levels of data in real-time.
With built-in IEEE 1394 port, this computer enables the peripheral devices in
transmitting digital video data or data backup. To install the IEEE 1394 port
driver, please refer to Win98 (second edition) or later Windows version. The
Windows system will automatically recognize it in installing a suitable driver for
it. For other version of Windows, please visit Microsoft's web site for more
information about it.
Moreover, you should install the driver of peripheral device to connect with the
IEEE 1394 port, for details please refer to the manual that comes with your
peripheral device.
Connecting to Peripherals 5
95

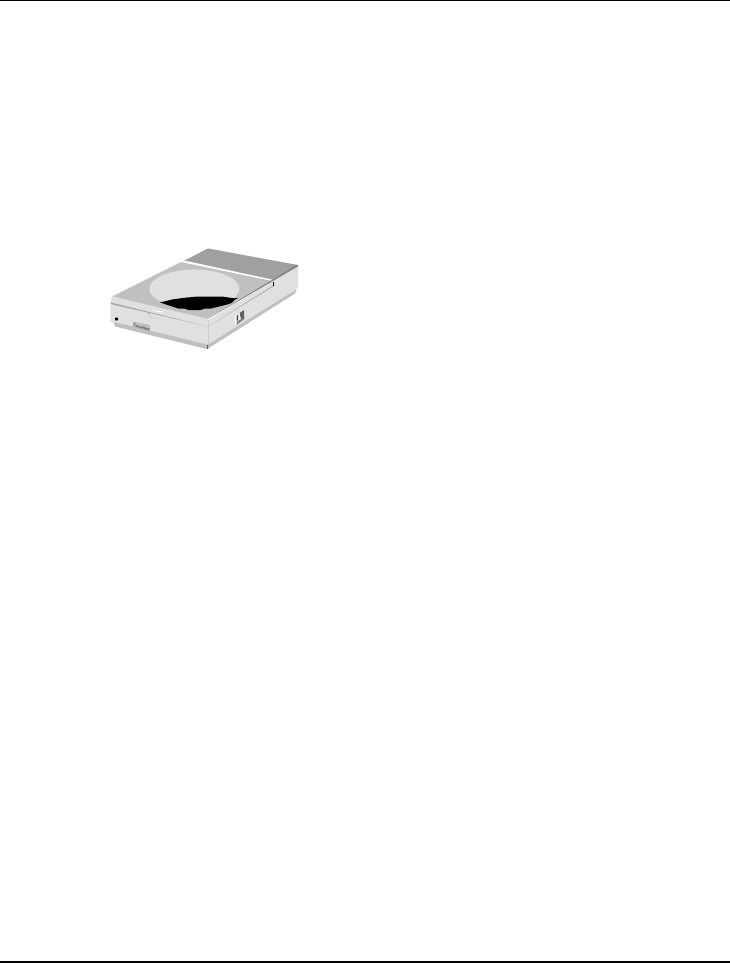

Please make sure that the external IEEE 1394 HDD box you purchase
on local electronic store should provide external power adapter. Though
there are different types of IEEE1394 HDD box and hard disk from
different manufactures, the power consumption has varied range. If the
power of the external IEEE 1394 HDD is supplied from the USB of this
notebook, it may not run properly.
5.8 Using the External Audio System
At the left side of your computer, you will find the built-in audio ports. You can
connect audio line-in jack, Microphone jacks, earphone or powered speaker.
To connect to a audio jack:
1. Locate the audio port (Line-in, Microphone, Headphone) that you want to
use to the target device.
2. Plug the jack into the port on the left side of the system.
If you use external speakers and experience the sound distortion or
feedback, please lower the volume. Some factors is caused by too close
locating the microphone and speakers from each other, moving away the
external audio option from the unit may also help.
5.9 Using the LAN Port
This notebook comes with a internal 10Base-T/100Base-TX LAN module that
connects your computer to other computers/networks through a local area
network (LAN) and supports data transfer rates at 10Mbps and can be up to
100Mbps. The 10Base-T standard also called Twisted Pair Ethernet is connected
Notebook User Guide
96
with RJ-45 connectors. The 100Base-TX is based on the older Ethernet standard.
Because it is 10 times faster than Ethernet, it is often referred to as Fast Ethernet.
The built-in LAN module provides a standard RJ-45 connector.

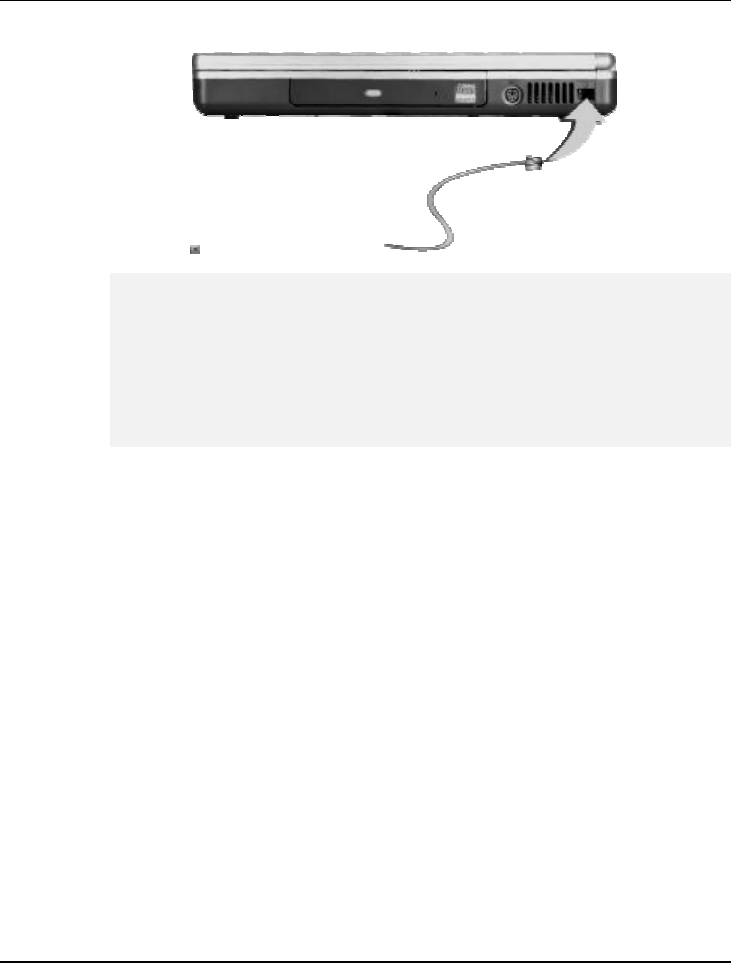

To connect the twisted-pair cable to your LAN port:
1. Locate the twisted-pair cable in the accessories box in notebook shipping
carton. Each end of the cable has a RJ-45 connector.
2. Connect one end of the cable into the network wall outlet or HUB.
3. Connect the other end of the cable into the computer RJ-45 LAN port.
5.10 Using the Wireless LAN (BTO)
Wireless LAN is the major breakthrough in computer communication
technology. It lets user connect to the LAN environment without using any wire
to traditional RJ-45 jack. User can enjoy the wireless connection within the range
of Access Point (AP) of LAN.
Access Point (AP) is the wireless transmission and receiving device, it generally
connects to the server of a LAN environment or act as a LAN hub with wireless
connection. Access point can be set in an office environment, airport, major
railway station, etc. that depends on the construction of each country. In most
Connecting to Peripherals 5
97
case, you probably can use it at office, please consult with the network department
of your company for more details.
This computer integrates built-in mini-PCI 802.11b wireless LAN module.
IEEE 802.11b standard supports 11 Mbps wireless connection speed. You can
connect to the wireless LAN Access Point without insert extra wireless LAN card
into the PCMCIA slot.
Wireless LAN module is similar to LAN module. You need to install software
driver before using it. Please refer to chapter 2.6 on how to install the driver.
5.11 Using the Modem Port
This notebook comes equipped with a 56K internal fax/data modem that allows
you to communicate with others via fax, email, or to connect to an online service
or bulletin board.
The built-in fax/data modem provides on standard phone connector.

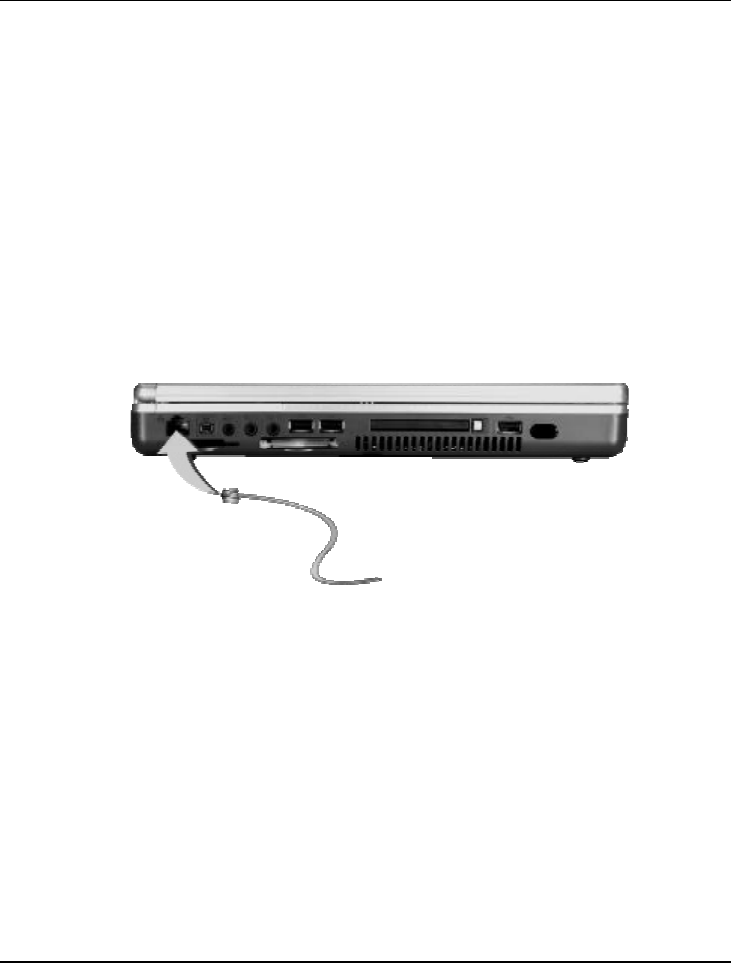

To connect the analog phone cable to your modem:
1. Locate the analog phone cable in the accessories box in notebook shipping
carton. Each end of the cable has a RJ-11 connector.
2. Connect one end of the cable into a standard wall outlet.
3. Connect the other end of the cable into the computer modem port.
Notebook User Guide
98
The speed of data transmission is dependent on the quality of telephone
lines. Digitally terminated lines improve the speed of data transmission.
Contact your service provider for more information.
The analog phone cable is an industry standard cable. Longer cables
are available at your local electronics store.
Connecting to Peripherals 5
99
Customizing Your Notebook 6
101
6Customizing Your Notebook
Your computer uses the Phoenix BIOS Setup
program that allows you to set several system
configuration in changing the way your computer
performs. This includes your system time and date,
disk drive configuration and password setup. This
information is then stored in the CMOS RAM and will
remain permanent unless you change it again. This
chapter discusses on how you will activate the BIOS
Setup program and change the system configuration to
suit your desired operation. You must be careful to set
the configuration properly in order for your computer
to run smoothly. If you are not sure of any settings,
contact your dealer.
Notebook User Guide
102
6.1 Running the BIOS Setup Program
Your computer is likely to have been properly setup and configured by your
dealer prior to delivery. However, you may find it necessary to use the computer’ s
BIOS (Basic Input-Output System) Setup program to change system
configuration information, such as the current date and time, or your hard disk
drive type. The Setup program can be accessed when you power on the system
and pressing the <F2> function key.
The settings that you specify within the Setup program are recorded in a special
area memory called the CMOS RAM. This memory is backed up by a battery so
that is will not be erased when you turn off or reset the system. Whenever you
turn on the computer, the system will read the settings stored in the CMOS
RAM and compare them to the equipment check conducted during the Power
On Self Test (POST). If an error occurs, an error message will be displayed on the
screen, and you will then be prompted to run the Setup Program.
As the POST (Power-On Self Test) executes during the boot up process, the
screen will display the following message:
Press <F2> to Enter SETUP
Press the <F2> key to run the BIOS Setup program. The BIOS Setup program
is organized into five menus which you can select using the <-- and --> keys. To
move from one option to another, you use the up and down arrow keys while
using the <F5> and <F6>, or <+>and <-> keys to change the settings. On the
right hand side of the screen are some brief help descriptions of each item you
want to change.
On the BIOS Setup program, you will find the following parts on the screen:
Customizing Your Notebook 6
103
• Item Specific Help
The right side of the screen. This area describes each parameter and its
available settings.
• Menu Bar
The top line of the screen. Each of the five selections displays its own screen.
• Parameters
The left side of the screen. This area lists the parameters and their current
settings.
• Key Status Bar
The bottom part of the screen. These lines display the keys available to move
the cursor, select a particular function and so forth.
To exit the BIOS Setup program, simply press the <Esc> key and select from the
Exit menu whether you want to Save changes and exit; Discard Changes and exit.
Notebook User Guide
104
6.2 Using the Main Menu Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific
S
y
stem Time:
[
12 :00 :00
]
<Tab>
,
<Shift-
System Date: [03/03/2003] or <Enter> selects
Language: [English (US)] field.
Boot Display Device: [Both]
4Primary Master [Primary Master - (PM)]
Secondary Master Installed CD/DVD
System Memory: 640 KB
Extended Memory: 512 KB
CPU Type: Intel (R) Pentium ® 4
CPU Speed: 2600 MHz
BIOS Version: A.3A-08BB-0812
F1 Help Select Item -/+ Change Values F9 Setup
Defaults
Esc Exit --> Select Menu Enter Select Sub-
Menu
F10 Save and Exit
Customizing Your Notebook 6
105
• System Time
Allows you to change the system time using the hour:minute:second format
of the computer.
Enter the current time for reach field and use the <Tab>, <Shift>+<Tab>,
or <Enter> key to move from one field or back to another.
You can also change the system time from your operating system.
• System Date
Allows you to set the system date using the month/date/year format.
Enter the current time for reach field and use the <Tab>, <Shift>+<Tab>,
or <Enter> key to move from one field or back to another.
You can also change the system time from your operating system.
• Language
Allows you to set the display language in English or Japanese version for the
BIOS Setup program.
• Boot Display Device
Lets you select the display device.
• Primary Master
This field display various parameters for the hard disk drive. If type [Auto] is
selected, the system automatically sets these parameters. If type [User] is
selected, Cylinders, Heads and Sectors can be edited.
• Secondary Master
This field is for information only as the BIOS automatically detects the CD-
ROM/DVD-ROM.
• System Memory
This field reports the amount of base (or conventional) memory found by
the BIOS during Power-On Self-Test (POST).
Notebook User Guide
106
• Extended Memory
This field reports the amount of extended memory found by the BIOS
during Power-On Self-Test (POST).
• CPU Type
This field reports the CPU type information detected by the BIOS during
Power-On Self-Test (POST).
• CPU Speed
This field reports the CPU speed information detected by the BIOS during
Power-On Self-Test (POST).
• BIOS Version
This field is for information only as the BIOS displays the BIOS version
during the Power-On Self-Test (POST).
6.2.1 INTERNAL HDD SUB-MENU
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Primary Master [Primary Master - (PM)] Item Specific Help
T
yp
e:
[
Auto
]
User =
y
ou enter
parameters of hard-disk
Multi-Sector Transfers: [16 Sectors] drive installed at this
LBA Mode Control: [Enabled] connection.
32 Bit I/O: [Disabled] Auto = autotypes hard-
Transfer Mode: [Fast PIO 4] disk drive installed here.
Ultra DMA Mode: [Mode 5] CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
Removable disk drive is
Customizing Your Notebook 6
107
Installed here.
F1 Help Select Item -/+ Change Values F9 Setup
Defaults
Esc Exit --> Select Menu Enter Select Sub-
Menu
F10 Save and Exit
Use the Type field to select the drive type installed. You can select different drive
types as CD-ROM,User,Auto or None by pressing <Space> bar. Set this
option to Auto so your computer will automatically detect the drive type during
power on. Set this option to None when your computer is not installed any
devices. Press <Esc> to return to the Main Menu.
6.3 Using the Advanced CMOS Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
NumLock [Off] Selects Power-on state
For NumLock
Installed O/S [Windows XP]
Embedded Audio Device [Enable]
Embedded 1394 Device [Enable]
Summary Screen [Disable]
Keyboard Language [EU]
USB BIOS Legacy Support: [Enable]
USB 2.0 Host: [Enable]
4I/O Device Configuration
Notebook User Guide
108
F1 Help Select Item -/+ Change Values F9 Setup
Defaults
Esc Exit --> Select Menu Enter Select Sub-
Menu
F10 Save and Exit
• Num-Lock
Lets you specify Enabled or Disabled for activating or inactivating Num-
Lock function when system is booting.
• Installed O/S
Allows you to set the OS to Window XP or DOS version for the BIOS
Setup program.
• Embedded Audio Device
Lets you specify Enabled or Disabled for activating or inactivating Audio
Device function when system is booting.
• Embedded 1394 Device
Lets you specify Enabled or Disabled for activating or inactivating
Embedded 1394 Device function when system is booting.
• Summary Screen
Displays system configuration on boot.
• Keyboard Language
Lets you specify Keyboard Language to EU, US, or JP as European,
English, or Japanese mode when system is booting.
• USB BIOS Legacy Support
Enable or disable support for USB floppy drive.
• USB 2.0 Host
Enable or disable the support of USB 2.0
• I/O Device Configuration
Lets you configure input/output device such as Serial Port, Parallel Port.
Customizing Your Notebook 6
109
6.3.1 PERIPHERAL SUB-MENU
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
I/O Device Configuration Item Specific Help
Serial port A: [Auto] Configure serial port
Serial port B: [Enabled] using options:
Mode: [FIR] [Disabled]
Base I/O address [2F8] No configuration,
[Enabled]
User configuration,
[Auto]
BIOS or OS chooses
configuration,
F1 Help Select Item -/+ Change Values F9 Setup
Defaults
Esc Exit --> Select Menu Enter Select Sub-
Menu
F10 Save and Exit
• Serial port A
You can select the Enabled, Disabled, or Auto option for enabled or
disabled the port, or automatically sensed by BIOS or OS.
• Serial port B
You can select the Enabled, Disabled, or Auto option for enabled or
disabled the port, or automatically sensed by BIOS or OS. If you select
Enable, you also need to set the IR mode, Base I/O for the IR device.
Notebook User Guide
110
6.4 Security Menu Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Supervisor Password Is
Clear
Supervisor Password
User Password Is Clear controls access to the
Set Supervisor Password [Enter] setup utility.
Set User Password [Enter]
Password on boot [Disabled]
Fixed disk boot sector [Normal]
F1 Help Select Item -/+ Change Values F9 Setup
Defaults
Esc Exit --> Select
Menu
Enter Select Sub-
Menu
F10 Save and Exit
• Supervisor Password Is
Set/Clear selections show that the notebook is under controlled by
Supervisor Password or not.
• User Password Is
Set/Clear selections show that the notebook is under controlled by User
Password or not.
Customizing Your Notebook 6
111
• Set Supervisor Password
Supervisor password gives you the authority in accessing the setup utility.
You also need to enter this password in system booting and resuming
from suspend mode. When you press <Enter> in this field, the Set
Supervisor Password dialog box appears. Enter a new password with up to
8 alpha-numeric characters, and then re-enter it for confirmation.
• Set User Password
This field is only available when Supervisor Password has set. Enter the user
password when boot the system or resume from suspend mode. But if the
Write Protect is set in the Fixed disk boot sector field, you should enter a
supervisor password to access the fixed disk when boot the system or
resume from suspend mode.
• Password on Boot
If you set this field to Enabled, your computer will always ask for the
password every time you boot your computer.
• Fixed Disk Boot Sector
If you set this field to Write Protect, the write protect boot sector on hard
disk will protect against viruses. In this situation, only the supervisor can
access the Boot Sector of fixed disk.
Notebook User Guide
112
6.5 Using the Boot Setup
This item allows you to set the search drive sequence where the system will try to
boot up first.
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Removable Devices Use <> or <> to
+Hard Drive select a device, then
CD-ROM Drive press <+> to move it
up to the list, or <-> to
move it down to the
list. Press <ESC> to
exit from this menu.
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit --
>
Select
Menu
Ente
r
Select Sub-
Menu
F10 Save and Exit
To select the boot device, you can use the up or down arrow key, then press <+>
to move up the device in the list or press <-> to move down the device in the
list. To exit from this menu, press <Esc>.
Customizing Your Notebook 6
113
6.6 How to Exit the Setup Program
There are two choices to escape from the Setup program.
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Exit Savin
g
Chan
g
es Exit S
y
stem Setu
p
Exit Discarding Changes and save your
Load Setup Defaults changes to CMOS.
Discard Changes
Save Changes
Battery Refresh
F1 Help Select Item F5/F6 Change Values F9 Setup
Defaults
Esc Exit --
>
Select Menu Enter Execute
Command
F10 Save and Exit
• Exit Saving Changes
Saves all changes to CMOS while running the BIOS setup program and exit
from the system setup program.
• Exit Discarding Changes
Allows you to discard all changes made while running the BIOS setup
program and exit from the system setup program.
• Load Setup Defaults
Lets you load the default values for all setup items.
Notebook User Guide
114
• Discard Changes
Reverts to previously selected settings.
• Save Changes
Saves Setup data to CMOS.
• Battery Refresh
Conditions the battery so that the battery can be fully charged.
6.7 How to Upgrade the BIOS
Your computer uses EPROM Flash BIOS chip that allows you to easily upgrade
the BIOS program. When you update the BIOS, any customized settings you
made are lost.
To upgrade the BIOS:
1. Insert the BIOS Update diskette into the diskette drive.
2. Power on the system with the diskette in the diskette drive.
3. On the DOS prompt, type the following command.
A:\>Phlash XXXXXX.ROM (BIOS filename) or
A:\>XXXXXX.BAT (Batch file for BIOS file)
4. Press <Enter> to run this BIOS utility. After the system has been
successfully run this program, a message similar to the following appears:
Flash memory has been successfully programmed,
press any key to restart the system. If the
system does not restart, turn it off, then turn
on again.
5. Press any key to restart this system.
Contact your dealer for the latest BIOS update file.
System Upgrade 7
115
7 System Upgrade
This chapter describes how to upgrade your system.
You can upgrade your memory size to your system
for specific requirements. This section provides an easy
step in doing system upgrade for your notebook
computer. The upgrade procedures include the
following.
Notebook User Guide
116
System Upgrade
This section provides an easy step in doing system upgrade for your notebook
computer. The upgrade procedures include the following:
MEMORY UPGRADE PROCEDURES
Your notebook computer offers two memory slots using 144-pin SODIMM
(Small Outline Dual Inline Memory Module) at least 128MB DDR SDRAM. The
memory compartment is located just under your computer.
Based Memory Installing Memory Total
128 MB 0 MB 128 MB
128 MB 128 MB 256 MB
128 MB 256 MB 384 MB
128 MB 512 MB 640 MB
256 MB 0 MB 256 MB
256 MB 128 MB 384 MB
256 MB 256 MB 512 MB
256 MB 512 MB 768 MB
512 MB 0 MB 512 MB
512 MB 128 MB 640 MB
512 MB 256 MB 768 MB
512 MB 512 MB 1024 MB
1024 MB 0 MB 1024 MB
1024 MB 128 MB 1152 MB
1024 MB 256 MB 1280 MB
1024 MB 512 MB 1536 MB
System Upgrade 7
117
Based Memory Installing Memory Total
1024 MB 1024 MB 2048 MB
INSTALLING MEMORY MODULE
Your computer comes with standard 128MB, 256 MB, 512MB or 1024MB of
synchronous DDR SDRAM. You can increase system memory to a maximum of
2048 MB in the system, by installing two small outline double inline memory
modules (SO-DIMMs) with installed base memory in the system.
The 128MB, 256MB, 512MB and 1024MB memory module are available:
To install the memory module:
1. Make sure the system is powered off, the battery also is removed and that no
peripheral devices are attached.
2. Turn the computer upside-down and locate the screw that secures the
DIMM door at the underside of the notebook.
3. Remove the screw and open the DIMM cover by your finger.
4. Locate the memory module into the empty memory module sockets. (Your
system comes with one memory module already installed in the socket.)
Notebook User Guide
118
Avoid touching the exposed components inside the system. Doing so
may damage the system.
5. Insert the connector of the memory module into the socket. Make sure the
notch of the memory module fits the nose of the socket.
Hold the memory module at a 30-degree angle and push its connector
into the memory socket of the notebook.
Press down on the edge of the memory module until the locking
tabs on both sides is locked.
6. Put the DIMM door back and secure the screw on the DIMM door.
7. Turn the system over.
To remove a memory module, push the locking tabs aside from the memory
module until the module pops up. Then, remove the memory module.
UPGRADE HARD DISK
Your notebook computer offers one 2.5" format, 9.5mm height hard disk. If the
volume does not fit your need or it is crashed, you can upgrade it by replacing
with new hard disk. Please do the following steps to change it.
1. Remove the battery pack
2. Push the locking bar.
System Upgrade 7
119
3. Pull out the HDD by locking bar firmly and slowly.
4. Take out the hard disk from the compartment by finger carefully
5. Remove the connector from the hard disk gently.
6. Remove the crane screws located at each side of the hard disk.
7. Rotate and tighten the crane screws to the new hard disk.
8. Attach the connector to the new hard disk precisely.
9. Place the hard disk back into the HDD compartment that is next to the inner
part of the battery bay.
10. Lock the bar as depicted in Chapter 2.1."Installing the Hard Disk".
Notebook User Guide
120
11. Install the battery back to the notebook as depicted in Chapter 2.2. "Using
the Battery Pack".
After upgrading the HDD, be sure to set the boot device as DVD/CD-RW
Combo drive and Primary Master as Auto on BIOS setup menu. Please refer to
Chapter 6 about the setting of BIOS setup menu. Then, boot the system by
using WinXP CD-ROM and the system will detect the hard disk automatically
and prompt you how to format the new disk.
Please tighten the screws located at each side of the hard disk before
operating the hard disk. Any vibration may cause damage for the
running hard disk.
Please contact dealer or certified technician for changing the hard disk
drive. The damage of changing HDD resulting from users may not be
under warranty
Caring for Your Notebook 8
121
8Caring for Your
Notebook
Your Notebook PC is a fully IBM compatible
portable personal computer with the latest features in
mobile computing and multimedia technology.
Lightweight and compact, your Notebook PC runs on a
whole wide range of general business, personal
productivity, and professional applications, it is ideal for
use in the office, at home, and on the road.
Your Notebook PC also allows you for several levels of
customization and expansion that are previously
available only on desktop PCs.
Notebook User Guide
122
8.1 Important Safety Instructions
Portable computers take the most beating from end users. This section gives you
detailed information about how to maintain a safe working environment while
using the notebook computer. You can maintain its condition and performance
by following these guidelines. Please read it carefully to ensure maximum safety.
• Before cleaning the notebook computer, make sure it is disconnected from
any external power supplies (i.e. AC adapter, car adapter and so on).
• When cleaning, do not use liquid or sprayed detergent for cleaning. Instead,
use moisture sheet or a cloth for cleaning.
• The socket-outlet shall be installed near the notebook computer and shall be
easily accessible.
• Please keep the notebook computer from humidity.
• Lay the notebook computer on a reliable surface when installing. A drop or
fall may cause injury.
• The openings on the enclosure are for air convection hence the notebook
computer can be protected from overheating. DO NOT COVER THE
OPENINGS.
• Be careful of using power supply. The notebook computer has specific
power requirements.
• Use only a power adapter approved for use with this notebook computer.
• The power adapter may have a 2-prong plug. This is an important safety
feature. A compatible outlet is required. If it is not available, find a qualified
electrician to install one.
Caring for Your Notebook 8
123
• While unplugging the power cord, disconnect it by the plug head, not by its
wire.
• Make sure the socket and any extension cords you may use can support the
total current load of all the connected devices.
• Though your AC adapter is suitable for universal international voltage, it still
requires a stable and continual power supply. Make sure the voltage of the
power source when connect the notebook computer to the power outlet. If
your are unsure of your local power specifications, consult your dealer or local
power company.
• Place the power cord in such a way that people can not step on it. Do not
place anything over the power cord.
• All cautions and warnings on the notebook computer should be noted.
• If the notebook computer is not in use for a long time, disconnect it from
mains to avoid possible damage by transient over-voltage.
• Never pour any liquid into openings as this may cause fire or electrical shock.
• Never open the body of notebook computer. For safety reason, the
notebook computer should only be opened by qualified service personnel.
• If one of the following situations arises, have the notebook computer
checked by service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the notebook computer.
The notebook computer has been exposed to moisture.
The notebook computer has not worked well or you can not get it
work according to user’ s manual.
The notebook computer has dropped and damaged.
Notebook User Guide
124
The notebook computer has obvious sign of breakage.
• Do not leave this notebook computer in an environment unconditioned.
Storage temperature above 60ºC (140ºF) may damage the notebook
computer.
• An approved power cord has to be used for the notebook computer’ s
power supply. For a rated current up to 6A and an equipment weight more
than 3 kg, a power cord not lighter than H05VV-F, 2G, 0.75mm2, has to be
used.
• To avoid any damage happened to the internal device, you should first
disconnect the AC adapter and remove the battery pack from the notebook
when replacing any internal device.
The sound pressure level at the operator's position according to IEC 60704-1 is
equal or less than 70dB(A).
8.2 Cleaning Your Computer
When it is necessary to clean the plastic case and keyboard, use a soft, lint-free
cloth, slightly dampened with a mild detergent solution or use the contents of
any commercially available computer cleaning kit.
Never use alcohol, petroleum-based solvents, or harsh detergents to clean the
notebook. Also never spray any liquids directly on the computer case, keyboard,
or screen. If the liquid-crystal display (LCD) screen has become smeared or dusty,
clean the screen by first applying a mild glass cleaner to a soft, clean, lint-free cloth,
and gently wipe the glass. Never apply liquids directly on the screen surface.
Moreover, do not use paper towels to clean the display screen. Paper can scratch
the display screen matte.
Caring for Your Notebook 8
125
8.3 Maintaining the LCD Quality
When it comes to screen problems, heat plays a big part. After a good working
session, the typical routine is to shut the machine and close the cover. But the
display surface - no matter what type it is - and the components inside the
computer radiates heat; when you close the cover, you trap the heat against the
screen. Leave the computer's cover open for about ten minutes while the heat
disperses. Make this a habit.
You should also enable the power management of your computer to turn off the
LCD power and display when the system is in inactivity for some time. Adding
screen savers is also acceptable.
Follow the safety guidelines mentioned earlier and how to clean your computer.
8.4 Maintaining Your Hard Disk
Losing your data has the same consequences as a system break down. Users must
make it a habit of doing hard disk maintenance every week or so. Here is some
maintenance you could do:
• Always back up your data files from your hard disk.
• Install the virus detecting program to monitor virus that could tamper your
files.
• Use SCANDISK once in a while to correct any errors found in the directory
and File Allocation Table. This will also free up space from any unused
sectors.
• Never move or raise the computer while the hard disk is being accessed,
most especially don't jar the hard disk as this may cause a hard disk crash.
Notebook User Guide
126
• Use hard disk maintenance programs like Disk Defragmenter of Windows.
These reorganize your hard disk by eliminating fragmentation and
improving your hard disk access time.
• Install a system password in your computer so others won't be able to use
the hard disk.
8.5 Battery Care Guidelines
The battery pack furnished with the computer requires reasonable care and
handling to ensure efficient operation and maximum life. There is a risk of fire
and chemical burn if the battery pack is handled improperly.
To ensure that the battery pack endures normal life cycle, always observe the
following precautions when handling the battery pack:
• Handle batteries carefully. Do not try to disassemble, crush, puncture, open,
drop, mutilate, short external contacts, disposed of in water or fire, or
expose it to temperatures higher than 60 C.
• Recharge batteries only as described in this manual and only in ventilated
areas. Never use an external charger other than the one supplied with your
computer.
• Do not leave batteries in hot locations for more than a day or two.
• Do not leave your battery in your computer for longer than 1 month
without plugging in the power adapter.
• Do not leave battery in storage for more than 2 months without recharging
it to prevent over discharge. Over discharge will hurt the battery
• Dispose dead battery properly to protect the environment. The batteries
contain hazardous chemicals and should not be thrown out with household
or office trash.
Caring for Your Notebook 8
127
• You should always discharge your battery before recharging it on either of
these two conditions: first, this is the first time you start to use your battery;
second, you had not charge the battery for more than 2 months. To
discharge the battery, please execute the "Battery Refresh" function in the
BIOS Setup Utility.
8.6 When You Travel
For safety and convenience when traveling, please follow these instructions:
• Back up all needed files on your hard disk before traveling.
• Recharge your battery overnight to ensure full battery power before you
leave.
• Don't forget to bring along the AC adapter and extra battery pack.
• Try to bring backup software as well.
• Check the voltage rating and the outlet type of your destination. If the power
cord of the adapter is different, then you need to purchase a suitable one.
Consult your dealer.
• Carry your computer in its carrying case or in a briefcase. Never check-in the
computer as a luggage.
• Remember to apply those power saving features and techniques to save
battery power.
Hardware System Information A
129
APPENDIX A
Hardware System Information
This appendix gives information on the technical
and hardware specifications of your computer. Please
note that the information mentioned here may not be
exactly the same with your computer as specification is
subject to change without notice or modifying this
manual.
Designed with an advanced modular architecture, your
Notebook PC also allows you for several levels of
customization and expansion that are previously
available only on desktop PCs.
Notebook User Guide
130
System Specification
PROCESSOR UNIT
• CPU for uFC-PGA (478-pins) Socket
• Above 2.66GHz Intel Pentium 4 Desktop CPU or above 2.4GHz Intel
Mobile Pentium 4 CPU
• 512KB integrated L2 cache for Pentium 4
SYSTEM MEMORY
• Two 144-pin memory slots
• User-upgradeable to maximum 2048 MB using 144-pin SODIMM 128MB,
256MB, 512MB and 1024MB module
• PC-333 DDR SDRAM modules
LCD DISPLAY
• 14.1" XGA (1024x768), 15" XGA (1024x768)/SXGA+(1400 x1050) Color
TFT LCD
• Maximum 16M true colors on all LCD display
VGA SYSTEM
• AGP Local Bus VGA Accelerator
• Integrated nVIDIA graphic engine with maximum 128MB video memory
Hardware System Information A
131
• Simultaneous LCD and external monitor (CRT) display
• Maximum 16 million colors on LCD display at 1024x768 resolution for
14.1" LCD and 1400x1050 resolution for 15" LCD
• Maximum 16 million colors on CRT only display at 1400x1050 resolution
(Non-Interlaced)
DISK DRIVES
• 32-bit PCI Enhanced IDE interface with LBA mode
• Enhanced IDE bootable CD-ROM drive module
• Optional DVD-ROM drive that can be replaced with CD-ROM
• Optional CD-RW drive that can be replaced with CD-ROM
• Optional CD-RW/DVD combo drive that can be replaced with CD-ROM
AUDIO SYSTEM
• Full-duplex 16-bit stereo speaker with wavetable support
• H/W Audio Sound Blaster 16 compatible
• Built-in dual speakers
• Stereo Line-In Jack for connecting an external audio device.
• Audio input jacks for microphone (MIC)
• Audio output jack for external speaker or headphone (Line-Out)
• Built-in two hotkeys for Volume Control
PCMCIA
• 32-bit CardBus PCI Local Bus PCMCIA controller
Notebook User Guide
132
• Supports 1 x Type II PC card
• Supports 32-bit Cardbus Cards, and 16-bit PC Cards
GLIDE PAD
Integrated Glide Pad (Serial/USB mouse) pointing device with left, right and
scroll buttons.
KEYBOARD
• Full-sized 87/90-keys keyboard with Windows systems hot-keys, inverted
T-cursor keys, 10 hot keys, 12 function keys, and embedded numeric keypad
• Provides international language keyboard
FLASH BIOS
512K Flash ROM BIOS for easy BIOS upgrade
I/O PORTS
• 4 x Universal Serial Bus (USB 2.0)
• 1 x 9-pin RS-232 Serial (COM1)
• 1 x 15-pin VGA (Monitor)
• 1 x S-Video TV port
• 1 x IEEE 1394 port
• 1 x LAN port
• 1 x Modem port
Hardware System Information A
133
INFRARED PORT
1 x IR port
820.11b Wireless LAN (BTO)
AC/DC POWER SUPPLY ADAPTER
Universal auto-switching 150W (100V~240V) adapter
BATTERY
• Rechargeable 12 Cells Li-ion battery pack with Smart Battery function
• 2 hours of usage (when run ZD Battery Mark diagnostic program)
• 2 ~ 2.5 hours quick charge (computer turn off)
WEIGHT AND DIMENSION
• 330 mm x 279.8 mm x 41.3 mm (front)
• 6.2 lbs, 2.8 kg (Max Target)
