First Computer ELIJA-S-TFE03 Tablet PC User Manual
First International Computer Inc Tablet PC Users Manual
Users Manual
Elija TFE03 Series
User Guide
T
ablet PC User Guide
2
Copyright©2011
All Rights Reserved - Printed in Taiwan
Tablet PC User Guide
Original Issue: 2011/10
This manual guides you in setting up and using your new Tablet PC.
Information in this manual has been carefully checked for accuracy
and is subject to change without notice.
No part of this manual may be reproduced, stored in a retrieval
system, or transmitted, in any form or by any means, electronic,
mechanical, photocopy, recording, or otherwise, without prior written
permission.
Safety and Care Instructions
No matter what your level of experience with computers, please make
sure you read the safety and care instructions. This information can
help protect you and your computer from possible harm.
Important Safety Instructions
This section gives you detailed information about how to maintain a
safe working environment while using the Tablet PC. You can
maintain its condition and performance by following these guidelines.
Please read it carefully to ensure maximum safety.
1. Please read these safety instructions carefully.
2. Please keep this manual for later reference.
3. Please keep this equipment from humidity.
Tablet
User Guide
3
4. Do not use this product near water, for example, near a bathtub,
wash bowl kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
5. Avoid using a telephone (other then a cordless type) during an
electrical storm. There may be a remote risk of electric shock from
lightning.
6. Do not use the telephone to report a gas leak in a vicinity of the
leak.
7. Lay this equipment on a reliable surface when install. A drop or fall
could cause injury.
8. All cautions and warnings on the equipment should be noted.
9. Do not operate the Tablet PC with the case removed. For safety
reason, the equipment should only be opened by qualified service
personnel.
10. Always disconnect all telephone lines & all power cords from the
wall outlet before servicing or disassembling this product. To
reduce the risk of personal injury from electrical shock or hot
surfaces, disconnect the power cord from the wall outlet, and allow
the internal system components to cool before touching.
11. Refer your system for servicing to qualified service personal under
the following conditions:
When the power cord or plug is damaged or frayed.
If liquid has been spilled into the product.
If the product has been exposed to rain or water.
If the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are
covered by the operating instructions, since improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to restore
the product to normal condition.
If the product has been dropped or the cabinet has been
damaged.
T
ablet PC User Guide
4
If the product displays a distinct change in performance, it
indicates a need for service.
If the equipment has obvious sign of breakage.
12. The unit can be operated at maximum ambient temperature of
40ºC.
13. Li-Ion battery is vulnerable, do not charge it with other power
adapter, or it may cause fire or explosion
14. This product should be operated from the type of power indicated
on the marking label. If you are not sure of the type of power
available, consult your dealer or local power company.
15. Use only a power adapter approved for use with this Tablet PC.
16. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
17. If the Tablet PC is not in use for a long time, disconnect it from
mains to avoid possible damage by transient over-voltage.
18. The risk of ignition caused by small metallic objects, such as paper
clips or staples, moving around inside TRANSPORTABLE
EQUIPMENT during transportation shall be reduced objects
entering the equipment, please do not remove dummy card from
the product.
Installation Restrictions
1. If an extension cord is used with this product, make sure that the
total ampere rating of the equipment plugged into the extension
cord does not exceed the extension cord ampere rating. Also,
make sure that the total rating of all products plugged into the wall
outlet does not exceed the fuse rating.
2. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out
parts that could result in a fire or electronic shock. Never spill liquid
of any kind on the product.
Tablet
User Guide
5
3. Unplug this product from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a dry cloth for
cleaning. Ensure that no liquid enters the system.
Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved
by the party responsible for compliance could void the user's authority
to operate this equipment.
FCC RF Radiation Exposure Statement:
1. This Transmitter has been demonstrated co-location compliance
requirements with Wi-Fi, Bluetooth modules. This transmitter
T
ablet PC User Guide
6
must not be co-located or operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits
set forth for an uncontrolled environment. This device was tested
for typical hand held operations with the device contacted directly
to the human body to the back side of the tablet pc. To maintain
compliance with FCC RF exposure compliance requirements,
avoid direct contact to the transmitting antenna during
transmitting.
E
Eu
ur
ro
op
pe
e
–
–
E
EU
U
D
De
ec
cl
la
ar
ra
at
ti
io
on
n
o
of
f
C
Co
on
nf
fo
or
rm
mi
it
ty
y
This device complies with the essential requirements of the R&TTE
Directive 1999/5/EC and EMC directive 2004/108/EC. The following
test methods have been applied in order to prove presumption of
conformity with the essential requirements of the R&TTE Directive
1999/5/EC and EMC directive 2004/108/EC:
< EN 55022: 2006 +A1: 2007
< EN 61000-3-2 : 2006
< EN 61000-3-3 : 1995 + A1 : 2001 + A2 : 2005
< EN 55024: 1998 + A1: 2001 + A2: 2003
(IEC 61000-4-2: 2008;
IEC 61000-4-3: 2006 + A1:2007;
IEC 61000-4-4: 2004;
IEC 61000-4-5: 2005;
IEC 61000-4-6: 2003 + A1: 2004 +A2: 2006;
IEC 61000-4-8: 1993 +A1: 2000;
IEC 61000-4-11: 2004)
< EN 60950-1/A1: 2010
Safety of information technology equipment
< EN 300 328 V1.7.1: 2006
Tablet
User Guide
7
< EN 301 489-17 V2.1.1: 2009 and EN 301 489-1 V1.8.1: 2008
< EN 62311: 2008
This device is a 2.4GHz wideband transmission system (transceiver),
intended for use in all EU member states and EFTA countries under
the following conditions and/or with the following restrictions:
< In Italy the end-user should apply for a license at the national
spectrum authorities in order to obtain authorization to use the
device for setting up outdoor radio links and/or for supplying
public access to telecommunications and/or network services.
< This device may not be used for setting up outdoor radio links in
France and in some areas the RF output power may be limited to
10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For
detailed information the end-user should contact the national
spectrum authority in France.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This
device must accept any interference received, including interference
that may cause undesired operation.

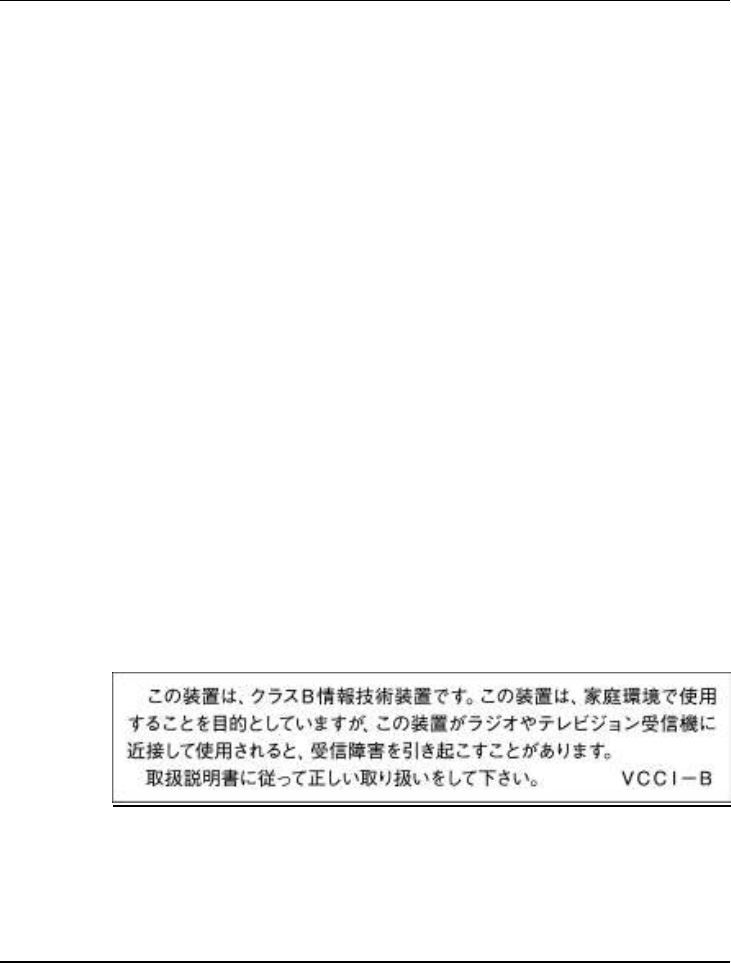

VCCI statement
O
On
n-
-l
li
in
ne
e
r
re
ea
ad
di
in
ng
g
For on-line reading, please go to Android market for PDF reader
download.
T
ablet PC User Guide
8

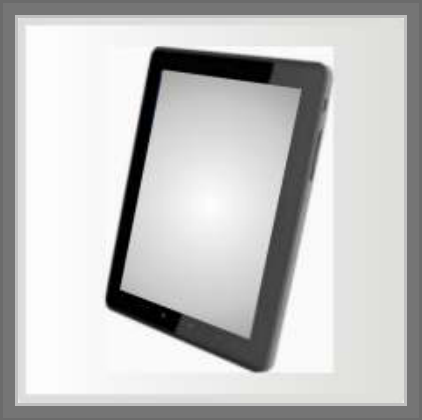

About Your Tablet PC
C
ongratulation for having purchased your Tablet PC.
This tablet PC can go anywhere you go. Use it like a
pad of paper. You can write, sketch, and view material
directly on the screen.
Tablet
User Guide
9
About Your User Guide
W
elcome to your Tablet PC User Guide. This manual
gives you the information you need to maximize the use
of your Tablet PC. Read this guide to familiarize yourself
with this Tablet PC and its features.
This manual is divided into eight chapters.
Chapter 1 Introduction
Chapter 2 Getting Started
Chapter 3 Using Your Tablet PC
Chapter 4 Connecting to Peripherals
Chapter 5 Caring for Your Tablet PC
Appendix A System Specifications
T
ablet PC User Guide
10
Table of Contents
ABOUT YOUR TABLET PC ................................................................... 8
ABOUT YOUR USER GUIDE................................................................. 9
1 INTRODUCTION .............................................................................. 13
1.1 F
EATURE
H
IGHLIGHT
.................................................................... 14
1.2 U
NPACKING THE
T
ABLET
PC........................................................ 15
1.3 T
HE
T
OP
V
IEW OF THE
T
ABLET
PC ............................................. 16
1.4 T
HE
F
RONT
V

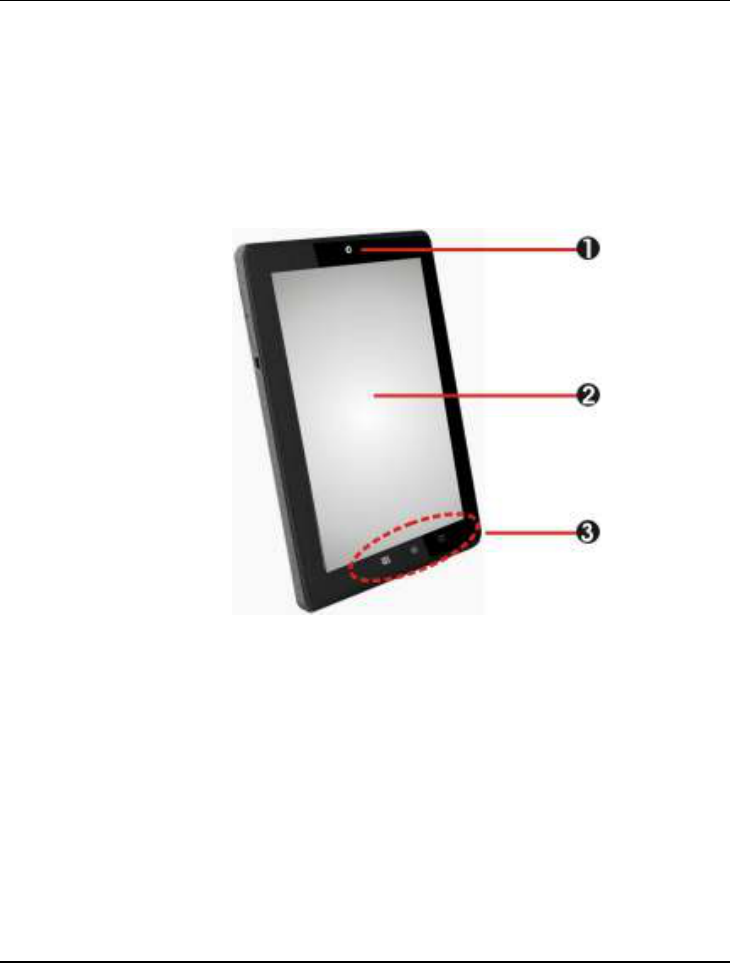

IEW OF THE
T
ABLET
PC......................................... 17

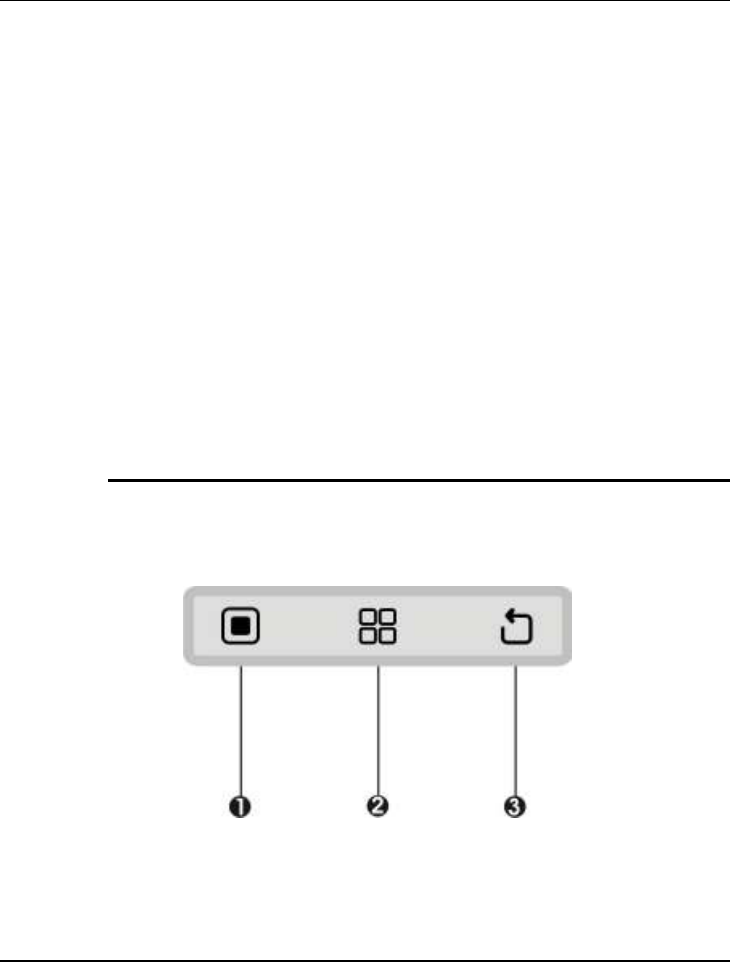

Android Hot-Key (Home / Menu / Return) ............................. 18
1.5 T
HE
R
IGHT
P
ANEL OF THE
T
ABLET
PC........................................ 19
1.6 T
HE
L
EFT
P
ANEL OF THE
T
ABLET
PC.......................................... 20
1.7 T
HE
B
OTTOM
S
IDE OF THE
T
ABLET
PC ....................................... 21
1.8 T
HE
R
EAR

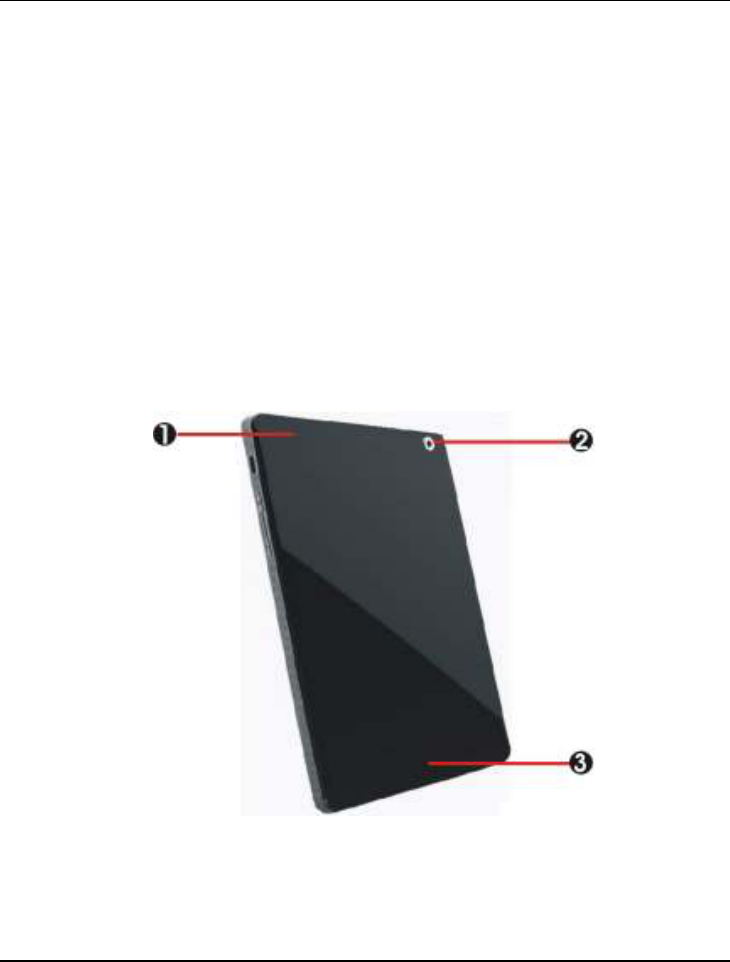

S
IDE OF THE
T
ABLET
PC............................................ 22
1.9 T
ABLET
A
CCESSORIES
................................................................. 23
2 GETTING STARTED....................................................................... 25
2.1 P
REPARING TO SETUP YOUR
T
ABLET
PC .................................... 26
2.2 C
ONNECTING THE
AC
P
OWER
S
OURCE
...................................... 26
2.3 S
TARTING
Y
OUR
T
ABLET
PC ....................................................... 28
Connecting the wired keyboard............................................... 28
Turning on the Tablet PC ......................................................... 28
Using the touch screen ............................................................. 29
2.4 T
URNING OFF
Y
OUR
T
ABLET
PC.................................................. 30
3 USING YOUR TABLET PC............................................................ 31
S
TARTING
Y
OUR
O
PERATING
S
YSTEM
.................................................. 32
Unlocking the Screen................................................................ 32
Adjusting the Screen Orientation ............................................ 33
Tablet
User Guide
11
Shortcut Controls on Home-screen ........................................ 33
Extension Screen....................................................................... 35
About the Apps Menu................................................................ 35
Customizing the Home Screen ................................................ 39
Open the Widgets menu........................................................... 39
Open the Apps menu ................................................................ 40
Open the Wallpapers menu ..................................................... 41
Open the More menu ................................................................ 42
Changing the wallpaper....................................................... 43
Adding Widgets ....................................................................... 44
Adding application shortcuts ............................................. 44
Select Language ........................................................................ 46
Connecting to a Wi-Fi Network................................................ 48
Connecting to a Bluetooth® Device........................................ 49
4 CONNECTING TO PERIPHERALS.............................................. 51
4.1 U
SING THE
M
INI
USB
P
ORT
......................................................... 52
4.2 U
SING A
M
INI
HDMI
P
ORT
.............................................................. 53
4.3 U
SING THE
E
XTERNAL
A
UDIO
S
YSTEM
........................................ 55
4.4 U
SING THE
W
IRELESS
LAN ......................................................... 56
4.5 U
SING
M
ICRO
SD
M
EMORY
C
ARD
............................................... 56
5 CARING FOR YOUR TABLET PC..................................................... 58
5.1 I
MPORTANT
S
AFETY
I
NSTRUCTIONS
............................................. 59
5.2 C
LEANING
Y
OUR
T
ABLET
PC ....................................................... 61
5.3 M
AINTAINING AND
C
LEANING THE
D
ISPLAY
S
CREEN
................... 61
5.4 W
HEN
Y
OU
T
RAVEL
...................................................................... 62
5.5 S
TORING
Y
OUR
T
ABLET
PC......................................................... 63
APPENDIX A SYSTEM SPECIFICATION.......................................... 65
Processor Unit ............................................................................ 66
T
ablet PC User Guide
12
System Memory ......................................................................... 66
LCD Display................................................................................ 66
VGA System ............................................................................... 66
Storage ........................................................................................ 66
Audio System ............................................................................. 66
Sensors ....................................................................................... 67
I/O Ports ...................................................................................... 67
WebCam ..................................................................................... 67
Wireless devices........................................................................ 67
AC/DC Power Supply Adapter ................................................ 67
OS Support ................................................................................. 67
Battery ......................................................................................... 68
Weight and Dimensi on ............................................................ 68
Introduction
1
13
1 Introduction
Y
our Tablet PC is a very thin light-weight
designed for mobility, it is a natural traveling
companion. With your Tablet PC, you can
access office networks and e-mails at anytime,
from any location.
Your Tablet PC makes an ideal choice for use
in the schoolroom, at home, on the road and all
other occasions.
T
ablet PC User Guide
14
1.1 Feature Highlight
Before we go to identify each part of your Tablet PC, we will first
introduce you to other notable features of your Tablet PC.
Processing Unit
• Your tablet runs on Freescale i.MX53 at 1.0 Ghz ARM Cortex-A8
Processor with 256KB On-die L2 Cache
• Fully compatible with an entire library of PC software based on
operating systems such as Android 2.3.
Memory
• This Tablet PC provides DDR3-800Mhz solder-down 1G (max.)
Touch-enabled Widescreen
Provides extraordinary 9.7" panel with Resolution 1024 x 768 (4:3)
wide screen display with capacitive 2-point multi-touch screen for your
work field at your fingertips.
WiFi/Bluetooth
Combo module for providing Bluetooth 3.0+HS and Wi-Fi 802.11b/g/n
function.
Webcam
Provides Webcam function with 2.0M pixels. (Front side) and 2.0M
pixels. (Rear side)
USB 2.0
Provides one mini USB2.0 port for I/O data transmission.
Introduction
1
15
Audio System
Provides one headphone out audio port.
1.2 Unpacking the Tablet PC
Your Tablet PC comes securely packaged in a sturdy cardboard
shipping carton. Upon receiving your Tablet PC, open the carton and
carefully remove the contents. The shipping carton should also
contain the following items:
The Tablet PC
An AC Adapter
User Guide
Carefully inspect each component to make sure that nothing is
missing and/or damaged. If any of these items is missing or
damaged, notify your dealer immediately. Be sure to save the
shipping materials and the carton in case you need to ship the Tablet
PC or if you plan to store the Tablet PC away sometime in the future.
T
ablet PC User Guide
16
1.3 The Top View of the Tablet PC
The Tablet PC is compact with features on every side. First, look at
the top view of the system.
1. Power Button
• Power On/Resume Button
Switches the computer power on and off, or resumes whenever it
is in Suspend mode.
Introduction
1
17
1.4 The Front View of the Tablet PC
The following sections describe front view features.
1. 2M Pixel Camera 2. 2-point Capacitive Touch Screen
3. Android Hot-Key (Home / Menu / Return)
• Webcam
The built-in camera can be used as a communication device for
allowing you to capture images, record videos, and have video
chats. It is 2.0M pixels and transmitting instant image through
network for conference.
T
ablet PC User Guide
18
• Touch-enabled Widescreen 2-point Capacitive Touch Screen
This device equipped with 9.7” touch screen. With 4:3 aspect
ratio capacitive multi-touch screen, it gives you better office
document experience for faster and easier input. You may make
adjustments to your work field at your fingertips. The touch
screen will responsively react with your fingertip commands.
< 9.7" 1024 x 768 (4:3) wide screen display with capacitor.
< Simultaneous display capability for LCD and external
desktop computer monitor.
• Android Hot-Key (Menu / Home / Return)
Lets you execute specific function fast and easily. Description of
these Hot-Keys appears in the latter part of this section.
A
NDROID
H
OT
-K
EY
(H
OME
/
M
ENU
/
R
ETURN
)
This system comes with a lot of interesting Android hotkeys that will
take you directly to the appropriate applications.
1. Home 2. Menu 3. Return
Introduction
1
19
• Home
Press this hot-key for back to the home screen.
• Menu
Helps you fly through your application without digging through the
procedures. For detail, please see section 3.3 “Menu Controls”.
• Return
Lets you draw back to the previous screen.
1.5 The Right Panel of the Tablet PC
The system features at the right panel of your Tablet PC are
described as followings.
1. Volume Control 2. Mini HDMI
T
ablet PC User Guide
20
• Volume Control
Decreases or Increases the audio volume by pressing the volume
control at its left or right end.
• Mini HDMI
Lets you connect to the HDMI peripheral device for digital
audio/video transmitting.
1.6 The Left Panel of the Tablet PC
The left panel of your Tablet PC provides the features shown in the
following figure. Before using these devices, please open the cover
first.
Introduction
1
21
2. Micro SD Card Slot with cover 3. Mini USB
• Micro SD Card Slot
The card slot supports Micro SD memory card format for extra
storage media.
• Mini USB
Lets you connect mini USB port for fastest I/O data transmission
1.7 The Bottom Side of the Tablet PC
The bottom side of the Tablet PC offers the following features.
1. DC in jack 2. 3. Speakers 4. Ear phone jack
• DC in jack
Lets you connect the AC power adapter in supplying continuous
power to your Tablet PC and recharging the battery.
T
ablet PC User Guide
22
• Built-in Stereo Speakers
Integrated left and right mini stereo speakers for sound and audio
output for your multimedia presentations or listening pleasure.
1.5W x 2
• Headphone Jack
Lets you plug in a stereo headphone, powered speakers, or
earphone set with 1/8 inch phono plug for personal listening.
1.8 The Rear Side of the Tablet PC
The rear side of the Tablet PC offers the following features.
1. GPS Antenna 2. 2M pixel Camera
3. Wifi/BT Antenna
Introduction
1
23
• GPS Antenna
This product provides GPS Antenna for Data communication, and
location information in all weather, anywhere on or near the Earth.
• 2M pixel Camera
With built-in Camera, it’s easy to stay in touch with your friends
and family. 2M pixel auto focus camera is perfect for better photo
images.
• Wifi/BT Antenna
This part is for installing WiFi/Bluetooth Combo module to enable
the WiFi/Bluetooth function. We strongly suggest that
WiFi/Bluetooth Combo module should be installed only by
certified dealer.
1.9 Tablet Accessories
AC Adapter
The AC Adapter supplies external power to your Tablet PC and
charges the internal battery pack simultaneously. The AC adapter has
an auto-switching design that can connect to any 100VAC ~ 240VAC
power outlets. You just change the power cord if you are going to use
your Tablet PC in other countries with different connector outlets.
When you connect the AC adapter, it charges the battery whether or
not the Tablet PC is powered on.
T
ablet PC User Guide
24
Getting Started
2
25
2 Getting Started
Y
our Tablet PC is designed and pre-
configured for easy setup and use. This chapter
describes the installation steps you should
follow to get the Tablet PC up and running as
quickly as possible.
T
ablet PC User Guide
26
2.1 Preparing to setup your Tablet PC
Before attempting to set up your Tablet PC, you should:
• find a flat open area on your desk to position your Tablet PC.
• place a soft item like the computer packaging bag on the desk for
padding.
2.2 Connecting the AC Power Source
The AC adapter provides external power source to your Tablet PC
and charges the internal a polymer battery pack at the same time.
The AC adapter also has an auto-switching design that can connect
to any 100VAC ~ 240VAC power outlets. Lower system power
consumption with longer battery life for better environmental friendly.
To connect the power adapter:
1. Plug the connector of the AC adapter to the DC-IN port found at
the bottom side of the Tablet PC.
2. Plug the other end of the AC power cord to a live AC wall outlet.
Getting Started
2
27
Whenever possible, it is advisable to always have the AC adapter
connected to the Tablet PC. This ensures continuous power supply
and prevents any data loss incurring from sudden power
breakdown.
For the power supply of this equipment, an approved power
cord has to be used.
Make sure the socket and any extension cord(s) you use can
support the total current load of all the connected devices.
Before cleaning the computer, make sure it is disconnected
from any external power supplies.
T
ablet PC User Guide
28
2.3 Starting Your Tablet PC
C
ONNECTING THE WIRED KEYBOARD
Connect the USB cable on the keyboard to a mini USB port on the left
panel of the computer. You can use your Tablet PC as a conventional
full-featured PC.
Note:
Please be sure that we should use OTG USB cable for connecting to
mini USB port, the normal USB keyboard cable cannot connect to this
port directly.
T
URNING ON THE
T
ABLET
PC
The Power button is found on the top side of the Tablet PC. Press the
Power button to start your computer.
Getting Started
2
29
After a few seconds, the computer’s display will turn on.
U
SING THE TOUCH SCREEN
Your computer is equipped with a touch screen which has a high
sensitivity level. You can control your PC with the touch of your finger.
Your fingertips work as the hand-held mouse pointer. When you
control the computer with your fingertips on the screen, the hand-held
mouse can work concurrently.
Do not apply pressure on the front of the display or around the
screen borders to avoid damaging the touch screen.
For more
details about maintaining and cleaning the display screen, please
see 6.3 Maintaining and Cleaning the Display Screen.
T
ablet PC User Guide
30
2.4 Turning off Your Tablet PC
If you are not going to use the Tablet PC, please turn off the power
button of the computer, the screen appears power off message
“Would you like to shut down ?” press OK to turn off your tablet PC.
Using Your Tablet PC
3
31
3 Using Your Tablet PC
T
his chapter describes how to operate the Tablet
PC that you normally would use in your day-to-day
computer work. If you are new to computers and to
your operating system, you also need to read the
manual for the operating system on how to work
with your Tablet PC. It is very important to
familiarize yourself well with the operating system.
The succeeding chapters not only guide you to go
beyond the basics, but also try other exciting
features.
T
ablet PC User Guide
32
Starting Your Operating System
The operating system is the software foundation for your computer. It
is the platform for all your software application programs to run on.
The computer comes with an operating system pre-installed and no
need to be setup during initial use.
U
NLOCKING THE
S
CREEN
The screen is locked automatically after powering on, tap and drag
the lock out of the circle to unlock the Screen.
If the device is not in use for a period of time, the system will enter
into Suspend mode, please press power on button and tap and drag
the lock out of the circle to unlock the Screen.
Using Your Tablet PC
3
33
A
DJUSTING THE
S
CREEN
O
RIENTATION
The screen orientation changes automatically to portrait or landscape
view depending on how you hold the device. To fix the screen
orientation to current view, please uncheck the Auto-rotate screen.
For executing this function, press the Apps button and touch
Settings > Screen > Auto-rotate to uncheck it.
S
HORTCUT
C
ONTROLS ON
H
OME
-
SCREEN
The Home screen is the main platform where you can access all the
features and applications installed on your device. You can monitor
the status of the device, access the web pages, and use widgets to
obtain information, or shortcuts to launch applications on the Home
screen.
T
ablet PC User Guide
34
1. Open Google Text Search;
Open Google Voice search
2. Display the recent apps
3. Return to Home
4. Return to the previous screen
5. Open the Add to Home screen menu
6. Open Apps Menu
7. Activate the GPS function
8. Connect USB cable to another PC
9. Open Android debug function
10. Display the current time
11. Wi-Fi signal strength during operation
12. Battery power level
Using Your Tablet PC
3
35
E
XTENSION
S
CREEN
The Home screen also provides 4 more extension screens where you
can fill with shortcuts, widgets and other items as you like. To
navigate across the Home and extension screens, flick your finger to
the left or right on the screen..
A
BOUT THE
A
PPS
M
ENU
The Apps Menu provides you plenty of applications and games to
enjoy the full excitement of Android world. It is enable you to manage
all executing programs, clear data, or un-install application.
T
ablet PC User Guide
36
Books - Lets you
read on-line
electronic book
after entering
authorized Google
account.
Browser - Lets
you initiates the
web browser.
Calculator -
Offers you the
calculator for
calculation.
Calendar - Lets
you update, add,
re-configure or
modify the
calendar contents.
Using Your Tablet PC
3
37
Camera - Click Camera on the Apps menu to take
pictures or record videos. You can use either the
front camera or the back camera to take pictures or
record videos. The image files and video files will be
saved to Gallery automatically.
Clock - Lets you
re-numbering the
time contents, re-
configure the time
number or set
alarm.
Contacts - Offers
you to add a list
of addresses to
an address book.
Downloads - After signing in, you can download and
install applications from the Android Market.
Download file from website
Email - Allows you for Email sending and receiving,
to add several Email accounts, and conveniently
browse and manage your Emails.
Gallery - Tap Gallery on the desktop to browse your
desired image or video files. This application
automatically collects and displays all the image and
video file stored in your system
Gmail - Lets you
access Gmail after
entering
authorized Google
account
Google Search -
Lets you search
system application or
any information from
Google website.
T
ablet PC User Guide
38
Latitude - Lets
you fix location by
GPS or Wireless
Networks.
Maps - Lets you
use on-line
Google Maps
provided by
Google
Market - Lets you
access or
download any
application from
Android Market
provided by
Google.
Messaging -
Allows you to
transmit any
sending or
coming message.
Movie Studio -
Gives you the
application for
Video editing.
Navigation - Lets
you navigate the
destination
provided by
Google.
Music - Tap Music on the desktop to play your
desired music files. This application automatically
collects and displays all the audio files stored in your
system and the connected external storage devices.
Double click Music hotkey utility by finger to appear
the application embedded for music playing.
Places - Lets you
find nearby places,
building,
restaurants…etc,
by Google.
Settings - Helps
you to configure
system
parameter for
specific function.
Using Your Tablet PC
3
39
Spare Parts -
Advises you parts of
status information,
or adjust system
configuration.
Sound Record -
Provides you the
sound record
program for
recording sound.
C
USTOMIZING THE
H
OME
S
CREEN
To personalize the Home screen, you can use your own picture as
the wallpaper, add widgets, or shortcuts to your favorite applications.
Touch the Customized desktop icon on the Home screen, the
Widgets, Apps, Wallpapers, and More menus shown on the screen.
Open the Widgets menu
The Widgets menu has 3 extension screens and includes Analog
clock, bookmarks, books, calendar, Latitude, Market, Music, Pictures
Frame, Rate Places, Traffic, YouTube for your selection.
T
ablet PC User Guide
40
Open the A
PPS MENU
The Apps menu has 1 extension screen and includes Books,
Browser, Calculator, Calendar, Camera, Clock, Contacts, Downloads,
Email, Gallery, Gmail, Google Search, Latitude, Maps, Market,
Messaging, Movie Studio, Music, Navigation, Places, Root Explorer,
Screenoff, Settings, Skype, Sound Record, Spare Parts, StabilityTest
v2, Talk, Voice Search, YouTube for your selection.
Using Your Tablet PC
3
41
Open the Wallpapers menu
The Wallpapers menu includes Gallery, Live Wallpapers, Wallpapers
for your selection.
.
T
ablet PC User Guide
42
Open the More menu
The More menu includes Bookmark, Contact, Direct dial, Direct
message, Music playlist, Select settings for your selection.
for
Using Your Tablet PC
3
43
Changing the wallpaper
1. Touch the Customized desktop icon on the Home
screen, and then touch Wallpapers.
2. Flick through the list to select a desired wallpapers. The selected
wallpaper appears on the screen.
T
ablet PC User Guide
44
Adding Widgets
1. Touch the Customized desktop icon on the Home
screen, and then touch Widgets.
2. Flick through the list to select a desired widget. (e.g. widget
clock)
3. Touch and hold the widget, and drag it to your desired spot on the
Home screen until it magnifies
Adding application shortcuts
1. Touch the Customized desktop icon on the Home
screen, and then touch Widgets.
2. Flick through the list to select a desired widget. (e.g. widget
clock)
3. Touch and hold the widget, and drag it to your desired spot on the
Home screen until it magnifies.
Using Your Tablet PC
3
45
T
ablet PC User Guide
46
S
ELECT
L
ANGUAGE
This system lets you select the user interface with specific language
in operating all the functions. To change the user interface from other
language to English version, please follow the steps below:
1. Press the Apps menu to show the all the applications.
2. Select the setting icon to show a list of functions, and then press
the language input option.
Using Your Tablet PC
3
47
3. Choose the select language item to show a list of various
languages.
4. Click the language option English for changing the UI interface to
English version.
T
ablet PC User Guide
48
5. Press the return icon at the left corner on the screen and you can
see all the User Interface displays English version.
C
ONNECTING TO A
W
I
-F
I
N
ETWORK
To browse the Internet or use other web applications, you need to
connect the device to a Wi-Fi network first.
1. Press the Menu button and touch Settings > Wireless &
networks > Wi-Fi to select the check box. The device then scans
for available wireless networks.
2. Touch Wi-Fi settings. The network names (SSID) of the
discovered Wi-Fi networks display in a list.
3. Flick through the network list and touch your desired network to
display its security level and signal strength.
4. Enter the password if the network is secured, and touch Connect
to start connection. The signal strength icon then appears on the
status bar.
Using Your Tablet PC
3
49
C
ONNECTING TO A
B
LUETOOTH
®
D
EVICE
You can share files between your TFE03 device and a Bluetooth-
enabled device using Bluetooth technology.
1. Press the Apps button and touch Settings > Wireless &
networks > Bluetooth to select the check box to turn on the
Bluetooth function. The Bluetooth icon appears in the status bar.
2. Touch Bluetooth settings > Find nearby setting. Under the
Found devices banner, touch the device you want to pair with.
3. In the Bluetooth paring request menu, confirm the same
password on both devices to authenticate and then touch Pair.
Follow the on-screen instructions, if needed, to complete the
pairing process.
4. Once the pairing is successful, Paired but not connected is
shown under the paired device. You can start to share files with
the paired device.
5. To send a picture from your TFE03 device to the paired device,
press Apps button and touch. Gallery and select a desired
picture from a folder. Click the picture to show the Menu button,
and then press Menu button and touch Share > Bluetooth.
6. Under the Bluetooth device picker, touch the paired device to
send the pictures to. Check the Notifications panel for the
progress.
Caring for Your Tablet
5
51
4 Connecting to Peripherals
T
his chapter describes how you attach
peripheral devices to your Tablet PC. You can
connect an external monitor and keyboard, or
other peripheral device. You will learn how to
use these peripheral devices with the step-by-
step instructions depicted in this chapter.
T
ablet PC User Guide
52
4.1 Using the Mini USB Port
USB (Universal Serial Bus) is a hardware interface that enables you
to connect multiple devices (such as printers, mice, keyboards,
storage devices, digital cameras, and video conference cameras, etc.)
to your Tablet PC, and up to 127 devices can be attached. Besides,
USB’s hot swap capability allows everything to be plugged in and
unplugged without turning the system off.
Microsoft, HP, Compaq, Intel, Agere, NEC and Philip are seven core
members of USB-IF to have worked on USB 2.0 standardization.
USB 2.0 offers data transfer rate up to 480Mbps (megabits per
second) compared to USB 1.1 devices, which transfer at speeds of
12Mbps. So, you could know that USB 2.0 can transfer data between
the computer and its peripherals 40 times faster than USB 1.1.
However, USB 2.0 is fully backward compatible, you will be able to
use a USB 1.1 device in a USB 2.0 compliant system.
Caring for Your Tablet
5
53
Depending on your operational requirements, you may need to
disable other ports in order to release system resource for the mini
USB port.
The USB bus distributes 0.5 amps (500 milliamps) of power
through each port. For the purpose of power saving, please
disconnect your USB device while not in use.
4.2 Using a Mini HDMI Port
You can connect a HDMI Device to your Tablet PC. All you have to do
is plug the cable from the HDMI Device into the right of the Tablet PC.
The High-Definition Multimedia Interface (HDMI) is an all-digital
audio/video interface capable of transmitting uncompressed streams.
HDMI provides an interface between any compatible digital
audio/video source, such as a set-top box, a DVD player, a PC, a
video game console, or an AV receiver and a compatible digital audio
and/or video monitor, such as a digital television (DTV).
To display your computer screen or playback the audio sound on the
digital television (DTV), please connect the mini HDMI port of this
Tablet PC to the Video/Audio Input of the TV set.
To connect a HDMI:
1. Turn off your Tablet PC and make sure the monitor power switch
is turned off.
T
ablet PC User Guide
54
The Tablet PC must be powered off or suspended while the
monitor is being connected. Although you can connect the
external Monitor without power off the computer and the external
monitor, however, it is harmful to both devices and it shortens the
life of these devices.
2. Connect the connector cable of the monitor to the mini HDMI port
at the right of the Tablet PC.
3. Connect the monitor power cable and plug it into a properly
grounded wall outlet.
4. Turn on the power of the monitor.
5. Turn on your Tablet PC. Both the touch screen and the monitor
screen will show the display. Your computer is set at default to
run at simultaneous display mode.
Caring for Your Tablet
5
55
4.3 Using the External Audio System
At the bottom panel of your Tablet PC, you will find the built-in audio
ports. You can connect earphone or powered speaker.
To connect to an audio jack:
1. Locate the headphone port that you want to use to the target
device.
2. Plug the jack into the port on the bottom panel of the system.
If you use external speakers and experience the sound distortion
or feedback, please lower the volume. Some factors is caused by
too close locating the microphone and speakers from each other,
moving away the external audio option from the unit may also help.
T
ablet PC User Guide
56
4.4 Using the Wireless LAN
This computer integrates built-in 802.11 b/g/n wireless LAN module.
IEEE 802.11b standard supports 11 Mbps wireless connection speed.
However, IEEE 802.11g support 54MHz, 802.11n up to 150Mbps
wireless connection speed respectively, and is backward compatible
with the slower 802.11b.
4.5 Using Micro SD Memory Card
Inserting Mini SD Memory Card
To insert a mini SD memory card, you only need to pay more
attention whenever insert the mini SD memory card into the slot with
the correct side.
Only one correct side can be accepted for the card slot. If you cannot
insert the card into the slot or you had inserted the card but it is not
recognized by the computer, please remove the card and turn the
card upside down and insert it again. To prevent the damage made
both on card and the slot, never forced an entry into the slot with
incorrect side.
Caring for Your Tablet
5
57
Removing Mini SD Memory Card
To remove the mini SD memory card, you should only push-push out
the card by finger, there is no release button for mini SD memory slot.
T
ablet PC User Guide
58
5
Caring for Your Tablet PC
Y
our Tablet is equipped with the latest
features in mobile computing technology. If
properly cared for and maintained, the
performance and reliability of the computer can
be greatly prolonged.
Caring for Your Tablet
5
59
5.1 Important Safety Instructions
Tablet PC takes the most beating from end users. This section gives
you detailed information about how to maintain a safe working
environment while using the Tablet PC. You can maintain its condition
and performance by following these guidelines. Please read it
carefully to ensure maximum safety.
• Before cleaning the Tablet PC, make sure it is disconnected from
any external power supplies (i.e. AC adapter).
• When cleaning, do not use liquid or sprayed detergent for
cleaning. Instead, use moisture sheet or a cloth for cleaning.
• The socket-outlet shall be installed near the Tablet PC, and shall
be easily accessible.
• Please keep the Tablet PC from humidity.
• Lay the Tablet PC on a reliable surface when installing. A drop or
fall may cause injury.
• Be careful of using power supply. The Tablet PC has specific
power requirements.
• While unplugging the power cord, disconnect it by the plug head,
not by its wire.
• Make sure the socket and any extension cords you may use can
support the total current load of all the connected devices.
• Place the power cord in such a way that people can not step on it.
Do not place anything over the power cord.
• All cautions and warnings on the Tablet PC should be noted.
T
ablet PC User Guide
60
• If the Tablet PC is not in use for a long time, disconnect it from
mains to avoid possible damage by transient over-voltage.
• Never pour any liquid into openings as this may cause fire or
electrical shock.
• Never open the body of Tablet PC. For safety reason, the Tablet
PC should only be opened by qualified service personnel.
• If one of the following situations arises, have the Tablet PC
checked by service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the Tablet PC.
The Tablet PC has been exposed to moisture.
The Tablet PC has not worked well or you can not get it work
according to user manual.
The Tablet PC has dropped and damaged.
The Tablet PC has obvious sign of breakage.
• Do not leave this Tablet PC in an environment unconditioned.
Storage temperature above 60ºC (140ºF) may damage the Tablet
PC.
• An approved power cord has to be used for the Tablet PC’s
power supply.
• To avoid any damage happened to the internal device, you should
first disconnect the power cord when replacing any internal
device.
Caring for Your Tablet
5
61
5.2 Cleaning Your Tablet PC
Your Tablet PC needs occasional cleaning to prolong their life. Please
read this section carefully to ensure proper care of Tablet PC. When it
is necessary to clean it, use a soft, lint-free cloth, slightly dampened
with a mild detergent solution or use the contents of any commercially
available computer cleaning kit.
Never use alcohol, petroleum-based solvents, or harsh detergents to
clean the tablet. Also never spray any liquids directly on the computer
case or screen. If the display screen has become smeared or dusty,
clean the screen by first applying a mild glass cleaner to a soft, clean,
lint-free cloth, and gently wipe the glass. Never apply liquids directly
on the screen surface. Moreover, do not use paper towels to clean
the display screen. Paper can scratch the display screen matte.
5.3 Maintaining and Cleaning the Display
Screen
As your touch screen is a product made of glass which is equipped
with high touch screen technology, it is recommended that you should
handle the screen and computer with special care while performing
maintenance on them, since vibrations or inappropriate operation
may reduce the life of the devices.
• Never push objects or spill liquid of any kind into this product.
• To help maintain the best image quality on your display, use a
screen saver.
To get rid of the dust or fingerprints, be sure to clean the computer
case and display regularly. The following procedures should be
followed when cleaning your Tablet PC:
T
ablet PC User Guide
62
• Turn off your Tablet PC.
• Disconnect the Tablet PC power cord from the bottom panel of
the computer.
• To clean the Tablet PC case, use a soft cloth dampened with
water to wipe the case clean, and do not use solvents or
abrasives.
• To clean the dust or fingerprints on the screen, gently wipe the
screen with a dry, soft, and lint-free cloth to avoid any unwanted
scratches. If using quality screen cleaner to remove the dirt on
the screen surface as necessary, apply a small amount of the
cleaner onto the cloth, and then carefully wipe the screen surface
with it. Never spray cleaner directly onto the screen.
5.4 When You Travel
For safety and convenience when traveling, please follow these
instructions:
• Back up all needed files on your hard disk before traveling.
• Recharge your battery overnight to ensure full battery power
before you leave.
• Don't forget to bring along the AC adapter.
• Carry your Tablet PC in its carrying case or in a briefcase. Never
check-in the Tablet PC as a luggage.
• Remember to apply those power saving features and techniques
to save battery power.
Caring for Your Tablet
5
63
5.5 Storing Your Tablet PC
If you need to store your Tablet PC for an extended period of time,
unplug your Tablet PC from the electric outlet and remove all
connected cables before any action is taken. When transporting your
Tablet PC, we recommend you pack the Tablet PC in its original
packaging.
System Specification
A
65
APPENDIX A
System Specification
T
his appendix provides technical
specifications for the computer. Depending on
the specific model, specifications may vary.
T
ablet PC User Guide
66
P
ROCESSOR
U
NIT
• Freescale iMAX53 processor (ARM Cortex-A8), 1.0Ghz
• 256KB L2 Cache.
S
YSTEM
M
EMORY
• DDR3 1G (max.)
LCD
D
ISPLAY
• 9.7” panel with Resolution 1024 x 768
• Capacitive 2-point Multi-touch Screen
VGA
S
YSTEM
• Maximum 16 million colors on LCD display at 1024 x 600
resolution for 10.1"
LCD
S
TORAGE
• 4GB/8GB Nand flash.
A
UDIO
S
YSTEM
• Compliant with Realtek HD Audio (Azalia 2 channels).
• Built-in dual speakers.
• Audio input jacks for microphone (MIC).
• Integrated mono microphones.
• Audio output jack for external speaker or headphone (Line-Out).
• Sound volume adjust by screen control or volume key control.
System Specification
A
67
S
ENSORS
• G-sensor, Geomagnetic Sensor and Gyroscope.
I/O
P
ORTS
• 1 x mini HDMI port
• 1 x mini USB port
• 1 x Earphone port
• 1 x micro SD slot
• 1 x volume control
W
EB
C
AM
• Camera Module for CMOS 2.0M USB 2.0 Media Version (Front
side)
• Camera Module for CMOS 2.0M USB 2.0 Media Version (Rear
side)
W
IRELESS DEVICES
• Bluetooth 3.0+HS
• Wi-Fi 802.11b/g/n
• GPS
AC/DC
P
OWER
S
UPPLY
A
DAPTER
• 12V 1.5A WM type of Adaptor
OS
S
UPPORT
• Android 3.2
T
ablet PC User Guide
68
B
ATTERY
• Embedded 7.4V 3700mAh Polymer battery
W
EIGHT AND
D
IMENSI ON
• 244.8(H) x 191.7 (W) x 11.8 (D) mm
• Approximately 660g
