First Computer HXD8V2 EXPRESS User Manual dash manual
First International Computer Inc EXPRESS dash manual
USERS MANUAL
www.dash.net
1
Dash Express
User manual
www.dash.net
2
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable
protection against harmful interference in a residential installation. Thisequipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance.
www.dash.net
3
CHAPTER 1 DASH EXPRESS.............................................................................................................4
1-1 DASH EXPRESS PACKAGE LIST ........................................................................................................5
1-2 DASH EXPRESS SPECIFICATION .......................................................................................................6
1-3 DASH EXPRESS APPLICATION .........................................................................................................7
CHAPTER 2 APPLICATIONS ............................................................................................................8
2-1 START YOUR DASH EXPRESS ..........................................................................................................8
2-1-1 Route to destination...........................................................................................9
2-2DASH EXPRESS CONFIGURATION ...................................................................................................15
2-2-1 Dash Express configuration........................................................................15
2-2-2 volume adjustment ...........................................................................................17
www.dash.net
4
Chapter 1 Dash Express
Dash Express is the smartest Internet-connected automotive navigation
system on the road. In fact, it's the first and only navigation system with
built-in two-way connectivity. Which means it gets you where you want to
go—in the fastest time possible—and delivers the most relevant
information—right to your dashboard. Plus, Dash Express is the only
device on the market that automatically and wirelessly updates its
software and features, so all you have to do is drive.
With Dash Express you can:
• Know the best routes around traffic using up to the minute information
provided by the Dash Driver Network
• Find virtually anything—nearby or near your destination—using Yahoo!
Local search
• Send an address from any computer right to your car with Send to Car
The Dash Driver Network helps you get there fasterGet inside information
about traffic along your route using up to the minute information
generated from other Dash devices

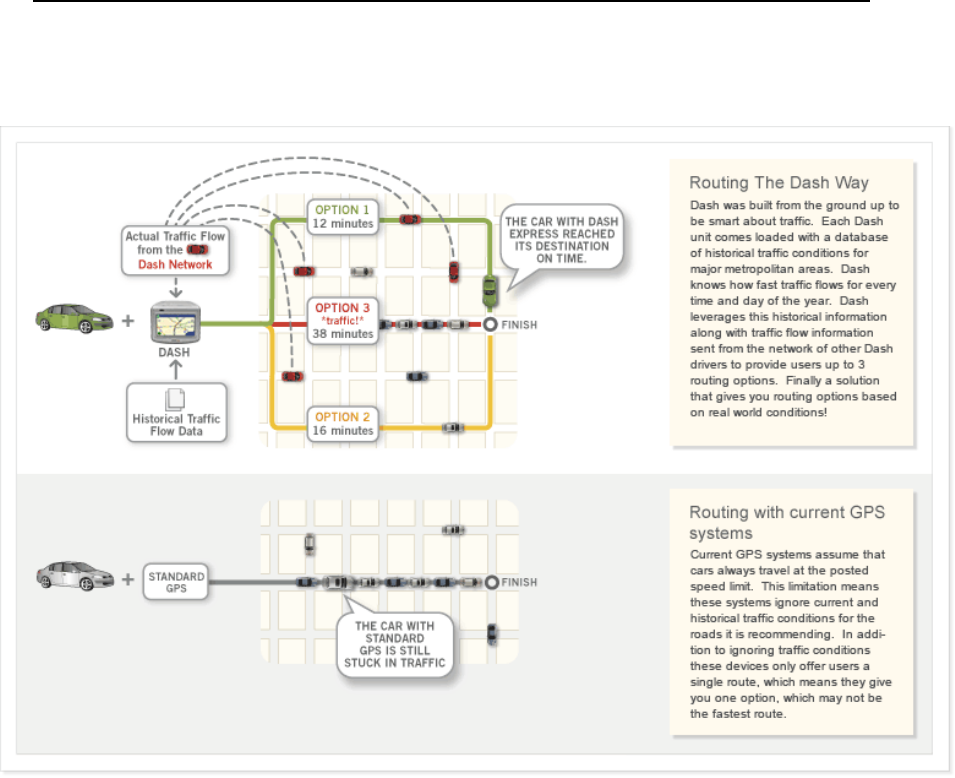

Dash Express even provides up to 3 routing options for every destination
Each route is based on reliable travel time forecasts from:
The network of Dash drivers who utilize two-way connectivity to
anonymously share speeds and locations.
Historical road segment data for every time and day of the year.
www.dash.net
5
Because it's connected, all of that data is constantly updated, so if
conditions worsen, Dash Express will automatically provide an alternate
route.
1-1 Dash Express package list
All the following information could be found at www.Dash.org Please go to
the web site for most updated information.
A Dash Express standard package including:
Car Charger
USB Charger
USB A to mini B cable
Car Holder
Dash Express
Quick start guide
Dash card
Soft bag for Dash Express
www.dash.net
6
1-2 Dash Express Specification
Name Dash Express
Screen 4.3" 480x320 WQVGA
Flash 3 GB
CPU Samsung s3c2440 SoC @ 400 MHz (Source)
SDRAM 128MB
GSM GSM, GPRS (Calypso solution)
GPS SirfStar III GPS,
OS Dash Linux
USB Standard USB 1.1 (unpowered), with a Mini-B receptor (can be
connected via adapter to both host and client devices)
Battery 2200 mAh
www.dash.net
7
1-3 Dash Express Application
www.dash.net
8
Chapter 2 Applications
2-1 Start Your Dash Express

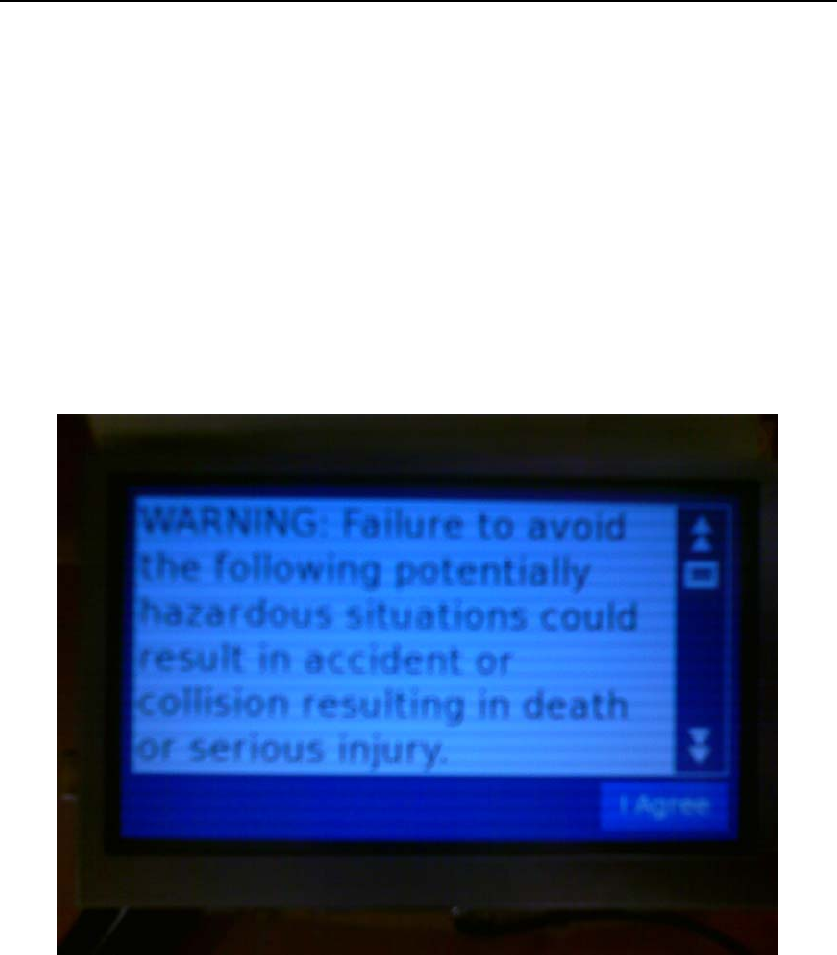

First time start Dash Express, You will see the following Warning message.
Please carefully read all messages and the press “I Agree” button after you
agree the license term
After boot into the system, you will be able to see following maps
illustration which locate your area. It may need takes 40 seconds for your
location fixed.
You could use touch screen for command input and volume adjustment.
www.dash.net
9
There is 2 capacity buttons in the top side of the Dash Express, you could
use the capacity button to adjust sound volume and enter main menu.
2-1-1 Route to destination
You could easily use dash express search your destination:
Step 1: Touch the top side capacity button, then enter the main menu
www.dash.net
10
Step 2: Select the main menu

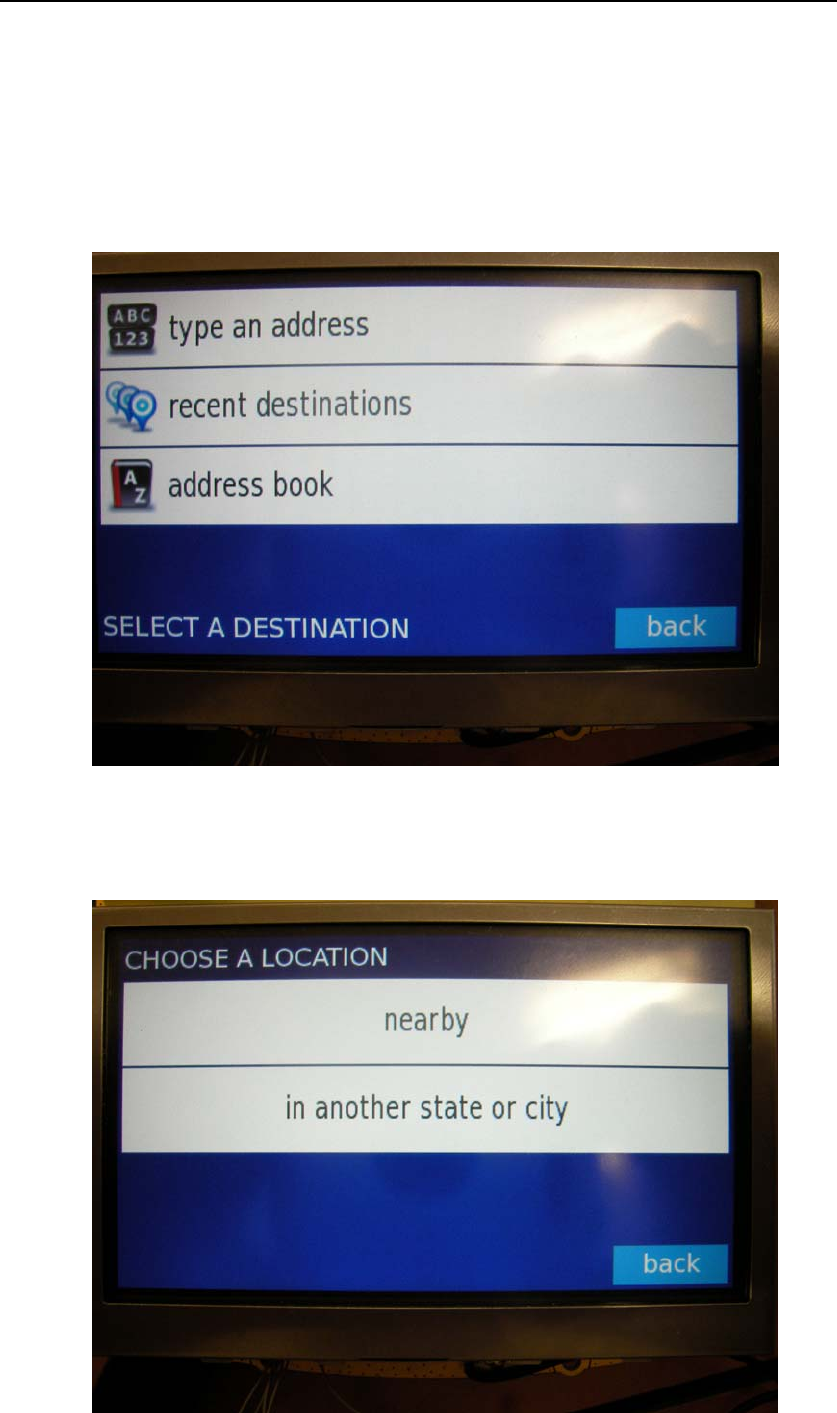

Step 3: Select any of following method to input the destination address.
“Type an address” or “recent destinations” or “address book”, here we use
type an address for example.
Step 4: Press in another state or city for full search.
www.dash.net
11

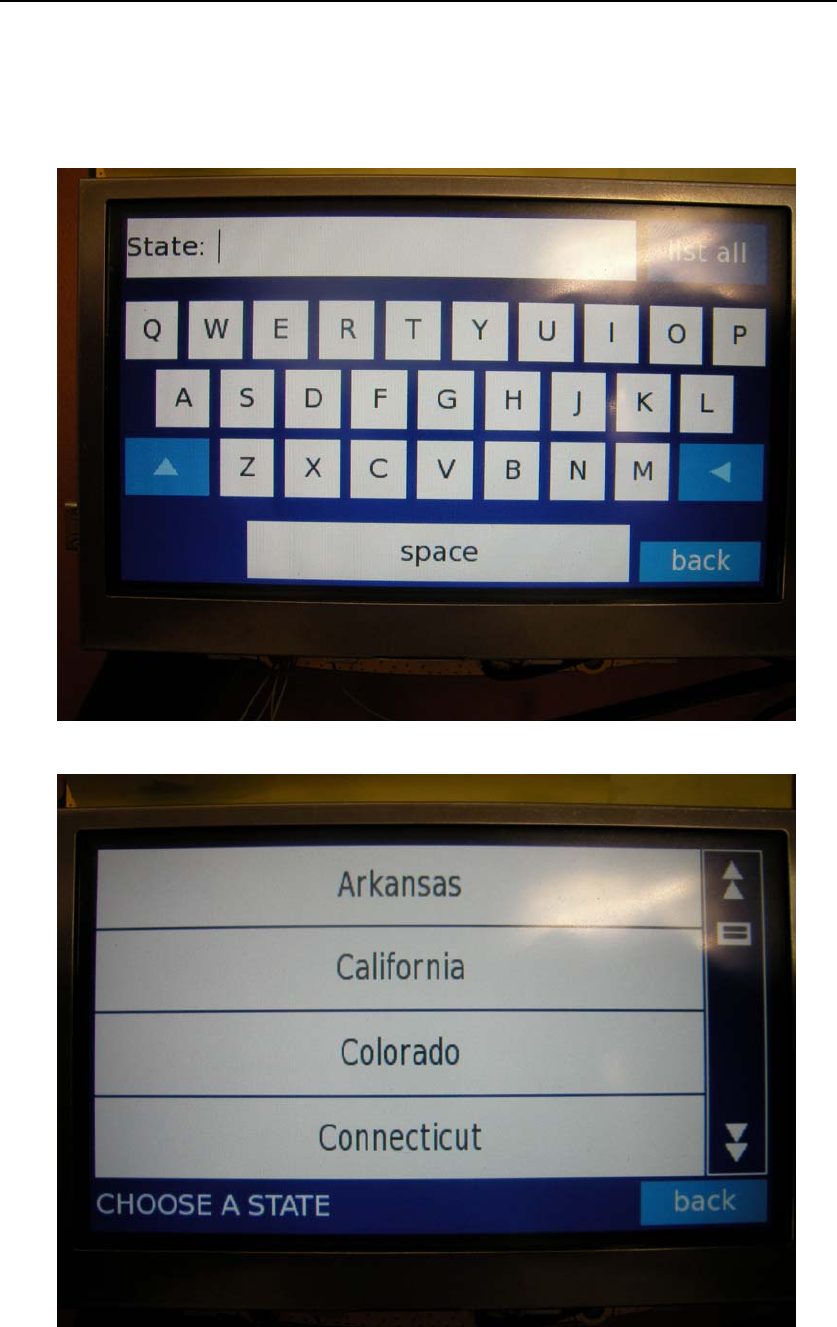

Step 5: Enter the state name, Dash Express will display the smart search
result for your input. We type/select California for example.
www.dash.net
12

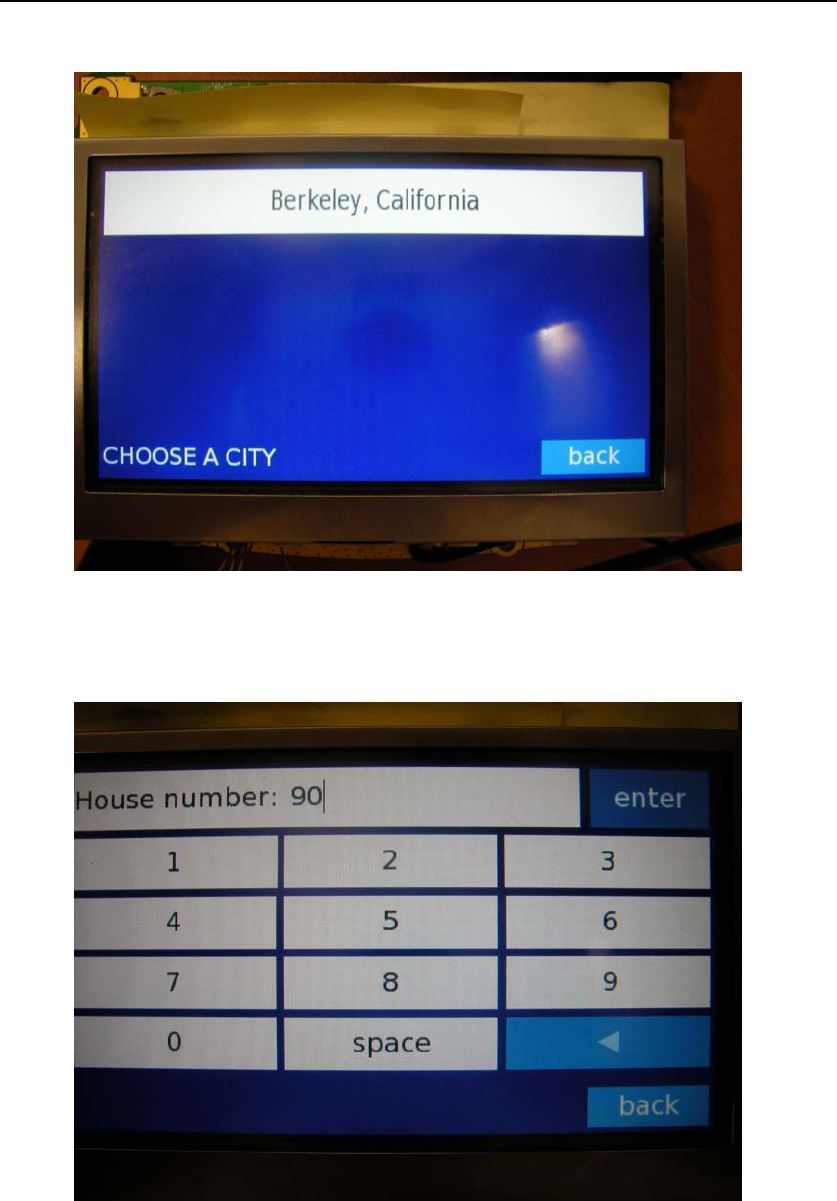

Step 6: Then type/select the city, here we use Berkeley city as example.
Step 7: Enter the house number of your destination.
www.dash.net
13

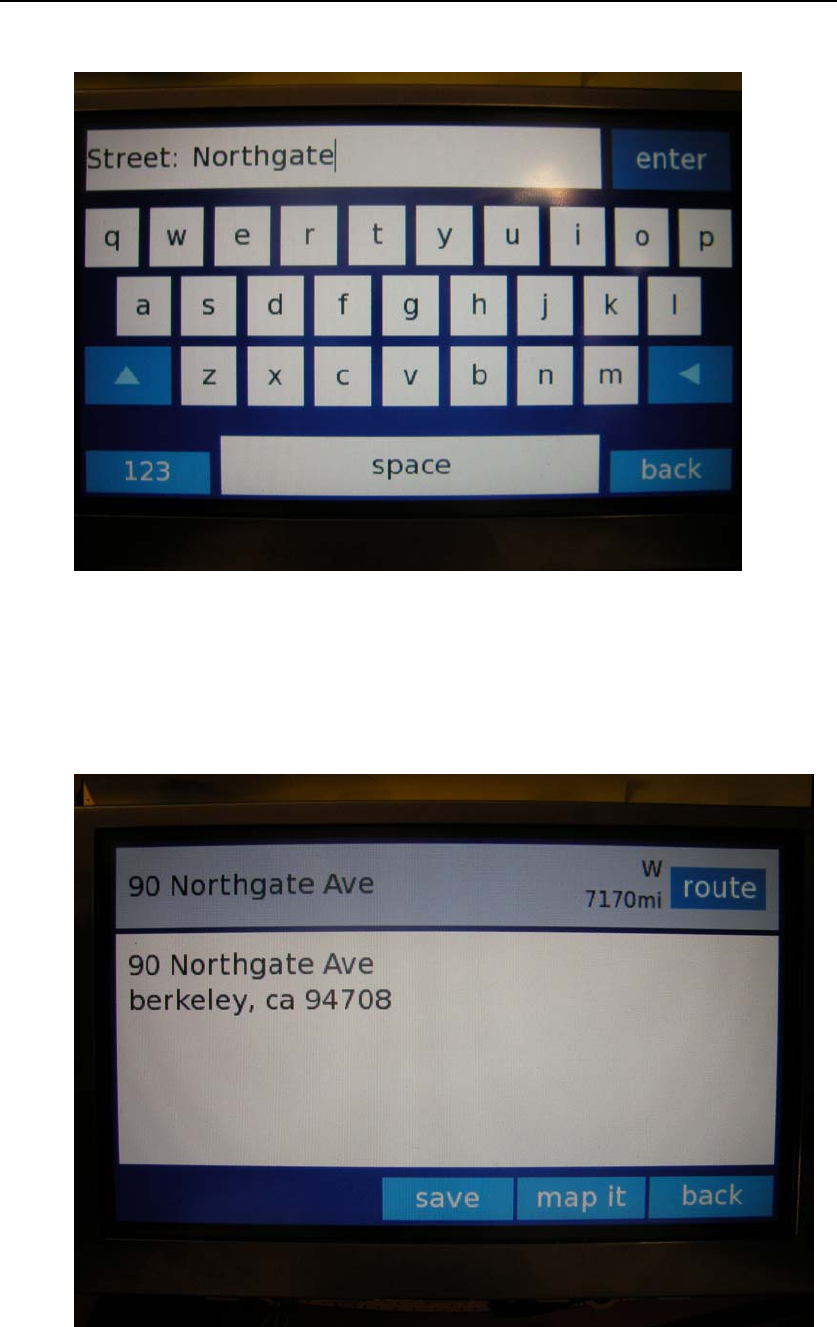

Step 8: Enter the street name of your destination.

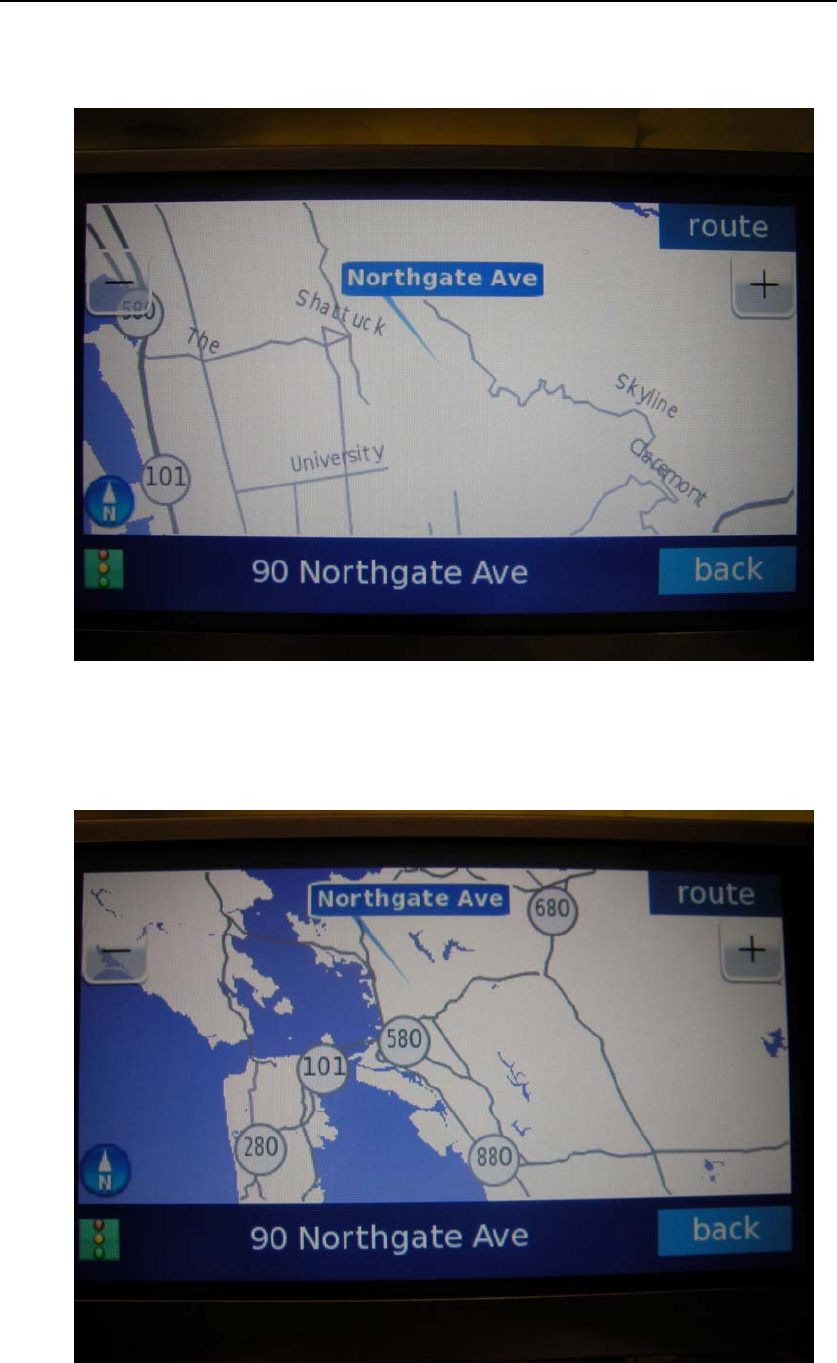

Step 9: Dash Express will display full address, then you could press route
on the upper right screen for destination route caluation.
www.dash.net
14

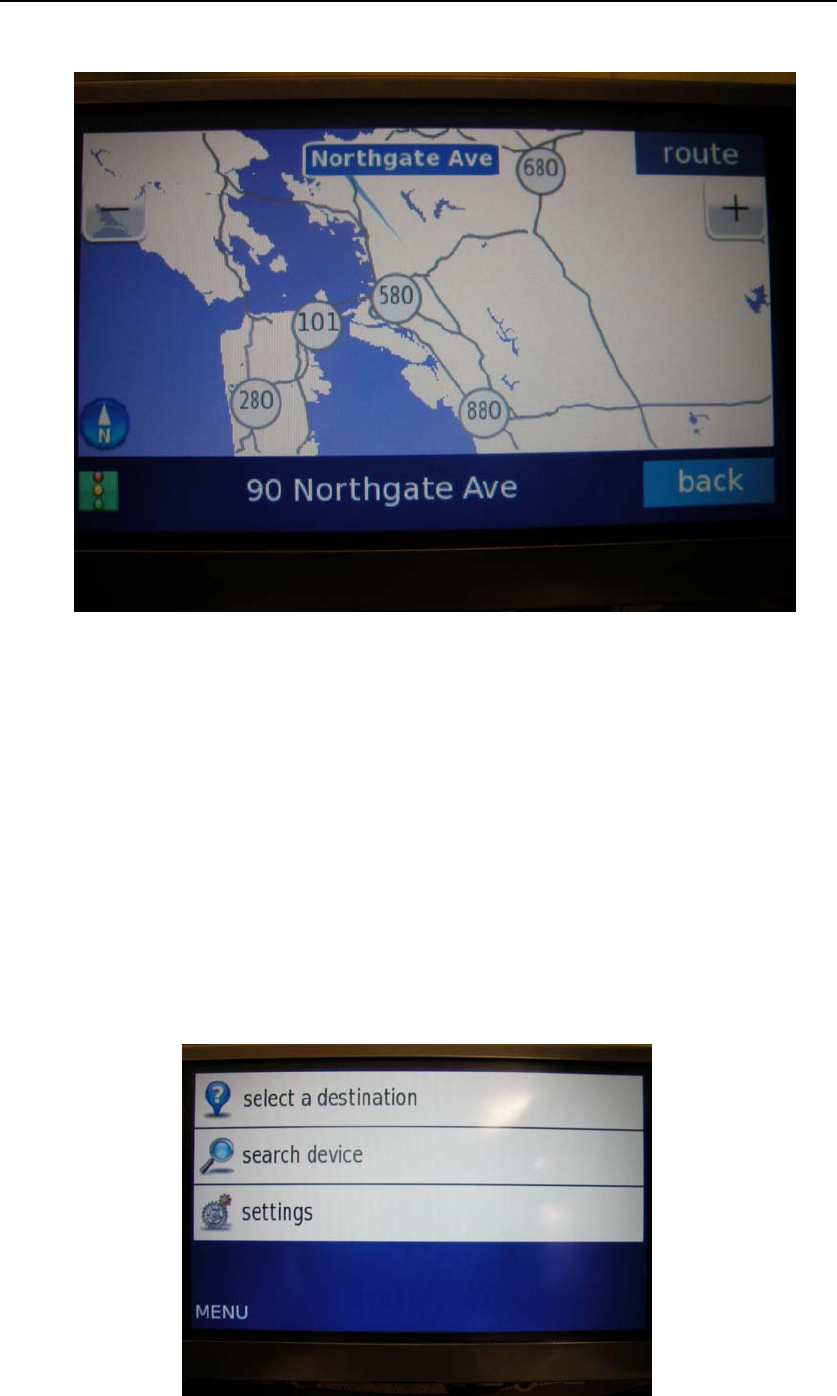

Step 10: You could see the 2D map display your destination on the Dash
Express device.
Step 11: You could press “+” or “-“ to change the map resolution.
www.dash.net
15
2-2Dash Express Configuration
2-2-1 Dash Express configuration

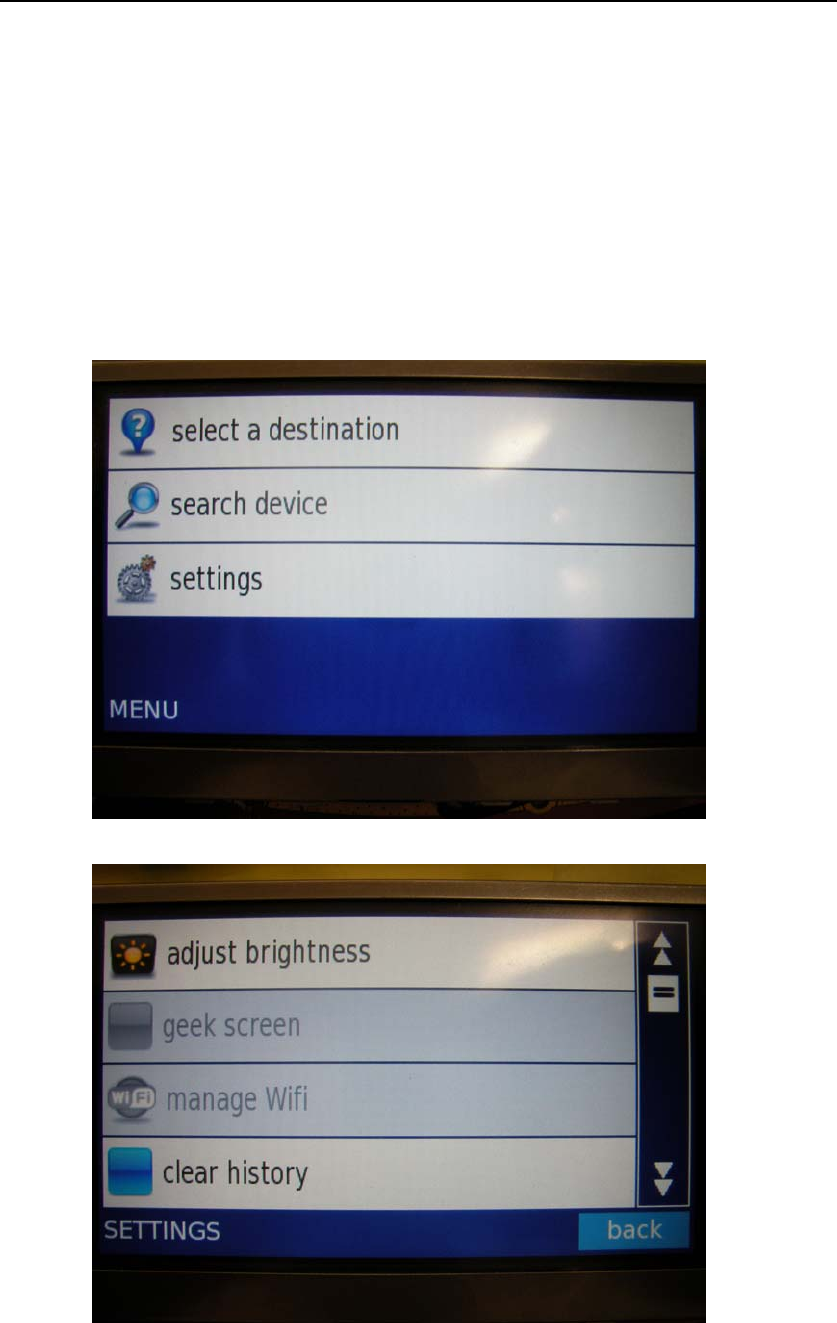

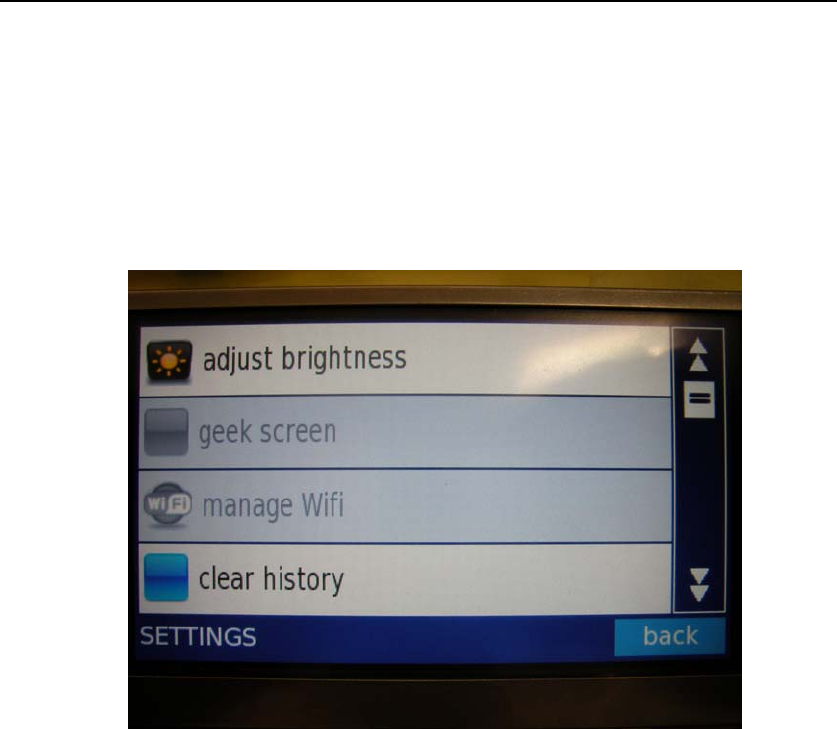

You could use the upper right capacity button, and press setting on the
touch screen to enter configuration screen, you could adjust screen
brightness and Wi-Fi configuration here.
www.dash.net
16

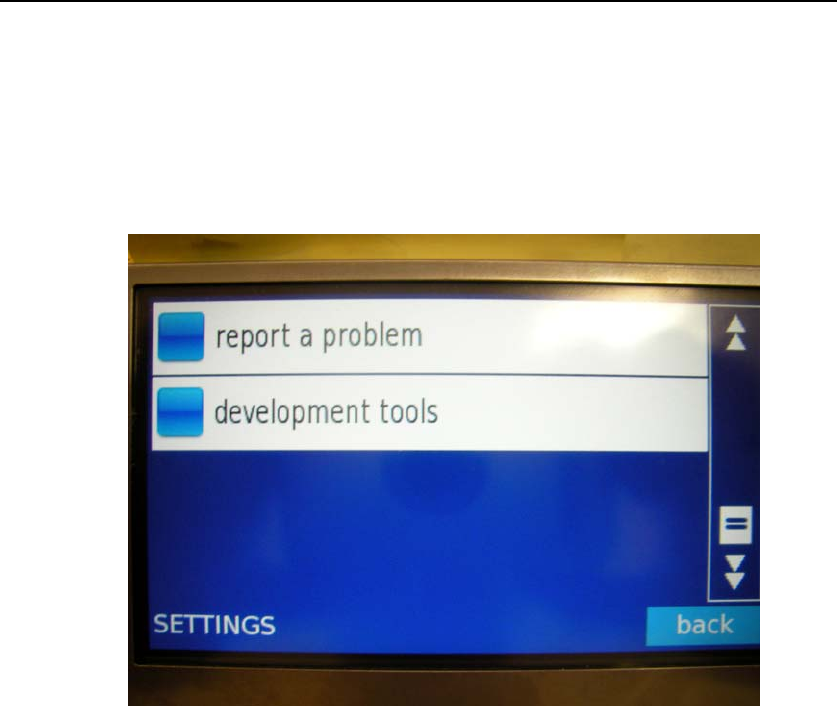

Or you could also report a problem and use development tools for selective
user function.
www.dash.net
17
2-2-2 volume adjustment

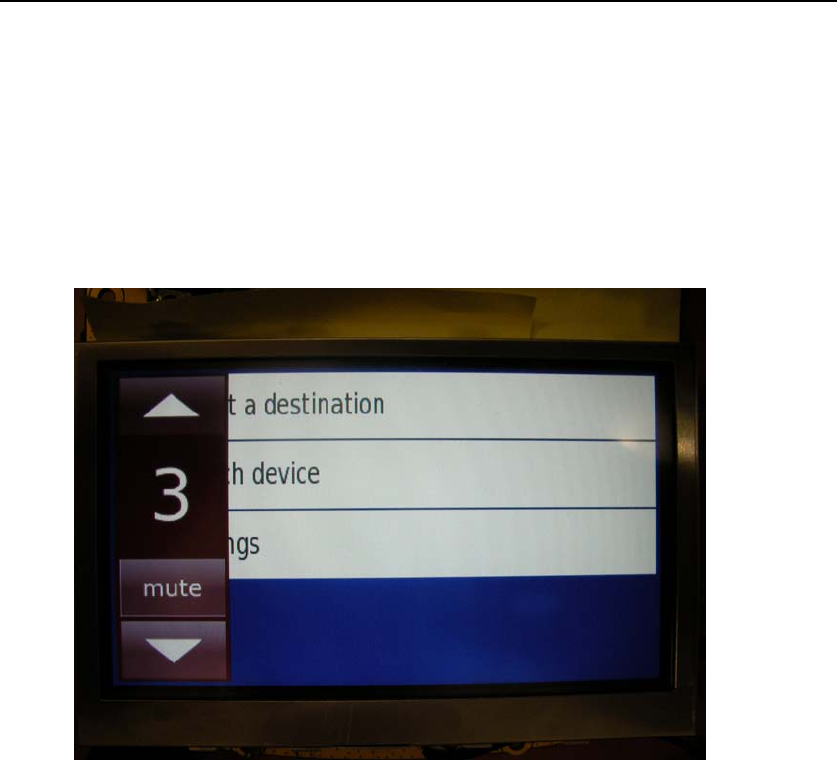

Use upper left capacity button, you could adjust volume by the touch
screen, the number of volume will be on the left side on the screen:
www.dash.net
18
2-2-3 Wi-Fi adjustment
You could use the Wi-Fi section in the main menu for wi-fi configuration,
including:
Access Points
WEP key setting
Connection setting
Connect status
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
www.dash.net
19
