User Manual 3 of 3
Connecting to Peripherals 5
79
5 Connecting to Peripherals
This chapter describes how you attach peripheral
devices to your notebook. You can attach a printer
or mouse; connect an external monitor and
keyboard, or any other peripheral device. You will
learn how to use these peripheral devices with the
step-by-step instructions depicted in this chapter.
Notebook User Guide
80

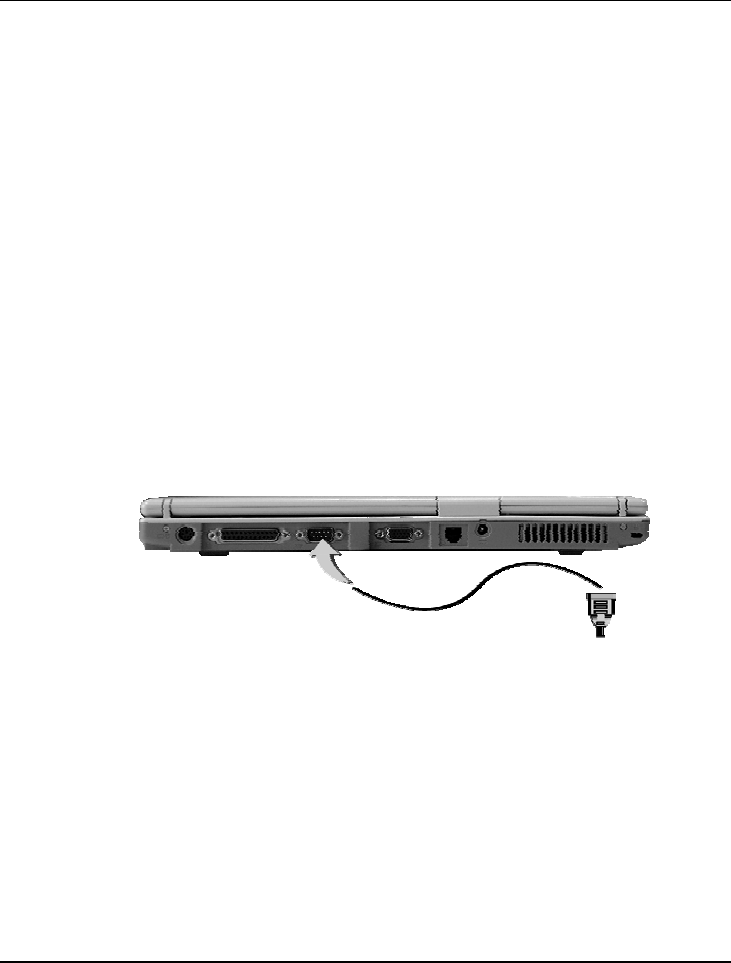

5.1 Using a Serial Port
Your computer has one 9-pin male serial port for connecting an external serial
GPS, mouse or PDA. The serial (RS232) port of your computer is normally
referred to as COM1.
For advanced system like Windows XP, the system can detect and install
suitable driver for the serial mouse automatically when you plug the mouse
connector to the computer. If the system you are using does not support this
function, please install the driver as follows
1. Turn off your computer.
2. Plug the serial mouse connector to the serial port at the back of your
computer. Secure the connection with the screws provided.
3. Turn on the computer.
4. Click the
Start button, then point to Settings, and click Control Panel
when there is another mouse connects to PS/2 port.
5. Double-click on the Add New Hardware icon to appear the Add New
Hardware Wizard.
6. Follow the relative steps when screen shows up to guide you in executing
the specific procedures.
Connecting to Peripherals 5
81
7. When system has rebooted, Windows will automatically detect the serial
mouse.

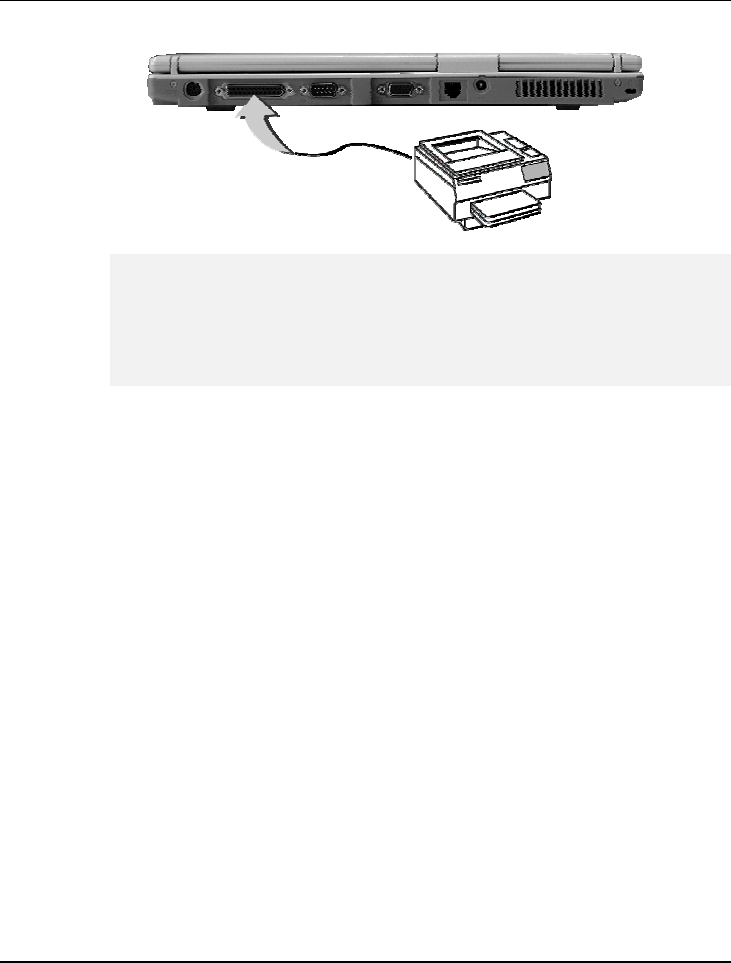

5.2 Connecting a Parallel Printer
The parallel (LPT1) port has a 25-pin female connector at the back of your
computer. You would always connect to this whenever you are going to print
out to a parallel printer.
To connect to a printer:
1. Connect the printer to the parallel port using the 25-pin male connector
cable of the printer. Secure the cable with the screws provided.
2. Align and connect the other end of the cable to the parallel port on the
device. Lock the connector clips.
3. Connect the power cable to the device and a properly grounded wall
outlet.
4. Power on both computer and printer.
5. Check the printer by doing a self-test operation.
6. Set the printer type of your software to recognize the connected printer.
7. If your printer is not listed in the software you are using, consult your
printer dealer for available drivers or any compatible ones.
8. Press the Online button of the printer.
Notebook User Guide
82
☞
When you connect a printer, be sure to install the appropriate printer driver
through the Windows Control Panel.
☞
Check that the device is online before you try to use it. See the instructions
that came with the device for more information.

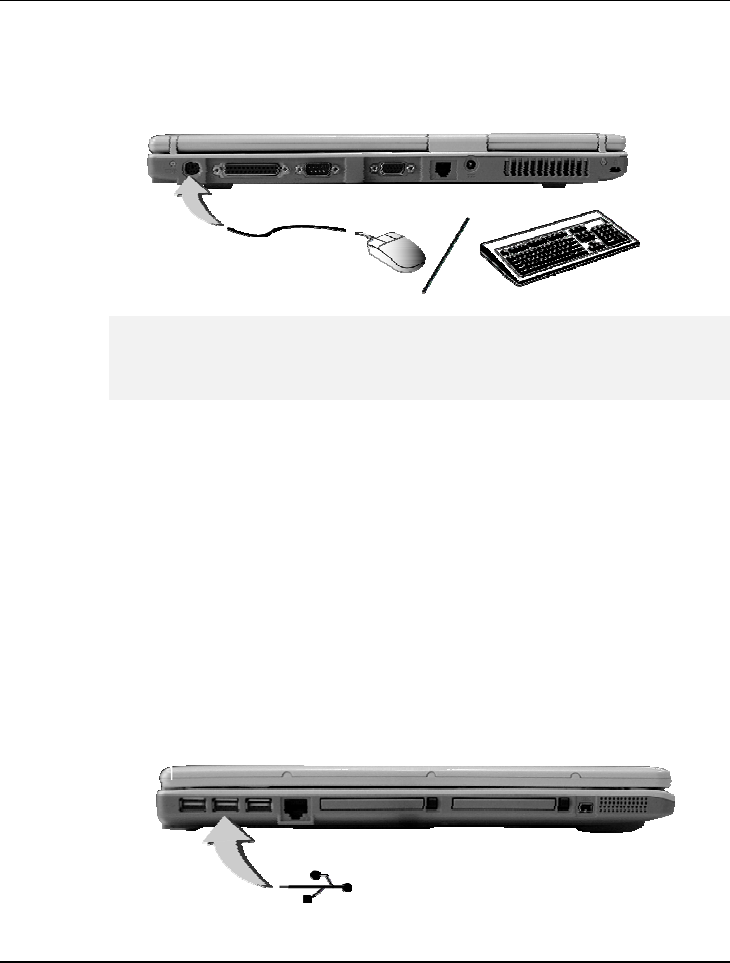

5.3 Using an External Keyboard (PS/2)
At the back of your computer, you will find the 6-pin mini-DIN PS/2
keyboard and mouse port. This port allows you to connect an external full-
sized PS/2 desktop keyboard as well as an external PS/2 mouse. It is
recommended to use an external PS/2 mouse only if you are not using an
external PS/2 keyboard. Otherwise, you must use the serial port for
connecting a serial mouse as discussed earlier. If you want to use both the
external PS/2 mouse and keyboard, you would need to buy a PS/2 Y-cable.
For advanced system like Windows XP, the system can detect and install
suitable driver for the PS/2 mouse automatically when you plug the mouse
connector to the computer. If the system you are using does not support this
function, please install the driver as follows
1. Turn off your computer.
2. Connect the PS/2 keyboard directly to the PS/2 port. If you are using 5-
pin DIN-type keyboard, plug the keyboard to the keyboard adapter first
and then to the PS/2 port. Windows keyboard are also supported.
Connecting to Peripherals 5
83
3. Turn on your computer. Both the built-in keyboard and the external
keyboard are active and can be used simultaneously.
☞
Do not disconnect or connect the external keyboard when power is on.
Turn off the computer first. You can connect an external keyboard or
keypad only while the system is in Suspend mode.
5.4 Using the USB Port
USB or Universal Serial Port is a peripheral bus standard developed by
Compaq, DEC, IBM, Intel, Microsoft, NEC and Northern Telecom. Personal
computers equipped with USB will allow computer peripherals to automatically
configure as soon as they are physically attached - without the need to reboot
or run setup. USB will also allow multiple devices to run simultaneously on a
computer, with peripherals such as floppy drive, mouse, digital cameras,
scanners, printers, CD-RW drives, modems, keyboards, games devices and
acting as additional plug-in sites, or hubs.
Notebook User Guide
84
☞
Depending on your operational requirements, you may need to disable
other ports in order to release system resource for the USB port.

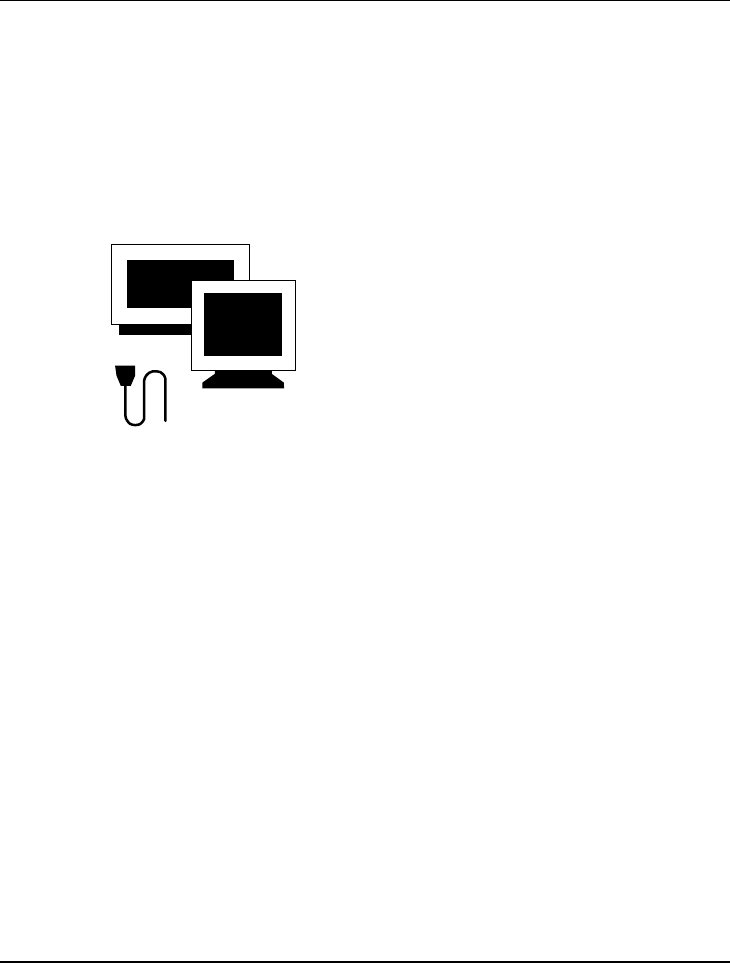

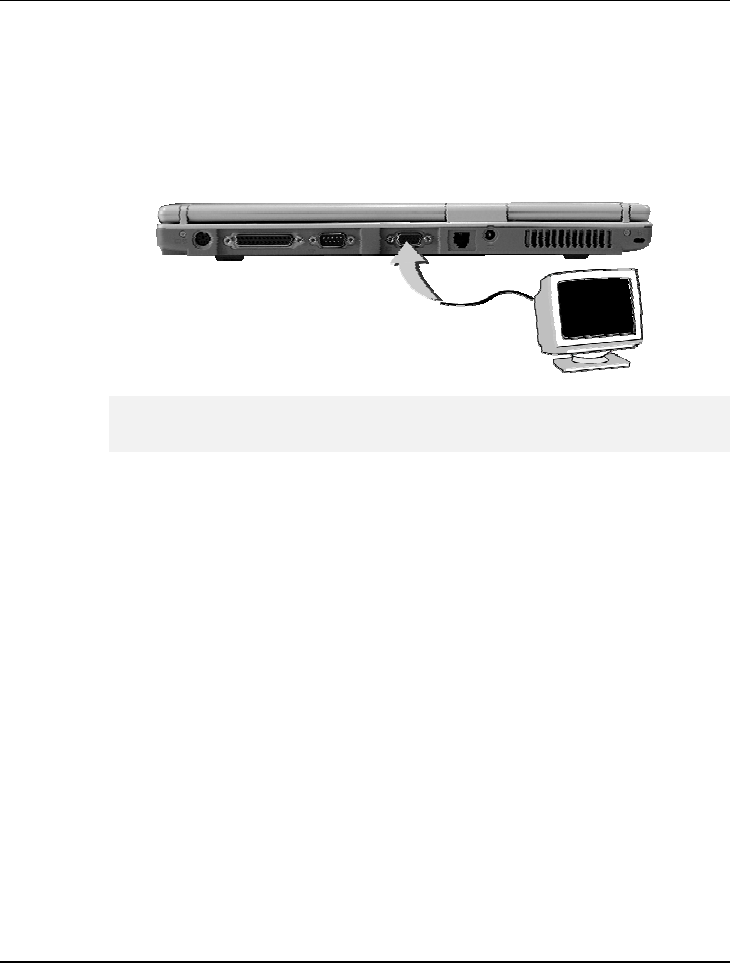

5.5 Using an External Monitor Port
Your computer has a 15-pin Monitor port for supporting any external CRT or
LCD color monitor. You need a display signal cable (usually provided with the
monitor). One end of the cable must have a 15-pin connector for the system.
To connect an external monitor:
1. Turn off your computer and make sure the monitor power switch is
turned off.
☞
The notebook computer must be powered off or suspended while the
monitor is being connected. Although you can connect the external Monitor
without power off the computer and the external monitor, however, it is
harmful to both devices and it shortens the life of these devices.
2. Connect the connector cable of the monitor to the VGA port at the back
of your computer. Secure the cable connection with the screws provided.
3. Connect the monitor power cable and plug it into a properly grounded
wall outlet.
4. Turn on the power of the monitor.
5. Turn on your computer. Both the LCD panel and the monitor screen will
show the display. Your computer is set at default to run at simultaneous
display mode.
Connecting to Peripherals 5
85
6. If you only want to show the display on the external monitor or projector
and shut off the LCD display, you can use the <Fn> + <F3> hot-key to
switch display type between LCD and external monitor. Keep pressing the
hot-key until you get the display to external monitor only.
☞
Refer to Chapter 3 regarding the possible External CRT resolutions and
how to change the display properties.

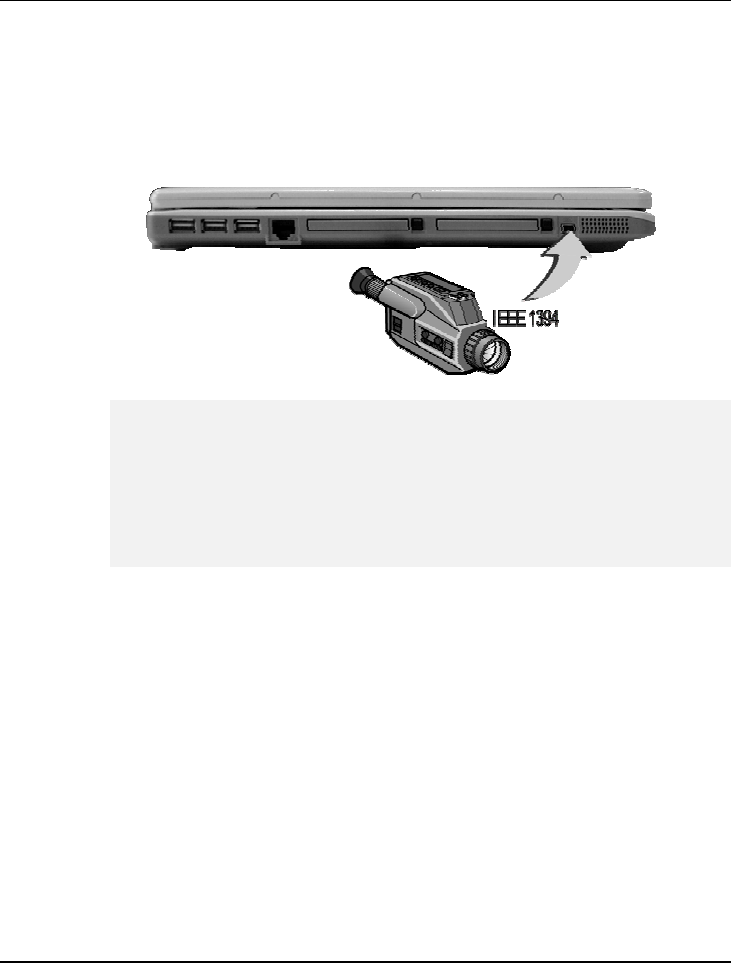

5.6 Using the IEEE 1394 Port
IEEE 1394 is a new I/O standard that is supported by Win98 (second edition)
or later Windows version. With supporting high-speed transmission and
delivering data at a guaranteed rate, you can record digital video clips and
download them directly via a super-speed IEEE 1394 port at the left of the
notebook. IEEE 1394 becomes an ideal for devices that need to transfer high
speed of data in real-time.
With built-in IEEE 1394 port, this computer enables the peripheral devices in
transmitting digital video data or data backup. To install the IEEE 1394 port
driver, please refer to Win98 (second edition) or later Windows version. The
Windows system will automatically recognize it in installing a suitable driver for
it. For other version of Windows, please visit Microsoft's web site for more
information about it.
Notebook User Guide
86
Moreover, you should install the driver of peripheral device to connect with
the IEEE 1394 port, for details please refer to the manual that comes with
your peripheral device.
☞

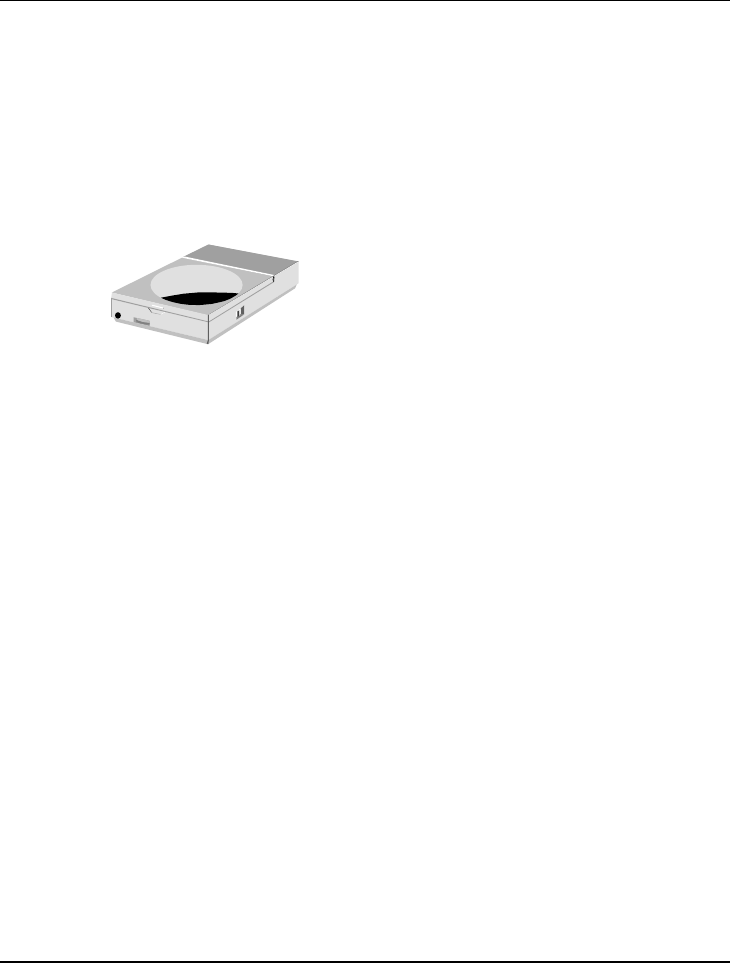

Please make sure that the external IEEE 1394 HDD box you purchase on
local electronic store should provide external power adapter. There are
different types of IEEE1394 HDD box and hard disk from different
manufactures, the power consumption has varied range. If the power of the
external IEEE 1394 HDD is supplied from the USB of this notebook, it may
not run properly.
5.7 Using the External Audio System
At the right side of your computer, you will find the built-in audio ports. You
can connect Microphone jacks, earphone or powered speaker.
To connect to a audio jack:
1. Locate the audio port (Microphone, Headphone) that you want to use to
the target device.
2. Plug the jack into the port on the right side of the system.
Connecting to Peripherals 5
87
☞
If you use external speakers and experience the sound distortion or
feedback, please lower the volume. Some factors is caused by too close
locating the microphone and speakers from each other, moving away the
external audio option from the unit may also help.

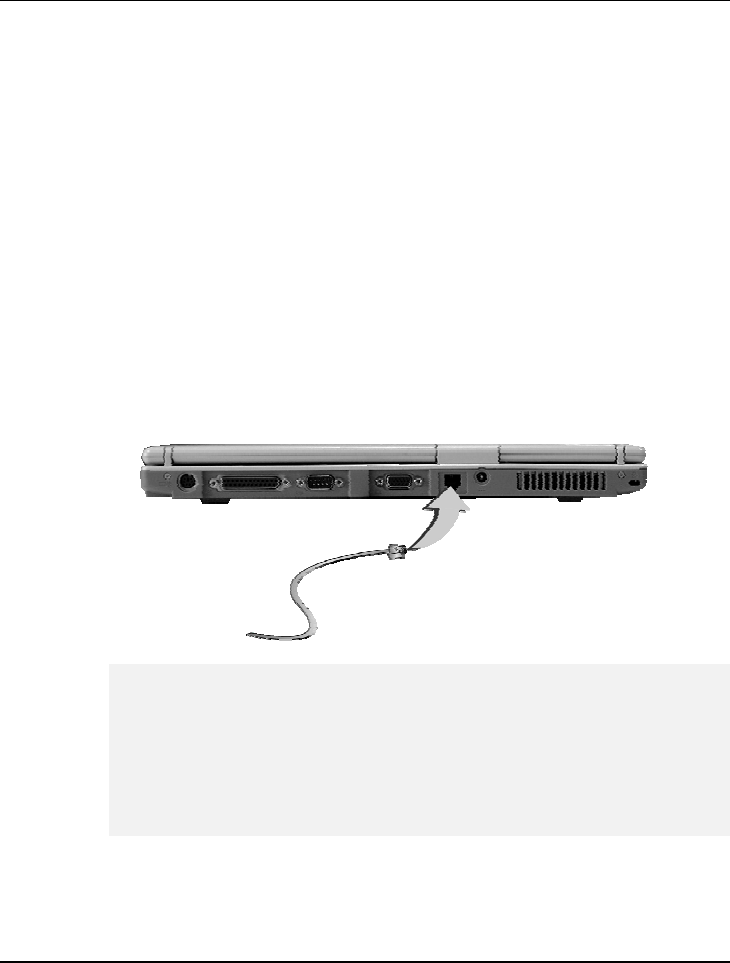

5.8 Using the LAN Port
This notebook comes with an internal 10Base-T/100Base-TX LAN module
that connects your computer to other computers/networks through a local
area network (LAN) and supports data transfer rates at 10Mbps and can be up
to 100Mbps. The 10Base-T standard also called Twisted Pair Ethernet is
connected with RJ-45 connectors. The 100Base-TX is based on the older
Ethernet standard. Because it is 10 times faster than Ethernet, it is often
referred to as Fast Ethernet.
The built-in LAN module provides a standard RJ-45 connector.

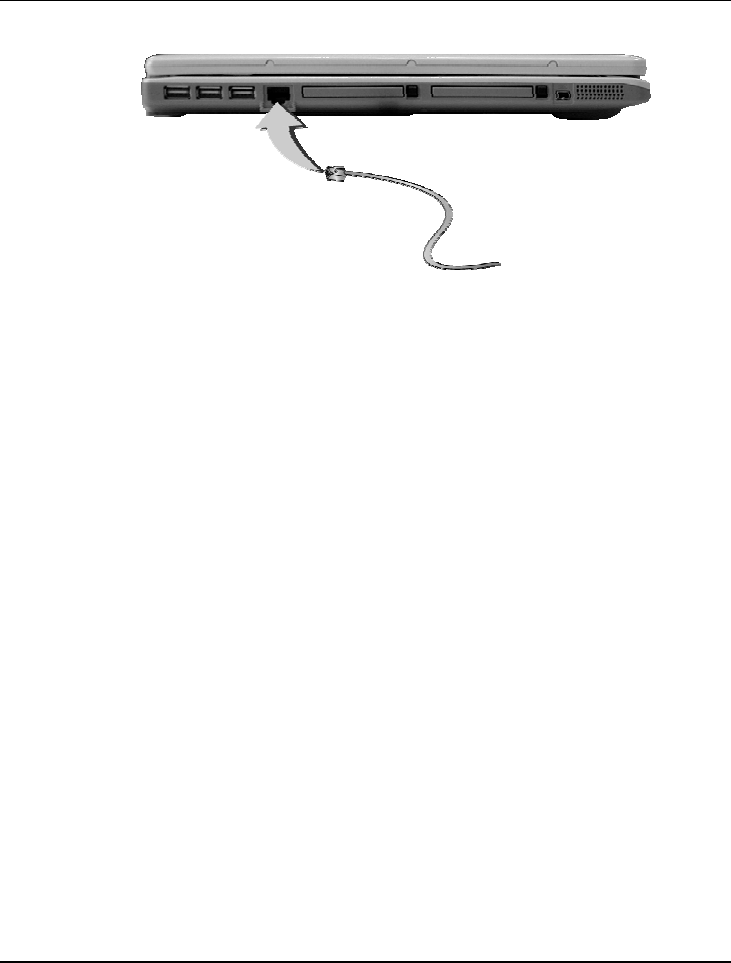

To connect the twisted-pair cable to your LAN port:
1. Locate the twisted-pair cable in the accessories box in notebook shipping
carton. Each end of the cable has a RJ-45 connector.
2. Connect one end of the cable into the network wall outlet or HUB.
3. Connect the other end of the cable into the computer RJ-45 LAN port.
Notebook User Guide
88
5.9 Using the Wireless LAN
Wireless LAN is the major breakthrough in computer communication
technology. It lets user connect to the LAN environment without using any
wire to traditional RJ-45 jack. User can enjoy the wireless connection within
the range of Access Point (AP) of LAN.
Access Point (AP) is the wireless transmission and receiving device, it generally
connects to the server of a LAN environment or act as a LAN hub with
wireless connection. Access point can be set in an office environment, airport,
major railway station, etc. that depends on the construction of each country. In
most case, you probably can use it at office, please consult with the network
department of your company for more details.
This computer integrates built-in IEEE 802.11b or 802.11 a/b wireless LAN
module, with using Intel ® PRO/Wireless network solution by Intel ®
Centrino™ mobile technology. IEEE 802.11b standard supports 11 Mbps
wireless connection speed. You can connect to the wireless LAN Access Point
without insert extra wireless LAN card into the PCMCIA slot.
Wireless LAN module is similar to LAN module. You need to install software
driver before using it. Please refer to chapter 2.5 on how to install the driver.
Connecting to Peripherals 5
89
5.10 Using the Modem Port
This notebook comes equipped with a 56K internal fax/data modem that
allows you to communicate with others via fax, email, or to connect to an
online service or bulletin board.
The built-in fax/data modem provides on standard phone connector.
To connect the analog phone cable to your modem:
1. Locate the analog phone cable in the accessories box in notebook
shipping carton. Each end of the cable has a RJ-11 connector.
2. Connect one end of the cable into a standard wall outlet.
3. Connect the other end of the cable into the computer modem port.
☞
The speed of data transmission is dependent on the quality of telephone
lines. Digitally terminated lines improve the speed of data transmission.
Contact your service provider for more information.
☞
The analog phone cable is an industry standard cable. Longer cables are
available at your local electronics store.
Customizing Your Notebook 6
91
6 Customizing Your Notebook
Your computer uses the Phoenix BIOS Setup
program that allows you to set several system
configuration in changing the way your computer
performs. This includes your system time and date,
disk drive configuration and password setup. This
information is then stored in the CMOS RAM and
will remain permanent unless you change it again.
This chapter discusses on how you will activate the
BIOS Setup program and change the system
configuration to suit your desired operation. You
must be careful to set the configuration properly in
order for your computer to run smoothly. If you are
not sure of any settings, contact your dealer.
Notebook User Guide
92
6.1 Running the BIOS Setup Program
Your computer is likely to have been properly setup and configured by your
dealer prior to delivery. However, you may find it necessary to use the
computer’s BIOS (Basic Input-Output System) Setup program to change
system configuration information, such as the current date and time, or your
hard disk drive type. The Setup program can be accessed when you power on
the system and pressing the <F2> function key.
The settings that you specify within the Setup program are recorded in a
special area memory called the CMOS RAM. This memory is backed up by a
battery so that is will not be erased when you turn off or reset the system.
Whenever you turn on the computer, the system will read the settings stored in
the CMOS RAM and compare them to the equipment check conducted during
the Power On Self Test (POST). If an error occurs, an error message will be
displayed on the screen, and you will then be prompted to run the Setup
Program.
As the POST (Power-On Self Test) executes during the boot up process, the
screen will display the following message:
Press <F2> to Enter SETUP
Press the <F2> key to run the BIOS Setup program. The BIOS Setup
program is organized into five menus which you can select using the <-- and --
> keys. To move from one option to another, you use the up and down arrow
keys while using the <F5> and <F6>, or <+>and <-> keys to change the
settings. On the right hand side of the screen are some brief help descriptions
of each item you want to change.
On the BIOS Setup program, you will find the following parts on the screen:
Customizing Your Notebook 6
93
• Item Specific Help
The right side of the screen. This area describes each parameter and its
available settings.
• Menu Bar
The top line of the screen. Each of the five selections displays its own
screen.
• Parameters
The left side of the screen. This area lists the parameters and their current
settings.
• Key Status Bar
The bottom part of the screen. These lines display the keys available to
move the cursor, select a particular function and so forth.
To exit the BIOS Setup program, simply press the <Esc> key and select from
the Exit menu whether you want to Save changes and exit; Discard Changes
and exit.
Notebook User Guide
94
6.2 Using the Main Menu Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
S
y
stem Time:
[
12 :00 :00
]
<Tab>
,
<Shift-Tab>
,
System Date: [02/19/2003] or <Enter> selects
LAN MAC Address 00-40-CA-C3-9A-07 field.
Boot Display Device: [Both]
4 Primary Master [30006MB]
Secondary Master Installed CD/DVD
System Memory: 640 KB
Extended Memory: 112640 KB
CPU Type: Intel Pentium-M Processor
CPU Speed: 1300 MHz
BIOS Version: A.1A-2973-0812
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit --> Select Menu Enter Select Sub-Menu F10 Save and Exit
Customizing Your Notebook 6
95
• System Time
Allows you to change the system time using the hour:minute:second
format of the computer.
Enter the current time for reach field and use the <Tab>,
<Shift>+<Tab>, or <Enter> key to move from one field or back to
another.
You can also change the system time from your operating system.
• System Date
Allows you to set the system date using the month/date/year format.
Enter the current time for reach field and use the <Tab>,
<Shift>+<Tab>, or <Enter> key to move from one field or back to
another.
You can also change the system time from your operating system.
• LAN MAC Address
This field reports the MAC address of the LAN module on your
notebook.
• Boot Display Device
Lets you select the display device.
• Primary Master
This field display various parameters for the hard disk drive. If type [Auto]
is selected, the system automatically sets these parameters. If type [User] is
selected, Cylinders, Heads and Sectors and other value can be edited.
• Secondary Master
This field is for information only as the BIOS automatically detects the
optical drive.
• System Memory
This field reports the amount of base (or conventional) memory found by
the BIOS during Power-On Self-Test (POST).
Notebook User Guide
96
• Extended Memory
This field reports the amount of extended memory found by the BIOS
during Power-On Self-Test (POST).
• CPU Type
This field reports the CPU type information detected by the BIOS during
Power-On Self-Test (POST).
• CPU Speed
This field reports the CPU speed information detected by the BIOS
during Power-On Self-Test (POST).
• BIOS Version
This field is for information only as the BIOS displays the BIOS version
during the Power-On Self-Test (POST).
Customizing Your Notebook 6
97
6.2.1 INTERNAL HDD SUB-MENU
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Primary Master: [30006MB] Item Specific Help
T
yp
e:
[
Auto
]
Select the drive t
yp
e
LBA Format corresponding to the
Total Sectors: [58605120] fixed disk installed
Maximum Capacity: 30006MB in your system.
If type USER is
Multi-Sector Transfers: [16 Sectors] selected, Cylinders,
LBA Mode Control: [Enabled] Heads & Sectors are
32 Bit I/O: [Disabled] Edited directly.
Transfer Mode: [FPIO 4/DMA 2]
Ultra DMA Mode: [Mode 5]
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit --> Select Menu Enter Select Sub-Menu F10 Save and Exit
Use the Type field to select the drive type installed. You can select different
drive types as CD-ROM, User, Auto or None by pressing <Space> bar. Set
this option to Auto so your computer will automatically detect the drive type
during power on. Set this option to None when your computer is not installed
any devices. Press <Esc> to return to the Main Menu.
6.3 Using the Advanced CMOS Setup
Phoenix BIOS Setup Utility
Notebook User Guide
98
Main
Advanced
Security
Boot
Exit
Item Specific Help
NumLock [LockOn] Selects Power-on state
for NumLock
Embedded Share Memory [16MB]
Quiet Boot [Enabled]
Screen Expansion [Disabled]
Legacy USB Support [Enabled]
USB 2.0 [Enabled]
PXE OPROM [Disabled]
Wake on LAN from S5: [Enabled]
4 I/O Device Configuration
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit --> Select Menu Enter Select Sub-Menu F10 Save and Exit
• Num-Lock
Lets you specify Enabled or Disabled for activating or inactivating Num-
Lock function when system is booting.
• Embedded Share Memory
Lets you specify the sharing memory size of the Video chip from DDR
SDRAM. The Default sharing size is 32MB. You should carefully specify
the value, since while the set value is too high, the memory size of your
software application will be reduced.
• Quiet Boot
Lets you specify the boot screen to Logo screen or POST screen by
choosing Disabled or Enabled, respectively.
Customizing Your Notebook 6
99
• Screen Expansion
Lets you choose full-size screen or reduced size screen for viewing the
display mode.
• Legacy USB Support
Lets you specify Enabled or Disabled for activating or inactivating Legacy
USB Device function when system is booting.
• USB 2.0
Lets you specify Enabled or Disabled for activating or inactivating USB
2.0 Device function when system is booting.
• PXE OPROM
Lets you specify Enabled or Disabled for activating or inactivating PXE
OPROM Device function when system is booting. Please set it to default
value
• Wake on LAN from S5
Lets you activate or inactivate the LAN function when system is booting
by specifying Enabled or Disabled option. Wake on LAN is a function
that you can boot the system from LAN remotely.
• I/O Device Configuration
Lets you configure input/output device such as Serial Port, Parallel Port,
and Floppy disk controller.
Notebook User Guide
100
6.3.1 I/O DEVICE CONFIGURATION SUB-MENU
PhoenixBIOS Setup Utility
Main Advanced Security Boot Exit
I/O Device Configuration Item Specific Help
Serial port A: [Auto] Configure serial port A
using options:
Parallel port: [Auto]
Mode: [Bi-directional] [Disabled]
No configuration,
[Enabled]
User configuration,
[Auto]
BIOS or OS chooses
configuration,
(OS Controlled)
displayed when
controlled by OS
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit --> Select Menu Enter Select Sub-Menu F10 Save and Exit
• Serial port A
You can select the Enabled, Disabled, or Auto option for enabled or
disabled the port, or automatically sensed by BIOS or OS.
• Parallel port
Allows you to select the Enabled, Disabled, or Auto option for enabled or
disabled this port, or automatically sensed by BIOS or OS.
Customizing Your Notebook 6
101
• Mode
Allows you to select a parallel mode as Bi-directional, EPP or ECP when
the parallel port is configured. When you set the configured parallel port
to Enabled, you need to set the parameter of Base I/O address and IRQ
for this port.
6.4 Security Menu Setup
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Supervisor Password Is Clear
Supervisor Password
User Password Is Clear controls access to the
Set Supervisor Password [Enter] setup utility.
Set User Password [Enter]
Set Primary Hard Disk Password [Enter]
HDD Password Status Clear
Password on boot [Disabled]
I/O Security
Modem: [Enabled]
LAN: [Enabled]
1394/CARDBUS: [Enabled]
USB: [Enabled]
Wireless LAN: [Enabled]
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit --> Select Menu Enter Select Sub-Menu F10 Save and Exit
Notebook User Guide
102
• Supervisor Password Is
This field will show Set or Clear that means whether this notebook is
controlled by Supervisor Password or not.
• User Password Is
This field will show Set or Clear that means whether this notebook is
controlled by User Password or not.
• Set Supervisor Password
Supervisor password gives you the authority in accessing the setup utility.
You also need to enter this password in system booting and resuming
from suspend mode. When you press <Enter> in this field, the Set
Supervisor Password dialog box appears. Enter a new password with up
to 8 alpha-numeric characters, and then re-enter it for confirmation.
• Set User Password
This field is only available when Supervisor Password has set. Enter the
user password when boot the system or resume from suspend mode. But
if the Write Protect is set in the Fixed disk boot sector field, you should
enter a supervisor password to access the fixed disk when boot the system
or resume from suspend mode.
• Set Primary Hard Disk Password
This password gives you the authority in accessing the Hard Disk. When
you press <Enter> in this field, the Set Supervisor Password dialog box
appears. Enter a new password with up to 8 alpha-numeric characters,
and then re-enter it for confirmation.
• HDD Password Status
This field will show Set or Clear that means whether this notebook is
controlled by HDD Password or not.
Customizing Your Notebook 6
103
• Password on Boot
If you set this field to Enabled, your computer will ask for the password
each time you boot your computer.
• Modem
Lets you specify Enabled or Disabled for activating or inactivating
Modem Device function when system is booting.
• LAN
Lets you specify Enabled or Disabled for activating or inactivating LAN
Device function when system is booting.
• 1394/CARDBUS
Lets you specify Enabled or Disabled for activating or inactivating
1394/CARDBUS Device function when system is booting.
• USB
Lets you specify Enabled or Disabled for activating or inactivating USB
Device function when system is booting.
• Wireless LAN
Lets you specify Enabled or Disabled for activating or inactivating
Wireless LAN Device function when system is booting.
Notebook User Guide
104
6.5 Using the Boot Setup
This item allows you to set the search drive sequence where the system will try
to boot up first.
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
F12 Multi Boot Menu: [Enabled] Keys used to view or
configure devices:
PXE Boot with WOL: [Disabled] <Enter> expands or
collapses devices with
Boot Sequence: a + or -
+Hard Drive <Ctrl+Enter> expands
Removable Devices all
CD-ROM Drive <Shift + 1> enables or
disables a device.
<+> and <-> moves the
device up or down.
F1 Help Select Item -/+ Change Values F9 Setup Defaults
Esc Exit --> Select Menu Enter Select Sub-Menu F10 Save and Exit
• F12 Multi Boot Menu
Lets you specify Enabled or Disabled for activating or inactivating the
Multi Boot function by pressing F12 function key when system is booting.
Customizing Your Notebook 6
105
• PXE Boot with WOL
This field is for information only as whether the BIOS can automatically
detect the PXE Boot with WOL status or not.
• Boot Sequence
To select the boot device, you can use the up or down arrow key, then
press <+> to move up the device in the list or press <-> to move down
the device in the list.
6.6 How to Exit the Setup Program
There are two choices to escape from the Setup program.
Phoenix BIOS Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Exit Saving Changes Exit S
y
stem Setu
p
Exit Discarding Changes and save your
Load Setup Defaults changes to CMOS.
Discard Changes
Save Changes
F1 Help Select Item F5/F6 Change Values F9 Setup Defaults
Esc Exit --> Select Menu Enter Execute Command F10 Save and Exit
• Exit Saving Changes
Saves all changes to CMOS while running the BIOS setup program and
exit from the system setup program.
Notebook User Guide
106
• Exit Discarding Changes
Allows you to discard all changes made while running the BIOS setup
program and exit from the system setup program.
• Load Setup Defaults
Lets you load the default values for all setup items.
• Discard Changes
Reverts to previously selected settings.
• Save Changes
Saves Setup data to CMOS.
6.7 How to Upgrade the BIOS
Your computer uses EPROM Flash BIOS chip that allows you to easily
upgrade the BIOS program. When you update the BIOS, any customized
settings you made are lost.
To upgrade the BIOS:
1. Insert the BIOS Update diskette into the diskette drive.
2. Power on the system with the diskette in the diskette drive.
3. On the DOS prompt, type the following command.
A:\>Phlash XXXXXX.ROM (BIOS filename) or
A:\>XXXXXX.BAT (Batch file for BIOS file)
4. Press <Enter> to run this BIOS utility. After the system has been
successfully run this program, a message similar to the following appears:
Flash memory has been successfully programmed,
press any key to restart the system. If the
system does not restart, turn it off, then turn
on again.
Customizing Your Notebook 6
107
5. Press any key to restart this system.
Contact your dealer for the latest BIOS update file.
Using Options 7
109
7 Using Options
This chapter describes the most advanced features
and expandable architecture in your notebook. You
can upgrade your memory size to your system for
specific requirements.
Notebook User Guide
110
7.1 System Upgrade
This section provides some steps in doing system upgrade for your notebook
computer. The upgrade procedures include the following:
MEMORY UPGRADE
Your notebook computer offers 200-pin SODIMM (Small Outline Dual Inline
Memory Module) at least 128MB DDR-SDRAM. The memory compartment
is located on the bottom of your computer. The table below lists the possible
combinations of different memory module and memory size.
Based Memory Installing Memory Total
128 MB 0 MB 128 MB
128 MB 128 MB 256 MB
128 MB 256 MB 384 MB
128 MB 512 MB 640 MB
256 MB 0 MB 256 MB
256 MB 128 MB 384 MB
256 MB 256 MB 512 MB
256 MB 512 MB 768 MB
512 MB 0 MB 512 MB
512 MB 128 MB 640 MB
512 MB 256 MB 768 MB
512 MB 512 MB 1024 MB
Using Options 7
111
INSTALLING MEMORY MODULE
Your computer comes with standard 128MB, 256MB or 512MB of
synchronous DDR SDRAM . You can increase system memory to a maximum
of 1024 MB in the system, by installing one small outline double inline memory
modules (SO-DIMMs) with installed base memory in the system.
The 128MB, 256MB or 512MB memory module are available:
To install the memory module:
1. Make sure the system is powered off, the battery also is removed and that
no peripheral devices are attached.

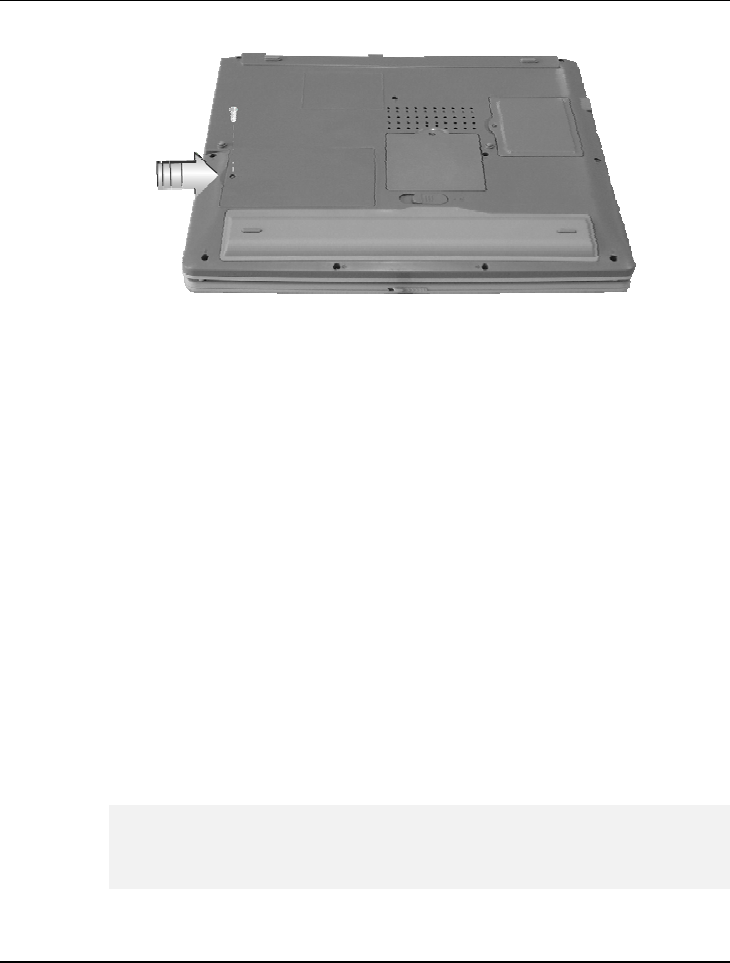

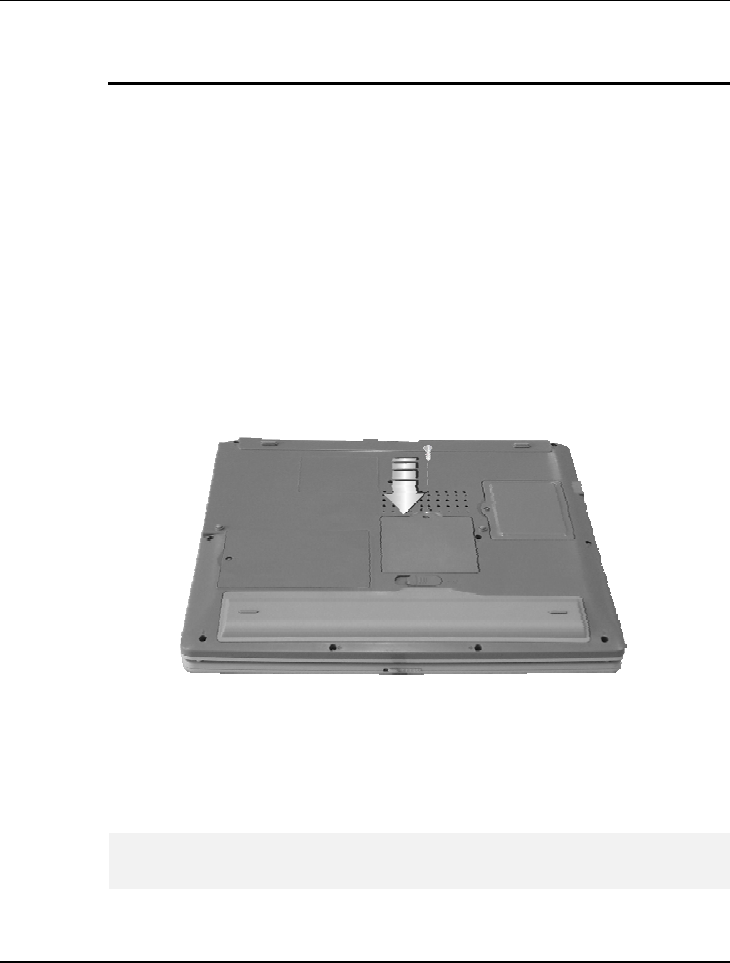

2. Turn the computer upside-down and locate the screw that secures the
DIMM door at the underside of the notebook.
3. Remove the screw and open the DIMM cover by your finger.
4. Locate the memory module into the empty memory module sockets.
(Your system comes with one memory module already installed in the
socket.)
☞
Avoid touching the exposed components inside the system. Doing so may
damage the system.
Notebook User Guide
112
5. Insert the connector of the memory module into the socket. Make sure
the notch of the memory module fits the nose of the socket.
Hold the memory module at a 30-degree angle and push its
connector into the memory socket of the notebook.
Press down on the edge of the memory module until the locking
tabs on both sides is locked.
6. Put the DIMM door back and secure the screw on the DIMM door.
7. Turn the system over.
To remove a memory module, push the locking tabs aside from the memory
module until the module pops up. Then, remove the memory module.
7.2 Hard Disk Upgrade
This section provides the steps in upgrading the hard disk for your notebook
computer. The upgrading procedures include the following:
UPGRADE HARD DISK
Your notebook computer offers one 2.5" format, 9.5mm height hard disk. If
the volume does not fit your need or it is crashed, you can upgrade it by
replacing with new hard disk. Please do the following steps to change it.
1. Remove the screws and open the cover by lifting its upper side cover.
Using Options 7
113
2. Take out the hard disk from the compartment by finger carefully
3. Remove the crane screws located at each side of the hard disk.
4. Remove the connector from the hard disk gently.
5. Attach the connector to the new hard disk precisely.
6. Rotate and tighten the crane screws to the new hard disk.
7. Place the hard disk back to the compartment and push the hard disk
forward into the connector side of the computer until the hard disk is
attached to the computer.
8. Cover the lid, then rotate and tighten the screws.
9. Set the boot device as optical disk drive and Primary Master as Auto on
BIOS setup menu. Please refer to Chapter 6 about the setting of BIOS
setup menu. Then, boot the system by using WinXP CD-ROM and the
system will detect the hard disk automatically and prompt you how to
format the new disk.
☞
Please tighten the screws located at each side of the hard disk before
operating the hard disk. Any vibration may cause damage for the running
hard disk.
Notebook User Guide
114
☞
Please contact dealer or certified technician for changing the hard disk
drive. Any damage that caused by inappropriately adding or changing this
HDD will not be under warranty
7.3 Wireless Module Installation
This computer uses Intel ® PRO/Wireless 802.11b or 802.11 a/b wireless
LAN module for wireless connection.
☞
Please contact dealer for adding or changing this module. Any damage that
caused by inappropriately adding or changing this module will not be under
warranty
Caring for Your Notebook 8
115

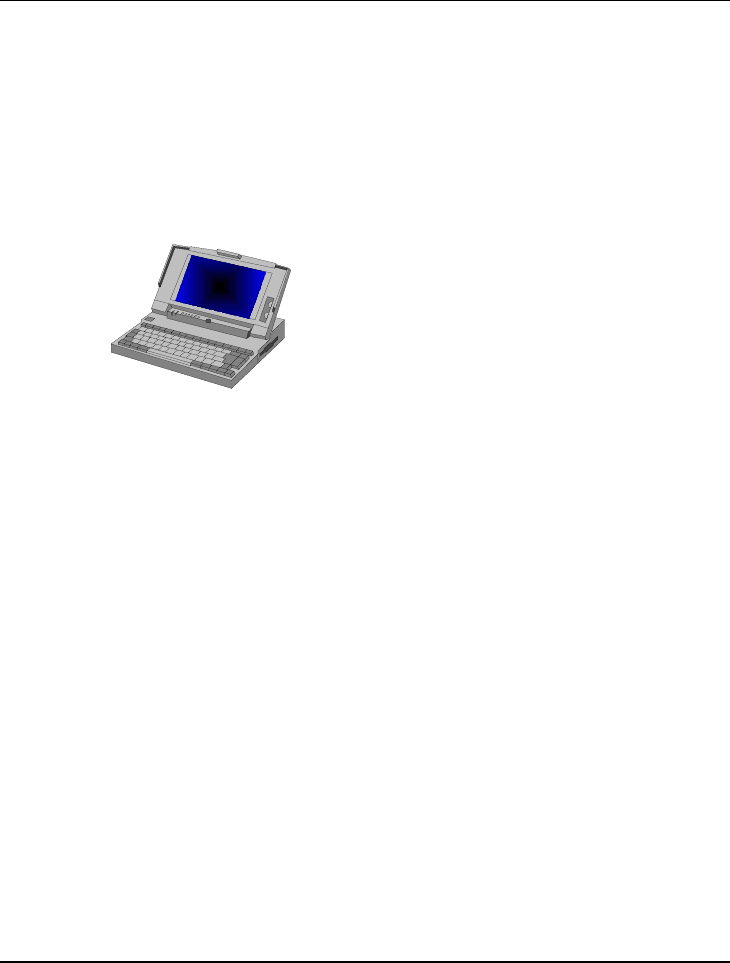

8 Caring for Your
Notebook
Your Notebook PC is a fully IBM compatible
portable personal computer with the latest features in
mobile computing and multimedia technology.
Lightweight and compact, your Notebook PC runs on
a whole wide range of general business, personal
productivity, and professional applications, it is ideal
for use in the office, at home, and on the road.
Your Notebook PC also allows you for several levels
of customization and expansion that are previously
available only on desktop PCs.
Notebook User Guide
116
8.1 Important Safety Instructions
Portable computers take the most beating from end users. This section gives
you detailed information about how to maintain a safe working environment
while using the notebook computer. You can maintain its condition and
performance by following these guidelines. Please read it carefully to ensure
maximum safety.
• Before cleaning the notebook computer, make sure it is disconnected
from any external power supplies (i.e. AC adapter, car adapter and so on).
• When cleaning, do not use liquid or sprayed detergent for cleaning.
Instead, use moisture sheet or a cloth for cleaning.
• The socket-outlet shall be installed near the notebook computer and shall
be easily accessible.
• Please keep the notebook computer from humidity.
• Lay the notebook computer on a reliable surface when installing. A drop
or fall may cause injury.
• The openings on the enclosure are for air convection hence the notebook
computer can be protected from overheating. DO NOT COVER THE
OPENINGS.
• Be careful of using power supply. The notebook computer has specific
power requirements.
• Use only a power adapter approved for use with this notebook computer.
• The power adapter may have a 2-prong plug. This is an important safety
feature. A compatible outlet is required. If it is not available, find a
qualified electrician to install one.
Caring for Your Notebook 8
117
• While unplugging the power cord, disconnect it by the plug head, not by
its wire.
• Make sure the socket and any extension cords you may use can support
the total current load of all the connected devices.
• Though your AC adapter is suitable for universal international voltage, it
still requires a stable and continual power supply. Make sure the voltage of
the power source when connect the notebook computer to the power
outlet. If your are unsure of your local power specifications, consult your
dealer or local power company.
• Place the power cord in such a way that people can not step on it. Do not
place anything over the power cord.
• All cautions and warnings on the notebook computer should be noted.
• If the notebook computer is not in use for a long time, disconnect it from
mains to avoid possible damage by transient over-voltage.
• Never pour any liquid into openings as this may cause fire or electrical
shock.
• Never open the body of notebook computer. For safety reason, the
notebook computer should only be opened by qualified service personnel.
• If one of the following situations arises, have the notebook computer
checked by service personnel:
➟ The power cord or plug is damaged.
➟ Liquid has penetrated into the notebook computer.
➟ The notebook computer has been exposed to moisture.
➟ The notebook computer has not worked well or you can not get it
work according to user’s manual.
Notebook User Guide
118
➟ The notebook computer has dropped and damaged.
➟ The notebook computer has obvious sign of breakage.
• Do not leave this notebook computer in an environment unconditioned.
Storage temperature above 60ºC (140ºF) may damage the notebook
computer.
• An approved power cord has to be used for the notebook computer’s
power supply. For a rated current up to 6A and an equipment weight
more than 3 kg, a power cord not lighter than H05VV-F, 2G, 0.75mm2,
has to be used.
• To avoid any damage happened to the internal device, you should first
disconnect the AC adapter and remove the battery pack from the
notebook when replacing any internal device.
The sound pressure level at the operator's position according to IEC 60704-1
is equal or less than 70dB(A).
8.2 Cleaning Your Computer
When it is necessary to clean the plastic case and keyboard, use a soft, lint-free
cloth, slightly dampened with a mild detergent solution or use the contents of
any commercially available computer cleaning kit.
Never use alcohol, petroleum-based solvents, or harsh detergents to clean the
notebook. Also never spray any liquids directly on the computer case,
keyboard, or screen. If the liquid-crystal display (LCD) screen has become
smeared or dusty, clean the screen by first applying a mild glass cleaner to a
soft, clean, lint-free cloth, and gently wipe the glass. Never apply liquids
directly on the screen surface. Moreover, do not use paper towels to clean the
display screen. Paper can scratch the display screen matte.
Caring for Your Notebook 8
119
8.3 Maintaining the LCD Quality
When it comes to screen problems, heat plays a big part. After a good working
session, the typical routine is to shut the machine and close the cover. But the
display surface - no matter what type it is - and the components inside the
computer radiates heat; when you close the cover, you trap the heat against the
screen. Leave the computer's cover open for about ten minutes while the heat
disperses. Make this a habit.
You should also enable the power management of your computer to turn off
the LCD power and display when the system is in inactivity for some time.
Adding screen savers is also acceptable.
Follow the safety guidelines mentioned earlier and how to clean your
computer.
8.4 Maintaining Your Hard Disk
Losing your data has the same consequences as a system break down. Users
must make it a habit of doing hard disk maintenance every week or so. Here is
some maintenance you could do:
• Always backup your data files from your hard disk.
• Install the virus detecting program to monitor virus that could tamper
your files.
• Use SCANDISK once in a while to correct any errors found in the
directory and File Allocation Table. This will also free up space from any
unused sectors.
• Never move or raise the computer while the hard disk is being accessed,
most especially don't jar the hard disk as this may cause a hard disk crash.
Notebook User Guide
120
• Use hard disk maintenance programs like Disk Defragmenter of
Windows. These reorganize your hard disk by eliminating fragmentation
and improving your hard disk access time.
• Install a system password in your computer so others won't be able to use
the hard disk.
8.5 Battery Care Guidelines
The battery pack furnished with the computer requires reasonable care and
handling to ensure efficient operation and maximum life. There is a risk of fire
and chemical burn if the battery pack is handled improperly.
To ensure that the battery pack endures normal life cycle, always observe the
following precautions when handling the battery pack:
• Handle batteries carefully. Do not try to disassemble, crush, puncture,
open, drop, mutilate, short external contacts, disposed of in water or fire,
or expose it to temperatures higher than 60 C.
• Recharge batteries only as described in this manual and only in ventilated
areas. Never use an external charger other than the one supplied with your
computer.
• Do not leave batteries in hot locations for more than a day or two.
• Do not leave your battery in your computer for longer than 1 month
without plugging in the power adapter.
• Do not leave battery in storage for more than 2 months without
recharging it to prevent over discharge. Over discharge will hurt the
battery
• Dispose dead battery properly to protect the environment. The batteries
contain hazardous chemicals and should not be thrown out with
household or office trash.
Caring for Your Notebook 8
121
• You should always discharge your battery before recharging it on either of
these two conditions: first, this is the first time you start to use your
battery; second, you had not charge the battery for more than 2 months.
To discharge the battery, please execute the "Battery Refresh" function in
the BIOS Setup Utility.
8.6 When You Travel
For safety and convenience when traveling, please follow these instructions:
• Backup all needed files on your hard disk before traveling.
• Recharge your battery overnight to ensure full battery power before you
leave.
• Don't forget to bring along the AC adapter and extra battery pack.
• Try to bring backup software as well.
• Check the voltage rating and the outlet type of your destination. If the
power cord of the adapter is different, then you need to purchase a
suitable one. Consult your dealer.
• Carry your computer in its carrying case or in a briefcase. Never check-in
the computer as a luggage.
• Remember to apply those power saving features and techniques to save
battery power.
System Specification A
123
APPENDIX A
System Specification
This appendix gives information on the technical
and hardware specifications of your computer. Please
note that the information mentioned here may not be
exactly the same with your computer as specification
is subject to change without notice or modifying this
manual.
Designed with an advanced modular architecture,
your Notebook PC also allows you for several levels
of customization and expansion that are previously
available only on desktop PCs.
Notebook User Guide
124
PROCESSOR UNIT
• Intel ® Pentium ® M processor by Intel ® Centrino™ mobile technology
• Above 1.3 GHz Intel ® Pentium ® M CPU
• 1024KB integrated L2 cache for the processor
SYSTEM MEMORY
• Two 200-pin memory slots
• User-upgradeable to maximum 1024MB using 200-pin SODIMM 128MB,
256MB and 512MB modules
• PC-266 DDR SDRAM modules
LCD DISPLAY
• 15" XGA (1024x768) or SXGA+ (1280 X 1024) Color TFT LCD
• Maximum 16M true colors on all LCD display
VGA SYSTEM
• Integrated Intel graphic engine
• Simultaneous LCD and external monitor (CRT) display
• Maximum 16 million colors on LCD display at 1280 x 1024 resolution for
15" LCD
• Maximum 16 million colors on external monitor or projector at 1800 x
1440 resolution (Non-Interlaced)
System Specification A
125
STORAGE
• 2.5” Format 9.5mm High HDD Module; Bus Mastering, Ultra DMA
ATA-100 Support for LBA Scheme
• Enhanced IDE bootable optical disk drive
AUDIO SYSTEM
• Full-duplex 16-bit stereo speaker with wavetable support
• H/W Audio Sound Blaster 16 compatible
• Built-in dual speakers
• Audio input jacks for microphone (MIC)
• Audio output jack for external speaker or headphone (Line-Out)
• Built-in Thumb Wheel Volume Control
PCMCIA
• 32-bit CardBus PCI Local Bus PCMCIA controller
• Supports 2 x Type II PC cards
• Supports 32-bit Cardbus cards, and 16-bit PC cards
GLIDE PAD
Integrated Glide Pad (Serial/USB mouse) pointing device with left, right and
scroll buttons.
KEYBOARD
• Full-sized 88-keys keyboard with Windows systems hot-keys, inverted T-
cursor keys, 7 hot keys, 12 function keys, and embedded numeric keypad
Notebook User Guide
126
• Provides international language keyboard
FLASH BIOS
512K Flash ROM BIOS for easy BIOS upgrade
I/O PORTS
• 3 x Universal Serial Bus (USB 2.0) (1 set for U-Disk only)
• 1 x 15-pin VGA (CRT)
• 1 x IEEE 1394 port
• 1 x LAN port
• 1 x Modem port
WIRELESS DEVICES
• 802.11b or 802.11 a/b Wireless LAN (Intel ® PRO/Wireless network
solution by Intel ® Centrino™ mobile technology)
AC/DC POWER SUPPLY ADAPTER
Universal auto-switching 60W (100V~240V) adapter
BATTERY
• Rechargeable 8 Cells Li-ion battery pack or 4 Cells slim battery pack with
Smart Battery function
• Above 4 hours of usage with 8 Cells Li-ion battery pack (when run ZD
Battery Mark diagnostic program)
System Specification A
127
WEIGHT AND DIMENSION
• 330 x 281 x 28.7mm (front) -32.7mm
• 6 lbs, 2.8kg
