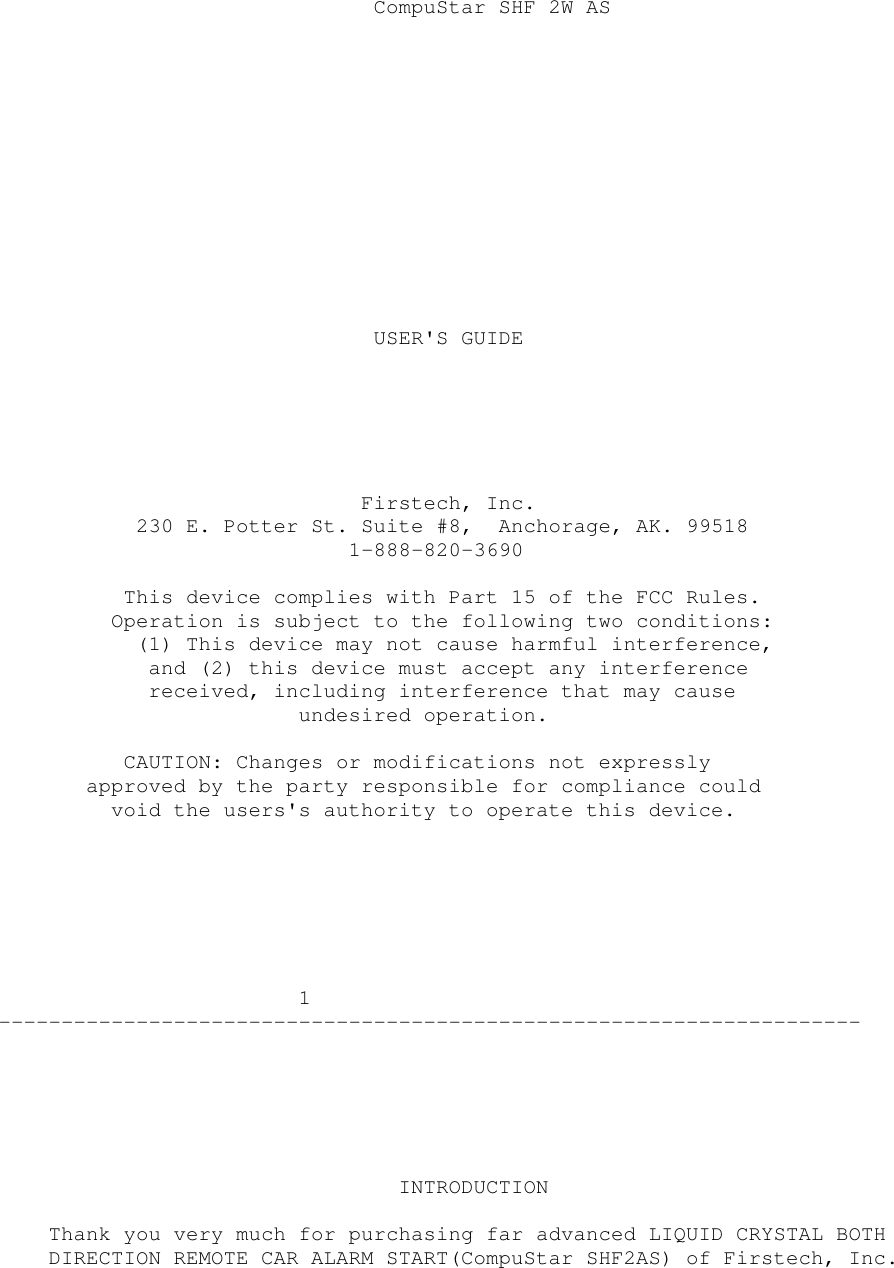

CompuStar SHF 2W ASUSER'S GUIDEFirstech, Inc.230 E. Potter St. Suite #8, Anchorage, AK. 995181-888-820-3690This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) This device may not cause harmful interference,and (2) this device must accept any interferencereceived, including interference that may causeundesired operation.CAUTION: Changes or modifications not expresslyapproved by the party responsible for compliance couldvoid the users's authority to operate this device.1---------------------------------------------------------------------INTRODUCTIONThank you very much for purchasing far advanced LIQUID CRYSTAL BOTHDIRECTION REMOTE CAR ALARM START(CompuStar SHF2AS) of Firstech, Inc.
We are constantly researching and developing in order to meet satisfactionfor the requirements of progressive clients.1. This product is automatic reservation type for manual vechicle.In case of manual vechicle, after parking with pulling the key out theengine does not stop running until closing the door after getting off.2. If the all operation of the vechicle does not accord with this user'sguide,consult us or installation agency.3. We make it a rule to deal with this product at agencies appointed tohandleMAGICAR products. in case of other salesperson, be sure to getidentificatiion.Refer to regional MAGICAR direct agencies.4. Because it is an electronic product, so avoid strong impact orpermitting water.5. When the vichile is not automatic, be sure not to choose automaticoption(dip-switch no.1 in system).('Automatic(vehicle)'means the car starts always P and N position.)Problems due to ignorance above things, installation fault or user'sfault, weare not responsible them.2-------------------------------------------------------------------------------------+-------------- MAJOR FUNCTIONS -------------+||| This product is 3 dimensional far advanced auto controller with viewingthrough || remote controller screen and adopting inter-communication between vechicleand || remote controller.|||| When the vehile is located at the place where can not be seen or heardthe || speaker sound, you can get the confirmation through screen and sound ofthe || remote controller.|| Automatic start reservation type for manual vehicle.|| Without remote controller, functions can be cleared(Vallet mode) withonly key. || Maintain the code memory against cut-off the power(vehicle batterydischarge || or battery exchange).|
| Will be settled additional remote controller immediately.|| High efficiency and subminiature rod antenna.|| Perfect operating between -20 C and +50 C|| CMOS micro chip / crystal oscillator.|| CAR CALL(Car paging) function.|| Can keep silent at the car when the vehicle gotten sudden impact orstolen. || Remote controller provides screen and emergency sound.|| every 24 hours start mode.|| For turbo-engine function.|| Clients can change various auto-function of door and all options withremote || controller.|| Start(Engine) kill function at panic state.|3+----------------------------------------------------------------------------------------+CONTENTSButtons function --------------------------------------- 5pFunctions descriptionLock the door ------------------------------------- 6pUnlock the door ----------------------------------- 7pSelf emergency ------------------------------------ 8pEngine starting reservation ----------------------- 9pCancel engine starting reservation ---------------- 10pRemote engine starting ---------------------------- 11pTrunk open ---------------------------------------- 12pQuery the state of vehicle ----------------------- 13pMute mode ----------------------------------------- 14pVallet function(1) -------------------------------- 15pVallet function(2) ----------- -------------------- 16pOption(Auto-function of door lock) ---------------- 17pPaging function ----------------------------------- 18pCar-Call/Panic function --------------------------- 18pEvery 24H-start function -------------------------- 19pTurbo function ------------------------------------ 20p
Client control ----------------------------------------- 21pHow to change option(Auto-function of door lock) ------- 22pWiring diagram ----------------------------------------- 23pCode injection ----------------------------------------- 24p4-----------------------------------------------------------------------------BUTTONS FUNCTION+-----------+------------------+----------------------------------------+--------+| BUTTON | PRESS | FUNCTION|DESCRIP.|+-----------+------------------+----------------------------------------+--------+| I | one touch | door lock(arming)/unlock(disarm) |6p |+-----------+------------------+----------------------------------------+--------+| I - | 2 sec. | speaker sound and emergency light for |8p || | | 30 sec.stat(engine) is killed until ||| | | disarmed ||+-----------+------------------+----------------------------------------+--------+| II- | 2 sec. | remote starting on/off |11 p |+-----------+------------------+----------------------------------------+--------+| III- | 2 sec. | trunk open |12 p |+-----------+------------------+----------------------------------------+--------+| IV | one touch | query the state of vehicle |13 p |+-----------+------------------+----------------------------------------+--------+| I+II | one touch | mute mode approach/reinstate |14 p || | at the same time | ||+-----------+------------------+----------------------------------------+--------+

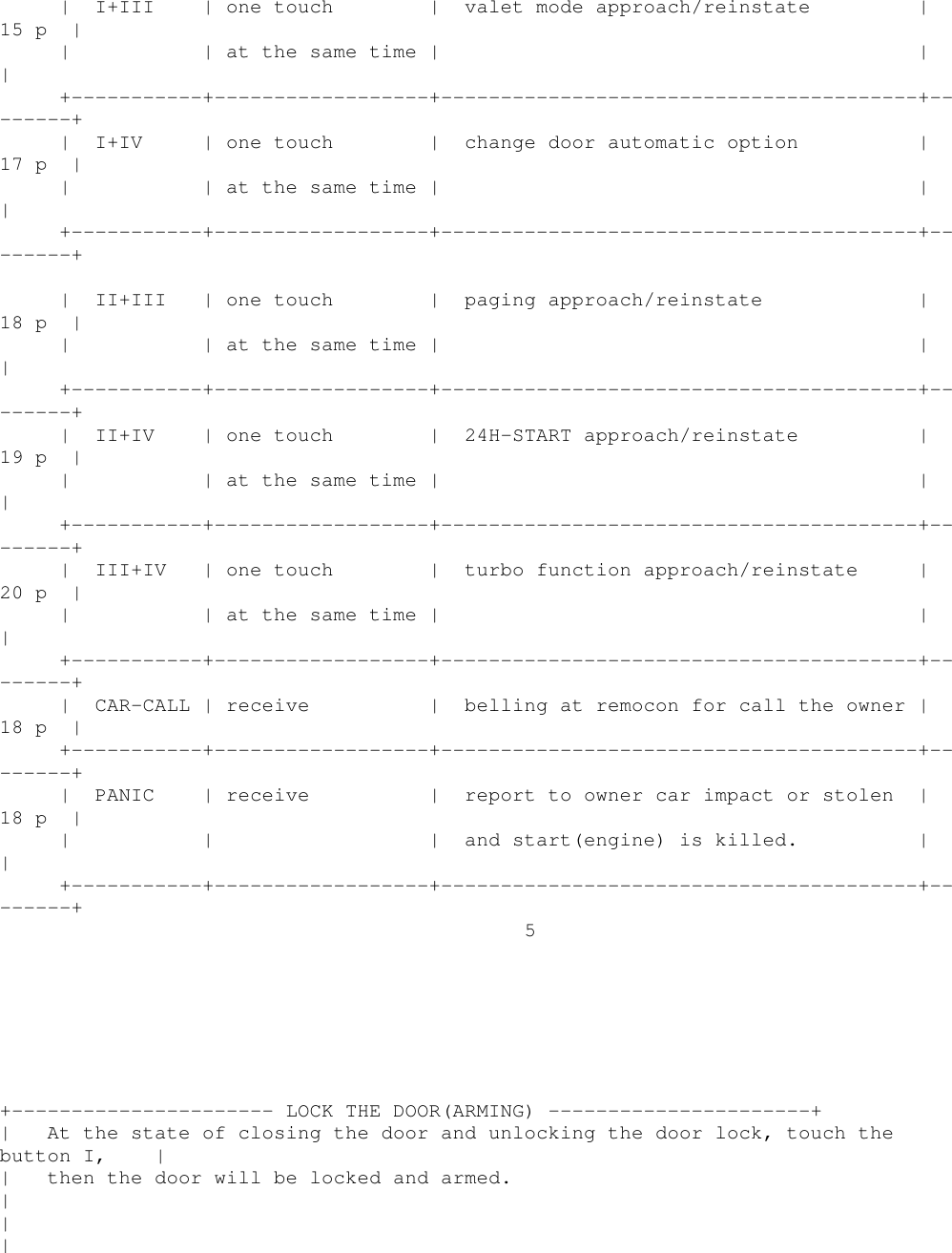

| I+III | one touch | valet mode approach/reinstate |15 p || | at the same time | ||+-----------+------------------+----------------------------------------+--------+| I+IV | one touch | change door automatic option |17 p || | at the same time | ||+-----------+------------------+----------------------------------------+--------+| II+III | one touch | paging approach/reinstate |18 p || | at the same time | ||+-----------+------------------+----------------------------------------+--------+| II+IV | one touch | 24H-START approach/reinstate |19 p || | at the same time | ||+-----------+------------------+----------------------------------------+--------+| III+IV | one touch | turbo function approach/reinstate |20 p || | at the same time | ||+-----------+------------------+----------------------------------------+--------+| CAR-CALL | receive | belling at remocon for call the owner |18 p |+-----------+------------------+----------------------------------------+--------+| PANIC | receive | report to owner car impact or stolen |18 p || | | and start(engine) is killed. ||+-----------+------------------+----------------------------------------+--------+5+---------------------- LOCK THE DOOR(ARMING) ----------------------+| At the state of closing the door and unlocking the door lock, touch thebutton I, || then the door will be locked and armed.|||
||| VEHICLE|||| Locked the doorlock Chirp once Blinker once|||| - Remore controller screen : Blink 5 times at the arrowed portion.|||||||||| - Remote controller sound : Beep once|||| L.E.D. in the CAR-CALL sticker starts blinking after 3 seconds fromlocking || the unlocked door.|| - Stolen(panic) watch : When the system's L.E.D blinks, it always watchesopening || the door(vehicle stolen).|| - Impact watch : After 30 seconds from locking the door, it acts everysudden || impact.|| - Car call (call owner) : Operates after 30 seconds from locking thedoor, and || after sending once the message to owner, can be reused after 1minute.(Remote || controller can accept this at only stand-by state with page approached)|| Doorlock can be applied during the engine's turning on by remotecontroller. || And,this locking means the arming of the vehicle and in this state systemdose || not watch impact but opening door(stolen) because of engine vibration.|6+----------------------------------------------------------------------------------------+
+------------------- UNLOCK THE DOOR(DISARMING) ---------------+||| At the state of closing the door and locking the doorlock(armingstate),touch the || button I, then the door lock will be unlocked(disarmed) and start(engine) isbe abled|| if killed.|||||| VEHICLE|||| Unlocked the doorlock Chirp twice Blinker twice|| /three times /three times|| /four times /four times|||| - Remore controller screen : Blink 5 times at the arrowed portion.|||||||||||| - Remote controller sound : Beep twice/three times/four times|||| Twice : There was not any unusual thing when parking(arming).|| three times : Got sudden impact when parking(arming).(Blinking hammer-icon) || four times : Door open(panic) when parking(arming).(Blinking door-icon)|| Off the L.E.D in the CAR CALL sticker with unlocking the locked door.|| (Meaning the state of vehicle disarmed)|| In case of vehicle adopted auto/manul arming function,if the door is notopened || during 30 seconds, the vehicle is automatically reapproached armingstate. |
7+----------------------------------------------------------------------------------------++--------------------------- SELF-EMERGENCY -------------------------------+||| If the button I is pressed for 2 seconds in any state, the vehicle isapproached || emergency state for 30 seconds, and the atart(engine) is killed untildisarming by || remote controller or valet(remocon valet or key valet).|||||| VEHICLE|||| - Remote controller screen : Blink for 30 seconds at the arrowed portion.|||||||||||| - Remote controller sound : Mute|||||| Use in case of being threatened or nessary to apply this. To cease this,touch || the button I.|| In case of self-emergency,unconditionally the doorlock will be locked andthe || start(engine) is killed.|8

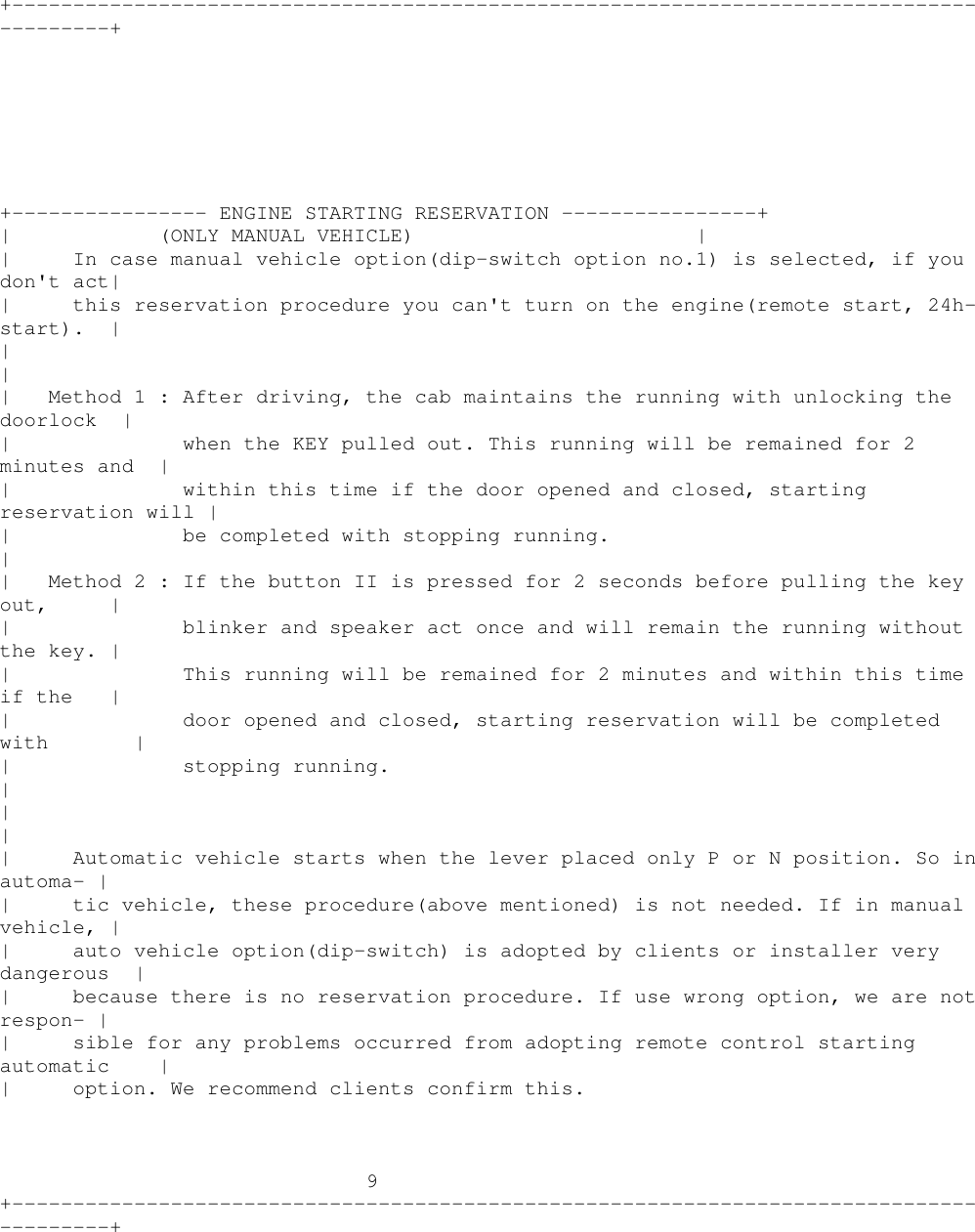

+----------------------------------------------------------------------------------------++---------------- ENGINE STARTING RESERVATION ----------------+| (ONLY MANUAL VEHICLE) || In case manual vehicle option(dip-switch option no.1) is selected, if youdon't act|| this reservation procedure you can't turn on the engine(remote start, 24h-start). |||| Method 1 : After driving, the cab maintains the running with unlocking thedoorlock || when the KEY pulled out. This running will be remained for 2minutes and || within this time if the door opened and closed, startingreservation will || be completed with stopping running.|| Method2:Ifthebutton II is pressed for 2 seconds before pulling the keyout, || blinker and speaker act once and will remain the running withoutthe key. || This running will be remained for 2 minutes and within this timeif the || door opened and closed, starting reservation will be completedwith || stopping running.|||| Automatic vehicle starts when the lever placed only P or N position. So inautoma- || tic vehicle, these procedure(above mentioned) is not needed. If in manualvehicle, || auto vehicle option(dip-switch) is adopted by clients or installer verydangerous || because there is no reservation procedure. If use wrong option, we are notrespon- || sible for any problems occurred from adopting remote control startingautomatic || option. We recommend clients confirm this.9+----------------------------------------------------------------------------------------+
+----------- CANCEL ENGINE START RESERVATION -------------+| (ONLY MANUAL VEHICLE) |||| After parking, when the key is pulled out, there is an engine startreservation || proceding. At this point, press the button II for 2 seconds then enginestops and || the reservation will be canceled. When parking the vehicle at thedeclining || area, be sure to apply this way.|||||||||||||| After completing the engine start reservation, if the door opened duringturning || off state, reservation will be canceled. That means the door should beopened or || closed in the state of disablement to apply gear. As long as the door isnot || opened with the engine stop state, the reservation will not be canceled.|10+----------------------------------------------------------------------------------------++------------------- REMOTE ENGINE STARTING -----------------------+| (BEING SET RESERVATION FOR MANUAL VEHICLE) |||| When press the button II for 2 seconds, the engine will start through pre-heat for || the vehicle in question.(gasoline:3seconds / diesel:10seconds)|||

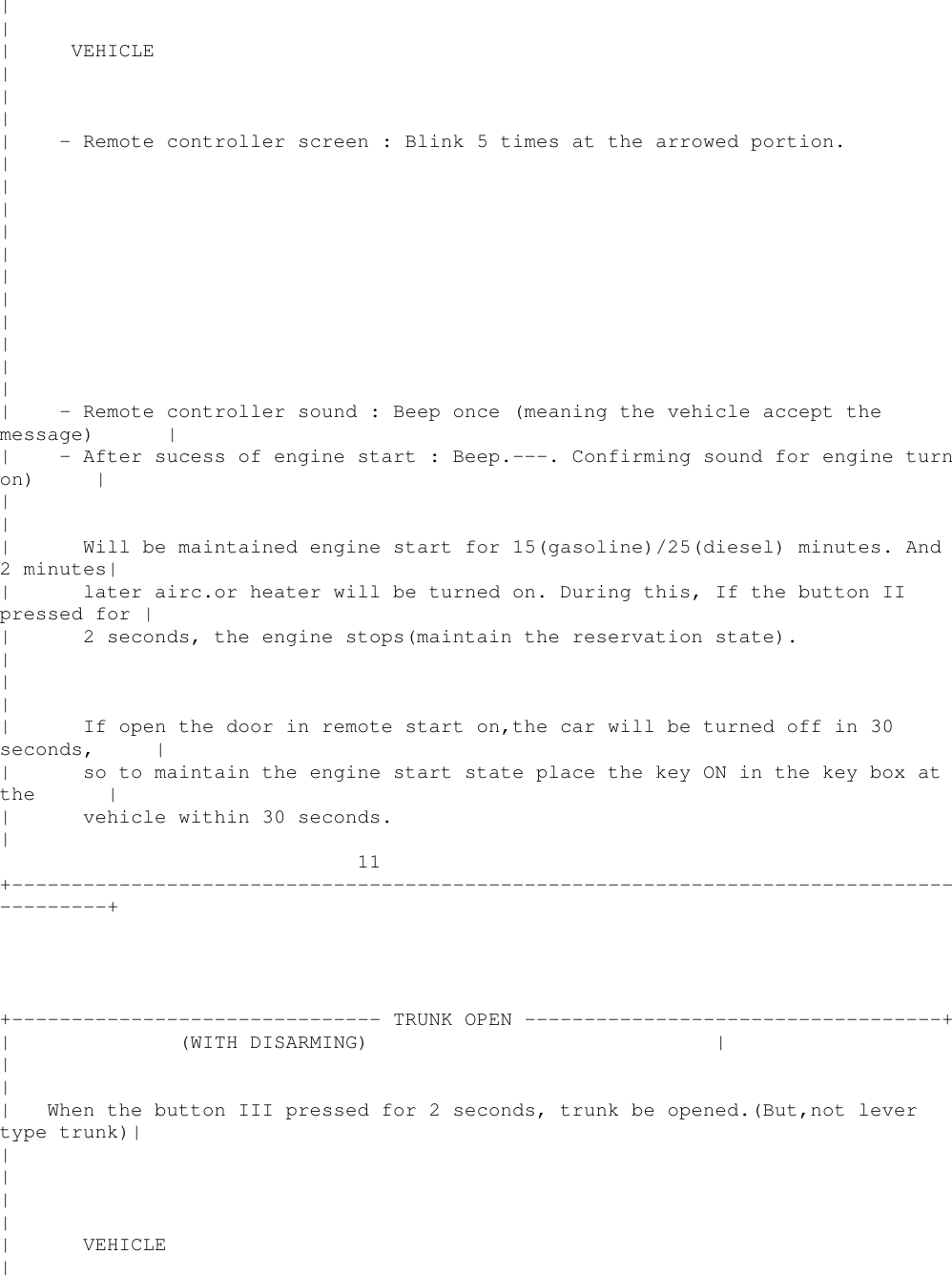

||| VEHICLE|||| - Remote controller screen : Blink 5 times at the arrowed portion.|||||||||||| - Remote controller sound : Beep once (meaning the vehicle accept themessage) || - After sucess of engine start : Beep.---. Confirming sound for engine turnon) |||| Will be maintained engine start for 15(gasoline)/25(diesel) minutes. And2 minutes|| later airc.or heater will be turned on. During this, If the button IIpressed for || 2 seconds, the engine stops(maintain the reservation state).|||| If open the door in remote start on,the car will be turned off in 30seconds, || so to maintain the engine start state place the key ON in the key box atthe || vehicle within 30 seconds.|11+----------------------------------------------------------------------------------------++------------------------------- TRUNK OPEN -----------------------------------+| (WITH DISARMING) |||| When the button III pressed for 2 seconds, trunk be opened.(But,not levertype trunk)|||||| VEHICLE|
||| - Remote controller screen : Blink 5 times at the arrowed portion.|||||||||||| - Remote controller sound : Beep twice.|||||| The trunk opened.( and if armed, unlocked the doorlock and disarmed )|| But, in case of choosing automatic or manual arming option, the armingwith || locking the doorlock will be approached in 30 seconds.|| If the work will be done for a long time at the trunk(in automatic ormanual || arming option-ed vehicle), it is better to use VALLET by remotecontroller. |12+----------------------------------------------------------------------------------------++-------------- QUERY THE STATE OF VEHICLE ------------------+||| If the button IV touched, the state of vehicle will be reported to remotecontroller || through screen(ex. arming/disarming, door open/close, engine on/off) andbeeps. |||| - Vehicle : Blink 5 times|| - Remote controller screen : Blink 5 times at the arrowed portion.|||
||||||||| - Remote controller sound : Beepbeep-beepbeep-beepbeep ( In arming , engineon ) || Beep- beep- beep ( In arming , engineoff) || Beepbeep-beepbeep ( In disarming ,engine on ) || Beep- beep ( In disarming ,engine off) |||| Check occasionally or when it is nessary.|| Can be reported about impact, stolen and CAR-CALL within thecommunicating || available distance.|13+----------------------------------------------------------------------------------------++--------------------------------- MUTE MODE -----------------------------------+||| In any state, if the button I and II touched at the same time, car-speakerwill not || make sound at all after this.|||||| VEHICLE|||| - Remote controller screen : Blinkingonce(approached)/twice(reinstatement) || at the arrowed portion.|
||||||||||| - Remote controller sound : Beep once(approached)/twice(reinstatement)|||| The vehicle does not make any sound at all but light.|| And the state of vehicle is also reported to the remote controller.|| If the button I and II touched at the same time again, speaker andblinker || will be operated twice and return the original sound mode(for vehicle).|| SPK : Meaning the vehicle's speaker makes sound.|14+----------------------------------------------------------------------------------------++----------------------- VALLET FUNCTION (1) -------------------------+| (BY REMOTE CONTROLLER) |||| In any state, if the button I and III touched at the same time, all function|| of the warning of system will be stopped(VALLET mode). The vehicle only acts|| lock/unlock by remote controller's button I.|||||| VEHICLE|||| - Remote controller screen : Appear arrowed portion|||
||||||||| - Remote controller sound : Beep once(approached)/twice(reinstatement)|||| In case of entrusting the vehicle to car washing place,servicecenter,parking lot || or other person, apply this function to get rid of any trouble.|| If the button I and III touched at the same time again, full functionwill be || returned to original state.|15+----------------------------------------------------------------------------------------++----------------------- VALLET FUNCTION (2) -------------------------+| (BY VEHICLE KEY) |||| Even if there is no remote controller but vehicle key, you can use VALLETfuntion. |||||||||||||||| ( 1 ) Put the key in the key hole and place to 1st step(ACC) in thekey box. || ( 2 ) Once place the 2nd step(ON) and return to 1st step(ACC).|| (Apply this more then 3 times within 3 seconds)|

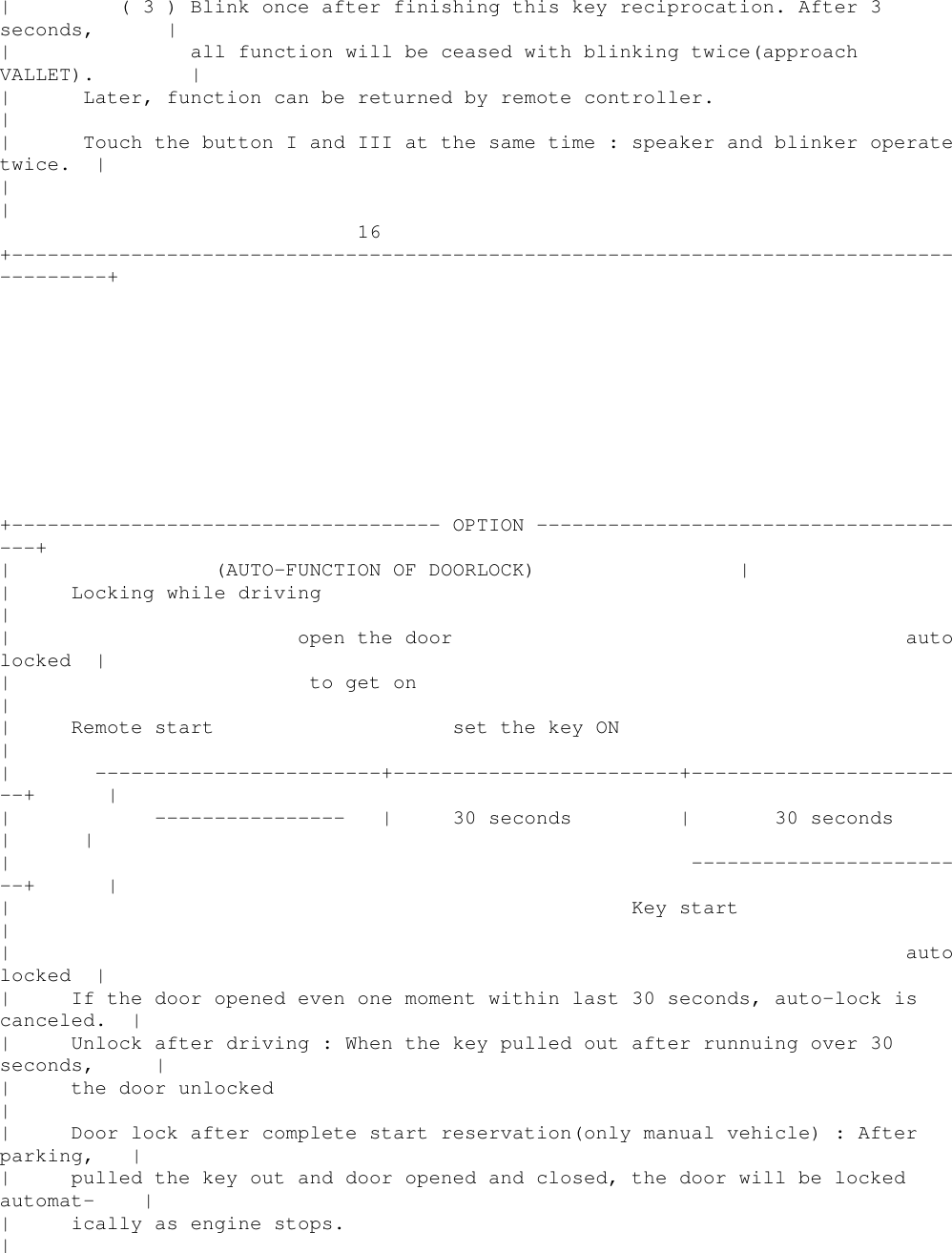

| ( 3 ) Blink once after finishing this key reciprocation. After 3seconds, || all function will be ceased with blinking twice(approachVALLET). || Later, function can be returned by remote controller.|| Touch the button I and III at the same time : speaker and blinker operatetwice. |||16+----------------------------------------------------------------------------------------++------------------------------------ OPTION --------------------------------------+| (AUTO-FUNCTION OF DOORLOCK) || Locking while driving|| open the door autolocked || to get on|| Remote start set the key ON|| ------------------------+------------------------+------------------------+ || ---------------- | 30 seconds | 30 seconds|||------------------------+ || Key start||autolocked || If the door opened even one moment within last 30 seconds, auto-lock iscanceled. || Unlock after driving : When the key pulled out after runnuing over 30seconds, || the door unlocked|| Door lock after complete start reservation(only manual vehicle) : Afterparking, || pulled the key out and door opened and closed, the door will be lockedautomat- || ically as engine stops.|
| 30 seconds pre-arming : When the door locked (approached arming), actualacting || of watching is 30 seconds(3 seconds for watching door open) later afterthis. || Of course, the same at CAR-CALL.|| Automatic arming : When unlocked by remote controller or the door openedand closed,|| speaker makes chirp sound every 10 seconds, and after 3 decades it will belocked || automatically to go arming state.|| Manual arming : When unlocked by remote controller speaker makes chirpsound every || 10 seconds, and after 3 decades it will be locked automatically to goarming state. || but,if the door is opened and closed, the arming state is approached byonly remote || controller.|| Simple arming : Be sure to lock with remote controller. There is not anyway to || approach the arming automatically.|+--------------------------------------- 17 ---------------------------------------++--------------------------- PAGING FUNCTION -----------------------------+| If the button II and III is touched at the same time, the paging mode isapproached. || If this function approached, remote controller will be stood by at any time.|| Can get the message due to occuring the body impact, stolen or CAR-CALLunexpectedly.|||||| VEHICLE|||| - Remote controller screen : 6 times(impact) /27 times(stolen) blinkingat the || arrowed portion.|||||||||

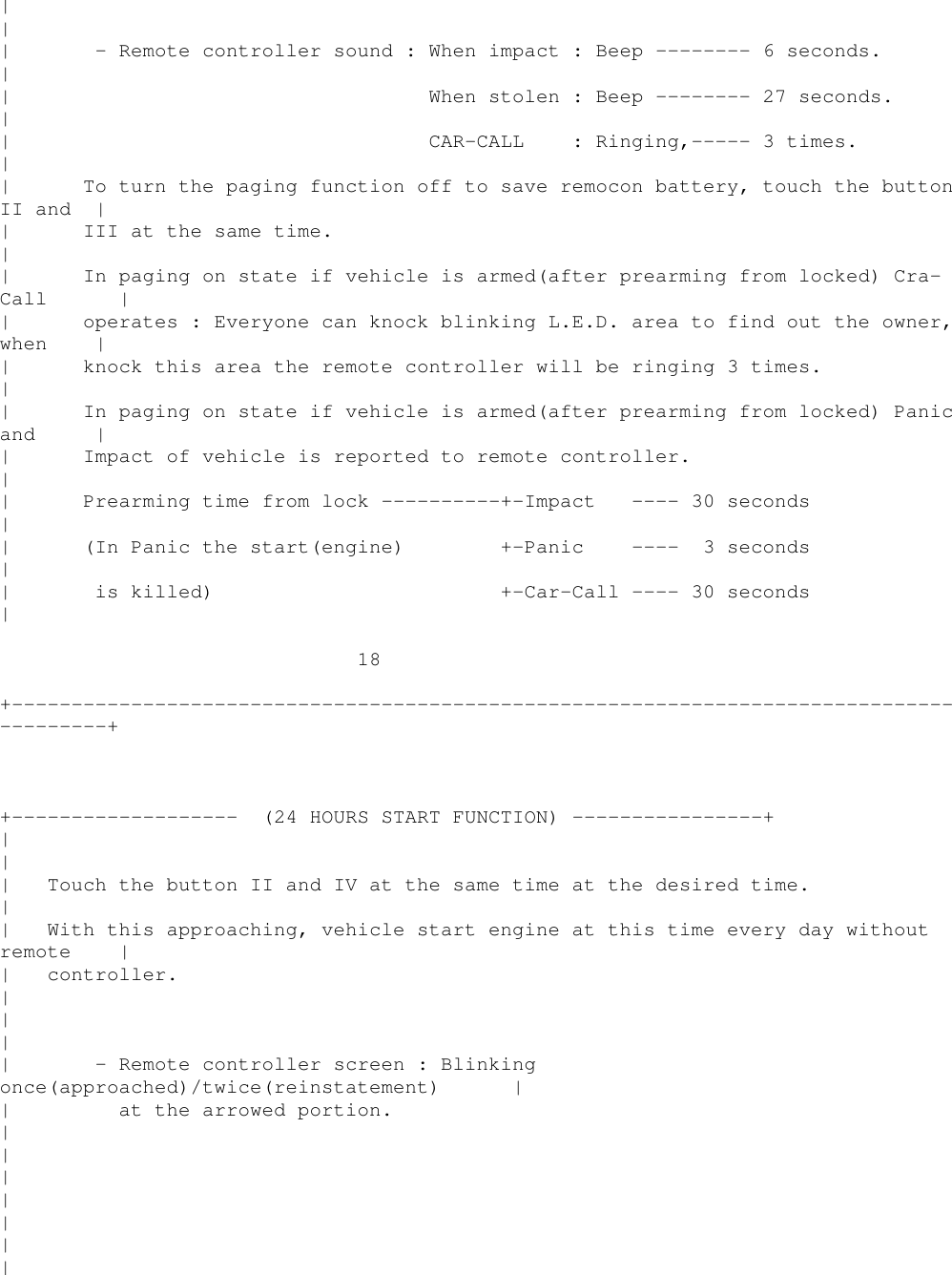

||| - Remote controller sound : When impact : Beep -------- 6 seconds.|| When stolen : Beep -------- 27 seconds.|| CAR-CALL : Ringing,----- 3 times.|| To turn the paging function off to save remocon battery, touch the buttonII and || III at the same time.|| In paging on state if vehicle is armed(after prearming from locked) Cra-Call || operates : Everyone can knock blinking L.E.D. area to find out the owner,when || knock this area the remote controller will be ringing 3 times.|| In paging on state if vehicle is armed(after prearming from locked) Panicand || Impact of vehicle is reported to remote controller.|| Prearming time from lock ----------+-Impact ---- 30 seconds|| (In Panic the start(engine) +-Panic ---- 3 seconds|| is killed) +-Car-Call ---- 30 seconds|18+----------------------------------------------------------------------------------------++------------------- (24 HOURS START FUNCTION) ----------------+||| Touch the button II and IV at the same time at the desired time.|| With this approaching, vehicle start engine at this time every day withoutremote || controller.|||| - Remote controller screen : Blinkingonce(approached)/twice(reinstatement) || at the arrowed portion.|||||||
||||| - Remote controller sound : Beep once(approached)/twice(reinstatement)|||| It is very convenient, when the owner wants to start engine at that timeevery || day.|| In case of manual vehicle, start reservation is should applied with this24h || reservation.|| If the vehicle is in the unconditional state to engine start as it isdoor opened || or in VALLET, the engine start will be retried again after 24 hours.|19+----------------------------------------------------------------------------------------++--------------------------- TURBO FUNCTION -------------------------------+||| After parking with this function, the engine will be running for 2 minutesfrom the || moment of pulling the key out. This can be approached when the button IIIand IV || touched at the same time.|||| - Remote controller screen : Blinkingonce(approached)/twice(reinstatement) || at the arrowed portion.|||||||||||
| - Remote controller sound : Beep once(approached)/twice(reinstatement)|||| Even if the vehicle is not turbo vehicle, this function will be made upthe || excessiveness of very hot engine after long driving.|| At this point, after parking, pull the key out and out of the cab withclosing || the door, the engine will still be running for 2 minutes. But the vehicle|| adopted locking after reservation function will be locked the doorimmediately. || If want to stop the engine in the middle of running, press the button IIfor 2 || seconds.|| If the turbo function is not necessary any more,touch the button III andIV at || the same time like the same procedure of approaching.|20+----------------------------------------------------------------------------------------++------------------------------ CLIENT CONTROL ----------------------------+||| CONTROL IMPACT SHARPNESS || It is necessary for clients to know where the impact sensor attached.|| It is possible for clients to cope with the environment with controlling thesharp- || ness of the impact sensor.|||||||||||| clockwise : sharpness|| count clockwise : dullness|||
| SPEAKER VOLUME CONTROL || When delivered, the volume of the speaker is set tomaximum. || In order to turn the volume down, cut the jump wireof the || speaker installed in the bonnet(engine room).|||||||||| CAR-CALL FUNCTION || When the remote controller rang for calling owner, touch the button IV. Ifthe || blinker in the cab blink 5 times, the person who knocked will know that theowner || maybe get the message from him.|21+----------------------------------------------------------------------------------------++------------------------ HOW TO CHANGE OPTION ----------------------+| AUTO-FUNCTION OF DOOR LOCK|| (FOLLOW THE ORDER)|| ButtonI,IV:Should be Touched II , III : Should be pressed for 2seconds || (1) First of all,place the car key to ON (Not turnover || the engine.) in the key box.|||||||| (2) Touch the button I and IV at the same time.|| (one chirp sound)|||||||

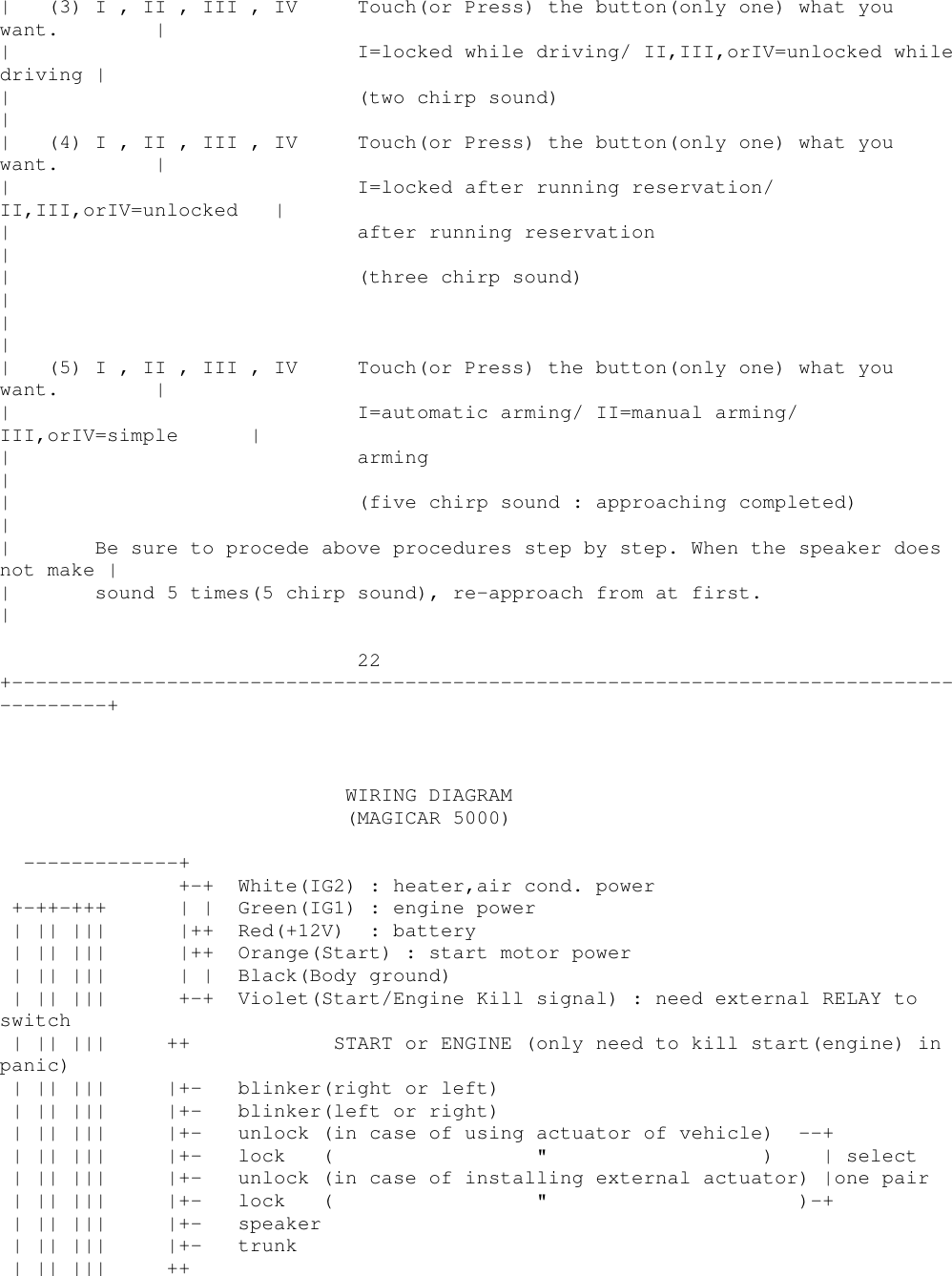

| (3)I,II,III,IV Touch(or Press) the button(only one) what youwant. || I=locked while driving/ II,III,orIV=unlocked whiledriving || (two chirp sound)|| (4)I,II,III,IV Touch(or Press) the button(only one) what youwant. || I=locked after running reservation/II,III,orIV=unlocked || after running reservation|| (three chirp sound)|||| (5)I,II,III,IV Touch(or Press) the button(only one) what youwant. || I=automatic arming/ II=manual arming/III,orIV=simple || arming|| (five chirp sound : approaching completed)|| Be sure to procede above procedures step by step. When the speaker doesnot make || sound 5 times(5 chirp sound), re-approach from at first.|22+----------------------------------------------------------------------------------------+WIRING DIAGRAM(MAGICAR 5000)-------------++-+ White(IG2) : heater,air cond. power+-++-+++ | | Green(IG1) : engine power| || ||| |++ Red(+12V) : battery| || ||| |++ Orange(Start) : start motor power| || ||| | | Black(Body ground)| || ||| +-+ Violet(Start/Engine Kill signal) : need external RELAY toswitch| || ||| ++ START or ENGINE (only need to kill start(engine) inpanic)| || ||| |+- blinker(right or left)| || ||| |+- blinker(left or right)| || ||| |+- unlock (in case of using actuator of vehicle) --+| || ||| |+- lock ( " ) | select| || ||| |+- unlock (in case of installing external actuator) |one pair| || ||| |+- lock ( " )-+| || ||| |+- speaker| || ||| |+- trunk| || ||| ++
| || ||| ++| || ||| |+- engine on sense(positive trigger)| || ||| |+- door open sense(negative trigger) -+ select one| || ||| |+- door open sense(positive trigger) -+| || ||| ++| || ||| ++| || ||| |+-| || ||| |+- impact sensor DIP SWITCH option| || ||| |+- +-------+--------+-------+------+|||||| ++ |1|2 |3|4|| || ||| ++ +-------+--------+-------+------+| || ||| |+- OFF| manual|gasoline|cab's-actuator| OFF| || ||| |+- car-call sensor/L.E.D +-------+--------+--------------+| || ||| |+- ON | auto |diesel |ext.-actuator|ON| || ||| |+- +-------+--------+--------------+| || ||| ++| || ||| ++| || ||| |++ antenna| || ||| |+++-++-+++ ++-------------+external RELAYStart/Engine kill signal +----------------+ +12 V(from M5000 system) | +------------+-+----------------><-----------------+-+------------+ | REDVIOLET | |+---+- |GREEN| | -+--+ GREEN+----------------+START wire (from engine) START wire (to key box)------------- --------- X ---------- -------------CUT If you want to kill engineinstead of killing start,you can use IG1 wire insteadof START23+---------------------- CODE INJECTION METHOD ----------------------+||| Our company's goods("MagiCar") don't have any fixed remote controllr. Theircode || should be injected(registerd) to use. They can have three different|
| coded remote controllers by code injection method. And by this method, incase of || loosing remote controller the user can let system go into "valet".|||| The injection method is as follows|| ButtonI,IV:Should be Touched II , III : Should be pressed for 2seconds |||| (1) Complish installing system in the car|| (2) Prepare remote controllers(up to three ones) to be used|| (3) Put the key in the key hole and place to 1st step(ACC)|| in the key box.|| (4) Once place the 2nd step(ON) and return to 1st step(ACC).|| (Apply this more then 3 times within 3 seconds)|| ----> just after this the light(dirrection-light)will blink once.|| (5) Touch(or Press) the prepared remote controller button I,II,III,orIV|| ----> just after this the light(dirrection-light)will blink once.|| At this time the button number is related with system option|| The option is classified as follows by button number|| Button I,II ; General vehicles|| Button III ; Vehicles that automatically unlock doorlock just after"engine off"|| Button IV ; Vehicles that use air lock/unlock system(The system'slock/unlock || time is 4 second|| (6) Touch(or Press) another remote controller button. Don't care buttonnumber. || ----> just after this the light(dirrection-light)will blink once.|| (7) Touch(or Press) the other remote controller button. Don't care buttonnumber. || ----> just after this the light(dirrection-light)will blink twice.|| : Injection end 24|| During these steps, after step(4) the key should be located at "ACC"|| and after injection you can use remote controllers (used in injection)|
| The number of remote controllers used in "Step(5)(6)(7)" are registeredin the || system and so you can use these remote controllers. Even if you wouldlike to use || only one or two remote controllers, you should act "Step(6)(7)" by one ortwo || remote controllers because of erasing other code.|| If you don't press any button of the remote controller at Step(5) in 3seconds the|| system will go into "VALLET". So you can approuch this VALLET func.without remote|| controllers.|| Whenever you would like to want exchange or get more your remotecontroller, you || can do these procedure.|24+----------------------------------------------------------------------------------------+
