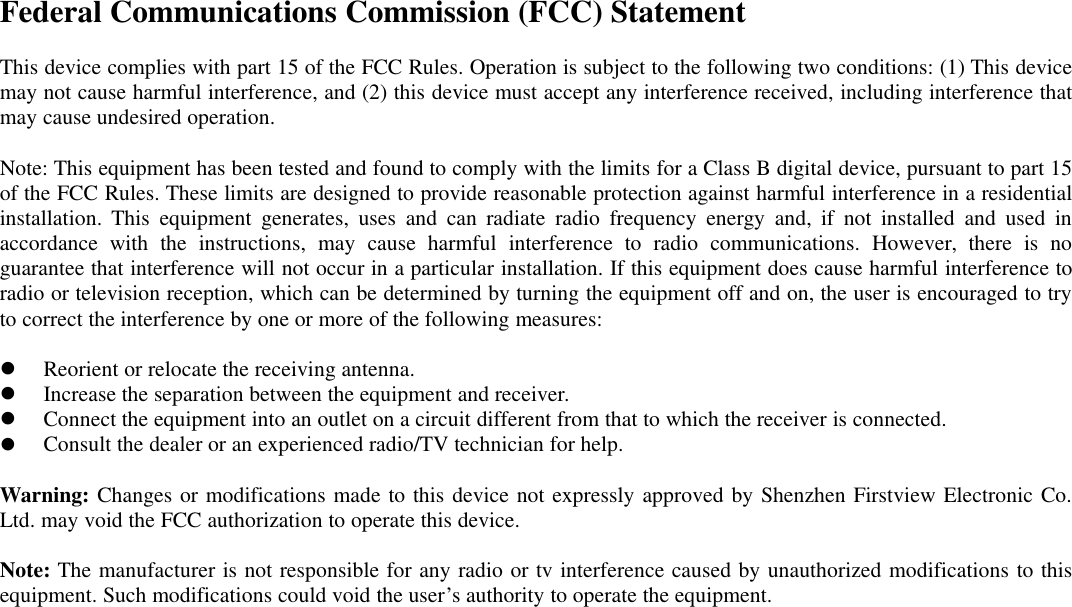

Federal Communications Commission (FCC) StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This devicemay not cause harmful interference, and (2) this device must accept any interference received, including interference thatmay cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference toradio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to tryto correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.Warning: Changes or modifications made to this device not expressly approved by Shenzhen Firstview Electronic Co.Ltd. may void the FCC authorization to operate this device.Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to thisequipment. Such modifications could void the user’s authority to operate the equipment.

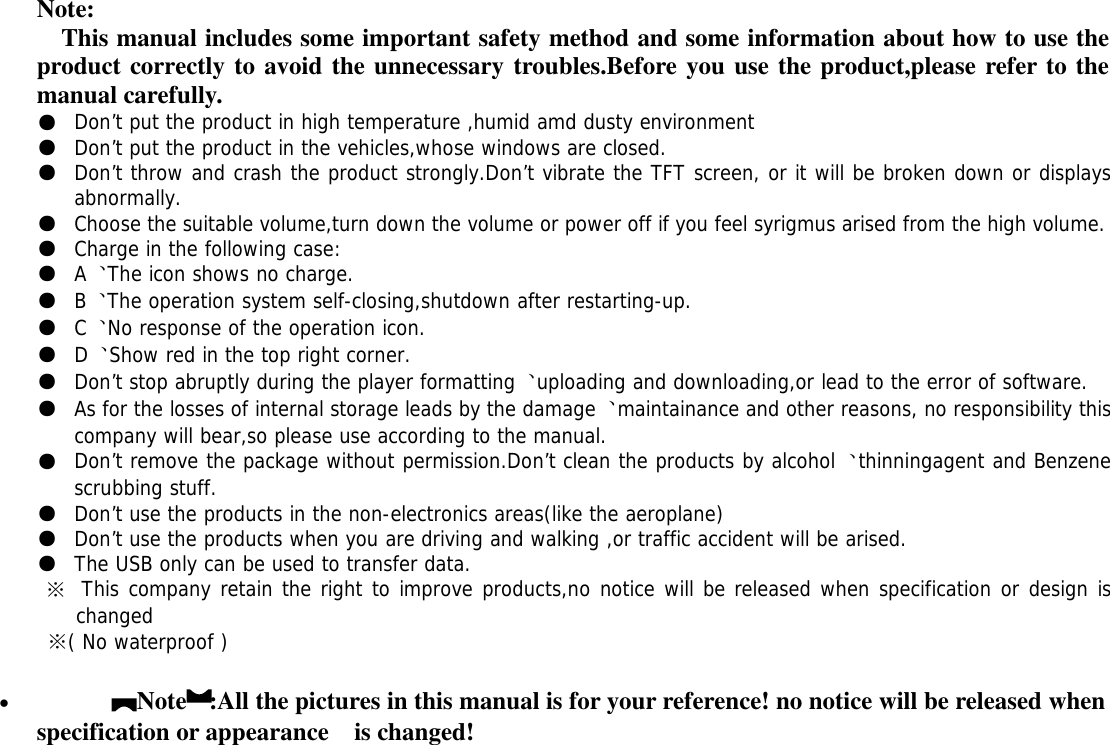

Note:This manual includes some important safety method and some information about how to use theproduct correctly to avoid the unnecessary troubles.Before you use the product,please refer to themanual carefully.●Don’t put the product in high temperature ,humid amd dusty environment●Don’t put the product in the vehicles,whose windows are closed.●Don’t throw and crash the product strongly.Don’t vibrate the TFT screen, or it will be broken down or displaysabnormally.●Choose the suitable volume,turn down the volume or power off if you feel syrigmus arised from the high volume.●Charge in the following case:●A、The icon shows no charge.●B、The operation system self-closing,shutdown after restarting-up.●C、No response of the operation icon.●D、Show red in the top right corner.●Don’t stop abruptly during the player formatting、uploading and downloading,or lead to the error of software.●As for the losses of internal storage leads by the damage、maintainance and other reasons, no responsibility thiscompany will bear,so please use according to the manual.●Don’t remove the package without permission.Don’t clean the products by alcohol、thinningagent and Benzenescrubbing stuff.●Don’t use the products in the non-electronics areas(like the aeroplane)●Don’t use the products when you are driving and walking ,or traffic accident will be arised.●The USB only can be used to transfer data.※This company retain the right to improve products,no notice will be released when specification or design ischanged※( No waterproof )【Note】:All the pictures in this manual is for your reference! no notice will be released whenspecification or appearance is changed!

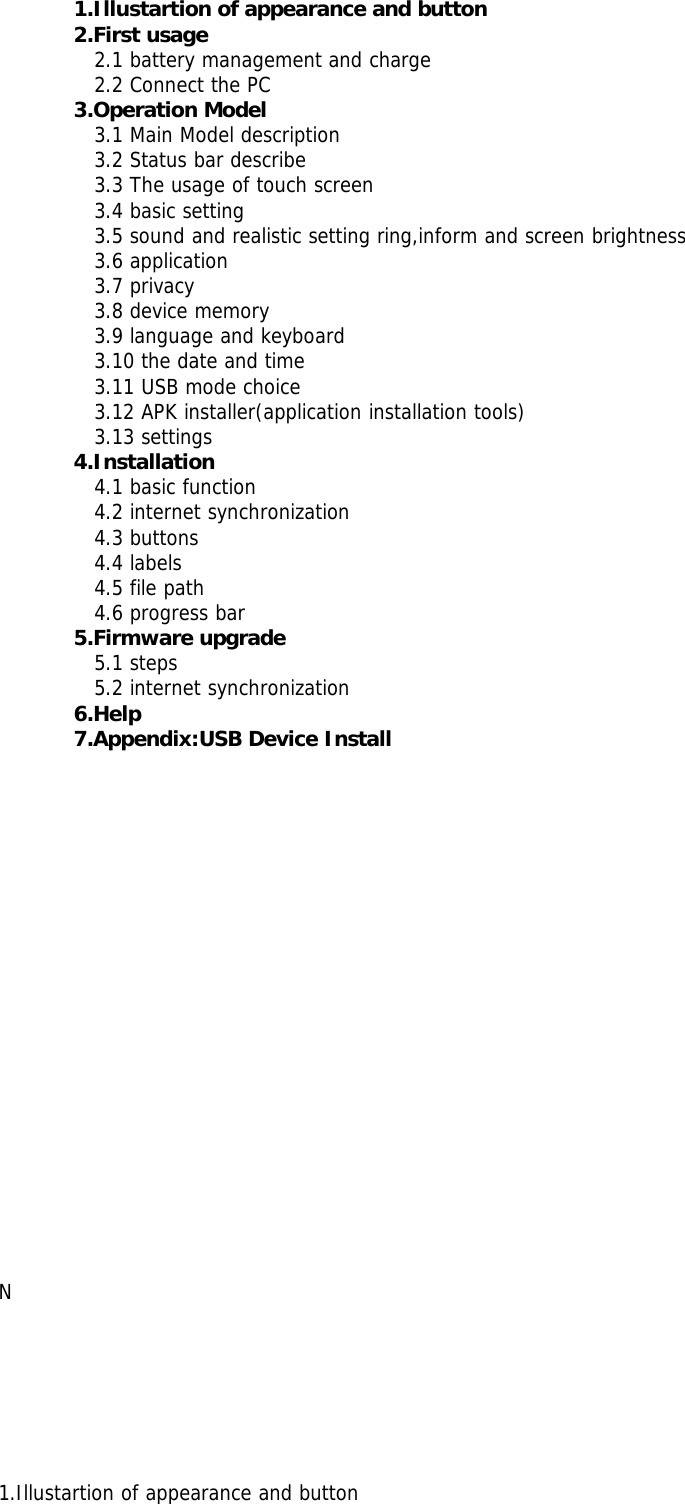

1.Illustartion of appearance and button2.First usage2.1 battery management and charge2.2 Connect the PC3.Operation Model3.1 Main Model description3.2 Status bar describe3.3 The usage of touch screen3.4 basic setting3.5 sound and realistic setting ring,inform and screen brightness3.6 application3.7 privacy3.8 device memory3.9 language and keyboard3.10 the date and time3.11 USB mode choice3.12 APK installer(application installation tools)3.13 settings4.Installation4.1 basic function4.2 internet synchronization4.3 buttons4.4 labels4.5 file path4.6 progress bar5.Firmware upgrade5.1 steps5.2 internet synchronization6.Help7.Appendix:USB Device InstallN1.Illustartion of appearance and button
1.1 Touch screen7Inch touch screen：to click、drag and other operation within the touch area1.2 POWERPower on ：Press the button and the player show the start-uping picture then the machine show the menu:Power off：Press the button MENU for 5 seconds,the system shows “Power off”,click the “Power Off”to endsystem operation.Screen lock ：Press the button to lock or unlock the screen【Note】: 1.In the case of low battery,the system will end automatically2: After improperly shutdown,if you want to restart-up,the machine will scan and repair disk ,in the case of thisthe screen will show the progress strip.1.3 Return buttonPress ESC to return the former operation for short time ,the menu to for a long time1.4 MenuPress the button”M”to popup the relevant “Menu”.1.5 VolumePress “+、-”to adjust the volume.1.6 Headphone interfaceStandard 3.5mm Headphone interface1.7 Videos output interfaceHDMI output interface；1.8 TF-CARDTF-CARD SLOT：CONNECT T-FLASHT STORAGE CARD；1.9 MiniUSBMiniUSB Interface：to connect computer to transfer the data,charge or connect U disk1.10 Reset KeyIn the case of software crash,by thin article to press RESET key,the machine will shutdown【Note】:It isn’t recommended that use the RESET key often,or the machine system will bedamaged.

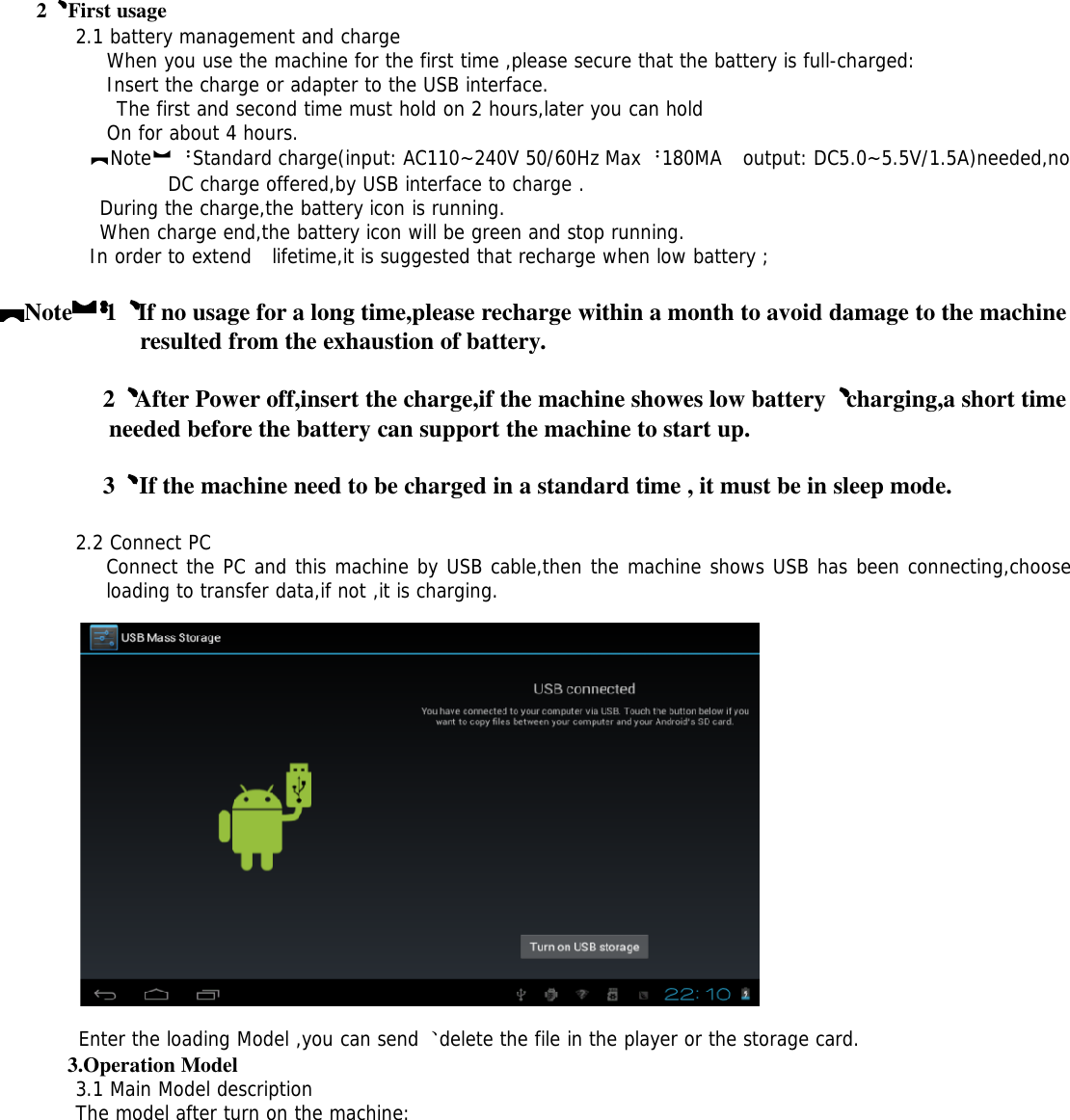

2、First usage2.1 battery management and chargeWhen you use the machine for the first time ,please secure that the battery is full-charged:Insert the charge or adapter to the USB interface.The first and second time must hold on 2 hours,later you can holdOn for about 4 hours.【Note】：Standard charge(input: AC110~240V 50/60Hz Max：180MA output: DC5.0~5.5V/1.5A)needed,noDC charge offered,by USB interface to charge .During the charge,the battery icon is running.When charge end,the battery icon will be green and stop running.In order to extend lifetime,it is suggested that recharge when low battery ;【Note】：1、If no usage for a long time,please recharge within a month to avoid damage to the machineresulted from the exhaustion of battery.2、After Power off,insert the charge,if the machine showes low battery、charging,a short timeneeded before the battery can support the machine to start up.3、If the machine need to be charged in a standard time , it must be in sleep mode.2.2 Connect PCConnect the PC and this machine by USB cable,then the machine shows USB has been connecting,chooseloading to transfer data,if not ,it is charging.Enter the loading Model ,you can send、delete the file in the player or the storage card.3.Operation Model3.1 Main Model descriptionThe model after turn on the machine:

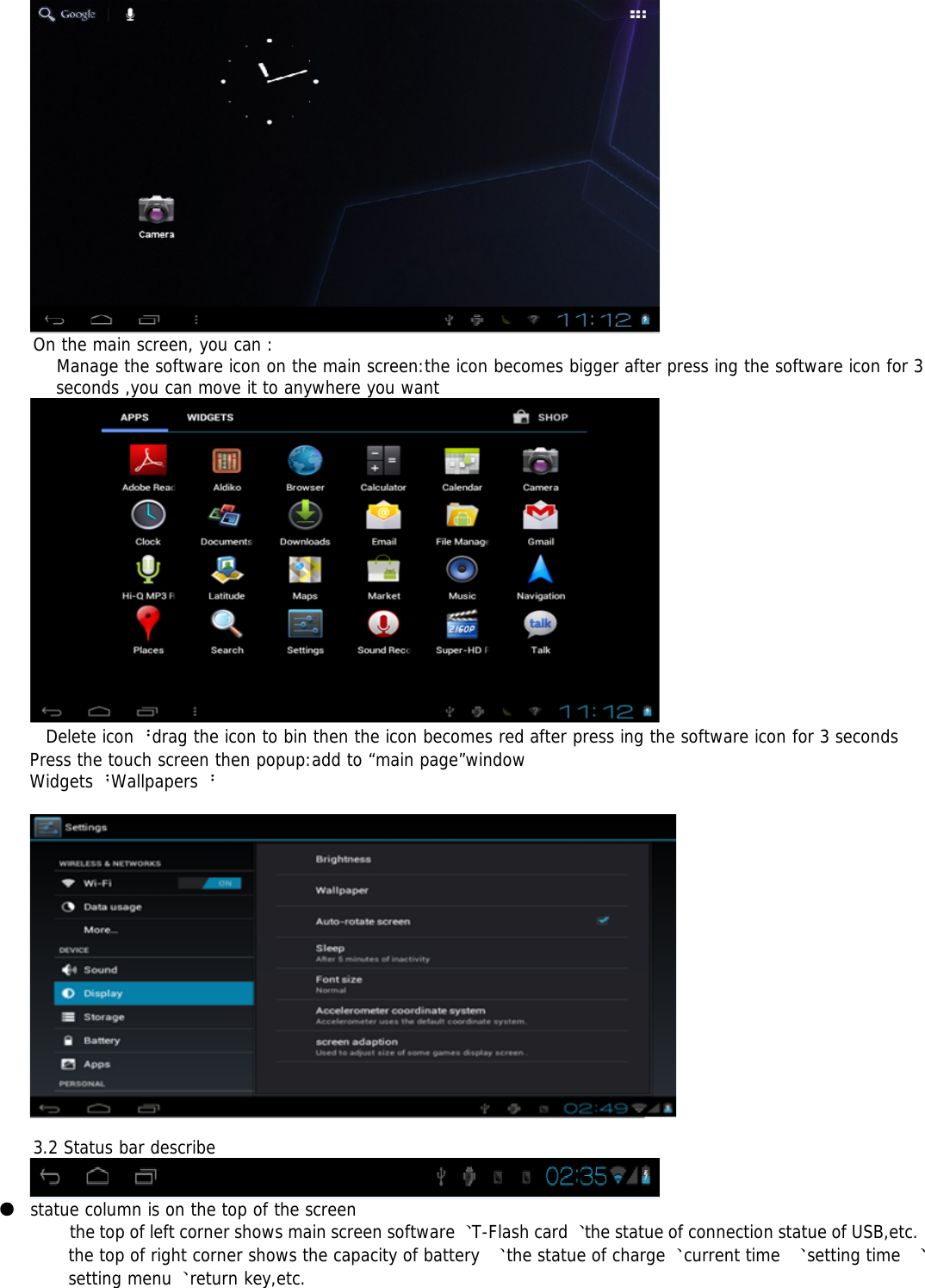

On the main screen, you can :Manage the software icon on the main screen:the icon becomes bigger after press ing the software icon for 3seconds ,you can move it to anywhere you wantDelete icon：drag the icon to bin then the icon becomes red after press ing the software icon for 3 secondsPress the touch screen then popup:add to “main page”windowWidgets；Wallpapers：3.2 Status bar describe●statue column is on the top of the screenthe top of left corner shows main screen software、T-Flash card、the statue of connection statue of USB,etc.the top of right corner shows the capacity of battery 、the statue of charge、current time 、setting time 、setting menu、return key,etc.

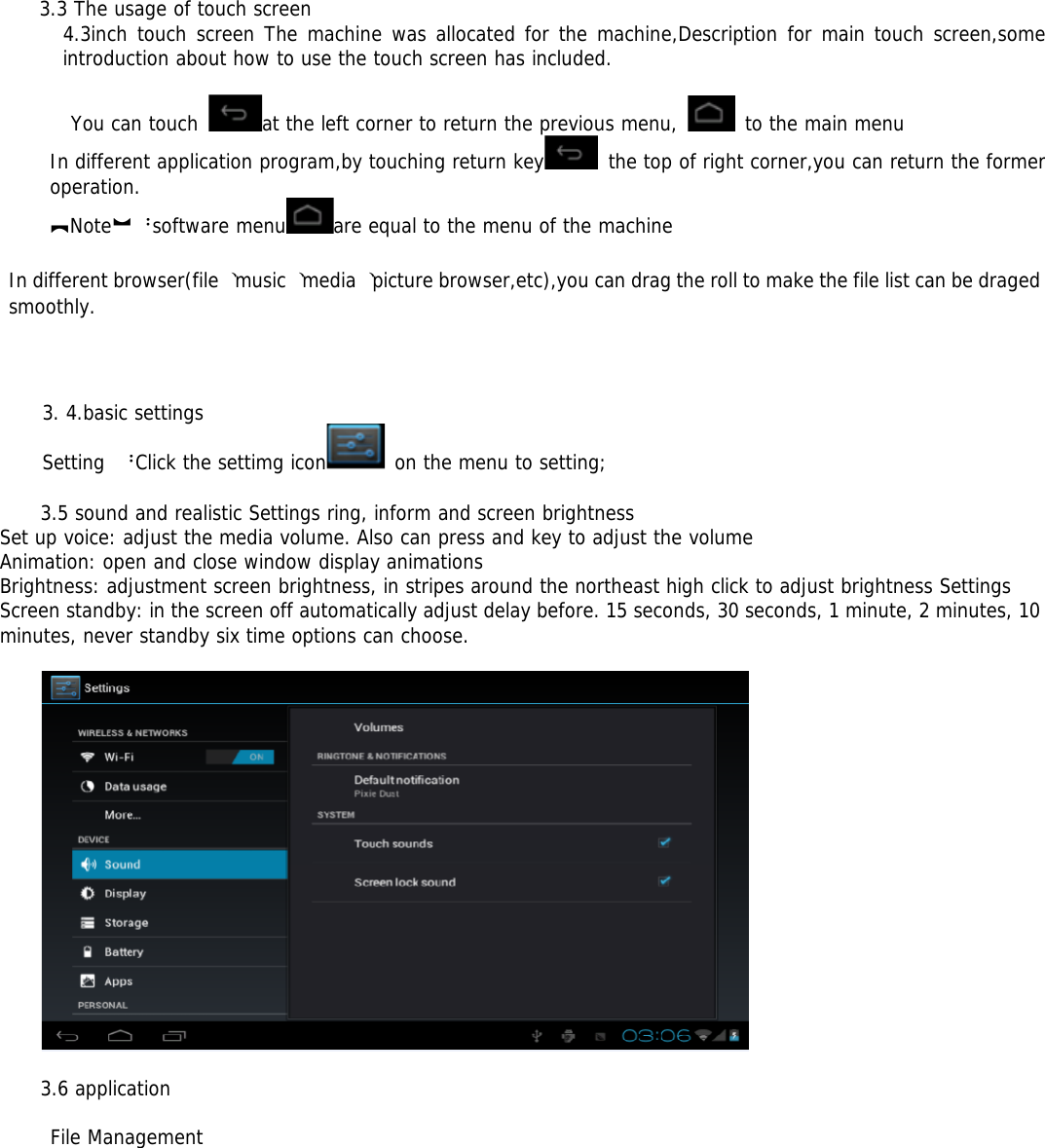

3.3 The usage of touch screen4.3inch touch screen The machine was allocated for the machine,Description for main touch screen,someintroduction about how to use the touch screen has included.You can touch at the left corner to return the previous menu, to the main menuIn different application program,by touching return key the top of right corner,you can return the formeroperation.【Note】：software menu are equal to the menu of the machineIn different browser(file、music、media、picture browser,etc),you can drag the roll to make the file list can be dragedsmoothly.3. 4.basic settingsSetting ：Click the settimg icon on the menu to setting;3.5 sound and realistic Settings ring, inform and screen brightnessSet up voice: adjust the media volume. Also can press and key to adjust the volumeAnimation: open and close window display animationsBrightness: adjustment screen brightness, in stripes around the northeast high click to adjust brightness SettingsScreen standby: in the screen off automatically adjust delay before. 15 seconds, 30 seconds, 1 minute, 2 minutes, 10minutes, never standby six time options can choose.3.6 applicationFile Management

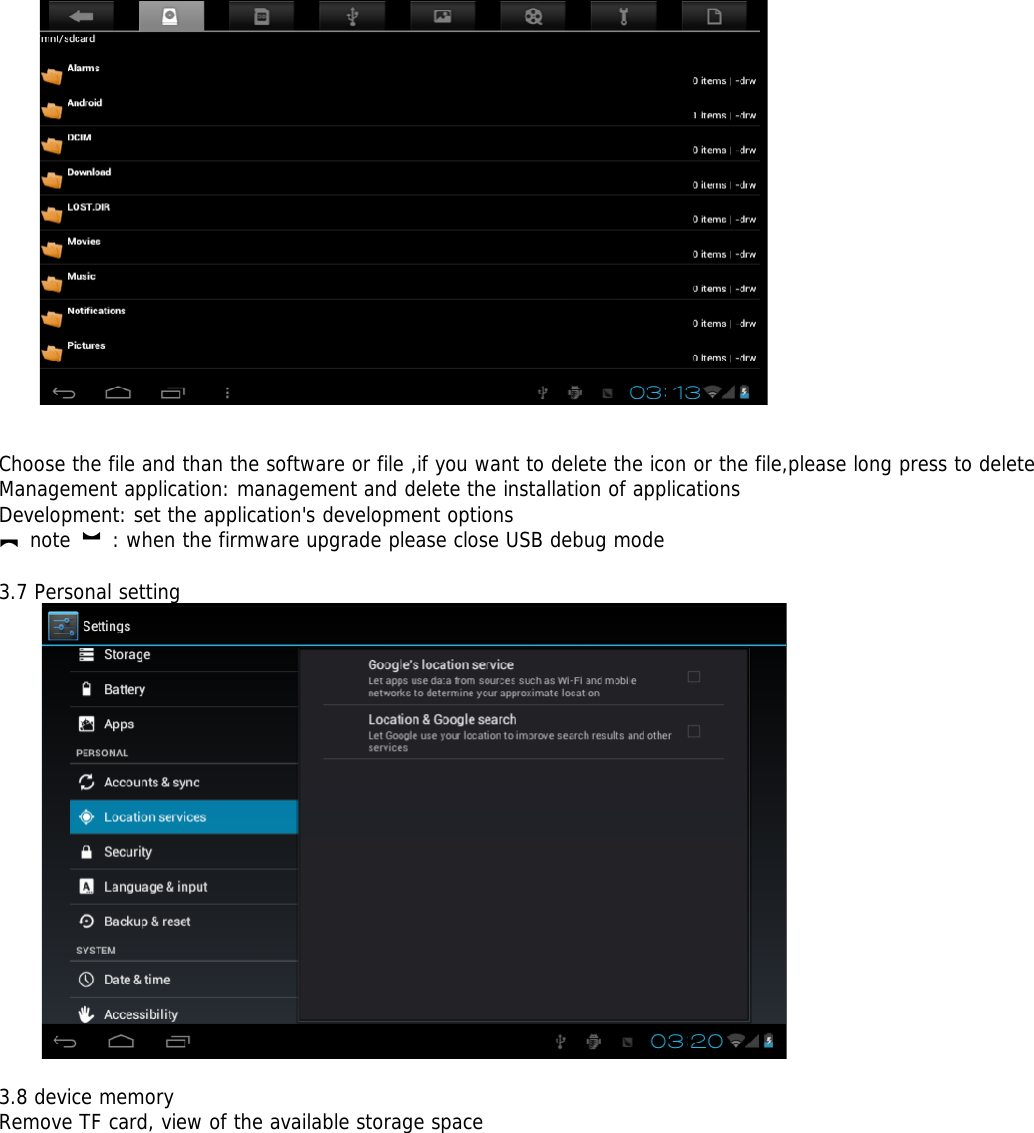

Choose the file and than the software or file ,if you want to delete the icon or the file,please long press to deleteManagement application: management and delete the installation of applicationsDevelopment: set the application's development options【note 】: when the firmware upgrade please close USB debug mode3.7 Personal setting3.8 device memoryRemove TF card, view of the available storage space

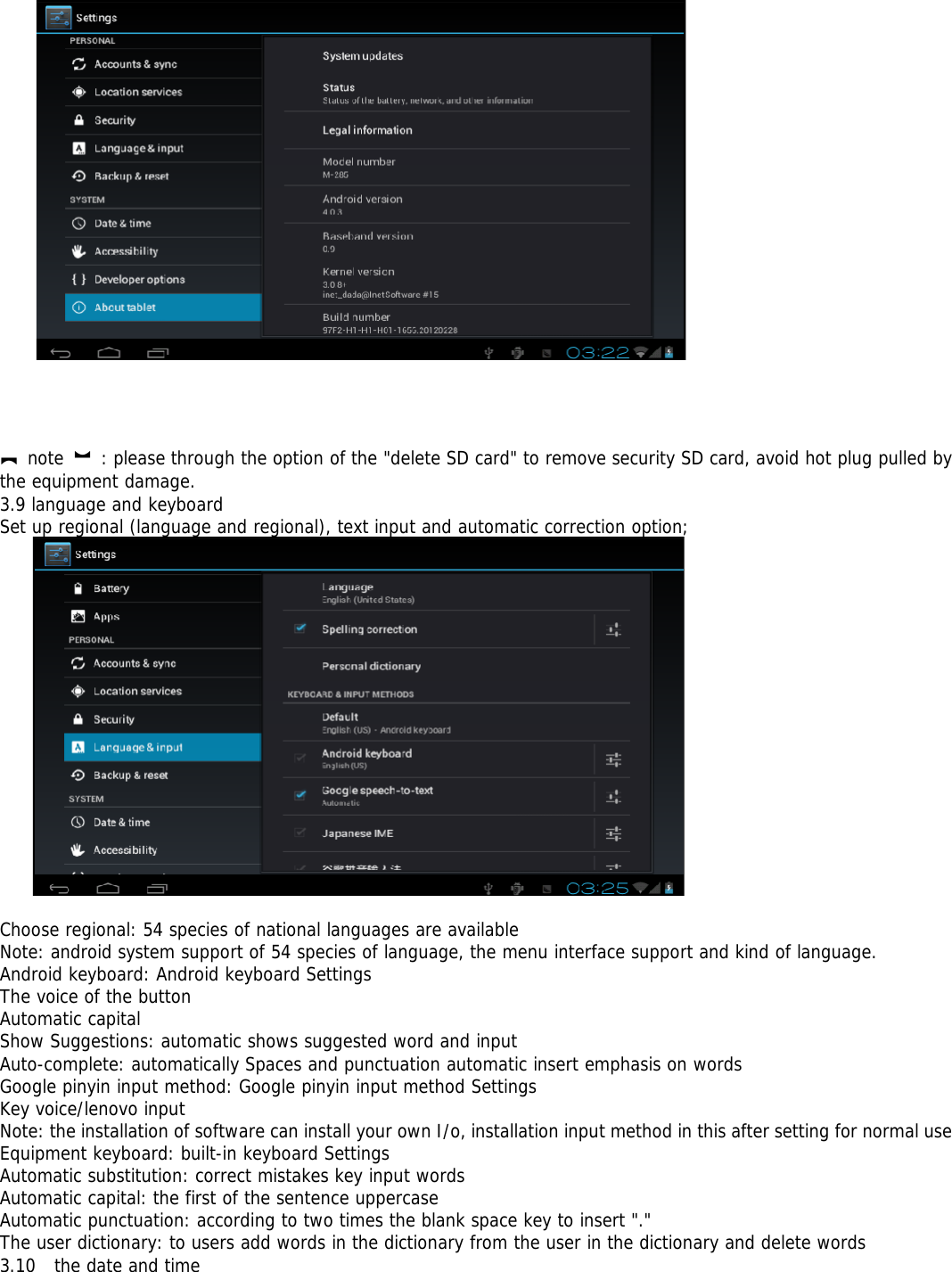

【note 】: please through the option of the "delete SD card" to remove security SD card, avoid hot plug pulled bythe equipment damage.3.9 language and keyboardSet up regional (language and regional), text input and automatic correction option;Choose regional: 54 species of national languages are availableNote: android system support of 54 species of language, the menu interface support and kind of language.Android keyboard: Android keyboard SettingsThe voice of the buttonAutomatic capitalShow Suggestions: automatic shows suggested word and inputAuto-complete: automatically Spaces and punctuation automatic insert emphasis on wordsGoogle pinyin input method: Google pinyin input method SettingsKey voice/lenovo inputNote: the installation of software can install your own I/o, installation input method in this after setting for normal useEquipment keyboard: built-in keyboard SettingsAutomatic substitution: correct mistakes key input wordsAutomatic capital: the first of the sentence uppercaseAutomatic punctuation: according to two times the blank space key to insert "."The user dictionary: to users add words in the dictionary from the user in the dictionary and delete words3.10 the date and time

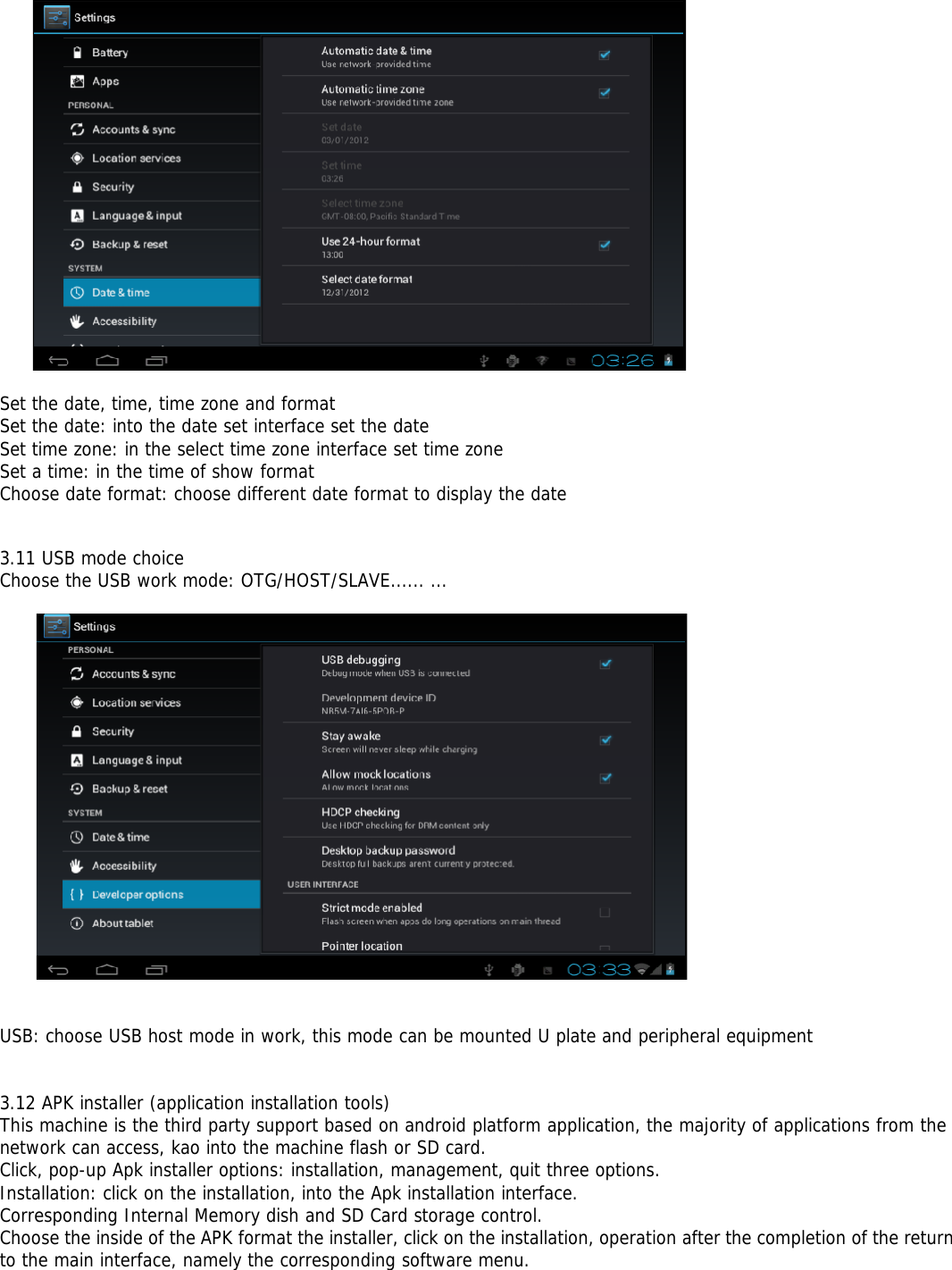

Set the date, time, time zone and formatSet the date: into the date set interface set the dateSet time zone: in the select time zone interface set time zoneSet a time: in the time of show formatChoose date format: choose different date format to display the date3.11 USB mode choiceChoose the USB work mode: OTG/HOST/SLAVE...... ...USB: choose USB host mode in work, this mode can be mounted U plate and peripheral equipment3.12 APK installer (application installation tools)This machine is the third party support based on android platform application, the majority of applications from thenetwork can access, kao into the machine flash or SD card.Click, pop-up Apk installer options: installation, management, quit three options.Installation: click on the installation, into the Apk installation interface.Corresponding Internal Memory dish and SD Card storage control.Choose the inside of the APK format the installer, click on the installation, operation after the completion of the returnto the main interface, namely the corresponding software menu.

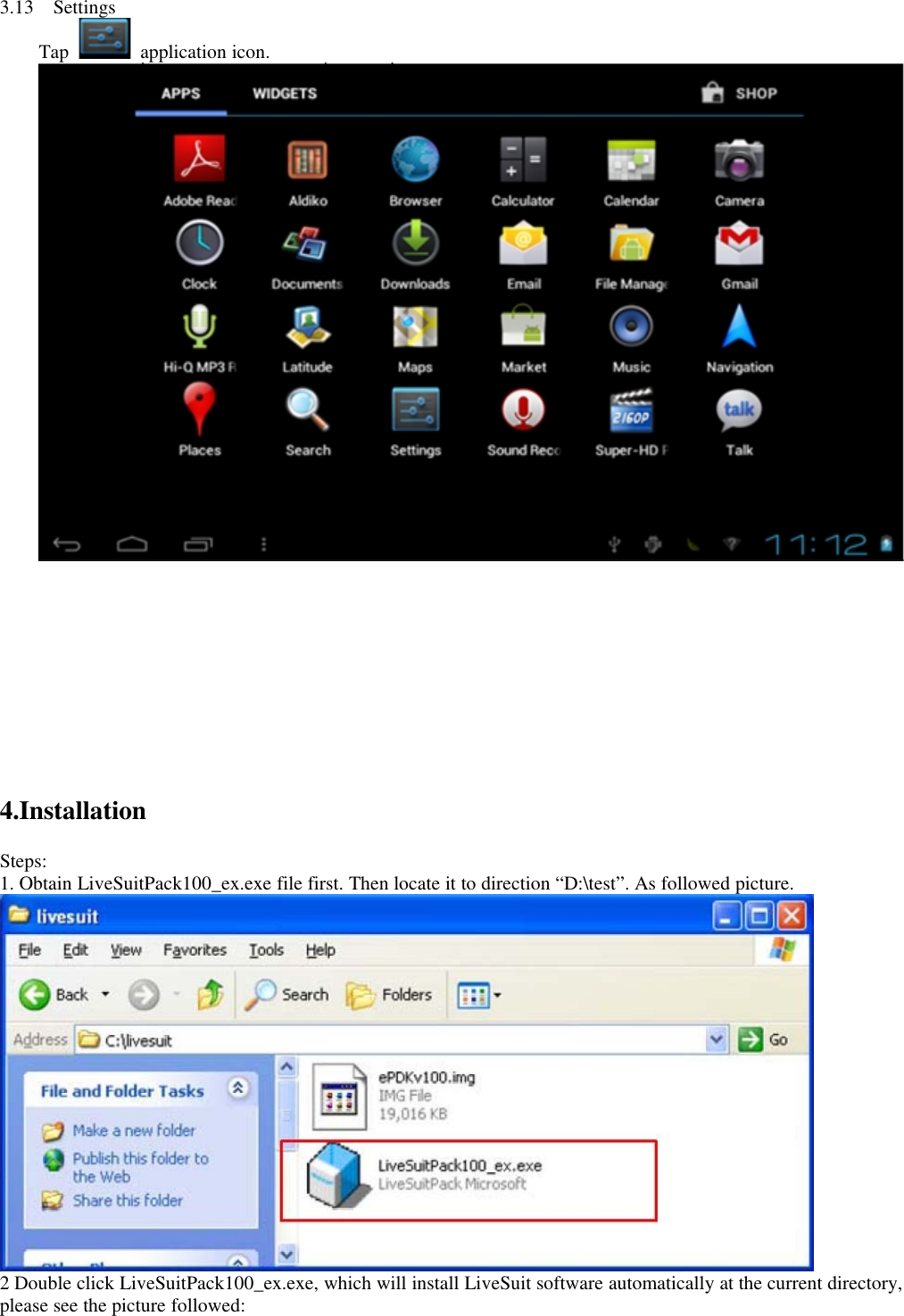

3.13 SettingsTap application icon.4.InstallationSteps:1. Obtain LiveSuitPack100_ex.exe file first. Then locate it to direction “D:\test”. As followed picture.2 Double click LiveSuitPack100_ex.exe, which will install LiveSuit software automatically at the current directory,please see the picture followed:

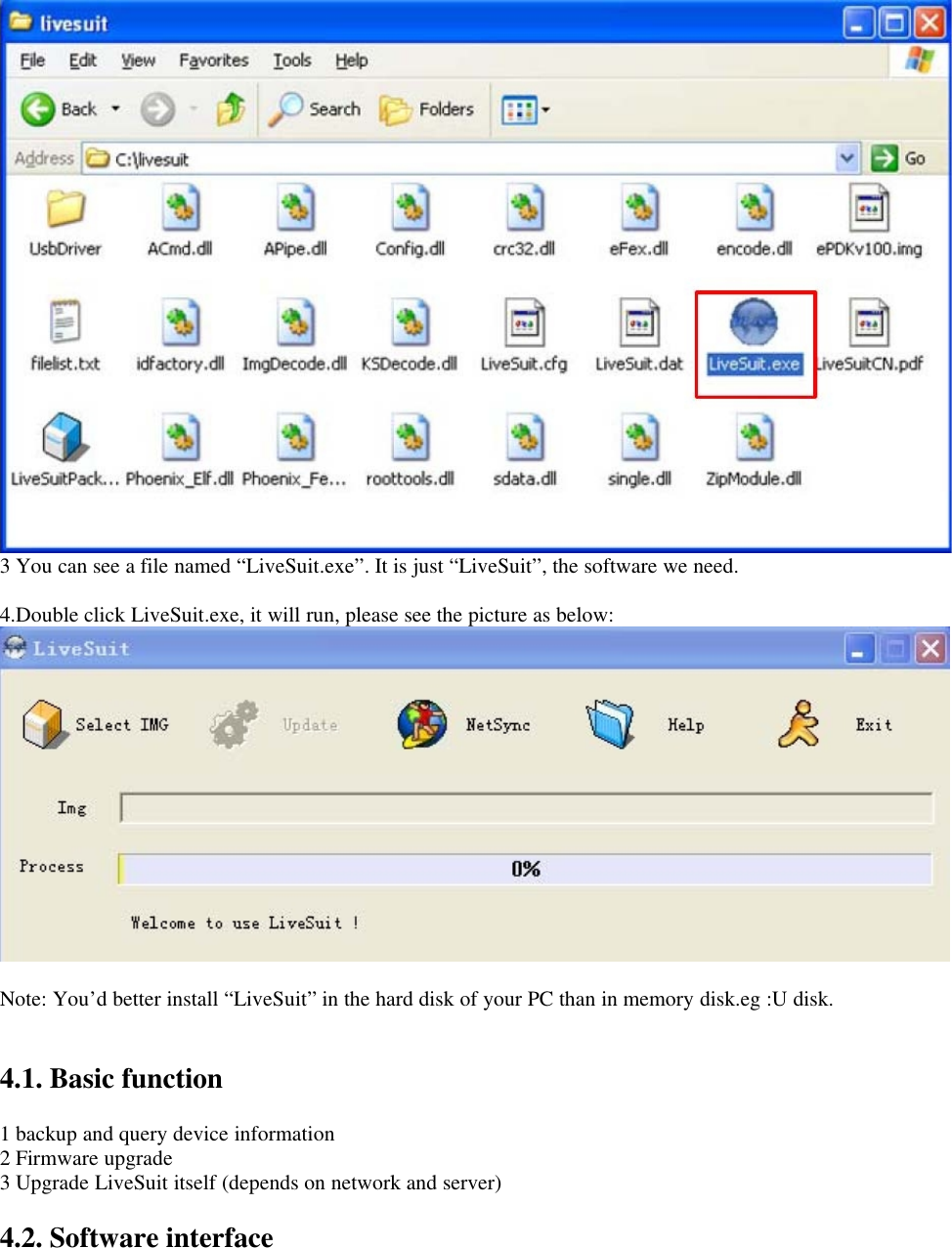

3 You can see a file named “LiveSuit.exe”. It is just “LiveSuit”, the software we need.4.Double click LiveSuit.exe, it will run, please see the picture as below:Note: You’d better install “LiveSuit” in the hard disk of your PC than in memory disk.eg :U disk.4.1. Basic function1 backup and query device information2 Firmware upgrade3 Upgrade LiveSuit itself (depends on network and server)4.2. Software interface

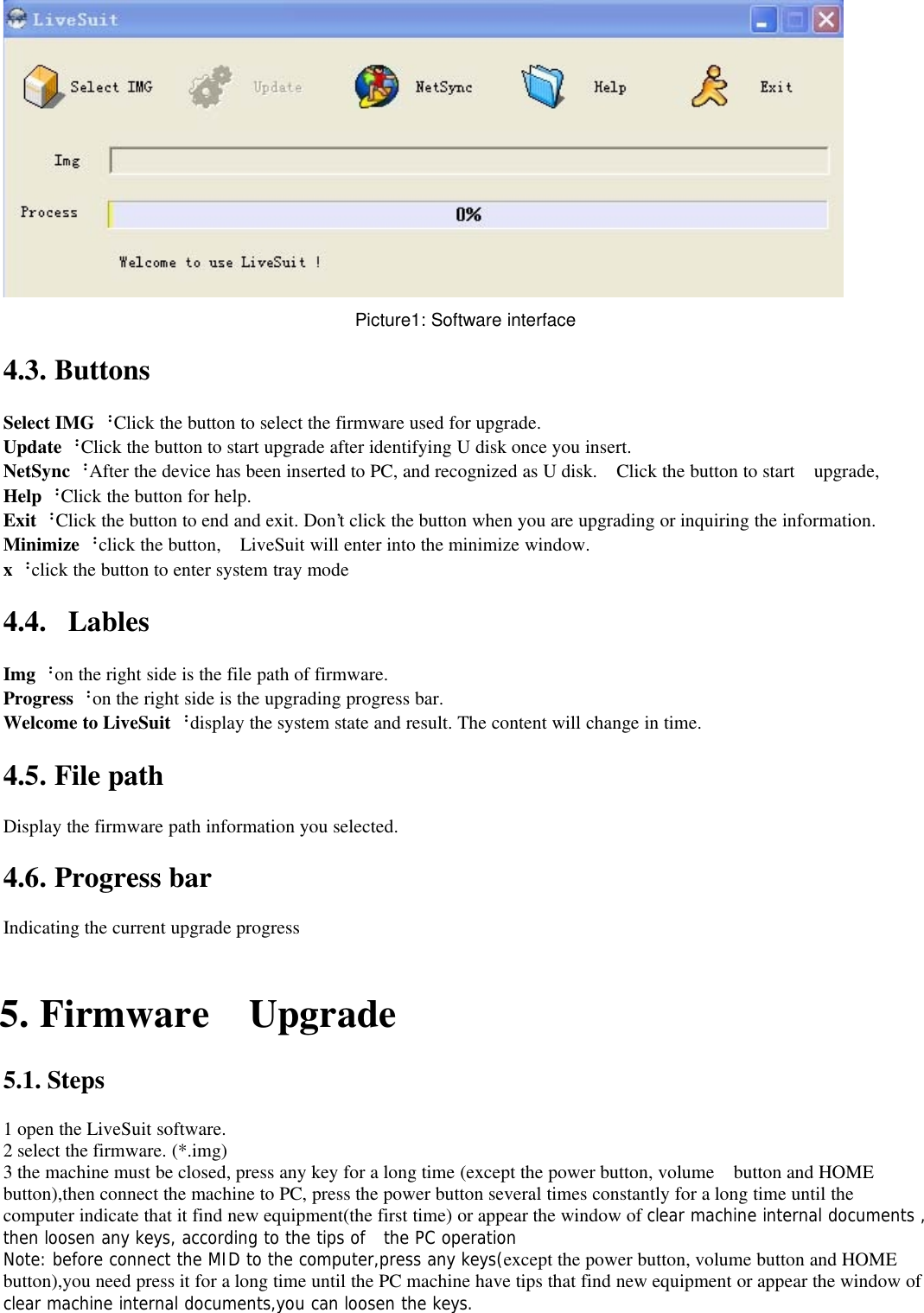

Picture1: Software interface4.3. ButtonsSelect IMG：Click the button to select the firmware used for upgrade.Update：Click the button to start upgrade after identifying U disk once you insert.NetSync：After the device has been inserted to PC, and recognized as U disk. Click the button to start upgrade,Help：Click the button for help.Exit：Click the button to end and exit. Don't click the button when you are upgrading or inquiring the information.Minimize：click the button, LiveSuit will enter into the minimize window.x：click the button to enter system tray mode4.4. LablesImg：on the right side is the file path of firmware.Progress：on the right side is the upgrading progress bar.Welcome to LiveSuit：display the system state and result. The content will change in time.4.5. File pathDisplay the firmware path information you selected.4.6. Progress barIndicating the current upgrade progress5. Firmware Upgrade5.1. Steps1 open the LiveSuit software.2 select the firmware. (*.img)3 the machine must be closed, press any key for a long time (except the power button, volume button and HOMEbutton),then connect the machine to PC, press the power button several times constantly for a long time until thecomputer indicate that it find new equipment(the first time) or appear the window of clear machine internal documents ,then loosen any keys, according to the tips of the PC operationNote: before connect the MID to the computer,press any keys(except the power button, volume button and HOMEbutton),you need press it for a long time until the PC machine have tips that find new equipment or appear the window ofclear machine internal documents,you can loosen the keys.

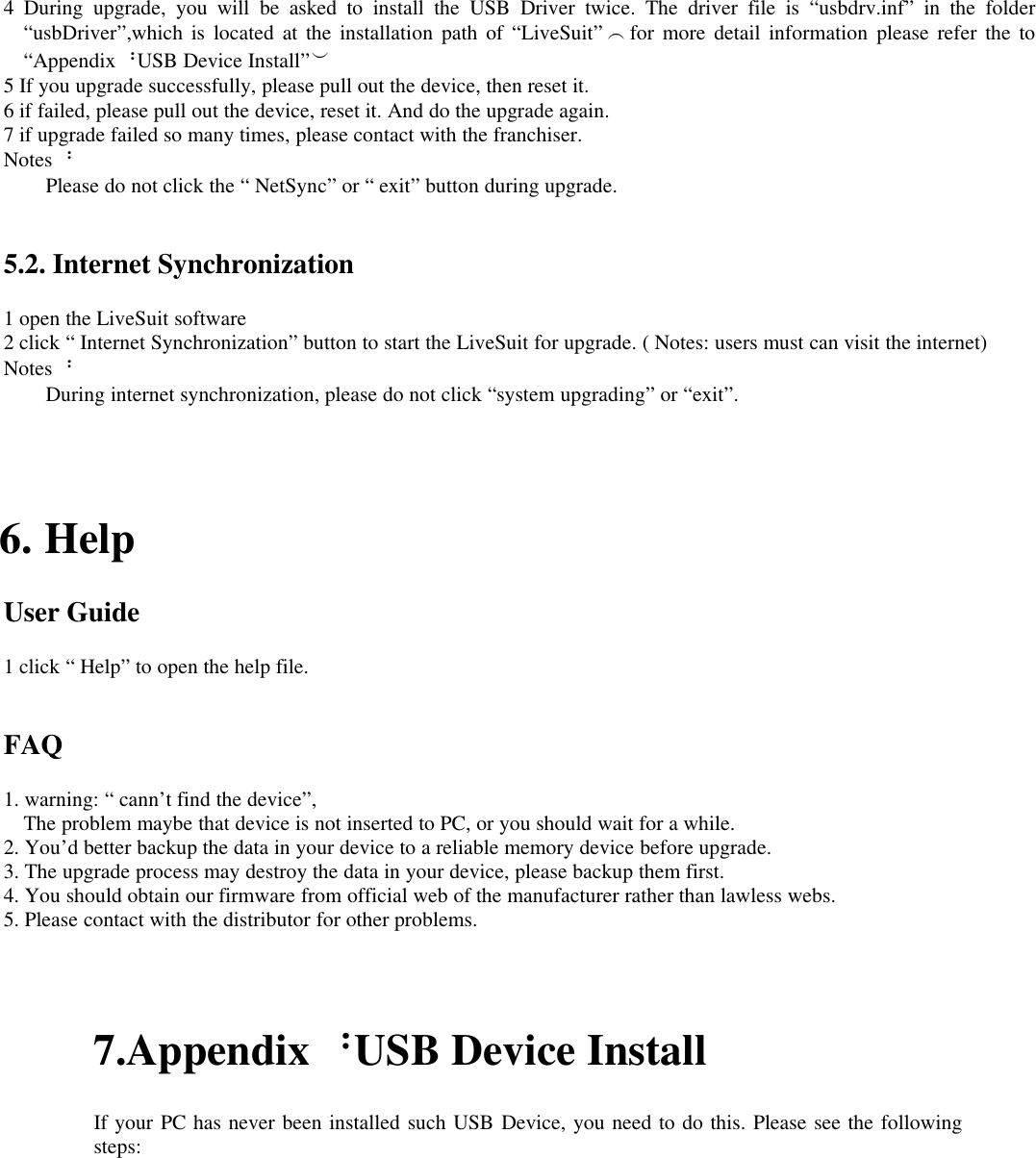

4 During upgrade, you will be asked to install the USB Driver twice. The driver file is “usbdrv.inf” in the folder“usbDriver”,which is located at the installation path of “LiveSuit” （for more detail information please refer the to“Appendix：USB Device Install”）5 If you upgrade successfully, please pull out the device, then reset it.6 if failed, please pull out the device, reset it. And do the upgrade again.7 if upgrade failed so many times, please contact with the franchiser.Notes：Please do not click the “ NetSync” or “ exit” button during upgrade.5.2. Internet Synchronization1 open the LiveSuit software2 click “ Internet Synchronization” button to start the LiveSuit for upgrade. ( Notes: users must can visit the internet)Notes：During internet synchronization, please do not click “system upgrading” or “exit”.6. HelpUser Guide1 click “ Help” to open the help file.FAQ1. warning: “ cann’t find the device”,The problem maybe that device is not inserted to PC, or you should wait for a while.2. You’d better backup the data in your device to a reliable memory device before upgrade.3. The upgrade process may destroy the data in your device, please backup them first.4. You should obtain our firmware from official web of the manufacturer rather than lawless webs.5. Please contact with the distributor for other problems.7.Appendix：USB Device InstallIf your PC has never been installed such USB Device, you need to do this. Please see the followingsteps:

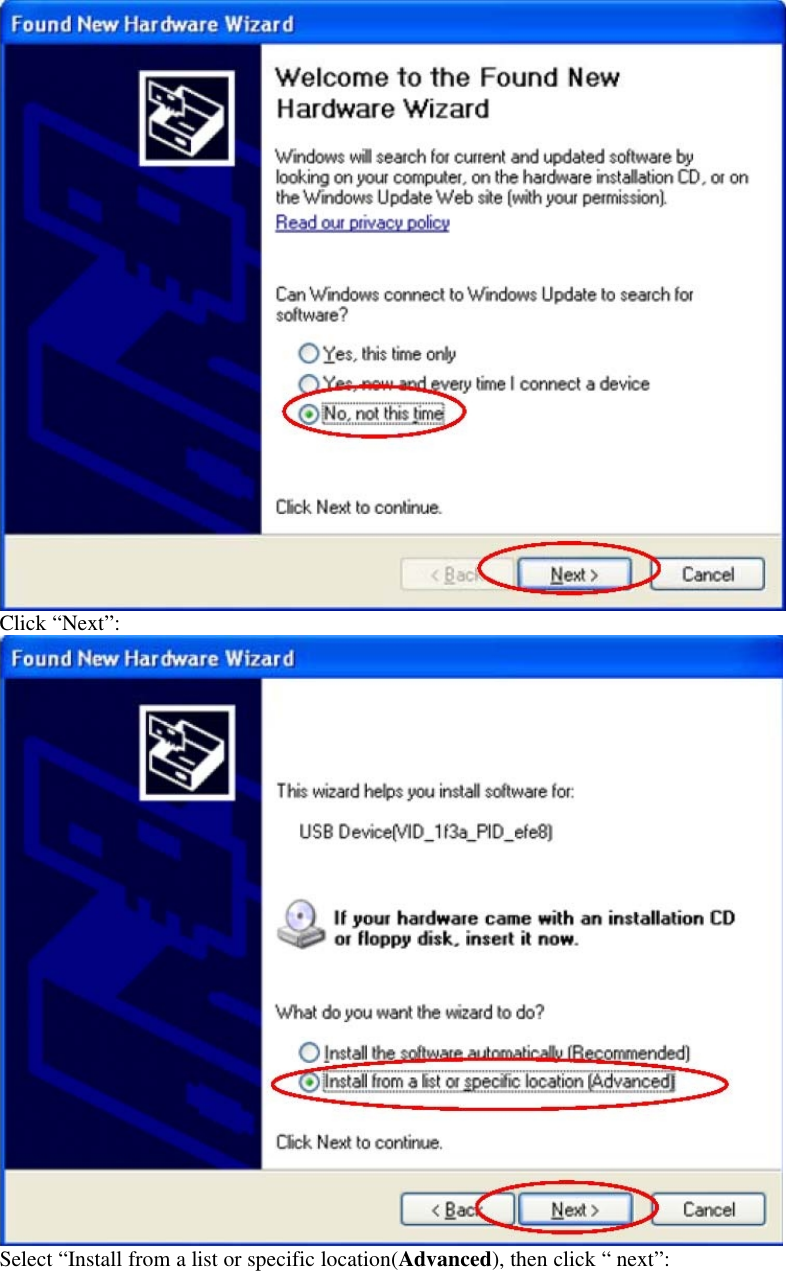

Select “ No, not this time”, click” next”Select “Install from a list or specific location(Advanced), then click “ next”:

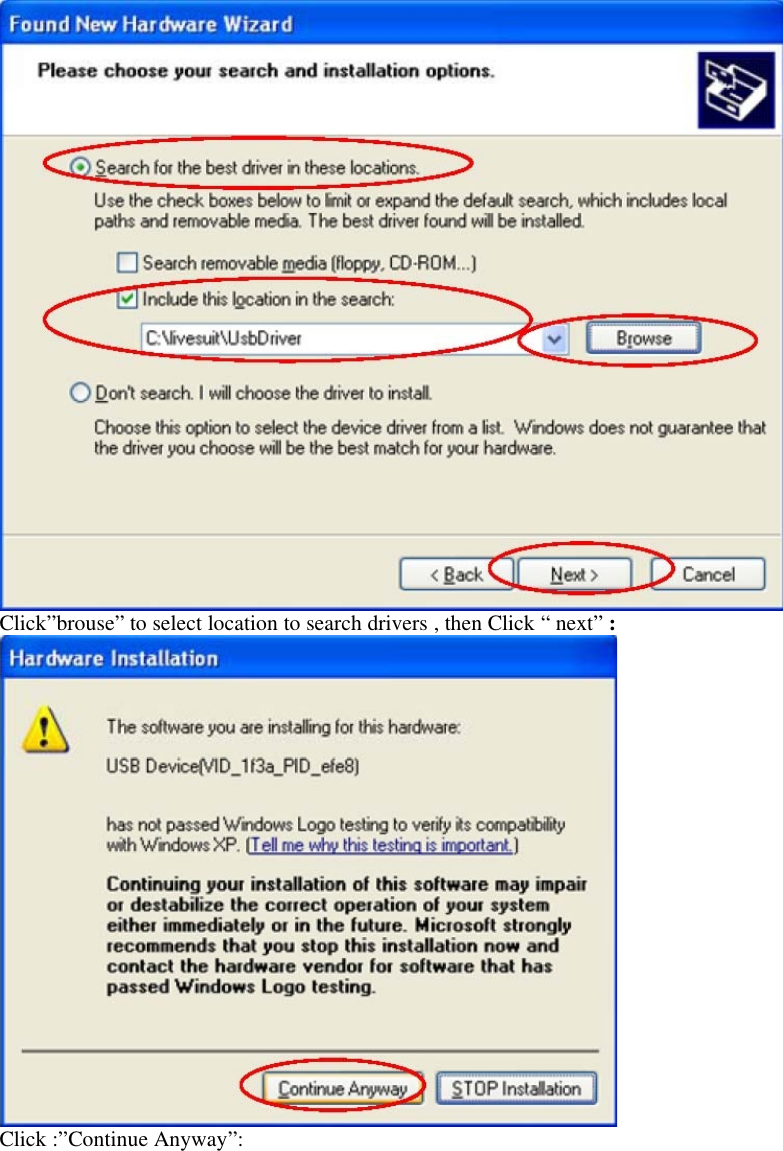

Click”brouse” to select location to search drivers , then Click “ next” :Click :”Continue Anyway”:

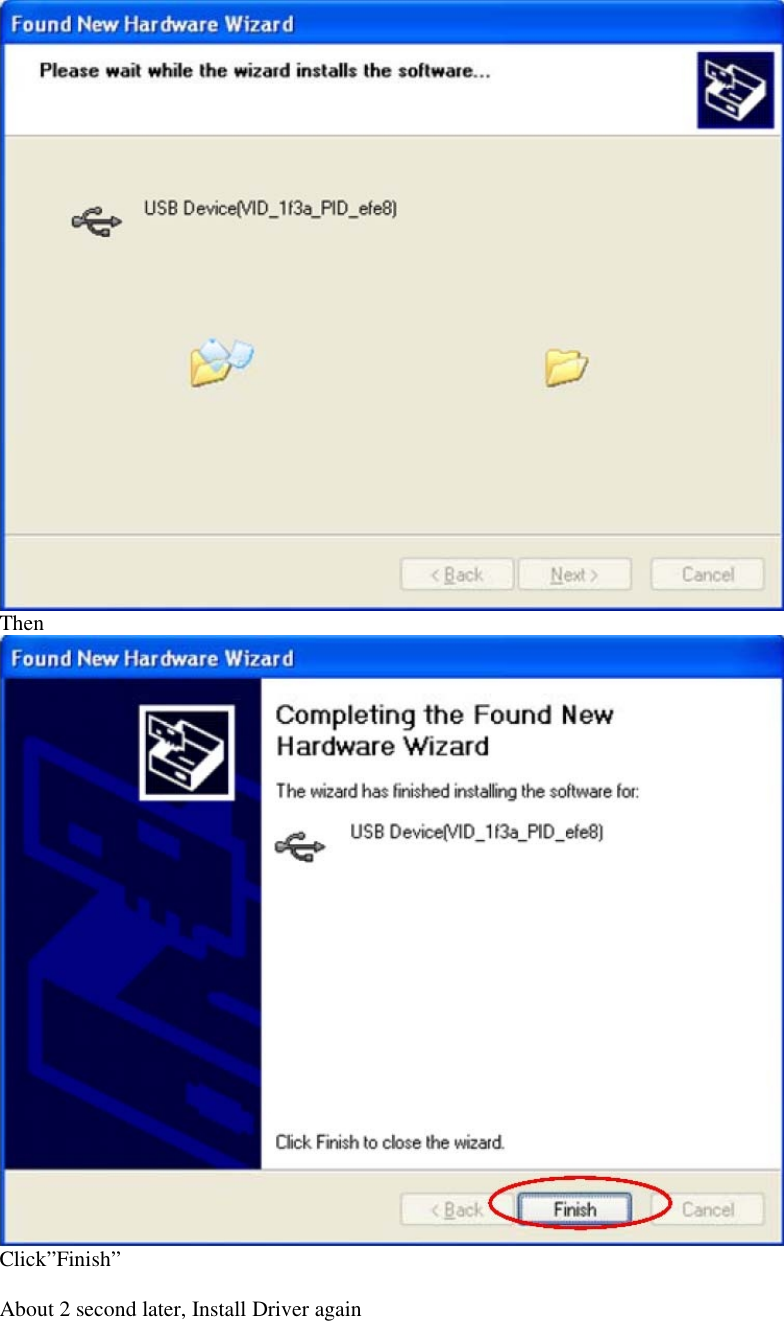

ThenClick”Finish”About 2 second later, Install Driver again
Click “Next”:Select “Install from a list or specific location(Advanced), then click “ next”:
Click”brouse” to select location to search drivers , then Click “ next” :Click “Continue Anyway”:

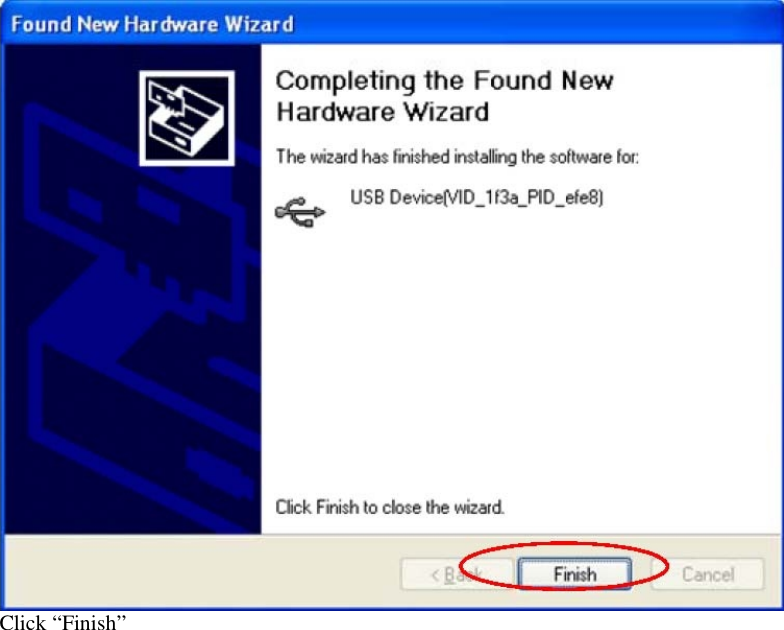

Click “Finish”

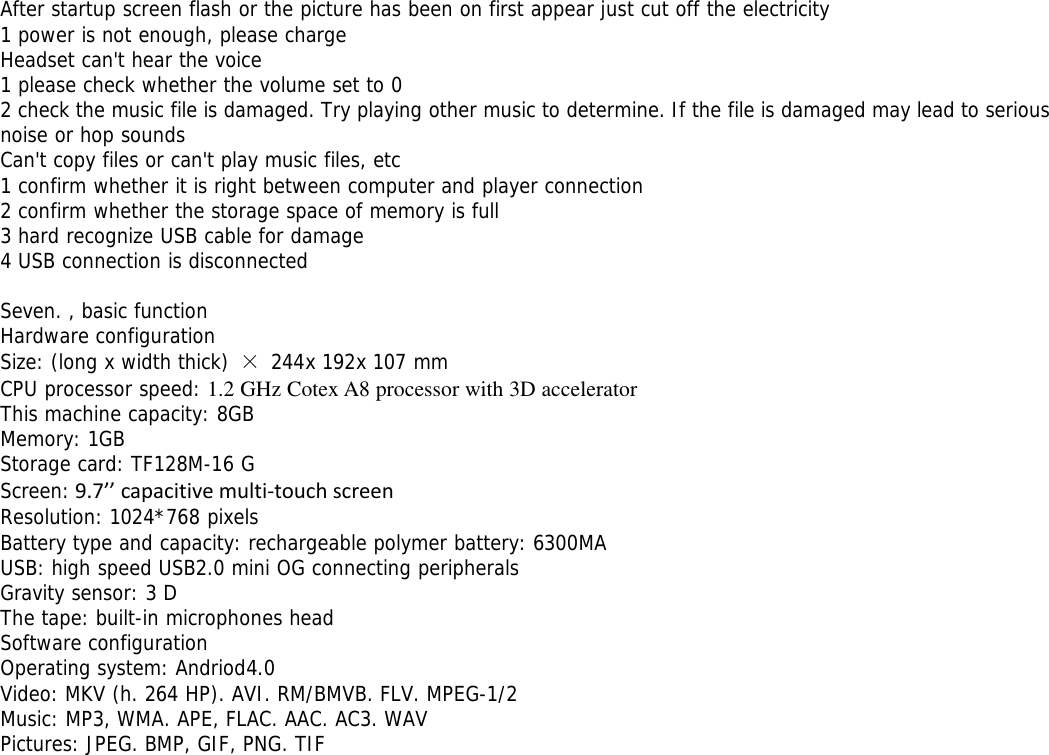

After startup screen flash or the picture has been on first appear just cut off the electricity1 power is not enough, please chargeHeadset can't hear the voice1 please check whether the volume set to 02 check the music file is damaged. Try playing other music to determine. If the file is damaged may lead to seriousnoise or hop soundsCan't copy files or can't play music files, etc1 confirm whether it is right between computer and player connection2 confirm whether the storage space of memory is full3 hard recognize USB cable for damage4 USB connection is disconnectedSeven. , basic functionHardware configurationSize: (long x width thick) ×244x 192x 107 mmCPU processor speed: 1.2 GHz Cotex A8 processor with 3D acceleratorThis machine capacity: 8GBMemory: 1GBStorage card: TF128M-16 GScreen: 9.7’’ capacitive multi-touch screenResolution: 1024*768 pixelsBattery type and capacity: rechargeable polymer battery: 6300MAUSB: high speed USB2.0 mini OG connecting peripheralsGravity sensor: 3 DThe tape: built-in microphones headSoftware configurationOperating system: Andriod4.0Video: MKV (h. 264 HP). AVI. RM/BMVB. FLV. MPEG-1/2Music: MP3, WMA. APE, FLAC. AAC. AC3. WAVPictures: JPEG. BMP, GIF, PNG. TIF
