BUILT TO LAST LONGER
www.askousa.com
Product and
Accessory Guide
2002 Vrs 2.0
DISHWASHERS WASHERS DRYERS ACCESSORIES INSTALLATION
Dishwashers
D1706 . . . Pg 2 D1716 . . . Pg 2 D1776 . . . Pg 3 D1796FI . . . Pg 3
4"
2"
23-7/16"
*
24"
32-1/4"
to 35-1/2"
45-1/2"
6-1/4"
to 8-1/4"
D1996SS &
D1996HNDL . . . Pg 4
D1996FI . . . Pg 5 D1976 . . . Pg 5 Pg 6
Tip Guard
Toe Kick
Pg 7-10
Washers Laundry
Accessories

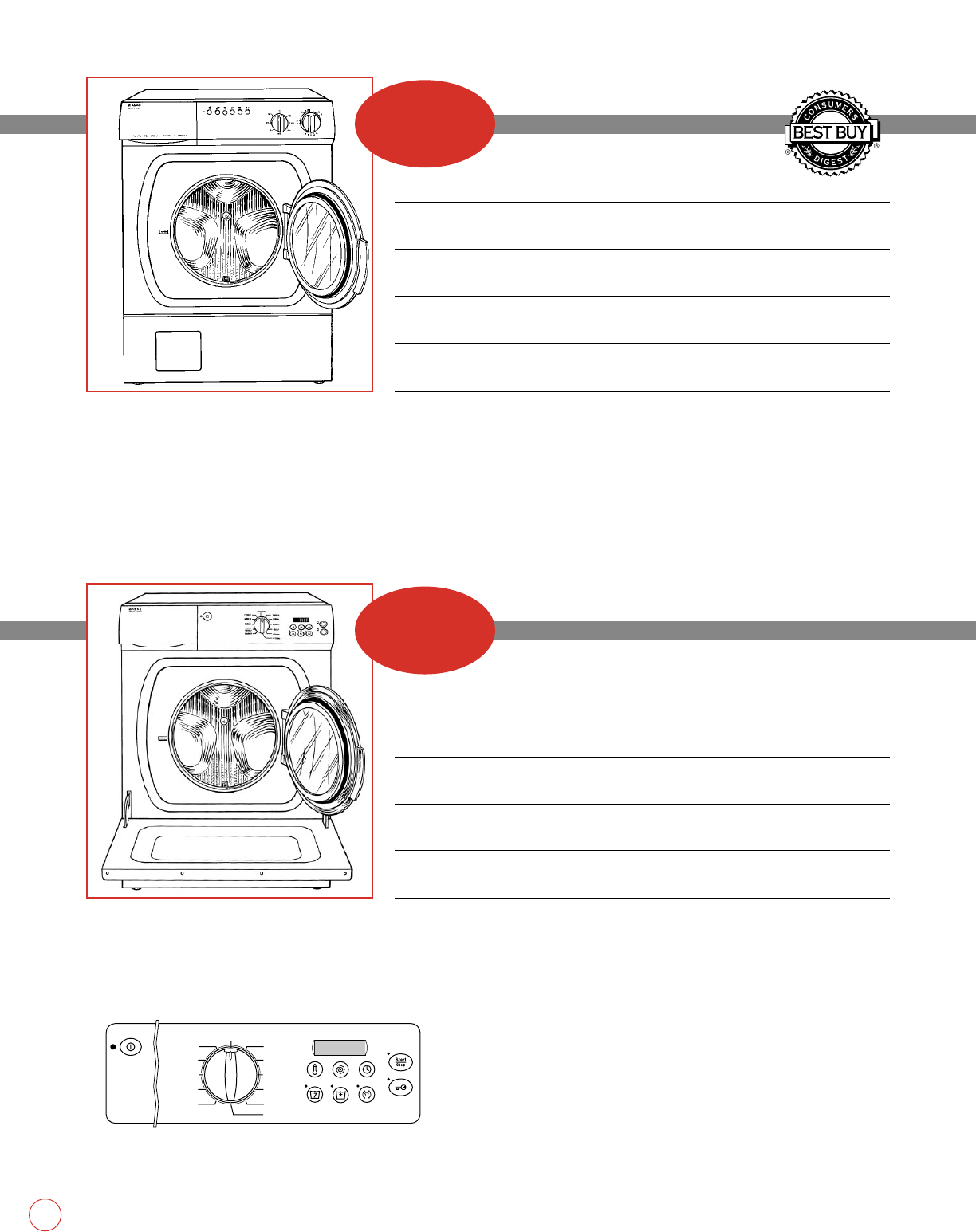

W6021 . . . Pg 12 W6441 . . . Pg 12 W6661 . . . Pg 13 Pg 17

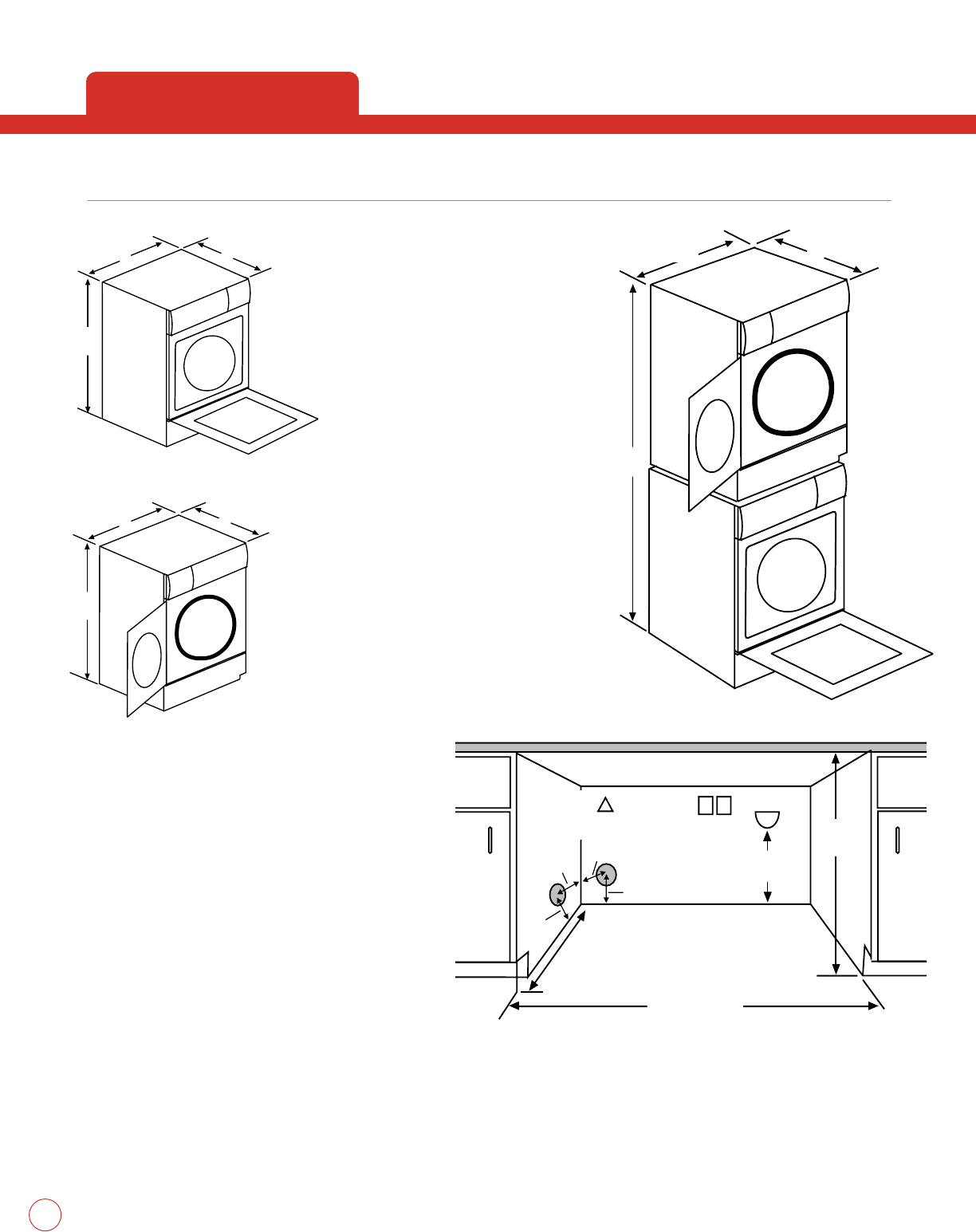

Dryers Installation
Instructions
23-7/16"
33-15/32"

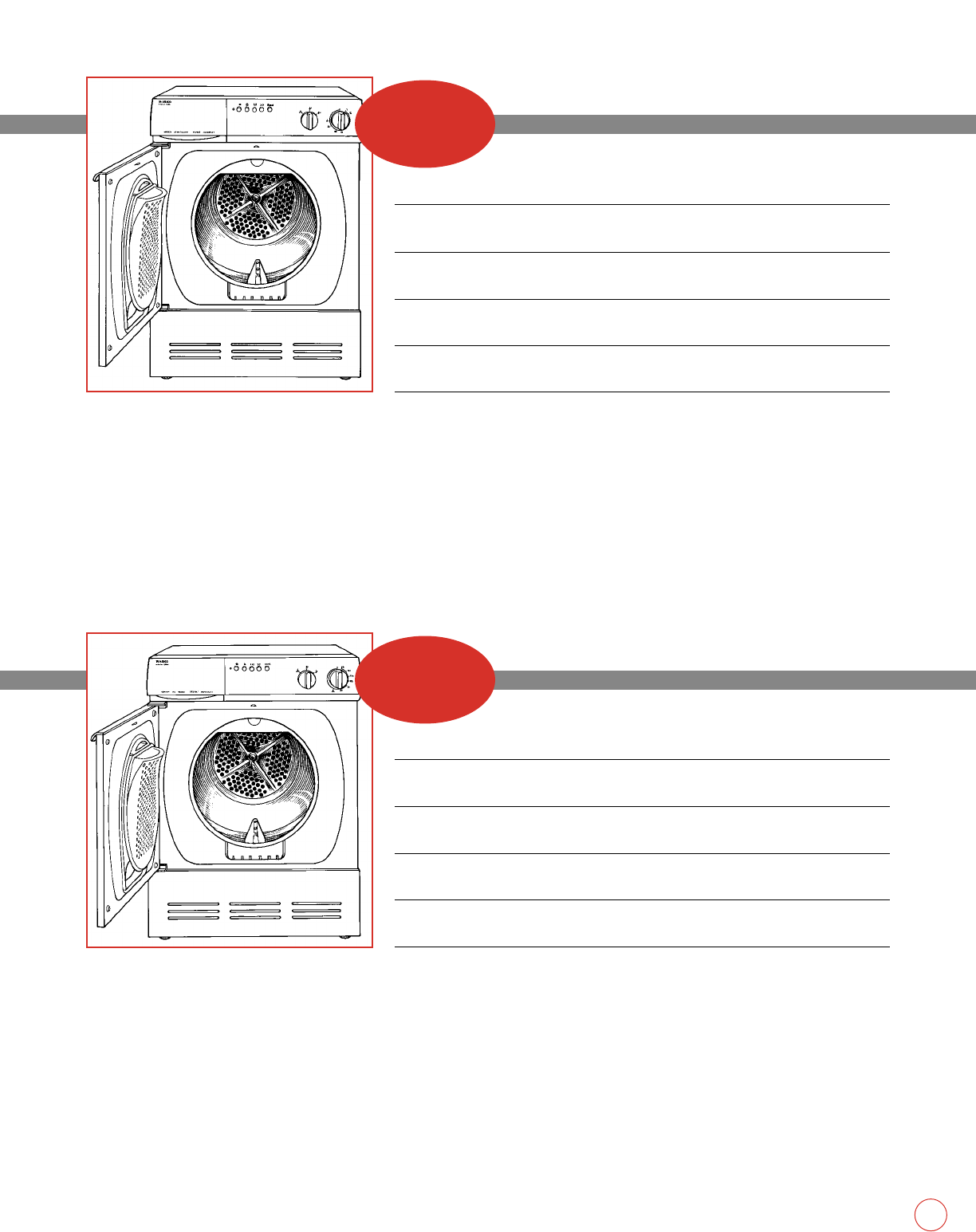

T701 . . . Pg 15 T721 . . . Pg 15 T731 . . . Pg 16 T761/T781 . . . Pg 17 Pg 18
Slide Out Shelf
Accessories Installation&
Custom Panel
Instructions

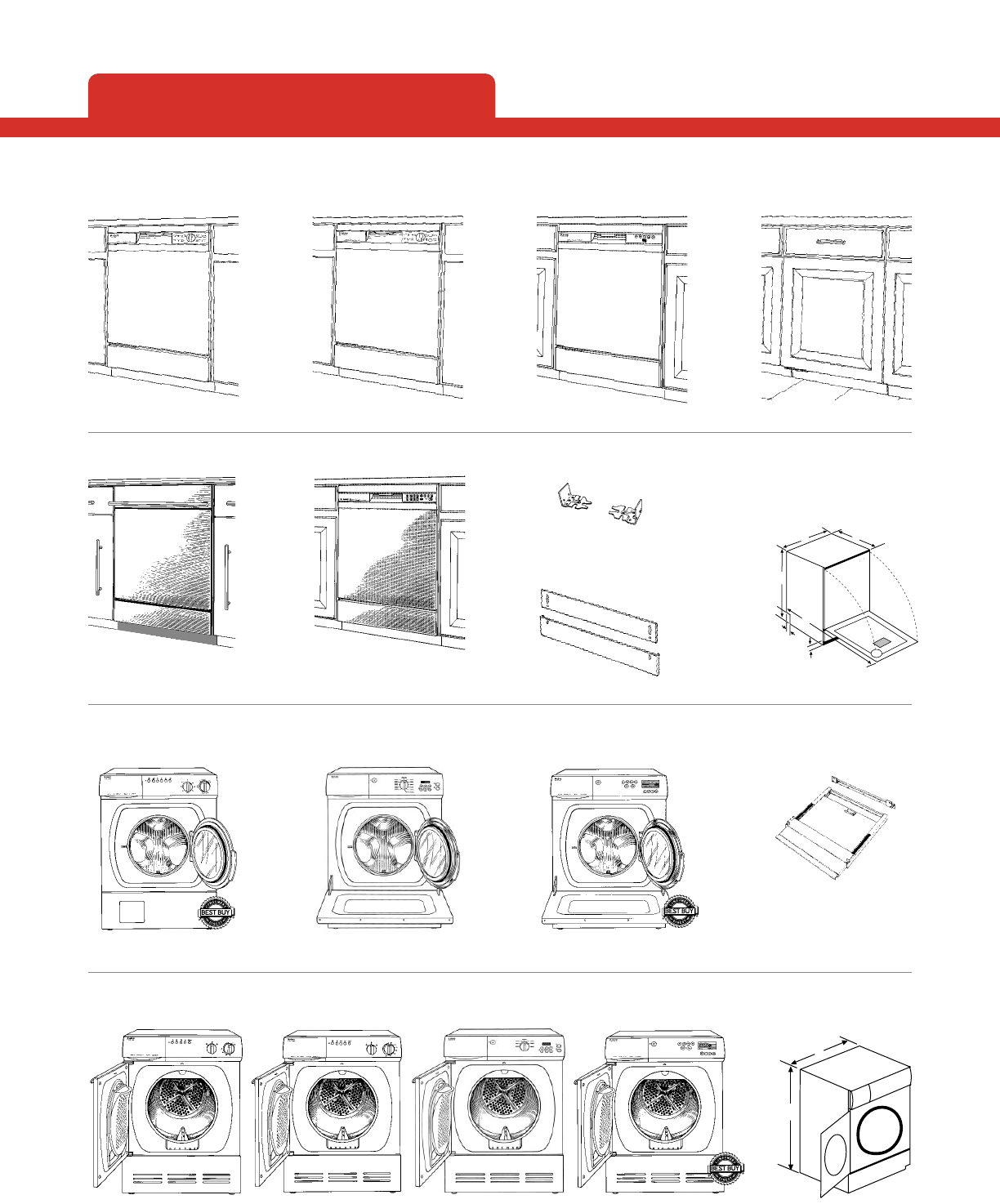

TABLE OF CONTENTS
1
Key Selling Features Of Every ASKO Dishwasher
(◆EXCLUSIVE FEATURES)
◆20-year life expectancy
◆Exclusive EasyInstall™system makes installations quicker and easier, now with a rear foot that’s adjustable from the front
◆The Quiet System™ensures this is the quietest line of dishwashers – 30% of units’ weight is sound insulation materials
◆Uses less electricity than any other dishwasher – proven by ACE3(see Energy Star report on page 20)
◆Lowest water consumption: 4.6 gallons on Normal cycle, 3.9 on Light/Quick Wash cycle
◆Patented Super Cleaning System™produces sparkling results without hand pre-rinsing
◆Anti-jam, auto-reversing drain pump reduces service calls
◆More 18:8 surgical-quality stainless steel components that won’t chip or rust (tank, filters, spray arms, bottom,
inner door liner, fill tube, glide rails, wash arm support spindles, wash arm lock nut)
◆One-piece, sealed, galvanized-steel base pan (22-25 microns of electroplated, hot-dipped zinc galvanization)
◆Stainless steel ball bearings in upper basket rack glides
◆Graphite-nylon Viscant™
-coated baskets with double-coated tines
◆Self-cleaning, triple filtration system
◆Five-way Aqua Block water containment system
•
1/4-horsepower drain motor and pump
•
1/2-horsepower circulation motor and pump
•
Large-capacity baskets provide exceptional flexibility and hold 12 place settings, 20% more than most others
•
Deep upper basket holds salad plates and tall iced tea glasses
•
Lower basket holds thick, 12" plates
•
True random loading because there is no space-stealing water tower to limit loading flexibility
•
Removable cutlery basket with lidded small-item basket
•
Separate drain and circulation pumps and motors reduce noise and energy and water consumption
•
Adjustable optical rinse aid dispenser
•
Upper and lower baskets can be removed from unit for faster unloading
•
Lower basket rolls completely out of unit for easier access
•
Balanced door lets the user reduce the amount of bending because it will remain in whatever position is most
convenient, e.g., open just far enough to load/unload top rack
•
Energy-saving air-dry option
•
Four-way adjustable toe kick: in/out and up/down
•
Height adjustable from 32-1/4" to 35-1/2" so it easily complies with ADA (Americans with Disabilities Act) installations
•
Accepts custom door panels (except D1996SS and D1996HNDL)
•
Adjustable door springs handle normal custom door panels (up to 7 lbs.)
•
Two optional door springs handle heavier custom door panels (7-12 and 12-22 lbs.)
•
Child safety latch (except D1796FI, D1996SS, D1996FI and D1996HNDL)
•
Every unit 100% factory tested for a minimum of 2-1/2 hours
•
cUL approved
WARRANTY:
3 YEAR: All parts and labor
4-5 YEARS: All parts for solid state controls, timers, motors, pumps and racks
LIFETIME: Stainless steel tank, parts
(See Warranty Certificate for complete details).
★
★
★
★
★
★

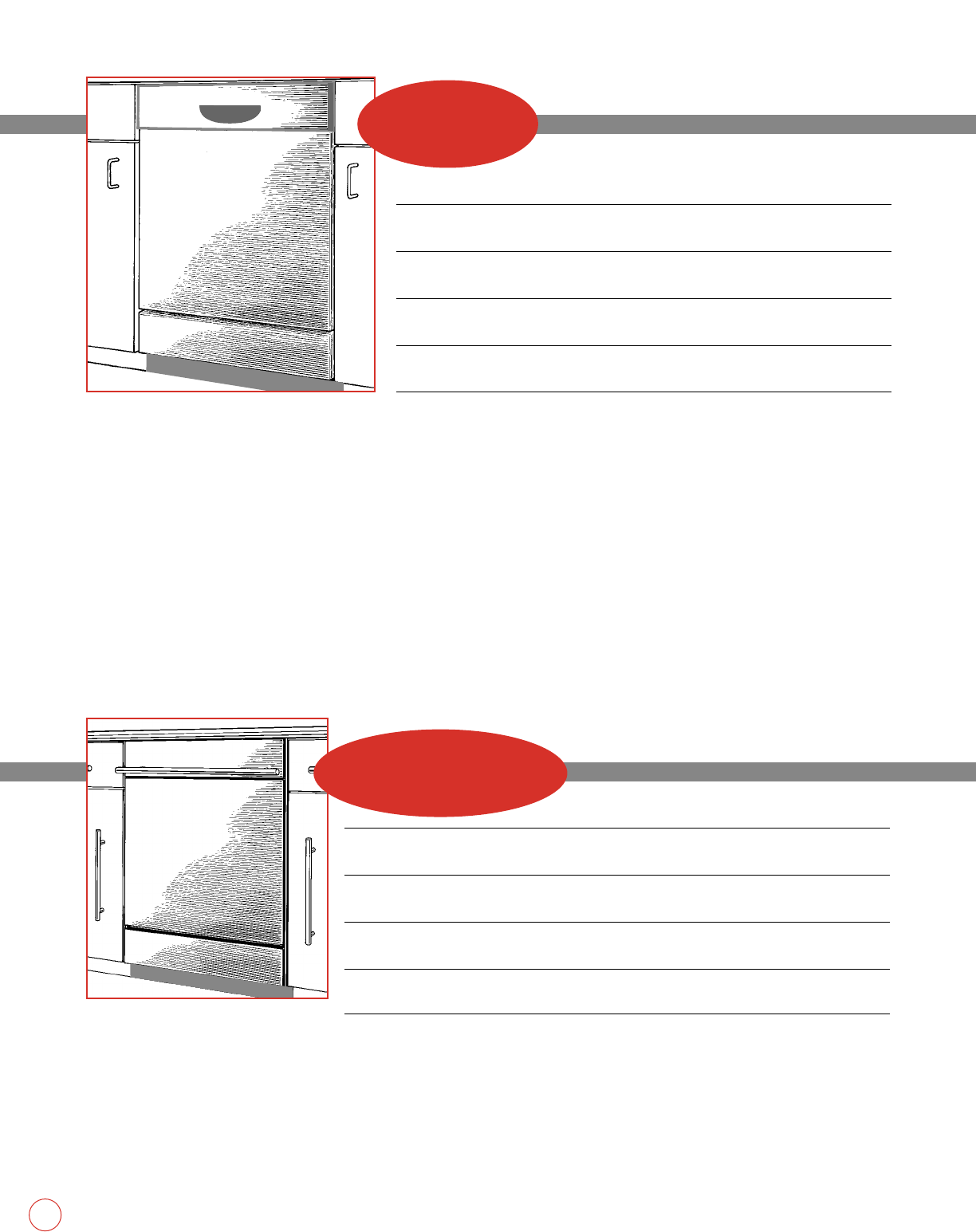

DISHWASHERS
SKUs Black White Bisque Stainless Steel
D1716B D1716W D1716BI D1716SS
Shipping Weight 101 lbs. 101 lbs. 101 lbs. 106 lbs.
•
Turbo Fan™Drying System produces drier dishes
•
Separate cup and wine goblet racks that protect
stemware
•
Removable and adjustable plate rack in lower basket
•
Two wash and rinse temperature settings: 130°F
and 150°F
•
Knife Guard provides safe place to load sharp and
pointed utensils
Step-Up Features Of The D1716
SKUs Black White Stainless Steel
D1706B D1706W D1706SS
Shipping Weight 101 lbs. 101 lbs. 106 lbs.
2
◆
Six-way wash system
◆
Adjustable cup shelf
•
Dial and push-button controls
•
Seven programs: Pots and Pans, Normal,
Light, Quick, Plate Warm, Rinse and Dry,
and Rinse and Hold
•
Two wash and rinse temperature options: household
hot water setting and 140°F
•
Heated dry option
•
Optional black and white trim kits for custom
door panels
•
Child safety door latch prevents accidental entry

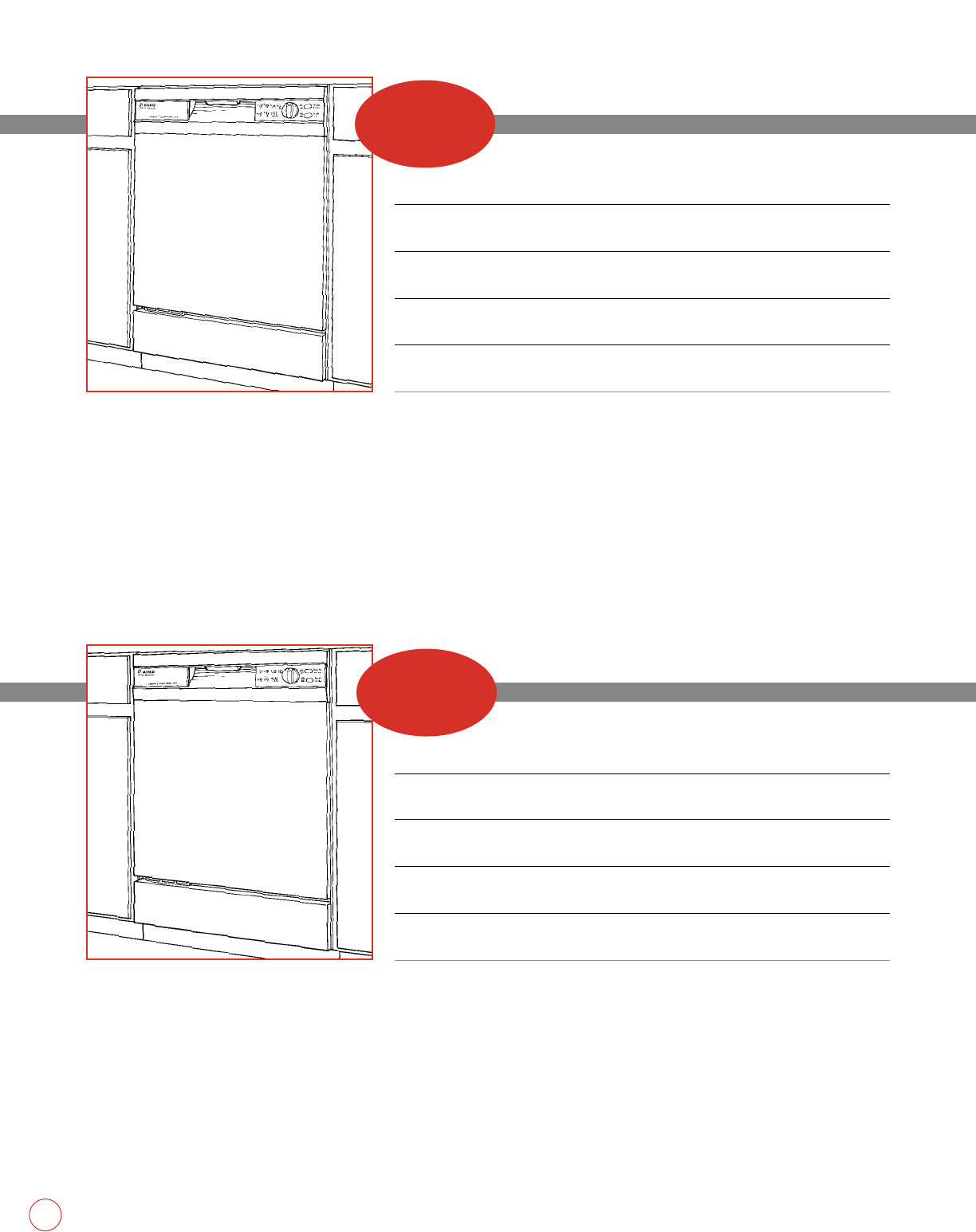

Additional Features Of The D1706
(
◆
EXCLUSIVE FEATURES)
D1706
D1716
SKUs Stainless Steel

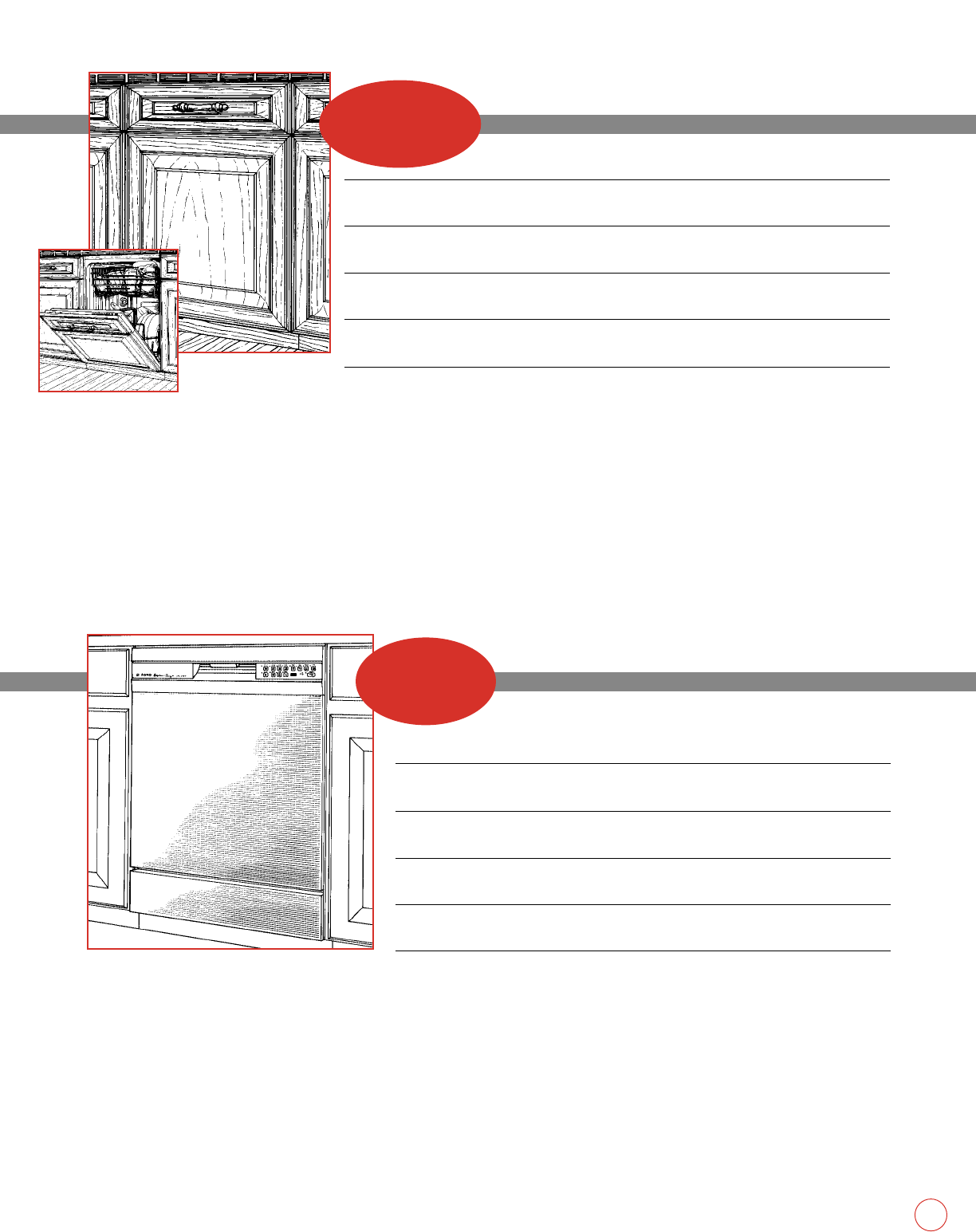

D1796FI
Shipping Weight 101 lbs.
◆
Optional white, black, bisque and stainless steel doors
with matching curved handles available (see page 6)
◆
Optional brass-like handle also available (see page 6)
•
Separate start/stop button
•
Controls on top of door are hidden when door is
closed (unit shown with an example of an owner-
supplied custom door)
•
Two wash temperature settings: 130°F and 150°F
•
Two rinse temperature settings: 130°F and 150°F
•
No trim kit required. Pre-drilled door easily accepts
custom panel
•
Includes 12-22 lb. door springs (red)
•
Unit is 23-5/8" wide
Step-Up Features Of The D1796FI
(
◆
EXCLUSIVE FEATURES)
SKUs Black White Stainless Steel
D1776B D1776W D1776SS
Shipping Weight 101 lbs. 101 lbs. 106 lbs.
3
•
Electronic, programmable, push-button controls
•
Time remaining and fault indicator LED readout
•
Four programs: Pots and Pans, Normal,
Rinse and Hold, and Quick
•
Two wash temperature settings: 130°F and 160°F
•
Two rinse temperature settings: 130°F and 150°F
•
Adjustable drain cycle for unusual installations
•
Diagnostic control system

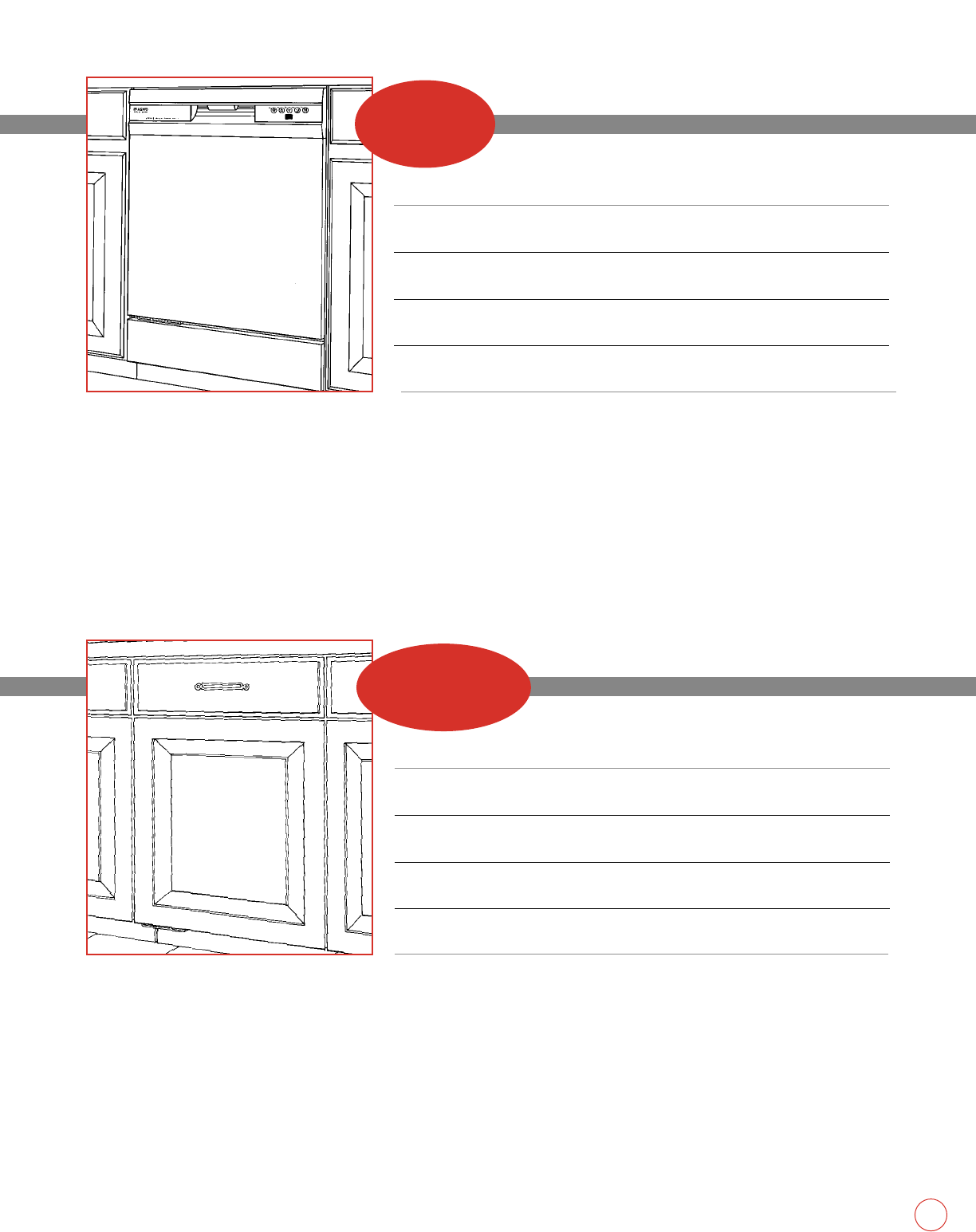

Step-Up Features Of The D1776
D1776
D1796FI
4
SKUs Stainless Steel
D1996SS
Shipping Weight 110 lbs.
◆
Quiet System and Extra Quiet Package make these
units the quietest dishwashers on the market
◆
Safe & Handy™Upper Cutlery Basket
◆
Seven-Way Omni-Spray™wash system ensures
sparkling results every time (includes special spray
for Safe & Handy Upper Cutlery Basket)
◆
Split upper-rack shelves increase loading flexibility
•
Separate start/stop button
•
Controls on top of door are hidden when
door is closed
•
Five wash programs: Pots and Pans/Sani-Wash, Quick,
Normal, Rinse and Hold, and Economy
•
Rinse aid indicator light
•
Interior light eases loading and unloading
•
Double-inlet water valve reduces potential for leaks
•
Unit does not accept custom panels
Step-Up Features Of The D1996SS
(
◆
EXCLUSIVE FEATURES)
D1996SS
SKUs Stainless Steel
D1996HNDL
Shipping Weight 112 lbs.
•
Comes with full-width, stainless steel handle
•
Does not accept custom panels
•
Includes 7-12 lb. door springs (yellow)
D1996HNDL
5
SKUs Stainless Steel
D1996FI
Shipping Weight 105 lbs.
◆
Optional white, black, bisque and stainless steel doors
with matching curved handles available (see page 6)
◆
Optional brass-like handle also available (see page 6)
•
Can be installed with an owner-supplied custom panel
(Unit shown with an example of an owner-supplied
custom panel)
•
Unit is 23-5/8" wide
•
No trim kit required. Pre-drilled door easily accepts
custom panel.
•
Includes 12-22 lb. door springs (red)
D1996FI
SKUs Black White Stainless Steel
D1976B D1976W D1976SS
Shipping Weight 105 lbs. 105 lbs. 110 lbs.
◆
Five wash temperatures: 110°F, 130°F, 150°F, 160°F
and 170°F
◆
Upper rack has twice the number of support rails for
superior small item containment
•
Eight wash programs: Pots and Pans/Sani-Wash,
Super, Normal, Light, Quick, Rinse and Dry,
Rinse and Hold, and Economy
•
Time delay start (1 – 12 hours)
•
No-heat Turbo Fan Dry option (Fan Cool)
•
Three rinse temperatures: 110°F, 130°F and 150°F
Step-Up Features Of The D1976
(
◆
EXCLUSIVE FEATURES)
D1976
6

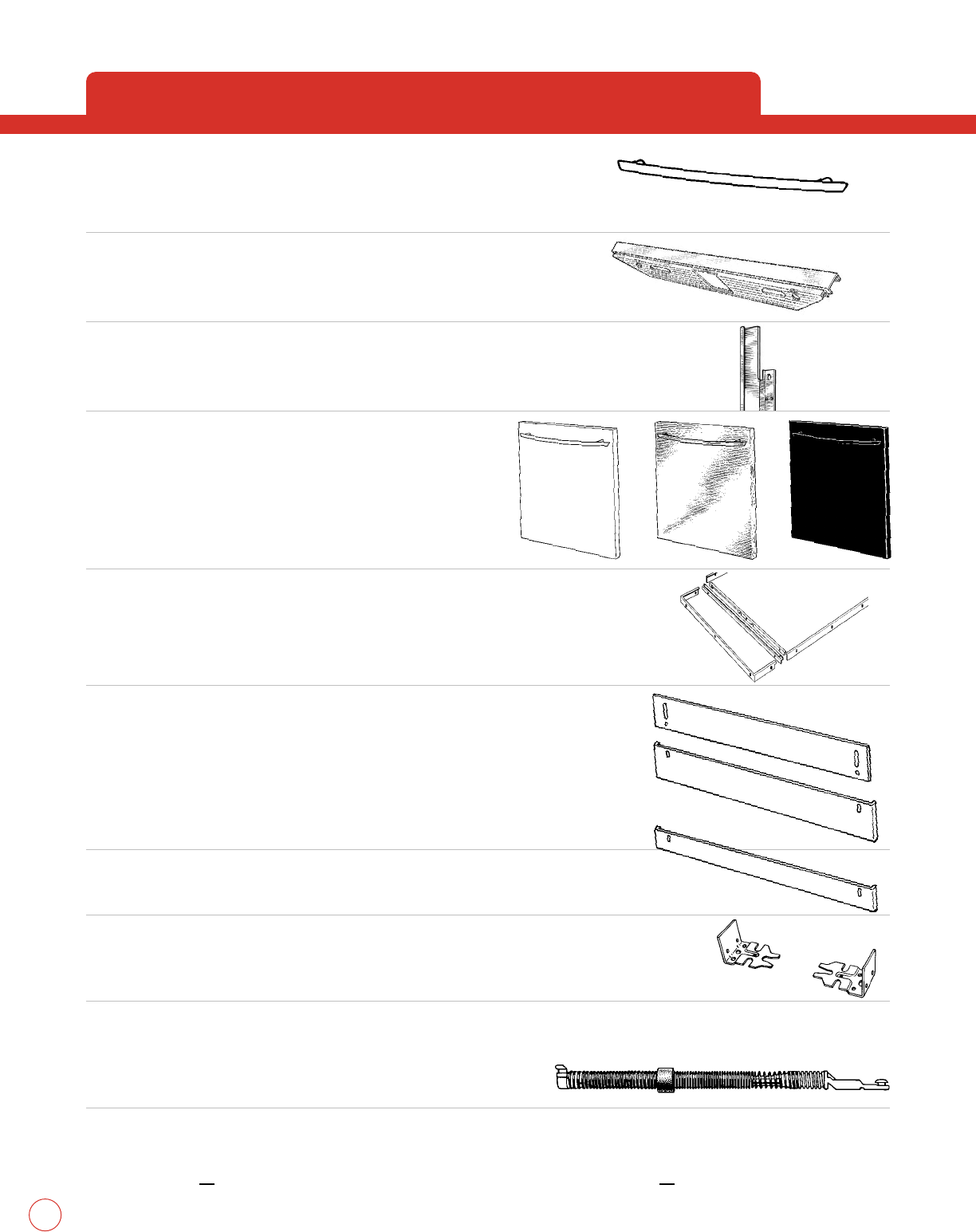

OPTIONAL DISHWASHER ACCESSORIES
Curved Handle for Fully Integrated Dishwashers
8073718-0 White 8073718-29 Black
8073718-84 Bisque 8073718-82 Brass-Like 8073718-95 Stainless Steel
Metal Top Fill Strip
Attaches to top of FI units and fills gap between tank and counter top.
8073869-95
FI Side Fill Strips, Stainless Steel
Fills gap when FI unit installed in 24” wide opening. Both pieces required for each installation.
8074248-95 Right 8074249-95 Left
One-Piece Door with Handle
Only available for D1796FI and D1996FI
One-piece door with matching one-piece, curved handle.
These doors cannot be used in ADA (<34") installations.
8072856–0 White 8072856–84 Bisque
8072856–29 Black 8072856–95 Stainless Steel
1/4" Trim Kits
Models D1706, D1716, D1776 and D1976
8070850–0 White trim kit for installing 1/4" custom panels
8070850–29 Black trim kit for same installation and units as above
European Toe Kick (Two Pieces)
8070121-0 Extension 8057528–0 Toe Kick
White European toe kick to accommodate 6" toe space on models
D1796FI, D1996FI and D1976CSTM. Two pieces are 23-1/2" wide.
8070121-29 Extension 8057528–29 Toe Kick
Black toe kick for same installation. Two pieces are 23-1/2" wide.
2.5" Toe Kicks
805SC-W White 805SC-B Black 805SC-SS Stainless Steel
Dishwasher Tip Guard
8070851
Secures dishwasher when it’s not possible to attach it to cabinetry or counter top
Two Heavy-Duty Door Springs
• 7-12 lbs.: 8060232-77 (Yellow) (Standard on the D1976CSTM)
• 12-22 lbs: 8071323-77 (Red) (Standard on all FI dishwashers)
Provide additional support for custom panels
Replacement Dishwasher Baskets
8801200–36 8801199–36
Lower basket for all models has removable tines Upper basket for all models has a split cup rack and
a stemware rack
European
Toe Kick
Extension
2.5" Toe Kick
7

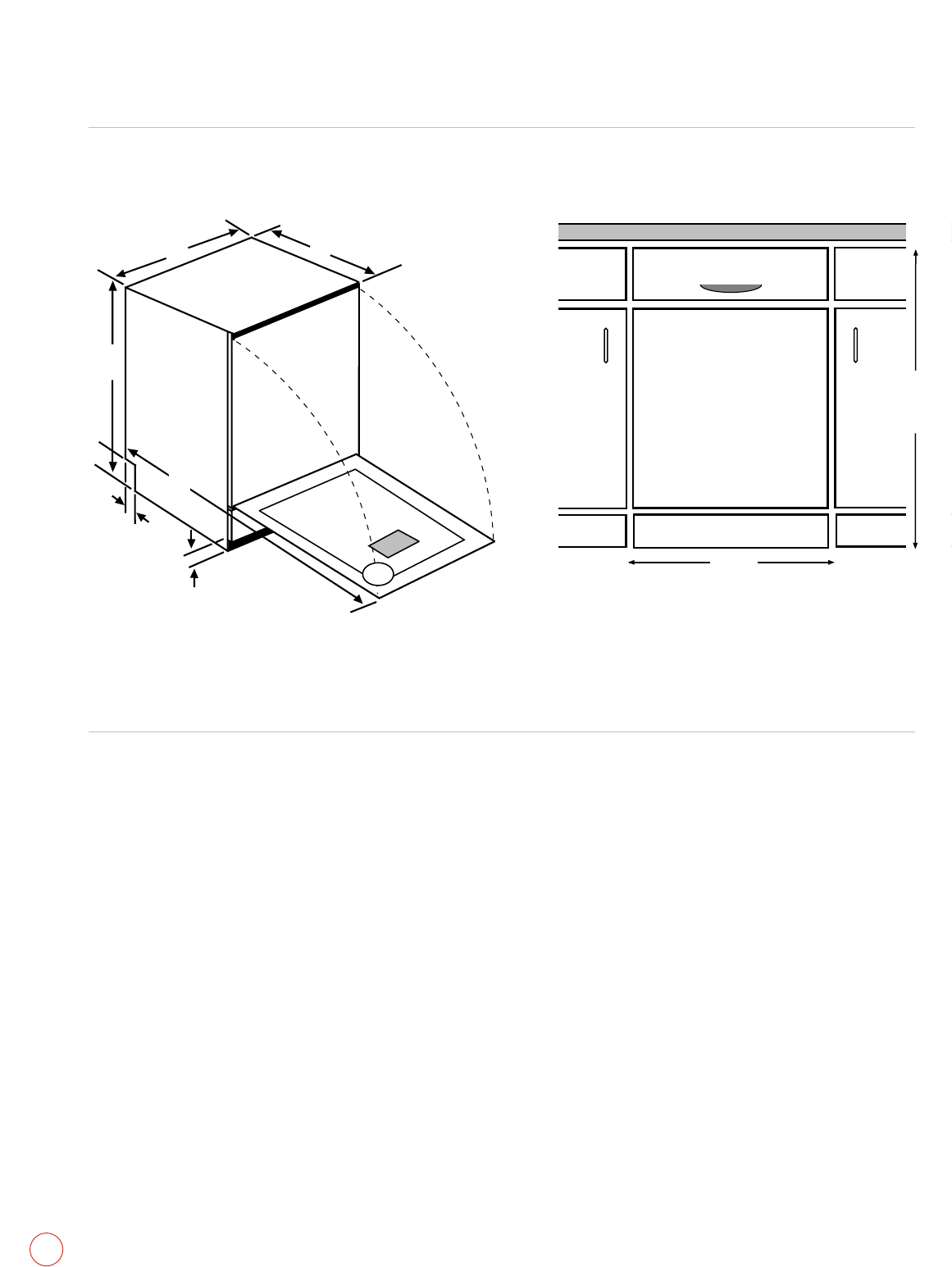

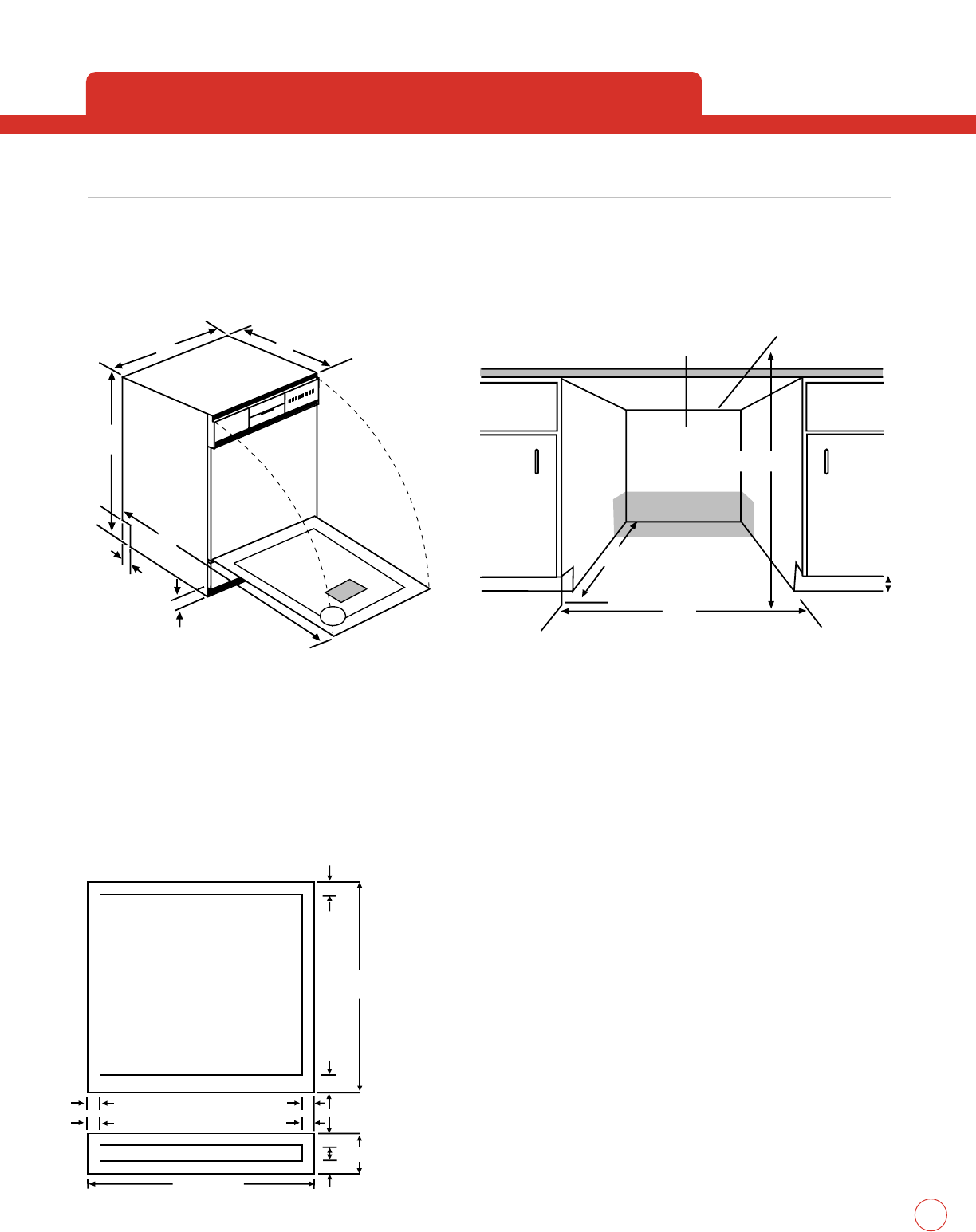

Standard Dishwashers
ASKO dishwashers will fit in both American and European cabinets. The leveling legs can accommodate virtually any
height requirement, including installations under 34" counters that comply with Americans with Disabilities Act (ADA)
requirements. Toe kick space is also adjustable.
For standard NON-raised panels, use 1/16" up to 1/4" material. For custom raised panels, the decor trim will accept
up to 1/4" flange. The raised panel can be mounted on a backing sheet cut to fit as shown.
• Backing sheet dimensions: Upper - 23-3/16" w. x 21-3/16" h.; Lower - 23-3/16" w. x 4-3/16"h.
• Raised portion dimensions: Upper - 21-3/16" w. x 17-15/16" h; Lower - 21-3/16" w. x 2-3/16" h.
Custom panel dimensions
See the Dishwasher Installation Instructions for detailed information.
*24" from fill strip to fill strip.
**23-7/16" depth includes space for high-loop drain hose.
24"
32-1/4" to 35-1/2"
23-7/16"
2"
Wall must be free
of pipes and wires.
Electrical and water supply should enter through the
shaded area and come up through the right side of the machine.
Maximum of 4" from the back wall and 8" from the floor.
There cannot be any electrical connections in this area.
4"
6-1/4"
to 8-1/4"
4"
2"
23-7/16"**
24"*
32-1/4"
to 35-1/2"
46-1/2"
6-1/4"
to 8-1/4"
1"
1"
23-3/16"
1"
2-1/4"
1"
1"
1"
1"
4-3/16"
21-3/16"

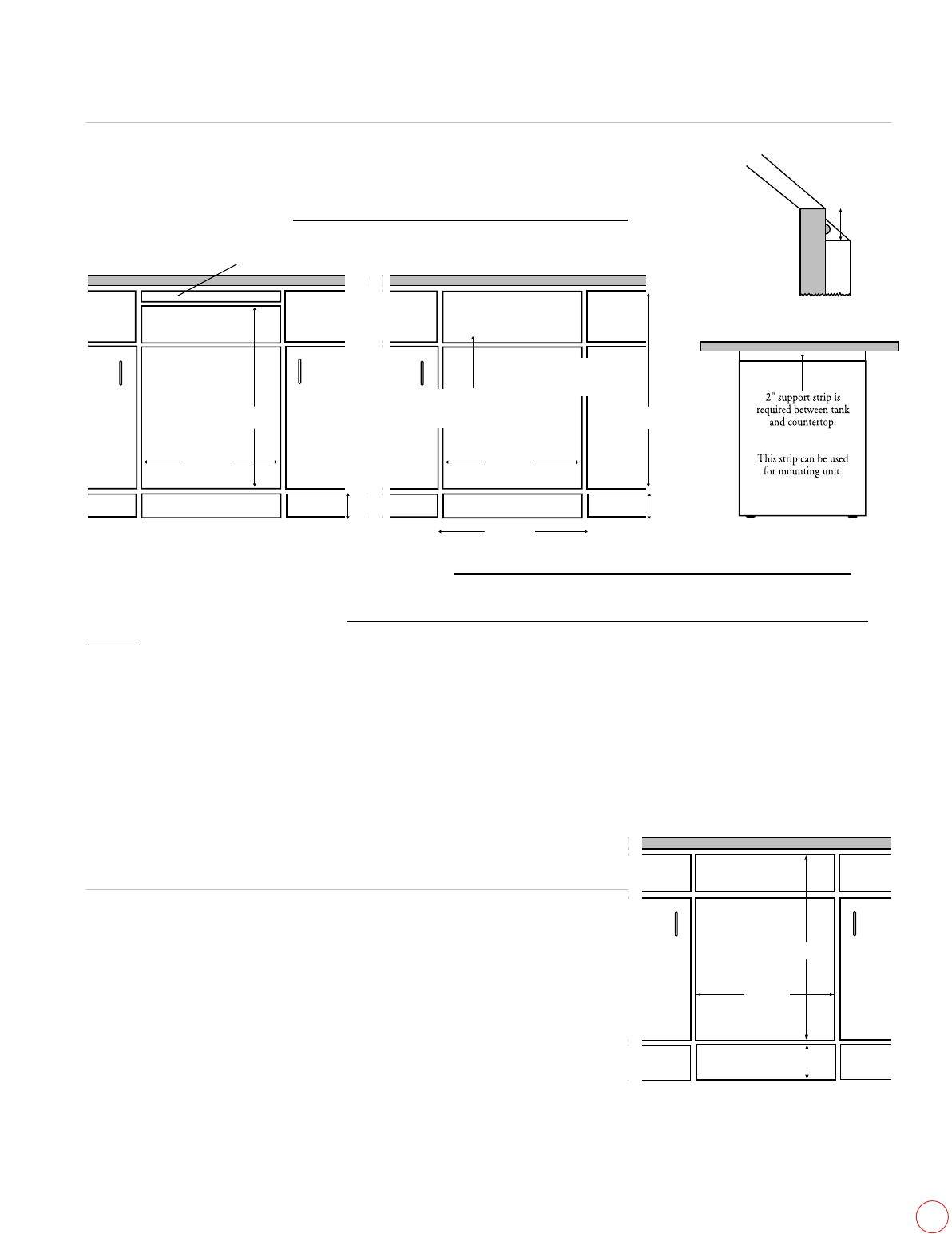

INSTALLATION & CUSTOMIZATION
D1996SS and D1996HNDL (Handle)
Even though the controls are on the top of the door, these units install like a standard ASKO dishwasher. They fit in
American (4" toe kick) cabinets with a 24" wide opening. They will not accept a custom panel.
*23-7/16" depth includes space for high-loop drain hose.
D1796FI and D1996FI (Fully Integrated)
These units were built for European cabinets (6" toe kick). However, the toe kick will accommodate American cabinets
(4" toe kick). In American-height cabinets, a 2" filler strip above the unit will be necessary. This is an excellent place for a
pull-out cutting board. The unit’s width is 23-5/8", 3/8" narrower than standard domestic dishwashers, so it easily installs
in European and American cabinets.
They come only in stainless steel. The control panel (hidden under the counter top) and toe kick are metallic colored. A
black toe kick can be purchased separately, if desired. (See dealer.) If the homeowner prefers, the toe kick can be covered
with the same baseboard used in the kitchen. It is not recommended that the baseboard running in front of the unit and
the cabinets be one continuous piece. Should the unit ever have to be removed, it is much easier if the baseboard in front
of the dishwasher can be removed separately.
These units have a special locking system so they can be installed with a custom panel. This panel can match the cabinets,
with a drawer front, a cabinet door and matching hardware. It is recommended that a handle be used for opening the
dishwasher. A knob may not provide enough grip.
They come with everything needed to make the installation easy. The dishwasher’s door is pre-drilled for the panel’s
mounting screws. The Turbo Fan Drying System’s vent is adjustable and must extend below the custom panel. The lower
access panel has been eliminated to give the unit its single door appearance.
See the Dishwasher Installation Instructions for detailed information.
8
32-1/4"
to
35-1/2"
24"
4"
2"
23-7/16"
*
24"
32-1/4"
to 35-1/2"
46-1/2"
6-1/4"
to 8-1/4"
9
4" Toe Kick Installations – D1796FI and D1996FI with Custom Panel Door
Where the custom panel’s height matches the dishwasher’s door, a 2" decorative fill strip or
cutting board must be used to fill the area between the panel and the counter top (A).
For this installation, the custom door panel dimensions are 23-1/2" wide x 28-1/8" high.
The opening width is 23-3/4", 3/8" narrower than standard domestic dishwashers.
Another installation option for 4" toe kick cabinets is to extend the door panel 1-3/4" above/beyond the control panel (B).
This eliminates the need for a 2" decorative fill strip. This door panel is 23-1/2" wide x 30-1/8" high (two inches higher
than previous option). This also means a 2" support strip must be installed between the tank and the counter top to fill
the gap.Even though, like all ASKOs, the D1796FI and D1996FI can be mounted with screws going through the sides,
this support strip can also be used for anchoring the unit from the top. A popular and more finished looking installation is to
use the metal top fill strip shown in Dishwasher Accessories (page 6). It fills the gap between the top of the tank and the
counter top. When used, the dishwasher is mounted with screws through the sides of the tank into the sides of the cabinets.
The custom door panel should be at least 3/4" thick.
6" Toe Kick Installations – D1796FI and D1996FI
with Custom Panel Door
For 6" toe kick installations, fill strips are unnecessary. These units install like a
standard ASKO dishwasher.
Installing the custom panel is simple. No additional trim kit is needed. Four
screws go through the dishwasher’s pre-drilled door and into the back of the
panel. The screw heads are completely hidden when the door is closed.
See the Dishwasher Installation Instructions for detailed information.
28-1/8"
23-1/2"
6"
28-1/8"
23-1/2"
4"
(A)
2" decorative fill strip or
cutting board required
23-1/2"
23-3/4"
4"
30-1/16"
Custom panel extends
2" beyond/above
dishwasher door.
Custom panel goes from
toe kick to counter top:
23-1/2"w x 30-1/8"h.
(B)
There will be a 1-3/4"
height difference
between controls
and panel.
10
Electrical And Water Requirements – EasyInstall™Dishwashers
ASKO’s dishwashers come with all the connections you need. We’ve eliminated the need to get into the electrical and
mechanical area, which makes installation simple and quick. If a dishwasher is being installed in an area for the first time,
most of the cabinetwork, plumbing, and electrical has to be done before you move the machine into place. If you are
replacing an old dishwasher, you must check the plumbing connection and wiring before you install the new dishwasher.
This system has these components which have been approved by regulatory authorities (cUL):
•Over 5' of Pex hose that replaces the water-inlet copper tubing. It has a 3/8"-compression fitting that mates with the
shut-off valve. Length: 5'2" from back of unit.
•Over 6' of drain hose with an adaptable drain connection. The high loop is built into this hose on the back of the unit.
If this loop is removed to lengthen the hose, another high-loop must be built into the installation somewhere along the
line (typically where the hose passes through the cabinet). Length: 6'6" from back of unit.
•A 6' long electrical cord with standard, 3-pronged, 110V plug. This eliminates the need to wire anything under the unit.

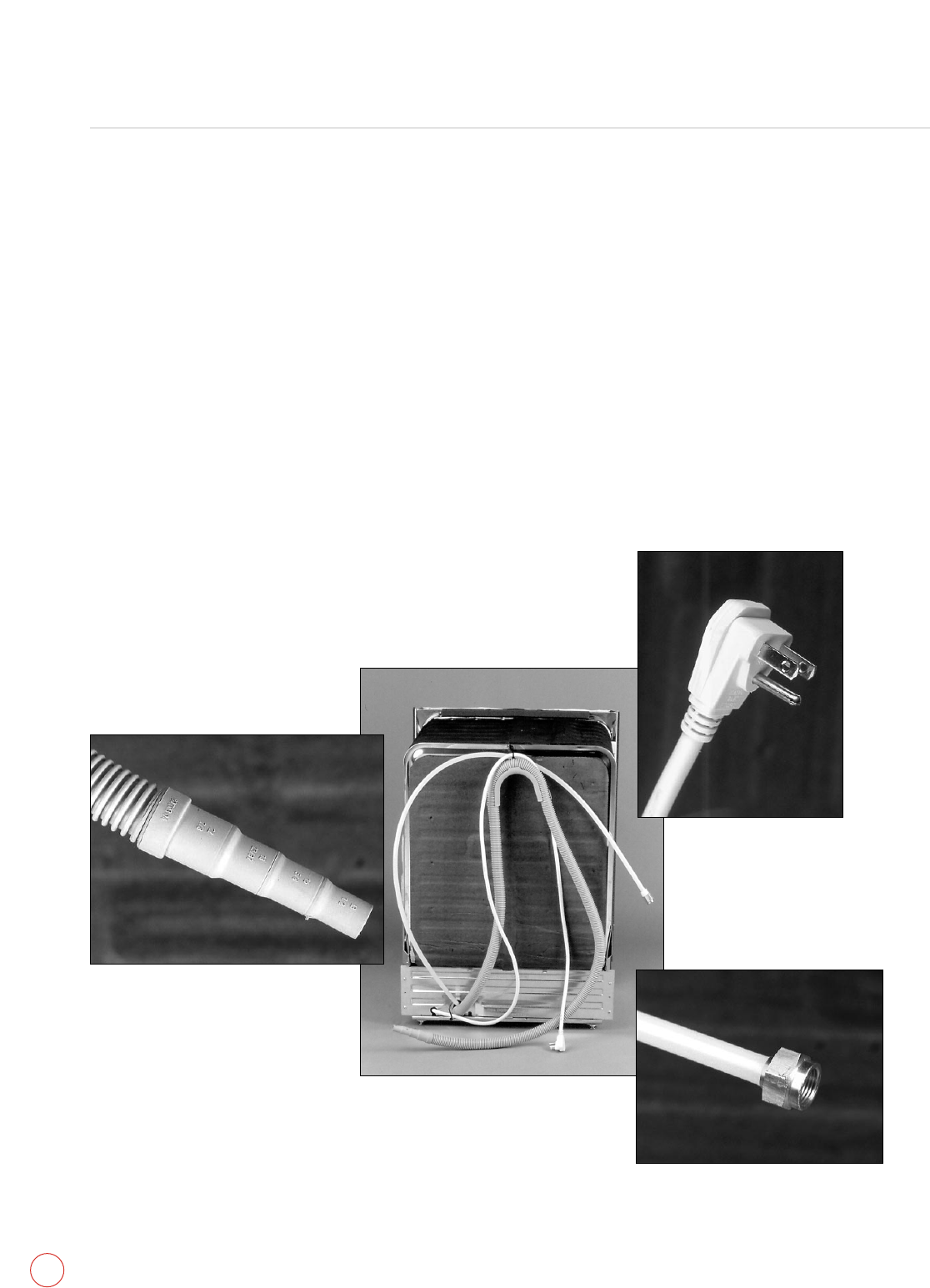

Back of ASKO dishwasher with
EasyInstall system.
Pex hose with 3/8” brass fitting.
Each unit comes already
wired with a standard
three-pronged plug.
Drain hose with multiple
size adaptor.
11
Key Selling Features Of Every ASKO Washer
(
◆
EXCLUSIVE FEATURES)
◆20-year life expectancy
◆Large, easy-access door opening
◆Super Quick Wash program washes smaller or lightly-soiled loads in only 34 minutes, yet uses as little as 5.7 gallons of
water and 0.3kWh (2¢) of electricity
◆Quick Wash program washes full loads and rinses three times in only 45 minutes with only 9.3 gallons of water and
0.9kWh (6¢) of electricity.
◆Quattro™
, four-shock suspension, Automatic Load Balancing System, cast-iron counterweights, and heavy-duty
bearings control load balancing and provide virtually vibration-free spin cycles for quiet operation – also prevent
walking and allow for stacking of units
◆Solid rubber SmartSeal™door gasket eliminates troublesome bellows gasket seal that can leak and collect detergent
and soil residue
◆Uses less electricity than any other washer (according to DOE and FTC test procedures)
◆Multiple, adjustable programs
•
Additional plug or wiring is unnecessary because ASKO dryer has 220V receptacle for ASKO washer. This eliminates
the need to purchase an expensive dual-outlet splitter box or to have an additional 220V line run for the washer.
•
Capacity as large as any top-loader: up to 14 bath towels
•
Smaller exterior size and quiet operation allow for installation in more convenient locations, e.g., in closets or under
counters in bathrooms, utility rooms, and kitchens
•
Tumble action, precise temperature controls, optimal wash time, less detergent and elimination of bleach produce
significantly cleaner, fresher-smelling laundry and extend the life and beauty of clothing
•
High-lift ribs raise laundry to optimal height before dropping into water, increasing wash action effectiveness.
Ribs also shower laundry with water to enhance cleaning action
•
Sensor Level Control System automatically determines the correct amount of water for every load
•
Can save 15,000 gallons of water annually. Super Quick Wash uses 5.7 gallons per load on average; Normal Wash uses 15.
Typical old-style agitators use an average of 44 and domestic front loaders use 28.
•
An ASKO washer can save over $200 annually in water, electricity, detergent, and bleach costs.
•
Stainless steel, electro-polished interior drum is snag-free, more gentle to clothes, and more durable than porcelain or plastic
•
Built-in water heater provides optimal temperatures (Cold, 85°– 205°F) for better cleaning and energy savings by
eliminating need to use home’s less efficient water heater
•
Cold water fill helps remove protein stains, such as blood, as well as wine and grape juice
•
High spin speeds (up to 1,600 rpm) remove up to 94% of water that can be extracted by centrifugal force (spinning)
– reducing time and energy consumed by dryer and extending life and beauty of clothing
•
Up to seven rinses remove virtually every trace of detergent and soil
•
Both units can run off a single, standard 30 amp circuit
•
Child-proof controls and electronic door latch
•
Dual, internal fuse protection
•
Easy-to-reach, out-front controls
•
Anti-jam, auto-reversing drain pump reduces service calls
•
Rust- and chip-proof stainless steel inner and outer tanks
•
Automatic detergent and fabric softener dispenser
•
Removable, washable detergent compartment
•
Stackable when paired with ASKO dryer (kit included with dryer)
•
Every unit 100% factory tested for a minimum of 2-1/2 hours
•
cUL approved
WARRANTY:
3 YEAR: All parts and labor
4-5 YEARS: All parts for electronic controls, timers, motors, and pumps
LIFETIME: Stainless steel drum, parts
(See Warranty Certificate for complete details).
★
★
★
★
★
★
CLOTHES WASHERS
12
SKUs White
W6021
Shipping Weight 161 lbs.
◆
Six-way Aqua Block Water Containment System
•
Electronic dial and push-button controls
•
800 and 1200 rpm spin speeds
•
Adjustable water temperature: Cold, 85° – 205° F
•
Child-proof temperature lock
•
Large tub door opening
•
Removable pin trap
•
No-spin option
•
Separate Wool and Hand Wash programs
Key Features Of The W6021
(
◆
EXCLUSIVE FEATURES)
W6021
SKUs White
W6441
Shipping Weight 174 lbs.
◆
EasyControl™system with program dial, option
buttons and LCD window
◆
11 programs are denoted around knob on control panel.
◆
Six option features (buttons) are denoted on detergent
drawer: temperature, spin speed, delay start, Super
rinse, high water and anti-crease.
◆
LCD window shows temperature, estimated running
and remaining time, and available options.
◆
New Anti-Crease program
(first ever in a washer)
greatly
reduces wrinkles before clothing goes in the dryer. After
the last spin, the tank rotates for three seconds every
minute for up to two hours or until the door is opened.
•
Remembers last program used and automatically
repeats program unless changed.
•
Time delay start (1-24 hours)
•
Seven wash temperature options (85°F to 205°F)
•
400-1400 rpm spin speeds, adjustable
•
SensiSave water & energy saving system
•
Program interrupt, add-an-item feature
Step-Up Features Of The W6441
(
◆
EXCLUSIVE FEATURES)
W6441
Stain
Programs
Heavy
Normal
Perma
press
Quick
Super quick
Drain
Spin
Rinse
Hand/
Delicate
Wool
13

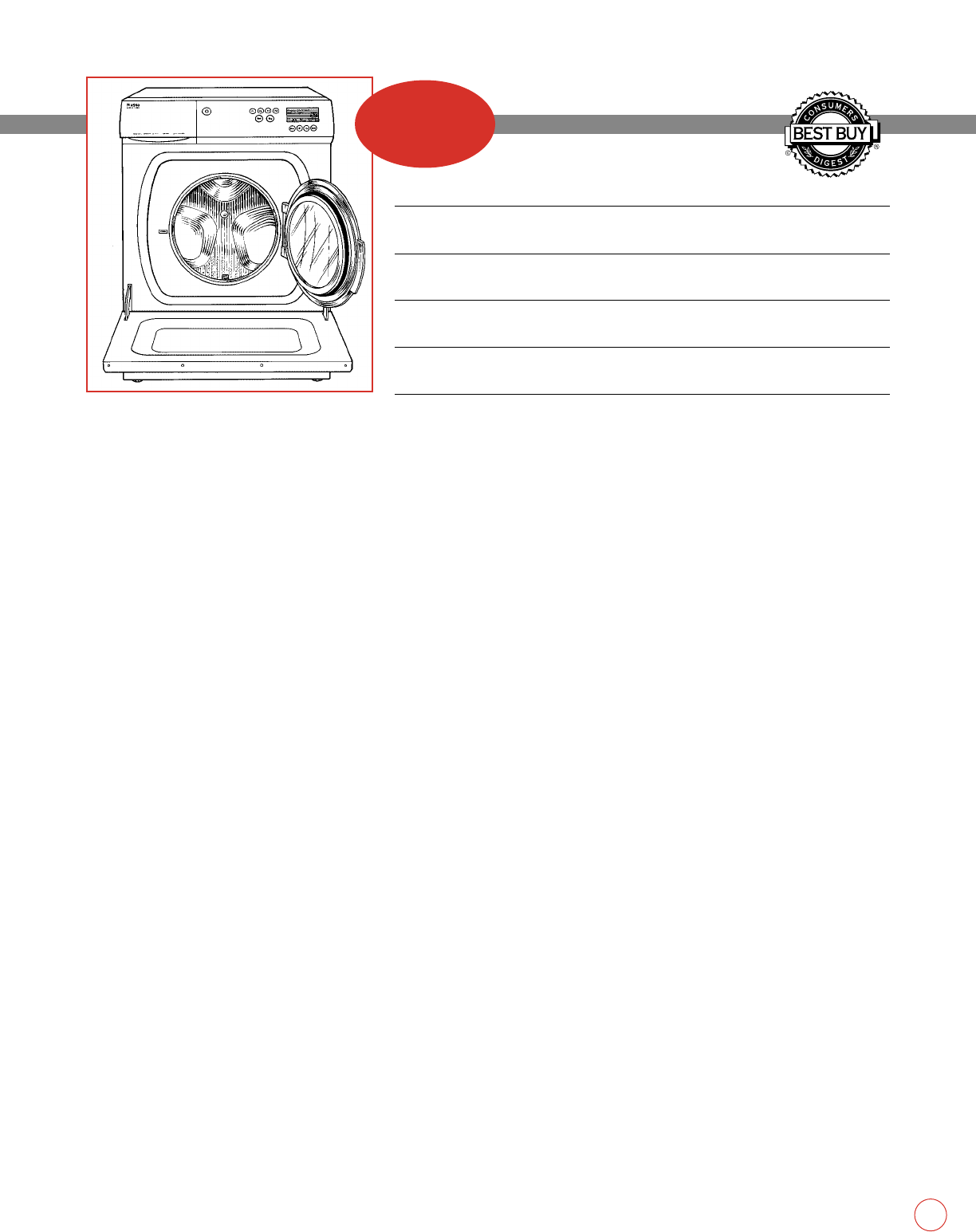

SKUs White Stainless Steel
W6661W W6661SS
Shipping Weight 183 lbs. 193 lbs.
◆
Quiet Package
◆
EasyControl™system with four-button operation
◆
Seven-way Aqua-Block Water Containment System
with float-activated shut-off valve
•
Available with stainless steel exterior with a black
control panel and inner cabinet
•
Adjustable spin speeds (400 – 1600 rpm) for a spin
about twice as fast as an old-style agitator or domestic
front-loader
•
Convenience door drops down for easy loading
and unloading
Step-Up Features Of The W6661
(
◆
EXCLUSIVE FEATURES)
W6661
14
Key Selling Features Of Every ASKO Dryer
(
◆
EXCLUSIVE FEATURES)
◆20-year life expectancy
◆Butterfly Drying™System’s offset paddles help move clothing from front-to-back and back-to-front in drum
to prevent wrinkles. One-direction rotation also extends motor life
◆Cleanable, air-flow fan
◆Adjustable cool down for every heated cycle
•
Additional plug or wiring is unnecessary because ASKO dryer has 220V receptacle for ASKO washer. This eliminates
the need to purchase an expensive dual-outlet splitter box or to have an additional 220V line run for the washer.
•
Stainless steel, electro-polished interior drum is snag-free, more gentle to clothes, and more durable
than porcelain or plastic
•
Anti-crease program
•
Large capacity drum also reduces wrinkles
•
Can be stacked when paired with ASKO washer – stacking kit included
•
Up to 90 minute, time-controlled drying program
•
Air, low and normal temperature programs
•
End-of-program buzzer
•
20-minute Air (fluff) drying program
•
Three-way venting
•
Easy-to-reach, out-front controls
•
Easy-access, double lint filter
•
Flush, swing-out door can be hinged on left or right
•
Only needs one 220V, 30 amp outlet (like any standard US dryer)
•
Every unit 100% factory tested for a minimum of 2-1/2 hours
•
cUL approved
LAUNDRY WARRANTY:
3 YEAR: All parts and labor
4-5 YEARS: All parts for electronic controls, timers, motors, and pumps
LIFETIME: Stainless steel drum, parts
(See Warranty Certificate for complete details).
Do not pair with a top-loading washer; those washers spin too slowly to remove enough moisture to allow for efficient drying.
★
★
★
★
★
★
CLOTHES DRYERS ALL UNITS ARE ELECTRIC
15
SKUs White
T701
Shipping Weight 86 lbs.
•
Timed and automatic drying programs
•
Electro-mechanical and push-button controls
•
Vented
•
Reversible door on all models
•
Three temperatures: Normal, Low and Air
•
Four drying programs: Extra Dry, Dry, Timed Dry
and Air (Fluff) Dry
•
Two cool-down options: Normal and Quick
Key Features Of The T701

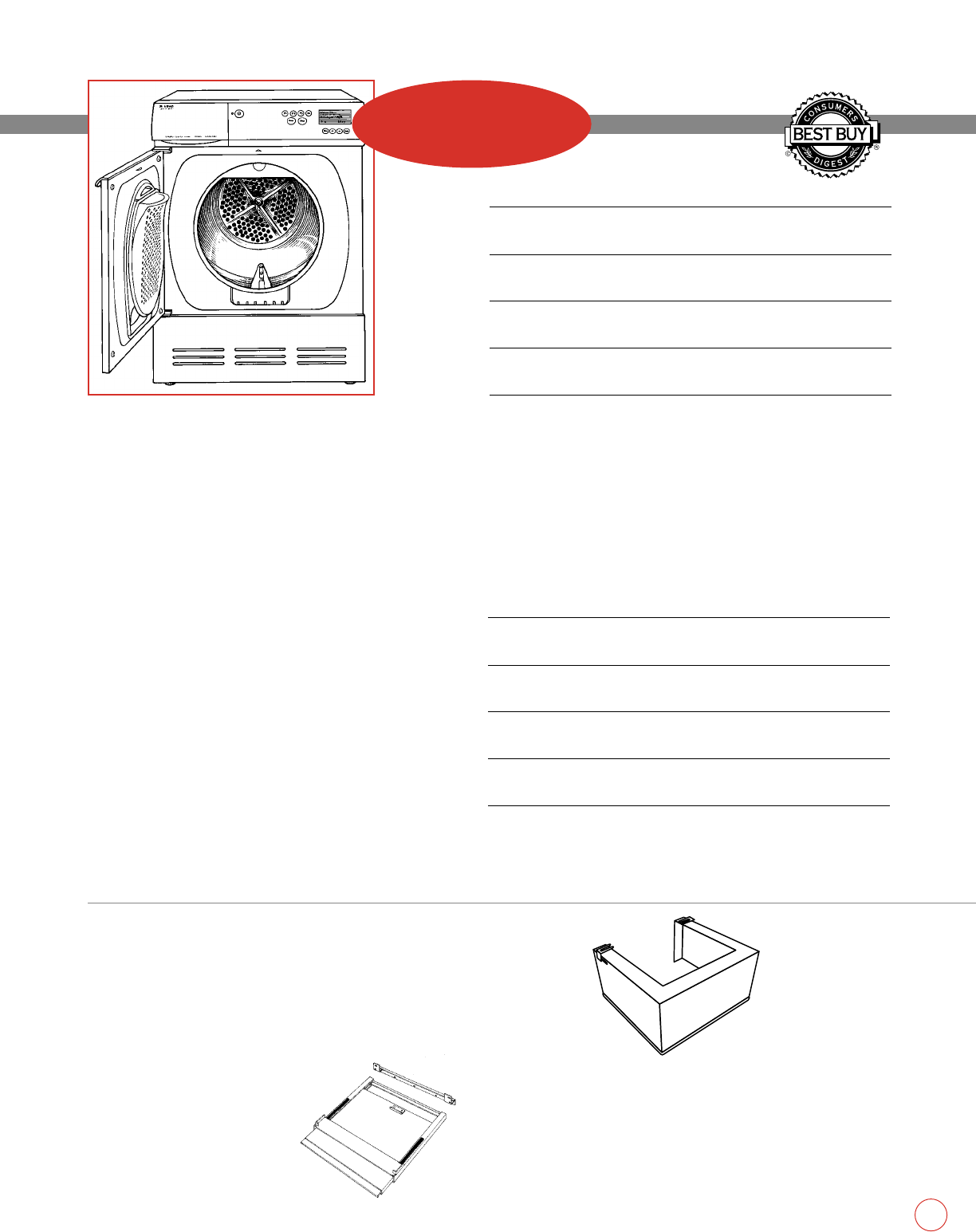

SKUs White
T721
Shipping Weight 104 lbs.
◆
Five-way water containment system
•
Internal moisture condenser eliminates need for
external wall venting
•
Two drying programs: Timed Dry and Air (Fluff) Dry
Step-Up Features Of The T721
(
◆
EXCLUSIVE FEATURES)
T701
T721
16

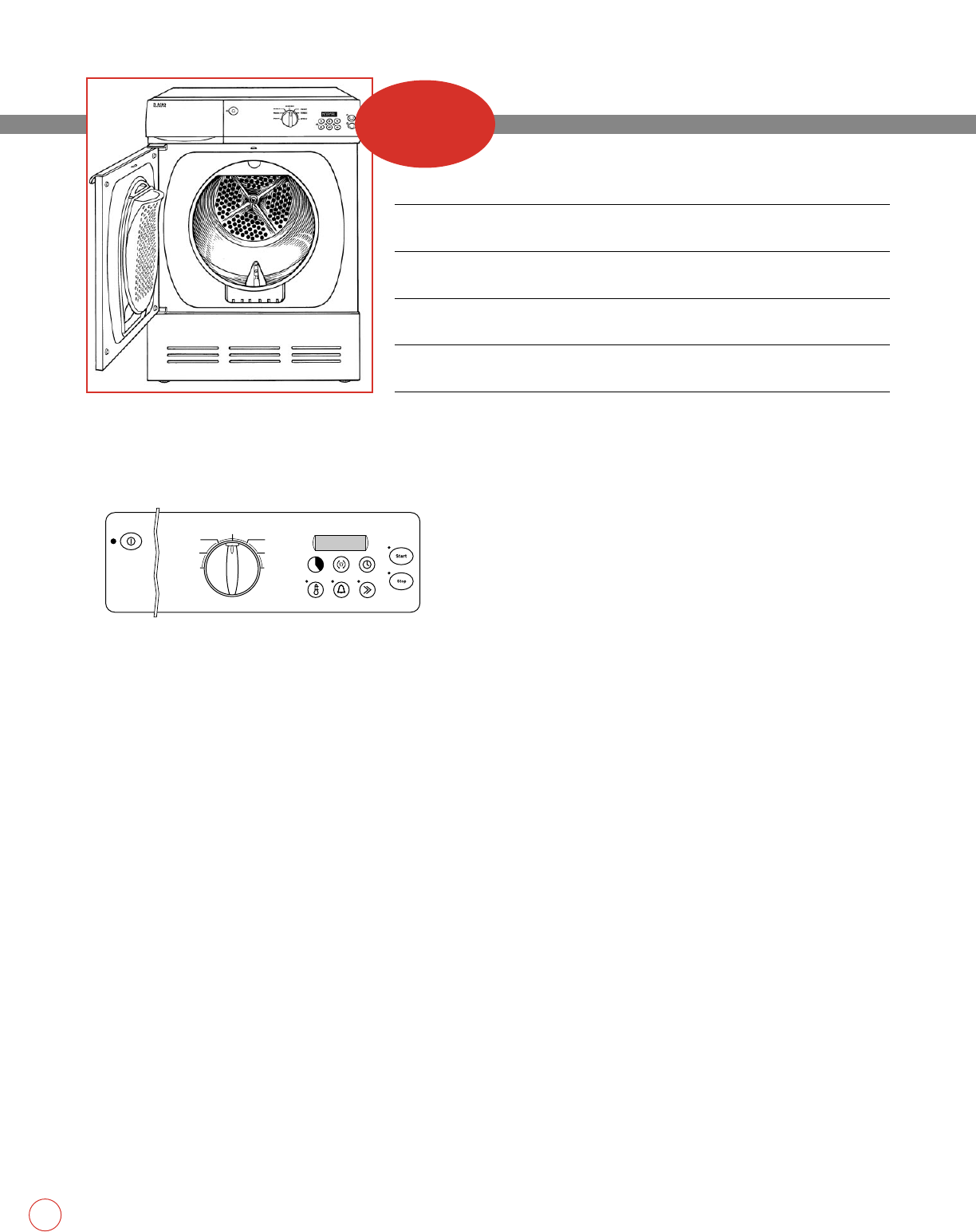

SKUs White
T731
Shipping Weight 86 lbs.
◆
EasyControl™system with program dial, option
buttons and LCD window
◆
Six programs are denoted around knob on control panel.
◆
Six option features (buttons) are denoted on sticker
inside door: timed drying (5-90 mnts.), Anti-Crease,
Delay Start (1-24 hours), temperature (low-normal),
end-of-program buzzer, and cool-down cycle
◆
LCD window shows: SensiDry™program selected,
time when a timed-drying program selected, number of
minutes when Air Fluff selected, “End” when program
is completed, and “C” when in cool-down cycle.
•
Remembers last program used and automatically
repeats program unless changed.
•
Time delay start (1-24 hours)
•
Three way venting
Step-Up Features Of The T731
(
◆
EXCLUSIVE FEATURES)
T731
Extra dry
Dry
Normal dry
Iron dry
Timed dry
Air fluff
Programs
◆
Five-way Aqua-Block Water Containment System
•
Internal moisture condenser system eliminates need
for exterior wall venting
17
SKUs White Stainless Steel
T761W T761SS
Shipping Weight 86 lbs. 96 lbs.
SKUs White Stainless Steel
T781W T781SS
Shipping Weight 104 lbs. 114 lbs.
◆
Available with stainless steel exterior, black control
panel and inner cabinet
◆
EasyControl™system with four-button operation
◆
Programs can be altered permanently or for
one-time use
◆
Communicates in 11 languages
•
1–24 hour delay start option
•
SensiDry™program prevents over-drying
•
Six drying programs: Extra Dry, Dry, Normal Dry,
Iron Dry, Air (Fluff) Dry, and Timed Dry
•
1–3 hour anti-crease option
•
Fault indicator
•
Epoxy-coated buttons reduce normal wear
Step-Up Features Of The T761
(
◆
EXCLUSIVE FEATURES)
Step-Up Features Of The T781
T761/T781
White Space Trim Kit
8063981
Installs between stacked pair to provide a single unit appearance
Slide-Out Shelf Steel Laundry Platform
8061907-0 White 8052000 White
8061907-26 Black 8052000-B Black
Installs between stacked pair Will raise a washer or a dryer (one machine per
Extends 15" from units platform) 12" off the floor
LAUNDRY ACCESSORIES
Laundry
Washers
Dryers
Under Counter Installations
These units can be installed in free-standing installa-
tions. This shows the traditional built-in layout: dryer
on left and washer on right. To reverse this, simply
reverse the installation specs. These units can also be
built in under a 34" to 35" high counter. The
minimum counter width is 49" for a pair. This 49"
width allows 1/2" of space on the outside edges and
between the units, otherwise units may bump
wall/cabinet or each other during spin cycles. This
also allows for sufficient air circulation for dryer.
Electrical, Water And Code Requirements
The washers have a 220 V line that plugs into an ASKO dryer or a standard 220 V, 20 amp single phase outlet. ASKO
dryers plug into standard 220V, 30 amp circuit. The washers connect to the cold-water outlet. The water pressure must be
between 15 – 146 PSI. Second floor (above grade) installations must meet all local building codes.
See Use &Care Guide for detailed installation instructions.
23-7/16"
33-1/2"
to 34-1/2"
23-7/16" or 24-7/16"
23-7/16"
33-1/2"
to 34-1/2"
23-7/16" or 24-7/16"
23-7/16" or 24-7/16"
67" to 69"
23-7/16"
Depth with Door Open
W6021 — 36-3/8"
W6441 & W6661 — 42-3/8"
Depth with Door Closed
W6021 & W6441 — 24-7/16"
W6661 — 23-7/16"
Depth with Door Open
46-1/16"
Depth with Door Closed
T701, T721 & T731 — 24-7/16"
T761 & T781 — 23-7/16"
5-1/2"
23-3/4" or 24-3/4"
49" Minimum
34"
to 35"
15-3/4"
Minimum
Hot &
Cold Water
4-23/32" 4-1/8"
Drain
Hole Diameter
5-1/2"
5-1/2"
220V,
30 Amp
Outlet
18
INSTALLATION
ASKO Inc. • P.O. Box 851805 • Richardson, Texas 75085-1805 Form 051101-0530 © ASKO Inc. 2002
Underwriters Laboratories, Inc. Printed on Recycled Paper
The following chart is an edited version of the EnergyStar list. It was condensed so
it included only the better-known dishwashers. This chart shows Brands and their
Model number, the total estimated kilowatts (kWh/Year) each consumes per year,
the Energy Factor (a number that enables you to compare the relative efficiency of
different units), and (% Better) how much each unit exceeds the minimum federal
standard in percentages. This chart shows you that ASKO still sets the standards for
energy efficiency when comparing comparable-sized units. If you would like more
information on this topic, please visit the EnergyStar web site at energystar.org.
kWh/ Energy % Lifetime
Brand Model Year Factor Better Cost*
Fisher & Paykel DS602-USA (Only one drawer) 277 1.16 152% $296
Asko D1976 380 0.85 84% $406
Asko D1876 391 0.82 79% $417
Asko D1796 392 0.82 79% $418
Asko D1776 397 0.81 76% $424
Asko D1996 412 0.78 70% $440
Asko D1716 416 0.77 68% $444
Asko D1706 448 0.72 56% $478
Miele G605 & G805 477 0.68 48% $509
Kitchen Aid KUDV25 472 0.68 48% $504
Frigidaire FDB641RJ 498 0.65 41% $532
Frigidaire FDB657RJ - GPDB698J 506 0.64 39% $540
Frigidaire GLDB656J 506 0.64 39% $540
Frigidaire FDB635RF - GLDB653J 514 0.63 36% $549
Frigidaire GLDB957J - GPDB998J 518 0.62 35% $553
Bosch SHI 6802 - SHI6806 UC 520 0.62 35% $555
Bosch SHU 6802 - SHU 6806 UC 520 0.62 35% $555
General Electric GSD3825 - GSD3855F00 520 0.62 34% $555
Thermador DWI246U* 524 0.61 33% $559
Kitchen Aid KUDI01T - KUDS01IJ 526 0.61 33% $561
Bosch SHU 3302 - SHU 5317 UC 535 0.60 31% $571
Fisher & Paykel DD602-USA (Two drawers) 544 0.59 29% $581
Bosch SHI 4302 - SHI 4306 UC 546 0.59 28% $583
Miele G643 - G863 544 0.59 28% $581
Bosch SHU 9922 - SHV 4803UC 556 0.58 26% $593
ASKO Inc. retains the right to vary the model specifications at any time. All facts were accurate at time of printing. Before purchasing any ASKO product, read important energy cost and efficiency information available from retailer.
*Cost based on DOE average kWh of 8.21¢ and an average life expectancy of 13 years. (Source: Association of Home Appliance Manufacturers.)
BUILT TO LAST LONGER
www.askousa.com
ENERGY STAR QUALIFYING DISHWASHERS
TOP MANUFACTURERS
THERE’S MORE TO AN ASKO
THAN MEETS THE EYE.
91% 0F HOUSEHOLDS
SAY ASKO IS QUIETEST.
Dishwashers selected by 91%
of homeowners as the quietest
in independent tests.
D1996FI Dishwasher
W660 Washer & T760 Dryer
W660 and T760 for 2000 W600 for 2001
W660 Washer & T760 Dryer
★
★
★
★
★
★
ASKO dishwashers and washers
meet the Energy Star®requirements.
All ASKO products are covered
by the Good Housekeeping Seal.
1805 Dishwasher
Excellence In
Design Innovation

Navigation menu
