New Zealand Australia USA Canada Europe Asia Pacific
Installation instructions and
User guide
Autowasher
IW812, IW712, IW512, IWL12, IWM12, IWC12
2
Intelligence Working For You
The Intuitive™ Series is born from 70 years of Fisher and Paykel laundry innovation. With
sophisticated electronics and a revolutionary direct drive motor, that clean and care for your
clothes as never before.
Unlike conventional machines Intuitive™ autowashers use intelligence to continually adapt the
wash action and water levels to save on water and electricity use; making it kinder on your
wallet and the environment.
Intelligent Electronics
Two powerful microprocessors control every aspect of
the Intuitive™ washer, allowing it to continually monitor
and respond to each wash. It contains over 10,000 lines of
instructions in its “brain” – the result of many years of testing
and fine-tuning, to give you the best possible performance.
Energy Conservation
The unique wash action means a typical load uses only the same
amount of electricity as a 100-watt light bulb left on for an hour.
Direct Drive Motor
Our revolutionary direct drive motor is capable of infinite wash
actions, continuously adjusting its speed to the movement of
your clothes, removing dirt while caring for the fabric, delivering
the ultimate wash.
Reliability
The Intuitive™ has no mechanical brake, pulleys, or gears, which
means fewer moving parts and greater reliability.
Eco Active™ Wash System
The Intuitive™ unique washing method uses a combination of
front loader and top loader washing technologies. Boosting dirt
and soil removal while conserving energy (Intuitive Eco™
models only).
Agitator
Flexible fins on the agitator work in conjunction with the motor
to understand your wash. Delicate fabrics will slither around the
fins, whereas heavy fabrics will move with more resistance. Sensors
in the motor measure this resistance to effectively “feel” the load,
sensing the type of fabric in the load.
The Eco (Save Water++) Option
Designed to make every drop count, using up to 25% less water
than the traditional Water Saver rinse, without compromising on
wash performance.
3
Contents
Installation Instructions
4
Before You do Your First Wash
7
Getting Started Quickly
8
How Dirty?
Stained 10
Fabric Care
Auto Sensing, Creasables, Wool, Handwash 10

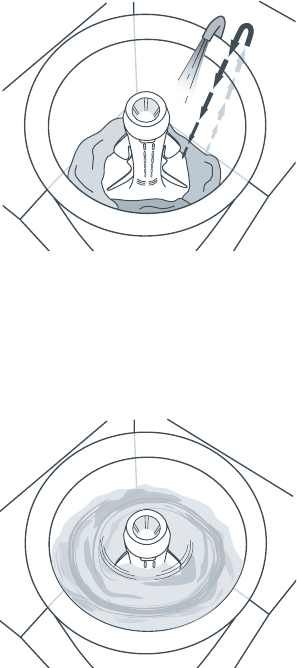

Eco Active™ Wash
11

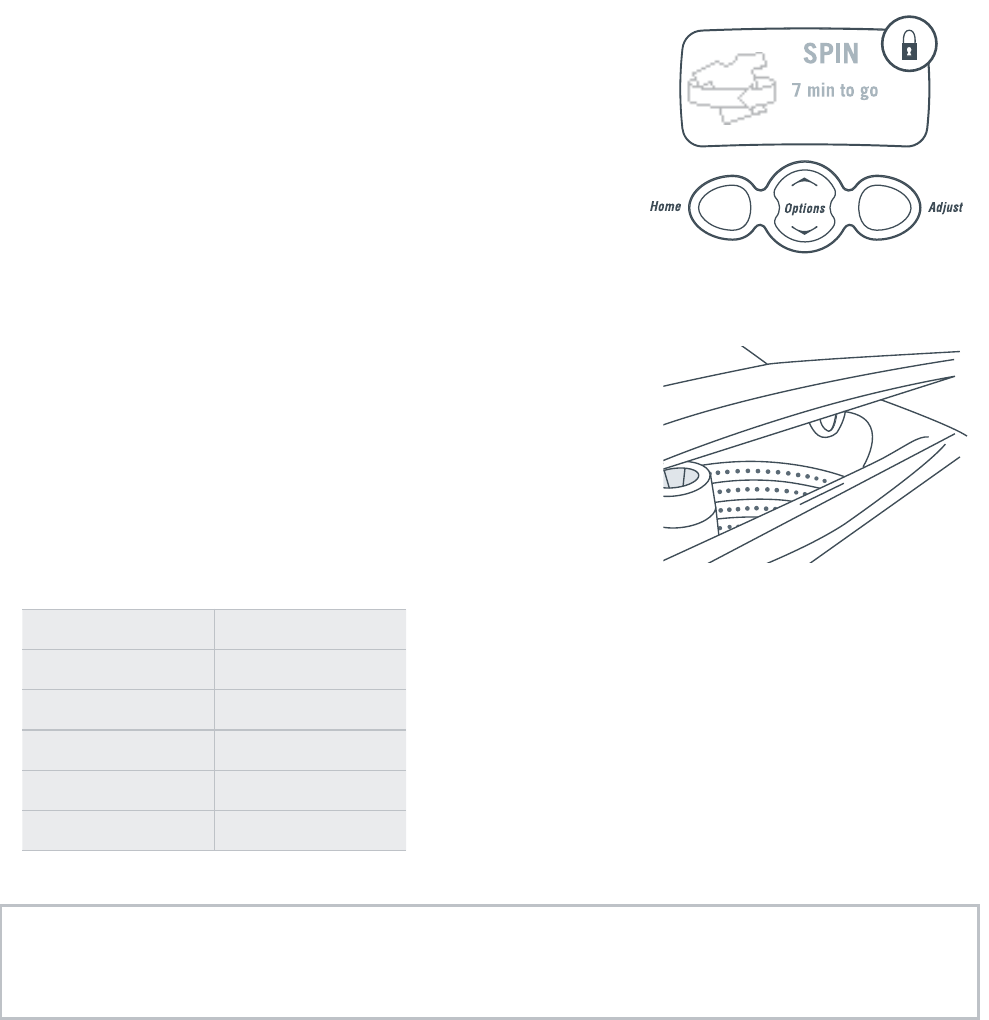

Lidlock
12
Hot/Total Water Consumption
13

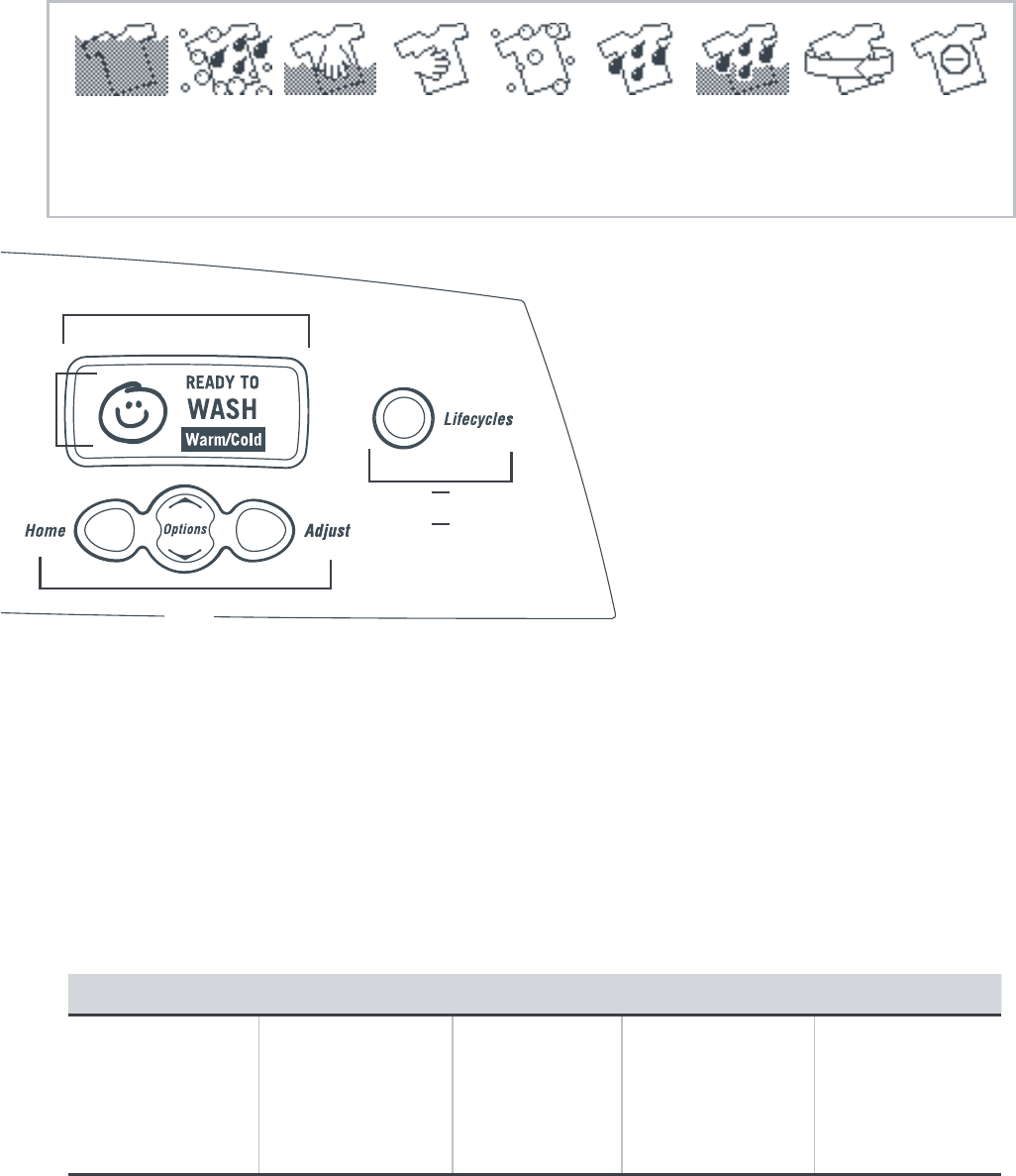

Display Screen
13

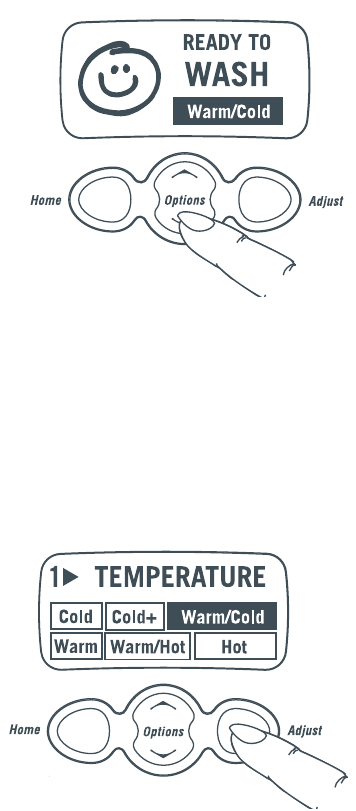

All About The Options Button
Selecting, Customising, Time To Go 14
The Options

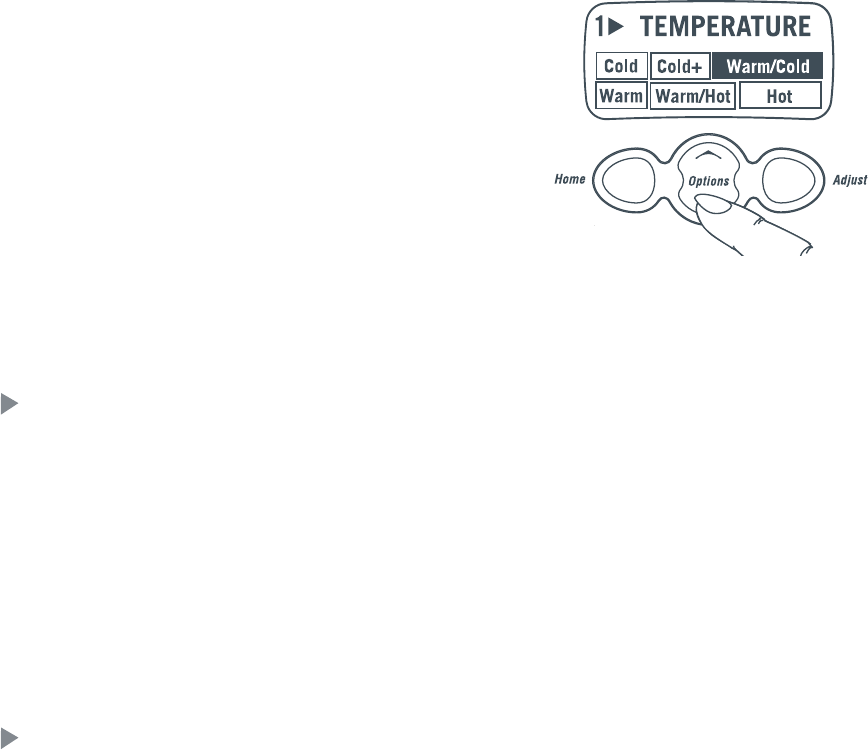

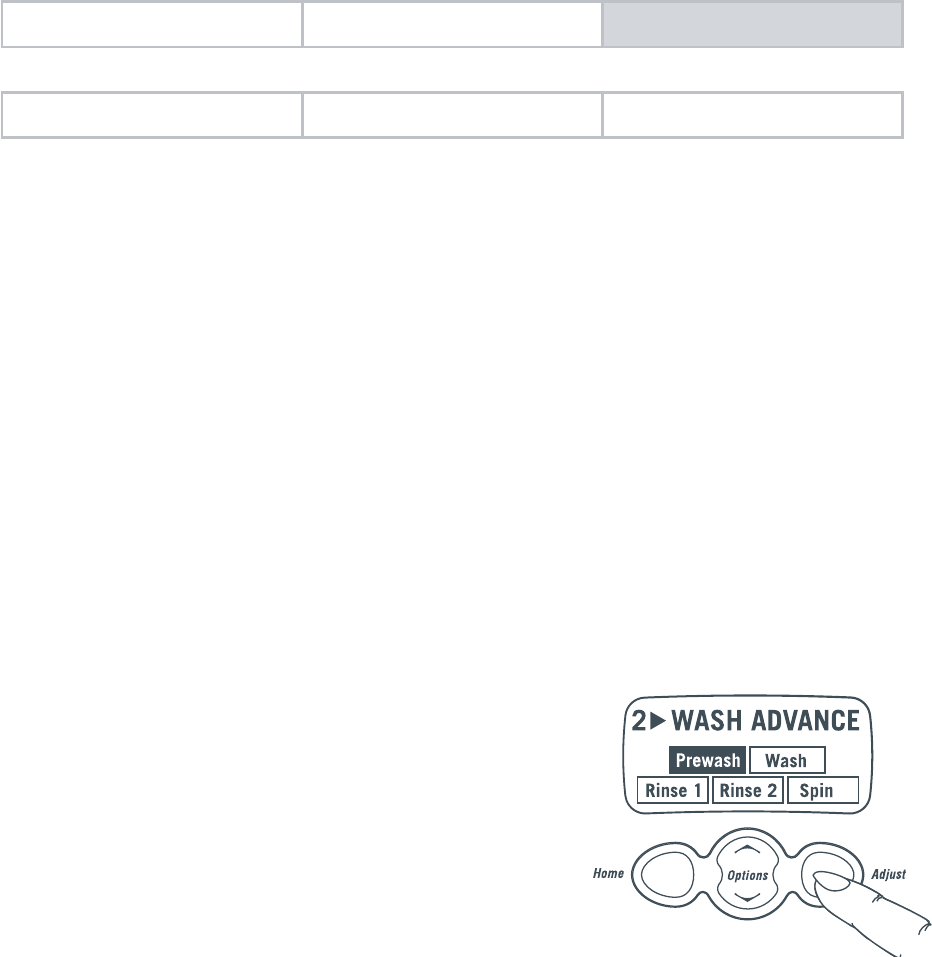

Temperature, Controlled Cold, Wash Advance 15
Save Water, Delay Start, Save Time, Soak 16
Drip Dry, Max Spin Speed, Water Levels, Traditional Wash 17
Adjusting the Wash Settings
Wash Temp Adjustment, Auto Water Level Adjustment 18
Default Rinse, Creasable Spin Speed, Out of Balance Recovery 19
End of Cycle Beeps, Re-set Defaults 20
Lifecycles™
Favourite Cycle Design Your Own Wash 21

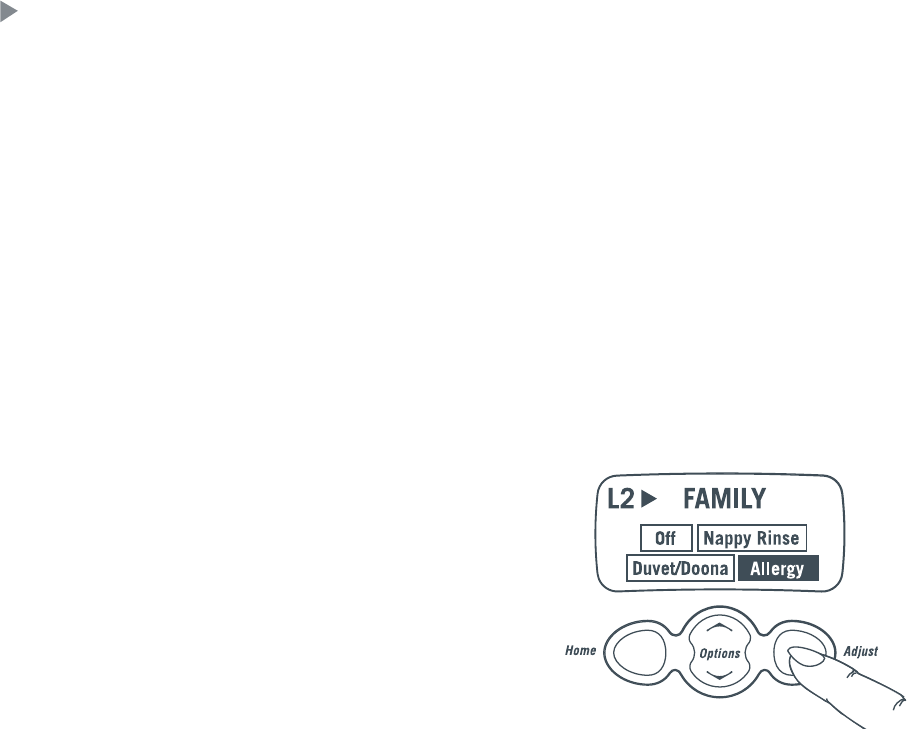

Family Cycles Nappy Rinse, Duvet/Doona, Allergy 22

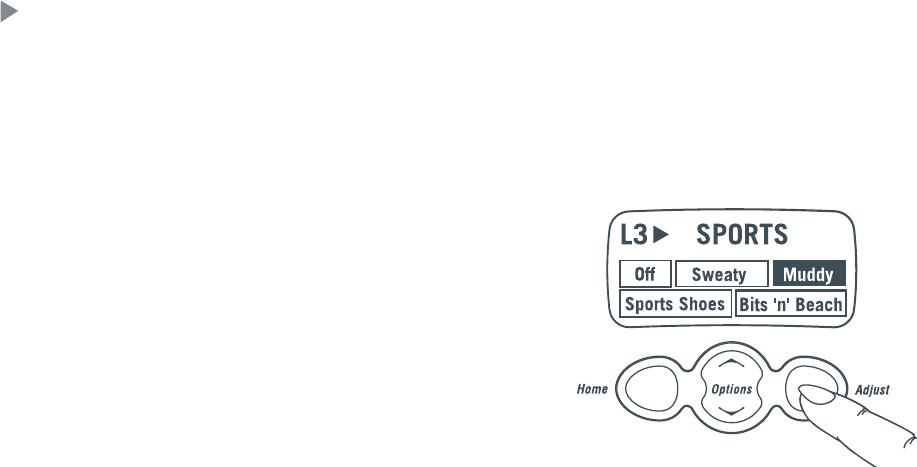

Sport Cycles Sweaty, Muddy, Sports Shoes, Bits `n´ Beach 23

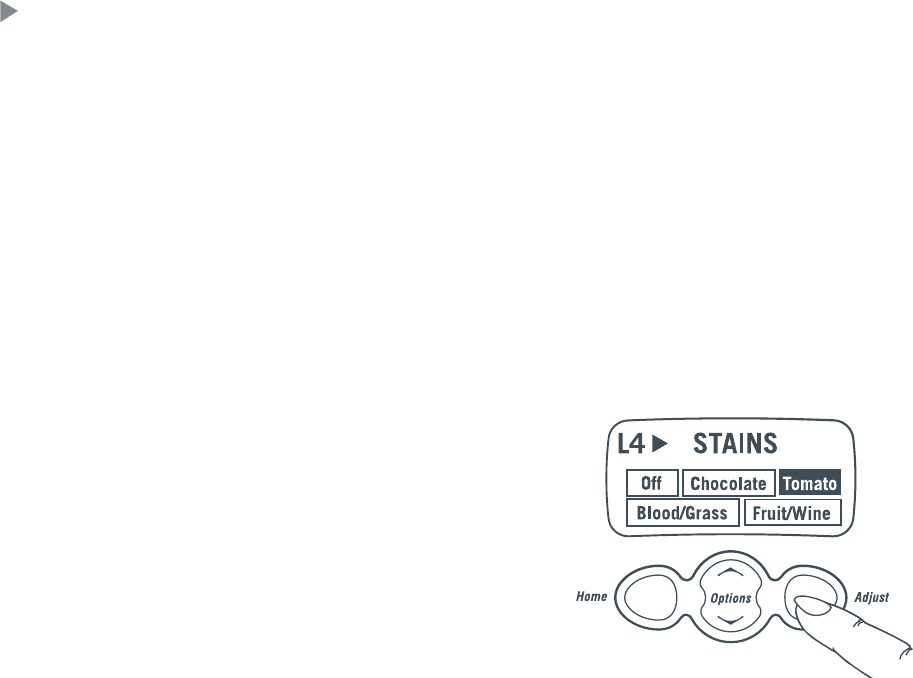

Stain Cycles Chocolate, Tomato, Blood/Grass, Fruit/Wine 24

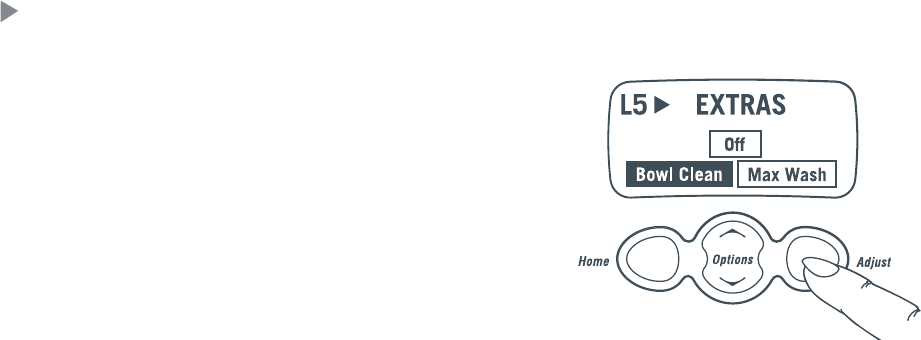

Extra Cycles Bowl Clean, Max Wash 25
Sorting and Loading
26
Washing Difficult Items
Woollen Items, Bulky Items, Nappy Sanitisers/Bleach 27
Detergent
28
Fabric Softener
30
Caring for your Autowasher
31
Machine Information
32
If your Intuitive™ Beeps for Help
33
Operating Problems
35
Wash Problems
36
Manufacturers Warranty
37
Customer Care
38
4
Pull hose
through guide
20mm
maximum
Flex hose
guide apart
Standpipe 850 – 1200mm
Installation Instructions
Unpacking
To ensure the best performance from your new Intuitive™
washer please follow the instructions below.
Removing the Packaging
1
Remove the outer packaging.
2
Tilt the machine backwards and walk it off the bottom
packer one foot at a time.
3
Remove the bottom packer from under the machine by
pulling it out the front.
4
Lift the lid and remove the bowl packer from the bowl.
5
Remove the hoses and accessories.
6
Keep the bottom packer and bowl packer in case they
are required for future transit.
Please ensure that the bottom packer has been removed before operating your machine.
Installation
In your autowasher you will find:
■ 4 rubber inserts for levelling feet (joined together).
■ 1 hose guide.
■ 2 white inlet hoses.
Drain hose
1
Carefully pull the black drain hose out from the
back of the machine by pulling the exposed part
of the hose downwards and outwards.
2
To guide the drain hose over the tub or standpipe
the hose guide MUST be fitted to the drain hose.
To Prevent Siphoning:
The drain hose should not extend more than
20mm from the end of the guide.
The height of the standpipe or tub should be
between 850 – 1200mm.
The drain hose can be trimmed to length.
3
Place the drain hose in the tub or standpipe.
5
Installation Instructions
Inlet Hoses
1
Connect the straight ends of the white inlet hoses to the taps.
(There are washers fitted in both ends).
2
Connect the elbow ends of the white inlet hoses to the machine
inlet valves. Inlet valves are marked on the back of the machine.
H = Hot C = Cold.
Minimum height of taps to clear the top of the machine is 1150mm.
Cold Supply Only:
If you only have a cold water supply, an inlet valve cap (blanking cap) MUST be connected to the
hot inlet valve. The cap prevents water leaking out of the hot valve. The cap is available from your
Fisher & Paykel Dealer or Authorised Service Centre, Part No. 388491. This appliance incorporates
backflow protection complying with AS3500.1. No further backflow protection is required for
connection to the water supply.
Levelling Your Machine
It is IMPORTANT to level the machine to ensure even spin
performance.
1
Separate the 4 rubber foot inserts from the moulding and
fit into the feet on the base of the machine.
2
Move the machine to its final position. (We suggest a
minimum clearance of 20 mm each side).
3
Adjust the feet so the machine is level and cannot rock.
To check if your machine is level:
Look down on the wash bowl and make sure it sits slightly forward of centre (see Diagram 1).
Close the lid. Visually check that the lid fits evenly on both sides. If it does not look like the
diagram in the middle, adjust one of the feet slightly until it matches. The diagram on the top and
bottom are not correct (see Diagram 2).
4
Turn on the water and check all hose connections for leaks. Make sure there are no kinks in the hoses.
5
Uncoil power cord and plug into wall socket.
Tap end
Machine end
Adjustable feet
Rubber insert
To check levelling look
down on the wash bowl
Correct
Incorrect
Diagram 1
Lid Alignment
Lid
Topdeck
Wind right foot down
(out) to correct
Wind left foot down
(out) to correct
Lid
Lid
Topdeck
Topdeck
Diagram 2
6
Installation Instructions
Water Supply
■ For best operating conditions your hot water should be approximately 65˚C. Your hot water
should not exceed 75˚C or your cold water exceed 35˚C. Temperatures above these may cause
the machine to fault or cause damage to the machine.
■ If you have an uncontrolled water-heating source (eg a wet back or solar heating) you should
have a tempering device fitted. This will ensure the hot water temperature remains within
safe limits. For the most suitable type of tempering device we recommend you contact a local
plumber or plumbing supply merchant.
■ Inlet water pressure: Max. 1MPa (150 psi) Min. 34Pa (5 psi)
■ Inlet water flow rate: Min. 3 litres/min
■ Minimum height of taps to clear the top of the machine is 1150mm.
Draining
■ Regularly check that your standpipe or tub is free from lint or other obstructions, which may
affect how your machine works or may cause flooding.
■
In multi-storey apartments or any upper floor, the machine should be installed on a drained floor.
■ Draining must comply with local by-laws.
Autowasher Safety
■ This autowasher is not intended for use by young children or infirm persons without supervision.
■ Your Intuitive™ can be opened while it is filling and agitating. Please supervise young children to
ensure they do not play with it.
CAUTION!
If you are using an extension cord or a portable electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does not come into contact with water or moisture.
Accessories and Spare Parts
Available from your Fisher & Paykel Dealer or Authorised Service Centre.
Inlet Valve Cap Part No. 388491
Hose Inlet Long (2m) Part No. 422680
Hose Inlet Large Bore Part No. 426123
Drain Hose Extension Part No. 425627p
Power Cord If the Power Cord of your autowasher is damaged it must be
replaced by a Fisher & Paykel Authorised Service Centre, as it is not
a standard power cord.
7
Thank you for buying a Fisher & Paykel Intuitive™ washing machine. We are very proud of this
washer and trust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and
energy efficient. Thousands of tonnes of washing and 70 years of laundry experience have been
programmed into your washing machine to help give you the best possible performance.
We hope you enjoy your new washing machine,
we have certainly enjoyed designing it.
Before You Do Your First Wash
You owe it to yourself and your Intuitive™ to have it installed correctly by an authorised service agent.
Before you start, it is a good idea to go through the following checklist:
1
Has the basepacker been removed?
2
Is the hot hose connected to the hot valve marked ‘H’?
Is the cold hose connected to the cold valve marked ‘C’?
3
Is the drain hose threaded through the ‘U bend‘ (with no more than 20mm extended) and on to
your standpipe?
4
Are the rubber inserts secured into the feet on the
base of your machine and is the machine levelled?
Refer to Installation Instructions, page 4.
Washer Capacities
Machine Size Capacity
Large 8 kg
Medium 7 kg
Compact 5.5 kg
IWM12/IWL12 models have different capacity specifications.
Refer to serial plate on back of product.
The Compact Intuitive™ model functions the same as Medium and Large Intuitive Eco™
models unless otherwise indicated.
To check what size your washer is look on the back of the topdeck, where the word Large,
Medium or Compact will be embossed.
8
B. Press POWER
C. How Dirty?
■ Press the UP or DOWN arrows to change the HOW DIRTY level to suit the amount of soil in your
clothes.
■ If your clothes have “general” stains press the UP arrow until the red STAINED light comes on.
(Refer to page 10).
D. Fabric Care
■ Your Intuitive™ automatically selects AUTO SENSING. This determines the average fabric type of
your load and selects the wash action to get the best wash result.
■ For loads that require special care press the FABRIC CARE button to choose the CREASABLES,
WOOL or HANDWASH option. (Refer to page 10).
E. Press START
■ Your autowasher will start filling and sensing the size and average fabric type of the load.
■ To pause your Intuitive™ at any time press START/PAUSE. (If it is during spray rinse or spin there
is a slight delay while the bowl is coasted to a stop and the lid is unlocked).
B
C D E

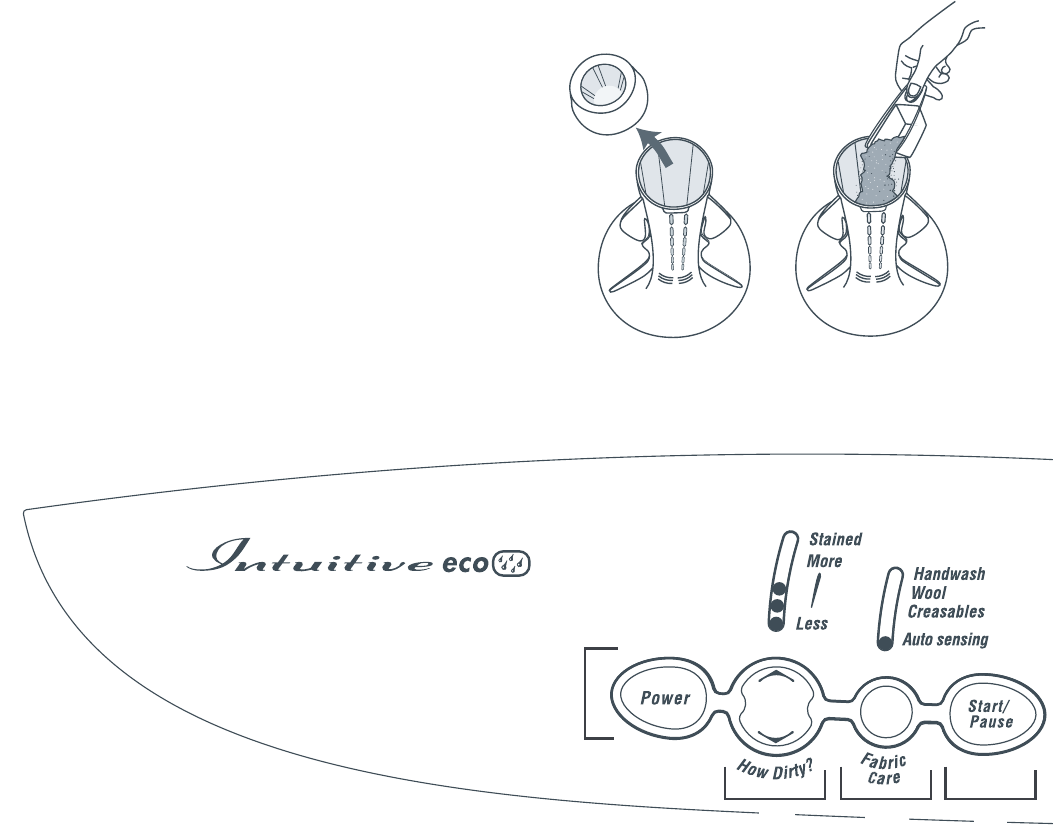

Getting Started Quickly
■ Remove the fabric softener dispenser.
■ Place load evenly around the agitator. (Refer to
Sorting and Loading page 26).

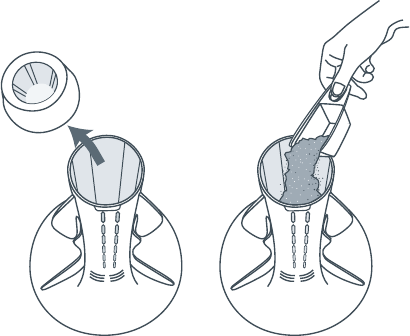

A. Detergent
■ Follow the instructions on the detergent package.
■ Use the mark on the agitator nearest to the top of the
clothes as a guide to the correct amount of detergent
to use.
■ Pour the detergent down the centre of the agitator stem.
■ Replace the fabric softener dispenser (this stops small articles falling down the centre of the
agitator). (Refer to Detergent page 28).
10
How Dirty?
Your Intuitive™ washer will automatically choose the
medium soil level (three HOW DIRTY lights). This setting is
fine for your average load, but some loads may need more
or less washing depending on the amount of soil on the
clothes. For example, a load of dirty jeans will need the
soil level increased while a bath towel used only once will
only need a low soil level.
STAINED
This is a special wash action that alternates washing with four short soaks to help remove stains
from your garments (e.g. three minutes agitation, four minutes soak, three minutes agitation
etc). (Stained will use a medium soil level agitation). This cycle is for general stains, if you have a
specific stain (i.e., blood, grass, fruit, wine, chocolate or tomatoes) use the STAINS LIFECYCLES.
Refer to Lifecycles™ page 24.
Fabric Care
AUTO SENSING
Put your clothes into your Intuitive™ washer and push START/PAUSE. Auto sensing will sense
the average fabric mix of your load and select the correct wash action to ensure the best wash
results. For a normal wash load we suggest the medium soil level and the ECO (SAVE WATER++)
rinse option (See Save Water page 16).
CREASABLES
Delicate garments often crease easily so they need a minimum amount of spinning at a very
slow spin speed. CREASABLES will automatically change the rinse to a double deep rinse and
select a short slow spin (300rpm) to minimise creasing. Selecting the CREASABLES option is not
only for delicate clothes, it can also be used to minimise the ironing needed for any garment.

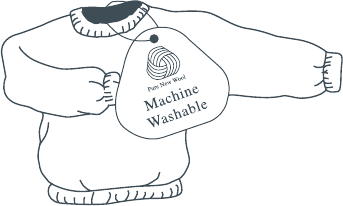

WOOL
Some fabrics require special care, such as machine washable
woollens. These woollens have been specially treated so they can
be washed in a washing machine. (Refer to Woollens page 27).
The WOOL cycle has been designed with a gentle wash, a spray
and deep rinse and moderate spin (700 rpm) to care for machine
washable woollens.
HANDWASH
HANDWASH is an extra gentle wash for very delicate fabrics. This cycle has been designed
for garments that you previously might have been reluctant to put into a washing machine.
HANDWASH has a very gentle wash action; a double deep rinse and a very short slow spin (300
rpm). If you do not want to spin the clothes remember to select Drip Dry.
11
Eco Active™ Wash
Eco Active™ wash is available on Intuitive Eco™ models.
The Eco Active™ wash in your Intuitive Eco™ is a unique washing method that uses a combination
of front loader and top loader washing technologies. This dual action wash gives excellent wash
performance and means you retain the convenience and capacity of a top loading machine
while introducing the gentle cascade wash action and energy efficiency of a front loader.
Wash 1 – Detergent Activating Wash
(Front Loader Type Wash)
The Intuitive Eco™ washer fills the bowl at the selected
temperature with just enough water so that your clothes
are 100% saturated. This small amount of sudsy water flows
through the clothes, up a specially designed portal and
back onto the clothes in a cascade effect. This wash action
thoroughly dissolves and activates the detergent.
The concentrated solution of detergent and water rapidly
targets stains and soils at the fibre level, boosting soil
removal and accelerating the wash process.
Wash 2 – Agitation Wash
(Top Loader Type Wash)
After recirculating the sudsy water through the clothes
for 2 – 5 minutes, your Intuitive Eco™ washer will fill with
just enough cool water to suspend the clothes in solution.
Your washer will then sense the average fabric type of the
load and begin the agitation wash. Agitating massages
the soil off the fibres and away from the clothes. Due to its
concentrated headstart the clothes require less agitation
than a conventional top loader washer.
Note:
The detergent activating wash is the only time during the cycle that hot water is used (when
the machine is completely full the water will be lukewarm). If you are wanting hot water in the
agitation wash, you will need to choose a TRADITIONAL wash in the OPTIONS menu. (Refer to
page 17).
12

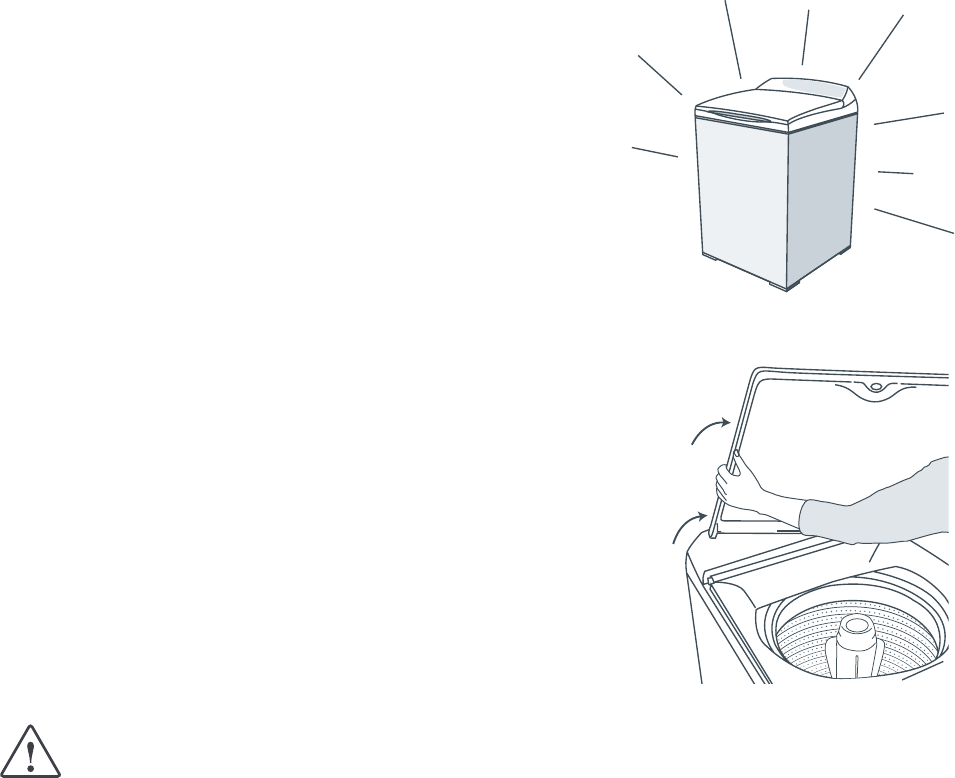

Lidlock
Your Intuitive™ has a lidlock, which locks when your
machine is spinning. This ensures the lid cannot be
opened during hazardous parts of the cycle, providing
added safety for you and your family.
A Lidlock symbol (padlock) appears in the corner of the
screen when locked (it disappears when unlocked), letting
you know at a glance if you can open the lid or not.
In short, it means you can open the lid while your Intuitive™
is filling, agitating, and draining, but not while it is spinning,
allowing you to add or remove clothes, dissolve detergent or
to add fabric softener (that is if you do not want to use the
Automatic Fabric Softener Dispenser).
The chart below shows the stages when the lid is locked/
unlocked.
Eco Active Unlocked
Fill Unlocked
Agitate Unlocked
Spray Rinse Locked
Deep Rinse Unlocked
Spin Locked
If the lid is left open, the machine will be unable to lock the lid and the cycle will be halted.
The machine will beep and a message will appear in the display screen saying “Please close
the lid and press START/PAUSE”.
Important!
Do not put anything down the slot in the top deck.
Do not try to disable the lidlock.
Keep children away from the machine especially when you are using hot water as the lid can be
opened during fill and agitate.
13
Hot Water Consumption
Differences in hot water for a warm-cold wash.
Machine Size* Load Size Eco Active™ Wash Traditional Wash†
Large
5 Kg 12 L 33 L
3 Kg 10 L 23 L
1 Kg 6.5 L 13 L
Medium
5 Kg 12 L 29 L
2.5 Kg 9 L 23 L
0.7 Kg 6 L 12 L
Note:
The Compact does not have an Eco Active™ wash.
*To check what size your washer is, look on the back of the topdeck, where the word Large,
Medium or Compact will be embossed.
†
Traditional wash is the conventional wash that the Smart Drive™ uses.
Total Water Consumption
Machine
Size*
Fill for
High
Spray and
Deep Rinse
Save
Water
Eco
Spray
1 Deep
Rinse
2 Deep
Rinses
Large 90 L 175 L 150 L 110 L 165 L 215 L
Medium 75 L 150 L 130 L 100 L 140 L 190 L
Compact 65 L 130 L 110 L 85 L 120 L 160 L
(Please note these are approximate figures for High water levels.)
Display Screen
The display screen on the right hand side of the panel shows you what the machine is doing
during the wash cycle and how long the wash has to go. The display screen also shows the
different wash options available. When you first turn your Intuitive™ on it will briefly display the
message “Welcome to Intuitive”. The main screen then appears, with a big smiley face, and tells
you that your machine is ready to wash, which wash temperature it has defaulted to and displays
any options you have selected.
14
All About The Options Button
Your Intuitive™ has a ‘menu’ of wash options that you can use. The buttons and the display screen
on the right hand side of the panel are used to select and display the different wash options.
To Select a Wash Option
1
Push either the Options UP or Options DOWN arrow. The
Options Menu will then be displayed.
2
Scroll through the options by using the either the UP or
DOWN arrows. To select an option use the ADJUST button.
The option will be highlighted to show you have selected it.
3
Press HOME, the display will return to the home screen
where your selected wash option(s) will be displayed.
4
To start the machine push START/PAUSE.
Note:
If you want to change any of the wash options while your machine is running you will need to
press START/PAUSE before changing an option.
To Customise a Wash Option
You can program your Intuitive™ washer to remember the wash options you prefer.
For instance, you may want to set your washer to always
select a warmer wash temperature.
1
Push the OPTIONS button.
2
Scroll through the options until the screen you want is
displayed.
3
Select the setting before the option you are wanting to
change. Hold down the ADJUST button for 3 seconds.
You will hear a long beep and SETTING SAVED will appear
briefly on the screen. Your preferred wash options will be
automatically selected every time you turn your machine
on and will be displayed on the home screen.
To change your customised options repeat these above steps.
Note:
Water levels, Eco (Save Water++) and Delay Start are not able to be customised.
Time To Go
Your Intuitive™ washer will display which stage of the cycle the machine is at and how many
minutes the wash cycle has to go, so you can tell at a glance when your washing will be finished.
The ‘Time to Go’ is displayed from the beginning of the agitation wash, as the load size and fabric
type have to be determined before the cycle time can be calculated.
A series of symbols are also displayed on the screen to indicate what the washer is doing. (Refer
to page 9).
15
The Options
For all the options mentioned below you firstly need to enter the OPTIONS menu (by pressing
either the UP or DOWN Options buttons). Then use the Option’s arrows to scroll through the
options until the one you want is displayed. Press ADJUST to select it, and HOME to return to
the main screen.
1. Temperature
Cold Cold+ Warm/Cold
Incoming water from tap 20˚C 35˚C
Warm Warm/Hot Hot
40˚C 50˚C 60˚C
The wash temperature option selects the temperature of the detergent activating wash (the first
phase of an Eco Active™ wash), or the agitation wash of a traditional wash.
Cold+ (Controlled Cold)
The temperature of cold water varies depending on the season and area where you live. The
lower the water temperature the less effective the soil removal is.
COLD+ solves this problem by adding a small amount of hot water, when necessary, to raise the
temperature above 20˚C to give a more effective cold water wash.
2. Wash Advance
Use the WASH ADVANCE option to advance the cycle or start the cycle at a particular stage.
Press ADJUST repeatedly until the part of the cycle you want is highlighted. Wash advance is a
good option if you want to skip certain parts of the cycle, perfect if you only want to rinse/spin
clothes, or if you want to prewash clothes etc.
The PRE-WASH option is a cold, 4 minute pre-wash for
extra dirty loads. Your Intuitive™ will beep at the end of
drain and display a message to tell you that it is waiting
for you to add the detergent for the main wash. Press
START/PAUSE to begin the main wash cycle.
16
The Options
3. Save Water
Intuitive Eco™ provides an excellent opportunity to save on water, with two water saving options,
the traditional SAVE WATER option and the ECO (SAVE WATER++) option.
SAVE WATER minimises the amount of water used. The rinse type your washer chooses depends
on the type of fabric you are washing and the options you have chosen. Save water reduces the
amount of water by altering the rinse option, for example:
Standard rinse Save Water Eco (Save Water++)
Spray + deep rinse becomes Shower rinse (3 – 4 shower rinses) becomes Eco Spray rinse
2 Deep rinses becomes 1 deep rinse becomes Eco Spray rinse
ECO (SAVE WATER++)* uses an eco spray rinse, which cuts water use by a further 25%. Try using
this option when you want to use less detergent and less water. If you have low water pressure
or sensitive skin it is better to use the SAVE WATER option.
Neither of these save water options are designed to be used with fabric softener, as they do
not have a second deep rinse to dispense the softener correctly. There are some loads that may
not suit being washed using SAVE WATER options. For instance loads that have a lot of sand or
sawdust in them, or garments where the colour still runs are better rinsed using a deep rinse.
*Available in Intuitive Eco™ models.
4. Delay Start
Delays the start of the wash cycle between 15 minutes
and 18 hours. Use the ADJUST button to choose how long
you want your machine to delay for. Press START/PAUSE
to begin the countdown, to cancel the countdown press
START/PAUSE again.
Note:
Be careful if using DELAY START for non-colourfast clothes
that are damp as dyes may run.
5. Save Time
SAVE TIME allows you to shorten the wash cycle for lightly soiled clothes. Selecting this option
reduces rinse, soak and spin times. To save more time, reduce the wash time by decreasing the
number of HOW DIRTY lights. SAVE TIME can be turned on or off at any time during the cycle.
6. Soak
Will soak for 2 hours in the middle of the wash phase, then complete the rest of the cycle. During
soak the machine will agitate for a few seconds every minute. SOAK can be shortened to one
hour if SAVE TIME is selected.
17
The Options
7. Drip Dry
Pressing DRIP DRY will pause the washer at the end of the rinse, allowing you to remove
drip-dry garments before the washer goes into final spin. The washer will beep and display a
message to tell you that it is waiting for another instruction. Once items have been removed,
press START/PAUSE to begin the spin.
8. Max Spin Speed
This option allows you to change the auto sensing spin speed from fast (1000rpm) down to
medium (670rpm).
9. Water Levels
Your Intuitive™ washer can automatically select the right water level
for the load. As your machine fills it will pause occasionally to sense
the water level. The machine will check if the water level is correct
by using a series of 2 different agitate strokes: a slow stroke to sense
the load, and an agitate stroke to mix the load (this may take over
a minute). If it detects that the water level is not high enough it
will fill with more water and recheck the level. Your washer may
occasionally add water during agitation. This is to maintain the water
level due to the release of air trapped in the garments.
For some loads you may want to manually select the water level.
When washing an unusual load, such as large bulky garments or
pillows, we recommend you manually set the water level or use the
DUVET/DOONA lifecycle.
If you wish to choose your water level use the marks on the agitator
to guide you. The mark nearest to the top of the clothes indicates
the water level you should select. The levels marked on the agitator
are a guide for the dry clothes and do not correspond exactly to the
water level. Selecting a water level that is too high can cause out of
balance loads, tangling or splash-over.
If there is already water in your Intuitive™ before you start your wash
there may be a short pause before it starts washing. Depending
on the amount of water in the bowl it may automatically start the
detergent activating wash (without adding any more water) or move
straight to the agitation wash if there is a lot of water in the bowl.
10. Traditional Wash*
Your Intuitive Eco™ washer can be set to a ‘traditional’ top loading wash, where the clothes
are agitated in a bowl full of water at temperature you have selected. (Traditional wash is the
conventional wash that the Smart Drive™ uses).
*Available on Intuitive Eco™ models.
18
Adjusting the Wash Settings
After using your Intuitive™ washer you may want to fine-tune some of the options to suit your
wash needs. Anything changed in this menu is a permanent change, unless ‘Reset Defaults’ is
selected, see page 20.
To Access the Adjust Settings Menu:
■ Push the OPTIONS UP or OPTIONS DOWN button,
and hold down for 2 seconds. The Adjust Options
Menu will then be displayed.
■ Scroll through the screens until the option you
wish to adjust is shown. Press options UP or DOWN
to scroll.
■ Press ADJUST to highlight the option you want.
This option will be permanently set. To unset the
option repeat above steps.
S1 Wash Temp Adjust = Temperature of Wash Water
The wash temperatures can be adjusted if you think they are too hot or too cold.
■ Access the Adjust Settings Menu (refer above).
■ Scroll to the TEMPERATURE ADJUSTMENT screen.
■ Use the ADJUST button to move the cursor through the boxes to decrease or increase the
wash temperature (The numbers in the boxes are in degrees). Each movement is approximately
2˚C. Press HOME once the box with the number of degrees you want to change the wash
temperature to is highlighted.
S2 Auto Water Level Adjustment
If you are not satisfied with the water level that your Intuitive™ washer fills to on auto water level,
you can increase or decrease the fill level that auto will select.
■ Access the Adjust Settings Menu (refer above).
■ Scroll to the AUTO WATER LEVEL screen.
■ Use the ADJUST button to move the cursor through the boxes to decrease or increase the fill
level. The boxes on the left side of the centre point decrease the fill level and those boxes on the
right increase the fill level. Then press HOME.
Note:
If you feel there is not enough water for the load, we recommend you check by pausing the
machine and pushing the clothes down to see how much spare water is at the bottom of the
bowl. Clothes often float and your washer can sense the water under the clothes.
Hold down for 2 seconds
19
Adjusting the Wash Settings
S3 Default Rinse = Rinse Default Options
This menu changes the rinse option that is automatically selected when you first turn your
machine on. (Spray and Deep is the standard rinse default for IW812, IW712 and IW512. IWM12
and IWL12 default to a Double Deep rinse). You may wish to change the type of rinse selected
for a number of reasons. If you have a problem with impurities in your water supply you may get
a better wash if you change the rinse option to 2 deep rinses. If you want to conserve water you
could change the rinse option to a single deep rinse or a shower rinse.
■ Access the Adjust Settings Menu (refer to page 18).
Scroll to the DEFAULT RINSE screen. Select the rinse option you prefer.
Spray and Deep = Spray rinse followed by 1 deep rinse
Single Deep = Short spin followed by 1 deep rinse.
Double Deep = 2 deep rinses.
Shower = Shower rinse.
Shower rinse alternately showers the clothes with water and spins them to remove the sudsy
water. It is not designed to be used with fabric softener, as a shower rinse does not use a deep
rinse it cannot dispense fabric softener correctly.
S4 Creasable Spin Speed
The Creasable fabric care option is designed with a slow spin speed (300 rpm). However, if you wish
to have a faster spin speed you can program Creasables to have a medium spin speed (670rpm).
■ Access the Adjust Settings Menu (refer to page 18).
■ Scroll to the CREASABLE SPIN SPEED screen.
■ Press ADJUST to select the CREASABLE SPIN SPEED you want, then press HOME.
S5 Out of Balance Recovery
When your washer is spinning it can sense when the wash load is out of balance and will stop
and retry spinning up to three times. If the machine still senses an unbalanced load there are two
options the machine can take.
Automatic Recovery Action
Your washer will try to automatically correct the out of balance load. It will fill with water and
agitate to redistribute the load before trying to spin up again.
Machine Stops Action
Your washer will stop, give a short burst of beeps every five seconds, and display a message to let you
know to redistribute the load more evenly yourself. (Use this option if you wish to conserve water).
Your machine arrived, set to the Machine Stops Action.
To set to Automatic Recovery:
■ Access the Adjust Settings Menu (refer to page 18).
■ Scroll to the OUT OF BALANCE RECOVERY screen.
■ Select ON. Press HOME.
20
Adjusting the Wash Settings
S6 End of Cycle Beeps
The beeps signalling the end of the cycle can be set to zero, five or fifteen.
■ Access the Adjust Settings Menu (refer to page 18).
■ Scroll to the END OF CYCLE BEEPS screen.
■ Use the ADJUST button to highlight the number of beeps you want. Press HOME.
S7 Re-set Defaults
If you are wanting to re-set all settings back to those that are set when your machine leaves our
factory.
■ Access the Adjust Settings Menu (refer to page 18).
■ Press ADJUST and hold for 2 seconds, you will hear a long beep, then a message saying
SETTINGS SAVED will appear, then press HOME.
21
Lifecycles™
Your Intuitive™ has a range of special Lifecycles™ to make washing even easier.
1
Push the LIFECYCLES button.
2
Use the OPTIONS button to scroll through the five lifecycle menus, or you can press the
Lifecycles™ button repeatedly.
3
Use the ADJUST button to select a lifecycle.
4
Press HOME to return to the main screen.
IWM12 and IWL12 default to a cold water temperature. You can manually adjust the temperature
if the machine is connected to a hot water source.
L1 Favourite Cycle
The Favourite cycle lets you design your ideal wash cycle. Your Favourite cycle can include any
wash option and it can start from any point in the cycle. For instance, it may be a cycle to wash
your gym gear or it may be a rinse and spin to rinse out swimsuits.
To SAVE your FAVOURITE CYCLE
Select your Favourite options (e.g. change soil
level, wash temperature etc).
1
Press LIFECYLES. The Favourite Option will be
displayed.
2
Press ADJUST until REMEMBER SETTINGS is
highlighted.
3
Press HOME.
To SELECT your FAVOURITE CYCLE
1
Press LIFECYCLES. The Favourite Option will be displayed.
2
Press ADJUST to highlight USE FAVOURITE.
3
Press HOME.
Note:
It is not possible to program a delay start, or any of the Lifecycles™ into the Favourite cycle.
22
Lifecycles™
L2 Family Cycles
NAPPY RINSE
A cycle for rinsing nappy sanitisers from cloth nappies. A slow spin, deep rinse, and a spray rinse.
(See information on Nappy Sanitisers/Bleach in Washing Difficult Items page 27).
DUVET/DOONA
Duvets and doonas are difficult items to wash as they are bulky and often float out of the water
during the wash (See Washing Bulky Items page 27). The duvet/doona cycle is a traditional
delicate wash with a double deep rinse, designed to care for these bulky items.
Note:
The display screen will guide you through the wash to minimise any chance of bulky items
coming in contact with stationary parts of the machine.
ALLERGY
This cycle has been designed specially for asthma
sufferers and people with sensitive skin. Using this
cycle kills Dust Mites, as well as removing all their
wastes and any traces of detergent. A hot Eco Active™
wash provides a hot concentrated detergent solution,
which decimates mites and bugs. This is followed by a
warm/hot traditional agitate and is finished by lengthy
rinses and a fast spin. This cycle is not recommended
for garments prone to colour run.
23
Lifecycles™
L3 Sports
SWEATY
The clothes you exercise in require a little extra care to remove the odours and dirt that tend to
penetrate into the fabric structure. This cycle incorporates a warm/hot regular wash with a fast
spin to clean sweaty sports clothes.
MUDDY
Clothes that have mud on them need to be washed in
special way so all traces can be removed. Mud requires
a cold water wash with lots of dilution. The cold water is
the key as washing in warm sets the mud stain. This cycle
has a cold pre-wash followed by a cold wash with extra
rinses to help get mud out of sports gear.
SPORTS SHOES
A warm/cold, medium low, traditional agitation wash, with a light wash action which includes
a 15 minute soak in the middle of the agitate, a double deep rinse and a fast spin to freshen up
sports shoes. This cycle is also great for cleaning up children’s washable toys.
BITS ‘N’ BEACH
Sand, grass and other bits that get into your wash after a day in the outdoors, need special
treatment otherwise you end up with impurities staying in the creases of washed items. This
cycle will help remove these impurities. If your water source contains gunk of any kind this cycle
will minimise the effects. This cycle consists of a cold Eco Active™ wash, cold agitate, and has a
double deep rinse and a fast spin.
24
Lifecycles™
L4 Stains
There are a number of stains that need special treatments due to their unique compositions.
Some water temperatures actually set in stains rather than remove them. Use these Lifecycles™
to care for these specific stains.
CHOCOLATE
Chocolate is a complex mixture of fats, proteins and sugars. Initially the stain is treated with a
warm/hot Eco Active™ wash that delivers the active ingredients of the detergent into the core
of the stain. We then incorporate a soak in with a warm wash to enable the enzymes in the
detergent to break down both the proteins and the fats. The cycle is completed with a spray
and deep rinse, and a fast spin.
TOMATO
Research tells us that “Spag Bol”/pasta stains are the most
common stains slopped on New Zealand and Australian
clothes. This is actually a greasy stain that takes a bit of
work to remove. An intermittent soaking procedure has
been included to get the benefit of the detergent with
enzymes. This cycle consists of a warm/hot Eco Active™
wash, a warm agitate with a soaking cycle, a spray and
deep rinse, and a fast spin.
BLOOD/GRASS
This cycle is for those protein-based stains like blood and grass that set if they are subjected to
warm water first. This cycle has a cold Eco Active™ wash, warm agitate, a spray and deep rinse,
and a fast spin.
FRUIT/WINE
It is important to treat these stains immediately with soda water if you have it, or cold water.
The following will finish off the process. Some detergents contain colour-safe bleaches, that
would be ideal here as the higher temperatures in the Eco Active™ wash activate the bleaches.
This wash has a warm/hot Eco Active™ wash with a warm agitate, a spray and deep rinse and a
fast spin.
Note:
Eco Active™ wash only applies to Intuitive Eco™ models. IW512 uses a traditional agitation wash
at the indicated temperature.
25
Lifecycles™
L5 Extras
BOWL CLEAN
If you regularly use fabric softener, (refer Scrud page 30), or
only wash in cold water we recommend that you put your
washer through a bowl clean cycle 2 – 4 times a year. This
cycle has a hot Eco Active™ wash, a hot agitate and a 2-hour
soak. It finishes with two deep rinses and very short spin.
MAX WASH
A heavy duty wash for really dirty items like overalls. This cycle
is especially useful for small loads that require a vigorous agitation.
26
Sorting and Loading
To get the best wash results it pays to sort your clothes before washing.
Care Labels
Care labels will tell you about the fabric of the garment and how it should be washed.
Soil
Sort clothes according to the type and amount of soil. Some soils suit warmer washes (e.g. oily
soils), while others are best washed in cold water (e.g. mud, blood). (See Lifecycles™ pages 22 – 25).
Colour
Sort white fabrics from coloured fabrics (this avoids the possibility of colour run).
Lint
Wash lint givers and lint collectors separately. Where possible, turn lint collectors inside out.
Lint givers Lint collectors
Towels Chenille
Nappies Synthetics
Corduroy Permanent Press
Socks
Before Washing
Check Pockets
Loose items can damage both your autowasher and your clothes.
Close Zippers, Hooks and Eyes
To make sure that these items do not snag on other clothes.
Mend any Torn Garments
Tears or holes may become larger during washing.
Remove any loose bra wires as they can damage your washing machine and/or dryer.
Pre-treat any Stains
For a Balanced Load place unfolded clothes evenly around the agitator. DO NOT wrap large
items, such as sheets, around the agitator. A mixture of small and large items will wash the best.
Make Sure the Water Level Suits the Load Size
Using too much water can cause splashing and out of balance loads, using auto sensing can
help prevent this. Loads that extend above the dispenser may also cause splashing.
27
Washing Difficult Items
Washing Woollens
The WOOL Cycle is for washing MACHINE WASHABLE woollens. The fibres of these woollens
have been treated to prevent felting when they are machine-washed. Most hand knitted
garments are not made of machine washable wool and we recommend that you wash them
by hand.
■ Check the care label.
■ Use a wool detergent.
■ Use the WOOL option.
■ Hand washed woollens may be spun in your washer.
■ To dry woollens lie them flat on a towel and pat into
shape. Dry out of direct sunlight.
■ Some wool underlays and sheepskin products can
be washed in a washing machine, but may produce
excessive amounts of lint that may cause pump blockages.
Washing Bulky Items
Make sure there is enough room in the machine for items to move when being washed, as
forcing large items into the machine may result in them being damaged during washing. Some
items float up during the wash, (such as duvets/doonas and pillows). If they sit too high they
may touch stationary parts of the machine during agitate or spin. To minimise the chance of this
happening, bulky items should be pushed down below the water level after fill and pushed to
sit below the medium high water level mark on the agitator before spinning. To prevent an
out of balance load and splashing, we recommend washing these items on the DUVET/DOONA
lifecycle or the HANDWASH cycle and manually selecting the water level to suit the load size.
Nappy Sanitisers/Bleach
Nappy sanitisers and bleach are very corrosive to metal surfaces. DO NOT use your autowasher
to soak items in bleach or sanitiser, or tip the contents of the nappy bucket into your machine.
Rinse and wring items out thoroughly before placing them in your machine.
Washing When Someone is Ill or has an Infection
How you wash can help prevent re-infection or another member of the household catching
the illness. It pays to separate the washing more, use warm or hot washes and use a little more
detergent. Avoid leaving the washing sitting damp before or after washing. If there is a lot of sun
hang the clothes outside, otherwise use your dryer on the hottest setting the fabric can handle.
28
Detergent
Choosing the Right Detergent
We recommend the use of domestic detergents (powder, liquid or tablets). Soap flakes, e.g. Lux
Soap Flakes, or granulated soap powders should not be used.
Detergents that contain built-in fabric softeners may not be suitable for your Intuitive™ as they
can leave a deposit on the agitator and bowl.
How Much Detergent?
The correct amount of detergent will vary depending on the amount of soil in your clothes;
(jeans and work clothes may need more detergent, while towels usually need less).
The agitator has five marks on its stem that indicate load size. Use the mark on the agitator
closest to the top of your load as a guide to the size of your load. (Refer to the picture of the
agitator on page 17). The instructions on the back of the detergent packet are a guide to the
correct amount of detergent to use but remember the larger your machine the more detergent
you may need to add.
The correct time to check if you are using the right amount of detergent is about halfway
through the agitation. There should be a thin layer of foam over the surface of the water. Lots
of foam during agitation means too much detergent has been used, while no foam means
not enough detergent has been used and the soil and lint can settle back on the clothes or
the washing machine. During the detergent activating wash (the first phase of an Eco Active™
wash) the waterfall effect of the water generates generous amounts of foam compared to a
traditional wash which makes it look like too much detergent has been used. However, the foam
is dissolved during the agitation wash and only a thin layer of foam over the surface of the water
should remain.
Adding the Detergent
■ Remove fabric softener dispenser.
■ Pour detergent down centre of the agitator.
■ Some detergents MUST be fully dissolved before
they are added to your machine.
■ Check the instructions on the detergent packet.
■ Pre-dissolving detergent when washing in cold
water can improve its performance.
■ Replace fabric softener dispenser. (This prevents
small articles falling down the centre of the agitator).
Tablets:
Place the required number of tablets down the centre of the agitator. (Do not use the bag
provided with the tablet products). For low water level loads (i.e. washing 2 or 3 garments) do
not place tablet down the agitator. Instead place the tablet directly into the machine before
adding your clothes.
29
How Much to Use?
Concentrate
Machine Size Compact Medium Large
Water Level/Load Number of scoops
High 1 rounded scoop 1 / scoops 1 ½ scoops
Medium High 1 scant scoop 1 heaped scoop 1 / scoops
Medium ¾ scoop 1 scant scoop 1 scoop
Medium Low ½ scoop / scoop ¾ scoop
Low¼ scoop ¼ scoop / scoop
Standard Powder
Machine Size Compact Medium Large
Water Level/Load Based on a Metric Cup
High ¾ cup 1 cup 1 cup
Medium High / cup ¾ cup 1 cup
Medium ½ cup / cup ¾ cup
Medium Low / cup ½ cup ½ cup
Low ¼ cup ¼ cup / cup
Tablets
Machine Size Compact Medium Large
Water Level/Load Number of Tablets
High 2 tablets 2 tablets 2 – 3 tablets
Medium High/Medium 1 – 2 tablets 1 – 2 tablets 2 tablets
Medium Low/Low 1 tablet 1 tablet 1 tablet
Liquid
Machine Size Compact Medium Large
Water Level/Load Number of Caps
High 1 cap 1 ¼ caps 1 ½ caps
Medium High 1 cap 1 cap 1 ¼ caps
Medium ¾ cap ¾ cap 1 cap
Medium Low ½ cap ½ cap ¾ cap
Low ¼ cap ¼ cap / cap
30
Fabric Softener
How the Fabric Softener is Dispensed
The fabric softener goes into the dispenser on the top of the
agitator. During rinse the machine spins to release the fabric
softener, delivering it down the agitator stem as the machine
fills for the final deep rinse.
Note:
The SAVE WATER and ECO (SAVER WATER++) rinse options are
not designed to be used with fabric softener.
How much Fabric Softener?
The ring on the dispenser cup is a guide for the amount of
fabric softener to add for a full load. Smaller loads require
less fabric softener.
Cleaning the Dispenser
When using fabric softener, rinse your dispenser at the end
of each wash.
■ Separate the cup from the dispenser body by pushing
downwards on the base of the cup.
■ Rinse both parts of the dispenser using warm soapy water.
Scrud
Scrud is the name given to the waxy build-up that can occur within any washer when the fabric
softener comes into contact with detergent. This build-up is not brought about by a fault in the
machine. If scrud is allowed to build-up in the machine it can result in stains on your clothes or
an unpleasant smell in your washer.
If you wish to use fabric softener we recommend:
■ Using fabric softener sparingly.
■ When filling the dispenser, do not splash or overfill.
■ Clean dispenser as soon as the cycle is finished.
■ Clean your machine regularly (refer to page 31).
■ Cold water washing increases the chance of the build-up occurring. We recommend a regular
warm or hot wash e.g. every 5th wash should be at least a warm one.
■ Fabric softener of a thinner consistency is less likely to leave a residue on the dispenser and
contribute to a build-up.
Push cup through
dispenser with thumb
To remove cup
31
Caring For Your Autowasher
When You Have Finished
■ Turn off the taps to prevent the chance of flooding should
a hose burst.
■ Unplug the machine from the wall socket.
Cleaning Your Washer
Use a soft damp cloth and wipe dry. Do not use chemical
or scouring cleaners as they can damage the paint and
plastic surfaces. Clean the fabric softener dispenser
regularly using warm soapy water.
You can remove the lid for cleaning. Open the lid fully, grasp
the lid on both sides. Lift in an upward motion, as shown
below. To replace the lid, hold the lid vertically and align
both hinges before slotting back into place.
To remove the agitator, remove the fabric softener dispenser
and unscrew the nut down the centre of the agitator by
turning anti-clockwise. The agitator must be fully pushed on
to the shaft when refitting. Tighten the nut firmly by hand.
Ensure the agitator is not loose.
CAUTION!
The agitator must be fully pushed onto the shaft when refitting.
Tighten the plastic nut firmly by hand. Ensure the agitator is not loose.
Cleaning the Inside of Your Washer
If you use fabric softener or only do cold water washes, it is important that you occasionally clean
the inside of your machine. We recommend using the bowl clean cycle 2 – 4 times a year and
suggest that you do not wash clothes during this cycle.
1
Add about 2 cups of a powdered detergent that contains phosphate.
2
Press LIFECYCLES.
3
Scroll to the EXTRAS screen.
4
Select BOWL CLEAN. (Refer to page 25).
Automatic Lint System
Your Intuitive™ has a self cleaning lint disposal system. It automatically separates the lint from the
wash water as it washes. The lint becomes trapped between the inner and outer bowls and is
flushed out at the end of the wash.
32
Machine Information
Specifications
Machine Size Depth/Width Height* Height (Lid Open)
Large 650mm 1020 – 1050mm 1410 – 1440mm
Medium 600mm 1020 – 1050mm 1360 – 1390mm
Compact 560mm 1020 – 1050mm 1320 – 1350mm
Note:
Exact height of your Intuitive™ is dependent on how far the feet are inserted into the base of
the machine.
* Height is measured to the highest point on the console.
■ Electrical Supply 220 – 240V, 50Hz Sinusoidal 165W
■ Inlet Water Pressure Max. 1Mpa (150 psi) Min. 34kPa (5 psi)
■ Standpipe Height 850 – 1200mm
Sounds and Beeps
Your Intuitive™ washer will make sounds that you will not have heard from other autowashers.
Filling
If your autowasher alternates filling and agitating, when AUTO
SENSING is selected, it is checking that it has the right amount of
water for the clothes load.
Agitating/Draining
The motor will pulse before agitate and while draining before spin.
This may sound like several low thuds. Your machine is checking
there is enough water in the bowl before agitating and that the
water has drained before spinning. During drain your washer will
turn the pump off and on about every 10 seconds. This is to help
prevent foreign objects getting caught in the pump.
Beeps
Your washer will beep at the end of the cycle and if you have used
Drip Dry or Pre-wash. If your machine is beeping continuously or
giving a musical series of beeps refer to page 33.
Products That Might Damage Your Autowasher
Concentrated bleaches, nappy sanitisers, some pre-treatment products and hydrocarbon
solvents (e.g. petrol and paint thinners) can cause damage to the paintwork and components
of your autowasher. Be careful when washing garments stained with these solvents, as they are
flammable. DO NOT put them in your dryer.
Use of dyes in your autowasher may cause staining of the plastic components. The dye will not
damage the machine but we suggest you thoroughly clean your autowasher afterwards. We do
not recommend the use of dye strippers in your autowasher.
Some pre-treatment sprays or liquids can damage your autowasher’s control panel and plastic
components, so do not use these products on or around your autowasher.
33
Before You Call For Service
Please read the following pages before calling for service.
You can correct many of your machine’s problems using the checklists on the following pages.
Your machine is capable of diagnosing its own problems and if it has a problem it will beep and
display a message telling you what is wrong.
If Your Intuitive™ Beeps For Help
Musical Series Of Beeps* Every 5 Seconds and...
*Note:
The musical series of beeps is the same sound your washer makes when you turn it on at the wall.
“My load is OUT OF BALANCE”
Wash load is out of balance.
Ensure the machine is stationary and manually redistribute the load.
Check machine is level. (See Installations Instructions page 5).
“I am not getting any HOT WATER”
Hot water supply is not hot enough to maintain the wash temperature you have selected.
Select a lower wash temperature.
Inlet hose screens may be blocked.
There may be a kink in the hose (refer to page 5).
Hot tap has not been turned on.
Inlet hoses connected to the wrong taps.
The flow rate of the supply water is too slow.
“I am not getting any COLD WATER”
Cold tap has not been turned on.
Inlet hose screens may be blocked.
There may be a kink in the hose (refer to page 5).
Inlet hoses connected to the wrong taps.
Cold water temperature exceeds recommended limits. (See Installation Instructions page 6).
The flow rate of the supply water is too slow.
34
If Your Intuitive™ Beeps For Help
“I am not getting any WATER”
The taps have not been turned on.
Inlet hose screens may be blocked.
The hoses may be kinked (refer to page 5).
The drain hose is too low or the drain hose is pushed into the standpipe too far and the water
is siphoning out of the machine. (See Installations Instructions page 4).
The flow rate of the supply water is too slow.
“I am OVERLOADED”
The machine is overloaded and can not agitate.
Ensure the machine is stationary.
Select a higher water level or remove items until the remaining ones can move freely.
Check the machine is not siphoning (refer to page 4).
“I have TOO MANY SUDS”
The machine has a suds build-up. (Too much detergent may have been used for the amount
of soil in the load).
Wait for suds to dissolve (about 20 minutes).
Rinse clothes using a deep rinse, or run through another cycle.
“I can’t LOCK THE LID”
Make sure the lid is closed.
Press START PAUSE (Refer to page 12)
If the symptom persists call your Fisher and Paykel Dealer or Authorised Service Centre.
Single Beep Every Second and...
“I need service” message and fault number
1
Turn your machine off at the wall.
2
Wait 1 minute and turn it back on.
3
Check the machine is level.
4
Remove load and retry.
5
Put through a Deep Rinse and Spin.
6
If the fault re-occurs repeat Step 1.
If the machine still will not work call your Fisher & Paykel Dealer or Authorised Service Agent
to arrange service. (Refer to page 38).
35
Operating Problems
Pressing POWER does not turn the machine on.
Is the power switched on at the wall?
Unplug the machine from the wall. Wait 60 seconds, plug back in and turn the power back
on again.
Could your household power supply be at fault? Try plugging in another electrical appliance.
Pressing START/PAUSE does not start the fill.
Are both hot and cold taps turned on?
Are the inlet hose screens blocked?
FILLING continuously.
Check that the machine is not siphoning (refer to page 4).
NOT SPINNING properly.
Is the load out of balance? (Refer to pages 17, 19, and 27).
Check the machine is level and does not rock (refer to page 5).
It may have a suds build-up (refer to page 34).
SPIN SPEED sounds slower than it should.
The clothes are unevenly distributed in the wash bowl; your washer has compensated by
lowering the spin speed.
Wrong WATER LEVEL when using Auto water level.
It may still be in the Auto fill mode (refer page 17).
Some loads do not suit Auto Water Level e.g. pillows, bedding, large bulky, garments, manually
select the water level. (Refer to page 18 to adjust the Auto fill level).
WASH WATER Temperature is not warm.
The Intuitive Eco™ washer fills in two stages. The first phase of the wash fills with water at the
temperature you have selected. The second phase of the wash uses cool water to finish the fill,
so the final wash water temperature will be much cooler than the temperature you selected.
(Refer Eco Active™ page 11).
Too many SOAP SUDS.
During the detergent activating wash of an Eco Active™ wash the waterfall effect of the water
generates generous amounts of foam. Check the foam level during the agitation phase of the
wash. (Refer Detergent page 28).
Try using less detergent. Try a low sudsing, front loader detergent.
SMALL PUDDLE of water coming from under the machine.
The water level is too high for the amount of clothes. This has caused excessive splashing
resulting in water spilling onto the floor. Use a lower water level.
Large bulky garments (e.g. pillows, duvets/doona) can cause splashing. Wash on the DUVET/
DOONA cycle or the HANDWASH cycle. Manually select the water level to suit the load size.
If the problem persists contact your Fisher & Paykel Dealer or Authorised Service Agent.
36
All About Wash Problems
Listed below are possible causes and solutions to some common wash problems.
CREASING.
Over loading the washer or dryer.
Select CREASABLES as this will change the rinse and select a slower, shorter spin speed. Or
change the fast spin speed from 1000 rpm to 700 rpm (Refer to Max Spin Speed page 17).
Do not leave wet clothes to sit in the washer or laundry basket.
POOR SOIL REMOVAL.
Not enough detergent for load size or amount of soil on the clothes.
Over-loading the washer.
Increase the level selected on the HOW DIRTY option.
Select the wash temperature according to soil type. For example, blood and mud are better
washed in cold water, while oily soils wash better in warmer water.
Separate light and heavily soiled items, as clothes can pick up soil from dirty wash water.
Cold water wash too cold, (refer Cold+ page 15).
Loads made up of articles of varying sizes will wash better (e.g. full loads of sheets may not
wash as well). Hard water areas require more detergent.
BLACK or GRAY MARKS on clothes.
A build-up caused by the interaction of fabric softener and detergent can flake off and mark
clothes, (refer to Scrud page 30).
Not enough detergent for the amount of soil on the clothes, can result in grey marks on
clothes, (refer to Detergent on page 28 and 29).
LINTING.
Wash lint givers e.g. towels, flannelette sheets, separately from lint collectors e.g. synthetics.
Overloading the washer.
Not enough detergent to hold the lint in suspension.
Over-drying in a dryer can cause a build-up of static electricity in synthetic fabrics and cause
them to attract lint.
Are you using the SAVE WATER option? Try using a spray & deep rinse.
RESIDUE DETERGENT.
Overloading the washer.
Try using less detergent.
Some detergents need to be pre-dissolved, check the detergent instructions.
Detergent may not dissolve properly in cold ambient temperatures, cold washes or short
agitation times. Try pre-dissolving the detergent.
DYE TRANSFER.
Wash and dry non-colourfast clothes separately.
Non colourfast clothes left sitting in a washer or laundry basket can transfer dye to other clothes.
TANGLING.
Washing with too much water (i.e. under-loading) can cause the clothes to tangle.
Do not load the washer by wrapping clothes around the agitator.
37
Manufacturer’s Warranty
When you purchase any new Fisher & Paykel whiteware Product you automatically receive a two
year Manufacturer’s Warranty covering parts and labour for servicing.
Fisher & Paykel Undertakes To
Repair or, at its option, replace without cost to the owner either for material or labour any part of
the Product, the serial number of which appears on the product, which is found to be defective
within TWO YEARS of the date of purchase.
This Warranty DOES NOT Cover
A
. Service calls which are not related to any defect in the Product. The cost of a service call will be
charged if the problem is not found to be a Product fault. For example:
1. Correcting the installation, e.g. removal of bottom packer, levelling the machine, adjustment
of the drain to correct siphoning, noises, crossed, kinked or leaking inlet hose connections,
turning on water, noises caused by the waterhammer or power supplies.
2. Noise or vibration that is considered normal, e.g. spin sounds, user warning beeps.
3. Water on the floor due to incorrect loading or excessive suds.
4. Provide instruction on the use of the product or change the set-up of the product, e.g.
instruction on the correct use of detergents and fabric softeners.
5. Blocked pumps, removal of foreign objects/substances from the machine, including the pump
and inlet hoses filters, e.g. bra wires, bread tags, nails, grit, scrud etc.
6. Replace fuses in, or correct house wiring or correct house plumbing e.g. unblock drains.
7. Correct corrosion or discolouration due to chemical attack.
8. Correct damage caused by pests, e.g. rats, cockroaches etc.
B
Defects caused by factors other than:
1. Normal domestic use or
2. Use in accordance with the Product’s User Guide.
C
Defects to the Product caused by accident, neglect, misuse or Act of God.
D
The cost of repairs carried out by non-authorised repairers or the cost of correcting such
unauthorised repairs.
E
Normal recommended maintenance as set out in the Product’s User Guide.
Service under this manufacturer’s warranty must be provided by an Authorised Service Agent
(refer to the Customer care section for contact details). Such service shall be provided during
normal business hours. This warranty certificate should be shown when making any claim.
Note:
This warranty is an extra benefit and does not affect your legal rights and applies only to
product purchased in New Zealand and Australia.
Please keep this User Guide in a safe place.
Do not return to Fisher & Paykel.
38
Customer Care
Check the things you can do yourself. Refer to your
User Guide and check:
1
your appliance is correctly installed
2
you are familiar with its normal operation
If after checking these points you still need assistance please refer to the following:
In New Zealand If You Need Assistance...*
Call your Fisher & Paykel retailer who is trained to provide information on your appliance, or if we
can be of any further help, please contact our Customer Care Centre,
Toll Free: 0800 FP CARE or 0800 37 2273 Fax: (09) 273 0656
Email: customer.care@fp.co.nz Postal address: P. O. Box 58732, Greenmount, Auckland
If you need service...*
Fisher & Paykel has a network of independent Fisher & Paykel Authorised Service Centres whose
fully trained technicians can carry out any service necessary on your appliance. Your dealer or
our Customer Care Centre can recommend an Authorised Service Centre in your area.
In Australia If You Need Assistance...*
Call the Fisher & Paykel Customer Care Centre and talk to one of our Customer Care Consultants.
Toll Free: 1300 650 590 Fax: (07) 3826 9298
Email: customer.care@fp.com.au Postal Address: PO Box 798, Cleveland QLD 4163
If you need service...*
Fisher & Paykel Australia Pty Ltd has a network of independent Fisher & Paykel Authorised Service
Centres whose fully trained technicians can carry out any service necessary on your appliance.
Our Customer Care Centre can recommend an Authorised Service Centre in your area.
*If you call or write, please provide: name, address, model number, serial number, date of
purchase and a description of the problem. This information is needed in order to better
respond to your request for assistance.
Product details can be found on the top left hand side of the console or back panel of the
washer cabinet.
Product Details
Fisher & Paykel Ltd
Model/Serial No.
Date of Purchase Purchaser
Dealer Suburb
Town Country
Copyright © Fisher & Paykel 2005. All rights reserved.
The product specifications in this booklet apply to
the specific products and models described at the
date of issue. Under our policy of continuous product
improvement, these specifications may change at any
time. You should therefore check with your Customer
Care Centre to ensure this booklet correctly describes
the product currently available.
www.fisherpaykel.com
NZ AU PAC ASIA
Clothes Washer Installation Instructions
and User Guide
Published: 04/2005
Part No. 420785 A

Navigation menu
