Bouncer

Sparkling Symphony™

Model Number: 79635

Please keep this instruction sheet for future reference,

as it contains important information.

Adult assembly is required.Tool required for assembly:

Phillips Screwdriver (not included).

Requires three “C” (LR14) alkaline batteries (not included).

2

Warnings

To prevent serious injury and/or falls:

• Never use on any elevated surface,

since child’s movement may cause

bouncer to slide or tip over.

• Never use as a carrier or lift while child

is seated.

• Always use the restraint system.

• Never leave child unattended.

• Never use as a car seat.

• Never use with a child able to sit

up unassisted.

WARNING

Parts

3

3/4

" Screw - 3

Pad

Footrest

Mobile Base

Soothing Unit

Mobile Arm

Mobile

Connector

Seat Back

Tube

Right Base Wire

Left Base Wire

Base Tube

Both Shown Actual Size

Lock Nut - 3

Battery Installation

4

1.5V x 3

“C” (LR14)

SHOWN ACTUAL SIZE

+

–

Battery Compartment Door

Battery Tips

• Do not mix old and new batteries.

• Do not mix different types of batteries: alkaline, standard (carbon-zinc) or

rechargeable (nickel-cadmium).

• Remove the batteries during long periods of non-use. Always remove the

exhausted batteries from the product. Battery leakage and corrosion can

damage the product. Dispose of the batteries safely.

• Do not dispose of batteries in a fire. Batteries may explode or leak.

• Never short circuit the battery terminals.

• Non-rechargeable batteries are not to be recharged.

• Only batteries of the same or equivalent type as recommended in the

“Battery Installation” instructions are to be used.

• If removable rechargeable batteries are used, they are only to be charged

under adult supervision.

• Rechargeable batteries are to be removed from the product before they

are charged.

• If you use a battery charger, it should be examined regularly for damage to

the cord, plug, enclosure and other parts. Do not use a damaged battery

charger until it has been properly repaired.

• Loosen the screw in the soothing unit battery compartment door with

a Phillips screwdriver. Remove the battery compartment door.

• Insert three "C" (LR14) alkaline batteries, as indicated inside the

battery compartment.

• Replace the battery compartment door. Tighten the screw with a Phillips

screwdriver. Do not over-tighten.

Hint: We recommend the use of alkaline batteries for longest battery life.

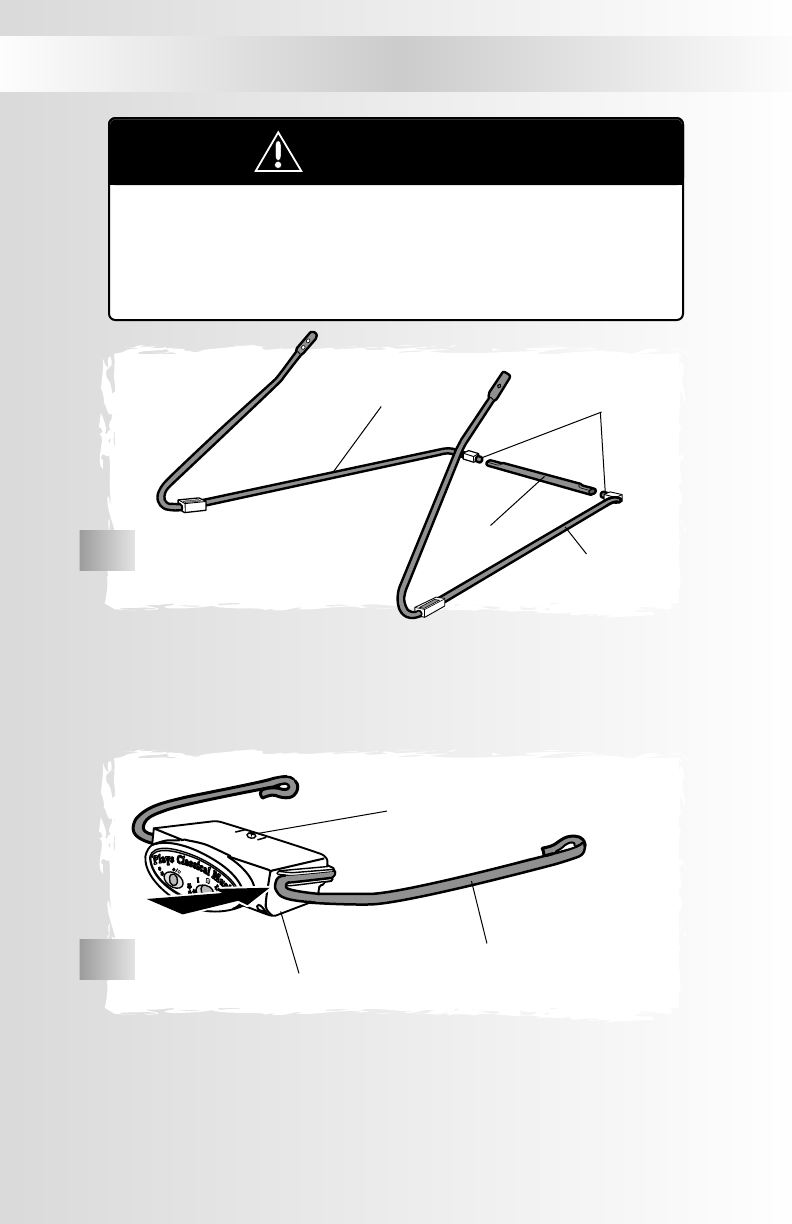

• Place the base tube on a flat surface as shown.

• Position the left and right base wires as shown. Note the location

of the colored tabs on the left and right base wires.

• Fit the left base wire into the base tube.

• Fit the right base wire into the base tube.

Assembly

Base Tube

Left Base

Wire

Colored Tabs

Right Base

Wire

1

• Loosen the screw in the soothing unit clip with a Phillips screwdriver.

• Slide the soothing unit onto the footrest, as shown. Make sure the footrest

is completely in the grooves around the sides and back end of the

soothing unit.

• Tighten the screw in the soothing unit clip with a Phillips screwdriver. Do

not over-tighten.

Soothing Unit

Clip

Footrest

Soothing Unit

2

5

This package contains small parts

in its unassembled state.

Adult assembly is required.

CAUTION

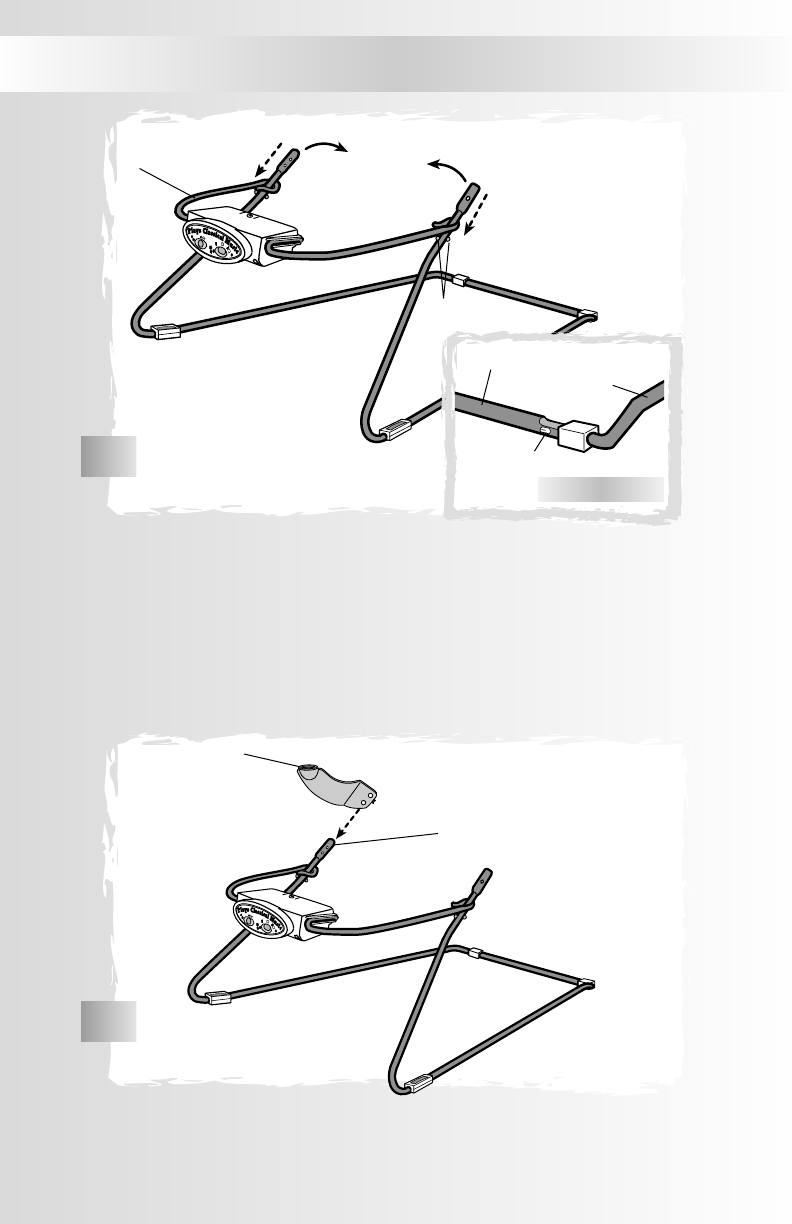

• Position the mobile base so that the opening is upright.

• Slide the mobile base onto the right base wire.

Assembly

Tabs

Flex Base

Wires Inward

3

6

Base Tube

Colored Tab

Back View

Base Wire

Footrest with

Soothing Unit

Right Base Wire

Mobile Base

Opening

4

• Position the footrest so that the soothing unit is upright.

• While flexing the base wires toward each other, hook the footrest

onto the ends of the base wires.

• Push the footrest down completely to the tabs on the base wires.

• Make sure the colored tabs on the left and right base wires are visible

through the base tube holes (see inset). If the colored tabs are not

visible through the base tube holes, you have assembled the base

incorrectly. Disassemble all parts and refer back to Assembly Step 1.

• Fit the seat back tube completely onto the

base wires.

• Align the screw holes in the mobile base, seat back tube and

base wire.

• Fit a lock nut (rounded side outward) into the hexagonal openings on the

inside of the mobile base.

• Insert two screws into the holes in the outside of the mobile base.

• Tighten the screws with a Phillips screwdriver. Do not over-tighten.

Assembly

5

7

Seat Back Tube

Mobile

Base

Base Wires

Lock Nut

Rounded Side

Hint: You will need to fit the seat back tube into the mobile base on one side of

the assembly.

• Fit the connector onto the seat back tube,

as shown.

• Align the holes in the connector, seat back tube and left base wire.

• Fit a lock nut (rounded side outward) into the hexagonal opening on the

inside of the connector.

• Insert a screw through the hole in the outside of the connector.

• Tighten the screw with a Phillips screwdriver. Do not over-tighten.

Assembly

6

8

Seat Back Tube

Connector

Left Base Wire

7

Pull Up

• Pull up on the seat back tube to be sure it is secure. If you can

remove either end of the seat back tube, you have not assembled

it correctly. Remove the screws and lock nut. Re-read and repeat

Assembly steps 5 – 7.

Lock Nut

Rounded Side

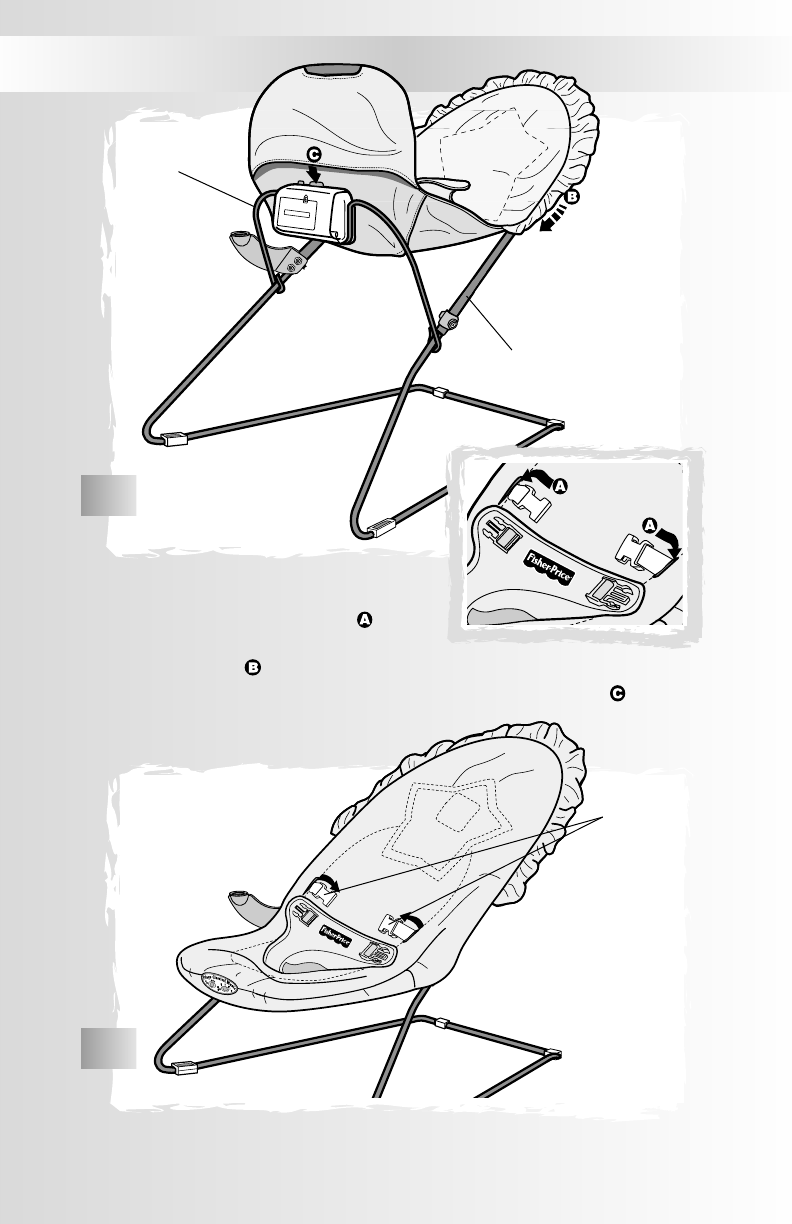

• Unbuckle the restraint belts from the

buckle pad. Push the restraint belts

through the slots in the pad .

• Fit the pad upper pocket onto the

seat back tube .

• Lift the footrest. Fit the pad lower pocket onto the footrest .

Lower the footrest.

B

• Fit both restraint belts back through the pad slots, as shown.

Assembly

Seat Back

Tube

Footrest

8

9

9

Restraint

Belts

B

• Tuck the pad flap loop underneath

and around the mobile base.

• Hook the pad flap loop to the peg on

the underside of the mobile base.

Assembly

10

10

Pad Flap

Pad Flap

Loop

Mobile Base

Mobile Base

Peg

Pad Flap Loop

Back View

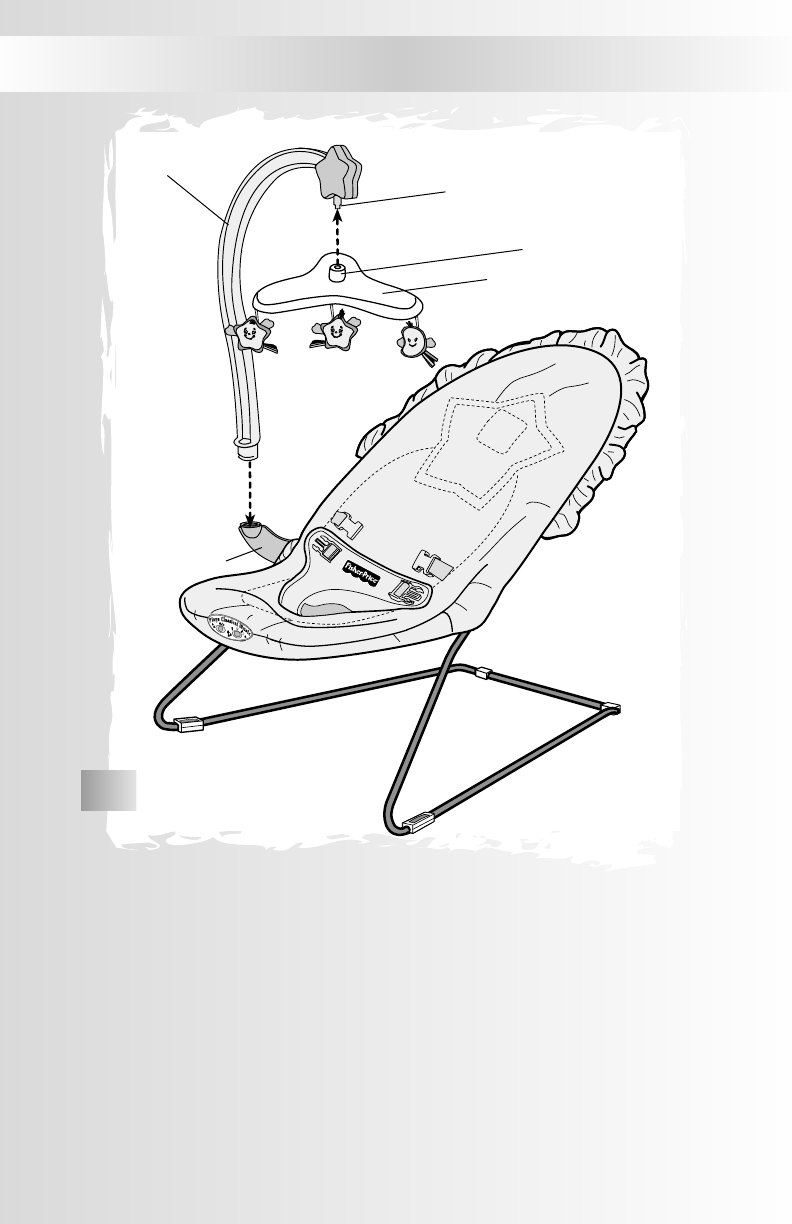

• Insert and “snap” the mobile arm into the mobile base.

• Push the mobile receptacle onto the mobile arm peg to “snap”

the mobile in place.

Assembly

11

Mobile Base

Mobile Arm

Mobile Receptacle

Peg

Mobile

11

12

Set-Up & Use

To prevent serious injury and/or falls:

• Never use on any elevated surface,

since child’s movement may cause

bouncer to slide or tip over.

• Always use the restraint system.

• Never use with a child able to sit

up unassisted.

WARNING

Securing Your Child

• Turn the mobile arm away from the seating area.

• Place your child in the seat. Position the restraint pad between

your child’s legs.

• Fasten both restraint belts to the buckles on each side of the

restraint pad. Make sure you hear a “click” on both sides.

• Check to be sure the restraint is securely attached by pulling it

away from your child.The restraint should remain attached.

• Turn the mobile arm back toward the seating area for baby’s

enjoyment.

1

Belt

Buckle

Restraint Pad

Mobile Arm

Loosen

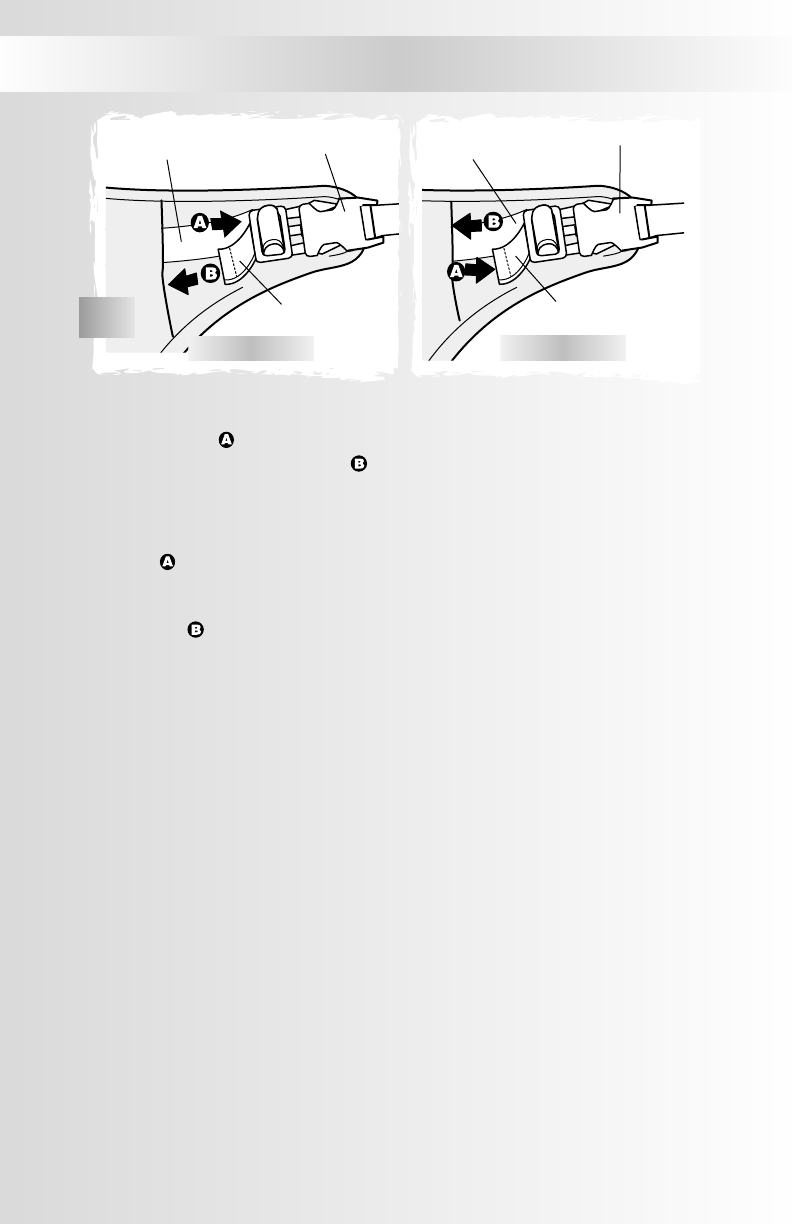

To tighten the belts:

• Feed the anchored end of the belt up through the buckle to

form a loop .

• Pull the free end of the belt .

• Repeat this procedure to tighten the other belt.

To loosen the belts:

• Feed the free end of the belt up through the buckle to form a

loop . Enlarge the loop by pulling on the end of the loop

toward the buckle.

• Pull the anchored end of the belt to shorten the free end of

the belt .

• Repeat this procedure to loosen the other belt.

Please Note: After adjusting the belts to fit your child, make sure

you pull on them to be sure they are securely fastened.

B

B

Set-up & Use

Anchored End

Free End

Buckle Anchored End Buckle

Free End

2

Tighten

13

B

B

Set-up & Use

14

Soothing Sounds and Calming Vibrations

• Make sure your child is properly secured in the seat.

• First, slide the switch on the soothing unit to select soothing sounds,

calming vibrations or both!

Soothing Sounds (various lullabies)

Calming Vibrations

Soothing Sounds and Calming Vibrations

• Then press the power button /on the soothing unit to turn

the unit on.

IMPORTANT! Change the batteries when vibrations/sounds will not shut off

or the soothing unit does not function properly as described in the instruc-

tions.You will also need to change the batteries if vibrations/sounds from the

soothing unit become faint, or if there are no vibrations or sounds. Remove

the batteries from the soothing unit and dispose of them properly. Replace

the batteries with three, new “C” (LR14) alkaline batteries.

3

To prevent serious injury and/or falls:

• Never use as a carrier or lift while child

is seated.

• Never leave child unattended.

WARNING

Hints:

• After each soothing selection, be sure to press the power button /again to

turn the soothing unit on.

• If you slide the switch too quickly, the soothing unit will not turn off. Simply

press the Power button /to turn the soothing unit off, then press again to

turn back on.

• Press the power button /to turn the soothing unit off.

• Soothing sounds and/or vibrations will shut off automatically after 10-15 min-

utes.To turn back on, simply press the power button /.

To remove the pad:

• Unhook the pad flap strap from the peg on the underside of the

mobile base.

• Lift the footrest wire and remove the pad lower pocket.

• Push the restraint belts back through the pad.

• Slide the pad upper pocket off of the seat back tube.

To re-assemble the pad:

• Refer to Assembly steps 8 and 9.

Care

15

The pad is machine washable.Wash it separately in cold water on

the gentle cycle. Do not use bleach. Tumble dry separately on low

heat and remove promptly.The frame and mobile may be wiped

clean using a mild cleaning solution and a damp cloth. Do not

immerse the soothing unit.

FCC Note (United States Only)

Note: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation.This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Changes or modifications not expressly approved by the

manufacturer responsible for compliance could void the user‘s

authority to operate the equipment.

Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A.

©2001 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.

Printed in China 79635pr-0920

Questions? We’d like to hear from you!

Call Fisher-Price®Consumer Relations, toll-free at 1-800-432-KIDS,

8 AM – 6 PM EST Monday through Friday. Hearing-impaired

consumers using TTY/TDD equipment, please call 1-800-382-7470.

Or, write to:

Fisher-Price®Consumer Relations

636 Girard Avenue

East Aurora, New York 14052

For other countries, outside the United States:

Canada: call 1-800-567-7724, or write to: Mattel Canada Inc, 6155 Freemont Blvd.,

Mississauga, Ontario L5R 3W2.

Great Britain: telephone 01628 500303.

Australia: Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870, Richmond,

Victoria 3121 Australia. Consumer Advisory Service 1300 135 312.

New Zealand: 16-18 William Pickering Drive, Albany 1331, Auckland.

Consumer Information
