Classical Chorus™

Starlight Bassinet™

Model Number: 79668

Please keep this instruction sheet for future reference, as it contains important information.

Requires four “C” (LR14) alkaline batteries (not included) for soother operation

Adult assembly is required.

Tool needed for assembly: Phillips screwdriver.

Use only for a child who is unable to push up on hands and knees,

pull up or sit unassisted.

D

i

s

c

o

v

e

r

w

h

a

t

’

s

p

o

s

s

i

b

l

e

™

…

w

w

w

.

f

i

s

h

e

r

-

p

r

i

c

e

.

c

o

m

2

Occasionally a consumer may experience a problem with

one of our products. If this should happen, please call us

toll-free, rather than return this product to the store.

Usually, we can solve the problem over the telephone

or send you replacement parts.

Please call Fisher-Price® Consumer Relations, toll-free at

1-800-432-5437, 8 AM - 6 PM EST Monday through Friday.

Hearing-impaired consumers using TTY/TDD equipment,

please call 1-800-382-7470.

Or, write to:

Fisher-Price® Consumer Relations

636 Girard Avenue

East Aurora, New York 14052

Consumer Information

Warnings

1

Failure to follow these warnings and

instructions could result in serious

injury or death.

To reduce the risk of Sudden Infant Death

Syndrome (SIDS), normal healthy infants

should always sleep on their backs unless

otherwise advised by a pediatrician.

• Infants can suffocate:

-In gaps between an extra pad and side

of the bassinet.

-On soft bedding.

• Never add a mattress, pillow, comforter or

padding. Use ONLY the pad provided by

the manufacturer.

• To prevent falls:

-Do not use this product when infant

begins to push up on hands and knees.

-Never place product on an

elevated surface.

-When used as an infant seat, always

use restraint.

• To prevent strangulation:

-Never place items with strings, such as

hood strings or pacifier cords, around a

child's neck.

-Never place product near a window

where cords from blinds or drapes can

strangle a child.

• Never leave child unattended.

• Attach the provided pad (with restraint

system) to this product. Never use this

product without pad provided.

WARNING

For other countries, outside the United States:

Canada: call 1-800-567-7724, or write to: Mattel Canada Inc.,

6155 Freemont Blvd., Mississauga, Ontario L5R 3W2.

Great Britain: telephone 01628 500302.

Australia: Mattel Australia Pty. Ltd., 658 Church Street,

Locked Bag #870, Richmond,Victoria 3121 Australia.

Consumer Advisory Service 1300 135 312.

New Zealand: 16-18 William Pickering Drive, Albany 1331, Auckland.

Parts

3

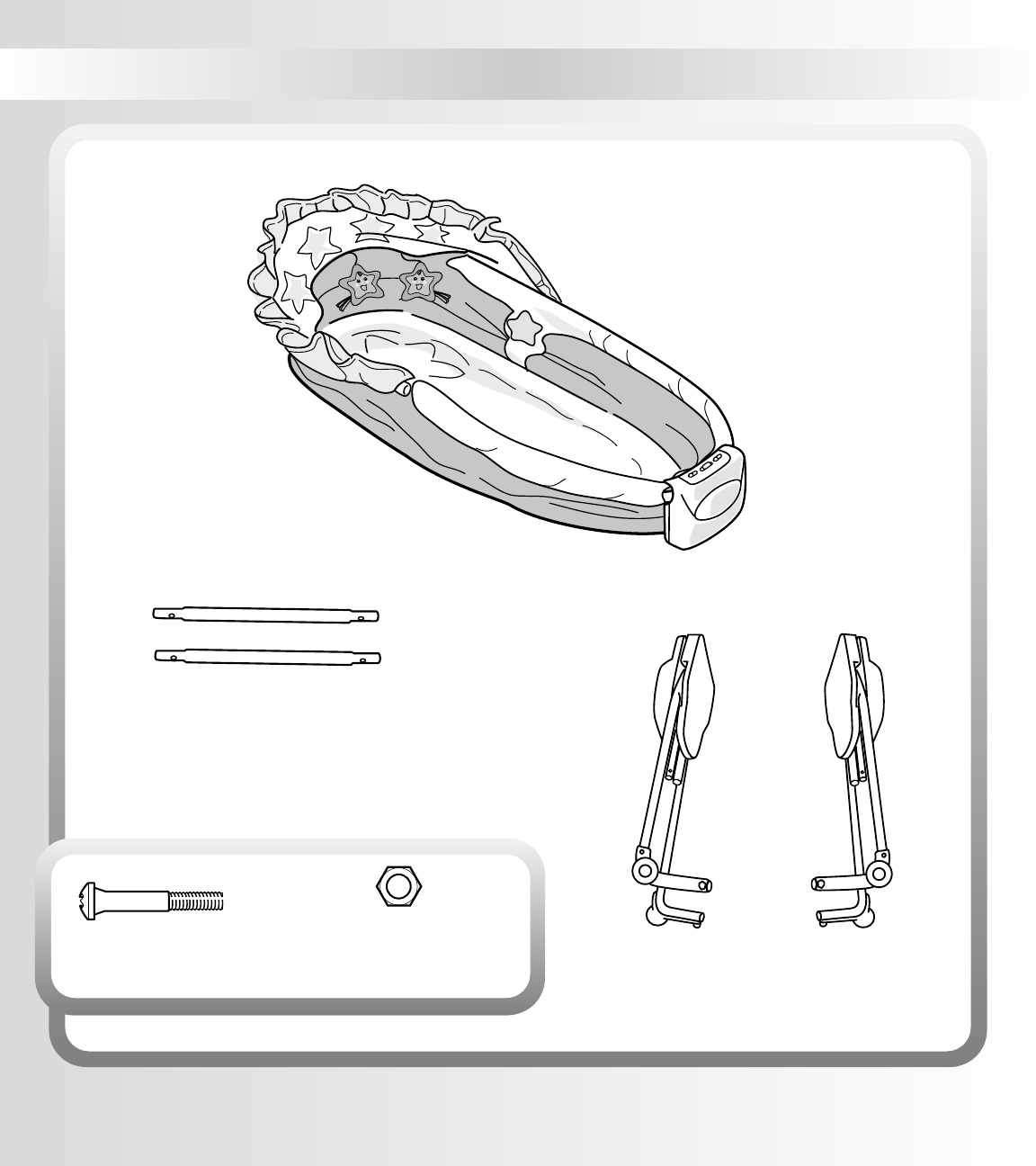

Bassinet

2 Base Tubes 2 Frames

M4 Shoulder Screw - 6

M4 Lock Nut - 6

(Inside Frame Curved Tube)

All Shown Actual Size

4

Assembly

1

Frame

Curved Tubes

Frame

Curved Tubes

Base Tubes

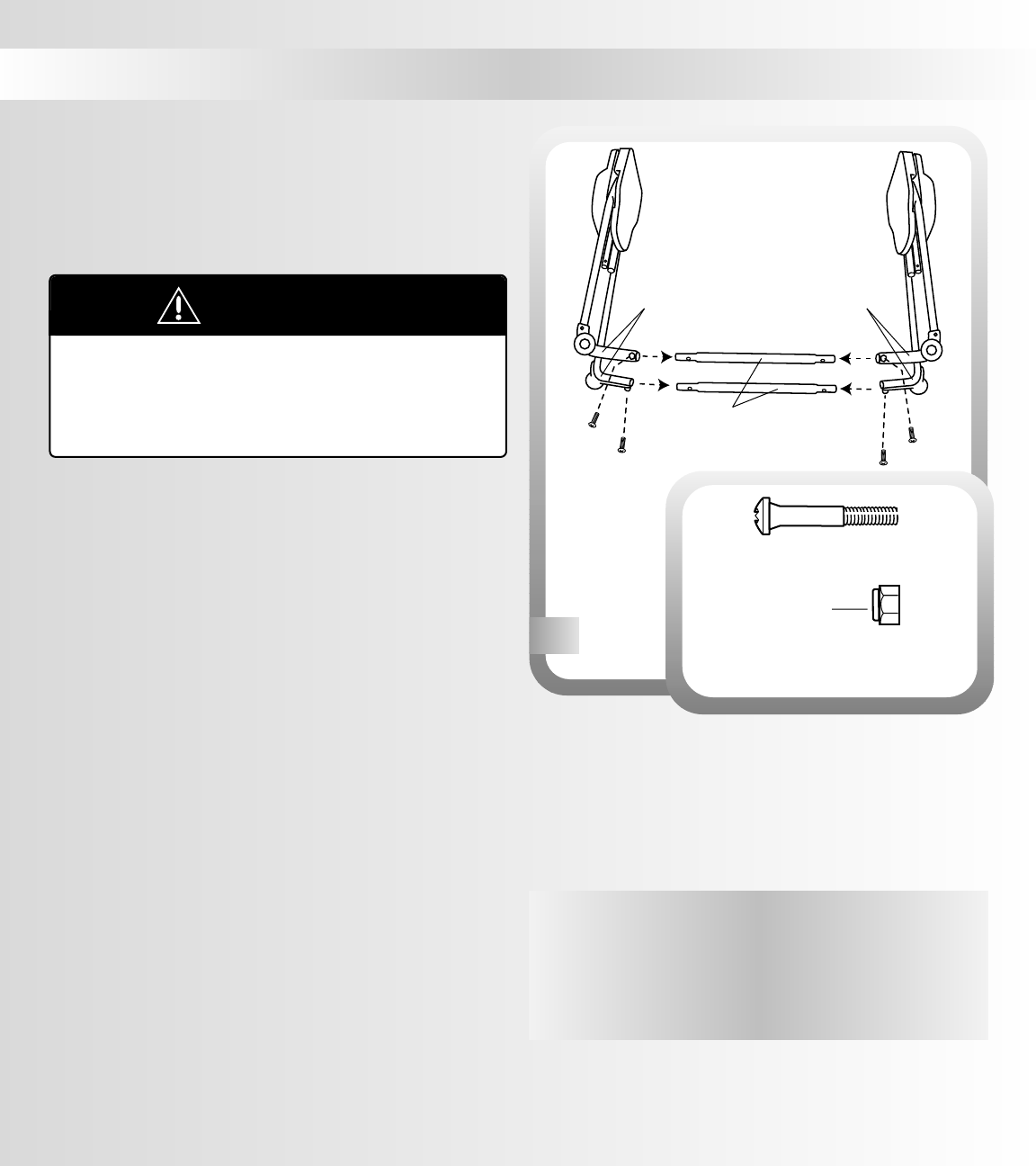

• Position the frames on a flat surface so that the curved

tubes face each other.

• Fit a base tube into the ends of each frame’s curved tube,

as shown.

• Align the holes in the base tube and curved tubes. Insert

an M4 screw through the hole in each end of the base

tube, the curved tubes and into the lock nut inside each

curved tube.

• Tighten the screws with a Phillips screwdriver.

Do not over-tighten.

• Repeat this procedure to assemble the other base tube

into each frame’s curved tube.

Hint: M4 lock nuts have been assembled to the curved tubes

at the factory. During shipment of this product, they may

have fallen out. Check to be sure there is a lock nut in each

hexagonal opening in the curved tubes. If one (or more) has

fallen out, fit the lock nut into the hexagonal opening in the

curved tube. Make sure the rounded side of the lock nut

is facing out.

Shown Actual Size

M4 Shoulder Screw - 4

M4 Lock Nut

(Inside Frame Curved Tube) - 2

Rounded

Side

IMPORTANT! Before each use or assembly, inspect this

product for damaged hardware, loose joints, missing parts

or sharp edges. DO NOT use if any parts are missing or

broken. Contact Fisher-Price® for replacement parts and

instructions if needed. Never substitute parts.

This package contains small parts

in its unassembled state.

Adult assembly is required.

CAUTION

5

Assembly

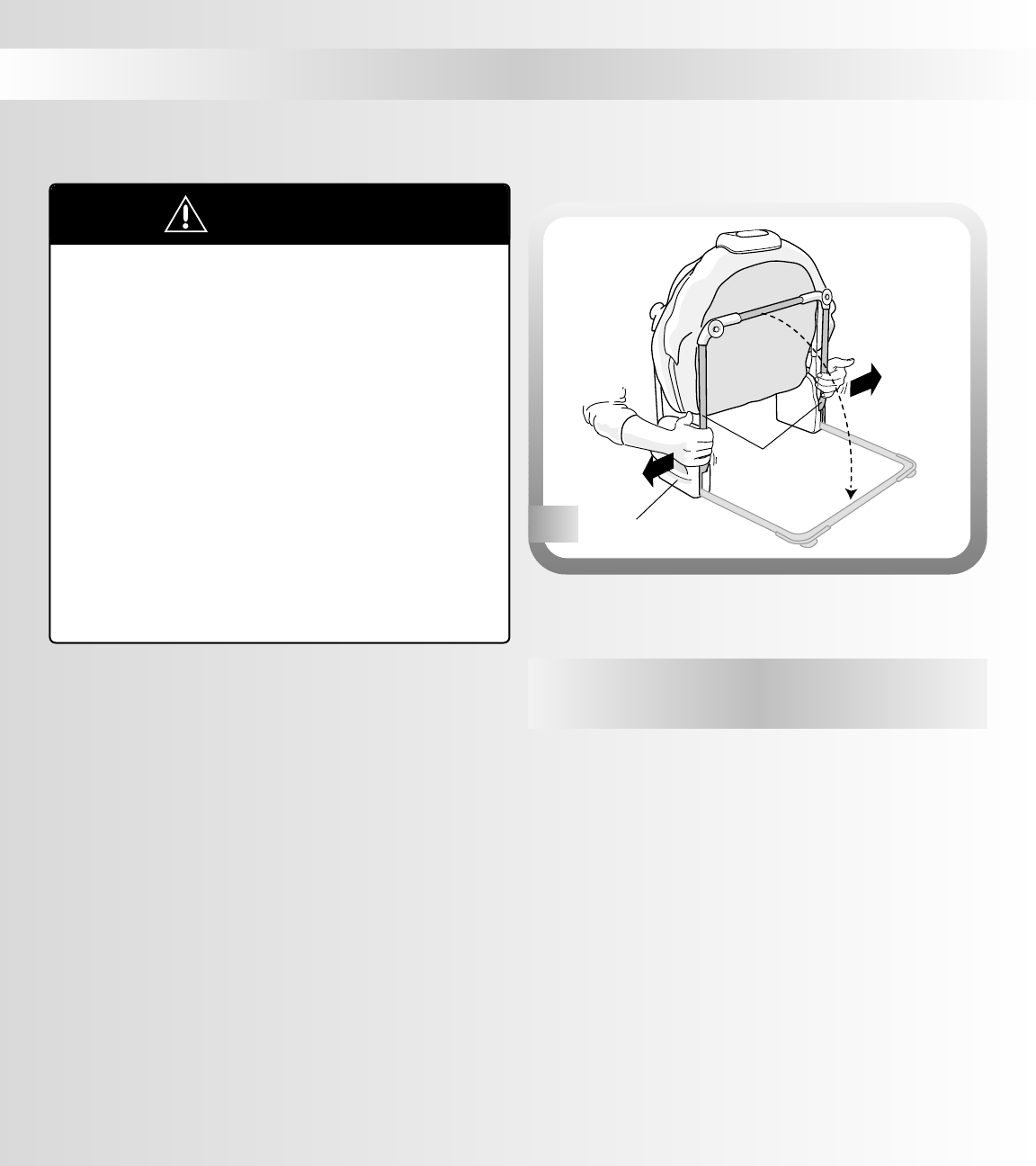

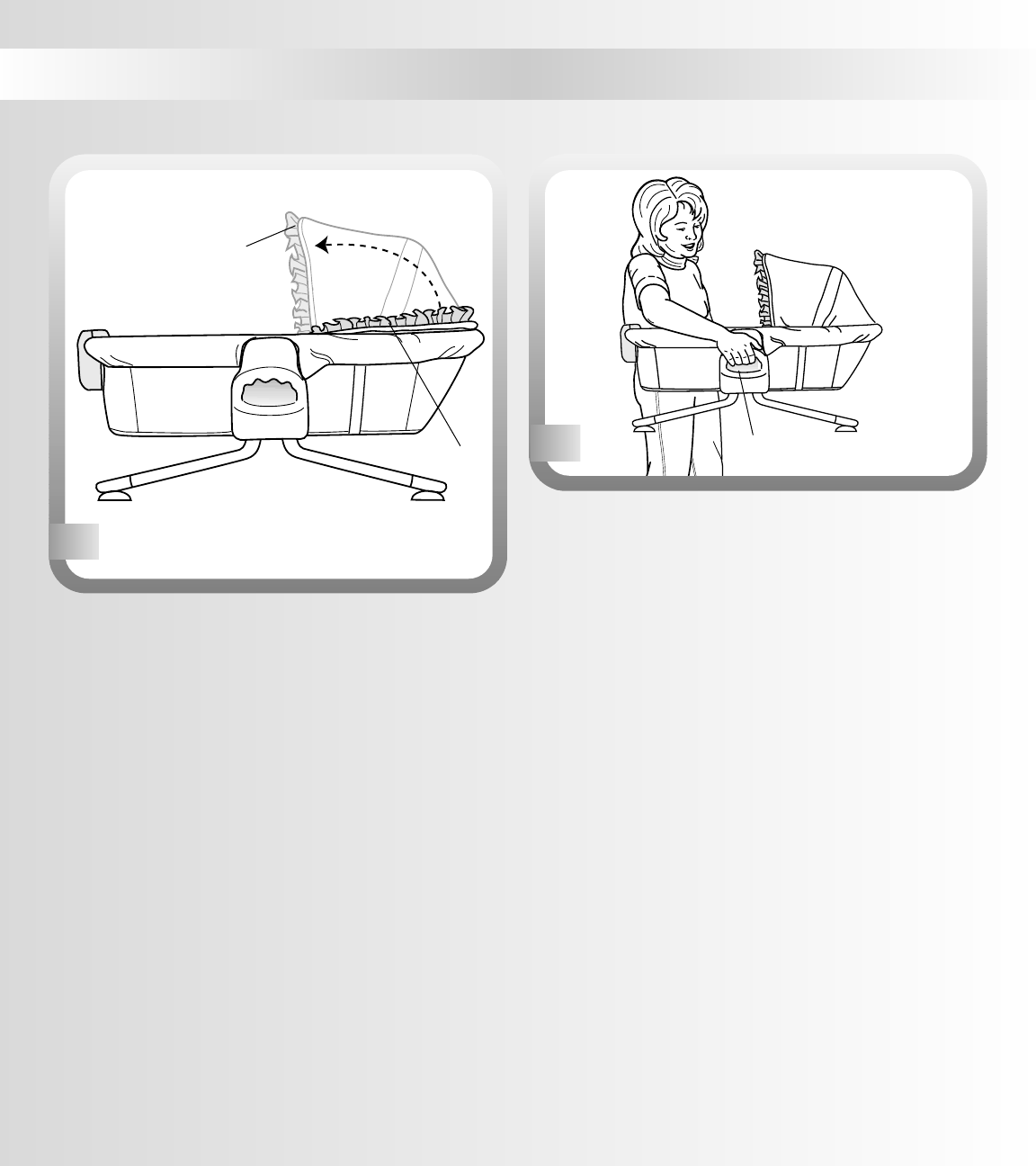

• Place palms on handles and grasp both sides of the base.

Pull the sides of the base out while pressing palms against

the handles. Let the base rotate down.

• Repeat this procedure to lower the other base.

Hint: If the base does not freely rotate down, pull the sides

of the base further outward while pressing palms against

the handles.

2

Bassinet

Tubes

Frame Short

Tubes

Press Button

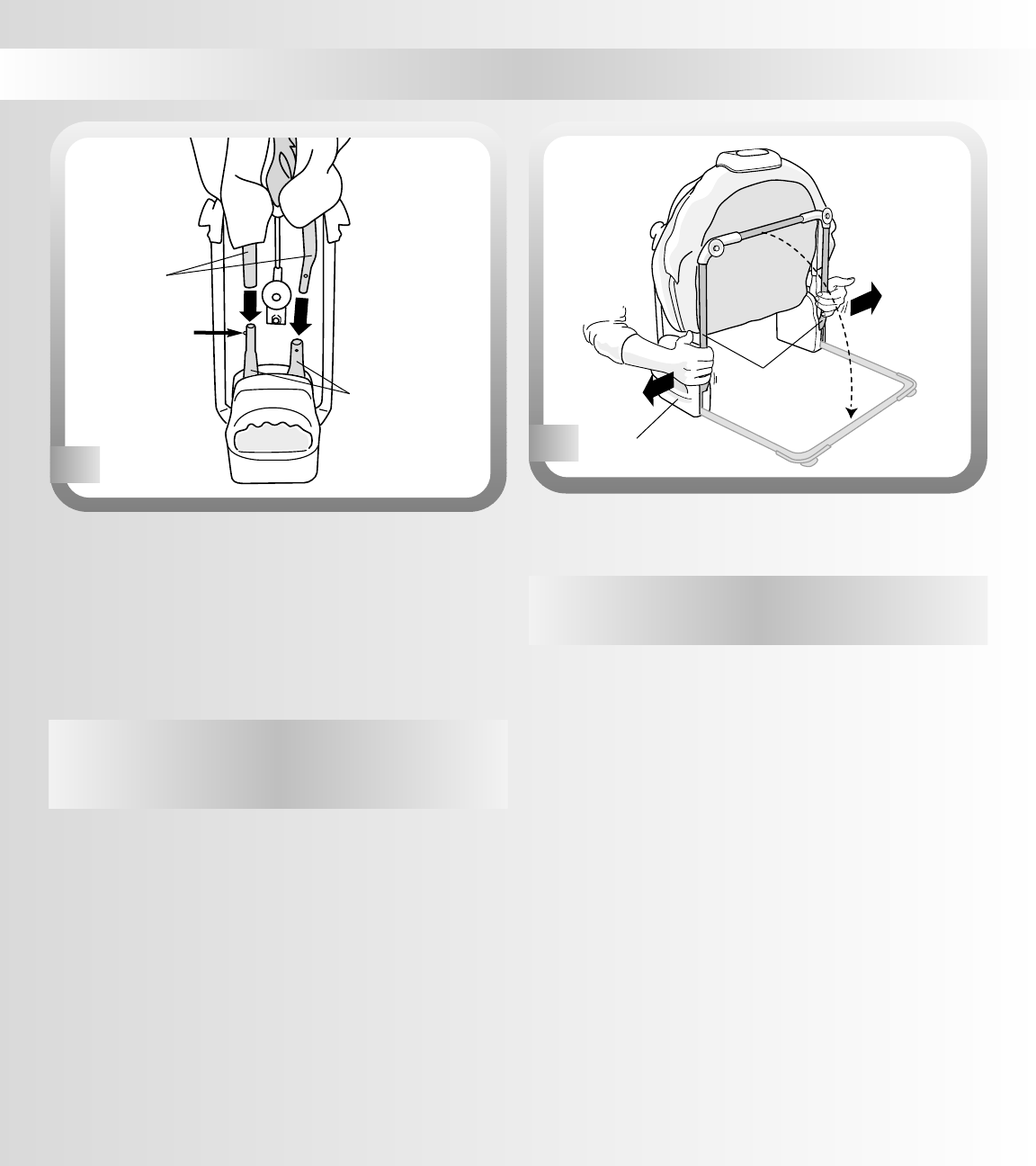

• Position the frame assembly upright on a flat surface,

as shown.

• Fit the folded bassinet between the legs of the

frame assembly.

• While pressing the button on the frame short tube, fit the

bassinet tube over the frame short tube. Push the bassinet

tube down until the button on the frame short tube

“snaps” into place.

• Fit the other bassinet tube into the other frame short tube.

• Now, fit and secure the other bassinet tubes to the frame

short tubes on the other side of the product.

Hint: The tubes have been designed to fit together only one

way! If you cannot fit the bassinet tubes to the frame short

tubes, you will need to turn the folded bassinet around

and try again.

3

Base

Handle

Assembly

5

• With one side of

the assembly facing

you, fold back the

fabric and locate a

canopy retainer.

• Fit the canopy

retainer over the

frame tubes.

• Align the hole in the

canopy retainer and frame tubes

and insert an M4 screw through the front of the canopy

retainer, frame tubes and into the lock nut inside the

canopy retainer.

• Tighten the bolt with a Phillips screwdriver.

Do not over-tighten.

• Repeat this procedure to secure the other canopy retainer

to the other side of the frame, using the remaining M5 bolt.

Assembly is now complete.

Canopy

Retainer

Frame Tube

Hint: An M4 lock nut has been assembled to each canopy

retainer at the factory. During shipment of this product, they

may have fallen out. Check to be sure there is a lock nut in

each hexagonal opening in the canopy retainers. If one

(or both) has fallen out, fit the lock nut into the hexagonal

opening in the canopy retainers. Make sure the rounded side

of the lock nut is facing out.

Shown Actual Size

M4 Shoulder Screw - 2

M4 Lock Nut

(Inside Canopy Retainer)

Rounded

Side

Frame Tube

4

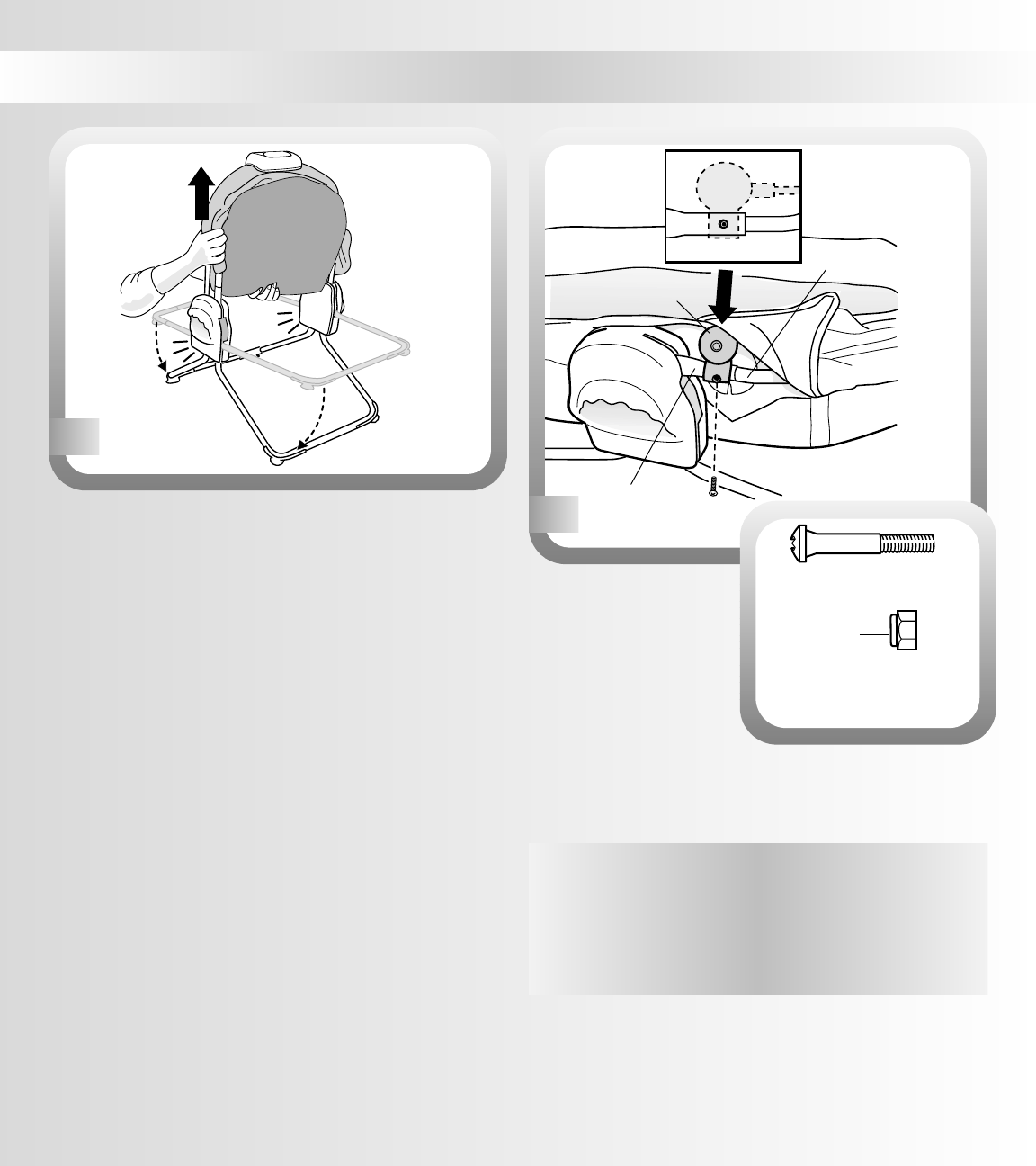

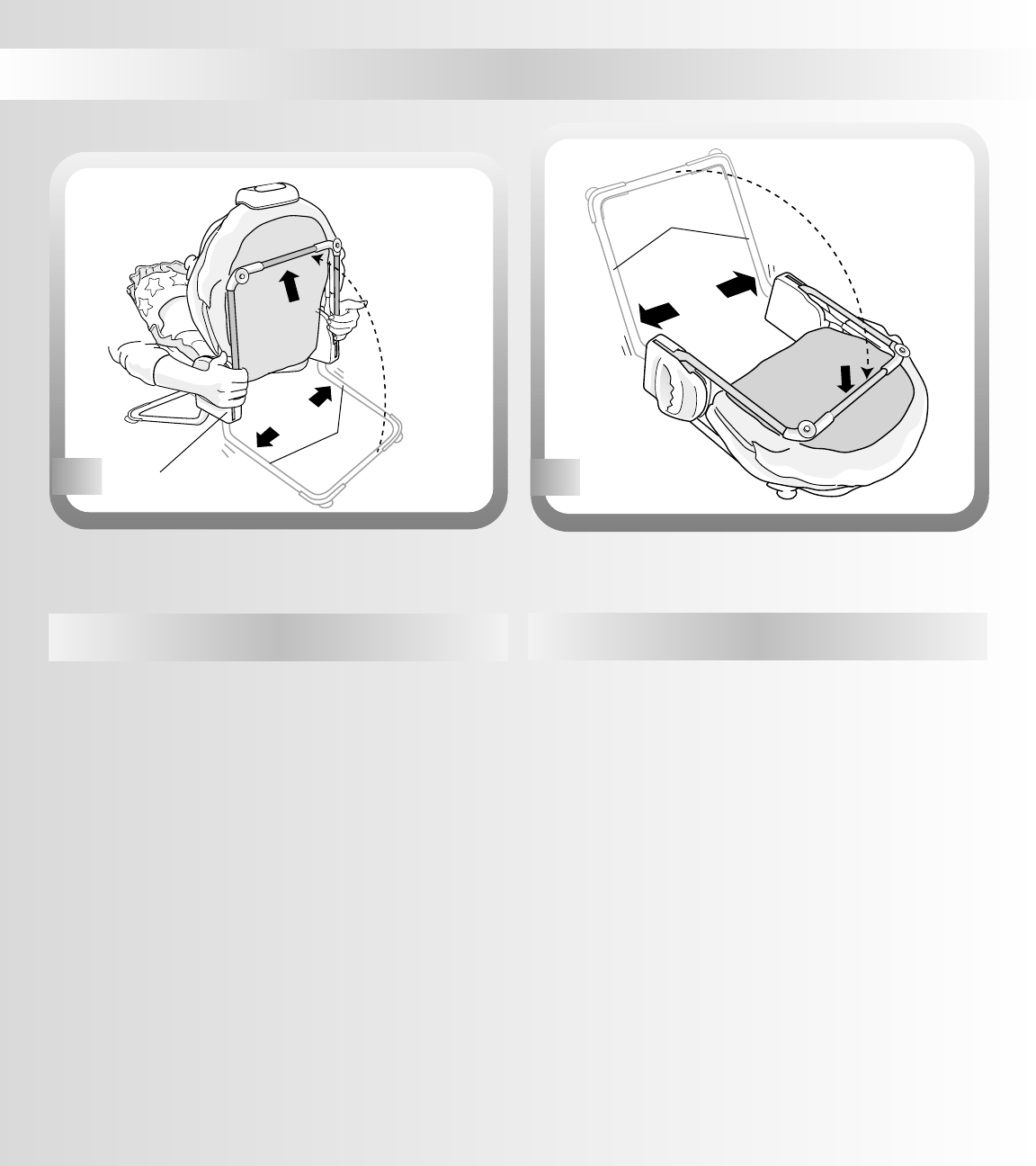

• Lift the assembly so that each side of the base “snaps”

into place.

• Open the ends of the bassinet.

6

7

Battery Installation Battery Tips

• Remove the batteries during long periods of non-use.

Always remove exhausted batteries from the product.

Battery leakage and corrosion can damage this product.

Dispose of the batteries safely.

• Do not dispose of batteries in a fire.The batteries may

expolode or leak.

• Never short circuit the battery terminals.

• Non-rechargeable battereries are not to be recharged.

• Only batteries of the same or equivalent type as recom-

mended in the Battery Installation instructions are to

be used.

• If removable rechargeable batteries are used, they are only

to be charged under adult supervision.

• Rechargeable batteries are to be removed from the toy

before they are charged.

• If you use a battery charger, it should be examined regularly

for damage to the cord, plug, enclosure and other parts.

Do not use a damaged battery charger until it has been

properly repaired.

• We recommend the use of alkaline batteries for longer

battery life.

1.5V x 4

"C" (LR14)

Shown Actual Size

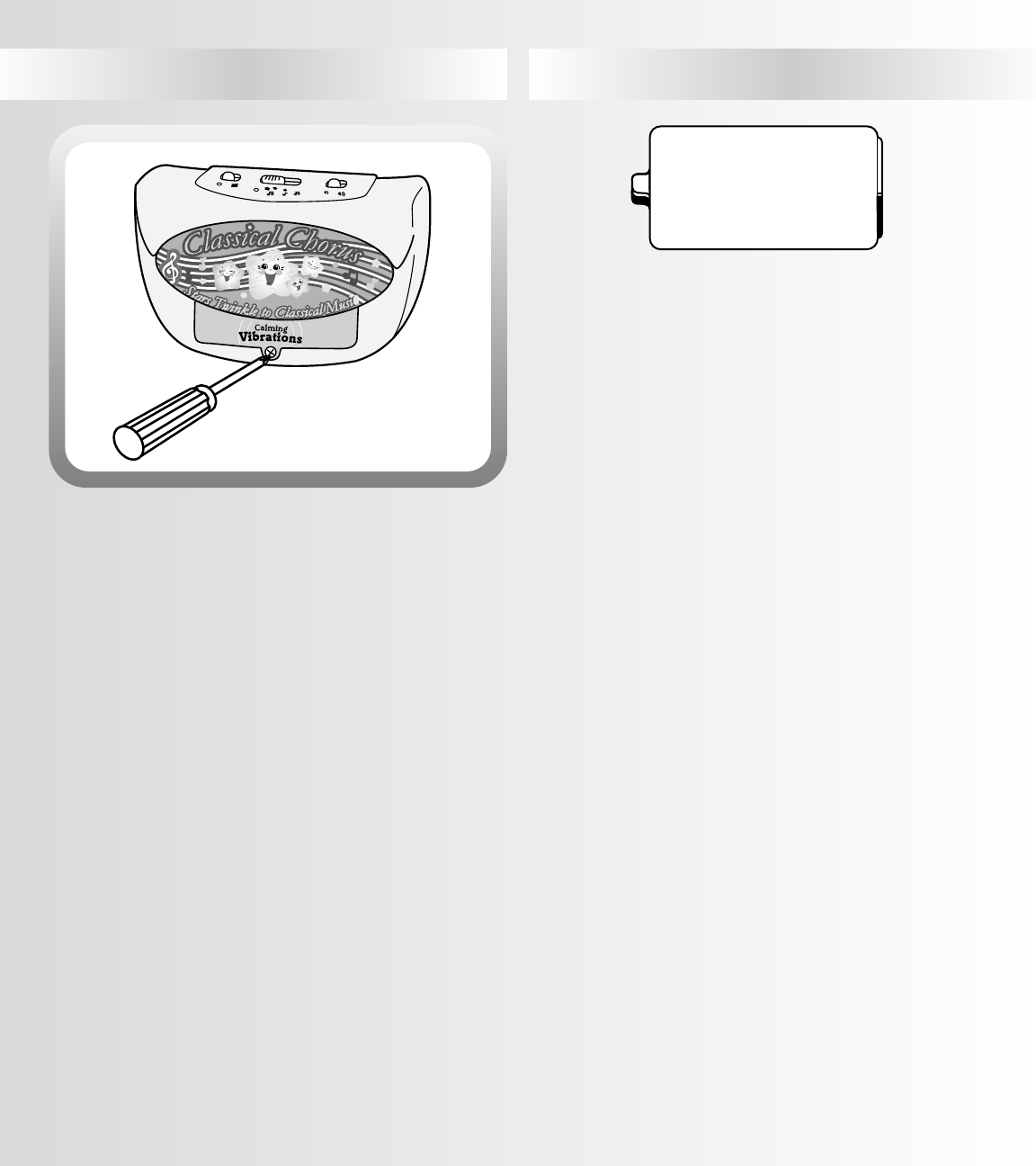

• Loosen the screw in the soother battery compartment door.

• Remove the battery compartment door.

• Insert four "C" alkaline (LR14) batteries as indicated inside

the battery compartment.

• Replace the battery compartment door and tighten the

screw with a Phillips screwdriver. Do not over-tighten.

8

Set-Up & Use

To Open

IMPORTANT! Before each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. Do not use

if any parts are missing or broken. Contact Fisher-Price® for replacement parts and instructions if needed. Never substitute parts.

Failure to follow these warnings

and instructions could result in

serious injury or death.

• To prevent falls:

- Never place product on an elevated

surface.

• To prevent strangulation:

-Never place items with a string, such as

hood strings or pacifier cords, around

child's neck.

-Never place product near a window

where cords from blinds or drapes can

strangle a child.

WARNING

• Place palms on handles and grasp both sides of the base.

Pull the sides of the base out while pressing palms against

the handles. Let the base rotate down.

• Repeat this procedure to lower the other base.

Hint: If the base does not freely rotate down, pull the sides

of the base further outward while pressing palms against

the handles.

1

Base

Handle

9

Set-Up & Use

2

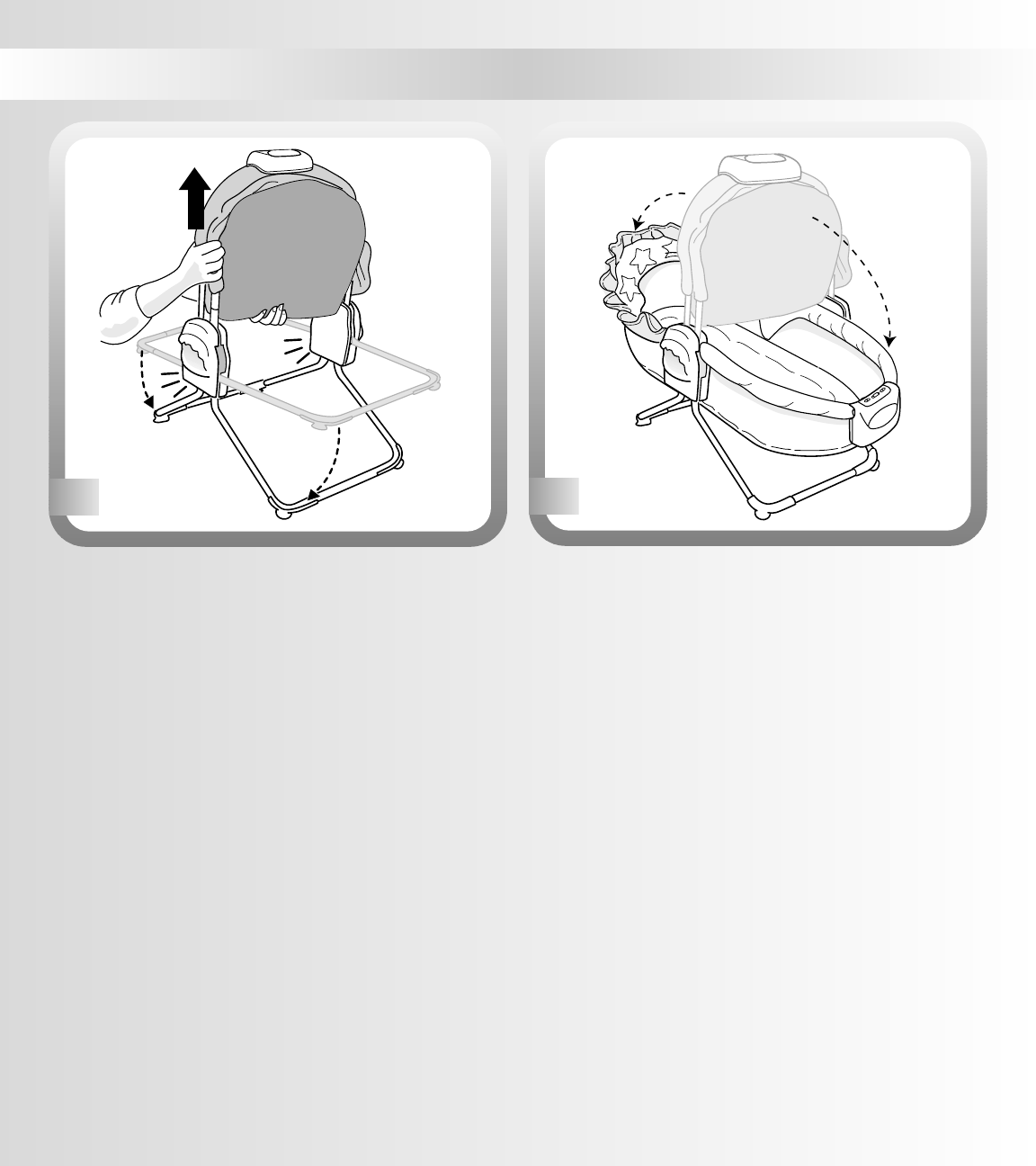

• Lift the bassinet so that each side of the base “snaps”

into place.

• Lower the ends of the bassinet.

• Push down on each end of the bassinet to be sure the

frame is secure.

3

10

Set-Up & Use

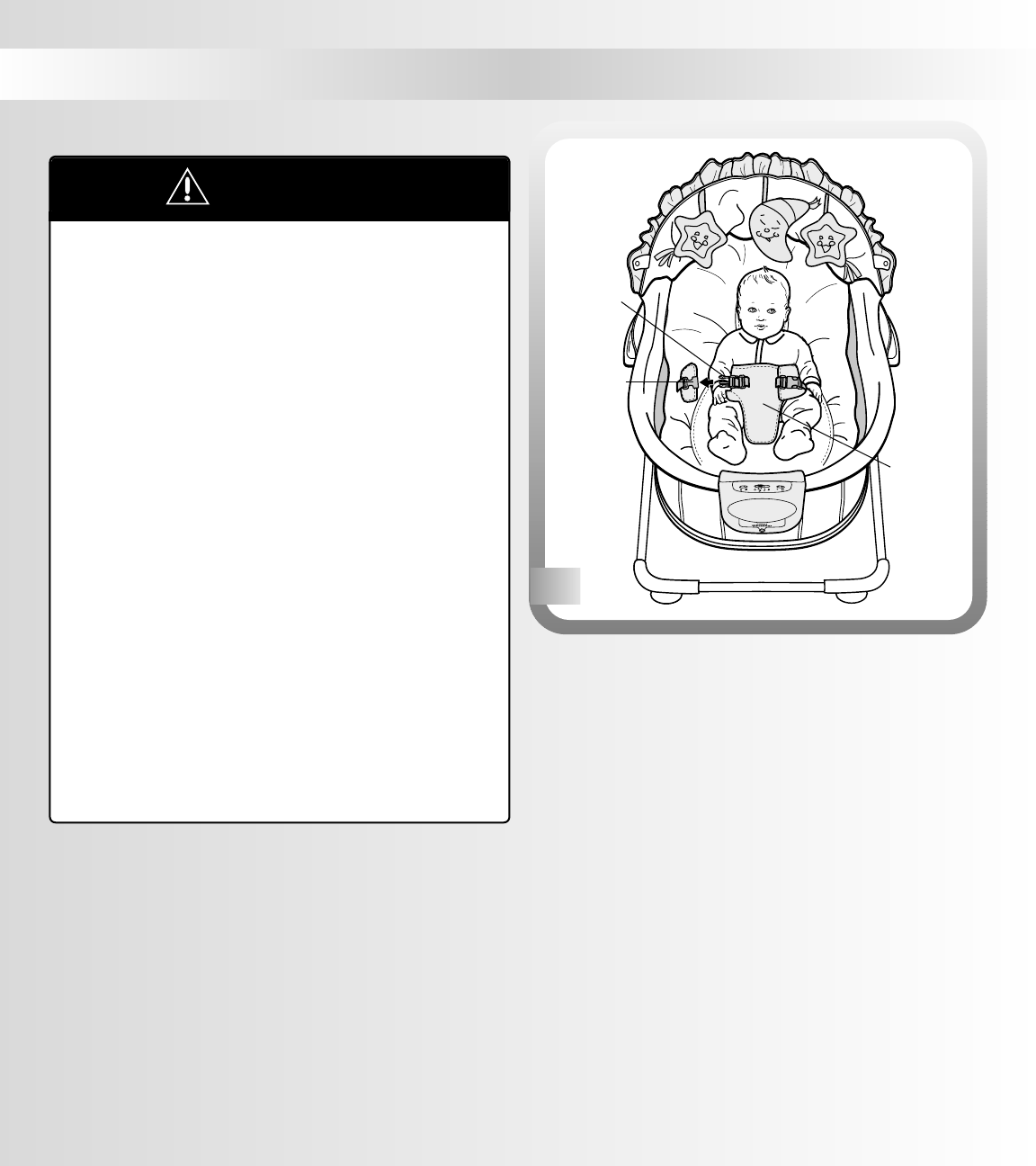

• Place your baby in the bassinet.

• Position the restraint pad between your baby's legs.

• Fasten both waist belts to the buckles on each side

of the restraint pad. Make sure you hear a "click" on

both sides.

• Check to be sure the restraint is securely attached by

pulling it away from your baby.The restraint should

remain attached.

4

Buckle

Waist Belt

Restraint

Pad

Restraint System

Failure to follow these warnings

and instructions could result in

serious injury or death.

To reduce the risk of Sudden Infant Death

Syndrome (SIDS), normal healthy infants

should always sleep on their backs unless

otherwise advised by a pediatrician.

• Infants can suffocate:

-In gaps between an extra pad and side

of the bassinet.

-On soft bedding.

• Never add a mattress, pillow, comforter or

padding. Use ONLY the pad provided by

the manufacturer.

• To prevent falls:

- Do not use this product when infant

begins to push up on hands and knees.

- When used as an infant seat, always

use restraint.

• Never leave child unattended.

WARNING

When Putting Baby to Sleep*

•NEVER place any covering higher than an infant’s shoulders.

•NEVER place infants to sleep on pillows, sofa cushions,

adult beds, waterbeds, beanbags, or any other surface not

specifically designed for infant sleep.

• Do not overdress your baby. If you feel comfortable, your

baby will too.

*This important safety message is brought to you by the Juvenile Products

Manufacturers Association.

11

Set-Up & Use

6

Seat Back Adjustment

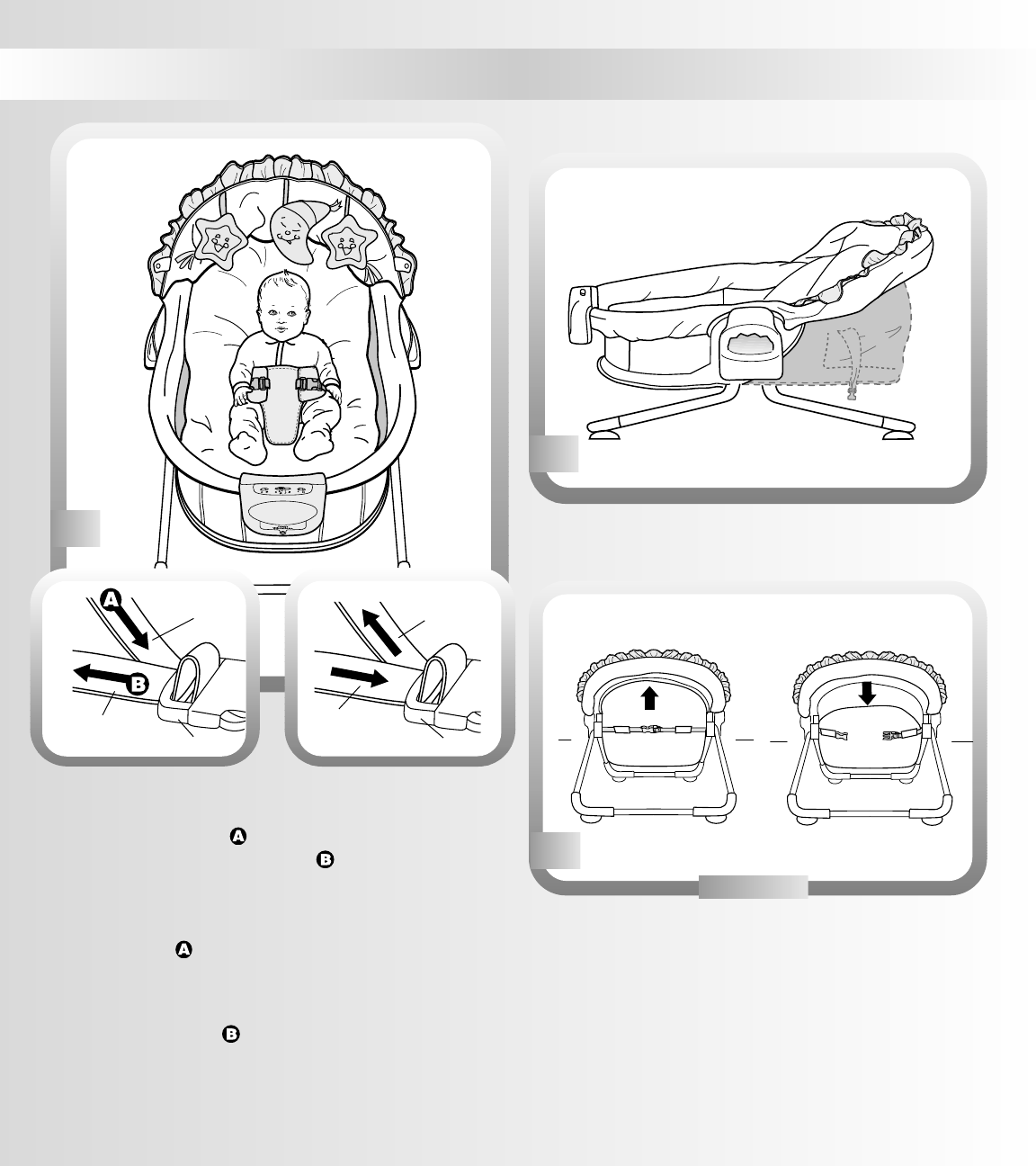

• You can adjust the seat back to an upright or recline

position for baby's comfort.

Upright

Position

Recline

Position

To adjust the seat back to upright:

• Lift the seat back and then fasten the buckle. Make sure

you hear a "click".

To adjust the seat back to recline:

• Support the seat back with your hand, unfasten the buckle

and guide the seat back down into position.

UPRIGHT RECLINE

Back View

7

5

B

Anchored

End

Free End

Buckle

To tighten the waist belts:

• Feed the anchored end of the waist belt up through the

buckle to form a loop .

• Pull the free end of the waist belt .

• Repeat this procedure to tighten the other waist belt.

To loosen the waist belts:

• Feed the free end of the waist belt up through the buckle

to form a loop .

• Enlarge the loop by pulling on the end of the loop toward

the buckle.

• Pull the anchored end of the waist belt to shorten the free

end of the waist belt .

• Repeat this procedure to loosen the other waist belt.

Note: After adjusting the waist belts to fit your child, make

sure you pull on them to be sure they are securely fastened.

B

B

Anchored

End

Buckle

Free End

Set-Up & Use

Portability

• Grasp the handles on each side of the bassinet to carry.

Handle

9

8

Canopy Adjustment

• The canopy can be adjusted up or down.

• Fasten the flap on each side of the canopy for the

up position.

Up

Down

12

13

Set-Up & Use

11

Base

PUSH

To Fold

10

• Place palms on handles and grasp both sides of the base.

• Lift the bassinet and pull the sides of the base out while

pressing palms against the handles.

• Lift the end of the base so that is is secured upright.

Hint: If the base does not freely lift, pull both sides of the base

further apart while pressing palms against the handles.

LIFT

Base

• Place palms on handles and grasp both sides of the base.

• Pull the sides of the base out while pressing palms against

the handles.

• Push the base so that it is closed securely.

Hint: If the base does not freely lift, pull both sides of the base

further apart while pressing palms against the handles.

Handle

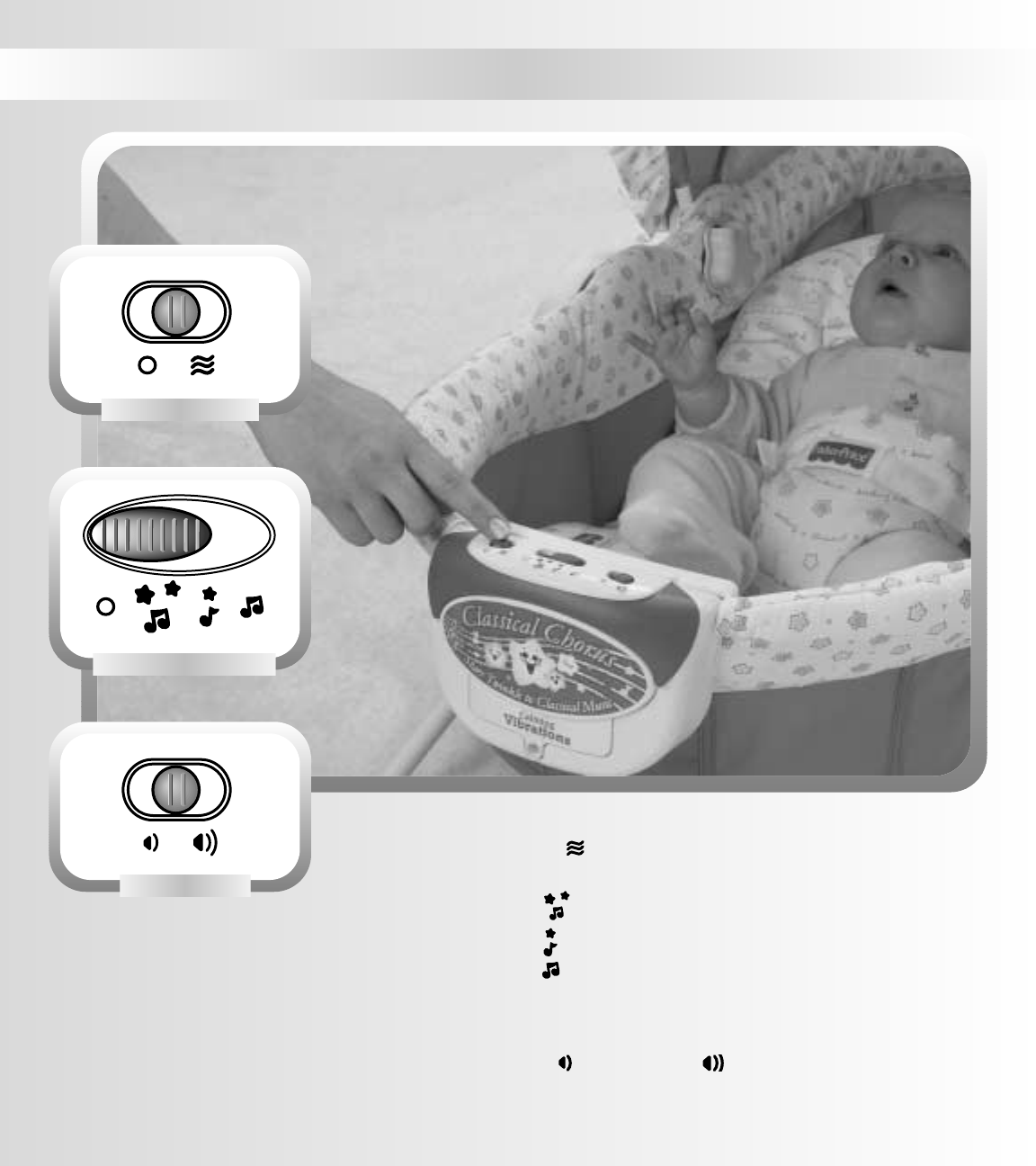

Music, Lights and Calming Vibrations

Calming Vibrations

• Slide the vibration switch to to turn vibrations on; or Oto turn vibrations off.

Music and Lights

• Slide the mode switch to for daytime lights and music.

• Slide the mode switch to for nightime lights and music.

• Slide the mode switch to for music only.

• Slide the mode switch to Oto turn lights and music off.

Volume

• Slide the volume switch to for low volume; for high volume.

Lights & Music Switch

Vibrations Switch

Volume Switch

14

FCC Note (United States Only)

Note: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation.This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interfer-

ence to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Consult the dealer or an experienced radio/TV technician

for help.

Note: Changes or modifications not expressly approved by

the manufacturer responsible for compliance could void the

user‘s authority to operate the equipment.

Care

The pad is machine washable.Wash the pad separately in

cold water on the gentle cycle. Do not use bleach. Tumble

dry separately on low heat and remove promptly. The fabric,

frame and toys may be wiped clean using a mild cleaning

solution and a damp cloth.

Note: Do not dispose of the musical toy in a fire. The

battery(ies) inside the toy may explode or leak.

15

Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A.

©2002 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.

Printed in China 79668pr-0920
