Owner’s

Manual

For Maximum Effectiveness And

Safety, Please Review this

Owner’s Manual, View the video,

and for Healthy Eating Tips refer

to the Jump Start Section.

TABLE OF CONTENTS

Ab Lounge®and Fitness Quest®are registered trademarks of Fitness Quest Inc. U.S. Patent #5,681,250.

Ab Lounge™ XL System, Ab Lounge™ XL Workout, Focus Strap™ and Iso-Grip™ are trademarks of

Fitness Quest Inc.

No part of this booklet may be reproduced or utilized in any form or by any means electronic, mechanical

or otherwise without the expressed written consent of the copyright holder.

10/17/05

OWNER’S MANUAL

Important Safety Information ...............................................2

Equipment Warning & Caution Labels .................................3

Specifications & Parts ..........................................................3

Introduction ..........................................................................4

Assembly Instructions.......................................................5-6

Folding Instructions..............................................................7

Parts List & Exploded View ..................................................8

Exercise Guidelines.........................................................9-10

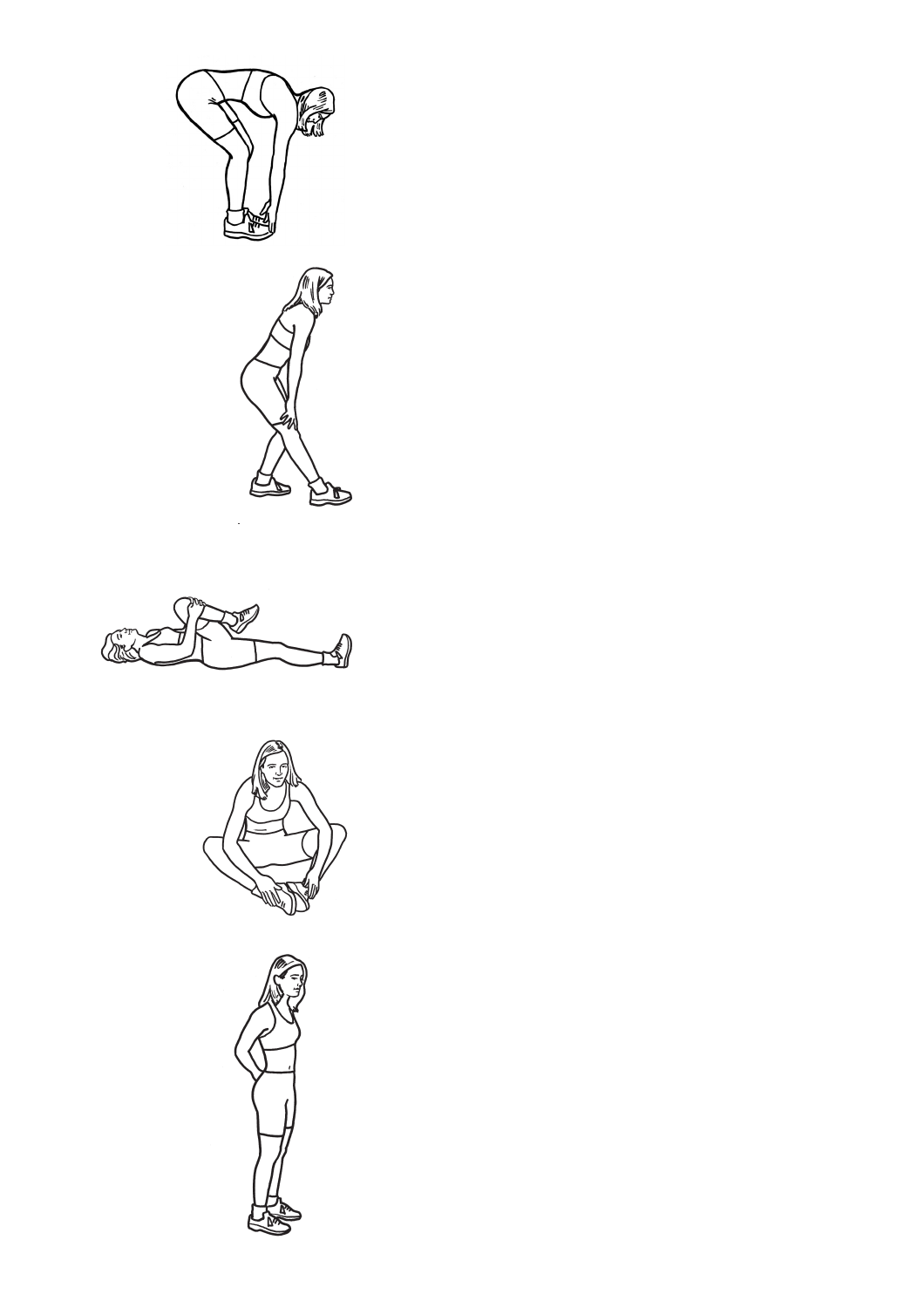

Warm Up & Cool Down Stretches ................................11-12

Ab Lounge™XL System .....................................................13

Ab Lounge™XL Workout ..............................................13-14

Care & Storage...................................................................14

Getting Started on Your Ab Lounge®XL Equipment .........15

Ab Lounge®XL Exercises.............................................16-18

Ab Lounge™XL Workout Tracking Sheets .........................19

Cardiovascular Conditioning.........................................19-20

Progressive Cardiovascular Training Program ...................21

Cardio Workout Tracking Sheets........................................22

JUMP START DIET ......................................................23-28

Workout Progress Chart ...........................Inside Back Cover

-------- 2--------

IMPORTANT SAFETY INFORMATION

1) Before starting this or any other exercise

program, consult your physician. Your physician

should assist you in determining the target heart rate

zone appropriate for your age and physical condition.

Certain exercise programs or types of equipment may

not be appropriate for all people. This is especially

important for people over the age of 35, pregnant

women, or those with pre-existing health problems

or balance impairments. If you are taking medication

which may affect your heart rate, a physician's advice

is absolutely essential.

2) Start out slowly and progress sensibly.

Even if you are an experienced exerciser, start with the

basic workout and become familiar with all of the exer-

cises before moving on to more advanced workouts or

exercises. For best results, perform all of the exercises

at the tempo demonstrated in the video.

3) Do not overexert yourself with this or any other

exercise program. Listen to your body and respond to

any reactions you may be having. You must learn to

distinguish “good” pain, like fatigue, from “bad” pain,

which hurts. If you experience any pain or tightness

in your chest, an irregular heartbeat, dizziness,

nausea, or shortness of breath, stop exercising at

once and consult your physician immediately.

4) Warm up before any exercise program by doing 5 to 10

minutes of aerobic activity, followed by stretching.

5) Inspect the equipment. Before EACH use, visually

inspect the equipment including stitching, fabric, frame

and pivot area. Do not use unit if you detect any

tearing, fraying or cuts on fabric. Do not use unit if

any pivoting assembly is not working properly.

NEVER operate the equipment if the equipment is

not functioning properly.

6) USE CARE when getting on and off the equipment.

Set up and use your equipment on a solid, level,

carpeted surface. Follow the instructions demonstrated

in your video and on page 15 in this manual for proper

entry and exit techniques.

7) Use this equipment ONLY for the intended use

as described in this manual. Do not modify the

equipment or use attachments not recommended

by the manufacturer.

8) Have plenty of clearance behind and in front of

your equipment. It is important to keep children,

pets, furniture and other objects out of the way when

using your equipment. You should have a minimum

of 3 feet of clearance both in front of and behind

your equipment.

9) Wear appropriate clothing when exercising.

Workout clothing should be comfortable and

lightweight, and should allow freedom of movement.

Wear comfortable athletic shoes made of good

support with non-slip soles, such as running or

aerobic shoes. Do not use this product with bare

feet or when wearing only socks or stockings.

10) THIS EQUIPMENT IS NOT FOR USE BY CHILDREN.

To prevent injuries, keep this and all fitness

equipment out of the reach of children.

Follow these simple rules:

– Keep children out of rooms where you have

your exercise equipment.

– Store exercise equipment in a room that

can be locked.

– Know exactly where your children are when

you work out.

– If you have small children at home, don’t wear

headphones while you work out.

– Talk to your kids about the dangers of exercise

equipment.

11) Breathe naturally, never holding your breath during

an exercise. Avoid over training, you should be able to

carry on a conversation while exercising.

12) Cool down after an exercise session, with 5 to 10

minutes of slow walking, followed by stretching.

13) Handicapped or disabled people must have

medical approval before using this equipment and

should be under close supervision when using any

exercise equipment.

14) Only one person at a time should use this

equipment.

15) DO NOT put hands, feet, or any foreign objects

on or near this equipment when in use by others.

Use caution not to pinch fingers or hands in

moving parts when folding, setting up, or using

the equipment.

WARNING

YOU AND OTHERS CAN BE SERIOUSLY INJURED

OR KILLED IF WARNINGS ON THE EQUIPMENT, IN THIS

OWNER’S MANUAL AND VIDEO ARE NOT FOLLOWED.

Go to www.fitnessquest.com

or call 1-800-497-5831 for

replacement labels, manuals or video(s).

-------- 27 --------

JUMP START DIET

DINNER CONTINUED

8 oz. water

3 oz. pork chop, lean only, baked, broiled or grilled

1 small baked potato

1 tsp. butter

1 cup green beans

1 large salad made with mixed greens

1 tsp. olive oil with flavored vinegar (no need to

measure vinegar) or 1 Tbsp. regular dressing

8 oz. water

1 piece (3 oz.) turkey baked, broiled or grilled. Brush lightly

with olive oil and favorite seasonings before cooking.

1 small baked potato with 1 tsp. butter

1 cup broccoli

8 oz. water

1 cup vegetable soup

6 crackers

2 oz. lean ham

1/2 large whole grain pita with mustard

2 sliced carrots

8 oz. water

3 oz. lean hamburger, grilled or broiled

1 Tbsp. ketchup

1 hamburger bun, tomato, lettuce, pickle and

onion if desired

8 oz. water

2 slices cheese pizza from a medium pie, baked

in pizza oven not in pan

1 large mixed green salad

1 Tbsp. reduced fat salad dressing

8 oz. water

1 cup angel hair pasta with 1/2 Tbsp. olive oil with garlic

on pasta and topped with 1 tsp. grated cheese

3 oz. grilled chicken with Italian seasonings

1 large salad with mixed greens

1/2 Tbsp. olive oil and vinegar or

1 Tbsp. salad dressing

1/2 cup cooked green beans

8 oz. water

3 oz. pork chop, lean only, broiled or grilled

without added fat

1/2 cup rice with 1 tsp. butter

1/2 cup applesauce

1 large mixed green salad

1/2 Tbsp. olive oil and vinegar (no need to measure vinegar)

or 1 Tbsp. reduced fat dressing

8 oz. water

3 oz. white fish such as flounder, baked and brushed

with olive oil and favorite seasonings

1 small baked potato

1 Tbsp. sour cream and chives

1 cup broccoli or cauliflower

8 oz. water

3 oz. chicken breast, no skin, baked, broiled or grilled

3 to 4 new boiled potatoes tossed with 1 Tbsp. butter

and sprinkled with garlic and parsley

1 cup beets or other vegetable

1 large salad made with mixed greens

1 Tbsp. olive oil with flavored vinegar

(no need to measure vinegar)

8 oz. water

1 cup angel hair pasta

3 oz. boiled shrimp, tossed

1/2 Tbsp. olive oil and garlic

1 tsp. grated cheese

1 mixed green salad

1/2 Tbsp. salad dressing

8 oz. water

3 oz. lean pork chop, baked with

reduced fat cream of mushroom soup

1/2 cup noodles with 2 Tbsp. gravy from pork chop

1 cup green beans

1 large salad made with mixed greens

2 tsp. olive oil with flavored vinegar

(no need to measure vinegar)

8 oz. water

4 oz. fish, baked, broiled or grilled, brushed lightly with

olive oil and favorite seasonings

1/2 cup corn

1 tsp. butter

1 cup broccoli

1 small dinner roll

-------- 3--------

EQUIPMENT WARNING & CAUTION LABELS

WARNING

FAILURE TO READ AND FOLLOW THE SAFETY INSTRUCTIONS STATED IN THE OWNER’S MANUAL

AND VIDEO MAY RESULT IN POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. MAXIMUM

USER WEIGHT 275 LBS. REPLACE THIS LABEL IF DAMAGED, ILLEGIBLE OR REMOVED. CLASS HC.

WARNING LABEL 1

DETACH THIS END OF BAND FROM FRAME BEFORE

FOLDING. FAILURE TO DO SO MAY RESULT IN INJURY.

WARNING LABEL 2 (2 locations)

CRUSH HAZARD. Keep hands clear

during folding. Failure to do so,

could result in crushed fingers.

WARNING LABEL 3 (4 locations)

WARNING

Place hand here when folding.

Keep hand outside of tubes to

prevent pinched fingers.

CAUTION LABEL 1 (4 locations)

CAUTION

Ab Lounge®XL Specifications:

Product Weight: Approx. 35 lbs.

Length: 54”

Width: 31-3/4”

Height: 45-1/2”

Note: Dimensions are based

on unit set up for use.

Maximum user weight: 275 lbs.

SPECIFICATIONS AND PARTS

Also Includes a

Workout DVD

The following parts are located in the Parts Box. Please make sure you have all of the parts before

beginning assembly of your equipment.

X15908-8

short band

X15906

foot rest

assembly

X15908-1

handlebar

X15907

seat

X15903-1

seat support frame

X15901-1

front frame

X15901-8

locking

arm

X15908-7

long band

X15901-2

rear frame

X15905-3

head rest frame

X15901-8

locking arm

mechanism

X15905-4

Focus Strap™with

Iso-Grip™handles

2 - handlebars with

locking knobs 1 - short band

X15908

PARTS BOX:

1 - long band

WARNING

LABEL 1

LOCATED ON

BOTH SIDES

OF FRAME

WARNING

LABEL 3

WARNING

LABEL 2

LOCATED ON

BOTH SIDES

OF FRAME

CAUTION

LABEL 1

LOCATED ON BOTH

SIDES OF FRAME

CAUTION

LABEL 1

WARNING

LABEL 2

X15908-6

adjustment

knob

X15902-1

foot rest receiver

1 - adjustment

knob

IMPORTANT: See below for

placement of the following

Warning/Caution Labels on

your unit.

WARNING

-------- 4--------

Congratulations on your purchase of the Ab Lounge®XL unit. You have taken an important step

toward your fitness goals. Whether that means toning your abs, or strengthening and stretching

your core abdominal muscles, the Ab Lounge®XL unit can help you get the results you want.

Working out on comfortable, efficient equipment that allows you to start and progress at the

level that’s appropriate for you is a vital element in sticking with a program of regular exercise.

With your Ab Lounge®XL unit, you’ll use the abdominal muscles in smooth natural motions.

You’ll be able to adjust the equipment to fit your body and begin your workout right away - just

what you need to improve your fitness the healthy, easy way!

Just 30 minutes a week – three enjoyable 10 minute sessions – is all it takes to begin experi-

encing the toning and stretching benefits of your Ab Lounge®XL unit. With regular use of your

equipment, consistent aerobic exercise and a proper diet, you may soon notice some

important changes in yourself, such as:

• More endurance and stamina

• Less body fat and excess weight

• Improved abdominal muscle tone

• Increased energy for daily tasks

• Less stress and a more positive outlook

With a minimal time commitment, you’ll receive an impressive return on your investment!

We’re so sure that you will be completely satisfied with your Ab Lounge®XL unit that we

encourage you to write or call our Customer Service Specialists at the address or phone

number listed below or contact us on our website. As always, you have our personal

assurance that we want your complete satisfaction. After all, your success is our success too!

Sincerely,

Karla Williamson, Customer Service

Ab Lounge®XL, Customer Service Department

248 Fitness Quest Plaza, Canton, OH 44750-1001

Call Toll Free: 1-800-321-9236 • Monday – Friday, 8:30am to 8:00pm, EST

Email: customersupport@fitnessquest.com • www.fitnessquest.com

Please do not call the above number for Parts. See Ordering Missing

or Defective Parts section below.

IMPORTANT: This owner's manual is the authoritative source of information about

your Ab Lounge XL unit. Please read it carefully and follow all the instructions.

INTRODUCTION

Ordering Missing or Defective Parts

When ordering parts, please contact our Parts Department, toll free at 1-800-497-5831

Monday through Friday, 8:30am to 8:00pm, Eastern Standard Time.

IMPORTANT: You must have your serial number, date of purchase, and this manual

ready when calling for parts.

Serial #: _____________________________

If you would like a FREE VHS* copy of your DVD, simply give us a call. All you have to do

is pay $3.95 for shipping and handling.

*Offer valid for a limited time. Limit one video per customer. Additional shipping and handling charges may apply

to deliveries outside the continental U.S.

-------- 5--------

ASSEMBLY INSTRUCTIONS

Step 1. Remove the Main Assembly and all parts from packing

and place them on floor as shown in Figure 1.

Occasionally our products contain components that are pre-lubricated at the factory. We recommend

that you protect flooring, or anything else the parts may contact, with newspaper or cloth.

FIGURE 2

X15901-2

Rear Frame

X15901-1

Front

Frame

X15901-8

Locking Arm

Step 2. Lift and place the unit on its

right side with the left side and Locking

Arm facing up as shown in Figure 2.

Open the unit by grasping the bottom of

the Front and Rear Frames and spread

them apart.

Swing the Locking Arm, located on the

Left Front Frame, around so the notch

lines up with the pin on the Left Rear

Frame. Push down on the button on

the Locking Arm Mechanism and slide

it back while you hook the notch over

the pin.

X15901

Main Assembly

FIGURE 1

X15908-7

Long Band

X15908-8

Short Band

X15908-1

Handlebar with Locking Knob

X15901-8

Locking Arm

Mechanism

X15906

Foot Rest Assembly

Attaching the Locking Arm Mechanism

NOTE: All location references, such as front, rear, left

or right, made in these instructions are from the user

sitting on the unit and facing forward.

-------- 6--------

Step 4. Pull the Seat Support Frame toward

you and locate the two holes on the top.

Hook the Long Band over and

attach to the lower hole of the

Seat Support Frame. Hook the

other end of the Long Band into

the hole on the Rear Frame.

Make sure hooks are inserted

completely as shown here.

NOTE: The chair will pivot easily at this

point. Make sure you hold the Frame

firmly in place as you attach the Bands.

Step 5. Place the Short Band Hook into the upper

hole on the Seat Support Frame and hook the

other end into the hole on the Front Frame.

Step 3a. While standing

between the two frames,

PUSH the Foot Rest

Receiver out away from you

through the front frame as

shown in 3a.

Step 3b. The Seat and

Back will start to separate

(open up). Continue push-

ing outward until the Seat

and Back are approximately

2 feet apart as shown in 3b.

Step 7. Remove the Locking Knobs from the

Handlebars. Slide the Handlebars into the holes

at the top of the Main Assembly with the curves

facing down. Align mounting hole and secure each

Handlebar with the Locking Knobs you just removed.

X15902-1

Foot Rest Receiver

Seat and Back will separate (open up).

Open to approximately 2 feet apart.

Stand Here And

PUSH Open With

Your Hands

X15901-9

Cable

Long Band

in Rear

X15903-1

Seat Support Frame

X15901-2

Rear Frame

X15901-1

Front Frame

Seat

3a 3b

Check all bolts and nuts to be sure

they are tight before using your unit.

ASSEMBLY IS NOW COMPLETE.

Step 6. Partially screw the Adjustment Knob into the

underside of the Foot Rest Receiver at the front of the

unit. Pull down the Adjustment Knob and slide the Foot

Rest Assembly into the Receiver. Once the Foot Rest

Assembly is in the Receiver, let the Adjustment Knob

retract making sure it is secure in one of the holes on the

Foot Rest Assembly. Screw the Adjustment Knob by

turning clockwise until tight. X15908-6

Adjustment Knob

X15906

Foot Rest Assembly

X15902-1

Foot Rest Receiver

SET UNIT UPRIGHT

Back

REAR

FRONT

X15908-5

Locking

Knob

Handlebar

Short Band

in Front

-------- 7--------

FOLDING INSTRUCTIONS

The Ab Lounge®XL unit has been designed to fold for convenient travel and storage.

The Locking Arm Mechanism is removable by hand, no special tools required. For maximum

effectiveness and safety, always review these instructions prior to folding the unit.

Folding the Ab Lounge®XL Unit

a) Lay the unit on its right side as shown. Unhook the Short Band from the

Front Frame and the Long Band from the Rear Frame. Leave both Bands

connected to the Seat Support Frame for storage.

b) Pull the Back toward the Seat until it aligns with the Front Frame.

c) Unhook the Locking Arm Mechanism by pushing down on the button and

sliding it back and unhooking the Left Rear Frames (reverse assembly

Step 2).

d) Rotate the Locking Arm towards the Front Frame.

e) Grasp the Front Frame with one hand and the Rear Frame with the other

hand and slowly pull them together.

IMPORTANT: Place hands on Caution Labels when folding,

and be careful not to pinch your fingers between the

Front and Rear Frames.

f) For your unit to store flat you must fold the Handlebars in. To do this,

loosen the Handlebar Knobs and turn Handlebars inward toward the unit

and tighten Knobs to keep in place.

IMPORTANT: Before using your unit, be sure Handlebars are back in

correct position and the Knobs are securely tightened.

CAUTION

LABEL

CAUTION

LABEL

X15901-1

Front Frame

X15901-2

Rear Frame

Back

X15901-2

Rear Frame

X15903-1

Seat Support

Frame

X15901-1

Front Frame

X15908-8

Short Band

Seat

X15908-7

Long Band

LOCATED ON BOTH

SIDES OF FRAME

LOCATED ON BOTH

SIDES OF FRAME

X15901-8

Locking Arm

Mechanism

X15901-8

Locking Arm

-------- 8--------

PART NO. PARTS NAME QTY.

X15906-1 foot rest assembly (5) 1

X15906-2 foot extension tube (6) 1

X15905-3 head rest frame (7) 1

X15908-1 handlebars (9) 2

X15901-8 locking arm (11) 1

X15901-7 M10 x 20mm carriage bolt (21) 2

X15906-4 M10 x 145mm hex bolt (22) 1

X15901-10 M6 x 43mm phillips bolt (23) 2

X15905-5 M6 x 20mm phillips bolt (24) 2

X15902-6 M10 large nylon nut (26) 5

X15903-2 M10 thin nylon nut (27) 2

X15901-12 M6 acorn nut (28) 5

X15901-11 M6 small washer (31) 7

X15905-6 M6 large washer (32) 5

X15906-9 M6 spring washer (33) 2

X15901-4 M5 x 19mm phillips screw (34) 4

X15906-8 M6 x 15mm phillips bolt (35) 2

X15908-6 adjustment knob (38) 1

X15901-3 rubber foot (45) 4

X15902-7 M10 large nut cap (46) 7

PART NO. PARTS NAME QTY.

X15906-5 M10 small nut cap (47) 1

X15906-3 plastic bushing (48) 2

X15905-2 end plug (49) 6

X15908-3 plug (50) 2

X15908-8 short band (55) 1

X15908-7 long band (56) 1

X15908-2 grip (58) 2

X15908-4 locking washer (59) 2

X15908-5 locking knob (60) 2

X15906-7 pedal (64) 2

X15906-6 spacer (65) 2

X15906-10 plug (66) 2

X15901-9 cable (67) 1

X15905-4 focus strap with Iso-grip handles (68) 1

X15901-13 M6 x 45mm phillips bolt (69) 1

X15910 literature pack 1

X15911T top box 1

X15911B bottom box 1

X15912 accessory kit 1

X15909D workout video 1

PARTS LIST AND EXPLODED VIEW

-------- 9--------

EXERCISE GUIDELINES

IMPORTANT:

If you are over 35 and have been inactive for

several years, you should consult your physician,

who may or may not recommend a graded

exercise test. Your physician can also assist you

in determining the Target Heart Rate Zone

appropriate for your age and physical condition.

You should also consult your physician if you

have the following:

• High blood pressure

• High cholesterol

• Asthma

• Heart trouble

•Family history of early stroke or

heart attack deaths

• Frequent dizzy spells

• Extreme breathlessness after mild exertion

• Arthritis or other bone problems

• Severe muscular, ligament or

tendon problems

• Other known or suspected disease

•If you experience any pain or tightness

in your chest, an irregular heartbeat or

shortness of breath, stop exercising

immediately. Consult your physician

before continuing.

•Pregnant

•Balance Impairment

•Taking medications that affect heart rate

(continued on next page)

IMPORTANT

Please review this section before you begin exercising.

Workout Phases:

Regardless of whether you are working out on your Ab

Lounge®XL equipment or doing a cardio workout, your

workout should consist of the following three phases.

Warm-Up

To prevent injury and maximize performance, we

recommend that each workout period should start with

a warm-up. Your warm-up should gently prepare your

muscles for the coming exertion. Start by doing 5 to 10

minutes of gentle exercise that gradually increases your

heart rate and loosens up your muscles. Your warm-up

exercise should be aerobic in nature and only require an

easy, unforced range of motion. This should be followed

by 5 to 10 minutes of stretching. Refer to the stretches

found on pages 11 and 12 of this manual. Never push

yourself beyond a point of gentle tension or strain.

Keep your movements gentle, rhythmic and controlled.

Muscle Toning Workout

Your warm-up should be followed by either a workout on

the Ab Lounge®XL equipment or a cardio workout,

depending on which workout you are doing that day.

Regardless of which workout your are doing, build up

as your current fitness level allows and progress at a

rate that is comfortable to you.

For the first week or so, you may feel some muscle

soreness. This is quite normal and will disappear in a

matter of days. If you experience major discomfort, you

may be on a regimen that is too advanced for you or

you may have increased your program too rapidly.

Cool Down and Stretching

Your workout should be followed by a cool down. The

cool down should consist of 5 to 10 minutes of slow

walking, followed by stretching. Refer to the stretches

found on pages 11 and 12 of this manual. Never push

yourself beyond a point of gentle tension or strain.

Keep your movements gentle, rhythmic and controlled.

-------- 10 --------

When to Exercise

The hour just before the evening meal is a popular time

for exercise. The late afternoon workout provides a

welcome change of pace at the end of the work day and

helps dissolve the day's worries and tensions.

Another popular time to work out is early morning,

before the work day begins. Advocates of the early start

say it makes them more alert and energetic on the job.

Among the factors you should consider in developing

your workout schedule are personal preference, job and

family responsibilities, availability of exercise facilities

and weather. It's important to schedule your workouts for

a time when there is little chance that you will have to

cancel or interrupt them because of other demands on

your time.

You should not exercise strenuously during extremely

hot, humid weather or within two hours after eating.

Heat and/or digestion both make heavy demands on the

circulatory system, and in combination with exercise can

be an over-taxing double load.

Measuring Your Heart Rate

When checking Heart Rate during a workout, take your

pulse within five seconds after interrupting exercise

because it starts to go down once you stop moving.

Count pulse for 10 seconds and multiply by six to

get the per-minute rate.

Target Heart Rate

Aerobic intensity guidelines for healthy adults are

generally set at 40 to 85 percent of heart rate. But, if

you’re out of shape, remember that moderate to low

level and consistent cardiovascular training – well

below the standard recommendations set forth – can

result in substantial and beneficial effects to your health

and can greatly improve cardiovascular endurance.

You can use the following calculation to determine what

percentage of your heart rate you are working at:

% heart rate = (220 - age) x %.

Using this calculation, a 70% heart rate for a 40 year old

would be (220 - 40) x 70% or 126. Thus, this individual

would need to reach 126 beats per minute to equal a

70% heart rate.

The above are guidelines, people with any medical

limitations should discuss this formula with their

physician.

Clothing

All exercise clothing should be loose-fitting to

permit freedom of movement, and should make

the wearer feel comfortable and self-assured.

Never wear rubberized or plastic clothing, such

garments interfere with the evaporation of perspira-

tion and can cause body temperature to rise to

dangerous levels.

We recommend wearing comfortable athletic shoes

made of good support with non-slip soles. Do not

use this equipment with bare feet or when wearing

only socks or stockings.

Tips to Keep You Going

1) Adopt a specific plan and write it down.

2) Keep setting realistic goals as you go

along, and remind yourself of them often.

3) Keep a log to record your progress and

make sure to keep it up-to-date. See

charts in this booklet.

4) Include weight and/or percent body fat

measures in your log. Extra pounds can

easily creep back.

5) Enlist the support and company of your

family and friends.

6) Update others on your successes.

7) Avoid injuries by pacing yourself and

including a warm up and cool down

period as part of every workout.

8) Reward yourself periodically for a job

well done!

-------- 11 --------

WARM UP & COOL DOWN STRETCHES

When performing these stretches, your movements should be slow and smooth,

with no bouncing or jerking. Move into the stretch until you feel a slight tension,

not pain, in the muscle and hold the stretch for 20 to 30 seconds. Breathe slowly

and rhythmically. Be sure not to hold your breath. Remember that all stretches

must be done for both sides of your body.

1. Quadriceps Stretch

Stand close to a wall, chair or other solid object. Use one hand to

assist your balance. Bend the opposite knee and lift your heel towards

your buttocks. Reach back and grasp the top of your foot with the

same side hand. Keeping your inner thighs close together, slowly pull

your foot towards your buttocks until you feel a gentle stretch in the

front of your thigh. You do not have to touch your buttocks with your

heel. Stop pulling when you feel the stretch. Keep your kneecap

pointing straight down and keep your knees close together. (Do not

let the lifted knee swing outward.)

Hold for 20 to 30 seconds. Repeat for the other leg.

2. Calf and Achilles Stretch

Stand approximately one arms length away from a wall or chair with

your feet hip-width apart. Keeping your toes pointed forward, move

one leg in close to the chair while extending the other leg behind you.

Bending the leg closest to the chair and keeping the other leg straight,

place your hands on the chair. Keep the heel of the back leg on the

ground and move your hips forward. Slowly lean forward from the

ankle, keeping your back leg straight until you feel a stretch in your

calf muscles.

Hold for 20 to 30 seconds. Repeat for the opposite leg.

3. Overhead/Triceps Stretch

Stand with your feet shoulder width apart and your knees slightly bent.

Lift one arm overhead and bend your elbow, reaching down behind

your head with your hand toward the opposite shoulder blade. Walk

your fingertips down your back as far as you can. Hold this position.

Reach up with your opposite hand and grasp your flexed elbow.

Gently assist the stretch by pulling on the elbow.

Hold for 20 to 30 seconds. Repeat for the opposite arm.

-------- 12 --------

4. Back Stretch

Stand with your legs shoulder width apart and your knees slightly

bent. Bend forward from your waist with your arms extending loosely

in front of your body. Gently bend from the waist flexing your body as

far forward as it will go.

Hold for 20 to 30 seconds. Straighten up and repeat.

5. Standing Hamstrings Stretch

Stand with your legs hip-width apart. Extend one leg out in front

of you and keep that foot flat against the ground. With your hands

resting lightly on your thighs, bend your back leg and lean forward

slightly from your hips until you feel a stretch in the back of your

thigh. Be sure to lean forward from the hip joint rather than

bending at your waist.

Hold for 20 to 30 seconds. Repeat for the opposite leg.

6. Buttocks, Hips and Abdominal Stretch

Lay flat on your back with your hips relaxed against the floor. Bend

one leg at the knee. Keeping both shoulders flat on the floor, gently

grasp the bent knee with your hands and pull it over your body

and towards the ground. You should feel a stretch in your hips,

abdominals and lower back.

Hold for 20 to 30 seconds and release. Repeat for opposite side.

7. Inner Thigh Stretch

Sit on the floor and bend your legs so that the soles of your feet are

together. Place your elbows on your knees. Lean forward from the

waist and press down lightly on the inside of your knees. You should

feel a stretch in the muscles of your inside thigh.

Hold for 20 to 30 seconds and release.

8. Arm Pullback

Stand with your feet shoulder width apart and toes pointing forward

and with your knees slightly bent. Let your arms hang relaxed on

either side of your body. Expand your chest and pull your shoulders

back. Bend your elbows slightly and clasp your hands behind your

back. Slowly straighten your arms as you lift your hands upward.

Raise your hands upward until you feel mild tension in your shoulder

and chest region.

Hold for 20 to 30 seconds. Lower your arms to their original position

and bend your elbows. Release your hands and return them to your

sides.

-------- 13 --------

AB LOUNGE™XL SYSTEM

The Ab Lounge®XL is more than just a machine; it is a

total body exercise and nutrition system. It is a “fitness

for life” plan that goes hand in hand with an overall

healthy lifestyle. This includes regular check-ups, healthy

eating habits and exercise for the rest of your life.

Today, all fitness research recommends both cardiovas-

cular exercise and strength conditioning to achieve

balanced fitness. By improving your cardiovascular fit-

ness you will strengthen your heart and lungs, increase

your stamina and endurance, and help with weight loss.

Strength conditioning adds lean muscle to your body,

which increases your body’s metabolism. And we all

know that a healthy eating plan is an important part of

any balanced fitness program.

The Ab Lounge™XL System is designed to help you

achieve a balanced fitness program. The system

consists of three parts:

1) Strength Conditioning. The Ab Lounge®XL unit was

designed to help you tone and strengthen your upper

abdominal muscles, your lower abdominal muscles

and your obliques. We recommend that you workout

for at least 30 minutes, 3 times a week. However, the

frequency and duration of your workouts will depend

on your current fitness level and goals. Please refer

to the Ab Lounge®XL Workout section of this booklet

to determine the workout that is appropriate for you.

2) Cardiovascular Exercise. The Ab Lounge™XL

System includes a cardio workout program. You can

achieve an effective cardio workout from a variety of

activities, such as walking, hiking, swimming and jog-

ging. We recommend that you do a cardio workout

for at least 30 minutes, 3 times a week. You can

easily alternate days for your Ab Lounge™XL and

cardio workouts. Again, the frequency and duration

of your workouts will depend on your current fitness

level and goals. Please refer to the Cardiovascular

Workout section of this booklet to determine the

workout that is appropriate for you.

3) Nutrition. The Ab Lounge™XL System includes the

Jump Start Diet which is designed to ‘jump start’ your

total fitness program. The Jump Start Diet will allow

you, in just 14 days, to begin to form habits to help

you reach your fitness goals faster and easier than

ever before. Please refer to your Jump Start Diet

included in this booklet for an easy-to-follow, 2-week

menu plan, full of healthy eating choices. Once you

complete the 2-week diet, you can continue your

sensible diet with the eating plans in the Fitness

Quest Eating Plan booklet or the Low Carbohydrate,

Heart Healthy Menu Plan booklet which are also

included with the system.

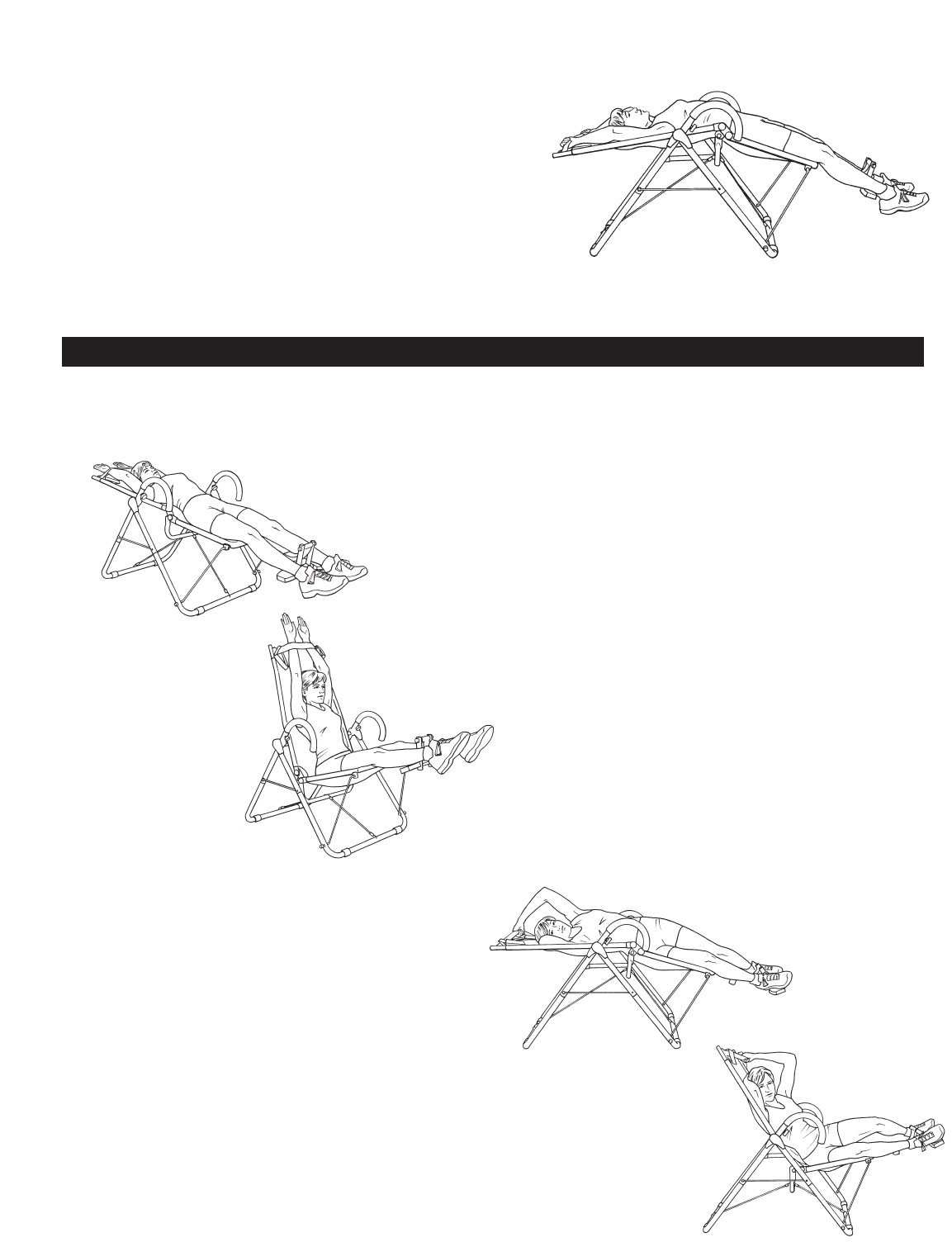

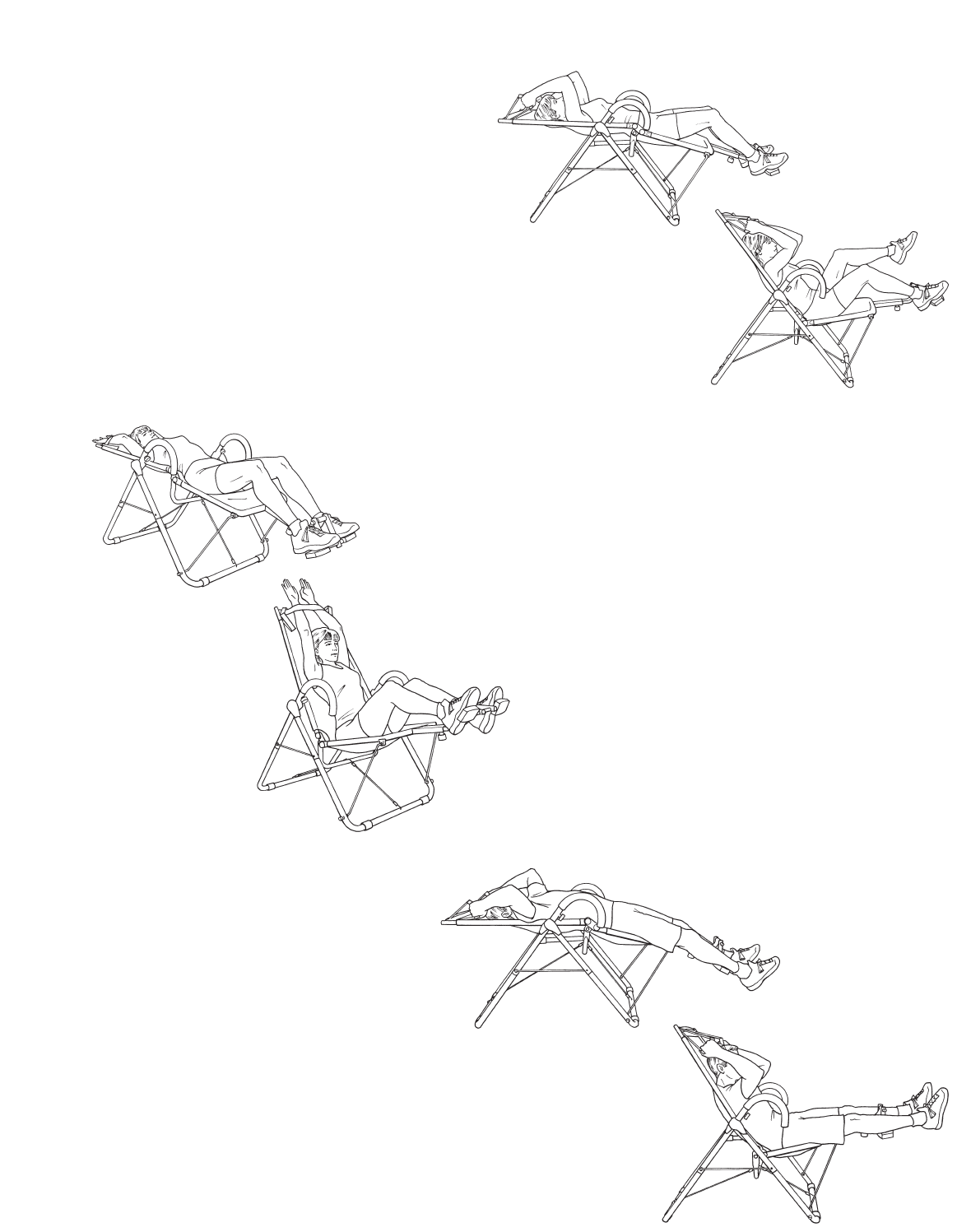

AB LOUNGE™XL WORKOUT

is a recommended speed for toning exercises.

Working at a fast pace is not recommended, and

may compromise your safety and results.

5. You may not be able to complete all of the repetitions

suggested at first. When you feel your muscles fatigu-

ing, or are unable to work with good form and tech-

nique, take a short break and rest.

6. Keep track of how many repetitions of each exercise

you are able to do at first. You will be surprised at

how quickly you progress. In just a few weeks you’ll

probably be able to complete all of the repetitions at

the workout level you choose.

7. Progress slowly. If you are very sore and tired after

your workout you are working at a level that is too

hard. Great results can be obtained by working at

a level that challenges you, but doesn’t create

soreness and excessive fatigue.

1. Once your equipment is assembled, make sure it is

on a solid, level, carpeted surface with a minimum

of 3 feet of clearance space behind and in front of

the unit. Practice getting on and off your unit a few

times until you are comfortable with this movement.

2. Review this Owner’s Manual and the video completely

before you begin your exercise program. Remember

to follow the instructions exactly – they have been

developed with your health and safety in mind.

3. Pay careful attention to the techniques and range

of motion that are described and illustrated in this

manual and the video. This is essential for safety, and

for isolating and targeting the appropriate muscles.

4. Perform the exercises at a slow and controlled

speed. About one or two seconds into the movement,

a one to two second pause at the end range of

motion, and a slow return to the starting position

(continued on next page)

IMPORTANT EXERCISE AND SAFETY TIPS

-------- 14 --------

8. It is important that you know how to work out safely

and properly. These safety steps are for your benefit

and you should follow them closely to maximize the

effectiveness of your workout routine.

9. You should begin to feel results within one to two

weeks of working out with your equipment. Look for

better posture and the feeling of more strength and

efficiency in your core abdominal muscles.

Developing Your

Ab Lounge™XL Workout

The choices you make about the frequency (how

often), the duration (how long), and intensity

(how hard) at which you will workout, will directly influ-

ence your results.

Before beginning any workouts on the Ab Lounge® XL

unit, you should first determine your current

fitness level. The following are guidelines that

you can use to determine your fitness level, but

remember these are just guidelines. You must

always listen to your body. Start out at a level

that is comfortable to you and progress sensibly.

Beginner – No previous exercise experience,

or have not exercised in a long time.

Intermediate – Have been performing abdominal

exercises regularly for three months or more.

Advanced – Have been performing abdominal

exercises regularly for six months or more.

How Often, How Long, How Hard

Beginners should start out slowly and only do as many

exercises as you can with good form and technique.

Your Ab Lounge™XL System includes Rosalie Brown’s

Ab Blasting DVD. The DVD includes a 10 minute

Ab Lounge™XL Workout that is perfect for most begin-

ners. Start by doing the Ab Blasting workout (or as

much of the workout as you can comfortably perform)

once a day, every other day. Then gradually increase

the number of workouts you do every other day until

you can comfortably complete three workouts every

other day with good form.

Intermediates should strive to complete three Ab

Blasting workouts every other day. Once you can

comfortably complete these workouts with good form

and technique, you should begin to increase the

frequency and duration of your workouts. But, you

should only increase one of these elements at a time.

Once you are familiar with the Ab Blasting workout, you

may want to develop your own workout for variety. You

can incorporate the exercises found on pages 16 - 18 of

this booklet into your own customized exercise routine.

Start out by doing 10 repetitions of the Basic Exercises

during each workout until you can complete all of the

repetitions with good form. When you can complete

one set of 10 repetitions of each Basic Exercise,

then you are ready to add the Bonus Exercises to

your workout or perform additional sets of your basic

routine. Use the Workout Tracking Sheets on page 19

to record the number of repetitions and sets that you

are able to do with each workout. Using the Workout

Progress Chart at the end of this manual will also

help you keep track of your progress.

Advanced should strive for a long term goal of

completing a 30 to 60 minute workout on the Ab

Lounge® XL unit most days of the week. This can be

accomplished by repeating the Ab Blasting workout,

developing your own workout or a combination of both.

But remember, always work and progress at a pace that

is comfortable to you and make sure you can complete

each exercise with good form and technique.

CARE & STORAGE

Care directions

Your equipment has been carefully designed to require

minimum maintenance. To ensure this, we recommend

that you do the following:

•Keep your equipment clean. Wipe sweat, dust or

other residue off the seat, foot rest and handlebars

with a soft, clean cloth after each use.

•Before each use, check the bands, fabric, and

stitching for signs of fraying. If you notice any

wear, stop using the equipment immediately.

Call our Parts Department to order replacement

parts. Refer to the front of this Manual for How to

Order Missing or Defective Parts.

• To protect your equipment from stains and dirt,

you may want to spray the fabric with any type

of protective fabric spray.

• Before each use, check the frame and pivot

assembly to be sure that it is in proper working order.

Also check all nuts and bolts to be sure that they are

tight. If the unit is not in proper working order,

stop using the equipment immediately.

Storage directions

• Store your equipment in a dry area away from

children and high traffic areas.

-------- 15 --------

GETTING STARTED ON YOUR AB LOUNGE®XL EQUIPMENT

FIG. 2 FIG. 4

FIG. 3

FIG. 5

Getting On Your Ab Lounge®XL Equipment

Stand next to the unit, near the foot rest. See Fig. 1.

Place one hand lightly on the handlebar and carefully

step over the bar that connects the seat and foot rest.

See Fig. 2. Facing the foot rest, slowly sit down on the

seat. See FIG. 3. When the hips feel centered, lean

back into the unit in a comfortable reclining position. Lift

the feet, one at a time, and place them on the foot rests.

Reach overhead and grasp the Iso-Grip™handles with

a light grip. See FIG. 4.

Adjusting the Ab Lounge®XL Equipment

for Your Body

The unit is easy to adjust, and allows a comfortable fit

for almost any body size.

To adjust the foot rest, grasp the adjustment knob on

the under side of the foot rest receiver. Pull the pin out

and slide the foot rest closer to or further away from the

seat. Replace the pin into one of the holes in the foot

rest. Make sure the pin is secured before placing the

feet on the foot rest. See FIG. 5. The foot rest should be

adjusted to a point where the knees are bent about 90

degrees, or at a right angle, when the feet are resting

on the foot rest. See FIG. 6.

To Get Out Of Your Ab Lounge®XL

Equipment

Release the hands from the Iso-Grip™handles and

lean forward until you are sitting upright. Lower the feet

one at a time until they are flat on the floor. Stand up

slowly, using the handlebars on the sides of the unit,

and carefully step back over the bar to one side

of the unit.

FIG. 6

FIG. 1

-------- 16 --------

2. Oblique Jackknife

By rotating the lower body to one side, the oblique

muscles as well as the rectis abdominis are targeted with

this exercise. The oblique muscles help shape the waist as

well as add stability to the spine. Begin in the same position

described in the Basic Jackknife. Keeping the shoulders

facing front, angle the legs about 45 degrees to one side

and hold this lower body position. Exhale and slowly round

your lower back, pulling your torso forward into the curl

position. As you pull forward, contract your abdominal

muscles inward toward your spine and pull the bottom of

your rib cage down toward the top of your hip bones.

Pause at the end of the curl movement, then inhale and

slowly return to the starting position. Perform five-second

repetitions as described in the Basic Jackknife. After

completing the repetitions on one side, angle your legs

in the opposite direction and repeat the same number

of repetitions. See FIG. 9 & 10.

FIG. 9

FIG. 10

AB LOUNGE®XL EXERCISES

FIG. 7

FIG. 8

See pages 13 - 14 for instructions on how to include these exercises

in your own custom Ab Lounge™XL Workout.

BASIC EXERCISES

1. Basic Jackknife

This abdominal curl isolates the muscle that runs down

the entire front of your torso, known as the rectus

abdominis. Relax back into your unit with your knees

bent and feet placed on the foot rest. Reach overhead

and grasp the Iso-Grip™handles. Exhale and slowly

round your lower back, pulling your torso forward into

a curl position. As you pull forward, contract your

abdominal muscles inward toward your spine and pull

the bottom of your rib cage down toward the top of your

hip bones. Pause at the end of the curl movement, then

inhale and slowly return to the starting position. To help

you maintain a slow tempo, pull forward for two counts,

pause for one count, and return to the start for two

counts. These five-second repetitions will make the

muscle work harder by avoiding momentum. Do not

pull with your arms or lift your feet off the foot rest.

See FIG. 7 & 8.

-------- 17 --------

5. Extended Leg Jackknife

This exercise targets the rectus abdominis and,

like the Extended Arm Jackknife, is a little higher

intensity than the Basic Jackknife. Begin in the

same position described in the Basic Jackknife.

Then, straighten both legs, resting the ankles or

calves on the foot rest. Exhale and slowly round

your lower back, pulling your torso forward into a

curl position. As you pull forward, contract your

abdominal muscles inward toward your spine

and pull the bottom of your rib cage down

toward the top of your hip bones. Pause at the

end of the curl movement, then inhale and slow-

ly return to the starting position. Perform five-

second repetitions as described in the Basic

Jackknife. Do not pull with the arms or lift the

legs as you Jackknife. See FIG. 15 & 16.

FIG. 15

FIG. 16

FIG. 11

FIG. 12

4. Extended Arm Jackknife

This exercise targets the rectus abdominis, and is

a little higher intensity than the Basic Jackknife.

Begin in the same position described in the Basic

Jackknife. Then, straighten both arms until the

forearms are behind the Focus Strap™. Exhale and

slowly round your lower back, pulling your torso

forward into a curl position. As you pull forward,

contract your abdominal muscles inward toward

your spine and pull the bottom of your rib cage

down toward the top of your hip bones. Pause at

the end of the curl movement, then inhale and

slowly return to the starting position. Perform

five-second repetitions as described in the Basic

Jackknife. Do not lift your legs as you crunch.

See FIG. 13 & 14.

FIG. 13

FIG. 14

3. Jackknife With Leg Lift

This exercise targets the rectus abdominis as well as

the hip flexor muscles of the lifting leg. Begin in the

same position described in the Basic Jackknife. Exhale

and slowly round your lower back, pulling your torso

forward into a curl position. Simultaneously, lift one leg

and pull the knee up and toward the chest. Pause at

one end of the curl movement, then inhale and slowly

return the leg and torso to the starting position. Repeat

the Jackknife, lifting the opposite leg. Alternate legs

with each Jackknife. Perform five-second repetitions as

described in the Basic Jackknife. Do not pull with your

arms as you Jackknife and lift the leg.

See FIG. 11 & 12.

-------- 18 --------

BONUS EXERCISES

7. Advanced Jackknife

This exercise will target the rectus abdominis and hip

flexors, and the spinal extensor muscles of the lower

back. Begin in the same position described in the

Extended Arm Jackknife, then straighten the legs as

described in the Extended Leg Jackknife. Slowly lean

back with the torso and press down slightly with the

legs, until the body is in a fully extended position with

the torso and legs parallel to the floor. Exhale and

pike from the hips until the body is in a “V” position.

Pause at the end of the movement, inhale and slowly

return to the starting position. Perform five-second

repetitions as described in the Basic Jackknife. Keep

the back straight and do not bend the arms or legs as

you pike up. See FIG. 18 & 19.

When you can perform 10 repetitions of each Basic Exercise you are ready to progress to the Bonus Exercises.

These exercises require more advanced body positions to be maintained throughout the movement.

FIG. 18

FIG. 19

8. Lateral Jackknife

This exercise will isolate the rectus abdominis and

obliques, as well as the quadratus lumborum muscles

of the lower back. Roll into a sidelying position on the

unit. Bend the elbow of your lower arm and rest your

head on that arm. Reach overhead with your top arm

and lightly hold the Focus Strap™. Bend the knees

slightly and rest the feet on the foot rest. Exhale and

bend your torso to the side. Pause at the end of the

movement, inhale and slowly return to the starting

position. Laterally flex from the waist, rather than

pulling with your arms. Perform five-second repetitions

as described in the Basic Jackknife. After completing

the repetitions on one side, carefully turn over, lie on

your other side and repeat the same number of

repetitions. See FIG. 20 & 21.

FIG. 20

FIG. 21

6. Torso And Hip Flexor Stretch

This exercise will stretch all of the abdominal muscles as well

as the muscles of the front of the hip. Begin in the same posi-

tion described in the Extended Arm Jackknife. Then, straighten

the legs as described in the Extended Leg Jackknife. Slowly

lean back with the torso and legs parallel to the floor. For more

stretch, carefully extend further until the back is slightly arched.

Relax and hold the stretch at a comfortable range of motion for

10 to 30 seconds, breathing deeply. Do not exceed a stretch

that is comfortable for your body. See FIG. 17. FIG. 17

-------- 19 --------

EXERCISE DATE REPS SETS DATE REPS SETS

BASIC JACKKNIFE

OBLIQUE

JACKKNIFE

w/LEG LIFT

EXTENDED ARM

JACKKNIFE

EXTENDED LEG

JACKKNIFE

TORSO AND HIP

FLEXOR STRETCH

ADVANCED

JACKKNIFE

LATERAL

JACKKNIFE

EXERCISE DATE REPS SETS DATE REPS SETS

BASIC JACKKNIFE

OBLIQUE

JACKKNIFE

w/LEG LIFT

EXTENDED ARM

JACKKNIFE

EXTENDED LEG

JACKKNIFE

TORSO AND HIP

FLEXOR STRETCH

ADVANCED

JACKKNIFE

LATERAL

JACKKNIFE

Use these charts to keep track of your progress over time. Before writing on them, make as many copies as you

think you’ll need. We suggest you keep these in a notebook. You will find it both informative and motivational to look

back at what you’ve done. This data will help you chart future fitness goals as you continue to improve.

AB LOUNGE™XL WORKOUT TRACKING SHEETS

CARDIOVASCULAR CONDITIONING

Exercise that challenges the heart is a simple part of an

exercise program – almost anyone can walk, run, tread-

mill, climb steps, or bike. But, creating a progressive,

time efficient and results oriented cardio program takes a

little planning. A properly designed and consistently per-

formed cardiovascular training program is an essential

part of your program if you want to improve your health

and lose weight, or maintain a healthy lifestyle.

Training Aerobically

Aerobic exercise is the key to building a stronger heart

and can reduce your chances of heart disease, as well

as burn lots of fat and calories. Aerobic exercise is any

activity that you can keep at for several minutes or

longer and increases your heart rate. Activities that have

the potential to condition the heart typically involve the

(continued on next page)

-------- 20 --------

large muscles of the hips, thighs, and buttocks.

Examples include walking, hiking, jogging, running,

cycling, in-line skating, swimming, cross-country skiing,

and stair stepping.

Benefits of Aerobic Training

Health benefits of aerobic exercise include the following:

1. Astronger and healthier heart.

2. Increased HDL. This “good” cholesterol helps keep

your arteries unplugged and healthy.

3. Decreased total cholesterol. This is the debris in

your blood that can clog your arteries.

4. Reduced blood pressure. Even moderate exercise

can help.

5. Reduced risk for heart attack and stroke.

6. Decreased body fat and an ability to help you

reach your desirable weight. You’ll become a better

fat-burner and burn a lot of calories every session.

7. Decreased risk for diabetes.

8. Reduced feelings of anxiety, tension, and

depression.

9. Improved sleep.

10. Higher levels of energy. Efficient delivery and use

of blood and oxygen is the key to increased vigor

and performance.

Warming Up And Cooling Down

Warming up and cooling down are essential to a

balanced and safe exercise program. A proper

warm-up and cool-down can:

•Make your workouts safe and easier to do,

• Limit the risk of unnecessary stress on your heart,

•Get you ready for your activity,

• Improve your stamina and endurance (you won’t

tire as quickly),

• Decrease your risk for injury,

• Increase enjoyment of your workouts, and

• Help you stick with your health and fitness program.

Warm-Up

To prevent injury and maximize performance, we

recommend that each workout period should start with

a warm-up. Your warm-up should gently prepare your

muscles for the coming exertion. Start by doing 5 to 10

minutes of gentle exercise that gradually increases your

heart rate and loosens up your muscles. Your warm-up

exercise should be aerobic in nature and only require an

easy, unforced range of motion. This should be followed

by 5 to 10 minutes of stretching. Refer to the stretches

found on pages 11 and 12 of this manual. Never push

yourself beyond a point of gentle tension or strain.

Keep your movements gentle, rhythmic and controlled.

Cool Down and Stretching

Your workout should be followed by a cool down. The

cool down should consist of 5 to 10 minutes of slow

walking followed by stretching. Refer to the stretches

found on pages 11 and 12 of this manual. Never push

yourself beyond a point of gentle tension or strain.

Keep your movements gentle, rhythmic and controlled.

How Often, How Long, and How Hard

The choices you make about the frequency (how often),

duration (how long), and intensity (how hard) at which

you will train, will directly influence your training results.

How often. If you want to see serious improvements in

your fitness, lose weight and develop a good training

base, you need to do cardio workouts three to six times

per week.

If you are just starting a program or out of shape, don’t

let these recommendations discourage or mislead you.

Realize that doing cardio training two to three times per

week will still result in significant fitness improvement

and health benefits. Your long-term goal is to build up to

exercising your heart on most days of the week.

How long. How long you work out depends on your

current level of fitness. Again, if you’re just starting a

program or out of shape, don’t follow strict textbook

recommendations. Instead, start with 5 to 10 minutes

once or twice per day. You will see significant fitness

improvement. Your long-term goal is to build to a

duration of 30 to 60 minutes of cardiovascular activity

on most days of the week.

How hard. Aerobic intensity guidelines for healthy adults

are generally set at 40 to 85 percent of heart rate. But, if

you’re out of shape, remember that moderate to low

level and consistent cardiovascular training – well below

the standard recommendations set forth – can result in

substantial and beneficial effects to your health and can

greatly improve cardiovascular endurance.

You can use the following calculation to determine what

percentage of your heart rate you are working at:

% heart rate = (220 - age) x %.

Using this calculation, a 70% heart rate for a 40 year old

would be (220 - 40) x 70% or 126. Thus, this individual

would need to reach 126 beats per minute to equal a

70% heart rate.

Refer to the “Measuring Your Heart Rate” section on

page 10 of this manual for information on how to

measure your heart rate.

The above are guidelines, people with any medical

limitations should discuss this formula with their

physician.

-------- 21 --------

WEEK HOW OFTEN

(times per week)

HOW HARD

(% heart rate)

HOW LONG

(minutes) HOW HARD

(RPE)* RPE DESCRIPTIVE RATING

2 - 3

3 - 4

2 - 4

Somewhat easy to somewhat hard

5 - 15

10 - 17

15 - 20

40 - 50

50 - 60

PROGRESSIVE CARDIOVASCULAR TRAINING PROGRAM

The training program that follows is a progressive training program for cardiovascular conditioning.

It can be used for any aerobic activity you choose. But remember, these are only guidelines.

People with medical conditions should discuss this training program with their physician.

MOVING

BEYOND

BASE-LEVEL

FITNESS

CONDITIONING

BASE

MAINTENANCE

*RPE = rating of perceived exertion; this means you match up a numerical rating (RPE) of 1-10, with how you

feel (RPE descriptive rating in chart above). A rating of 2 -3 is equal to a warm-up or recovery level of effort; 4 - 5

equates to moderate to somewhat challenging; 6 -10 represents effort that is somewhat hard, to very hard.

Smart Progression

In regard to progressing to a higher intensity level,

longer duration, or more frequent sessions, it makes

good sense to change only one of these elements at

a time. You run a higher risk of overuse injury if you

simultaneously increase more than one of these

elements. A conservative yet effective guideline is to

increase intensity or duration by no more than about

5 percent. You should adapt to this increase over a

period of a week or two, and then consider changing

one of the other variables (frequency, duration or

intensity) or further progressing the one you’ve

adapted to.

Top Aerobic Exercise

No one cardiovascular activity is better than another!

Manipulating how hard (intensity), how often (duration),

and how long (frequency) you participate in a particular

aerobic activity determines its effectiveness or lack

thereof. And of course, you have to like what you’re

doing. Choose the type of aerobic activity that is right for

you by identifying one or more types of cardio exercise

that you can see yourself sticking to, and enjoying,

for the rest of your life. Often, the best aerobic exercise

will be not one, but several activities that are fun and

feel good to your body. Excellent cardiovascular activities

include, but are not limited to, walking, swimming, water

fitness, jogging, running, cross-country skiing, in-line

skating, lateral movement training (slide), cycling,

mountain biking, and step training.

WEEK HOW OFTEN

(times per week)

HOW HARD

(% heart rate)

HOW LONG

(minutes) HOW HARD

(RPE)* RPE DESCRIPTIVE RATING

7 - 9

10 - 13

14 - 16

17 - 19

20 - 23

24 - 27

3 - 4

3 - 5

3 - 6

3 - 4

4 - 5

Moderate to somewhat hard

Somewhat hard to hard

20 - 25

21 - 25

26 - 30

31 - 35

60 - 65

65 - 70

70 - 75

WEEK HOW OFTEN

(times per week)

HOW HARD

(% heart rate)

HOW LONG

(minutes) HOW HARD

(RPE)* RPE DESCRIPTIVE RATING

After 4-6

months 3 - 6 3 - 6 Easy - Moderate to somewhat hard

30 - 60 40 - 85

-------- 22 --------

CARDIO WORKOUT TRACKING SHEETS

ACTIVITY DATE HOW LONG

(minutes) HEART RATE HOW HARD

(RPE)*

Use these charts to keep track of your progress over time. Before writing on them, make as many copies as you

think you’ll need. We suggest you keep these in a notebook. You will find it both informative and motivational to

look back at what you’ve done. This data will help you chart future fitness goals as you continue to improve.

*RPE = rating of perceived exertion; this means you match up a numerical rating (RPE) of 1-10, with how you feel

(RPE descriptive rating in chart above). A rating of 2 -3 is equal to a warm-up or recovery level of effort; 4 - 5

equates to moderate to somewhat challenging; 6 -10 represents effort that is somewhat hard, to very hard.

ACTIVITY DATE HOW LONG

(minutes) HEART RATE HOW HARD

(RPE)*

-------- 23 --------

Using Healthy Eating Choices

JUMP

START

DIET

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 24

The Jump Start Diet . . . . . . . . . . . . . . . . . . . 24

Breakfast Choices . . . . . . . . . . . . . . . . . . . . 25

Morning Snack . . . . . . . . . . . . . . . . . . . . . . . 25

Lunch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Afternoon Snack . . . . . . . . . . . . . . . . . . . . . . 26

Dinner . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27

Evening Snack . . . . . . . . . . . . . . . . . . . . . . . 28

-------- 24 --------

JUMP START DIET

The Jump Start Diet

This 2-week menu plan is based on 1200 to 1300 calories. We have con-

sciously used real food and have even put in some foods often thought of

as "off limits" when trying to lose weight. The plan is nutritionally sound and

offers a variety of foods from all food categories. You may substitute one

food within a food group for another, such as a pear for an apple or 3 oz.

of chicken for 3 oz. lean beef. The most important thing to remember is to

pay attention to portion sizes. When it says 1 cup, you need to measure

out 1 cup, etc.

The plan is extremely simple to follow. Simply pick one selection for each

meal as your day goes along. Note that your lunch will consist of a Lean

Cuisine®meal. This is done so that you have a realistic option to eat at

work or on the go. (If you don't find Lean Cuisine®meals at your local

grocer, other options are Healthy Choice®and Weight Watchers®lunches.)

We have also built in a special treat at the end of most days. This is

because people have the biggest success when they are allowed to have

some of their favorite foods. They do not feel deprived and are not tempted

to binge. Success comes because they are able to stick with the plan, lose

weight and meet their goals without feeling like they were "on a diet". The

important thing to remember is to use only the portion size given, do not go

back for more or guess on your portion size.

If you do not wish to eat the snack after your evening meal, or feel that you

cannot limit your portion size, it can be omitted.

Foods and condiments that can be used without adding significant calories

include:

• Non-caloric beverages, this includes diet carbonated drinks

• Fat free condiments such as mustard, ketchup and vinegar

• Seasonings such as onion, garlic and herbs

• Artificial sweeteners

• Coffee, tea and herbal teas

Introduction

This program is designed to "jump start" you on your way to better health

and fitness. In just 2 weeks, just 14 short days, you will begin to form habits

to help you reach your fitness goals faster and easier than ever before.

-------- 25 --------

JUMP START DIET

MORNING SNACK

(CHOOSE JUST ONE OPTION)

8 oz. water

1 cup fat free yogurt

8 oz. water

1 cup sugar free hot chocolate

made with skim milk

8 oz. water

1 pear

8 oz. water

1 orange

8 oz. water

1 apple

8 oz. water

1 cereal bar (about 140 calories)

8 oz. water

1 kiwi

8 oz. water

1/2 cup oatmeal, cooked

1 cup skim milk

1/2 banana

8 oz. water

2 pancakes (4 inches across)

1 Tbsp. maple syrup

1/2 cup orange juice

8 oz. water

1 slice french toast

1/2 cup fresh blueberries

1 cup skim milk

8 oz. water

1/2 english muffin

1 egg poached

1/2 cup fruit juice

8 oz. water

1 slice whole grain bread

1 egg scrambled

1 cup cubed melon

8 oz. water

1 cup fat free yogurt

1/3 cup low fat granola cereal

1 cup sliced strawberries

8 oz. water

3/4 cup cereal

1 cup skim milk

1/2 cup sliced strawberries

8 oz. water

3/4 cup cereal and 2 Tbsp.

crushed walnuts

1/2 cup skim milk

4 oz. orange juice

8 oz. water

1 slice whole grain bread

1 egg scrambled or poached

4 oz. orange juice

8 oz. water

1 slice cinnamon bread

1 tsp. butter

4 oz. orange juice

BREAKFAST CHOICES

(CHOOSE JUST ONE OPTION)

-------- 26 --------

DINNER

(CHOOSE JUST ONE OPTION)

8 oz. water

3 oz. sirloin steak, lean only, broiled or grilled

without added fat

1/2 cup rice with 1 tsp. butter

1/2 cup cooked carrots

1 large mixed green salad with

1 Tbsp. reduced fat dressing

8 oz. water

3 oz. baked ham

1 cup noodles

1 tsp. butter

2 cups applesauce

1 cup mixed vegetables

8 oz. water

3 oz. steak, (lean only) broiled or baked

1 cup noodles with 1 tsp. butter

1/2 cup applesauce

1 cup mixed vegetables

8 oz. water

salad with romaine lettuce

1/4 cup mandarin oranges

1/4 cup sliced strawberries

2 Tbsp. chopped walnuts

1 Tbsp. raspberry vinaigrette dressing

3 oz. white meat chicken

1 oz. crumbled feta cheese

8 oz. water

1 cup cooked pasta

1/2 cup spaghetti sauce

1 tsp. grated cheese

3 oz. lean ground beef in sauce

8 oz. water

1 cup angel hair pasta

1 clove garlic topped with green and red peppers

sautéed with 1 Tbsp. olive oil

3 oz. grilled shrimp

1 tsp. grated cheese

AFTERNOON SNACK

(CHOOSE JUST ONE OPTION)

8 oz. water

1 cup strawberries

8 oz. water

1 oz. low fat cheese

6 saltine crackers

8 oz. water

1 banana

8 oz. water

1 cup low fat, flavored yogurt with

1 Tbsp. low fat granola cereal on top

8 oz. water

1 tsp. peanut butter

6 saltine crackers

1 apple

8 oz. water

1 cup low fat chocolate milk

8 oz. water

1 cup vegetable soup

6 crackers

8 oz. water

3 cups light popcorn

8 oz. water

15 grapes

8 oz. water

1 cereal bar (about 140 calories)

JUMP START DIET

LUNCH

Choose a Lean Cuisine®meal of your choice! (If you have difficulty

finding Lean Cuisine®meals at your local grocer, another option

is meals from Healthy Choice®or Weight Watchers®.)

-------- 28 --------

1/2 cup chocolate or vanilla pudding

made with skim milk

hot chocolate made with skim milk

8 oz. water

5 ginger snaps or vanilla wafers

8 oz. water

3 small mint patties or

3 Hershey’s Miniatures®

3 cups light microwave popcorn

2 small cookies (about 50 calories each)

8 oz. water

1 oz. pretzels

1 cup skim milk

8 oz. water

2 tsp. peanut butter

6 crackers

1 cup skim milk

1/2 cup cereal

1/2 skim milk

8 oz. water

EVENING SNACK

(CHOOSE JUST ONE OPTION)

RULES for eating your evening snack:

Have it in a relaxed setting where you can enjoy them as a child would.

Do nothing while having your snack, do not read, write or watch TV.

Make your snack last 20 minutes.

DO NOT go back for seconds.

JUMP START DIET

WORKOUT PROGRESS CHART

Every two weeks, measure yourself and use the

chart below to record your progress. Before writing

on it, make as many copies as you think you’ll need.

We suggest you keep these in a notebook. You will

find it both informative and motivational to look back

at what you’ve done. This data will help you chart

future fitness goals as you continue to improve.

Calves

Thighs

Hips

Abdomen

Waist

Weight

Date

Measuring Sites

Waist

Abdomen

Hips

Thighs (L/R)

Calves (L/R)

We warrant this product to be free from all

defects in material and workmanship when used

according to the manufacturer’s instructions.

See Limited Warranty Card for details.

Save your sales receipt.

(You may wish to staple it into this manual.)

Dedication to Quality

10/17/05

Fitness Quest Ab Lounge Xl Users Manual

Quest Ab Lounge XL System to the manual 38e65e84-26a6-4337-adfc-e9c43aa4ec3d

Navigation menu

Versions of this User Manual:

Views

Navigation
