FlairSmartVentInstallationGuide:Wiring



Installation:



1. Drillholeinbootorductnearvent,whereconvenient.Holesizeshouldbelarge

enoughfor20AWGPlenumRatedSolid(2Conductor)wire.

2. Slide20AWGPlenumRatedSolid(2Conductor)wirethroughholeintoboot.

3. Pullenoughthroughtotoreachbackofvent(bootdependent)ifyoupullsome

extra,youcantrimitlater.Whenpullingthewirethrough,becarefultoavoid

strippingthewireonthemetalbootorductasthiscouldleadtoashort.

4. UsinghighqualityDuctTapeorMastic,sealtheholearoundthewireandthe

holeintheductorboot.

QuestionsorComments:Sendusanoteathello@flair.coandwewillrespondpromptly.

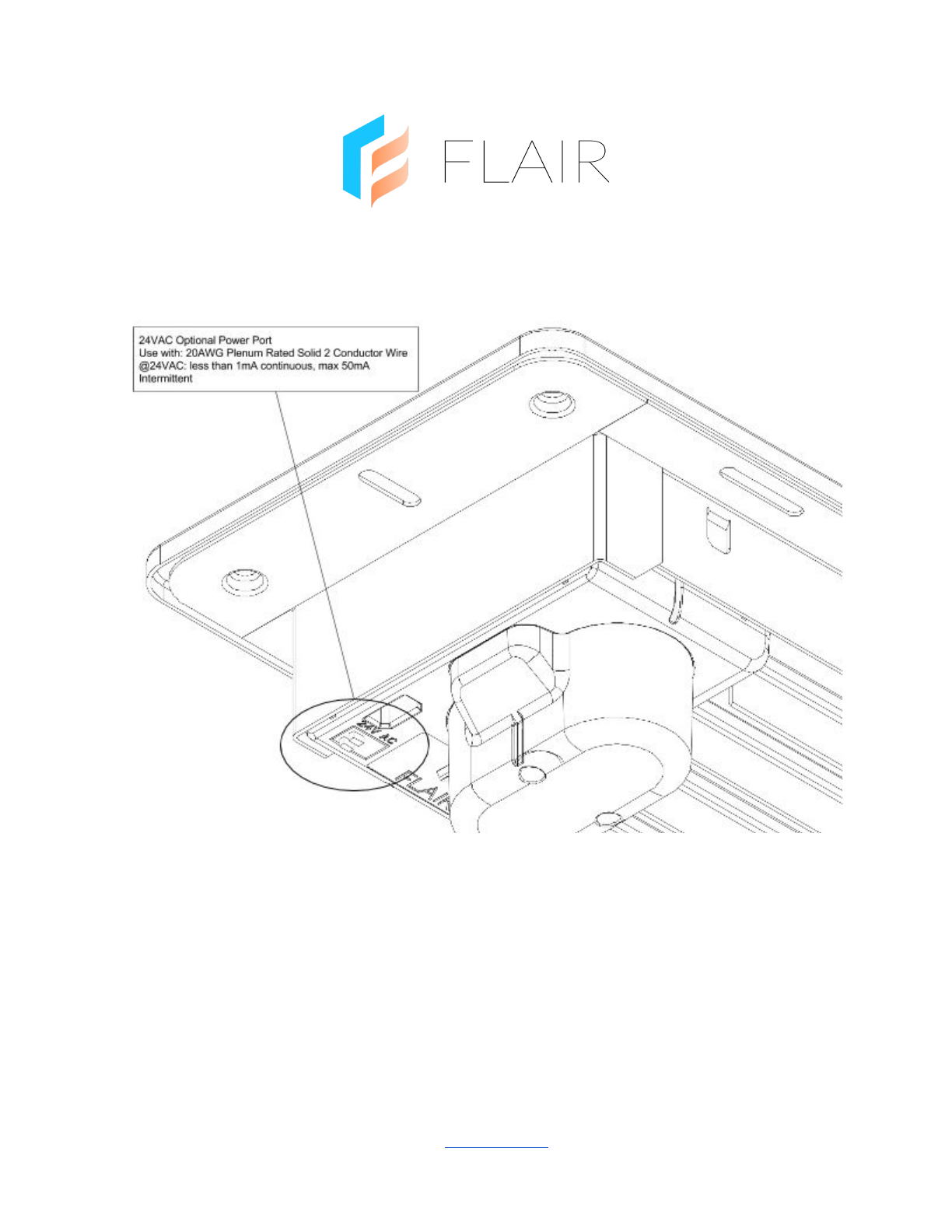

5. Stripinsulationandinserteachconductorintothe24VACportonbacksideof

FlairSmartVent(eitherwirecangoineitherhole,polaritydoesnotmatter).

6. Ifthereisexcessivewireinthebootorduct,trimthewirerepeatstep5.Ensure

thatthewiredoesn’tinterferewiththelouvremovement.Alsoensurethetwo

wiresarefullyseparatedandcannotshortneartheventterminalblock.Incase

ofexcessexposedwireattheventterminalblock,pressthereleasebuttonson

theterminalblockandpullthewireout.Trimexposedwireasneededand

reinsert.

7. Connectotherendofwiretoa24VACtransformer/powersupply(notethatyou

willnotneedtowiretothegroundpin/terminalifoneisavailable).

8. Assemblebatteryrelatedpartsonventaccordingtoregularinstallationprocess

thereisnoneedtoinstalltheactualbatteries.

9. Continuewithregularinstallationandsetupprocess.

10.Pluginorpower24VACpowersupply/transformer.



ElectricalNotes:

● FlairVentsoperatewithverylowpowerrequirementsandoperateatdifferent

timeshencea40VAC(@24VAC)willsufficeforinexcessof10vents.Beyond

10Vents,itisrecommendedthatyouconsideradditionalpowersuppliesdueto

thelengthofthewirerunsbecomingverylong.

● Groundingisnotneeded.


