Flaircomm Microelectronics BTM403 Bluetooth module User Manual FLC BTM401 DS
Fujian Flaircomm Microelectronics,Inc. Bluetooth module FLC BTM401 DS
User Manual
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-1-
FLC-BTM403/FLC-BTMDC748
Datasheet
Document Type: Bluetooth Module Datasheet
Document Number: FLC-BTM403-DS
Document Version: V1.3
Release Date: 2012/11/12
Copyright 2012 ~ 2014 by Flaircomm Microelectronics Inc., All Right Reserved
Without written permission from Flaircomm Microelectronics Inc., reproduction, transfer, distribution or
storage of part or all of the contents in this document in any form is prohibited
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-2-
Release Record
Version
Release Date
Comments
1.0
2012/6/26
Release
1.1
2012/9/14
Modify operating temperature. Add BT/CE/FCC
logo. Add Cautions & Warnings.
1.2
2012/11/1
Add Antenna Statement.
1.3
2012/11/12
Modify 11.3 Label Instructions.
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-3-
CONTENTS
1. INTRODUCTION .................................................................................................................................................. 6
1.1 NAMING DECLARATION ........................................................................................................................................ 6
1.2 BLOCK DIAGRAM .................................................................................................................................................. 7
1.3 FEATURES ............................................................................................................................................................. 7
1.4 APPLICATIONS ...................................................................................................................................................... 7
2. GENERAL SPECIFICATION ............................................................................................................................. 9
3. PIN DEFINITION ................................................................................................................................................ 10
3.1 PIN CONFIGURATION ........................................................................................................................................... 10
3.2 PIN DEFINITION ................................................................................................................................................... 10
4. PHYSICAL INTERFACES ................................................................................................................................ 12
4.1 POWER SUPPLY ................................................................................................................................................... 12
4.2 RESET ................................................................................................................................................................. 12
4.3 DIGITAL AUDIO INTERFACES .............................................................................................................................. 13
4.3.1 PCM Interface Master/Slave ...................................................................................................................... 13
4.3.2 Long Frame Sync ....................................................................................................................................... 14
4.3.3 Short Frame Sync ....................................................................................................................................... 15
4.3.4 Multi-slot Operation ................................................................................................................................... 15
4.3.5 GCI Interface .............................................................................................................................................. 16
4.3.6 Slots and Sample Formats .......................................................................................................................... 16
4.3.7 Additional Features .................................................................................................................................... 17
4.3.8 PCM Timing Information ........................................................................................................................... 17
4.4 RF INTERFACE .................................................................................................................................................... 21
4.5 GENERAL PURPOSE ANALOGUE IO ..................................................................................................................... 21
4.6 GENERAL PURPOSE DIGITAL IO .......................................................................................................................... 21
4.7 SERIAL INTERFACES ............................................................................................................................................ 21
4.7.1 UART ......................................................................................................................................................... 21
4.7.2 USB ............................................................................................................................................................ 22
4.7.3 I2C .............................................................................................................................................................. 24
4.7.4 SPI .............................................................................................................................................................. 24
5. ELECTRICAL CHARACTERISTIC ................................................................................................................ 26
5.1 ABSOLUTE MAXIMUM RATING ........................................................................................................................... 26
5.2 RECOMMEND OPERATION CONDITIONS ............................................................................................................... 26
5.3 POWER CONSUMPTIONS ....................................................................................................................................... 26
5.4 INPUT/OUTPUT TERMINAL CHARACTERISTICS .................................................................................................... 27
5.4.1 Digital Terminals ........................................................................................................................................ 27
5.4.2 USB ............................................................................................................................................................ 27
6. REFERENCE DESIGN ....................................................................................................................................... 28
7. MECHANICAL CHARACTERISTIC .............................................................................................................. 29
8. RECOMMENDED PCB LAYOUT AND MOUNTING PATTERN............................................................... 30
9. RECOMMENDED REFLOW PROFILE ......................................................................................................... 31
10. ORDERING INFORMATION ....................................................................................................................... 32
10.1 PRODUCT PACKAGING INFORMATION ................................................................................................................. 32
10.2 ORDERING INFORMATION .................................................................................................................................... 33
10.2.1 Product Revision ........................................................................................................................................ 33
10.2.2 Shipping Package ....................................................................................................................................... 33
10.2.3 Product Package ......................................................................................................................................... 33
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-4-
10.2.4 Product Grade ............................................................................................................................................. 33
11. CAUTIONS &WARNINGS ............................................................................................................................ 35
11.1 FCC STATEMENT ................................................................................................................................................ 35
11.2 FCC RADIATION EXPOSURE STATEMENT ........................................................................................................... 35
11.3 FLC-BTM403 LABEL INSTRUCTIONS ................................................................................................................. 35
11.4 FLC-BTM403 ANTENNA STATEMENT ................................................................................................................ 36
11.4.1 BTM403A and BTM403C ......................................................................................................................... 36
11.4.2 BTM403B .................................................................................................................................................. 38
TABLES AND FIGURES
Table 1: Naming Declaration ........................................................................................................................................... 6
Table 2: General Specification ......................................................................................................................................... 9
Table 3: Pin Definition ................................................................................................................................................... 11
Table 4: Pin Status on Reset ........................................................................................................................................... 12
Table 5: PCM Master Timing ........................................................................................................................................ 18
Table 6: PCM Slave Timing ........................................................................................................................................... 20
Table 7: Possible UART Settings ................................................................................................................................... 22
Table 8: USB Interface Component Values ................................................................................................................... 23
Table 9: Absolute Maximum Rating Recommended Operating Conditions .................................................................. 26
Table 10: Recommended Operating Conditions ............................................................................................................ 26
Table 11: Power consumptions ...................................................................................................................................... 26
Table 12: Digital Terminal ............................................................................................................................................. 27
Table 13: USB Terminal ................................................................................................................................................ 27
Table 14: Product Revision ............................................................................................................................................ 33
Table 15: Shipping Package ........................................................................................................................................... 33
Table 16: Product Package ............................................................................................................................................. 33
Table 17: Product Grade ................................................................................................................................................ 34
Table 18: Antenna Specifications................................................................................................................................... 36
Figure 1: Block Diagram .................................................................................................................................................. 7
Figure 2: Pin Configuration............................................................................................................................................ 10

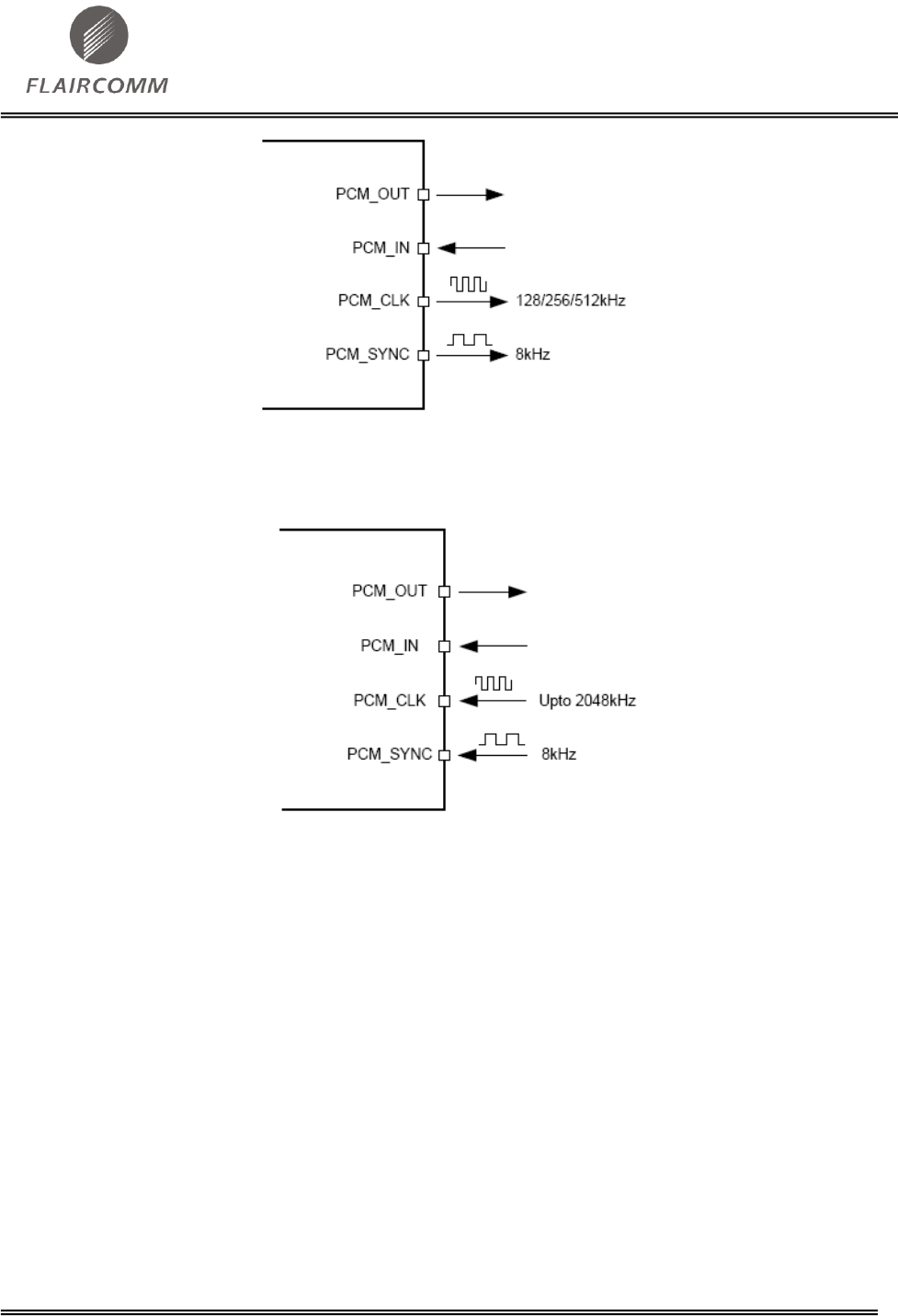

Figure 3: Configured PCM as a Master .......................................................................................................................... 14
Figure 4: Configured PCM as a Slave ............................................................................................................................ 14
Figure 5: Long Frame Sync (Shown with 8-bit Companded Sample) ........................................................................... 15
Figure 6: Short Frame Sync (Shown with 16-bit Sample) ............................................................................................. 15

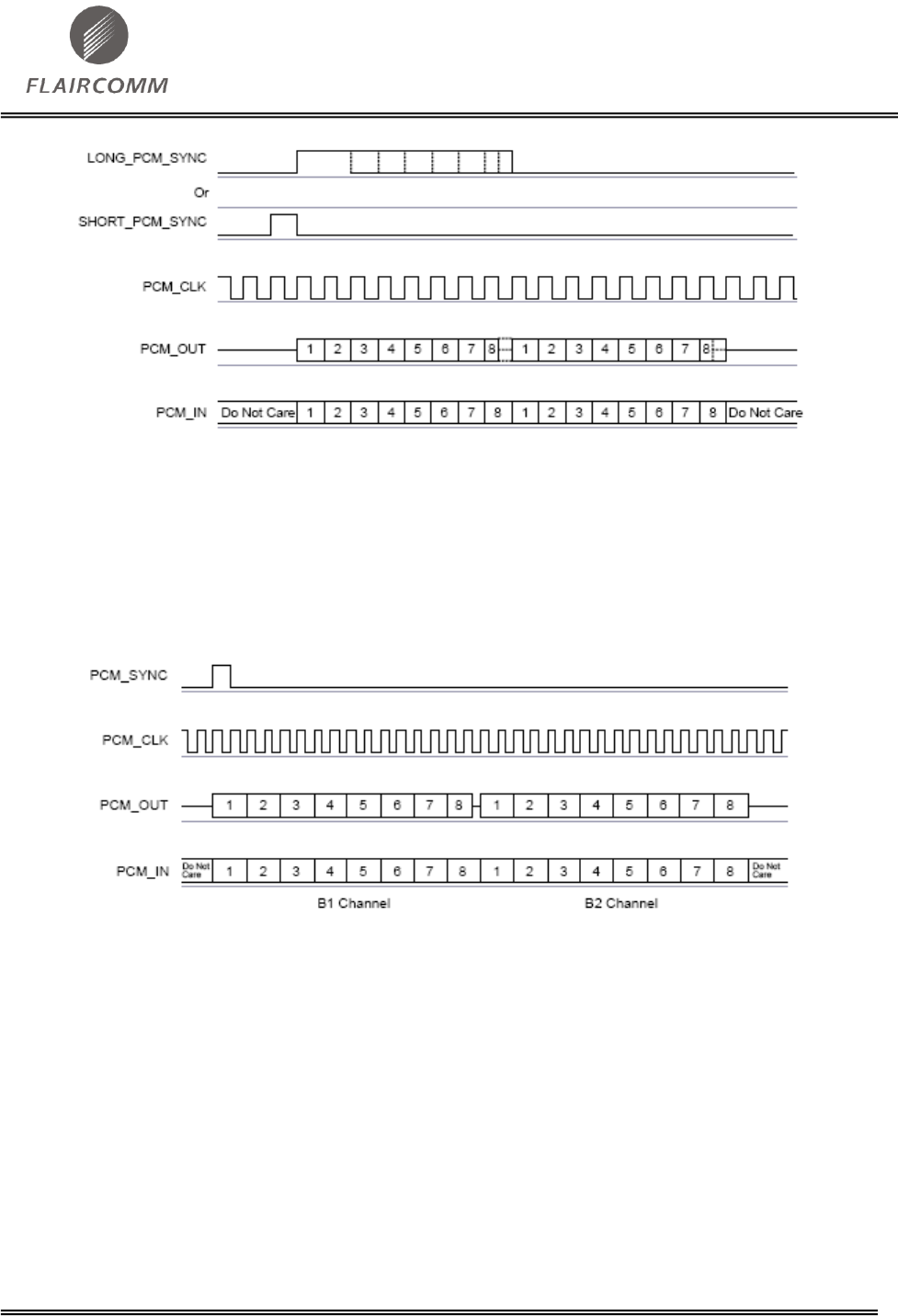

Figure 7: Multi-Slot Operation with Two Slots and 8-bit Companded Samples ............................................................ 16
Figure 8: GCI Interface .................................................................................................................................................. 16
Figure 9: 16-Bit Slot Length and Sample Formats ......................................................................................................... 17

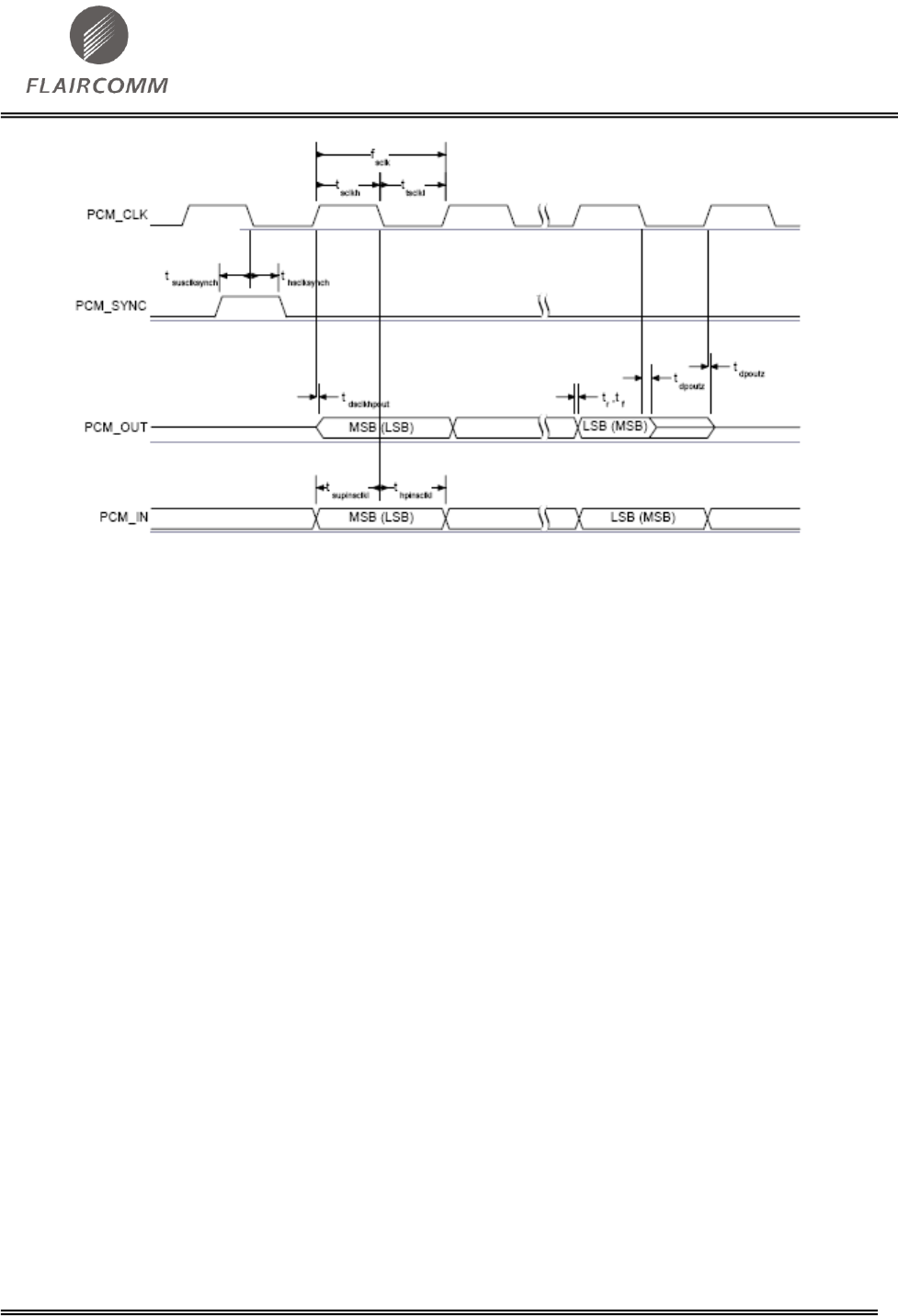

Figure 10: PCM Master Timing Long Frame Sync ........................................................................................................ 19
Figure 11: PCM Master Timing Short Frame Sync ....................................................................................................... 19
Figure 12: PCM Slave Timing Long Frame Sync .......................................................................................................... 20
Figure 13: PCM Master Timing Short Frame Sync ....................................................................................................... 21
Figure 14: USB Connections for Self-Powered Mode ................................................................................................... 23
Figure 15: USB Connections for Bus-Powered Mode ................................................................................................... 24
Figure 16: Example EEPROM Connection with I2C Interface ...................................................................................... 24

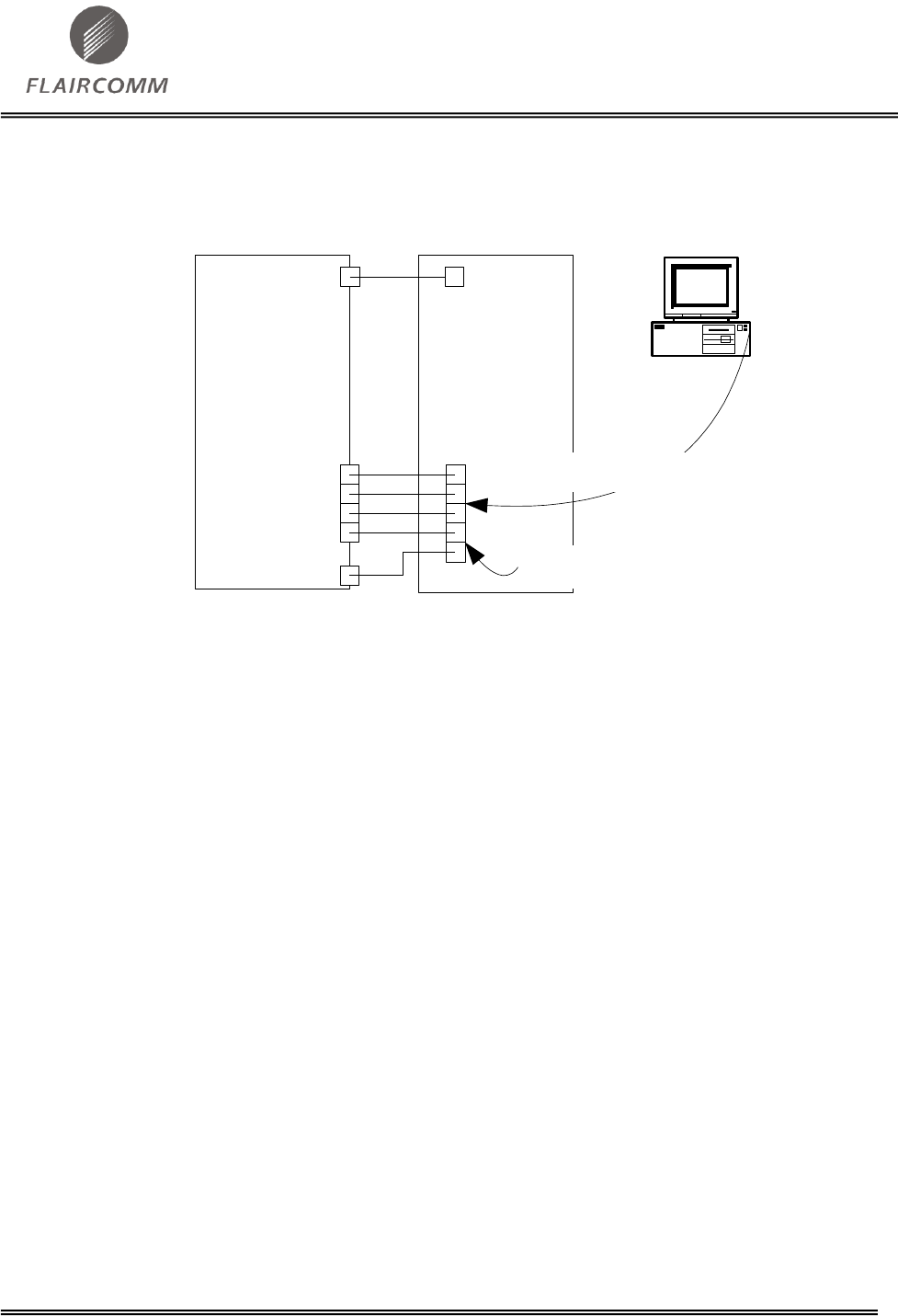

Figure 17: Design SPI for In-System Programming and Debug .................................................................................... 25
Figure 18: Reference Design .......................................................................................................................................... 28

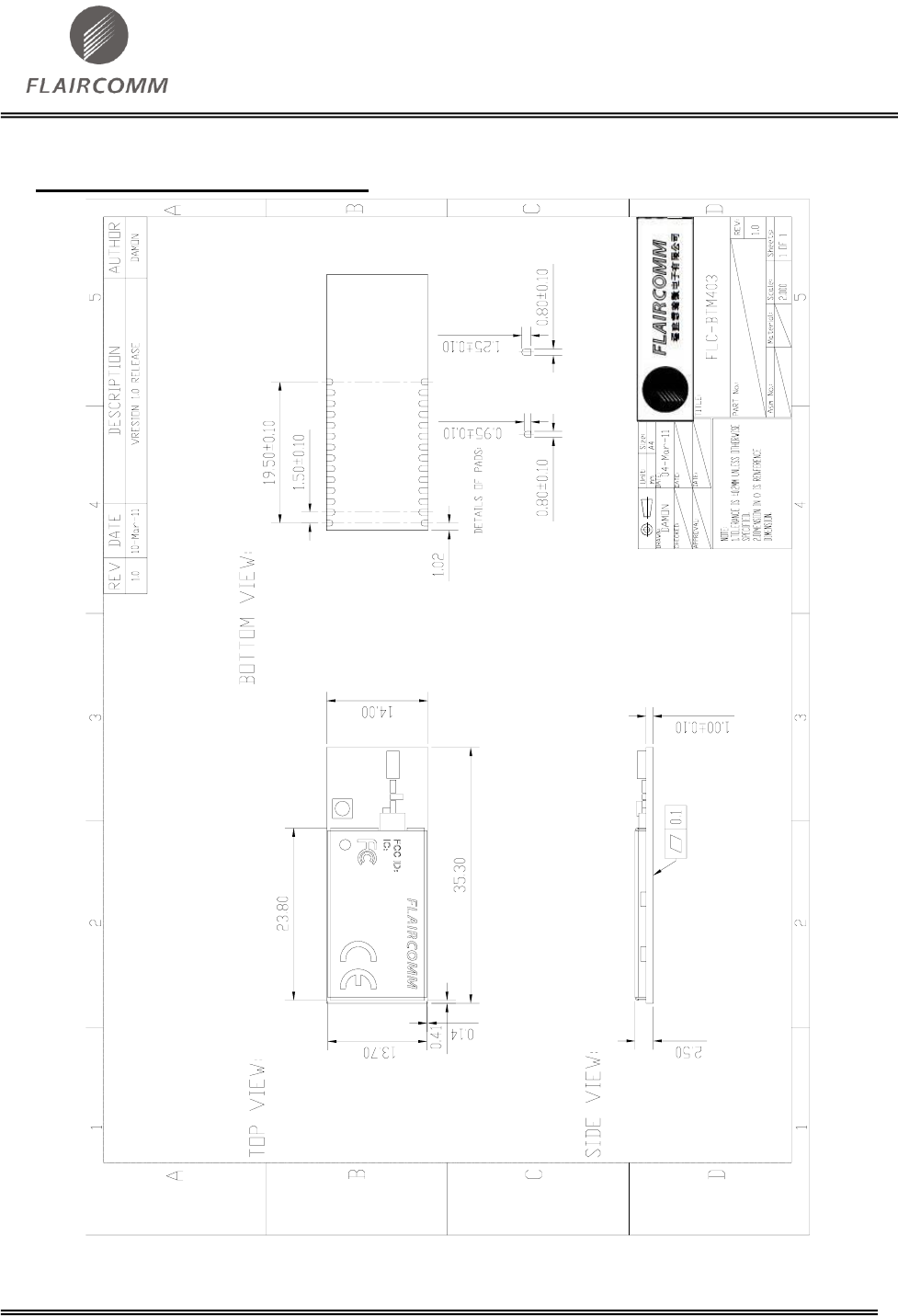

Figure 19: Mechanical Characteristic ............................................................................................................................. 29

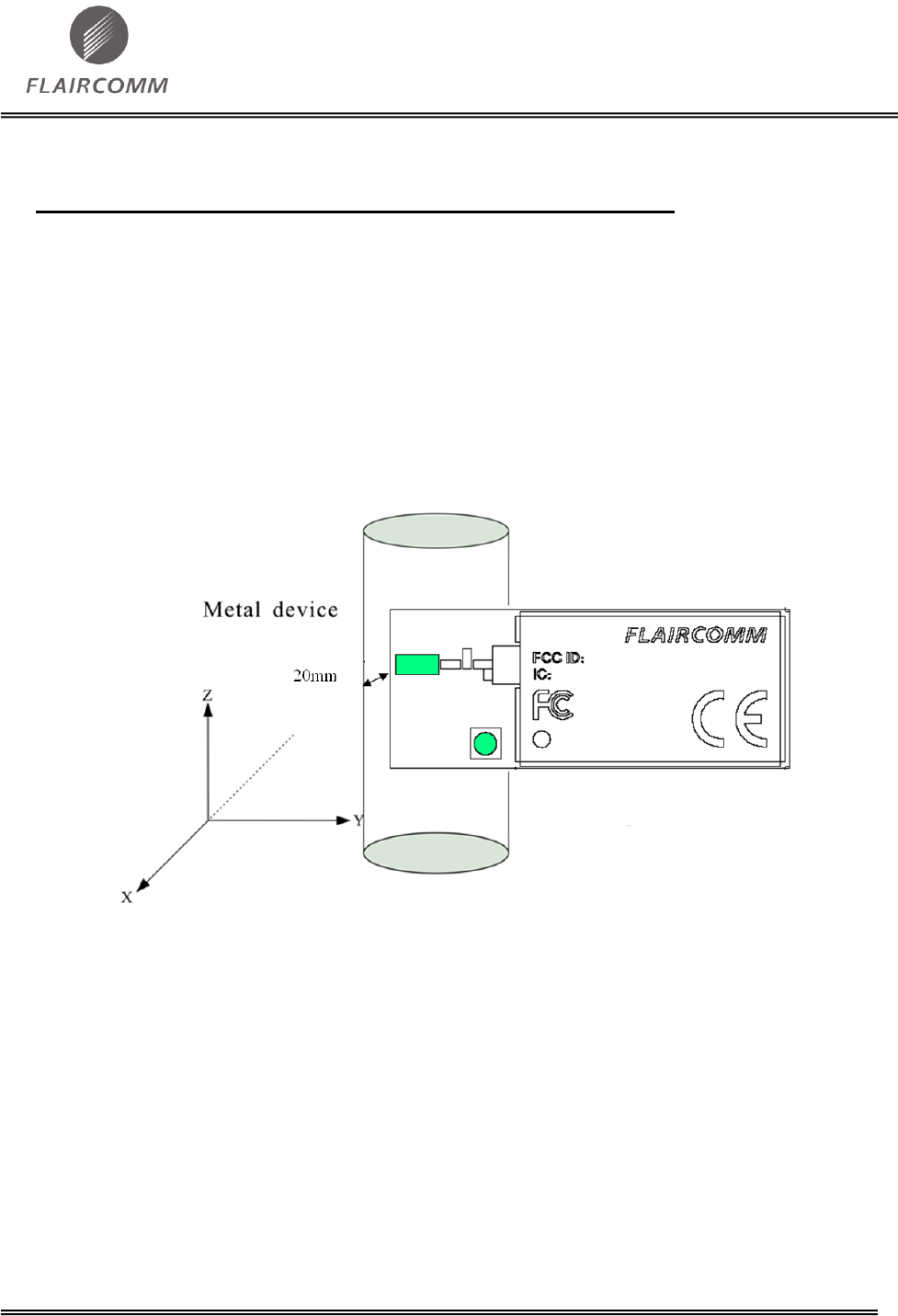

Figure 20: Leave 20mm Clearance Space from the Module Built-in chip Antenna ...................................................... 30

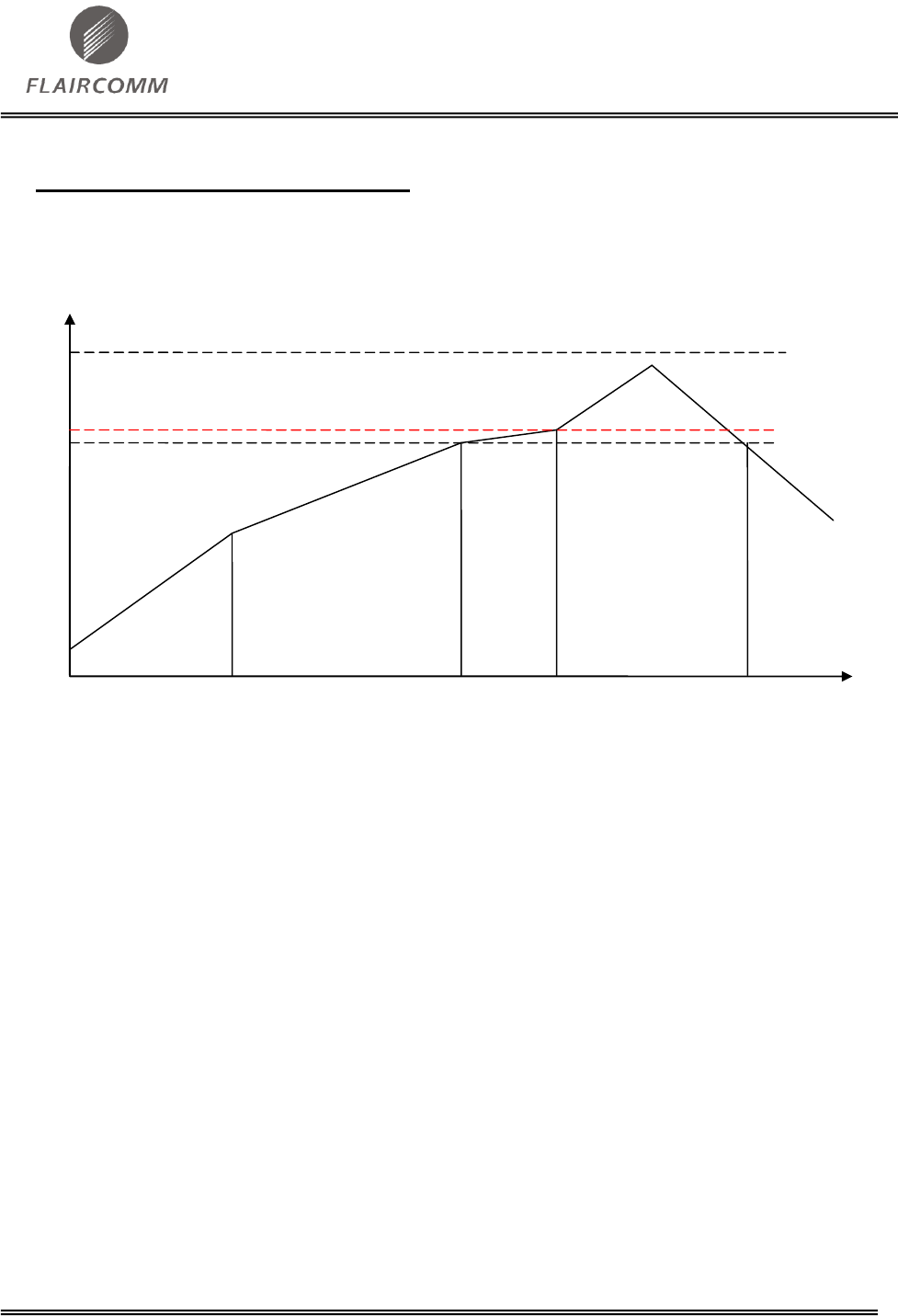

Figure 21: Recommended Reflow Profile ...................................................................................................................... 31
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-5-

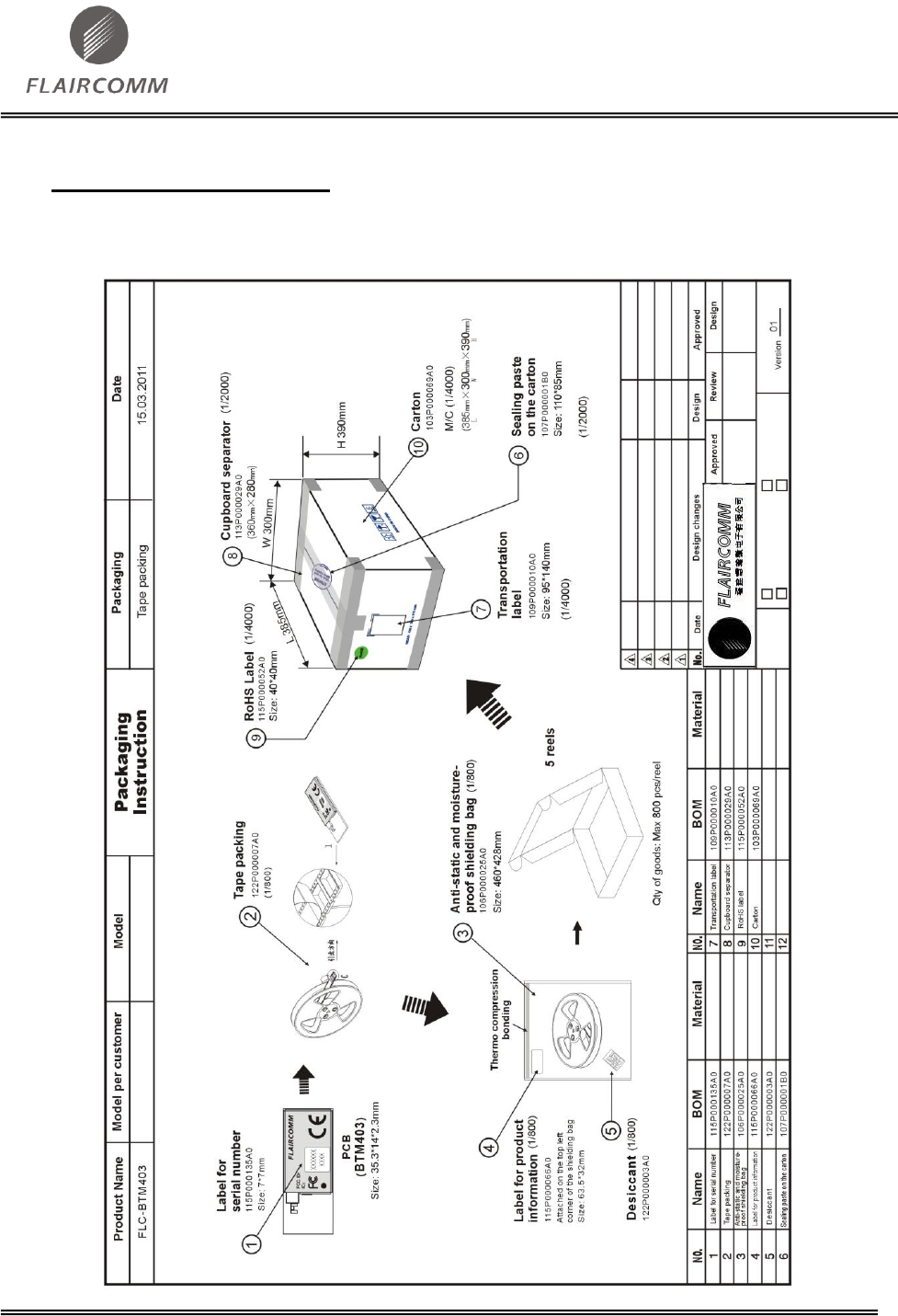

Figure 22: Product Packaging Information .................................................................................................................... 33
Figure 23: Ordering Information .................................................................................................................................... 33

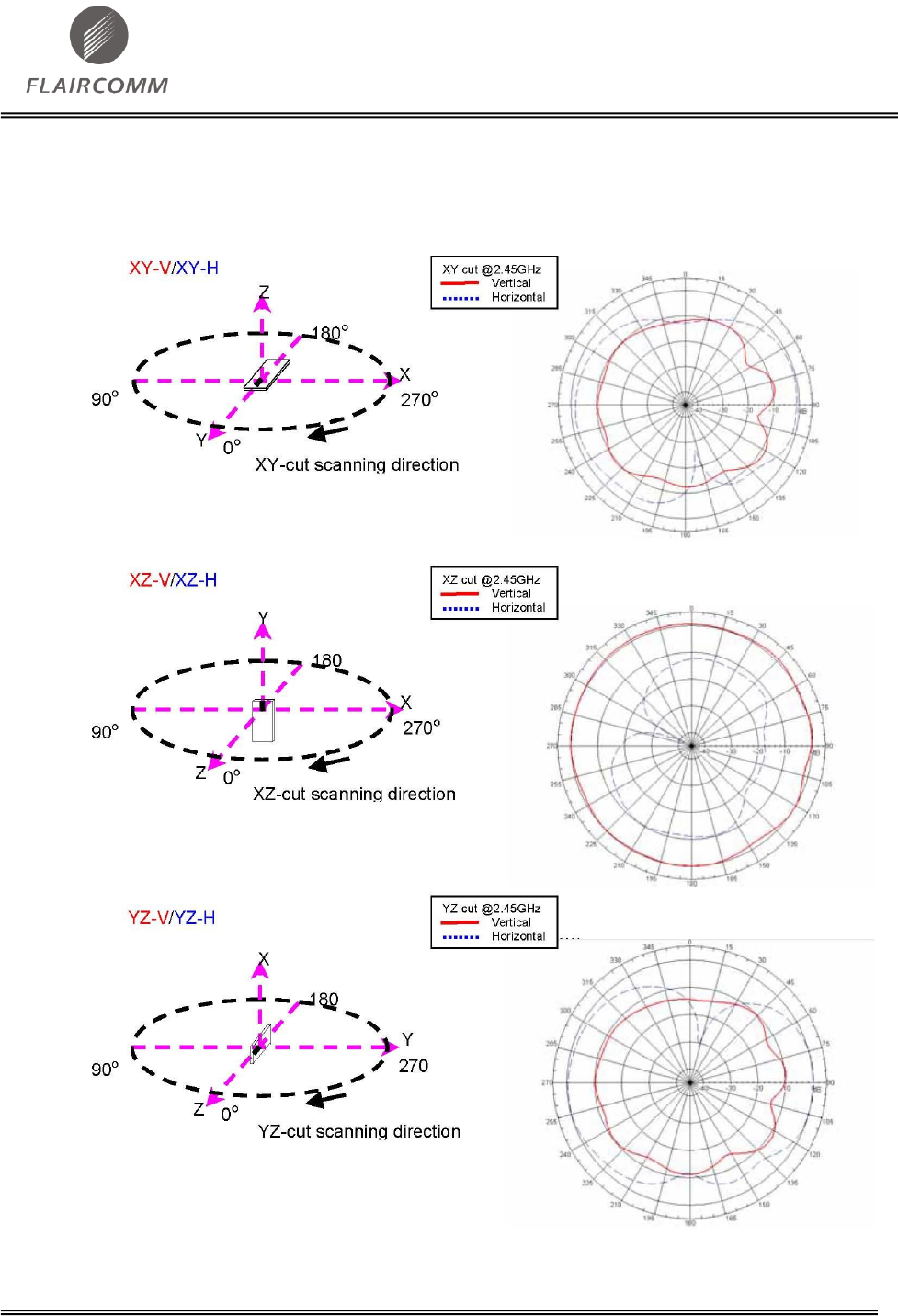

Figure 24: Radiation Patterns of Antenna ...................................................................................................................... 37
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-6-
1. Introduction
FLC-BTM403/FLC-BTMDC748 is a small form factor and highly economic Bluetooth radio
module(class 1 or class 2) that allows OEM to add wireless capability to their products. The module
supports multiple interfaces that make it simple to design into fully certified embedded Bluetooth
solutions.
With FLC’s AT#™ programming interfaces, designers can easily customize their applications to
support different Bluetooth profiles, such as SPP, DUN, HDP, and etc. class1 module supports
Bluetooth® Enhanced Data Rate (EDR) and delivers up to 3 Mbps data rate for distances up to 300
meters with its integrated chip antenna, class 2 module supports 3Mbps data rate Transmission for
distances up to 10 meters with its integrated chip antenna.
The module is an appropriate product for designers who want to add wireless capability to their
products.
Note: According to the software divided into class1 and class2
1.1 Naming Declaration
New Naming
Old Naming
FLC-BTM403A
FLC-BTMDC748A(class1)
FLC-BTM403B
FLC-BTMDC748B(class1)
FLC-BTM403C
FLC-BTMDC748C(class2)
Table 1: Naming Declaration
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-7-
1.2 Block Diagram
VDD
PCM
UART
PIOs/I2C
Antenna
Flash Crystal
BlueCore4
power
amplifier
SPI
USB
Filter
UFL
Matching
Figure 1: Block Diagram
1.3 Features
Bluetooth v2.1+EDR
UART and USB programming and data interfaces
PCM digital audio interfaces
8MB on board flash
Small form factor
SMT pads for easy and reliable PCB mounting
BQB/FCC/CE Certified
RoHS compliant
1.4 Applications
Cable replacement
Bar code and RFID scanners
Measurement and monitoring systems
Industrial sensors and controls
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-8-
Medical devices
Industrial PCs
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-9-
2. General Specification
Bluetooth Specification
Standard
Bluetooth2.1+EDR
Profiles
SPP, DUN, HDP,
detailed profiles depends on the firmware
Frequency Band
2.402G ~ 2.480G
Maximum Data Rate
3Mbps
Antenna
Multilayer Ceramic Antenna or UFL port
RF Input Impedance
50 ohms
Baseband Crystal OSC
16MHz
Interface
UART, PIO, AIO, USB, SPI, PCM
Sensitivity
-84dBm@0.1%BER
RF TX Power
+17dBm(class1) +4dbm(class2)
Power
Supply Voltage
2.7 ~ 3.6V DC
Working Current
Depends on profiles, 22mA typical
Standby Current(Connected)
<2mA
Operating Environment
Temperature
-40ºC to +85ºC for A and I grade
-20ºC to +70ºC for V and C grade
Humidity
10%~90% Non-Condensing
Certifications
BQB/FCC/CE
Environmental
RoHS Compliant
Dimension and Weight
Dimension
35.30mm×14.00mm×2.50mm
Weight
2.00g
Table 2: General Specification
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-10-

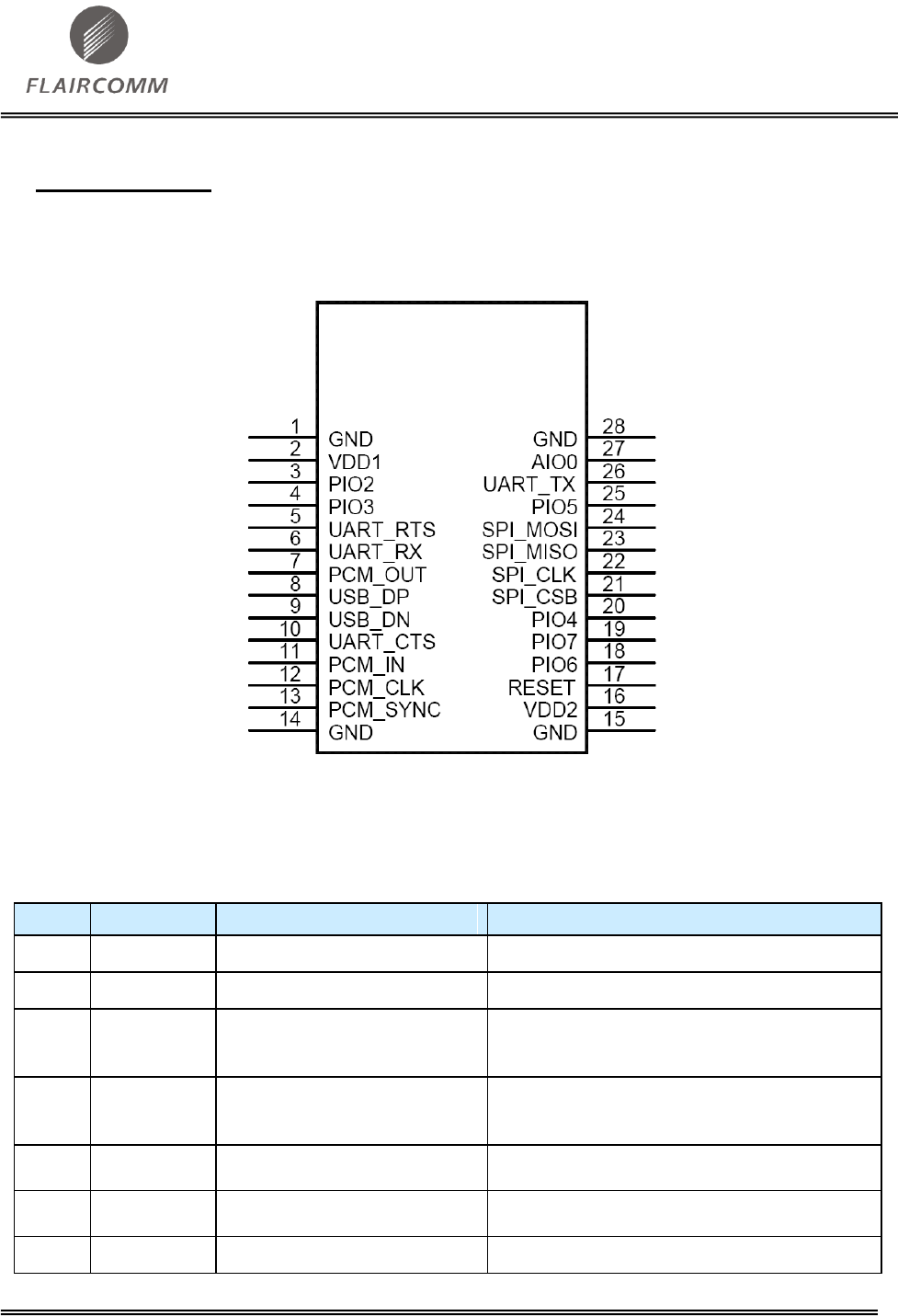

3. Pin Definition
3.1 Pin Configuration
Figure 2: Pin Configuration
3.2 Pin Definition
Pin
Symbol
I/O Type
Description
1
GND
Ground
Ground
2
VDD
3V3 power input
3V3 power input
3
PIO2
Bi-directional with
programmable strength internal
pull-up/down
Programmable input/output line
4
PIO3
Bi-directional with
programmable strength internal
pull-up/down
Programmable input/output line
5
UART_RTS
CMOS output, tri-state, with
weak internal pull-up
UART request to send active low
6
UART_RX
CMOS input with weak internal
pull-down
UART data input
7
PCM_OUT
Bi-directional
Synchronous Data Output
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-11-
8
USB_DP
Bi-directional
USB data plus with selectable internal 1.5Kohm
pull-up resistor
9
USB_DN
Bi-directional
USB data minus
10
UART_CTS
CMOS output, tri-state, with
weak internal pull-down
UART clear to send active low
11
PCM_IN
CMOS Input
Synchronous Data Input
12
PCM_CLK
Bi-directional
Synchronous Data Clock
13
PCM_SYNC
Bi-directional
Synchronous Data Sync
14
GND
Ground
Ground
15
GND
Ground
Ground
16
VDD
3.3V power input
3.3V power input
17
RESET
CMOS input with weak internal
pull-down
Reset if high. Input debounced so must be high
for >5ms to cause a reset
18
PIO6
Bi-directional with
programmable strength internal
pull-up/down
Programmable input/output line
19
PIO7
Bi-directional with
programmable strength internal
pull-up/down
Programmable input/output line
20
PIO4
Bi-directional with
programmable strength internal
pull-up/down
Programmable input/output line
21
SPI_CSB
CMOS input with weak internal
pull-up
Chip select for Synchronous Serial Interface
active low
22
SPI_CLK
input with weak internal pull-
down
Serial Peripheral Interface clock
23
SPI_MISO
CMOS output, tri-state, with
weak internal pull-down
Serial Peripheral Interface output
24
SPI_MOSI
CMOS input, with weak
internal pull-down
Serial Peripheral Interface input
25
PIO5
Bi-directional with
programmable strength internal
pull-up/down
Programmable input/output line
26
UART_TX
CMOS input with weak internal
pull-down
UART data output
27
AIO0
Bi-directional
Programmable input/output line
28
GND
Ground
Ground
Table 3: Pin Definition
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-12-
4. Physical Interfaces
4.1 Power Supply
The transient response of the regulator is important. If the power rails of the module are supplied
from an external voltage source, the transient response of any regulator used should be 20μs or less.
It is essential that the power rail recovers quickly.
4.2 Reset
The module may be reset from several sources: RESET pin, power-on reset, a UART break
character or via a software configured watchdog timer.
The RESET pin is an active high reset and is internally filtered using the internal low frequency
clock oscillator. A reset will be performed between 1.5 and 4.0ms following RESET being active. It
is recommended that RESET be applied for a period greater than 5ms.
The module has an internal reset circuitry, which keeps reset pin active until supply voltage has
reached stability in the start up. This ensures that supply for the flash memory inside the module will
reach stability before BC4 chip fetches instructions from it. Pull-up or pull-down
resistor
should
not be connected to the reset pin to ensure proper star up of
module.
At reset the digital I/O pins are set to inputs for bi-directional pins and outputs are tri-state. The PIOs
have weak pull-downs.
Pin Name / Group
Pin Status on Reset
USB_DP
Input with PD
USB_DN
Input with PD
UART_RX
Input with PD
UART_CTS
Input with PD
UART_TX
Tri-state output with PU
UART_RTS
Tri-state output with PU
SPI_MOSI
Input with PD
SPI_CLK
Input with PD
SPI_CSB
Input with PU
SPI_MISO
Tri-state output with PD
PCM_CLK
Input with PD
PCM_SYNC
Input with PD
PCM_IN
Input with PD
PCM_OUT
Tri-state with PD
RESETB
Input with PU
PIOs
Input with weak PD
AIOs
Output, driving low
RF-IN
High impedance
Table 4: Pin Status on Reset
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-13-
Note: Pull-up (PU) and pull-down (PD) default to weak values unless specified otherwise.
4.3 Digital Audio Interfaces
The module has offered PCM digital audio interface.
PCM is a standard method used to digitize audio (particularly voice) for transmission over digital
communication channels. Through its PCM interface, the module has hardware support for continual
transmission and reception of PCM data, thus reducing processor overhead for applications. The
module offers a bi-directional digital audio interface that routes directly into the baseband layer of
the on-chip firmware. It does not pass through the HCI protocol layer.
Hardware on the module allows the data to be sent to and received from a SCO connection. Up to
three SCO connections can be supported by the PCM interface at any one time.
The module can operate as the PCM interface master generating an output clock of 128, 256 or
512kHz. When configured as PCM interface slave, it can operate with an input clock up to 2048kHz.
The module is compatible with a variety of clock formats, including Long Frame Sync, Short Frame
Sync and GCI timing environments.
It supports 13-bit or 16-bit linear, 8-bit µ-law or A-law companded sample formats at 8k samples/s
and can receive and transmit on any selection of three of the first four slots following PCM_SYNC.
The module interfaces directly to PCM audio devices including the following:
Qualcomm MSM 3000 series and MSM 5000 series CDMA baseband devices
channels A-law and µ-law CODEC
-bit A-law and µ-law CODEC
-bit linear CODEC
-bit linear CODECs
The module is also compatible with the Motorola SSI™ interface.
4.3.1 PCM Interface Master/Slave
When PCM is configured as a master, the module generates PCM_CLK and PCM_SYNC.
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-14-
Figure 3: Configured PCM as a Master
When PCM is configured as the slave, the module accepts PCM_CLK rates up to 2048kHz.
Figure 4: Configured PCM as a Slave
4.3.2 Long Frame Sync
Long Frame Sync is the name given to a clocking format that controls the transfer of PCM data
words or samples. In Long Frame Sync, the rising edge of PCM_SYNC indicates the start of the
PCM word. When the module is configured as PCM master, generating PCM_SYNC and
PCM_CLK, then PCM_SYNC is 8-bits long. When the module is configured as PCM Slave,
PCM_SYNC may be from two consecutive falling edges of PCM_CLK to half the PCM_SYNC rate,
i.e., 62.5µs long.
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-15-

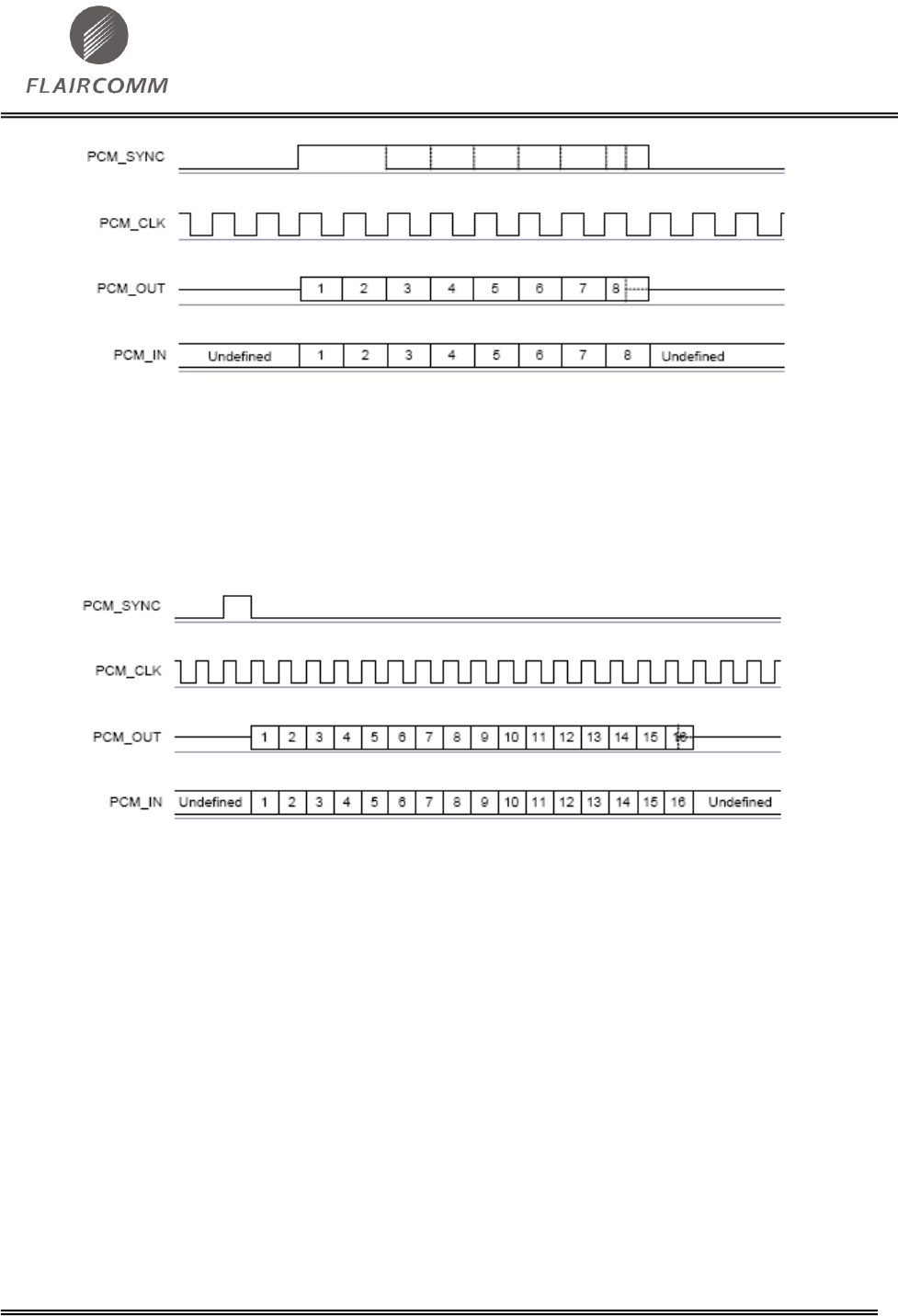

Figure 5: Long Frame Sync (Shown with 8-bit Companded Sample)
4.3.3 Short Frame Sync
In Short Frame Sync, the falling edge of PCM_SYNC indicates the start of the PCM word.
PCM_SYNC is always one clock cycle long.
Figure 6: Short Frame Sync (Shown with 16-bit Sample)
As with Long Frame Sync, the module samples PCM_IN on the falling edge of PCM_CLK and
transmits PCM_OUT on the rising edge. PCM_OUT may be configured to be high impedance on the
falling edge of PCM_CLK in the LSB position or on the rising edge.
4.3.4 Multi-slot Operation
More than one SCO connection over the PCM interface is supported using multiple slots. Up to three
SCO connections can be carried over any of the first four slots.
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-16-
Figure 7: Multi-Slot Operation with Two Slots and 8-bit Companded Samples
4.3.5 GCI Interface
The module is compatible with the General Circuit Interface (GCI), a standard synchronous 2B+D
ISDN timing interface. The two 64Kbps B channels can be accessed when this mode is configured.
Figure 8: GCI Interface
The start of a frame is indicated by the rising edge of PCM_SYNC and runs at 8kHz. With the
module in slave mode, the frequency of PCM_CLK can be up to 4.096MHz.
4.3.6 Slots and Sample Formats
The module can receive and transmit on any selection of the first four slots following each sync
pulse. Slot durations can be either 8 or 16 clock cycles. Durations of 8 clock cycles may only be
used with 8-bit sample formats. Durations of 16 clocks may be used with 8-bit, 13-bit or 16-bit
sample formats. The module supports 13-bit linear, 16-bit linear and 8-bit µ-law or A-law sample
formats. The sample rate is 8k samples/s. The bit order may be little or big endian. When 16-bit slots
are used, the 3 or 8 unused bits in each slot may be filled with sign extension, padded with zeros or a
programmable 3-bit audio attenuation compatible with some Motorola CODECs.
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-17-
Figure 9: 16-Bit Slot Length and Sample Formats
4.3.7 Additional Features
The module has a mute facility that forces PCM_OUT to be 0. In master mode, PCM_SYNC may
also be forced to 0 while keeping PCM_CLK running which some CODECS use to control power
down.
4.3.8 PCM Timing Information
Symbol
Parameter
Min
Typical
Max
Unit
fmclk
PCL_CLK
Frequency
4MHz DDS generation.
Selection of frequency
is programmable.
-
128
-
kHz
256
512
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-18-
48MHz DDS
generation. Selection of
frequency is
programmable.
2.9
-
kHz
-
PCM_SYNC frequency
-
8
kHz
tmclkh(a)
PCM_CLK
high
4MHz DDS generation
980
-
-
ns
tmclkl(a)
PCM_CLK low
4MHz DDS generation
730
-
ns
-
PCM_CLK
jitter
48MHz DDS
generation
21
ns pk-pk
tdmclksynch
Delay time from PCM_CLK high to
PCM_SYNC high
-
-
20
ns
tdmclkpout
Delay time from PCM_CLK high to valid
PCM_OUT
-
-
20
ns
tdmclklsyncl
Delay time from PCM_CLK low to
PCM_SYNC low (Long Frame Sync only)
-
-
20
ns
tdmclkhsyncl
Delay time from PCM_CLK high to
PCM_SYNC low
-
-
20
ns
tdmclklpoutz
Delay time from PCM_CLK low to
PCM_OUT high impedance
-
-
20
ns
tdmclkhpoutz
Delay time from PCM_CLK high to
PCM_OUT high impedance
-
-
20
ns
tsupinclkl
Set-up time for PCM_IN valid to
PCM_CLK low
30
-
-
ns
thpinclkl
Hold time for PCM_CLK low to PCM_IN
invalid
10
-
-
ns
Table 5: PCM Master Timing
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-19-
Figure 10: PCM Master Timing Long Frame Sync
Figure 11: PCM Master Timing Short Frame Sync
Symbol
Parameter
Min
Typical
Max
Unit
fsclk
PCM clock frequency (Slave mode: input)
64
-
2048
kHz
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-20-
fsclk
PCM clock frequency (GCI mode)
128
-
4096
kHz
tsclkl
PCM_CLK low time
200
-
-
ns
tsclkh
PCM_CLK high time
200
-
-
ns
thsclksynch
Hold time from PCM_CLK low to
PCM_SYNC high
30
-
-
ns
tsusclksynch
Set-up time for PCM_SYNC high to
PCM_CLK low
30
-
-
ns
tdpout
Delay time from PCM_SYNC or
PCM_CLK whichever is later, to valid
PCM_OUT data (Long Frame Sync only)
-
-
20
ns
tdsclkhpout
Delay time from CLK high to PCM_OUT
valid data
-
-
20
ns
tdpoutz
Delay time from PCM_SYNC or
PCM_CLK low, whichever is later, to
PCM_OUT data line high impedance
-
-
20
ns
tsupinsclkl
Set-up time for PCM_IN valid to CLK
low
30
-
-
ns
thpinsclkl
Hold time for PCM_CLK low to
PCM_IN invalid
30
-
-
ns

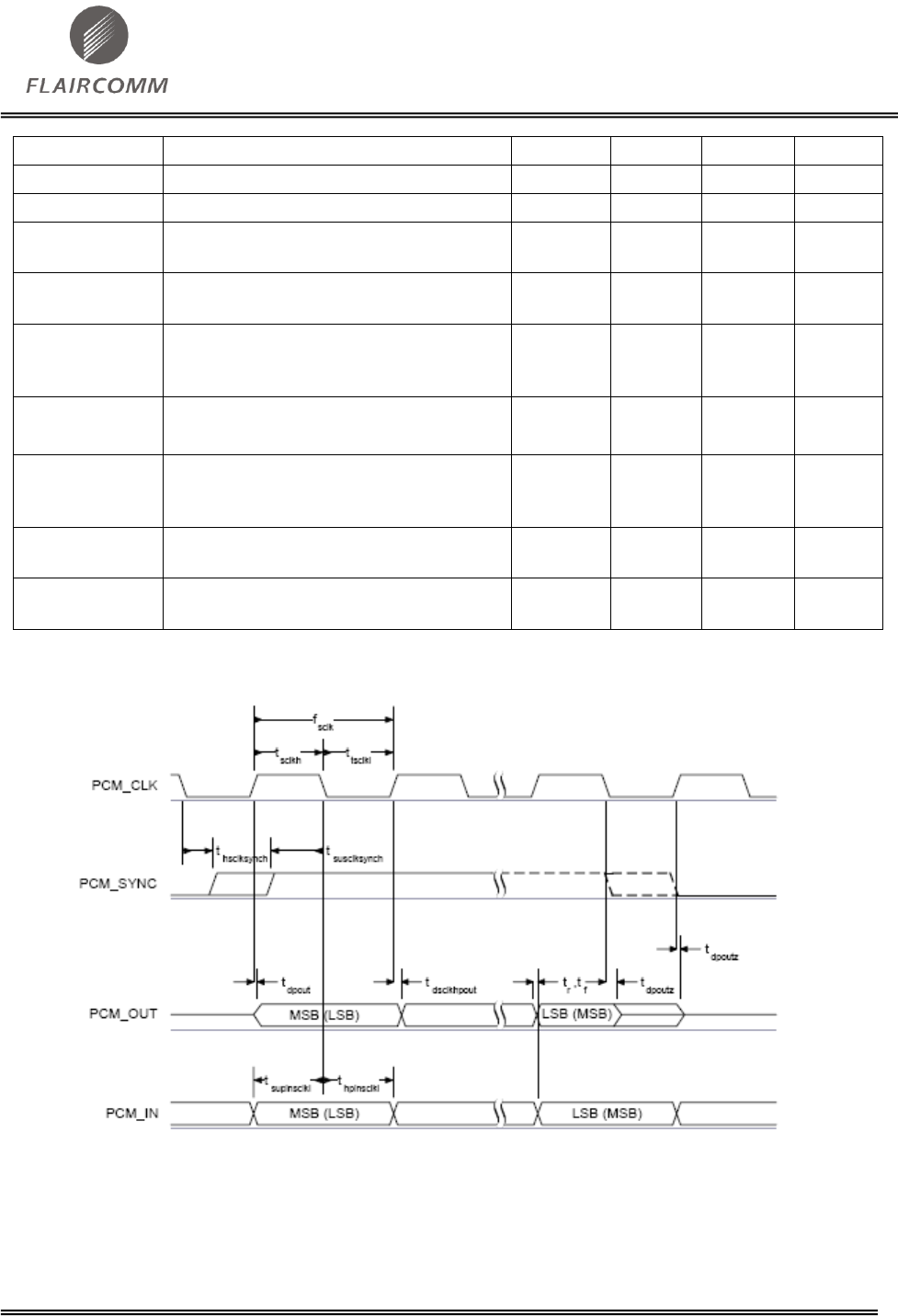

Table 6: PCM Slave Timing
Figure 12: PCM Slave Timing Long Frame Sync
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-21-
Figure 13: PCM Master Timing Short Frame Sync
4.4 RF Interface
The module integrates a balun filter. The user can connect a 50ohms antenna directly to the RF port.
4.5 General Purpose Analogue IO
The general purpose analogue IO can be configured as ADC inputs by software. Do not connect
them if not use.
4.6 General Purpose Digital IO
The general purpose digital IO can be configured by software to have various functions such as
button, LED or interrupt signals to host controller. Do not connect them if not use.
4.7 Serial Interfaces
4.7.1 UART
This is a standard Universal Asynchronous Receiver Transmitter (UART) interface for
communicating with other serial devices. Four signals UART_TX, UART_RX, UART_CTS, and
UART_RTS are used to implement the UART function, UART_CTS, UART_RTS can be used to
implement hardware flow control. PIO2 and PIO3 can be configured as DTR and RTS.
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-22-
Table 7: Possible UART Settings
4.7.2 USB
There is a full speed (12M bits/s) USB interface for communicating with other compatible digital
devices. The module acts as a USB peripheral, responding to request from a master host controller,
such as a PC.
The module features an internal USB pull-up resistor. This pulls the USB_DP pin weakly high when
module is ready to enumerate. It signals to the USB master that it is a full speed (12Mbit/s) USB
device. The USB internal pull-up is implemented as a current source, and is compliant with section
7.1.5 of the USB specification v1.2. The internal pull-up pulls USB_DP high to at least 2.8V when
loaded with a 15kΩ ±5% pull-down resistor (in the hub/host) when VDD =3.1V. This presents a
Thevenin resistance to the host of at least 900Ω. Alternatively, an external 1.5kΩ pull-up resistor can
be placed between a PIO line and DP on the USB cable.
4.7.2.1 Self-Powered Mode
In self-powered mode, the module is powered from its own power supply and not from the VBUS
(5V) line of the USB cable. It draws only a small leakage current (below 0.5mA) from VBUS on the
USB cable. This is the easier mode for which to design, as the design is not limited by the power that
can be drawn from the USB hub or root port. However, it requires that VBUS be connected to
module via a resistor network (Rvb1 and Rvb2), so the module can detect when VBUS is powered
up. The module will not pull USB_DP high when VBUS is off.
Self-powered USB designs (powered from a battery or LDO) must ensure that a PIO line is allocated
for USB pull-up purposes. A 1.5KΩ 5% pull-up resistor between USB_DP and the selected PIO line
should be fitted to the design. Failure to fit this resistor may result in the design failing to be USB
compliant in self-powered mode. The internal pull-up in the module is only suitable for bus-powered
USB devices, e.g., dongles.
Parameter
Possible Values
Baud Rate
Minimum
1200 baud (≤2%Error)
9600 baud (≤1%Error)
Maximum
3M baud (≤1%Error)
Flow Control
RTS/CTS or None
Parity
None, Odd or Even
Number of Stop Bits
1 or 2
Bits per Byte
8
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-23-
Figure 14: USB Connections for Self-Powered Mode
Note: USB_ON is shared with the module PIO terminals.
Identifier
Value
Function
Rs
27Ω Nominal
Impedance matching to USB cable
Rvb1
22kΩ 5%
VBUS ON sense divider
Rvb2
47kΩ 5%
VBUS ON sense divider
Table 8: USB Interface Component Values
4.7.2.2 Bus-Powered Mode
In bus-powered mode, the application circuit draws its current from the 5V VBUS supply on the
USB cable. The module negotiates with the PC during the USB enumeration stage about how much
current it is allowed to consume. For Class 2 Bluetooth applications, FLC recommends that the
regulator used to derive 3.3V from VBUS is rated at 100mA average current and should be able to
handle peaks of 120mA without foldback or limiting. In bus-powered mode, the module requests
100mA during enumeration. For Class 1 Bluetooth applications, the USB power descriptor should be
altered to reflect the amount of power required. This is higher than for a Class 2 application due to
the extra current drawn by the Transmit RF PA. When selecting a regulator, be aware that VBUS
may go as low as 4.4V. The inrush current (when charging reservoir and supply decoupling
capacitors) is limited by the USB specification. See USB Specification v1.1, section 7.2.4.1. Some
applications may require soft start circuitry to limit inrush current if more than 10µF is present
between VBUS and GND.
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-24-
Figure 15: USB Connections for Bus-Powered Mode
4.7.3 I2C
PIO5, PIO7 and PIO6 can be used to form a master I2C interface. The interface is formed using
software to drive these lines. It is suited only to relatively slow functions such as driving a LCD,
Keyboard, scanner or EEPROM. In the case, PIO lines need to be pulled up through 2.2Kohm
resistors.
VDD
Figure 16: Example EEPROM Connection with I2C Interface
4.7.4 SPI
he synchronous serial port interface (SPI) can be used for system debugging. It can also be used for
in-system programming for the flash memory within the module. SPI interface uses the SPI_MOSI,
SPI_MISO, SPI_CSB and SPI_CLK pins. Testing points for the SPI interface are reserved on board
in case that the firmware shall be updated during manufacture.
The module operates as a slave and thus SPI_MISO is an output of the module. SPI_MISO is not in
high-impedance state when SPI_CSB is pulled high. Instead, the module outputs 0 if the processor is
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-25-
running and 1 if it is stopped. Thus the module should NOT be connected in a multi-slave
arrangement by simple parallel connection of slave SPI_MISO lines. The SPI interface is needed
when debugging the Bluetooth functions so please leave test points/pads as shown in Figure 17 on
PCB.
System
Mainboard
The Module
SPI-CSB
SPI-MISO
SPI-MOSI
SPI-CLK
GND
Pad or
Connector
VDD
PC
Download Cable &
Adaptor by Flaircomm
Figure 17: Design SPI for In-System Programming and Debug
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-26-
5. Electrical Characteristic
5.1 Absolute Maximum Rating
Table 9: Absolute Maximum Rating Recommended Operating Conditions
5.2 Recommend operation conditions
Operating Condition
Min
Typical
Max
Unit
Storage Temperature
-40
--
+85
°C
Operating Temperature Range (for A and I grade)
-40
--
+85
°C
Operating Temperature Range (for V and C grade)
-20
--
+70
°C
VDD Voltage
+2.7
+3.3
+3.6
V
Table 10: Recommended Operating Conditions
5.3 Power consumptions
Operating Condition
Min
Typical
Max
Unit
Radio On*(Discovery)
23
mA
Radio On*( Inquiry window time)
73
mA
Connected Idle (No Sniff)
20
mA
Connected with data transfer
6
10
25
mA
Table 11: Power consumptions
*If in SLAVE mode there are bursts of radio ON time which vary with the windows. Depending on how you set the
windows that determines your average current.
Rating
Min
Max
Unit
Storage Temperature
-40
+120
°C
Operating Temperature (for A and I grade)
-40
+85
°C
Operating Temperature (for V and C grade)
-20
+70
°C
PIO/AIO Voltage
-0.4
+3.6
V
VDD Voltage
-0.4
+3.7
V
USB_DP/USB_DN Voltage
-0.4
+3.6
V
Other Terminal Voltages except RF
-0.4
VDD+0.4
V
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-27-
5.4 Input/output Terminal Characteristics
5.4.1 Digital Terminals
Supply Voltage Levels
Min
Typical
Max
Unit
Input Voltage Levels
VIL input logic level low
-0.4
-
+0.8
V
VIH input logic level high
0.7VDD
-
VDD+0.4
V
Output Voltage Levels
VOL output logic level low, lOL = 4.0mA
-
-
0.4
V
VOH output logic level high, lOH = -4.0mA
VDD-0.2
-
-
V
Input and Tri-state Current
With strong pull-up
-100
-40
-10
μA
With strong pull-down
10
40
100
μA
With weak pull-up
-5
-1.0
-0.2
μA
With weak pull-down
-0.2
+1.0
5.0
μA
I/O pad leakage current
-1
0
+1
μA
CI Input Capacitance
1.0
-
5.0
pF
Table 12: Digital Terminal
5.4.2 USB
USB Terminals
Min
Typical
Max
Unit
Input Threshold
VIL input logic level low
-
-
0.3VDD
V
VIH input logic level high
0.7VDD
-
-
V
Input Leakage Current
GND < VIN < VDD(a)
-1
1
5
μA
CI Input capacitance
2.5
-
10.0
pF
Output Voltage Levels to Correctly Terminated USB Cable
VIL output logic level low
0.0
-
0.2
V
VIH output logic level high
2.8
-
VDD
V
Table 13: USB Terminal
(a) Internal USB pull-up disabled
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-28-
6. Reference Design
Figure 18: Reference Design
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-29-
7. Mechanical Characteristic
Figure 19: Mechanical Characteristic
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-30-
8. Recommended PCB Layout and Mounting Pattern
A very important factor in achieving maximum Bluetooth performance is the placement of a module
with on-board antenna designs onto the carrier board and corresponding PCB layout. There should
be no any trace, ground and vias in the area of the carrier board underneath the module’s on-board
antenna section as indicated in Figure 20. Antenna portion of the module must be placed at least
20mm away from any metal part and the antenna should not be covered by any piece of metal. The
antenna of the module MUST be kept as far from potential noise sources as possible and special care
must also be taken with placing the module in proximity to circuitry that can emit heat. The RF part
of the module is very sensitive to temperature and sudden changes can have an adverse impact on
performance.
Figure 20: Leave 20mm Clearance Space from the Module Built-in chip Antenna
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-31-
9. Recommended Reflow Profile
The soldering profile depends on various parameters necessitating a set up for each application. The
data here is given only for guidance on solder reflow.
210
217
℃
250
A
B
C
D
1
2
0
25
3
4
5
6
min
E
Figure 21: Recommended Reflow Profile
Pre-heat zone (A) — This zone raises the temperature at a controlled rate, typically 0.5 – 2 C/s.
The purpose of this zone is to preheat the PCB board and components to 120 ~ 150 C. This stage is
required to distribute the heat uniformly to the PCB board and completely remove solvent to reduce
the heat shock to components.
Equilibrium Zone 1 (B) — In this stage the flux becomes soft and uniformly encapsulates solder
particles and spread over PCB board, preventing them from being re-oxidized. Also with elevation
of temperature and liquefaction of flux, each activator and rosin get activated and start eliminating
oxide film formed on the surface of each solder particle and PCB board. The temperature is
recommended to be 150 to 210 for 60 to 120 second for this zone.
Equilibrium Zone 2 (c) (optional) — In order to resolve the upright component issue, it is
recommended to keep the temperature in 210 – 217 for about 20 to 30 second.
Reflow Zone (D) — The profile in the figure is designed for Sn/Ag3.0/Cu0.5. It can be a reference
for other lead-free solder. The peak temperature should be high enough to achieve good wetting but
not so high as to cause component discoloration or damage. Excessive soldering time can lead to
intermetallic growth which can result in a brittle joint. The recommended peak temperature (Tp) is
230 ~ 250 C. The soldering time should be 30 to 90 second when the temperature is above 217 C.
Cooling Zone (E) — The cooling ate should be fast, to keep the solder grains small which will give
a longerlasting joint. Typical cooling rate should be 4 C.
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-32-
10. Ordering Information
10.1 Product Packaging Information
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-33-
Figure 22: Product Packaging Information
10.2 Ordering information
FLC-BTM403XYZA
Product Revision
Shipping Package
Product Package
Product Grade
Figure 23: Ordering Information
10.2.1 Product Revision
Product Revision
Description
Availability
A
Multilayer Ceramic Antenna ( Class 1)
Yes
B
UFL connector (Class 1)
Yes
C
Multilayer Ceramic Antenna ( Class 2)
Yes
Table 14: Product Revision
10.2.2 Shipping Package
Shipping Package
Description
Quantity
Availability
0
Spongy Cushion In Box
—
No
1
Plastic Tray In Box
—
No
2
Tape
800x5 =4000
Yes
Table 15: Shipping Package
10.2.3 Product Package
Product Package
Description
Availability
Q
QFN
Yes
L
LGA
No
B
BGA
No
C
Connector
No
Table 16: Product Package
10.2.4 Product Grade
Product Grade
Description
Availability
C
Consumer
No
I
Industrial
Yes
V
Automobile After-Market
Yes
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-34-
A
Automobile Before-Market
No
Table 17: Product Grade
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-35-
11. Cautions &Warnings
11.1 FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This radio module must not be installed to co-locate and operate simultaneously with other radios in
host system; additional testing and equipment authorization may be required to operating
simultaneously with other radios.
11.2 FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
11.3 FLC-BTM403 Label Instructions
The FLC-BTM403 module is designed to comply with the FCC statements.
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-36-
The packaging of host system that uses BTM403 should display a label indicating the information as
follows:
Contains FCC ID: P4IBTM403
Model: FLC-BTM403IQ2A
(Series models: FLC-BTM403IQ2B/ FLC-BTM403IQ2C/
FLC-BTM403VQ2A/ FLC-BTM403VQ2B/FLC-BTM403VQ2C)
QDID:
Any similar wording that expresses the same meaning may also be used.
11.4 FLC-BTM403 Antenna Statement
Note: In this section, “A”, “B” and “C” in “BTM403A”, “BTM403B” and “BTM403C” refer to
Product Revision. Please see Section 10.2.1 for reference.
11.4.1 BTM403A and BTM403C
Antenna specifications of BTM403A and BTM403C are listed in the following table:
Part
Number
Frequency
Range
(MHz)
Peak Gain
（XZ-V）
Average Gain
（XZ-V）
VSWR
Impedance
AT3216
-B2R7HAA_
2400 ~ 2500
0.5 dBi typ.
-0.5 dBi typ.
2 max.
50 Ω
Table 18: Antenna Specifications
Operating Temperature Range:-40 ~ +85 oC
Storage Temperature Range: -40 ~ +85 oC
Power Capacity: 3W max.
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-37-
The following figure shows the Radiation Patterns of the antenna in BTM403A and BTM403C.
Figure 24: Radiation Patterns of Antenna
FLC-BTM403 Datasheet
Flaircomm Microelectronics Confidential
-38-
11.4.2 BTM403B
There is no built-in antenna in BTM403B. BTM403B is integrated with a UFL connector to make it
simple for designers to add an external antenna into the module. In order to make the product
compliant with the FCC standard, the applicable antennas which designers choose should be similar
to the antenna in BTM403A and BTM403C in specifications and radiation patterns. And the gain
should be less than the peak gain of the antenna in BTM403A and BTM403C. If designers choose a
different antenna, additional testing and equipment authorization are needed to ensure the
compliance with FCC statement.
