Fleetwood Group USB240D Low Power RF Transceiver Module USB240D User Manual CERTIFICATE OF COMPLIANCE

Fleetwood Group Inc Low Power RF Transceiver Module USB240D CERTIFICATE OF COMPLIANCE

User Manual

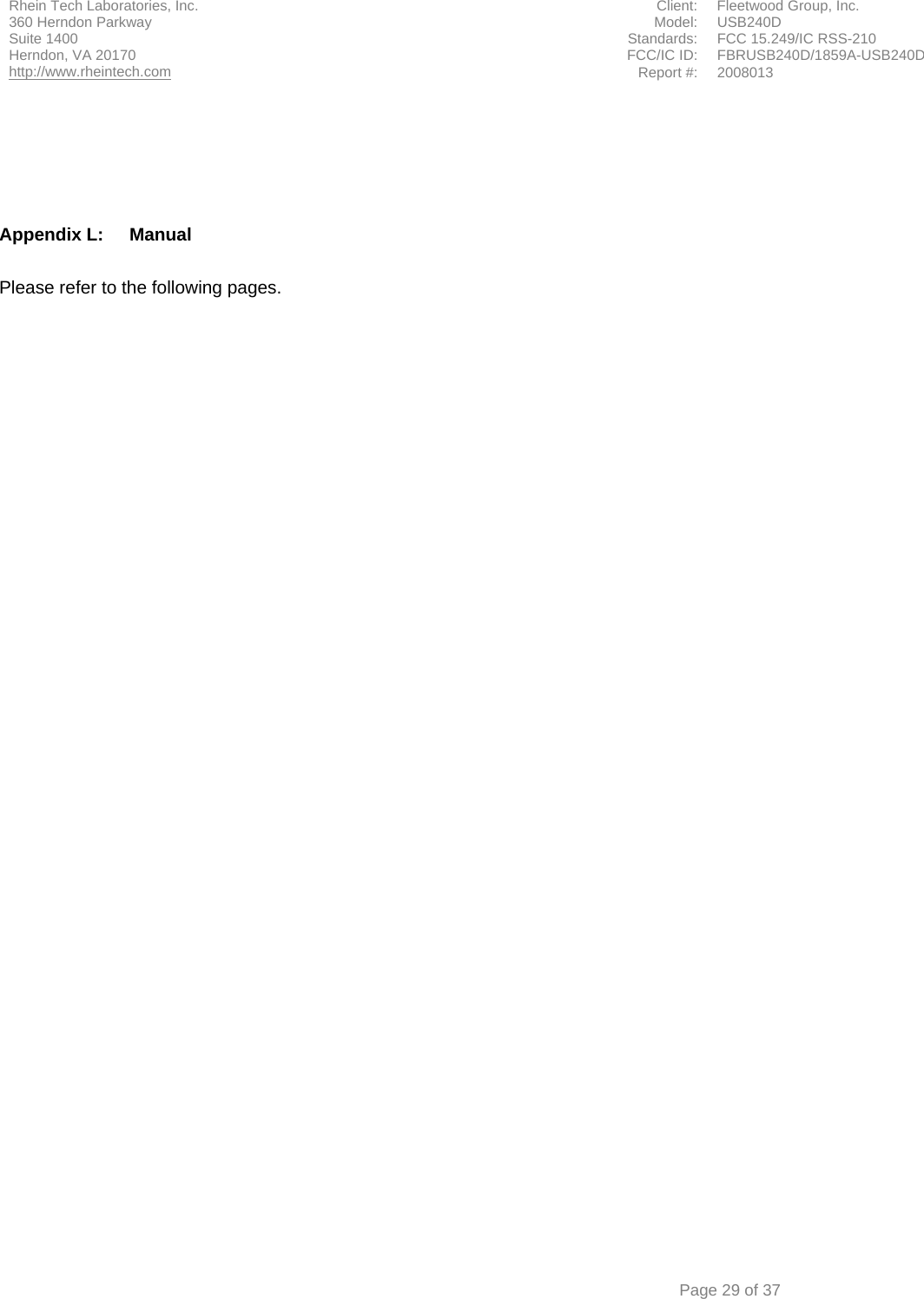

Rhein Tech Laboratories, Inc. Client: Fleetwood Group, Inc. 360 Herndon Parkway Model: USB240D Suite 1400 Standards: FCC 15.249/IC RSS-210 FCC/IC ID: FBRUSB240D/1859A-USB240D Herndon, VA 20170 http://www.rheintech.com Report #: 2008013 Page 29 of 37 Appendix L: Manual Please refer to the following pages.

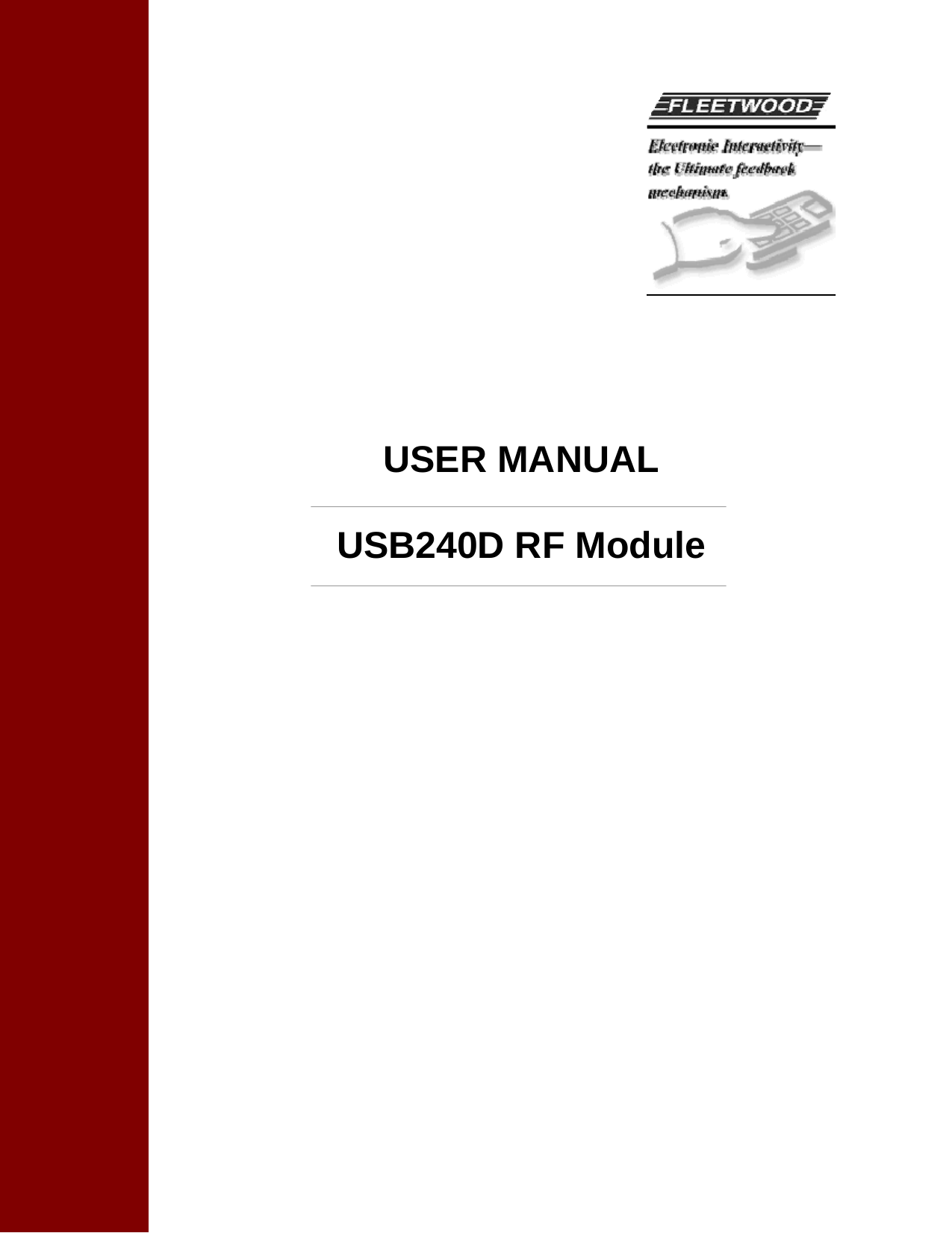

USER MANUAL USB240D RF Module

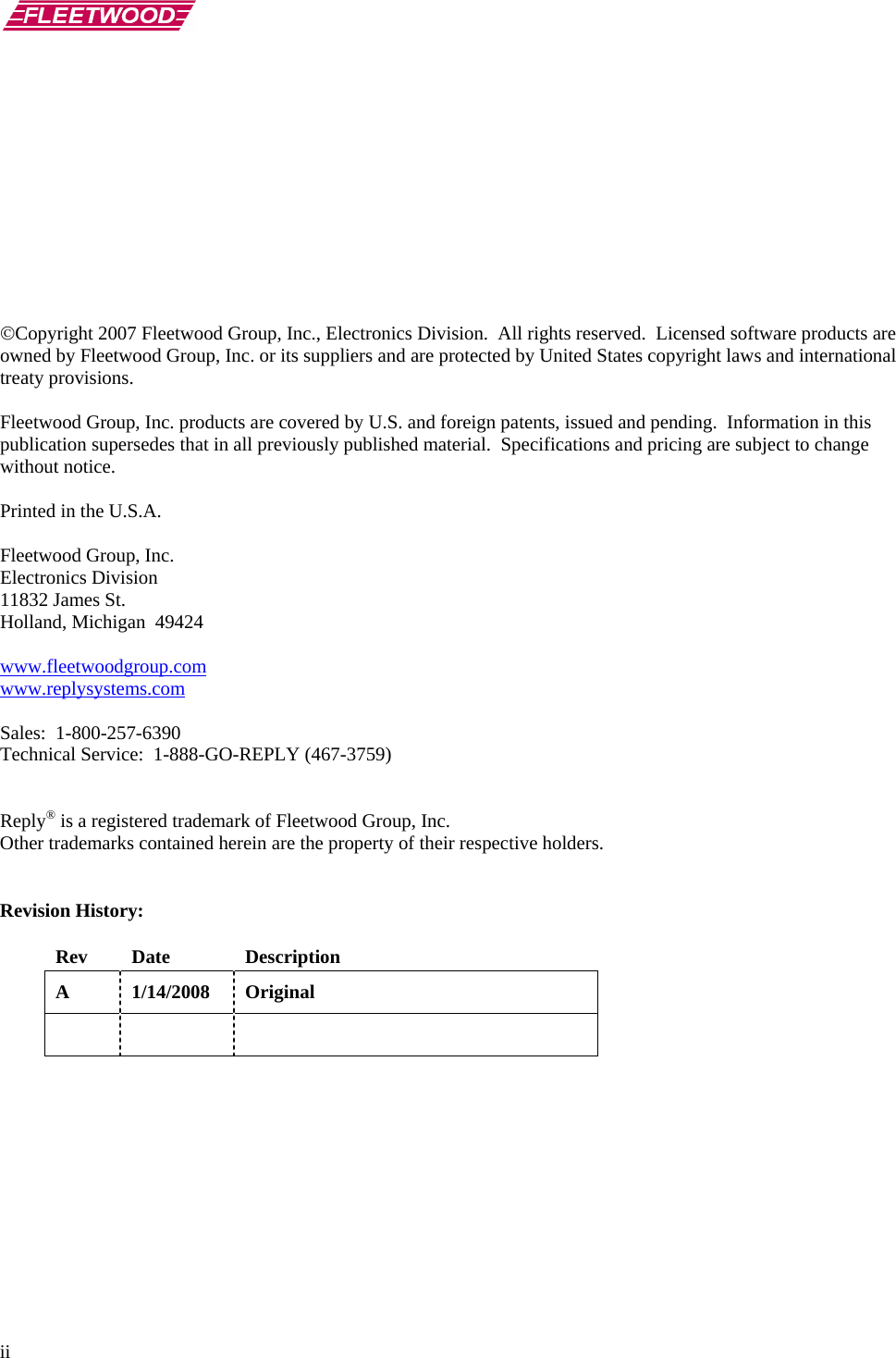

ii ©Copyright 2007 Fleetwood Group, Inc., Electronics Division. All rights reserved. Licensed software products are owned by Fleetwood Group, Inc. or its suppliers and are protected by United States copyright laws and international treaty provisions. Fleetwood Group, Inc. products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specifications and pricing are subject to change without notice. Printed in the U.S.A. Fleetwood Group, Inc. Electronics Division 11832 James St. Holland, Michigan 49424 www.fleetwoodgroup.comwww.replysystems.com Sales: 1-800-257-6390 Technical Service: 1-888-GO-REPLY (467-3759) Reply® is a registered trademark of Fleetwood Group, Inc. Other trademarks contained herein are the property of their respective holders. Revision History: Rev Date Description A 1/14/2008 Original

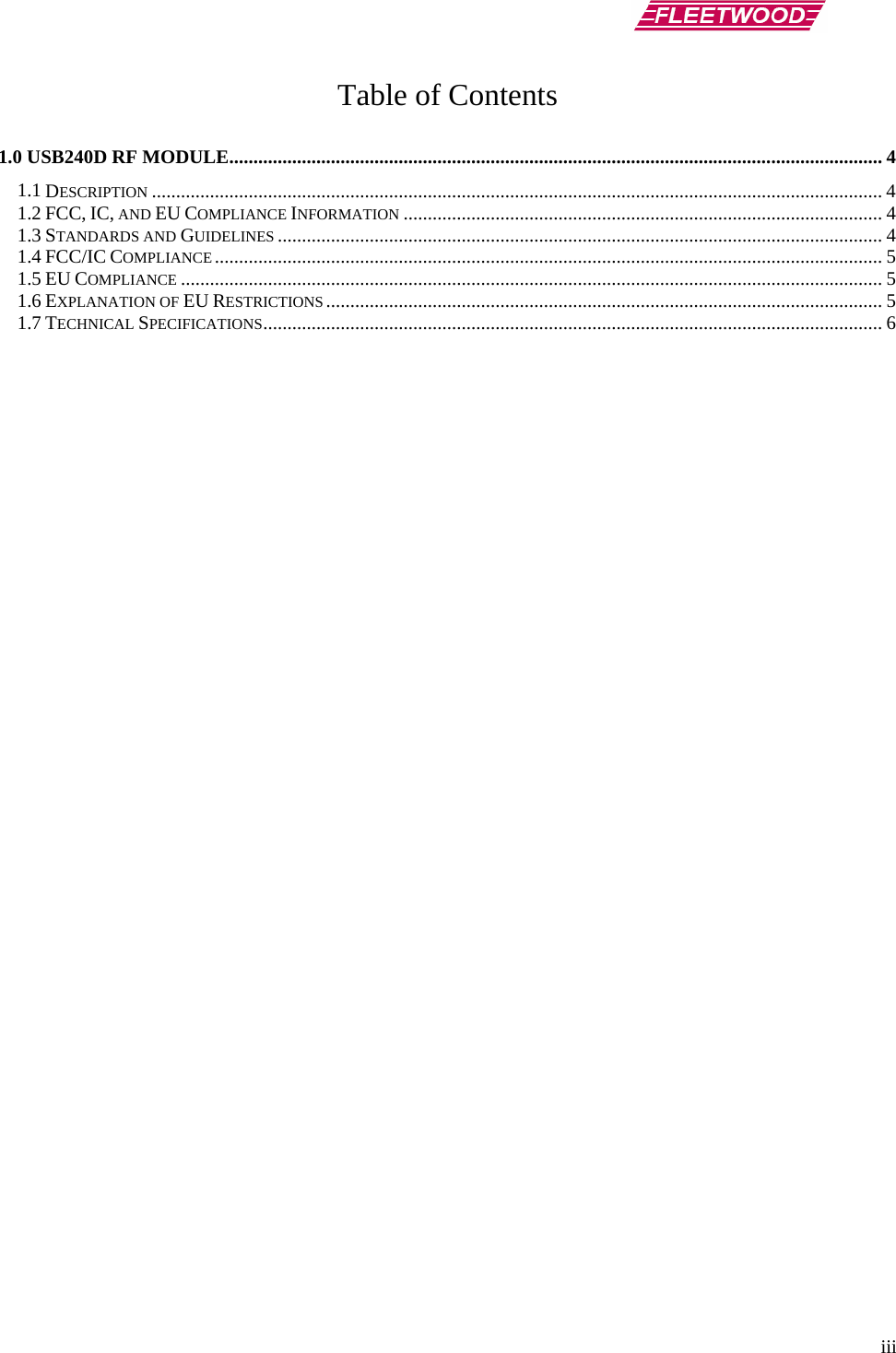

iii Table of Contents 1.0 USB240D RF MODULE....................................................................................................................................... 4 1.1 DESCRIPTION ....................................................................................................................................................... 4 1.2 FCC, IC, AND EU COMPLIANCE INFORMATION ................................................................................................... 4 1.3 STANDARDS AND GUIDELINES ............................................................................................................................. 4 1.4 FCC/IC COMPLIANCE.......................................................................................................................................... 5 1.5 EU COMPLIANCE ................................................................................................................................................. 5 1.6 EXPLANATION OF EU RESTRICTIONS ................................................................................................................... 5 1.7 TECHNICAL SPECIFICATIONS................................................................................................................................6
4 1.0 USB240D RF Module 1.1 Description The USB240D is a low power wireless response base module. The USB240D module is used to interact with an audience so they can provide real time feed back to questions. It communicates at 2.4GHz, GFSK to multiple keypads. The base module polls keypads, and displays result. The overall operation of the USB240D module is controlled by a microcontroller. This microcontroller is powered from the USB interface through a 3V linear regulator, and uses a 20 MHz crystal oscillator. The microcontroller handles control of the RF communications, LEDs, and USB interface. RF communications use the Nordic 2.4 GHz transceiver. The Nordic chip uses a 16 MHz reference crystal oscillator for TX/RX, and is also powered from the 3V linear regulator. The Nordic transceiver uses an integral inverted F antenna on the PCB board. 1.2 FCC, IC, and EU Compliance Information N240D RF Module Responsible Party Pertaining to the Declaration of Conformity Fleetwood Group, Inc. 11832 James Street Holland, MI 49424 Attn: Product Service Coordinator Phone: 888-467-3759 1.3 Standards and Guidelines This device complies with the following European Directives and USA/Canada Regulations: ¾ Directive 1999/5/EC on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity ¾ Directive 2006/95/EC on the harmonization of laws of member states related to electrical equipment designed for use within certain voltage limits ¾ The USA Federal Communications Commission (FCC) Rules and Regulations ¾ Industry Canada Rules and Regulations This device complies with the following national and international standards: ¾ EN 301 489-1 V1.6.1: 2005: EMR; EMC standard for radio equipment and services. Part 1: Common technical requirements. ¾ EN 301 489-3 V1.4.1: 2002 Part 3: Specific conditions for SRD operating on frequencies between 9 kHz and 40 GHz ¾ EN 300 440-1 V1.4.1: 2007: EMR, SRD. Radio equipment to be used in the 1 GHz to 40 GHz frequency range. Part 1: Technical characteristics and test methods ¾ EN 300 440-2 V1.2.1: 2007: Part 2: Harmonized EN under article 3.2 of the R&TTE Directive ¾ EN 301 489-17 V1.2.1: 2002: Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment. ¾ EN 300 328 V1.7.1: 2006: Electromagnetic compatibility and Radio spectrum Matters (ERM);Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques. ¾ EN 60950-1: 2006: Information Technology Equipment- Safety. Part 1: General requirements. ¾ FCC Part 15B, 15.247: 10-01-2006: Radio Frequency devices: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ¾ FCC Part 15.249: 10-01-2006: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz.

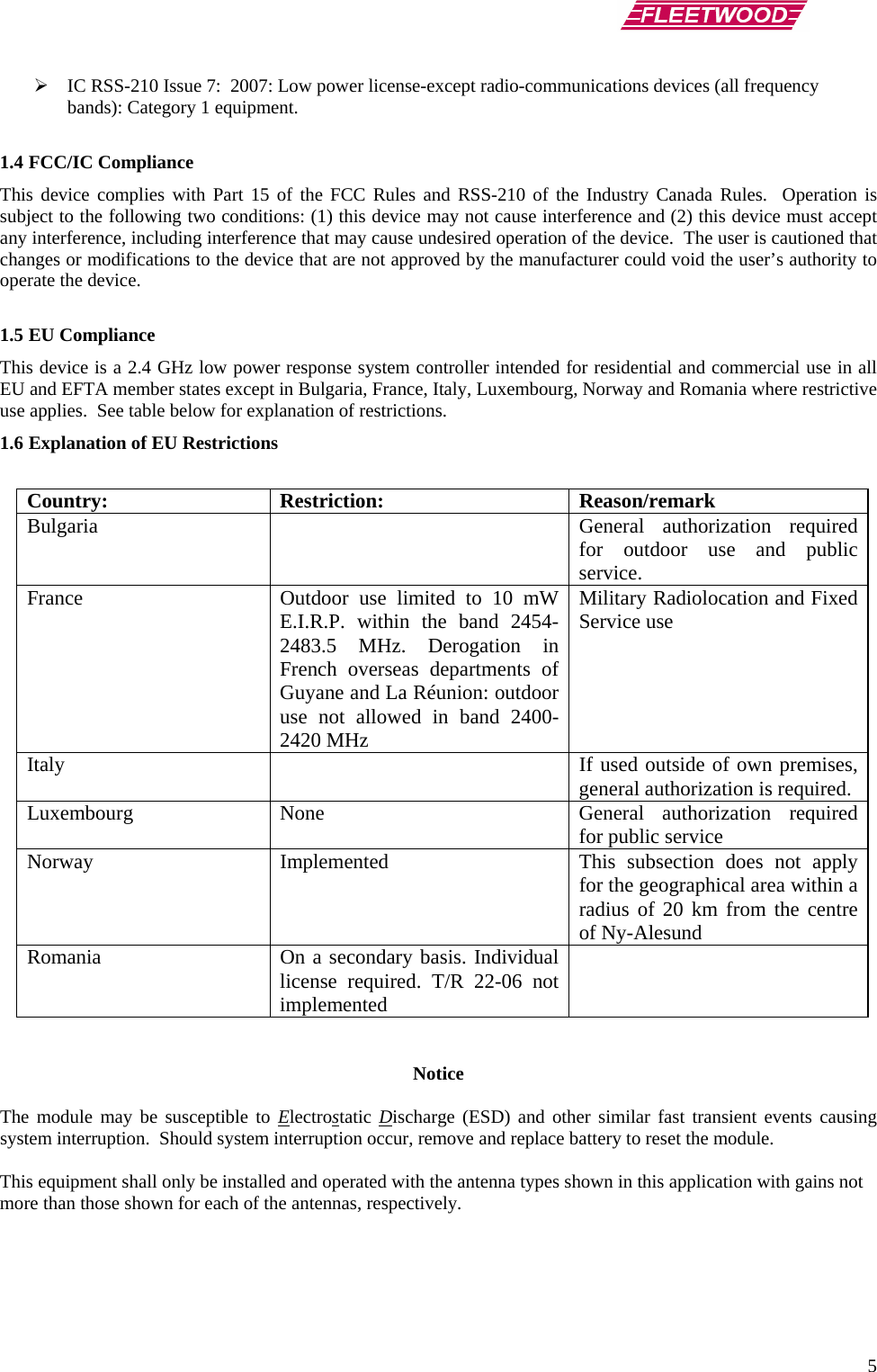

5 ¾ IC RSS-210 Issue 7: 2007: Low power license-except radio-communications devices (all frequency bands): Category 1 equipment. 1.4 FCC/IC Compliance This device complies with Part 15 of the FCC Rules and RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The user is cautioned that changes or modifications to the device that are not approved by the manufacturer could void the user’s authority to operate the device. 1.5 EU Compliance This device is a 2.4 GHz low power response system controller intended for residential and commercial use in all EU and EFTA member states except in Bulgaria, France, Italy, Luxembourg, Norway and Romania where restrictive use applies. See table below for explanation of restrictions. 1.6 Explanation of EU Restrictions Country: Restriction: Reason/remark Bulgaria General authorization required for outdoor use and public service. France Outdoor use limited to 10 mW E.I.R.P. within the band 2454-2483.5 MHz. Derogation in French overseas departments of Guyane and La Réunion: outdoor use not allowed in band 2400-2420 MHz Military Radiolocation and Fixed Service use Italy If used outside of own premises, general authorization is required. Luxembourg None General authorization required for public service Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Alesund Romania On a secondary basis. Individual license required. T/R 22-06 not implemented Notice The module may be susceptible to Electrostatic Discharge (ESD) and other similar fast transient events causing system interruption. Should system interruption occur, remove and replace battery to reset the module. This equipment shall only be installed and operated with the antenna types shown in this application with gains not more than those shown for each of the antennas, respectively.

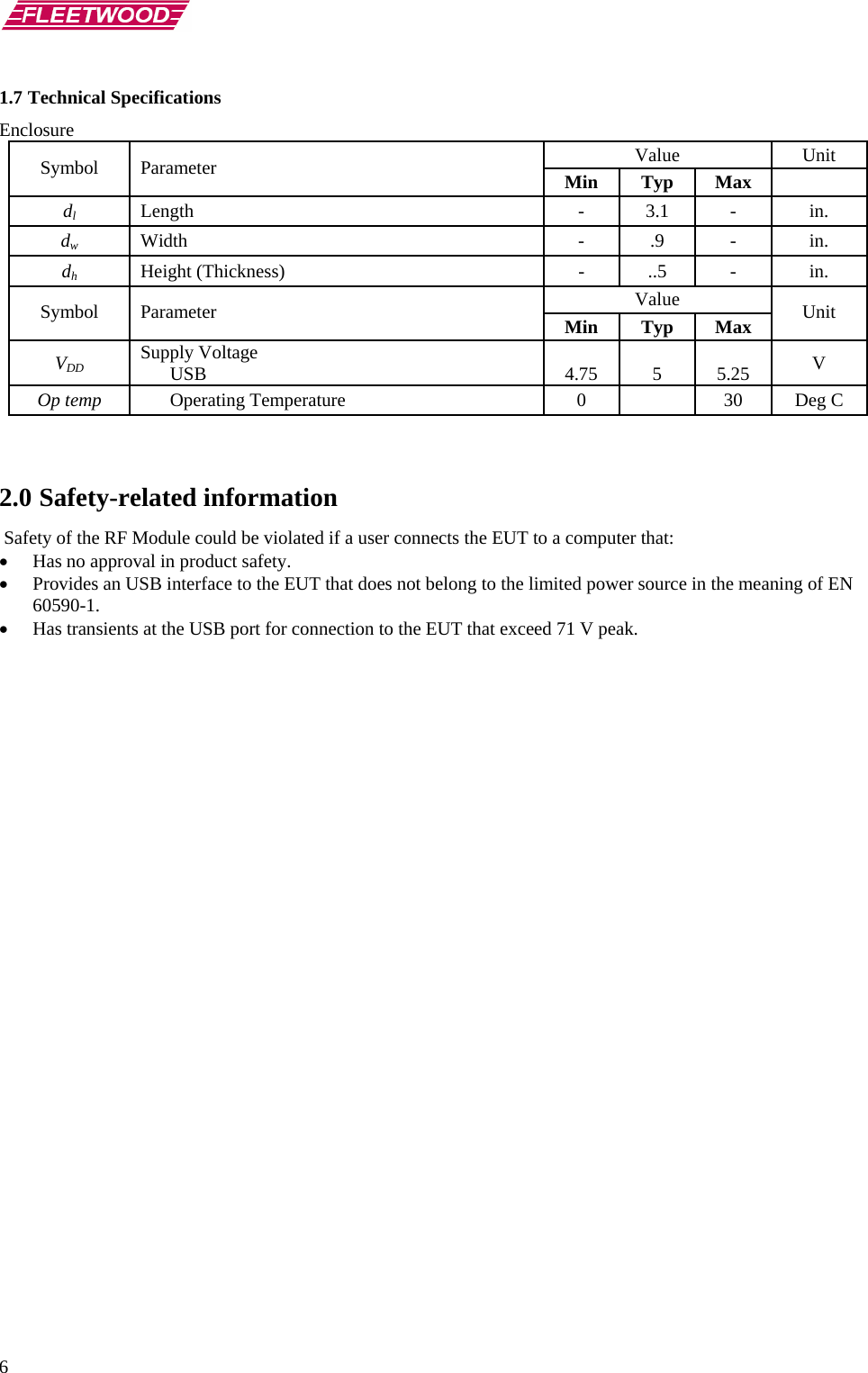

6 1.7 Technical Specifications Enclosure Value Unit Symbol Parameter Min Typ Max dlLength - 3.1 - in. dwWidth - .9 - in. dhHeight (Thickness) - ..5 - in. Value Symbol Parameter Min Typ Max Unit VDD Supply Voltage USB 4.75 5 5.25 V Op temp Operating Temperature 0 30 Deg C 2.0 Safety-related information Safety of the RF Module could be violated if a user connects the EUT to a computer that: • Has no approval in product safety. • Provides an USB interface to the EUT that does not belong to the limited power source in the meaning of EN 60590-1. • Has transients at the USB port for connection to the EUT that exceed 71 V peak.
