User manual

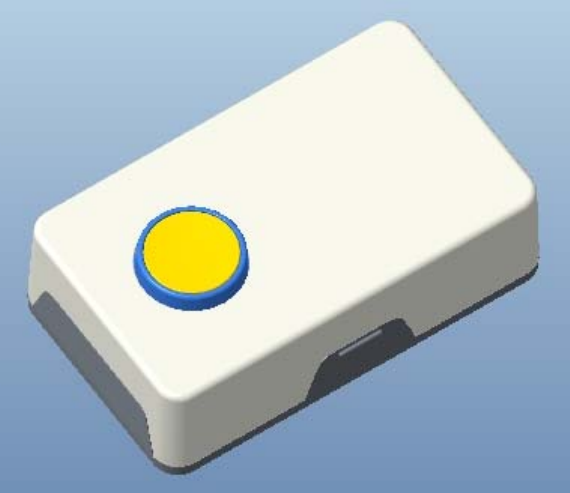

FlexConnectedLivingSmartButton

FCL2020

UserManual



ThisproductwillconnectoverZigbeetogateway(Hotspring)andinitiatecommandstotell

thewaterheatertoturnonitsrecirculationpump.Therecirculationpumppusheshotwater

throughthepipes,andreturnsthecoldwaterinthepipesbackintothesystem.Thisway,

thereishotwaterinstantlythroughoutthehousewithoutwastingany(cold)waterwaiting

fortheshowertoheatup.



Youneedinstalltwocoinbatteriesfirstlywhenyoupreparetouse.Thesetwobatterieshave

thepolarity.InPCBA,youcanseethebatteryholderhas“+”markonit.Soyouneednote

coinbattery“+”matchedwithit.Otherwise,itwillnotworkforwronginstallationwith

oppositepolarity.

Thenyoucanpushbuttontoconnecttothenetworkwhenyouhavezigbeegatewaynearby.

Whenyoujoinagatewaynetwork,theproductwillflashtheLED3timesquickly.Thenthey

completeanetworkcommunication.Thentheproductworks.

WhenyoufindtheLEDisnotlightened,youneedchangethecoinbatterytonewoneand

useagain.



FCC Statement

ThisdevicecomplieswithPart15oftheFCCrules.Operationissubjecttothefollowingtwo

conditions:1)thisdevicemaynotcauseharmfulinterference,and2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates

usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewith

theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinparticularinstallation.Ifthisequipmentdoescause

harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe

equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormore

ofthefollowingmeasures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould

voidtheuser’sauthoritytooperatetheequipment.



ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled

environment.Usershouldavoidun‐intendedoperationofusagewhenitiscollocatedwithother

transmittersorantenna.Thedistancebetweenuserandproductsshouldbenolessthan20cm


