Flextronics America FCL5320 Smart home gateway User Manual

Flextronics America LLC Smart home gateway

User Manual

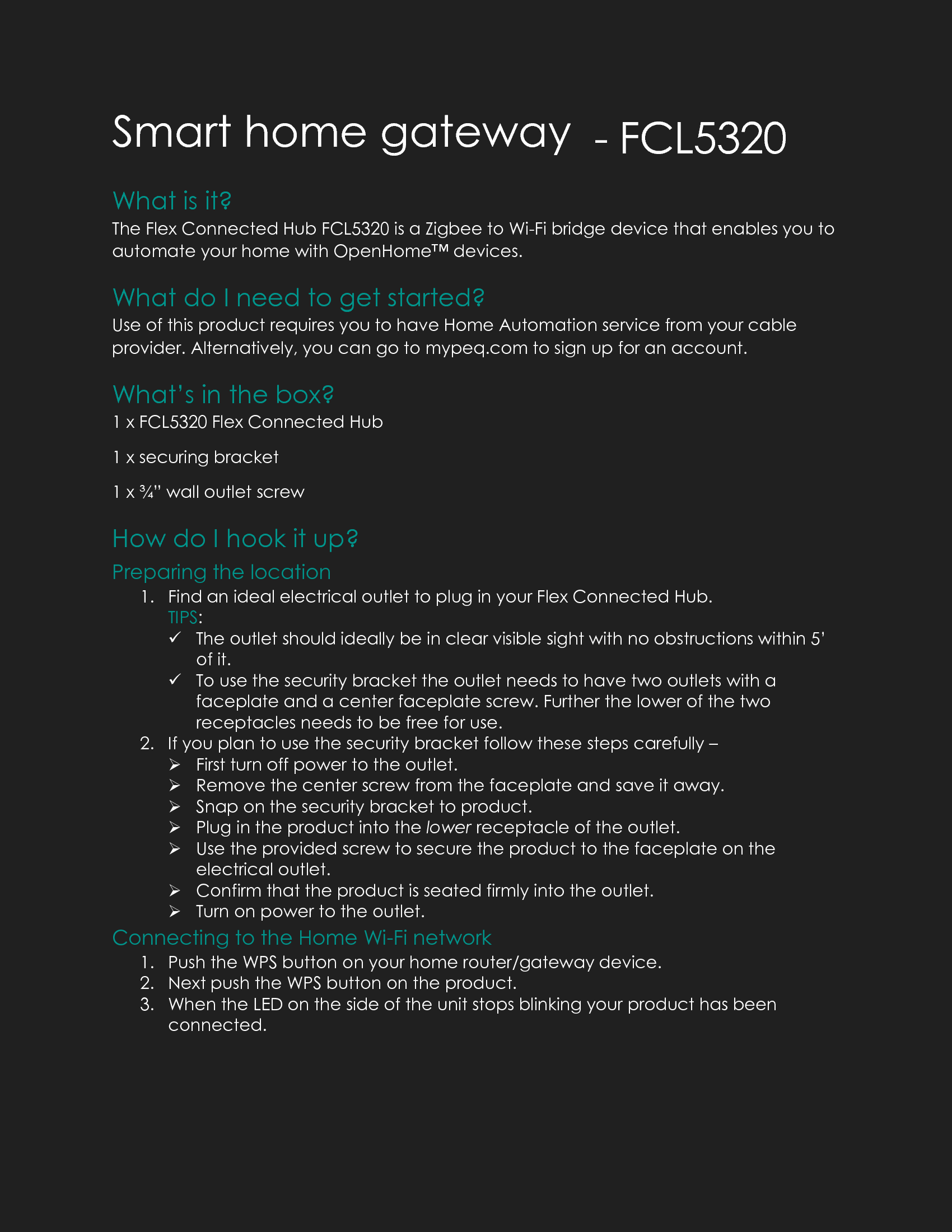

Smart home gateway - FCL5320 What is it? The Flex Connected Hub FCL5320 is a Zigbee to Wi-Fi bridge device that enables you to automate your home with OpenHome™ devices. What do I need to get started? Use of this product requires you to have Home Automation service from your cable provider. Alternatively, you can go to mypeq.com to sign up for an account. What’s in the box? 1 x FCL5320 Flex Connected Hub 1 x securing bracket 1 x ¾” wall outlet screw How do I hook it up? Preparing the location 1. Find an ideal electrical outlet to plug in your Flex Connected Hub. TIPS:  The outlet should ideally be in clear visible sight with no obstructions within 5’ of it.  To use the security bracket the outlet needs to have two outlets with a faceplate and a center faceplate screw. Further the lower of the two receptacles needs to be free for use. 2. If you plan to use the security bracket follow these steps carefully –   First turn off power to the outlet.  Remove the center screw from the faceplate and save it away.  Snap on the security bracket to product.  Plug in the product into the lower receptacle of the outlet.  Use the provided screw to secure the product to the faceplate on the electrical outlet.  Confirm that the product is seated firmly into the outlet.  Turn on power to the outlet. Connecting to the Home Wi-Fi network 1. Push the WPS button on your home router/gateway device.  2. Next push the WPS button on the product.  3. When the LED on the side of the unit stops blinking your product has been connected.

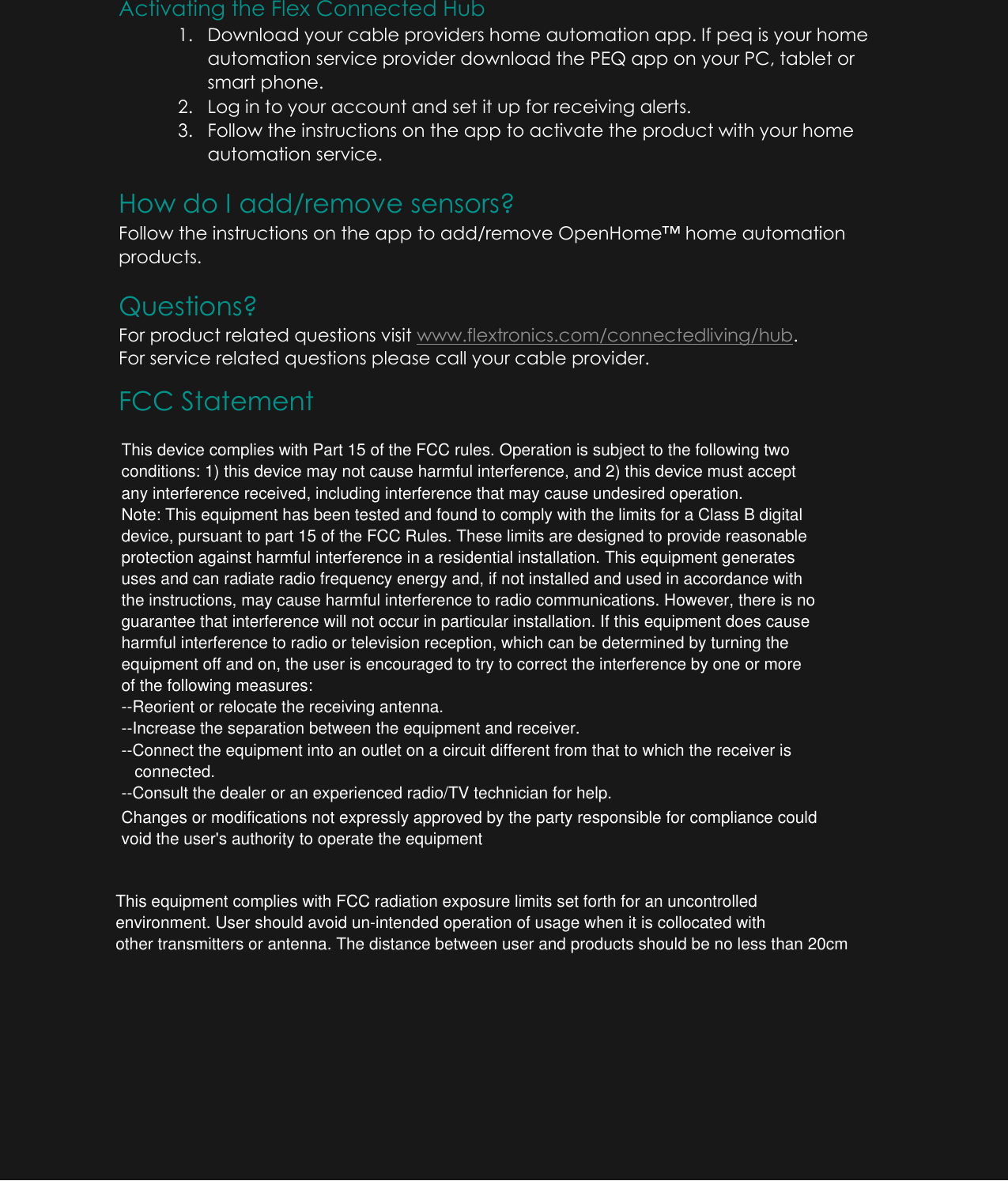

Activating the Flex Connected Hub 1. Download your cable providers home automation app. If peq is your home automation service provider download the PEQ app on your PC, tablet or smart phone. 2. Log in to your account and set it up for receiving alerts. 3. Follow the instructions on the app to activate the product with your home automation service. How do I add/remove sensors? Follow the instructions on the app to add/remove OpenHome™ home automation products. Questions? For product related questions visit www.flextronics.com/connectedliving/hub. For service related questions please call your cable provider. FCC StatementThis device complies with Part 15 of the FCC rules. Operation is subject to the following twoconditions: 1) this device may not cause harmful interference, and 2) this device must acceptany interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generatesuses and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one or moreof the following measures:--Reorient or relocate the receiving antenna.--Increase the separation between the equipment and receiver.--Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.--Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipmentThis equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment. User should avoid un-intended operation of usage when it is collocated withother transmitters or antenna. The distance between user and products should be no less than 20cm
