MWB1300

Wireless Video Extender Kit

User’s Guide

Version 3.12.100

Table of Contents

1 Preface .................................................................................................................................................... 4

Who should use this guide .......................................................................................................... 4

Support Information ..................................................................................................................... 4

2 Introduction .......................................................................................................................................... 5

3 Knowing your MWB1300 Kit............................................................................................................. 7

Package Contents .......................................................................................................................... 7

Hardware Overview..................................................................................................................... 7

MWB1305 connections ............................................................................................................ 8

MWS1000 connections ............................................................................................................ 9

Front Panel and LED Status Lights ..................................................................................... 10

4 Setting Up your MWB1300 Kit ........................................................................................................ 14

Powering Up your devices......................................................................................................... 15

Pairing your Devices................................................................................................................... 17

Placing and connecting your devices ....................................................................................... 18

Changing Your Computer’s IP Address.................................................................................. 21

5 Management - Getting Started ........................................................................................................ 23

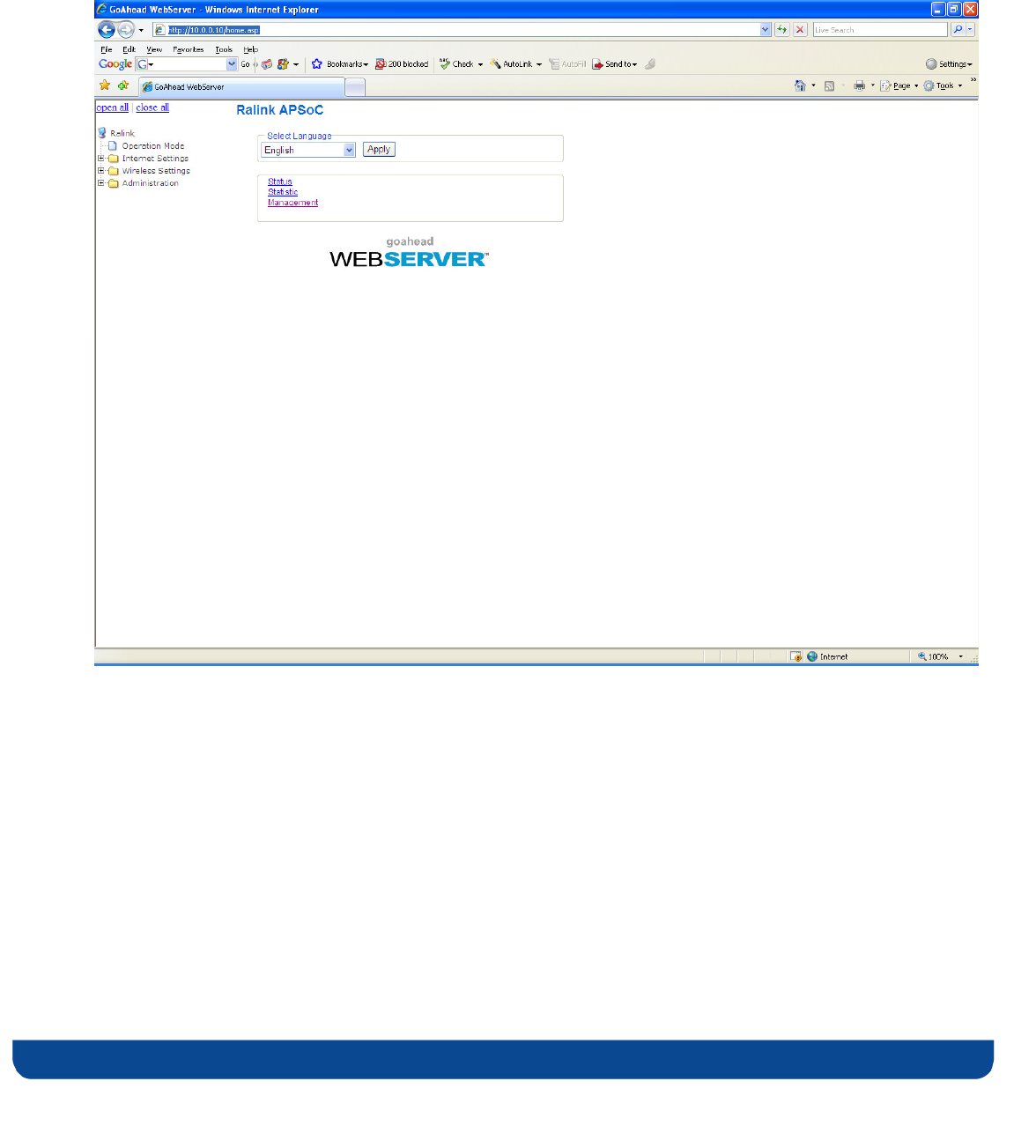

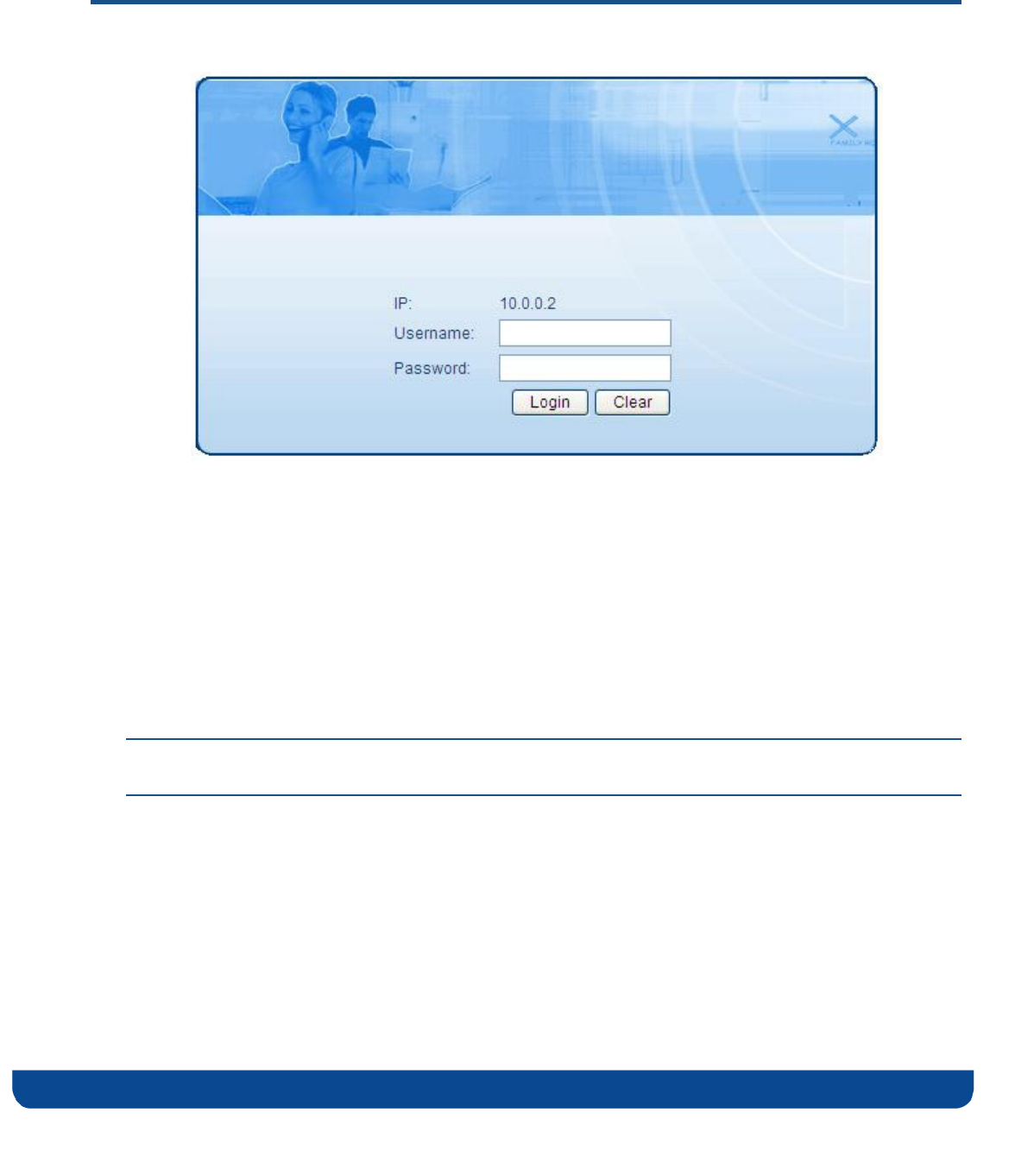

Logging into the MWB1305 Management Application......................................................... 24

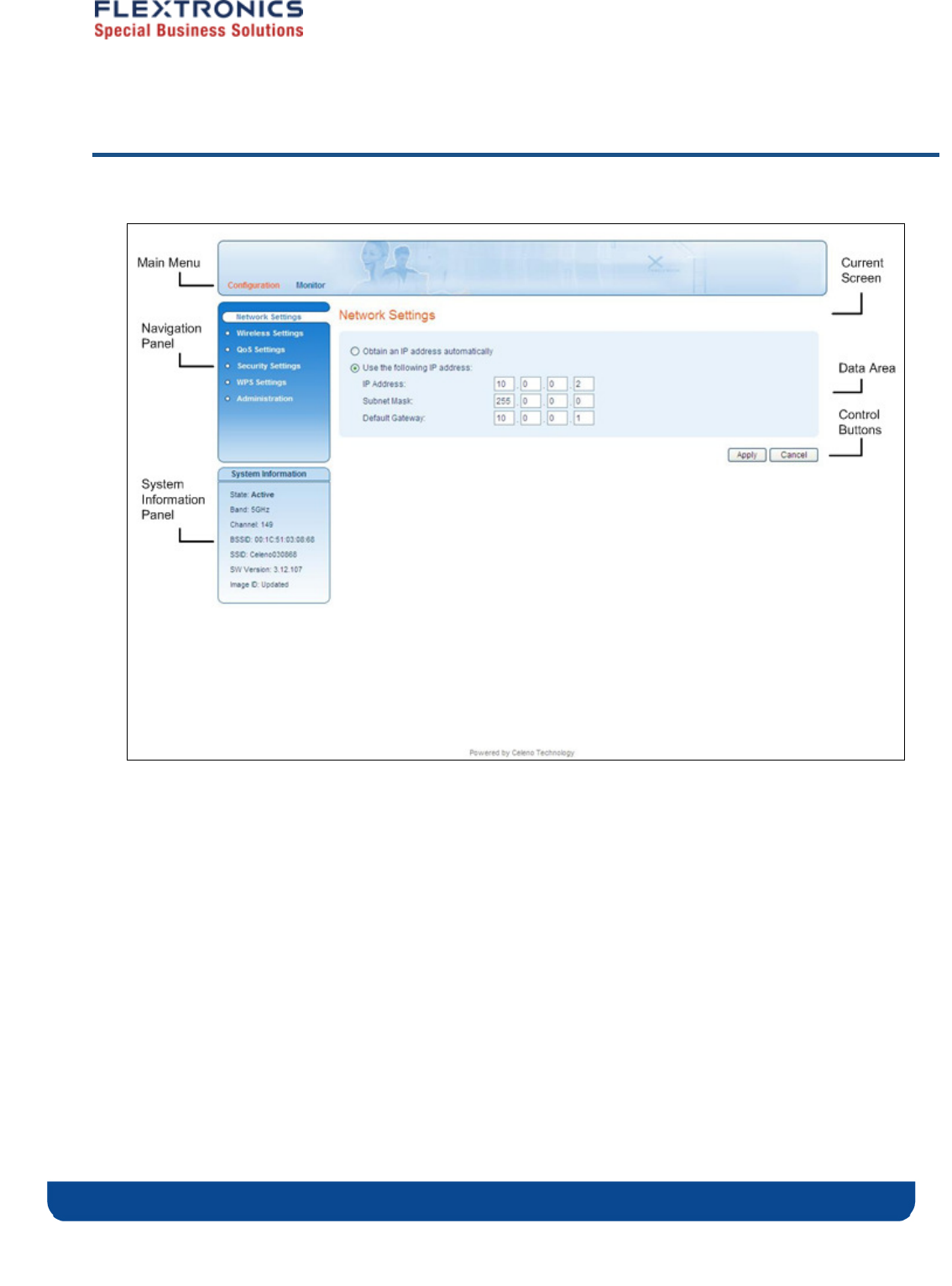

Navigating the MWB1305 Management Application............................................................ 25

6 Managing the MWB1305 Device..................................................................................................... 27

Configuring the MWB1305 Device ........................................................................................... 28

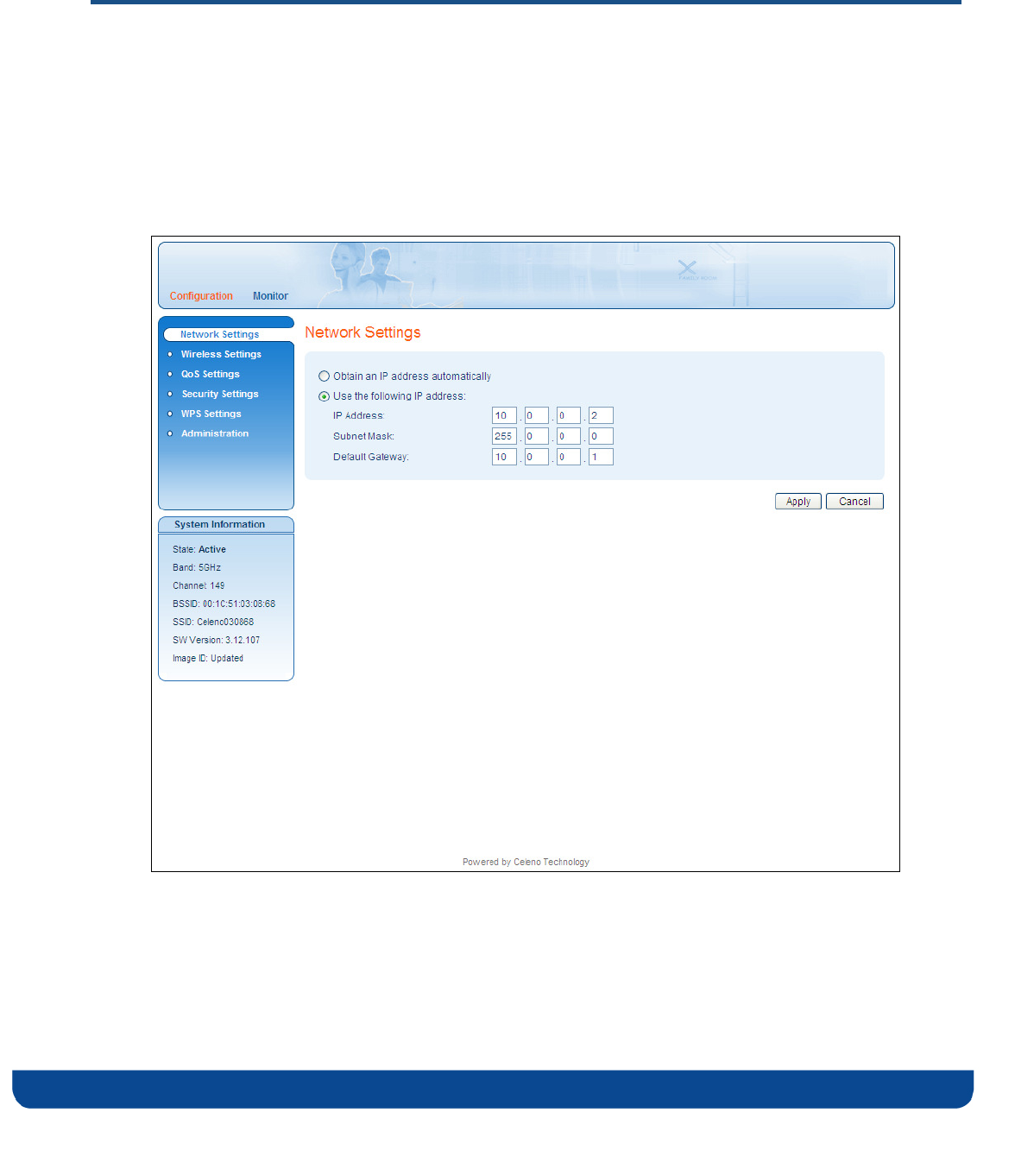

Defining Network Settings................................................................................................... 28

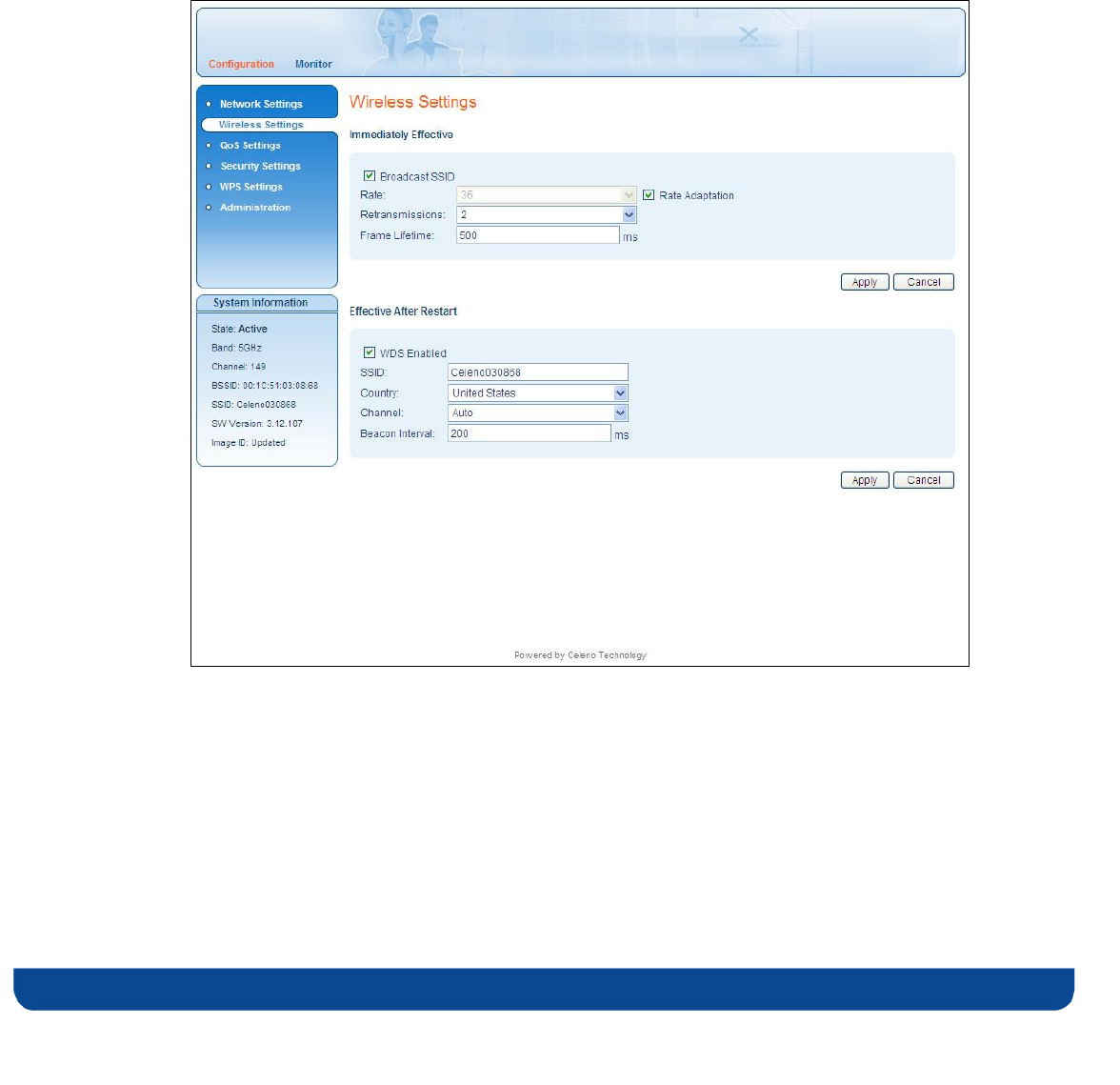

Defining Wireless Settings.................................................................................................... 30

Defining QoS Settings ........................................................................................................... 33

Defining Security Settings .................................................................................................... 35

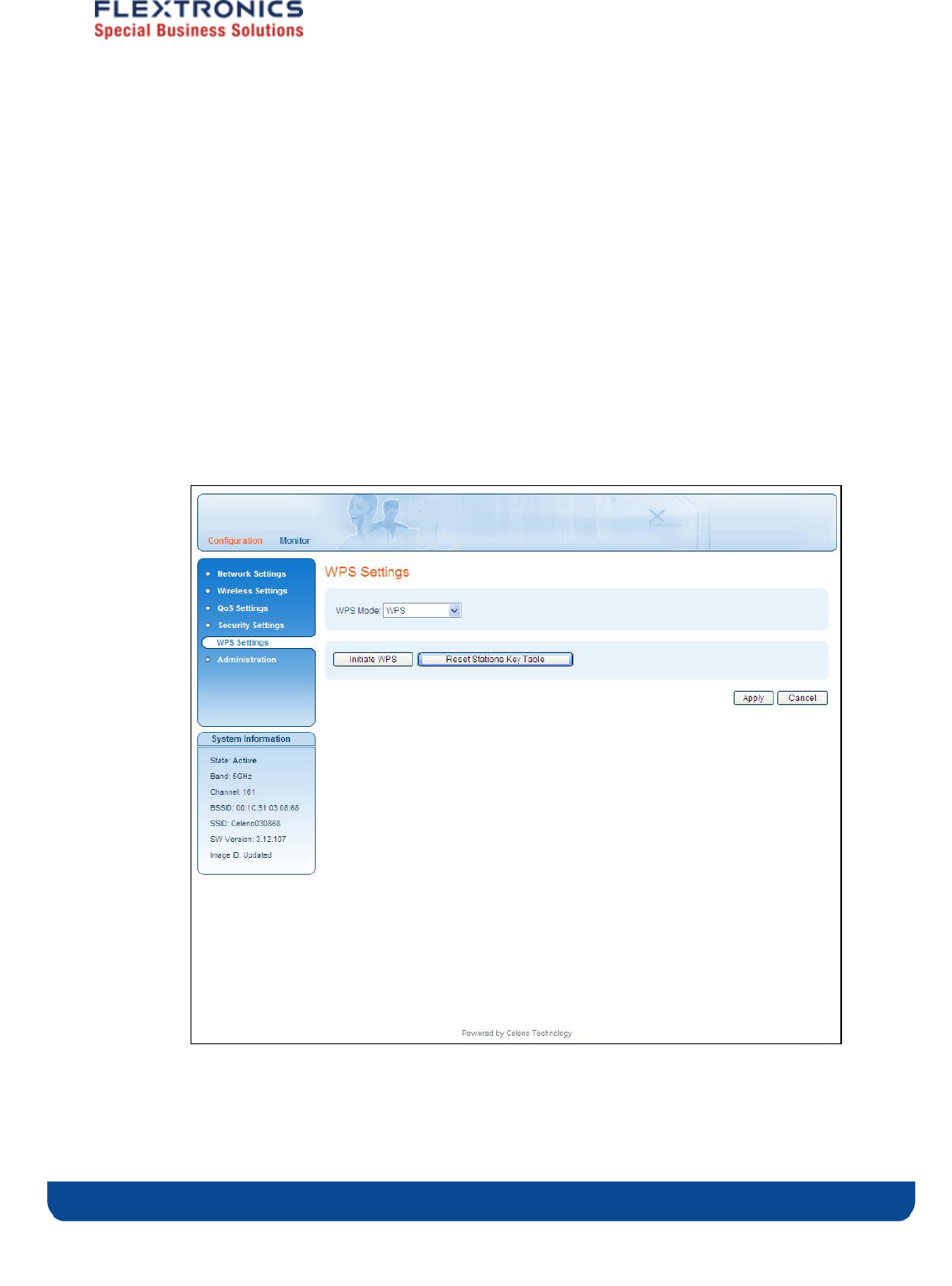

Defining WPS Settings .......................................................................................................... 39

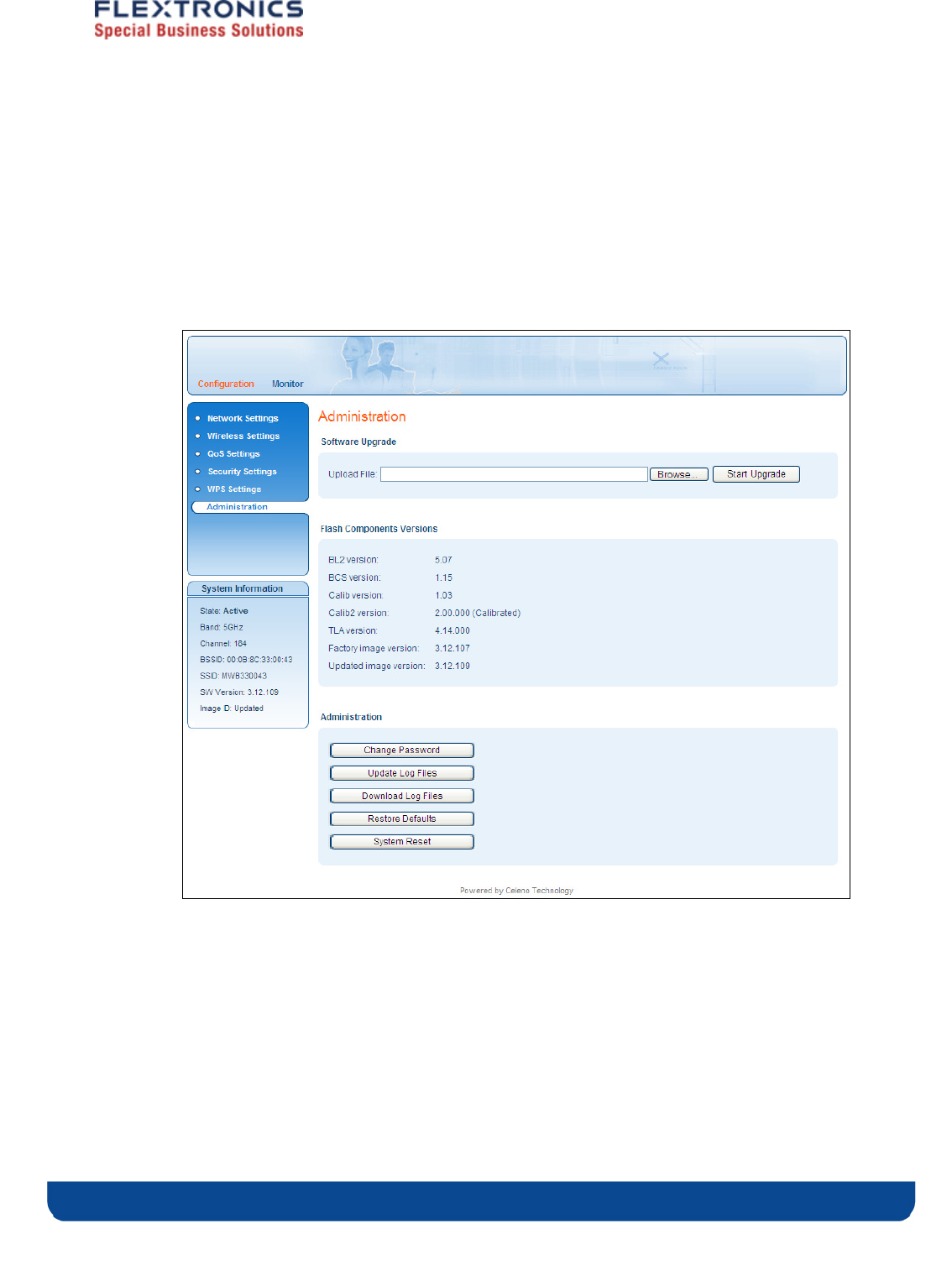

Performing Administration.................................................................................................. 41

Monitoring the MWB1305 Device............................................................................................. 45

Viewing System and Station Parameters............................................................................ 45

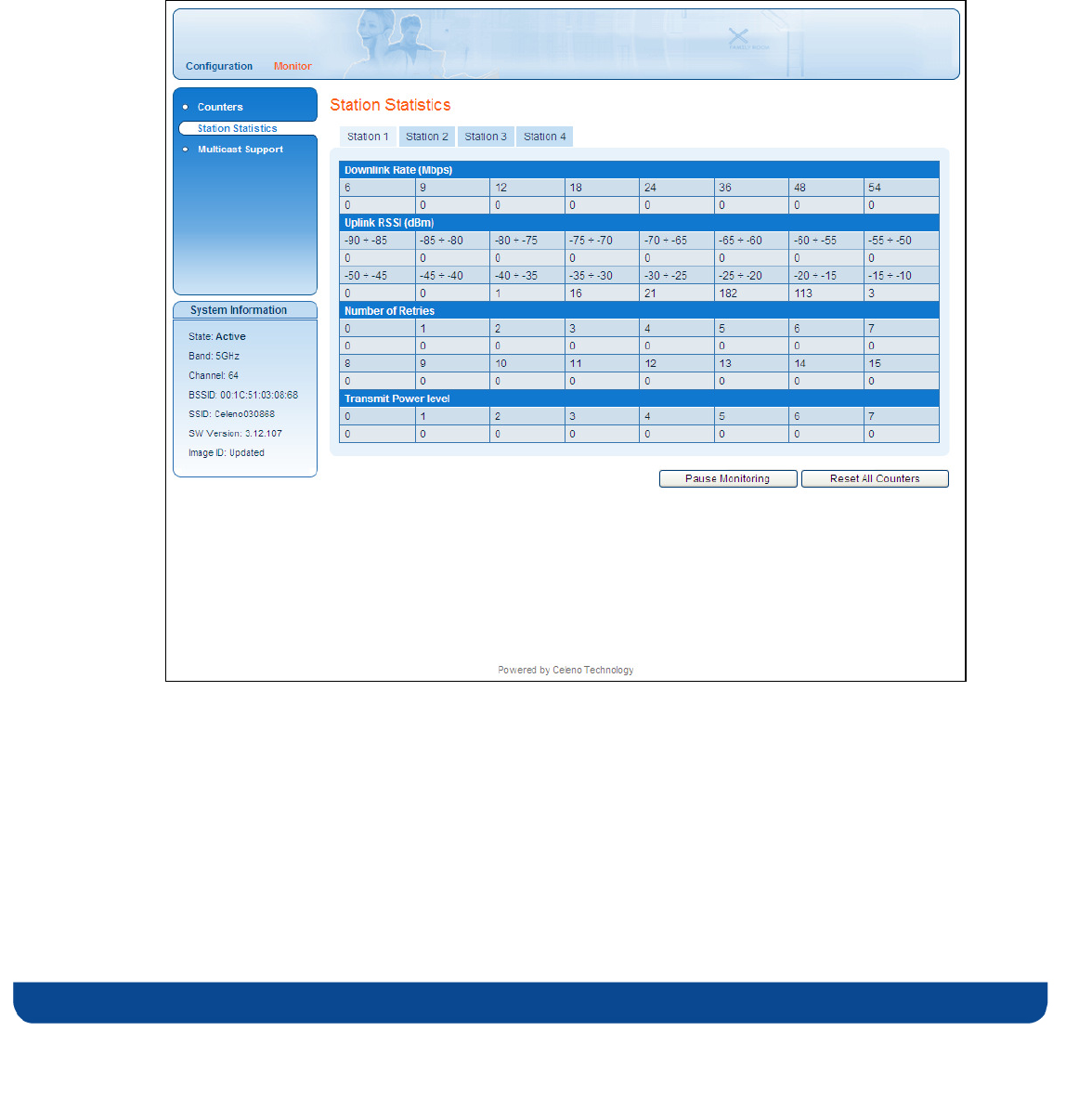

Viewing Station Statistics ..................................................................................................... 48

Viewing Multicast Status...................................................................................................... 50

A Updating the MWS1000..........................................................................................................................53

B Troubleshooting MWB1300 Kit............................................................................................................56

C Technical Specifications.........................................................................................................................58

D Regulatory Compliance Information...................................................................................................59

Europe – EU Declaration of Conformity.................................................................................. 59

FCC Requirements for Operation in the United States.......................................................... 59

Federal Communication Commission Statement ............................................................. 59

FCC Warning.......................................................................................................................... 60

FCC RF Radiation Exposure Statement.............................................................................. 60

Industry Canada (IC) Statement ............................................................................................... 60

Preface

Welcome to the Wireless Video Extender solution set from Flextronics. The User’s Guide

will help you to understand the Wireless Video Extender solution, how to install it,

configure it and troubleshoot problems.

Who should use this guide

This User’s Guide assumes that the reader has basic to intermediate computer and internet

skills. All the basic computer networking, Internet, and other information required to

configure the home network and the devices is provided herein.

Support Information

Flextronics Special Buisness Solutions

Hatasia 1 St Ramat Gavriel Ind. Zone .

P.O. Box 23108

Migdal Haemek

Israel

Tel.: +972-4-644-8212

Fax: +972-4-604-0850

1

Introduction

The Wireless Video Extender solution set enables service providers and consumers to

quickly and simply deploy wireless home networks that can securely deliver multiple

streams of carrier-quality SDTV and HDTV, and any other multimedia content throughout

the home. The solution is optimized toward Quality of Experience (QoE) and performance

consistency in both capacity and coverage.

The Wireless Video Extender solution set includes a “Celeno-Powered” MWB-1305

“Access Point” and a MWS-1000 “Client” which enable distribution of high-definition

video streams from one central location to a TV set in the house without replacing existing

routers, gateways, set top boxes or laying out new cables across the house.

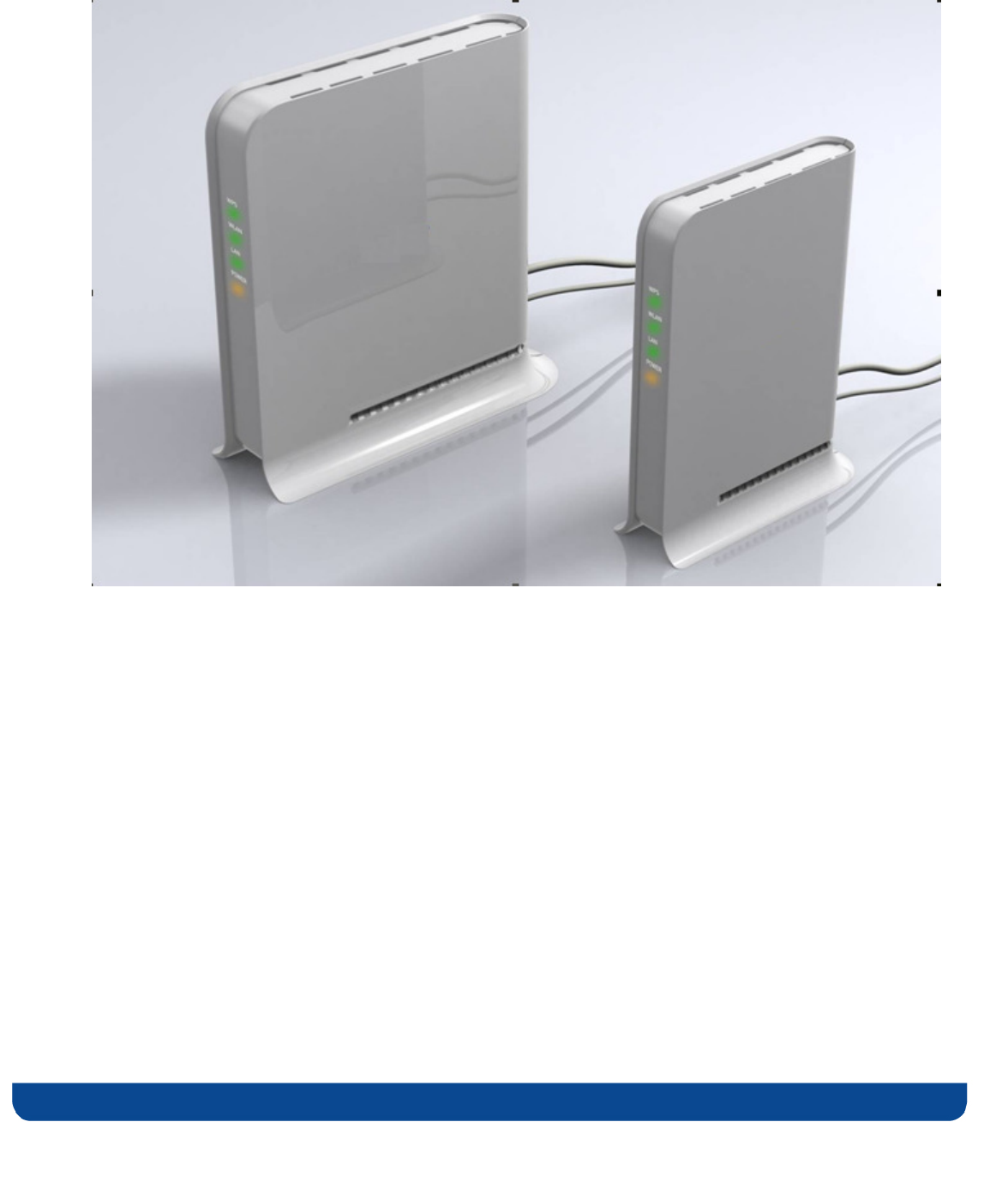

Figure 1 MWB1300 Kit

2

Knowing your MWB1300 Kit

Package Contents

Your MWB1300 Kit contains the following items:

1. MWB1305 Wireless Video Extender “Access Point”

2. MWS1000 Wireless Video Extender “Client”

3. Two CAT5 cables

4. 1 Power Transformer for the MWB1305 device

5. 1 Power Transformers for the MWS1000 device

6. Quick Installation Guide

Hardware Overview

The MWB1300 Kit is comprised from a MWB1305 access point device and a MWS1000

client device .

The MWB1305 is powered by Celeno’s CL1300 WiFi chipset that employs sophisticated

algorithms and techniques such as implicit Beam Forming to reliably stream High

Definition video to any location in the home. The MWB1305 connects to the video source

that can be a gateway or a cable/DSL modem.

The MWS1000 is a standard “off the shelf” WiFi client device. The MWB1000 connects to

the video receiving set top box device.

The MWB1300 devices has been designed to be placed on a desktop. All of the cables exit

from the rear of the devices. The status display LEDs are located at the front of the devices

and are easily visible.

MWB1305 connections

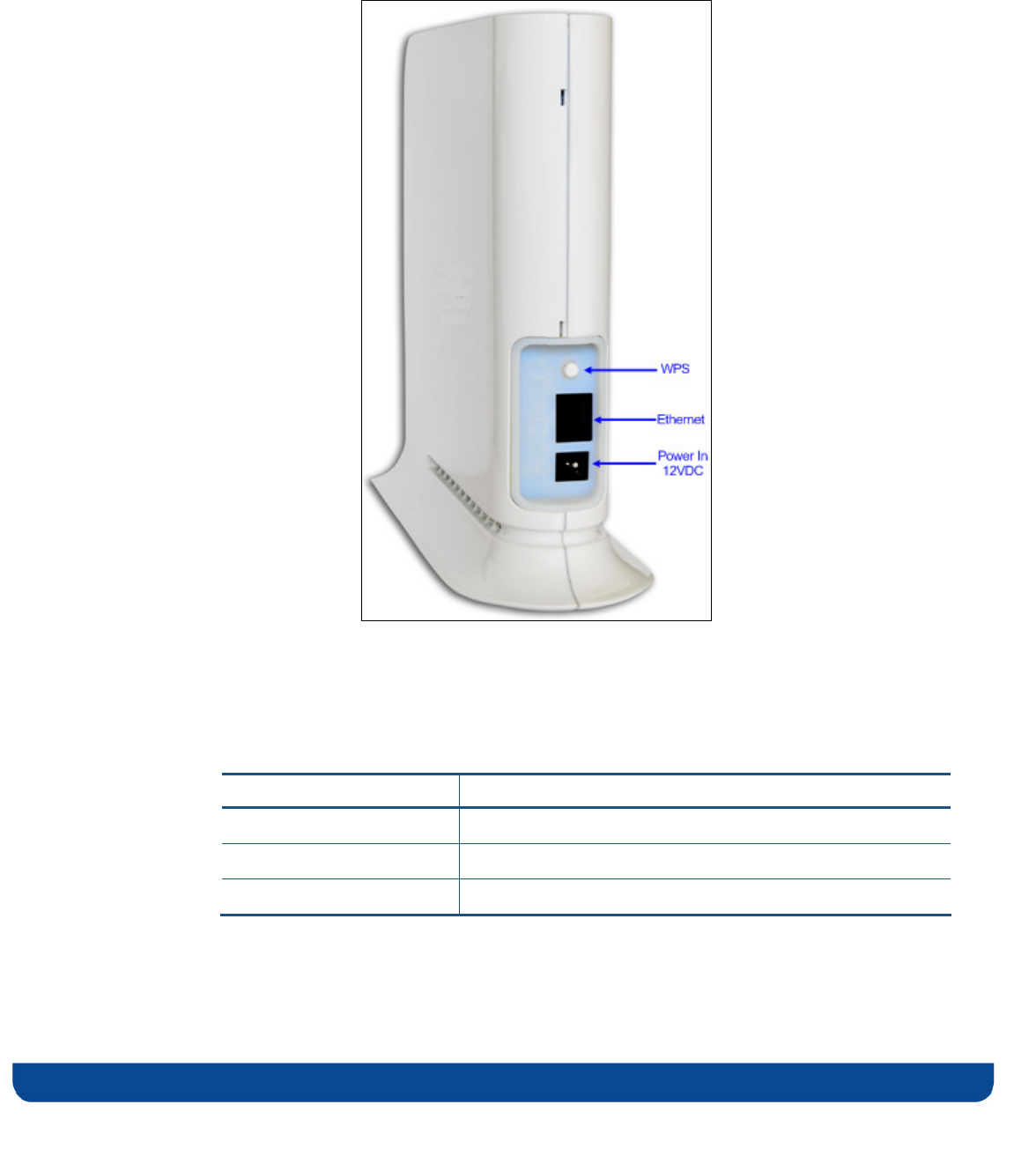

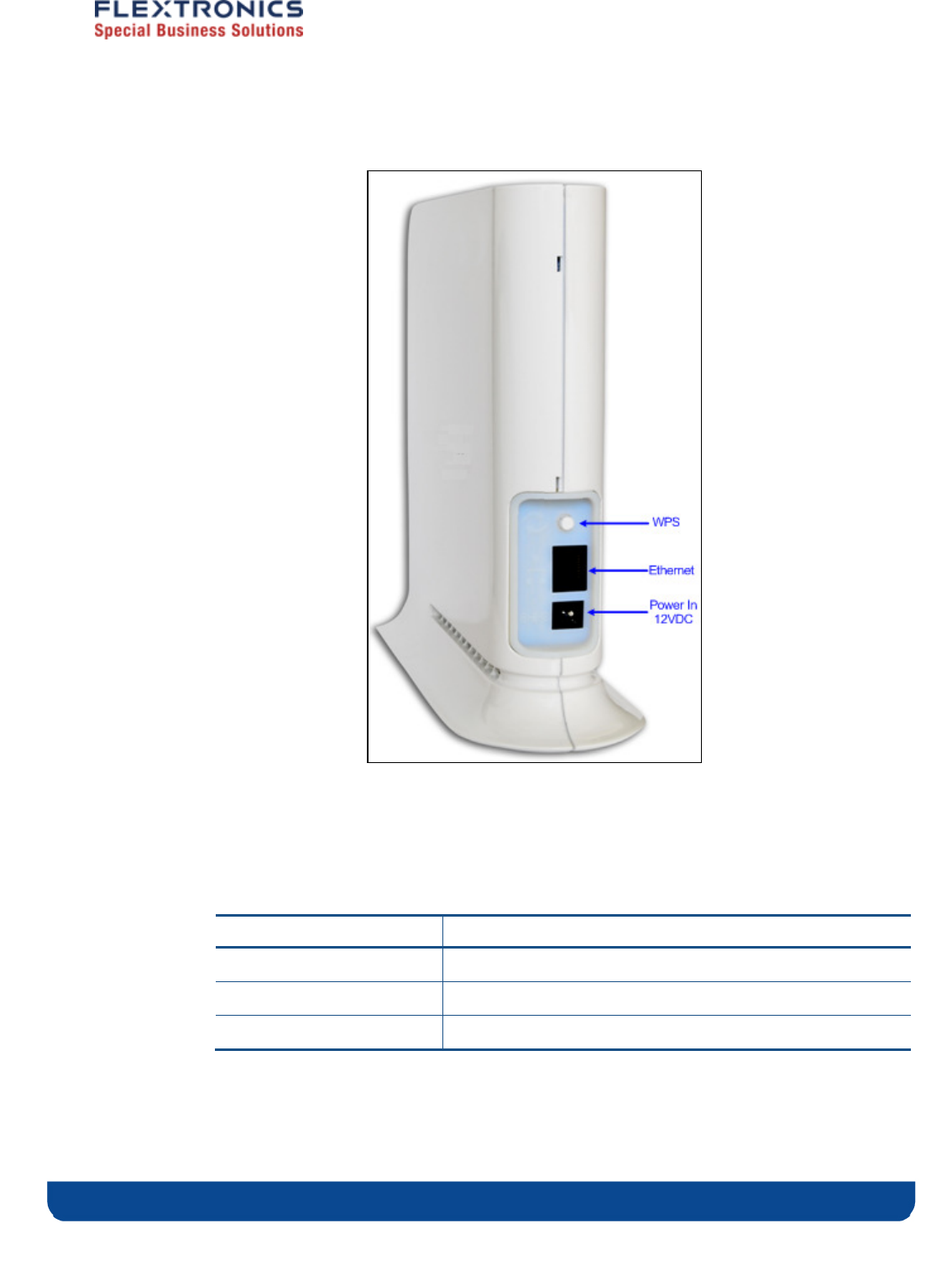

Figure 2: MWB1305 – Rear Panel

The following table describes the connectors on the rear panel of the MWB1305 device:

Table 1: MWB1305 Rear Panel – Connectors

Name Description

Ethernet Data and Management Ethernet port.

WPS Wireless Protected Setup(WPS) button.

Power In DC power input. 12 VDC.

MWS1000 connections

Figure 3: MWS1000 – Rear Panel

The following table describes the connectors on the rear panel of the MWS1000 device:

Table 2 - MWS1000 Rear Panel – Connectors

Name Description

Ethernet Data and Management Ethernet port.

WPS Wireless Protected Setup(WPS) button.

Power In DC power input. 5 VDC.

Front Panel and LED Status Lights

Figure 4 - MWB1305/ MWS1000 – Front Panel shows the front view of the MWB1305 and

MWS1000 devices.

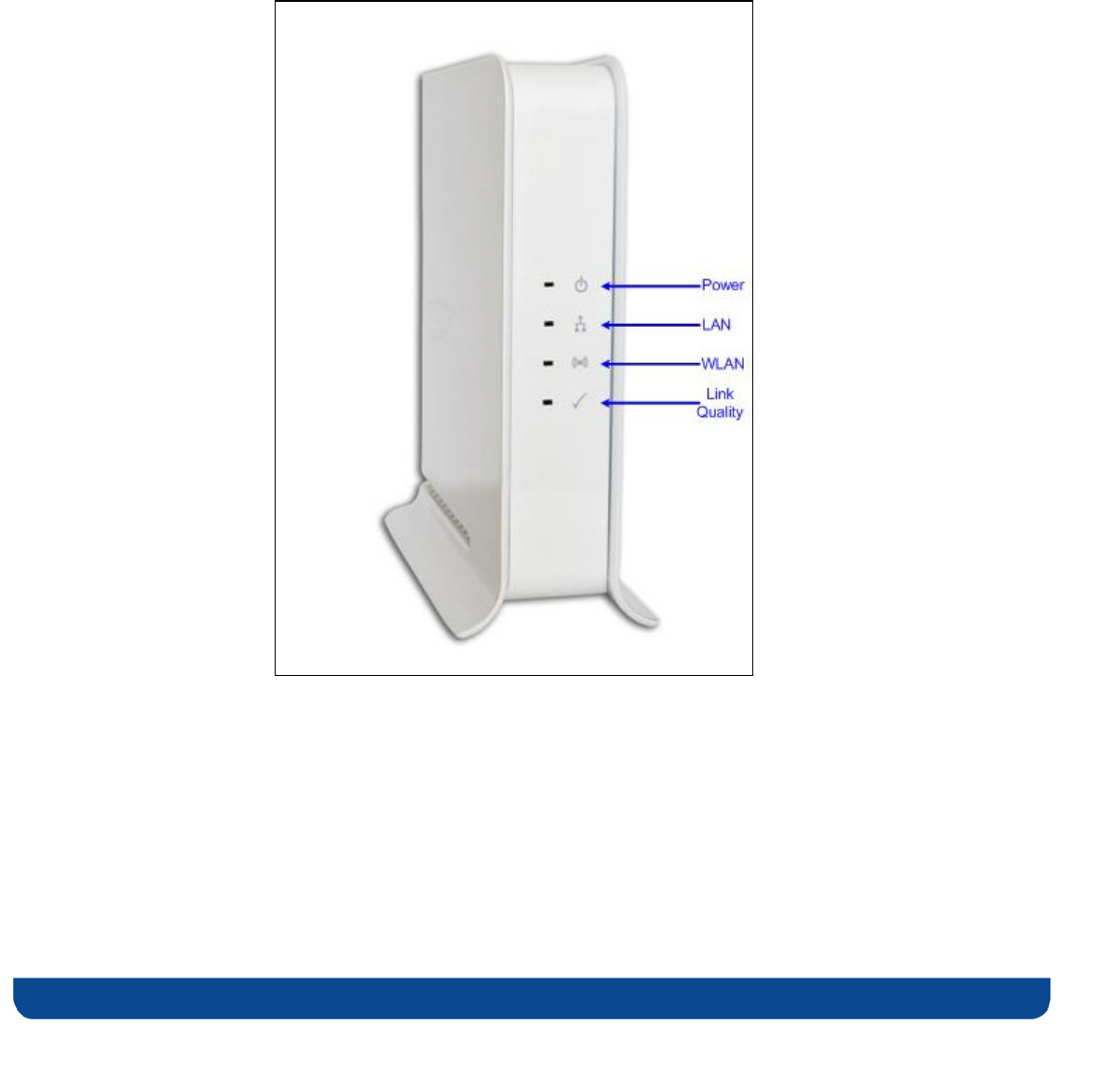

Figure 4 - MWB1305/ MWS1000 – Front Panel

The following table describes the LED indications on the front panel of the MWB1305

Device.

Table 3 - MWB1305 LEDs

Name Color Description

Solid Green The device is powered on. Power

Off The device is powered off.

Solid Green The LAN port is connected and has a link. LAN

Off The LAN port is either not connected or has no

link.

Solid Green At least one MWS1000 device is associated with

the MWB1305 AP.

Flashing Green WPS pairing is in progress. This is a temporary

state that lasts no longer then 2 minutes.

WLAN

Off No MWS1000 devices are associated with the

MWB1305 AP.

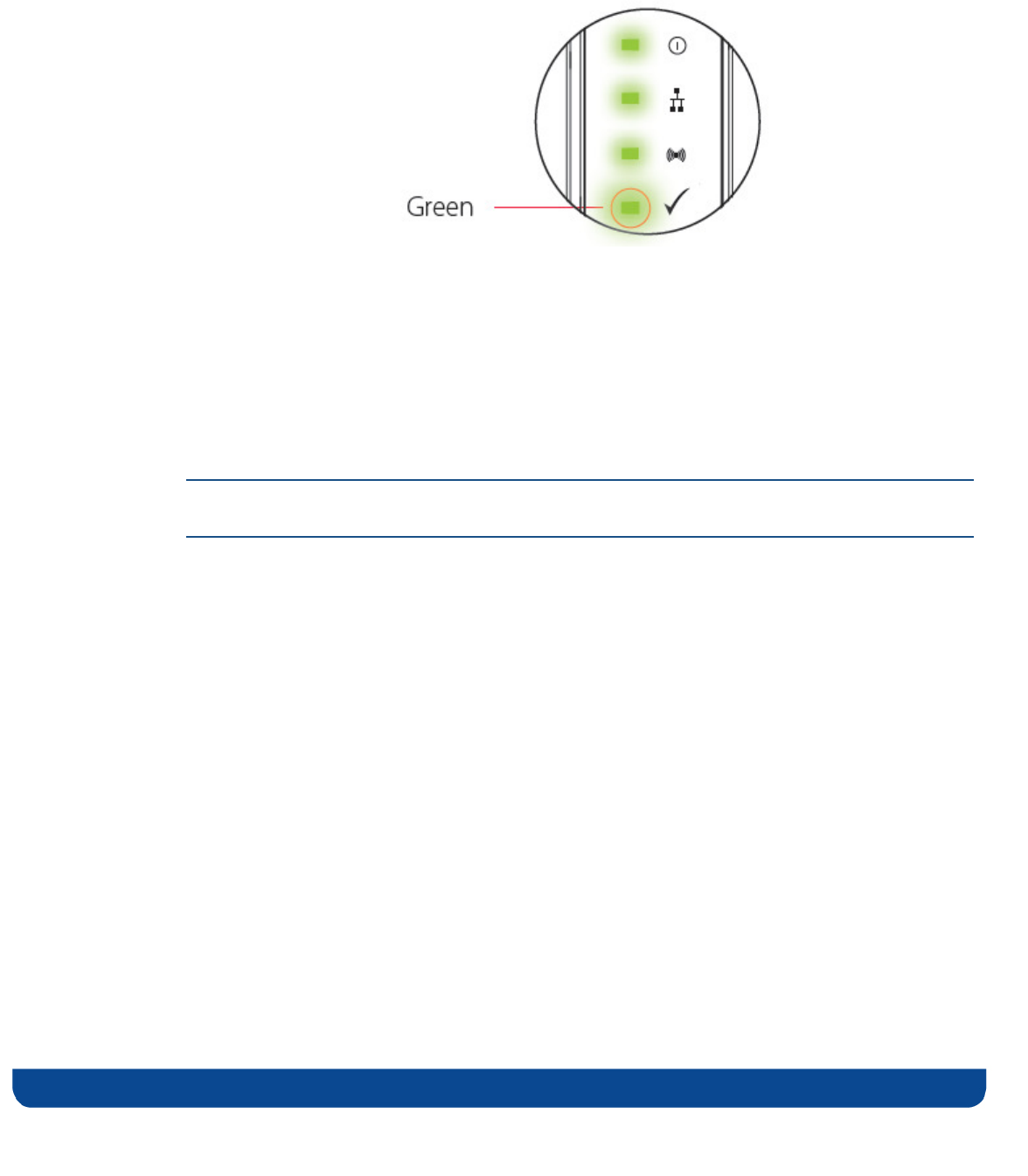

Solid Green The wireless link conditions are excellent and all

of the associated MWS1000 devices can

consistently receive high definition video streams.

Flashing Green WPS pairing has finished successfully. This is a

temporary state that lasts for 30 seconds.

Solid Yellow The wireless link conditions are fair and all of the

associated MWS1000 devices can consistently

receive standard definition video streams, but at

least one associated MWS1000 device is unable to

consistently receive high definition video streams.

Flashing Yellow WPS pairing has failed. This is a temporary state

that lasts for 30 seconds.

Link Quality

Off The wireless link conditions are poor and at least

one associated MWS1000 device cannot receive

video at all.

The following table describes the LED indications on the front panel of the MWS1000

Device.

Table 4 - MWS1000 LEDs

Name Color Description

Solid Green The device is powered on. Power

Off The device is powered off.

Solid Green The LAN port is connected and has a link. LAN

Off The LAN port is either not connected or has no

link.

Solid Green The MWS1000 device is associated with a

MWB1305 AP.

Flashing Green WPS pairing is in progress. This is a temporary

state that lasts no longer then 2 minutes.

WLAN

Off The MWS1000 device is not associated with a

MWB1305 AP.

Solid Green The wireless link conditions are excellent and the

MWS1000 device can consistently receive high

definition video streams.

Flashing Green WPS pairing has finished successfully. This is a

temporary state that lasts for 30 seconds.

Solid Yellow The wireless link conditions are fair and the

MWS1000 device can consistently receive

standard definition video streams but not high

definition video streams.

Flashing Yellow WPS pairing has failed. This is a temporary state

that lasts for 30 seconds.

Link Quality

Off The wireless link conditions are poor and the

MWS1000 device cannot receive video at all.

The following LED combinations describe special indications:

Combination – The Power LED is solid green, the LAN and WLAN LEDs are flashing

green and the link quality LED is flashing yellow. The flashing is simultaneous.

Description – The device is experiencing a severe malfunction. Please contact your service

provider or local dealer.

Combination – The Power LED is solid green, the LAN, WLAN and Link quality LEDs are

flashing green. The lashing is in sequence.

Description – The device is undergoing a software upgrade process.

“Do not unplug the device from the power outlet or reset it while software upgrade is in

progress”.

Setting Up your MWB1300 Kit

Setting up the system involves the following steps:

 Powering up your devices

 Pairing your devices

 Placing and connecting your devices

After performing these steps, you can start streaming High Definition video through the

MWB1300 Kit.

 Changing your computer’s IP address

After performing this additional step, you can use the MWB1305 Management Application

to configure and manage your MWB1305 device. (refer to Managing the MWB1305 Device

on page 27).

Powering Up your devices

To power up the MWB1305 device:

1. Plug in the 12V A/C adapter and connect it to the MWB1305 Access Point device.

Use the recommended AC/DC power adaptor which was supplied in the kit.

“Using a power supply with a different voltage rating then the one included with the

MWB1305 device will cause damage and void the warranty for this product”.

Note: There is no On/Off switch. Once you connect the power adapter, the MWB1305

device powers up.

2. Wait several seconds while the MWB1305 device performs a reset.

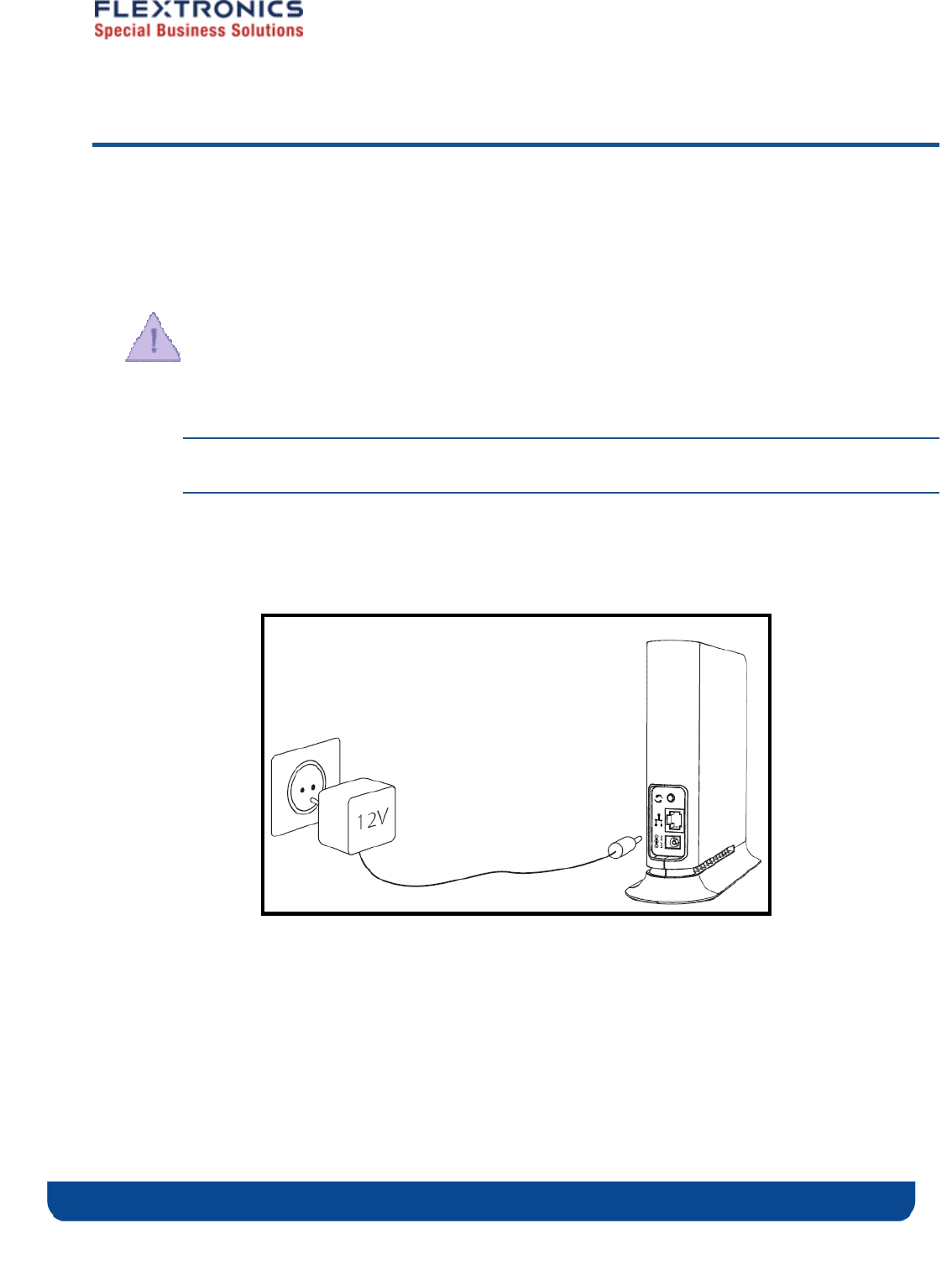

Figure 5- Powering up the MWB1305 Device

To power up the MWS1000 device:

1. Plug in the 5V A/C adapter and connect it to the MWS1000 Client device.

Use the recommended AC/DC power adaptor which was supplied in the kit:

“Using a power supply with a different voltage rating then the one included with the

MWS1000 device will cause damage and void the warranty for this product”.

Note: There is no On/Off switch. Once you connect the power adapter, the MWS1000

device powers up.

2. Wait several seconds while the MWS1000 device performs a reset.

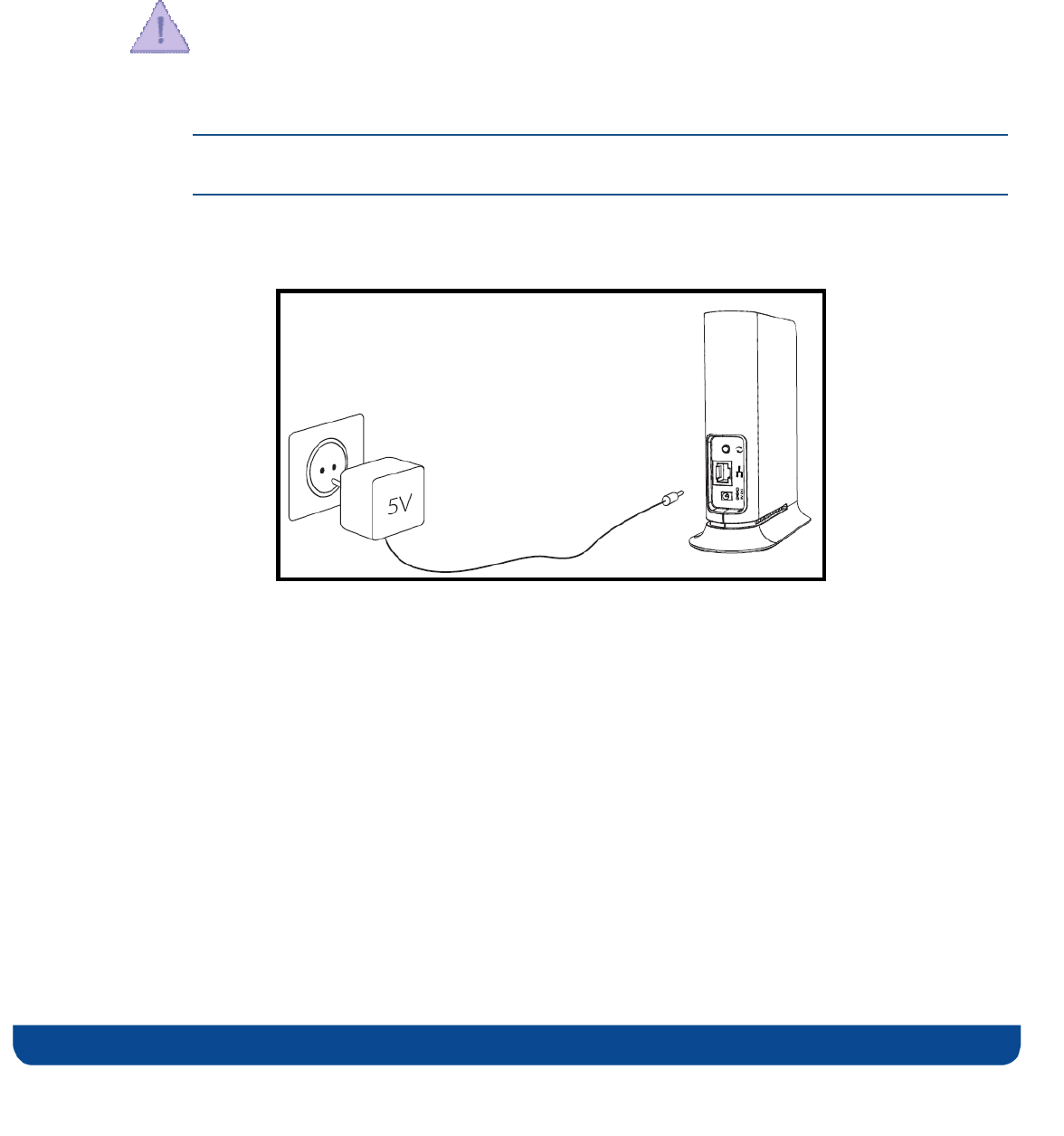

Figure 6 - Powering up the MWS1000 Device

Pairing your Devices

Note: Consult with the quick installation guide that came with your kit to check if the

devices in your kit are already paired, in which case you can skip this step. .

1. Place the MWB1305 Access Point and the MWS1000 Client devices between 1 to 3

meters from each other.

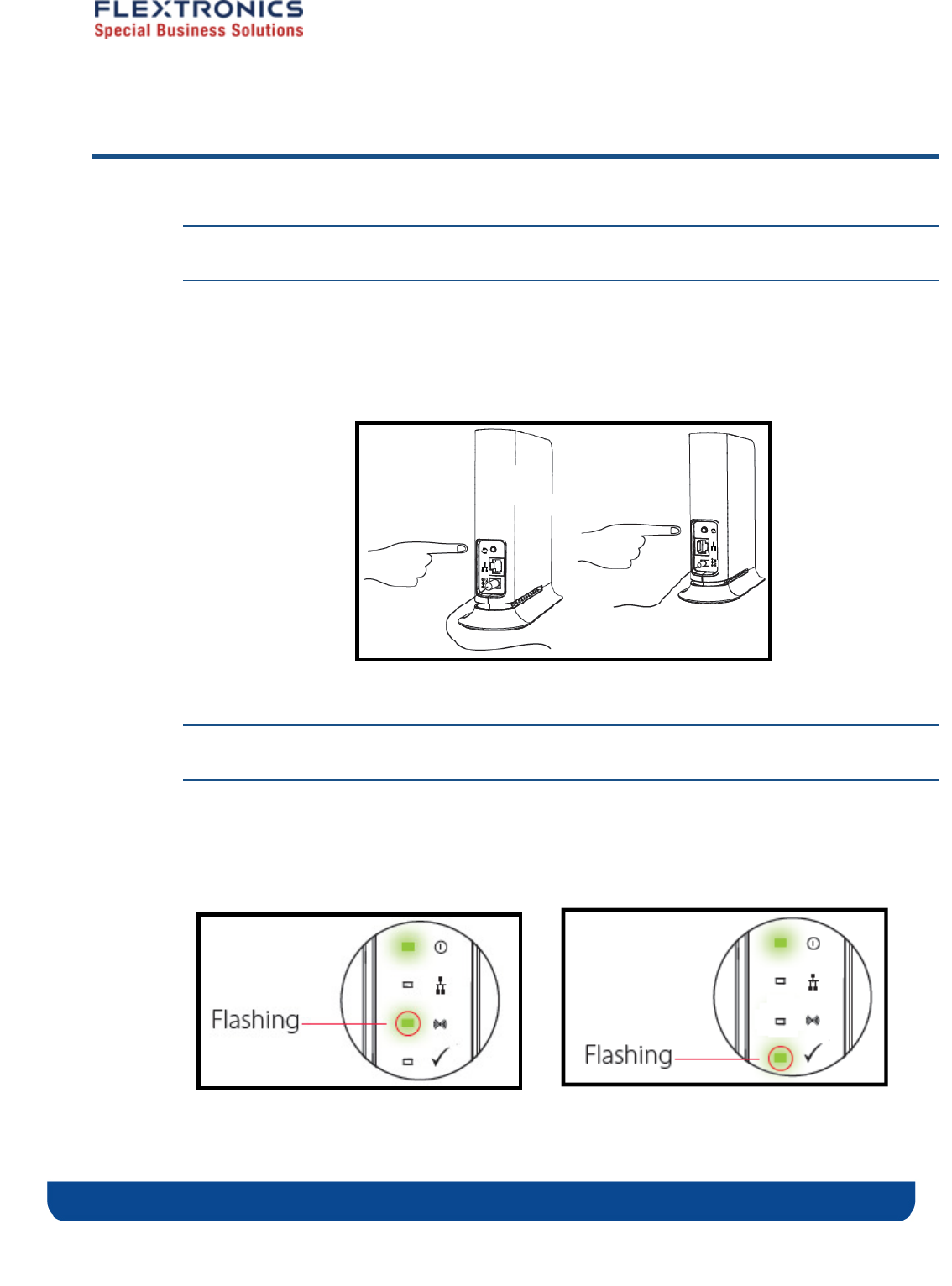

2. Pair the devices by pressing the WPS button on the MWB1305 and MWS1000 rear panel

for 5 seconds. You can release the button as soon as the WLAN LED begins flashing.

Figure 7 - Pairing the devices

Note: The WPS buttons should be pressed within 2 minutes period. The buttons can be

pressed in any order.

3. Wait for the pairing process to complete by watching the LEDs on the devices:

 While pairing is in progress the WLAN LED is flashing green

 After successful pairing the Link Quality LED is flashing green for 30 seconds.

Pairing is in progress Pairing has finished successfully

Placing and connecting your devices

To place and connect your MWB1305 device:

1. Place the MWB1305 Access Point device on an easily-accessible surface near the home

gateway or Cable/DSL Modem.

2. Plug one end of the Ethernet cable into the LAN port of the gateway device and the

other end into the Ethernet port of the MWB1305.

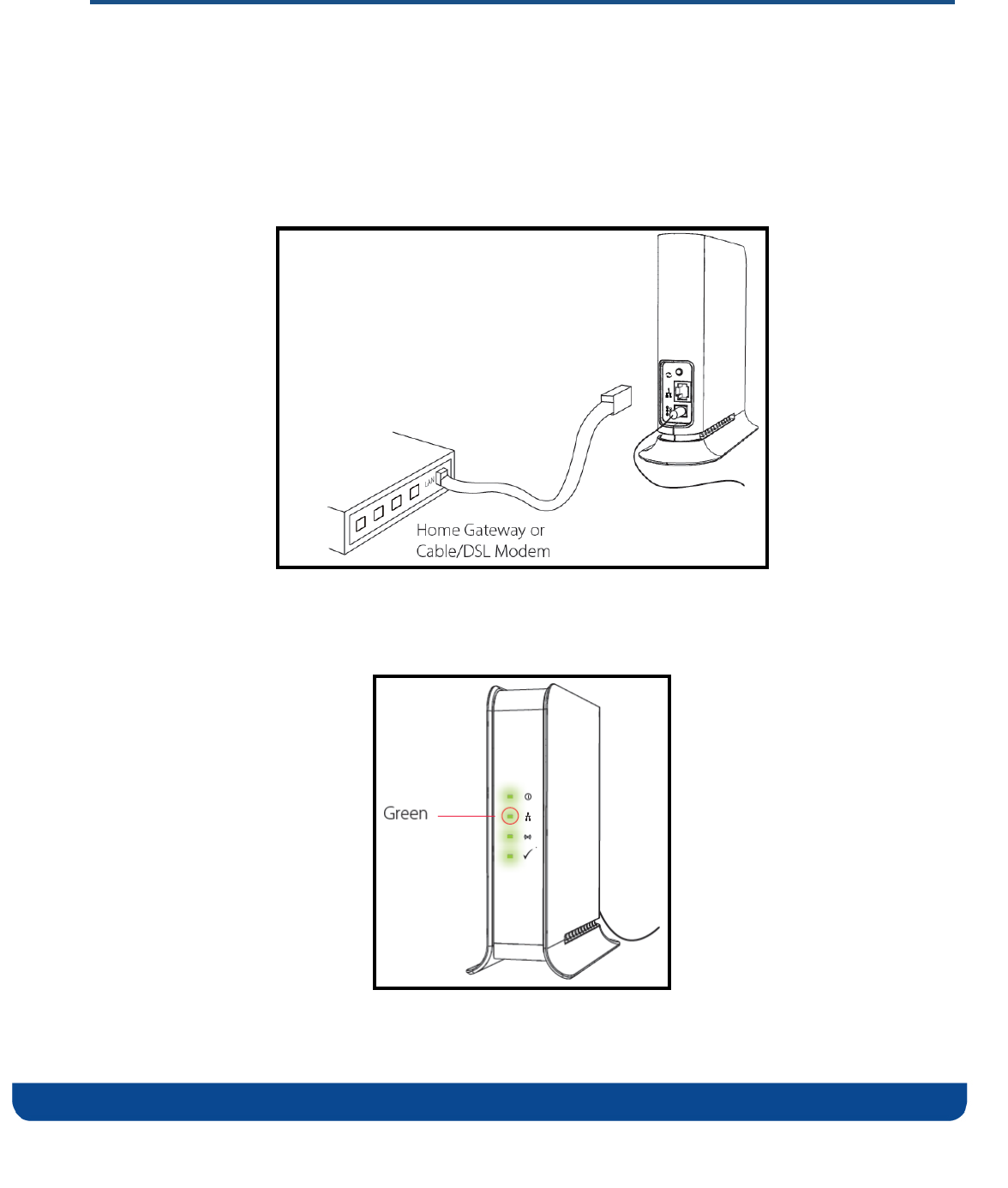

Figure 8 - Connecting and placing the MWB1305 device

3. Make sure that the LAN LED on the MWB1305 is turned on:

To place and connect your MWS1000 device:

1. Place the MWS1000 Client device on an easily-accessible surface near the set top box.

2. Plug one end of the Ethernet cable into the LAN port of the set top box device and the

other end into the Ethernet port of the MWS1000.

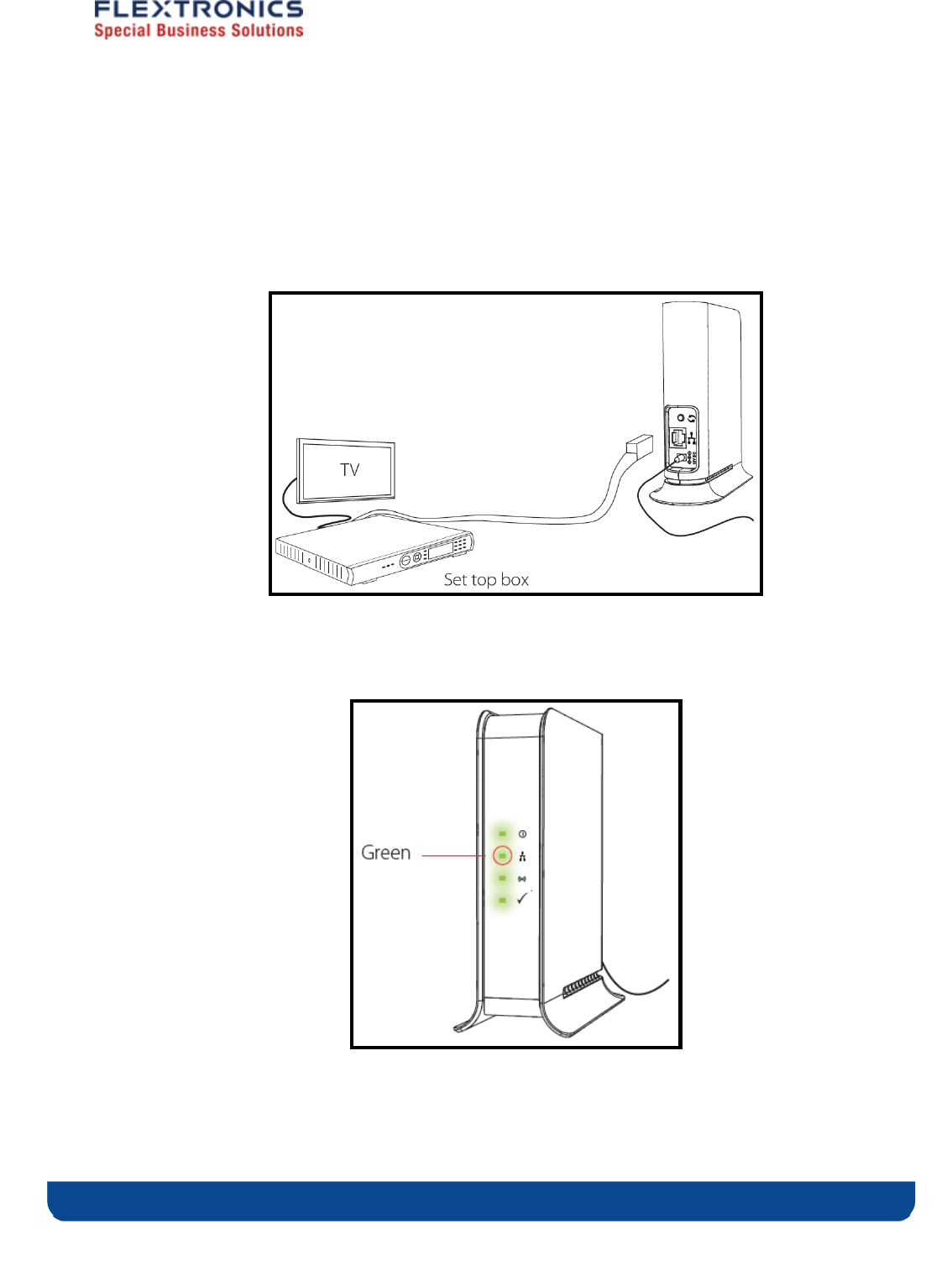

Figure 9- Connecting and placing the MWS1000 device

3. Make sure that the LAN LED on the MWS1000 is turned on:

4. Make sure that the link quality LED is solid green:

If the link quality LED is solid yellow or turned off, try to reposition the device to a more

elevated location and as far as possible from large metallic objects.

Completing the installation:

You have finished installing your MWB1300 kit. To test your connectivity, turn on the TV

and set top box and watch any available channel.

Note: To install additional MWS1000 devices, repeat the above procedure for each new

MWS1000 device.

Changing Your Computer’s IP Address

In order to connect your management computer to the MWB1305 device, you must change

the IP address of your computer so that it is on the same subnet as the MWB1305 device

(by default 10.x.x.x). Since this disconnects your computer from your computer network,

you may need to restore this setting later.

To change the IP address of your computer:

1. Connect an Ethernet cable between the Ethernet port of the MWB1305 device and the

Ethernet port of your computer.

2. From your computer’s desktop, click Start > Settings > Network Connections and

double-click the LAN connection for your computer network. The Local Area

Connection Status window appears.

3. From the General tab, click Properties. The Local Area Connection Properties window

appears.

4. Select Internet Protocol (TCP/IP) and click Properties. The Internet Protocol (TCP/IP)

Properties window appears.

Figure 10: Internet Protocol (TCP/IP) Properties Window

5. Make a note of the current settings in this window. You will need to know these

settings when reconnecting your computer to your computer network.

6. Check Use the following IP address and type an IP address in the same subnet as the

MWB1305, in the following format: 10.x.x.x. Be sure to use an IP address that is

different from the IP address of your MWB1305 device which is 10.0.0.2 by default.

7. Click OK to save the information and close the Internet Protocol (TCP/IP) Properties

window.

8. Click OK to close the Local Area Connection Properties window.

9. Click Close to close the Local Area Connection Status window.

3

Management - Getting Started

The MWB1305 Management Application is a web-based tool that enables you to manage

and configure your MWB1305 device. This chapter describes how to navigate through the

MWB1305 Management Application:

Note: Ensure that you have connected an Ethernet cable between your computer and the

MWB1305 device.

Logging into the MWB1305 Management Application

Figure 11 - MWB1305 Management Application – Login Screen

The MWB1305 Management Application is password protected. To access its functions you

first need to successfully login:

1. Type the username and password into the appropriate fields and click on the Login

button.

2. On successful login you will be forwarded to a MWB1305 Management Application

configuration screen.

Note: The default username and password are admin, admin respectively. To change these values

refer to Performing Administration on page 41.

Navigating the MWB1305 Management Application

Figure 12: MWB1305 Management Application Window

The MWB1305 Management Application contains the following controls and areas to help

you navigate to all its parameters.

 Main Menu – Enables you to access the functions of the MWB1305 Management

Application. The Main Menu is divided into the following submenu items:

Configuration and Monitor.

 Navigation Panel – Displays the configuration screens available for each submenu item.

 Current Screen – Displays the name of the current configuration screen.

 System Information Panel – Displays system status information. This panel is always

visible and displays the following information:

 State – Indicates whether the system is currently active or stopped.

 Band – Indicates that the system is currently transmitting in the 5Ghz radio band.

 Channel – The index number of the channel currently in use.

 BSSID – Basic Service Set Identifier. The MWB1305 MAC address in an

infrastructure mode BSS. This field uniquely identifies each BSS. You cannot

configure this parameter using the MWB1305 Management Application.

 SSID – Service Set Identifier. The code attached to beacon frames and connection

establishment frames.

 SW Version – The current software image version of the device.

 Image ID - Updated, the currently active software image is up to date. Factory, the

currently active software image is the factory default and should be updated.

 Data Area – For each configuration screen, the Data Area displays the relevant

parameters and controls.

 Control Buttons – Enable you to perform operations related to the current

configuration screen.

4

Managing the MWB1305 Device

The MWB1305 Management Application is a user-friendly application that enables you to

configure and control all the parameters of the MWB1305. The main menu contains the

following options:

 Configuration

 Monitor

Note: Clicking Cancel in any of the MWB1305 Management Application windows discards any

unsaved changes you have made. The MWB1305 Management Application then re-queries

the MWB1305 device and refreshes the display.

Configuring the MWB1305 Device

Defining Network Settings

To define network settings:

1. From the main menu of the MWB1305 Management Application, click Configuration.

The Configuration, Network Settings window appears.

Figure 13: MWB1305 Management Application – Configuration, Network Settings Window

The following table describes the parameters you can configure from this window:

Table 5: MWB1305 Configuration – Network Parameters

Parameter Description

Obtain an IP address

automatically

When selected, the device IP address is obtained

automatically using DHCP.

Use the following IP

address

When selected, the device IP address is set

manually.

IP Address The IP address of the MWB1305 device.

Subnet Mask The subnet mask of the MWB1305 device.

Default Gateway The default gateway of the MWB1305 device.

2. Click Apply to update the settings immediately. The system displays an update

message.

3. Click Yes and wait several seconds for the system to restart.

Defining Wireless Settings

To define wireless settings:

1. From the main menu of the MWB1305 Management Application, click Configuration

and from the Navigation Panel, click Wireless Settings. The Configuration, Wireless

Settings window appears.

Figure 14: MWB1305 Management Application – Configuration, Wireless Settings Window

The Wireless Settings window is divided into Immediately Effective settings that can be

updated while the device is running and Effective After Restart settings that are stored

and updated only after the MWB1305 device is restarted.

The following table describes the parameters you can configure in the Immediately

Effective area:

Table 6: MWB1305 Configuration – Immediately Effective Wireless Parameters

Parameter Description

Broadcast SSID When checked, the system broadcast its SSID in beacon and probe

response frames.

Rate The transmission rate. Possible values: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps.

Rate Adaptation When checked, the system dynamically adapts the transmission rate to

suit current network conditions.

Retransmissions The number of retries in the case of transmission failure. Possible values: 0 – 6.

Frame Lifetime The maximum amount of time that a frame can be stored in the MWB1305

before it is discarded. Possible values: 10 – 500 milliseconds.

2. Click Apply to update the settings immediately. The system displays an update message.

3. Click OK to close the message and refresh the current window.

The following table describes the parameters you can configure in the Effective After

Restart area:

Table 7: MWB1305 Configuration – Effective after Restart Wireless Parameters

Parameter Description

WDS Enabled When checked, the system works as a Wireless Distribution System

thus providing a Transparent Bridge Functionality.

SSID Service set identifier. The code attached to beacon frames and

connection establishment frames. The SSID is a string of ASCII

characters. Entering an empty string restores the value of the SSID

field to factory default.

Country Your country of operation.

This device will automatically limit the allowable channels

determined by the current country of operation. Incorrectly entering

the country of operation may result in illegal operation and may

cause harmful interference to other systems.

Channel Select the desired channel from the dropdown list, or let the system

select the best working channel automatically by choosing ‘Auto’

from the drop down list.

Parameter Description

Beacon Interval The time interval between beacon frames sent out by the system.

Possible values: 100 – 1000 milliseconds in steps of 100 milliseconds.

4. Click Apply to update the settings. The system stores the new settings and prompts

you to restart the system.

5. Click YES and wait several seconds for the system to restart.

Defining QoS Settings

To define QoS settings:

1. From the main menu of the MWB1305 Management Application, click Configuration

and from the Navigation Panel, click QoS Settings. The Configuration, QoS Settings

window appears.

Figure 15: MWB1305 Management Application – Configuration, QoS Settings Window

The following table describes the parameters you can configure from this window:

Table 8: MWB1305 Configuration – QoS Parameters

Parameter Description

Enhanced Mode When checked, the system works in burst scheduling mode,

increasing system capacity. If cleared, the Block Ack Mode is

inactive and grayed out.

Block Ack Mode When checked, the system works in 802.11e Block Ack Mode,

further increasing system capacity.

Allowed Station When checked, only the MWS1000s listed in the Station QoS

Properties table are allowed to communicate with the

MWB1305. When cleared, any MWS1000 can communicate

with the MWB1305.

Station The number of the MWS1000 communicating with the

MWB1305.

MAC Address The MAC address of the MWS1000 communicating with the

MWB1305.

Type The type of data transported to the MWS1000. Possible values:

Data, Video.

Note: The new settings will take effect after restarting the system.

2. Click Apply to update the settings offline. The system stores the new settings and

prompts you to restart the system.

3. Click YES and wait several seconds for the system to restart.

Defining Security Settings

To define Security settings:

From the main menu of the MWB1305 Management Application, click Configuration and

from the Navigation Panel, click Security Settings. The Configuration, Security Settings

window appears.

The MWB1305 device can be configured to operate in one of the following security modes:

 Unsecured – Wireless security is disabled, any client can associate to the MWB1305

Access Point and the wireless signal is passed unencrypted.

 WEP – Stands for Wired Equivalent Privacy. It is based on the IEEE 802.11 standard

and uses RC4 encryption algorithm. WEP provides moderate security to your system

and has been deprecated by WPA2.

 WPA2 – Stands for WiFi Protected Access. It is based on the IEEE 802.11i standard and

uses AES encryption algorithm. WPA2 is much more secure then WEP, it provides

better encryption and user authentication which is generally missing in WEP. It is

recommended that you enable WPA2 at all times.

“To be able to use Wireless Protected Setup(WPS) features (See Defining WPS Settings at

page 39), it is required that you enable the WPA2 security mode ”.

Each security mode has its own configuration parameters, and the layout of the Security

Settings screen is changed according to the selection of the security mode:

WEP mode

Figure 16 - MWB1305 Management Application – Configuration, Security Settings Window, WEP Mode

Table 9: MWB1305 Configuration – Security Parameters, WEP mode.

Parameter Description

Security Mode The selected security mode. Possible values: Unsecured, WEP

and WPA2.

Authentication Type The selected authentication type. Possible values: Open

authentication, Shared key authentication.

Key Input Type The WEP encryption keys can be input using either

Hexadecimal or Ascii characters. 10 character strings are

required when keys are input using Hexadecimal characters

and 5 character strings is required when keys are input using

Ascii characters.

Parameter Description

Keys table It is possible to configure up to 4 different keys into the

MWB1305. The MWB1305 will be able to decipher incoming

transmissions that were encrypted using any of these keys.

Key A WEP encryption key.

Transmission key When selected, this key will be used by the MWB1305 for

encrypting its transmissions over the wireless medium.

WPA2 mode

Figure 17 - MWB1305 Management Application – Configuration, Security Settings Window, WPA2 Mode

Table 10: MWB1305 Configuration – Security Parameters, WPA2 mode.

Parameter Description

Security Mode The selected security mode. Possible values: Unsecured, WEP

and WPA2.

Pass Phrase The security pass phrase to be used for generating the WPA2

encryption keys. The pass phrase can be 8 to 63 bytes long.

Confirm Pass Phrase Pass phrase confirmation.

Note: The new settings will take effect after restarting the system.

Click Apply to update the settings offline. The system stores the new settings and prompts

you to restart the system.

Defining WPS Settings

WPS is a standard for easy and secure setup of wireless home networks, created by the

WiFi allegiance. The MWB1300 Kit implements the WPS-PBC configuration method

allowing you to pair MWB1305 and MWS1000 devices using a push button (See Pairing

your Devices on page 17).

To define WPS settings:

1. From the main menu of the MWB1305 Management Application, click Configuration

and from the Navigation Panel, click WPS Settings. The Configuration, WPS Settings

window appears.

Figure 18: MWB1305 Management Application – Configuration, WPS Settings Window

The following table describes the actions that can be performed from this window:

Table 11: MWB1305 Configuration – WPS Parameters

Parameter Description

WPS Mode Enable / Disable WPS.

Initiate WPS Initiate a WPS pairing process. This has the same effect as

pushing the WPS button on the device.

Reset Stations Key Table Erases all previous pairings between MWS1000 Clients and

the MWB1305 Access Point.

Note: The new settings will take effect after restarting the system.

2. Click Apply to update the settings offline. The system stores the new settings and

prompts you to restart the system.

Click YES and wait several seconds for the system to restart.

Performing Administration

To perform administration:

1. From the main menu of the MWB1305 Management Application, click Configuration

and from the Navigation Panel, click Administration. The Configuration,

Administration window appears.

Figure 19 - MWB1305 Management Application – Configuration, Administration Window

The Configuration, Administration window is divided into the following sections:

 Software Upgrade

 Flash Components

 Control Buttons

To perform Software Upgrade:

1. Click the browse button, select the new image file and press Open.

2. Click the Start Upgrade Button, confirm the action by pressing OK in the confirmation

window and wait for the action to finish.

3. After the Software Upgrade finishes you can see the new software version number in

the System Information Panel.

“Do not power off or reset the MWB1305 device while Software Upgrade is in progress”.

To change the password of the MWB1305:

1. Click the Change Password Button. The following window appears:

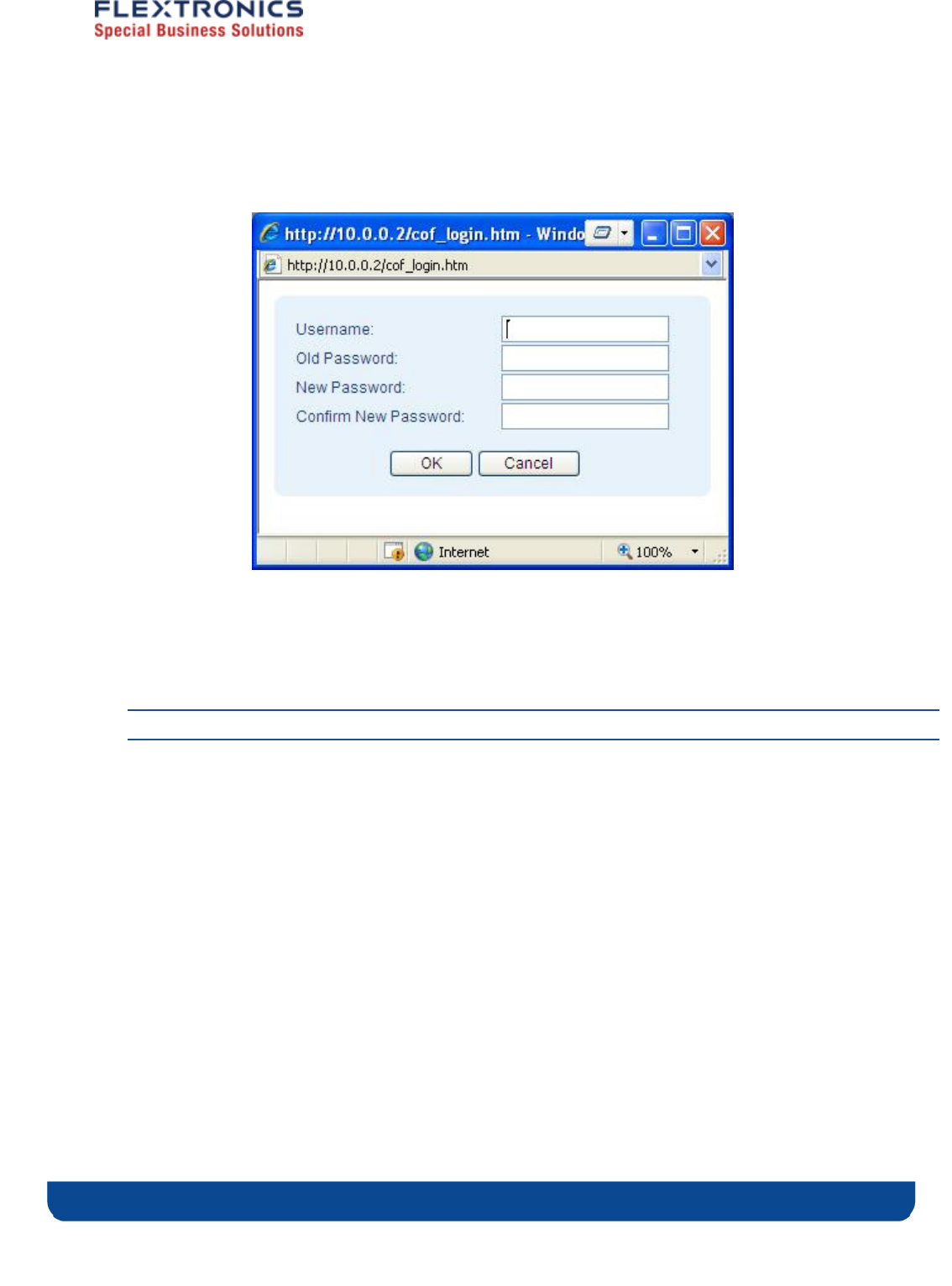

Figure 20 - MWB1305 Management Application – Change Password Window

2. Fill the new password details in the change password window and press OK.

3. After the successful completion of the operation you will be prompted to login again.

Note: Only a single user (admin) is supported in the current release.

To update log files on the MWB1305 device:

1. Click the Update Log Files Button.

2. Wait for the update process to complete.

To download log files from the MWB1305 device:

1. Click the Download Log Files Button.

2. A confirmation window will prompt you to confirm the download of each log file in

the system.

To restore the MWB1305 configuration to factory defaults:

1. Click the Restore Defaults Button, confirm the action by pressing OK in the confirmation

window and wait for the action to finish.

To reset the MWB1305 device:

1. Click the Reset Button, confirm the action by pressing OK in the confirmation window

and wait for the action to finish.

The values under Flash Components Versions provide detailed information about the internal

revisions of various components on the MWB1305 flash.

Monitoring the MWB1305 Device

The MWB1305 Management Application Monitor displays information about the current

status of your MWB1305 Device. The system continually monitors a variety of network

parameters and displays them in the Counters, Station Statistics and Multicast Support

windows.

Viewing System and Station Parameters

To view System and Station Parameters:

 From the main menu of the MWB1305 Management Application, click Monitor. The

Monitor, Counters window appears.

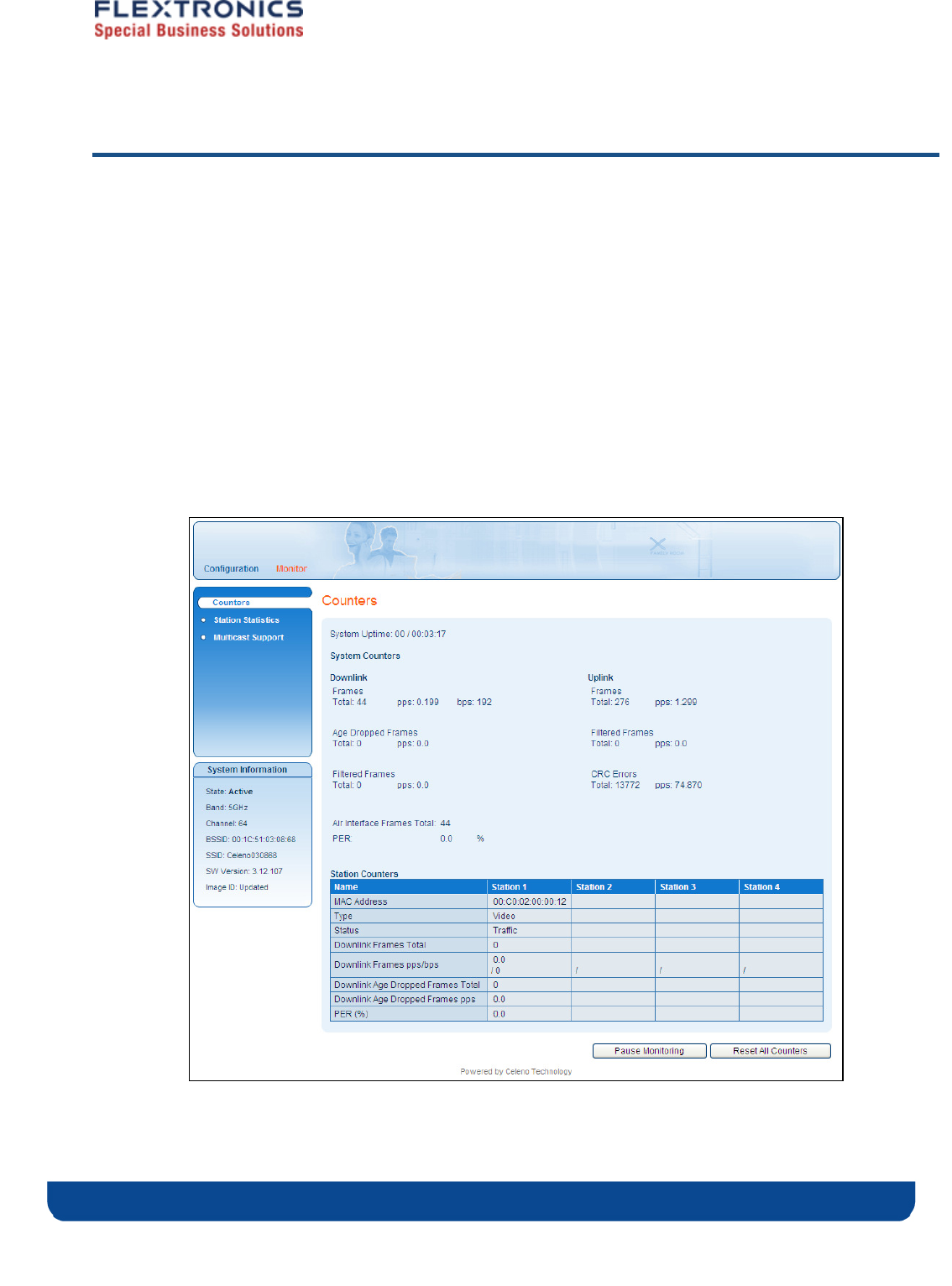

Figure 21: MWB1305 Management Application – Monitor, Counters Window

The Monitor, Counters window is divided into the following sections:

 System Counters, Downlink

 System Counters, Uplink

 Station Counters

 Control Buttons

The following table describes the Monitor, Counters Window:

Table 12: MWB1305 Configuration – Counters Parameters

Parameter Description

System Counters, Downlink

Frames Total – The total number of frames transmitted.

pps – Packets per second transmitted.

bps – Bits per second transmitted.

Age Dropped Frames Total – The total number of frames dropped because of lifetime expiration.

pps – Packets per second dropped because of lifetime expiration.

Filtered Frames Total – The total number of frames dropped because the destination was not

an associated MWS1000.

pps – Packets per second dropped because the destination was not an

associated MWS1000.

Air Interface Total The total number of frames transmitted over the air.

PER The percentage of failed frame transmissions.

System Counters, Uplink

Frames Total – The total number of frames received.

pps – Packets per second received.

Filtered Frames Total – The total number of frames dropped because the source was not an

associated MWS1000.

pps – Packets per second dropped because the source was not an associated

MWS1000.

CRC Errors Total – The total number of received frames with bad CRC .

pps – Packets per second received with bad CRC.

Station Counters

MAC Address The MWS1000 MAC Address.

Type The MWS1000 type – Possible values: Data or VIDEO.

Status The MWS1000 status – Possible values: Associated, Disassociated,

Authenticated, Disauthenticated.

Parameter Description

Downlink Frames Total The total number of frames transmitted to the MWS1000.

Downlink Frames pps/bps pps – Packets per second transmitted to the MWS1000.

bps – Bits per second transmitted to the MWS1000.

Downlink Age Dropped

Frames Total

The total number of frames dropped because of lifetime expiration.

Downlink Age Dropped

Frames pps

Packets per second dropped because of lifetime expiration.

PER (%) The percentage of failed frame transmissions to MWS1000.

The Monitor, Parameters window also provides controls to reset the parameter counters

and logs.

To reset the monitor parameter counters:

 Click .

To pause monitoring:

 Click . The Resume Monitoring button is displayed.

To resume monitoring:

 Click . The Pause Monitoring button is displayed.

Viewing Station Statistics

1. From the main menu of the MWB1305 Management Application, click Monitor and

from the Navigation Panel, click Station Statistics. The Station Statistics window

appears.

Figure 22: MWB1305 Management Application – Monitor, Station Statistics Window

The following table describes the Monitor, Station Statistics Window:

Table 13: MWB1305 Configuration – Station Statistics Parameters

Parameter Description

Downlink Rate (Mbps) The number of packets transmitted (to a specific MWS1000) at

a specified data rate.

Uplink RSSI (dBm) The number of packets received from the client at a specified

range of received signal levels.

Number of Retries The number of retransmissions to a specific client.

Transmit Power Level The number of packets transmitted to the client at a specified

transmission power level.

2. Click the various station tabs to view information for the different MWS1000s.

Viewing Multicast Status

1. From the main menu of the MWB1305 Management Application, click Monitor and

from the Navigation Panel, click Multicast Support. The Multicast Support window

appears.

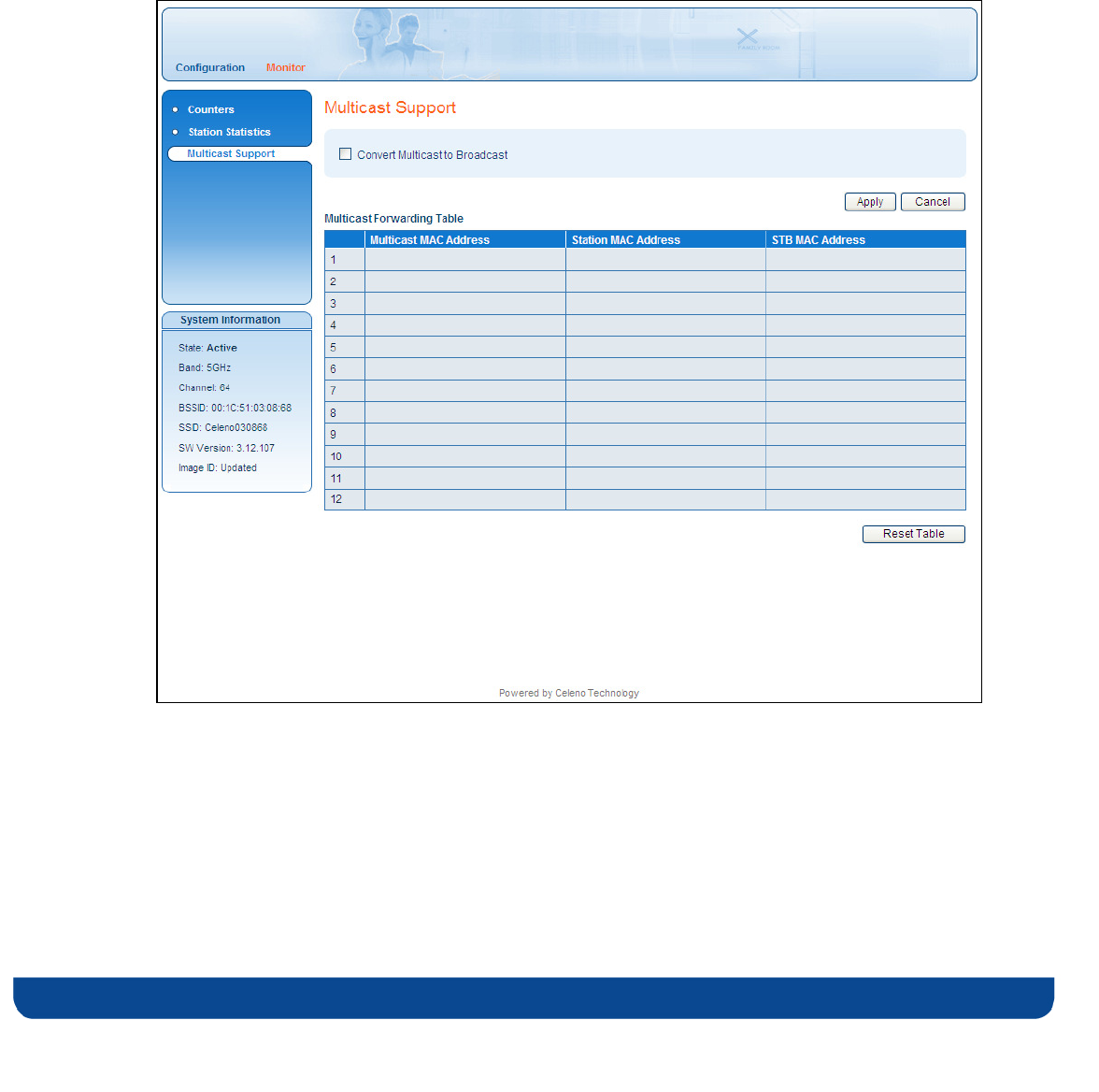

Figure 23: MWB1305 Management Application – Monitor, Multicast Support Window

The following table describes the Monitor, Multicast Support Window:

Table 14: MWB1305 Configuration – Station Statistics Parameters

Parameter Description

Convert Multicast to

Broadcast

When checked, unmapped Multicast streams are converted to

broadcast.

When cleared, unmapped Multicast streams are dropped.

Multicast MAC Address The MAC address of the Multicast video stream.

Station MAC Address The MAC address of the Station that receives the Multicast

stream.

STB MAC Address The MAC address of the Set Top Box that receives the

Multicast stream.

Design. Build. Ship. Service

A

Updating the MWS1000

This appendix describes how to upload a new firmware version into the MWS1000 device.

To upload a new firmware version into the MWS1000 device

1. Connect a Category 5 (CAT5) Ethernet cable from the Ethernet port of the MWS1000 to

your computer.

2. Power up the MWS1000 device.

3. Configure your computer to be on the same subnet as the MWS1000 (refer to Changing

Your Computer’s IP Address on page 21). Since this disconnects your computer from

your computer network, you may need to restore this setting later.

4. Open a WEB browser and enter the MWS1000 Client’s address: 10.0.0.10

5. The following user/password screen appears:

Enter admin as the user space and admin as the password and press OK.

6. The following screen appears:

Open the Administration folder on the left side of the screen and select the Upload firmware item.

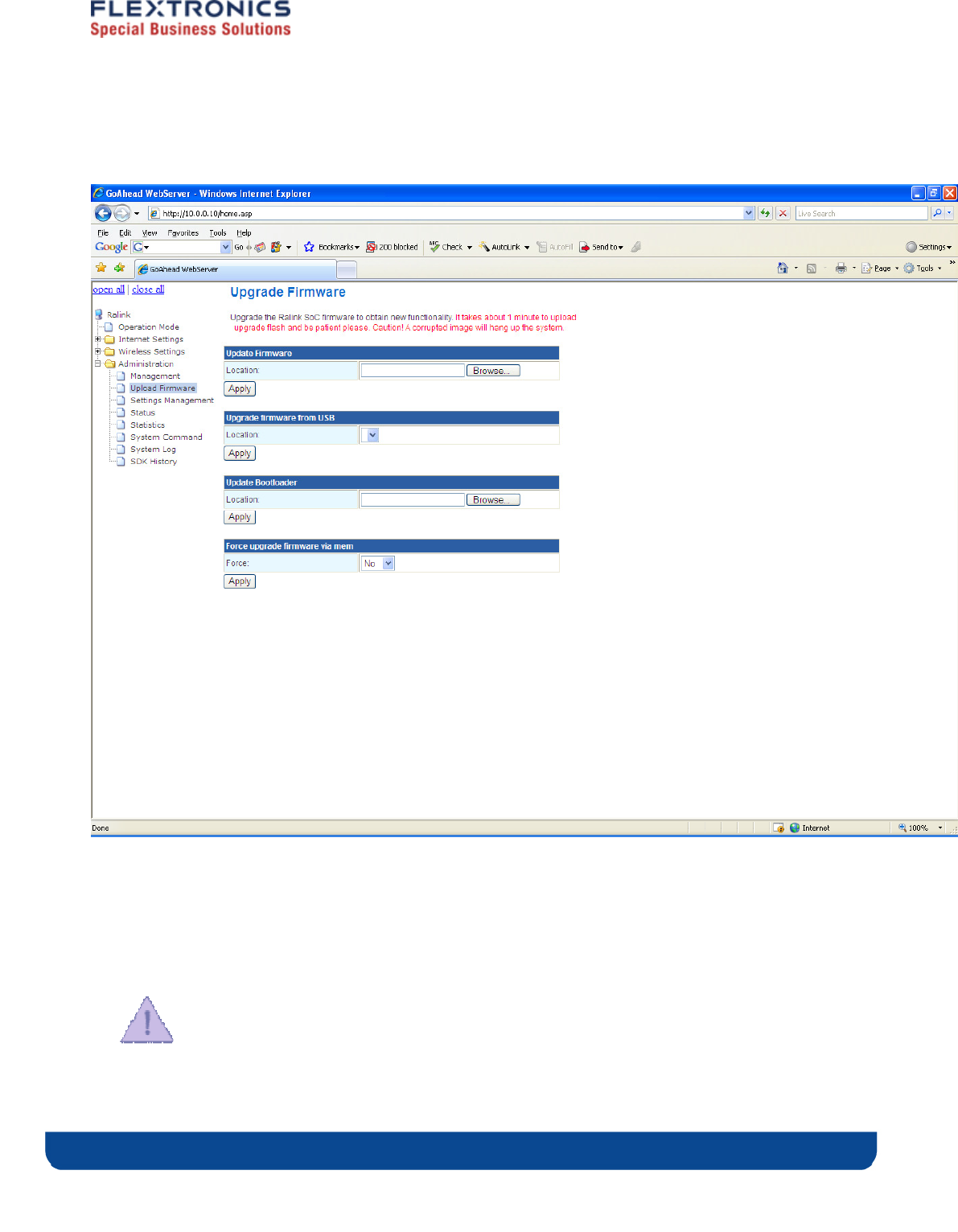

7. The following screen appears

8. Click the browse button in the Update Firmware section and select the new image file and

press Open.

9. Click the Apply Button, and wait for the action to finish.

10. You can view the new firmware version number by opening the Wireless Settings folder

on the left side of the screen and selecting the about item.

“Do not power off or reset the MWS1000 device while Software Upgrade is in progress”.

B

Troubleshooting MWB1300 Kit

Basic setup

Symptom Advised solution

The Power LED is not on

Make sure that:

 The power cord is connected to the device and that

the power adapter is properly connected to a

functioning power outlet.

 You are using the power adapter that was supplied

with the product.

The LAN LED is not on

Make sure that:

 The LAN cable connectors are securely plugged in at

the wireless video extender device and at the

network device (gateway, modem or set top box).

 The connected network device is turned on.

 You are using the correct cable type for your

Ethernet equipment that is at least UTP CAT5 with

RJ45 connectors.

The WLAN LED is not on

 Make sure that you have completed a successful

pairing procedure as described in Pairing your

Devices on page 17 herein.

After completing a pairing

process the link quality LED

flashes yellow

 Make sure that you are not attempting to pair more

then one MWS1000 device at the same time.

The Link quality LED is not

on or is yellow and you are

seeing artifacts on the TV

screen

 Make sure that the wireless video extender devices

are placed according to the recommendation in

Placing and connecting your devices on page 18

herein.

The LAN, WLAN LEDs are

flashing green and the link

 The device is experiencing a severe malfunction.

quality LED is flashing

yellow at the same time

Please contact your service provider or local dealer.

No access to the MWB1305

web control pages.

 Make sure that your computer IP address is

10.XXX.YYY.ZZZ and its subnet mask is 255.0.0.0.

For further information refer to Changing Your

Computer’s IP Address in the page 21 herein.

 If your MWB1305 IP address has been changed,

please assign the computer an IP address in the

same range as the MWB1305 IP Address.

Remember: Whenever a change is made in the Setup of the

Access Point, the Apply button must be used to save the

settings to the Access Point.

Remember: The Access Point control web page is not

accessible from the wireless client/adapter segment.

C

Technical Specifications

MWB 1300 Physical Characteristics

Power

requirements

MWB1305 - 12Vdc, Powered from external certified AC/DC adaptor.

MWS1000 – 5Vdc, Powered from external certified AC/DC adaptor.

Physical size MWB1305 - 153mm(L) x 41mm(W) x 178mm(H)

MWS1000 – 109mm(L) x 37mm(W) x 155mm(H)

Weight MWB1305 – 450gr

MWS1000 – 300gr

Antennas MWB1305 – 4 internal printed antennas

MWS1000 – 2 internal printed antennas

Ethernet ports 1 auto MDX, RJ45 port

Environmental

conditions

Temperature:

Operation: 0 - 40°C

Storage: -20 - 60°C

Humidity:

Operation: 0 – 95%

Storage: 0 – 95%

D

Regulatory Compliance Information

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.

The following test methods have been applied in order to prove presumption of

compliance with the R&TTE Directive 1999/5/EC:

 Safety - EN60950-1:2006.

 EMC - EN301 489-1 V1.8.1:2008-04, EN301 489-17 V1.3.2:2008-04.

 RF – EN301 893 V1.4.1:2007-07

FCC Requirements for Operation in the United States

Federal Communication Commission Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver

 is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for uncontrolled

equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C

to OET65. This equipment should be installed and operated with at least 20cm and more

between the radiator and person’s body (excluding extremities: hands, wrists, feet and

legs). This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

Industry Canada (IC) Statement

The wireless radio of this device complies with RSS 139 & RSS 210 Industry Canada. This

Class B digital apparatus complies with Canadian ICES-003.

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that

may cause undesired operation of the device.

Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada.

Flextronics Special Business Solutions MWB-1305 Access point (master) unit User Manual MWB1300v3 12 100 UserGuide

Flextronics Special Business Solutions Ltd. Access point (master) unit MWB1300v3 12 100 UserGuide

User manual

Navigation menu

Namespaces

Views

Navigation
