User Manual
Notebook PC
User’s Guide
Model: TB120UI1
First Edition: February 2007
User's Guide
Page II
Specifications and information found in this guide are subject to change
without notice. Any changes therefore will be incorporated in future
editions. The manufacturer assumes no responsibility for errors or
omissions in this document.
Windows™ is the trademark of Microsoft Corporation.
Intel® is the trademark of Intel Corporation.
Bluetooth® is the trademark owned by its proprietor.
Other trademarks are properties of their respective owners.
NOTICE
TRADEMARKS
User's Guide
Page III
The following standards are adopted throughout this guide:
Notebook in boldface (with or without capitalization) refers to the notebook
computer that you have purchased.
Boldface type is also used to highlight important information in this
document.
Whenever extra caution is called for, the information will be boxed in a dark
frame preceded by "Note:" or "Warning:"
Standards
User's Guide
Page IV
This page is left blank intentionally.
User’s Guide Contents
Page V
CHAPTER 1 BEFORE YOU BEGIN ................................................1-1
1.1 CHECKING WHAT YOU RECEIVED ................................................................. 1-1
1.2 EXAMINING YOUR COMPUTER....................................................................... 1-2
1.3 THE THREE SYSTEM LEDS........................................................................... 1-7
1.4 THE FIVE STATUS LEDS............................................................................... 1-8
1.5 THE POWER BUTTON ..................................................................................... 1-9
1.6 THE SIX SYSTEM BUTTONS.......................................................................... 1-10
1.7 ATTENTION ON PCMCIA AND MEDIA CARD SOCKETS .............................. 1-12
1.8 OPERATING TEMPERATURE.......................................................................... 1-14
1.9 THE <FN> KEY ............................................................................................ 1-15
CHAPTER 2 BATTERY .....................................................................2-1
2.1 BATTERY PACK.............................................................................................. 2-1
2.2 RECHARGING THE BATTERY PACK ................................................................ 2-1
2.3 QUESTIONS AND ANSWERS ........................................................................... 2-2
2.4 BATTERY MAINTENANCE............................................................................... 2-3
2.5 POWER CONSUMPTION................................................................................... 2-3
2.6 REDUCING POWER CONSUMPTION ................................................................. 2-4
2.7 REMOVING THE BATTERY PACK.................................................................... 2-4
CHAPTER 3 MEMORY .....................................................................3-1

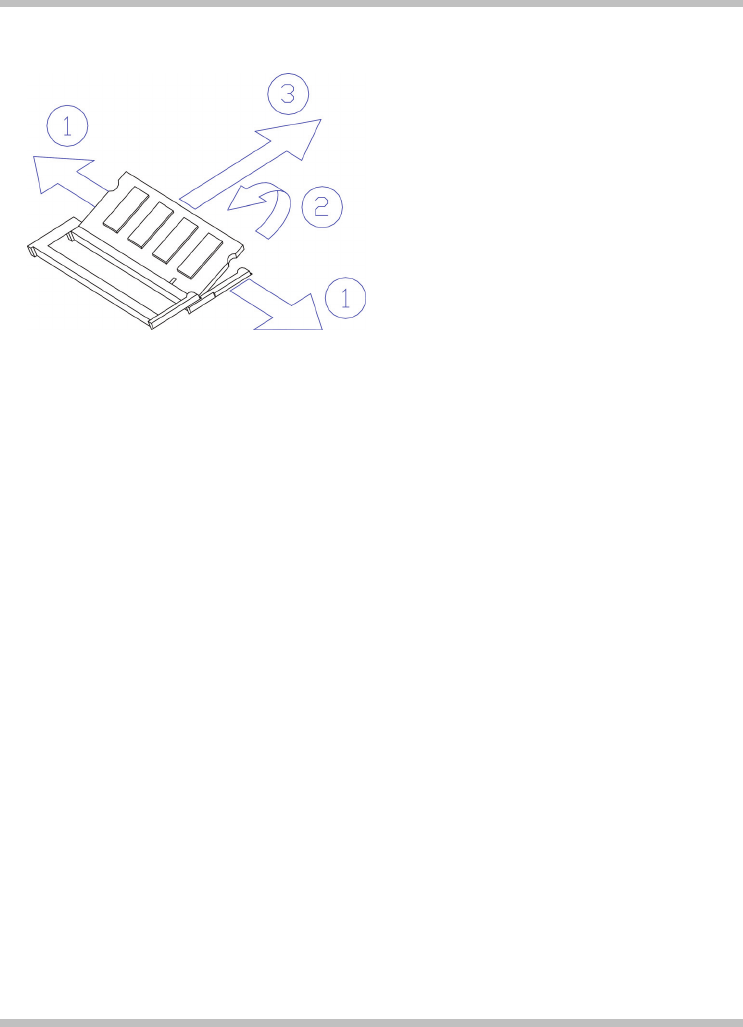

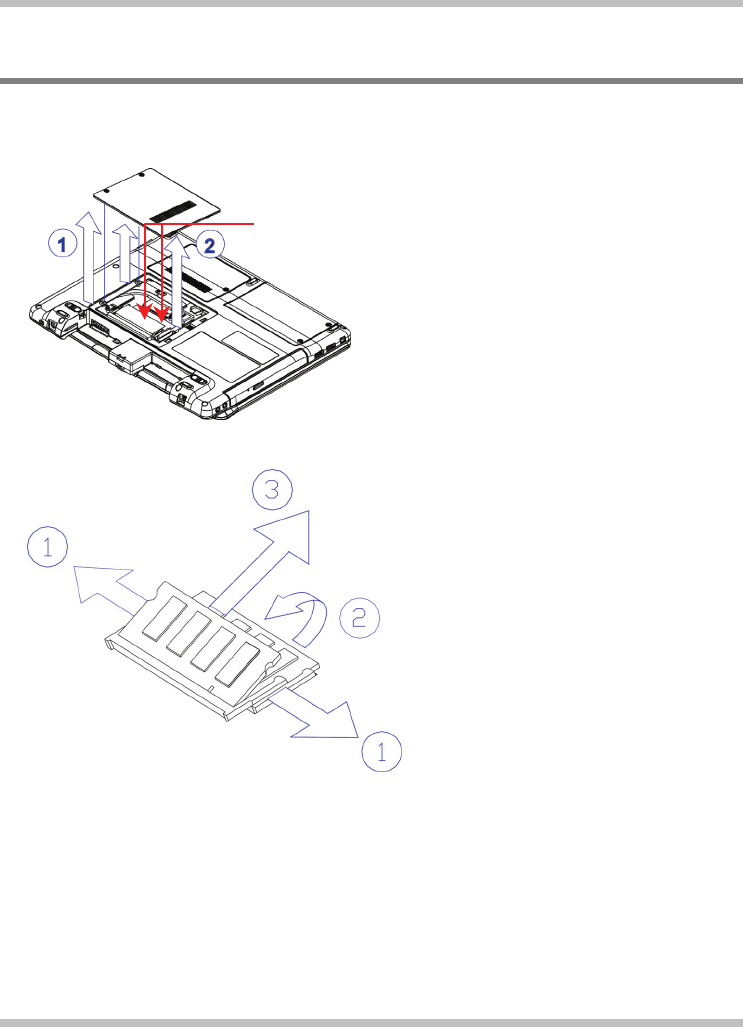

3.1 REMOVING MEMORY MODULE ...................................................................... 3-2
CHAPTER 4 THE HARD DISK DRIVE...........................................4-1
4.1 REMOVING THE HARD DISK DRIVE ...........................................4-1
APPENDIX A - AGENCY REGULATORY NOTICES .................A-1
CONTENTS
Contents User's Guide
Page VI
This page is left blank intentionally.
User's Guide Before You Begin
Page 1-1
Chapter 1 Before You Begin
Please read this section before you start using your computer.
1.1 Checking What You Received
Your notebook package should contain the following items:
• The Notebook.
• AC Adapter.
• AC Power Cord.
• CD Disc (Including Drivers and User’s
Guide).
• Battery Pack.
Note: You should keep the original factory carton and packing materials in case you
need to ship the unit back for servicing.
Before You Begin User's Guide
Page 1-2
1.2 Examining Your Computer
Before you start using your computer, you need to get acquainted with your notebook's
main features and interfaces:

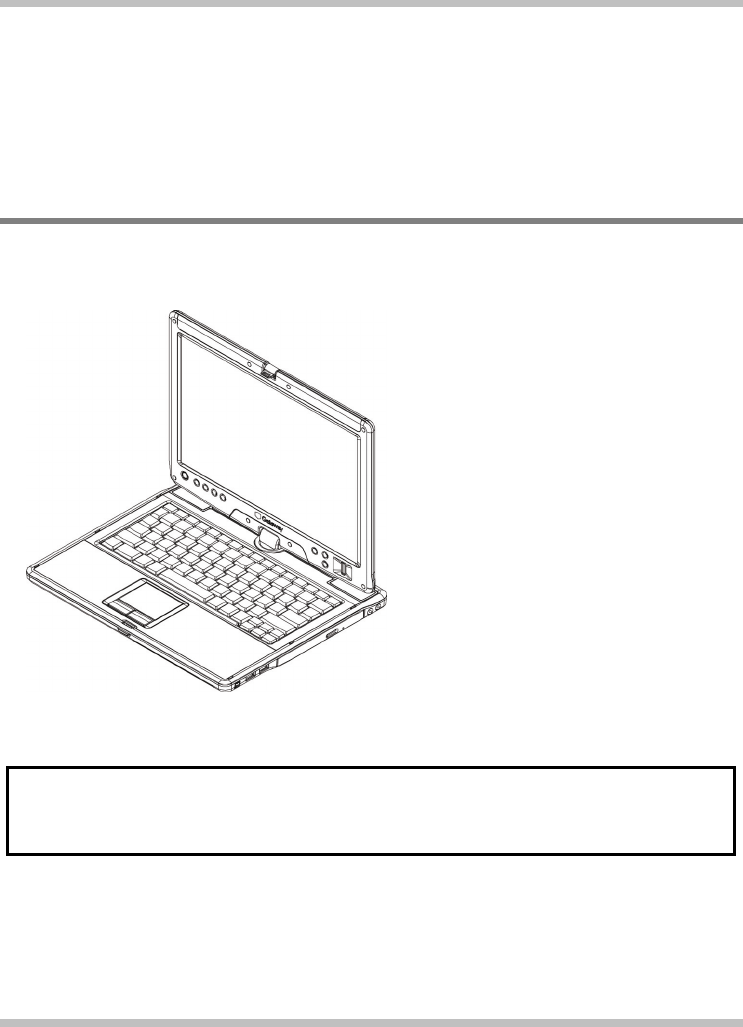

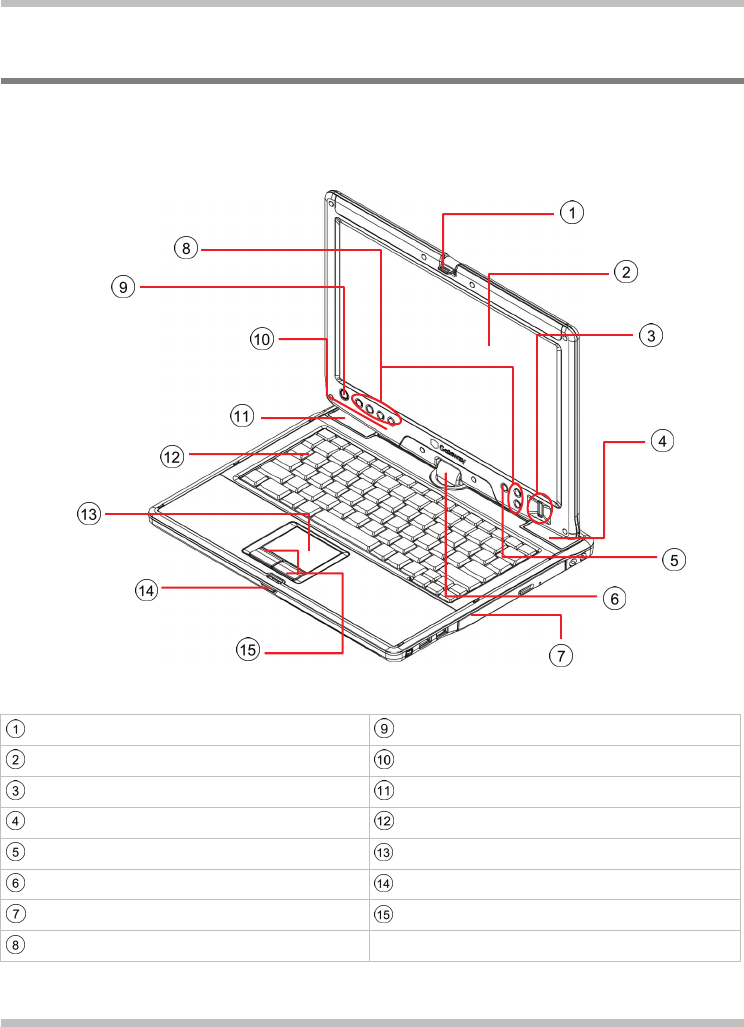

Panoramic View
LCD Lock Power Button
LCD Screen Five Status LEDs
Fingerprint Detector Speaker
Speaker Keyboard
Ambient Light Sensor Touch Pad
Rotation Hinge LCD Latch
ODD Drive Two Click Buttons
Six System Buttons
User's Guide Before You Begin
Page 1-3

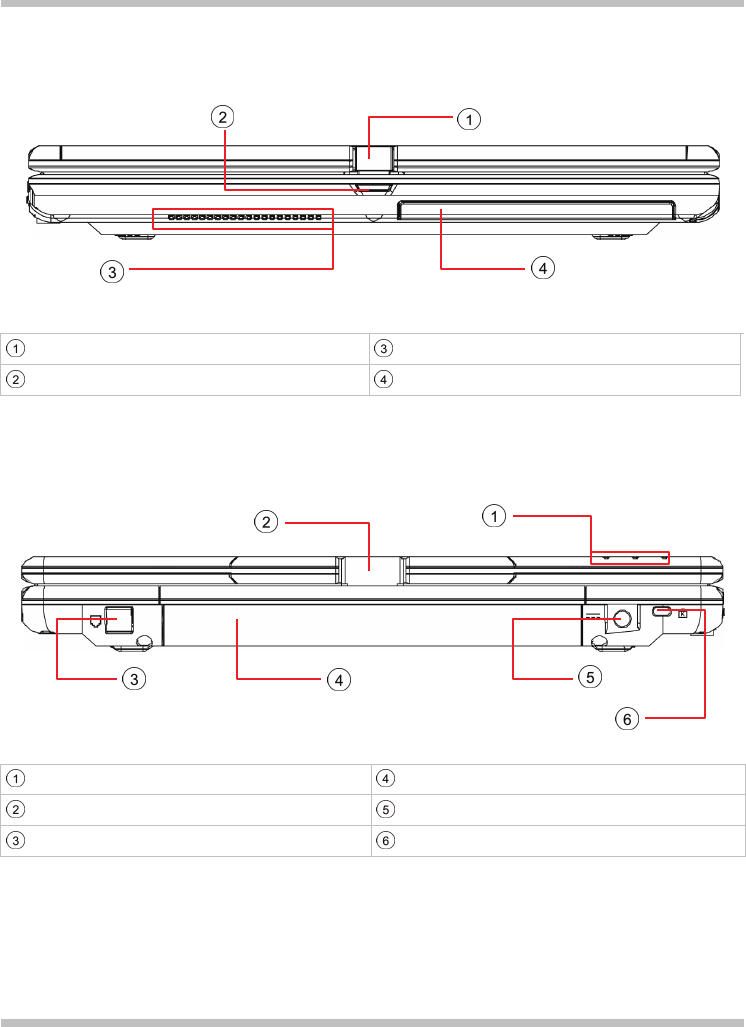

Front View
LCD Lock Ventilation Holes
LCD Latch HDD Door
Rear View
Three System LEDs Battery Pack
Rotation Hinge DC-In Jack
RJ11 Fax/Modem Connector Kensington Lock
Before You Begin User's Guide
Page 1-4

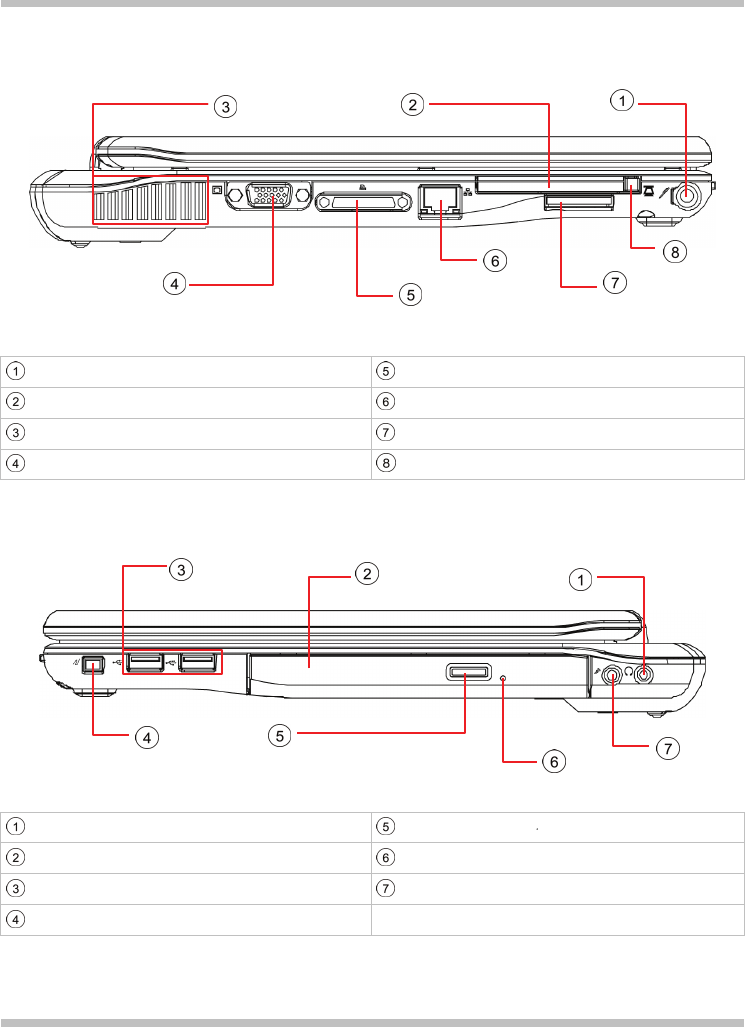

Left View
Stylus Slot Cable Docking (Optional) Connector
PCMCIA Slot RJ45 LAN Connector
Ventilation Holes Media Card Slot
VGA Connector PCMCIA Eject Handle
Right View
Headphone Jack (SPDIF) ODD Eject Button
ODD Drive Emergency Hole
Two USB Connectors Microphone Jack
IEEE1394 Connector
User's Guide Before You Begin
Page 1-5
Note: The stylus pen together with the system touch-screen LCD display provides
you a touch-screen operation by emulating the industry standard mouse right
click. You are advised to keep the stylus pen in the stylus slot when not in use.
Before You Begin User's Guide
Page 1-6

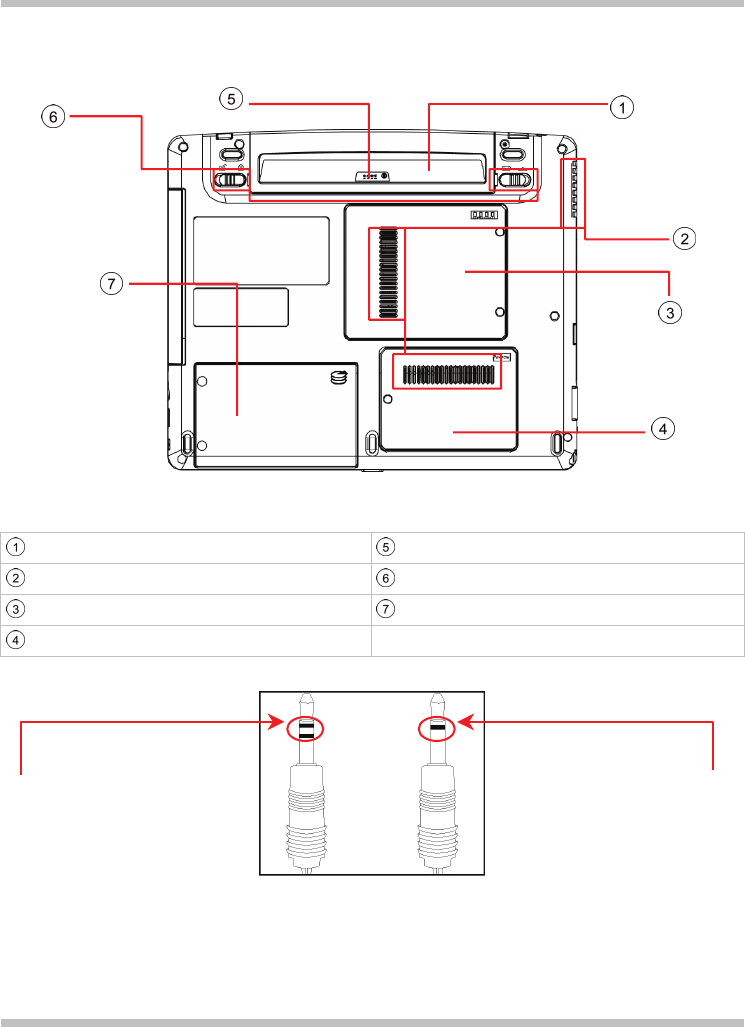

Bottom View
Battery Pack Battery Power Meter
Ventilation Holes Two Battery Latches
Memory Door HDD Door
Mini-PCI Express Door
Two Types of Audio Jack
Mono Jack:
Your microphone jet should
have this type of connector
as shown here.
Stereo Jack:
Your headphone jet should
have this type of connector
as shown here.
User's Guide Before You Begin
Page 1-7
1.3 The Three System LEDs
The Power LED
Below is how the LED would behave in different situations:
Off System is powered off, or in Hibernate mode.
On System is in full operation.
Blinking System is in Standby mode.
The Battery LED
Below is how the LED would behave in different situations:
Purple Battery pack is being recharged: fast-charge or pre-charge.
Blue Battery pack is in full power capacity.
Off Battery pack is not under recharge.
Red Blinking Battery pack is consuming down to 10% level.
Red Blinking Four
Times
Battery pack is consuming down to 6% level.
Red Battery pack error.
The Stylus LED
The LED would be lit and system would start to beep for about ten seconds
when the system is powered off or in hibernate mode, and the stylus pen is not
inserted into the slot.
Note: For exact location of these Three System LEDs, please refer to the Rear View
diagram in Chapter 1.2.
For more details on Standby and Hibernate, please refer to Power Options in
the Control Panel of your Microsoft Windows™ operating system.
Before You Begin User's Guide
Page 1-8
1.4 The Five Status LEDs
The Battery LED
Below is how the LED would behave in different recharge situations:
Purple Battery pack is being recharged: fast-charge or pre-charge.
Blue Battery pack is in full power capacity.
Off Battery pack is not under recharge.
Red Blinking Battery pack is consuming down to 10% level.
Red Blinking Four
Times
Battery pack is consuming down to 6% level.
Red Battery pack error.
The Wireless LAN LED
This LED would be lit when the wireless LAN module is powered on. For details
on how to power on the wireless LAN module, please refer to Chapter 1.6 and
Chapter 1.9.
The Caps Lock LED
The LED would be lit when the keyboard is in Caps Lock mode. In this mode,
all characters you type are in uppercase.
The Num Lock LED
This LED would be lit when the keyboard is in Num Lock mode. In this mode,
the embedded numeric keypads can be used.
The HDD LED
This LED would be lit when system is accessing the HDD drive.
Note: The Five Status LEDs are located near the left bottom of LCD display. For
exact location, please refer to the Panoramic View diagram in Chapter 1.2.
The Battery LED is also visible on the rear side of LCD display.
User's Guide Before You Begin
Page 1-9
1.5 The Power Button
The Power Button
This Power Button is programmable by user. For detail on how to program this
button, please refer to the Power Options of Control Panel in Windows™
System.
Note: The Power Button is located near the bottom left of LCD panel. For exact
location, please refer to the Panoramic View diagram in Chapter 1.2.
Before You Begin User's Guide
Page 1-10

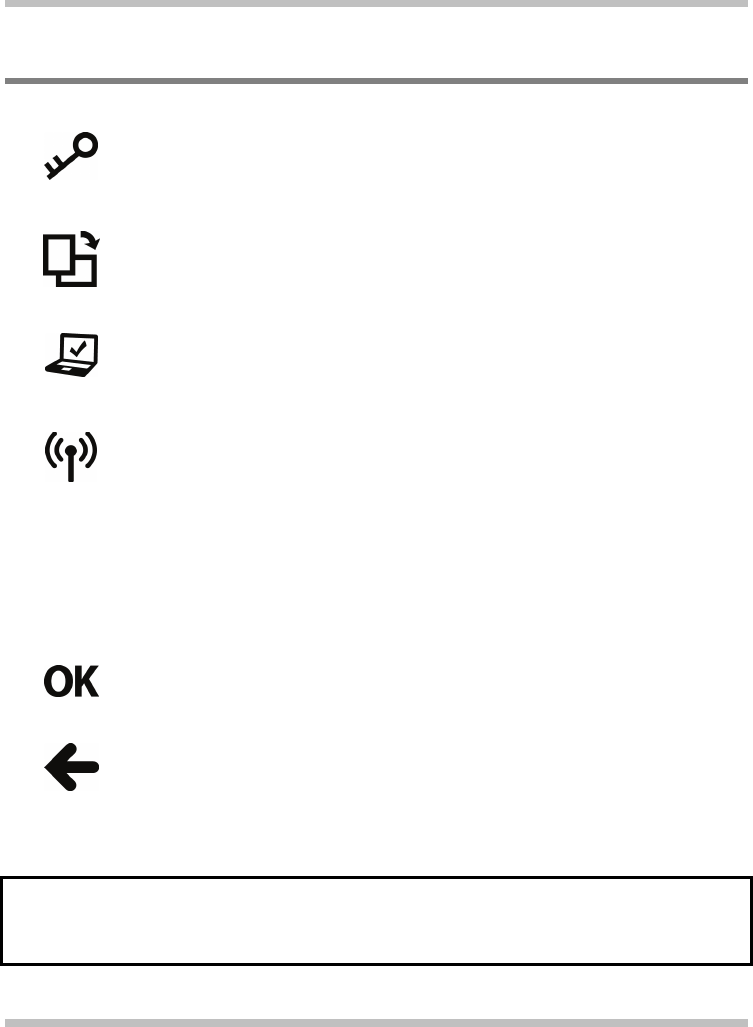

1.6 The Six System Buttons
The SAS (Alt+Ctrl+Del) Button
Press this switch to emulate Windows’ “Alt”, “Ctrl” and “Del” buttons pressed
simultaneously.
The Display Rotation Button
Press this button to rotate the image displayed on the LCD screen. Screen image
would rotate by an angle of 90 degree each time when this button is pressed.
The Mobility Center Button
Press this button to enter the menu of Windows Mobility Center in Windows
Vista™ operating system.
The Wireless LAN/ Bluetooth® Button
Press this button to power on and power off both the Wireless LAN and
Bluetooth® modules. Powering on the Wireless LAN and Bluetooth® by
pressing this button does not automatically activate the Wireless LAN and
Bluetooth® functions. After powering on, you need to activate the Wireless
LAN and Bluetooth® functions through Windows™. The main purpose of this
button is to provide you a quick way to turn off the power of Wireless LAN and
Bluetooth® when entering venues like airplanes, airports, and hospitals where
the usage of Wireless LAN and Bluetooth® are prohibited or not advisable.
The Enter Button
Press this button to emulate the function of “Enter”.
The Backspace Button
Press this button to emulate the function of “Back Space”.
Note: The Six System Buttons are located near the bottom of LCD display. For exact
location, please refer to the Panoramic View diagram in Chapter 1.2.
User's Guide Before You Begin
Page 1-11
Note: The proper way to activate Wireless LAN, and Bluetooth® is as below:
1) Press this Wireless LAN/ Bluetooth® Button to power on Wireless LAN and
Bluetooth® modules.
2) Activate the application programs in Windows™.
The effective range of the system Bluetooth® is 10 meters.
Before You Begin User's Guide
Page 1-12
1.7 Attention On PCMCIA And Media Card Sockets
Please observe below safety measures:
• Make sure the PCMCIA eject handle does not protrude out at all times, unless you are
using the handle to eject PCMCIA card. A protruded handle is prone to external
interference; such as ramming by an inkjet printer or external keyboard.
• When PCMCIA card is not inserted into the PCMCIA slot, make sure this slot is
covered by the “PCMCIA slot door” as supplied together with this notebook. The
purpose of this “PCMCIA slot door” is to prevent foreign matters from entering into
the system unit through this slot, when PCMCIA card is not inserted.

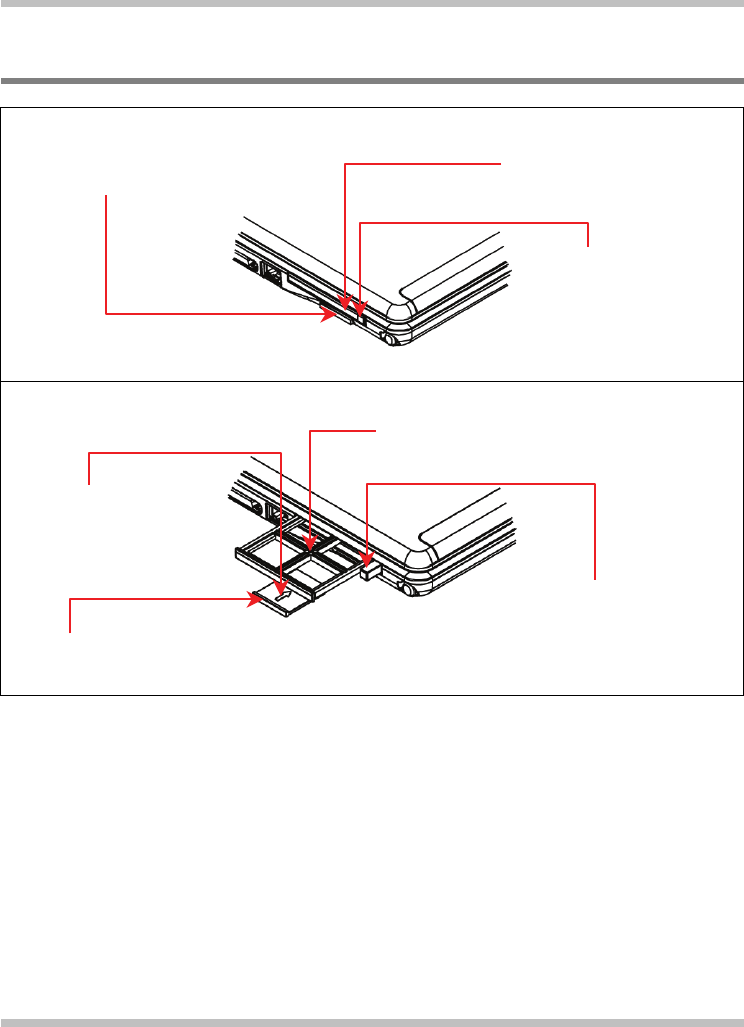

The PCMCIA eject
handle is now retracted
into the system unit.
The Media Card slot door is now taken out.
A
rrow on topside of
Media Card slot door.
The Media Card slot door is now
inserted into the system unit.
The PCMCIA slot door is
now inserted into the
system unit.
The PCMCIA eject handle is now
protruded outside the system unit.
The PCMCIA slot door is now being taken out.
User's Guide Before You Begin
Page 1-13
• When no card (SD/ MMC/ MS Cards) is inserted into the media card slot, make sure
this card slot is covered by the “media card slot door” as supplied together with this
notebook. The purpose of this “media card slot door” is to prevent foreign matters
from entering into the system unit through this card slot, when no card is inserted.
When inserting this “media card slot door”, please make sure the arrow is on the
topside as shown above. Inserting this door upside down may cause damage to your
notebook.
When you insert the PCMCIA slot door, make sure the orientation of the slot door is as
shown with the protrusion on the lower side. Inserting this door upside down may cause
damage to your notebook.
Protrusion
Before You Begin User's Guide
Page 1-14
1.8 Operating Temperature
Operating Temperature : 10ºC to 35ºC.
User's Guide Before You Begin
Page 1-15

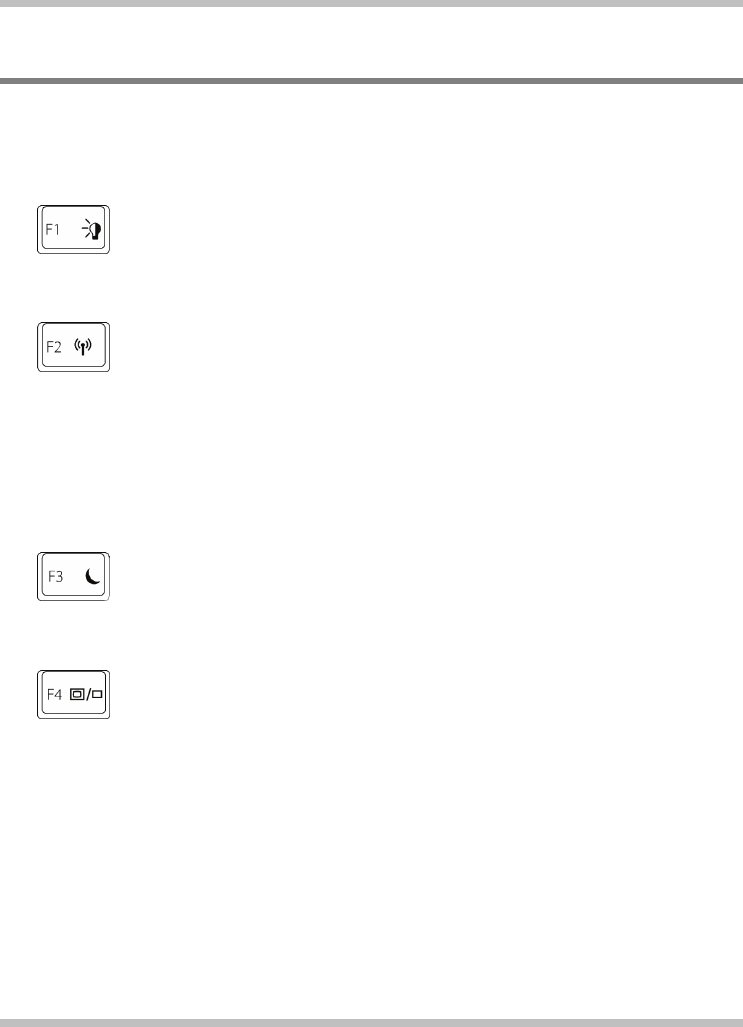

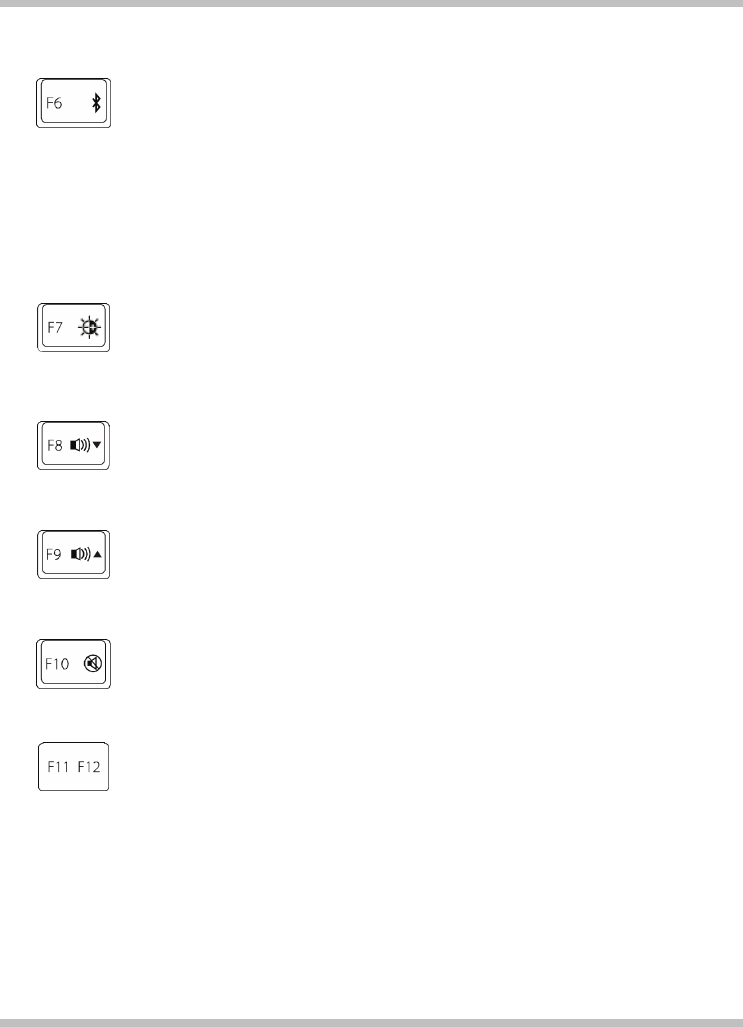

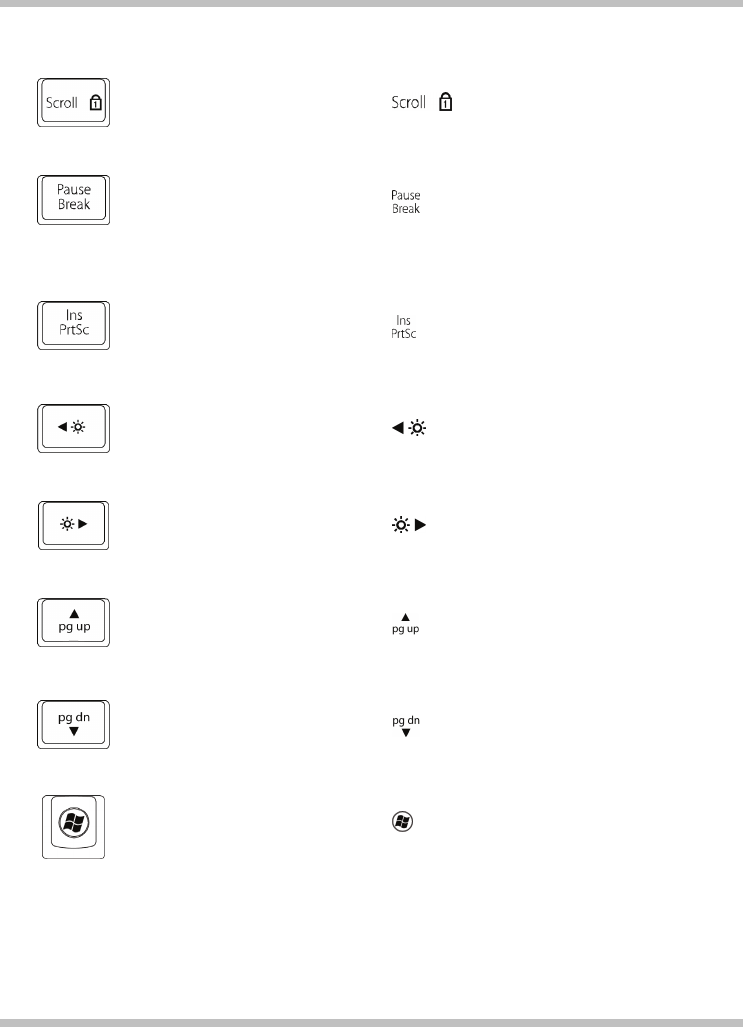

1.9 The <Fn> Key
The <Fn> Function Key is located near the bottom-left corner of the keyboard. This key is
used together with other keys to activate certain pre-defined functions. To activate these
functions, press and hold down <Fn> together with the keys described below:
LED Toggle
Press this key combination (Fn+F1) to toggle on and toggle off all LED lights.
To minimize visual distractions, you may like to toggle off all LED lights
during DVD software playback.
Wireless LAN Switch
Press this key combination (Fn+F2) to power on and power off the Wireless
LAN modules. Powering on the Wireless LAN by pressing this key
combination (Fn+F2) does not automatically activate the Wireless LAN
functions. After powering on, you need to activate the Wireless LAN
functions through Windows™. The main purpose of this key combination
(Fn+F2) is to provide you a quick way to turn off the power of Wireless
/LAN when entering venues like airplanes, airports, and hospitals where the
usage of Wireless WAN/LAN is prohibited or not advisable.
Sleep Switch
Press this key combination (Fn+F3) to enter sleep mode. In sleep mode, the
LCD display and selected devices would be switched off for less energy
consumption.
LCD/CRT Switch
Press this key function combination (Fn+F4) to switch between LCD only,
CRT only, and LCD/CRT simultaneously.
Before You Begin User's Guide
Page 1-16
Bluetooth Switch
Press this key combination (Fn+F6) to power on and power off the
Bluetooth® module. Powering on the Bluetooth® by pressing this key
combination (Fn+F6) does not automatically activate the Bluetooth®
function. After powering on, you need to activate the Bluetooth® function
through Windows™. The main purpose of this key combination (Fn+F6) is to
provide you a quick way to turn off the power of Bluetooth® when entering
venues like airplanes, airports, and hospitals where the usage of Bluetooth® is
prohibited or not advisable.
LCD Brightness Toggle
System supports eight levels of brightness. Press this key combination
(Fn+F7) to switch the LCD brightness between: maximum brightness,
minimum brightness, and user setting brightness.
Volume Decrease
Press this key combination (Fn+F8) to decrease the audio volume.
Volume Increase
Press this key combination (Fn+F9) to increase the audio volume.
Volume Mute/Un-mute
Press this key combination (Fn+F10) to mute and un-mute the audio volume.
F12 Function
Press the key combination (Fn+F11) to use F12 function. Function of this key
will vary a lot depending on which application programs (for example: Word,
and Excel) you are running.
User's Guide Before You Begin
Page 1-17
Num Lock Switch
Press this key combination (Fn+ ) to activate or deactivate the
embedded numeric keypads.
Break Switch
Press this key combination (Fn+ ) to break the MS-DOS application
program you are running. Its function is the same as the industry standard
“break” key.
Print Screen Switch
Press this key combination (Fn+ ) to capture the screen image. Its function
is the same as the industry standard “PrtSC” key.
Brightness Decreasing
Press this key combination (Fn+ ) to decrease brightness of LCD display.
Brightness Increasing
Press this key combination (Fn+ ) to increase brightness of LCD display.
Page Up
Press this key combination (Fn+ ) to move up one page of the document.
Page Down
Press this key combination (Fn+ ) to move down one page of the document.
System Restart
Press this key combination (Fn+ ) to emulate the industry standard of “Alt”,
“Ctrl” and “Del” being pressed simultaneously.
Before You Begin User's Guide
Page 1-18
Note regarding to brightness:
• LCD backlight would be off when system entered sleep mode.
• If system enters sleep mode when brightness level is set to minimum brightness by
means of pressing (Fn+F7), system would resume to its user setting brightness level after
resuming from sleep.
• System supports dual user setting brightness: specifically one for when system is
powered by AC source and another when system is powered by battery pack. If you
switch the system’s power source, LCD brightness would be adjusted automatically.
Note: The proper way to activate Wireless LAN, and Bluetooth® is as below:
1) Press this key combination (Fn+F2) to power on Wireless LAN.
2) Press this key combination (Fn+F6) to power on Bluetooth®.
3) Activate the application programs in Windows™.
The effective range of the system Bluetooth® is 10 meters.
User's Guide Battery
Page 2-1
Chapter 2 Battery
2.1 Battery Pack
Your notebook is equipped with a high-energy rechargeable Lithium Ion (Li-Ion) battery
pack. Battery life will vary depending on the product configuration, product model,
applications loaded on the product, power management settings of the product, and the
product features used by the customer. As with all batteries, the maximum capacity of this
battery will decrease with time and usage.
2.2 Recharging The Battery Pack
Your notebook supports both on-line and off-line recharge. Follow the procedure below to
recharge battery:
• Make sure the battery pack is installed in the notebook.
• Connect the AC adapter to the notebook and to an electrical outlet.
When a battery pack is being recharged, the battery LED (located near the rear side and left
bottom of LCD panel) would be lit. For details on the LED, please refer to Chapter 1.3.
When the notebook is OFF, a depleted Li-Ion battery will take three hours to recharge.
Battery User's Guide
Page 2-2
2.3 Questions And Answers
Q: I can feel a milder heat next to the battery pack during recharge. Is it normal?
A: The battery will generate heat during recharging and discharging. There is a
protection circuit inside the notebook to prevent overheating. User needs not to
worry.
Q: My battery operation time is not as long as it should be. Why?
A: The battery is heat sensitive and can only be charged to its maximum if the battery
and its environmental temperature remain within 15-25°C (59-77°F). The more the
temperature deviates from this range during recharging, the less chance there is for
the battery to be fully charged. In order to recharge the pack to its full capacity,
users are requested to cool down the unit by unplugging the AC Adapter. Wait until
it is cooled down. Then plug in the AC Adapter to start recharging again.
Q: I did not use my spare battery for a few days. Even though it was fully recharged,
there wasn't as much power left as a newly charged one. Why?
A: The batteries will self-discharge (1% per day for Li-Ion) when they are not being
recharged. To make sure a battery pack is fully charged, recharge before use.
Always keep the battery inside the notebook and have the AC adapter connected
whenever possible.
Q: I did not use my spare battery for months. I have problem in recharging it.
A: If you happen to leave your battery pack to go through an extended period of self-
discharge, say more than three months, the battery voltage level will become too
low and needs to be Pre-Charged (to bring the battery voltage level high enough)
before it automatically (for Li-Ion only) resumes its normal Fast Charge. Pre-
Charge may take 30 minutes. Fast Charge usually takes 2~3 hours.
User's Guide Battery
Page 2-3
2.4 Battery Maintenance
To maintain the battery pack's maximum capacity, you should occasionally let the
notebook deplete its battery power completely before recharging.
To carry out a complete depletion of the battery, disconnect the AC adapter and let your
notebook consume the remaining battery power. To speed up the depletion, use the HDD
as much as possible, and the LCD should be set as bright as possible. When the battery is
empty, wait for the notebook to cool down (especially the battery). The temperature should
be within 15-25°C (59-77°F). Then insert the AC adapter to recharge the battery.
2.5 Power Consumption
The Windows™ operating system has incorporated the latest state-of-the-art ACPI
(Advanced Configuration Power Interface) power management methodology. In order to
fully utilize the power of your battery packs, it would be a good idea for you to spend
sometime to acquire a basic understanding of the power management concept from your
operating system.
In Windows™ Operating Systems, you can go through Power Options of the Control
Panel according to the version of Windows™ Operating System the notebook applies.
We shall not describe them in details.
Battery User's Guide
Page 2-4
2.6 Reducing Power Consumption
Although your notebook (together with the operating system) is capable of power
conservation, there are measures you can take to reduce the power consumption:
• Use the AC power whenever possible.
• Lower the intensity of the LCD backlight. A very bright screen translates to higher
power usage.
• Try to use the HDD or the PCMCIA drive to read and write files, instead of using
the external USB FDD.
Note: When system is powered on, make sure the battery pack is installed in the
battery pack compartment.

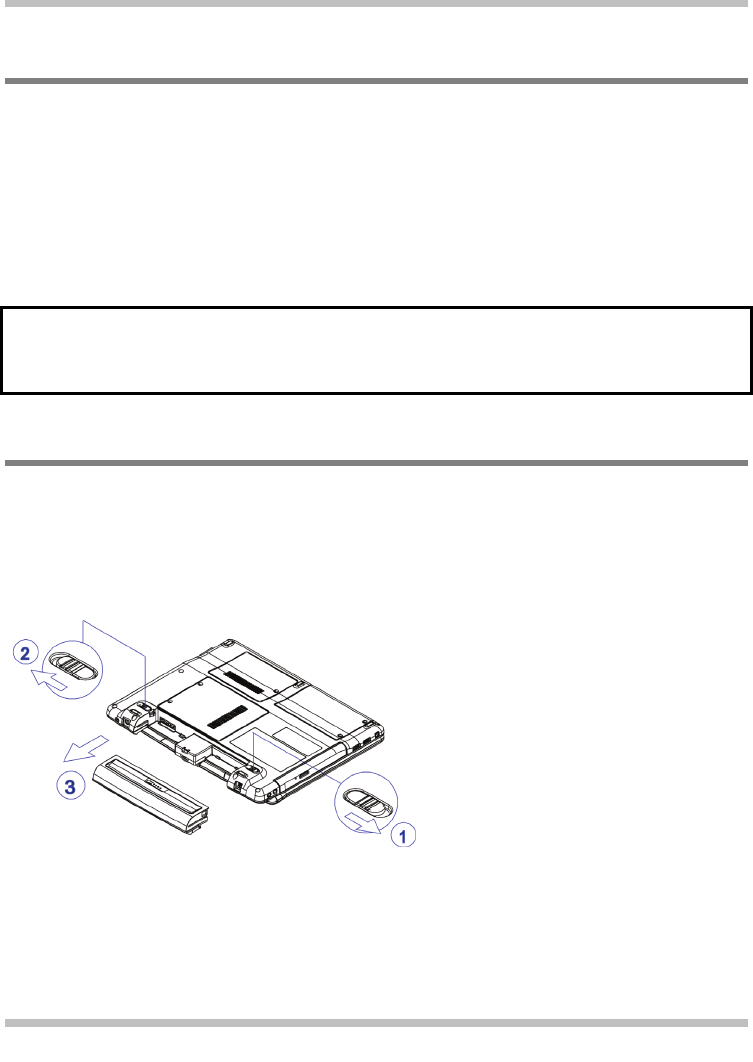

2.7 Removing The Battery Pack
This battery pack can easily be removed and replaced. Make sure that the computer is
properly shutdown before changing the battery pack. If you would like to change the
battery pack while power is on, make sure this battery pack is not the only electrical source
to the system unit. Follow the steps below to remove the battery pack.
• Make sure the system is properly
shutdown.
• Flip the system upside down as
shown.
• Push the battery latch to unlock
position as shown by #1.
• Push the battery latch to unlock
position as shown by #2.
• Maintain the two battery latches
in unlock positions.
• Remove the battery pack as
shown by #3.
To insert the battery pack, reverse the steps above.
User's Guide Memory
Page 3-1
Chapter 3 Memory

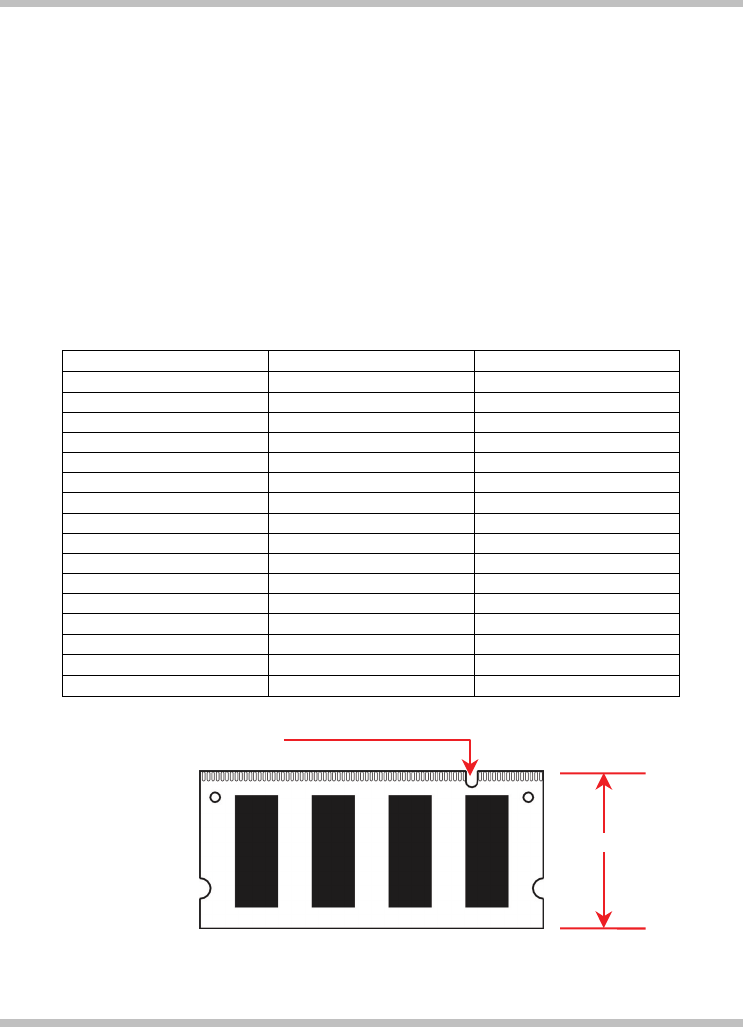

Your notebook is equipped with a configurable memory unit. The industry standard
JEDEC DDR2 S.O.DIMM memory module sockets are available for memory upgrade to
4096MB. The table below illustrates all the possible ways system memory can be
configured.
Your notebook supports the below industry standard memory modules: PC4300 (DDR2-
533), and PC5300 (DDR2-667). If it occurs that different standards of memory module are
installed into the system (with one module in socket#1 and another in socket#2), the overall
speed would be downgraded to the lower standard of the two standards.
Total Memory Socket#1 Socket#2
256MB 0MB 256MB
256MB 256MB 0MB
512MB 0MB 512MB
512MB 256MB 256MB
512MB 512MB 0MB
768MB 256MB 512MB
768MB 512MB 256MB
1024MB 0MB 1024MB
1024MB 512MB 512MB
1024MB 1024MB 0MB
1280MB 256MB 1024MB
1280MB 1024MB 256MB
1536MB 512MB 1024MB
1536MB 1024MB 512MB
2048MB 1024MB 1024MB
4096MB 2048MB 2048MB
DDR2 S.O. DIMM Memory Module
Groove for indicating the
orientation of the module
1.25” max
Memory User's Guide
Page 3-2
3.1 Removing Memory Module
Below is the procedure on how to remove the memory module.
• Make sure the system is properly
shutdown.
• Flip the system upside down as
shown.
• Remove the battery pack as
shown in Chapter 2.
• Remove the two screws as
shown by #1.
• Remove the compartment door
as shown by #2.
• Press the spring-locks sideways
as shown by #1.
• The first memory module would
pop up as shown by #2.
• Remove the first memory module
as shown by #3.
Two Memory Modules
User's Guide Memory
Page 3-3
• Press the spring-locks sideways
as shown by #1.
• The second memory module
would pop up as shown by #2.
• Remove the second memory
module as shown by #3.
To insert the memory modules, reverse the steps above.
Memory User's Guide
Page 3-4
This page is left blank intentionally.
User's Guide The Hard Disk Drive
Page 4-1
Chapter 4 The Hard Disk Drive
Your notebook is equipped with an industry standard 2.5”/9.5mm hard disk drive.

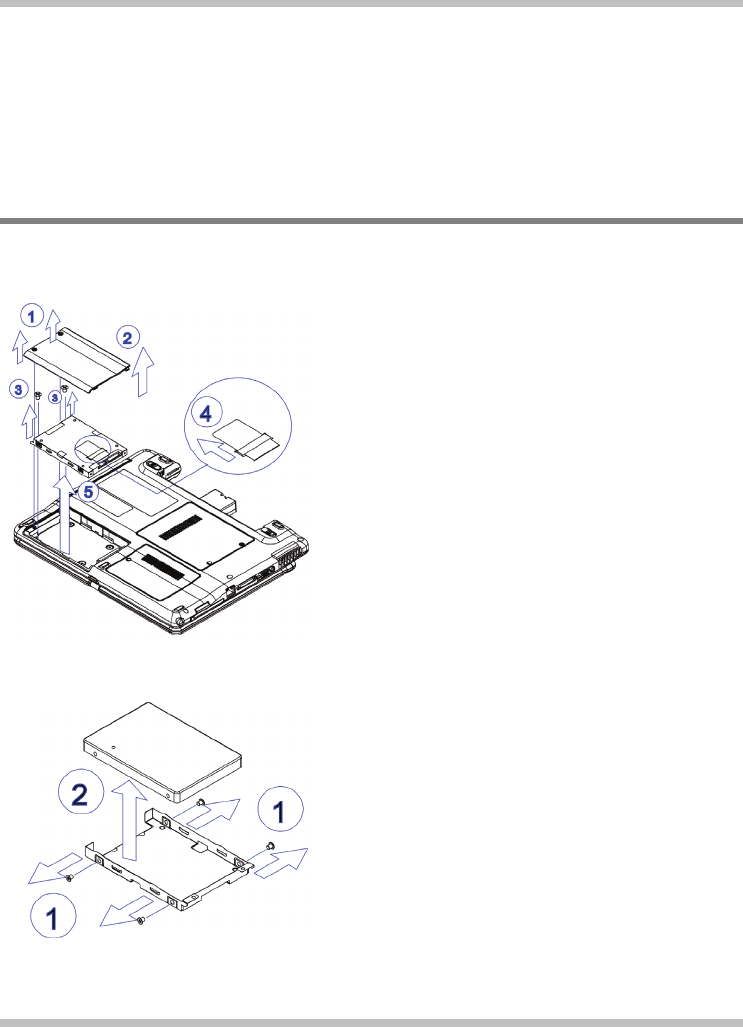

4.1 Removing The Hard Disk Drive
Below is the procedure on how to remove the hard disk drive.
• Make sure the system is properly
shutdown.
• Flip the system upside down as
shown.
• Remove the battery pack as shown in
Chapter 2.
• Remove the two screws as shown by
#1.
• Remove the HDD door as shown by
#2.
• Remove the two screws as shown by
#3.
• Pull the belt to disconnect HDD
module from the system unit as
shown by #4.
• Remove the HDD module as shown
by #5.
• Remove the four screws as shown by
#1.
• Remove the HDD drive as shown by
#2.
To insert the HDD drive, reverse the steps above.
The Hard Disk Drive User's Guide
Page 4-2
This page is left blank intentionally.
User’s Guide Appendix A
Page A-1
Appendix A - Agency Regulatory Notices
A.1 Safety Instructions
CAUTION: Please read these safety instructions carefully.
CAUTION: Please keep this User's Manual for future reference.
CAUTION: Please disconnect this equipment from AC outlet before
cleaning. DO NOT use liquid or sprayed detergent for cleaning. Use a clean
moistened cloth.
CAUTION: The wall socket used should be positioned near the equipment
and should be easily accessible.
CAUTION: Please keep this equipment free from humidity.
CAUTION: Place the equipment on a reliable surface at all times. A drop or
fall can cause severe damage.
WARNING: The openings of the enclosure are for air ventilation and are
meant to protect the equipment from overheating. DO NOT COVER THE
VENTILATION OPENINGS.
Appendix A User's Guide
Page A-2
CAUTION: Verify the voltage of the power source before connecting the
unit to any power outlet.
WARNING: DO NOT step on or place anything over the power cord.
CAUTION: All cautions and warnings on the equipment should be noted.
WARNING: If the equipment is not used for a long period of time,
disconnect the equipment from the power source to avoid damage from power
spikes.
WARNING: NEVER pour any liquid into any openings; a fire or electrical
shock is possible.
WARNING: For safety reasons, other than pre-designated ports, doors, and
the equipment should be opened only through qualified service personnel.
CAUTION: If one of the following situations should arise, the equipment
should be checked by an authorized technician:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to excessive moisture.
d. The equipment does not work well, or you fail to get it to work
according to user's manual.
e. The equipment has been dropped or damaged.
f. The equipment has obvious signs of breakage.
User’s Guide Appendix A
Page A-3
CAUTION: DO NOT LEAVE THE EQUIPMENT IN TEMPERATURES
BELOW -20ºC(-4ºF) OR ABOVE 60ºC(140ºF). IT MAY CAUSE
DAMAGE TO THE EQUIPMENT.
WARNING: Never install modem/telephone wiring during a lightning
storm.
WARNING: Never install modem/telephone jacks in wet locations unless
the jack is specially designed for wet locations.
WARNING: Never touch un-insulated modem/telephone wires or terminals
unless the modem/telephone line has been disconnected at the network
interface.
CAUTION: Use caution when installing or modifying modem/telephone
lines.
WARNING: Avoid using a modem/telephone (other than a cordless type)
during an electrical storm. There may be a remote risk of electric shock from
lightning.
WARNING: This computer contains an internal lithium battery-powered
real-time circuit. There is a risk of explosion and injury if the battery is
incorrectly replaced or handled. Do not attempt to recharge, disassembled,
immerse in water, or dispose of it in fire. Replacement should be done through
your notebook dealer.
Appendix A User's Guide
Page A-4
WARNING: THE CD-ROM/DVD-ROM IN THIS NOTEBOOK
EMPLOYS A LASER SYSTEM.
a. To ensure proper use of this product, please read the relevant
instructions carefully and retain for future reference.
b. Should the unit ever require maintenance, contact your local dealer.
c. Use of controls, adjustments or the performance of procedures other
than those specified may result in hazardous radiation exposure.
d. To prevent direct exposure to Laser Beam, do no try to open the
enclosure.
CAUTION: The internal CD-ROM/DVD-ROM drive is classified as a
CLASS 1 LASER PRODUCT. Label is located on the outside of the CD-
ROM/DVD-ROM drive with the following wordings:
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
WARNING: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s instructions.
Explosionsgefahr bei unsachgemäßen Austausch der Batterie. Ersatz nur durch
denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung
gebrauchter Batterien nach Angaben des Herstellers.
WARNING: Your notebook contains a Ni-MH or Li-Ion battery pack.
There is a risk of fire and chemical burn if the battery pack is handled
improperly. Do not disassemble, crush, puncture, short external contact, dispose
of in water or fire, or expose it to temperature higher than 60ºC.
User’s Guide Appendix A
Page A-5
WARNING: Handle the battery pack very carefully. Avoid touching the
metal leads on the connector of the battery case.
CAUTION: Use only approved AC Adapter with your notebook. Using the
wrong type of AC Adapter may cause serious damage to your notebook.
CAUTION: The AC Adapter can accept a line voltage ranging from 100V to
240V and is compatible with most international power sources. If you are
unsure whether your power source is compatible, please contact the local dealer
for assistance.
CAUTION: To reduce the risk of fire, use only No. 26 AWG or larger
telecommunication line cord.
CAUTION: For continued protection against risk of fire, Replace only with
same type and rating of fuse.
CAUTION: If the computer is not sold to German area, please use only the
local recognized power supply cords that are recommended by the
manufacturer.
WARNING: Don't expose your notebook to excessive heat or coldness
(frost). Don't drop, spill fluids or open the exterior of the case. This can damage
the notebook and void the warranty.
Appendix A User's Guide
Page A-6
A.2 Agency Notice
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this
device that are not expressly approved by the manufacturer responsible for compliance may
void the user’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI
connector hoods to maintain compliance with FCC Rules and Regulations.
User’s Guide Appendix A
Page A-7
FCC RF Radiation Exposure Statement
• If this device is going to be operated in 5.15 ~5.25GHz frequency range, then it is
restricted in indoor environment only.
USA and Canada Safety Requirements And Notices
The FCC with its action in ET Docket 93-62 has adopted a safety standard for human
exposure to radio frequency (RF) electromagnetic energy emitted by FCC certified
equipment. The Intel PRO/Wireless LAN MiniPCI Adapter products meet the Human
Exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE C95.1, 1992. Proper
operation of this radio according to the instructions found in this manual will result in
exposure substantially below the FCC’s recommended limits.
The following safety precautions should be observed:
• Do not touch or move antenna while the unit is transmitting or receiving.
• Do not hold any component containing the radio such that the antenna is very close or
touching any exposed parts of the body, especially the face or eyes, while transmitting.
• Do not operate the radio or attempt to transmit data unless the antenna is connected; if
not, the radio may be damaged.
Use in specific environments:
• The use of wireless devices in hazardous locations is limited by the constraints posed
by the safety directors of such environments.
• The use of wireless devices on airplanes is governed by the Federal Aviation
Administration (FAA).
• The use of wireless devices in hospitals is restricted to the limits set forth by each
hospital.
Explosive Device Proximity Warning
Warning: Do not operate a portable transmitter (such as a wireless network device) near
unshielded blasting caps or in an explosive environment unless the device has been
modified to be qualified for such use.
Appendix A User's Guide
Page A-8
Use On Aircraft Caution
Caution: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency
wireless devices because their signals could interfere with critical aircraft instruments.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Avis Canadien
Cet appareil numerque de la classe B respecte toutes les exigences du Reglement sur le
materiel brouilleur du Canada.
Canada Radio Frequency Interference Requirements
This Class B digital apparatus complies with Canadian ICES-003, Issue 2, and RSS-210,
Issue 4 (Dec. 2000).
“To prevent radio interference to the licensed service, this device is intended to be operated
indoors and away from windows to provide maximum shielding. Equipment (or its transmit
antenna) that is installed outdoors is subject to licensing.”
Cet appareil numérique de la classe B est conforme à la norme NMB-003, No. 2, et CNR-
210, No. 4 (Dec. 2000).
“Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une
licence, il doit être utilizé à l’intérieur et devrait être placé loin des fenêtres afin de fournir
un écran de blindage maximal. Si le matériel (ou son antenne d’émission) est installé à
l’extérieur, il doit faire l’objet d’une licence.”
European Union Notice
Product with the CE Marking comply with the EMC Directive (89/336/EEC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community and
if this product has telecommunication functionality, the R&TTE Directive (1999/5/EC).
Compliance with these directives implies conformity to the following European Norms (in
parentheses are the equivalent international standards and regulations):
• EN55022 (CISPR 22)⎯ Electromagnetic Interference
• EN55024 (IEC61000-4-2,3,4,5,6,8,11)⎯ Electromagnetic Immunity
• EN61000-3-2⎯ (IEC61000-3-2)-Power Line Harmonics
• EN61000-3-3⎯ (IEC61000-3-3)-Power Line Flicker
• EN60950 (IEC60950) ⎯ Product Safety
User’s Guide Appendix A
Page A-9
For devices with built-in wireless equipment, the following additional standards apply:
• ETSI301489-17: General Emissions for Radio Equipment
• EN60950: Safety
• ETSI300328-2: Technical Requirements for Radio Equipment
CE Caution: Due to the fact that the frequencies used by 802.11b/802.11g wireless
LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are
designed for use only in specific countries or regions, and are not allowed to be operated in
countries or regions other than those of designated use. As a user of these products, you are
responsible for ensuring that the products are used only in the countries or regions for
which they were intended and for verifying that they are configured with the correct
selection of frequency and channel for the country or region of use. And deviation from
permissible settings and restrictions in the country or region of use could be an
infringement of local law and may be punished as such.
The wireless LAN device can currently be used indoors only in the following departments
of mainland France.
01 Ain 36 Indre 69 Rhône
02 Aisne 37 Indre et Loire 70 Haute Saône
03 Allier 39 Jura 71 Saône et Loire
05 Hautes Alpes 41 Loir et Cher 72 Sarthe
08 Ardennes 42 Loire 75 Paris
09 Ariège 45 Loiret 77 Seine et Marne
10 Aube 50 Manche 78 Yvelines
11 Aude 54 Meurthe et Moselle 79 Deux Sèvres
12 Aveyron 55 Meuse 82 Tarn et Garonne
16 Charente 57 Moselle 84 Vaucluse
19 Corrèze 58 Nièvre 86 Vienne
2A Corse Sud 59 Nord 88 Vosges
2B Haute Corse 60 Oise 89 Yonne
21 Côte d’Or 61 Orne 90 Territoire de Belfort
24 Dordogne 63 Puy du Dôme 91 Essonne
25 Doubs 64 Pyrénées Atlantique 92 Hauts de Seine
26 Drôme 65 Haute Pyrénées 93 Seine St Denis
27 Eure 66 Pyrénées Orientales 94 Val de Marne
32 Gers 67 Bas Rhin
35 Ille et Vilaine 68 Haut Rhin
The wireless LAN device cannot currently be used in any departments of mainland France
other than those listed above.
Appendix A User's Guide
Page A-10
Maximum allowable EIRP 802.11b wireless LAN cards in the mainland departments of
France not shown in the table above are as follows: (See the ART website at www.art-
telecom.fr for information on the French overseas territories.)
Frequency Ranges (MHz) Indoors Outdoors
2400 – 2446.5 10 mW Not permitted
2446.5 – 2483.5 100 mW 100 mW on private property
with Ministry of Defense
approval

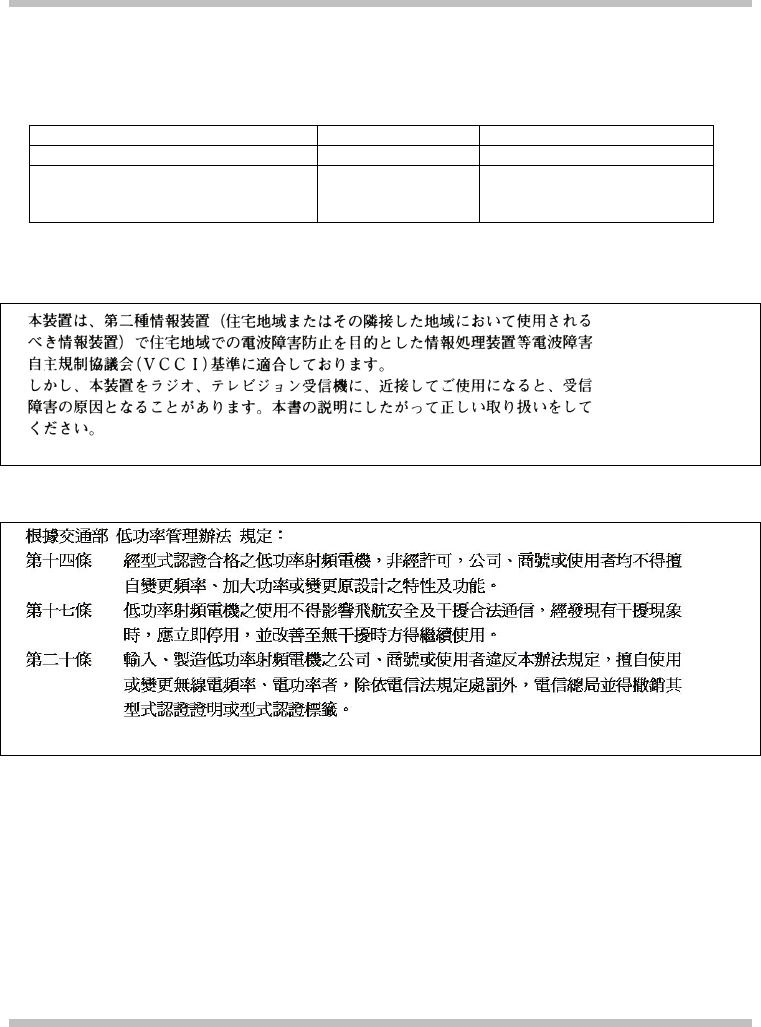

Japanese Notice
DGT Statement
User’s Guide Appendix A
Page A-11
U.S. Regulations Governing the Use of Modems
This equipment complies with Part 68 of the FCC Rules. On this equipment is a label that
contains, among other information, the FCC registration number and Ringer Equivalence
Number (REN) for this equipment. You must, upon request, provide this information to
your telephone company.
If your telephone equipment harms the telephone network, the Telephone Company may
discontinue your service temporarily. If possible, they will notify in advance. But, if
advance notice is not practical, you will be notified as soon as possible. You will be
informed of your right to file a compliant with the FCC.
Your telephone company may make changes in its facilities, equipment, operations, or
procedures that could affect proper operation of your equipment. If they do, you will be
notified in advance to give you an opportunity to maintain uninterrupted telephone service.
The FCC prohibits this equipment to be connected to party lines or coin-telephone service.
In the event that this equipment should fail to operate properly, disconnect the equipment
from the phone line to determine if it is causing the problem. If the problem is with the
equipment, discontinue use and contact your dealer or vendor.
The FCC also requires the transmitter of a FAX transmission be properly identified (per
FCC Rules Part 68, Sec 68.381 (C) (3)).
Japanese Modem Notice
U.K. Modem Compliance Information
This modem is approved by the secretary of state at the Department of Trade and Industry
for connection to a single exchange line of the public switched telephone network run by
certain licensed public telecommunication operators or system connected there to (Direct
exchange lines only, not shared service or 1-1 carrier systems).
Appendix A User's Guide
Page A-12
This modem is also suitable for connection to Private Automatic Branch Exchange (PABX),
which return secondary proceeding indication.
If this modem is to be used with a PBX which has extension wiring owned by BT,
connection of the modem the PBX can only be carried out by BT; or by the authorized
maintainer of the PBX unless the authorized maintainer has been given 14 days written
notice that the connection is to be made by another person; and that period of notification
has expired.
This modem is suitable for use only on telephone lines proved with Loop Disconnect or
Multi-Frequency Dialing Facilities.
Users of this modem are advised that the approval is for connection to the PSTN via the
telephone line interface supplied with it. Connection of a modem to the PSTN by any other
means will invalidate the approval.
There is no guarantee of correct working in all circumstances. Any difficulties should be
referred to your supplier.
Some network operators require that intended users of their network request permission to
connect and for the installation of an appropriate socket.
The Ringer Equivalence Number (REN) of this modem is 1. REN is guide to the
maximum number of apparatus that can simultaneously be connected to one telephone line.
The REN value of each apparatus is added together, and should not exceed 4. Unless
otherwise marked, a telephone is assumed to have a REN of 1.
This modem is only approved for use of the following facilities:
• Storage of telephone numbers for retrieval by a predator mined code.
• Initial proceed indication detection.
• Automatic calling / automatic answering.
• Tone detection.
• Loud-speaking facility.
This modem is not approved for connection to U.K./private speech-band services. This
modem does not support an automatic re-dial function. Any other usage will invalidate the
approval of your modem, if as a result, it then ceases to confirm to the standards against
which approval was granted. The approval of this modem is invalidated if the apparatus is
subject to modification in any material way not authorized by the BABT or if it is used
with, or connected to external software that have not been formally accepted by BABT.
