Valve Connectors
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Accessories ............................2
DIN Form A ..........................3-4
DIN Form B .............................5
I/S Form B ..............................6
DIN Form C ............................7
I/S Form C ..............................8
MDC Receptacle & Plug Versions ....9-15
Valve Connectors
U-2
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Valve Connectors
DIN Form A (VA Series) Formed Gasket
View Material Part Number
Thermoplastic V-GPRA
Male Bases: All connectors are made via solder tabs.
View # of Poles Maximum
Conductor Size Maximum
Voltage Material Part Number
2 + Ground 16 AWG 250 VAC Polyamide VMA-020-00
3 + Ground 16 AWG 250 VAC Polyamide VMA-030-00
Solenoid Valve Connectors

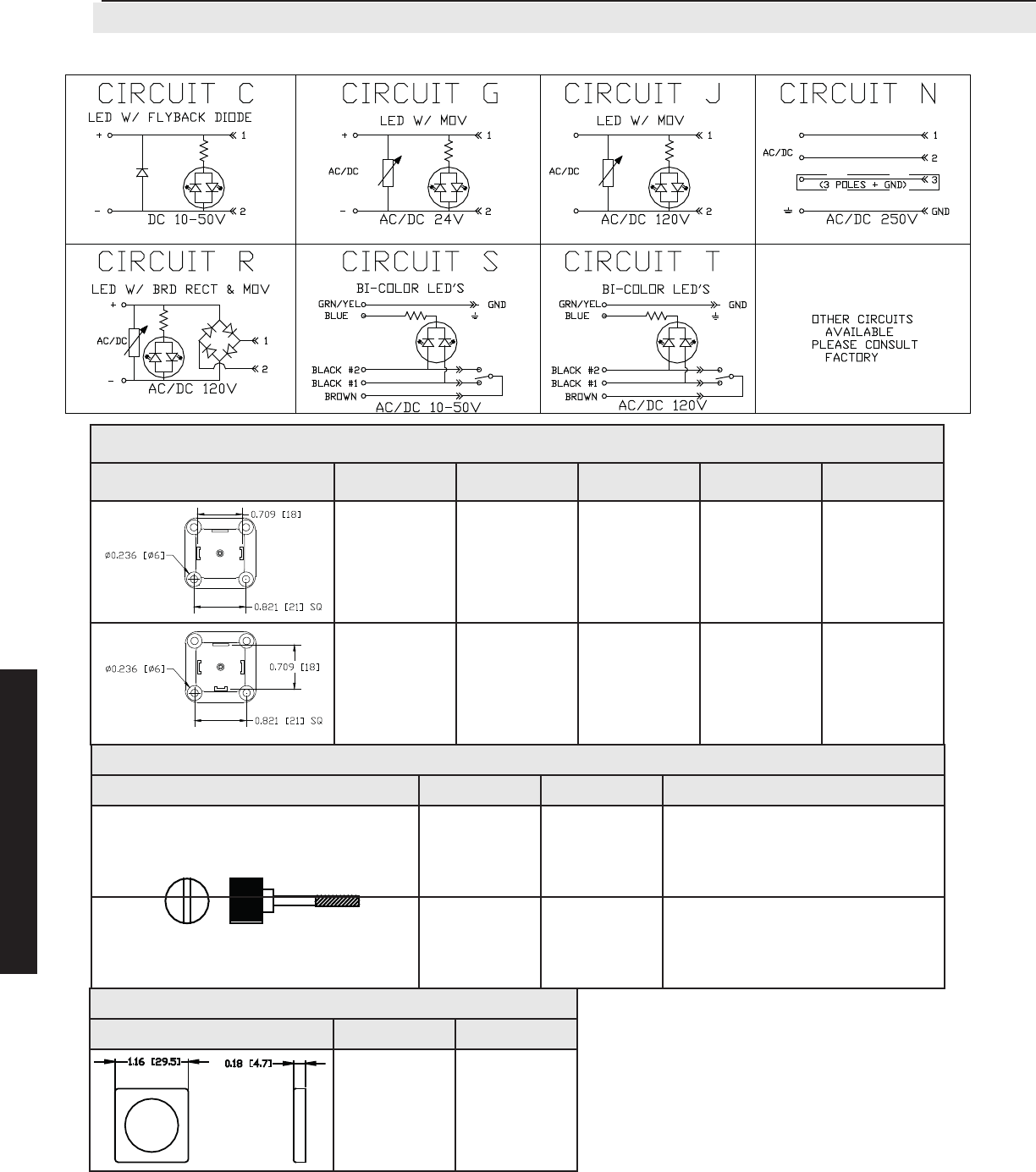

Circuit Diagrams Accessories
Valve Connectors with LEDs and surge suppression aides in diagnostics and protection of equipment.
All Valve Connectors come standard with
mounting screws and a fl at gasket.
Thumb Screws
View Material Part Number Form Style
Nickel Plated
Copper Alloy V-25TB
Cable Version Form A (VA Series)
Cable Version Form B (VB Series)
Cable Version Industry Standard B (VD Series)
Field Wireable Industry Standard C (VE Series)
Nickel Plated
Copper Alloy V-30TB Field Wireable Form A (VA Series)
Field Wireable Form B (VB Series)
Field Wireable Industry Standard B (VD Series)
U-3
Valve Connectors
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Solenoid Valve Connectors

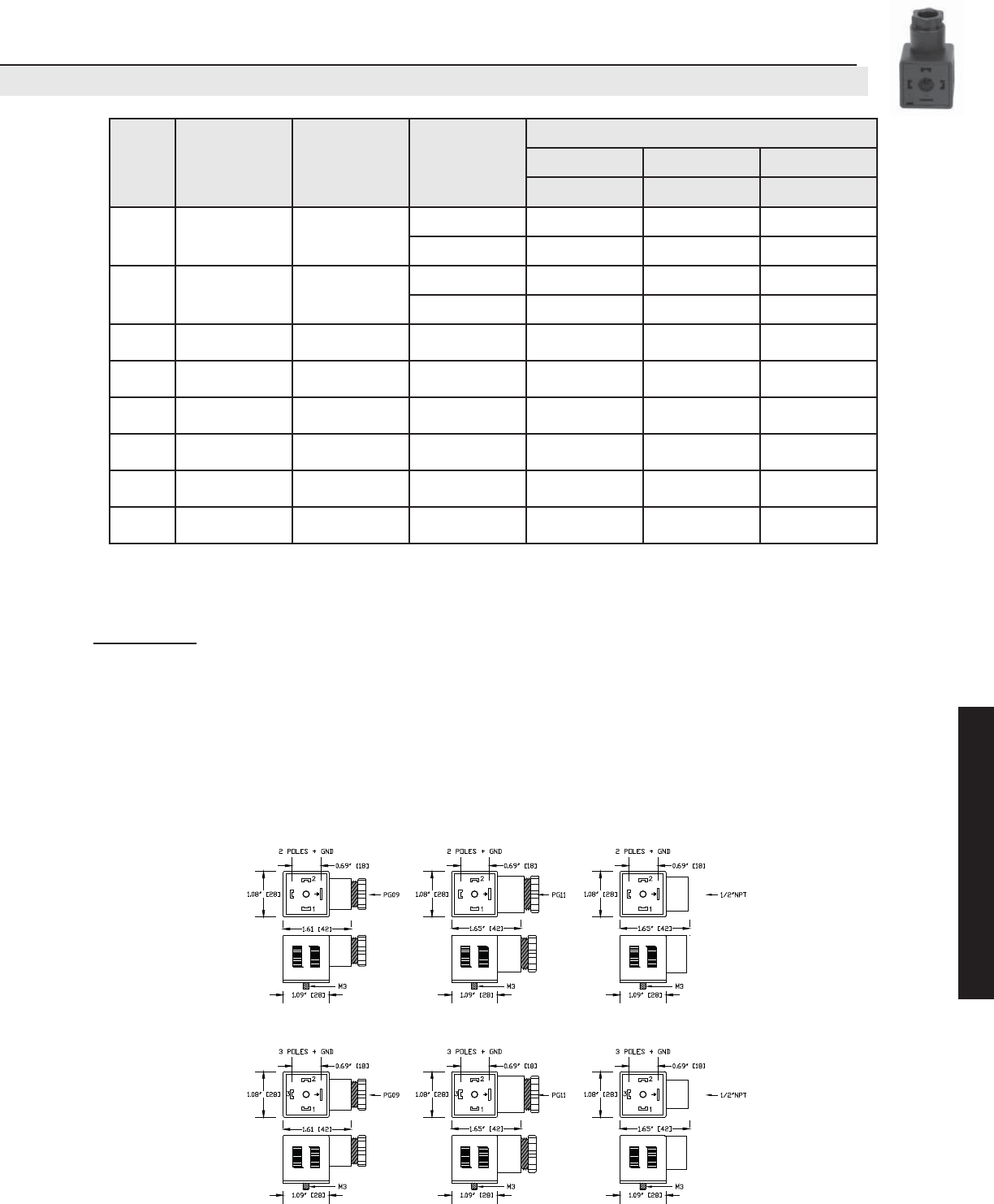

Field Wireable DIN 43650 Form A
The ground position is not applicable for fi eld wireable versions.
Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Range: PG 9 - 6 to 8 mm
PG 11 - 8 to 10 mm
Temperature: -40ºC to 125ºC (-40ºF to +257ºF)
Protection: IP 65
# of
Poles Voltage Circuitry Housing
Color
Field WIreable Style
1/2” NPT PG9 PG11
Conduit 6 to 8 mm
Cables 8 to 10 mm
Cables
2 +
Ground 250V AC/DC
(maximum) None Gray N/A VFN-029-00 VFN-021-00
Black VAN-022-00 VAN-029-00 VAN-021-00
3 +
Ground 250V AC/DC
(maximum) None Gray N/A VFN-039-00 VFN-031-00
Black VAN-032-00 VAN-039-00 VAN-031-00
2 +
Ground 10-50V DC LED
w/ Flyback Diode Clear VAC-022-00 VAC-029-00 VAC-021-00
2 +
Ground 24V AC/DC LED
w/ MOV Clear VAG-022-00 VAG-029-00 VAG-021-00
2 +
Ground 120V AC/DC LED
w/ MOV Clear VAJ-022-00 VAJ-029-00 VAJ-021-00
2 +
Ground 120V AC/DC Bridge Rectifi er
w/ LED & MOV Clear VAR-022-00 VAR-029-00 VAR-021-00
3 +
Ground 10-50V AC/DC 2-LED
Amber & Green Clear N/A VAS-039-00 VAS-031-00
3 +
Ground 120V AC/DC 2-LED
Amber & Green Clear N/A VAT-039-00 VAT-031-00
U-4
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Valve Connectors
* Formerly Blue
Solenoid Valve Connectors

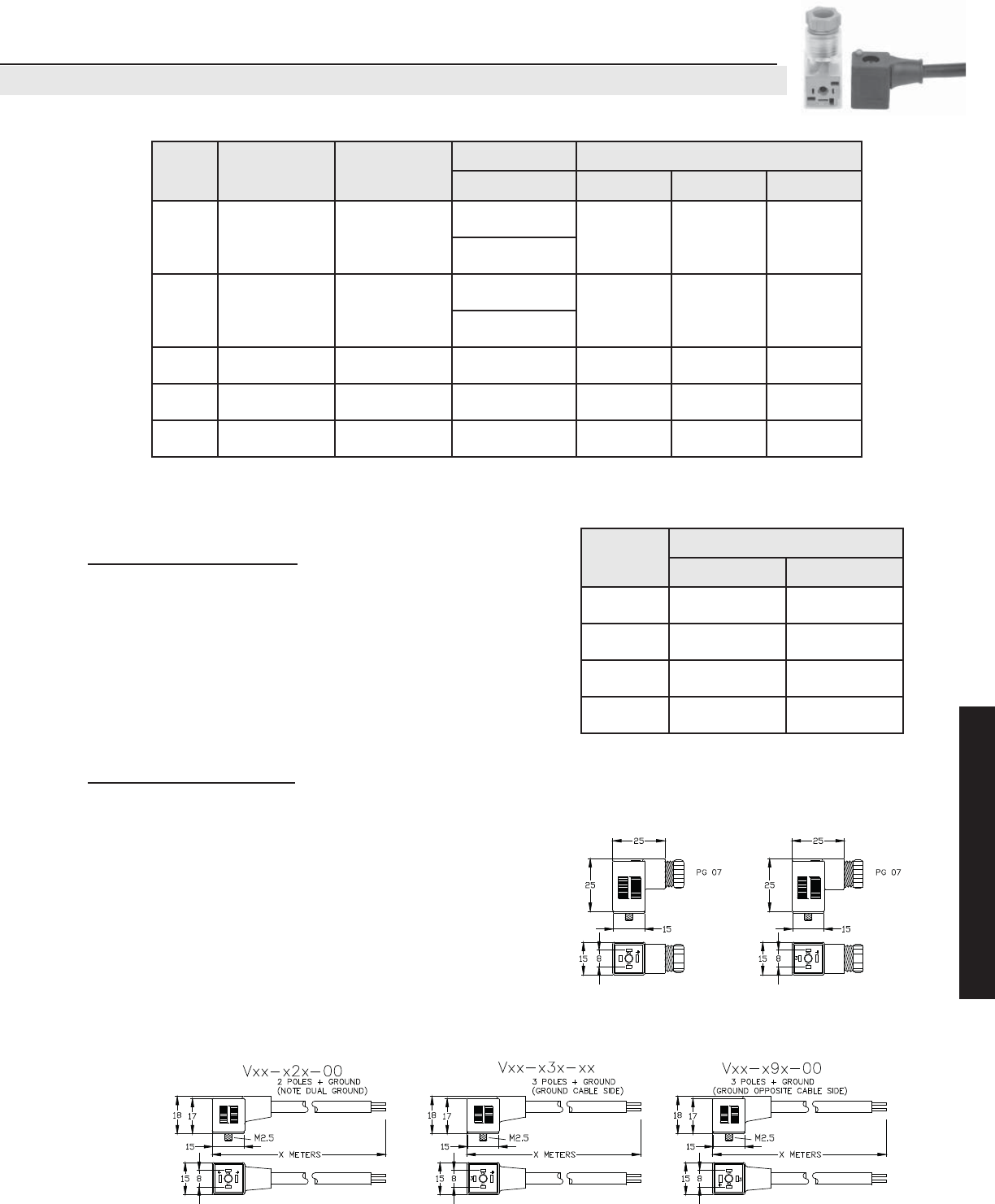

Cabled Versions DIN 43650 Form A
For cables with 3 + Ground, two standard orientations are available. Please refer to the part number system shown
above each drawing shown below.
Specifi cations:
Body: Black Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Cable: Black PVC
2 Pole: 3x18 AWG; Cable O.D.: 0.26”
3 Pole: 4x18 AWG; Cable O.D.: 0.27”
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
**2 Ground locations available for 3+ Ground versions.
# of
Poles Voltage Circuitry Prewired Versions
2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VAN-220-00 VAN-520-00 VAN-A20-00
3 +
Ground 250V AC/DC
(maximum) None VAN-230-00** VAN-530-00** VAN-A30-00**
2 +
Ground 10-50V DC LED
w/ Flyback Diode VAC-220-00 VAC-520-00 VAC-A20-00
2 +
Ground 24V AC/DC LED
w/ MOV VAG-220-00 VAG-520-00 VAG-A20-00
2 +
Ground 120V AC/DC LED
w/ MOV VAJ-220-00 VAJ-520-00 VAJ-A20-00
2 +
Ground 120V AC/DC Bridge Rectifi er
w/ LED & MOV VAR-220-00 VAR-520-00 VAR-A20-00
3 +
Ground 10-50V AC/DC 2-LED
Amber & Green VAS-230-00 VAS-530-00 VAS-A30-00
3 +
Ground 120V AC/DC 2-LED
Amber & Green VAT-230-00 VAT-530-00 VAT-A30-00
Valve Pin # Color Code
2 + Ground 3 + Ground
1Brown Brown
2Blue Gray*
3N/A Black
Ground Green/Yellow Green/Yellow
U-5
Valve Connectors
Mencom Corporation TEL: 770-534-4585 www.mencom.com

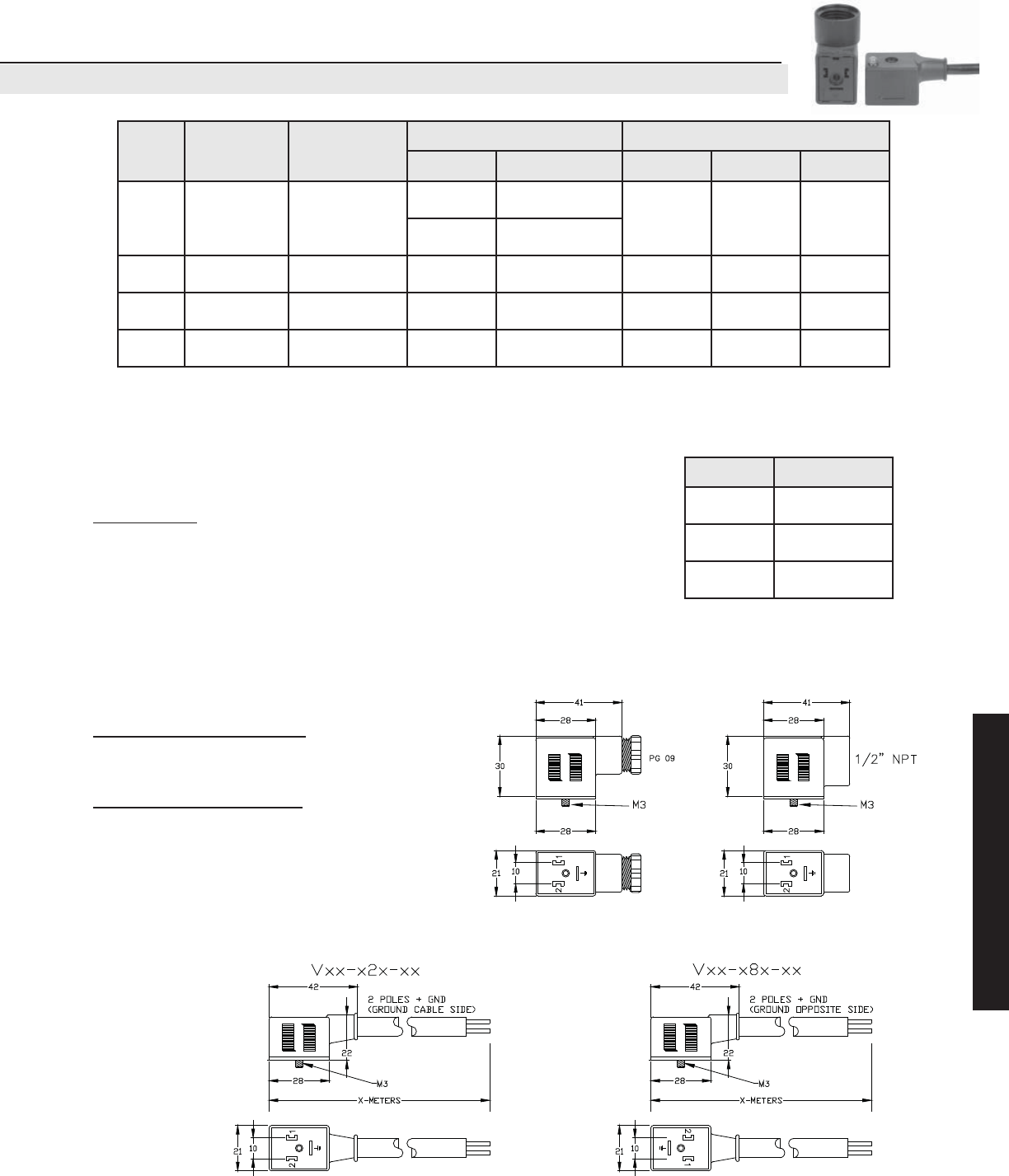

Solenoid Valve Connectors
Field Wireable & Cables DIN 43650 Form B
The ground position is not applicable for fi eld wireable versions.
Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Insert: Polyamide
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
Field Wireable Specifi cations:
Cable O.D.: PG 9 - 6 to 8 mm
Cable Version Specifi cations:
Body: Black Polyamide
Cable: Black PVC
2 Pole: 3x18 AWG; Cable O.D.: 0.26”
# of
Poles Voltage Circuitry Field Wireable Prewired Versions
1/2” NPT
Conduit PG 9
6 to 8 mm 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VGN-029-00 (Gray)
VBN-220-00 VBN-520-00 VBN-A20-00
VBN-022-00 VBN-029-00 (Black)
2 +
Ground 10-50V DC LED
w/ Flyback Diode VBC-022-00 VBC--029-00 VBC-220-00 VBC-520-00 VBC-A20-00
2 +
Ground 24V AC/DC LED
w/ MOV VBG-022-00 VBG-029-00 VBG-220-00 VBG-520-00 VBG-A20-00
2 +
Ground 120V AC/DC LED
w/ MOV VBJ-022-00 VBJ-029-00 VBJ-220-00 VBJ-520-00 VBJ-A20-00
Valve Pin # Color Code
1Brown
2Blue
Ground Green/Yellow
U-6
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Valve Connectors

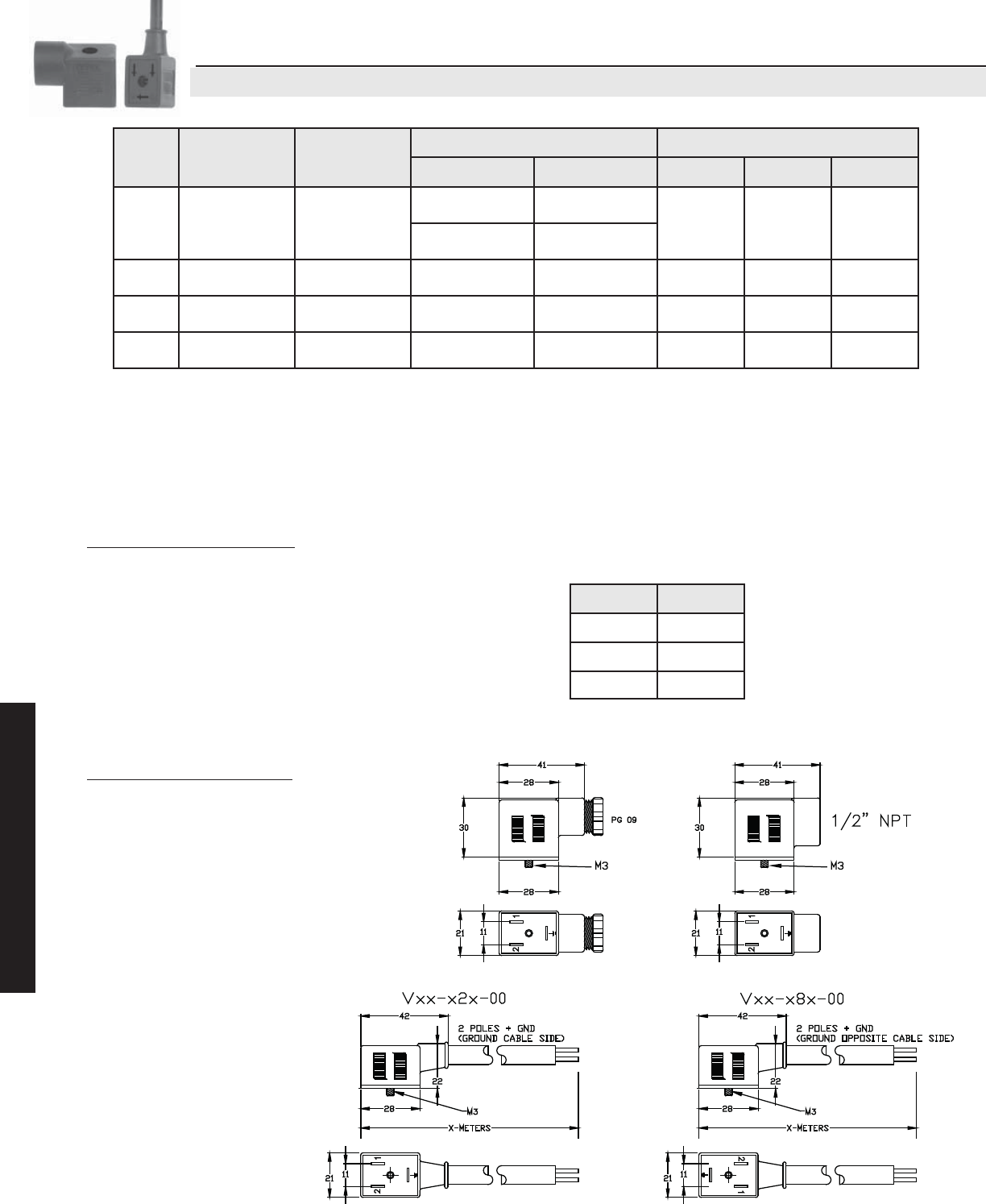

Solenoid Valve Connectors
Field Wireable & Cables Industry Standard Form B
The ground position is not applicable for fi eld wireable versions or for the unlighted molded versions. The unlighted
molded versions can be plugged onto the coil in either direction. For other molded versions, there are two standard
orientations available. Please refer to the part number system shown above each drawing shown below.
Field Wireable Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Insert: Polyamide
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Cable O.D.: PG 9 - 6 to 8 mm
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
Cable Version Specifi cations:
Body: Black Polyamide
Contacts: Copper Alloy with Silver Plating
Insert: Polyamide
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Cable: Black PVC
2 Pole: 3x18 AWG; Cable O.D.: 0.26”
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
Valve Pin # Color Code
1Brown
2 Blue
Ground Green/Yellow
# of
Poles Voltage Circuitry Field Wireable* Prewired Versions
1/2” NPT
Conduit PG 9
6 to 8 mm 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None N/A VJN-029-00 (Gray)
VDN-220-00 VDN-520-00 VDN-A20-00
VDN-022-00 (Black) VDN-029-00 (Black)
2 +
Ground 10-50V DC LED
w/ Flyback Diode VDC-022-00 VDC-029-00 VDC-220-00 VDC-520-00 VDC-A20-00
2 +
Ground 24V AC/DC LED
w/ MOV VDG-022-00 VDG-029-00 VDG-220-00 VDG-520-00 VDG-A20-00
2 +
Ground 120V AC/DC LED
w/ MOV VDJ-022-00 VDJ-029-00 VDJ-220-00 VDJ-520-00 VDJ-A20-00
U-7
Valve Connectors
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Solenoid Valve Connectors
Field Wireable & Cables DIN 43650 Form C
The ground position is not applicable for fi eld wireable versions.
Field Wireable Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Insert: Polyamide
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Cable O.D.: PG 7 - 6 to 7 mm
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
Cable Version Specifi cations:
Body: Black Polyamide
Contacts: Copper Alloy with Silver Plating
Insert: Polyamide
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Cable: Black PVC
2 Pole: 3x20 AWG; Cable O.D.: 0.22”
3 Pole: 4x20 AWG; Cable O.D.: 0.23”
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
* Formerly Blue
** 2 Ground locations available for 3+ Ground versions.
Valve Pin # Color Code
2 + Ground 3 + Ground
1Brown Brown
2Blue Gray*
3N/A Black
Ground Green/Yellow Green/Yellow
# of
Poles Voltage Circuitry Field Wireable Prewired Versions
PG 7
6 to 7 mm 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VHN-027-00 (Gray)
VCN-220-00 VCN-520-00 VCN-A20-00
VCN-027-00 (Black)
3 +
Ground 250V AC/DC
(maximum) None VHN-037-00 (Gray)
VCN-230-00** VCN-530-00** VCN-A30-00**
VCN-037-00 (Black)
2 +
Ground 10-50V DC LED
w/ Flyback Diode VCC-027-00 VCC-220-00 VCC-520-00 VCC-A20-00
2 +
Ground 24V AC/DC LED
w/ MOV VCG-027-00 VCG-220-00 VCG-520-00 VCG-A20-00
2 +
Ground 120V AC/DC LED
w/ MOV VCJ-027-00 VDC-220-00 VDC-520-00 VDC-A20-00
U-8
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Valve Connectors
The ground position is not applicable for fi eld wireable versions.
Field Wireable Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Cable O.D.: PG 7 - 6 to 7 mm
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
Cable Version Specifi cations:
Body: Black Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Cable: Black PVC
2 Pole: 3x20 AWG; Cable O.D.: 0.22”
3 Pole: 4x20 AWG; Cable O.D.: 0.23”
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65

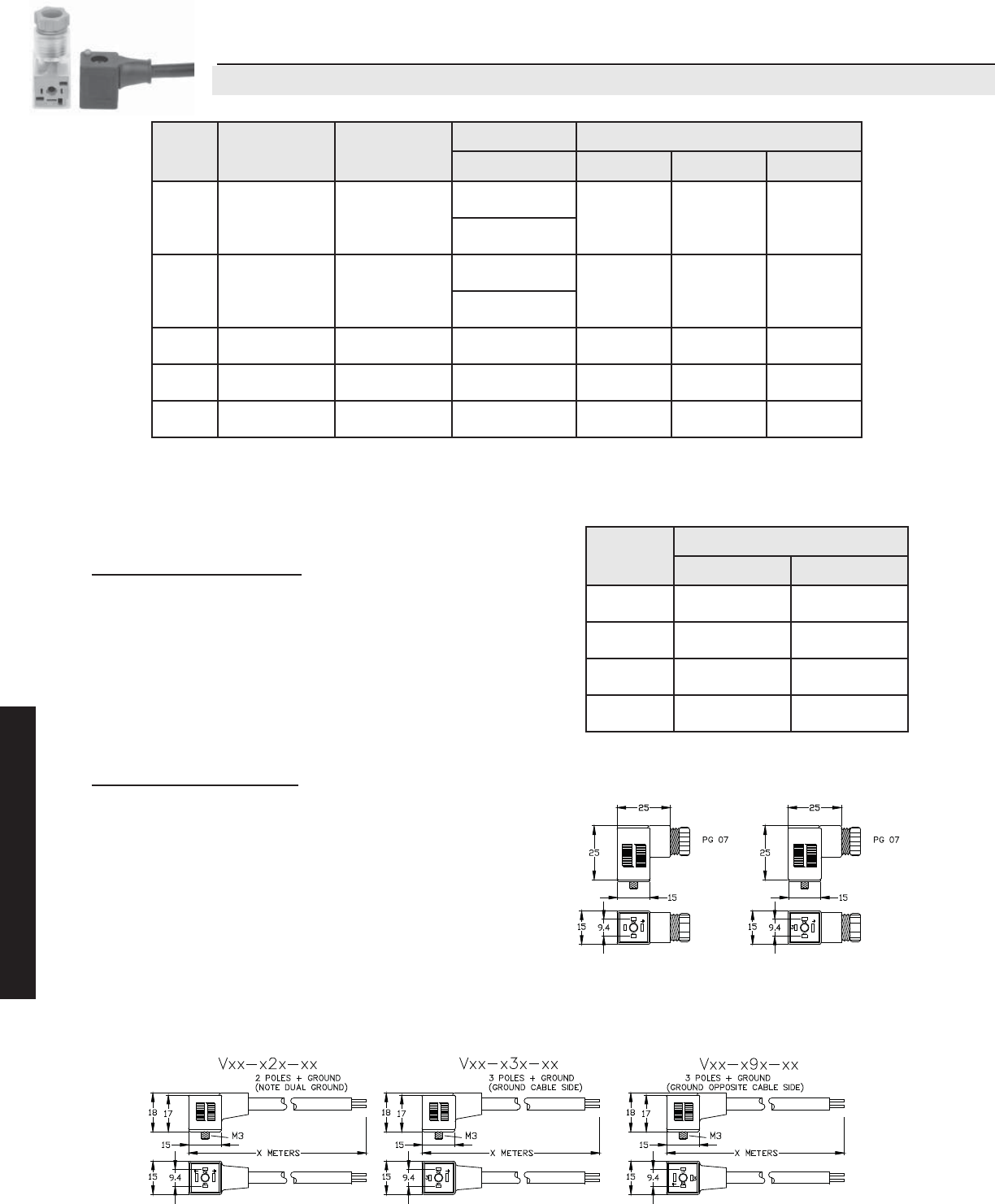

Solenoid Valve Connectors
Field Wireable & Cables Industry Standard Form C
* Formerly Blue
** 2 Ground locations available for 3+ Ground versions.
Valve Pin # Color Code
2 + Ground 3 + Ground
1Brown Brown
2Blue Gray*
3N/A Black
Ground Green/Yellow Green/Yellow
# of
Poles Voltage Circuitry Field Wireable Prewired Versions
PG 7
6 to 7 mm 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VKN-027-00 (Gray)
VEN-220-00 VEN-520-00 VEN-A20-00
VEN-027-00 (Black)
3 +
Ground 250V AC/DC
(maximum) None VKN-037-00 (Gray)
VEN-230-00** VEN-530-00** VEN-A30-00**
VEN-037-00 (Black)
2 +
Ground 10-50V DC LED
w/ Flyback Diode VEC-027-00 VEC-220-00 VEC-520-00 VEC-A20-00
2 +
Ground 24V AC/DC LED
w/ MOV VEG-027-00 VEG-220-00 VEG-520-00 VEG-A20-00
2 +
Ground 120V AC/DC LED
w/ MOV VEJ-027-00 VEJ-220-00 VEJ-520-00 VEJ-A20-00
U-9
Valve Connectors
Mencom Corporation TEL: 770-534-4585 www.mencom.com

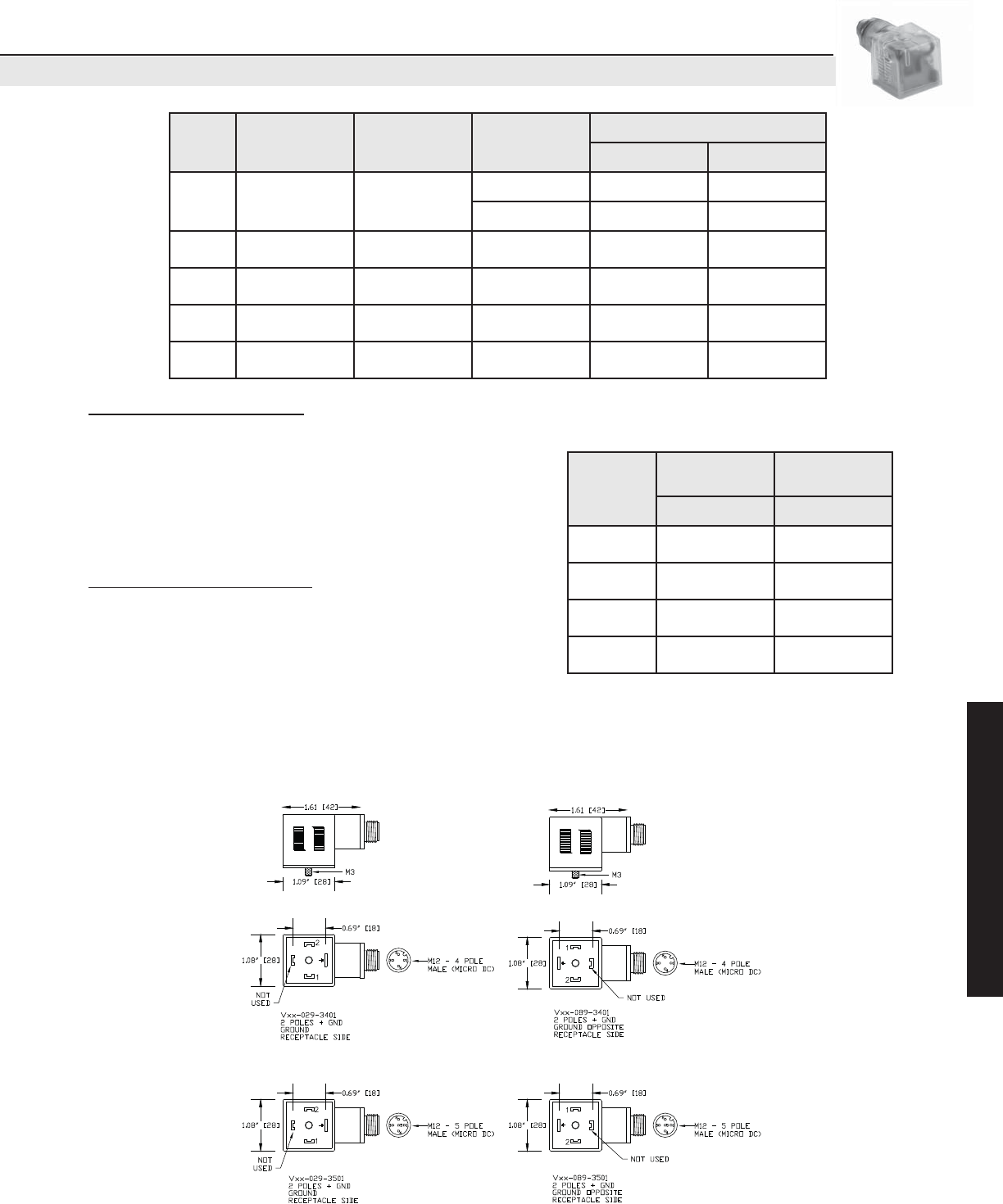

Solenoid Valve Connectors

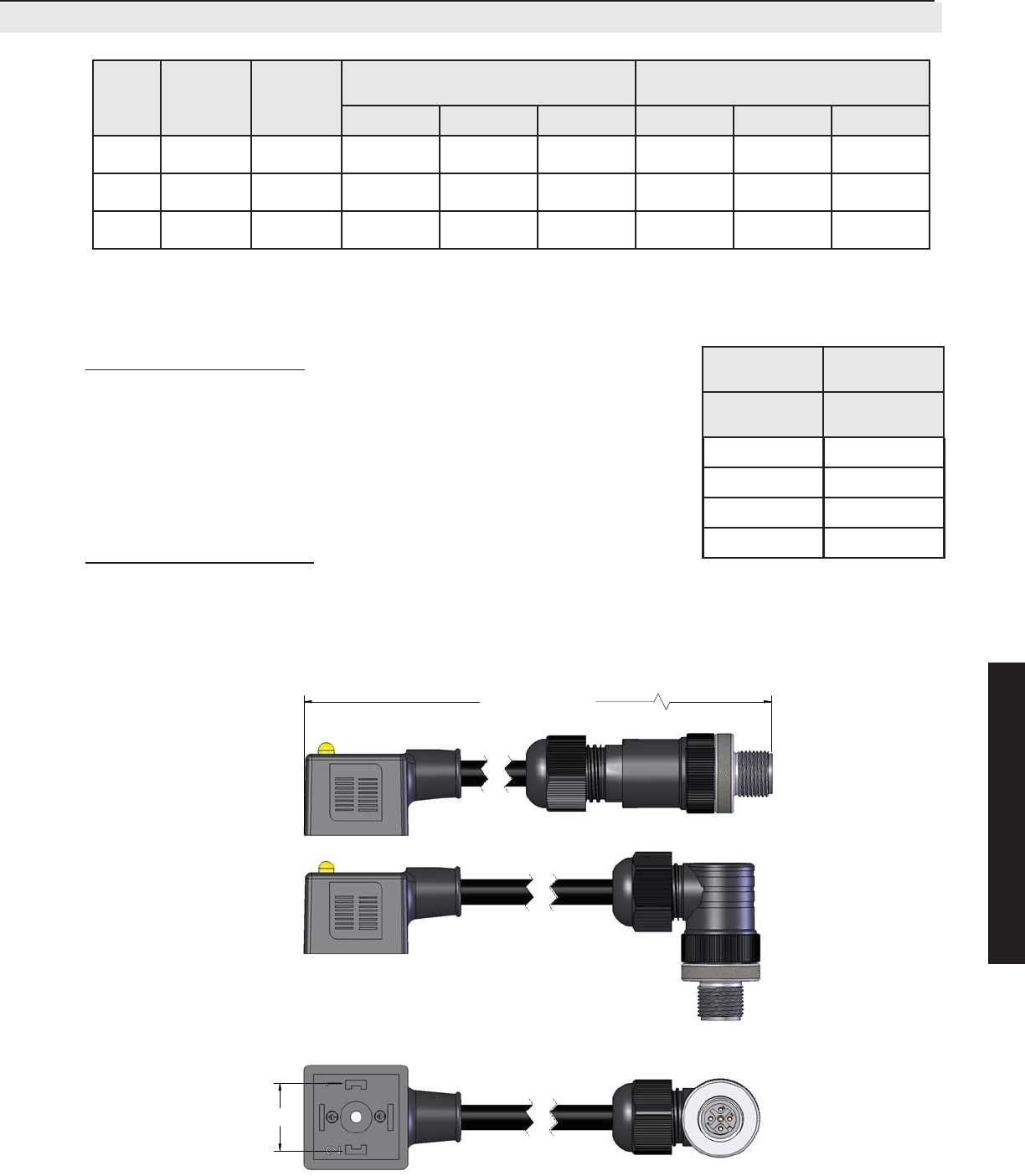

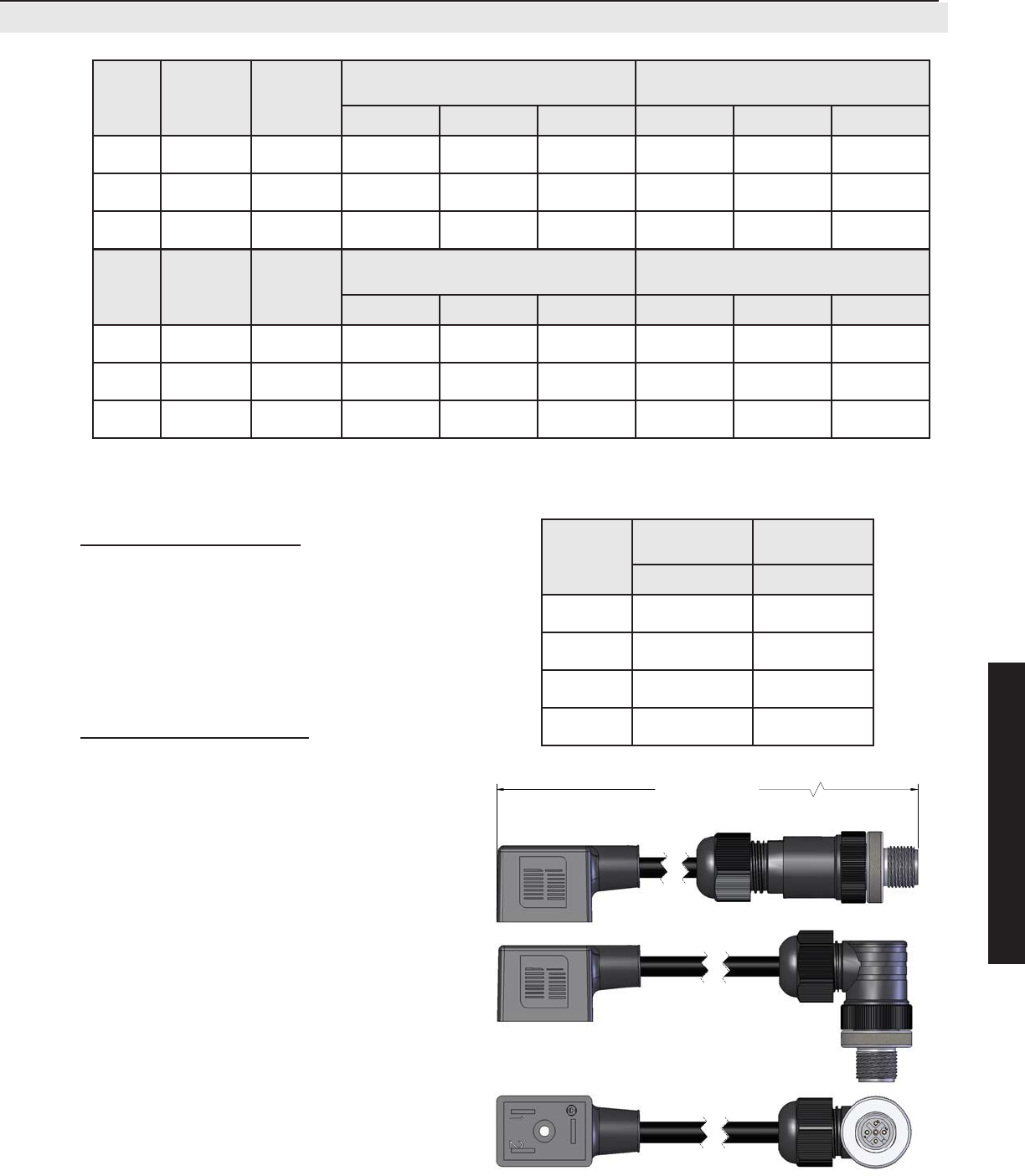

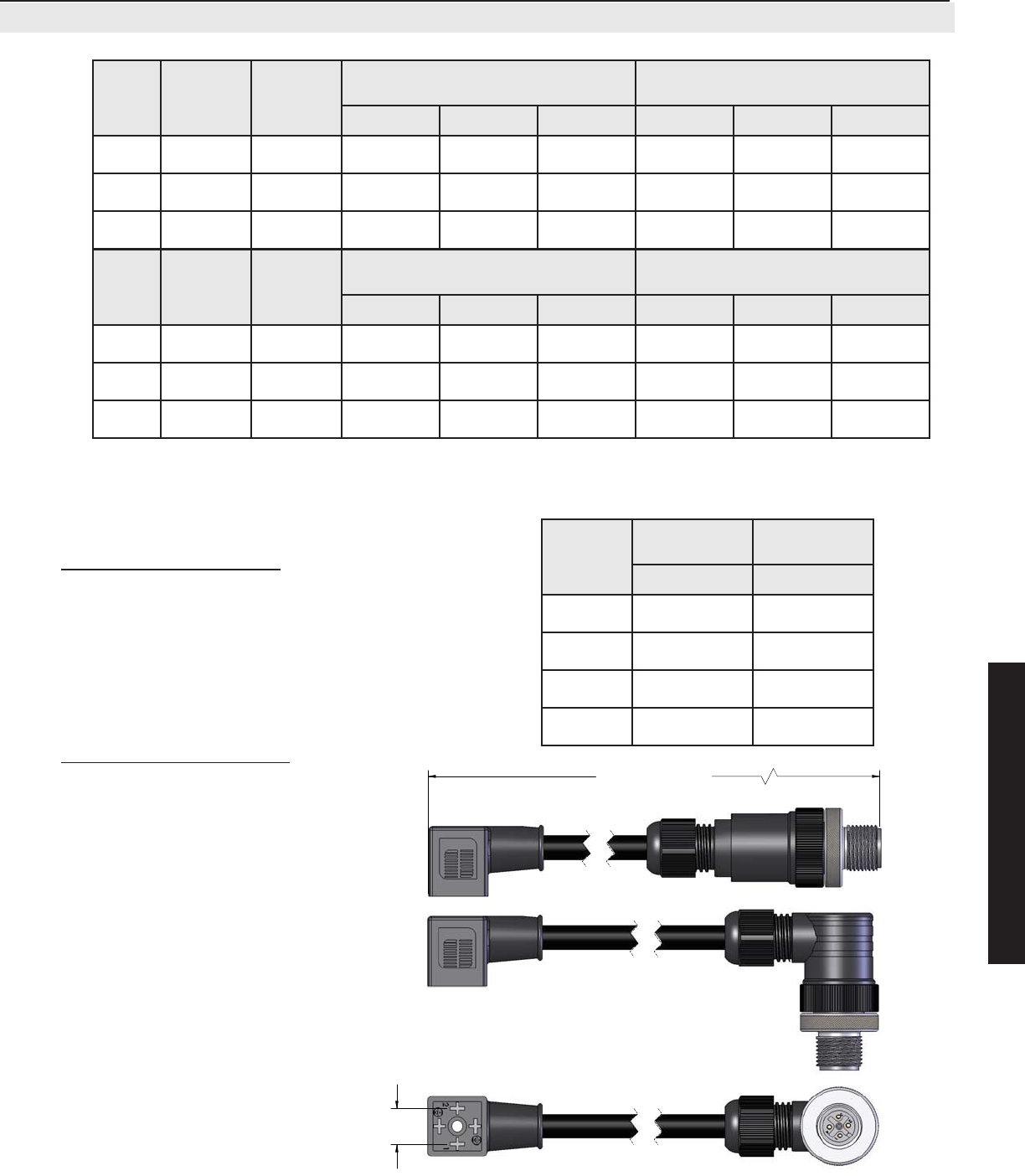

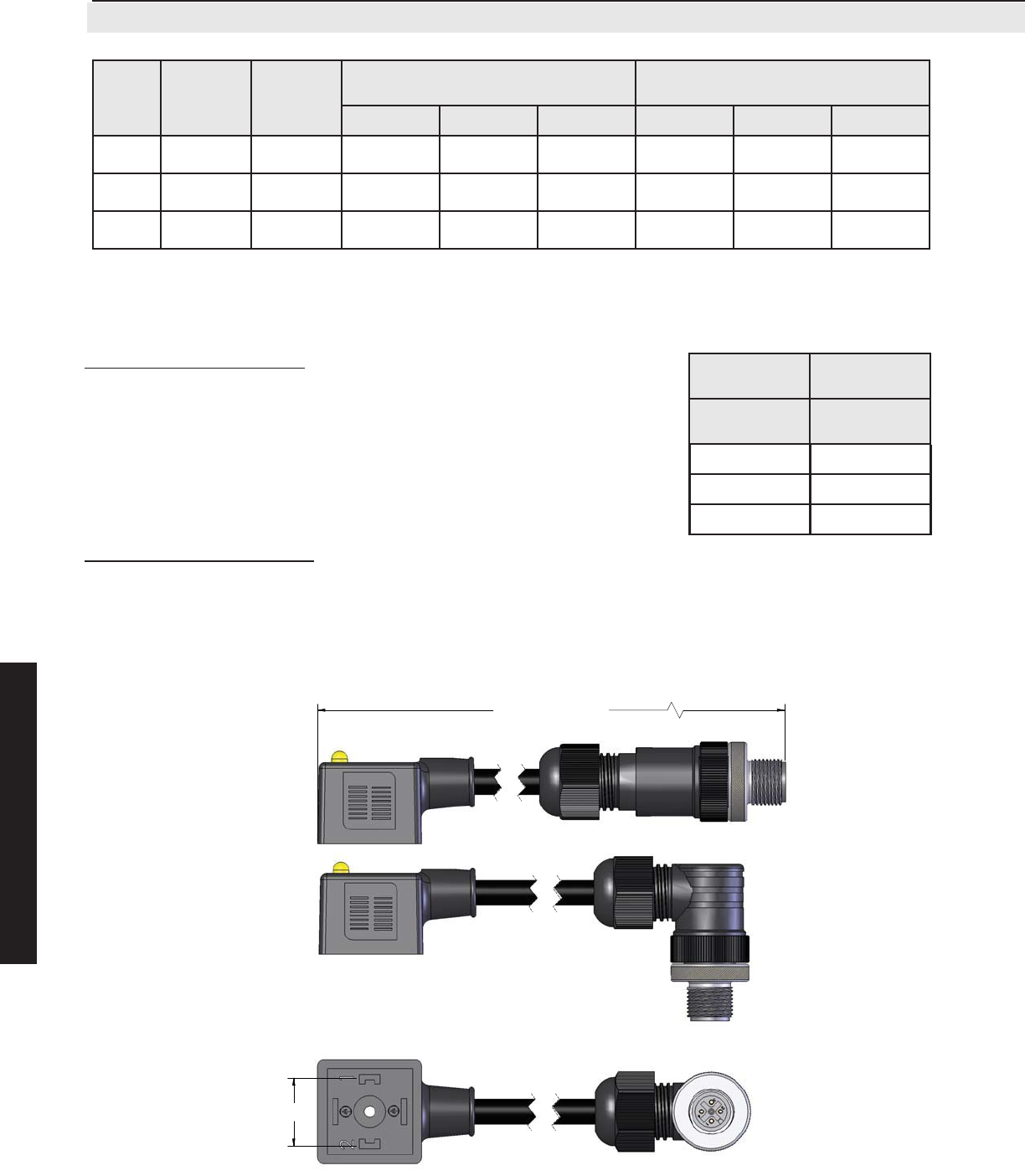

DIN A to Micro-DC Male Receptacle DIN 43650 Form A to M12 (MDC)
DIN Connector Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
MDC Connector Specifi cations:
Body: Nickel Plated Brass
Insulator: Polyamide
Contacts: Copper Alloy with Gold Plating
O-Ring: BUNA-N
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65 The ground position is not connected on the
4 Pole Version.
DIN 43650
M12 (MDC)
4 Pole M12 (MDC)
5 Pole
Pin # Pin #
144
233
Ground 5
3
Not Used 1, 2 & 5 Not Used 1 & 2 Not Used
# of
Poles Voltage Circuitry Housing
Color
M12 (MDC) # of Poles
45
2 +
Ground 250V AC/DC
(maximum) None Gray VFN-029-3401 VFN-029-3501
Black VAN-029-3401 VAN-029-3501
2 +
Ground 10-50V DC LED
w/ Flyback Diode Clear VAC-029-3401 VAC-029-3501
2 +
Ground 24V AC/DC LED
w/ MOV Clear VAG-029-3401 VAG-029-3501
2 +
Ground 120V AC/DC LED
w/ MOV Clear VAJ-029-3401 VAJ-029-3501
2 +
Ground 120V AC/DC Bridge Rectifi er
w/ LED & MOV Clear VAR-029-3401 VAR-029-3501
U-10
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Valve Connectors
Other circuit options are available, please consult the factory.
Molded M12 Connectors are also available, please consult the factory for part number and minimum order quantities.
DIN Connector Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
MDC Connector Specifi cations:
Body: Nickel Plated Brass
Insulator: Polyamide
Contacts: Copper Alloy with Gold Plating
O-Ring: BUNA-N
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
Length in Meters
[18]
Solenoid Valve Connectors
DIN A to Micro-DC 4 Pole Male Plug DIN 43650 Form A to MDC (M12)
DIN 43650
Form A M12 (MDC)
4 Pole
Pin # Pin #
14
23
Ground Not Used 1, 2 & 5 Not Used
# of
Poles Voltage Circuitry
M12 (MDC) 4 Pole Cable
Straight Male M12 (MDC) 4 Pole Cable
Right Angle Male
2 M 5 M 10 M 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VAN-220-3401 VAN-520-3401 VAN-A20-3401 VAN-220-3402 VAN-520-3402 VAN-A20-3402
2 +
Ground 24V AC/DC LED
w/ MOV VAG-220-3401 VAG-520-3401 VAG-A20-3401 VAG-220-3402 VAG-520-3402 VAG-A20-3402
2 +
Ground 120V AC/DC LED
w/ MOV VAJ-220-3401 VAJ-520-3401 VAJ-A20-3401 VAJ-220-3402 VAJ-520-3402 VAJ-A20-3402
U-11
Valve Connectors
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Other circuit options are available, please consult the factory.
Molded M12 Connectors are also available, please consult the factory for part number and minimum order quantities.
DIN Connector Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
MDC Connector Specifi cations:
Body: Nickel Plated Brass
Insulator: Polyamide
Contacts: Copper Alloy with Gold Plating
O-Ring: BUNA-N
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
Length in Meters
Solenoid Valve Connectors
DIN A to Micro-DC 5 Pole Male Plug DIN 43650 Form A to MDC (M12)
[18]
DIN 43650
Form A M12 (MDC)
5 Pole
Pin # Pin #
14
23
Ground 5
1 & 2 Not Used
# of
Poles Voltage Circuitry
M12 (MDC) 4 Pole Cable
Straight Male M12 (MDC) 4 Pole Cable
Right Angle Male
2 M 5 M 10 M 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VAN-220-3501 VAN-520-3501 VAN-A20-3501 VAN-220-3502 VAN-520-3502 VAN-A20-3502
2 +
Ground 24V AC/DC LED
w/ MOV VAG-220-3501 VAG-520-3501 VAG-A20-3501 VAG-220-3502 VAG-520-3502 VAG-A20-3502
2 +
Ground 120V AC/DC LED
w/ MOV VAJ-220-3501 VAJ-520-3501 VAJ-A20-3501 VAJ-220-3502 VAJ-520-3502 VAJ-A20-3502
U-12
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Valve Connectors

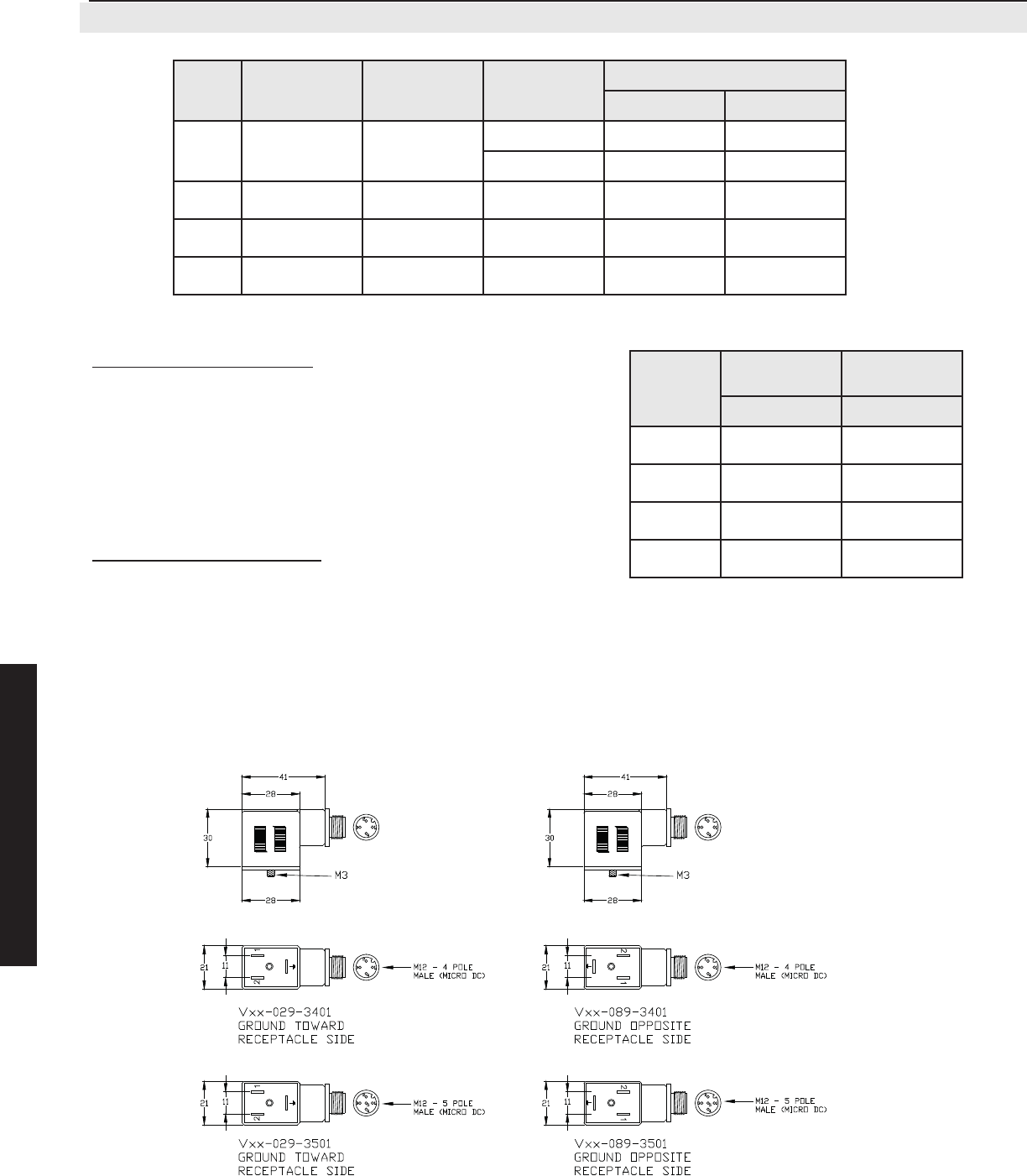

Solenoid Valve Connectors
Industry Standard Form B to Micro-DC Male Receptacle
DIN Connector Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
MDC Connector Specifi cations:
Body: Nickel Plated Brass
Insulator: Polyamide
Contacts: Copper Alloy with Gold Plating
O-Ring: BUNA-N
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
DIN 43650
I.S.B.
M12 (MDC)
4 Pole M12 (MDC)
5 Pole
Pin # Pin #
144
233
Ground Not Used 5
1, 2 & 5 Not Used 1 & 2 Not Used
# of
Poles Voltage Circuitry Housing
Color
M12 (MDC) # of Poles
45
2 +
Ground 250V AC/DC
(maximum) None Gray VJN-029-3401 VJN-029-3501
Black VDN-029-3401 VDN-029-3501
2 +
Ground 10-50V DC LED
w/ Flyback Diode Clear VDC-029-3401 VDC-029-3501
2 +
Ground 24V AC/DC LED
w/ MOV Clear VDG-029-3401 VDG-029-3501
2 +
Ground 120V AC/DC LED
w/ MOV Clear VDJ-029-3401 VDJ-029-3501
U-13
Valve Connectors
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Solenoid Valve Connectors
Industry Standard Form B to Micro-DC Male Plug
Molded M12 Connectors are also available, please consult the factory for part number and minimum order quantities.
DIN Connector Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
MDC Connector Specifi cations:
Body: Nickel Plated Brass
Insulator: Polyamide
Contacts: Copper Alloy with Gold Plating
O-Ring: BUNA-N
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
Length in Meters
DIN 43650
I.S.B.
M12 (MDC)
4 Pole M12 (MDC)
5 Pole
Pin # Pin #
144
233
Ground Not Used 5
1, 2 & 5 Not Used 1 & 2 Not Used
# of
Poles Voltage Circuitry
M12 (MDC) 4 Pole Cable
Straight Male M12 (MDC) 4 Pole Cable
Right Angle Male
2 M 5 M 10 M 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VDN-220-3401 VDN-520-3401 VDN-A20-3401 VDN-220-3402 VDN-520-3402 VDN-A20-3402
2 +
Ground 24V AC/DC LED
w/ MOV VDG-220-3401 VDG-520-3401 VDG-A20-3401 VDG-220-3402 VDG-520-3402 VDG-A20-3402
2 +
Ground 120V AC/DC LED
w/ MOV VDJ-220-3401 VDJ-520-3401 VDJ-A20-3401 VDJ-220-3402 VDJ-520-3402 VDJ-A20-3402
# of
Poles Voltage Circuitry
M12 (MDC) 5 Pole Cable
Straight Male M12 (MDC) 5 Pole Cable
Right Angle Male
2 M 5 M 10 M 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VDN-220-3501 VDN-520-3501 VDN-A20-3501 VDN-220-3502 VDN-520-3502 VDN-A20-3502
2 +
Ground 24V AC/DC LED
w/ MOV VDG-220-3501 VDG-520-3501 VDG-A20-3501 VDG-220-3502 VDG-520-3502 VDG-A20-3502
2 +
Ground 120V AC/DC LED
w/ MOV VDJ-220-3501 VDJ-520-3501 VDJ-A20-3501 VDJ-220-3502 VDJ-520-3502 VDJ-A20-3502
U-14
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Valve Connectors

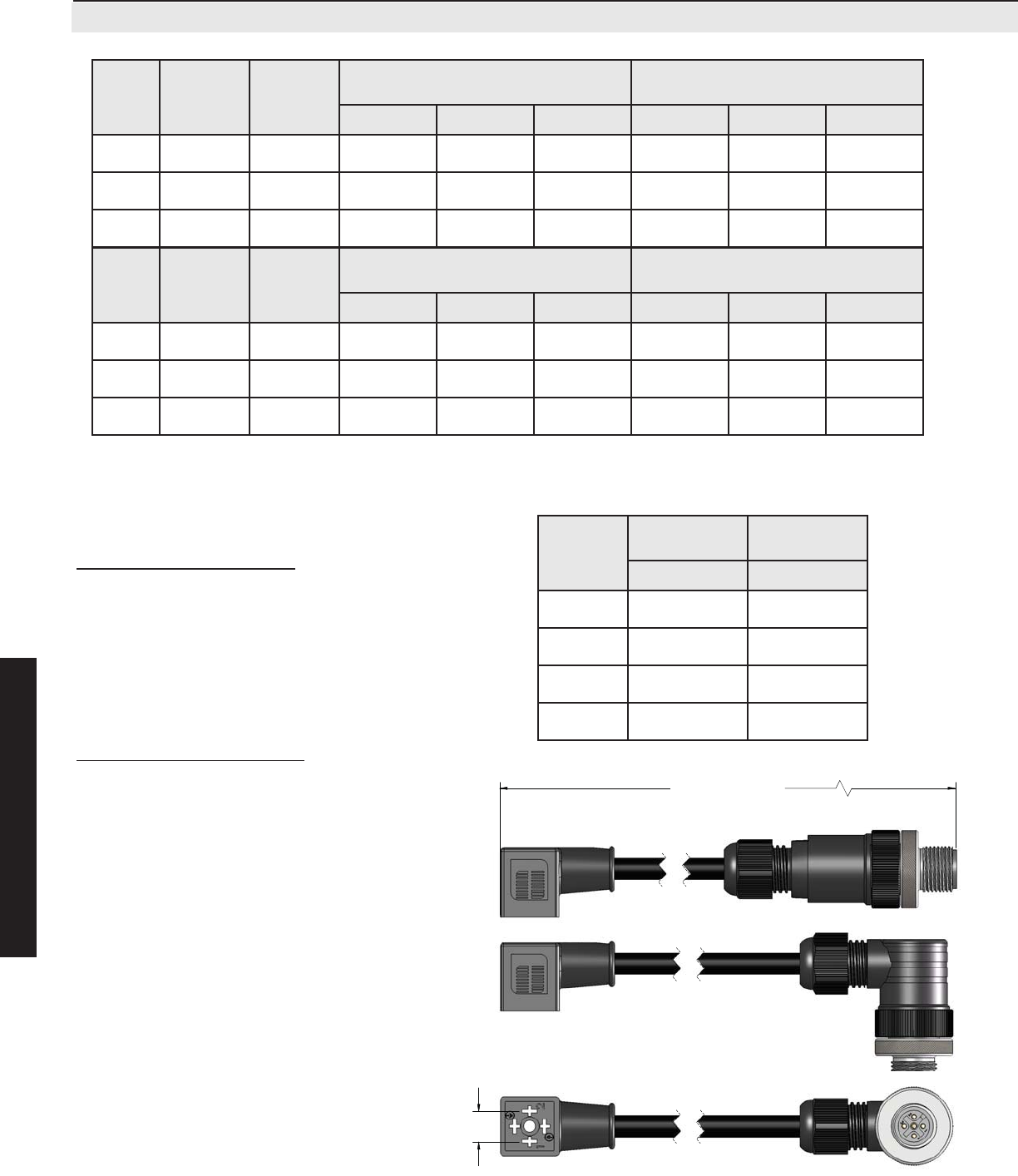

Solenoid Valve Connectors
DIN 43650 Form C to Micro-DC Male Plug DIN 43650 Form C to MDC
Molded M12 Connectors are also available, please consult the factory for part number and minimum order quantities.
DIN Connector Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
MDC Connector Specifi cations:
Body: Nickel Plated Brass
Insulator: Polyamide
Contacts: Copper Alloy with Gold Plating
Length in Meters
[8]
DIN 43650
Form C
M12 (MDC)
4 Pole M12 (MDC)
5 Pole
Pin # Pin #
144
233
Ground Not Used 5
1, 2 & 5 Not Used 1 & 2 Not Used
# of
Poles Voltage Circuitry
M12 (MDC) 4 Pole Cable
Straight Male M12 (MDC) 4 Pole Cable
Right Angle Male
2 M 5 M 10 M 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VCN-220-3401 VCN-520-3401 VCN-A20-3401 VCN-220-3402 VCN-520-3402 VCN-A20-3402
2 +
Ground 24V AC/DC LED
w/ MOV VCG-220-3401 VCG-520-3401 VCG-A20-3401 VCG-220-3402 VCG-520-3402 VCG-A20-3402
2 +
Ground 120V AC/DC LED
w/ MOV VCJ-220-3401 VCJ-520-3401 VCJ-A20-3401 VCJ-220-3402 VCJ-520-3402 VCJ-A20-3402
# of
Poles Voltage Circuitry
M12 (MDC) 5 Pole Cable
Straight Male M12 (MDC) 5 Pole Cable
Right Angle Male
2 M 5 M 10 M 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VCN-220-3501 VCN-520-3501 VCN-A20-3501 VCN-220-3502 VCN-520-3502 VCN-A20-3502
2 +
Ground 24V AC/DC LED
w/ MOV VCG-220-3501 VCG-520-3501 VCG-A20-3501 VCG-220-3502 VCG-520-3502 VCG-A20-3502
2 +
Ground 120V AC/DC LED
w/ MOV VCJ-220-3501 VCJ-520-3501 VCJ-A20-3501 VCJ-220-3502 VCJ-520-3502 VCJ-A20-3502
U-15
Valve Connectors
Mencom Corporation TEL: 770-534-4585 www.mencom.com
Solenoid Valve Connectors
Industry Standard Form C to Micro-DC Male Plug
Molded M12 Connectors are also available, please consult the factory for part number and minimum order quantities.
DIN Connector Specifi cations:
Body: Polyamide
Contacts: Copper Alloy with Silver Plating
Gasket: Thermoplastic
Screw: Steel Zinc Plate
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
MDC Connector Specifi cations:
Body: Oil Resistant Yellow PVC
Insulator: Polyamide
Contacts: Copper Alloy with Gold Plating
Coupling Nut: Nickel Plated Brass
Temperature: -40ºC to 80ºC (-40ºF to +176ºF)
Protection: IP 65
Length in Meters
[9.4]
I.S.C.
M12 (MDC)
4 Pole M12 (MDC)
5 Pole
Pin # Pin #
144
233
Ground Not Used 5
1, 2 & 5 Not Used 1 & 2 Not Used
# of
Poles Voltage Circuitry
M12 (MDC) 4 Pole Cable
Straight Male M12 (MDC) 4 Pole Cable
Right Angle Male
2 M 5 M 10 M 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VEN-220-3401 VEN-520-3401 VEN-A20-3401 VEN-220-3402 VEN-520-3402 VEN-A20-3402
2 +
Ground 24V AC/DC LED
w/ MOV VEG-220-3401 VEG-520-3401 VEG-A20-3401 VEG-220-3402 VEG-520-3402 VEG-A20-3402
2 +
Ground 120V AC/DC LED
w/ MOV VEJ-220-3401 VEJ-520-3401 VEJ-A20-3401 VEJ-220-3402 VEJ-520-3402 VEJ-A20-3402
# of
Poles Voltage Circuitry
M12 (MDC) 5 Pole Cable
Straight Male M12 (MDC) 5 Pole Cable
Right Angle Male
2 M 5 M 10 M 2 M 5 M 10 M
2 +
Ground 250V AC/DC
(maximum) None VEN-220-3501 VEN-520-3501 VEN-A20-3501 VEN-220-3502 VEN-520-3502 VEN-A20-3502
2 +
Ground 24V AC/DC LED
w/ MOV VEG-220-3501 VEG-520-3501 VEG-A20-3501 VEG-220-3502 VEG-520-3502 VEG-A20-3502
2 +
Ground 120V AC/DC LED
w/ MOV VEJ-220-3501 VEJ-520-3501 VEJ-A20-3501 VEJ-220-3502 VEJ-520-3502 VEJ-A20-3502

Navigation menu
