Numatics, Inc. is a leading manufacturer of pneumatic products and motion
control products. Our broad spectrum of standard, custom developed products and application
components, have made a significant impact on pneumatic innovation as well as pneumatic and motion
control technology. Our company has an extensive history of generating innovative concepts and technological
breakthroughs. Many of today’s standard features in pneumatic technology were industry firsts from Numatics.
We continue our innovative approach to product development by developing electric motion control solutions
and enhancing our embedded Fieldbus and I/O products to continually meet and solve our customer’s
application requirements.
Today Numatics is
proud to be a part of
the Industrial Automation
Division of Emerson
Electric Co.
Emerson (NYSE: EMR) is a global
company that brings together
technology and engineering to
provide innovative solutions
for customers in a wide range
of industrial, commercial, and
consumer markets.
Numatics, along with the vast
resources of the Emerson
organization, will assure that our
proud history of innovation and
service will continue to meet the
needs of our global customers.
280 Series DPS / DVS .....................................................2-4
Features & Benefits....................................................................................2
How to Order.........................................................................................3
Accessory Numbers ...................................................................................3
Panel Instructions .....................................................................................3
Output Circuit Wiring...................................................................................3
Dimensions ..........................................................................................4
Panel & Mounting Bracket Kits ...........................................................................4
Digital Sensor Fittings ..................................................................................5
Table of
Contents
Digital Pressure / Vacuum Sensors
2Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

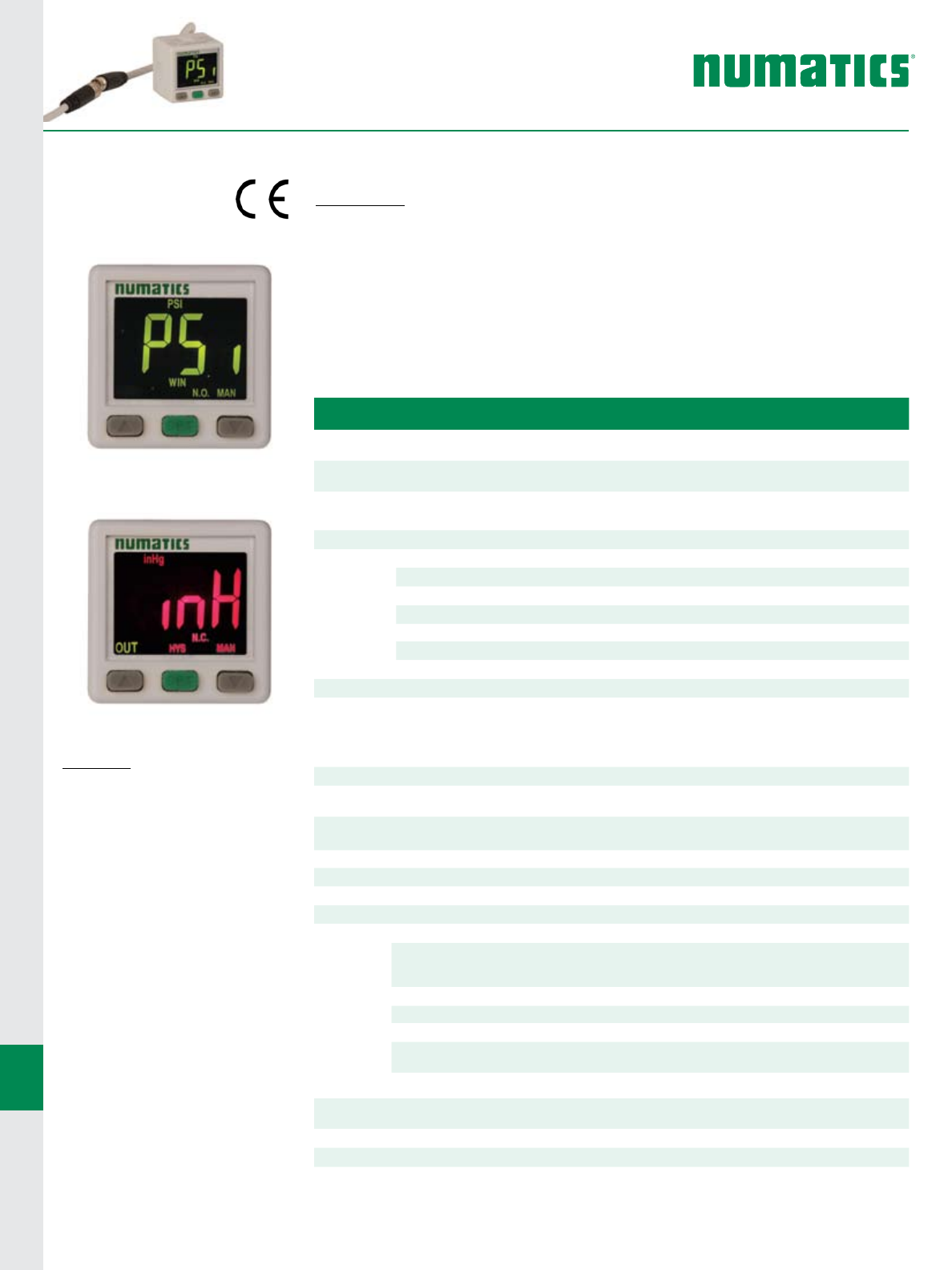

280 Series Digital Pressure / Vacuum Sensor
Application
Numatics DPS / DVS 280 series digital sensors can be used as a digital pressure / vacuum gauge
for accurate visual display of the current value. It can also be used as a controls device designed for
applications requiring extremely accurate measurement of a specific value, then generating a digital
input to the PLC or controls system. The large LCD display is easy to view. It changes color indicating
the set point is achieved, causing the digital output to change state. Other features include quick
response ( 2.5 ms or less), repeatable to ± 0.2 % of full scale ± 1 digit, raised set buttons for simple
intuitive programming of the hysteresis or window comparator modes of operation.
Applications include verification of part present, quality assurance using decay leak testing, control
of edges on film winding, clamping forces, evacuate and fill circuits, pump up and down circuits and
many more.
DPS280
DVS280
Features
• HysteresisandWindowcomparator
modes of operation
•Large7segmentLCDdisplay
• SelectableTwoColorDisplay
(Red / Green or Green / Red)
Large display changes color at set point
achieved
• SelectableSingleColorOnlyDisplay
(Red or Green)
"OUT" Displayed when digital output
is "ON"
• Paneldisplayshows-Selectedunits,
operation mode, output type (n.o. / n.c.),
setting mode and key lock
• Easeofwiring8mm4PinPico
Connector ( 2M Mating cable included)
• CEMarked-RoHsCompliant
SPECIFICATIONS DPS280
(PRESSURE)
DVS280
(VACUUM)
Rated pressure range 0 ~ 1000 kPa
0 ~ 145 PSIG
0.0 ~ - 101.3 kPa
0 ~ 29.9" Hg Vacuum
Operating / Set pressure range -100 ~ 1000 kPa
- 14.5 PSIG ~ + 145 PSIG
10.0 ~ - 101.3 kPa
1.45 PSIG ~ 29.9" Hg Vacuum
Maximum pressure 1500 kPa 300 kPa
(Exceedingmaxpressurecoulddamageswitch) 217.5PSIG 43.5 PSIG
Fluid Air, Non-corrosive gases, incombustible gases
Set pressure
resolution
kPa 1 0.1
kgf/cm20.01 0.001
bar 0.01 0.001
psi 0.1 0.01
InHg - 0.1
mmHg - 1
Power supply voltage 12 to 24VDC ± 10 %, Ripple (P-P) 10 % or less
Current consumption ≤ 45mA (with no load)
Switch output
Repeatability (Switch output) ≤ ± 0.2 % F.S. ± 1 digit
Hysteresis mode
Window comparator mode Adjustable
Response time ≤ 2.5ms (chatter-proof function: 24ms, 250ms, 500ms, 1000ms and
1500ms selections)
Output short circuit protection Yes
7segmentLCDdisplay Two color (red/green) display (sampling rate: 5 times/1sec.)
Indicator accuracy ≤±2.0%F.S.±1digit(ambienttemp:77°F±5°F/25°C±3°C)
Switch ON Indicator Green OUT Indicator
Environment
Enclosure IP40
Ambient temp. range
Operation:0°F~122°F/0°C~50°C,Storage:14°F~140°F/-10°C~
60°C
(no condensation or freezing)
Ambient humidity range Operation/Storage: 35 ~ 85% RH (no condensation)
Withstand voltage 1000VAC in 1-min (between case and lead wire)
Insulation resistance 50Mohm min. (at 500 VDC, between case and lead wire)
Vibration Total amplitude 1.5mm, 10Hz-55Hz-10Hz scan for
1 minute, two hours each direction of X,Y and Z
Shock 100m/s2 (10G), 3 times each in direction of X,Y and Z
Temperature characteristic ≤±2%F.S.ofdetectedpressure(77°F/25°C)attemp.
Rangeof0°F~122°F/0°C~50°C
Port size 1/8" NPT Male x 10-32 UNF Female
Lead wire Oil-resistant cable (0.15 mm2)
Weight Approx *45g - Switch only
Approx *90g - Switch with 2M mating cable
PNP open collector
Max. load current: 125mA
Max. supply voltage: 24VDC
Residual voltage: ≤ 1.5V
(load current 125mA)
NPN open collector
Max. load current: 125mA
Max. supply voltage: 30VDC
Residual voltage: ≤ 1.5V
(load current 125mA)
Digital Pressure / Vacuum Sensors
3
Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.
NPN outputPNP output
DC (+)(Brown)
OUT (Black)
DC (-)(Blue)
DC (+)(Brown)
OUT (Black)
DC (-)(Blue)
Switch main circuit
Switch main circuit

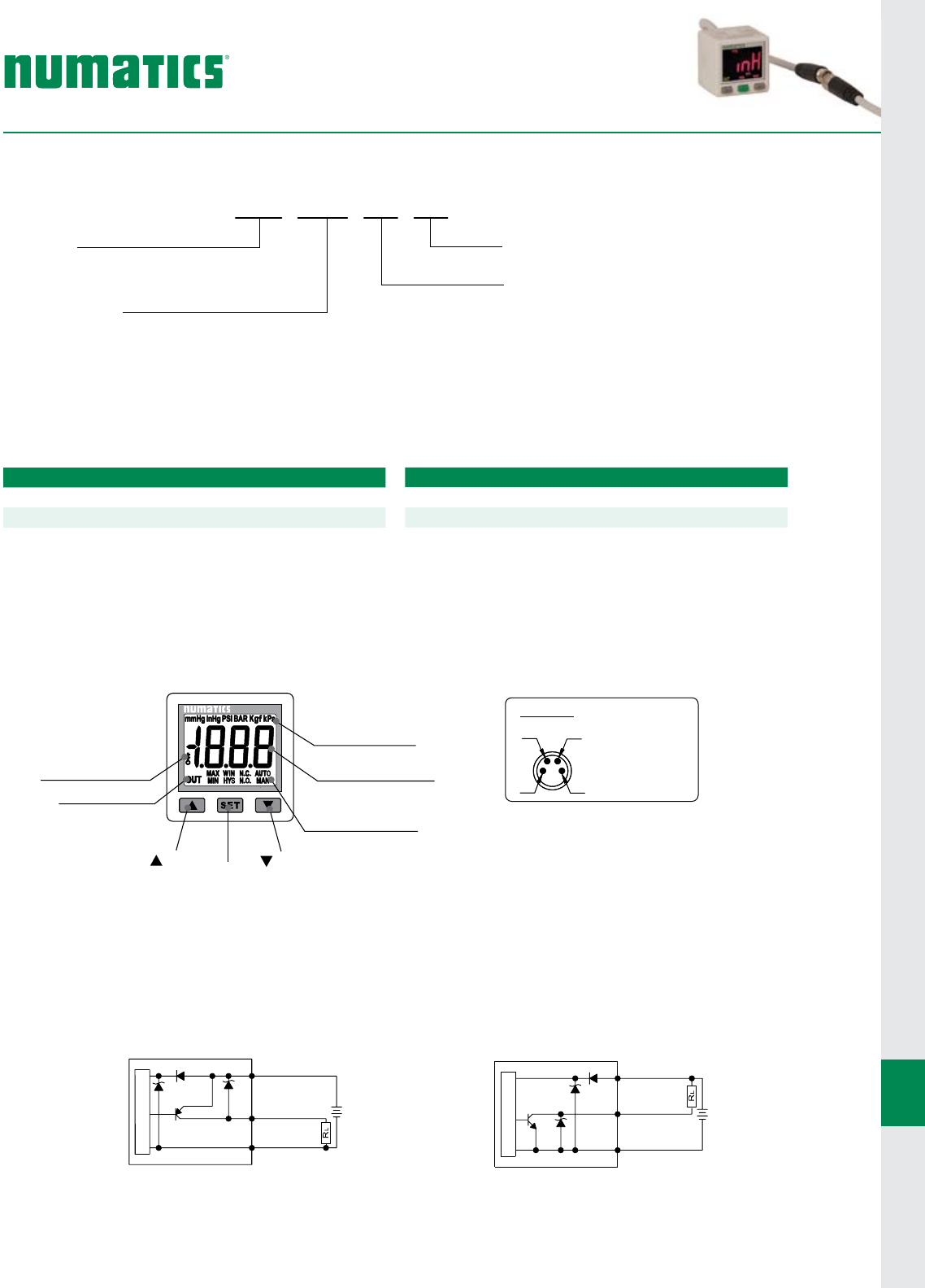

How to Order
Type
DPS = Digital Pressure Switch
DVS=Digital Vacuum Switch
Output Type
280P = PNP Digital Output Only
280N = NPN Digital Output Only
DPS 280P N
Electrical Connection
Q8 = 8mm Pico Quick Connect 4 Pin w/ 2M Mating Cable
Port Type
N = 1/8 NPT Male X 10-32 Female
Q8
Example: DPS280PNQ8 = Digital Pressure Switch - PNP - 1/8 NPT - 8mm Pico 4 Pin w/ 2M Mating Cable
Mating Cable:
Output Circuit Wiring
Panel Instructions Switch Wiring
Pressure Unit
Display Section
2 Colors Main Display
Setting Mode
Display Section
Button
Button Set
Button
(Green)
Key Lock Indicator
Output Indicator
(1) Brown (+)
(2) White (NOT USED)
(3) Blue (-)
(4) Black (OUT)
24
13
PINOUT
MALE (switch end)
Model Accessory Description
DPS280-8-4-ST-2 Mating Cable 8 mm 4 Pin 2 Meter
DPS280-8-4-ST-5 Mating Cable 8 mm 4 Pin 5 Meter
PC0402MEETA03000 Patch Cable M8 4 Pin X M12 3 Pin
2 Meter
Model Accessory Description
BRK280-1 Mounting Bracket (S)
BRK280-2 Mounting Bracket (L)
PMK280-C Panel Mount Kit w/Cover
Accessory Numbers
DPS / DVS280P DPS / DVS280N
Cable O.D. - 4.0mm
Conductor Gauge - 26 AWG
Digital Pressure / Vacuum Sensors
4Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.
1.79
(45.5)
0.24
(6.1)
1.03
(26.2)
0.20
(5.0)
0.79
(20.0)
0.16
(4.2)
0.51
(13.0)
0.50
(12.9)
1.46
(37.1)
0.20
(5.0)
0.98
(25.0)
0.16
(4.2)
0.157
(4.0)
1.35
(34.4)
1.35
(34.4)
1.30
(33.0)
1.19
(30.2)
1.30
(33.0)
1.19
(30.2)
0.335
(8.5)
1.35
(34.4)
1.35
(34.4)
Panel adapter
(Rear)
Panel adapter
(Rear)
Panel adapter
(Front)
Panel adapter
(Front)
Protective cover
(Front)
Protective cover
(Front)
(31 × 31 + 0.0 / - 0.4)
1.22 × 1.22 + 0.0 / - 0.016
(t ≤ 4.5)
t ≤ 0.177
M3
M3
Mounting bracket L TYPE
Mounting bracket S TYPE
1.79
(45.5)
0.24
(6.1)
1.03
(26.2)
0.20
(5.0)
0.79
(20.0)
0.16
(4.2)
0.51
(13.0)
0.50
(12.9)
1.46
(37.1)
0.20
(5.0)
0.98
(25.0)
0.16
(4.2)
0.157
(4.0)
1.35
(34.4)
1.35
(34.4)
1.30
(33.0)
1.19
(30.2)
1.30
(33.0)
1.19
(30.2)
0.335
(8.5)
1.35
(34.4)
1.35
(34.4)
Panel adapter
(Rear)
Panel adapter
(Rear)
Panel adapter
(Front)
Panel adapter
(Front)
Protective cover
(Front)
Protective cover
(Front)
(31 × 31 + 0.0 / - 0.4)
1.22 × 1.22 + 0.0 / - 0.016
(t ≤ 4.5)
t ≤ 0.177
M3
M3
Mounting bracket L TYPE
Mounting bracket S TYPE
Panel Mounting Kit (Includes 2 adapters & 1 cover)

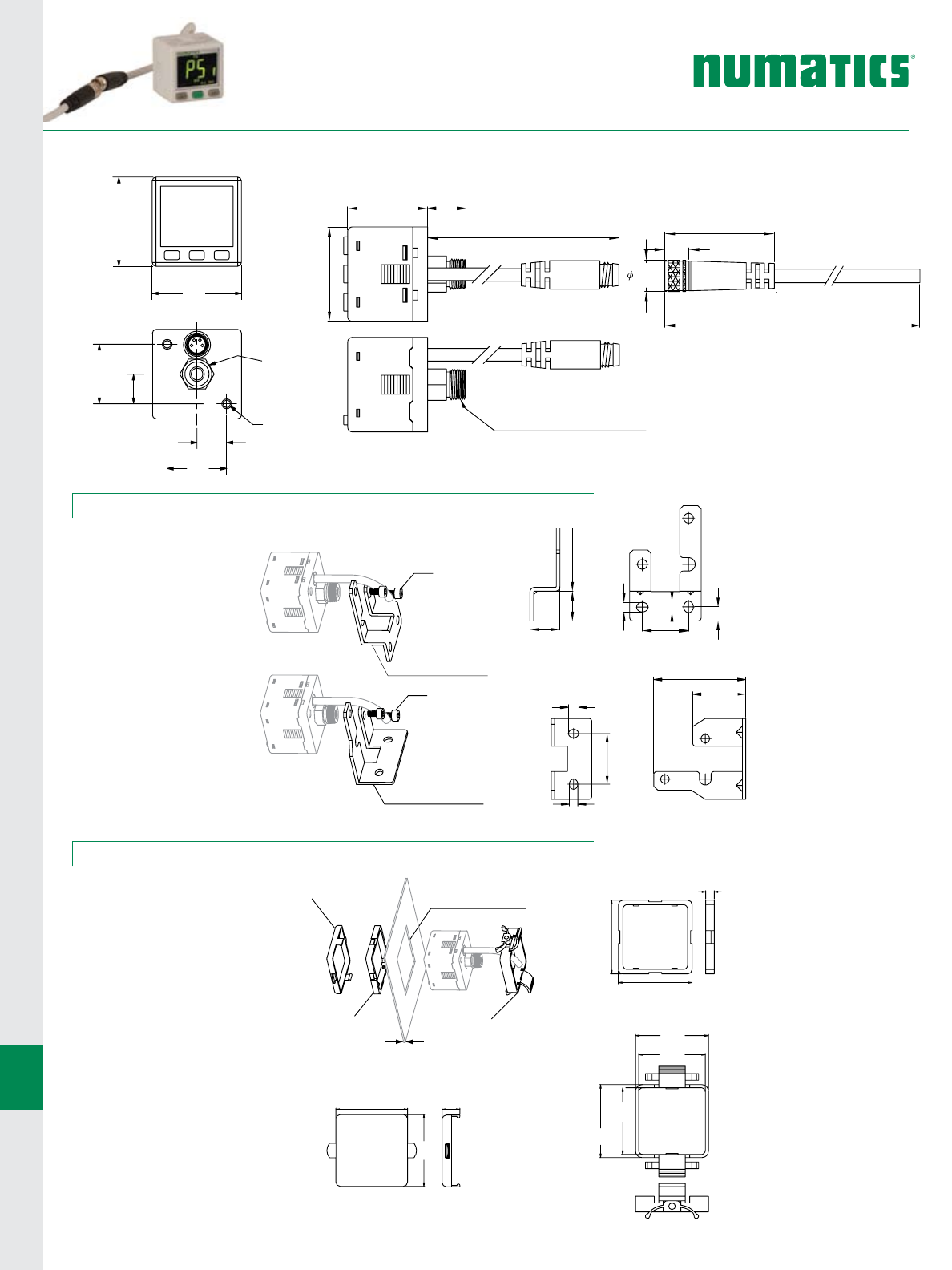

Dimensions
Mounting Bracket Kits (2 M3 Screws Included)
BRK280-1
BRK280-2
PMK280-C
Units: Inch
(mm)
Units: Inch
(mm)
Units: Inch
(mm)
1.0
(25.4)
1.18
(30.0)
(150±10)
5.9±0.4
1/8” NPT Male x 10-32 UNF Female
M8 Female 4 Pin Cordset Supplied With Switch
0.46
(11.8)
1.26¨
78.75¨
0.28¨
0.35¨
(32)
(7)
(9)
(2000 mm)
(30.0)
(30.0)
1.18
1.18
HEX
7/16"
(11.0)
M3 x 0.5 THD
2 PLS
(20.0)
0.79
(10.0)
0.39
(10.0)
0.39
(20.0)
0.79
49

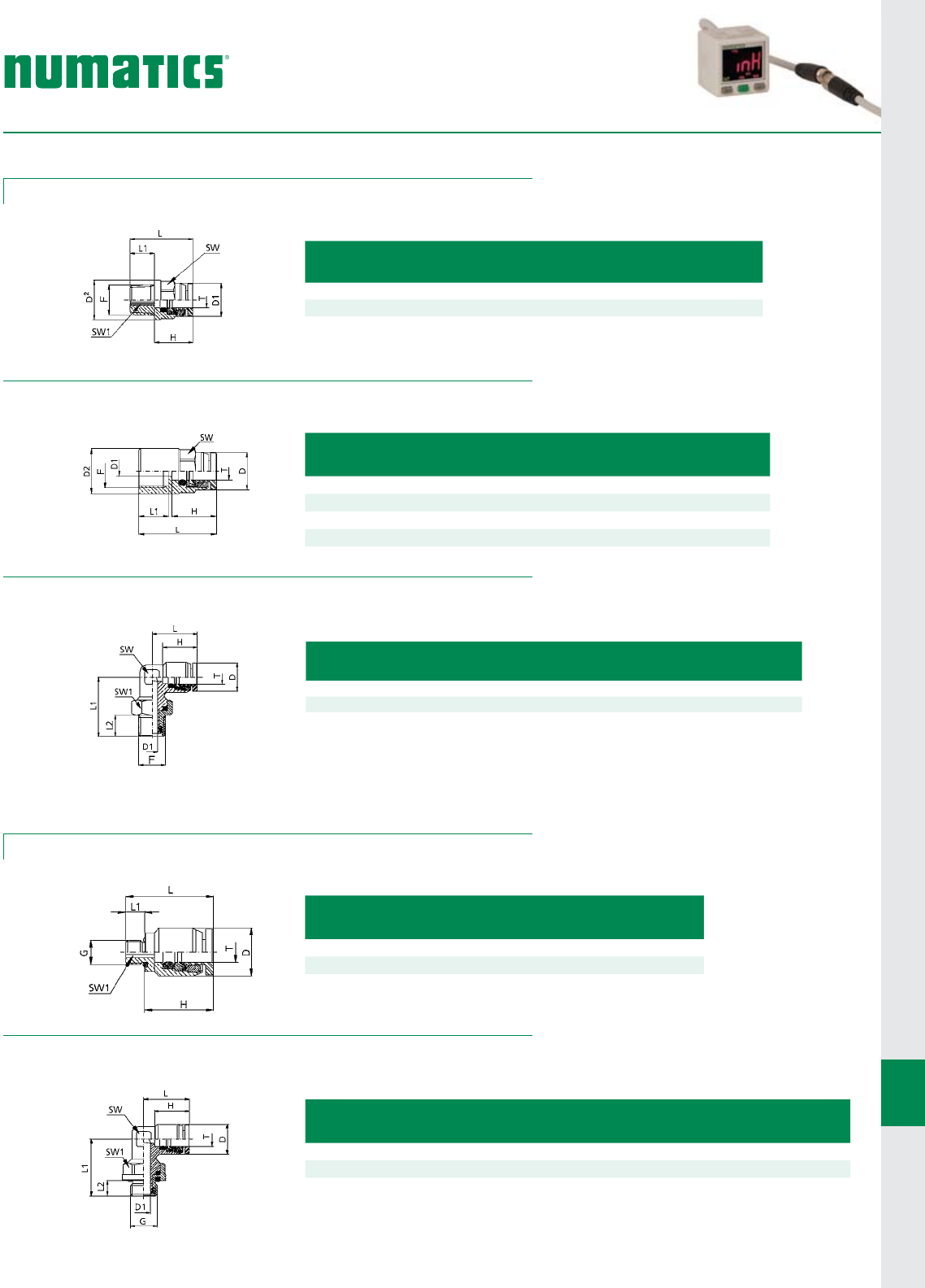

Digital Sensor Fittings
5
Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.
Model
Number
Tube
Diameter
(T)
Thread
(F) D1 D2 L L1 H SW SW1
INB103-108-036 1/8 10-32 UNF 0.370 0.370 0.697 0.165 0.472 / 5/64
INB103-532-036 5/32 10-32 UNF 0.394 0.394 0.717 0.165 0.492 / 5/64
INB103-104-036 1/4 10-32 UNF 0.472 0.472 0.772 0.165 0.531 / 5/64
INB103 Male Connector
INB105 Female Connector
Model
Number
Tube
Diameter
(T)
Thread
(F) D D1 D2 L L2 H SW
INB105-108-020 1/8 1/8 NPTF 0.370 0.094 0.551 0.945 0.335 0.472 3/8
INB105-532-020 5/32 1/8 NPTF 0.394 0.118 0.551 0.965 0.335 0.492 7/16
INB105-104-020 1/4 1/8 NPTF 0.472 0.157 0.551 0.965 0.335 0.531 1/2
INB105-516-020 5/16 1/8 NPTF 0.591 0.236 0.669 1.055 0.335 0.630 19/32
INB109 Swivel Elbow
Model
Number
Tube
Diameter
(T)
Thread (F) D D1 L L1 L2 H SW SW1
INB109-108-036 1/8 10-32 UNF 0.394 0.087 0.638 0.630 0.165 0.472 0.354 0.354
INB109-532-036 5/32 10-32 UNF 0.394 0.087 0.657 0.630 0.165 0.492 0.354 0.354
INB109-104-036 1/4 10-32 UNF 0.472 0.087 0.740 0.709 0.165 0.531 0.433 0.354
NB104 Male Connector without External Hex
Metric Fittings (Nickel Plated Brass)
Inch Fittings (Nickel Plated Brass)
Model
Number
Tube
Diameter
(T)
Thread
(G) D H L L1 SW1
NB104-004-005 4.0 M5 10.0 14.4 18.4 4.0 2
NB104-005-005 5.0 M5 11.0 14.7 18.7 4.0 2
NB104-006-005 6.0 M5 12.0 15.3 19.3 4.0 2
NB108 Swivel Elbow
Model
Number
Tube
Diameter
(T)
Thread
(G) D D1 H L L1 L2 SW SW1
NB108-004-005 4.0 M5 9.9 2.3 12.2 16.6 16.5 4.0 9 9
NB108-005-005 5.0 M5 10.9 2.3 12.7 16.6 18.0 4.0 10 9
NB108-006-005 6.0 M5 11.9 2.3 13.3 19.1 18.5 4.0 11 9
© Numatics Inc. 2009
LT-DPS280 1.0
5.0M-TGI-10/09
For a comprehensive listing of all Numatics production and distribution facilities worldwide, visit:
