Vacuum
Products Vacuum Generators - Ejectors
Vacuum Generators
Design
s Ejector with single stage nozzle: available in six power ratings
s One-piece housing (2) made of light, impact-resistant plastic
s Connection of compressed air (5) and vacuum (1) with threaded
holes
s Open silencer (3)
s Can be fixed horizontal with mounting holes (4) or vertical with
the base on a mounting plate
s Optional mounting with mounting plate and mounting kit on DIN
top-hat rails
Suction capacity up to 7.5 SCFM; Nozzle diameter: 0.5 to 2.5mm;
Maximum vacuum 85%; One-piece impact resistant plastic body;
Silencer (standard). Port Size: M5 to G3/8
Design Features
Basic Ejectors – NSBPX Series
Suction rate from 0.3 SCFM to 7.5 SCFM
The basic ejectors are typically used for high-speed handling of air-
tight work pieces, especially in systems with decentralized vacuum
generation; Handling of electronic component; Separation systems for
plastic and sheet metal machining. This type of ejector is typically used
if the user is just looking for the base ejector unit with no additional
features. If additional features are required, refer to Numatics “NSBPC
Series”.
Generators-Ejectors: NSBPX Series
Type Nozzle-Ø
(mm)
Degree of
evacuation (%)
Max. suction
rate (l/min)
Max. suction rate
(m3/h)
Air consumpt. during
evac. (l/min)*
Air consumpt.
during evac. (m3/h)*
Noise level workp.
gripped (dB)
NSBPX 05 0.5 85 8.0 0.5 14 0.8 53
NSBPX 07 0.7 85 16.0 1.0 22 1.3 59
NSBPX 10 1.0 85 37.7 2.3 48 2.9 59
NSBPX 15 1.5 85 71.0 4.3 105 6.3 65
NSBPX 20 2.0 85 127.0 7.6 197 11.8 68
NSBPX 25 2.5 85 215.0 12.9 311 18.7 70
Technical Data Basic Ejectors NSBPX Series
*At optimal operating pressure
**For max. length 2 m
43
Vacuum
Products
Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSBPX Series
Type Degree of evacuation in mbar
0 -50 -100 -200 -300 -400 -500 -600 -700 -800
NSBPX005XXXSDG1 8.00 6.62 5.64 4.74 3.81 3.01 2.28 1.42 0.40 0.10
NSBPX007XXXSDG1 16.10 13.60 11.37 9.03 7.25 5.63 3.97 2.65 1.10 0.30
NSBPX010XXXSDG2 37.70 33.20 30.10 26.70 23.00 18.60 14.90 9.80 5.20 1.61
NSBPX015XXXSDG1 71.00 65.00 60.10 52.00 44.00 36.50 29.00 20.50 11.40 2.18
NSBPX020XXXSDG3 127.00 117.80 106.00 94.20 79.10 65.30 49.87 35.99 23.00 8.36
NSBPX025XXXSDG3 215.00 172.00 156.10 138.70 118.50 99.10 79.36 58.90 37.24 16.24
Type Noise level free
(dB)
Operating
pressure (bar)
Recomm. int. hose
diameter compr. air
(mm)**
Recomm. int. hose
diameter vacuum
(mm)**
Weight (kg) Operating
temperature (°C)
NSBPX 05 58 3 - 6 2 2 .0075 0 - 60
NSBPX 07 65 3 - 6 2 2 .0075 0 - 60
NSBPX 10 65 3 - 6 4 6 .022 0 - 60
NSBPX 15 72 3 - 6 4 6 .022 0 - 60
NSBPX 20 77 3 - 6 6 7 .05 0 - 60
NSBPX 25 78 3 - 6 6 7 .05 0 - 60
Technical Data Basic Ejectors NSBPX Series

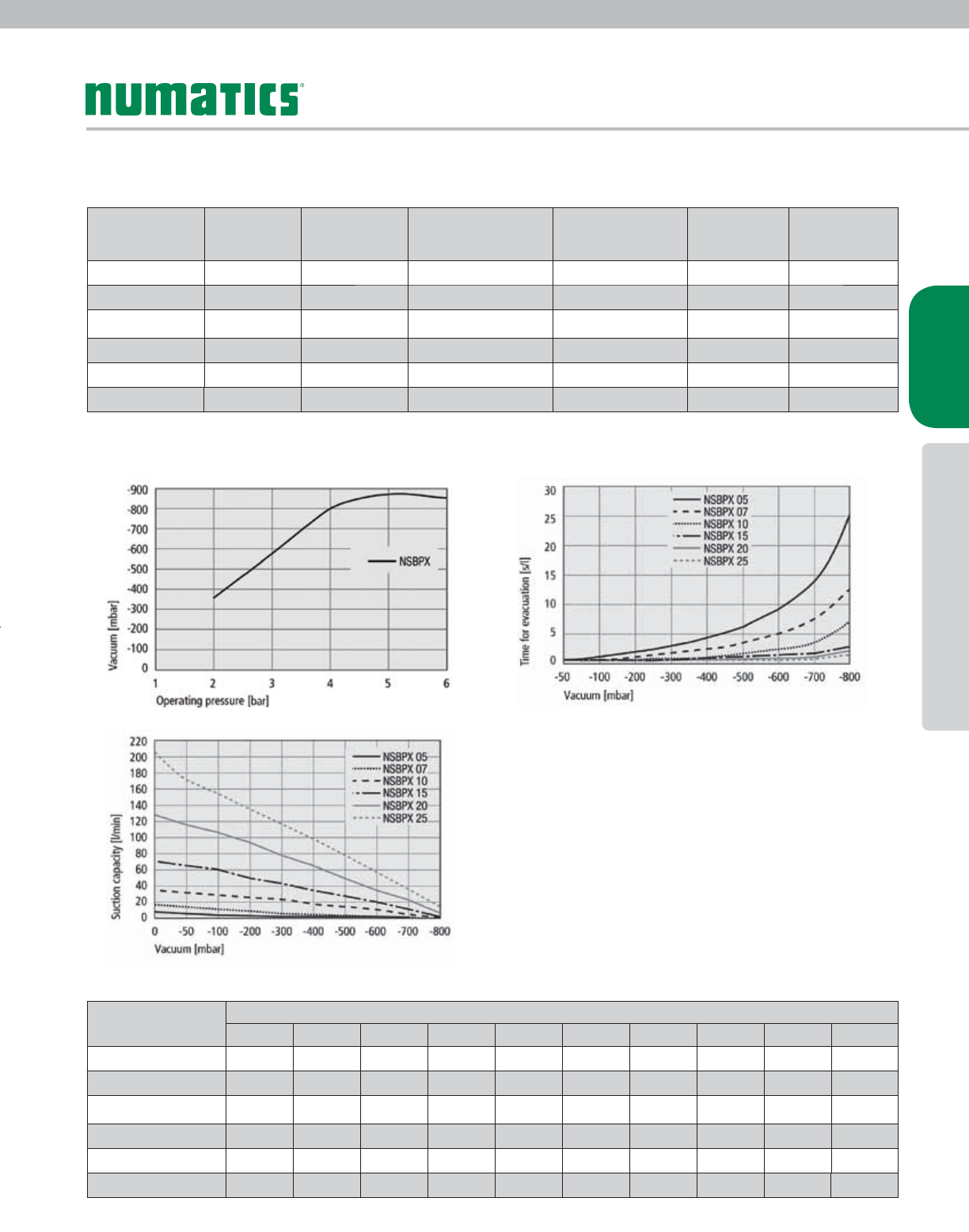

Performance Data Basic Ejectors NSBPX Series
Suction Capacity in l/min at Various Degrees of Evacuation
*At optimal operating pressure
**For max. length 2 m
Achievable vacuum at various operating pressures
Suction capacity at various degrees of evacuation
Evacuation times for various vacuum ranges
44
Vacuum
Products Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSBPX Series
NSBPX Series

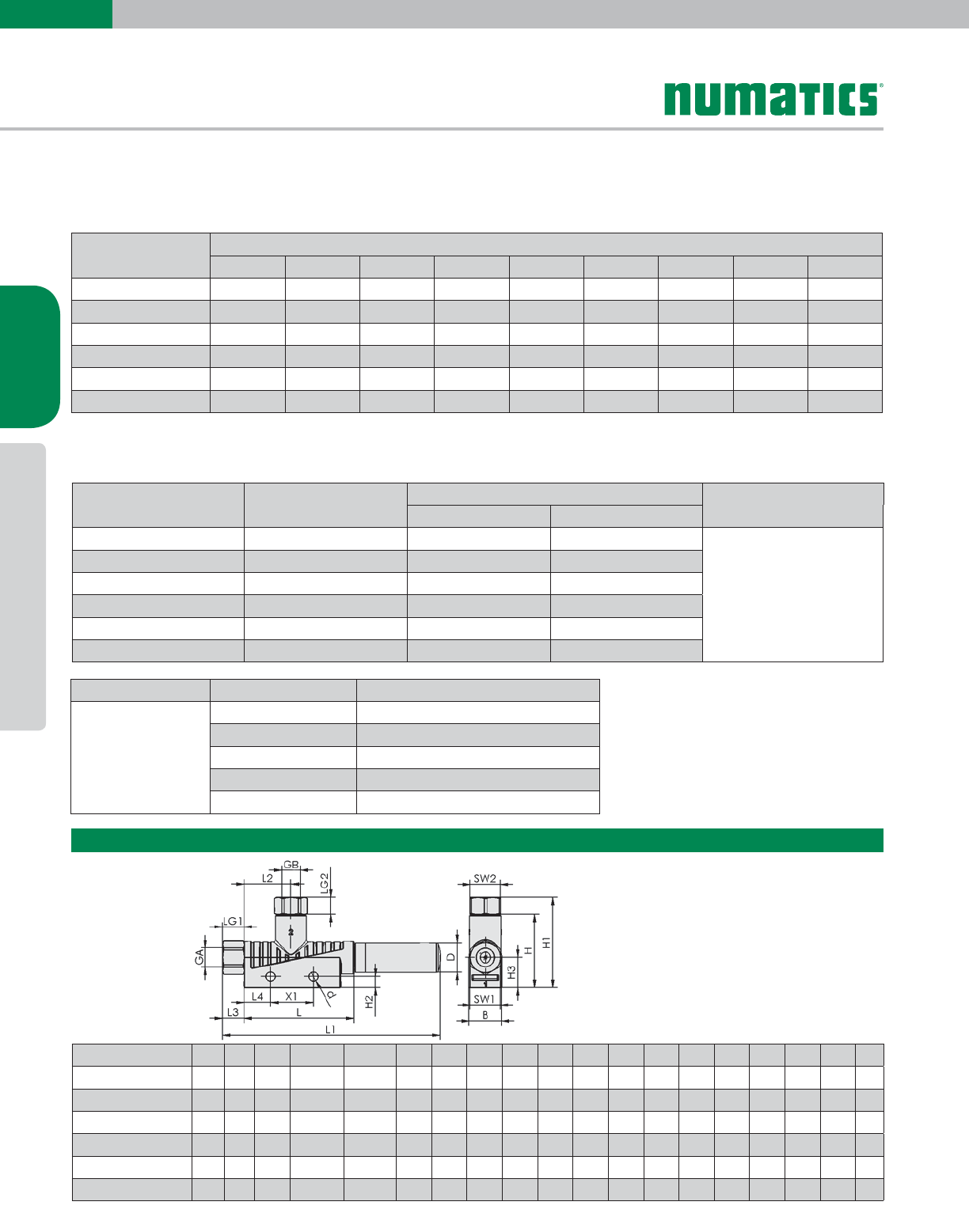

Dimensions: mm
How to Order
NSBPX Series
Part Number Nozzle Size (mm) Thread Type / Port Size Numatics Description
Pressure Vacuum
NSBPX005XXXSDG1 0.7 M5 - F M5 - F
Basic Ejectors - Single Stage
NSBPX007XXXSDG1 0.7 M5 - F M5 - F
NSBPX010XXXSDG2 1.0 G1/8 - F G1/8 - F
NSBPX015XXXSDG1 1.5 G1/8 - F G1/8 - F
NSBPX020XXXSDG3 2.0 G1/4 - F G3/8 - F
NSBPX025XXXSDG3 2.5 G1/4 - F G3/8 - F
Type B d D GA GB H H1 H2 H3 L L1 L2 L3 L4 LG1 LG2 SW1 SW2 X1
NSBPX005XXXSDG1 10 4.2 9 M5-F M5-F 26 31 5.2 12 45 74 18 5 12.5 558820
NSBPX007XXXSDG1 10 4.2 9 M5-F M5-F 26 31 5.2 12 45 74 18 5 12.5 558820
NSBPX010XXXSDG2 15 4.2 14 G1/8-F G1/8-F 34 42 5.2 14 51.5 102 22 10 12.5 8 8 14 14 20
NSBPX015XXXSDG1 15 4.2 14 G1/8-F G1/8-F 34 42 5.2 14 51.5 102 22 10 12.5 8 8 14 14 20
NSBPX020XXXSDG3 20 4.2 20 G1/4-F G3/8-F 39 53.5 5.2 17 86.5 176 24.5 13 12.5 9 10 17 19 20
NSBPX025XXXSDG3 20 4.2 20 G1/4-F G3/8-F 39 53.5 5.2 17 86.5 176 24.5 13 12.5 9 10 17 19 20
Product Family Name Part Number Description
Accessories
NBEPL1111453SBP Mtg Plate NSBP EJT
NSETSBPX0056CFN Mtg. Set NSBP/NSBPC M4F
NSDXXXXXXX24BMM Silencer Replacement NSBPX 05
NSDXXXXXXX401MG Silencer Replacement NSBPX 07 to 10
NSDXXXXXXX763MG Silencer Replacement NSBPX 20 to 25
Type Degree of evacuation in mbar
-50 -100 -200 -300 -400 -500 -600 -700 -800
NSBPX005XXXSDG1 0.34 0.68 1.56 2.66 4.02 5.84 8.54 13.22 25.54
NSBPX007XXXSDG1 0.20 0.38 0.84 1.46 2.24 3.26 4.66 6.84 12.56
NSBPX010XXXSDG2 0.06 0.14 0.30 0.52 0.82 1.30 1.98 3.26 6.56
NSBPX015XXXSDG1 0.05 0.08 0.16 0.26 0.40 0.60 0.86 1.30 2.54
NSBPX020XXXSDG3 0.03 0.05 0.09 0.16 0.24 0.34 0.49 0.80 1.74
NSBPX025XXXSDG3 0.03 0.04 0.07 0.09 0.14 0.20 0.28 0.42 0.99
Evacuation Time in s/l for Various Vacuum Ranges
Performance Data Basic Ejectors NSBPX Series Continued
45
Vacuum
Products
Vacuum Generators - Ejectors
Vacuum Generators

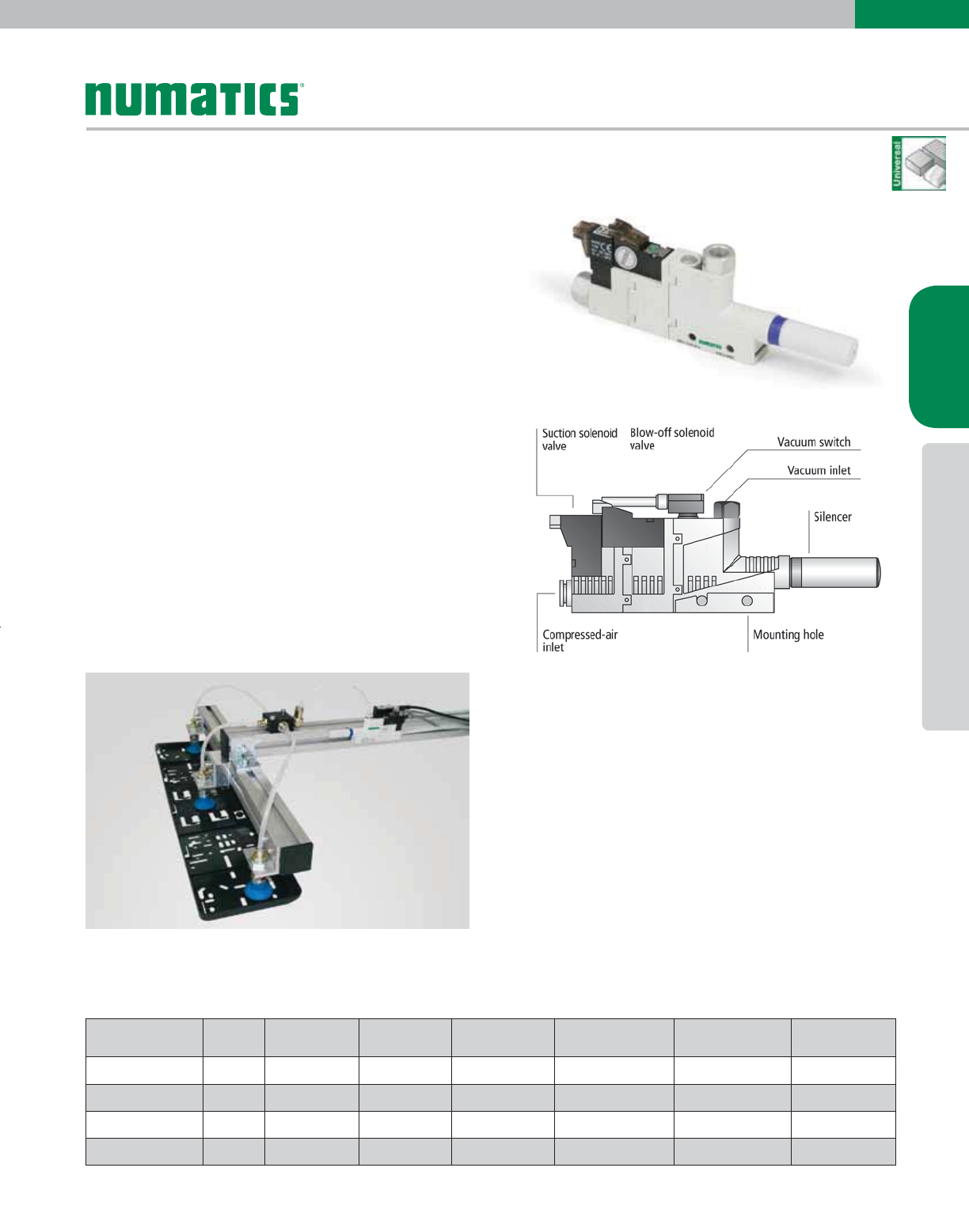

Generators-Ejectors: NSBPC Series
The basic ejectors are typically used for high-speed handling of
suction-tight work pieces, especially in systems with decentralized
vacuum generation; Handling of electronic components;
Separation systems for plastic and sheet metal machining.
Design Features
Basic Ejectors – NSBPC Series
Suction rate from 0.2 SCFM to 7.5 SCFM
Suction rates up to 7.5 SCFM; Nozzle diameter: 1 to 2.5mm;
Silencer (standard); Maximum vacuum 85%; One-piece impact
resistant plastic body. Optional features include suction solenoid
valve (N.O.), blow-off solenoid valve, and vacuum switch with
teach button (PNP).
Design
s Ejector with single stage nozzle, available in 4 power ratings,
from 1.0 to 2.5 mm nozzle diameter
s Basic housing with connection facility for a vacuum switch
s Optionally available with suction or blow-off and vacuum switch
s Can be fixed horizontal with mounting holes or vertical with the
base on a mounting plate
s Optional mounting with mounting plate and mounting kit on DIN
top-hat rails
Central vacuum generation by means of basic ejector NSBPC for handling
plastic injection molded parts
Type Nozzle-Ø
(mm)
Degree of
evacuation (%)
Max. suction
rate (l/min)
Max. suction rate
(m3/h)
Air consumpt. during
evac. (l/min)*
Air consumpt.
during evac. (m3/h)*
Noise level workp.
gripped (dB)
NSBPC 10 1.0 85 38 2.3 48 2.9 59
NSBPC 15 1.5 85 70 4.2 118 7.1 65
NSBPC 20 2.0 85 123 7.4 208 12.5 68
NSBPC 25 2.5 85 215 12.9 311 18.7 70
Technical Data Basic Ejectors NSBPC
!The supply voltage for vacuum switches and solenoid valves is 24 VDC
*On version with solenoid valves NSBP-C 25 (320) and optimal operating pressure **For max. length 2 m
46
Vacuum
Products Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSBPC Series
Type Noise level
free (dB)
Operating
pressure (bar)
Recomm. int. hose
diameter compr. air
(mm)**
Recomm. int. hose
diameter vacuum
(mm)**
Weight (g) Operating
temperature (°C)
NSBPC 10 65 3 - 6 4 6 105 0 - 50
NSBPC 15 72 3 - 6 4 6 105 0 - 50
NSBPC 20 77 3 - 6 6 7 143 0 - 50
NSBPC 25 78 3 - 6 6 7 143 0 - 50
Technical Data Basic Ejectors NSBPC Series
!The supply voltage for vacuum switches and solenoid valves is 24 VDC
*On version with solenoid valves NSBP-C 25 (320) and optimal operating pressure
**For max. length 2 m

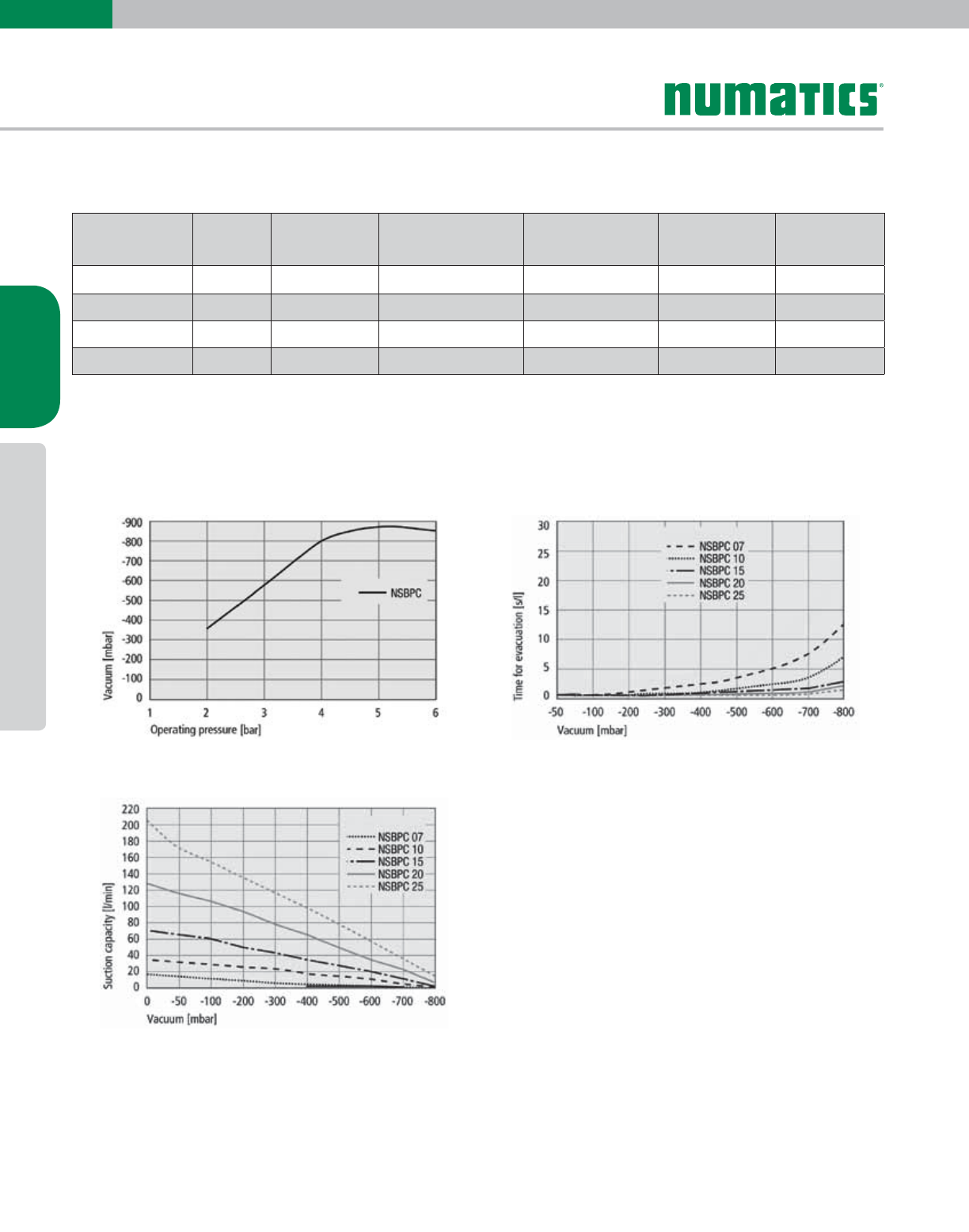

Performance Data Basic Ejectors NSBPC Series
Achievable vacuum at various operating pressures
Suction capacity at various degrees of evacuation
Evacuation times for various vacuum ranges
47
Vacuum
Products
Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSBPC Series
Type Degree of evacuation in mbar
0 -50 -100 -200 -300 -400 -500 -600 -700 -800
NSBPC 10 38.00 33.20 30.10 26.70 23.00 18.60 14.90 9.80 5.20 1.61
NSBPC 15 70.00 65.00 60.10 52.00 44.00 36.50 29.00 20.50 11.40 2.18
NSBPC 20 123.00 115.00 104.00 93.00 78.00 64.00 49.00 35.50 23.00 8.00
NSBPC 25 215.00 175.00 157.50 139.50 119.00 99.50 79.60 59.00 37.30 16.30
Type Degree of evacuation in mbar
-50 -100 -200 -300 -400 -500 -600 -700 -800
NSBPC 10 0.06 0.14 0.30 0.52 0.82 1.30 1.98 3.26 6.56
NSBPC 15 0.05 0.08 0.16 0.26 0.40 0.60 0.86 1.30 2.54
NSBPC 20 0.03 0.05 0.09 0.16 0.24 0.34 0.49 0.80 1.74
NSBPC 25 0.02 0.03 0.06 0.09 0.14 0.20 0.28 0.42 0.99
Evacuation Time in s/l for Various Vacuum Ranges
Suction Capacity in l/min at Various Degrees of Evacuation
How to Order
NSBPC Series
Product Family Name Part number Nozzle Size (mm) Thread Type / Port Size Description - Features
Pressure Vacuum
Basic ejectors - single stage
with additional features
NSBPC010XXXVTG2 1.0 G1/8 - F G1/8 - F Basic ejector; vacuum switch (PNP)
NSBPC010ANOXXG2 1.0 G1/8 - F G1/8 - F Basic ejector; suction valve; blow off valve
NSBPC010ANOVTG2 1.0 G1/8 - F G1/8 - F Basic ejector; suction valve; blow off valve;
vacuum switch (PNP)
NSBPC015XXXVTG2 1.5 G1/8 - F G1/8 - F Basic ejector; vacuum switch (PNP)
NSBPC015ANOXXG2 1.5 G1/8 - F G1/8 - F Basic ejector; suction valve; blow off valve
NSBPC015ANOVTG2 1.5 G1/8 - F G1/8 - F Basic ejector; suction valve; blow off valve;
vacuum switch (PNP)
NSBPC020XXXVTG3 2.0 G1/4 - F G3/8 - F Basic ejector; vacuum switch (PNP)
NSBPC020ANOXXG3 2.0 G1/4 - F G3/8 - F Basic ejector; suction valve; blow off valve;
NSBPC020ANOVTG3 2.0 G1/4 - F G3/8 - F Basic ejector; suction valve; blow off valve;
vacuum switch (PNP)
NSBPC025XXXVTG3 2.5 G1/4 - F G3/8 - F Basic ejector; vacuum switch (PNP)
NSBPC025ANOXXG3 2.5 G1/4 - F G3/8 - F Basic ejector; suction valve; blow off valve
NSBPC025ANOVTG3 2.5 G1/4 - F G3/8 - F Basic ejector; suction valve; blow off valve;
vacuum switch (PNP)
Product Family Name Part Number Description
Accessories
NBEPL1111453SBP Mtg Plate NSBP EJT
NSETSBPX0056CFN Mtg. Set NSBP/NSBPC M4F
NSDXXXXXXX401MG Silencer Replacement NSBPC 07 to 10
NSDXXXXXXX763MG Silencer Replacement NSBPC 20 to 25
NASKMIC1030PUGE 3 meter connection cable for solenoid valve
NASKBM8450PURGE Cable M8 4 5M PUR GE - Straight Connection
NASKBM8450PURWX Cable M8 4 5M PUR W - Right-angle connection
48
Vacuum
Products Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSBPC Series
NSBPC 020/025 ANO(VT)G3
NSBPC 010/015 (VT) G2 and 020/025 (VT) G3 NSBPC 010/015 ANO(VT)G2

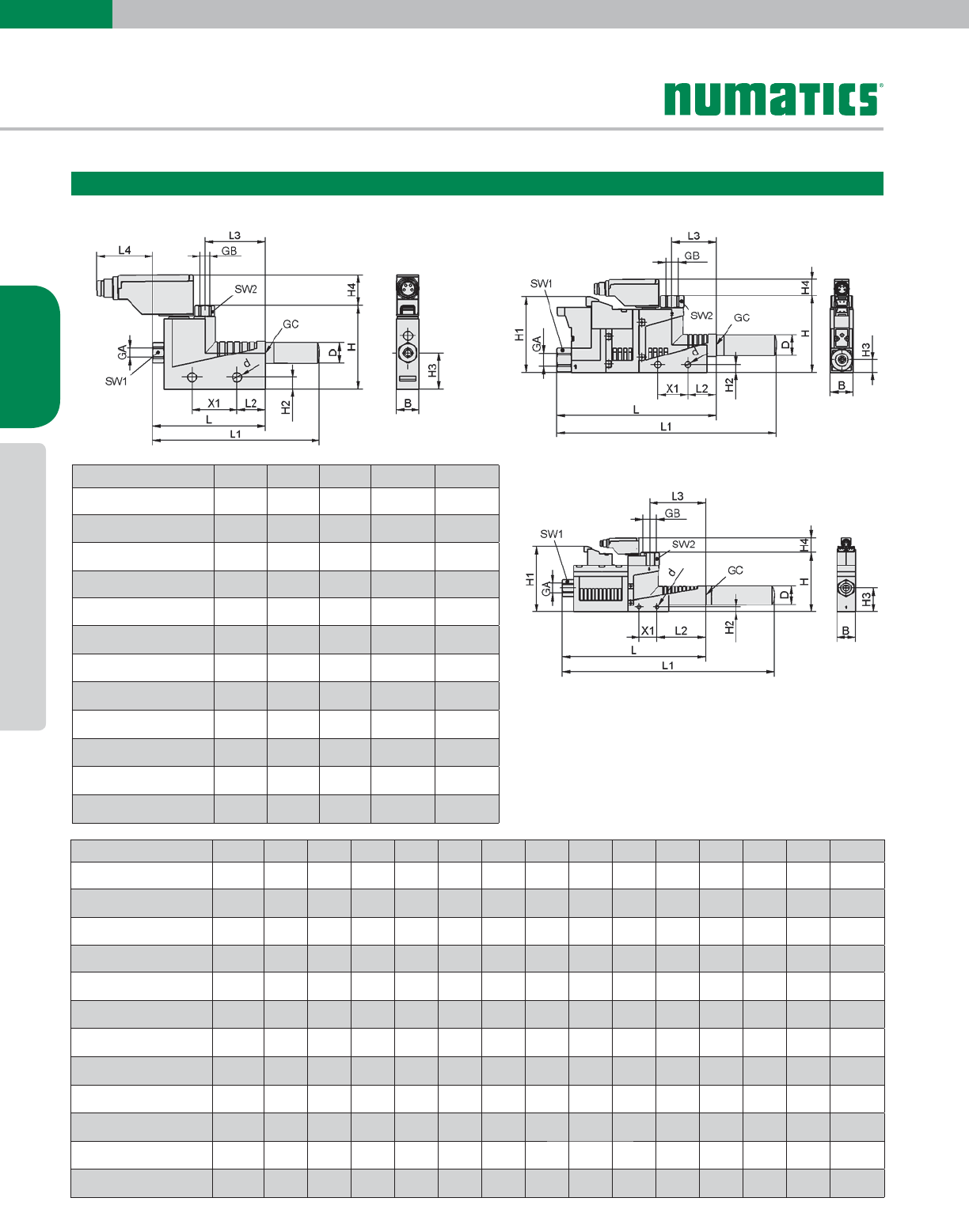

Dimensions: mm, Weight in kg
Type GC H H1 H2 H3 H4 L L1 L2 L3 L4 SW1 SW2 X1 kg
NSBPC010XXXVTG2 G1/8-F 51 - 5.2 18 11.8 61.5 101.5 19 29.5 19.8 14 14 20 0.105
NSBPC015XXXVTG2 G1/8-F 51 - 5.2 18 11.8 61.5 101.5 19 29.5 19.8 14 14 20 0.105
NSBPC020XXXVTG3 G3/8-F 65.5 - 5.2 18 17.3 99.5 175.5 54 62 17.8 17 19 20 0.143
NSBPC025XXXVTG3 G3/8-F 65.5 - 5.2 18 17.3 99.5 175.5 54 62 17.8 17 19 20 0.143
NSBPC010ANOXXG2 G1/8-F 51 50 5.2 8.5 - 106 146 19 29.5 - 14 14 20 0.07
NSBPC015ANOXXG2 G1/8-F 51 50 5.2 8.5 - 106 146 19 29.5 - 14 14 20 0.07
NSBPC020ANOXXG3 G3/8-F 65.5 72 5.2 8.5 - 159.5 235.5 54 62 - 17 19 20 0.144
NSBPC025ANOXXG3 G3/8-F 65.5 72 5.2 8.5 - 159.5 235.5 54 62 - 17 19 20 0.144
NSBPC010ANOVTG2 G1/8-F 49 50 5.2 8.5 14.2 101.5 141.5 12.5 29.5 - - - 20 0.14
NSBPC015ANOVTG2 G1/8-F 49 50 5.2 8.5 14.2 101.5 141.5 12.5 29.5 - - - 20 0.14
NSBPC020ANOVTG3 G3/8-F 65.5 72 5.2 26 17.3 159.5 235.5 54 62 - 17 19 20 0.22
NSBPC025ANOVTG3 G3/8-F 65.5 72 5.2 26 17.3 159.5 235.5 54 62 - 17 19 20 0.22
Type B d D GA GB
NSBPC010XXXVTG2 15 4.2 13.5 G1/8-F G1/8-F
NSBPC015XXXVTG2 15 4.2 13.5 G1/8-F G1/8-F
NSBPC020XXXVTG3 20 4.2 20 G1/4-F G3/8-F
NSBPC025XXXVTG3 20 4.2 20 G1/4-F G3/8-F
NSBPC010ANOXXG2 15 4.2 13.5 G1/8-F G1/8-F
NSBPC015ANOXXG2 15 4.2 13.5 G1/8-F G1/8-F
NSBPC020ANOXXG3 20 4.2 20 G1/4-F G3/8-F
NSBPC025ANOXXG3 20 4.2 20 G1/4-F G3/8-F
NSBPC010ANOVTG2 15 4.2 13.5 G1/8-F G1/8-F
NSBPC015ANOVTG2 15 4.2 13.5 G1/8-F G1/8-F
NSBPC020ANOVTG3 20 4.2 20 G1/4-F G3/8-F
NSBPC025ANOVTG3 20 4.2 20 G1/4-F G3/8-F
49
Vacuum
Products
Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSEGX Series

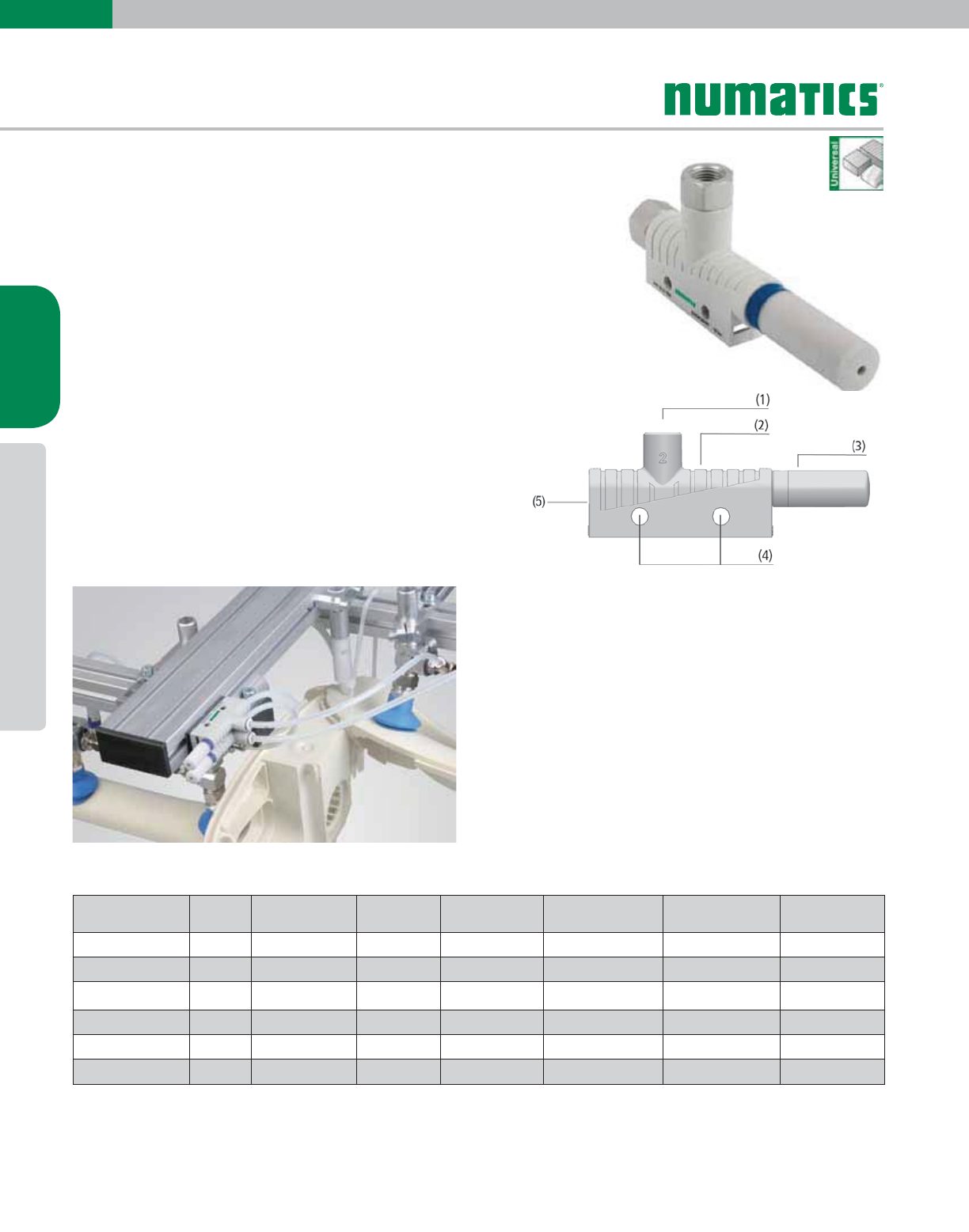

Basic ejector that is robust for universal use in various
industries and applications. Examples include sheet metal
handling in automotive related applications, wood, food and
packing.
Suction capacity up to 8.5 SCFM; Nozzle diameter 0.5 to
3mm; Silencer (standard); Maximum vacuum 85%; Anodized
aluminum body with brass nozzle and plastic impact resistant
silencer. Port sizes: G1/8 to G1/2
Basic Ejectors – NSEGX Series
Suction Rate from 0.3 SCFM to 8.5 SCFM
Design Features
Decentral vacuum generation by means of basic ejectors NSEGX for handling
plastic parts
Note: Nozzle size of 3mm has silencer internal port size of G3/4
Design
s Ejector with single stage nozzle, available in seven
power ratings
Type
Nozzle
diam-
eter
Degree of
evacuation
[%]
Suction
rate
(l/min)
Suction
rate
(m³/h)
Air con-
sumption
(l/min)
Air con-
sumption
(m³/h)
Recommended
hose diameter
compressed-
air (mm)
Recommended
hose diameter
vacuum (mm)
Operating
pressure
(bar)
Operating
tempera-
ture (°C)
Weight
(kg)
NSEG 05 0.5 82 7 0.4 13 0.8 2 2 5 -10 - 80 0.011
NSEG 07 0.7 85 14 0.8 21 1.3 2 4 5 -10 - 80 0.045
NSEG 10 1 85 34 2 49 2.9 2 4 5 -10 - 80 0.05
NSEG 15 1.5 85 69 4.1 102 6.1 4 6 5 -10 - 80 0.11
NSEG 20 2 85 124 7.4 186 11.2 4 9 5 -10 - 80 0.13
NSEG 25 2.5 55 170 10.2 186 11.2 4 9 5 -10 - 80 0.295
NSEG 30 3 85 240 14.4 392 23.5 6 12 5 -10 - 80 0.404
Technical Data Basic Ejectors NSEGX
*At optimal operating pressure
**For max. length 2 m
50
Vacuum
Products Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSEGX Series

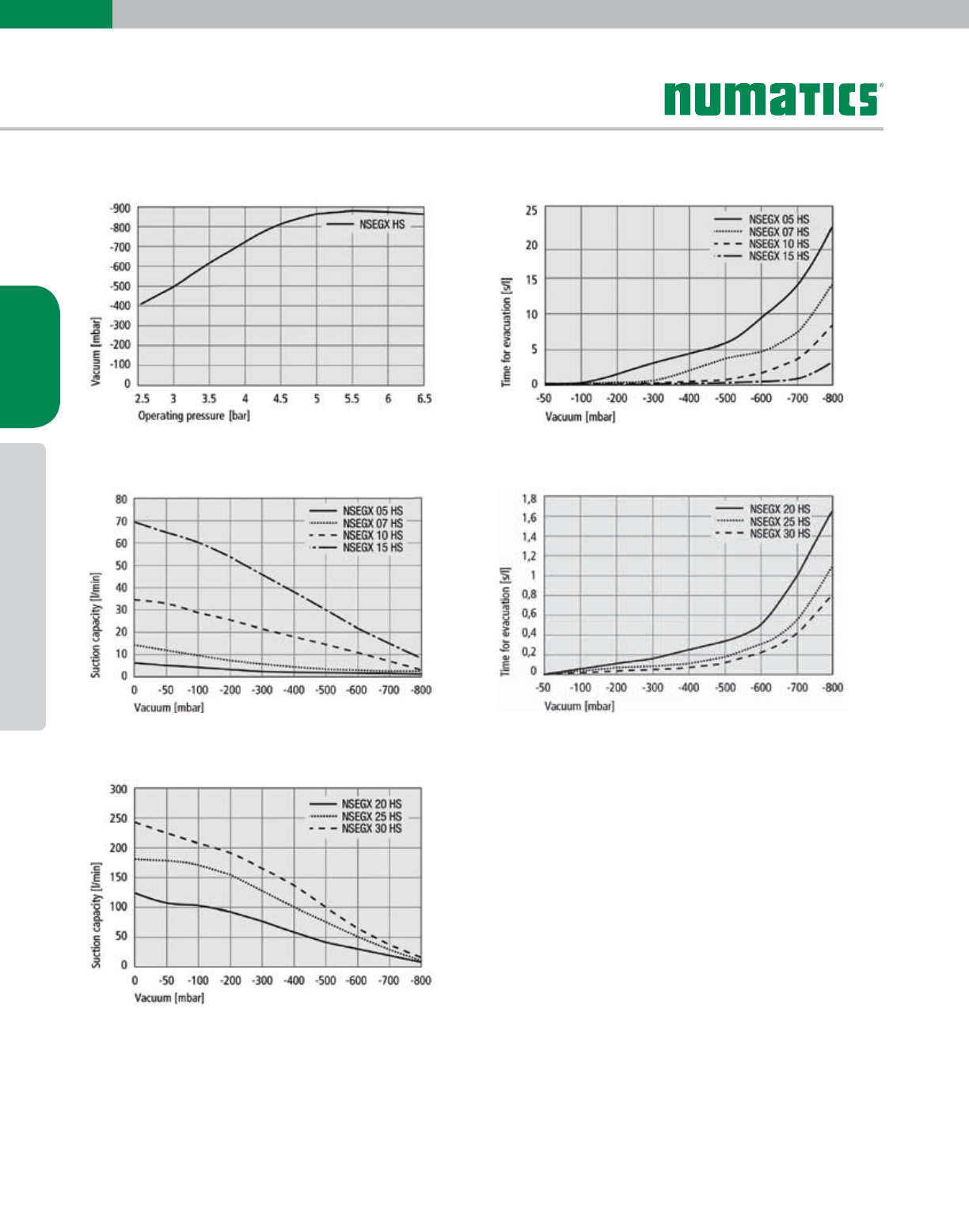

Performance Data Basic Ejectors NSEGX Series
Achievable vacuum at various operating pressures
Suction capacity at various degrees of evacuation
Suction capacity at various degrees of evacuation
Evacuation times for various vacuum ranges
Evacuation times for various vacuum ranges
51
Vacuum
Products
Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSEGX Series
Type Degree of evacuation in mbar
0 -50 -100 -200 -300 -400 -500 -600 -700 -800
NSEGX005HSNSSDA 7.0 5.9 5.1 4.3 3.4 2.6 1.9 1.4 0.5 0.2
NSEGX007HSHVSDA 14.0 11.7 10.3 8.6 6.8 5.3 3.9 2.8 1.1 0.4
NSEGX010HSHVSDA 34.0 33.0 29.0 25.0 22.0 18.0 15.0 9.0 6.0 3.0
NSEGX015HSHVSDA 69.0 64.0 60.0 53.0 43.0 36.0 30.0 22.0 16.0 8.0
NSEGX020HSHVSDA 124.0 116.0 104.0 92.0 78.0 64.0 48.0 32.0 23.0 10.0
NSEGX025HSHVSDA 184.0 180.0 17.0 146.0 120.0 96.0 72.0 47.0 28.0 13.0
NSEGX030HSHVSDA 240.0 225.0 215.0 198.0 165.0 130.0 100.0 64.0 36.0 16.0
Type Degree of evacuation in mbar
-50 -100 -200 -300 -400 -500 -600 -700 -800
NSEGX005HSNSSDA 0.34 0.76 1.80 3.02 4.55 6.57 9.58 14.80 22.40
NSEGX007HSHVSDA 0.17 0.36 0.85 1.45 2.18 3.25 4.67 7.34 14.60
NSEGX010HSHVSDA 0.09 0.16 0.34 0.59 0.96 1.42 2.03 3.30 7.36
NSEGX015HSHVSDA 0.05 0.07 0.19 0.31 0.48 0.72 1.12 1.70 3.60
NSEGX020HSHVSDA 0.03 0.05 0.11 0.16 0.24 0.35 0.50 1.08 1.65
NSEGX025HSHVSDA 0.03 0.04 0.07 0.09 0.14 0.20 0.30 0.49 1.10
NSEGX030HSHVSDA 0.01 0.02 0.04 0.06 0.10 0.15 0.21 0.42 0.80
Evacuation Time in s/l for Various Vacuum Ranges
Suction Capacity in l/min at Various Degrees of Evacuation
How to Order
NSEGX Series
Product Family Name Part number Nozzle Size (mm) Thread Type / Port Size Description - Features
Pressure Vacuum
Basic ejectors - single stage
(aluminum)
NSEGX005HSNSSDA 0.5 M5 - F M5 - F High Speed and Narrow Shape
NSEGX007HSHVSDA 0.7 G1/8 - F G1/8 - F High Speed (High Vacuum)
NSEGX010HSHVSDA 1.0 G1/8 - F G1/8 - F High Speed (High Vacuum)
NSEGX015HSHVSDA 1.5 G1/4 - F G1/4 - F High Speed (High Vacuum)
NSEGX020HSHVSDA 2.0 G1/4 - F G1/4 - F High Speed (High Vacuum)
NSEGX025HSHVSDA 2.5 G3/8 - F G1/2 - F High Speed (High Vacuum)
NSEGX030HSHVSDA 3.0 G3/8 - F G1/2 - F High Speed (High Vacuum)
Product Family Name Part Number Description
Accessories
NSDXXXXXXX24BMM Silencer Replacement NSEG 05
NSDXXXXXXX401MG Silencer Replacement NSEG 07 to 10
52
Vacuum
Products Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSEGX Series

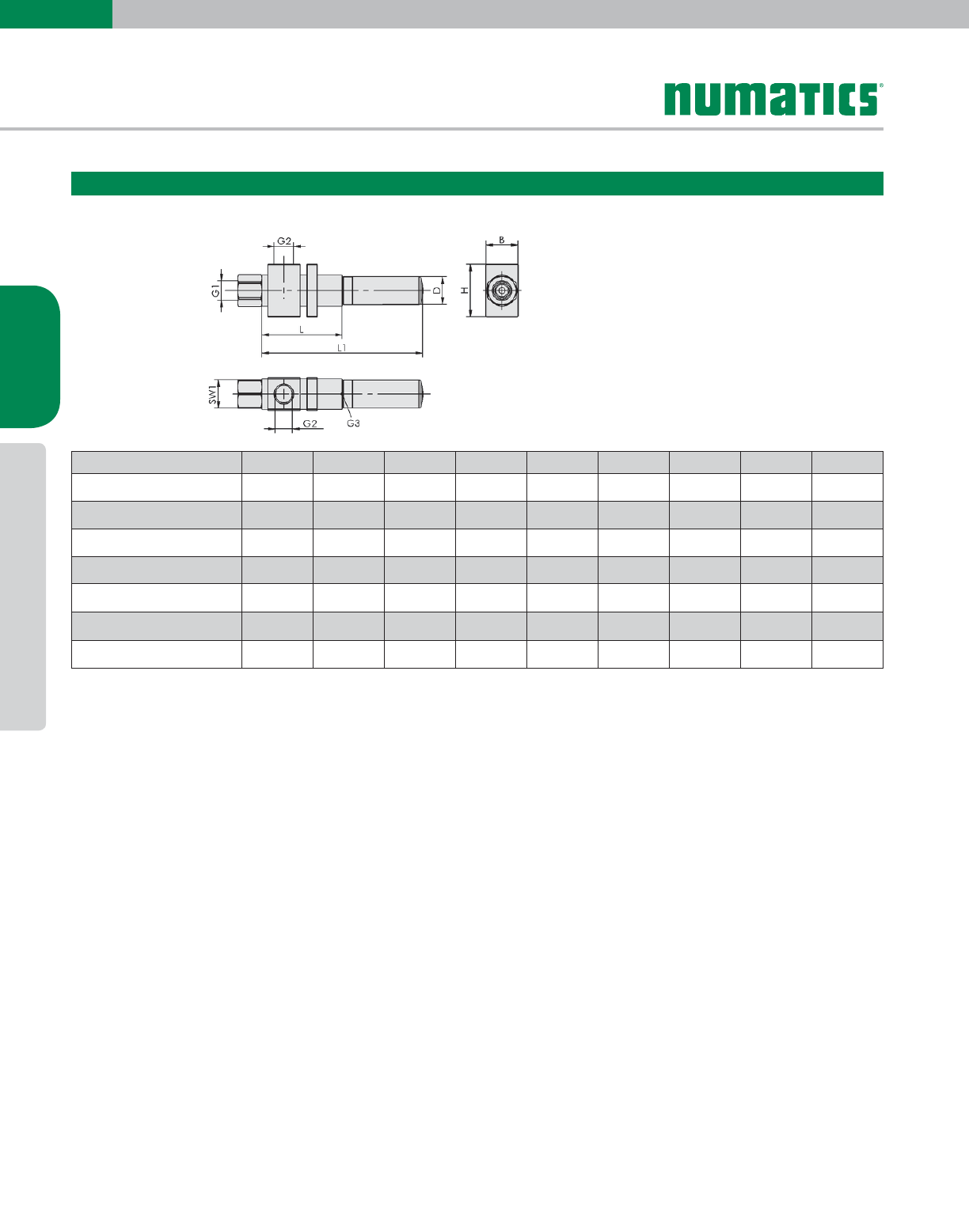

NSEG 05 to 30 SDA
Dimensions: mm
Type G1 G2 G3 SW1 L B H L1 D
NSEGX005HSNSSDA M5-F M5-F M5-F 8 32 10 20 56 9
NSEGX007HSHVSDA G1/8-F G1/8-F G1/8-F 14 40 16 26 80 13.6
NSEGX010HSHVSDA G1/8-F G1/8-F G1/8-F 14 45 16 26 85 13.6
NSEGX015HSHVSDA G1/4-F G1/4-F G1/4-F 17 60 22 38 106 20
NSEGX020HSHVSDA G1/4-F G1/4-F G3/8-F 17 75 26 38 131 20
NSEGX025HSHVSDA G3/8-F G1/2-F G1/2-F 17 75 26 38 131 20
NSEGX030HSHVSDA G3/8-F G1/2-F G3/4-F 22 110 42 50 200 31
