Accessories

Fittings, Flow Controls, Mufﬂers, Pressure Switches & Replacement Parts

www.numatics.com

Table of Contents

Accessories

World Thread Fittings 3-7

NPTF/Inch Tube Fittings 8-14

Metric Fittings 15-20

World Thread Flow Controls 21

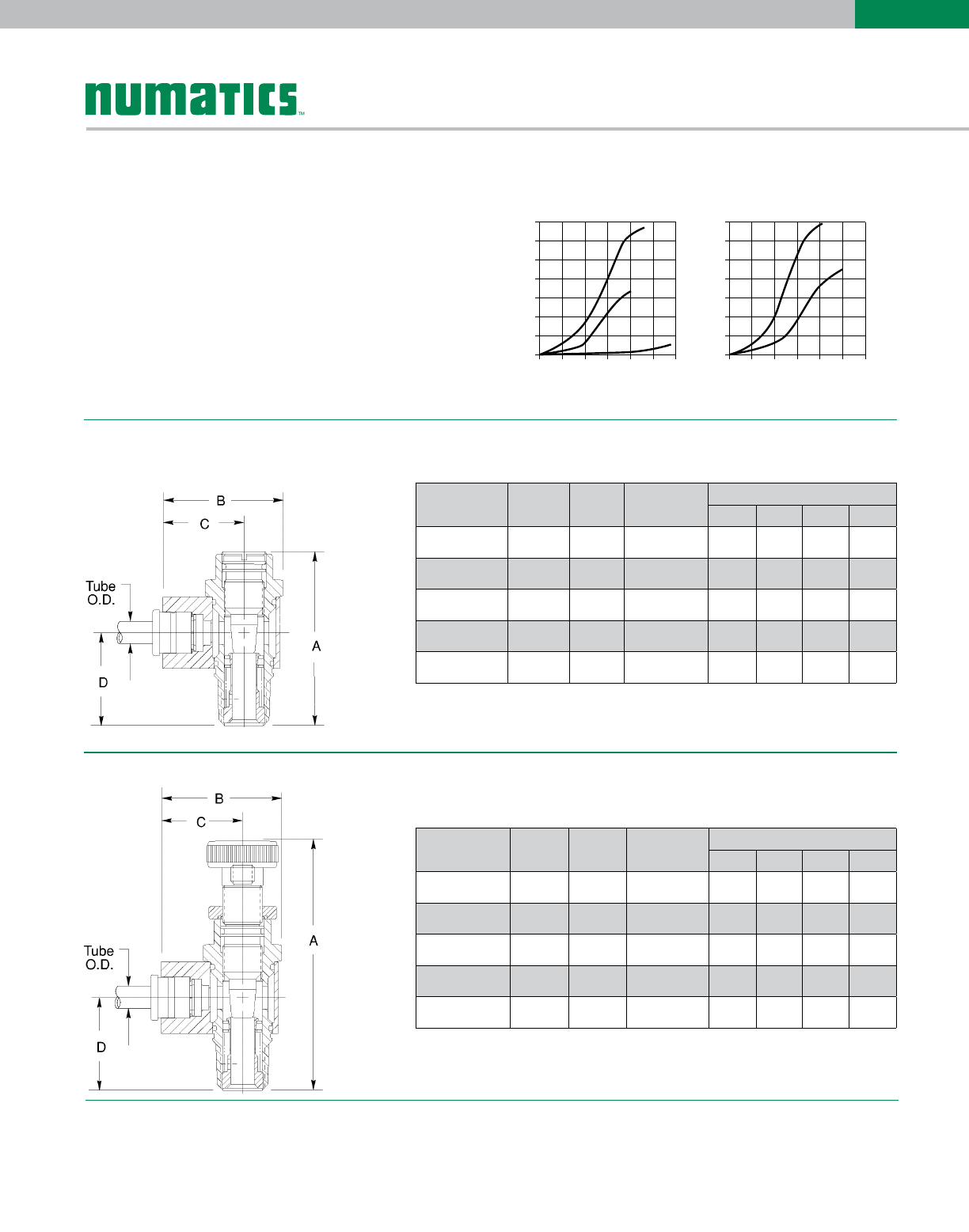

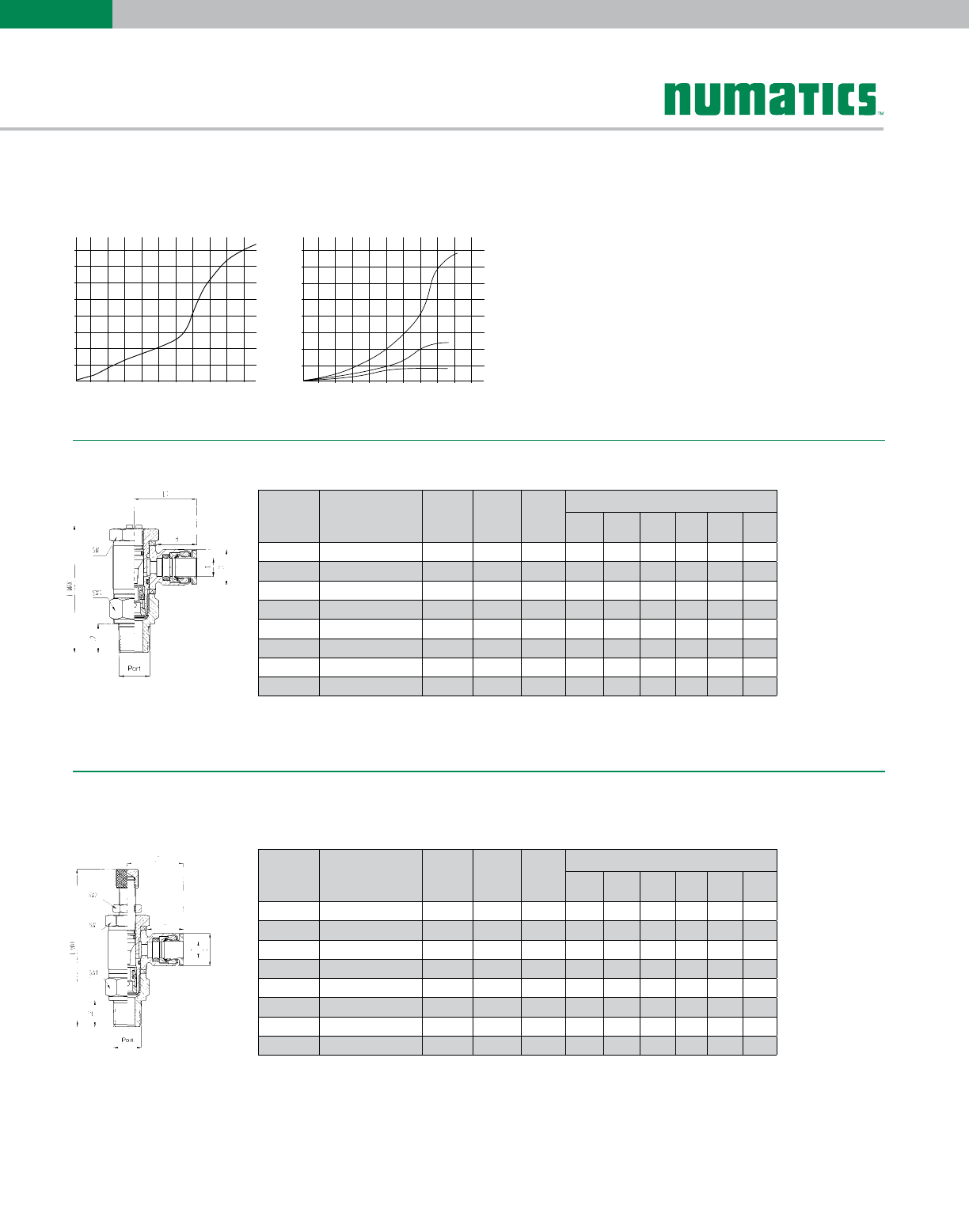

Flow Controls 22-24

Pilot Operated Check Valves 25

Quick Exhaust, Slide, & Shuttle Valves 26

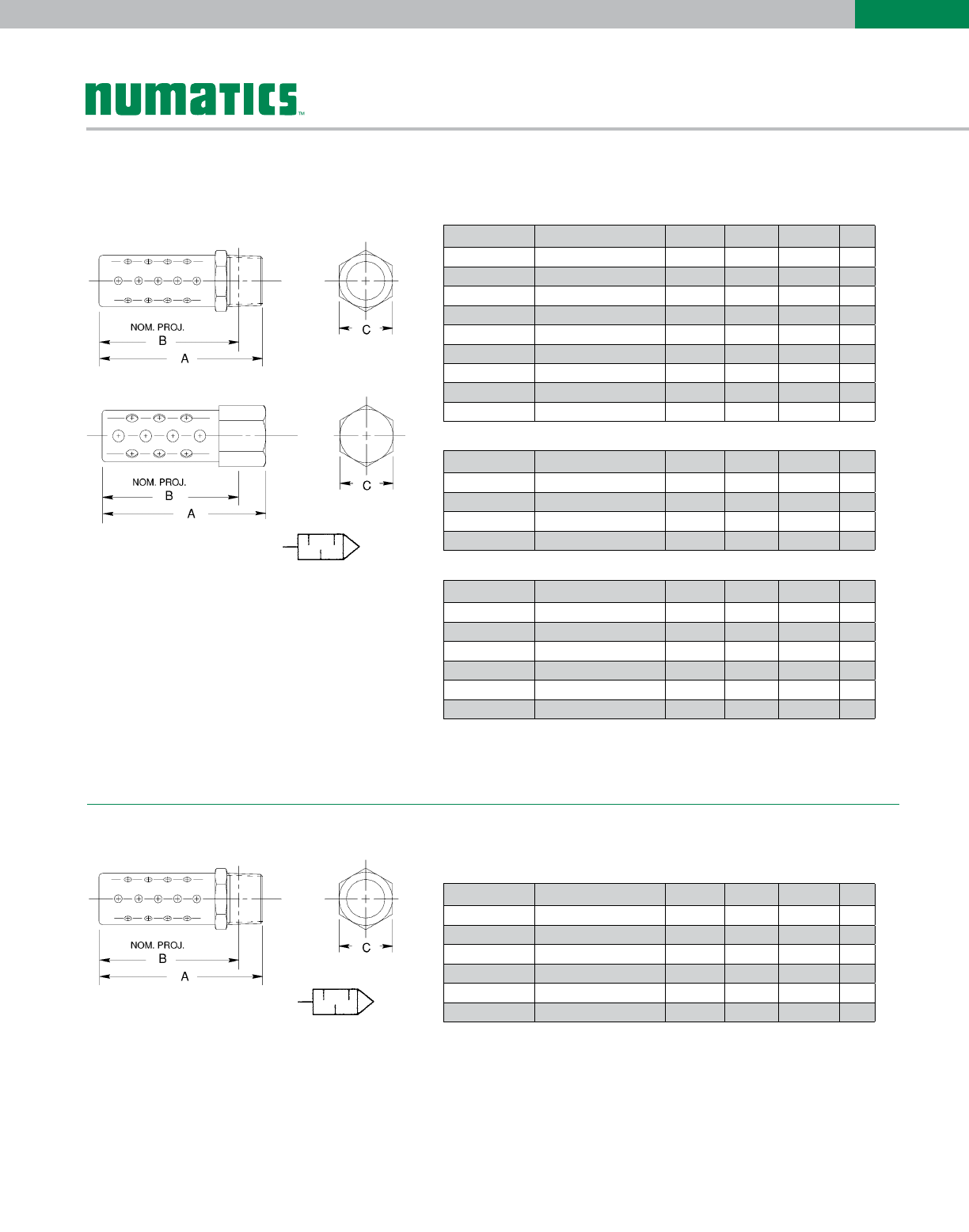

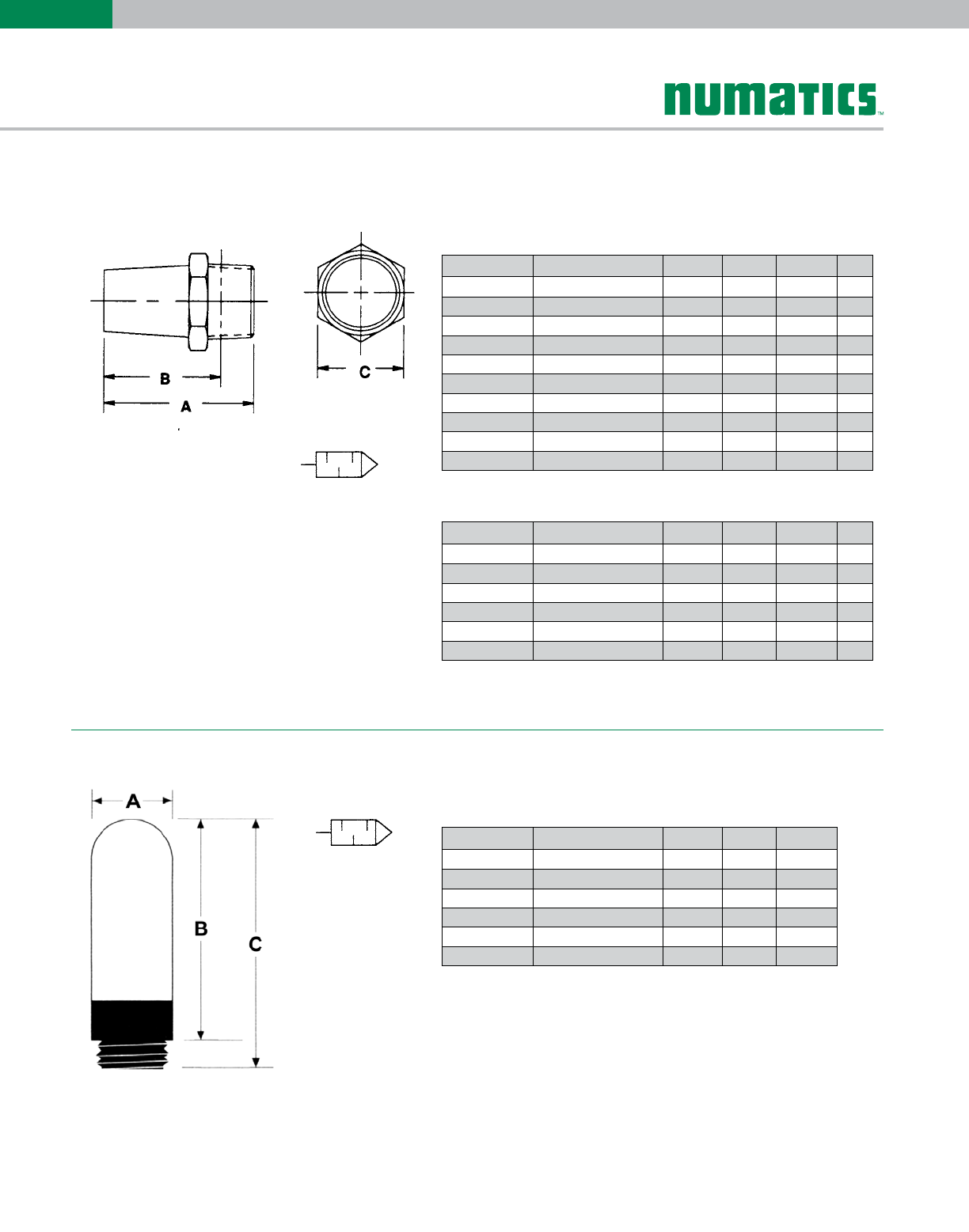

Silencers 27-28

Mufflers 29

Breather Vent Silencer 30

Inlet Filter Strainer 30

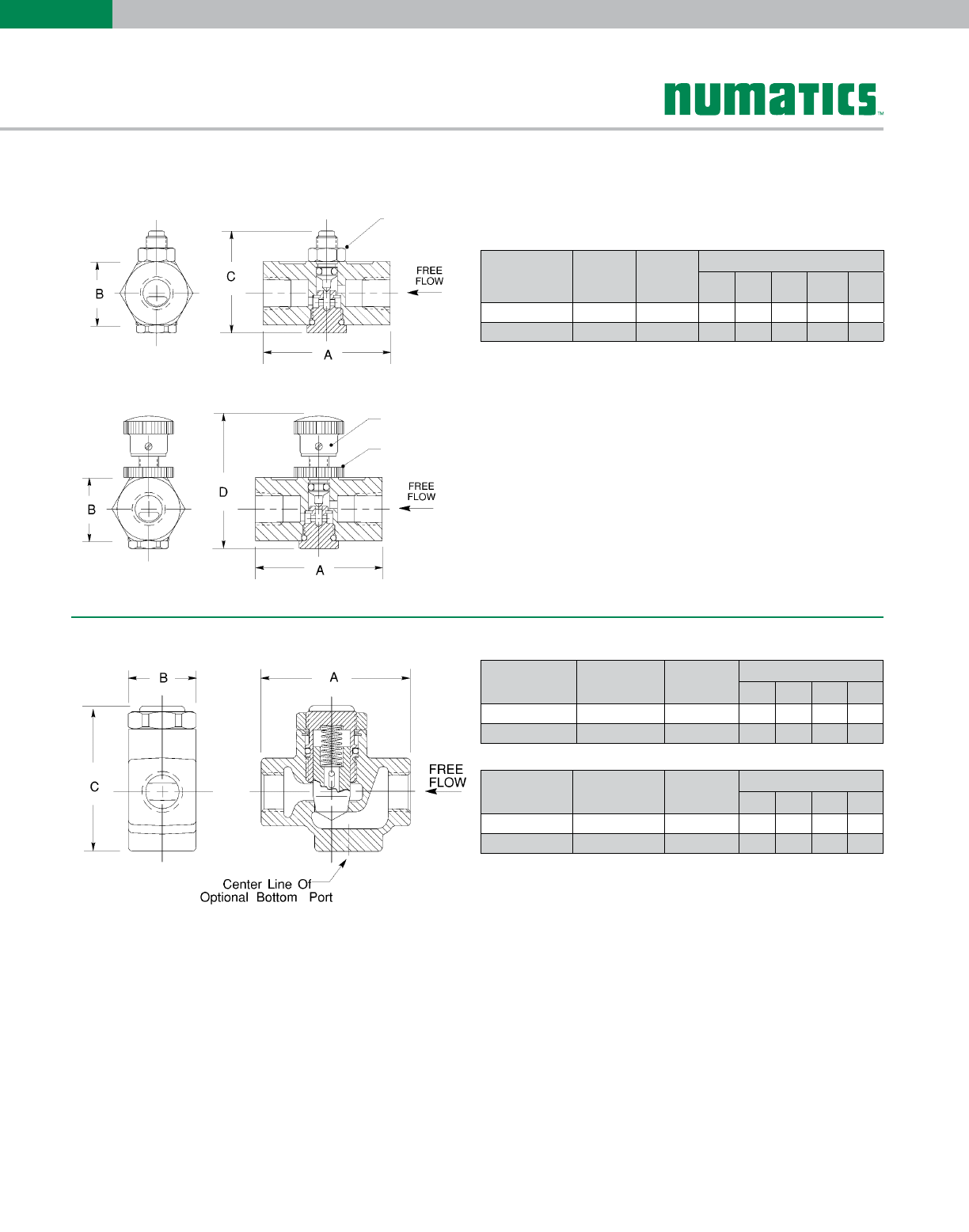

Check Valves 31

Tubing 32-35

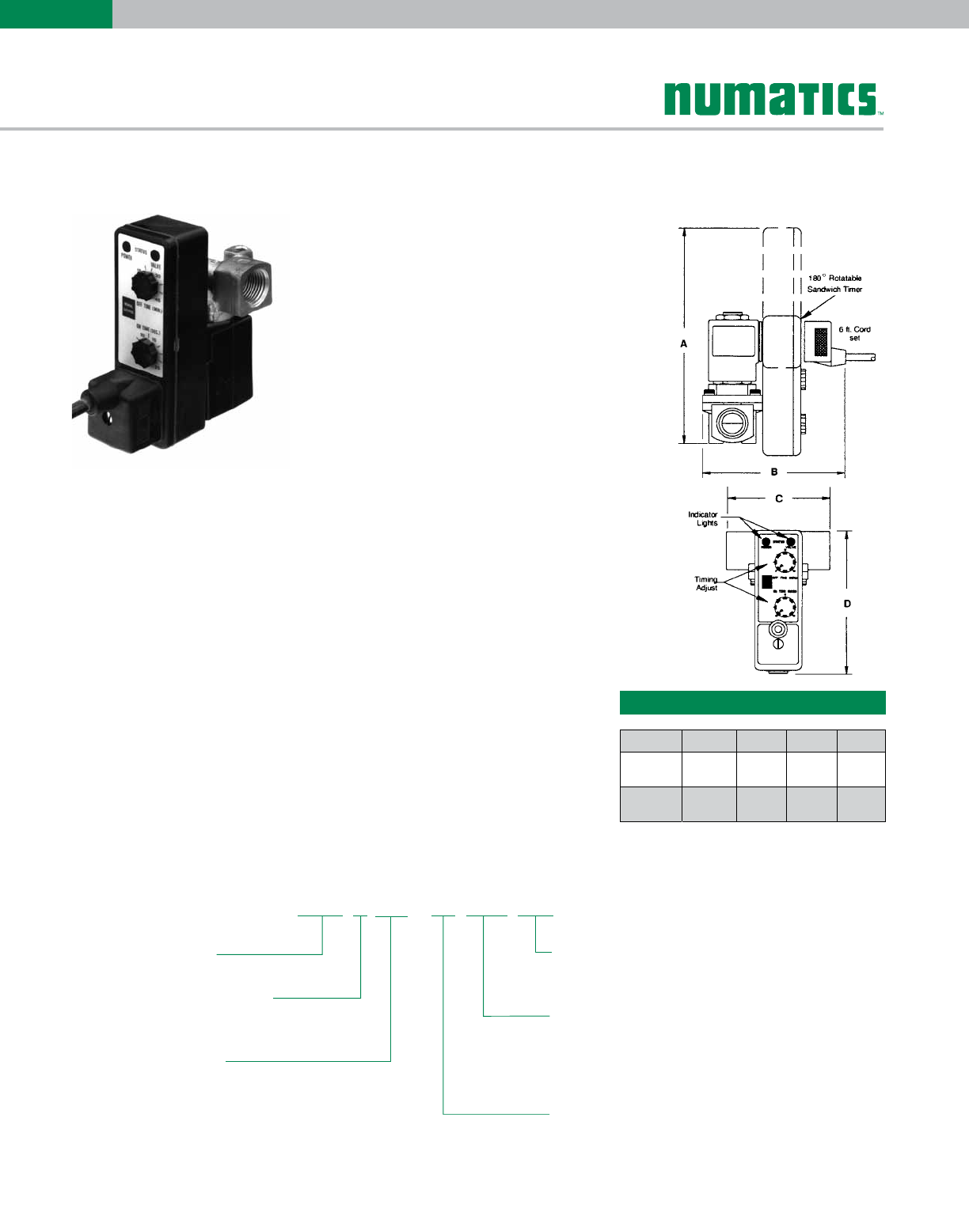

Electric Drain Valves 36

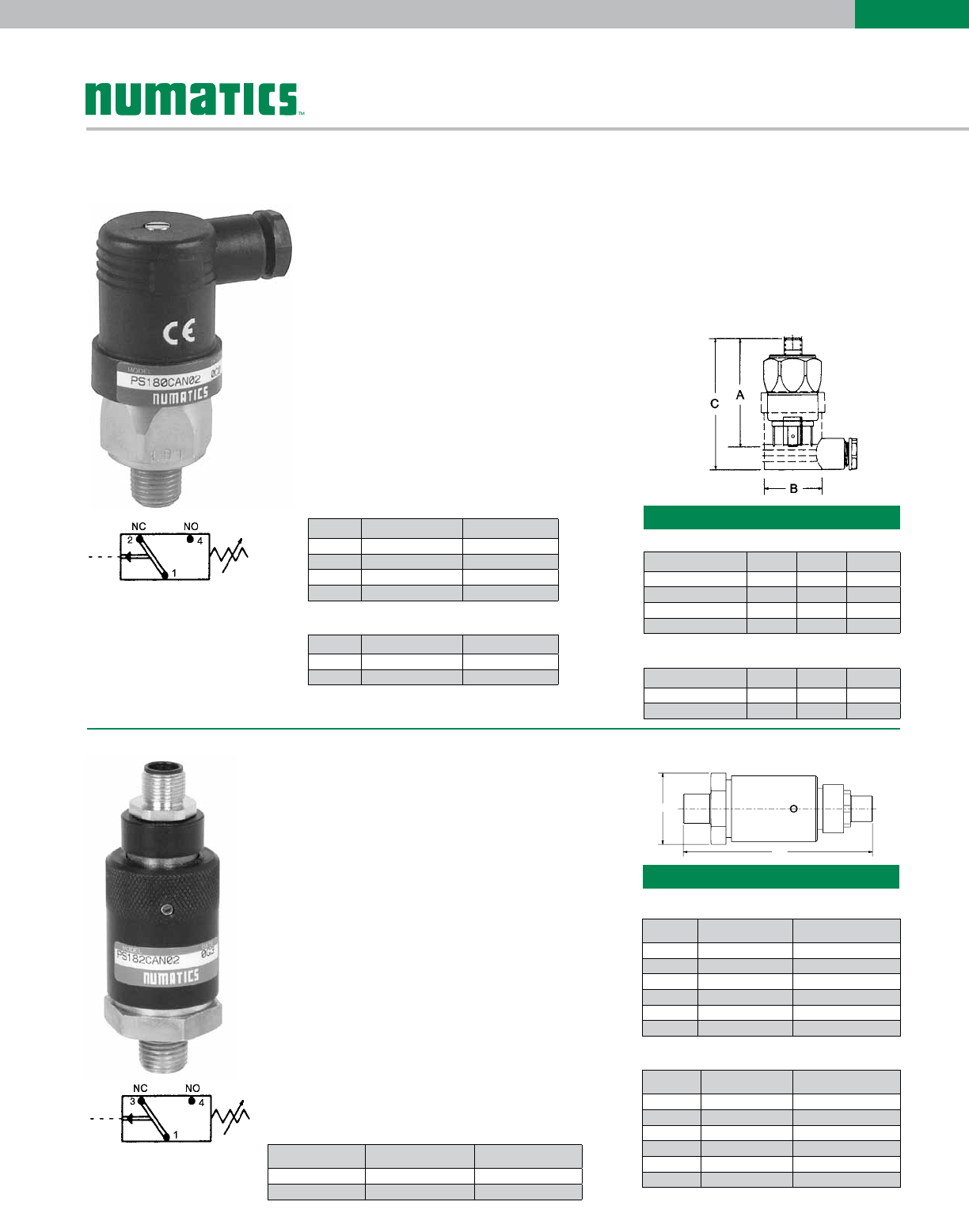

Pressure Switches 37

12, 14, 22, 32 and 42 Series Replacement Parts 38

World Thread Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

104 – 022

INWB

Tube Size

Inch

108 = 1/8"

532 = 5/32"

104 = 1/4"

516 = 5/16"

308 = 3/8"

102 = 1/2"

–

INW Thread Size

020 =

(Blank) = BUNA-N O-Ring

F=FKM “O” Ring

1/8"

021 = 1/4"

022 = 3/8"

023 = 1/2"

Fitting Series

INWB =World Thread Inch Tube (All Brass)

NW = World Thread Metric Tube (All Brass)

Fitting Style

103 = Straight

109 = Swivel Elbow

109E=Extended Swivel Elbow

114 = Swivel Branch Tee

116 = Swivel Run Tee

103

Metric

004 = 4mm

005 = 5mm

006 = 6mm

008 = 8mm

010 = 10mm

012 = 12mm

NW Thread Size

000 = 1/8"

001 = 1/4"

002 = 3/8"

003 = 1/2"

Options

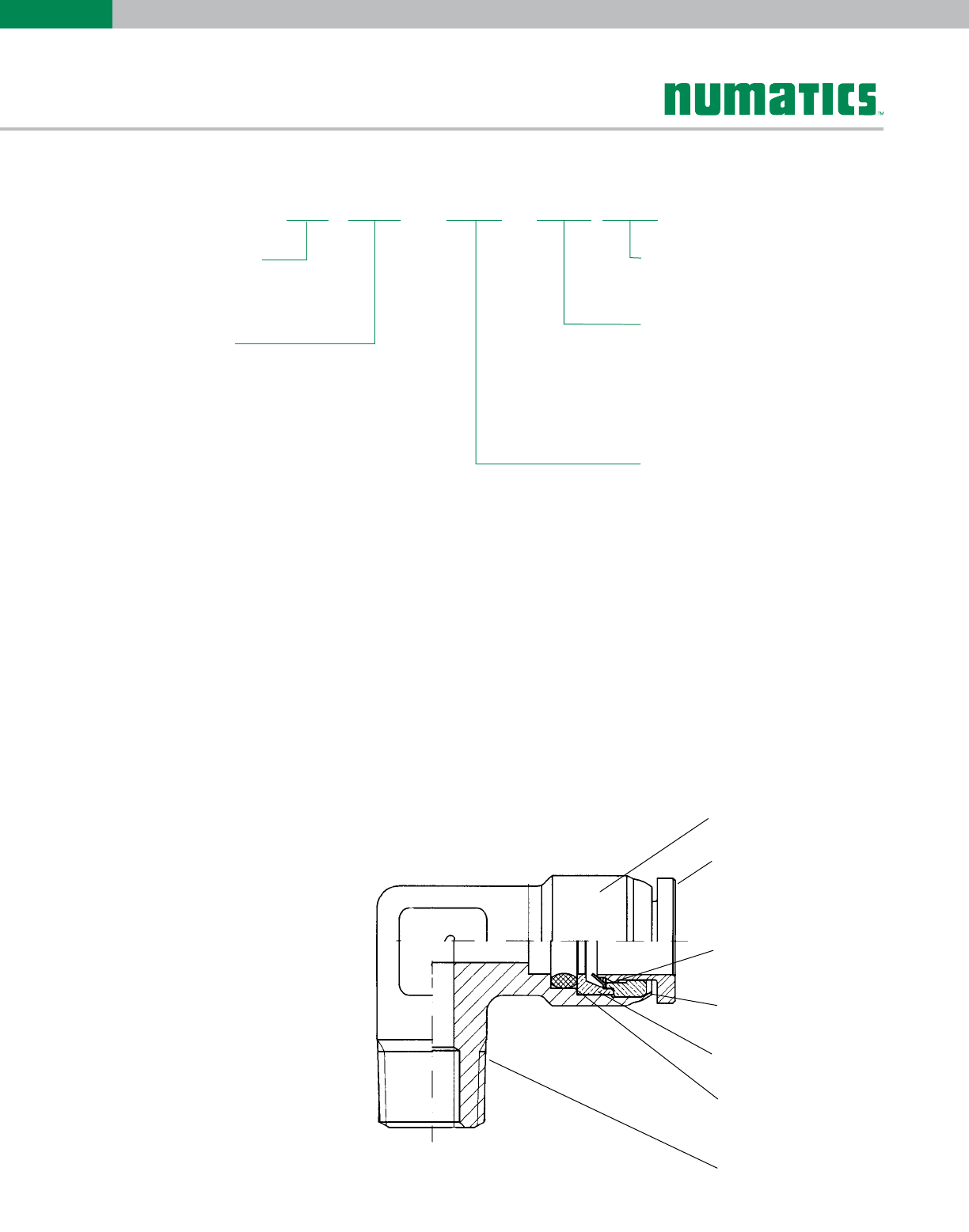

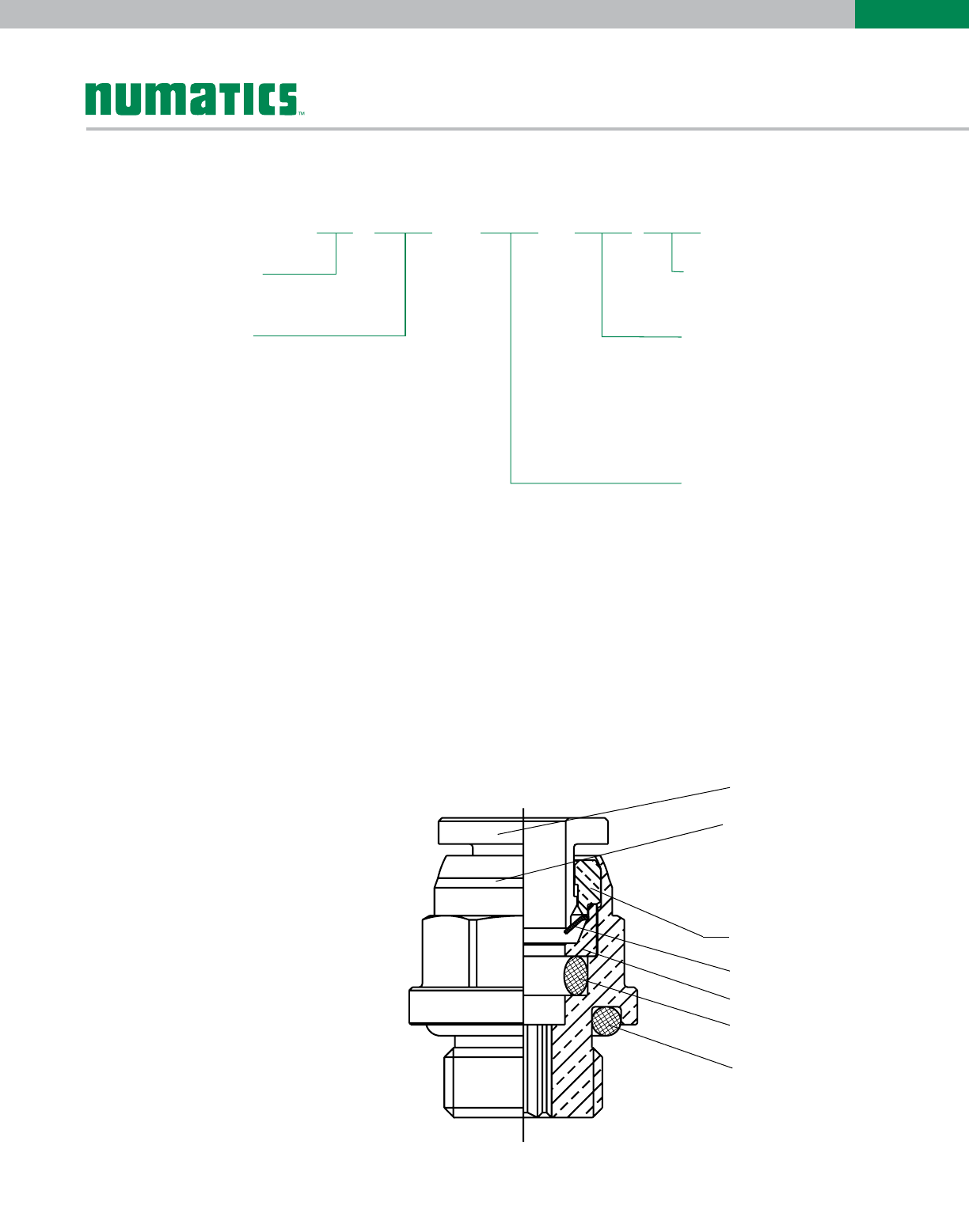

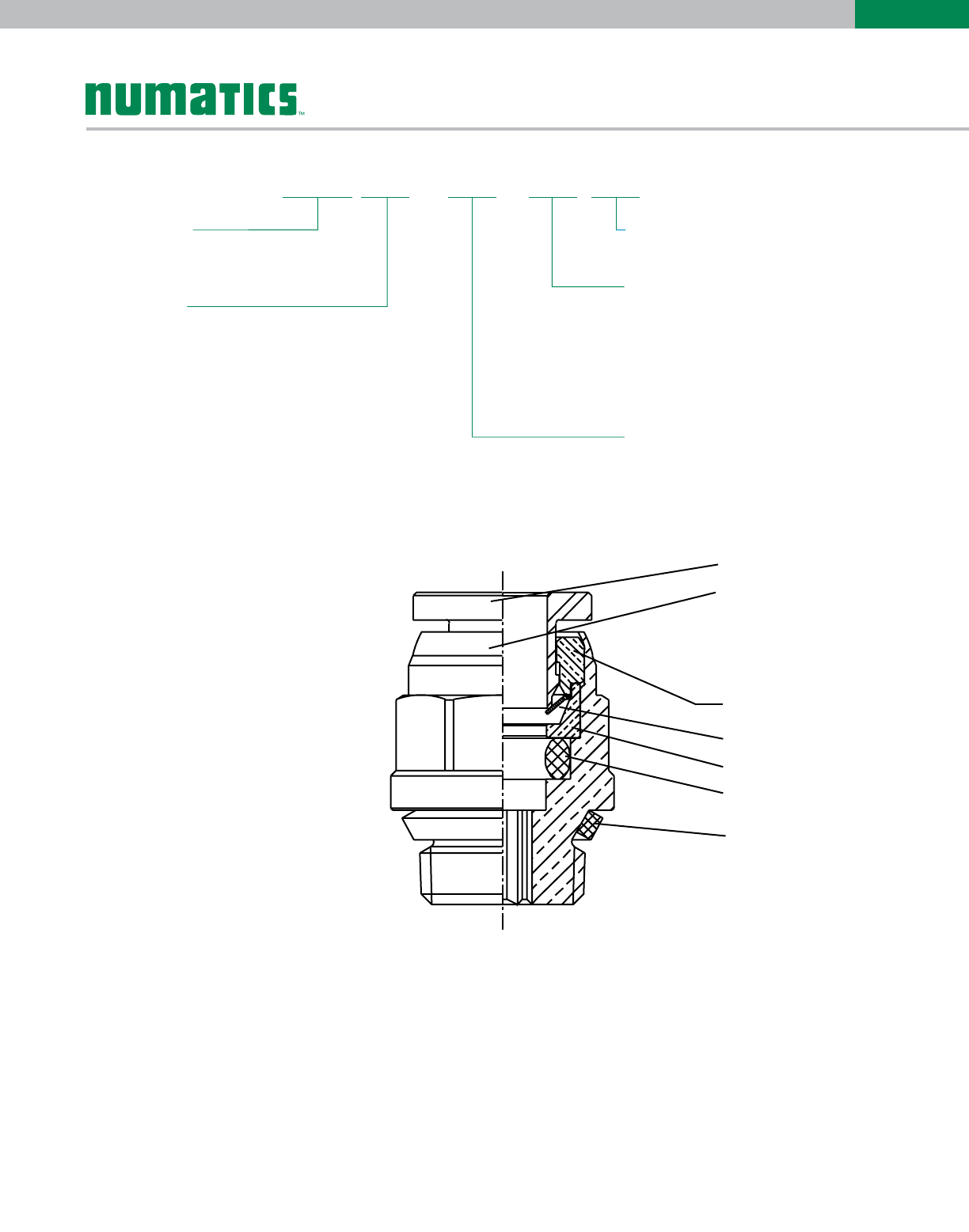

How to Order

Housing

(Brass, Nickel Plated)

Release ring (Brass)

Locking ring (stainless steel)

Lead bushing

(brass)

Stop bushing

(brass)

O-ring (Buna, FKM available)

O-ring (PTFE, Buna, FKM available)

• Pressure Rating to 265 psi

• Temperature range: -20°F to

+176°F (BUNA N O-ring)

+230°F (FKM O-ring)

• Tube diameter: 1/8" to 1/2"

4mm to 12mm

• Thread size: 1/8" to 1/2"

Numatics’ World Thread™ IN-Fittings provide

extreme versatility in use, which no longer

requires the management of different fittings

for different thread types or application.

• Extremely versatile – One fitting design for multiple thread types

• Rapid assembly – Requires fewer turns to tighten and seal

• Re-usable – Fittings can be used several times without gasket deterioration

• Reliable seal – Helical thread profile and PTFE gasket ensure proper seal

• Maximum working pressure: 265 PSIG at 68°F (18 bar at 20°C)

• Conductor compatibility – Nylon, Polyurethane, Polyethylene

Numatics’ World Thread™ is designed with a helical thread design that represents the envelope for the profile of the

NPTF, ISO 228/1(BSPP), (G-Tap), ISO 7/1(BSPT), (JIS B 0202) and (JIS B 0203) thread types. In conjunction with the

thread design the seal between the male and female threads is created with a PTFE gasket, housed in a groove at the

rear of the thread. This gasket seal meets UNI 571-65 standards.

*See Fitting Style Charts on

pgs 4-7 for available Tube and

Thread Conﬁgurations

World Thread Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

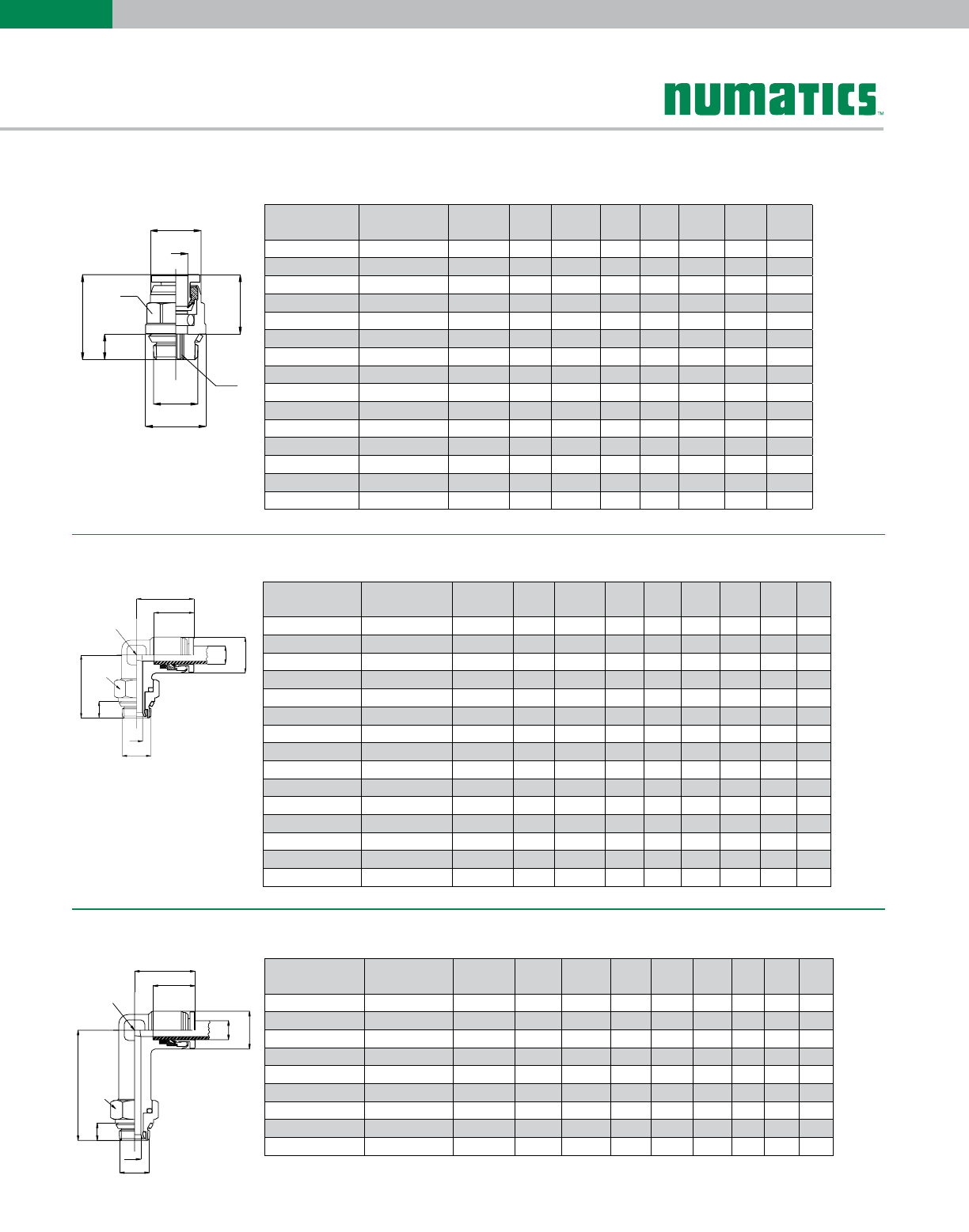

INWB103 Male Connector/Inch Tube

INWB109 Swivel Elbow/Inch Tube

INWB109E Extended Swivel Elbow/Inch Tube

Brass

Release Ring

Part

Number

Tube Diameter

(T)

Thread

(F) D D2 L L2 H SW SW2

INWB 103-108-020 1/8 1/8 0.370 0.472 0.709 0.217 0.472 0.375 0.063

INWB 103-108-021 1/8 1/4 0.370 0.591 0.787 0.303 0.472 0.375 0.063

INWB 103-532-020 5/32 1/8 0.390 0.512 0.709 0.217 0.492 0.438 0.063

INWB 103-532-021 5/32 1/4 0.390 0.591 0.795 0.303 0.492 0.438 0.063

INWB 103-104-020 1/4 1/8 0.465 0.552 0.799 0.217 0.531 0.500 0.156

INWB 103-104-021 1/4 1/4 0.465 0.591 0.886 0.303 0.531 0.500 0.156

INWB 103-104-022 1/4 3/8 0.465 0.748 0.906 0.323 0.531 0.500 0.156

INWB 103-516-020 5/16 1/8 0.689 0.787 0.925 0.323 0.650 0.594 0.156

INWB 103-516-021 5/16 1/4 0.689 0.945 1.004 0.406 0.650 0.594 0.219

INWB 103-516-022 5/16 3/8 0.807 0.866 1.004 0.303 0.650 0.594 0.219

INWB 103-308-020 3/8 1/8 0.807 0.866 1.043 0.323 0.669 0.688 0.156

INWB 103-308-021 3/8 1/4 0.807 0.945 1.043 0.406 0.669 0.688 0.219

INWB 103-308-022 3/8 3/8 0.807 0.866 1.071 0.323 0.669 0.688 0.250

INWB 103-308-023 3/8 1/2 0.807 0.945 1.161 0.406 0.669 0.688 0.250

INWB 103-102-021 1/2 1/4 0.807 0.945 1.142 0.406 0.728 0.813 0.250

INWB 103-102-022 1/2 3/8 0.807 0.866 1.181 0.323 0.728 0.813 0.250

INWB 103-102-023 1/2 1/2 0.807 0.945 1.220 0.406 0.728 0.813 0.375

Brass

Release Ring

Part

Number

Tube Diameter

(T)

Thread

(F) D D1 L L1 H L2 SW SW1

INWB 109-108-020 1/8 1/8 0.394 0.157 0.650 0.768 0.472 0.217 0.354 0.500

INWB 109-108-021 1/8 1/4 0.394 0.157 0.650 0.768 0.472 0.303 0.354 0.594

INWB 109-532-021 5/32 1/4 0.394 0.157 0.669 0.874 0.492 0.303 0.354 0.594

INWB 109-104-020 1/4 1/8 0.472 0.157 0.768 0.799 0.531 0.217 0.433 0.500

INWB 109-104-021 1/4 1/4 0.472 0.236 0.768 0.8155 0.531 0.303 0.433 0.594

INWB 109-516-020 1/4 1/8 0.472 0.236 0.768 0.906 0.531 0.323 0.433 0.750

INWB 109-516-021 5/16 1/4 0.591 0.157 0.945 0.878 0.650 0.217 0.551 0.500

INWB 109-308-020 3/8 1/8 0.689 0.157 1.063 0.929 0.669 0.217 0.630 0.500

INWB 109-308-021 3/8 1/4 0.689 0.236 1.063 0.945 0.669 0.303 0.630 0.594

INWB 109-308-022 3/8 3/8 0.689 0.315 1.063 1.039 0.669 0.323 0.630 0.750

INWB 109-308-023 3/8 1/2 0.689 0.315 1.063 1.197 0.669 0.406 0.630 0.938

INWB 109-102-021 1/2 1/4 0.827 0.236 1.201 1.059 0.728 0.303 0.688 0.594

INWB 109-102-022 1/2 3/8 0.827 0.315 1.201 1.122 0.728 0.323 0.688 0.750

INWB 109-102-023 1/2 1/2 0.827 0.315 1.201 1.280 0.728 0.406 0.688 0.938

Brass

Release Ring

Part

Number

Tube Diameter

(T)

Thread

(F) D D1 L L1 L2 H SW SW1

INWB 109E-108-020 1/8 1/8 0.709 0.236 1.043 2.067 0.512 0.531 0.591 0.591

INWB 109E-108-021 1/8 1/4 0.748 0.315 1.043 2.106 0.512 0.531 0.591 0.709

INWB 109E-532-020 5/32 1/8 0.394 0.157 0.638 1.461 0.374 0.472 0.354 0.512

INWB 109E-532-021 5/32 1/4 0.394 0.157 0.638 1.598 0.512 0.472 0.354 0.591

INWB 109E-104-020 1/4 1/8 0.394 0.157 0.657 1.457 0.374 0.492 0.354 0.512

INWB 109E-104-021 1/4 1/4 0.394 0.157 0.657 1.594 0.512 0.492 0.354 0.591

INWB 109E-104-022 1/4 3/8 0.472 0.157 0.740 1.575 0.374 0.531 0.433 0.512

INWB 109E-516-020 5/16 1/8 0.472 0.236 0.740 1.693 0.512 0.531 0.433 0.591

INWB 109E-516-021 5/16 1/4 0.472 0.236 0.740 1.732 0.512 0.531 0.433 0.709

INWB 109E-516-022 5/16 3/8 0.591 0.157 0.925 1.772 0.374 0.531 0.551 0.512

INWB 109E-308-020 3/8 1/8 0.591 0.236 0.925 1.909 0.512 0.531 0.551 0.591

INWB 109E-308-021 3/8 1/4 0.630 0.315 0.925 1.969 0.512 0.531 0.551 0.709

INWB 109E-308-022 3/8 3/8 0.669 0.157 1.043 1.929 0.374 0.531 0.591 0.512

World Thread Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

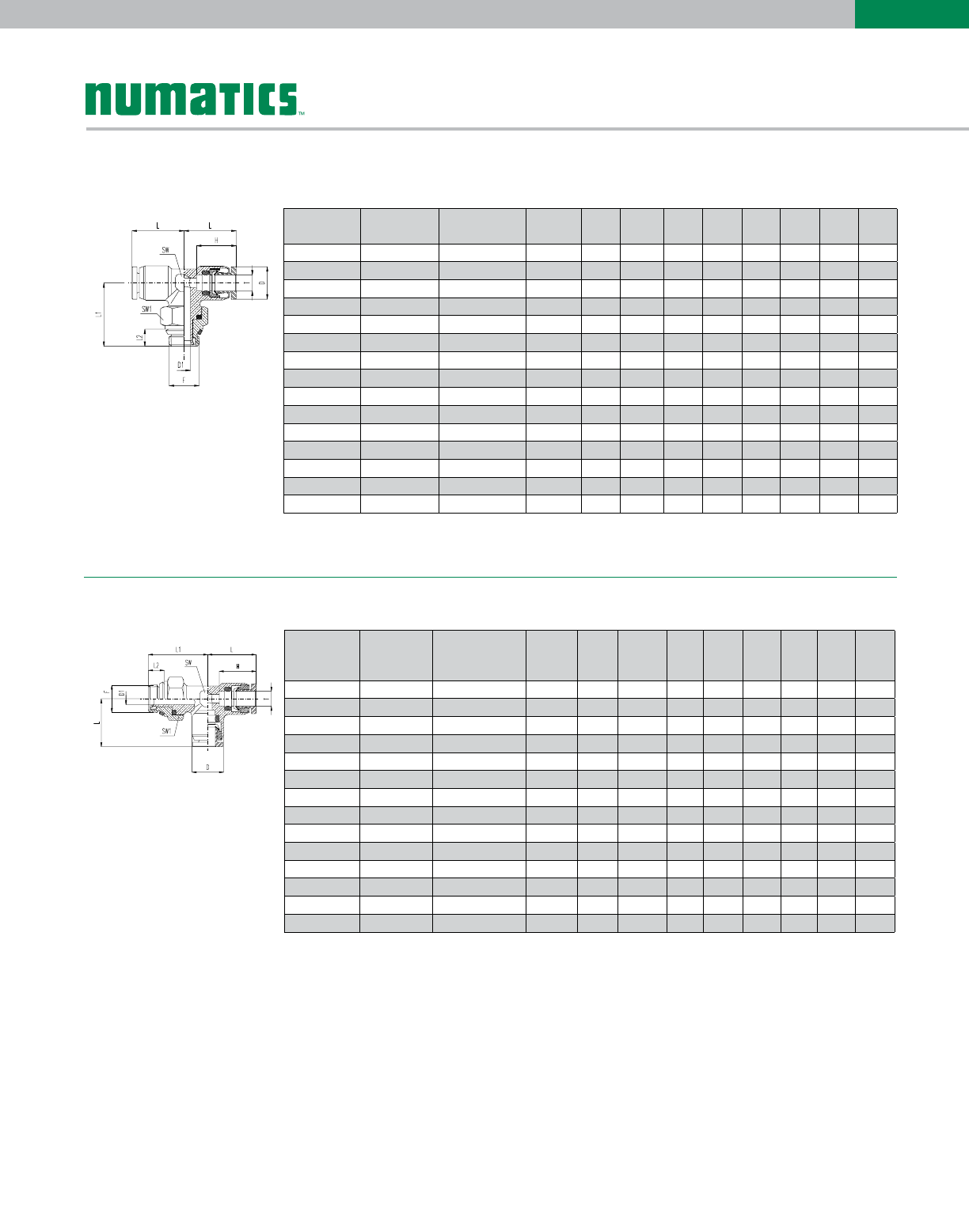

INWB114 Swivel Branch Tee/Inch Tube

INWB116 Swivel Run Tee/Inch Tube

Brass

Release Ring

Part

Number

Tube Diameter

(T)

Thread

(F) D D1 L L1 H L2 SW SW1

INWB 114-108-020 1/8 1/8 0.394 0.157 0.650 0.768 0.472 0.217 0.354 0.500

INWB 114-108-021 1/8 1/4 0.394 0.157 0.650 0.787 0.472 0.303 0.354 0.594

INWB 114-532-020 5/32 1/8 0.394 0.157 0.669 0.768 0.492 0.217 0.354 0.500

INWB 114-104-020 1/4 1/8 0.472 0.157 0.768 0.886 0.531 0.217 0.433 0.500

INWB 114-104-021 1/4 1/4 0.472 0.236 0.768 0.906 0.531 0.303 0.433 0.594

INWB 114-104-022 1/4 3/8 0.472 0.236 0.768 0.965 0.531 0.323 0.433 0.750

INWB 114-516-020 5/16 1/8 0.591 0.157 0.945 0.874 0.650 0.217 0.551 0.500

INWB 114-516-021 5/16 1/4 0.591 0.236 0.945 0.886 0.650 0.303 0.551 0.594

INWB 114-308-020 3/8 1/8 0.689 0.157 1.063 0.925 0.669 0.217 0.630 0.500

INWB 114-308-021 3/8 1/4 0.689 0.236 1.063 0.945 0.669 0.303 0.630 0.594

INWB 114-308-022 3/8 3/8 0.689 0.315 1.063 1.043 0.669 0.323 0.630 0.750

INWB 114-308-023 3/8 1/2 0.689 0.315 1.063 1.201 0.669 0.406 0.630 0.938

INWB 114-102-021 1/2 1/4 0.827 0.236 1.201 1.063 0.728 0.303 0.688 0.594

INWB 114-102-022 1/2 3/8 0.827 0.315 1.201 1.122 0.728 0.323 0.688 0.750

INWB 114-102-023 1/2 1/2 0.827 0.315 1.201 1.280 0.728 0.406 0.688 0.938

Brass

Release

Ring

Part

Number

Tube Diameter

(T)

Thread

(F) D D1 L L1 H L2 SW SW1

INWB 116-108-020 1/8 1/8 0.394 0.157 0.650 0.768 0.472 0.217 0.354 0.500

INWB 116-532-020 5/32 1/8 0.394 0.157 0.650 0.768 0.492 0.217 0.354 0.500

INWB 116-532-021 5/32 1/4 0.394 0.157 0.638 0.787 0.492 0.303 0.354 0.594

INWB 116-104-020 1/4 1/8 0.472 0.157 0.638 0.886 0.531 0.217 0.433 0.500

INWB 116-104-021 1/4 1/4 0.472 0.236 0.657 0.906 0.531 0.303 0.433 0.594

INWB 116-104-022 1/4 3/8 0.472 0.236 0.657 0.965 0.531 0.323 0.433 0.750

INWB 116-516-020 5/16 1/8 0.591 0.157 0.740 0.874 0.650 0.217 0.551 0.500

INWB 116-516-021 5/16 1/4 0.591 0.236 0.740 0.886 0.650 0.303 0.551 0.594

INWB 116-308-021 3/8 1/4 0.689 0.236 0.925 0.945 0.669 0.303 0.630 0.594

INWB 116-308-022 3/8 3/8 0.689 0.315 0.925 1.043 0.669 0.323 0.630 0.750

INWB 116-308-023 3/8 1/2 0.689 0.315 0.925 1.201 0.669 0.406 0.630 0.938

INWB 116-102-021 1/2 1/4 0.827 0.236 1.043 1.063 0.728 0.303 0.688 0.594

INWB 116-102-022 1/2 3/8 0.827 0.315 1.043 1.122 0.728 0.323 0.688 0.750

INWB 116-102-023 1/2 1/2 0.827 0.315 1.043 1.280 0.728 0.406 0.688 0.938

World Thread Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

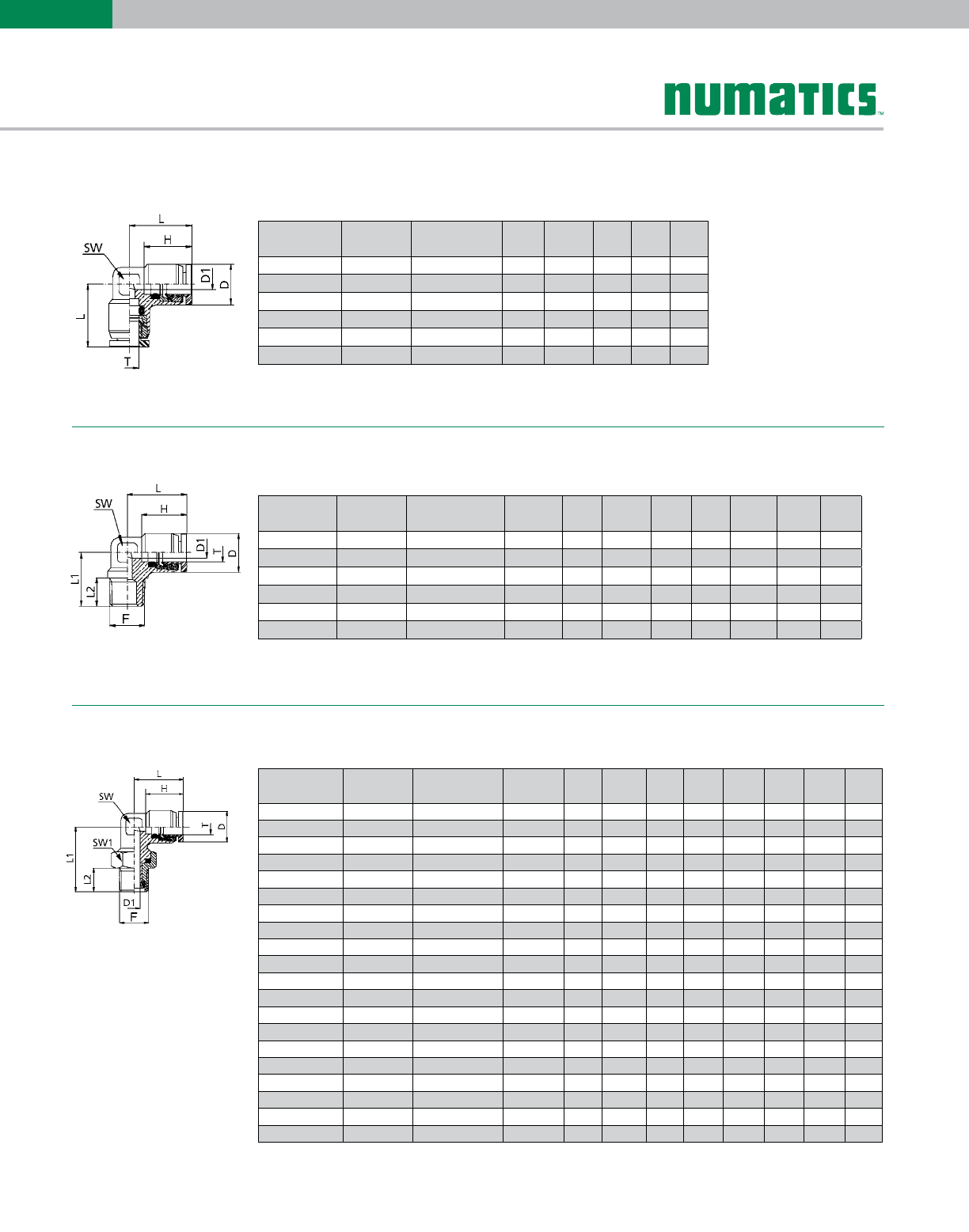

NWB103 Male Connector/Metric Tube

NWB109 Swivel Elbow/Metric Tube

CH.

CH.1

ØT

CH.

CH.1

NWB109E Extended Swivel Elbow/Metric Tube

CH.

ØT

CH.1

NWB103 Tube Diameter

(T)

Thread

(F) D D2 L L2 H CH CH1

NWB103-004-000 4 1/8 10.0 12 17.5 5.5 12.5 10 3

NWB103-004-001 4 1/4 10.0 15 20.5 7.7 12.5 10 3

NWB103-005-000 5 1/8 11.0 12 18.5 5.5 13.0 11 3

NWB103-005-001 5 1/4 11.0 15 21.0 7.7 13.0 11 3

NWB103-006-000 6 1/8 12.0 14 19.0 5.5 13.5 12 4

NWB103-006-001 6 1/4 12.0 15 21.0 7.7 13.5 12 4

NWB103-008-000 8 1/8 15.0 16 23.5 5.5 16.0 15 5

NWB103-008-001 8 1/4 15.0 16 23.5 7.7 16.0 15 6

NWB103-008-002 8 3/8 15.0 19 24.5 8.2 16.0 15 6

NWB103-010-001 10 1/4 17.5 20 27.0 7.7 17.0 18 6

NWB103-010-002 10 3/8 17.5 20 25.0 8.2 17.0 18 7

NWB103-010-003 10 1/2 17.5 24 28.5 10.3 17.0 18 7

NWB103-012-001 12 1/4 20.5 22 28.0 7.7 19.0 20 6

NWB103-012-002 12 3/8 20.5 22 28.5 8.2 19.0 20 8

NWB103-012-003 12 1/2 20.5 24 31.0 10.3 19.0 20 9

NWB109E Tube Diameter

(T) Thread (F) D D1 L L1 H L2 CH CH1

NWB109E-004-000 4 1/8 10.0 4 16.5 34.5 12.5 5.5 9 13

NWB109E-004-001 4 1/4 10.0 4 16.5 35 12.5 7.7 9 15

NWB109E-006-000 6 1/8 12.0 4 19 37.5 13.5 5.5 11 13

NWB109E-006-001 6 1/4 12.0 6 19 38 13.5 7.7 11 15

NWB109E-008-000 8 1/8 15.0 4 23.5 42.5 16 5.5 14 13

NWB109E-008-001 8 1/4 15.0 6 23.5 42.5 16 7.7 14 15

NWB109E-008-002 8 3/8 15.0 8 23.5 45.2 16 8.2 14 19

NWB109E-010-001 10 1/4 17.5 6 26.5 46.5 17 7.7 15 15

NWB109E-010-002 10 3/8 17.5 8 26.5 49 17 8.2 14 19

NWB109 Tube Diameter

(T) Thread (F) D D1 L L1 H L2 CH CH1

NWB109-004-000 4 1/8 10.0 4 16.5 19.5 12.5 5.5 9 13

NWB109-004-001 4 1/4 10.0 4 16.5 20.0 12.5 7.7 9 15

NWB109-005-000 5 1/8 11.0 4 16.5 21.0 13.0 5.5 10 13

NWB109-005-001 5 1/4 11.0 4 16.5 21.5 13.0 7.7 10 15

NWB109-006-000 6 1/8 12.0 4 19.0 20.5 13.5 5.5 11 13

NWB109-006-001 6 1/4 12.0 4 19.0 21.0 13.5 7.7 11 15

NWB109-008-000 8 1/8 15.0 4 23.5 22.5 16.0 5.5 14 13

NWB109-008-001 8 1/4 15.0 6 23.5 23.0 16.0 7.7 14 15

NWB109-008-002 8 3/8 15.0 8 23.5 25.5 16.0 8.2 14 19

NWB109-010-001 10 1/4 17.5 6 26.5 23.7 17.0 7.7 16 15

NWB109-010-002 10 3/8 17.5 8 26.5 26.4 17.0 8.2 16 19

NWB109-010-003 10 1/2 17.5 8 26.5 30.5 16.8 11.8 16 19

NWB109-012-001 12 1/4 20.5 6 29.1 27.1 18.6 7.7 17 15

NWB109-012-002 12 3/8 20.5 8 29.1 28.5 18.6 8.2 17 19

NWB109-012-003 12 1/2 20.5 8 29.1 32.5 17.0 8.2 15 19

World Thread Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

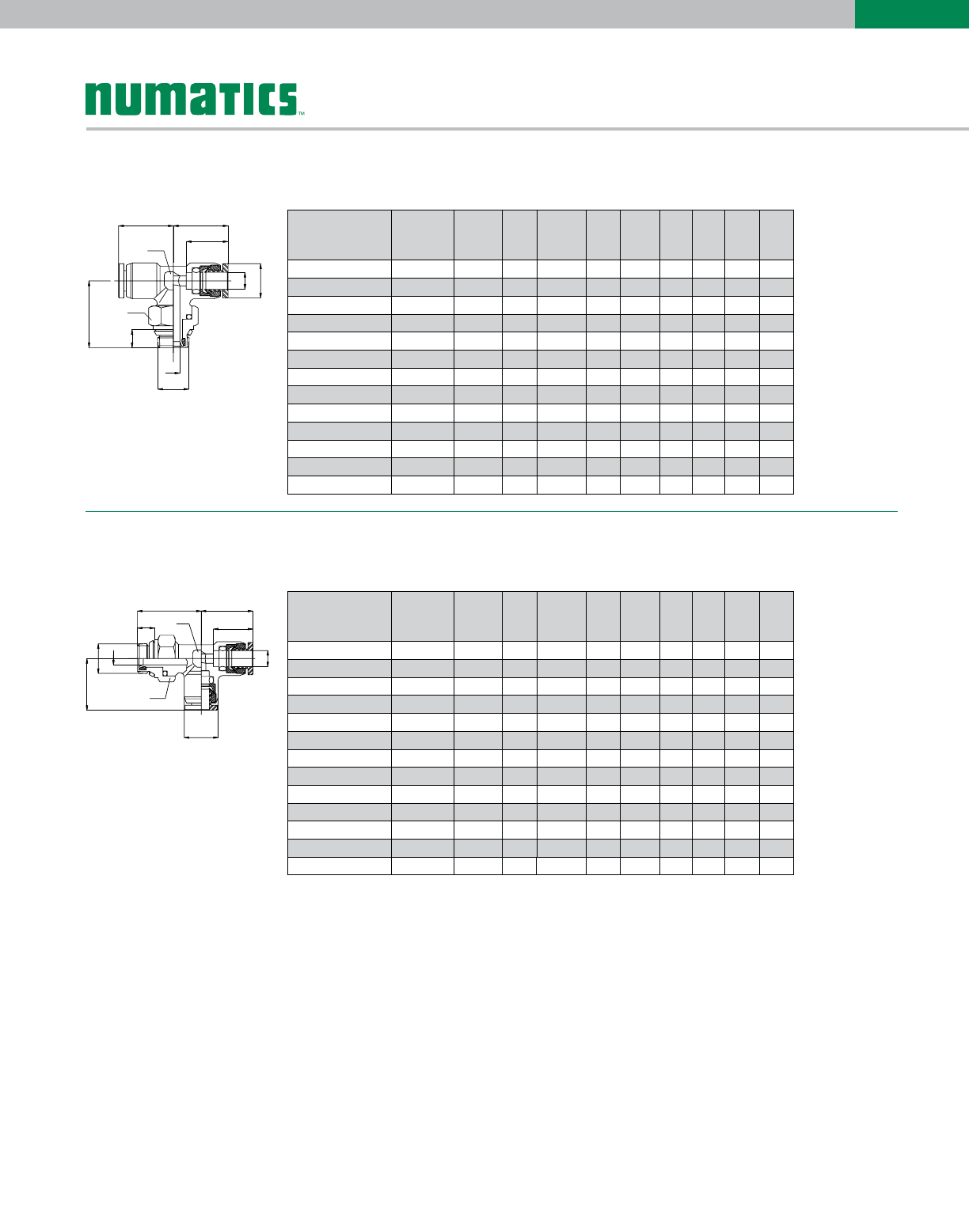

NWB114 Swivel Branch Tee/Metric Tube

NWB116 Swivel Run Tee/Metric Tube

SW.

SW1

SW. H

SW1

NWB114

Tube

Diameter

(T)

Thread

(F) D D1 L L1 H L2 SW SW1

NWB114-004-000 4 1/8 10.0 4 16.5 19.5 12.5 5.5 9 13

NWB114-005-000 5 1/8 11.0 4 16.5 21.0 13.0 5.5 10 13

NWB114-006-000 6 1/8 12.0 4 19.0 22.7 13.5 5.5 11 13

NWB114-006-001 6 1/4 12.0 6 19.0 23.6 13.5 7.7 11 15

NWB114-008-000 8 1/8 15.0 4 23.5 22.3 16.0 5.5 14 13

NWB114-008-001 8 1/4 15.0 6 23.5 22.5 16.0 7.7 14 15

NWB114-008-002 8 3/8 15.0 8 23.5 25.2 16.0 8.2 14 19

NWB114-010-001 10 1/4 17.5 6 26.5 23.7 17.0 7.7 15 15

NWB114-010-002 10 3/8 17.5 8 26.5 28.5 17.0 8.2 15 19

NWB114-010-003 10 1/2 17.5 8 26.5 26.5 16.8 8.2 16 19

NWB114-012-001 12 1/4 20.5 6 29.1 27.1 17.0 7.7 15 15

NWB114-012-002 12 3/8 20.5 8 29.1 28.5 17.0 8.2 15 19

NWB114-012-003 12 1/2 20.5 8 29.1 32.5 17.0 8.2 15 19

NWB116

Tube

Diameter

(T)

Thread

(F) D D1 L L1 H L2 SW SW1

NWB116-004-000 4 1/8 10.0 4 16.5 19.5 12.5 5.5 9 13

NWB116-005-000 5 1/8 11.0 4 16.5 19.6 13.0 5.5 10 13

NWB116-006-000 6 1/8 12.0 4 19.0 22.3 13.5 5.5 11 13

NWB116-006-001 6 1/4 12.0 6 19.0 23.6 13.5 7.7 11 15

NWB116-008-000 8 1/8 15.0 4 23.2 22.3 16.0 5.5 14 13

NWB116-008-001 8 1/4 15.0 6 23.2 22.5 16.0 7.7 14 15

NWB116-008-002 8 3/8 15.0 8 23.4 25.2 16.0 8.2 14 19

NWB116-010-001 10 1/4 17.5 6 26.5 23.7 17.0 7.7 15 15

NWB116-010-002 10 3/8 17.5 8 26.5 26.4 17.0 8.2 15 19

NWB116-010-003 10 1/2 17.5 8 26.5 26.5 16.8 8.2 16 19

NWB116-012-001 12 1/4 20.5 6 29.1 27.1 17.0 7.7 15 15

NWB116-012-002 12 3/8 20.5 8 29.1 28.5 17.0 8.2 15 19

NWB116-012-003 12 1/2 20.5 8 29.1 32.5 17.0 8.2 15 19

NPTF/Inch Tube Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

How to Order

104 – 022

INB –

Fitting Series

INB = NPTF/Inch Tube

(Brass Release Ring)

*IN

*Fittings with asterisk only available in “IN” Fitting Series.

All other styles only available in “INB” Fitting Series.

= NPTF/Inch Tube

Fitting Style

100 = Union

101 = Bulkhead Union

103 = Male Connector

105 = Female Connector

106 = Union Elbow

107 = Fixed Elbow

109 = Swivel Elbow

109E=Extended Swivel Elbow

110 = Union Tee

114 = Swivel Branch Tee

116 = Swivel Run Tee

*118 = Plug

*119 = Double Male Union

*120 = Stem Adapter

121 = Reducer

122 = Single Banjo

123 = Double Banjo

*124 = Single Manifold

*125 = Double Manifold

131 = Union Y

132 = Male Y

109

Options

(Blank) = BUNA-N O-Ring

F=FKM “O” Ring

Thread Size

000 = No Thread

036 = 10-32 UNF

020 = 1/8 NPTF

021 = 1/4 NPTF

022 = 3/8 NPTF

023 = 1/2 NPTF

Tube Size

108 = 1/8"

532 = 5/32"

104 = 1/4"

516 = 5/16"

308 = 3/8"

102 = 1/2"

000 = No Tube

Housing

(Brass, Nickel Plated)

Release ring (Brass)

Locking ring (stainless steel)

Lead bushing

(brass)

Stop bushing

(brass)

O-ring (Buna, FKM available)

Bushing for Swivel

(brass)

• Pressure Rating to 265 psi

• Temperature range: -20°F to

+176°F (BUNA N O-ring)

+230°F (FKM O-ring)

• Push-in fittings with NPTF Threads

• PTFE thread sealant

• Tube diameter: 1/8" to 1/2"

• Thread size: 10-32 UNF to 1/2 NPTF

*See Fitting Style Charts on

pgs 9-14 for available Tube and

Thread Conﬁgurations

NPTF/Inch Tube Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

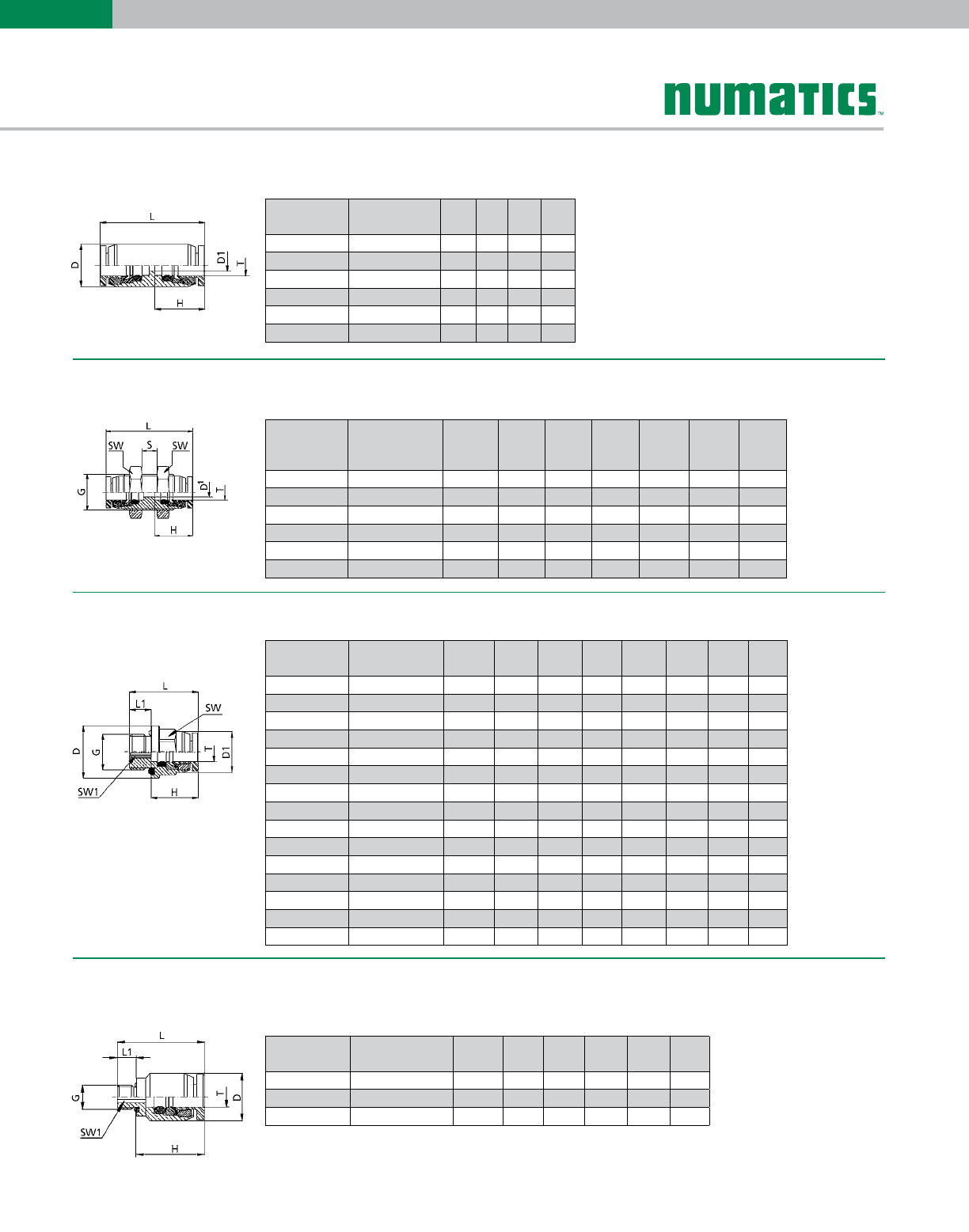

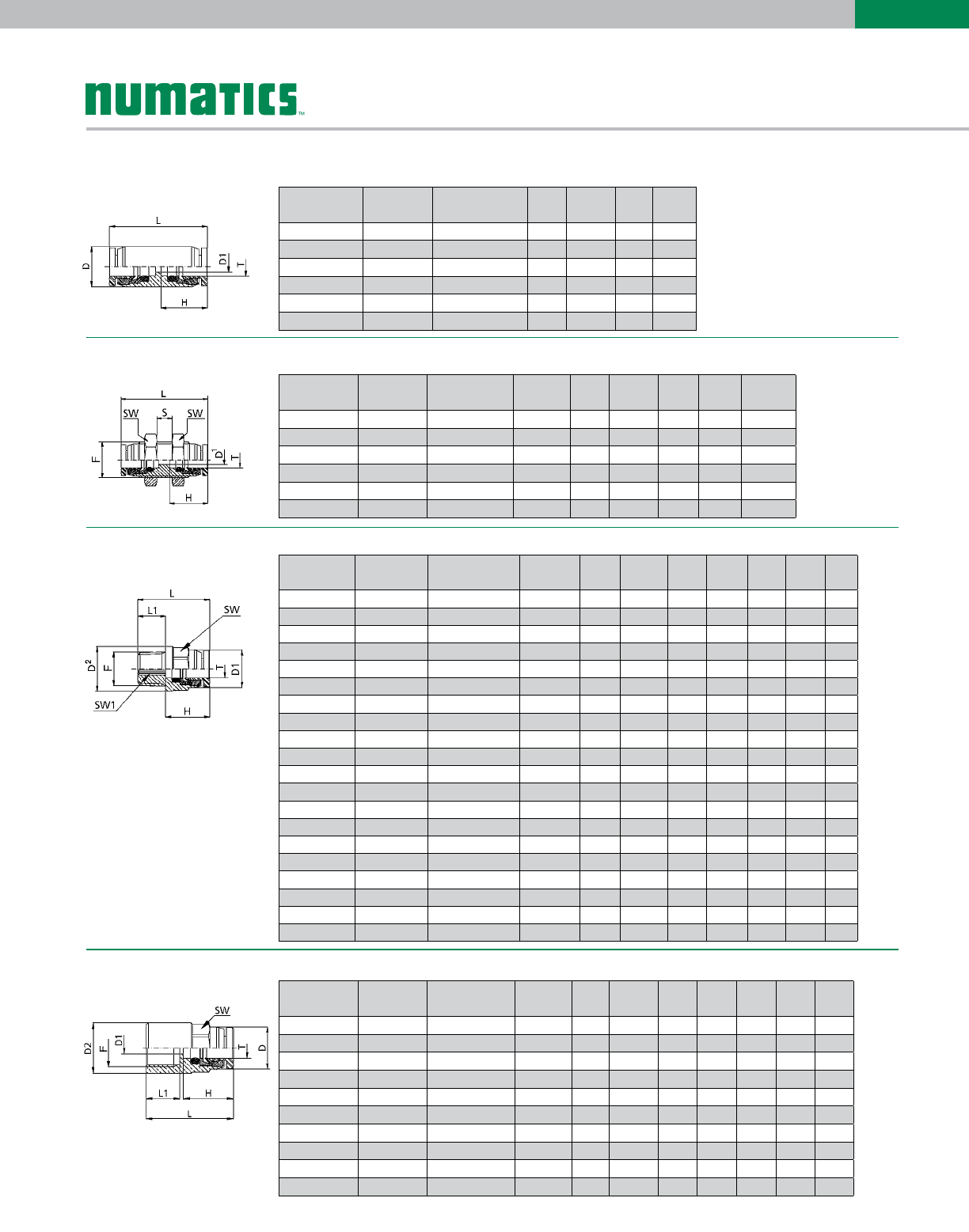

INB100 Union

INB101 Bulkhead Union

INB103 Male Connector

INB105 Female Connector

Brass

Release Ring INB100 Tube Diameter

(T) D D1 L H

INB 100-108-000 1/8 0.394 0.094 0.984 0.472

INB 100-532-000 5/32 0.394 0.118 1.024 0.492

INB 100-104-000 1/4 0.472 0.157 1.110 0.531

INB 100-516-000 5/16 0.591 0.236 1.299 0.630

INB 100-308-000 3/8 0.709 0.276 1.398 0.669

INB 100-102-000 1/2 0.787 0.413 1.575 0.748

Brass

Release Ring INB101 Tube Diameter

(T)

Thread

(F) D1 L H SW S Max

INB 101-108-000 1/8 M11x1 0.094 1.091 0.472 0.551 0.197

INB 101-532-000 5/32 M12x1 0.118 1.130 0.492 0.551 0.236

INB 101-104-000 1/4 M13x1 0.157 1.244 0.531 0.630 0.315

INB 101-516-000 5/16 M16x1 0.236 1.437 0.630 0.748 0.315

INB 101-308-000 3/8 M19x1 0.276 1.614 0.669 0.866 0.433

INB 101-102-000 1/2 M22x1 0.413 1.850 0.748 1.024 0.591

Brass

Release Ring INB103 Tube Diameter

(T)

Thread

(F) D1 D2 L L1 H SW SW1

INB 103-108-036 1/8 10-32 UNF 0.370 0.370 0.697 0.165 0.472 / 5/64

INB 103-108-020 1/8 1/8 NPTF 0.370 0.472 0.854 0.374 0.472 3/8 5/64

INB 103-108-021 1/8 1/4 NPTF 0.370 0.551 0.992 0.512 0.472 3/8 5/64

INB 103-532-036 5/32 10-32 UNF 0.394 0.394 0.717 0.165 0.492 / 5/64

INB 103-532-020 5/32 1/8 NPTF 0.394 0.512 0.866 0.374 0.492 7/16 5/64

INB 103-532-021 5/32 1/4 NPTF 0.394 0.551 1.004 0.512 0.492 7/16 5/64

INB 103-104-036 1/4 10-32 UNF 0.472 0.472 0.772 0.165 0.531 / 5/64

INB 103-104-020 1/4 1/8 NPTF 0.472 0.551 0.886 0.374 0.531 1/2 5/32

INB 103-104-021 1/4 1/4 NPTF 0.472 0.551 1.024 0.512 0.531 1/2 5/32

INB 103-104-022 1/4 3/8 NPTF 0.472 0.709 1.024 0.512 0.531 1/2 5/32

INB 103-516-020 5/16 1/8 NPTF 0.591 0.669 1.055 0.374 0.630 19/32 7/32

INB 103-516-021 5/16 1/4 NPTF 0.591 0.669 1.173 0.512 0.630 19/32 7/32

INB 103-516-022 5/16 3/8 NPTF 0.591 0.709 1.173 0.512 0.630 19/32 7/32

INB 103-308-020 3/8 1/8 NPTF 0.669 0.787 1.114 0.374 0.669 11/16 7/32

INB 103-308-021 3/8 1/4 NPTF 0.669 0.787 1.232 0.512 0.669 11/16 1/4

INB 103-308-022 3/8 3/8 NPTF 0.669 0.787 1.232 0.512 0.669 11/16 1/4

INB 103-308-023 3/8 1/2 NPTF 0/669 0.866 1.390 0.709 0.669 11/16 1/4

INB 103-102-021 1/2 1/4 NPTF 0.827 0.906 1.339 0.512 0.748 13/16 1/4

INB 103-102-022 1/2 3/8 NPTF 0.827 0.906 1.339 0.512 0.748 13/16 3/8

INB 103-102-023 1/2 1/2 NPTF 0.827 0.906 1.496 0.709 0.748 13/16 3/8

Brass

Release Ring INB105 Tube Diameter

(T)

Thread

(F) D D1 D2 L L2 H SW

INB 105-108-020 1/8 1/8 NPTF 0.370 0.094 0.551 0.945 0.335 0.472 3/8

INB 105-108-021 1/8 1/4 NPTF 0.370 0.094 0.669 1.102 0.472 0.472 3/8

INB 105-532-020 5/32 1/8 NPTF 0.394 0.118 0.551 0.965 0.335 0.492 7/16

INB 105-532-021 5/32 1/4 NPTF 0.394 0.118 0.669 1.122 0.472 0.492 7/16

INB 105-104-020 1/4 1/8 NPTF 0.472 0.157 0.551 0.965 0.335 0.531 1/2

INB 105-104-021 1/4 1/4 NPTF 0.472 0.157 0.669 1.142 0.472 0.531 1/2

INB 105-516-020 5/16 1/8 NPTF 0.591 0.236 0.669 1.055 0.335 0.630 19/32

INB 105-516-021 5/16 1/4 NPTF 0.591 0.236 0.669 1.213 0.472 0.630 19/32

INB 105-308-021 3/8 1/4 NPTF 0.669 0.276 0.866 1.248 0.472 0.669 3/4

INB 105-308-022 3/8 3/8 NPTF 0.669 0.276 0.866 1.366 0.495 0.669 11/16

NPTF/Inch Tube Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

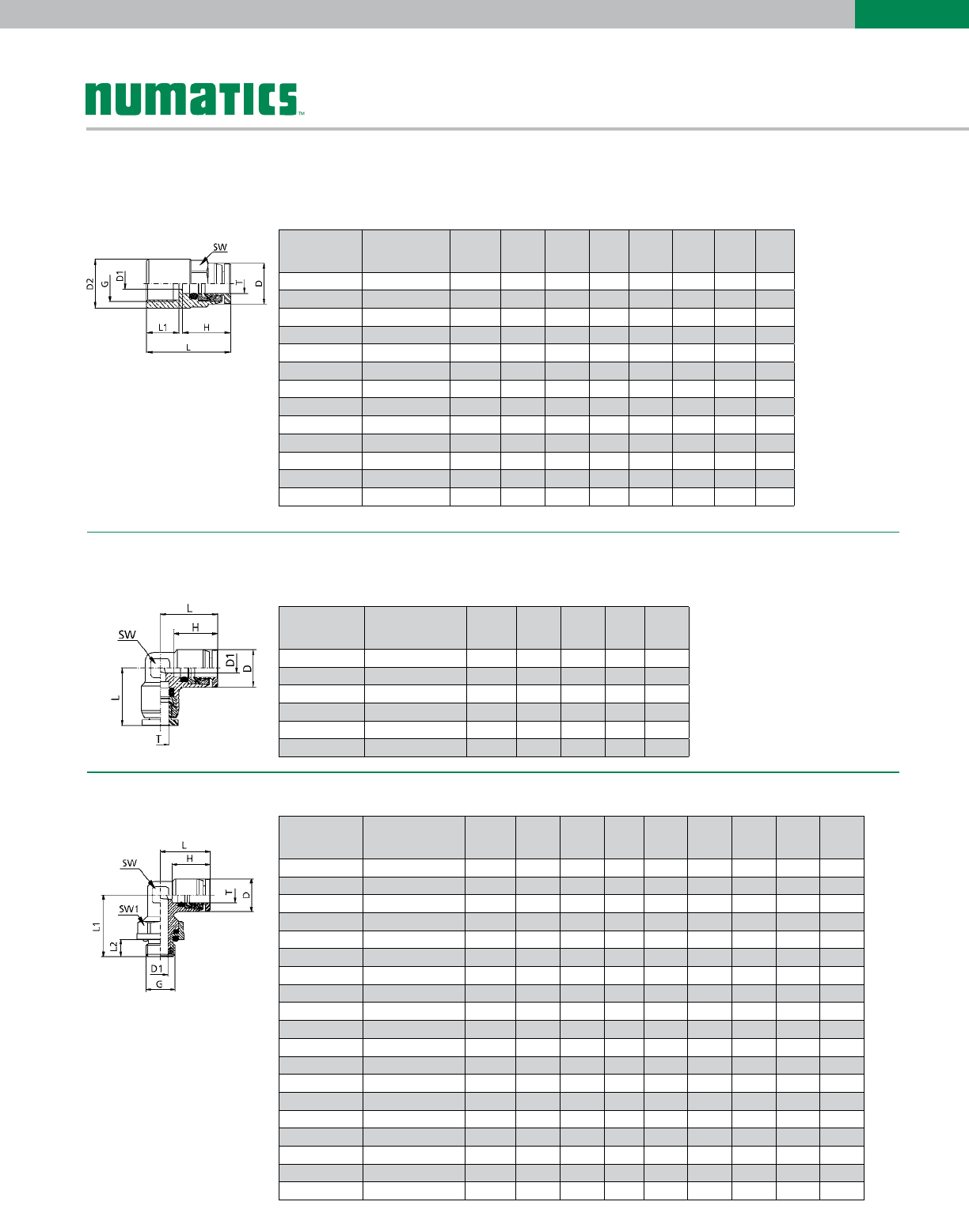

INB106 Union Elbow

INB107 Fixed Elbow

INB109 Swivel Elbow

Brass

Release Ring INB106 Tube Diameter

(T) D D1 L H SW

INB 106-108-000 1/8 0.394 0.094 0.638 0.472 0.354

INB 106-532-000 5/32 0.394 0.118 0.657 0.492 0.354

INB 106-104-000 1/4 0.472 0.157 0.740 0.531 0.433

INB 106-516-000 5/16 0.591 0.236 0.858 0.630 0.551

INB 106-308-000 3/8 0.709 0.295 1.004 0.669 0.630

INB 106-102-000 1/2 0.827 0.413 1.161 0.748 0.685

Brass

Release Ring INB107 Tube Diameter

(T)

Thread

(F) D D1 L L1 L2 H SW

INB 107-532-020 5/32 1/8 NPTF 0.394 0.118 0.657 0.650 0.374 0.492 0.354

INB 107-532-021 5/32 1/4 NPTF 0.394 0.118 0.657 0.787 0.512 0.492 0.354

INB 107-104-020 1/4 1/8 NPTF 0.472 0.157 0.740 0.693 0.374 0.531 0.433

INB 107-104-021 1/4 1/4 NPTF 0.472 0.157 0.740 0.831 0.512 0.531 0.433

INB 107-308-021 3/8 1/4 NPTF 0.709 0.295 1.004 0.945 0.512 0.685 0.630

INB 107-308-022 3/8 3/8 NPTF 0.709 0.295 1.004 1.945 0.512 0.685 0.630

Brass

Release Ring INB109 Tube Diameter

(T) Thread (F) D D1 L L1 L2 H SW SW1

INB 109-108-036 1/8 10-32 UNF 0.394 0.087 0.638 0.630 0.165 0.472 0.354 0.354

INB 109-108-020 1/8 1/8 NPTF 0.394 0.157 0.638 0.874 0.374 0.472 0.354 0.512

INB 109-108-021 1/8 1/4 NPTF 0.394 0.157 0.638 1.008 0.512 0.472 0.354 0.591

INB 109-532-036 5/32 10-32 UNF 0.394 0.087 0.657 0.630 0.165 0.492 0.354 0.354

INB 109-532-020 5/32 1/8 NPTF 0.394 0.157 1.657 0.874 0.374 0.492 0.354 0.512

INB 109-532-021 5/32 1/4 NPTF 0.394 0.157 1.657 1.008 0.512 0.492 0.354 0.591

INB 109-104-036 1/4 10-32 UNF 0.472 0.087 0.740 0.709 0.165 0.531 0.433 0.354

INB 109-104-020 1/4 1/8 NPTF 0.472 0.157 0.740 0.906 0.374 0.531 0.433 0.512

INB 109-104-021 1/4 1/4 NPTF 0.472 0.236 0.740 1.031 0.512 0.531 0.433 0.591

INB 109-104-022 1/4 3/8 NPTF 0.472 0.236 0.740 1.071 0.512 0.531 0.433 0.709

INB 109-516-020 5/16 1/8 NPTF 0.591 0.157 0.925 0.984 0.374 0.630 0.551 0.512

INB 109-516-021 5/16 1/4 NPTF 0.591 0.236 0.925 1.122 0.512 0.630 0.551 0.591

INB 109-516-022 5/16 3/8 NPTF 0.591 0.315 0.925 1.181 0.512 0.630 0.551 0.709

INB 109-308-020 3/8 1/8 NPTF 0.709 0.157 1.043 1.043 0.374 0.669 0.630 0.512

INB 109-308-021 3/8 1/4 NPTF 0.709 0.236 1.043 1.181 0.512 0.669 0.630 0.591

INB 109-308-022 3/8 3/8 NPTF 0.709 0.315 1.043 1.220 0.512 0.669 0.630 0.709

INB 109-308-023 3/8 1/2 NPTF 0.709 0.315 1.043 1.358 0.709 0.669 0.630 0.866

INB 109-102-021 1/2 1/4 NPTF 0.827 0.236 1.181 1.299 0.512 0.748 0.685 0.591

INB 109-102-022 1/2 3/8 NPTF 0.827 0.315 1.181 1.299 0.512 0.748 0.685 0.709

INB 109-102-023 1/2 1/2 NPTF 0.827 0.315 1.181 1.476 0.709 0.748 0.685 0.866

NPTF/Inch Tube Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

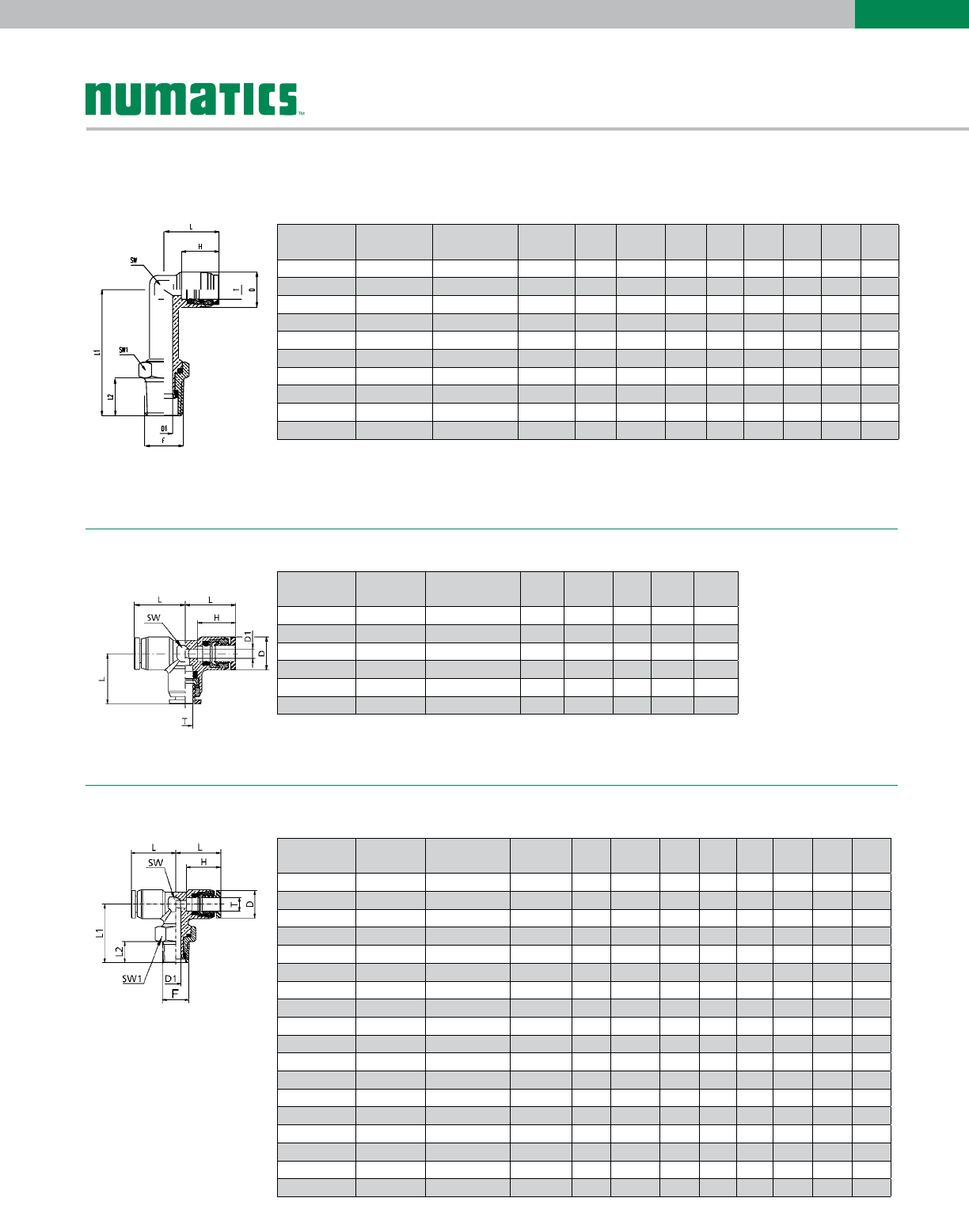

INB109E Extended Swivel Elbow

INB110 Union Tee

INB114 Swivel Branch Tee

Brass

Release Ring INB109E Tube Diameter

(T)

Thread

(F) D D1 L L1 L2 H SW SW1

INB 109E-108-020 1/8 1/8 NPTF 0.394 0.157 0.638 1.461 0.374 0.472 0.354 0.512

INB 109E-108-021 1/8 1/4 NPTF 0.394 0.157 0.638 1.598 0.512 0.472 0.354 0.591

INB 109E-532-020 5/32 1/8 NPTF 0.394 0.157 0.657 1.457 0.374 0.492 0.354 0.512

INB 109E-104-020 1/4 1/8 NPTF 0.472 0.157 0.740 1.575 0.374 0.531 0.433 0.512

INB 109E-104-021 1/4 1/4 NPTF 0.472 0.236 0.740 1.693 0.512 0.531 0.433 0.591

INB 109E-104-022 1/4 3/8 NPTF 0.472 0.236 0.740 1.732 0.512 0.531 0.433 0.709

INB 109E-516-021 5/16 1/4 NPTF 0.591 0.236 0.925 1.909 0.512 0.531 0.551 0.591

INB 109E-308-020 3/8 1/8 NPTF 0.669 0.157 1.043 1.929 0.374 0.531 0.591 0.512

INB 109E-308-021 3/8 1/4 NPTF 0.709 0.236 1.043 2.067 0.512 0.531 0.591 0.591

INB 109E-308-022 3/8 3/8 NPTF 0.748 0.315 1.043 2.106 0.512 0.531 0.591 0.709

Brass

Release Ring INB114 Tube Diameter

(T) Thread (F) D D1 L L1 L2 H SW SW1

INB 114-108-036 1/8 10-32 UNF 0.394 0.087 0.638 0.630 0.165 0.472 0.354 0.354

INB 114-108-020 1/8 1/8 NPTF 0.394 0.157 0.638 0.874 0.374 0.472 0.354 0.512

INB 114-108-021 1/8 1/4 NPTF 0.394 0.157 0.638 1.008 0.512 0.472 0.354 0.591

INB 114-532-036 5/32 10-32 UNF 0.394 0.087 0.657 0.630 0.165 0.492 0.354 0.354

INB 114-532-020 5/32 1/8 NPTF 0.394 0.157 0.657 0.874 0.374 0.492 0.354 0.512

INB 114-532-021 5/32 1/4 NPTF 0.394 0.157 0.657 1.008 0.512 0.492 0.354 0.591

INB 114-104-020 1/4 1/8 NPTF 0.472 0.157 0.740 0.996 0.374 0.531 0.433 0.512

INB 114-104-021 1/4 1/4 NPTF 0.472 0.236 0.740 1.142 0.512 0.531 0.433 0.591

INB 114-104-022 1/4 3/8 NPTF 0.472 0.236 0.740 1.181 0.512 0.531 0.433 0.709

INB 114-516-020 5/16 1/8 NPTF 0.591 0.157 0.925 0.984 0.374 0.630 0.551 0.512

INB 114-516-021 5/16 1/4 NPTF 0.591 0.236 0.925 1.122 0.512 0.630 0.551 0.591

INB 114-308-020 3/8 1/8 NPTF 0.709 0.157 1.043 1.043 0.374 0.669 0.630 0.709

INB 114-308-021 3/8 1/4 NPTF 0.709 0.236 1.043 1.181 0.512 0.669 0.630 0.591

INB 114-308-022 3/8 3/8 NPTF 0.709 0.315 1.043 1.220 0.512 0.699 0.630 0.709

INB 114-308-023 3/8 1/2 NPTF 0.709 0.315 1.043 1.394 0.709 0.699 0.630 0.866

INB 114-102-021 1/2 1/4 NPTF 0.827 0.236 1.181 1.299 0.512 0.748 0.685 0.591

INB 114-102-022 1/2 3/8 NPTF 0.827 0.315 1.181 1.299 0.512 0.748 0.685 0.709

INB 114-102-023 1/2 1/2 NPTF 0.827 0.315 1.181 1.476 0.709 0.748 0.685 0.866

Brass

Release Ring INB110 Tube Diameter

(T) D D1 L H SW

INB 110-108-000 1/8 0.394 0.094 0.638 0.472 0.354

INB 110-532-000 5/32 0.394 0.118 0.657 0.492 0.354

INB 110-104-000 1/4 0.472 0.157 0.740 0.531 0.433

INB 110-516-000 5/16 0.591 0.236 0.858 0.630 0.551

INB 110-308-000 3/8 0.709 0.295 1.004 0.669 0.630

INB 110-102-000 1/2 0.827 0.413 1.161 0.748 0.685

NPTF/Inch Tube Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

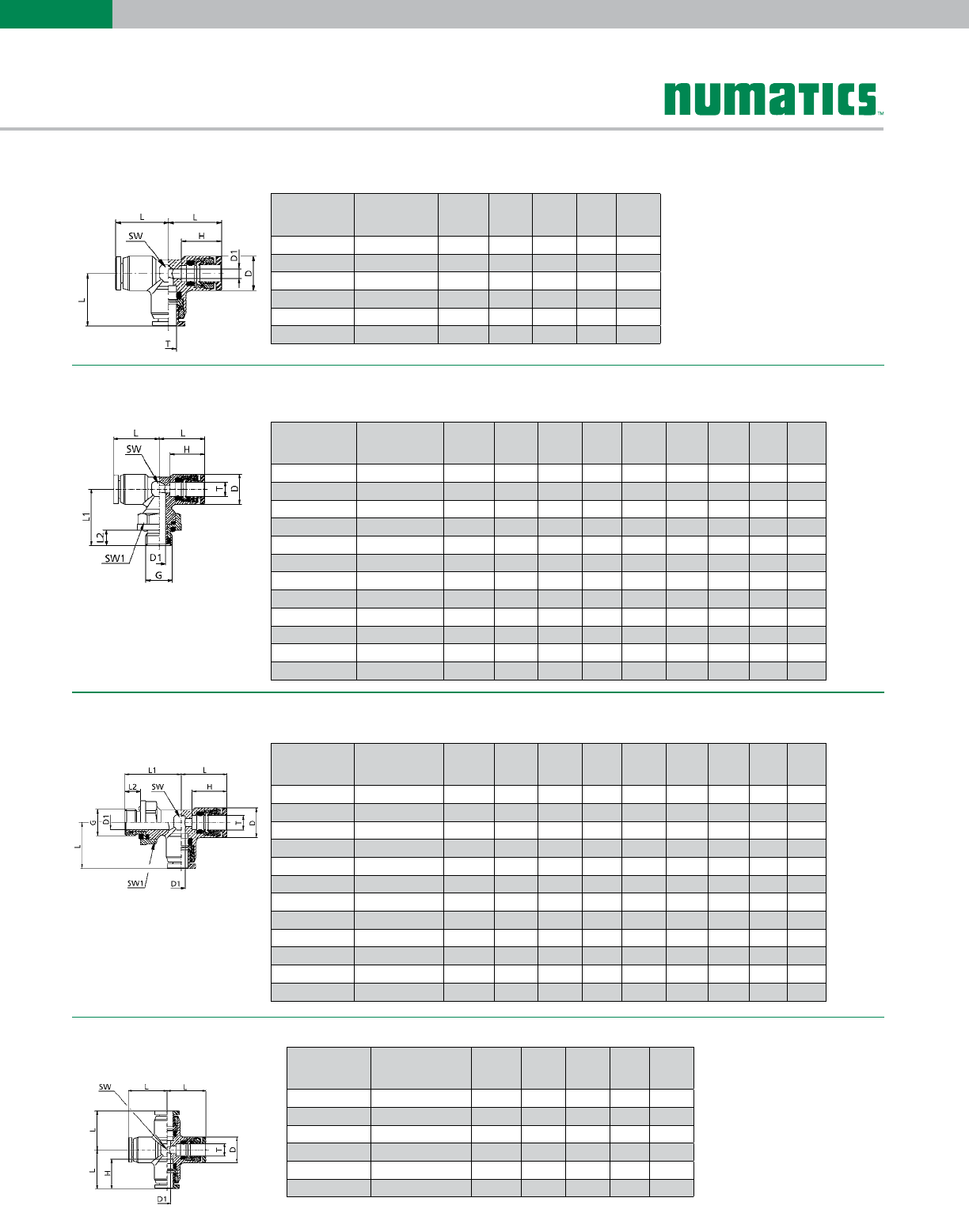

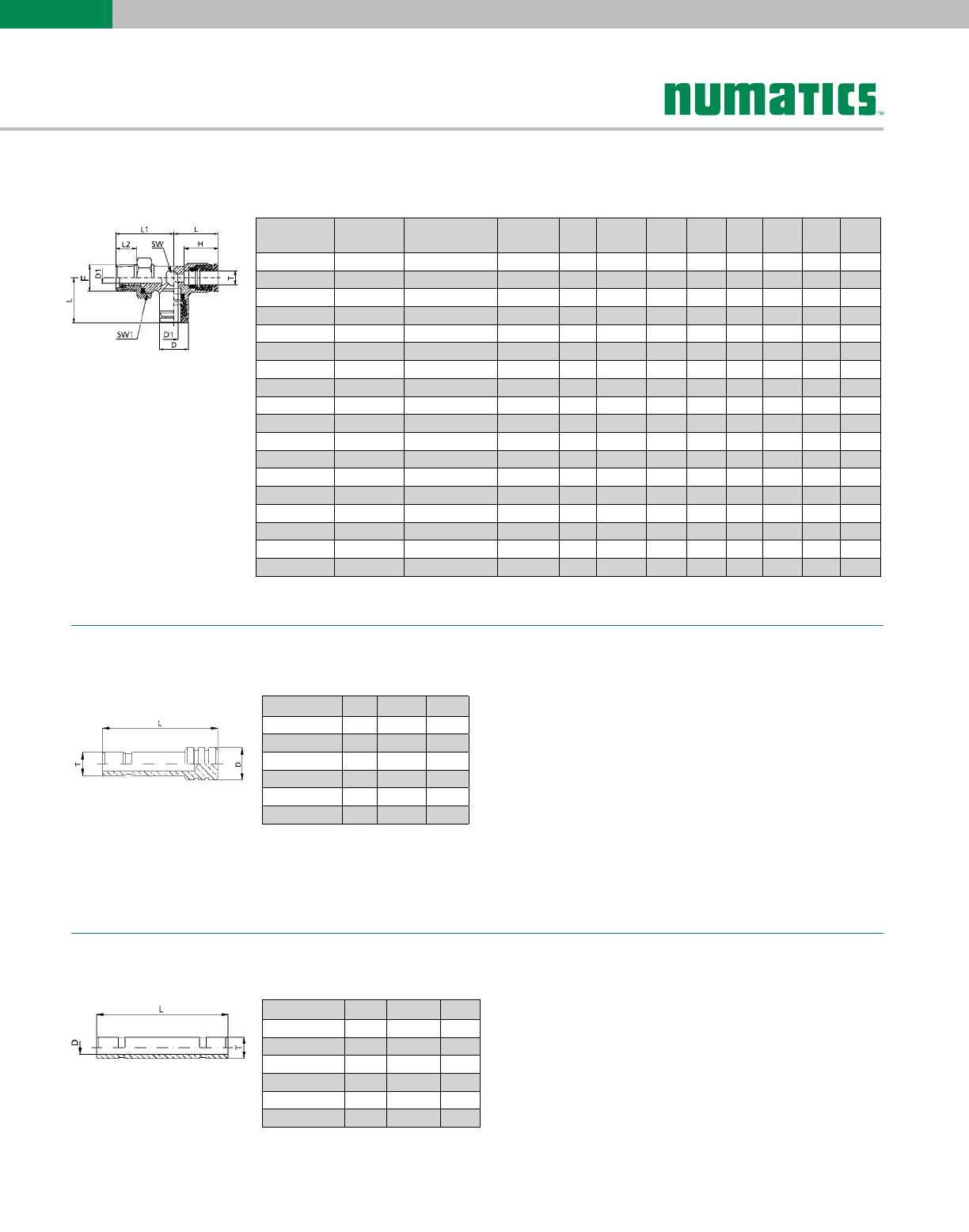

INB116 Swivel Run Tee

IN118 Plug

IN119 Double Male Union

Brass

Release Ring INB116 Tube Diameter

(T) Thread (F) D D1 L L1 L2 H SW SW1

INB 116-108-036 1/8 10-32 UNF 0.394 0.087 0.638 0.630 0.165 0.472 0.354 0.354

INB 116-108-020 1/8 1/8 NPTF 0.394 0.157 0.638 0.874 0.374 0.472 0.354 0.512

INB 116-108-021 1/8 1/4 NPTF 0.394 0.157 0.638 1.008 0.512 0.472 0.354 0.591

INB 116-532-036 5/32 10-32 UNF 0.394 0.087 0.657 0.630 0.165 0.492 0.354 0.354

INB 116-532-020 5/32 1/8 NPTF 0.394 0.157 0.657 0.874 0.374 0.492 0.354 0.512

INB 116-532-021 5/32 1/4 NPTF 0.394 0.157 0.657 1.008 0.512 0.492 0.354 0.591

INB 116-104-020 1/4 1/8 NPTF 0.472 0.157 0.740 0.996 0.374 0.531 0.433 0.512

INB 116-104-021 1/4 1/4 NPTF 0.472 0.236 0.740 1.142 0.512 0.531 0.433 0.591

INB 116-104-022 1/4 3/8 NPTF 0.472 0.236 0.740 1.181 0.512 0.531 0.433 0.709

INB 116-516-020 5/16 1/8 NPTF 0.591 0.157 0.925 0.984 0.374 0.630 0.551 0.512

INB 116-516-021 5/16 1/4 NPTF 0.591 0.236 0.925 1.122 0.512 0.630 0.551 0.591

INB 116-308-020 3/8 1/8 NPTF 0.709 0.157 1.043 1.043 0.374 0.669 0.630 0.512

INB 116-308-021 3/8 1/4 NPTF 0.709 0.236 1.043 1.181 0.512 0.669 0.630 0.591

INB 116-308-022 3/8 3/8 NPTF 0.709 0.315 1.043 1.220 0.512 0.699 0.630 0.709

INB 116-308-023 3/8 1/2 NPTF 0.709 0.315 1.043 1.394 0.709 0.699 0.630 0.866

INB 116-102-021 1/2 1/4 NPTF 0.827 0.236 1.181 1.299 0.512 0.748 0.685 0.591

INB 116-102-022 1/2 3/8 NPTF 0.827 0.315 1.181 1.299 0.512 0.748 0.685 0.709

INB 116-102-023 1/2 1/2 NPTF 0.827 0.315 1.181 1.476 0.709 0.748 0.685 0.866

IN118 T D L

IN118-108-000 1/8 0.197 0.827

IN118-532-000 5/32 0.236 0.906

IN118-104-000 1/4 0.315 0.984

IN118-516-000 5/16 0.394 1.063

IN118-308-000 3/8 0.472 1.102

IN118-102-000 1/2 0.591 1.260

IN119 T D1 L

IN119-108-000 1/8 0.063 1.102

IN119-532-000 5/32 0.079 1.181

IN119-104-000 1/4 0.157 1.260

IN119-516-000 5/16 0.236 1.535

IN119-308-000 3/8 0.295 1.614

IN119-102-000 1/2 0.394 1.811

NPTF/Inch Tube Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

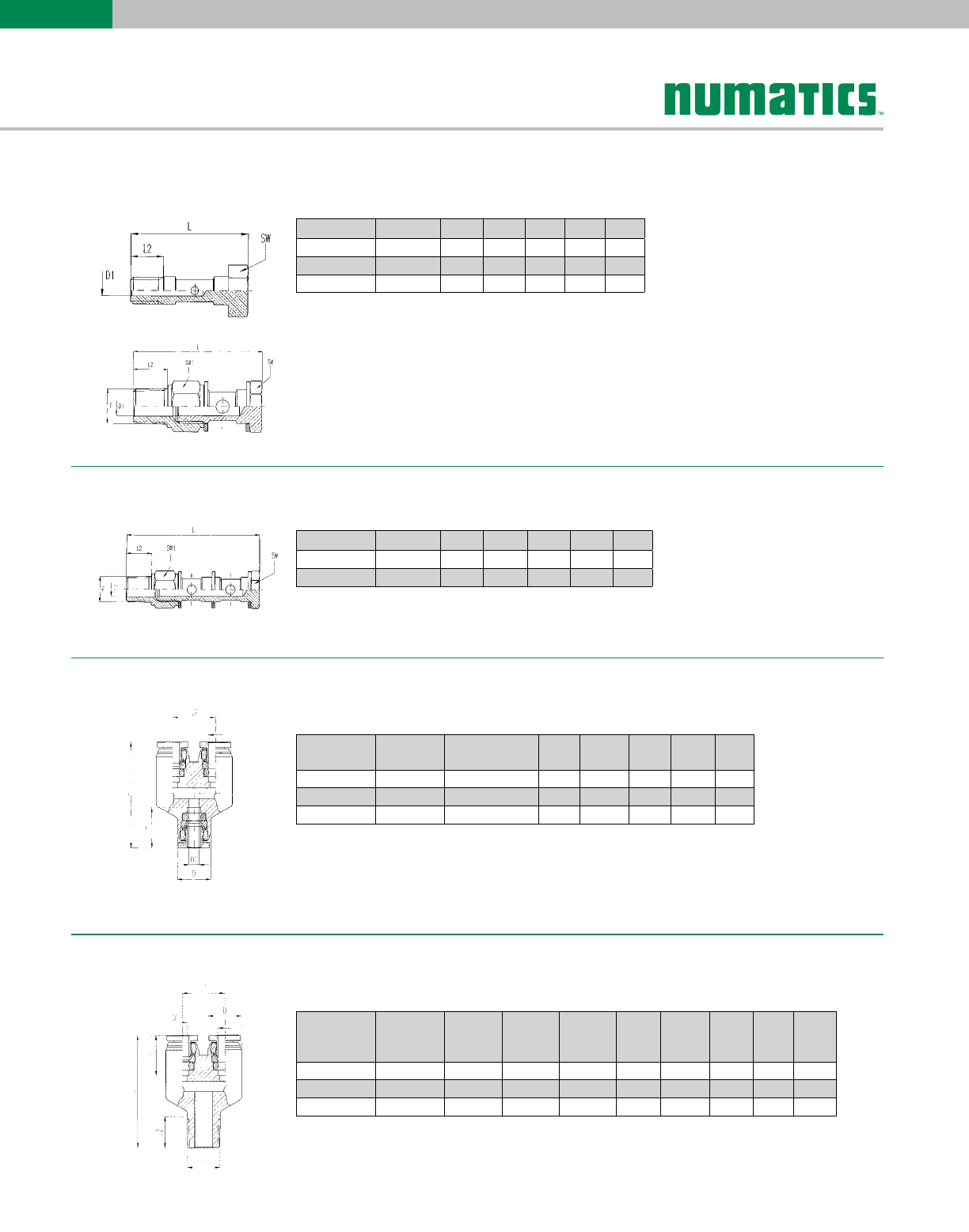

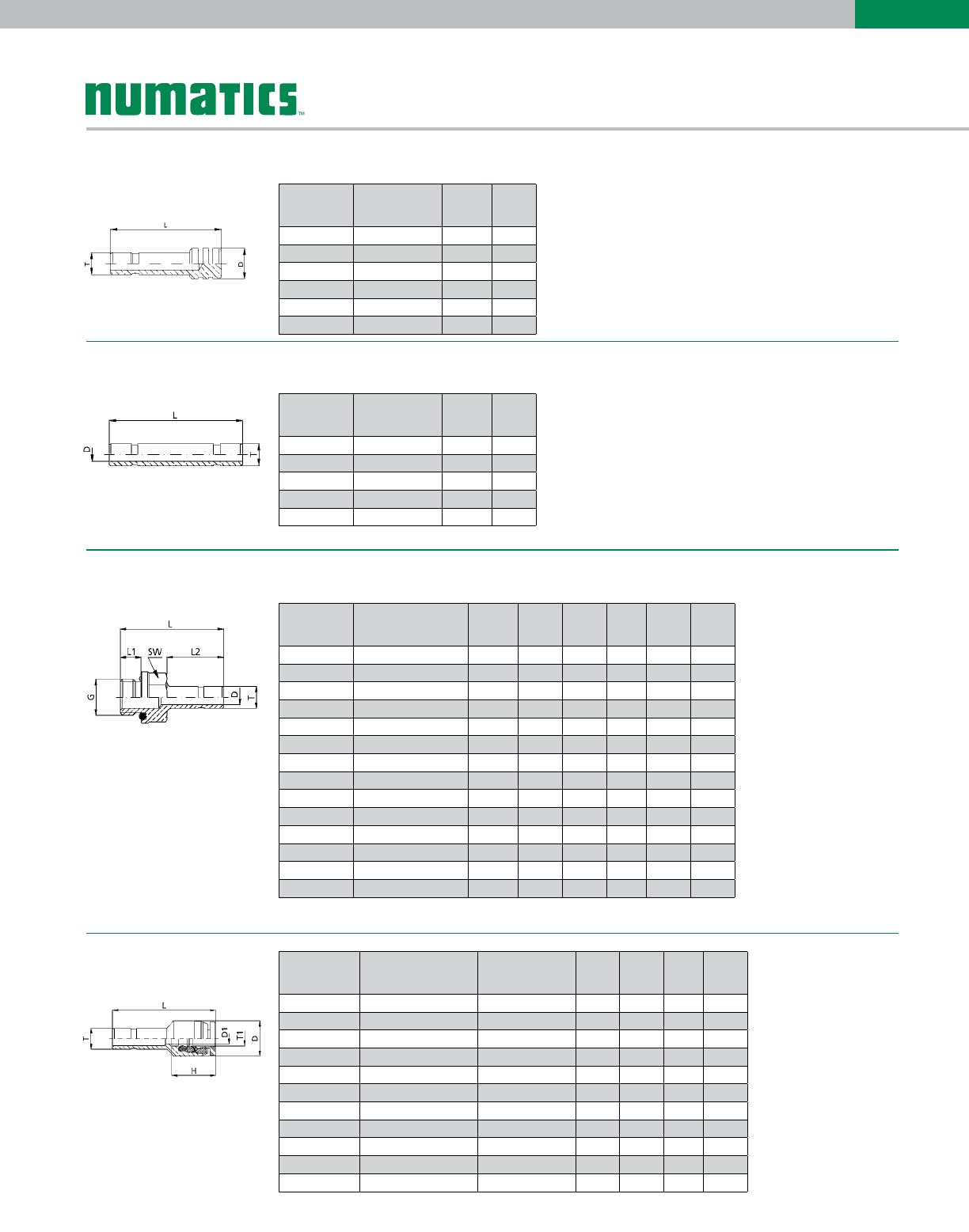

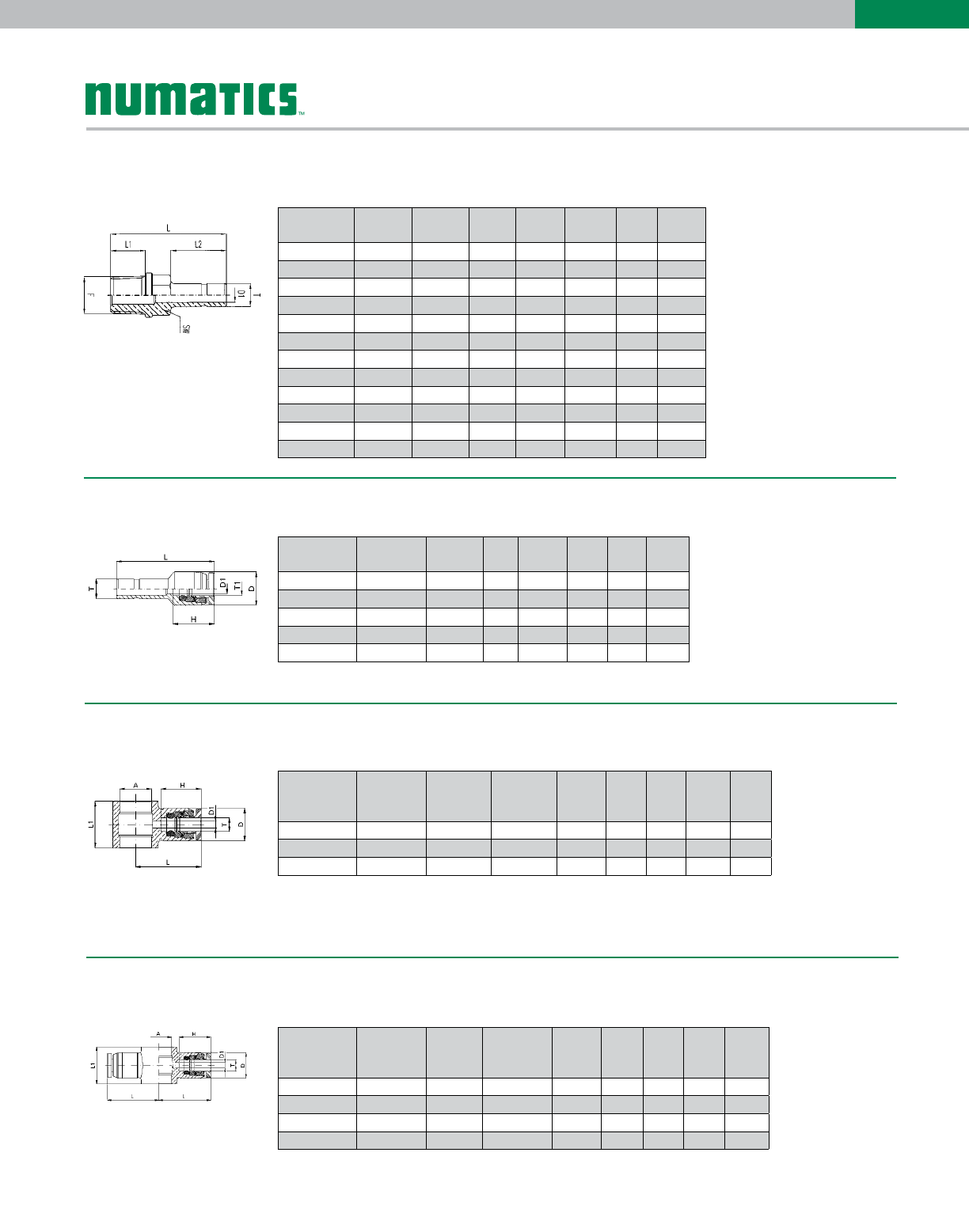

IN120 Stem Adapter

INB121 Reducer

INB122 Single Banjo

INB123 Double Banjo

IN120 T Thread

(F) D1 L L1 L2 SW

IN120-108-020 1/8 1/8 NPTF 0.063 1.181 0.374 0.531 3/8

IN120-108-021 1/8 1/4 NPTF 0.063 1.358 0.512 0.531 1/2

IN120-532-020 5/32 1/8 NPTF 0.079 1.201 0.374 0.551 3/8

IN120-532-021 5/32 1/4 NPTF 0.079 1.378 0.512 0.551 1/2

IN120-104-020 1/4 1/8 NPTF 0.157 1.252 0.374 0.602 3/8

IN120-104-021 1/4 1/4 NPTF 0.157 1.429 0.512 0.602 1/2

IN120-516-020 5/16 1/8 NPTF 0.236 1.358 0.374 0.709 3/8

IN120-516-021 5/16 1/4 NPTF 0.236 1.535 0.512 0.709 1/2

IN120-308-021 3/8 1/4 NPTF 0.276 1.654 0.512 0.827 1/2

IN120-308-022 3/8 3/8 NPTF 0.276 1.673 0.512 0.827 19/32

IN120-102-022 1/2 3/8 NPTF 0.394 1.752 0.512 0.906 19/32

IN120-102-023 1/2 1/2 NPTF 0.394 1.949 0.709 0.906 11/16

Brass

Release Ring INB121 T T1 D D1 L H

INB 121-104-108 1/4 1/8 0.394 0.094 1.082 0.472

INB 121-104-532 1/4 5/32 0.394 0.118 1.142 0.492

INB 121-308-104 3/8 1/4 0.472 0.157 1.339 0.531

INB 121-102-104 1/2 1/4 0.472 0.157 1.417 0.531

INB 121-102-308 1/2 3/8 0.669 0.295 1.673 0.669

Brass

Release Ring IN122

Tube

Diameter

(T)

A D D1 L L1 H

INB 122-532-036 5/32 10-32 UNF 0.394 0.110 0.748 0.472 0.492

INB 122-532-020 5/32 1/8 NPTF 0.394 0.118 0.795 0.571 0.492

INB 122-308-021 3/8 1/4 NPTF 0.709 0.295 1.067 0.709 0.669

Brass

Release Ring INB123

Tube

Diameter

(T)

A D D1 L L1 H

INB 123-532-036 5/32 10-32 UNF 0.394 0.118 0.748 0.472 0.492

INB 123-104-020 1/4 1/8 NPTF 0.472 0.157 0.811 0.571 0.531

INB 123-104-021 1/4 1/4 NPTF 0.472 0.157 0.890 0.689 0.531

INB 123-308-021 3/8 1/4 NPTF 0.709 0.295 1.067 0.709 0.669

NPTF/Inch Tube Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

IN124 Single Manifold

IN125 Double Manifold

INB131 Union Y

INB132 Male Y

Brass

Release Ring IN131 Tube Diameter

(T) L H L1 D D1

INB 131-108-000 1/8 1.240 0.472 0.512 0.394 0.094

INB 131-532-000 5/32 1.280 0.492 0.512 0.394 0.118

INB 131-104-000 1/4 1.398 0.531 0.598 0.472 0.157

Brass

Release Ring INB132

Tube

Diameter

(T)

Thread

(F) L2 L H L1 D D1

INB 132-108-020 1/8 1/8 NPTF 0.374 1.339 0.472 0.512 0.394 0.094

INB 132-532-020 5/32 1/8 NPTF 0.374 1.350 0.492 0.512 0.394 0.118

INB 132-104-020 1/4 1/8 NPTF 0.165 1.319 0.472 0.512 0.394 0.094

IN124 Thread (F) L L2 D1 SW SW1

IN124-000-036 10-32 UNF 0.827 0.223 0.079 0.315 -

IN124-000-020 1/8 NPTF 1.634 0.374 0.197 0.551 0.551

IN124-000-021 1/4 NPTF 2.067 0.512 0.276 0.669 0.669

IN125 Thread (F) L L2 D1 SW SW1

IN125-000-020 1/8 NPTF 2.187 0.374 0.197 0.551 0.551

IN125-000-021 1/4 NPTF 2.715 0.512 0.276 0.669 0.669

Metric Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

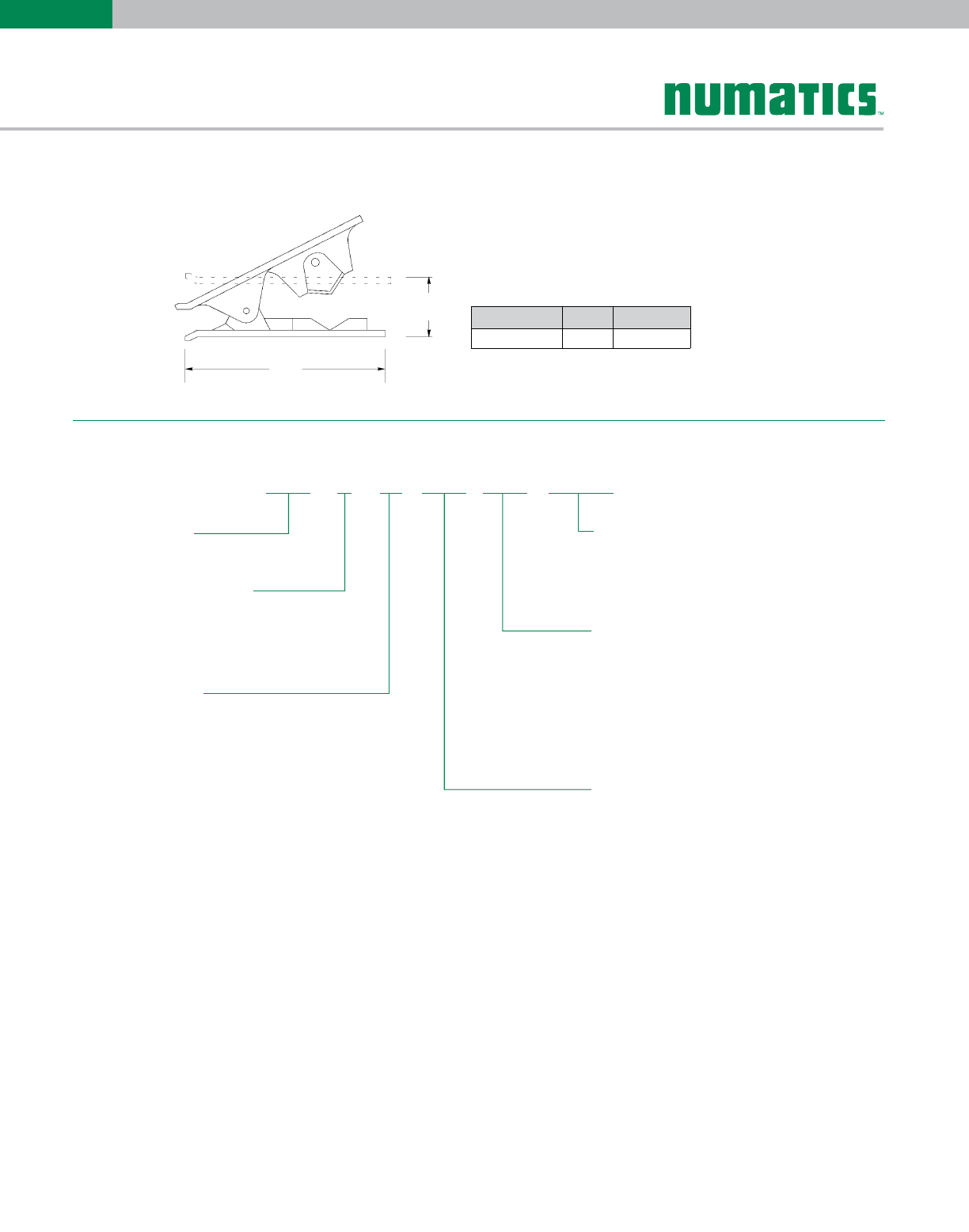

How to Order

006 – 001

Tube Size

004 = 4mm

005 = 5mm

006 = 6mm

008 = 8mm

010 = 10mm

012 = 12mm

000 = No tube

–

Thread Size

000 = 1/8 G

001 = 1/4 G

002 = 3/8 G

003 = 1/2 G

005 =M5

Thread Size

100 = Union

101 = Bulkhead Union

102 = Male Connector

104 = Male Connector

105 = Female Connector w/o external box

106 = Union Elbow

108 = Swivel Elbow

110 = Union Tee

113 = Swivel Branch Tee

115 = Swivel Run Tee

117 = Union Cross

*118 = Plug

*119 = Double Male Union

*120 = Stem Adapter

121 = Reducer

122 = Single Banjo

123 = Double Banjo

*124 = Single Manifold

*125 = Double Manifold

Fitting Series

*N =

NB = Metric (Brass Release Ring)

Metric

102

*Fittings with asterisk only available in “N” Fitting Series.

All other styles only available in “NB” Fitting Series.

Options

(Blank) = BUNA-N O-Ring

F=FKM “O” Ring

Housing

(Brass, Nickel Plated)

Release ring (Brass)

Locking ring (stainless steel)

Lead bushing

(brass)

Stop bushing

(brass)

O-ring (Buna)

• Pressure Rating to 265 psi

• Temperature range: -20°F to

+176°F (BUNA N O-ring)

+230°F (FKM O-ring)

• Push-in fittings with G Threads

• Tube diameter: 4mm to 12mm

• Thread size: M5 to 1/2 G

*See Fitting Style Charts on

pgs 16-20 for available Tube and

Thread Conﬁgurations

Metric Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

NB100 Union

NB101 Bulkhead Union

NB102 Male Connector

NB104 Male Connector without External Hex

NB100 Tube Diameter

(T) D D1 H L

NB100-004-000 4.0 10.0 2.0 12.2 26.0

NB100-005-000 5.0 11.0 3.0 12.7 27.0

NB100-006-000 6.0 12.0 4.0 13.3 28.0

NB100-008-000 8.0 15.0 6.0 15.8 33.0

NB100-010-000 10.0 18.0 8.0 16.8 35.5

NB100-012-000 12.0 20.0 10.0 18.9 41.0

NB101 Tube Diameter

(T)

External

Thread

(G)

D1 H L min. S max. S SW

NB101-004-000 4.0 M11 2.0 12.2 28.7 0 6 14

NB101-005-000 5.0 M12 3.0 12.7 29.2 0 6 15

NB101-006-000 6.0 M13 4.0 13.3 31.6 0 8 16

NB101-008-000 8.0 M16 6.0 15.8 36.5 0 8 19

NB101-010-000 10.0 M19 8.0 16.8 41.6 0 11 22

NB101-012-000 12.0 M22 10.0 18.9 48.0 0 15 26

NB102 Tube Diameter

(T)

Thread

(F) D D1 H L L1 SW SW1

NB102-004-000 4.0 1/8 14.0 9.9 12.2 18.1 5.7 10 3

NB102-004-001 4.0 1/4 17.0 9.9 12.2 18.8 6.0 10 3

NB102-005-000 5.0 1/8 14.0 10.9 12.7 18.8 5.7 11 3

NB102-005-001 5.0 1/4 17.0 10.9 12.7 19.2 6.0 11 3

NB102-006-000 6.0 1/8 14.0 11.9 13.3 19.0 5.7 12 4

NB102-006-001 6.0 1/4 17.0 11.9 13.3 19.8 6.0 12 4

NB102-008-000 8.0 1/8 17.0 15.0 15.8 24.5 5.7 15 6

NB102-008-001 8.0 1/4 19.0 15.0 15.8 22.0 6.0 16 6

NB102-008-002 8.0 3/8 21.0 15.0 15.8 22.7 6.5 16 6

NB102-010-001 10.0 1/4 20.0 17.4 16.8 25.3 6.0 18 7

NB102-010-002 10.0 3/8 22.0 17.4 16.8 23.3 6.5 18 7

NB102-010-003 10.0 1/2 26.0 17.4 16.8 28.3 9.5 18 7

NB102-012-001 12.0 1/4 22.0 20.0 18.9 27.4 6.0 20 7

NB102-012-002 12.0 3/8 22.0 20.0 18.9 28.0 6.0 20 7

NB102-012-003 12.0 1/2 26.0 20.0 18.9 31.5 9.5 20 9

NB104 Tube Diameter

(T)

Thread

(G) D H L L1 SW1

NB104-004-005 4.0 M5 10.0 14.4 18.4 4.0 2

NB104-005-005 5.0 M5 11.0 14.7 18.7 4.0 2

NB104-006-005 6.0 M5 12.0 15.3 19.3 4.0 2

Metric Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

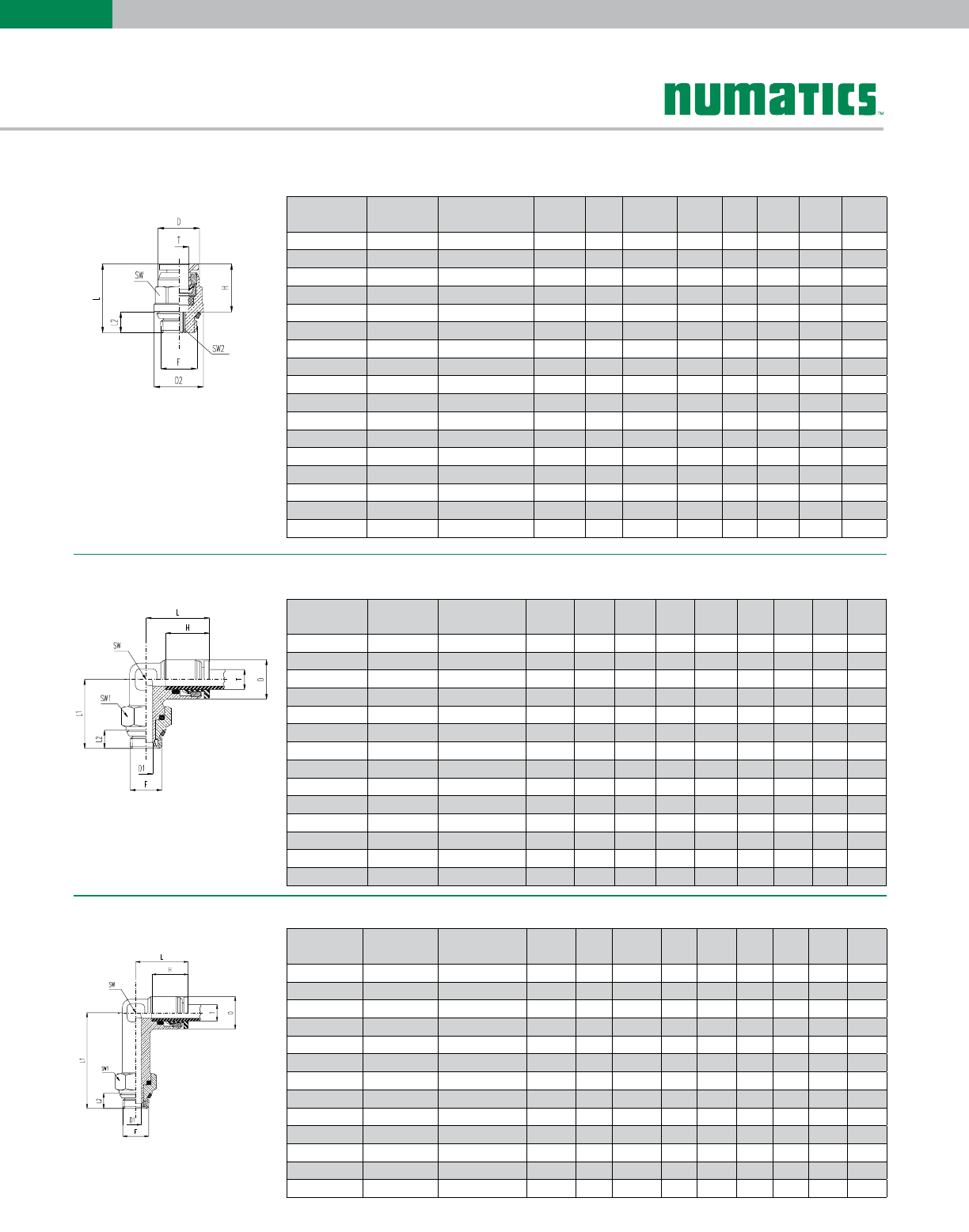

NB105 Female Connector

NB106 Union Elbow

NB108 Swivel Elbow

NB105 Tube Diameter

(T)

Thread

(G) D D1 D2 H L L1 SW

NB105-004-005 4.0 M5 9.9 2.0 8.0 12.2 19.4 5.5 10

NB105-004-000 4.0 1/8 9.9 2.0 12.0 12.2 22.4 8.5 10

NB105-005-005 5.0 M5 10.9 3.0 8.0 12.7 19.7 5.5 11

NB105-005-001 5.0 1/4 10.9 3.0 17.0 12.7 24.7 10.5 11

NB105-006-000 6.0 1/8 11.9 4.0 12.0 13.3 23.3 8.5 12

NB105-006-001 6.0 1/4 11.9 4.0 17.0 13.3 25.3 10.5 12

NB105-008-000 8.0 1/8 15.0 6.0 12.0 15.8 25.8 8.5 15

NB105-008-001 8.0 1/4 15.0 6.0 17.0 15.8 28.3 10.5 15

NB105-010-001 10.0 1/4 17.4 8.0 17.0 16.8 29.3 10.5 18

NB105-010-002 10.0 3/8 17.4 8.0 20.0 16.8 30.3 11.5 18

NB105-012-001 12.0 1/4 20.0 10.0 22.0 18.9 32.0 10.5 20

NB105-012-002 12.0 3/8 20.0 10.0 22.0 18.9 33.0 11.5 20

NB102-012-003 12.0 1/2 20.0 10.0 26.0 18.9 37.4 16.0 20

NB106 Tube Diameter

(T) D D1 H L SW

NB106-004-000 4.0 9.9 2.0 12.2 16.6 9

NB106-005-000 5.0 10.9 3.0 12.7 16.6 10

NB106-006-000 6.0 11.9 4.0 13.3 19.1 11

NB106-008-000 8.0 15.0 6.0 15.8 21.8 14

NB106-010-001 10.0 17.4 8.0 16.8 25.3 16

NB106-012-000 12.0 20.4 10.0 18.9 29.1 17

NB108 Tube Diameter

(T)

Thread

(G) D D1 H L L1 L2 SW SW1

NB108-004-005 4.0 M5 9.9 2.3 12.2 16.6 16.5 4.0 9 9

NB108-004-000 4.0 1/8 9.9 4.0 12.2 16.6 19.8 5.7 9 13

NB108-004-001 4.0 1/4 9.9 4.0 12.2 16.6 20.0 6.0 9 15

NB108-005-005 5.0 M5 10.9 2.3 12.7 16.6 18.0 4.0 10 9

NB108-005-000 5.0 1/8 10.9 4.0 12.7 16.6 20.0 5.7 10 13

NB108-005-001 5.0 1/4 10.9 4.0 12.7 16.6 20.2 6.0 10 15

NB108-006-005 6.0 M5 11.9 2.3 13.3 19.1 18.5 4.0 11 9

NB108-006-000 6.0 1/8 11.9 4.0 13.3 19.1 20.9 5.7 11 13

NB108-006-001 6.0 1/4 11.9 6.0 13.3 19.1 21.0 6.0 11 15

NB108-008-000 8.0 1/8 15.0 4.0 15.8 23.3 22.7 5.7 14 13

NB108-008-001 8.0 1/4 15.0 6.0 15.8 23.3 22.7 6.0 14 15

NB108-008-002 8.0 3/8 15.0 8.0 15.8 23.3 25.2 6.5 14 18

NB108-010-000 10.0 1/8 17.4 4.0 16.8 26.5 24.0 5.7 16 13

NB108-010-001 10.0 1/4 17.4 6.0 16.8 26.5 24.1 6.0 16 15

NB108-010-002 10.0 3/8 17.4 8.0 16.8 26.5 26.4 6.5 16 18

NB108-010-003 10.0 1/2 17.4 8.0 16.8 26.5 30.4 9.5 16 18

NB108-012-001 12.0 1/4 20.0 6.0 18.9 29.1 27.3 6.0 17 15

NB108-012-002 12.0 3/8 20.0 8.0 18.9 29.1 29.5 6.5 17 18

NB108-012-003 12.0 1/2 20.0 8.0 18.9 29.1 33.5 9.5 17 18

Metric Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

NB110 Union Tee

NB113 Swivel Branch Tee

NB117 Union Cross

NB115 Swivel Run Tee

NB113 Tube Diameter

(T)

Thread

(G) D D1 H L L1 L2 SW SW1

NB113-004-000 4.0 1/8 9.9 4.0 12.2 16.6 19.8 5.7 9 13

NB113-006-000 6.0 1/8 11.9 4.0 13.3 19.1 20.9 5.7 11 13

NB113-006-001 6.0 1/4 11.9 6.0 13.3 19.1 21.5 6.0 11 15

NB113-008-000 8.0 1/8 15.0 4.0 15.8 23.3 22.7 5.7 14 13

NB113-008-001 8.0 1/4 15.0 6.0 15.8 23.3 22.7 6.0 14 15

NB113-008-002 8.0 3/8 15.0 8.0 15.8 23.3 25.2 6.5 14 18

NB113-010-001 10.0 1/4 17.4 6.0 16.8 26.5 24.1 6.0 16 15

NB113-010-002 10.0 3/8 17.4 8.0 16.8 26.5 26.4 6.5 16 18

NB113-010-003 10.0 1/2 17.4 8.0 16.8 26.5 30.4 9.0 16 18

NB113-012-001 12.0 1/4 20.0 6.0 18.9 29.1 27.3 6.0 17 15

NB113-012-002 12.0 3/8 20.0 8.0 18.9 29.1 29.5 6.5 17 18

NB113-012-003 12.0 1/2 20.0 8.0 18.9 29.1 33.5 8.5 17 18

NB115 Tube Diameter

(T)

Thread

(G) D D1 H L L1 L2 SW SW1

NB115-004-000 4.0 1/8 9.9 4.0 12.2 16.6 19.8 5.7 9 13

NB115-005-000 5.0 1/8 10.9 4.0 12.7 16.6 20.0 5.7 10 13

NB115-006-000 6.0 1/8 11.9 4.0 13.3 19.1 20.9 5.7 11 13

NB115-006-001 6.0 1/4 11.9 6.0 13.3 19.1 21.5 6.0 11 15

NB115-008-000 8.0 1/8 15.0 4.0 15.8 23.3 22.7 5.7 14 13

NB115-008-001 8.0 1/4 15.0 6.0 15.8 23.3 22.7 6.0 14 15

NB115-008-002 8.0 3/8 15.0 8.0 15.8 23.3 25.2 6.5 14 18

NB115-010-001 10.0 1/4 17.4 6.0 16.8 26.5 24.1 6.0 16 15

NB115-010-002 10.0 3/8 17.4 8.0 16.8 26.5 26.4 6.5 16 18

NB115-010-003 10.0 1/2 17.4 8.0 16.8 26.5 30.4 9.5 16 18

NB115-012-002 12.0 3/8 20.0 8.0 18.9 29.1 29.5 6.5 17 18

NB115-012-003 12.0 1/2 20.0 8.0 18.9 29.1 33.5 9.5 17 18

NB110 Tube Diameter

(T) D D1 H L SW

NB110-004-000 4.0 9.9 2.0 12.2 16.6 9

NB110-005-000 5.0 10.9 3.0 12.7 16.6 10

NB110-006-000 6.0 11.9 4.0 13.3 19.1 11

NB110-008-000 8.0 15.0 6.0 15.8 21.8 14

NB110-010-000 10.0 17.4 8.0 16.8 25.3 16

NB110-012-000 12.0 20.4 10.0 18.9 29.1 17

NB117 Tube Diameter

(T) D D1 H L SW

NB117-004-000 4.0 9.9 2.0 12.2 16.6 9

NB117-005-000 5.0 10.9 3.0 12.7 16.6 10

NB117-006-000 6.0 11.9 4.0 13.3 19.1 11

NB117-008-000 8.0 15.0 6.0 15.8 21.8 14

NB117-010-000 10.0 17.4 8.0 16.8 25.3 16

NB117-012-000 12.0 20.4 10.0 18.9 29.1 17

Metric Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

N118 Plug

N119 Double Male Union

N120 Stem Adapter

NB121 Reducer

N118 Tube Diameter

(T) D L

N118-004-000 4.0 6.0 23.1

N118-005-000 5.0 7.0 25.1

N118-006-000 6.0 8.0 25.1

N118-008-000 8.0 10.0 27.1

N118-010-000 10.0 12.0 28.1

N118-012-000 12.0 14.0 32.0

N119 Tube Diameter

(T) D L

N119-004-000 4.0 2.0 30.0

N119-006-000 6.0 4.0 32.0

N119-008-000 8.0 6.0 38.0

N119-010-000 10.0 8.0 41.0

N119-012-000 12.0 10.0 46.0

N120 Tube Diameter

(T)

Thread

(G) D L L1 L2 SW

N120-004-005 4.0 M5 2.0 23.0 4.0 14.0 9

N120-004-000 4.0 1/8 2.0 26.7 5.7 14.0 12

N120-004-001 4.0 1/4 2.0 27.0 6.0 14.0 15

N120-005-000 5.0 1/8 3.0 27.7 5.7 15.0 12

N120-006-005 6.0 M5 2.0 24.3 4.0 15.3 9

N120-006-000 6.0 1/8 4.0 28.0 5.7 15.3 12

N120-006-001 6.0 1/4 4.0 28.3 6.0 15.3 15

N120-008-000 8.0 1/8 6.0 30.7 5.7 18.0 12

N120-008-001 8.0 1/4 6.0 31.0 6.0 18.0 15

N120-010-001 10.0 1/4 8.0 34.0 6.0 21.0 15

N120-010-002 10.0 3/8 8.0 35.0 6.5 21.0 18

N120-010-003 10.0 1/2 8.0 40.0 9.5 21.0 18

N120-012-001 12.0 1/4 10.0 36.0 6.0 23.0 15

N120-012-003 12.0 1/2 10.0 42.0 9.5 23.0 18

NB121 From Tube Diameter

(T)

to Tube Diameter

(T1) D D1 H L

NB121-005-000 5.0 4.0 10.0 3.0 12.2 28.2

NB121-006-000 6.0 4.0 10.0 3.0 12.2 29.2

NB121-006-001 6.0 5.0 11.0 3.0 12.7 29.6

NB121-008-000 8.0 4.0 10.0 2.0 12.2 32.2

NB121-008-001 8.0 5.0 11.0 3.0 12.7 32.5

NB121-008-002 8.0 6.0 12.0 4.0 13.3 33.1

NB121-010-002 10.0 6.0 12.0 4.0 13.3 25.9

NB121-010-003 10.0 8.0 15.0 6.0 15.8 38.3

NB121-012-002 12.0 6.0 12.0 4.0 13.3 36.3

NB121-012-003 12.0 8.0 15.0 6.0 15.8 40.3

NB121-012-004 12.0 10.0 18.0 8.0 16.8 42.8

Metric Fittings

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

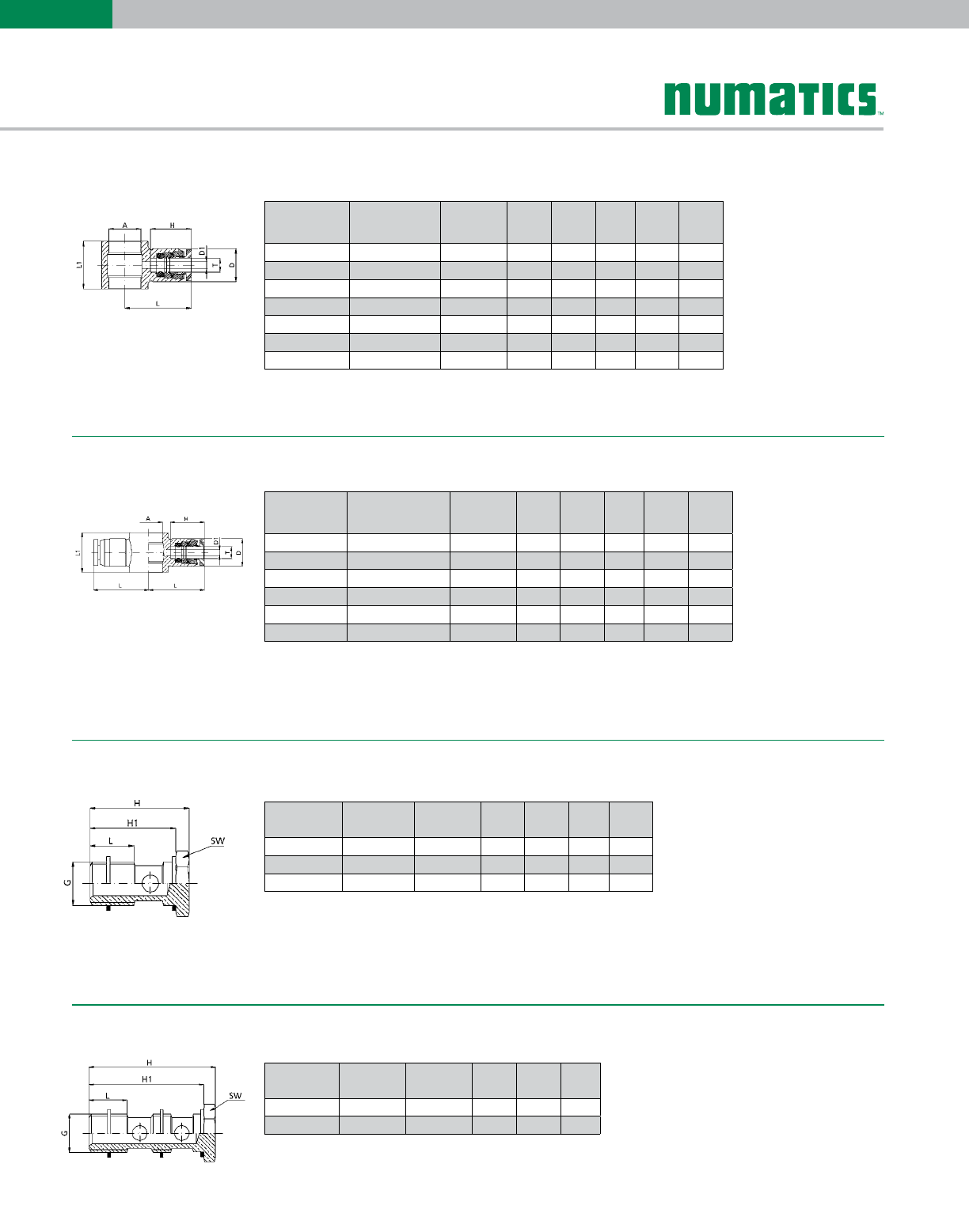

NB122 Single Banjo

NB123 Double Banjo

N124 Single Manifold

N125 Double Manifold

NB122 Tube Diameter

(T)

for Banjo

Bolts (A) D D1 H L L1

NB122-004-000 4.0 1/8 10.0 2.0 12.2 20.2 14.5

NB122-006-005 6.0 M5 12.0 4.0 13.3 20.6 12.0

NB122-006-000 6.0 1/8 12.0 4.0 13.3 20.6 14.5

NB122-006-001 6.0 1/4 12.0 4.0 13.3 22.6 14.5

NB122-008-000 8.0 1/8 15.0 6.0 15.8 23.8 17.5

NB122-008-001 8.0 1/4 15.0 6.0 15.8 25.8 17.5

NB122-010-001 10.0 1/4 17.6 8.0 16.8 27.1 18.0

NB123 Tube Diameter

(T)

for Banjo

Bolts (A) D D1 H L L1

NB123-004-005 4.0 M5 10.0 2.0 12.2 19.0 12.0

NB123-004-000 4.0 1/8 10.0 2.0 12.2 20.2 14.5

NB123-006-005 6.0 M5 12.0 4.0 13.3 20.6 12.0

NB123-006-000 6.0 1/8 12.0 4.0 13.3 20.6 14.5

NB123-006-001 6.0 1/4 12.0 4.0 13.3 22.6 14.5

NB123-008-001 8.0 1/4 15.0 6.0 15.8 25.8 17.5

N124 Thread (F) L L2 D1 SW SW1

N124-000-036 10-32 UNF 0.827 0.223 0.079 0.315 -

N124-004-000 1/8 NPTF 1.634 0.374 0.197 0.551 0.551

N124-000-001 1/4 NPTF 2.067 0.512 0.276 0.669 0.669

N125 Thread (G) H H1 L SW

N125-000-000 1/8 43.0 39.0 8.0 14

N125-000-001 1/4 45.5 41.0 11.0 17

World Thread Flow Controls

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

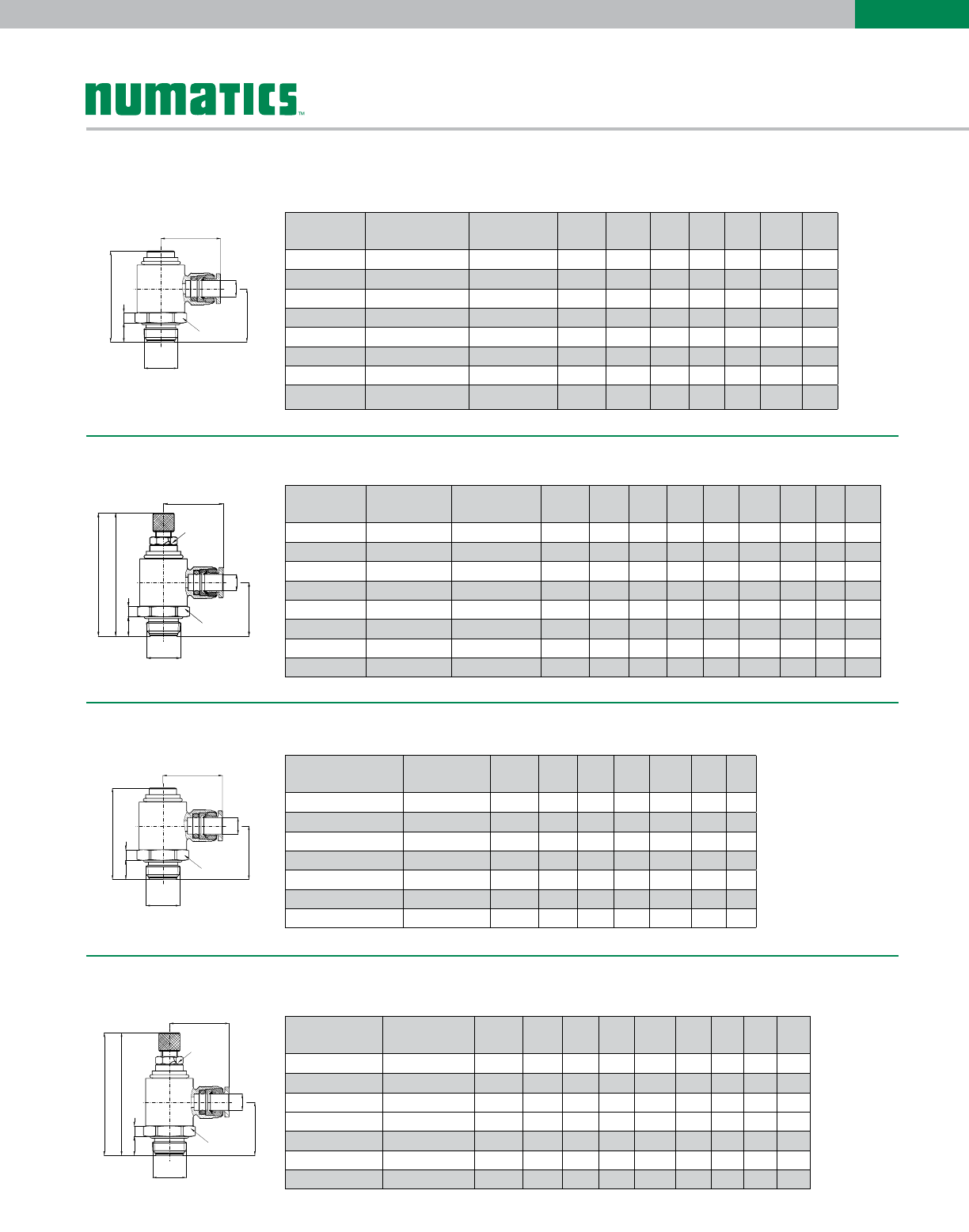

Brass Release

Ring INWB1391C Tube Diameter

(T)

Thread

(F) L M N L1 CH.1 H

INB 1391C-108-020 1/8 1/8 42.4 20.5 24.0 4.9 14 6

INB 1391C-532-020 5/32 1/8 42.4 21.0 24.0 4.9 14 6

INB 1391C-104-020 1/4 1/8 42.4 21.5 24.0 4.9 14 6

INB 1391C-104-021 1/4 1/4 37.5 23.0 23.2 7.2 17 7

INB 1391C-516-021 5/16 1/4 37.5 26.0 23.2 7.2 17 7

INB 1391C-308-021 3/8 1/4 37.5 27.5 23.2 7.2 17 7

INB 1391C-516-022 5/16 3/8 42.2 28.0 26.0 7.6 20 8

INB 1391C-308-022 3/8 3/8 42.2 29.5 26.0 7.6 20 8

Brass Release

Ring INWB139C Tube Diameter

(T)

Thread

(F) Lc Lo M N L1 CH.1 H CH.2

INB 139C-108-020 1/8 1/8 54.5 61.0 20.5 24.0 4.9 14 6 7

INB 139C-532-020 5/32 1/8 54.5 61.0 21.0 24.0 4.9 14 6 7

INB 139C-104-020 1/4 1/8 54.5 61.0 21.5 24.0 4.9 14 6 7

INB 139C-104-021 1/4 1/4 50.0 54.5 23.0 23.2 7.2 17 7 9

INB 139C-516-021 5/16 1/4 50.0 54.5 26.0 23.2 7.2 17 7 9

INB 139C-308-021 3/8 1/4 50.0 54.5 27.5 23.2 7.2 17 7 9

INB 139C-516-022 5/16 3/8 56.8 60.3 28.0 26.0 7.6 20 8 11

INB 139C-308-022 3/8 3/8 56.8 60.3 29.5 26.0 7.6 20 8 11

NWB1391C Tube Diameter

(T)

Thread

(G) L M N L1 CH.1 H

NWB1391C-004-020 4mm 1/8 42.4 20.5 24.0 4.9 14 6

NWB1391C-006-020 6mm 1/8 42.4 21.0 24.0 4.9 14 6

NWB1391C-006-021 6mm 1/4 37.5 23.0 23.2 7.2 17 7

NWB1391C-008-021 8mm 1/4 37.5 26.5 23.2 7.2 17 7

NWB1391C-010-021 10mm 1/4 37.5 27.5 23.2 7.2 17 7

NWB1391C-008-022 8mm 3/8 42.2 28.0 26.0 7.6 20 8

NWB1391C-010-022 10mm 3/8 42.2 29.5 26.0 7.6 20 8

NWB1391C Tube Diameter

(T)

Thread

(G) Lc Lo M N L1 CH.1 H CH.2

NWB139C-004-020 4mm 1/8 54.5 61.0 20.5 24.0 4.9 14 6 7

NWB139C-006-020 6mm 1/8 54.5 61.0 21.0 24.0 4.9 14 6 7

NWB139C-006-021 6mm 1/4 50.0 54.5 23.0 23.2 7.2 17 7 9

NWB139C-008-021 8mm 1/4 50.0 54.5 26.5 23.2 7.2 17 7 9

NWB139C-010-021 10mm 1/4 50.0 54.5 27.5 23.2 7.2 17 7 9

NWB139C-008-022 8mm 3/8 56.8 60.3 28.0 26.0 7.6 20 8 11

NWB139C-010-022 10mm 3/8 56.8 60.3 29.5 26.0 7.6 20 8 11

INWB139C World Thread Flow Control with Knob – Inch Tube

NWB1391C World Thread Flow Control – Metric Tube

NWB139C World Thread Flow Control with Knob – Metric Tube

INWB1391C World Thread Flow Control – Inch Tube

CH. 1

FIL.

CH. 1

CH. 2

CH. 1

Lc (Close)

Lo (Open)

FIL.

CH. 2

CH. 1

Lc (Close)

Lo (Open)

Valves and Flow Controls

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

Brass

Release

Ring

135C

Tube

Diameter

(T)

Ports

NPTF L MAX

Dimensions

L1 L2 H D SW SW1

INB 135C-108-036 1/8 10-32 .945 0.748 0.217 0.472 0.394 0.315 /

INB 135C-108-020 1/8 1/8 1.665 0.748 0.374 0.472 0.394 0.551 0.551

INB 135C-532-036 5/32 10-32 .945 0.748 0.217 0.492 0.394 0.315 /

INB 135C-532-020 5/32 1/8 1.673 0.795 0.374 0.492 0.394 0.551 0.551

INB 135C-104-020 1/4 1/8 1.673 0.881 0.374 0.531 0.472 0.551 0.551

INB 135C-104-021 1/4 1/4 2.126 0.890 0.512 0.531 0.472 0.669 0.669

INB 135C-308-021 3/8 1/4 2.126 1.067 0.512 0.669 0.709 0.669 0.669

INB 135C-308-022 3/8 3/8 2.333 1.220 0.512 0.669 0.709 0.748 0.866

INB136C Flow Control with Knob

INB135C Flow control

OEM Flow Controls

Features

Knob adjust, screwdriver adjust

Specifications

Temperature Range: 0° to 176°F

Maximum Operating Pressure: 265 psi

Materials of Construction

Body: brass-nickel plated; screw: stainless steel; seals:

Buna; release button: oil or brass; adjustment needle:

brass

01 2345678910

Tu rns of Adjustment

SCFM @ 60 psi

1/4

1/8

10-32

01 2345678910

Tu rns of Adjustment

SCFM @ 60 psi

3/8

Brass

Release

Ring

136C

Tube

Diameter

(T)

Ports

NPTF L MAX

Dimensions

L1 L2 H D SW SW1

INB 136C-108-036 1/8 10-32 .945 0.748 0.217 0.472 0.394 0.315 /

INB 136C-108-020 1/8 1/8 1.665 0.748 0.374 0.472 0.394 0.551 0.551

INB 136C-532-036 5/32 10-32 .945 0.748 0.217 0.492 0.394 0.315 /

INB 136C-532-020 5/32 1/8 1.673 0.795 0.374 0.492 0.394 0.551 0.551

INB 136C-104-020 1/4 1/8 1.673 0.881 0.374 0.531 0.472 0.551 0.551

INB 136C-104-021 1/4 1/4 2.126 0.890 0.512 0.531 0.472 0.669 0.669

INB 136C-308-021 3/8 1/4 2.126 1.067 0.512 0.669 0.709 0.669 0.669

INB 136C-308-022 3/8 3/8 2.333 1.220 0.512 0.669 0.709 0.748 0.866

Valves and Flow Controls

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

Features

Body swivels 360°, provides accurate speed control in a

compact size and eliminates need for fitting.

Specifications

Temperature Range: 0° to 160° F

Maximum Operating Pressure: 175 PSIG (12 bar)

Materials of Construction

Body: anodized aluminum; cartridge: nickel plated brass;

screw: stainless steel; spring: stainless steel; seals: Buna

0246810 12

Needle Rotations

Controlled Flow (SCFM)

10-32

1/8

1/4

100

120

140

0246810 12

Needle Rotations

Controlled Flow (SCFM)

1/2

3/8

Flow Controls

Standard Flow Control (with and without push-in fitting)

Knob Adjust Flow Control (with and without push-in fitting)

Metric Flow Controls How to Order

Change “N” to “G” in part number for BSPP Thread or Tube option.

For example, change 0FCTN to 0FCTG or change 0FTPTN4 to 0FTPTG4.

Ports NPTF Without

Push-In

With

Push-In

Tube Diameter

(T)

Dimensions

A B C D

10-32 0FCRN 0FPRN4

0FPRN5

1/8

5/32 .89 .62 .43 .69

1/8 1FCRN 1FPRN8

1FPRN5

1/4

5/32 1.46 .98 .65 1.00

1/4 2FCRN 2FPRN8

2FPRN12

1/4

3/8 1.78 1.28 .91 1.03

3/8 3FCRN 3FPRN12

3FPRN16

3/8

1/2 2.23 1.45 1.02 1.30

1/2 4FCRN 4FPRN12

4FPRN16

3/8

1/2 2.82 1.84 1.28 1.40

Ports NPTF Without

Push-In

With

Push-In

Tube Diameter

(T)

Dimensions

A B C D

10-32 0FCTN 0FPTN4

0FPTN5

1/8

5/32 1.21 .62 .43 .69

1/8 1FCTN 1FPTN8

1FPTN5

1/4

5/32 2.21 .98 .65 1.00

1/4 2FCTN 2FPTN8

2FPTN12

1/4

3/8 2.50 1.28 .91 1.03

3/8 3FCTN 3FPTN12

3FPTN16

3/8

1/2 3.23 1.45 1.02 1.30

1/2 4FCTN 4FPTN12

4FPTN16

3/8

1/2 3.96 1.84 1.28 1.40

Valves and Flow Controls

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

Optional Knurled Knob (suffix K)

FC2 Inline Flow Controls

1FC1 Inline Flow controls

Nut

128-157

Knob 123-121

(Includes set screw)

Nut 128-161

Ports NPTF

Without

Knurled

Knob

With

Knurled

Knob

Dimensions

Cv A B C D

1/8 1FC1 1FC1K .22 1.50 .75 1.08 1.66

1/4 2FC1 2FC1K .22 1.50 .75 1.08 1.66

Ports NPTF Without

Bottom Port

With

Bottom Port

Dimensions

Cv A B C

1/4 2FC2 2FC2B 2.3 2.34 1.06 2.21

3/8 3FC2 3FC2B 2.7 2.34 1.06 2.21

Ports NPTF Without

Bottom Port

With

Bottom Port

Dimensions

Cv A B C

1/2 4FC3 4FC3B 6.0 3.28 1.50 3.17

3/4 5FC3 5FC3B 7.5 3.28 1.50 3.17

Pilot Operated Check Valves

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

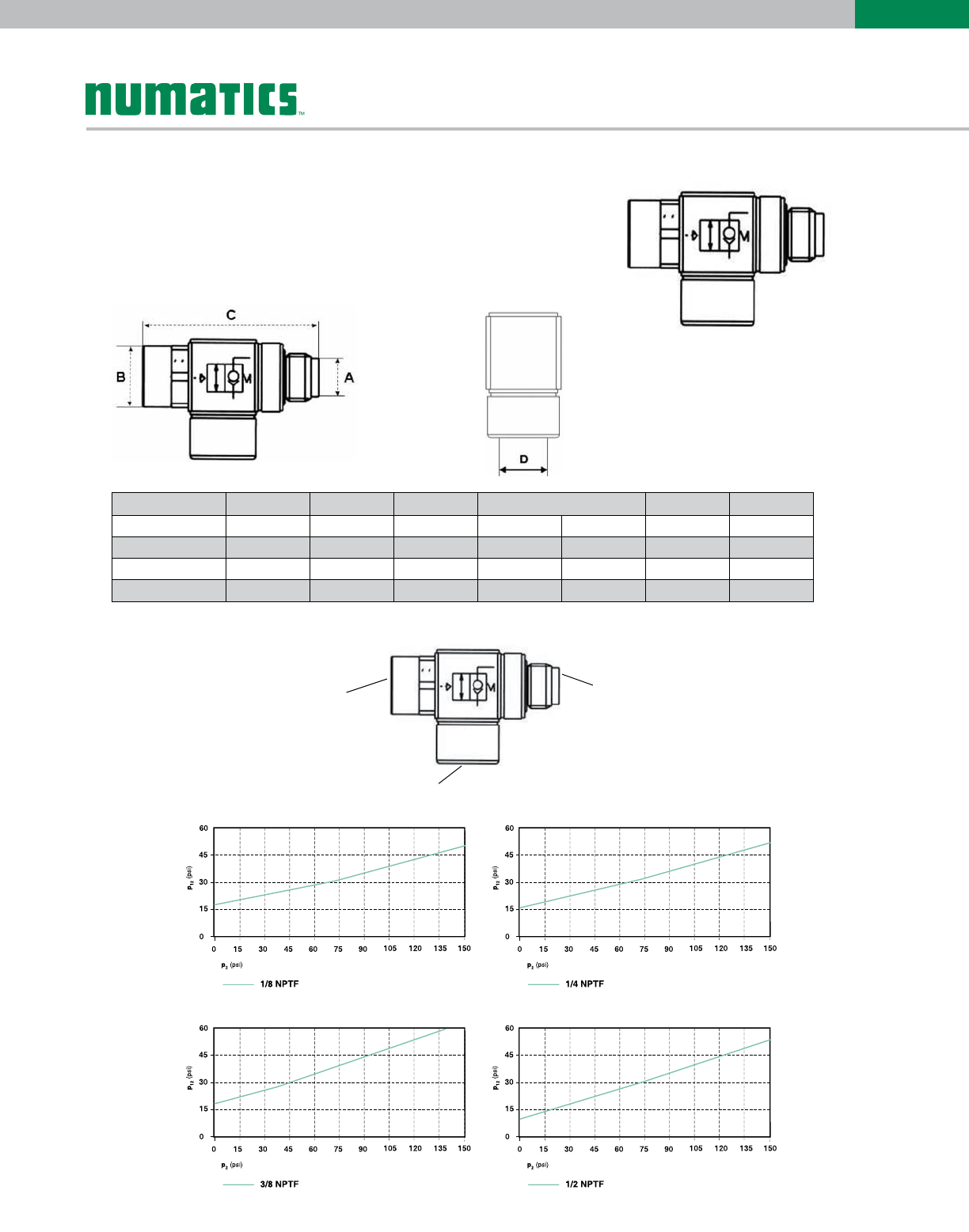

Pilot Operated Check Valves

• NPTF threads have thread sealant applied

• Temperature range: 15˚F to 160˚F

• Operating pressure range: 15 psi to 150 psi

threaded

banjo

Part Number A B C Max Tightening Torque DPilot Port

NCPGG-020-020 1/8" NPTF SW13 1.164 7 Nm 5.1 lbs/ft 1/8" NPTF 10-32 UNF

NCPGG-021-021 1/4" NPTF SW17 1.890 15 Nm 11.0 lbs/ft 1/4" NPTF 10-32 UNF

NCPGG-022-022 3/8" NPTF SW22 2.165 20 Nm 14.7 lbs/ft 3/8" NPTF 1/8” NPTF

NCPGG-023-023 1/2" NPTF SW27 2.579 20 Nm 14.7 lbs/ft 1/2" NPTF 1/8” NPTF

Flow Characteristics

Minimum signal pressure p12 to open the valve

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

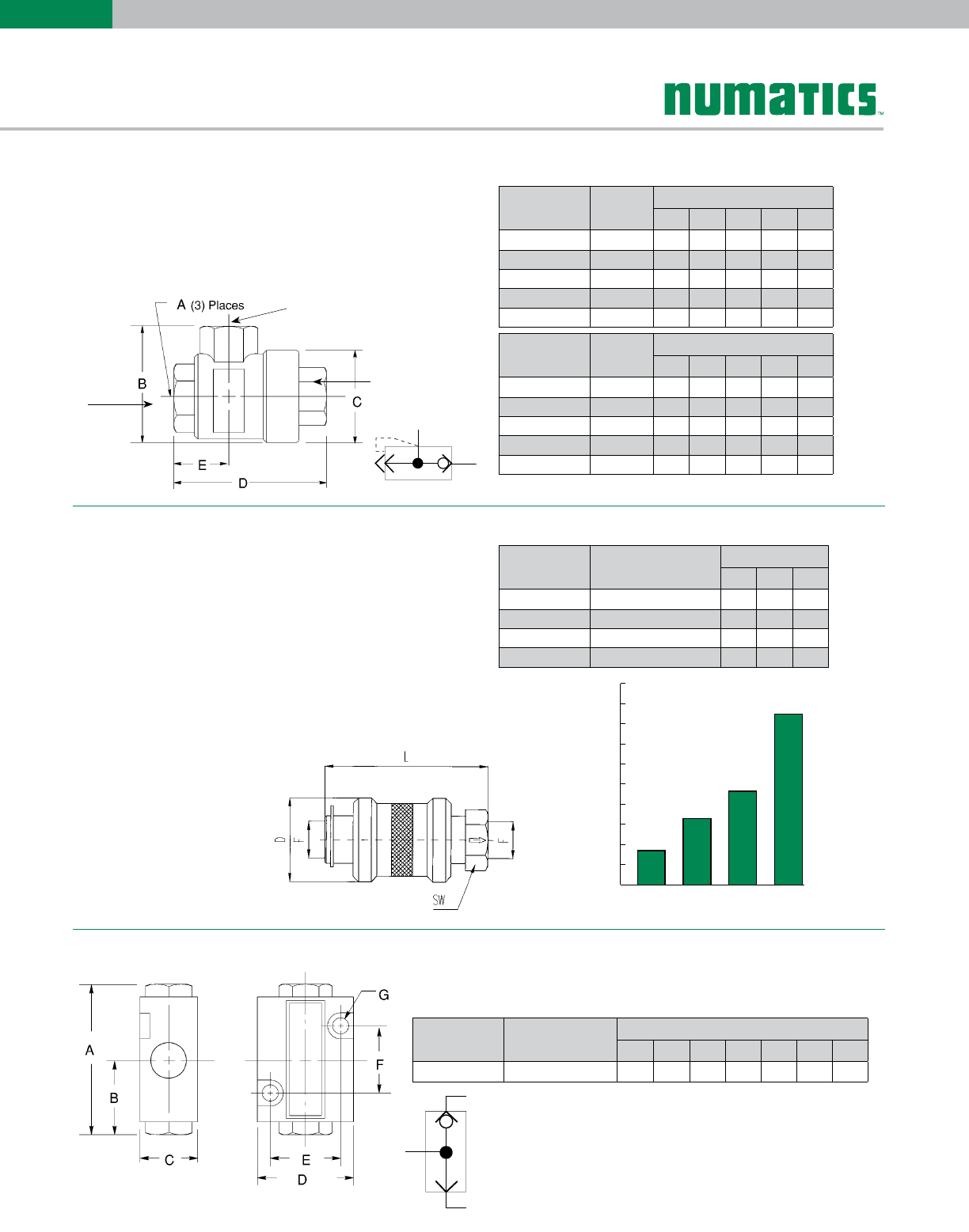

Accessories Quick Exhaust, Slide

and Shuttle Valves

SEV Quick Exhaust Valve

Specifications

Quick exhaust valve, line mounting

Temperature Range: -40° to 165° F

Pressure range: 3.9 to 145 PSI

NOTE: Service parts are available, please consult the factory.

Features

The IN530 Slide Valve allows easy isolation of

downstream components by dumping circuit

pressure.

Specifications

Temperature Range: 0° to 160° F

Maximum Operating Pressure: 150 PSIG (10 bar)

Pipe Sizes: 1/8, 1/4, 3/8 1/2 NPTF

Materials of Construction

Sleeve: Aluminum

Body: Chrome Plated Brass

Seal: Buna

Snap Ring: Steel

IN530 Slide Valve

0.85

1.65

2.32

4.24

∨

NPTF

OA22-1 Shuttle Valve Specifications

Temperature Range: -4° to 194° F

Pressure Range: 3.9 to 145 PSI

Quick

Exhaust Port

Supply Port

Cylinder Port

Ports NPTF SEV_BN Dimensions

A B C D E

1/8 SEV10BN 1/8 1.30 1.10 1.65 0.55

1/4 SEV25BN 1/4 1.58 1.30 2.05 0.71

3/8 SEV38BN 3/8 1.70 1.30 2.16 0.75

1/2 SEV50BN 1/2 2.17 1.69 2.80 1.06

3/4 SEV75BN 3/4 2.45 1.93 3.55 1.42

Ports G Tap SEV_ Dimensions

A B C D E

1/8 SEV10B G1/8 33 28 42 14

1/4 SEV25B G1/4 40 33 52 18

1/2 SEV50B G1/2 55 43 71 27

3/4 SEV75B G3/4 74 64 90 42

1 SEV100B G1 88 80 108 48

F NPTF Part

Number

Dimensions

L D SW

1/8 IN530-020-020 1.89 0.98 0.55

1/4 IN530-021-021 2.28 1.18 0.75

3/8 IN530-022-022 2.76 1.38 0.87

1/2 IN530-023-023 3.15 1.57 1.06

Ports NPTF OA22-1 Dimensions

A B C D E F G

1/8 OA22-1 1.93 .95 .75 1.26 .91 .87 .20

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

Silencers

Application:

The M Series muffler softly exhausts air and

disperses it over a 360º pattern. Constructed of a

corrosion resistant metal, it can withstand shock and

continuous, heavy duty use under many conditions.

This muffler is ideal for use on the 22/32 Series

Solenoid Soft Start Quick Exhaust Valve, Lockout

Valves, valve exhaust ports, single acting cylinders,

and many other applications.

M Series Metal Air Silencers

Application:

The SSM Series Muffler is constructed with 300 Series stainless

steel. Resistant to atmospheric corrosion, sterilizing solutions, organic

chemicals, and many inorganic chemicals makes this a terrific product

for dairy and food plants. The SSM Series Muffler softly exhausts

air and disperses it over a 360° pattern. Because of its heavy-duty

construction, it can withstand shock and continuous cycling.

ANSI SYMBOL

SSM Series Stainless Steel Air Silencers

Model NPTF A B C cv

M1MN 1/8 1.38 (34.9) 1.22 (31.0) 0.44 (11.1) 1.17

M2MN 1/4 1.75 (44.5) 1.53 (38.9) 0.56 (14.3) 2.54

M3MN 3/8 2.25 (57.2) 2.00 (50.8) 0.69 (17.5) 5.08

M4MN 1/2 2.72 (69.1) 2.41 (61.1) 0.88 (22.2) 7.32

M5MN 3/4 3.16 (80.2) 2.81 (71.4) 1.06 (27.0) 13.87

M6MN 1 3.88 (98.4) 3.47 (88.1) 1.31 (33.3) 19.53

M7MN 1 1/4 4.50 (114.3) 4.16 (105.6) 1.69 (42.9) 28.32

M8MN 1 1/2 5.00 (127.0) 4.59 (116.7) 2.00 (50.8) 38.09

M9MN 2 5.50 (139.7) 5.06 (128.6) 2.38 (60.3) 52.73

Model NPTF A B C cv

SSM1MN 1/8 1.38 (34.9) 1.22 (31.0) 0.44 (11.1) 1.17

SSM2MN 1/4 1.75 (44.5) 1.53 (38.9) 0.56 (14.3) 2.54

SSM3MN 3/8 2.25 (57.2) 2.00 (50.8) 0.69 (17.5) 5.08

SSM4MN 1/2 2.72 (69.1) 2.41 (61.1) 0.88 (22.2) 7.32

SSM5MN 3/4 3.16 (80.2) 2.81 (71.4) 1.06 (27.0) 13.87

SSM6MN 1 3.88 (98.4) 3.47 (88.1) 1.31 (33.3) 19.53

Model NPTF A B C cv

M1FN 1/8 1.38 (34.9) 1.22 (31.0) 0.50 (12.7) 1.17

M2FN 1/4 1.75 (44.5) 1.53 (38.9) 0.62 (15.9) 2.54

M3FN 3/8 2.25 (57.2) 2.00 (50.8) 0.75 (19.1) 5.08

M4FN 1/2 2.72 (69.1) 2.41 (61.1) 0.94 (23.8) 7.32

Model NPTF A B C cv

M1MB 1/8 1.38 (34.9) 1.22 (31.0) 0.44 (11.1) 1.17

M2MB 1/4 1.75 (44.5) 1.53 (38.9) 0.56 (14.3) 2.54

M3MB 3/8 2.25 (57.2) 2.00 (50.8) 0.69 (17.5) 5.08

M4MB 1/2 2.72 (69.1) 2.41 (61.1) 0.88 (22.2) 7.32

M5MB 3/4 3.16 (80.2) 2.81 (71.4) 1.06 (27.0) 13.87

M6MB 1 3.88 (98.4) 3.47 (88.1) 1.31 (33.3) 19.53

NPTF Male Dimensions

NPTF Female Dimensions

BSPT Male Dimensions

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories Silencers

P Series Porous Bronze Air Silencers

Application:

Combining a sturdy nylon thread with a polyethylene body, the E Series silencer gives a

low-cost, light weight alternative to heavier, metal-based mufflers while reducing decibel

levels to an OSHA approved level. It is perfect for robotic arm applications, low-traffic or

enclosed areas, or where cost is of primary concern.

Application:

The P Series muffler is perfect for limited space appli-

cations due to its compact size. This silencer can be

used to muffle air valve exhaust noise, intake filtration,

coalescing of oil mist exhaust, pressure or vacuum

equalization, or on any other liquid vapor.

ANSI SYMBOL

E Series Polyethylene Air Silencers

Model NPTF A B C cv

P0MN 10-32 0.75 (19.1) 0.62 (15.7) 0.38 (9.5) 0.23

P1MN 1/8 0.84 (21.4) 0.69 (17.5) 0.44 (11.1) 1.07

P2MN 1/4 1.20 (30.6) 0.97 (24.6) 0.56 (14.3) 1.78

P3MN 3/8 1.45 (36.7) 1.20 (30.6) 0.69 (17.5) 2.30

P4MN 1/2 1.89 (48.0) 1.58 (40.1) 0.88 (22.2) 5.66

P5MN 3/4 2.12 (54.0) 1.78 (45.2) 1.06 (27.0) 9.67

P6MN 1 2.84 (72.2) 2.44 (61.9) 1.31 (33.3) 14.06

P7MN 1 1/4 3.44 (87.3) 3.00 (76.2) 1.69 (42.9) 20.51

P8MN 1 1/2 4.00 (101.6) 3.56 (90.5) 2.00 (50.8) 29.10

P9MN 2 4.75 (120.7) 4.31 (109.5) 2.38 (60.3) 44.92

Model NPTF A B C cv

P1MB 1/8 0.84 (21.3) 0.69 (17.5) 0.44 (11.1) 1.07

P2MB 1/4 1.20 (30.5) 0.97 (24.6) 0.56 (14.3) 1.78

P3MB 3/8 1.45 (36.8) 1.20 (30.5) 0.69 (17.5) 2.30

P4MB 1/2 1.89 (48.0) 1.58 (40.1) 0.88 (22.2) 5.66

P5MB 3/4 2.12 (53.9) 1.78 (45.2) 1.06 (27.0) 9.67

P6MB 1 2.84 (72.1) 2.44 (62.0) 1.31 (33.3) 14.06

Model NPTF A B C

E1MN 1/8 0.49 (12.5) 1.1 (28.3) 1.3 (34.0)

E2MN 1/4 0.61 (15.5) 1.4 (35.5) 1.7 (42.5)

E3MN 3/8 0.73 (18.5) 2.2 (56.0) 2.7 (67.5)

E4MN 1/2 0.93 (23.5) 2.6 (67.0) 3.1 (78.0)

E5MN 3/4 1.50 (38.5) 4.9 (123.5) 5.5 (140.0)

E6MN 1 1.90 (49.0) 5.5 (140.5) 6.3 (160.0)

NPTF Male Dimensions

BSPT Male Dimensions

NPTF Male Dimensions

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

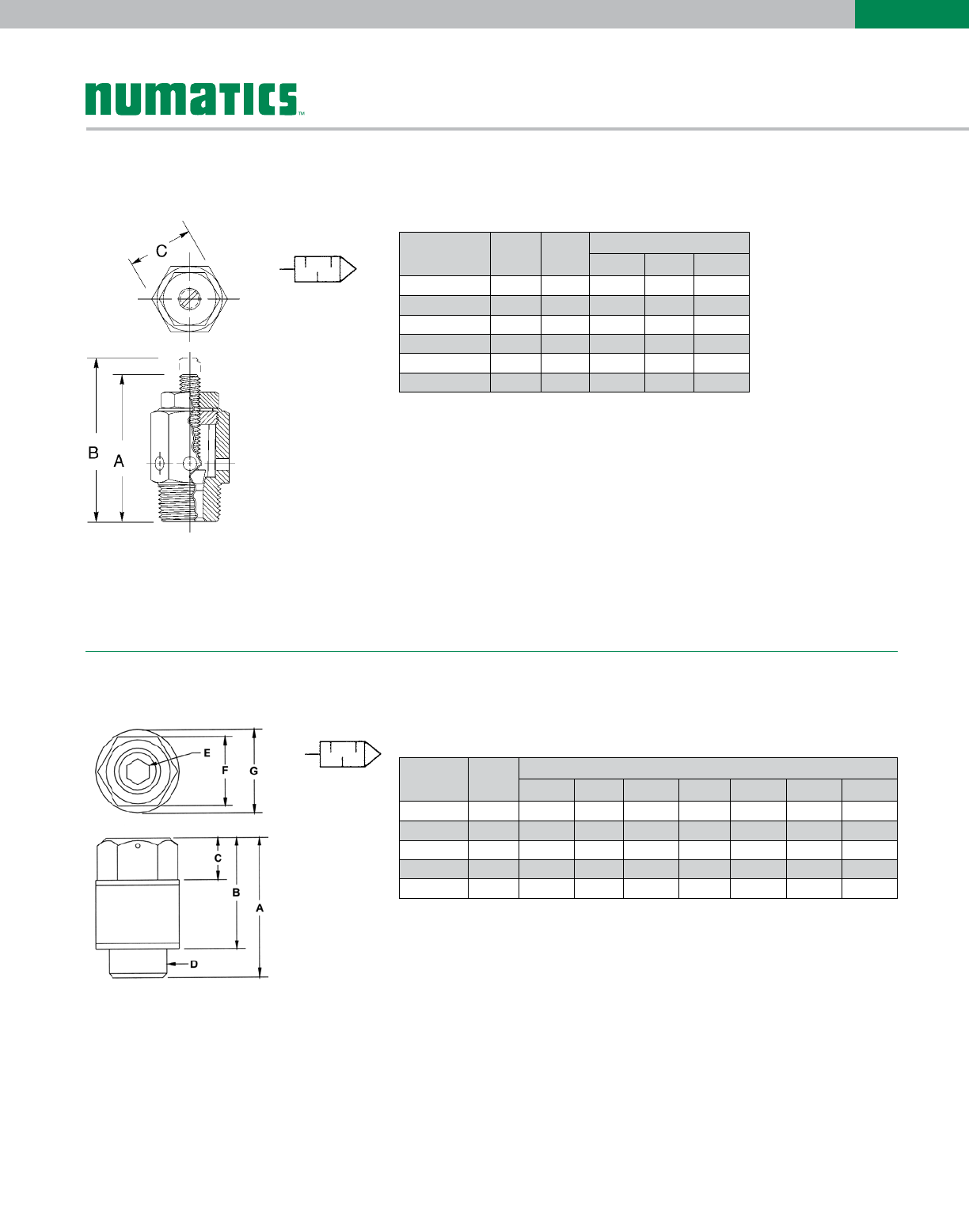

Mufflers

Bronze Speed Control Muffler

ANSI SYMBOL

Application:

The Numatics Bronze Speed Control Muffler provides infinite metering of air flow. The

sintered bronze is encased by an outer metal shroud. With linear adjusting capability, the

speed of the cylinder can be decreased by adjusting the integrated screw. When optimal

exhaust rate is reached, the locknut may be adjusted to prevent accidental adjustments

due to vibration or other means. Maximum Operating Pressure: 300 PSI; Temperature

Range: 35º-300ºF (1.7º-149ºC)

Model Selection

Application:

The Polyethylene Speed Control Muffler is designed to give fine adjustment to the low

end of the flow range, followed by more coarse control as flow is increased toward the

maximum. The body is made of highly versatile and cost-effective nylon. The adjusting

screw is made of high tensile steel and is coated with electroplated zinc. The S Series

muffler reduces decibel levels to an OSHA approved level.

ANSI SYMBOL

Polyethylene Speed Control Muffler

Port Size Models

NPT Cv Dimensions

A B C

1/8 A1MN 0.35 1.12 (28.0) 1.31 (33.0) 0.50 (13.0)

1/4 A2MN 0.67 1.42 (36.0) 1.56 (40.0) 0.63 (16.0)

3/8 A3MN 0.90 1.47 (32) 1.63 (41.0) 0.69 (18.0)

1/2 A4MN 1.35 1.75 (44) 2.00 (51.0) 0.88 (22.0)

3/4 A5MN 1.67 2.00 (51) 2.38 (60.0) 1.06 (27.0)

1 A6MN 2.32 2.25 (57) 2.50 (63.0) 1.31 (33.0)

Port Size Models

NPT

Dimensions

A B C D E F G

M5 S0MN 0.52 (16.0) 0.36 (11.0) 0.36 (11.0) M5 0.05 (1.5) 3.1 (79.0) 0.30 (9.2.0)

1/8 S1MN 0.69 (21.0) 0.49 (15.0) 0.16 (5.0) 1/8 NPT 0.08 (2.5) 5.1 (130.0) 0.49 (15.0)

1/4 S2MN 0.95 (29.0) 0.72 (22.0) 0.23 (7.0) 1/4 NPT 0.13 (4.0) 5.9 (150.0) 0.59 (18.0)

3/8 S3MN 1.2 (38.0) 0.98 (30.0) 0.36 (11.0) 3/8 NPT 0.20 (6.0) 7.9 (200.0) 0.79 (24.0)

1/2 S4MN 1.6 (50.0) 1.3 (40.0) 0.49 (15.0) 1/2 NPT 0.26 (8.0) 8.4 (213.0) 0.98 (30.0)

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

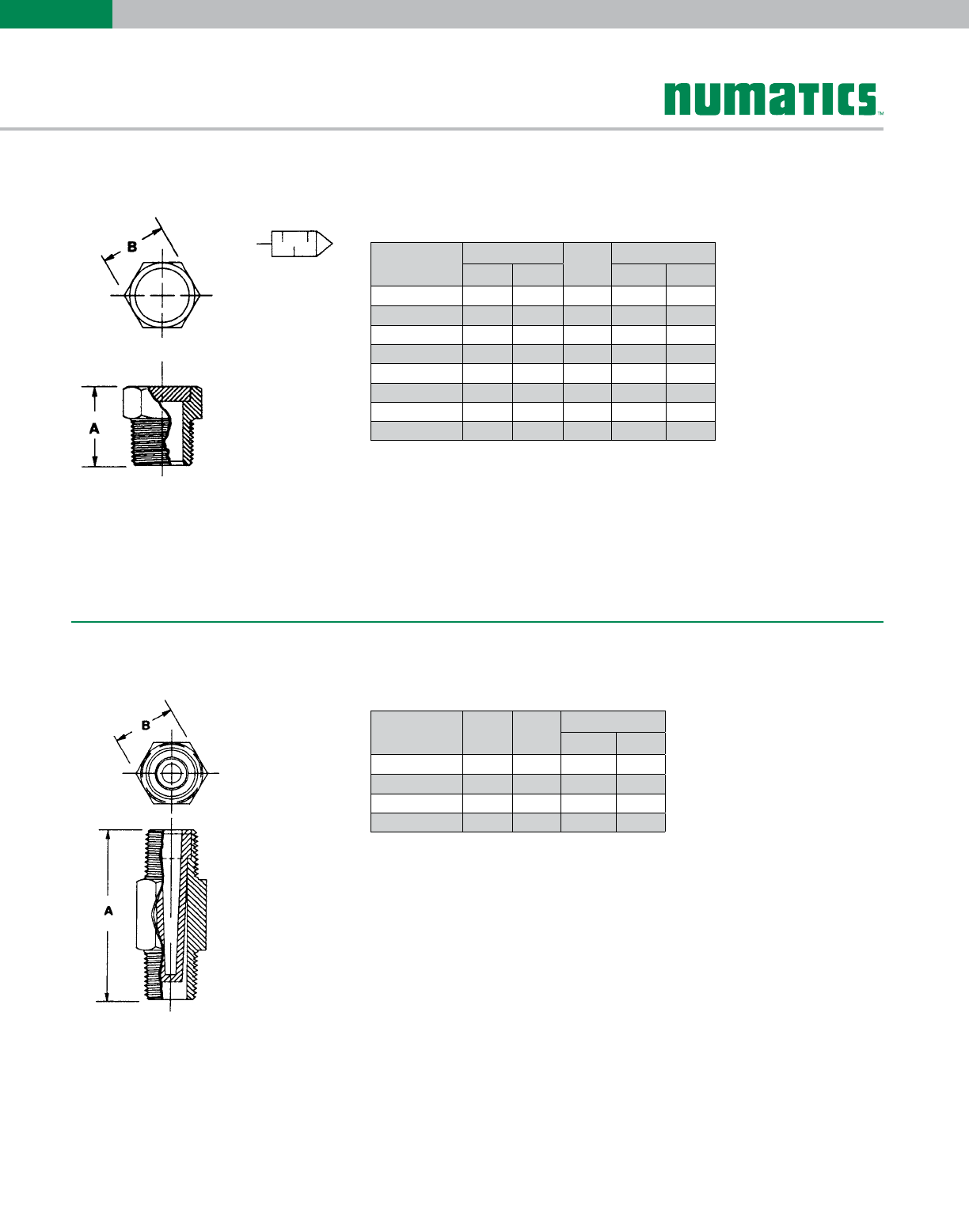

Accessories Breather Vent Silencer and

Inlet Filter Strainer

Breather Vent Silencer

Model Selection

Application:

The Breather Vent offers some noise reduction, but is better suited for keeping contaminant

out of valve exhaust ports, single-acting cylinder ports, or any other threaded port open

to atmosphere which needs flow relief. It is also used on gear boxes, storage tanks, or

wherever pressure equalization is needed. The Breather Vent is compact and inexpensive.

Maximum Operating Pressure: 150 PSI; Operating Temperature: 35º-300ºF (1.7º-149ºC)

ANSI SYMBOL

Application:

Ideal for air, oil, or water, the C Series Inlet Filter Strainer is compact and light weight -

perfect for point of use application. It features a brass fitting which contains a

cone-shaped, sintered bronze, 40 micron filter. It is used as a prefilter which eliminates

bulk contamination from air lines, extending the life of filter elements and other

downstream components.

Model Selection

Port Size Models

Dimensions

NPT BSPT A B

1/8 B1MN B1MB 0.44 0.44 (11.0) 0.44 (11.0)

1/4 B2MN B2MB 0.65 0.63 (16.0) 0.56 (14.0)

3/8 B3MN B3MB 1.12 0.75 (19.0) 0.68 (17.0)

1/2 B4MN B4MB 1.77 0.88 (22.0) 0.88 (22.0)

3/4 B5MN B5MB 4.72 1.00 (25.0) 1.06 (27.0)

1 B6MN B6MB 7.30 1.31 (33.0) 1.31 (33.0)

1 1/4 B7MN B7MB 10.63 1.41 (50.0) 1.68 (43.0)

1 1/2 B8MN B8MB 12.72 1.50 (38.0) 2.00 (51.0)

Port Size Models

NPT Cv Dimensions

A B

1/8 C1MN 0.31 1.25 (32.0) 0.43 (11.0)

1/4 C2MN 0.78 1.50 (38.0) 0.56 (14.0)

3/8 C3MN 1.0 1.75 (44.0) 0.69 (17.0)

1/2 C4MN 2.0 2.00 (51.0) 0.88 (22.0)

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

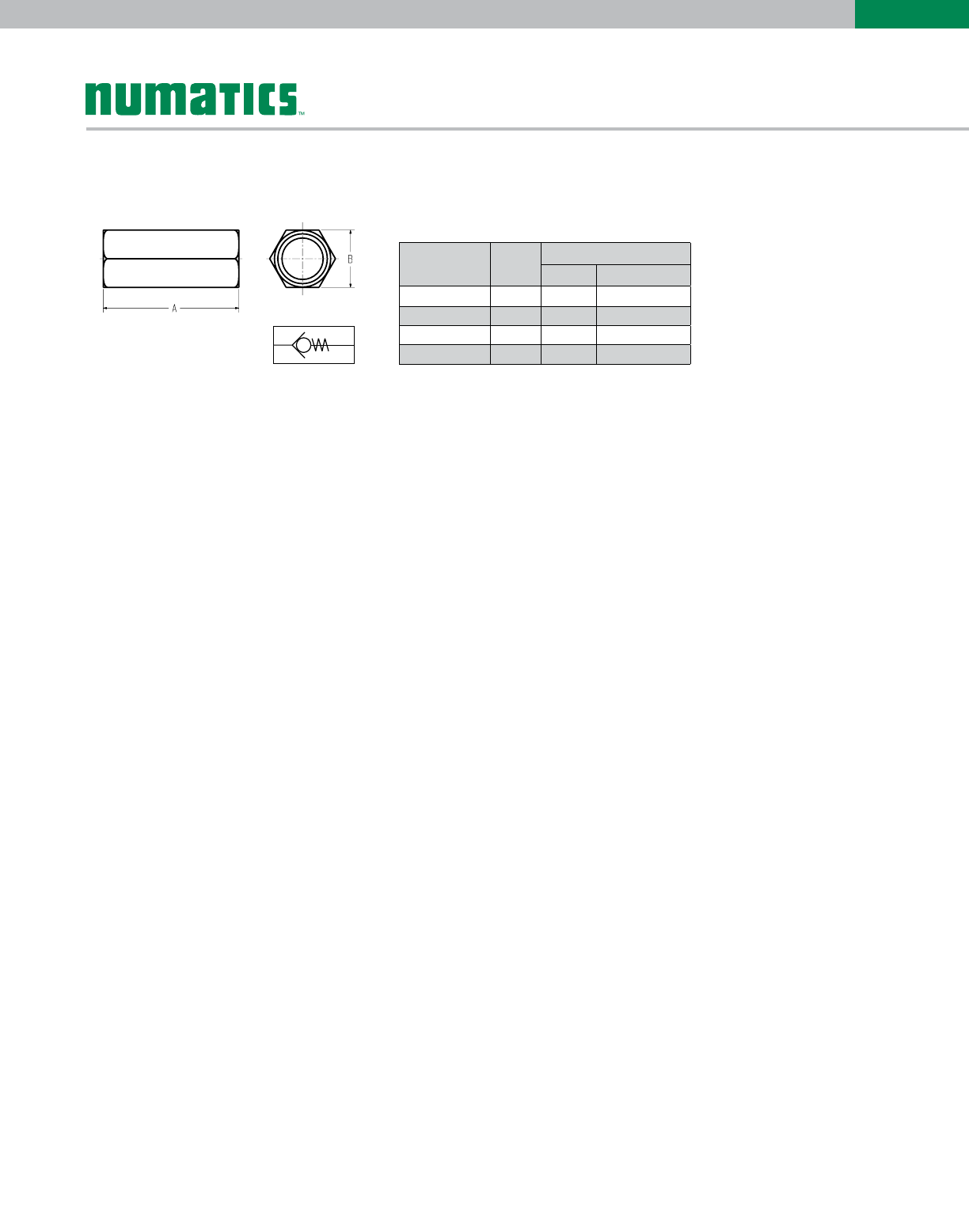

Check Valves

CV Series Check Valves

Model Selection

Application:

Numatics CV Series Check Valves are used in fluid systems to permit free

flow of air in one direction and prevent the flow in the opposite direction.

Each check valve is clearly marked with a direction arrow to prevent

accidental misconnection.

ANSI SYMBOL

Specifications

Operating Temperature: 0° to 140° F (5°

to 60°C)

Operating Pressure: 3.5 to 213 PSIG

(0.24 to 14.69 bar)

Materials of Construction

Body: Nickel Plated Brass

Valve: Brass

Port Size Models

NPT

Dimensions

A B

1/8 CV1FN 1.75 9/16" Hex

1/4 CV2FN 2.00 11/16" Hex

3/8 CV3FN 2.00 7/8" Hex

1/2 CV4FN 2.50 1" Hex

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories Tubing

QR300071 Tube Cutter

12 GN

Length (in Feet)

100

1,000

500

250

Tube Size

Imperial Metric

12 = 1/8" 04 = 04mm

16 = 5/32" 06 = 06mm

19 = 3/16" 08 = 08mm

25 = 1/4" 10 = 10mm

31 = 5/16" 12 = 12mm

38 = 3/8"

50 = 1/2"

Color

CL = Clear

BK = Black

RD = Red

GN =Green

BU = Blue

YW =Yellow

Tube Diameter

T Inch

= Metric

Tubing

Material

E Low Density Polyethylene

U Polyurethane

N Nylon

=Weld Splatter Resistant

1000

This tool will cut all composite tubes (e.g. nylon, PTFE, poly-

urethane, braided polyethylene, soft rubber, etc.) from 1/8” to

1/2” diameter inclusive. It is designed to give a clean cut at right

angles to tube axis. A spring maintains the cutter in the closed

position.

Tubing How to Order

Model No. Height Length

QR3000 71 00 .98 3.11

Tubing

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

Polyurethane 95 Tubing

Application

Polyurethane tubing is ideal for compressed air and

vacuum systems. This rigid wall tubing is compatible with push

to connect pneumatic fittings.

Features

Has excellent abrasion resistance and shape retention while

working in high humidity and low temperatures. Withstands salt

water, ages well, has good vibration absorption, and excellent

tear resistance.

Specifications

•Vacuumto28"Hg

•TemperatureRange:-40°to165°F

•UVStabilized

•Shore95A

•NSF61Compliant

•MeetsUL94HB

•DimensionalTolerance

– Imperial ±.005 in.

– Metric ±.127 mm

Inch

Metric

Polyurethane Tubing for Numatrol® Series

Application

This highly flexible tubing allows easy connection to “barbed”

fittings with sharp bends possible in less than one inch. Many

Numatrol® installations that previously required the use of nylon

tubing for high pressure, clamp functions for example, can now

be easily accomplished with this tubing.

Features

Numatrol® polyurethane tubing offers superior performance to

other composite tubing with regard to kink

resistance. Low temperature flexibility, higher working

pressures, and resistance to ambient ozone oil, grease, fuels

and most chemicals.

Specifications

•Vacuumto28"Hg

•TemperatureRange:-0°to200°C

•Shore83A

Model

Number*

O.D.

(in.)

I.D.

(in.)

Wall

(in.)

Min. Bend

Radius

Working Pressure (PSIG) Weight

lbs/100'

@ 75ºF @ 100ºF @125ºF @ 150ºF

QRTU12__ 1/8 .066 .030 1/4 233 172 140 117 0.5

QRTU16__ 5/32 .093 .031 3/8 176 106 88 0.7

QRTU19__ 3/16 .107 .040 3/8 150 111 90 75 1.0

QRTU25__ 1/4 .160 .045 1/2 148 110 89 74 1.5

QRTU31__ 5/16 .216 .048 3/4 133 98 80 67 3.9

QRTU38__ 3/8 .245 .065 7/8 147 88 74 3.4

QRTU50__ 1/2 .375 .090 1-1/8 140 104 84 70 5.1

Model

Number*

O.D.

(in.)

I.D.

(in.)

Wall

(in.)

Min. Bend

Radius

Working Pressure (PSIG) Weight

lbs/100'

@ 75ºF @ 100ºF @125ºF @ 150ºF

QRMU04__ 4 2.4 0.8 3/8 176 130 106 88 0.7

QRMU06__ 6 4.0 1.0 1/2 145 107 87 73 1.3

QRMU08__ 8 5.0 1.5 3/4 155 115 93 78 2.6

QRMU10__ 10 6.5 1.75 7/8 149 110 89 75 3.9

QRMU12__ 12 8.0 2.0 1-1/8 133 98 80 67 5.3

Model

Number*

O.D.

(in.)

I.D.

(in.)

Tolerance Working Pressure (PSIG) Roll

Length

Wall

(in.) O.D. I.D. @ 0ºC @ 40ºC @80ºC @ 120ºC @ 160ºC @ 200ºC

135-124 1/4 1/8 0.31 ±.008 ±.005 180 135 97 60 48 22 1000 ft.

135-125 1/4 1/8 0.31 ±.008 ±.005 180 135 97 60 48 22 100 ft.

135-127 1/8 1/16 0.15 ±.005 ±.005 180 135 97 60 48 22 1000 ft.

135-126 1/8 1/16 0.15 ±.005 ±.005 180 135 97 60 48 22 100 ft.

Tubing

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

• Lightweight and flexible

• Superior dielectric properties

• Easily heat sealed

• Tasteless and odorless

• Impermeable to gasses and moisture

LDPE is extruded to close tolerances from high quality low den-

sity polyethylene resins. All colors except red, comply with FDA

regulation 21 CFR 177.1520(c) for food contact applications.

LDPE has a water absorption rate of 0.15% per ASTM D-570

standards.

Specifications

• Temperature Range: All Diameters: -40° to 150°F

• Vacuum Rating: to 28" Hg.

• Diameter Tolerances: +.004"

• Hardness: LDPE: 44 Shore D

• Tube Markings: FW Specifications

• Working Pressure: 3:1 Safety Factor

• Base Resin Compliance: FDA (except red) NSF51(LLDPE)

• Recommended Fittings: LDPE: Push-In, Compression

Inch

Metric

Nylon 11 Tubing

Application

Flexible nylon tubing used for air and lubrication lines, instru-

mentation and process lines for chemicals and solvents.

Contact factory for specific applications.

Features

Has excellent resistance to a wide range of chemicals including

petroleum products, soaps, salt solutions and bases.

Specifications

• Temperature Range: -60° to 200°F

• Vacuum Rating: to 28" Hg.

• Diameter Tolerances: .002", -.004"

• Metric: +.051 mm, -.1 mm

• Hardness: 78 Rockwell R

• Working Pressure: 4:1 Safety Factor

• UV Stabilized: Yes

• Base Resin Compliance: Meets UL94HB

Testing Requirements

• Recommended Fitting: Push-In, compression

Low-Density Polyethylene Tubing

Model

Number

O.D.

(in.)

I.D.

(in.)

Wall

(in.)

Min. Bend

Radius

Working Pressure (PSIG)

@ 75ºF @ 100ºF @125ºF @ 150ºF

QRTN12__ 1/8 .093 .017 3/8 225 168 133 125

QRTN16__ 5/32 .106 .025 1/2 275 200 169 160

QRTN19__ 3/16 .138 .024 5/8 225 158 120 113

QRTN25__ 1/4 .180 .035 1 250 183 160 140

QRTN31__ 5/16 .232 .040 1-1/4 220 170 141 121

QRTN38__ 3/8 .275 .050 1-1/2 220 165 148 128

QRTN50__ 1/2 .375 .062 2 200 145 133 125

Model

Number

O.D.

(in.)

I.D.

(in.)

Wall

(in.)

Working Pressure

(PSIG)

Bend

Radius

(in)

@ 75ºF @ 150ºF

QRTE12 1/8 .062 .031 305 120 1/2

QRTE16 5/32 .106 .025 175 70 1

QRTE25 1/4 .170 .040 200 80 1-1/4

QRTE31 5/16 .187 .062 230 90 1-1/2

QRTE38 3/8 .250 .062 190 75 2

QRTE50 1/2 .375 .062 135 55 2-1/2

Model

Number

O.D.

(mm)

I.D.

(mm)

Wall

(mm)

Min. Bend

Radius

Working Pressure (PSIG)

@ 75ºF @ 100ºF @125ºF @ 150ºF

QRMN04__ 4 2.7 .6 12.7 350 263 228 210

QRMN06__ 6 4 1 17 340 255 221 200

QRMN08__ 8 6 1 38 250 187.5 162.5 150

QRMN10__ 10 8 1 51 190 142.5 123.5 110

QRMN12__ 12 10 1 76 150 112.5 97.5 90

Model

Number

O.D.

(in.)

I.D.

(in.)

Wall

(in.)

Working Pressure

(PSIG)

Bend

Radius

(mm)

@ 75ºF @ 150ºF

QRME04 4 2.7 .65 175 70 25.2

QRME06 6 4 1 175 70 31.8

QRME08 8 6 1 140 55 38

QRME10 10 8 1 115 45 51

QRME12 12 9 1.5 135 55 63.5

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

Weld Spatter Tubing

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Features

• Protects tube from incidental weld splatter contact

• Flexible with an excellent bend radius

• Resistant to kink damage

• Broad range of chemical resistance

• Can be formed into retractable coils

Specifications

• Temperature Range: All Diameters: -40°F to +165°F

• Vacuum Rating: to 28" Hg.

• Diameter Tolerances: +/- .005" Inner

• Working Pressure: 3:1 Safety Factor

• Base Resin Compliance:

Outer Jacket: Meets UL94VO Testing Requirements

Inner Tube: Meets UL94HB Testing Requirements

• Recommended Fittings: Push-In, Compression

Weld Spatter Resistant

Metric

Model

Number

O.D.

(in.)

I.D.

(in.)

Working Pressure (PSIG) Weight

(lbs/100ft)

Bend Radius

(mm)

@ 25ºF @ 65ºF

QRMW06 6 4 160 65 2.59 12.7

QRMW08 8 5 190 75 4.15 19

QRMW10 10 6.5 170 70 5.71 22.2

QRMW12 12 8 155 60 7.43 28.6

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories Electronic Drain Valves

Electronic Drain Valves

EDV-04-110AC pictured

Eliminate the manual draining of air lines with the EDV

Series Electronic Drain Valve from Numatics. The

EDV Series valve is designed to remove condensation

from filters, receiver tanks, separators, drip legs, drain

traps, and dryers in electronically controlled intervals.

The EDV valve is available in 1/4, 3/8, and 1/2 sizes.

The large orifice allows even the largest rust and pipe

scale particles to be easily expelled. Standard model

includes a 110 volt AC solenoid, 6 ft (2 m) power cord,

and grounded plug. An EDV valve can be installed

virtually anywhere.

Application

Specifications

Valve

•Function:2way,NC,solenoidvalve

•ValveDesign:pilotoperateddiaphragmvalve

•PortSizes:1/4,3/8

•Orifice:5/16”(8mm)1.12Cv1/2”(12mm)2.45Cv

•OperatingPressure:20-300PSIG(1.3-20bar)

•Solenoid:continuousduty

•Mounting:anyposition

•BodyMaterial:brass

Timer

•Material:plasticpolyamid

•IntervalTimer:1-45min.

•‘On’Timer:.25-25sec

•Voltage:12-230VAC/DC

•Frequency:50/60Hz

•PowerRating:10watt

•Enclosure:NEMA4/IP65

•AmbientTemp:130ºF(55ºC)

Lights

•LeftIndicator:poweron

•RightIndicator:solenoidengineered

How to Order

-110

EDV

Current

Connector

-=6 ft. (2 Meter) Power Cord

(with grounded plug)

X=Conduit Connector

Voltage

110

230

Threads

- NPT

EDV Electronic Drain Valve=

= BSPT

Model

-04

Port Size

02 1/4

03 3/8

04 1/2

Dimensions: Inches (mm)

Series A B C D

1/4, 3/8 5.75

(146)

3.5

(89)

2.25

(57)

3.75

(95)

1/2 6.0

(152)

3.5

(89)

2.75

(70)

3.75

(95)

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories

Pressure Switches

PS182 Pressure Switches

PS180 Pressure Switches

NPTF Thread Model Selection

NPTF Thread Dimensions

NPTF Thread Model Selection

BSPP Thread Dimensions

BSPP Thread Model Selection

Specifications

Contact Rating: 4A @ 250 V AC

Protection: IP 65, terminals IP00

Maximum Operation: 200/min

Temperature Range: 0º F to 190º F (-15º C to 85º C)

Maximum Pressure: 300 PSI (20 bar)

Maximum Voltage: 250 V AC (200 DC)

Hysteresis Adjustment: 15%

Connector Material: polyamid

Diaphragm Material: Buna N

Housing Material: zinc plated steel

Hysteresis Adjustment 10%

Pressure Ranges: 2-10, 6-30, 20-130

Max Pressure: 600 psi

Set Point Tolerance: +/- 1 Psi or 5%

*Contact Rating: 4A

Diaphragm Material: Buna N

Max Operating Cycles: 200/min

Temperature Range: -40 to 250 F (-40 to 121 C)

Voltage Range: 12 V DC to 250 V AC

Sealing/Protection: IP 65

Housing Material: Brass

Electrical Connection: 3-Pin Micro (12 mm)

*Comes standard with gold plated contacts.

ANSI SYMBOL

Use “G” suffix for gold plated terminals (for

applications below 50 mA), i.e.PS180BAN02G

Numatics PS180 is a line of pressure switches designed for accurate indication that proper system

pressure is being achieved. Available in 1/8 or 1/4 threads, it is easily incorporated into an air system using

a FlexiBlok® diverter plate.

Featuring a rugged housing made from zinc coated steel, the PS180 is designed for industrial multi-million

cycle life applications. The four pin connector plug is included and contains a key way of preventing acci-

dental misconnection. Pressure adjustment is tamper resistant, hindering unauthorized changes. It can be

wired in either normally open or normally closed configurations and includes a case ground pin.

Numatics PS182 is the most rugged of the Numatics Pressure

Switches. Available in 1/8 or 1/4 NPT and BSPP threads, it is

easily incorporated into an air system using a FlexiBlok diverter

plate or diverter block.

The unique 12 mm, micro connector makes it simple for electrical

connection. The knurled knob with tamper resistant hex screw

makes it the easiest pressure adjustment on the market. It can be

wired in either a normally open or normally closed configuration.

Application

ANSI SYMBOL

3.4

1.3

Female Single Ended Cordset

Dimensions: Inches (mm)

Dimensions: Inches

Model A B C

PS180BAN01 2.5 (64) 1.0 (27) 3.1 (79)

PS180CAN01 2.5 (64) 1.0 (27) 3.1 (79)

PS180BAN02 2.5 (64) 1.0 (27) 3.1 (79)

PS180CAN02 2.5 (64) 1.0 (27) 3.1 (79)

NPTF Model PSIG (Bar)

1/8 NPT PS182AAN01 2-10 (0.14–0.69)

1/8 NPT PS182BAN01 6-30 (0.40-2.07)

1/8 NPT PS182CAN01 20-130 (1.38-8.96)

1/4 NPT PS182AAN02 2-10 (0.14–0.69)

1/4 NPT PS182BAN02 6-30 (0.40-2.07)

1/4 NPT PS182CAN02 20-130 (1.38-8.96)

NPTF Model PSIG (Bar)

1/8 BSPP PS182AAG01 2-10 (0.14–0.69)

1/8 BSPP PS182BAG01 6-30 (0.40-2.07)

1/8 BSPP PS182CAG01 20-130 (1.38-8.96)

1/4 BSPP PS182AAG02 2-10 (0.14–0.69)

1/4 BSPP PS182BAG02 6-30 (0.40-2.07)

1/4 BSPP PS182CAG02 20-130 (1.38-8.96)

Connector Type Connector Length Model Number

90° Elbow 5 Meters PS182-5-90

Straight 5 Meters PS182-5-ST

NPTF Model PSIG (Bar)

1/8 PS180BAN01 4-20 (.3-1.5)

1/8 PS180CAN01 14-150 (1-10)

1/4 PS180BAN02 4-20 (.3-1.5)

1/4 PS180CAN02 14-150 (1-10)

NPTF Model PSIG (Bar)

1/4 PS180BAG02 4-20 (.3-1.5)

1/4 PS180CAG02 14-150 (1-10) Model A B C

PS180BAG02 2.3 (58) 1.0 (27) 2.9 (74)

PS180CAG02 2.3 (58) 1.0 (27) 2.9 (74)

BSPP Thread Model Selection

Information subject to change without notice. For ordering information or regarding your local sales office visit www.numatics.com.

Accessories Replacement Parts

FlexiBlok® Coalescing Filter

Element Replacement Kits Filter & Filter-Reg

Includes filter element and seal

Kit # Description

12 & 14 Series

EKF12C 0.7 micron element

EKF12CD 0.7 micron element with prefilter

EKF12D 0.3 micron element

EKF12DD 0.3 micron element with prefilter

EKF12E 0.1 micron element

EKF12ED 0.1 micron element with prefilter

EKF12F adsorbing element

22 Series

EKF22C 0.7 micron element

EKF22CD 0.7 micron element with prefilter

EKF22D 0.3 micron element

EKF22DD 0.3 micron element with prefilter

EKF22E 0.1 micron element

EKF22ED 0.1 micron element with prefilter

EKF22F adsorbing element

32 Series

EKF32C 0.7 micron element

EKF32CD 0.7 micron element with prefilter

EKF32D 0.3 micron element

EKF32DD 0.3 micron element with prefilter

EKF32E 0.1 micron element

EKF32ED 0.1 micron element with prefilter

EKF32F adsorbing element

42 Series

EKF42C .7 micron element

EKF42CD .7 micron element with prefilter

EKF42D .3 micron element

EKF42DD .3 micron element with prefilter

EKF42E .1 micron element

EKF42ED .1 micron element with prefilter

EKF42F adsorbing element

DPI Replacement Kits

Includes DPI assembly

Kit # Description

UK600 14 Series DPI replacement kit

DPI22 22 Series DPI replacement kit

DPI32 32/42 Series DPI replacement kit

Bowl Replacement Kits Filter & Filter-Reg

Includes bowl and o-ring

Kit # Description

12 & 14 Series

BKF12 polycarbonate bowl with guard

BKF12M metal bowl

BKF12C Circle vision bowl

22 Series

BKF22 polycarbonate bowl

BKF22C CircleVision™ bowl

BKF22M metal bowl

32 & 42 Series

BKF32 polycarbonate bowl

BKF32C CircleVision™ bowl

BKF32M metal bowl

To order the bowl replacement kit with a drain, specify the

drain suffix in the kit number (keeping suffixes in alphabetical

order). For example, to order a flexible drain with a BKF12

kit, order as BKF12B. To order an external pulse drain with

a BKF12M kit, order as BKF12JM. Drain suffixes are as

follows: B=flexible drain, J=external pulse drain, Q=metal

manual drain, R=manual lever drain. See page 24 for addi-

tional drain option information.

Bowl Replacement Kits Lubricators

Includes bowl and o-ring

Kit # Description

BKL12 12 & 14 Series, polycarbonate bowl

BKL12M 12 & 14 Series, metal bowl

BKL22 22 Series, polycarbonate bowl

BKL22C 22 Series, CircleVision™ bowl

BKL22M 22 Series, metal bowl

BKL32 32 Series, polycarbonate bowl

BKL32C 32 Series, CircleVision™ bowl

BKL32M 32 Series, metal bowl

To order the bowl replacement kit with a drain or buttonhead

fill, specify the appropriate suffix in the kit number (keeping

suffixes in alphabetical order). For example, to order a drain

with a BKL12 kit, order as BKF12K. To order a buttonhead

fill with a BKL22M kit, order as BKL22FM. Drain suffixes are

as follows: F=buttonhead fill, K=drain.

Replacement Drain Kits

Kit # Description

AKF02 auto float drain kit (inc. drain, bushing,

clip, o-ring)

BKF02 flexible drain (includes drain ass’y)

DKF02 standard drain (inc. drain ass’y)

QKF02 metal manual drain (inc. drain, bushing,

clip, o-ring)

JKF02 external pulse drain (inc. drain, bushing,

clip, o-ring)

RKF02 manual lever drain (inc. drain, bushing,

clip, o-ring)

FlexiBlok® Particulate Filter

Element Replacement Kits Filter & Filter-Reg

Includes bowl and o-ring

Kit # Description

EKF12A 12/14 Series, 40 micron element

EKF12B 12/14 Series, 5 micron element

EKF22A 22 Series, 40 micron element

EKF22B 22 Series, 5 micron element

EKF32A 32 Series, 40 micron element

EKF32B 32 Series, 5 micron element

EKF42A 42 Series, 40 micron element

EKF42B 42 Series, 5 micron element

Filter Repair Kits

Includes Turbo-Flo, element retainer, quiet zone baffle,

deflector retainer

Kit # Description

RKF12B 12/14 Series, 5 micron element

RKF22B 22 Series, 5 micron element

RKF32B 32 Series, 5 micron element

RKF42B 42 Series, 5 micron element

FlexiBlok® Regulator

Regulator & F/R Repair Cage Kits

Includes bonnet with main spring (0-125 psi), adjusting

screw and adjusting knob

Kit # Description

RKC14 14 Series

RKC22 22 Series

RKC32 32 Series

RKC42 42 Series

Diaphragm Repair Kits

Includes diaphragm, inner valve assembly and inner

valve spring

Kit # Description

RKR12R 12 & 14 Series, relieving kit

RKR22R 22 Series, relieving kit

RKR32R 32 Series, relieving kit

RKR42R 42 Series, relieving kit

RKR12N 12 & 14 Series, non-relieving kit

RKR22N 22 Series, non-relieving kit

RKR32N 32 Series, non-relieving kit

RKR42N 42 Series, non-relieving kit

Piston Repair Kits

Includes piston assembly, inner valve assembly and

inner valve spring

Kit # Description

PKR12R 12 Series, relieving kit

PKR12N non-relieving kit

PKR14R 14 Series, relieving kit

PKR22R 22 Series, relieving kit

PKR32R 32 Series, relieving kit

PKR42R 42 Series, relieving kit

PKR14N 14 Series, non-relieving kit

PKR22N 22 Series, non-relieving kit

PKR32N 32 Series, non-relieving kit

PKR42N 42 Series, relieving kit

Replacement Adjustment Knob Kits

Includes adjustment knob only

Kit # Description

R12-03 12 &14 Series, adjustment knob

R22-03B 22 Series, adjustment knob

R32-03 32 Series, adjustment knob

R32-03 42 Series, adjustment knob

FlexiBlok® Pilot Operated Regulators

Diaphragm Repair Kits

Includes upper & lower diaphragm, inner valve assembly

and inner valve spring

Kit # Description

RKW22 22 Series, relieving kit

RKW32 32 Series, relieving kit

RKW42 42 Series, relieving kit

RKW22N 22 Series, non-relieving kit

RKW32N 32 Series, non-relieving kit

RKW42N 42 Series, non-relieving kit

FlexiBlok® Lubricator

Lubricator Dome Repair Kits

Includes adjustment knob and adjustment assembly

Kit # Description

RKL12T 12/14 Series, lub. dome repair kit

22 Series, lub. dome repair kit

32 Series, lub. dome repair kit

42 Series, lub. dome repair kit

Replacement Adjustment Knob Kits

Includes adjustment knob only

Kit # Description

L32-06 12/14 Series, adjustment knob

22 Series, adjustment knob

32 Series, adjustment knob

FlexiBlok® Shut-Off Valve

Shut-Off Valve Repair Kits

Includes slide and 2 o-rings

Kit # Description

RKSV12 12 Series, shut-off valve repair kit

RKSV14 14 Series, shut-off valve repair kit

RKSV22 22 Series, shut-off valve repair kit

RKSV32 32 Series, shut-off valve repair kit

Mounting Brackets

Includes bracket and panel nut

Kit # Description

PK12 12 & 14 Series mounting bracket

PK22 22 Series mounting bracket

PK32 32 Series mounting bracket

FlexiBlok® Sol. Soft Start Quick Exhaust

Solenoid Replacement Kits

Includes coil only (fits 22 or 32 Series)

NOTE: Numatics FRL does not recommend the disassembly

of a solenoid soft start unit outside of our factory.

Kit # Description

S32-44A 110V (22 or 32 Series)

S32-45A 230V (22 or 32 Series)

S32-46A 24V AC (22 or 32 Series)

S32-43A 24V DC (22 or 32 Series)

FlexiBlok® Screws & O-Rings

Screw & O-Ring Replacement Kits

NOTE: Numatics FRL does not recommend the disassembly

of a solenoid soft start unit outside of our factory.

Kit # Description

KAVS12-06 12 Series, 2 81 mm tie rods, 2 106mm tie rods, 4 nuts

BKAVS12-06 12 Series, 20 81 mm tie rods, 20 106mm tie rods,

40 nuts

KG12 12 Series, inc. 2 screws, 1 o-ring (M4 x 12mm)

KGB12 12 Series bulk pack 100 screws, 50 o-rings (M4 x 12mm)

KG14 14 Series, 2 screws, 1 o-ring (M4 x 12mm)

KGB14 14 Series bulk pack 100 screws, 50 o-rings (M4 x 12mm)

KG22 22 Series, inc. 2 screws, 1 o-ring (M5 x 12mm)

KGB22 22 Series bulk pack 100 screws, 50 o-rings (M5 x 12mm)

KG32 32 Series, inc. 2 screws, 1 o-ring (M6 x 16mm)

KGB32 32 Series bulk pack 100 screws, 50 o-rings (M6 x 16mm)

KG42 42 Series, inc. 2 screws, 1 o-ring (M8 x 1.25)

KGB42 42 Series bulk pack 100 screws, 50 o-rings (M8 x 1.25)

World Class Supplier of Pneumatic Components

World Headquarters

Numatics, Inc. | Tel (248) 596-3200 | www.numatics.com | email: insidesales@numatics.com

Numatics® is registered in the United States and elsewhere

USA Numatics, Incorporated

46280 Dylan Drive

Novi, Michigan 48377

P: 248-596-3200

F: 248-596-3201

Canada Numatics, Ltd

P: 519-758-2700

F: 519-758-5540

Brazil Ascoval Ind.e Comercio Ltda

P: (55) 11-4208-1700

F: (55) 11-4195-3970

México - Ascomatica SA de CV

P: 52 55 58 09 56 40 (DF y Area metropolitana)

P: 01 800 000 ASCO (2726) (Interior de la República)

F: 52 55 58 09 56 60

LT-Accessories Rev 3/13

10M-IPC-1/09

Flow Numatics Frl Accessories In Fittings Control Mufflers 1505484596 User Manual

Numatics Frl Accessories Flow Controls-1505484971 NUMATICS_FRL_ACCESSORIES__FLOW_CONTROLS-1505484971

Numatics Frl Accessories In-Fittings Flow Control Mufflers -1505484596 NUMATICS_FRL_ACCESSORIESIN-FITTINGSFLOW_CONTROL__MUFFLERS_-1505484596

Numatics Frl Accessories Flow Controls-1505484971 NUMATICS_FRL_ACCESSORIES__FLOW_CONTROLS-1505484971

Navigation menu

Versions of this User Manual:

Views

Navigation

Flow Numatics Frl Accessories In Fittings Control Mufflers 1505484596 User Manual

Numatics Frl Accessories Flow Controls-1505484971 NUMATICS_FRL_ACCESSORIES__FLOW_CONTROLS-1505484971

Numatics Frl Accessories In-Fittings Flow Control Mufflers -1505484596 NUMATICS_FRL_ACCESSORIES__IN-FITTINGS__FLOW_CONTROL__MUFFLERS_-1505484596

Numatics Frl Accessories Flow Controls-1505484971 NUMATICS_FRL_ACCESSORIES__FLOW_CONTROLS-1505484971

Navigation menu

Numatics Frl Accessories In-Fittings Flow Control Mufflers -1505484596 NUMATICS_FRL_ACCESSORIESIN-FITTINGSFLOW_CONTROL__MUFFLERS_-1505484596
