72
Vacuum
Products Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSLPX Series

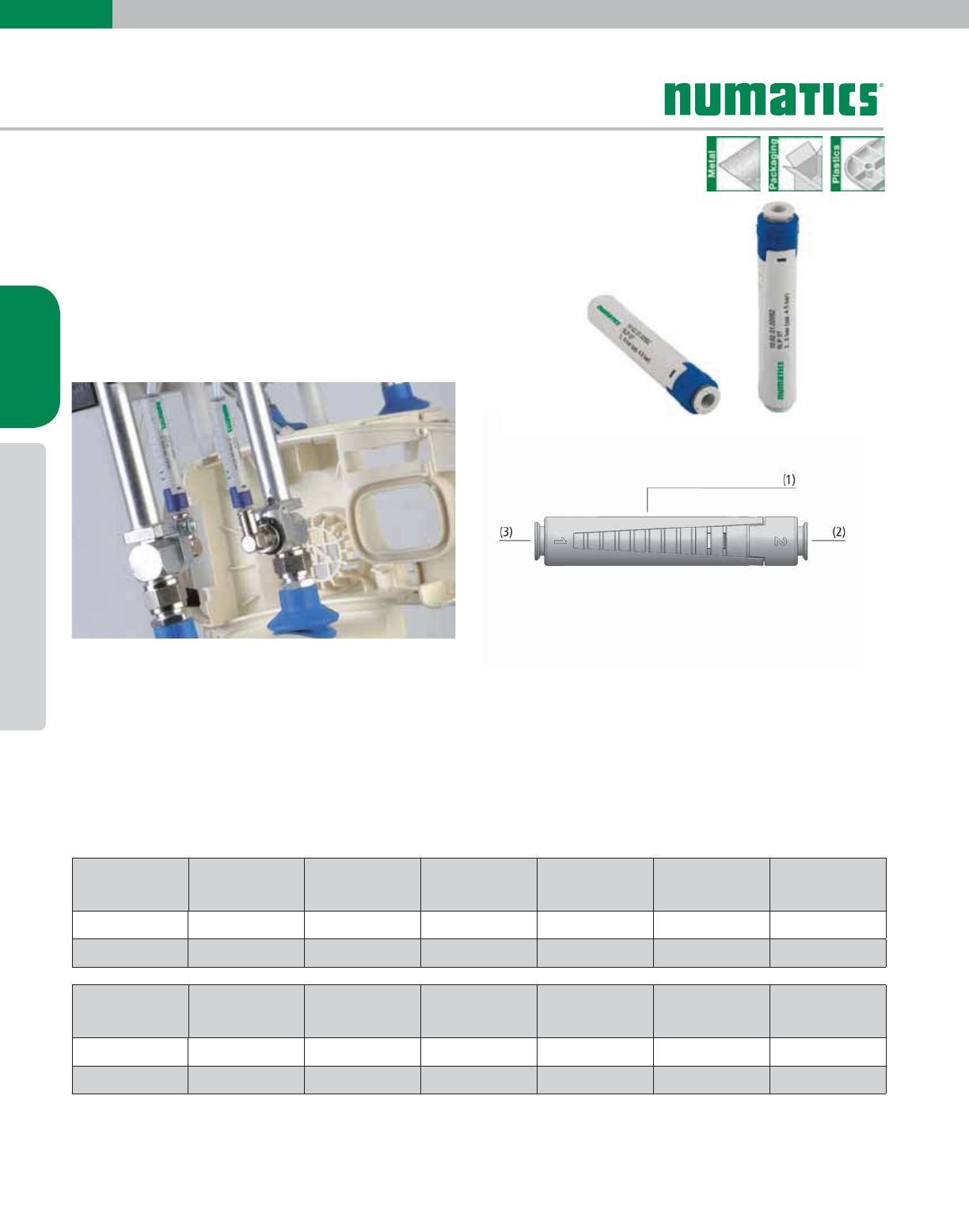

The Numatics NSLPX series of in-line ejectors is designed for
easy installation directly in the vacuum hose by means of push-in
fittings. This product works extremely well in applications where
the space is restricted. Applications include separation systems for
plastic and sheet metal machining.
In-Line Ejectors - NSLPX Series
Suction Rate from 0.28 to 0.56 SCFM
Technical Data NSLPX Series
Design
s Two-piece housing made of light, impact-resistant plastic (1)
s Axial connection of compressed air (3) and vacuum (2) with
quick-action push-in couplings for hose diameter 4 mm
s Vacuum generator with single nozzle in two power ratings, 0.5
and 0.7 mm diameter
s Air outlet with good flow characteristics
s Compact low profile design; only 10 mm thick
Decentralized vacuum generation by means of inline ejectors NtSLP for
handling plastic injection molded parts
Type Nozzle-Ø (mm) Degree of
evacuation (%)
Max. suction rate
(l/min)
Max. suction rate
(m3/h)
Air consumpt.
during evac.
(l/min)*
Air consumpt.
during evac. (m3/h)*
NSLPX 05 0.5 85 8 0.5 13 0.8
NSLPX 07 0.7 85 16 1.0 25 1.5
Type Noise level workp.
gripped (dB) Noise level free (dB) Operating pressure
(bar)
Recomm. int. hose
diameter compr. air/
vacuum (mm)**
Weight (g) Operating
temperature (ºC)
NSLPX 05 52 60 4.5 2 5 0...60
NSLPX 07 63 63 4.5 2 5 0...60
*At optimal operating pressure
**Up to a length of 2 m
73
Vacuum
Products
Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSLPX Series

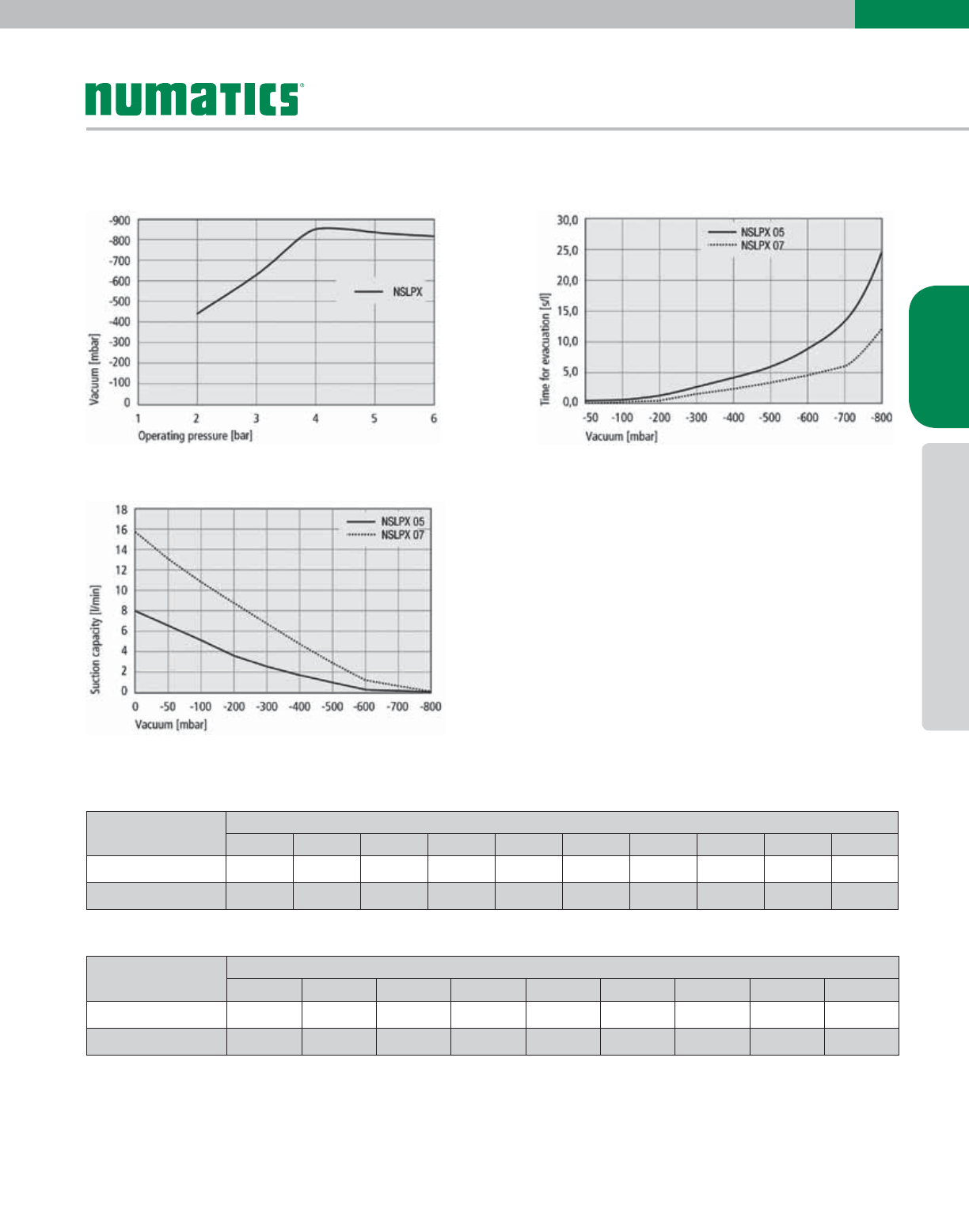

Performance Data Basic Ejectors NSLPX Series
Type Degree of evacuation in mbar
0 -50 -100 -200 -300 -400 -500 -600 -700 -800
NSLPX005XXXXXS1 8.00 6.42 4.97 3.76 2.65 1.79 1.06 0.32 0.10 0.05
NSLPX007XXXXXS1 15.90 13.30 10.89 8.70 6.67 4.65 2.88 1.29 0.55 0.06
Type Degree of evacuation in mbar
-50 -100 -200 -300 -400 -500 -600 -700 -800
NSLPX005XXXXXS1 0.4 0.7 1.6 2.7 4.0 5.8 8.5 13.1 24.5
NSLPX007XXXXXS1 0.2 0.4 0.8 1.4 2.2 3.2 4.6 6.7 12.7
Evacuation Time in s/l for Various Vacuum Ranges
Suction Capacity in l/min at Various Degrees of Evacuation
Achievable vacuum at various operating pressures
Suction capacity at various degrees of evacuation
Evacuation times for various vacuum ranges
74
Vacuum
Products Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NSLPX Series

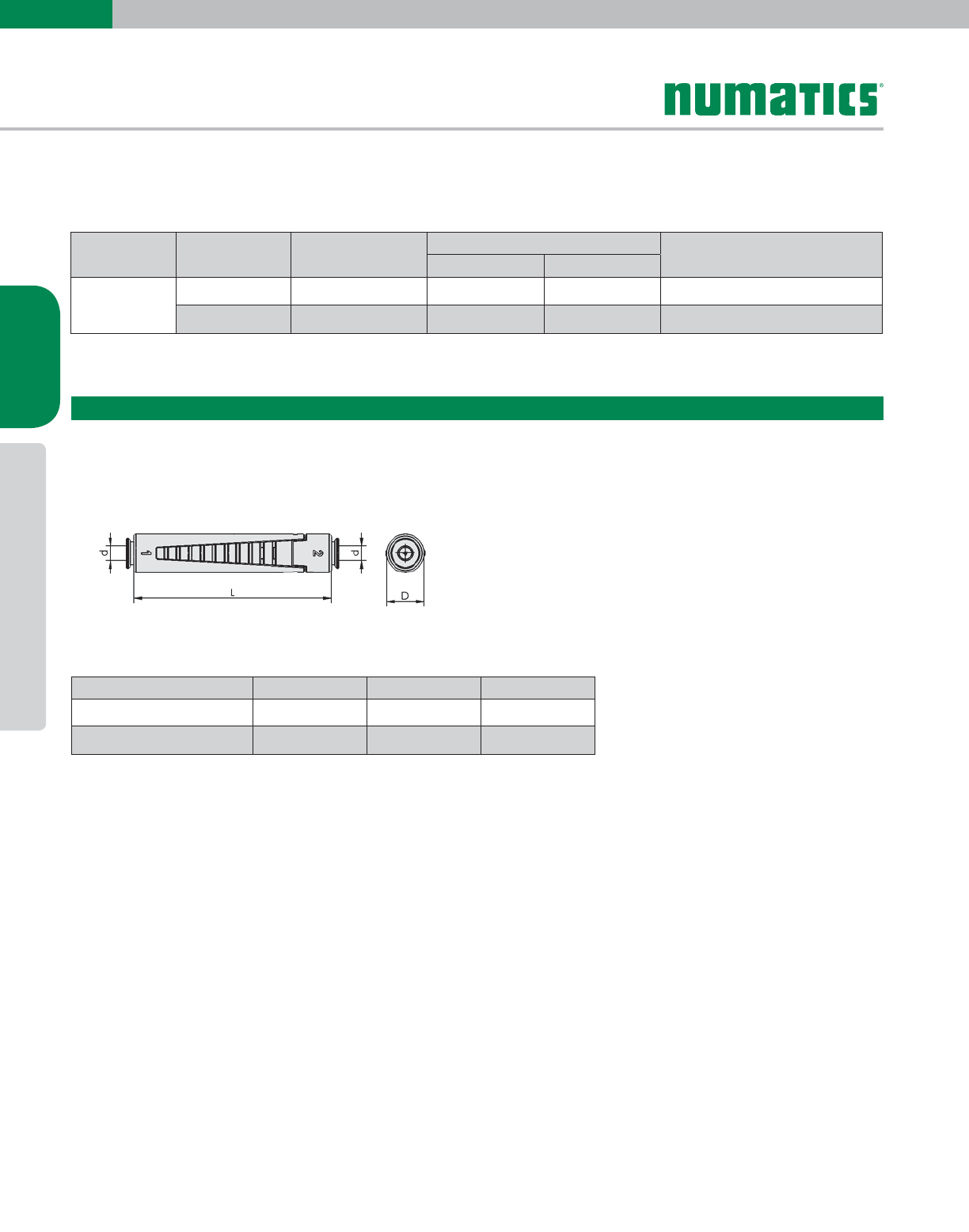

Product Family
Name Part Number Nozzle Size (mm) Thread Type / Port Size Description - Features
Pressure Vacuum
NSLPX
NSLPX005XXXXXS1 0.5 Quick Connect Quick Connect Quick Connect Coupling fits 4mm OD Tube
NSLPX007XXXXXS1 0.7 Quick Connect Quick Connect Quick Connect Coupling fits 4mm OD Tube
How to Order
NSLPX Series
NSLPX Series
Dimensions: mm
Type d D L
NSLPX005XXXXXS1 4 10 57
NSLPX007XXXXXS1 41057
75
Vacuum
Products
Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NVRXX Series

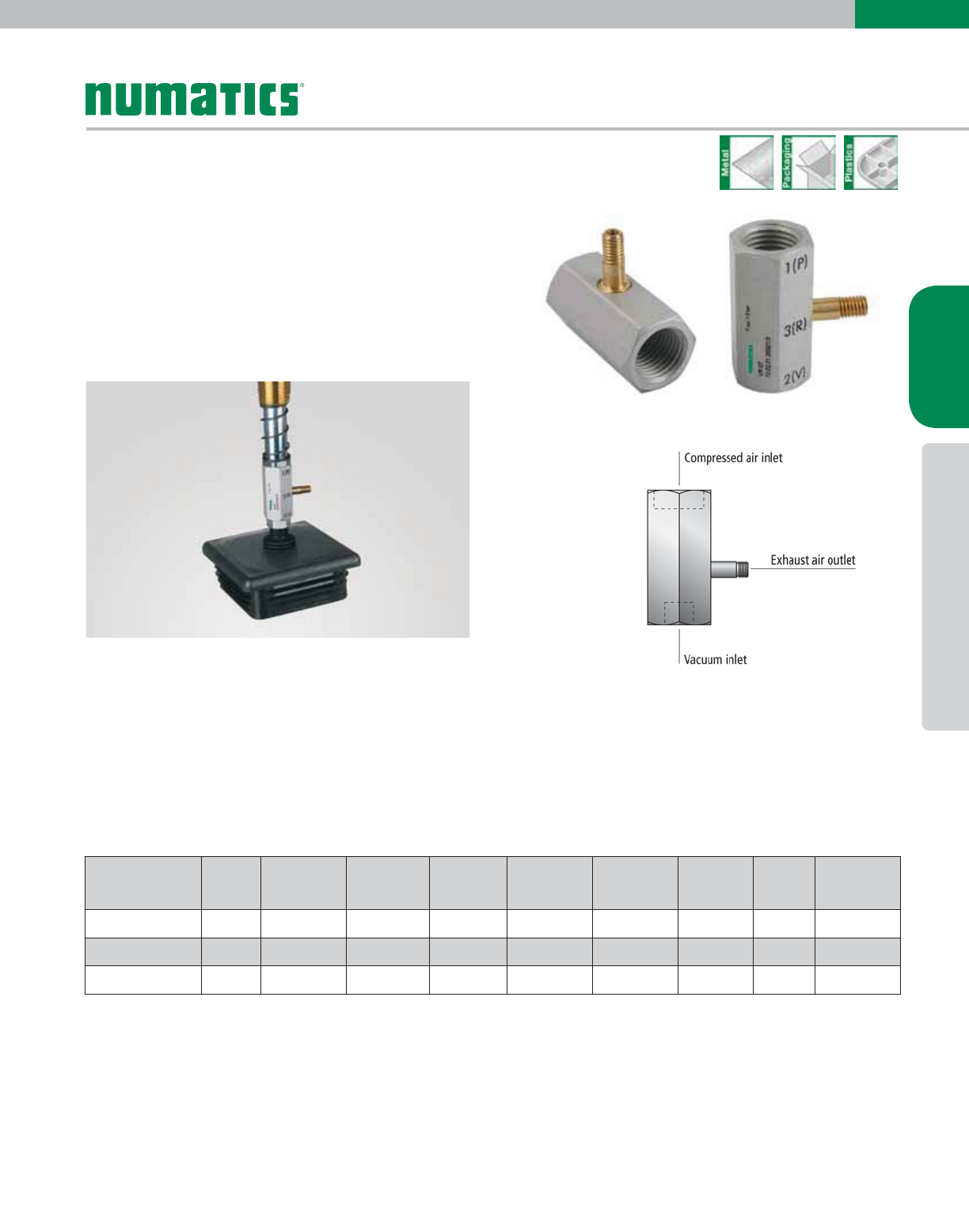

No costly hose installation necessary; vacuum is generated directly
at the point of use
In-Line Ejectors - NVRXX Series
Suction Rate from 0.28 to 0.56 SCFM
Technical Data NSLPX Series
Decentralized vacuum generation by means of inline ejector NVRXX for handling
plastic parts
Type Nozzle-Ø
(mm)
Degree of
evacuation
(%)
Max. suction
rate (l/min)
Max. suction
rate (m3/h)
Air consumpt.
during evac.
(l/min)*
Air consumpt.
during evac.
(m3/h)*
Operating
pressure
(bar)
Weight
(g)
Operating
temperature
(ºC)
NVR 05 0.5 87 7 0.4 12 0.7 5 15 0...60
NVR 07 0.7 90 14 0.8 21 1.3 5 15 0...60
NVR 09 0.9 89 21 1.3 36 2.2 5 15 0...60
*At optimal operating pressure
Design
s Body made of anodized aluminum
s Nozzle system made of brass
s Vacuum generator with single nozzle
76
Vacuum
Products Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NVRXX Series

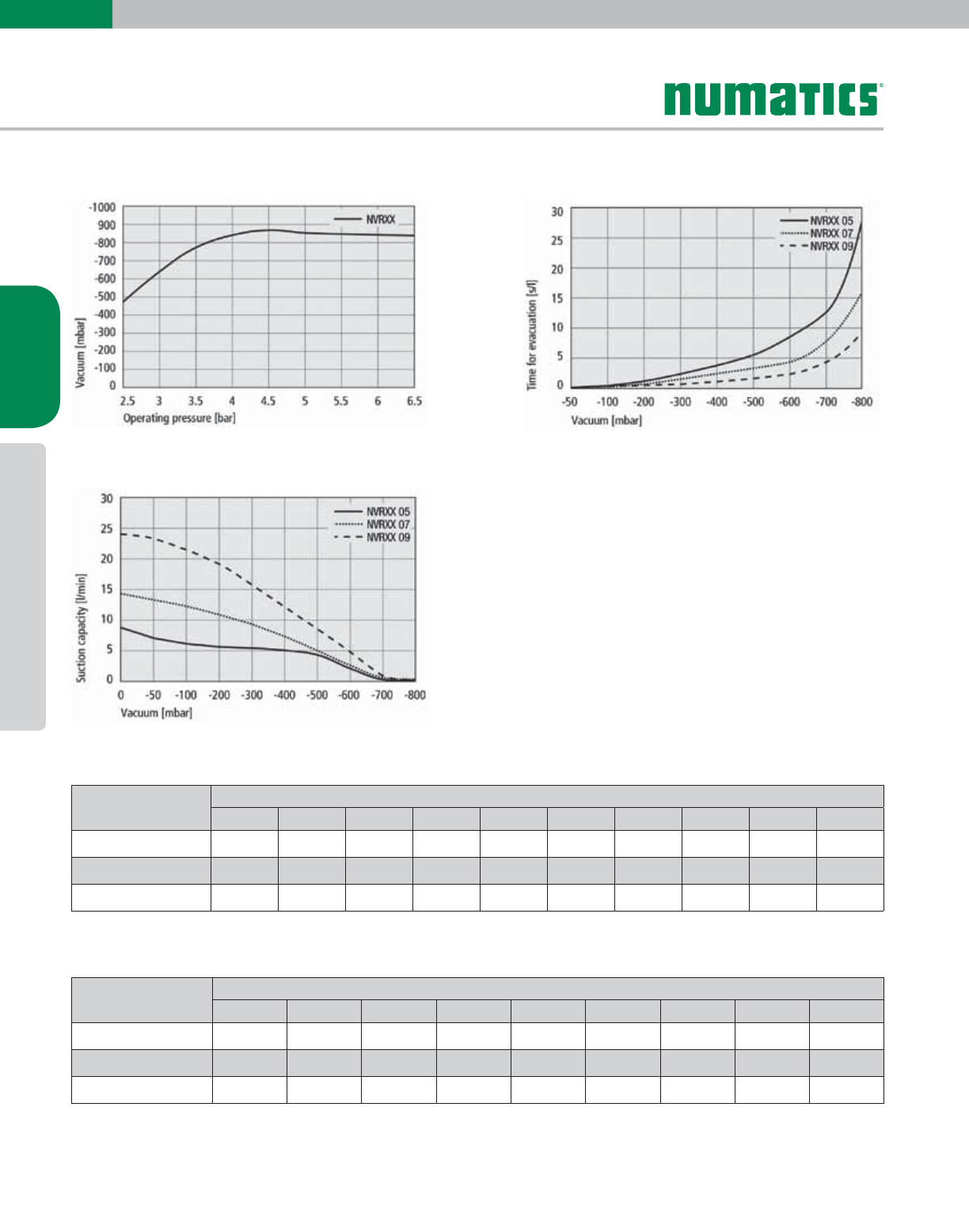

Performance Data Basic Ejectors NVRXX Series
Type Degree of evacuation in mbar
0 -50 -100 -200 -300 -400 -500 -600 -700 -800
NVR 05 8.00 7.00 6.50 6.00 5.70 5.00 4.00 2.00 0.30 0.10
NVR 07 14.00 13.00 12.50 11.00 9.50 7.40 5.00 3.00 0.45 0.20
NVR 09 24.00 23.00 21.00 19.00 16.00 12.00 8.00 5.00 1.10 0.24
Type Degree of evacuation in mbar
-50 -100 -200 -300 -400 -500 -600 -700 -800
NVR 05 0.37 0.73 1.53 2.55 3.83 5.55 7.84 12.61 27.25
NVR 07 0.21 0.41 0.84 1.41 2.17 3.17 4.77 7.79 15.65
NVR 09 0.10 0.22 0.49 0.81 1.25 1.83 2.75 4.45 8.62
Evacuation Time in s/l for Various Vacuum Ranges
Suction Capacity in l/min at Various Degrees of Evacuation
Achievable vacuum at various operating pressures
Suction capacity at various degrees of evacuation
Evacuation times for various vacuum ranges
77
Vacuum
Products
Vacuum Generators - Ejectors
Vacuum Generators
Generators-Ejectors: NVRXX Series
NVRXX Series
Dimensions: mm
Type G1 (P) G2 (V) G3 (R) H1 L LG3 SW1
NVRXX005XXXXXXX G1/4"-F G1/8"-F M5-M 29.8 35 5 17
NVRXX007XXXXXXX G1/4"-F G1/8"-F M5-M 29.8 35 5 17
NVRXX009XXXXXXX G1/4"-F G1/8"-F M5-M 29.8 35 5 17
How to Order
NVRXX Series
Product Family
Name Part Number Nozzle Size (mm) Thread Type / Port Size Description - Features
Pressure Vacuum
NVRXX
NVRXX005XXXXXXX 0.5 G1/4-F G1/8-F Aluminum (Brass Nozzle)
NVRXX007XXXXXXX 0.7 G1/4-F G1/8-F Aluminum (Brass Nozzle)
NVRXX009XXXXXXX 0.9 G1/4-F G1/8-F Aluminum (Brass Nozzle)
