Flow Schmalz Compact Ejectors Scpm 1505494529 User Manual

Schmalz Compact Ejectors Scpm-1505494529 SCHMALZ_COMPACT_EJECTORS_SCPM-1505494529

User Manual: Flow Schmalz Compact Ejectors Scpm-1505494529

Open the PDF directly: View PDF .
Page Count: 4

container www.schmalz.com/scpm 457

conta

i

ner

Index

of Products

Contact Services Vacuum Grip-

ping Systems

Filters and

Connections

Switches and

Monitoring

Valve

Technology

Vacuum

Generators

Mounting

Elements

Special

Grippers

Vacuum

Suction Pads

Vacuum

Knowledge

Schmalz -

The Company

container

Compact Ejectors

Compact Ejectors SCPM

Suction rate from 6 l/min to 23 l/min

container

container

container

container

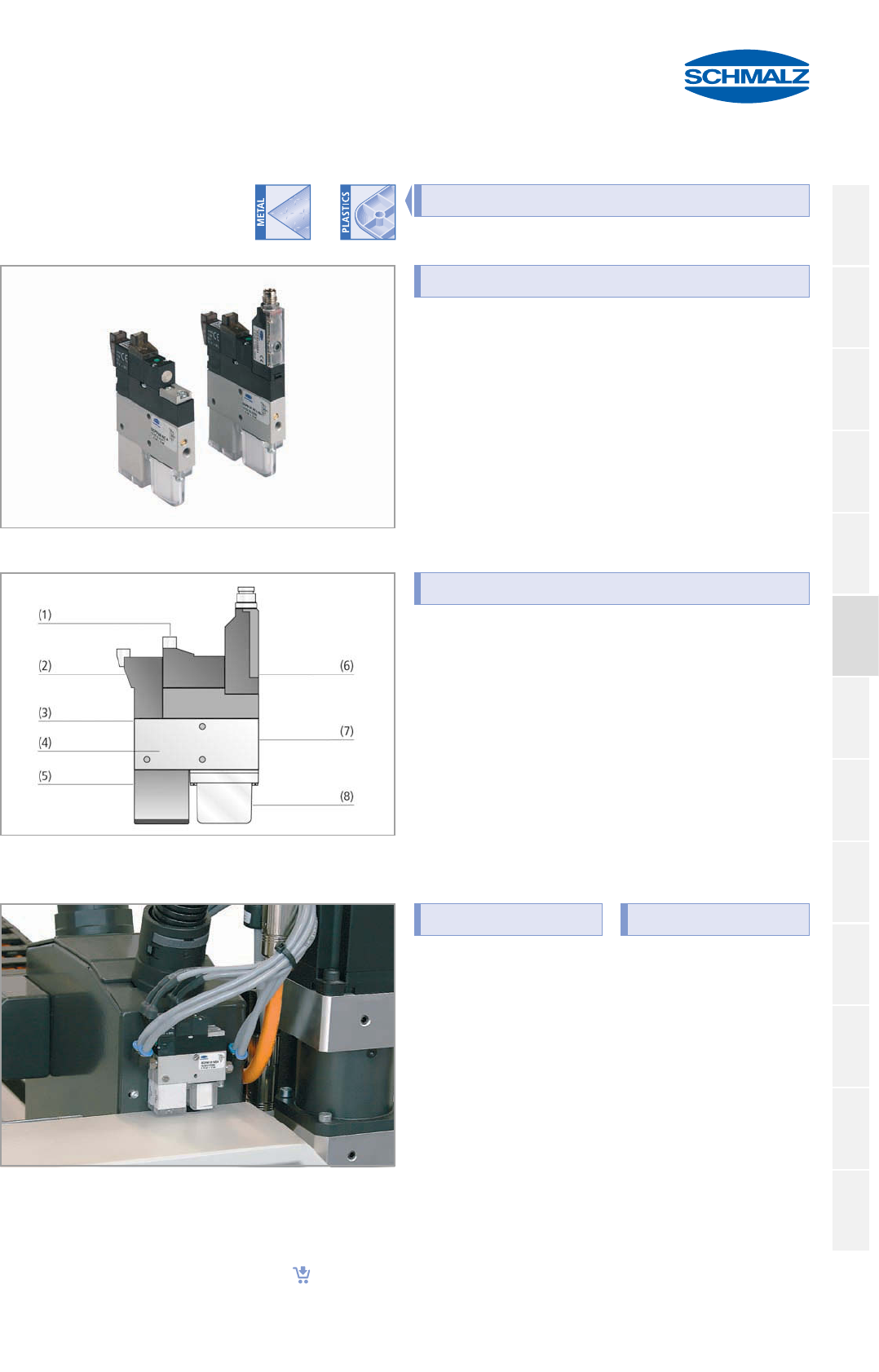

Suitability for Industry-Specific Applications

Compact ejectors SCPM

Applications

• Compact ejector for use in applications with very dynamic move-

ments and restricted spaces

• Usage for handling with industrial robots, linear axes and in pick-

and-place systems

System design compact ejectors SCPM

Design

• Blow-off valve (1) in idle position, normally closed (NC)

• Suction valve (2) in idle position, can be normally open (NO) or

closed (NC)

• Compressed air connection (3)

• Basic body (4) made from anodized aluminum

• Integrated silencer (5) and filter (8)

• Vacuum connection (7)

• Can be connected to a collective connection plate (battery

mounting)

• Optionally with integrated vacuum switch (6)

Central vacuum generation by compact ejectors SCPM

Our Highlights... Your Benefits...

• Minimum size and very low

weight

> Optimum vacuum genera-

tion, suitable for very dynamic

movements

• Versatile modular system > Flexible adaptation to

customer requirements

• Integrated valves and vacuum

monitoring

> Complete solution for very

simple installation

• Wide range of models with

different performance figures

> Optimum air consumption

thanks to various models with

differing suction capacities

catalog_Teil2_EN.book Seite 457 Donnerstag, 14. November 2013 7:31 07

container

458 www.schmalz.com/scpm

Compact Ejectors

Compact Ejectors SCPM

Suction rate from 6 l/min to 23 l/min

container

Index

of Products

Contact Services Vacuum Grip-

ping Systems

Filters and

Connections

Switches and

Monitoring

Valve

Technology

Vacuum

Generators

Mounting

Elements

Special

Grippers

Vacuum

Suction Pads

Vacuum

Knowledge

Schmalz -

The Company

container

container

container

container

container

container

container

container

Designation Code Compact Ejectors SCPM

Abbreviated designation Nozzle size Idle position

suction valve

Blow off valve System monitoring

Example SCPM 07 NO A:

SCPM 07 NO A

SCPM 05 = 0.5 mm

07 = 0.7 mm

10 = 1.0 mm

NC normally

closed

NO normally open

A blow off valve VS-T electronic

vacuum switch

Ordering Data Compact Ejectors SCPM

Compact ejector SCPM is delivered as a ready to connect product (without connection cable).

Available spare parts: silencer, filter

Available accessories: connection cable

Compact Ejectors SCPM

SCPM 05... SCPM 07... SCPM 10...

Type Part Number Type Part Number Type Part Number

SCPM 05 NO A 10.02.02.01072 SCPM 07 NO A 10.02.02.01068 SCPM 10 NO A 10.02.02.01064

SCPM 05 NC A 10.02.02.01071 SCPM 07 NC A 10.02.02.01067 SCPM 10 NC A 10.02.02.01063

SCPM 05 NO A VS-T 10.02.02.02499 SCPM 07 NO A VS-T 10.02.02.02501 SCPM 10 NO A VS-T 10.02.02.02503

SCPM 05 NC A VS-T 10.02.02.02498 SCPM 07 NC A VS-T 10.02.02.02500 SCPM 10 NC A VS-T 10.02.02.02502

Ordering Data Spare Parts and Accessories Compact Ejectors SCPM

Type Connection cable for

solenoid valves*

(3 m, PUR)

Connection cable for

vacuum switch

(5 m, straight, PUR)

Connection cable for

vacuum switch

(5 m, 90°, PUR)

Replacement silencer Replacement filter

element

SCPM 05 NO/NC A 21.04.06.00086 - - 10.02.02.01029 10.02.02.01037

SCPM 05 NO/NC A V... 21.04.06.00086 10.06.02.00031 10.06.02.00032 10.02.02.01029 10.02.02.01037

SCPM 07 NO/NC A 21.04.06.00086 - - 10.02.02.01029 10.02.02.01037

SCPM 07 NO/NC A V... 21.04.06.00086 10.06.02.00031 10.06.02.00032 10.02.02.01029 10.02.02.01037

SCPM 10 NO/NC A 21.04.06.00086 - - 10.02.02.01029 10.02.02.01037

SCPM 10 NO/NC A V... 21.04.06.00086 10.06.02.00031 10.06.02.00032 10.02.02.01029 10.02.02.01037

*Order 2 x per ejector.

catalog_Teil2_EN.book Seite 458 Donnerstag, 14. November 2013 7:31 07

container www.schmalz.com/scpm 459

conta

i

ner

Index

of Products

Contact Services Vacuum Grip-

ping Systems

Filters and

Connections

Switches and

Monitoring

Valve

Technology

Vacuum

Generators

Mounting

Elements

Special

Grippers

Vacuum

Suction Pads

Vacuum

Knowledge

Schmalz -

The Company

container

Compact Ejectors

Compact Ejectors SCPM

Suction rate from 6 l/min to 23 l/min

container

container

container

container

container

container

Technical Data Compact Ejectors SCPM

Type Nozzle-Ø [mm] Degree of

evacuation [%]

Max. suction

rate [l/min]

Max. suction

rate [m³/h]

Air consumpt.

during evac.

[l/min]*

Air consumpt.

during evac.

[m³/h]*

Max. air

consumption

blow off [l/min]

SCPM 05... 0.5 85 6 0.4 13 0.8 26

SCPM 07... 0.7 85 12 0.7 21 1.3 26

SCPM 10... 1.0 85 23 1.4 46 2.8 26

!The supply voltage for vacuum switches and solenoid valves is 24V DC

*At optimal operating pressure

**For max. length 2 m

Type Noise level workp.

gripped [dB]

Noise level

free [dB]

Operating

pressure [bar]

Recomm. int. hose

diameter compr. air

[mm]**

Recomm. int. hose

diameter vacuum

[mm]**

Weight

[g]

Operating

temperature

[°C]

SCPM 05... 62 62 4.5 2 2 80 0...45

SCPM 07... 67 70 4.5 2 2 80 0...45

SCPM 10... 73 76 4.5 2 4 80 0...45

!The supply voltage for vacuum switches and solenoid valves is 24V DC

*At optimal operating pressure

**For max. length 2 m

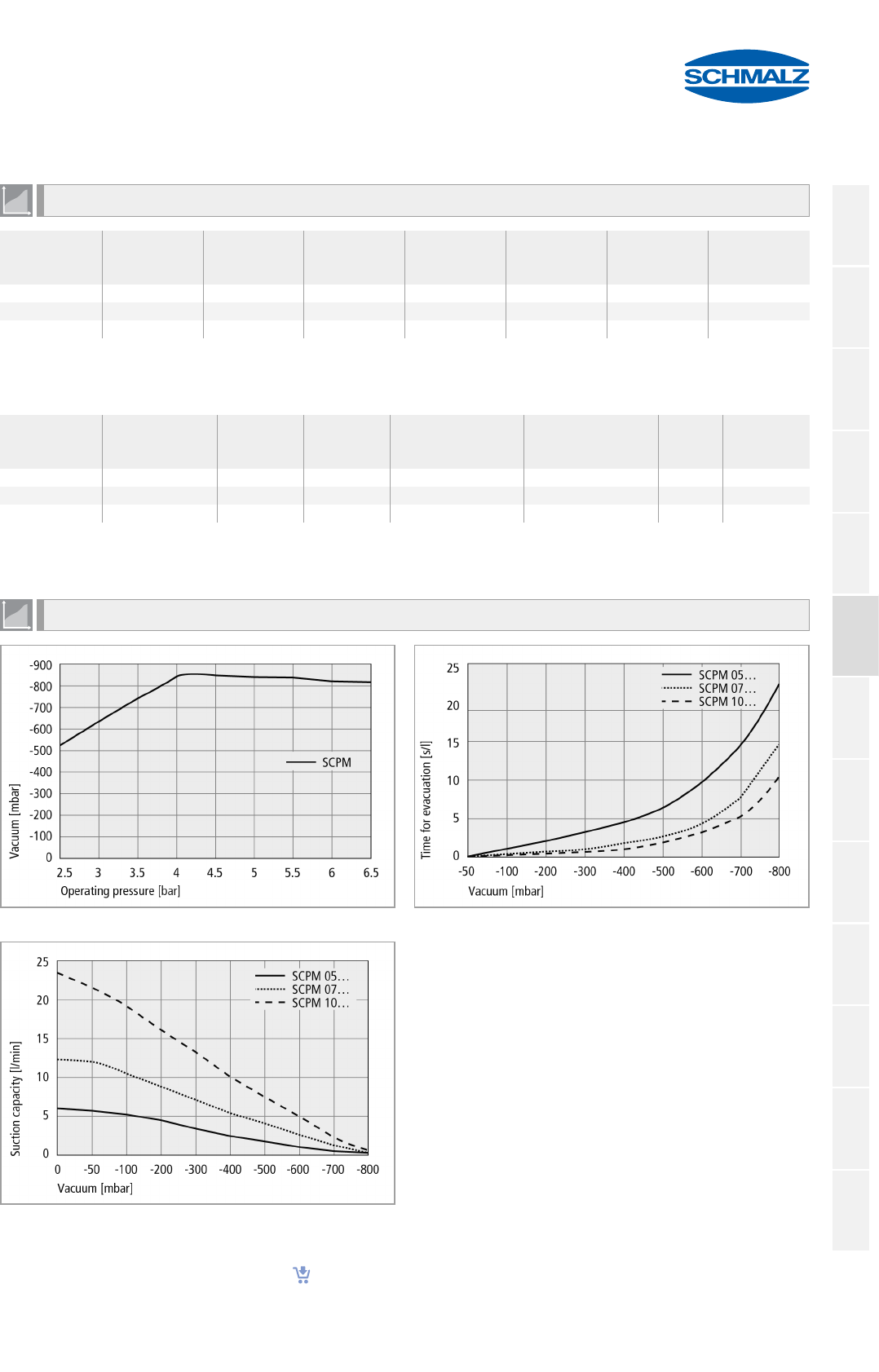

Performance Data Compact Ejectors SCPM

Achievable vacuum at various operating pressures Evacuation times for various vacuum ranges

Suction capacity at various degrees of evacuation

catalog_Teil2_EN.book Seite 459 Donnerstag, 14. November 2013 7:31 07

container

460 www.schmalz.com/scpm

Compact Ejectors

Compact Ejectors SCPM

Suction rate from 6 l/min to 23 l/min

container

Index

of Products

Contact Services Vacuum Grip-

ping Systems

Filters and

Connections

Switches and

Monitoring

Valve

Technology

Vacuum

Generators

Mounting

Elements

Special

Grippers

Vacuum

Suction Pads

Vacuum

Knowledge

Schmalz -

The Company

container

container

container

container

container

container

container

Suction Capacity in l/min at Various Degrees of Evacuation

Type Degree of evacuation in mbar

0-50 -100 -200 -300 -400 -500 -600 -700 -800

SCPM 05... 6.0 5.9 5.1 4.3 3.4 2.6 1.9 1.4 0.5 0.2

SCPM 07... 12.0 11.7 10.3 8.6 6.8 5.3 3.9 2.8 1.1 0.4

SCPM 10... 23.0 22.2 19.6 16.4 13.0 10.0 7.4 5.4 2.0 0.8

Evacuation Time in s/l for Various Vacuum Ranges

Type Degree of evacuation in mbar

-50 -100 -200 -300 -400 -500 -600 -700 -800

SCPM 05... 0.34 0.76 1.80 3.02 4.55 6.57 9.58 14.80 22.40

SCPM 07... 0.17 0.36 0.85 1.45 2.18 3.25 4.67 7.34 14.60

SCPM 10... 0.11 0.24 0.56 0.96 1.49 2.38 3.38 5.32 11.54

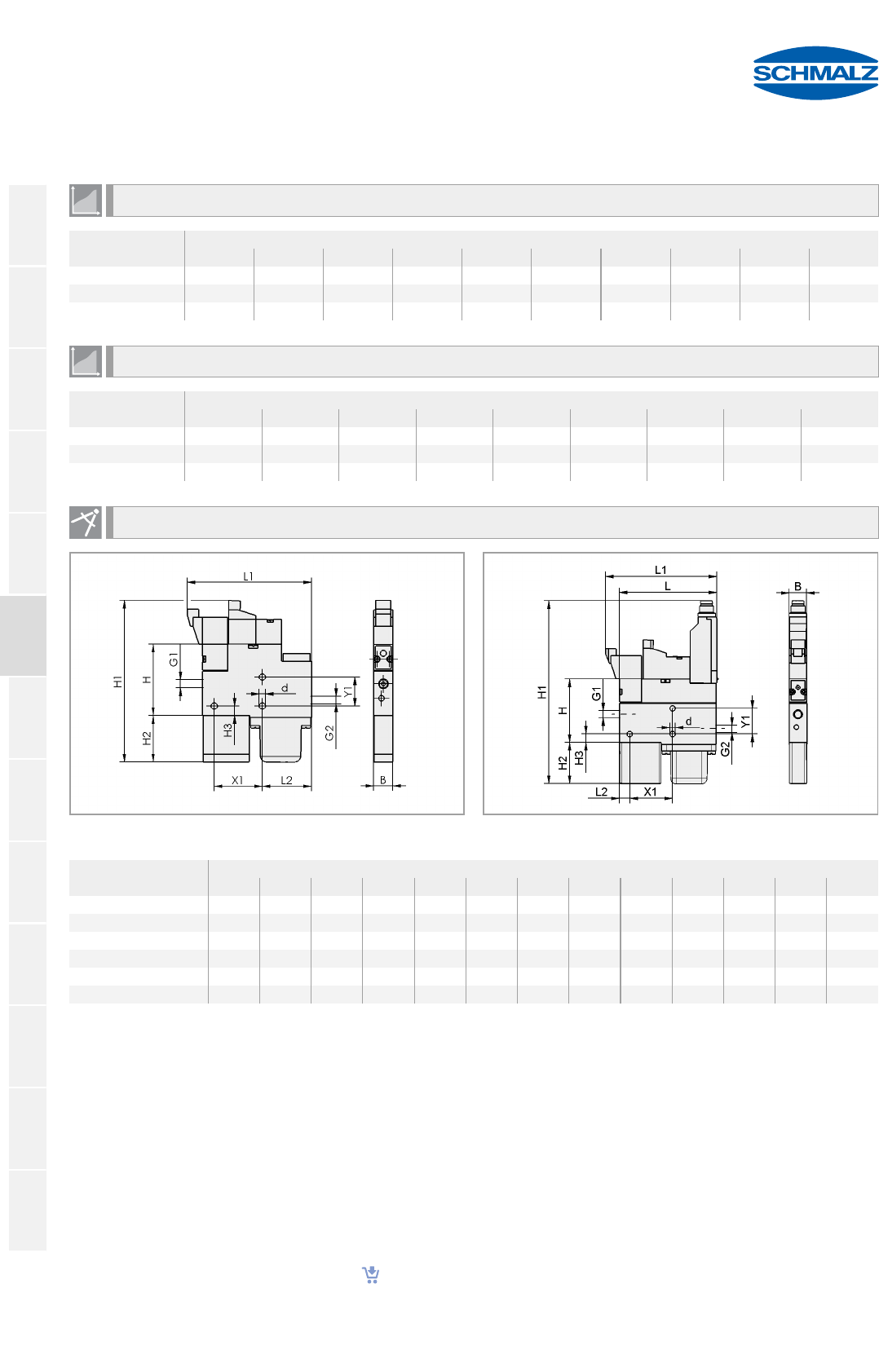

Design Data Compact Ejectors SCPM

SCPM 05 to 10 NC/NO A SCPM...VS-T

Type Dimensions in mm

B d G1 G2 HH1 H2 H3 LL1 L2 X1 Y1

SCPM 05 NC/NO A 10.2 3.2 M5-F M5-F 37.5 84.0 24 5 - 64.5 25.5 25 15

SCPM 07 NC/NO A 10.2 3.2 M5-F M5-F 37.5 84.0 24 5 - 64.5 25.5 25 15

SCPM 10 NC/NO A 10.2 3.2 M5-F M5-F 37.5 84.0 24 5 - 64.5 25.5 25 15

SCPM 05 NC/NO A V... 10.2 3.2 M5-F M5-F 37.2 106.8 24 556.5 64.5 6.0 25 15

SCPM 07 NC/NO A V... 10.2 3.2 M5-F M5-F 37.2 106.8 24 5 56.5 64.5 6.0 25 15

SCPM 10 NC/NO A V... 10.2 3.2 M5-F M5-F 37.2 106.8 24 556.5 64.5 6.0 25 15

catalog_Teil2_EN.book Seite 460 Donnerstag, 14. November 2013 7:31 07
