Flow Schmalz Multi Stage Ejectors Sem 1505494652 User Manual

Schmalz Multi-Stage Ejectors Sem-1505494652 SCHMALZ_MULTI-STAGE_EJECTORS_SEM-1505494652

2017-10-06

User Manual: Flow Schmalz Multi-Stage Ejectors Sem-1505494652

Open the PDF directly: View PDF PDF.
Page Count: 5

container www.schmalz.com/sem 417
conta
i
ner
Index
of Products
Contact Services Vacuum Grip-
ping Systems
Filters and
Connections
Switches and
Monitoring
Valve
Technology
Vacuum
Generators
Mounting
Elements
Special
Grippers
Vacuum
Suction Pads
Vacuum
Knowledge
Schmalz -
The Company
container

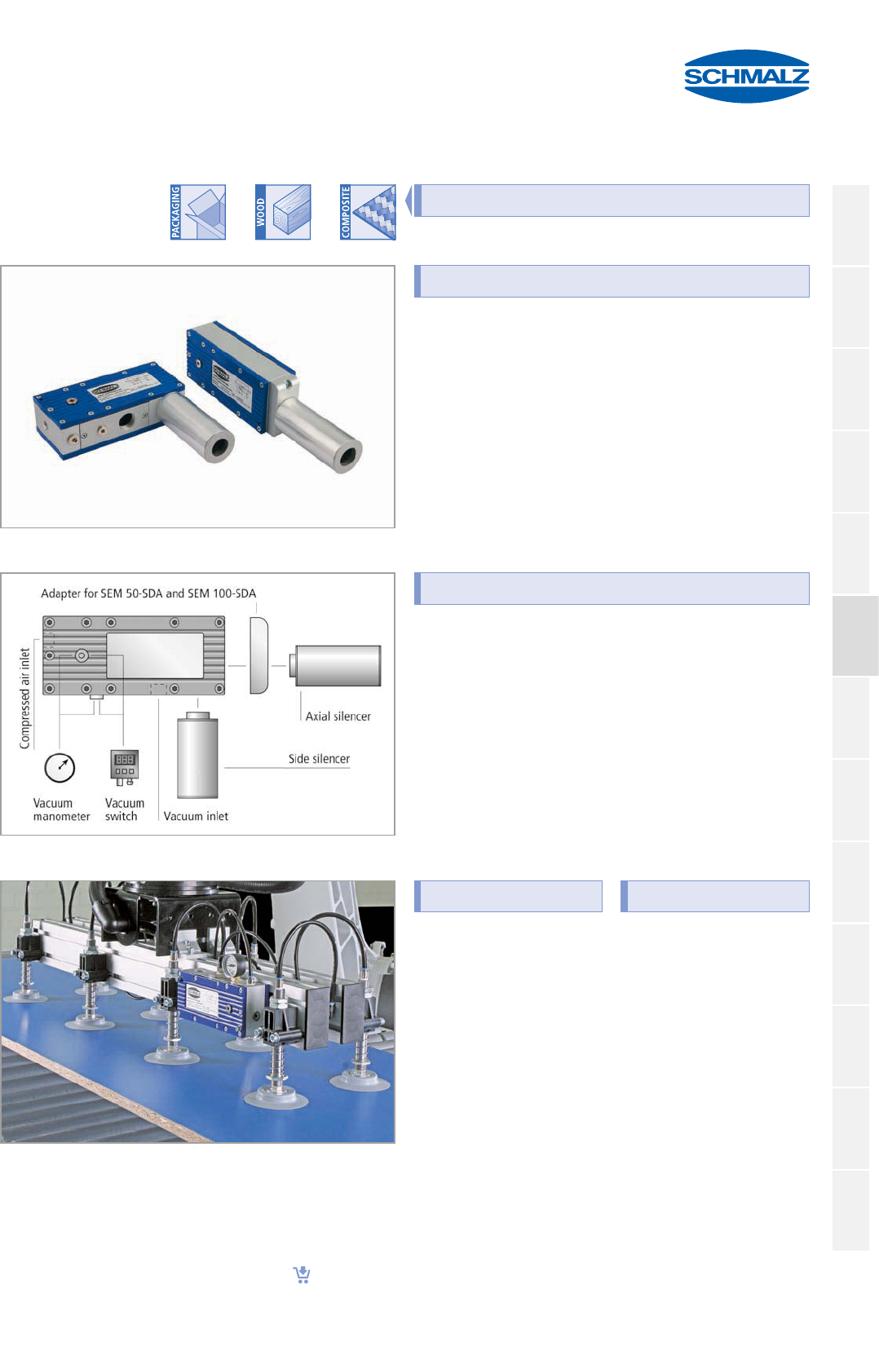

Multi-Stage Ejectors
Multi-Stage Ejectors SEM
Suction rate from 332 l/min to 2,370 l/min
container
container
container
container
Suitability for Industry-Specific Applications
Multi-stage ejectors SEM
Applications
• Multi-stage ejector for handling of cardboard, packing materials,
insulating materials and other porous items
• Processes that require big suction capacity and low air consump-
tion at the same time
System design multi-stage ejectors SEM
Design
• Body and nozzle system made of robust aluminum
• Gaskets and valve flaps made of NBR
• Options: silencer, solenoid valves, vacuum switch/manometer,
filter
Centralized vacuum generation by means of multi-stage ejectors SEM for handling coat-
ed wooden sheets
Our Highlights... Your Benefits...
• Range of ejectors with a very
high suction capacity
> Fast and safe handling of all
porous materials
• Multi-stage ejector nozzle
with high efficiency
> Rapid evacuation in the low-
er vacuum range, reduced
costs and shorter cycle times
• Optional connection facilities
for compressed air, exhaust
air and sensors
> Flexible mounting; reduced
design costs
catalog_Teil2_EN.book Seite 417 Donnerstag, 14. November 2013 7:31 07
container
418 www.schmalz.com/sem
Multi-Stage Ejectors
Multi-Stage Ejectors SEM
Suction rate from 332 l/min to 2,370 l/min
container
Index
of Products
Contact Services Vacuum Grip-
ping Systems
Filters and
Connections
Switches and
Monitoring
Valve
Technology
Vacuum
Generators
Mounting
Elements
Special
Grippers
Vacuum
Suction Pads
Vacuum
Knowledge
Schmalz -
The Company
container
container
container
container
container
container
container
container
Designation Code Multi-Stage Ejectors SEM
Abbreviated designation Size Version
Example SEM 100 SDS:
SEM 100 SDS
SEM 25
50
100
150
300
SDA silencer axial
SDS silencer side-mounted
Ordering Data Multi-Stage Ejectors SEM
Multi-stage ejector SEM is delivered as a ready to connect product.
Available spare parts: silencer
Available accessories: vacuum manometer, vacuum switch
Multi-Stage Ejectors SEM
Type* Part Number
SEM 25 10.02.01.00313
SEM 25 SDA 10.02.01.00314
SEM 25 SDS 10.02.01.00315
SEM 50 10.02.01.00316
SEM 50 SDA 10.02.01.00317
SEM 50 SDS 10.02.01.00318
SEM 100 10.02.01.00319
SEM 100 SDA 10.02.01.00320
SEM 100 SDS 10.02.01.00321
SEM 150 10.02.01.00483
SEM 150 SDA 10.02.01.00488
SEM 150 SDS 10.02.01.00489
SEM 300 SDA 10.02.01.00432
*The exhaust-air outlets of the basic version (without silencer) are open axially and to the side
Ordering Data Accessories Multi-Stage Ejectors SEM
Type Part Number
Vacuum manometer, Ø 40 mm, rear connection* 10.07.02.00035
Vacuum switch VS-V-PNP* 10.06.02.00191
Vacuum switch VS-V-W-D-PNP* 10.06.02.00192
*Vacuum switches and manometers are delivered, packed separately, with all necessary mounting accessories. For safety reasons, the vacuum switch/manometer should be secured
with commercially available screw locking compound of medium strength.
Recommended accessories for vacuum switches:
- Connection cable, PUR, 5 meter, M8-4pin, straight plug, 10.06.02.00031
- Connection cable, PUR, 5 meter, M8-4pin, 90° elbow plug, 10.06.02.00032
catalog_Teil2_EN.book Seite 418 Donnerstag, 14. November 2013 7:31 07
container www.schmalz.com/sem 419
conta
i
ner
Index
of Products
Contact Services Vacuum Grip-
ping Systems
Filters and
Connections
Switches and
Monitoring
Valve
Technology
Vacuum
Generators
Mounting
Elements
Special
Grippers
Vacuum
Suction Pads
Vacuum
Knowledge
Schmalz -
The Company
container
Multi-Stage Ejectors
Multi-Stage Ejectors SEM
Suction rate from 332 l/min to 2,370 l/min
container
container
container
container
container
Ordering Data Spare Parts Multi-Stage Ejectors SEM
Type* Silencer
SEM 25 -
SEM 25 SDA 10.02.01.00309
SEM 25 SDS 10.02.01.00309
SEM 50 -
SEM 50 SDA 10.02.01.00312
SEM 50 SDS 10.02.01.00312
SEM 100 -
SEM 100 SDA 10.02.01.00312
SEM 100 SDS 10.02.01.00312
SEM 150 -
SEM 150 SDA 10.02.01.00491
SEM 150 SDS 10.02.01.00491
SEM 300 SDA -
*The exhaust-air outlets of the basic version without silencer are open axially and to the side
Technical Data Multi-Stage Ejectors SEM
Type Degree of
evacuation [%]
Max. suction rate
[l/min]
Max. suction rate
[m³/h]
Air consumpt.dur-
ing evac. [l/min]*
Air consumpt. dur-
ing evac. [m³/h]*
Noise level free
[dB]
SEM 25 85 402 24.1 101 6.1 90
SEM 25 SDA 85 393 23.6 101 6.1 77
SEM 25 SDS 85 332 19.9 101 6.1 75
SEM 50 85 706 42.4 197 11.8 90
SEM 50 SDA 85 704 42.2 197 11.8 80
SEM 50 SDS 85 642 38.5 197 11.8 78
SEM 100 85 1071 64.3 376 22.6 90
SEM 100 SDA 85 976 58.6 376 22.6 81
SEM 100 SDS 85 909 54.5 376 22.6 80
SEM 150 85 1400 84.0 590 35.4 95
SEM 150 SDA 85 1290 77.4 590 35.4 81
SEM 150 SDS 85 1190 71.4 590 35.4 80
SEM 300 SDA 85 2370 142.2 935 56.1 82
*At optimal operating pressure
**For max. length 2 m
Type Noise level workp.
gripped [dB]
Operating pressure
[bar]
Recomm. int. hose
diameter compr. air
[mm]**
Recomm. int. hose
diameter vacuum
[mm]**
Weight [kg] Operating
temperature [°C]
SEM 25 72 5 4 20 1.0 0...50
SEM 25 SDA 64 5 4 20 1.1 0...50
SEM 25 SDS 62 5 4 20 1.1 0...50
SEM 50 75 5 6 25 1.2 0...50
SEM 50 SDA 66 5 6 25 1.4 0...50
SEM 50 SDS 64 5 6 25 1.3 0...50
SEM 100 74 5 6 32 1.5 0...50
SEM 100 SDA 60 5 6 32 1.7 0...50
SEM 100 SDS 65 5 6 32 1.6 0...50
SEM 150 79 5 9 32 1.7 0...50
SEM 150 SDA 71 5 9 32 1.8 0...50
SEM 150 SDS 71 5 9 32 1.8 0...50
SEM 300 SDA 62 5 19 60 5.7 0...50
*At optimal operating pressure
**For max. length 2 m
catalog_Teil2_EN.book Seite 419 Donnerstag, 14. November 2013 7:31 07
container
420 www.schmalz.com/sem
Multi-Stage Ejectors
Multi-Stage Ejectors SEM
Suction rate from 332 l/min to 2,370 l/min
container
Index
of Products
Contact Services Vacuum Grip-
ping Systems
Filters and
Connections
Switches and
Monitoring
Valve
Technology
Vacuum
Generators
Mounting
Elements
Special
Grippers
Vacuum
Suction Pads
Vacuum
Knowledge
Schmalz -
The Company
container
container
container
container
container

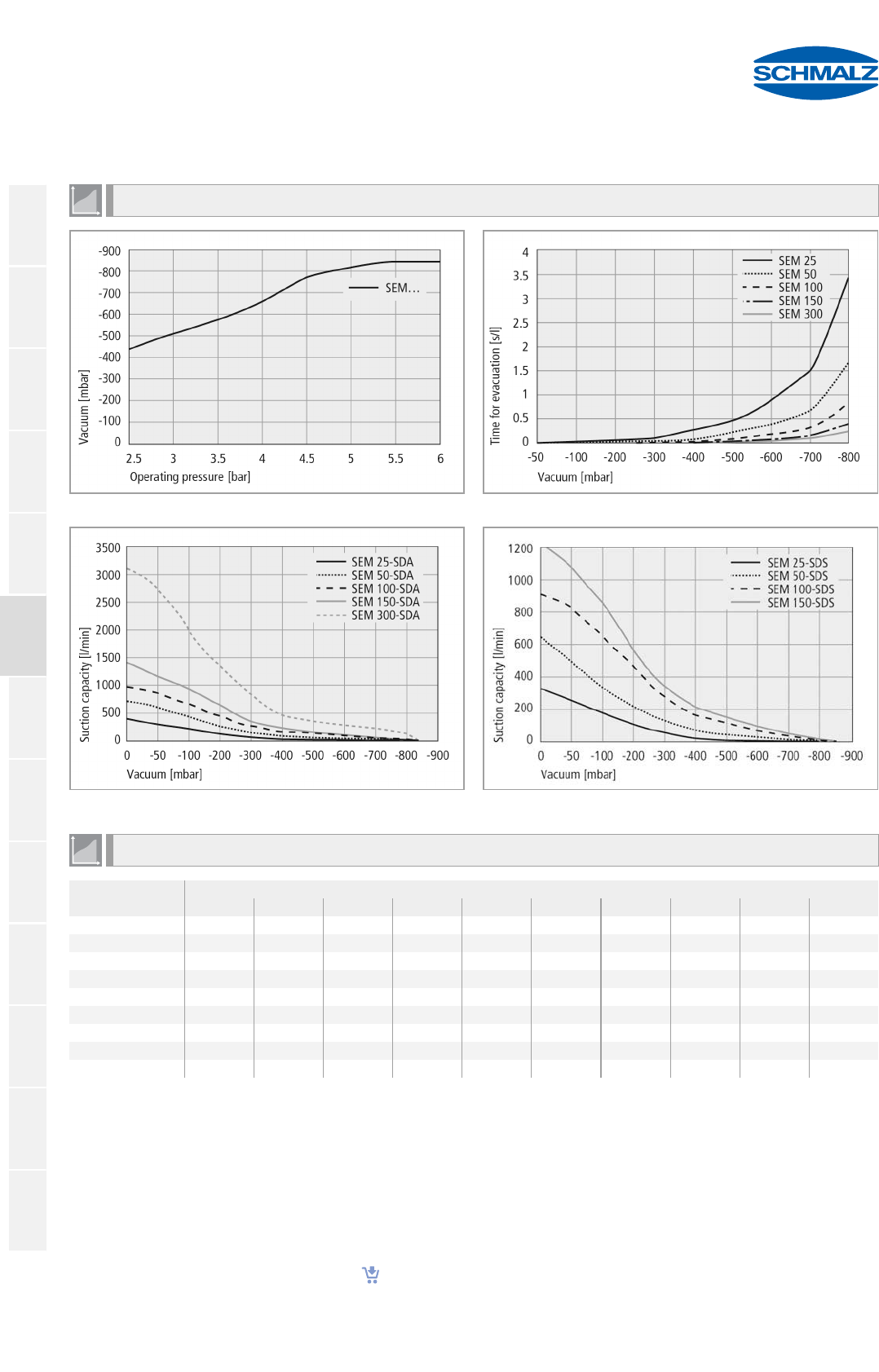

Performance Data Multi-Stage Ejectors SEM
Achievable vacuum at various operating pressures Evacuation times for various vacuum ranges (averaged for SDA/SDS)
Suction capacity at various degrees of evacuation Suction capacity at various degrees of evacuation
Suction Capacity in l/min at Various Degrees of Evacuation
Type Degree of evacuation in mbar
0-50 -100 -200 -300 -400 -500 -600 -700 -800
SEM 25-SDS 332 269 199 118 70 38 26 16 8 1
SEM 25-SDA 393 319 227 122 72 37 27 15 7 2
SEM 50-SDS 642 503 354 223 141 78 57 34 13 2
SEM 50-SDA 704 611 452 269 173 91 56 37 19 6
SEM 100-SDS 909 843 642 463 281 161 121 78 40 11
SEM 100-SDA 976 884 669 476 278 158 119 77 36 11
SEM 150-SDS 1233 1141 847 560 352 218 150 96 49 13
SEM 150-SDA 1433 1220 940 644 358 236 160 113 47 11
SEM 300-SDA 3110 2750 2065 1381 762 482 364 288 223 140
catalog_Teil2_EN.book Seite 420 Donnerstag, 14. November 2013 7:31 07
container www.schmalz.com/sem 421
conta
i
ner
Index
of Products
Contact Services Vacuum Grip-
ping Systems
Filters and
Connections
Switches and
Monitoring
Valve
Technology
Vacuum
Generators
Mounting
Elements
Special
Grippers
Vacuum
Suction Pads
Vacuum
Knowledge
Schmalz -
The Company
container
Multi-Stage Ejectors
Multi-Stage Ejectors SEM
Suction rate from 332 l/min to 2,370 l/min
container
container
container
container
container
Evacuation Time in s/l for Various Vacuum Ranges
Type* Degree of evacuation in mbar
-50 -100 -200 -300 -400 -500 -600 -700 -800
SEM 25 0.02 0.04 0.07 0.14 0.27 0.46 0.81 1.51 3.37
SEM 50 0.02 0.03 0.05 0.08 0.14 0.23 0.38 0.67 1.69
SEM 100 0.01 0.02 0.04 0.07 0.10 0.14 0.21 0.34 0.82
SEM 150 0.01 0.02 0.02 0.04 0.06 0.08 0.10 0.18 0.34
SEM 300 0.00 0.01 0.02 0.02 0.03 0.05 0.08 0.11 0.27
*Average SDA/SDS values

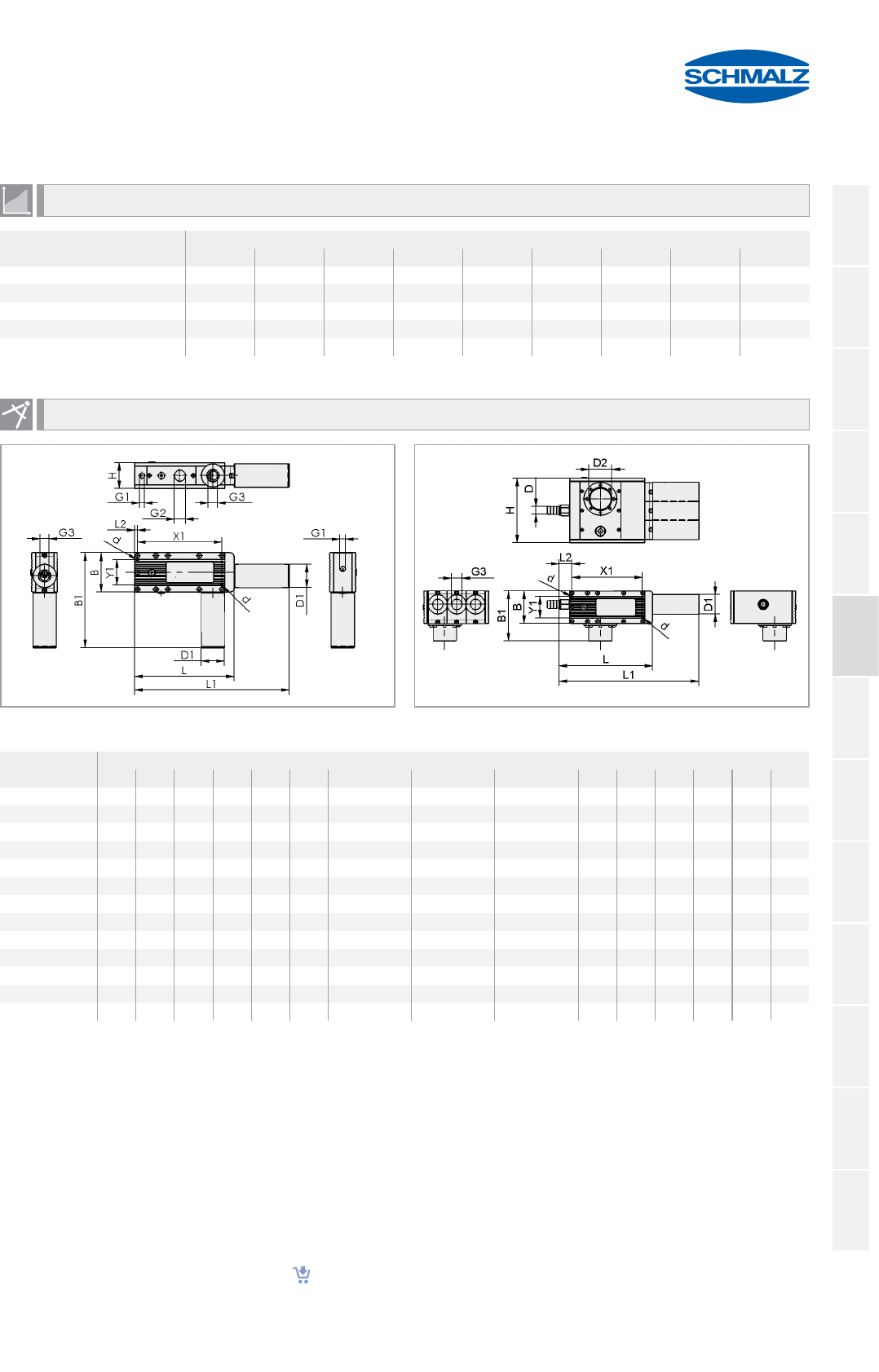

Design Data Multi-Stage Ejectors SEM
SEM 25 to 150 SDA/SDS SEM 300 SDA
Type Dimensions in mm
BB1 d D D1 D2 G1 G2 G3 H L L1 L2 X1 Y1
SEM 25 85 - 5.5 - - - G1/4"-F G1/2"-F G1/2"-F 48 195 - 6 183 55
SEM 25 SDA 85 -5.5 -40 -G1/4"-F G1/2"-F G1/2"-F 48 195 275 6183 55
SEM 25 SDS 85 165 5.5 - 40 - G1/4"-F G1/2"-F G1/2"-F 48 195 - 6 183 55
SEM 50 85 -5.5 --- G1/4"-F G3/4"-F G3/4"-F 58 195 - 6 183 55
SEM 50 SDA 85 - 5.5 - 50 - G1/4"-F G3/4"-F G3/4"-F 58 215 335 6 183 55
SEM 50 SDS 85 205 5.5 -50 -G1/4"-F G3/4"-F G3/4"-F 58 195 - 6 183 55
SEM 100 85 - 5.5 - - - G1/4"-F G1"-F G3/4"-F 68 195 - 6 183 55
SEM 100 SDA 85 -5.5 -50 -G1/4"-F G1"-F G3/4"-F 68 215 335 6183 55
SEM 100 SDS 85 205 5.5 - 50 - G1/4"-F G1"-F G3/4"-F 68 195 - 6 183 55
SEM 150 85 -5.5 --- G1/4"-F G1"-F M42x1.5-F 68 195 - 6 183 55
SEM 150 SDA 85 - 5.5 - 50 - G1/4"-F G1"-F M42x1.5-F 68 215 335 6 183 55
SEM 150 SDS 85 205 5.5 -50 -G1/4"-F G1"-F M42x1.5-F 68 195 - 6 183 55
SEM 300 SDA 85 130 5.5 19 50 60 G1/2"-F - G3/4"-F 168 243 363 34 183 55
catalog_Teil2_EN.book Seite 421 Donnerstag, 14. November 2013 7:31 07
