Manual Supplement

© 2010-2013 Fluke Corporation. All rights reserved. Printed in the U.S.A 

Manual Title: 1550C/1555 Users Supplement Issue: 5

Part Number: 3593019 Issue Date: 5/13

Print Date: April 2010 Page Count: 4

Revision/Date:

This supplement contains information

necessary to ensure the accuracy of

the above manual.

1550C/1555 Users Manual Supplement

7/10 1

Change #1, 55569

On page 5, change:

From:

Do not use in distribution systems with voltages

higher than 1100 V.

To:

Do not use in distribution systems with voltages

higher than 1100 V.

Under Electrical Specifications replace the Table with the

following:

Insulation

Test Voltage (DC) Insulation Resistance Range Accuracy (reading)

250 V < 250 k

250 k to 5 G

5 G to 50 G

> 50 G

unspecified

5 %

20 %

unspecified

500 V < 500 k

500 k to 10 G

10 G to 100 G

> 100 G

unspecified

5 %

20 %

unspecified

Manual Supplement 1550C/1555 Users

2 7/10

1000 V < 1 M

1 M to 20 G

20 G to 200 G

> 200 G

Unspecified

5 %

20 %

unspecified

2500 V < 2.5 M

2.5 M to 50 G

50 G to 500 G

> 500 G

unspecified

5 %

20 %

unspecified

5000 V < 5 M

5 M to 100 G

100 G to 1 T

> 1 T

unspecified

5 %

20 %

unspecified

10,000 V < 10 M

10 M to 200 G

200 G to 2 T

> 2 T

unspecified

5 %

20 %

unspecified

Bar graph range: 0 to 2 T



Insulation test voltage accuracy: -0 %, +10 % at 1 mA load current

Induced ac mains current rejection: 2 mA maximum

Charging rate for capacitive load: 5 seconds per F

Discharge rate for capacitive load: 1.5 s/µF

Manual Supplement 1550C/1555 Users

8/12 3

Change #2

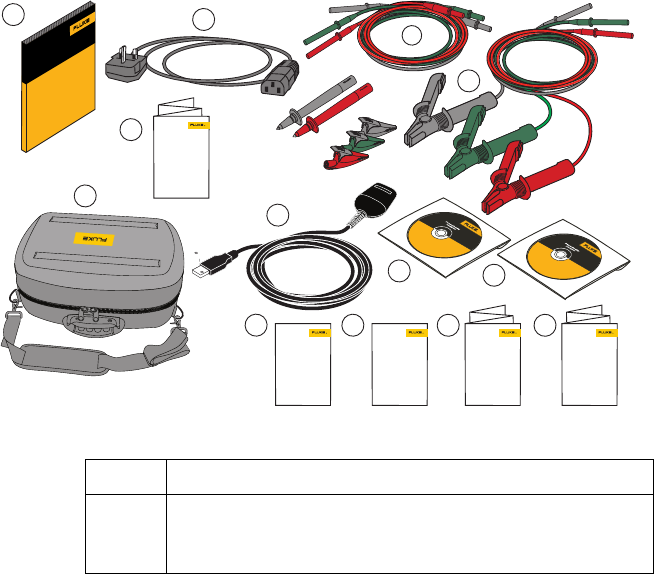

On page 6, replace Figure 1, with the following:

5

1211

10

9

6

4

2

1

78

3

13

Replace Item 4 and add Item 13:

 Soft Carring Case (Kit includes Hard Case)

 Heavy Duty Alligator Clips (Red, Black, Green)

(1555 and Kits only). Available for 1550C as optional

accessory: TLK1550-RTLC.

Change #3

On page 29, under Table 3,

Change: Rugged Alligator Clamps 3611951

To: Rugged Alligator Clamp Leads 4112351

1550C/1555 Users Manual Supplement

5/13 4

Change #4, 65440, 65598

On page 1, delete the last paragraph on the page.

On page 5, add the following to the Symbols table:

 Conforms to relevant South Korean EMC Standards.

CAT II Measurement Category II is applicable to test and measuring

circuits connected directly to utilization points (socket outlets

and similar points) of the low-voltage MAINS installation.

CAT III Measurement Category III is applicable to test and measuring

circuits connected to the distribution part of the building’s low-

voltage MAINS installation.

CAT IV Measurement Category IV is applicable to test and measuring

circuits connected at the source of the building’s low-voltage

MAINS installation.

On pages 29 & 30, under General Specifications, remove the

Enclosure Setting, Electromagnetic Compatibility,

Certifications, Safety Compliance and Pollution Degree 2

and add:

IP Rating .................................................... IEC 60529: IP40

Safety ......................................................... IEC 61010-1: 600 V CAT IV / 1000 V

CAT III, Pollution Degree 2

Electromagnetic Environment ................. IEC 61326-1: Portable

Electromagnetic Compatibility ................ Applies to use in Korea only. Class A

Equipment (Industrial Broadcasting &

Communication Equipment) [1]

[1] This product meets requirements for industrial (Class A) electromagnetic wave

equipment and the seller or user should take notice of it. This equipment is

intended for use in business environments and is not to be used in homes.
