724
Temperature Calibrator
Users Manual
February 2000 Rev.1, 8/03
© 2000-2003 Fluke Corporation. All rights reserved.
All product names are trademarks of their respective companies.
LIMITED WARRANTY & LIMITATION OF LIABILITY
Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is
three years and begins on the date of shipment. Parts, product repairs and services are warranted for 90 days. This warranty extends only
to the original buyer or end-user customer of a Fluke authorized reseller, and does not apply to fuses, disposable batteries or to any product
which, in Fluke’s opinion, has been misused, altered, neglected, contaminated, or damaged by accident or abnormal conditions of operation
or handling. Fluke warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has
been properly recorded on non-defective media. Fluke does not warrant that software will be error free or operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to
extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke
authorized sales outlet or Buyer has paid the applicable international price. Fluke reserves the right to invoice Buyer for importation costs of
repair/replacement parts when product purchased in one country is submitted for repair in another country.
Fluke’s warranty obligation is limited, at Fluke’s option, to refund of the purchase price, free of charge repair, or replacement of a defective
product which is returned to a Fluke authorized service center within the warranty period.
To obtain warranty service, contact your nearest Fluke authorized service center to obtain return authorization information, then send the
product to that service center, with a description of the difficulty, postage and insurance prepaid (FOB Destination). Fluke assumes no risk
for damage in transit. Following warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke
determines that failure was caused by neglect, misuse, contamination, alteration, accident or abnormal condition of operation or handling,
including overvoltage failures caused by use outside the product’s specified rating, or normal wear and tear of mechanical components,
Fluke will provide an estimate of repair costs and obtain authorization before commencing the work. Following repair, the product will be
returned to the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges (FOB Shipping
Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR
LOSSES, INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or
consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of this Warranty is
held invalid or unenforceable by a court or other decision-maker of competent jurisdiction, such holding will not affect the validity or
enforceability of any other provision.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
11/99
i
Table of Contents
Title Page
Introduction....................................................................................................................1
Contacting Fluke............................................................................................................ 1
Standard Equipment...................................................................................................... 3
Safety Information.......................................................................................................... 3
Getting Acquainted with the Calibrator .......................................................................... 8
Input and Output Terminals ...................................................................................... 8
Keys.......................................................................................................................... 10
Display ...................................................................................................................... 13
Getting Started .............................................................................................................. 14
Shut Down Mode ........................................................................................................... 14
Contrast Adjustment ...................................................................................................... 16
Using Measure Mode..................................................................................................... 17
Measuring Electrical Parameters (Upper Display) .................................................... 17
Current Measurement with Loop Power.................................................................... 17
Measuring Electrical Parameters (Lower Display) .................................................... 19
Measuring Temperature............................................................................................ 20
Using Thermocouples .......................................................................................... 20
724
Users Manual
ii
Using Resistance-Temperature Detectors (RTDs) ............................................... 23
Using Source Mode........................................................................................................ 26
Sourcing Electrical Parameters ................................................................................. 26
Simulating Thermocouples........................................................................................ 27
Simulating RTDs........................................................................................................ 27
Setting 0 % and 100 % Output Parameters ................................................................... 30
Stepping and Ramping the Output................................................................................. 30
Manually Stepping the Output................................................................................... 30
Auto Ramping the Output.......................................................................................... 31
Storing and Recalling Setups......................................................................................... 31
Calibrating a Transmitter................................................................................................ 32
Testing an Output Device............................................................................................... 34
Replacing the Batteries.................................................................................................. 35
Replacing the Fuse ........................................................................................................ 35
Maintenance................................................................................................................... 36
Cleaning the Calibrator.............................................................................................. 36
Service Center Calibration or Repair......................................................................... 36
Replacement Parts.................................................................................................... 37
Specifications................................................................................................................. 39
DC Voltage Measurement ......................................................................................... 39
DC Voltage Source.................................................................................................... 39
DC mA Measurement................................................................................................ 39
Ohms Measurement.................................................................................................. 40
Ohms Source............................................................................................................. 40
Millivolt Measurement and Source*........................................................................... 41
Temperature, Thermocouples................................................................................... 41
Temperature, RTD Ranges, and Accuracies (ITS-90)............................................... 42
Loop Power Supply ................................................................................................... 43
Temperature Calibrator
Contents (continued)
iii
General Specifications.............................................................................................. 43
Index ....................................................................................................................................... 45
724
Users Manual
iv
v
List of Tables
Table Title Page
1. Summary of Source and Measure Functions........................................................................ 2
2. International Symbols ........................................................................................................... 7
3. Input/Output Terminals and Connectors............................................................................... 9
4. Key Functions....................................................................................................................... 11
5. Thermocouple Types Accepted ............................................................................................ 21
6. RTD Types Accepted............................................................................................................24
7. Replacement Parts ............................................................................................................... 37
724
Users Manual
vi
vii
List of Figures
Figure Title Page
1. Standard Equipment............................................................................................................. 6

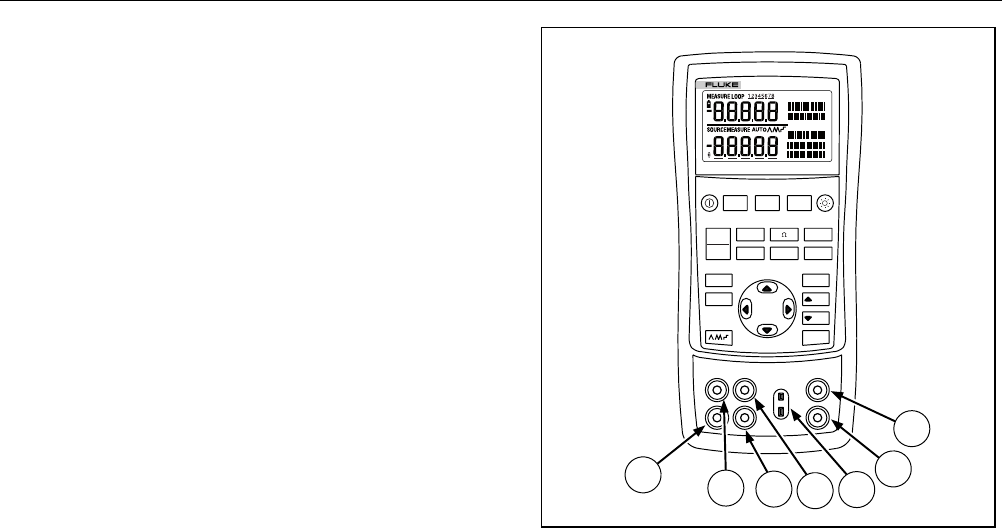

2. Input/Output Terminals and Connectors............................................................................... 8

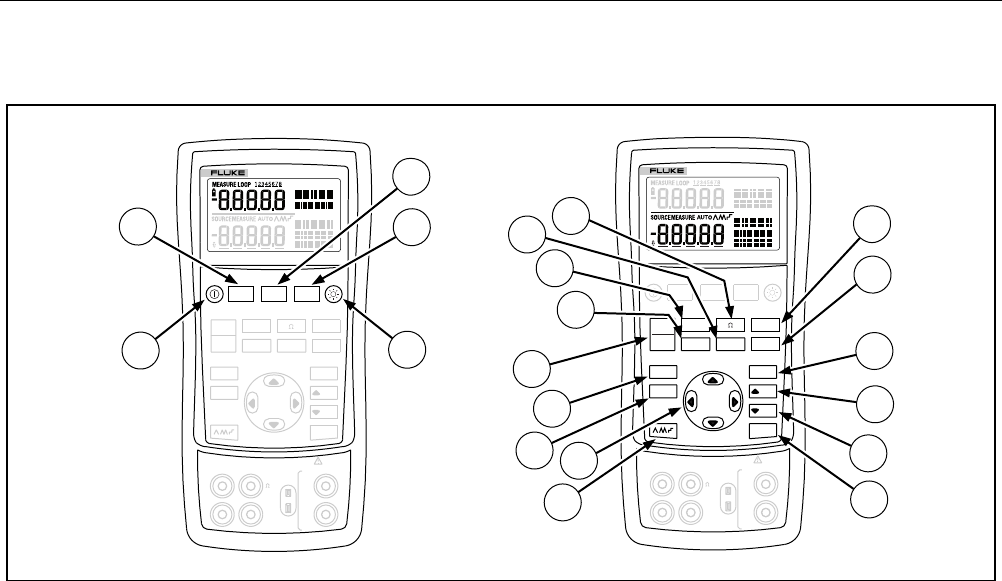

3. Keys...................................................................................................................................... 10

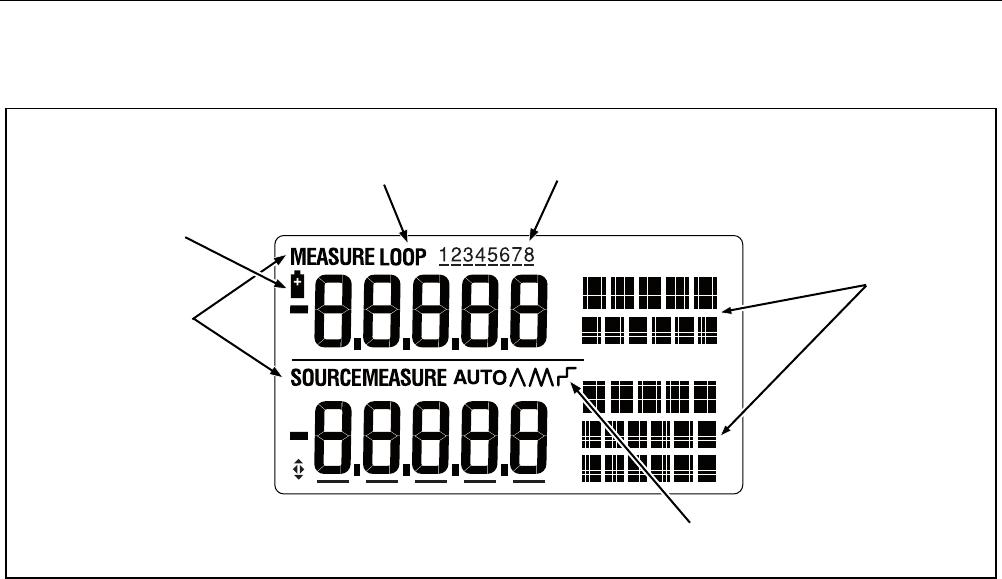

4. Elements of a Typical Display............................................................................................... 13

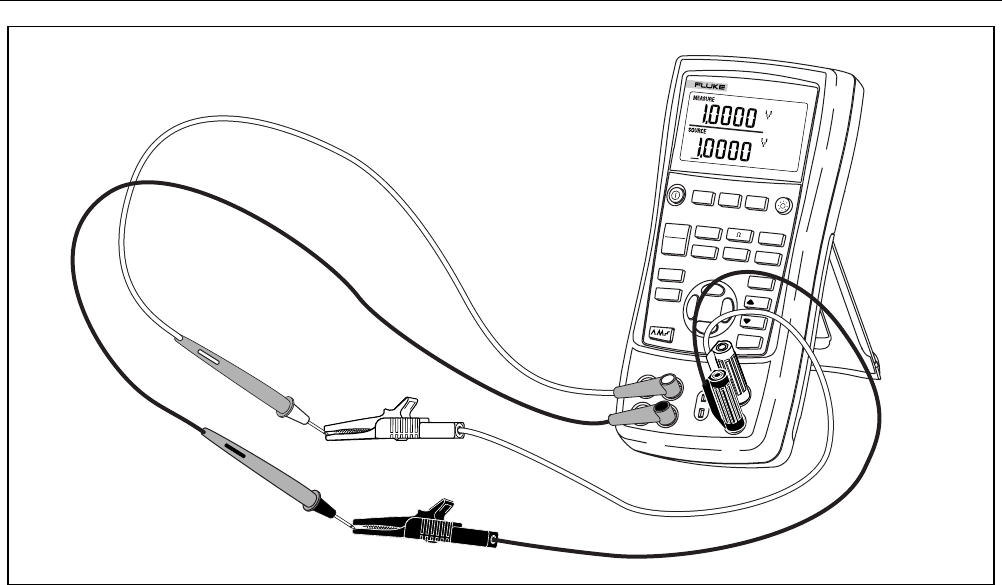

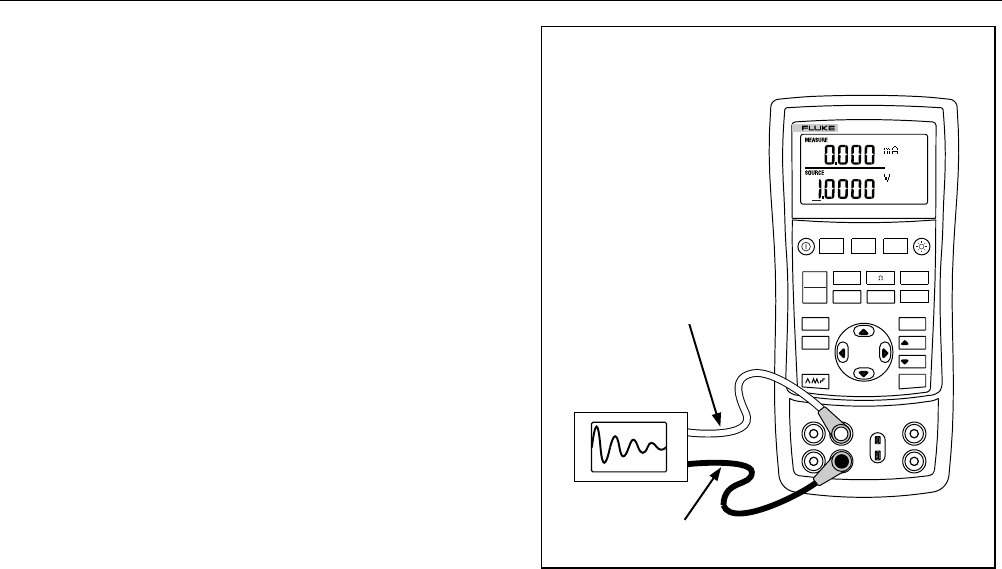

5. Voltage-to-Voltage Test........................................................................................................ 15

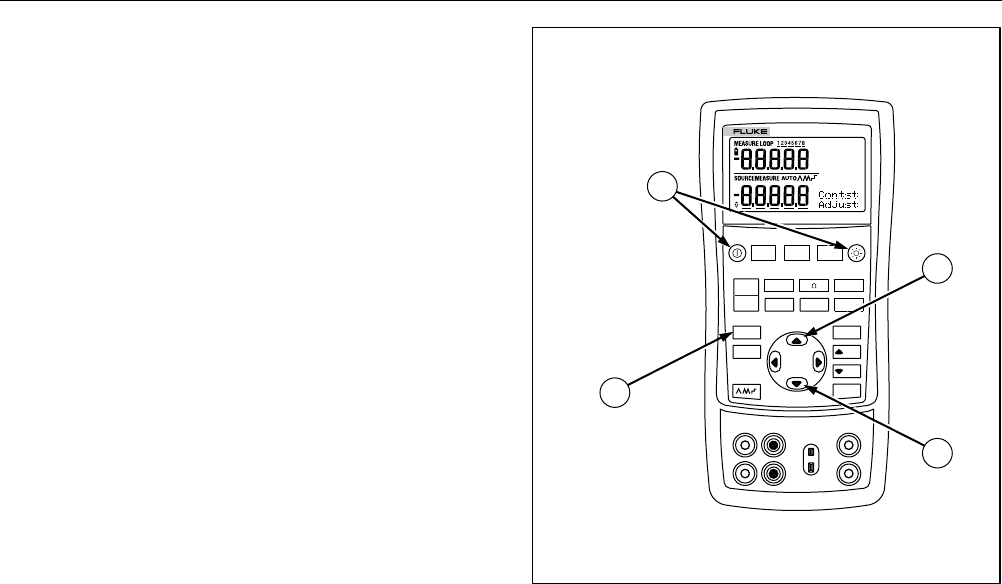

6. Adjusting the Contrast .......................................................................................................... 16

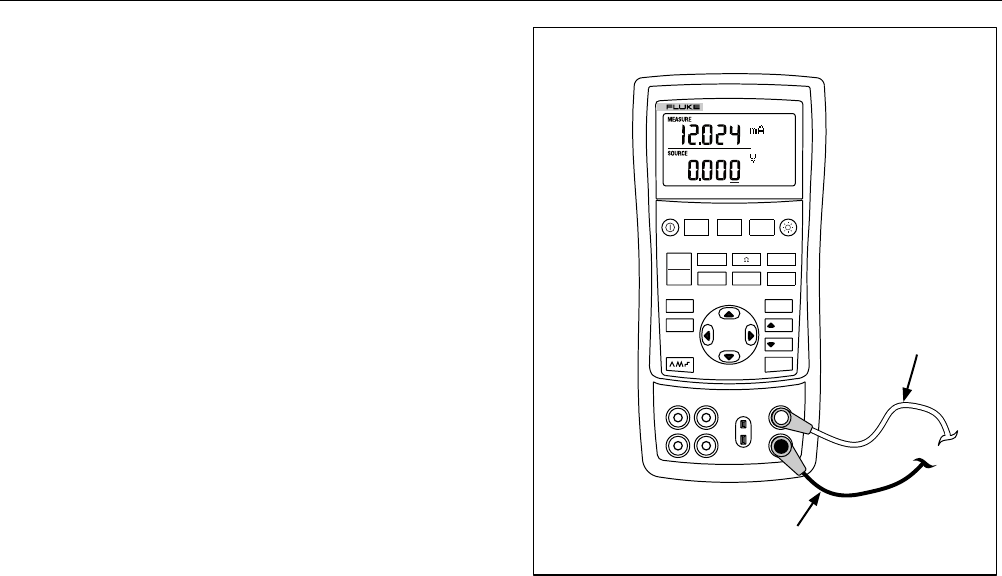

7. Measuring Voltage and Current Output................................................................................ 17
8. Connections for Supplying Loop Power................................................................................ 18

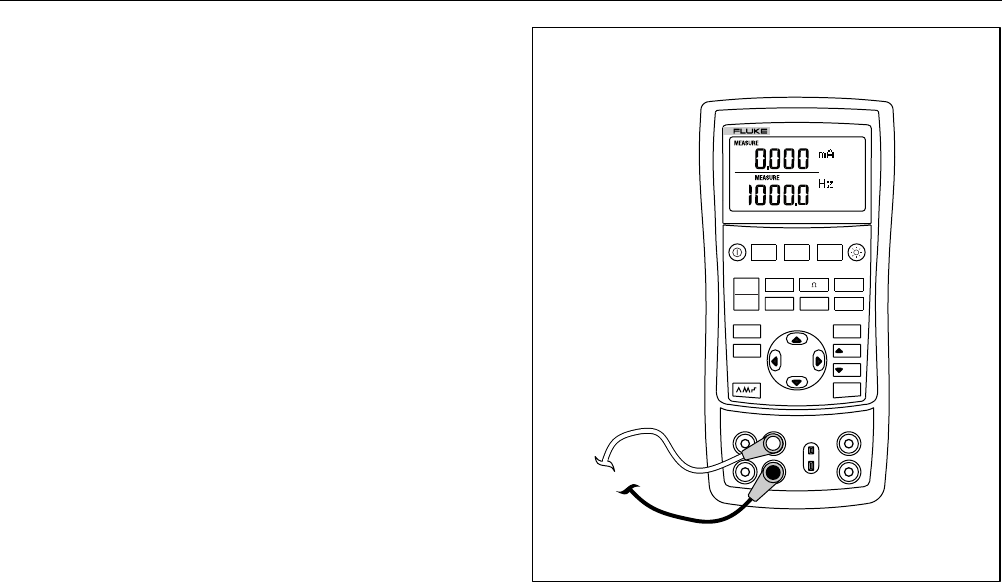

9. Measuring Electrical Parameters.......................................................................................... 19

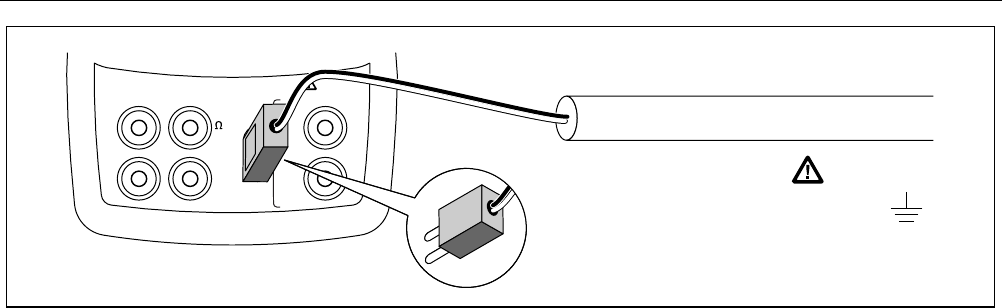

10. Measuring Temperature with a Thermocouple ..................................................................... 22

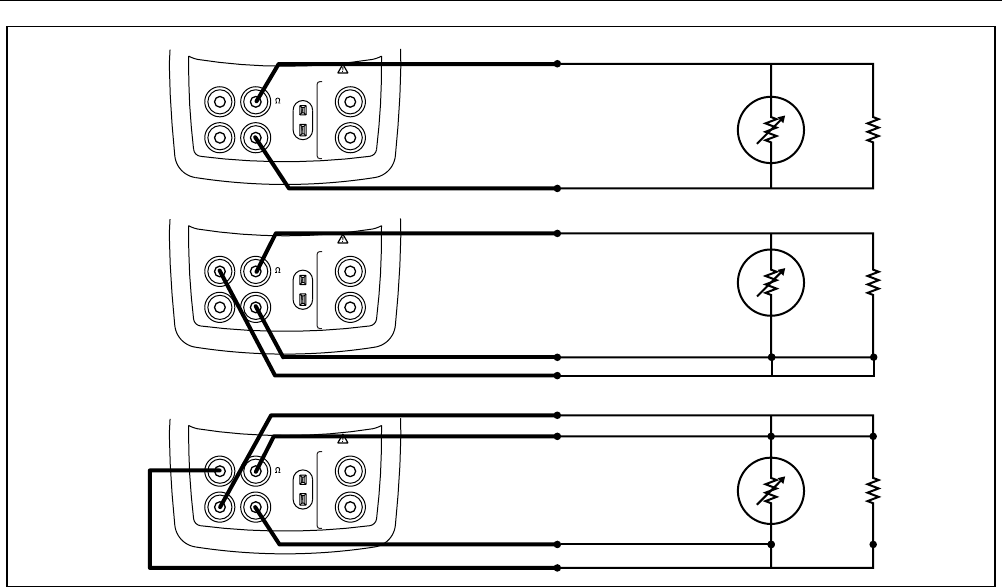

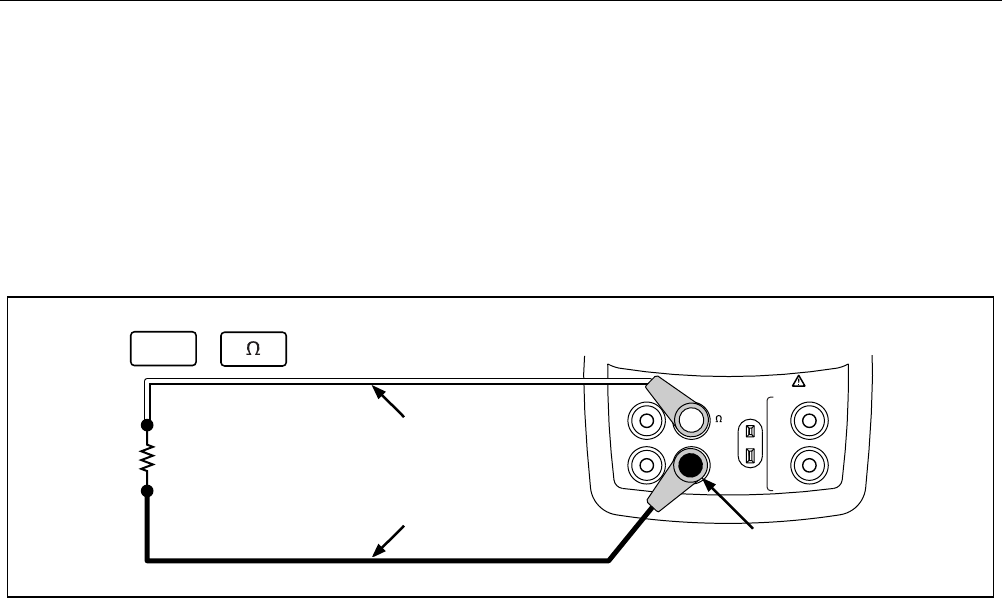

11. Measuring Temperature with an RTD, Measuring 2-, 3-, and 4-Wire Resistance ................ 25
12. Electrical Sourcing Connections ........................................................................................... 26
13. Connections for Simulating a Thermocouple........................................................................ 28
14. Connection for Simulating a 3-Wire RTD.............................................................................. 29

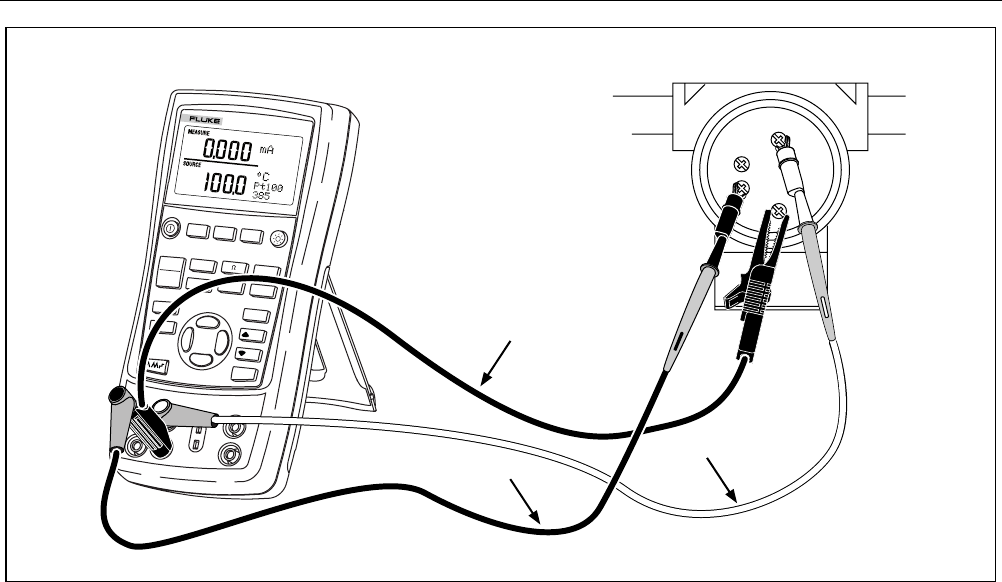

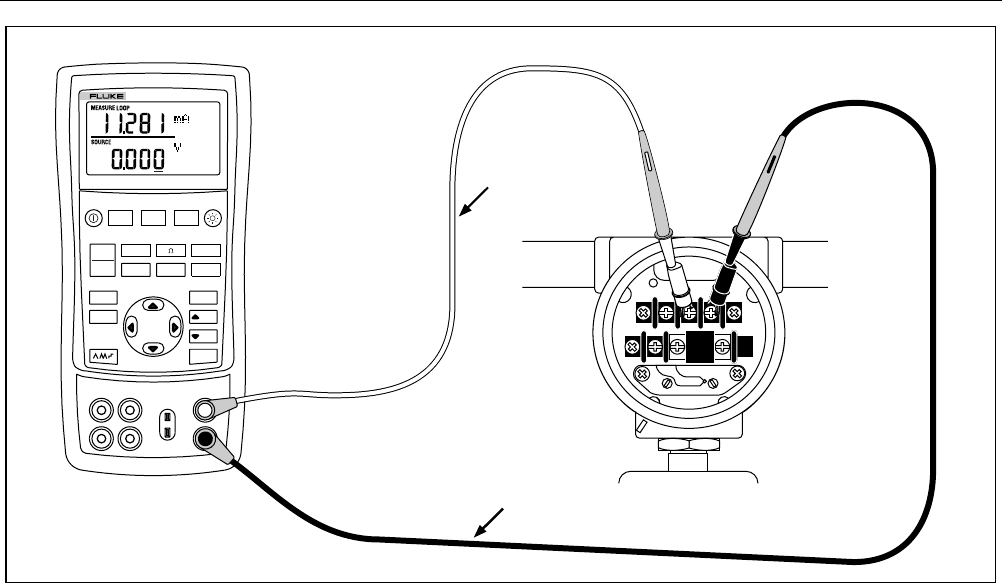

15. Calibrating a Thermocouple Transmitter............................................................................... 33
16. Calibrating a Chart Recorder................................................................................................ 34

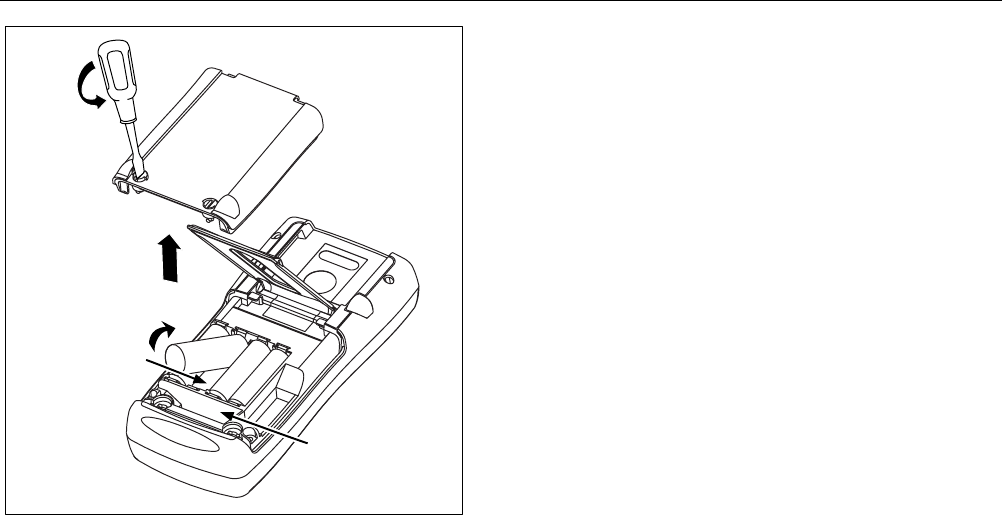

17. Replacing the Batteries......................................................................................................... 36

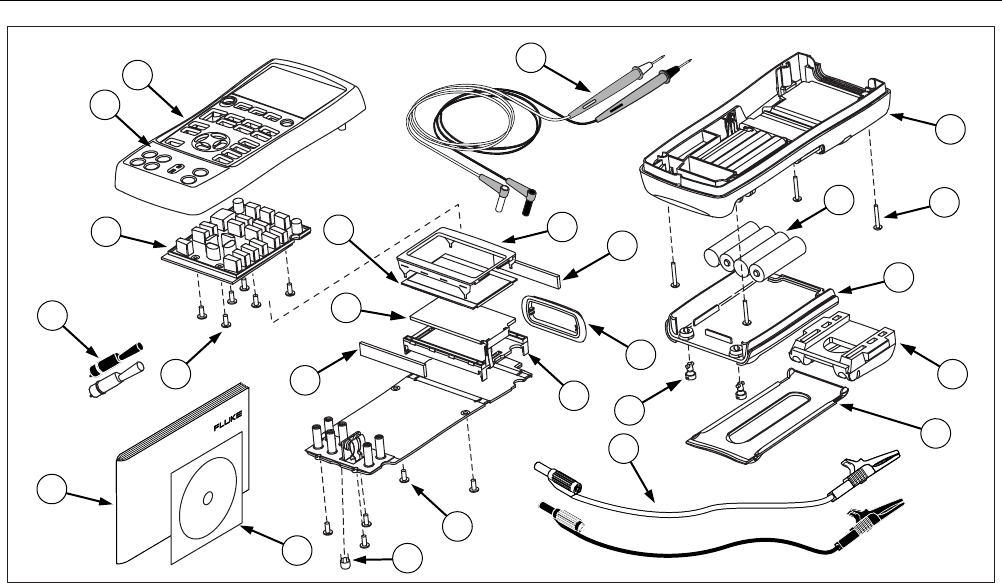

18. Replacement Parts ............................................................................................................... 38
724
Users Manual
viii
1
Temperature Calibrator
Introduction
Your Fluke 724 Temperature Calibrator is a handheld,
battery-operated instrument that measures and sources a
variety of thermocouples and RTDs. See Table 1.
In addition to the functions in Table 1, the calibrator has
the following features and functions:
• A split-screen display. The upper display allows you
to measure volts and current. The lower display
allows you to measure and source volts, resistance
temperature detectors, thermocouples, and ohms.
• A thermocouple (TC) input/output terminal and
internal isothermal block with automatic reference-
junction temperature compensation.
• Storage and recall of 8 setups.
• Manual stepping and automatic stepping and
ramping.
Contacting Fluke
To order accessories, receive operating assistance, or
get the location of the nearest Fluke distributor or Service
Center, call:
USA: 1-888-99-FLUKE (1-888-993-5853)
Canada: 1-800-363-5853
Europe: +31 402-675-200
Japan: +81-3-3434-0181
Singapore: +65-738-5655
Anywhere in the world: +1-425-356-5500
Or, visit Fluke’s Web site at www.fluke.com.
724
Users Manual
2
Table 1. Summary of Source and Measure Functions
Function Measure Source
dc V 0 V to30 V 0 V to10 V
Resistance 0 Ω to 3200 Ω15 Ω to 3200 Ω
Thermocouple Types E, J, K, T, B, R, S, L, U, N, mV
RTD
(Resistance-
Temperature
Detector)
Pt100 Ω (385)
Pt100 Ω (3926)
Pt100 Ω (3916)
Pt200 Ω (385)
Pt500 Ω (385)
Pt1000 Ω (385)
Ni120
Other functions Loop supply, Step, Ramp, Memory, Dual display
Temperature Calibrator
Standard Equipment
3
Standard Equipment

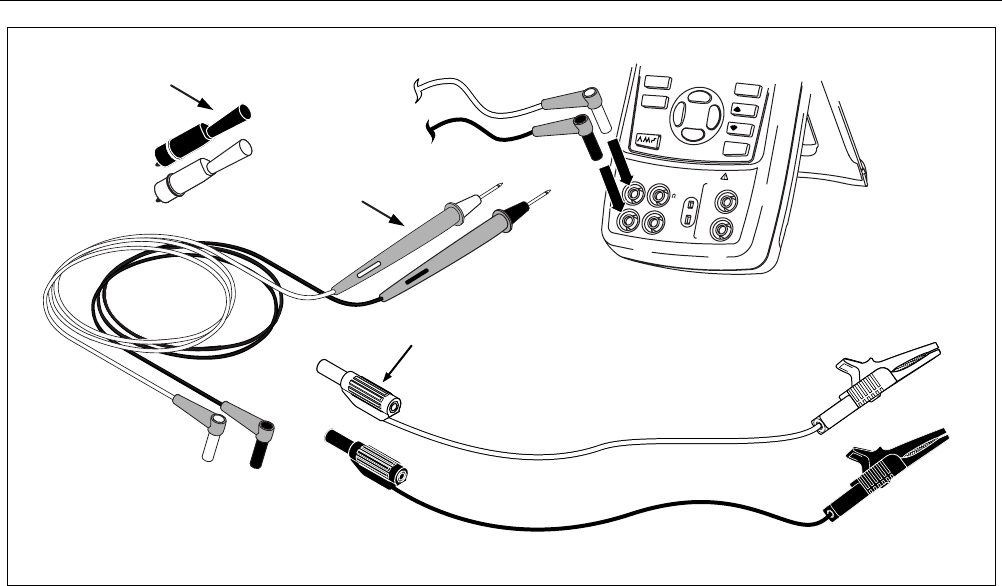

The items listed below and shown in Figure 1 are included
with your calibrator. If the calibrator is damaged or
something is missing, contact the place of purchase
immediately. To order replacement parts or spares, see
the user-replaceable parts list in Table 7.
• TL75 test leads (one set)
• Alligator clips (one set)
• Stackable alligator clip test leads (one set)
• 724 Product Overview Manual
• 724 CD-ROM (contains Users Manual)
• Spare fuse
Safety Information
The calibrator is designed in accordance with IEC1010-1,
ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No. 1010.1-
92. Use the calibrator only as specified in this manual,
otherwise the protection provided by the calibrator may be
impaired.
A Warning identifies conditions and actions that pose
hazard(s) to the user; a Caution identifies conditions and
actions that may damage the calibrator or the equipment
under test.

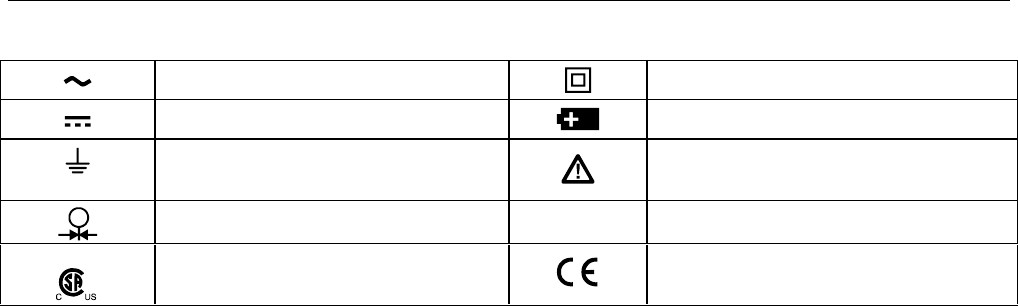

International symbols used on the calibrator and in this
manual are explained in Table 2.
724
Users Manual
4
W Warning
To avoid possible electric shock or personal injury:
• Do not apply more than the rated voltage, as marked on the calibrator, between the terminals, or
between any terminal and earth ground. Maximum for all terminals is 30 V, 24 mA.
• Before each use, verify the calibrator’s operation by measuring a known voltage.
• Follow all equipment safety procedures.
• Never touch the probe to a voltage source when the test leads are plugged into the current terminals.
• Do not use the calibrator if it is damaged. Before you use the calibrator, inspect the case. Look for
cracks or missing plastic. Pay particular attention to the insulation surrounding the connectors.
• Select the proper function and range for your measurement.
• Make sure the battery door is closed and latched before you operate the calibrator.
• Remove test leads from the calibrator before you open the battery door.
• Inspect the test leads for damaged insulation or exposed metal. Check test leads continuity. Replace
damaged test leads before you use the calibrator.
• When using the probes, keep your fingers away from the probe contacts. Keep your fingers behind the
finger guards on the probes.
• Connect the common test lead before you connect the live test lead. When you disconnect test leads,
disconnect the live test lead first.
• Do not use the calibrator if it operates abnormally. Protection may be impaired. When in doubt, have the
calibrator serviced.
• Do not operate the calibrator around explosive gas, vapor, or dust.
Temperature Calibrator
Safety Information
5
W Warning
• Use only 4 AA batteries, properly installed in the calibrator case, to power the calibrator.
• Disconnect test leads before changing to another measure or source function.
• When servicing the calibrator, use only specified replacement parts.
• To avoid false readings, which could lead to possible electric shock or personal injury, replace the
batteries as soon as the battery indicator (M) appears.
Caution
To avoid possible damage to calibrator or to equipment under test:
• Disconnect the power and discharge all high-voltage capacitors before testing resistance or continuity.
• Use the proper jacks, function, and range for your measurement or sourcing application.
724
Users Manual
6
100%
25%
25%
RECALL
STORE
SETUP
0%
Stackable
Test Leads
TL75
Test Lead Set
Alligator Clips
V
mA
MEASURE
SOURCE / MEASURE
30V MAX ALL TERMINALS
4W
3W
V
RTD
mA-
TC
COM COM
LOOP
zi01f.eps
Figure 1. Standard Equipment
Temperature Calibrator
Safety Information
7
Table 2. International Symbols
AC - Alternating current Double insulated
DC - Direct current Battery
Earth ground Refer to the manual for information about
this feature.
Pressure OON/OFF
Conforms to Canadian Standards
Association directives Conforms to European Union directives
724
Users Manual
8
Getting Acquainted with the Calibrator
Input and Output Terminals
Figure 2 shows the calibrator input and output terminals.
Table 3 explains their use.
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
765432
1
V
LOOP
mA
V
˚
F
˚
C
zi02f.eps
Figure 2. Input/Output Terminals and Connectors
Temperature Calibrator
Getting Acquainted with the Calibrator
9
Table 3. Input/Output Terminals and Connectors
No Name Description
A, BMEASURE V, mA
terminals Input terminals for measuring voltage, current, and supplying loop power.
CTC input/output Terminal for measuring or simulating thermocouples. This terminal accepts a miniature
polarized thermocouple plug with flat, in-line blades spaced 7.9 mm (0.312 in) center to
center.
D, ESOURCE/ MEASURE
V, RTD, Ω terminals Terminals for sourcing or measuring voltage, resistance, and RTDs.
F, GMEASURE 3W, 4W Terminals for performing 3W and 4W RTD measurements.
724
Users Manual
10
Keys
Figure 3 shows the calibrator keys and Table 4 explains
their use.
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
18
9
10
2
3
46
7
5
12 11
13
14
15
16
17
18
19 20
V
mA
MEASURE
SOURCE / MEASURE
30V MAX ALL TERMINALS
4W
3W V
RTD
mA+
mA-
TC
COM COM
LOOP
V
mA
MEASURE
SOURCE / MEASURE
30V MAX ALL TERMINALS
4W
3W V
RTD
mA+
mA-
TC
COM COM
LOOP
VLOOP
mA
V
˚
F
˚
C
VLOOP
mA
V
˚
F
˚
C
zi03f.eps
Figure 3. Keys
Temperature Calibrator
Getting Acquainted with the Calibrator
11
Table 4. Key Functions
No Name Description
AOTurns the power on or off.
BVSelects voltage measurement function in the upper display.
CASelects the mA measurement function in the upper display.
DKActivates a 24-volt loop supply while measuring mA.
ECTurns backlight on or off. Turns contrast adjust mode on when powering up.
FFDisplays temperature in degrees Celsius when in TC or RTD functions.
GDDisplays temperature in degrees Fahrenheit when in TC or RTD functions.
HGRecalls from memory a source value corresponding to 100 % of span and sets it as the source value.
Press and hold to store any source value as the 100 % value.
IHIncrements output by 25 % of span.
JIDecrements output by 25 % of span.
KJRecalls from memory a source value corresponding to 0 % of span and sets it as the source value.
Press and hold to store the source value as the 0 % value.
Identifies Firmware version. Press and hold J when powering up.
724
Users Manual
12
Table 4. Key Functions (cont.)
No Name Description
LLCycles through :
Slow repeating 0 % - 100 % - 0 % ramp
Fast repeating 0 % - 100 % - 0 % ramp
Repeating 0 % - 100 % - 0 % ramp in 25 % steps
AM
AM
OY
OZ
Disables Shut Down Mode
Enables Shut Down Mode
MXW
Y Z
Increases or decreases the source level.
Cycles through the 2-, 3-, and 4-wire selections.
Moves through the eight memory locations of calibrator setups.
In Contrast Adjustment mode; up-darkens contrast, down-lightens contrast.
NQRetrieves a previous calibrator setup from one of eight memory locations.
OSSaves the calibrator setup to one of eight memory locations. Saves Contrast Adjutment setup.
PMCycles the calibrator through MEASURE and SOURCE modes in the lower display.
QTSelects TC (thermocouple) measurement and sourcing function in the lower display. Repeated pushes cycle through
the thermocouple types.
RVToggles between voltage, sourcing, and measuring functions in the lower display.
SRSelects RTD (resistance temperature detector) measurement and sourcing function in lower display. Repeated
pushes cycle through the RTD types.
TUSelects the ohms measurement and sourcing function.
Temperature Calibrator
Getting Acquainted with the Calibrator
13
Display
Figure 4 shows the elements of a typical display.
Low Battery
Symbol
Loop
Annunciator
Memory Locations
for Calibrator Setups
Units
Display
Auto
Ramp
Mode
Indicator
sh07f.eps
Figure 4. Elements of a Typical Display
724
Users Manual
14
Getting Started
This section acquaints you with some basic operations of
the calibrator.
Proceed as follows to perform a voltage-to-voltage test:
1. Connect the calibrator’s voltage output to its voltage
input as shown in Figure 5.
2. Press O to turn on the calibrator. Press l to
select dc voltage (upper display).
3. If necessary, press M for SOURCE mode (lower
display). The calibrator is still measuring dc voltage,
and you can see the active measurements in the
upper display.
4. Press l to select dc voltage sourcing.
5. Press
Y and Z to select a digit to change. Press X
to select 1 V for the output value. Press and hold
J to enter 1 V as the 0 % value.
6. Press
X to increase the output to 5 V. Press and
hold G to enter 5 V as the 100 % value.
7. Press H and I to step between 0 and 100 %
in 25 % step increments.
Shut Down Mode
The calibrator comes with the Shut Down mode
enabled for a time duration set to 30 minutes
(displayed for about 1 second when the calibrator is
initially turned on). When the Shut Down mode is
enabled, the calibrator will automatically shut down
after the time duration has elapsed from the time the
last key was pressed. To disable the Shut Down mode,
press O and Y simultaneously. To enable the mode,
press O and Z simultaneously. To adjust the time
duration, press O and Z simultaneously, then press X
and/or W to adjust the time between 1 and 30
minutes.
Temperature Calibrator
Shut Down Mode
15
V
V
TC RTD
˚
F
˚
C
100%
25%
25%
RECALL
LOOP
mA
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
zi04f.eps
Figure 5. Voltage-to-Voltage Test
724
Users Manual
16
Contrast Adjustment
Note
Available with V2.1 Firmware or greater. To
identify firmware version, press and hold J
when powering up. The firmware version will be
shown in the upper units display for about 1
second after initialization.
To adjust the contrast, proceed as follows:
1. Press C and O until Contst Adjust is displayed as
shown in Figure 6.
2. Press and hold X to darken contrast.
3. Press and hold W to lighten contrast.
4. Press S to save the contrast level.
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
V
LOOP
mA
V
˚
F
˚
C
1
4
2
3
zi15f.eps
Figure 6. Adjusting the Contrast
Temperature Calibrator
Using Measure Mode
17
Using Measure Mode
Measuring Electrical Parameters (Upper Display)
To measure the current or voltage output of a transmitter,
use the upper display and proceed as follows:
1. Press A to select current. LOOP should not be on.
2. Connect the leads as shown in Figure 7.
Current Measurement with Loop Power
The loop power function activates a 24 V supply in series
with the current measuring circuit, allowing you to test a
transmitter when it is disconnected from plant wiring. To
measure current with loop power, proceed as follows:
1. Connect the calibrator to the transmitter current loop
terminals as shown in Figure 8.
2. Press K while the calibrator is in current
measurement mode. LOOP appears and an internal
24 V loop supply turns on.
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
Black
Red
V
LOOP
mA
V
˚
F
˚
C
zi05f.eps
Figure 7. Measuring Voltage and Current Output
724
Users Manual
18
Red
TEST DC PWR
+–+–
–+
Black
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
V
LOOP
mA
V
˚
F
˚
C
zi06f.eps

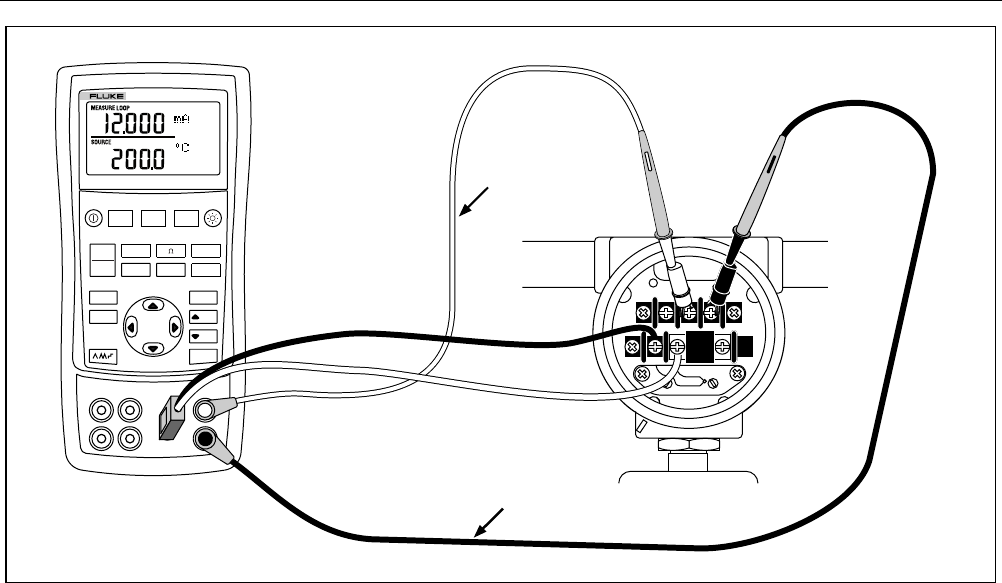

Figure 8. Connections for Supplying Loop Power
Temperature Calibrator
Using Measure Mode
19
Measuring Electrical Parameters (Lower Display)
To measure the electrical parameters using the lower
display, proceed as follows:
1. Connect the calibrator as shown in Figure 9.
2. If necessary, press M for MEASURE mode (lower
display)
3. Press
l for dc voltage or current, or U for
resistance.
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
V
LOOP
mA
V
˚
F
˚
C
zi07f.eps
Figure 9. Measuring Electrical Parameters
724
Users Manual
20
Measuring Temperature
Using Thermocouples
The calibrator supports ten standard thermocouples,
including types E, N, J, K, T, B, R, S, L, or U. Table 5
summarizes the ranges and characteristics of the
supported thermocouples.

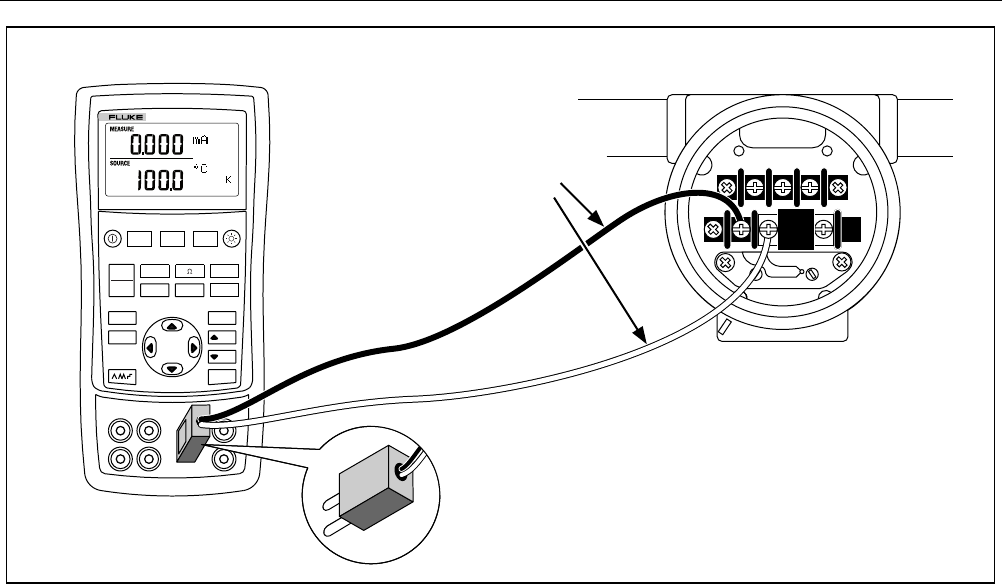

To measure temperature using a thermocouple, proceed
as follows:
1. Attach the thermocouple leads to the appropriate TC
miniplug, then to the TC input/output as shown in
Figure 10.
Note
One pin is wider than the other. Do not try to
force a miniplug in the wrong polarization.
If the calibrator and the thermocouple plug are at
different temperatures, wait one minute or more
for the connector temperature to stabilize after
you plug the miniplug into the TC input/output.
2. If necessary, press M for MEASURE mode.
3. Press T for the TC display. If desired, continue
pressing this key to select the desired thermocouple
type.
If necessary, you can select °C temperature units by
pressing F, or °F temperature units by pressing
D.
Temperature Calibrator
Using Measure Mode
21
Table 5. Thermocouple Types Accepted
Type Positive Lead
Positive Lead (H)
Color Negative Lead Specified Range
Material ANSI* IEC** Material (°C)
E Chromel Purple Violet Constantan -200 to 950
N Ni-Cr-Si Orange Pink Ni-Si-Mg -200 to 1300
J Iron White Black Constantan -200 to 1200
K Chromel Yellow Green Alumel -200 to 1370
T Copper Blue Brown Constantan -200 to 400
B Platinum (30 % Rhodium) Gray Platinum (6 % Rhodium) 600 to 1800
R Platinum (13 % Rhodium) Black Orange Platinum -20 to 1750
S Platinum (10 % Rhodium) Black Orange Platinum -20 to 1750
L Iron Constantan -200 to 900
U Copper Constantan -200 to 400
*American National Standards Institute (ANSI) device negative lead (L) is always red.
**International Electrotechnical Commission (IEC) device negative lead (L) is always white.
724
Users Manual
22
V
mA
MEASURE
SOURCE / MEASURE
30V MAX ALL TERMINALS
4W
3W
V
RTD
TC
COM COM
LOOP
Process Temperature
Warning
30 V maximum to
TC
TC Miniplug
zi14f.eps
Figure 10. Measuring Temperature with a Thermocouple
Temperature Calibrator
Using Measure Mode
23
Using Resistance-Temperature Detectors (RTDs)
The calibrator accepts RTD types shown in Table 6. RTDs
are characterized by their resistance at 0 °C (32 °F),
which is called the “ice point” or R0. The most common R0
is 100 Ω. The calibrator accepts RTD measurement inputs
in two-, three-, or four-wire connections, with the
three-wire connection the most common. A four-wire
configuration provides the highest measurement
precision, and two-wire provides the lowest measurement
precision.
To measure temperature using an RTD input, proceed as
follows:
1. If necessary, press M for MEASURE mode.
2. Press
R for the RTD display. If desired, continue
pressing this key to select the desired RTD type.
3. Press
X or W to select a 2-, 3-, or 4- wire
connection.
4. Attach the RTD to input terminals as shown in
Figure 11.
If necessary, you can select °C temperature units by
pressing F, or °F temperature units by pressing
D
724
Users Manual
24
Table 6. RTD Types Accepted
RTD Type Ice Point (R0) Material αRange (°C)
Pt100 (3926) 100 ΩPlatinum 0.003926 Ω/°C -200 to 630
Pt100 (385) 100 ΩPlatinum 0.00385 Ω/°C -200 to 800
Ni120 (672) 120 ΩNickel 0.00672 Ω/°C -80 to 260
Pt200 (385) 200 ΩPlatinum 0.00385 Ω/°C -200 to 630
Pt500 (385) 500 ΩPlatinum 0.00385 Ω/°C -200 to 630
Pt1000 (385) 1000 ΩPlatinum 0.00385 Ω/°C -200 to 630
Pt100 (3916) 100 ΩPlatinum 0.003916 Ω/°C -200 to 630
The Pt100 commonly used in U.S. industrial applications is Pt100 (3916), α = 0.003916 Ω/°C. (Also designated as JIS
curve.) The IEC standard RTD is the Pt100 (385), α = 0.00385 Ω/°C.
Temperature Calibrator
Using Measure Mode
25
Resistance
to be
measured
Resistance
to be
measured
Resistance
to be
measured
RTD
RTD
RTD
2W
3W
4W
V
mA
MEASURE
SOURCE / MEASURE
30V MAX ALL TERMINALS
4W
3W V
RTD
TC
COM COM
LOOP
V
mA
MEASURE
SOURCE / MEASURE
30V MAX ALL TERMINALS
4W
3W V
RTD
TC
COM COM
LOOP
V
mA
MEASURE
SOURCE / MEASURE
30V MAX ALL TERMINALS
4W
3W V
RTD
TC
COM COM
LOOP
zi08f.eps
Figure 11. Measuring Temperature with an RTD, Measuring 2-, 3-, and 4-Wire Resistance
724
Users Manual
26
Using Source Mode
In SOURCE mode, the calibrator generates calibrated
signals for testing and calibrating process instruments,
supplies voltages and resistances, and simulates the
electrical output of RTD and thermocouple temperature
sensors.
Sourcing Electrical Parameters
Volts or ohms are sourced and shown in the lower
display.
To select an electrical sourcing function, proceed as
follows:
1. Connect the test leads as shown in Figure 12,
depending on the source function.
2. If necessary, press Mfor SOURCE mode.
3. Press V for dc voltage, or U for resistance.
4. Enter the desired output value by pressing X and
W keys. Press Y and Z to select a different digit to
change.
V
mA
MEASURE
SOURCE / MEASURE
30V MAX ALL TERMINALS
4W
3W
V
RTD
TC
COM COM
LOOP
Red
Black
+
–
Common
V
zi09f.eps
Figure 12. Electrical Sourcing Connections
Temperature Calibrator
Using Source Mode
27
Simulating Thermocouples
Connect the calibrator TC input/output to the instrument
under test with thermocouple wire and the appropriate
thermocouple mini-connector (polarized thermocouple
plug with flat, in-line blades spaced 7.9 mm [0.312 in]
center to center).
Note
One pin is wider than the other. Do not try to
force a miniplug in the wrong polarization. Figure
13 shows this connection.
Proceed as follows to simulate a thermocouple:
1. Attach the thermocouple leads to the appropriate TC
miniplug, then to the TC input/output as shown in
Figure 13.
2. If necessary, press M for SOURCE mode.
3. Press
T for the TC display. If desired, continue
pressing this key to select the desired thermocouple
type.
4. Enter the temperature you want by pressing X and
W keys. Press Y and Z to select a different digit to
edit.
Simulating RTDs
Connect the calibrator to the instrument under test as
shown in Figure 14. Proceed as follows to simulate an
RTD:
1. If necessary, press M for SOURCE mode.
2. Press
R for the RTD display.
Note
Use the 3W and 4W terminals for measurement
only, not for simulation. The calibrator simulates
a 2-wire RTD at its front panel. To connect to a
3-wire or 4-wire transmitter, use the stacking
cables to provide the extra wires. See Figure 14.
3. Enter the temperature you want by pressing X and
W keys. Press Y and Z to select a different digit to
edit.
4. If the 724 display indicates ExI HI the excitation
current from your device under test exceeds the limits
of the 724.
724
Users Manual
28
TEST DC PWR
++–
–+
Color depends
on type of TC
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
TC
TC Miniplug
V
LOOP
mA
V
˚
F
˚
C
zi10f.eps
Figure 13. Connections for Simulating a Thermocouple
Temperature Calibrator
Using Source Mode
29
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
BLACK
SENSOR TERMINALS
BLACK
RED
1
2
3
4
V
V
˚
F
˚
C
LOOP
mA
zi11f.eps
Figure 14. Connections for Simulating 3-Wire RTD
724
Users Manual
30
Setting 0 % and 100 % Output
Parameters
For output parameters (volts, ohms, TC potentials or RTD
resistances), you must set the 0 % and 100 % points
before you can use the step and ramp functions. Proceed
as follows:
1. If necessary, press M for SOURCE mode.
2. Select the TC source function and use the arrow keys
to enter the value. Our example is thermocouple
source using 100 °C and 300 °C values for source.
3. Enter 100 °C and press and hold J to store the
value.
4. Enter in 300 °C and press and hold G to store the
value.
You can now use this setting for the following:
• Manually stepping an output with 25 % increments.
• Jump between the 0 and 100 % span points by
momentarily pushing J or G.
Stepping and Ramping the Output
Two features are available for adjusting the value of
source functions.
• Stepping the output manually with the H and I
keys, or in automatic mode.
• Ramping the output.
Stepping and ramping apply to all functions.
Manually Stepping the Output
To manually step the output you can do the following:
• Use
H or I to step the output up or down in
25 % steps.
• Touch momentarily either J to go to 0 %, or G
to go to 100 %.
Temperature Calibrator
Storing and Recalling Setups
31
Auto Ramping the Output
Auto ramping gives you the ability to continuously apply a
varying stimulus from the calibrator to a transmitter, while
your hands remain free to test the response of the
transmitter.
When you press L, the calibrator produces a
continuously repeating 0 % - 100 % - 0 % ramp in your
choice of three ramp waveforms:
• E0 % - 100 % - 0 % 40-second smooth ramp
• P0 % - 100 % - 0 % 15-second smooth ramp
• N0 % - 100 % - 0 % Stair-step ramp in 25 %
steps, pausing 5 seconds at each step.
To exit ramping, press any button.
Storing and Recalling Setups
You can store up to eight of your settings in a nonvolatile
memory and recall the settings for later use. A low battery
condition or a battery change does not jeopardize the
stored settings. Proceed as follows:
1. After you create a calibrator setup, press S. In the
display, the memory locations appear.
2. Press
Y or Z to select locations one through eight. An
underscore appears below the selected memory
location.
3. Press
S. Only the stored memory location will be
displayed. The setup is stored.
To recall setups, proceed as follows.
1. Press
Q. The memory locations appear on the
display.
2. Press
Y or Z to select the appropriate location and
press Q.
724
Users Manual
32
Calibrating a Transmitter
Use the measurement (upper display) and source (lower
display) modes to calibrate a transmitter. The following
example shows how to calibrate a temperature
transmitter.
Connect the calibrator to the instrument under test as
shown in Figure 15. Proceed as follows to calibrate a
transmitter:
1. Press
K for current measurement with loop power.
2. Press
T (lower display). If desired, continue
pressing this key to select the desired thermocouple
type.
3. If necessary, press M for SOURCE mode.
4. Set your zero and span parameters by pressing X
and W keys. Enter these parameters by pressing and
holding J and G. For more information on
setting parameters, see “Setting 0 % and 100 %”
earlier in this manual.
5. Perform test checks at 0-25-50-75-100 % points by
pressing H or I. Adjust the transmitter as
necessary.
Temperature Calibrator
Calibrating a Transmitter
33
Red
TEST DC PWR
+–+–
–+
Black
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
V
LOOP
mA
V
˚
F
˚
C
zi12f.eps
Figure 15. Calibrating a Thermocouple Transmitter
724
Users Manual
34
Testing an Output Device
Use the source functions to test and calibrate actuators,
recording, and indicating devices. Proceed as follows:
1. Connect the test leads to the instrument under test
as shown in Figure 16.
2. Press l for dc voltage, or U for resistance
(lower display).
3. If necessary, press M for SOURCE mode.
TC RTD
100%
25%
25%
RECALL
MEAS
SOURCE
STORE
SETUP
0%
TEMPERATURE CALIBRATOR
724
Black
Red
0 to 1 V dc
Input
V
LOOP
mA
V
˚F
˚C
zi13f.eps
Figure 16. Calibrating a Chart Recorder
Temperature Calibrator
Replacing the Batteries
35
Replacing the Batteries
WWarning
To avoid false readings, which could lead to
possible electric shock or personal injury,
replace the batteries as soon as the battery
indicator (M) appears.
Figure 17 shows you how to replace the batteries.
Replacing the Fuse
The calibrator comes equipped with one 0.05A, 250V,
socketed fuse to protect the calibrator.
WWarning
To avoid electrical shock, remove the test
leads from the calibrator before opening the
battery door. Close and latch the battery
door before using the calibrator.
The fuse can be removed and checked for
resistance. A value of < 10 Ω is good. Problems
while measuring using the right jacks indicate that
F3 may have opened. To replace the fuse, refer to
Figure 17 and perform the following steps:
1. Turn the calibrator off, remove the test leads
from the terminals, and hold the calibrator face
down.
2. Using a flat-blade screwdriver, turn the battery door
screws 1/4-turn counterclockwise and remove the
battery door.
3. Remove and replace the damaged fuse.
4. Replace the battery door and secure it by turning the
screws 1/4-turn clockwise.
724
Users Manual
36
Battery and
Compartment
Fuse
Compartment
sh38f.eps
Figure 17. Replacing the Batteries
Maintenance
Cleaning the Calibrator
W Warning
To avoid personal injury or damage to the
calibrator, use only the specified
replacement parts and do not allow water
into the case.
Caution
To avoid damaging the plastic lens and case,
do not use solvents or abrasive cleansers.
Clean the calibrator with a soft cloth dampened with
water or water and mild soap.
Service Center Calibration or Repair
Calibration, repairs, or servicing not covered in this
manual should be performed only by qualified service
personnel. If the calibrator fails, check the batteries first,
and replace them if needed.
Verify that the calibrator is being operated in accordance
with the instructions in this manual. If the calibrator is
faulty, send a description of the failure with the calibrator.
Be sure to pack the calibrator securely, using the original
shipping container if it is available. Send the equipment
Temperature Calibrator
Maintenance
37
postage paid and insured, to the nearest Service Center.
Fluke assumes no responsibility for damage in transit.
The Fluke 724 Temperature Calibrator covered by the
warranty will be promptly repaired or replaced (at Fluke’s
option) and returned to you at no charge. See the
warranty at the beginning of this manual for warranty
terms. If the warranty period has expired, the calibrator
will be repaired and returned for a fixed fee. If the
calibrator is not covered under the warranty terms,
contact an authorized service center for a price quote for
repair.
To locate an authorized service center, refer to
“Contacting Fluke” at the beginning of the manual.
Replacement Parts
Table 7 lists the part number of each replaceable part.
Refer to Figure 18.
Table 7. Replacement Parts
Item Description PN Qty.
1 Case top 664232 1
2 LCD mask 1548383 1
3 Elastomeric strips 802063 2
4 Input/output bracket 1549221 1
5 LCD bracket 667287 1
6 Mounting screws 494641 11
7 Backlight 690336 1
8 LCD 690963 1
9 Keypad 1548126 1
10 Case bottom 664235 1
11 AA alkaline batteries 376756 4
12 Case screws 832246 4
13 Battery door 664250 1
14 Accessory mount 658424 1
15 Tilt stand 659026 1
16 Battery door 1/4-turn
fasteners 948609 2
17 TL75 series test leads 855742 1
18 Test lead, red
Test lead, black 688051
688066 1
1
19 724 Product Overview
Manual 1547851 1
20 AC72 alligator clip, red
AC72 alligator clip, black 1670641
1670652 1
1
21 CD-ROM (includes the 724
Users Manual) 1547849 1
22 Top case decal 1548329 1
23 Fuse 0.05A/250V 2002234 1
724
Users Manual
38
1
8
6
6
21
9
19
10
12
13
2
18
20
17
3
4
5
3
7
16
11
14
15
22
23
zi46f.eps
Figure 18. Replacement Parts
Temperature Calibrator
Specifications
39
Specifications
Specifications are based on a one year calibration cycle
and apply from +18 °C to +28 °C unless stated otherwise.
All specifications assume a 5 minute warmup period.
DC Voltage Measurement
Range Resolution
Accuracy,
(% of Reading + Counts)
30 V
(upper
display)
0.001 V 0.02 % + 2
20 V
(lower
display)
0.001 V 0.02 % + 2
90 mV 0.01 mV 0.02 % + 2
Temperature coefficient -10 °C to 18 °C, +28 °C to
55 °C: ±0.005 % of range per °C
DC Voltage Source
Range Resolution
Accuracy,
(% of Reading + Counts)
100 mV 0.01 mV 0.02 % + 2
10 V 0.001 V 0.02 % + 2
Temperature coefficient -10 °C to 18 °C, +28 °C to
55 °C: ±0.005 % of range per °C
Maximum load: 1 mA
DC mA Measurement
Range Resolution
Accuracy,
(% of Reading + Counts)
24 mA 0.001 mA 0.02 % + 2
Temperature coefficient -10 °C to 18 °C, +28 °C to
55 °C: ±0.005 % of range per °C
Drive capability: 1000 Ω at 20 mA
724
Users Manual
40
Ohms Measurement
Accuracy ± Ω
Ohms Range 4-Wire 2- and 3-Wire*
0 to 400 Ω0.1 0.15
400 to 1.5 kΩ0.5 1.0
1.5 to 3.2 kΩ11.5
Excitation Current: 0.2 mA
Maximum input voltage: 30 V
Temperature coefficient -10 °C to 18 °C, +28 °C to
55 °C: ± 0.005 % of range per °C
* 2-wire: Does not include lead resistance.
3-wire: Assumes matched leads with a total resistance
not exceeding 100 Ω.
Ohms Source
Ohms Range
Excitation Current from
Measurement Device
Accuracy
± Ω
15 to 400 Ω0.15 to 0.5 mA 0.15
15 to 400 Ω0.5 to 2 mA 0.1
400 to 1.5 kΩ0.05 to 0.8 mA 0.5
1.5 to 3.2 kΩ0.05 to 0.4 mA 1
Resolution
15 to 400 Ω0.1 Ω
400 to 3.2 kΩ1 Ω
Temperature coefficient -10 °C to 18 °C, +28 °C to
55 °C: ± 0.005 % of resistance range per °C
Temperature Calibrator
Specifications
41
Millivolt Measurement and Source*
Range Resolution Accuracy
-10 mV to 75 mV 0.01 mV ±(0.025 % + 1 count)
Maximum input voltage: 30 V
Temperature coefficient -10 °C to 18 °C, +28 °C to
55 °C: ±0.005 % of range per °C
*Select this function by pressing T. The signal is
available at the thermocouple miniplug connector.
Temperature, Thermocouples
Type Range
Measure and Source
Accuracies (ITS-90)
J -200 to 0 °C
0 to 1200 °C
1.0 °C
0.7 °C
K -200 to 0 °C
0 to 1370 °C
1.2 °C
0.8 °C
T -200 to 0 °C
0 to 400 °C
1.2 °C
0.8 °C
E -200 to 0 °C
0 to 950 °C
0.9 °C
0.7 °C
R -20 to 0 °C
0 to 500 °C
500 to 1750 °C
2.5 °C
1.8 °C
1.4 °C
S -20 to 0 °C
0 to 500 °C
500 to 1750 °C
2.5 °C
1.8 °C
1.5 °C
B 600 to 800 °C
800 to 1000 °C
1000 to 1800 °C
2.2 °C
1.8 °C
1.4 °C
L -200 to 0 °C
0 to 900 °C
0.85 °C
0.7 °C
U -200 to 0 °C
0 to 400 °C
1.1 °C
0.75 °C
N -200 to 0 °C
0 to 1300 °C
1.5 °C
0.9 °C
Resolution:
J, K, T, E, L, N, U: 0.1 °C, 0.1 °F
B, R, S: 1 °C, 1 °F
724
Users Manual
42
Temperature, RTD Ranges, and Accuracies (ITS-90)
Accuracy
Type Range °C Measure 4-Wire °C Measure 2- and 3-Wire* °C Source °C
Ni120 -80 to 260 0.2 0.3 0.2
Pt100-385 - 200 to 800 0.33 0.5 0.33
Pt100-392 -200 to 630 0.3 0.5 0.3
Pt100-JIS -200 to 630 0.3 0.5 0.3
Pt200-385 -200 to 250
250 to 630
0.2
0.8
0.3
1.6
0.2
0.8
Pt500-385 -200 to 500
500 to 630
0.3
0.4
0.6
0.9
0.3
0.4
Pt1000-385 -200 to 100
100 to 630
0.2
0.2
0.4
0.5
0.2
0.2
Resolution: 0.1 °C, 0.1 °F
Allowable excitation current (source): Ni120, Pt100-385, Pt100-392, Pt100-JIS, Pt200-385: 0.15 to 3.0 mA
Pt500-385: 0.05 to 0.80 mA; Pt1000-385: 0.05 to 0.40 mA
RTD Source: Addresses pulsed transmitters and PLCs with pulses as short as 5 ms.
* 2-wire: Does not include lead resistance.
3-wire: Assumes matched leads with a total resistance not exceeding 100 Ω.
Temperature Calibrator
Specifications
43
Loop Power Supply
Voltage: 24 V
Maximum current: 22 mA
Short circuit protected
General Specifications
Operating temperature -10 °C to 55 °C
Storage temperature - 20 °C to 71 °C
Operating altitude 3000 meters above mean sea level
Relative Humidity (% RH operating without condensation) 90 % (10 to 30 °C)
75 % (30 to 40 °C)
45 % (40 to 50 °C)
35 % (50 to 55 °C)
uncontrolled < 10 °C
Vibration Random, 2 g, 5 to 500 Hz
Safety EN 61010-1:1993, ANSI/ISA S82.01-1994; CAN/CSA C22.2
No 1010.1:1992
Power requirements 4 AA alkaline batteries
Size 96 x 200 x 47 mm. (3.75 x 7.9 x 1.86 in)
Weight 650 gm (1 lb, 7 oz)
724
Users Manual
44
45
Index
—0—
0% output parameter, setting, 30
—1—
100% output parameter, setting, 30
—A—
Auto ramping output, 31
—B—
Batteries, replacing, 35
—C—
Calibration, 36
Cleaning calibrator, 36
—D—
Display, 13
—E—
Electrical parameters
measurement, 19
sourcing, 26
—G—
Getting started, 14
—I—
Input terminals, 8
Input/output terminals and connectors
(table), 9
—K—
Key functions (table), 11
Keys, 10
—M—
Measure functions, summary (table), 2
Measure mode, 17
Measuring
temperature with RTDs, 23
temperature with thermocouples, 20
724
Users Manual
46
—O—
Output device, testing, 34
Output terminals, 8
—P—
Parts list, 37
—R—
Recalling setups, 31
Repair, 36
RTD
simulating, 27
RTD
measuring, 23
types, 23
—S—
Safety information, 3
Servicing, 36
Setup
recalling, 31
storing, 31
Thermocouple, 27
Simulating
RTD, 27
thermocouples, 27
Source functions, summary (table), 2
Sourcing
electrical parameters, 26
thermocouples, 27
Specifications, 39
Standard equipment, 3
Stepping output, 30
Storing setups, 31
—T—
Temperature
measuring with RTD, 23
measuring with thermocouple, 20
Terminals
input, 8
output, 8
Thermocouple
measuring, 20
measuring temperature, 20
sourcing, 27
types, 20
Transmitter, calibrating, 32

Navigation menu
