Installation, Operation and Service Manual
© Follett Corporation
00187153R01
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
Ice and Water Dispensers
25CI400A/W, 25HI400A, 50CI400A/W, 50HI400A
Order parts online
www.follettice.com
25CI400A Countertop Dispenser
with SensorSAFE™ option
25HI400A Wall Mount Dispenser25CI400A/W Lever
Countertop Dispenser
2 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Follett Corporation Equipment Return Policy
Follett equipment may be returned for credit under the following conditions:
1. The equipment is new and unused.
2. A return authorization number has been issued by customer service within 30 days after shipment.
3. Follett receives the equipment at the factory in Easton, PA within 30 days after issuance of the return authorization number.
4. The equipment must be returned in Follett packaging. If the packaging has been damaged or discarded, Follett will forward, at the customer’s expense, new
packaging.
Note: Return freight charges are the responsibility of the customer. If equipment is returned and is damaged because of improper packaging, Follett Corporation
will not be held responsible.
Credit will be issued when: The equipment has been inspected by Follett and deemed suitable to be returned to stock.
Note: A 15% restocking charge will be deducted from the credit. If the cost to return the product to stock exceeds 15%, the actual cost will be deducted.
Contents
Welcome to Follett .................................. 3
Before you begin ............................... 3
Contact Information ............................. 3
Specications ..................................... 4
Electrical ..................................... 5
Ambient ...................................... 5
Plumbing ..................................... 5
Ventilation and service clearances ................. 5
Uncrated weight ................................ 5
Installation ........................................ 6
Before you begin ............................... 6
Installing countertop dispensers with
rear exiting utilities (no legs) ...................... 6
Installing countertop dispensers with
bottom exiting utilities ............................ 6
Installing wall mount dispensers ................... 8
Icemaker cleaning & sanitizing ........................10
Quarterly air lter cleaning ........................10
Semi-annual icemaker cleaning & sanitizing ..........10
Cleaning solution ...............................10
Sanitizing solution ..............................10
Start-up following cleaning ........................11
Dispenser cleaning & sanitizing .......................12
Cleaning solution ...............................12
Sanitizing solution ..............................12
Daily cleaning ..................................12
Weekly cleaning ................................12
Cleaning SensorSAFE lens .......................12
Semi-annual cleaning and sanitizing
of dispenser hopper .............................12
Service ..........................................13
Icemaker operation .............................13
The icemaking process ......................13
Ice harvest system diagram ...................13
Disassembly and replacement instructions ...........14
Dispense wheel removal and installation .........14
Drive bar removal ...........................14
Wheel motor assembly removal ................14
Ice transport tube replacement ................14
Icemaker removal ...............................15
Evaporator disassembly ......................18
Evaporator reassembly .......................18
Gearmotor replacement ......................19
Fan removal ...............................19
Electrical systems ................................. 20
Electrical component locations ................... 20
Wiring diagram - lever dispense model ............. 21
Wiring diagram - SensorSAFE model .............. 22
Icemaker operational and diagnostic sequences ......... 23
Circuitry notes ............................. 23
Normal operation – Stage 1 .................. 24
Normal operation – Stage 2 .................. 24
Normal operation – Stage 3 .................. 25
Normal operation – Stage 4 .................. 25
Normal operation – Stage 5 .................. 26
Normal operation – Stage 6 .................. 26
Diagnostic sequence – Stage 7 ............... 27
Diagnostic sequence – Stage 8 ............... 27
Diagnostic sequence – Stage 9 ............... 28
Diagnostic sequence – Stage 10 .............. 28
Refrigeration cycle ......................... 29
Refrigeration data ............................. 30
Ice production ............................. 30
Ice capacity test ........................... 30
Compressor current draw .................... 30
Gearmotor data ........................... 30
Refrigeration system ........................ 30
Icemaker charge specications ............... 30
Refrigerant replacement requirements .......... 30
Evacuation ............................... 30
Ambients ................................. 30
Dispenser troubleshooting .......................... 31
Before calling for service ........................ 31
Lever model troubleshooting guide ................ 31
SensorSAFE model troubleshooting guide .......... 31
Board guide .............................. 31
Lens/sensor troubleshooting ................. 31
Icemaker troubleshooting ........................... 32
Dispenser replacement parts ........................ 34
Dispenser exterior ............................. 34
Dispense chute and splash panel areas –
lever models .................................. 35
Dispenser electrical box – lever models ............ 36
Dispense chute and splash panel areas –
SensorSAFE models ........................... 37
Dispenser electrical box – SensorSAFE models ...... 38
Wheel motor and drive system ................... 39
Water and drain ............................... 40
Icemaker replacement parts ......................... 41
Evaporator ................................... 41
Air-cooled icemakers ........................... 42
Water-cooled icemakers ......................... 44
Icemaker electrical components .................. 46
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 3
Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, we ask that you take a
moment to review the installation portion of this manual before beginning to install the unit. Our installation instructions
are designed to help you achieve a trouble-free installation. Should you have any questions or require technical help at
any point, please call our technical service group at (800) 523-9361 or (610) 252-7301.
Note: To expedite assistance, all correspondence or communication MUST include the model number, serial number
and complete and detailed explanation of the problem
Before you begin
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage
is found, notify the shipper immediately and contact Follett Corporation so that we can help in the ling of a claim, if
necessary.
Check your paperwork to determine which model you have. Follett model numbers are designed to provide information
about the type and capacity of Follett ice dispensing equipment. Following is an explanation of the different model
numbers.
IMPORTANT
• Onlyqualiedtechniciansshouldattempttoserviceormaintainthisiceandwaterdispenser
• Noserviceormaintenanceshouldbeundertakenuntilthetechnicianhasthoroughlyreadthis
servicemanual
Contact Information
FOLLETT CORPORATION, 801 Church Lane, Easton, PA 18040 USA
Phone: 800-523-9361
Fax: 610-250-0696
Web site: www.follettice.com
25CI400A
Condenser type, A = air-cooled, W= water-cooled
Icemaker capacity in lbs per day
Icemaker location, I = integral (behind front splash panel)
Dispenser conguration, C = countertop, H = wall mount
Approximate storage capacity in lbs (25 or 50)
CAUTION
• Donottiltanyunitfurtherthan30°offverticalduringuncratingorinstallation
• Dispenserbinareacontainsmechanical,movingparts.Keephandsandarmsclearofthisareaatalltimes.Ifaccesstothisarea
isrequired,powertounitmustbedisconnectedrst.
• Iceisslippery.Besurecountersandoorsarounddispenserareclean,dryandfreeofice.
• Donotblockleftsideairintakeorrightsideairexhaust
IMPORTANT NOTICE
• FollettrecommendsaFollettQC4-FL4Swaterltersystem(item#00130229)beinstalledintheicemakerinletwaterline
• Priortooperationcleanandsanitizethedispenserinaccordancewithinstructionsfoundinthismanual
4 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Specications

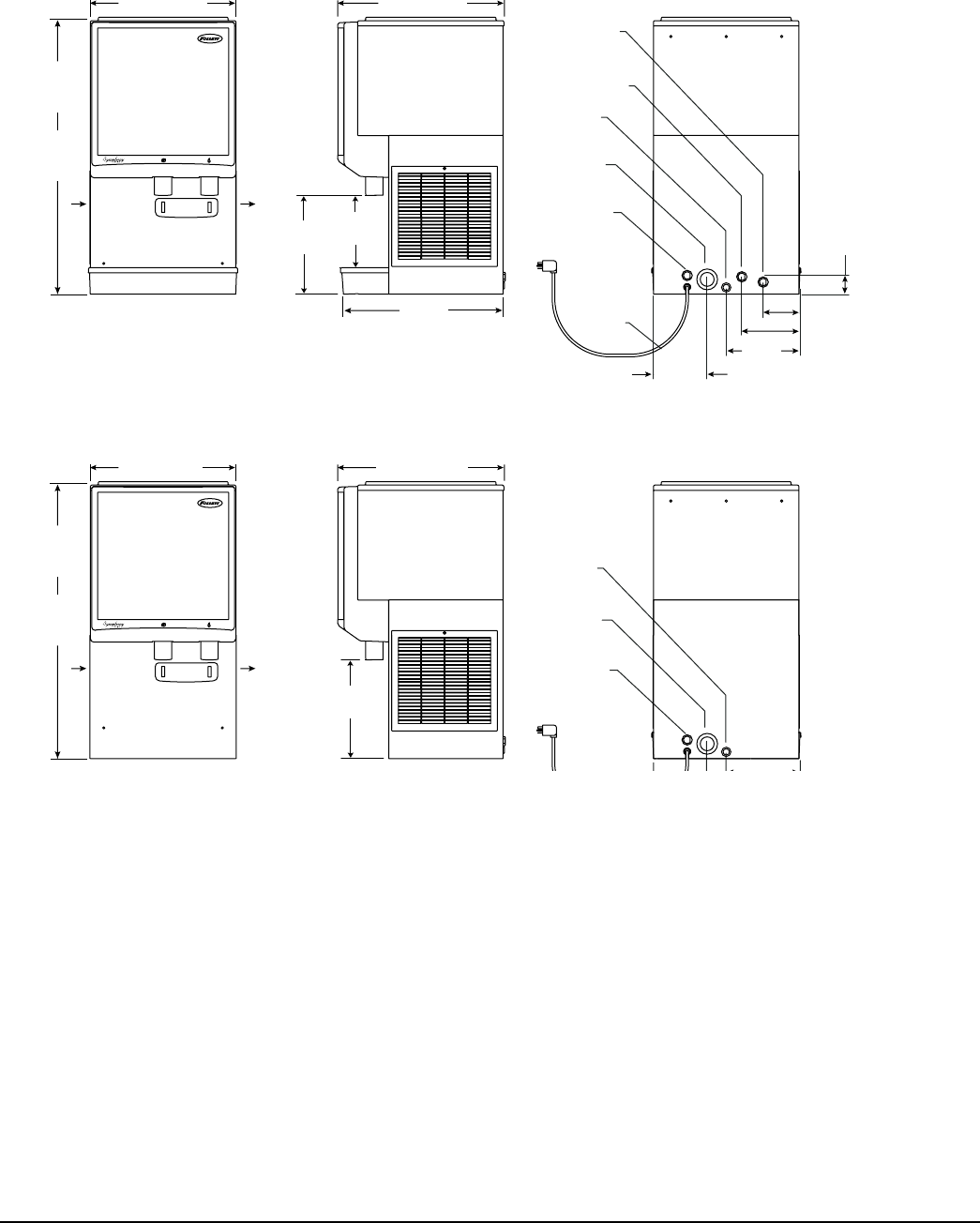

25CI400A/W
36"
(915mm)
50CI400A/W
40"
(1016mm)
21" (534mm)
Front View
Countertop
Wall mount
Right Side ViewRear View
Front View Right Side ViewRear View
24" (610mm)
23"
(585mm)
10.5"
(267mm)
14.25"
(362mm)
25HI400A/W
36"
(915mm)
50HI400A/W
40"
(1016mm)
21" (534mm) 24" (610mm)
14.25"
(362mm)
2" (52mm)
plumbing
connection
knockout
3/4" FPT
drain
Condenser
outlet (water-
cooled only)
Condenser
inlet (water-
cooled only)
3/8" water
inlet
5.18" (132mm)
6.8"
(173mm)
7' (2.1m)
power cord
w/5-20 90°
hospital-grade
plug
10.5"
(267mm)
8.25" (210mm)
2.5"
(64mm)
2" (52mm)
plumbing
connection
knockout
3/4" FPT
drain
3/8" water
inlet
6.8"
(173mm)
7' (2.1m)
power cord
w/5-20 90°
hospital-grade
plug
10.5"
(267mm)
AIR INTAKE
AIR EXHAUST
AIR INTAKE
AIR EXHAUST
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 5
Electrical
115V, 60Hz, 1 phase, 14.0 amps. Connect to dedicated 20 amp circuit, fuse or breaker.
Note: It is preferred that circuit be protected by a GFCI.
Furnished with 7 ft (2m) power cord with a 90° NEMA hospital grade 5-20 plug.
Ambient
Maximum Minimum
Air temp 100 F/38 C (Best performance below 80 F/27 C) 50 F/10 C
Water temp 90 F/32 C (Best performance below 70 F/21 C) 40 F/4 C
Water pressure 70 P.S.I. 10 P.S.I.
Plumbing
Connections – 25/50CI400A/W Rough-ins–25/50HI400A/
Dispenser drain All – 3/4" FNPT Air-cooled – 3/4" FNPT
Water inlet All – 3/8" FNPT All – 1/2" FNPT
Condenser inlet Water-cooled – 3/8" FNPT N/A
Condenser outlet Water-cooled – 3/8" FNPT N/A
Note: Water shut-off recommended within 10 feet (3m) of dispenser. Drain to be hard-piped
and insulated. Maintain at least 1/4" per foot (20mm per 1m run) of slope on horizontal runs.
CAUTION
• Donotblockleftsideairintakeorrightsideairexhaust
Ventilationandserviceclearances
Air-cooled Water-cooled
Requiredforventilation 3" (77mm) each side N/A
Suggestedforservice 12" (305mm) top,
6"(153mm) left side
12" (305mm) top
Uncrated weight
25/50CI400A/W (countertop) 215 lbs (98kg)
25/50HI400A (wall mount) 230 lbs (105kg)
6 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

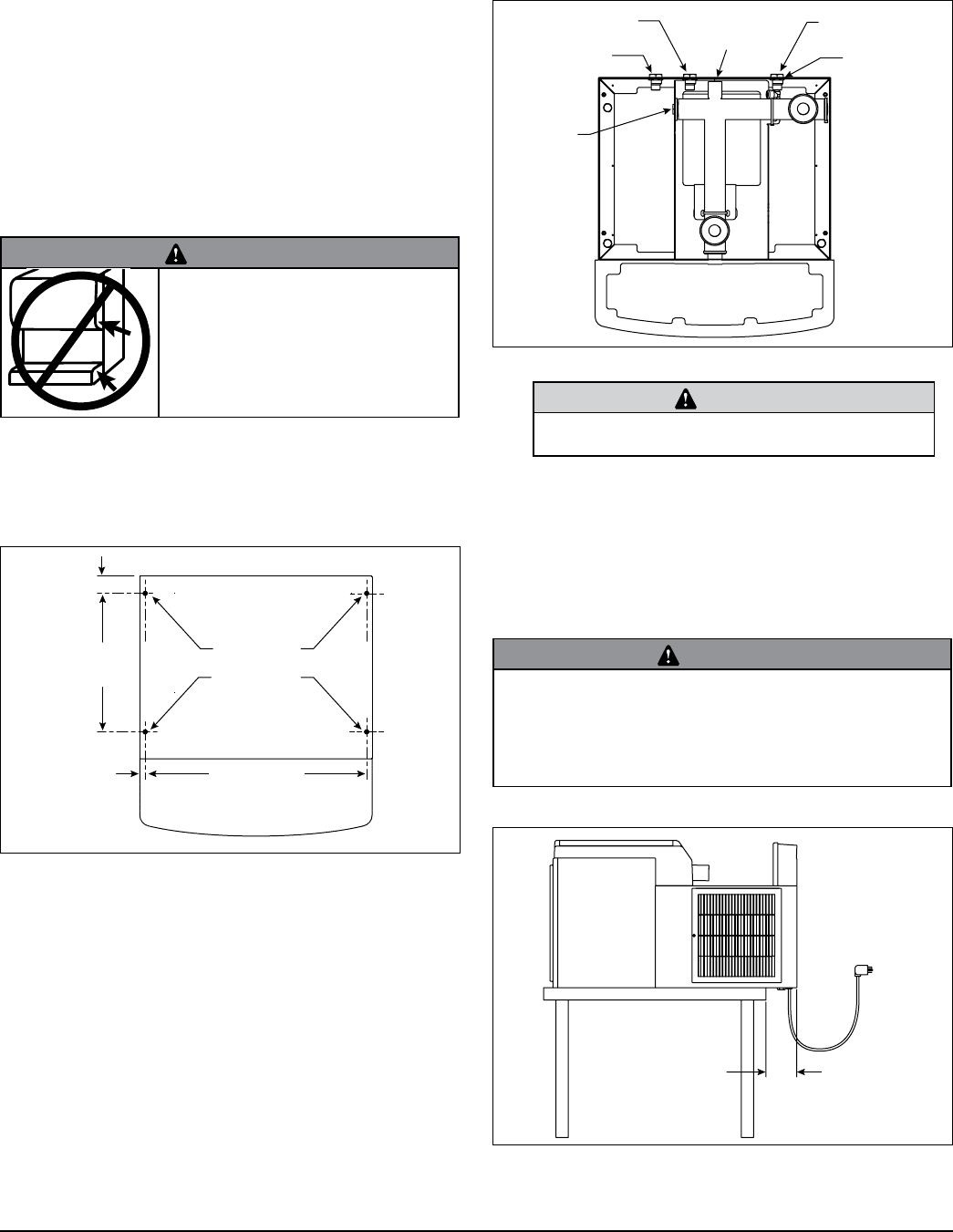

Fig. 2
Utilityconnectionsasviewed
fromtopforcountertopbackaccess
3/8"
diameter cord
condenser inlet
3/8" FNPT
drain plug
condenser outlet
3/8" FNPT drain
3/4" FNPT
potable water
3/8" FNPT
6. Make utility connections (Fig. 2).
CAUTION
• Donotconnectwater-cooledcondenseroutletlineto
the dispenser drain line.
7. Turn on water supply and check for leaks.
8. Clean and sanitize dispenser and icemaker before
putting into service.
9. Turn power on and allow icemaker to produce ice.
Installing countertop dispensers with
bottomexitingutilities
WARNING
• Asturdyworksurfacecapableofsupportingtheentire
dispenser must be used
• Theworksurfacemustbelargeenoughtoaccommodate
height of dispenser
• Failuretoprovidepropersupportmayresultinpersonal
injury
Fig.3
5.00"
(127mm)
min.
1. Position dispenser with dispense chutes facing
upward on sturdy work surface (Fig. 3).
Installation
Before you begin
Level dispenser in both directions to ensure proper
operation.
Provide clearances noted in clearances table on page 5.
Countertop models provide the option of taking utilities
out bottom or back of dispenser.
Wall mount model utilities exit through back of
dispenser only.
Directions for each installation follow.
WARNING
• DONOTLIFTUNITATTHESEPOINTS.
Panels will not support weight of unit
• Failuretofollowwarningmayresultin
equipment damage or personal injury
Installing countertop dispensers with rear
exitingutilities(nolegs)
Fig.1
Countertop anchoring locations
12.50"
(318mm)
1.56"
(40mm)
20" (508mm)
.50"
(13mm)
4X
Ø.375"
(10mm)
hole
1. Position dispenser in desired location.
2. Mark dispenser outline on counter and remove
dispenser.
3. Drill four 7/16" holes in counter to anchor dispenser
to counter (Fig. 1).
4. Apply a thick bead approximately 1/4" (7mm)
diameter of NSF listed silicone sealant (Dow
Corning*1 RTV-732 or equivalent) 1/4" (7mm) inside
marked outline of dispenser.
5. Reposition dispenser on counter and secure to
counter with four 3/8"-16NC bolts.
6. Smooth excess sealant around outside of dispenser.
* Dow Corning is a register trademark of Dow Corning Corporation in the United
States and other countries
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 7
12. Raise the dispenser upright and position in desired
location.
13. Mark dispenser outline on counter and remove
dispenser.
Fig. 6
Countertopcutoutviewedfromtop
16.00"
(407mm)
3.13"
(80mm)
12.50"
(318mm)
1.56"
(40mm)
14"
(356mm)
20"
(508mm)
.50"
(13mm)
4X
Ø.375"
(10mm)
hole
Cutout
connections
through
bottom
13. Cut countertop utility opening and drill four 7/16"
holes to anchor dispenser to counter (Fig. 6).
12. Apply a thick bead approximately 1/4" (7mm)
diameter of NSF listed silicone sealant (Dow
Corning* RTV-732 or equivalent) 1/4" (7mm) inside
marked outline of dispenser.
13. Reposition dispenser on counter and secure to
counter with four 3/8"-16NC bolts.
12. Smooth excess sealant around outside of dispenser.
13. Make utility connections through countertop cutout.
CAUTION
• Donotconnectwater-cooledcondenseroutletlineto
the dispenser drain line.
14. Turn on water supply and check for leaks.
15. Clean and sanitize dispenser and ice machine
before putting into service.
16. Turn power on and allow icemaker to produce ice.

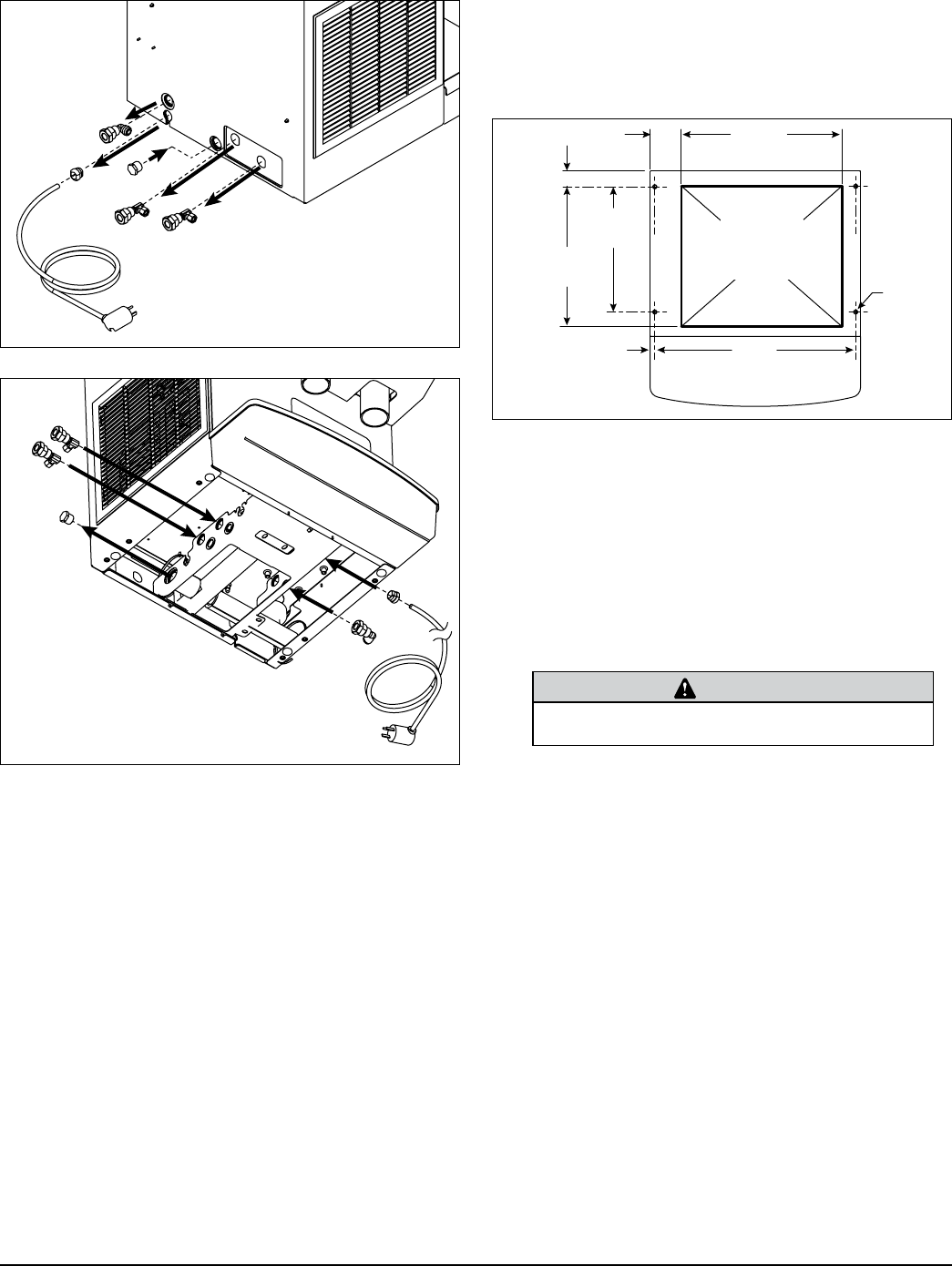

Fig. 4
4.1
4.2
4.3
4.4
Fig. 5
5.1
5.2
5.3
5.4

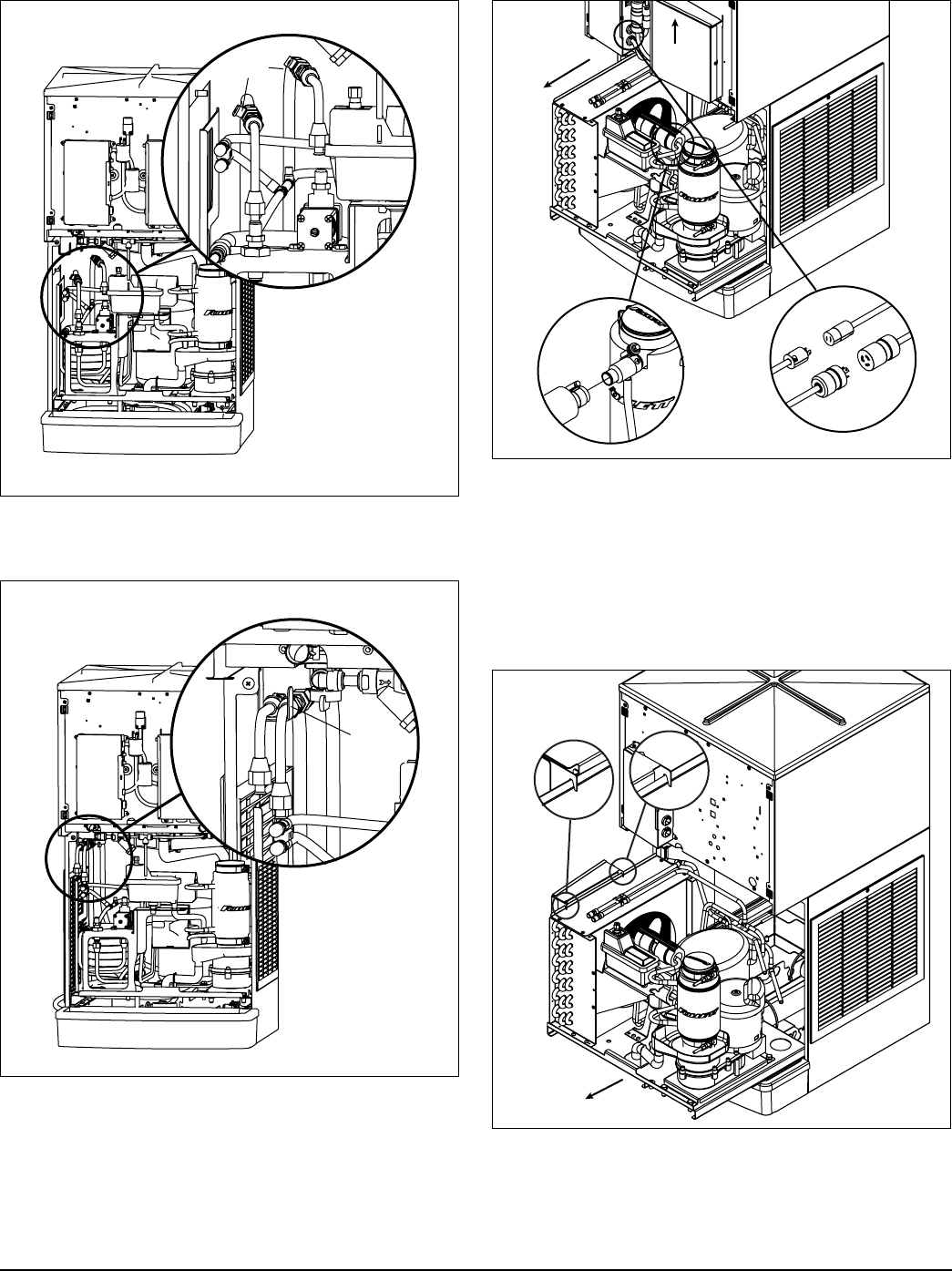

2. Disconnect the internal water line from the potable
water connection tting.
3. Remove tting from the back wall of the dispenser
(Fig. 4.1).
4. Relocate tting to internal bulkhead and reconnect
(Fig. 5.1).
6. Remove power cord strain relief (Fig. 4.2).
7. Relocate the cord and strain relief to the internal
bulkhead and reconnect (Fig. 5.2).
8. Water-cooledonly. Disconnect internal condenser
water inlet and outlet ttings (Fig. 4.3).
9. Water-cooledonly. Relocate water inlet and outlet
ttings and reconnect (Fig. 5.3). Note: The water
inlet is connected to the condenser; the outlet line is
connected to the water regulating valve.
10. Remove the drain plug from the internal drain line
connection point (Fig. 5.4).
11. Relocate to back of dispenser and reconnect
(Fig. 4.4).
8 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Fig.9
9.1
9.3
9.2
9.4

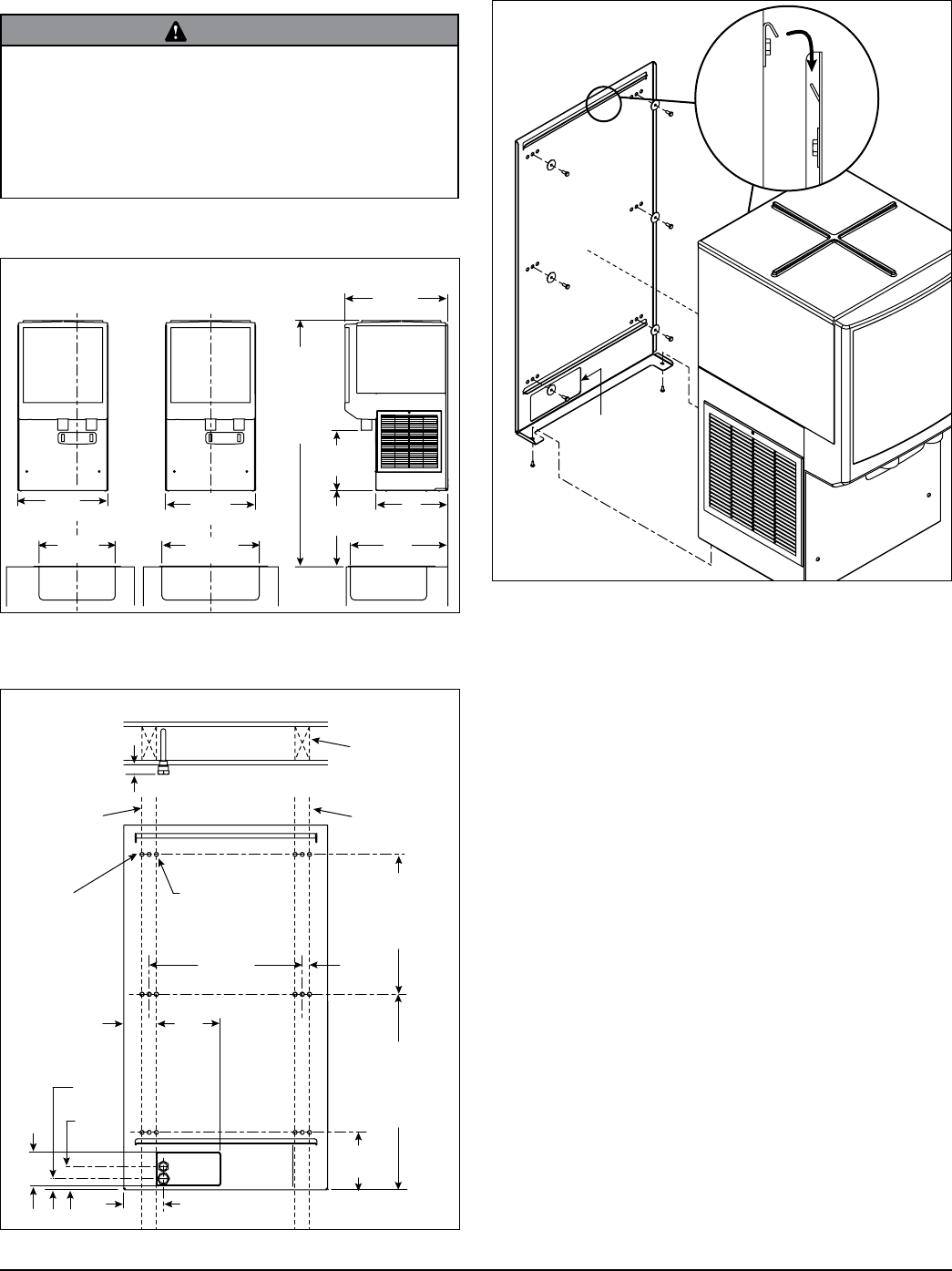

1. Using Fig. 8 as a guide, locate wall bracket
mounting position relative to wall studs.
2. Install the supplied wall bracket with six 3/8"
diameter fasteners (Fig. 9.1).
Note: Three holes are available at each fastening
site to allow capture of studs or supports within the
wall.
2. Locate and cut utility hole in wall using Fig. 8
dimensions (9.2).
3. Rough in utilities. Wall mount bracket dimensions
(Fig. 8) can be used as a template.
Water: 1/2" FNPT
Drain: 3/4" FNPT
4. Lift dispenser onto wall bracket positioning unit so
that hook on back of dispenser is captured by wall
bracket support angle (Fig. 9.3).
5. Install two 1/4" X 20 screws through bottom of wall
bracket into bottom of dispenser to secure dispenser
to wall bracket (Fig. 9.4).
6. Install supplied 1/2" MPT X 3/8" push-in adapter
onto 1/2" FNPT water supply.
Installing wall mount dispensers
WARNING
• Wallmountdispensersareintendedtobemountedabovea
sink,eliminatingtheneedforadrainpan.
• Beforebeginninginstallationverifythatthesinksizeand
location meet the requirements shown in Fig. 7.
• Ifrequirementsarenotmet,adrainpanmustbeusedto
preventiceandwaterfromfallingoncounteroroor.
• FAILURETOTAKETHESEPRECAUTIONSCOULDRESULTIN
SLIPSANDFALLSONWETFLOORS
Fig. 7
Minimumsinkrequirements(withoutdrainpan)
17"
(432mm)
24.5"
(623mm)
Side View
14.25"
(362mm)
18"
(458mm)
23"
(585mm) min.
50HI
58.5"
(1486mm)
25HI
54.5"
(1385mm)
Front View
Minimum Sink Requirements
(shown without drain pan)
21.5"
(547mm)
Front View
21.5"
(547mm)
23"
(585mm) min.
Sink centered
below dispenser
14.25"
(362mm) min.
Sink centered
below chutes
Fig. 8
Wallbracketlocationguide
.75"
(20mm)
50HI400A
15" (381mm)
25HI400A
13" (330mm)
50HI400A
21" (483mm)
25HI400A
19" (483mm)
16.00"
(406 mm)
0.438" (11mm)
clearance
6"
(153mm)
Wall studWall stud
Wall stud
Top view
Front view
Utility
cut-out
3.4"
(87mm)
4.12"
(105mm)
7"
(178mm)
1"
(26mm)
2.44"
(62mm)
3.50"
(89mm)
1"
(26mm)
(anchor
points)
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 9
Fig.10
Dispenserbottomview
10.1
10.3
10.2
7. Connect supplied 3/8" water line between water
supply and water inlet fitting (Fig. 10.1).
8. Using supplied 3/4" drain tubing and barbed fittings,
connect 3/4" barbed drain elbow tting on dispenser
to 3/4" FNPT drain (Fig. 10.2).
9. Route power cord through utility access hole to
power supply (Fig. 10.3).
10. Turn on water supply and check for leaks.

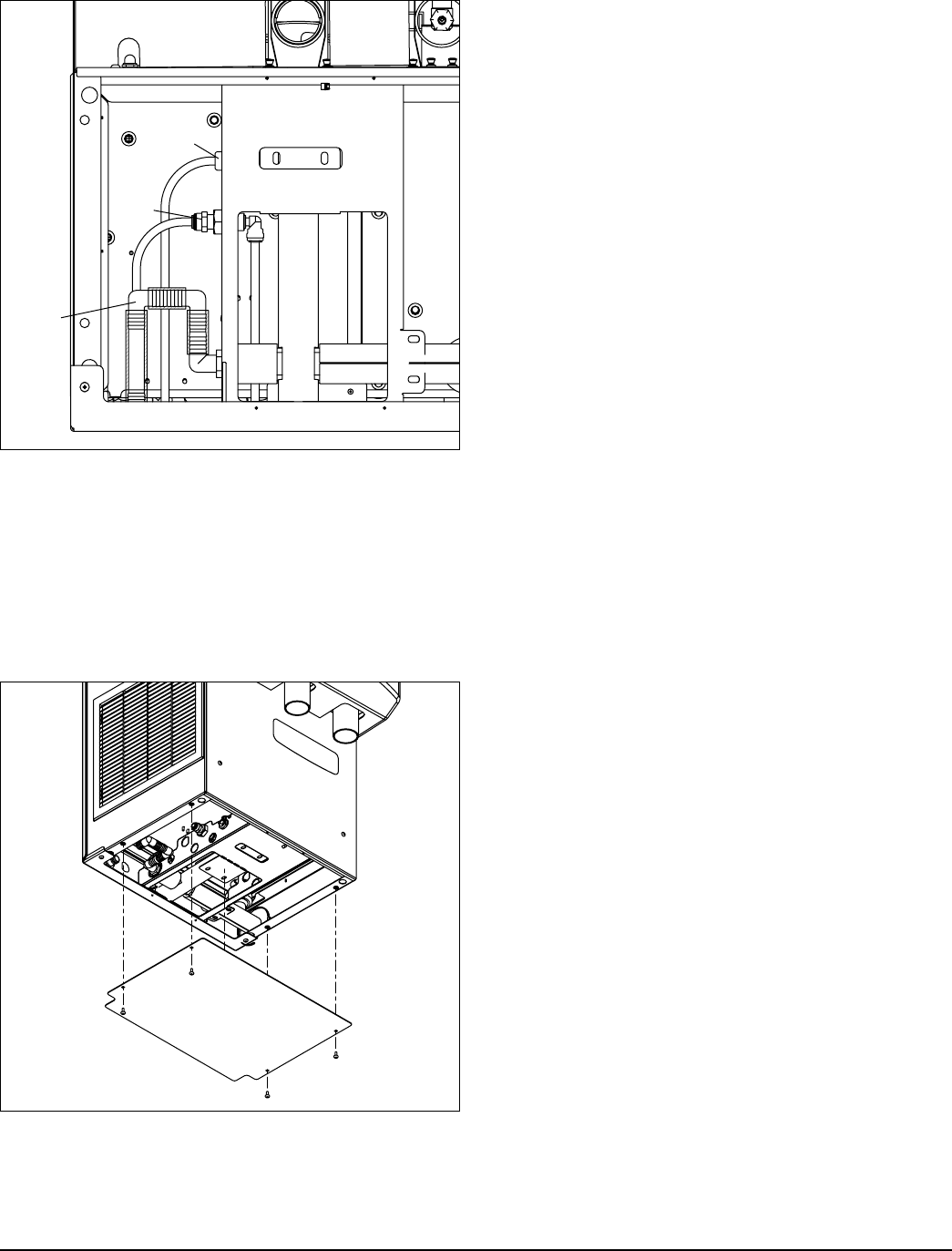

Fig.11
11. Install bottom panel (Fig. 11).
10 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
1. Remove the upper front cover.
2. Remove splash panel and lower drain pan protector.
3. Turn compressor switch on electrical box of
icemaker to OFF position.
4. Remove water reservoir cover and close water
supply valve.
5. Drain water from reservoir by releasing evaporator
drain line from oat reservoir bracket and removing
plug from drain line.
6. Following manufacturer’s instructions, prepare one
gallon (3.8L) cleaning solution A or equivalent.
Solution temperature must be at least 120 F (49 C).
WARNING: Most ice machine cleaners contain
citric or phosphoric acid that can cause skin
irritation. Read caution label on product and follow
instructions carefully.
7. Plug drain hose, replace drain line in reservoir
bracket and pour part of cleaning solution into
reservoir, lling it almost to overowing.
8. Remove stainless steel compression nozzle and
drain lines and submerge in a cup of cleaning
solution while cleaning rest of system.
CAUTION: To avoid potential pitting, do not soak
parts in SafeCLEAN for more than 45 minutes.
9. Restore power to icemaker (gearmotor will run;
compressor and fan will not).
10. After 15 minutes, turn power OFF;
drain solution from reservoir and evaporator.
11. Fill reservoir almost to overowing with clean,
120 F (49 C) water, and drain. Repeat three times.
12. Following manufacturer’s instructions, prepare
1 gallon (3.8L) sanitizing solution B. Solution
temperature must be at least 120 F (49 C).
13. Rinse compression nozzle in clean water and
submerge in a cup of sanitizing solution while
following steps 14-19.
14. Connect ice transport tube directly onto evaporator
outlet port without compression nozzle.
Note: If bin will not be cleaned at this time, place a
large pan in bin storage area to catch ice or connect
a separate ice transport tube to evaporator and
divert ice into separate container.
15. Fill reservoir almost to overowing with sanitizing
solution.
16. Restore power to icemaker (gearmotor will run;
compressor and fan will not).
17. After 10 minutes, turn compressor switch to ON
position.
18. As unit starts to make ice, continue to pour
sanitizing solution into reservoir, maintaining level
just below reservoir overow.
19. Continue to make ice with sanitizing solution for
20 minutes.
Icemakercleaning&sanitizing
Periodic cleaning of Follett’s icemaker system is required
to ensure peak performance and delivery of clean,
sanitary ice. The following cleaning procedures should be
performed at least as frequently as recommended, and
more often if environmental conditions dictate.
WARNING
• Toreduceriskofelectricalshockdisconnect
powerbeforeservicing
• Wearrubberglovesandsafetygoggles(and/
orfaceshield)whenhandlingicemachine
cleanerorsanitizermixtures
CAUTION
• UseonlyFollettapprovedcleaners(seeprocedurebelow)
• ItisaviolationofFederallawtousethesesolutionsina
manner inconsistent with their labeling
• Readandunderstandallpackaginginstructionsbeforeuse
• Donotusesolvents,abrasivecleaners,metalscrapersor
sharp objects to clean any part of the dispenser
Quarterlyairltercleaning
1. Remove screw at top of louvered panel on left side
of unit.
2. Slide panel toward back of dispenser and lift.
3. Remove the air lter located under the louver.
4. Clean with soap and water.
5. Rinse, and replace when completely dry.
Semi-annualicemakercleaning&sanitizing
Note: If icemaker and dispenser are cleaned and
sanitized at the same time, icemaker should be cleaned
and sanitized rst.
Cleaning solution
SolutionA: Ice machine cleaner: Prepare one gallon
(3.8L) of Follett SafeCLEAN™ Ice Machine cleaner (one
7 oz packet) or equivalent. Solution temperature must be
at least 120 F (49 C).
Warning: Most ice machine cleaners contain citric or
phosphoric acid that can cause skin irritation. Read
caution label on product and follow instructions carefully.
Sanitizingsolution
SolutionB: Prepare sanitizing solution (50 ppm of
available chlorine content) of Ecolab Mikro-chlor Cleaner
or equal chlorinated detergent. Solution temperature
must be 75 F – 125 F (24 C – 52 C).
Note: Before cleaning SensorSAFE units, deactivate
dispenser by depressing and releasing clean switch
located on left side of unit under top front cover. When
cleaning is complete, reactivate by depressing and
releasing clean switch a second time. Dispenser will
automatically reactivate after two minutes.
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 11
20. Turn power to icemaker OFF.
21. Disconnect transport tube from evaporator outlet
port. Rinse compression nozzle in clean water and
reinstall on evaporator outlet. Reconnect transport
tube to compression nozzle.
22. Drain any remaining sanitizing solution from
evaporator.
23. Fill reservoir almost to overowing with clean,
120 F (49 C) water, and drain. Repeat three times.
24. Open water supply valve and replace reservoir
cover. Restore power to icemaker and ensure
compressor switch is in ON position. Make ice for
at least 15 minutes to ush any remaining solution
from system. Discard this and all ice made during
sanitizing.
25. Inspect evaporator drain pan and drain line and
remove any accumulated scale build up.
26. Replace any panels removed prior to cleaning.
Start-upfollowingcleaning
1. Clean and sanitize ice storage area of dispenser in
accordance with instructions before making ice.
2. Turn icemaker on and begin to make ice. Icemaker
should start immediately with power and bin signal
supplied.
3. After approximately 30 minutes, test dispenser for
proper dispensing.
12 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
CleaningSensorSAFElens
1 Deactivate dispenser by depressing and releasing
clean switch located on left side of unit under top
front cover.
2. Clean lens using soft cloth and mild, non-abrasive
cleaner.
3. Reactivate by dispenser depressing and releasing
clean switch a second time. Dispenser will
automatically reactivate after two minutes.
Semi-annualcleaningandsanitizingof
dispenser hopper
Note: If icemaker and dispenser are cleaned and
sanitized at the same time, icemaker should be cleaned
and sanitized rst.
1. Remove ice from dispenser. Disconnect power.
2. Working inside storage area, remove center
thumbscrew from dispense wheel, tilt wheel up
toward back to clear baffle and disengage wheel
from motor shaft.
3. Remove front cover, chute cover and clear plastic
chute.
4. Wipe lid, wheel, baffle and clear plastic chute with a
clean damp cloth wrung out in cleaning solution A.
5. Rinse all above items with damp cloth wrung out in
clean water.
6. Wipe all bin surfaces (including the area under
dispense wheel) with a damp cloth wrung out in
cleaning solution A.
7. Rinse all bin surfaces thoroughly with damp cloth
wrung out in clean water.
Caution: Do not rinse by pouring water into the
storage bin. Damage to the dispense motor can
result.
8. Sanitize lid, wheel, baffle, clear plastic chute and all
bin surfaces by wiping with a damp cloth wrung out
in sanitizing solution B. DO NOT RINSE.
9. Reinstall dispense wheel and other components.
Dispensercleaning&sanitizing
Periodic cleaning of Follett’s ice and water dispenser
system is required to ensure peak performance and
delivery of clean, sanitary ice. The following cleaning
procedures should be performed at least as frequently
as recommended, and more often if environmental
conditions dictate.
WARNING
• Toreduceriskofelectricalshockdisconnect
powerbeforeservicing
• Wearrubberglovesandsafetygoggles(and/
orfaceshield)whenhandlingicemachine
cleanerorsanitizermixtures
CAUTION
• UseonlyFollettapprovedcleaners(seeprocedurebelow).
• ItisaviolationofFederallawtousethesesolutionsina
manner inconsistent with their labeling
• Readandunderstandallpackaginginstructionsbeforeuse
• Donotusesolvents,abrasivecleaners,metalscrapersor
sharp objects to clean any part of the dispenser
Cleaning solution
SolutionA: Prepare cleaning solution (200 ppm of
available chlorine content) of Ecolab Mikro-chlor Cleaner
or equal chlorinated detergent. Solution temperature
must be 75 F – 125 F (24 C – 52 C).
Sanitizingsolution
SolutionB: Prepare sanitizing solution (50 ppm of
available chlorine content) of Ecolab Mikro-chlor Cleaner
or equal chlorinated detergent. Solution temperature
must be 75 F – 125 F (24 C – 52 C).
Note: Before cleaning SensorSAFE units, deactivate
dispenser by depressing and releasing clean switch
located on left side of unit under top front cover. When
cleaning is complete, reactivate by depressing and
releasing clean switch a second time. Dispenser will
automatically reactivate after two minutes.
Daily cleaning
1. Remove all debris from drain pan.
2. Slowly pour 1 gallon (3.8L) hot water into drain pan
to keep drain lines clear.
Weeklycleaning
1. Wash drain pan and grille with cleaning solution A.
Rinse thoroughly with clean water.
2. Slowly pour solution of one cup (8oz/237ml)
household bleach mixed with one gallon (3.8L) hot
water into drain pan to help prevent algae growth in
drain lines.
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 13
Service
Icemakeroperation
Follett’s icemaker consists of four distinct functional systems:
• Refrigeration system
• Water system
• Harvesting system
• Electrical control system
These four systems work together to accomplish the production and harvesting of ice. A problem in any one of these
systems will result in improper operation of the entire ice production cycle. When troubleshooting the icemaker, it is
important to analyze the entire system operation to determine which system is not functioning properly, then pinpoint
the component within that system that is malfunctioning. Determine what corrective action must be taken before
making any adjustments or replacing any components.
Theicemakingprocess
The Follett icemaker uses a stainless steel jacketed evaporator and operates on a continuous freezing cycle.
Water is supplied to the evaporator from the water reservoir where the water level is controlled by a oat valve.
This valve also shuts off the water supply when the icemaker is not running.
When the icemaker is running, a layer of ice
forms on the interior surface of the evaporator.
This ice is continuously removed by a slowly
rotating (12 RPM) auger.
The auger carries the ice upward into the cavity
formed by the top bearing housing and the
compression loop, where it is compressed to
remove excess water.
When the ice reaches the desired hardness it
rotates within the cavity and is forced through
a discharge port and compression nozzle and
into the ice transport tube. The discharge tube
and compression nozzle are slightly restricted
to further compress the ice and produce the
desired hardness. As the formation of ice
continues, ice in the transport tube is pushed
through the tube to the storage compartment in
the ice dispenser.
A solid state control board, located in the
electrical box of the icemaker, controls the
normal operation of the icemaker and monitors
gearmotor torque. This control board will shut
down the icemaker should an over-torque
condition occur. It is very important that
you familiarize yourself with the operational
sequences detailed in this manual before
attempting to service the icemaker.

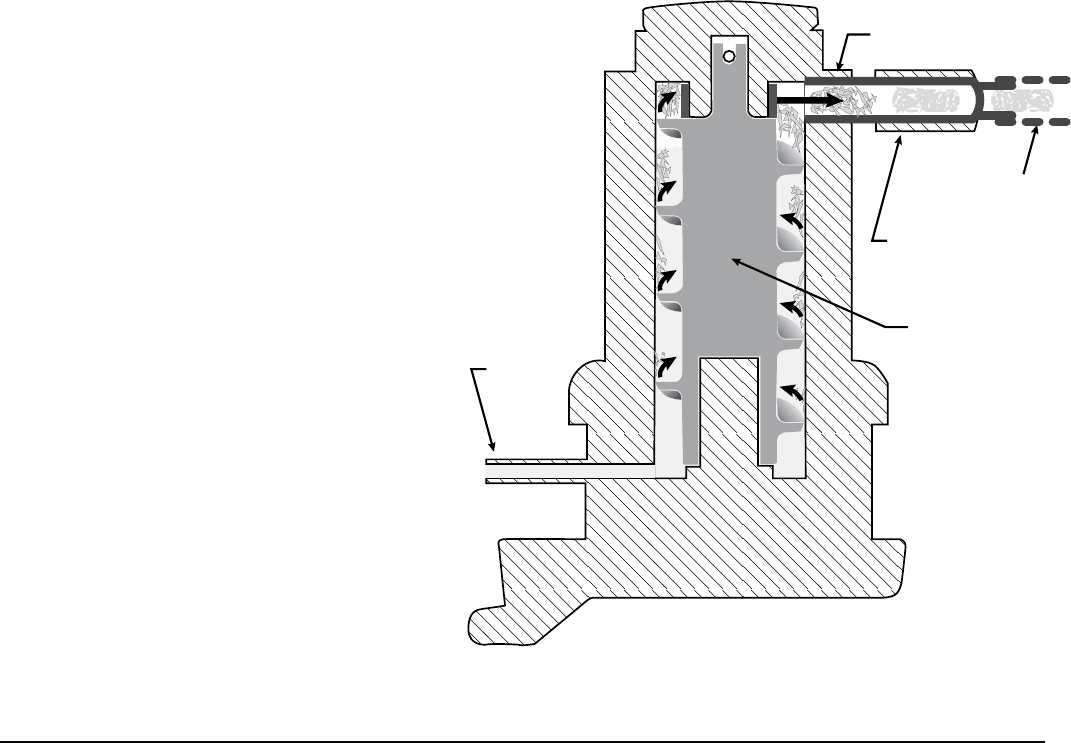

Iceharvestsystemdiagram
water
inlet
auger
compression nozzle
ice transport tube
discharge
port
14 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
3. Disconnect existing ice tube from engaging pin on
transport tube bracket in ice storage bin and pull
tube up through dispenser chase.

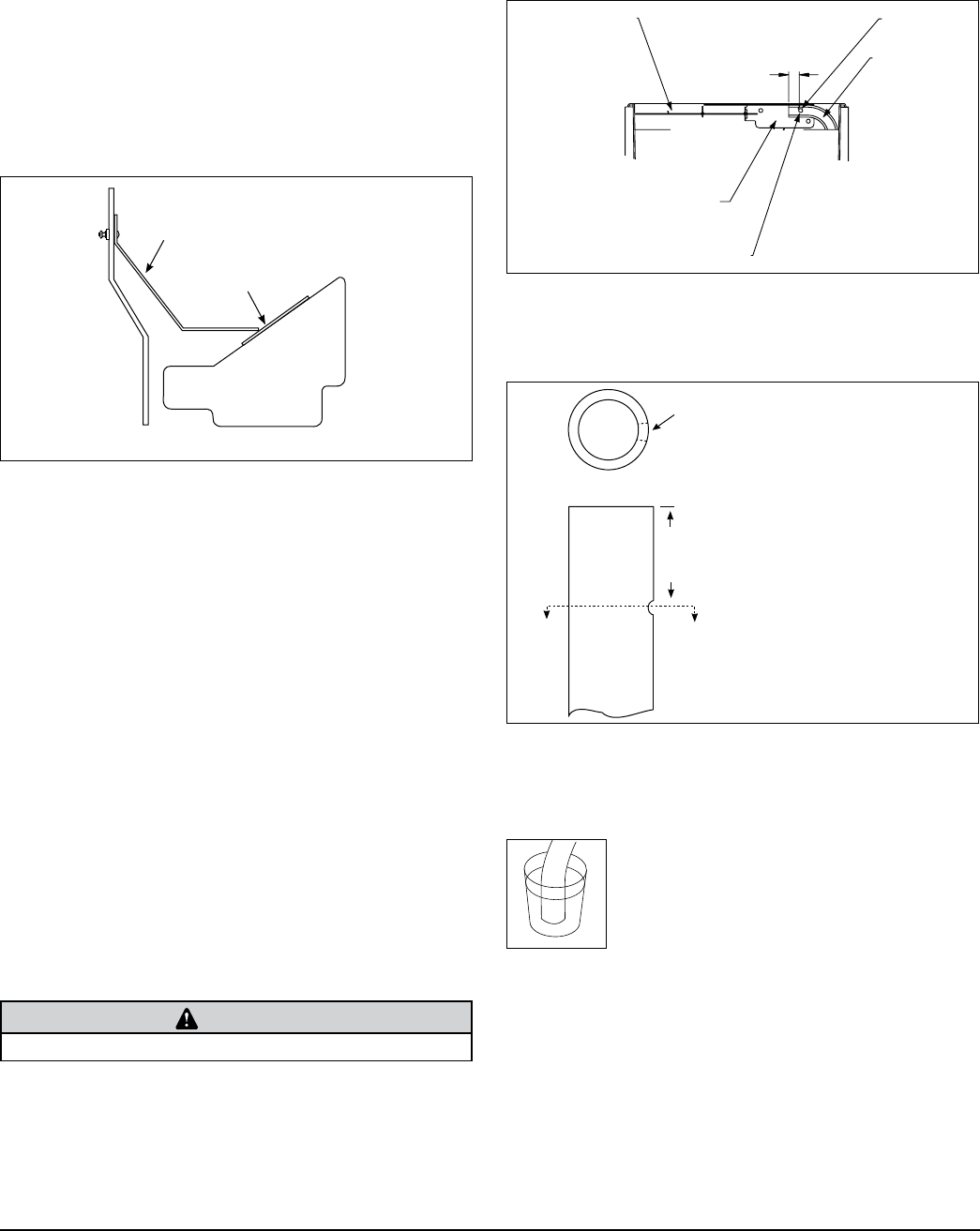

Fig.13
engaging pin
3/16" (5mm) ice tube hole
ice tube mounting bracket
ice level control stat
capillary tube
ice tube
1"
(26mm)
4. Run the new ice transport tube down through chase
making sure that the end with the 3/16" (5mm) hole
is in the bin (Fig. 13).
Fig.14
AA
1"
(26mm)
Section A – A
.3/16" (5mm)
dia. hole
5. Push the 3/16" (5mm) hole near end of tube into pin
on ice tube bracket (Fig. 14).
6. Reinstall insulation
Fig.15
7. Heat end of transport tube in cup of 160 F (71 C)
hot water to soften (Fig. 15).
8. Slip supplied hose clamp onto tube and push
tube onto compression nozzle on exit port of
evaporator. Do not twist tubing when securing to
evaporator.
9. Secure tube on port with hose clamp, being sure
that clamp is positioned on evaporator side of
nozzle ange.
Disassembly and replacement instructions
Dispensewheelremovalandinstallation
1. Remove all ice from storage area of dispenser.
2. Remove center thumb nut from dispense wheel.
3. Remove thumb nuts holding baffle inside bin and
remove baffle.
4. Tilt rear of wheel up and lift off motor drive shaft.
5. After reinstalling wheel, secure baffle loosely with
thumb nuts, but do not tighten.
Fig.12
side view wheel section
dispenser
front
baffle
1/16" (2mm)
spacer
6. Place a 1/16" (2mm) spacer against wheel and
allow baffle to drop until it touches spacer (Fig. 12).
7. Tighten thumb nuts and remove spacer.
Drivebarremoval
1. Remove dispense wheel from dispenser
(see above).
2. Pull drive bar out of its channel in bottom of wheel.
Wheelmotorassemblyremoval
1. Disconnect power.
2. Remove top cover and dispense wheel.
3. Slide icemaker out of dispenser as described on
page 16, icemaker removal. Icemaker does not
need to be removed completely if there is sufficient
clearance to access the dispenser motor through
the right louvered panel.
4. Disconnect wires on motor.
5. Remove four bolts (7/16" socket) holding motor
assembly to bottom of dispenser.
6. Remove motor assembly.
Ice transport tube replacement
CAUTION
• TubingmustbesuppliedbyFollettCorporation
1. Disconnect power. Remove top and partially slide
icemaker out of dispenser as described on page 16.
2. Disconnect end of tube from icemaker.
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 15
Fig.18–Allmodels
18.1
18.2

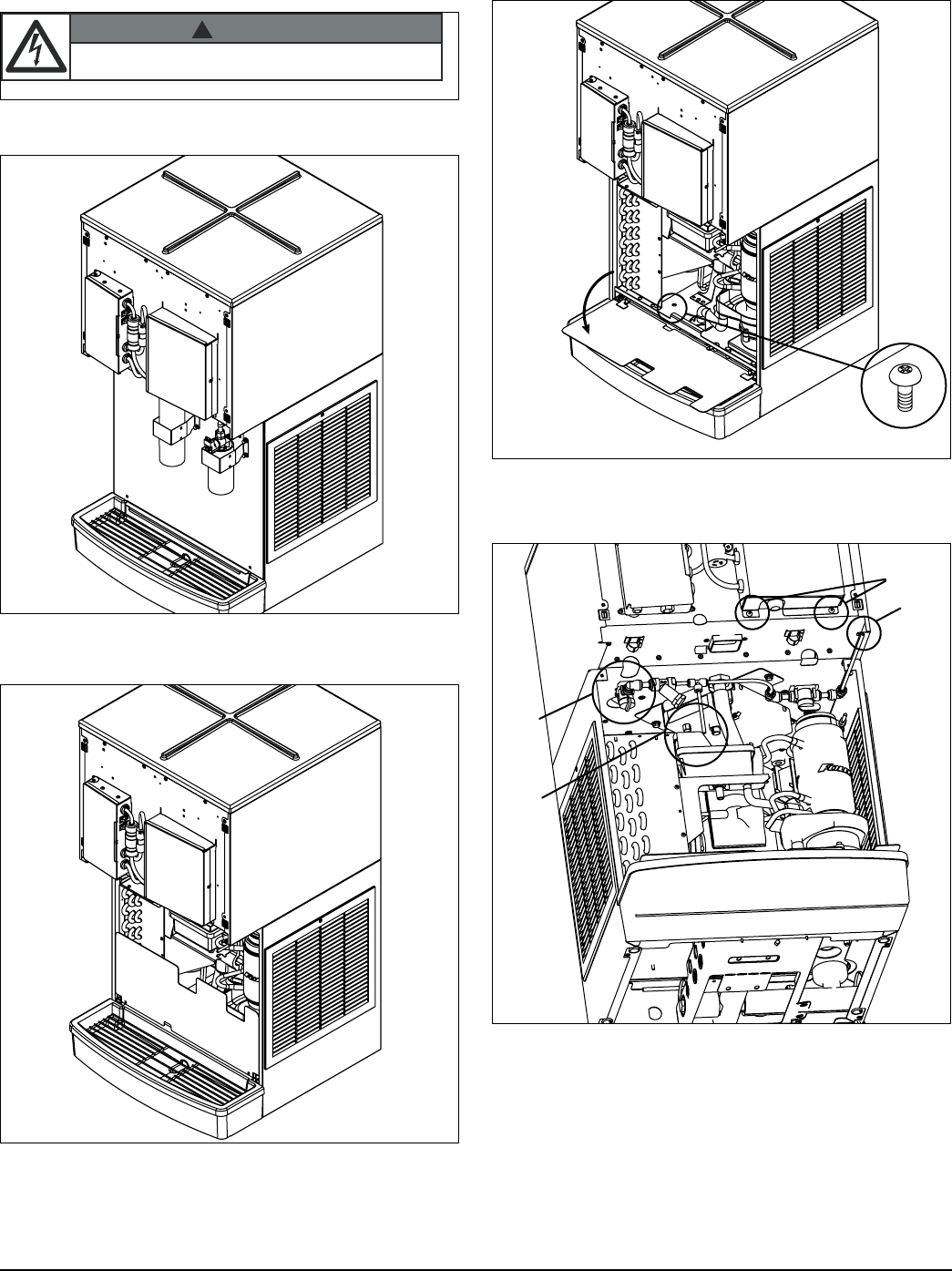

3. Lower drain pan protector (Fig. 18.1). Remove and
discard shipping screw (Fig. 18.2).
Fig.19–Allmodels
19.1
19.2
19.4
19.3
4. Close main water shut off valve (Fig. 19.1).
5. Disconnect water line to oat valve (Fig. 19.2).
6. Disconnect water line to solenoid (Fig. 19.3).
7. Remove screws securing bottom of icemaker
electrical box (Fig. 19.4).
Icemakerremoval
To reduce risk of shock disconnect power before
servicing.
!WARNING
Fig.16–Allmodels
1. Remove front cover (Fig. 16).
Fig.17–Allmodels
2. Remove splash panel (Fig. 17).
16 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Fig. 22 – All models
22.3
22.2
22.1 22.4
9. Partially slide icemaker from dispenser (Fig. 22.1).
10. Loosen clamp and disconnect ice transport tube
from evaporator (Fig. 22.2).
11. Disconnect power and bin signal twist lock
connectors (Fig. 22.3).
12. Slide icemaker electrical box up and off unit
(Fig. 22.4).
Fig.23–Air-cooledonly
23.2
23.1
13. Use hooks on icemaker electrical box to hang box
on front of condenser (Fig. 23.1).
14. Remove icemaker from dispenser (Fig. 23.2).
Note warning (Fig. 25).
Fig.20–Water-cooledonly
20.1
7. Shut off inlet and outlet valves to water-cooled
condenser and disconnect ttings (Fig. 20.1).
Fig.21–Water-cooledonly
21.1
8. Lift and position water-cooled lines into hook
(Fig. 21.1).
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 17
Fig.24–Water-cooledonly
24.2
24.1
13. Use hooks on icemaker electrical box to hang box
on bracket (Fig. 24.1).
14. Remove icemaker from dispenser (Fig. 24.2).

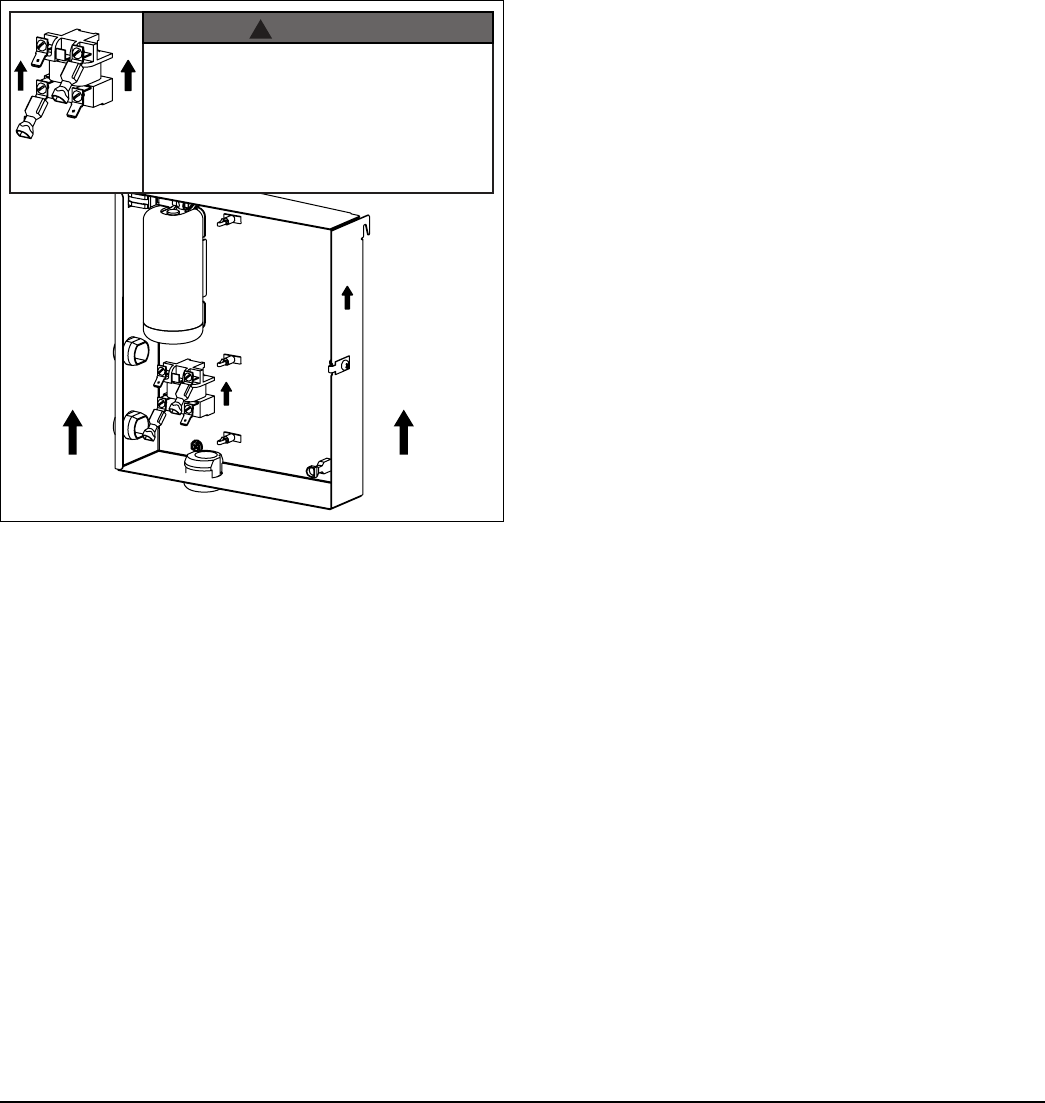

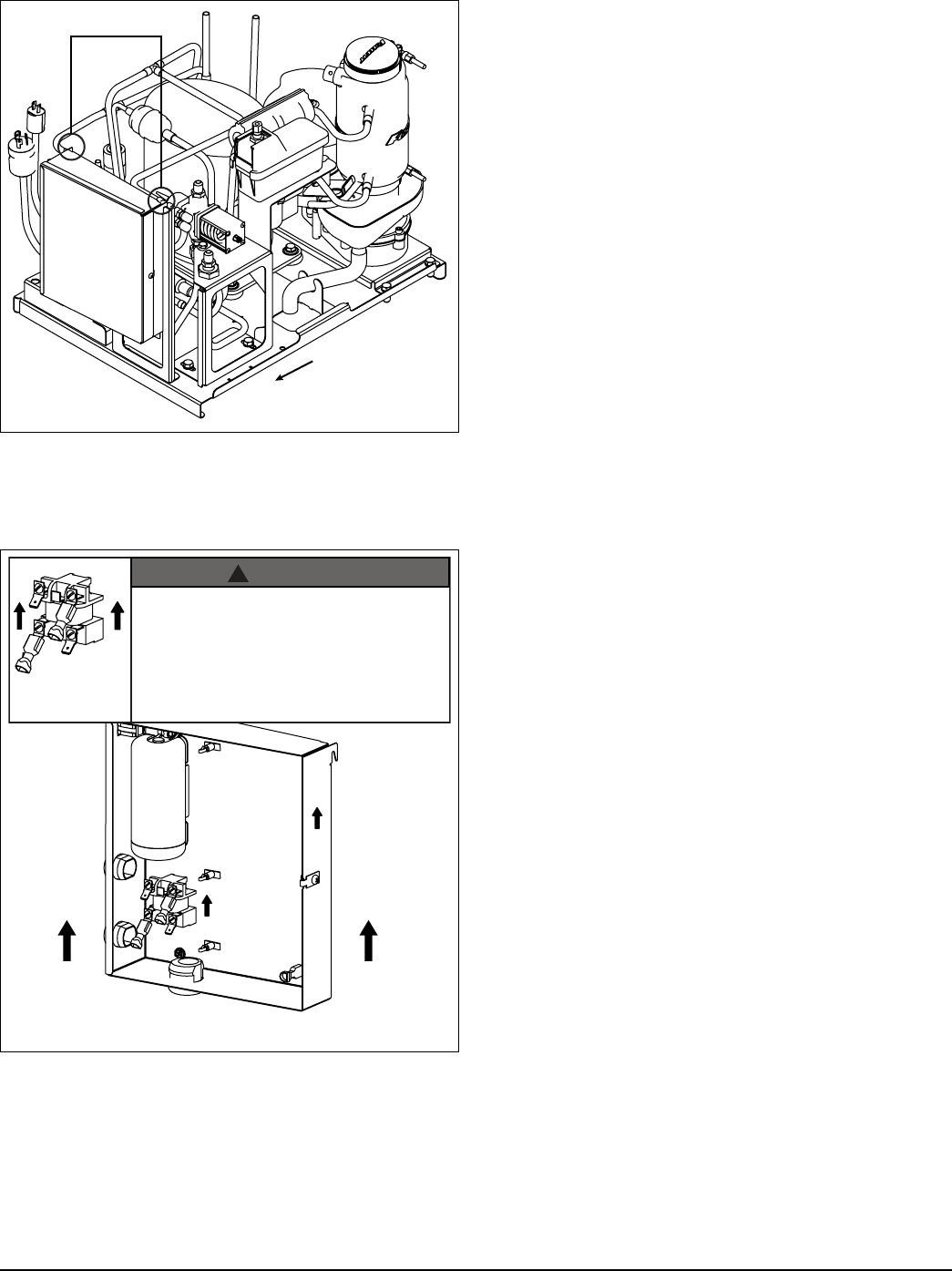

Fig. 25 – All models
TOP
• Electrical box must be in “UP” position
before supplying power
• Start relay is gravity sensitive, and MUST
be in “UP” position
• Failure to comply may cause equipment
to overheat, resulting in equipment failure,
equipment damage or fire hazard
!WARNING
icemaker
electrical box
TOP
18 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Evaporatorreassembly
1. Clean gearmotor boss, output shaft and shaft well.
2. Install drain pan and evaporator mounting base.
3. Fill gear motor shaft well with food grade grease
(Fig. 27.1).
4. Install condensate shield and seat against gear
motor boss.
5. Install bearing O ring in groove in evaporator
mounting base.
6. Lower bottom bearing assembly into evaporator
mounting base.
7. While maintaining a slight downward pressure on
bottom bearing assembly, tighten hex head bolt with
a 5/16" wrench.
8. Position evaporator over lower bearing assembly
and align grooves with pins in bearing assembly.
9. Install vee band clamp and nut to 70 in/lb.
10. Place auger in center of evaporator and rotate to
mate with drive pin.
11. Install ice compression loop, orienting loop as
shown in Fig. 28.
12. Install upper bearing and seal assembly, rotating
bearing to slip pin into auger slot.
13. Install upper vee band clamp and nut to 70 in/lb.
14. If evaporator was replaced, reinstall compression
nozzle on new evaporator.

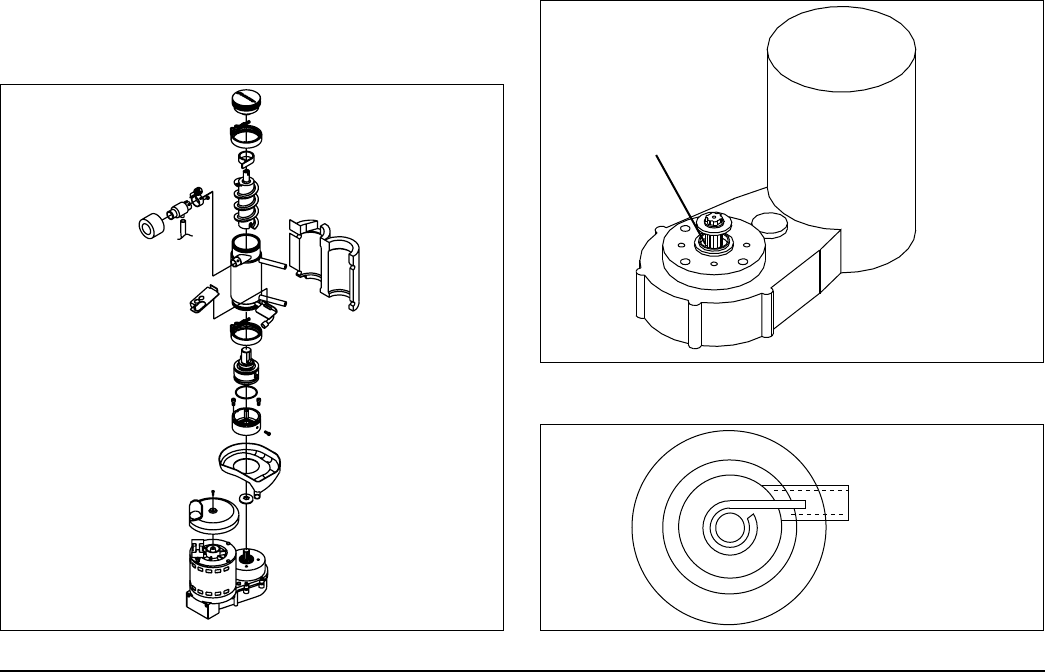

Fig. 27
27.1
Fig. 28
Evaporatordisassembly
Note: The upper bearing, lower bearing and auger
assemblies must be replaced as assemblies. The bottom
and top bearing assemblies cannot be eld assembled to
factory specications (Fig. 26)..
1. Disconnect power to icemaker.
2. Shut off water to icemaker.
3. Drain evaporator and oat tank.
4. Disconnect plastic tubing from evaporator water
inlet.
5. Disconnect compression nozzle tubing and reservoir
overow tubing from secured clip.
6. Remove nut and upper vee band coupling from top
of evaporator
7. Lift top bearing assembly straight up with a slight
rotating motion and remove.
8. Remove ice compression loop located at top
of auger.
9. Lift auger straight up and out of evaporator.
10. Remove nut and lower vee band coupling from
bottom of evaporator.
11. Lift evaporator to clear bottom bearing assembly.
12. Loosen hex head bolt in side of mounting base with
5/16" wrench and lift lower bearing assembly.
13. Remove condensate shield.
14. Remove four Allen head machine screws holding
mounting base to gearbox.
15. If replacing evaporator, remove compression nozzle
from evaporator port.

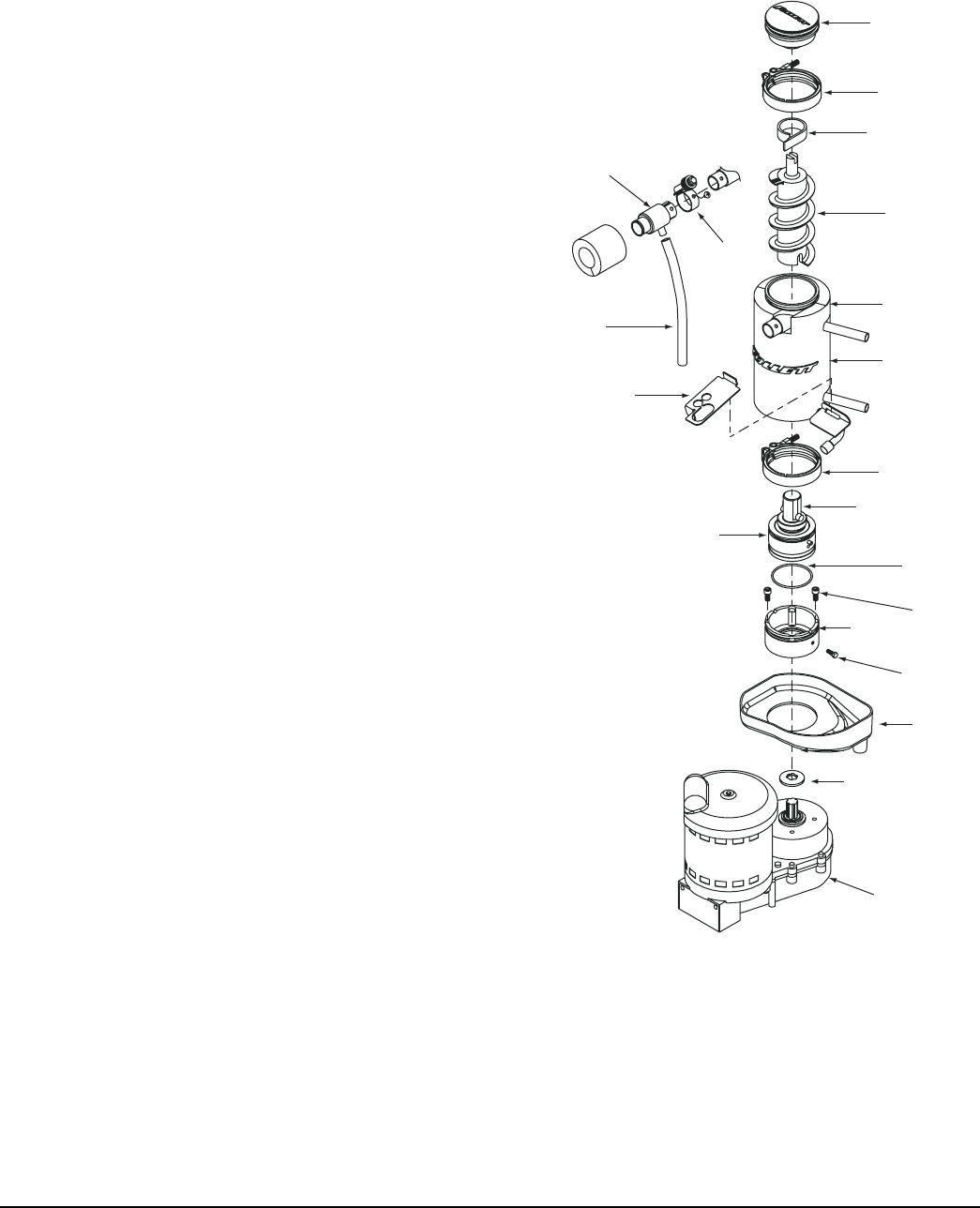

Fig. 26
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 19
Gearmotor replacement
1. Disassemble evaporator as described above.
2. Disconnect the wire connectors.
3. Remove four screws holding gear motor mounting
plate to base of icemaker and lift gearbox and motor
clear of icemaker.
4. Remove machine screws holding mounting plate to
motor.
5. Install new motor in reverse order.

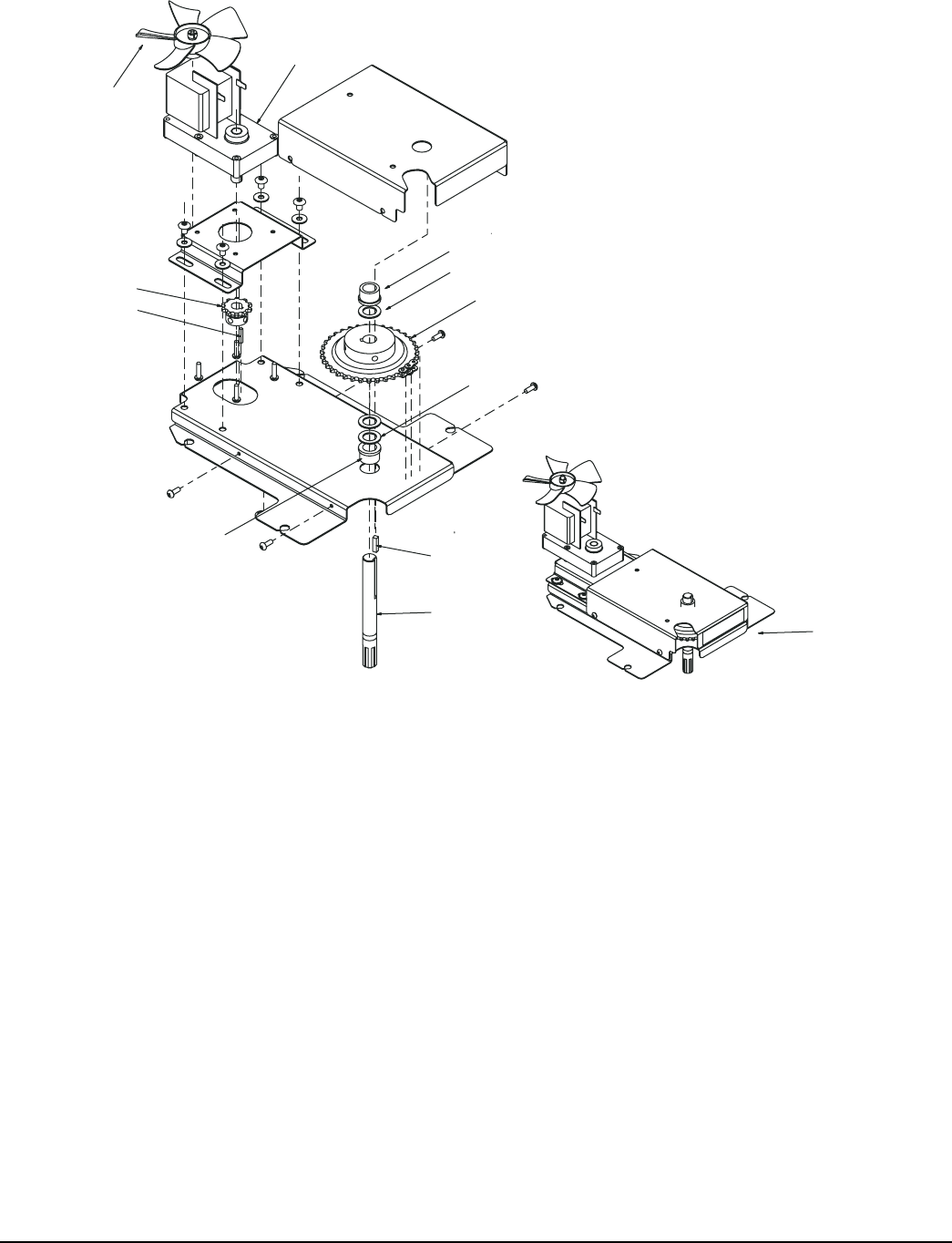

Fanremoval

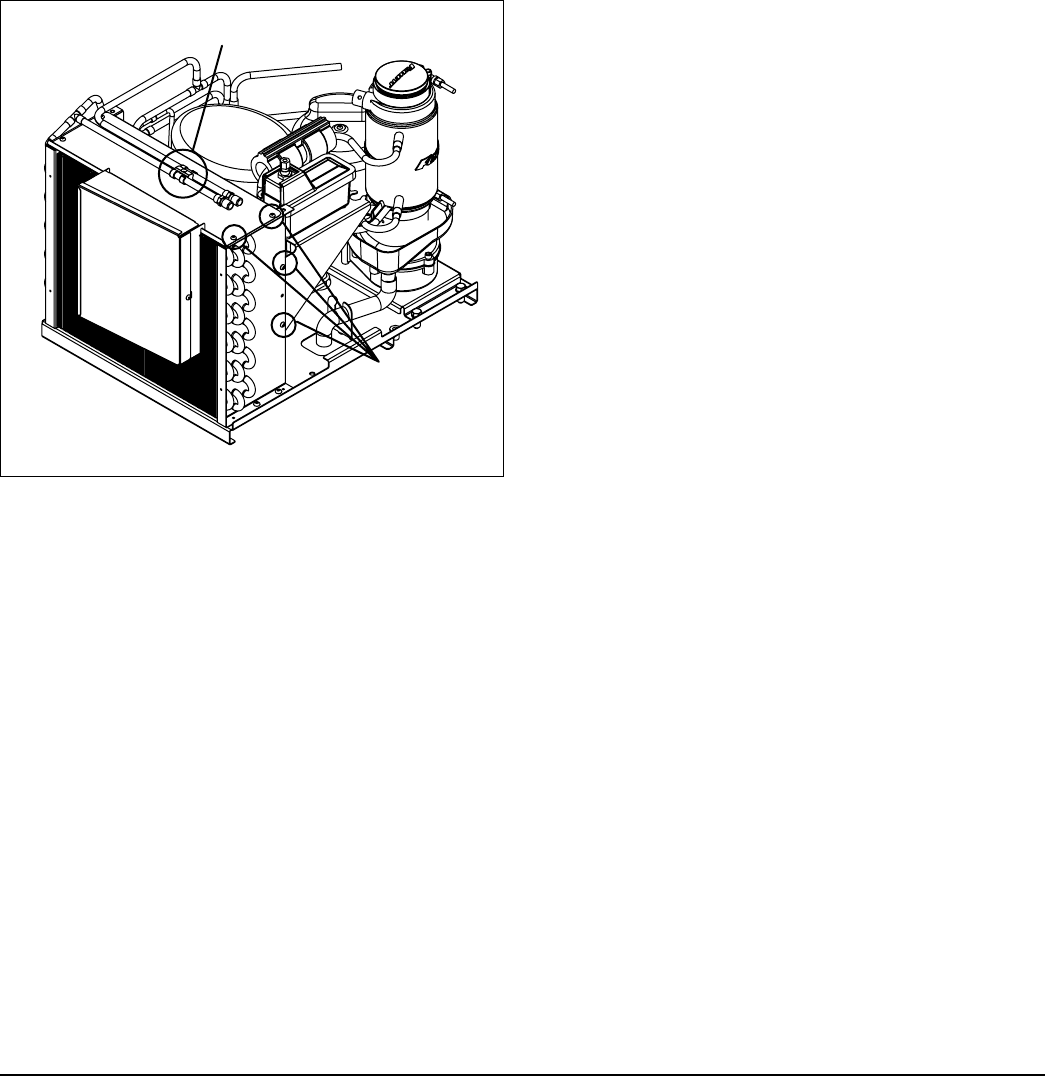

Fig.29
29.2
29.1
1. Remove screw securing refrigerant lines to
condenser shroud (Fig. 29.1)
2. Remove seven screws securing shroud to
condenser (Fig. 29.2).
3. Slide shroud forward against n block to access
fan and motor.
20 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

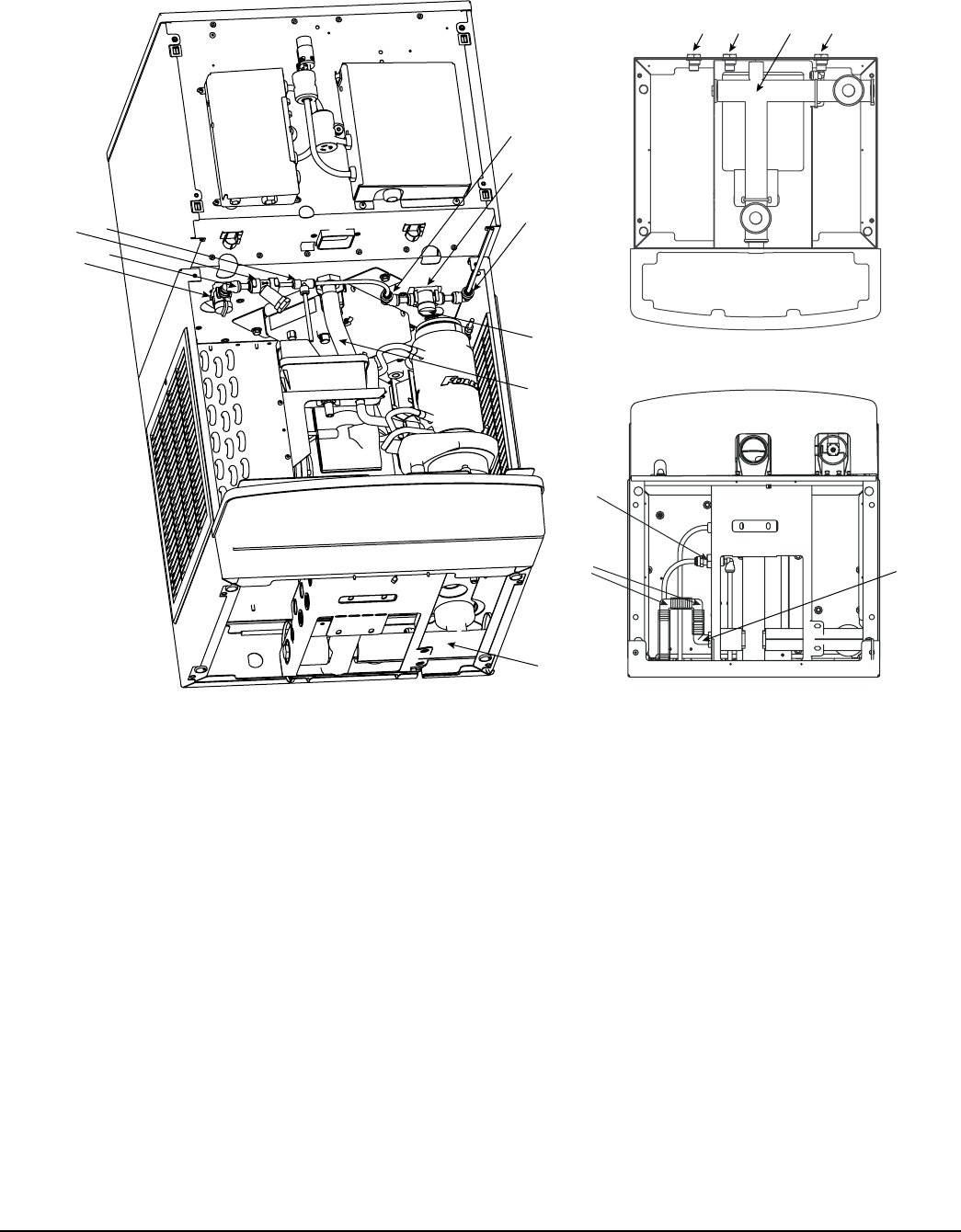

Electrical component locations
bin thermostat
capillary tube
ice level
control stat
Top View
ice tube
mounting bracket
well nut
knurled screw
rubber
grommet
icemaker
electrical
box
dispenser
electrical
box hopper
assembly

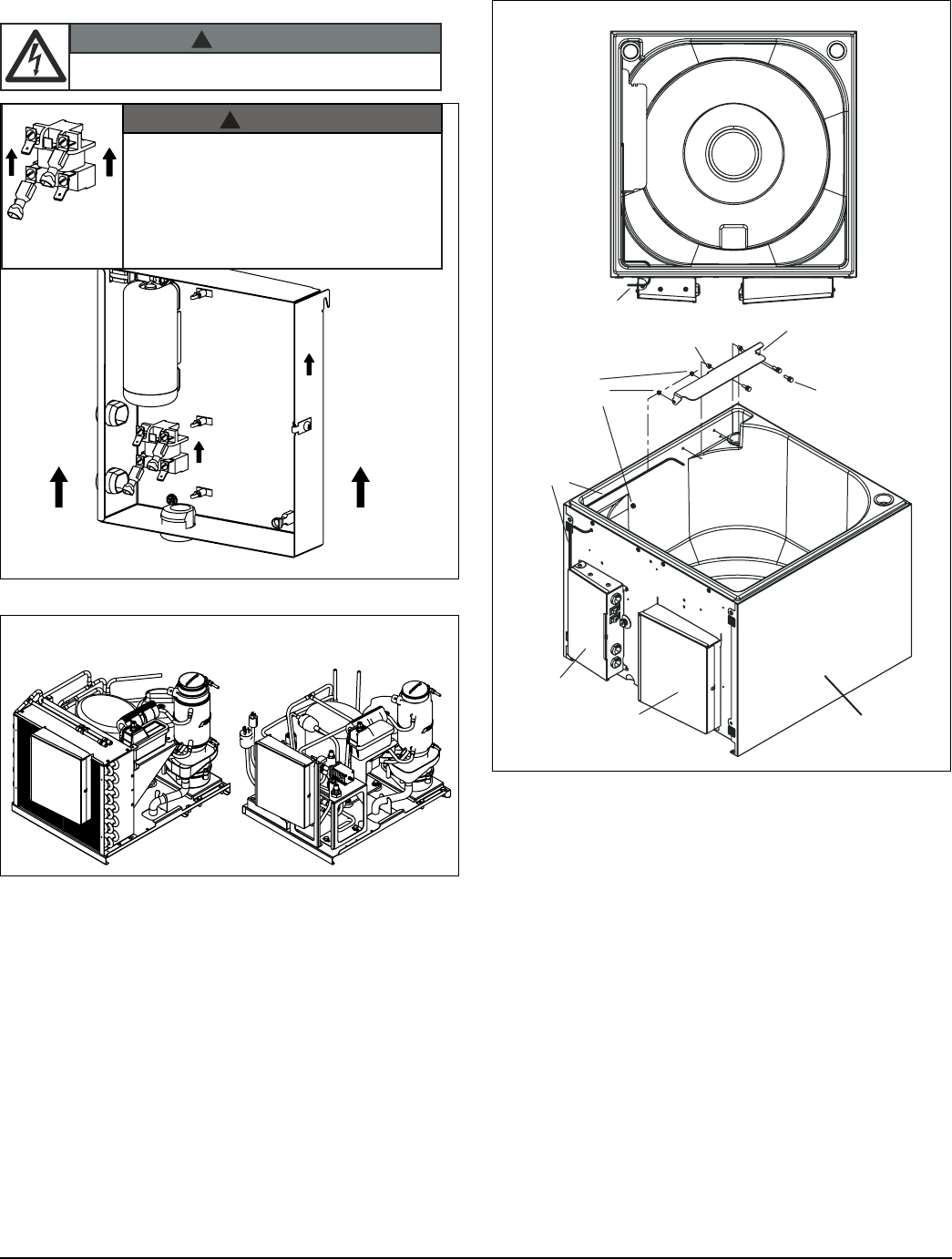

Electrical systems
TOP
• Electrical box must be in “UP” position
before supplying power
• Start relay is gravity sensitive, and MUST
be in “UP” position
• Failure to comply may cause equipment
to overheat, resulting in equipment failure,
equipment damage or fire hazard
!WARNING
icemaker
electrical box
TOP
icemaker
electrical
box
icemaker
electrical
box
Air-cooled icemaker Water-cooled icemaker
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 21

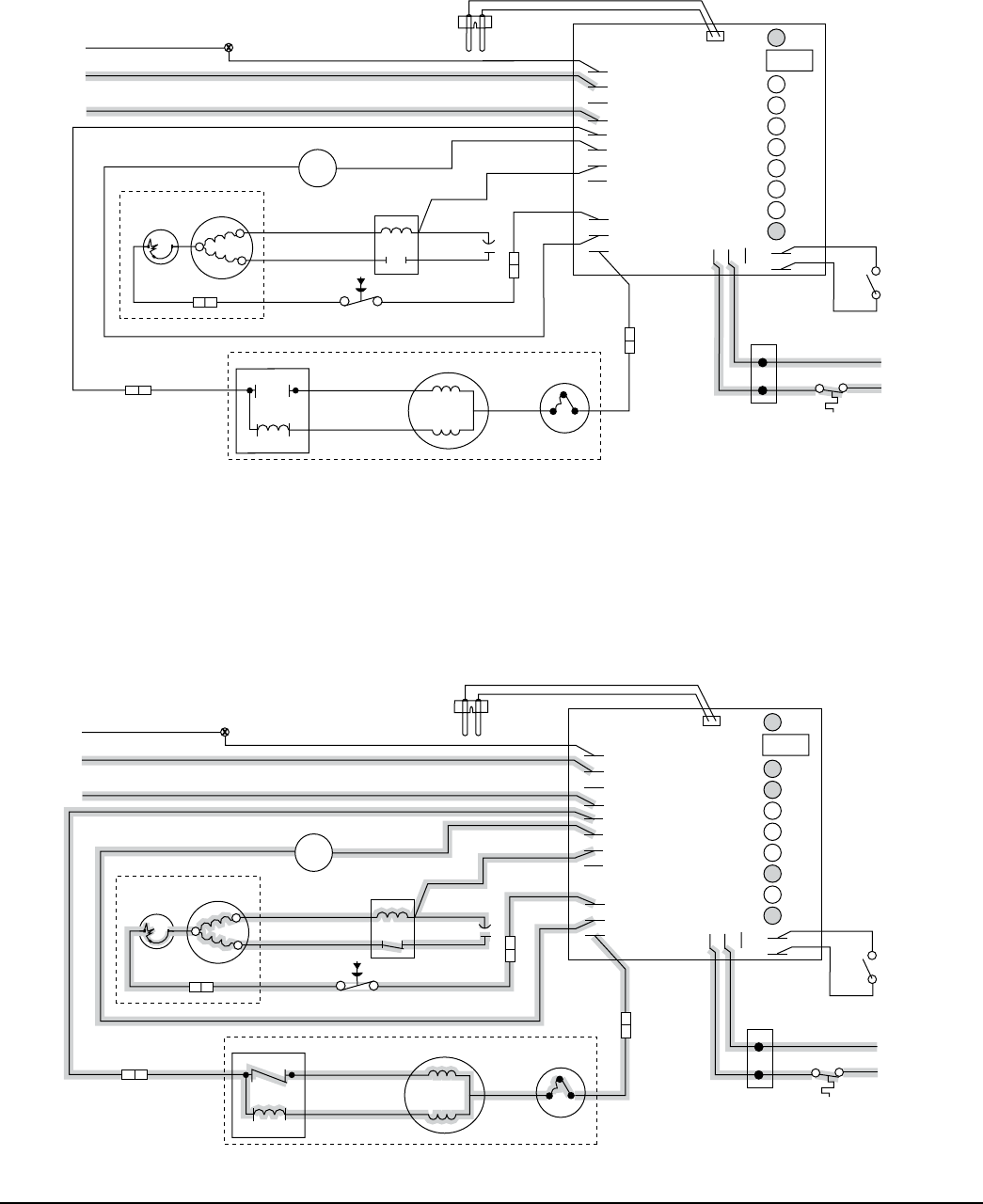

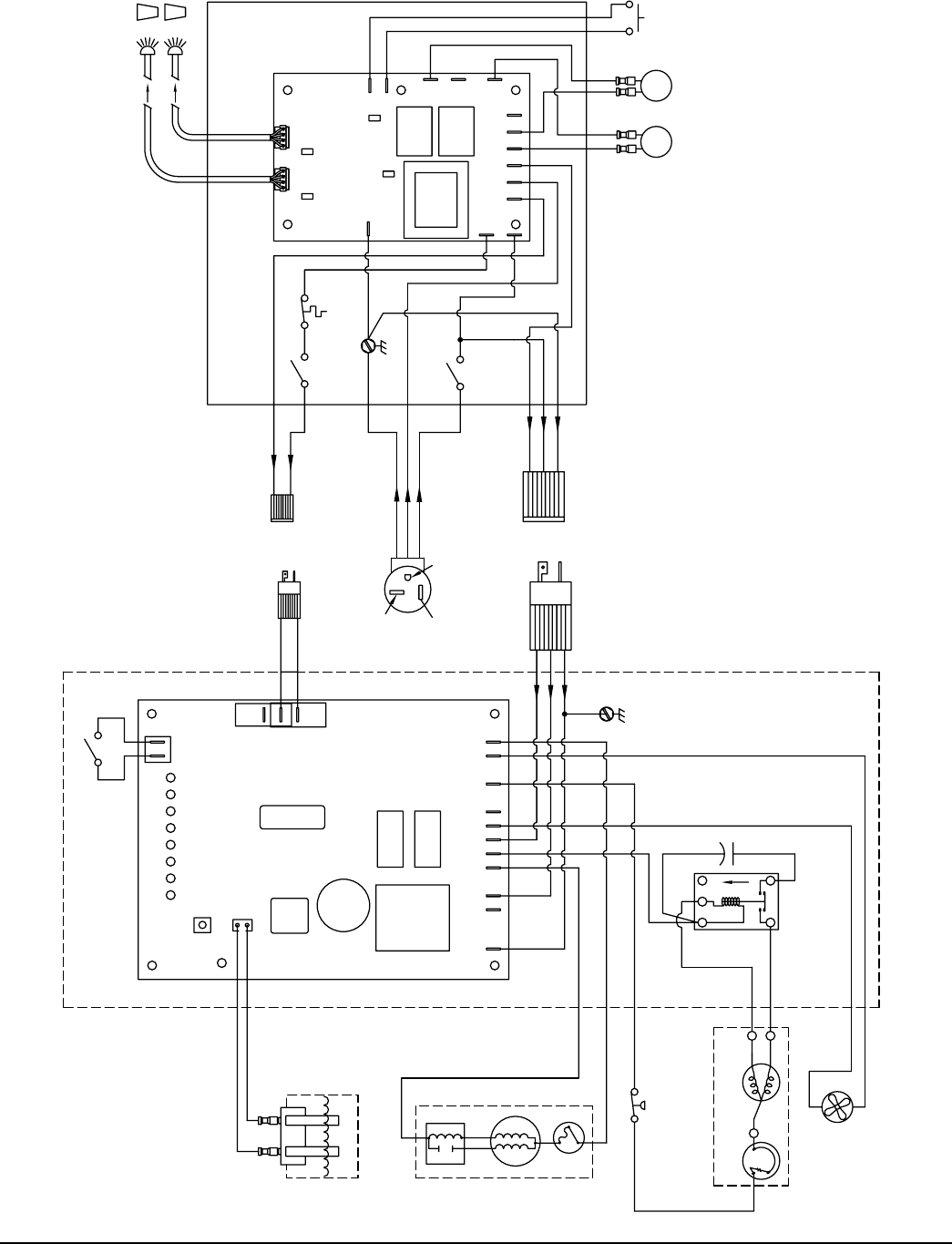

Wiringdiagram-leverdispensemodel
00186395R01
801 CHURCH LANE
EASTON, PA 18040, USA
800-523-9361 OR 610-252-7301
FOR SERVICE CALL:
ON THE WEB: www.follettice.com
C
WHT
GRN
Lever Dispensing Wiring Diagram
SensorSAFE™ Dispensing Wiring Diagram
C
NOTES:
1. HIGH PRESSURE SAFETY SWITCH
OPENS @ 425psi CLOSES @ 297psi (SNAP SWITCH)
2. COMPRESSOR START RELAY IS GRAV ITY SENSITIVE.
SEE LABEL ON RELAY FOR PROPER ORIENTATION.
(SEE NOTE #2)
SL
12M
UP
COMP. START CAPACITOR
COMPRESSOR
START RELAY
(SEE NOTE #1)
HI PRESSURE
SAFETY SWITCH
P
S
COMPRESSOR
OVER-LOAD
COMPRESSOR
R
START
RUN
CONDENSER
FAN
(AIR COOLED ONLY)
WHT
WHT
BLK
BLK #4
WHT
RED RED
GROUND
SCREW
115 60Hz
FROM
DISPENSER BOX
ICE MACHINE
POWER
CONNECTION
L2
DRIVE
L2
FAN
COMP
L2
L2
L2
L1
L1
WHT
BLK
GRN
EARTH
WHT
BLK
BLK
RED
ORG
SWITCH
COMP
2ND
B-T
B-E
WTR
60M
20M
C
POWER
RESET
SENSOR
WATER
DR
WATER SENSOR
COMPRESSOR SWITCH
I = COMP ON
O = COMP OFF
WATER RESERVOIR
ICE MACHINE PCB
VAC
LINE
VAC
24
BIN SIGNAL
CONNECTION
115 VA C
FROM
DISPENSER
WHT
BLK
ICE MACHINE ELECTRICAL BOX
GND-GRN
L1-BLK
L2-WHT
BLKGRN
WHT
125VAC 20A
PLUG
NEMA 5-20P
WHT
BLK
GRN
WHT
BLK
BIN SIGNAL
SWITCH
T STAT
(ICE LEVEL)
GROUND
SCREW
LEVER DISPENSER ELECTRICAL BOX
POWER
SWITCH
DISPENSE
MOTOR
WATER
SOLENOID
M
S
ICE
SWITCH
WATER
SWITCH
NOTES:
1. HIGH PRESSURE SAFETY SWITCH
OPENS @ 425psi CLOSES @ 297psi (SNAP SWITCH)
2. COMPRESSOR START RELAY IS GRAV ITY SENSITIVE.
SEE LABEL ON RELAY FOR PROPER ORIENTATION.
(SEE NOTE #2)
UP
COMP. START CAPACITOR
COMPRESSOR
START RELAY
CONDENSER
FAN
(AIR COOLED ONLY)WHT
BLK
BLK
ORG
BLK #4
SL
12M
(SEE NOTE #1)
HI PRESSURE
SAFETY SWITCH
P
S
COMPRESSOR
OVER-LOAD
COMPRESSOR
R
START
RUN
WHT
BLK
RED
WHT
L2
DRIVE
L2
FAN
COMP
L2
L2
L2
L1
EARTH
L1
WHT
BLK
GRN
115 60Hz
FROM
DISPENSER BOX
GROUND
SCREW
ICE MACHINE
POWER
CONNECTION
VAC
LINE
VAC
24
SOFTWARE
I.D.
POWER
RESET
SENSOR
WATER
LABEL
I.D.
WATER SENSOR
WATER RESERVOIR
START RELAY
2
3
YEL
START
BLK
RUN
T.O.L.
ICE MACHINE
GEAR MOTOR
BIN SIGNAL
CONNECTION
115 VA C
FROM
DISPENSER
ICE MACHINE PCB
WHT
BLK
4
GND-GRN
L1-BLK
L2-WHT
BLK
WHT
125VAC 20A
PLUG
NEMA 5-20P
BIN SIGNAL
SWITCH
POWER
SWITCH
T STAT
(ICE LEVEL)
GROUND
SCREW
WHT
BLK
WHT
BLK
GRN
L2
L2
L2
L2
L2
L2
EARTH
WTR SOL WM
CLN
CLN
PWR
ICE
WTR
SENSOR SAFE PCB
CLEAN
SWITCH
DISPENSE
MOTOR
WATER
SOLENOID
MS
L1
SS DISPENSER ELECTRICAL BOX
WATER SENSOR
ICE SENSOR
SWITCH
COMP
2ND
B-T
B-E
WTR
60M
20M
C
DR
COMPRESSOR SWITCH
I = COMP ON
O = COMP OFF
ICE MACHINE ELECTRICAL BOX
START RELAY
2
3
YEL
START
BLK
RUN
T.O.L.
ICE MACHINE
GEAR MOTOR
4
SOFTWARE
I.D.
LABEL
I.D.
22 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Wiringdiagram-SensorSAFEmodel
00186395R01
801 CHURCH LANE
EASTON, PA 18040, USA
800-523-9361 OR 610-252-7301
FOR SERVICE CALL:
ON THE WEB: www.follettice.com
C
WHT
GRN
Lever Dispensing Wiring Diagram
SensorSAFE™ Dispensing Wiring Diagram
C
NOTES:
1. HIGH PRESSURE SAFETY SWITCH
OPENS @ 425psi CLOSES @ 297psi (SNAP SWITCH)
2. COMPRESSOR START RELAY IS GRAV ITY SENSITIVE.
SEE LABEL ON RELAY FOR PROPER ORIENTATION.
(SEE NOTE #2)
SL
12M
UP
COMP. START CAPACITOR
COMPRESSOR
START RELAY
(SEE NOTE #1)
HI PRESSURE
SAFETY SWITCH
P
S
COMPRESSOR
OVER-LOAD
COMPRESSOR
R
START
RUN
CONDENSER
FAN
(AIR COOLED ONLY)
WHT
WHT
BLK
BLK #4
WHT
RED RED
GROUND
SCREW
115 60Hz
FROM
DISPENSER BOX
ICE MACHINE
POWER
CONNECTION
L2
DRIVE
L2
FAN
COMP
L2
L2
L2
L1
L1
WHT
BLK
GRN
EARTH
WHT
BLK
BLK
RED
ORG
SWITCH
COMP
2ND
B-T
B-E
WTR
60M
20M
C
POWER
RESET
SENSOR
WATER
DR
WATER SENSOR
COMPRESSOR SWITCH
I = COMP ON
O = COMP OFF
WATER RESERVOIR
ICE MACHINE PCB
VAC
LINE
VAC
24
BIN SIGNAL
CONNECTION
115 VA C
FROM
DISPENSER
WHT
BLK
ICE MACHINE ELECTRICAL BOX
GND-GRN
L1-BLK
L2-WHT
BLKGRN
WHT
125VAC 20A
PLUG
NEMA 5-20P
WHT
BLK
GRN
WHT
BLK
BIN SIGNAL
SWITCH
T STAT
(ICE LEVEL)
GROUND
SCREW
LEVER DISPENSER ELECTRICAL BOX
POWER
SWITCH
DISPENSE
MOTOR
WATER
SOLENOID
M
S
ICE
SWITCH
WATER
SWITCH
NOTES:
1. HIGH PRESSURE SAFETY SWITCH
OPENS @ 425psi CLOSES @ 297psi (SNAP SWITCH)
2. COMPRESSOR START RELAY IS GRAV ITY SENSITIVE.
SEE LABEL ON RELAY FOR PROPER ORIENTATION.
(SEE NOTE #2)
UP
COMP. START CAPACITOR
COMPRESSOR
START RELAY
CONDENSER
FAN
(AIR COOLED ONLY)WHT
BLK
BLK
ORG
BLK #4
SL
12M
(SEE NOTE #1)
HI PRESSURE
SAFETY SWITCH
P
S
COMPRESSOR
OVER-LOAD
COMPRESSOR
R
START
RUN
WHT
BLK
RED
WHT
L2
DRIVE
L2
FAN
COMP
L2
L2
L2
L1
EARTH
L1
WHT
BLK
GRN
115 60Hz
FROM
DISPENSER BOX
GROUND
SCREW
ICE MACHINE
POWER
CONNECTION
VAC
LINE
VAC
24
SOFTWARE
I.D.
POWER
RESET
SENSOR
WATER
LABEL
I.D.
WATER SENSOR
WATER RESERVOIR
START RELAY
2
3
YEL
START
BLK
RUN
T.O.L.
ICE MACHINE
GEAR MOTOR
BIN SIGNAL
CONNECTION
115 VA C
FROM
DISPENSER
ICE MACHINE PCB
WHT
BLK
4
GND-GRN
L1-BLK
L2-WHT
BLK
WHT
125VAC 20A
PLUG
NEMA 5-20P
BIN SIGNAL
SWITCH
POWER
SWITCH
T STAT
(ICE LEVEL)
GROUND
SCREW
WHT
BLK
WHT
BLK
GRN
L2
L2
L2
L2
L2
L2
EARTH
WTR SOL WM
CLN
CLN
PWR
ICE
WTR
SENSOR SAFE PCB
CLEAN
SWITCH
DISPENSE
MOTOR
WATER
SOLENOID
MS
L1
SS DISPENSER ELECTRICAL BOX
WATER SENSOR
ICE SENSOR
SWITCH
COMP
2ND
B-T
B-E
WTR
60M
20M
C
DR
COMPRESSOR SWITCH
I = COMP ON
O = COMP OFF
ICE MACHINE ELECTRICAL BOX
START RELAY
2
3
YEL
START
BLK
RUN
T.O.L.
ICE MACHINE
GEAR MOTOR
4
SOFTWARE
I.D.
LABEL
I.D.
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 23
Icemakeroperationalanddiagnosticsequences
The wiring diagrams that follow illustrate the circuitry of Follett icemakers. Both normal operation (stages 1 - 6) and
non-normal diagnostic sequences showing torque-out (stages 7 - 10) for use in troubleshooting are shown.
Circuitry notes
The icemaker receives power from two sources – the main power supply and the bin control signal power from the
dispenser. Disconnect both power sources before performing service. When performing electrical service, always use a
meter to determine whether or not the components being serviced are energized.
High pressure cutout opens at 425 PSO and closes at 287 PSI (auto reset)
Compressor switch should read open in ON position.
Compressor start relay is position sensitive.
TOP
• Electrical box must be in “UP” position
before supplying power
• Start relay is gravity sensitive, and MUST
be in “UP” position
• Failure to comply may cause equipment
to overheat, resulting in equipment failure,
equipment damage or fire hazard
!WARNING
icemaker
electrical box
TOP
Bin signal is 115V, 60Hz.
Flashing water LED at any time indicates that water signal to board has been lost for more than one second.
Ten-second delay: There is a 10 second delay in reaction to loss of water (WTR) or bin (B-E) signals. If signals are not
lost for more than 10 seconds, no reaction will occur.
24 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

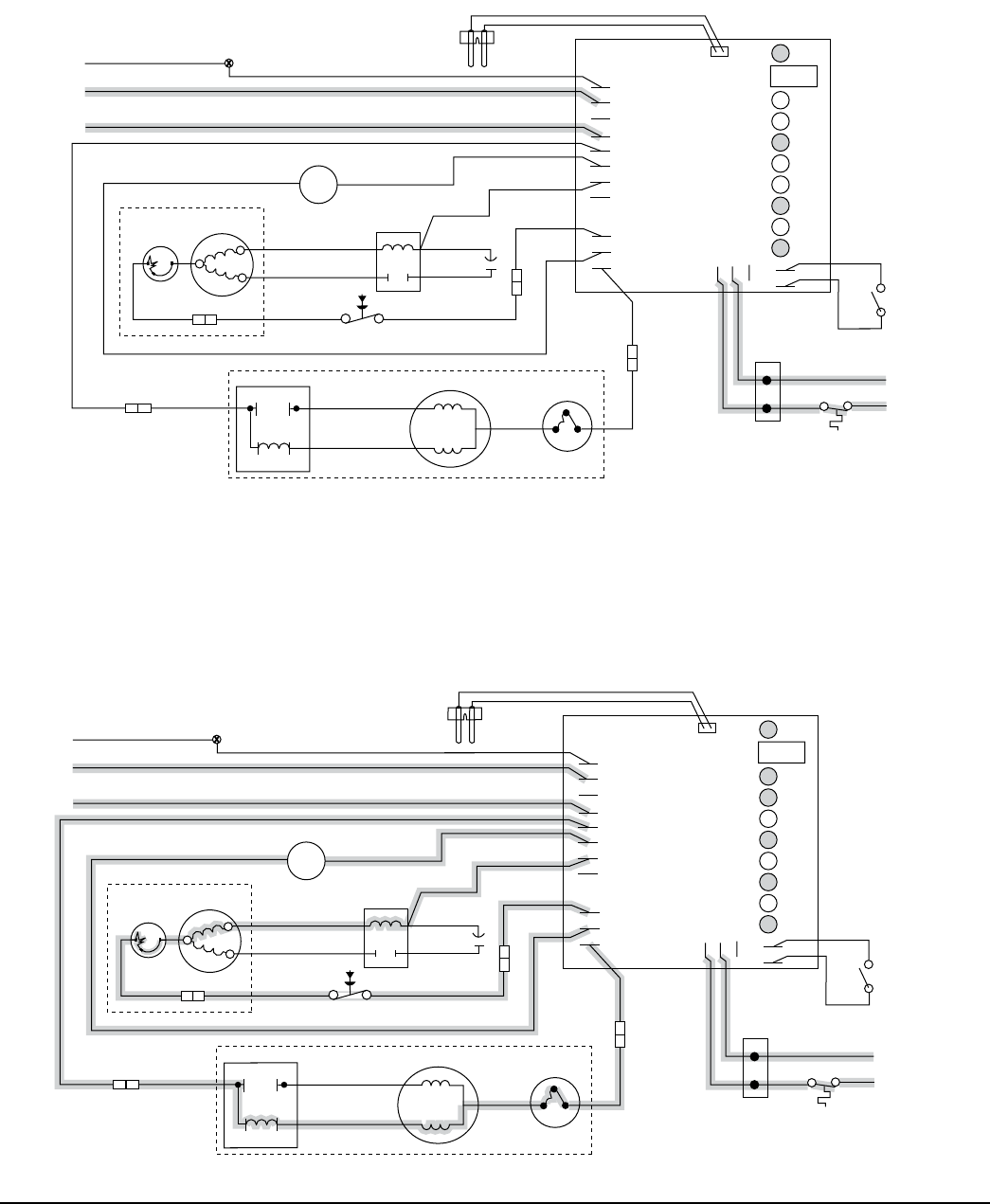

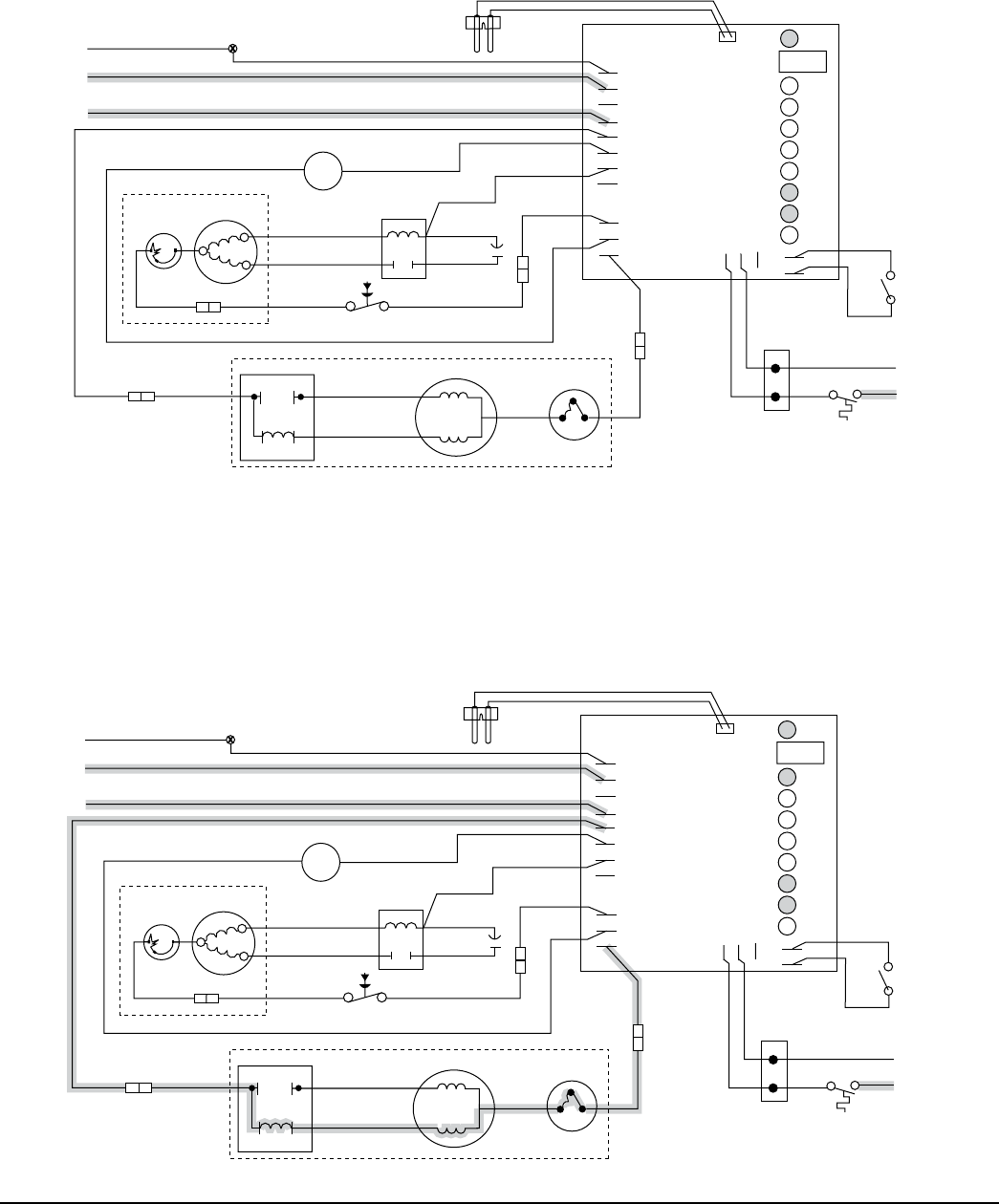

Normaloperation–Stage1
Power is supplied to L1 of the control board. The ice level control in the dispenser is closed and calling for ice,
supplying signal voltage to the control board. The control board will now go through the start-up sequence. Less than
30 seconds will elapse as the water sensor located in the oat reservoir checks for water in the reservoir. The bin
empty LED (B-E) and power LED (PWR) will be on
GRD
L1
L1
L2
L2
L2
L2
L2
COMPRESSOR
FAN
DRIVE
DR
C
20M
60M
2ND
WTR
B-T
B-E
RESET
GRD
G
B
W
FAN
BLACKWHITE
BLACK
BLACK
R
ORANGE
SSL
COMPRESSOR
C
RED
BLACK
BLACK
WHITE
INPUT
POWER
WATER
SENSOR
CONTROL
BOARD
BLACK
GEARMOTOR
24V
COMMON
LINE VAC
RED
RED
WHITE
BLACK
BIN T- STAT
BIN SIGNAL
FROM DISPENSER
JUNCTION BOX
WHITE
RED
WHITE
M1
COMPRESSOR
SWITCH
PWR
BLACK
T. O.L.
BLACK
RED
HIGH PRESSURE
SAFETY SWITCH
42
3
RUN
START
T. O.L.
BLUE
YELLOW
BLACK
WHITE
M
Normaloperation–Stage2
The water sensor veries water in the oat reservoir. The water OK LED (WTR) comes on. At the same time, the
gearmotor, compressor and condenser fan motor come on, lighting the drive LED (DR) and compressor LED (C). The
high initial current draw of the compressor run winding closes the contacts of the current relay energizing the start
winding through the run capacitor. The gearmotor is also started through a current style relay that is pulled in by the
initial high current draw of the run winding. The PWR, B-E and WTR LED remain on.
GRD
L1
L1
L2
L2
L2
L2
L2
COMPRESSOR
FAN
DRIVE
DR
C
20M
60M
2ND
WTR
B-T
B-E
RESET
GRD
G
B
W
FAN
BLACKWHITE
BLACK
BLACK
R
ORANGE
SSL
COMPRESSOR
C
RED
BLACK
BLACK
WHITE
INPUT
POWER
WATER
SENSOR
CONTROL
BOARD
BLACK
GEARMOTOR
24V
COMMON
LINE VAC
RED
RED
WHITE
BLACK
BIN T- STAT
BIN SIGNAL
FROM DISPENSER
JUNCTION BOX
WHITE
RED
WHITE
M1
COMPRESSOR
SWITCH
PWR
BLACK
T. O.L.
BLACK
RED
HIGH PRESSURE
SAFETY SWITCH
42
3
RUN
START
T. O.L.
BLUE
YELLOW
BLACK
WHITE
M
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 25

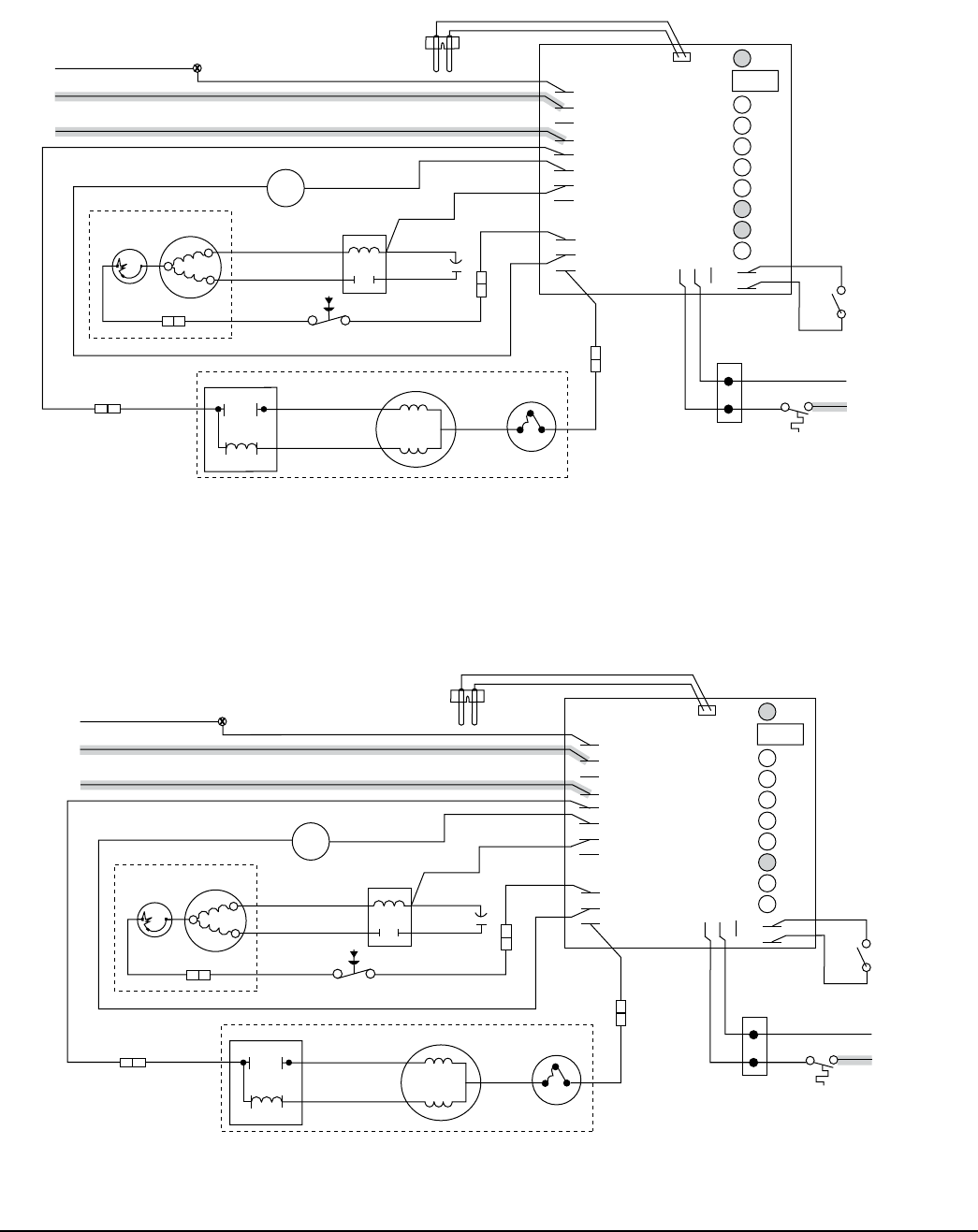

Normaloperation–Stage3
After the initial high current draw drops off, the gearmotor start relay contacts open, dropping out the start winding. As
the compressor comes up to normal running speed, the compressor start relay contacts also open, dropping out the
start winding of the compressor. The icemaker is now in a normal icemaking mode. The icemaker will begin to produce
ice and continue to produce ice until the bin level control in the ice dispenser is satised. The PWR, B-E, DR, C and
WTR LEDs are all on.
GRD
L1
L1
L2
L2
L2
L2
L2
COMPRESSOR
FAN
DRIVE
DR
C
20M
60M
2ND
WTR
B-T
B-E
RESET
GRD
G
B
W
FAN
BLACKWHITE
BLACK
BLACK
R
ORANGE
SSL
COMPRESSOR
C
RED
BLACK
BLACK
WHITE
INPUT
POWER
WATER
SENSOR
CONTROL
BOARD
BLACK
GEARMOTOR
24V
COMMON
LINE VAC
RED
RED
WHITE
BLACK
BIN T- STAT
BIN SIGNAL
FROM DISPENSER
JUNCTION BOX
WHITE
RED
WHITE
M1
COMPRESSOR
SWITCH
PWR
BLACK
T. O.L.
BLACK
RED
HIGH PRESSURE
SAFETY SWITCH
42
3
RUN
START
T. O.L.
BLUE
YELLOW
BLACK
WHITE
M
Normaloperation–Stage4
Once the ice level control opens, the B-E LED goes out. After a 10 second delay the compressor LED (C), compressor
and fan motor go off. (Should the ice level control not remain open for 10 seconds, the icemaker will continue to run.)
The gearmotor continues to run and the DR LED remains lighted for 60 seconds. The purpose of this function is to
drive the remaining ice out of the evaporator and to boil off any refrigerant remaining in the evaporator. The bin timer
LED (BT) comes on, starting the twenty minute off cycle time delay.
GRD
L1
L1
L2
L2
L2
L2
L2
COMPRESSOR
FAN
DRIVE
DR
C
20M
60M
2ND
WTR
B-T
B-E
RESET
GRD
G
B
W
FAN
BLACKWHITE
BLACK
BLACK
R
ORANGE
SSL
COMPRESSOR
C
RED
BLACK
BLACK
WHITE
INPUT
POWER
WATER
SENSOR
CONTROL
BOARD
BLACK
GEARMOTOR
24V
COMMON
LINE VAC
RED
RED
WHITE
BLACK
BIN T- STAT
BIN SIGNAL
FROM DISPENSER
JUNCTION BOX
WHITE
RED
WHITE
M1
COMPRESSOR
SWITCH
PWR
BLACK
T. O.L.
BLACK
RED
HIGH PRESSURE
SAFETY SWITCH
42
3
RUN
START
T. O.L.
BLUE
YELLOW
BLACK
WHITE
M
26 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Normaloperation–Stage5
The drive motor now shuts down and the DR LED is off. The B-T LED remains on for 20 minutes. The icemaker will not
start while the B-T LED is on. To restart the icemaker for troubleshooting purposes, depress the reset button to clear
the control board.
GRD
L1
L1
L2
L2
L2
L2
L2
COMPRESSOR
FAN
DRIVE
DR
C
20M
60M
2ND
WTR
B-T
B-E
RESET
GRD
G
B
W
FAN
BLACKWHITE
BLACK
BLACK
R
ORANGE
SSL
COMPRESSOR
C
RED
BLACK
BLACK
WHITE
INPUT
POWER
WATER
SENSOR
CONTROL
BOARD
BLACK
GEARMOTOR
24V
COMMON
LINE VAC
RED
RED
WHITE
BLACK
BIN T- STAT
BIN SIGNAL
FROM DISPENSER
JUNCTION BOX
WHITE
RED
WHITE
M1
COMPRESSOR
SWITCH
PWR
BLACK
T. O.L.
BLACK
RED
HIGH PRESSURE
SAFETY SWITCH
42
3
RUN
START
T. O.L.
BLUE
YELLOW
BLACK
WHITE
M
Normaloperation–Stage6
When the dwell time of 20 minutes has expired, the B-T LED goes off. The icemaker goes through the normal start-
up sequence when the bin level control signals the control board for ice. The WTR LED will remain on as long as the
water sensor in the oat reservoir senses water.
GRD
L1
L1
L2
L2
L2
L2
L2
COMPRESSOR
FAN
DRIVE
DR
C
20M
60M
2ND
WTR
B-T
B-E
RESET
GRD
G
B
W
FAN
BLACKWHITE
BLACK
BLACK
R
ORANGE
SSL
COMPRESSOR
C
RED
BLACK
BLACK
WHITE
INPUT
POWER
WATER
SENSOR
CONTROL
BOARD
BLACK
GEARMOTOR
24V
COMMON
LINE VAC
RED
RED
WHITE
BLACK
BIN T- STAT
BIN SIGNAL
FROM DISPENSER
JUNCTION BOX
WHITE
RED
WHITE
M1
COMPRESSOR
SWITCH
PWR
BLACK
T. O.L.
BLACK
RED
HIGH PRESSURE
SAFETY SWITCH
42
3
RUN
START
T. O.L.
BLUE
YELLOW
BLACK
WHITE
M
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 27

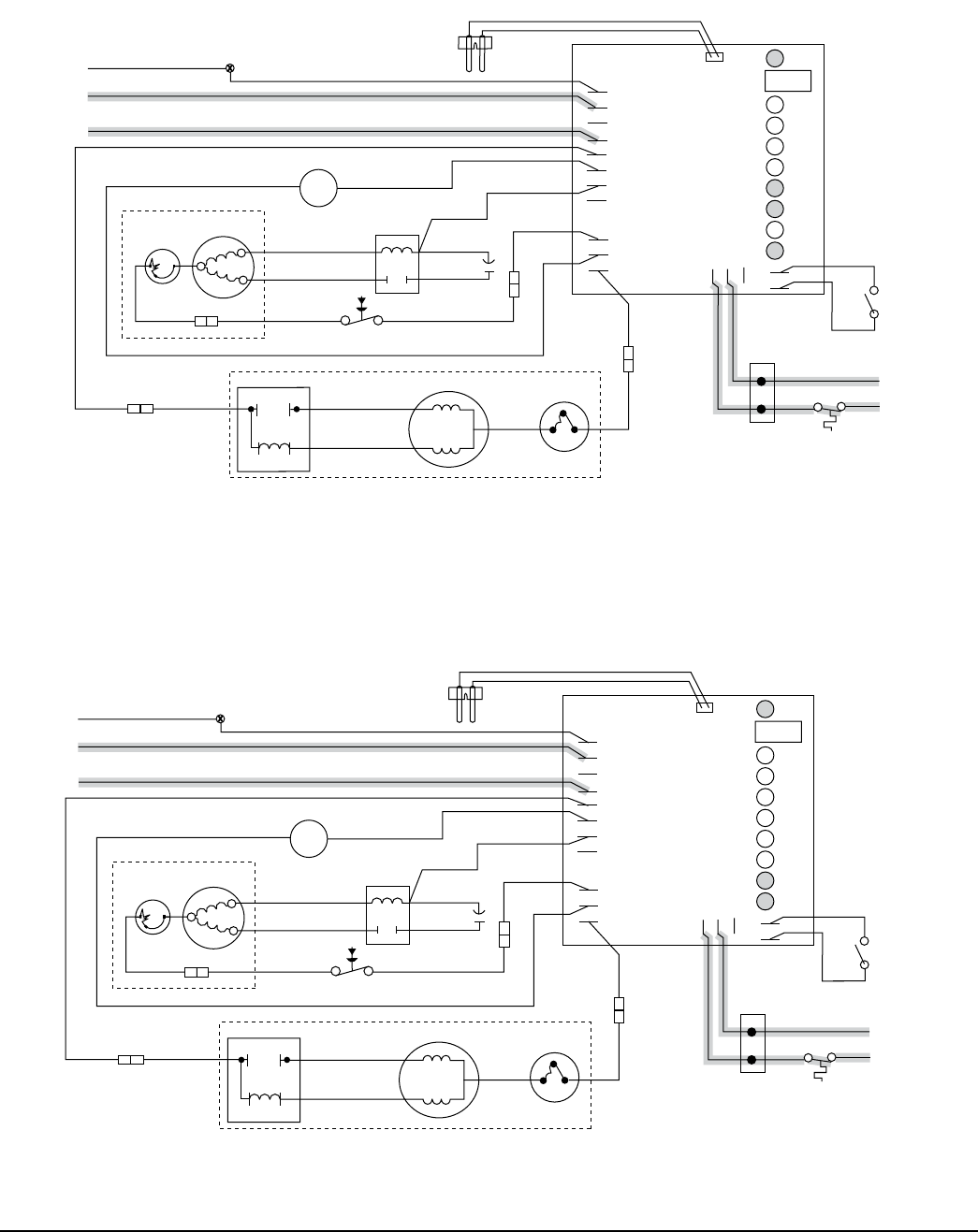

Diagnosticsequence–Stage7
The 20 minute error LED (20M) is on, indicating that the control board has sensed an over-torque condition (above
3 AMPS on the gearmotor). The 20M LED remains on for 20 minutes after an over-torque condition has occurred.
The icemaker remains off as long as the 20M LED is on. When the 20M LED goes off, the control board will try to
go through a normal start-up sequence. The WTR LED remains on as long as the water sensor in the oat reservoir
senses water.
GRD
L1
L1
L2
L2
L2
L2
L2
COMPRESSOR
FAN
DRIVE
DR
C
20M
60M
2ND
WTR
B-T
B-E
RESET
GRD
G
B
W
FAN
BLACKWHITE
BLACK
BLACK
R
ORANGE
SSL
COMPRESSOR
C
RED
BLACK
BLACK
WHITE
INPUT
POWER
WATER
SENSOR
CONTROL
BOARD
BLACK
GEARMOTOR
24V
COMMON
LINE VAC
RED
RED
WHITE
BLACK
BIN T- STAT
BIN SIGNAL
FROM DISPENSER
JUNCTION BOX
WHITE
RED
WHITE
M1
COMPRESSOR
SWITCH
PWR
BLACK
T. O.L.
BLACK
RED
HIGH PRESSURE
SAFETY SWITCH
42
3
RUN
START
T. O.L.
BLUE
YELLOW
BLACK
WHITE
M
Diagnosticsequence–Stage8
If the restart is successful the 20M LED goes off, the 60 minute timer LED (60M) comes on. The 60M LED remains on
for 60 minutes from restart. A lighted 60M LED indicates that the icemaker has experienced an over-torque condition.
If the icemaker runs without problems for 60 minutes and no additional torque errors occur, the 60M LED goes off and
the icemaker continues normal operation.
GRD
L1
L1
L2
L2
L2
L2
L2
COMPRESSOR
FAN
DRIVE
DR
C
20M
60M
2ND
WTR
B-T
B-E
RESET
GRD
G
B
W
FAN
BLACKWHITE
BLACK
BLACK
R
ORANGE
SSL
COMPRESSOR
C
RED
BLACK
BLACK
WHITE
INPUT
POWER
WATER
SENSOR
CONTROL
BOARD
BLACK
GEARMOTOR
24V
COMMON
LINE VAC
RED
RED
WHITE
BLACK
BIN T- STAT
BIN SIGNAL
FROM DISPENSER
JUNCTION BOX
WHITE
RED
WHITE
M1
COMPRESSOR
SWITCH
PWR
BLACK
T. O.L.
BLACK
RED
HIGH PRESSURE
SAFETY SWITCH
42
3
RUN
START
T. O.L.
BLUE
YELLOW
BLACK
WHITE
M
28 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Diagnosticsequence–Stage9
The second error (2ND) LED comes on if an over-torque condition occurs while the 60M LED is still lighted. The 2ND
LED indicates that two consecutive over-torque situations have occurred. The icemaker will be shut down at this time
and will not restart unless the manual reset button is depressed.
GRD
L1
L1
L2
L2
L2
L2
L2
COMPRESSOR
FAN
DRIVE
DR
C
20M
60M
2ND
WTR
B-T
B-E
RESET
GRD
G
B
W
FAN
BLACKWHITE
BLACK
BLACK
R
ORANGE
SSL
COMPRESSOR
C
RED
BLACK
BLACK
WHITE
INPUT
POWER
WATER
SENSOR
CONTROL
BOARD
BLACK
GEARMOTOR
24V
COMMON
LINE VAC
RED
RED
WHITE
BLACK
BIN T- STAT
BIN SIGNAL
FROM DISPENSER
JUNCTION BOX
WHITE
RED
WHITE
M1
COMPRESSOR
SWITCH
PWR
BLACK
T. O.L.
BLACK
RED
HIGH PRESSURE
SAFETY SWITCH
42
3
RUN
START
T. O.L.
BLUE
YELLOW
BLACK
WHITE
M
Diagnosticsequence–Stage10
If the water level in the oat reservoir drops to an unacceptable level, the WTR LED goes out, shutting the icemaker
off. Also, the BT LED comes on, preventing the icemaker from restarting for twenty minutes. If water is restored, the
WTR LED comes back on and ashes to alert the technician that water to icemaker has been lost. The icemaker
restarts at the end of the 20 minute time delay. The ashing WTR LED can be cleared by pressing the reset button.
GRD
L1
L1
L2
L2
L2
L2
L2
COMPRESSOR
FAN
DRIVE
DR
C
20M
60M
2ND
WTR
B-T
B-E
RESET
GRD
G
B
W
FAN
BLACKWHITE
BLACK
BLACK
R
ORANGE
SSL
COMPRESSOR
C
RED
BLACK
BLACK
WHITE
INPUT
POWER
WATER
SENSOR
CONTROL
BOARD
BLACK
GEARMOTOR
24V
COMMON
LINE VAC
RED
RED
WHITE
BLACK
BIN T- STAT
BIN SIGNAL
FROM DISPENSER
JUNCTION BOX
WHITE
RED
WHITE
M1
COMPRESSOR
SWITCH
PWR
BLACK
T. O.L.
BLACK
RED
HIGH PRESSURE
SAFETY SWITCH
42
3
RUN
START
T. O.L.
BLUE
YELLOW
BLACK
WHITE
M
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 29

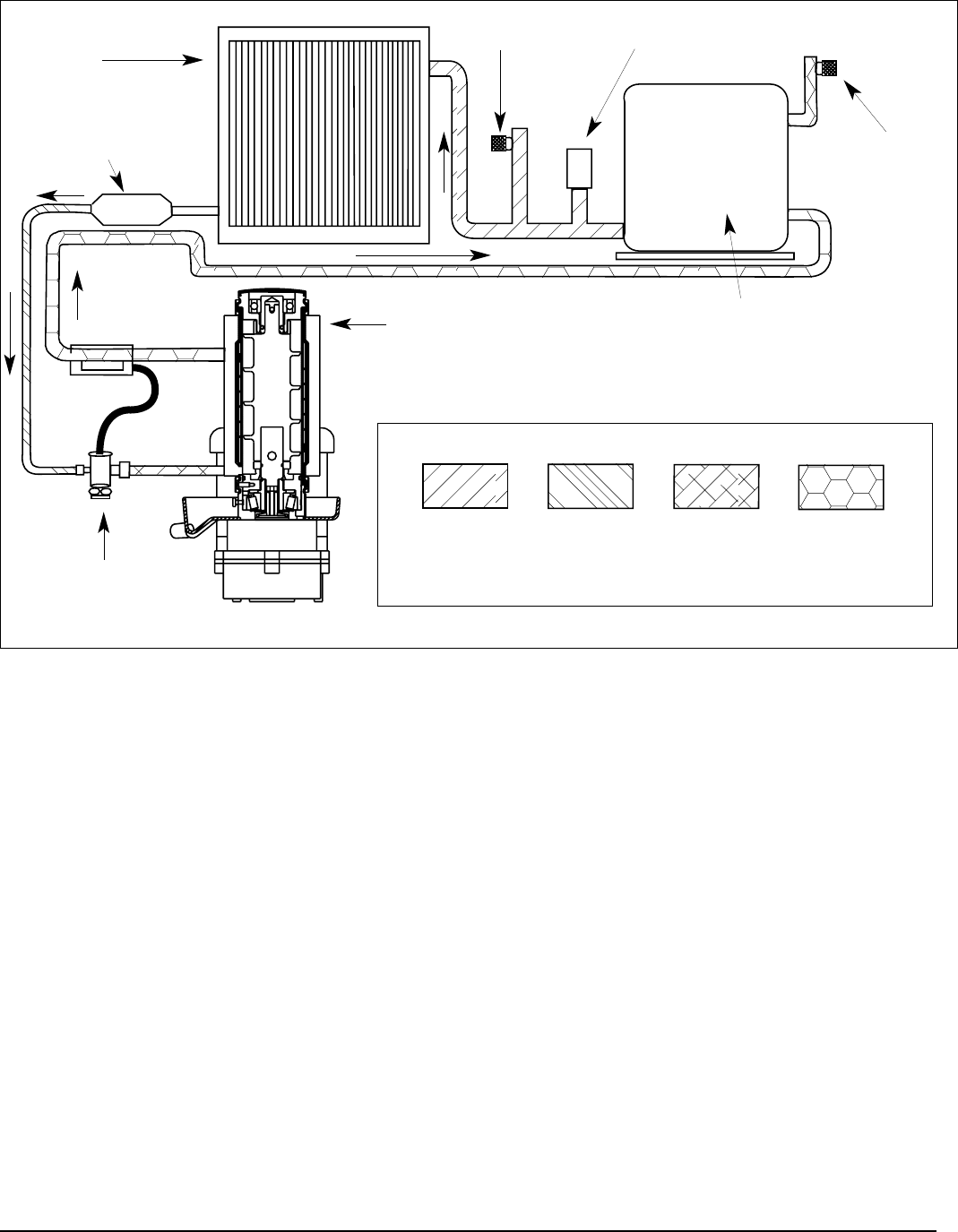

Refrigeration cycle
condenser
filter dryer
thermostatic
expansion
valve
evaporator
high side
service port
low side
service port
high pressure
switch
compressor
high
pressure
vapor
low
pressure
vapor
high
pressure
liquid
low
pressure
liquid
30 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Refrigeration system
Important: All service on refrigeration system must
be performed in accordance with all federal, state and
local laws that pertain to the use of refrigerants. It is
the responsibility of the technician to ensure that these
requirements are met.
CAUTION
• Rechargingofunitatotherthanfactoryspecicationswill
voidicemakerwarranty
Icemakerchargespecications
Model Charge Refrigerant
Type
25/50CI400A, 25/50HI400A 20 oz R404A
25/50CI400W 9 oz R404A
Refrigerant replacement requirements
1. Non-contaminated refrigerant removed from any
Follett refrigeration system can be recycled and
returned to the same system after completing
repairs. Recycled refrigerant must be stored in a
clean, approved storage container. If additional
refrigerant is required, virgin or reclaimed
refrigerant that meets ARI standard 700-88 must be
used.
2. In the event of system contamination (for example,
a compressor burn out, refrigerant leak, presence
of non-condensibles or moisture), the system must
be repaired, evacuated and recharged using virgin
or reclaimed refrigerant that meets ARI standard
700-88.
3. Follett Corporation does not approve of recovered
refrigerants. Improper refrigeration servicing
procedures will void the factory warranty.
Evacuation
Evacuate the system to a level of 500 microns. When
the 500 micron level is reached, close valves and shut
down the vacuum pump. Allow the system to sit for
approximately 20 minutes. During this period the system
pressure should not rise. If the system pressure rises
and stabilizes there is moisture in the system and further
evacuation is needed. If the pressure continues to rise
check the system for leaks.
Ambients
Air Temperature1Minimum Maximum
Fahrenheit 50 F 100 F
Celsius 10 C 38 C
Water Temperature2Minimum Maximum
Fahrenheit 40 F 90 F
Celsius 4 C 32 C
1 - Ambient air temperature is measured at the air-cooled condenser coil inlet.
2 - Ambient water temperature is measured in the icemaker oat reservoir.
Refrigeration data
Ice production
F
C
50
10
60
16
70
21
80
27
90
32
60
16
425
193
410
186
395
180
380
173
365
166
70
21
395
180
380
173
365
166
350
159
335
152
80
27
360
164
345
157
330
150
318
145
305
139
90
32
330
150
315
143
300
137
285
130
273
124
100
38
295
134
285
130
270
123
255
116
243
111
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
Inlet Water Temperature ˚F/˚C
Ambient Air Temperature F/C
Air-cooled icemaker capacity/24 hrs.
Inlet Water Temperature ˚F/˚C
F
C
50
10
60
16
70
21
80
27
90
32
60
16
430
195
415
188
401
182
385
175
368
167
70
21
425
193
406
184
386
175
365
166
343
156
80
27
418
190
392
178
365
166
340
154
315
143
90
32
390
177
368
167
345
156
323
147
300
136
100
38
350
159
334
152
318
144
304
138
290
132
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
Ambient Air Temperature F/C
Water-cooled icemaker capacity/24 hrs.
Ice capacity test
Icemaker production capacity can only be determined by
weighing ice produced in a specic time period.
1. Remove top panel and hopper lid of unit.
2. Weigh and record weight of container used to
catch ice.
3. Run icemaker for at least 15 minutes.
4. Catch ice for 15 or 20 minutes.
5. Weigh harvested ice and record total weight.
6. Subtract weight of container from total weight.
7. Convert fractions of pounds to decimal equivalents
(Ex. 6 lbs 8 oz = 6.5 lbs).
8. Calculate production using following formula:
1440 min. × wt. of ice produced =production capacity/
24 hr. period
Total test time in minutes
9. Calculated amount per 24 hours should be checked
against rated capacity for same ambient and water
temperatures in Ice Production Table (above).
Compressor current draw
Air-CooledAmbientAirTemperature
Fahrenheit 60 F 70 F 80 F 90 F 100 F
Celsius 15.6 C 21.1 C 26.7 C 32.2 C 37.8 C
Locked Rotor Amps 58.8
Gearmotor data
Gearmotor current 2.25A (nominal)
Locked Rotor Amps 14 amps
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 31
Dispenser troubleshooting
Beforecallingforservice
1. Check for ice in the ice storage area.
2. Check that congealed ice is not causing a jam.
3. Check that all switches and circuit breakers are on.
4. Check that all drains are clear.
WARNING
• Disconnectpowertounitbeforeputting
hands or arms in storage area or attempting
anyrepairorservicetoequipment
Levermodeltroubleshootingguide
Problem Indicators CorrectiveAction
Does not dispense ice. 1. Power switch off or faulty.
2. Faulty dispense switch.
3. Wheel motor malfunction.
1. Check switch – turn on or replace if faulty.
2. Replace switch.
3. Check motor and capacitor and replace
Dispense wheel rotates continuously. Dispense switch contacts are burned out. Replace dispense switch.
Icemaker runs continuously. Faulty or incorrectly positioned bin stat. Check for proper positioning. If stat does not
open when ice is placed on capillary tube,
replace stat.
Does not dispense water. 1. Faulty water solenoid valve.
2. Faulty dispense switch.
3. Power switch off or faulty.
1. Replace water solenoid valve.
2. Replace dispense switch.
3. Check switch - turn on or replace if faulty.
SensorSAFEmodeltroubleshootingguide
Problem Action
SensorSAFEBoardLEDStatus
CorrectiveActionPWR CLN ICE/WTR
Does not dispense
ice and/or water.
Check LEDs on the
SensorSAFE control
board.
OFF OFF OFF Check circuit breakers and power switch. Restore power or
replace defective switch.
ON ON OFF Press clean switch on lower left side of electrical enclosure
to return board to normal operation.
Place cup under drop
zone (in front of lens)
ON OFF OFF Troubleshoot appropriate lens/sensor and replace if required
(see lens/sensor troubleshooting).
ON OFF ON Verify power on appropriate output terminal (WTR or WM)
on control board and replace board if required. If board tests
okay, troubleshoot appropriate dispenser component.
Dispenses ice
and/or water
continuously.
Check LEDs on
control board.
ON OFF ON Troubleshoot appropriate lens/sensor and replace if required
(see lens/sensor troubleshooting).
ON OFF OFF If there is power on any output terminal 9WTR or WM) on
control board, replace board.
Board guide
LEDs, when illuminated, indicate the following: PWR (board power), CLN (cleaning, no dispensing cycle), ICE (ice
dispensing activated), WTR (water dispensing activated).
Terminals: LI (incoming power, hot), L2 (neutral terminals), WTR (power terminal for water solenoid), WM (power
terminal for wheelmotor), CLN (terminals for clean cycle switch).
Lens/sensortroubleshooting
1. Turn dispenser power switch off and remove splash panel.
2. Disconnect wires from WTR and WM terminals on board.
3. Gently remove sensor/mounting block from splash panel.
4. Inspect lens and sensor. Clean if necessary.
5. Restore dispenser power and test sensor by passing hand in front of sensor.
6. If LED on board turns on, sensor is operational. Re-assemble dispenser.
7. If LED does not come on, switch sensor leads on board and retest.
8. If opposite LED comes on, replace defective board.
9. If opposite LED does not come on, replace defective sensor.
32 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Icemakertroubleshooting
Flashing water LED at any time indicates that water signal to board had been lost for more than one second.
Ten-second delay: There is a 10 second delay in reaction to loss of water (WTR) or bin (B-E) signals. If signals are not
lost for more than 10 seconds, no reaction will occur.
Problem Indicators CorrectiveAction
Icemaker will not run.
System status: compressor,
gearmotor, and fan motor
inoperative.
1. No power to unit.
2. Open bin level control.
3. Water OK LED (WTR) not on.
4. 20M or 2ND LED is on indicating that rst or
second torque error has occurred.
5. Gear motor locked up (immediate torque error
indicated by LEDs when board is reset).
6. Open coil on gearmotor start relay causing an
immediate torque error.
1. Check that unit is plugged in, circuit breakers are on.
2. Adjust or replace ice level control.
3. Check reservoir for water, restore water to unit.
4. See #6 below.
5. Repair or replace gearmotor.
6. Replace gearmotor start relay.
Compressor will not run.
System status: gearmotor
and fan motor run.
1. Condenser coil plugged causing open overload or
high pressure cut-out.
2. Defective starting capacitor.
3. Defective starting relay.
4. Open motor winding.
5. No power output from compressor output terminal
on control board.
1. Clean condenser coil and replace overload if
necessary.
2. Replace start capacitor.
3. Replace relay.
4. Ohm out windings and replace compressor if
necessary.
5. Check terminal connection and replace control board
if necessary.
Unit cycles intermittently.
System status: compressor,
gearmotor, and fan motor
cycle.
1. Float reservoir running dry, sensing probe
signalling for system to shut down.
1. Check water supply to oat and oat operation. PC
board will have ashing WTR LED.
Low ice production.
Poor quality ice.
1. Dirty air lter or condenser coil.
2. Restricted air ow to condenser coil.
3. Mineral coated evaporator.
4. Improper exhaust air provisions.
5. Faulty expansion valve.
6. Low refrigerant charge.
7. Superheat incorrect.
8. Inefficient compressor.
1. Clean or replace lter, clean condenser.
2. Remove obstruction.
3. Clean evaporator.
4. Provide proper exhaust air provisions per Follett
installation manual.
5. Replace expansion valve.
6. Check for leaks; repair, evacuate, and weigh in correct
charge.
7. Check that TXV sensing bulb is securely clamped in
place and not damaged; check that insulated bulb
cover is in place.
8. Replace compressor.
Water leaks from bottom of
evaporator.
1. O ring seal broken. 1. Replace O ring.
Icemaker runs for short
period of time and shuts
down on torque error.
System status: 20M or 2nd
LED is lit.
1. Kink in ice transport tube.
2. Bin level control remains in closed position.
3. Ice transport tube ruptured internally.
4. Worn evaporator bearings.
5. Faulty gearmotor start relay. Icemaker torques out
within 5 seconds of start-up.
6. Torque out occurs when storage bin lls to capacity.
1. Eliminate kink and check that tube routing complies
with Follett icemaker installation manual.
2. Adjust or replace control.
3. Replace complete length of ice transport tube.
4. Inspect bearings for roughness or binding and replace
if necessary.
5. Replace gearmotor start relay.
6. Ensure that ice contacts bin thermostat before
backing ice up in transport tube. Refer to dispenser
manual for proper thermostat and ice tube mounting.
Evaporator is iced up on the
outside. No ice production.
System status: compressor,
gearmotor and fan motor
running.
1. Gearmotor running but no output rotation.
2. Float reservoir empty.
3. Air bubble in water supply line. Water
in reservoir but not in evaporator.
1. Check for broken gearmotor output shaft or damaged
gearbox.
2. Check for defective water sensor (water OK (WTR)
LED remains on even when oat empty or probe
removed from water).
3. Purge air from line.
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 33
Problem Indicators CorrectiveAction
Compressor cycles
intermittently.
System status: gearmotor
and fan motor run.
1. Compressor start relay in wrong position.
2. High pressure cutout open due to high head
pressure.
3. Clogged or dirty air lter or condenser coil.
4. Improper ventilation.
5. Defective compressor.
1. Position relay with arrow or word “top”.
2. Check discharge pressure and adjust water regulator
valve.
3. Clean or replace lter, clean condenser coil.
4. Provide inlet and exhaust air provisions per Follett
icemaker installation manual.
5. Replace compressor.
Unit runs but not making ice.
System status: compressor,
gearmotor & fan motor
running.
1. Clogged or dirty air lter or condenser coil.
2. Compressor not pumping.
3. Low refrigerant charge.
1. Clean or replace lter, clean condenser coil.
2. Replace compressor.
3. Check for leaks; repair, evacuate, and weigh in correct
charge.
Compressor and fan motor
will not run.
Gearmotor runs.
1. Compressor switch in OFF position.
2. No output on compressor and fan motor terminals
on control board.
3. Failed fan motor causes high pressure cut-out to
open.
1. Turn compressor switch on.
2. Replace control board.
3. Replace fan motor.
Intermittent noises from
evaporator.
1. Mineral build-up on evaporator surface. 1. Clean evaporator with liquid icemaker cleaner.
34 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

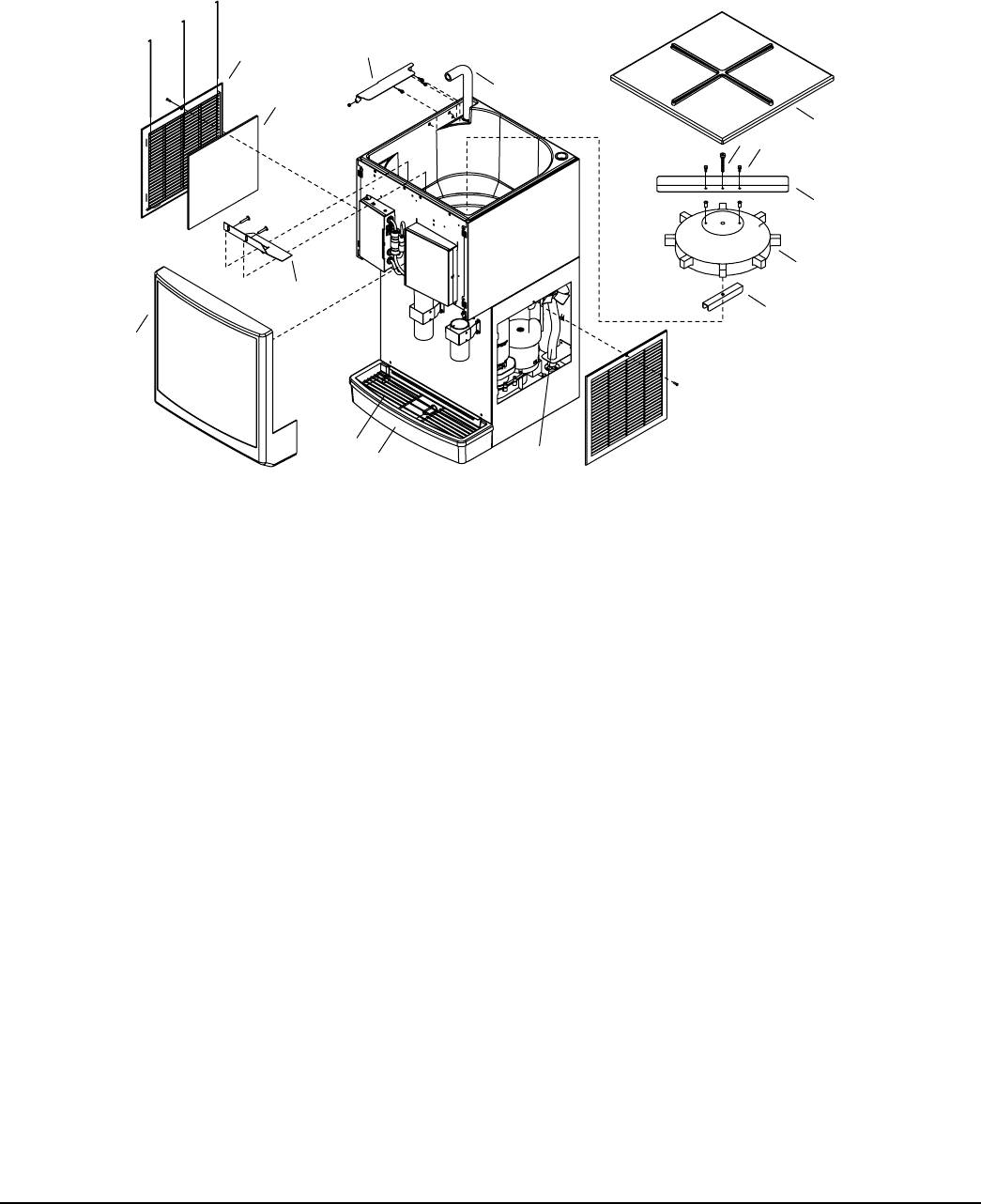

Dispenser replacement parts
Dispenserexterior
1
4
12
11 10 16
13 8
9
65
7
2
3
15
14
Part# Description Reference
501608 Baffle, ice 1
501614 Wheel, dispense (includes drive bar, rotating agitator, threaded bar & rod) 2
502821 Wheel, dispense (wheel only) 2
501609 Agitator, rotating 3
502712 Bracket, ice tube 4
501100 Screw 5
501612 Rod, threaded (includes knurled nut) 6
501617 Drive bar assembly (includes threaded rod and nut) 7
0996030 Ice transport tube, 25 Series 8
00196048 Ice transport tube, 50 Series 8
00192963 Louver, exhaust 9
502682 Drain pan 10
502683 Grille 11
00192831 Cover, front 25 Series 12
00192849 Cover, front 50 Series 12
00184275 Air lter 13
00192955 Louver, intake (includes 00184275) 14
502684 Lid, hopper 15
00900142 Drain tube, ice storage hopper 16
00195974 Drain pan protector Not shown
00902080 Wall mount bracket and cover plate Not shown
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 35

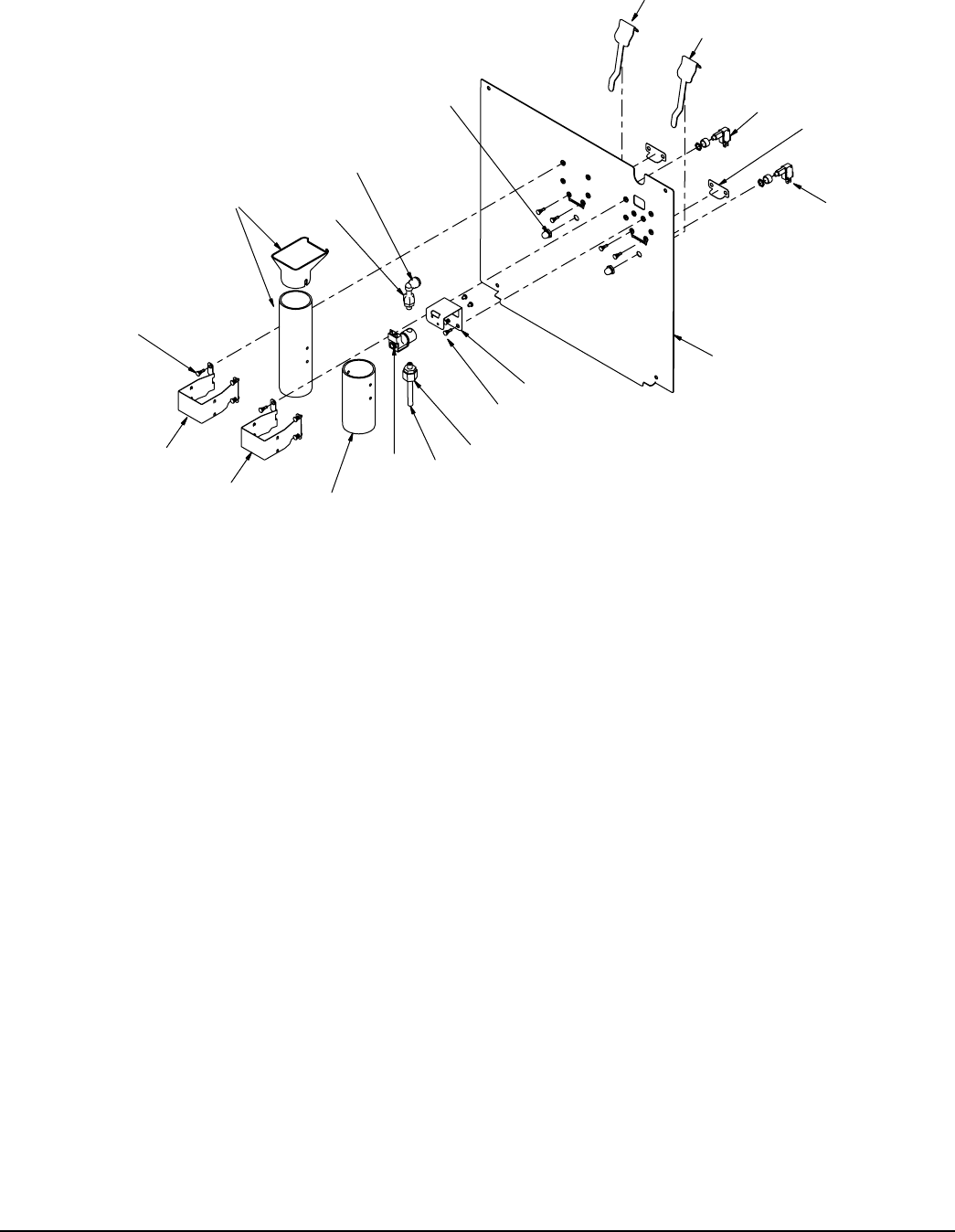

Dispensechuteandsplashpanelareas–levermodels
9
2
13
14
6
6
812
10
11
1
5
4
7
7
15
1
16
3
Part# Description Reference
502057 Fastener, dispense chute bracket 1
00187682 Tube, water station 2
00185116 Bracket, lever 3
502409 Switch, dispense, ice, lever actuated (includes 502418) 4
502409 Switch, dispense, water, lever actuated (includes 502418) 5
00192864 Bracket, chute (includes fasteners 502057) 6
00182808 Lever, dispense 7
00192948 Chute and funnel, ice 8
00184390 Chute, water 9
502925 Elbow, 3/8" 10
00182832 Bracket, water solenoid 11
502246 Fitting, inlet, 1/8" MPT x 1/4" comp 12
502262 Fitting, outlet, 1/8" MPT x 3/8" comp 13
502243 Solenoid valve, water, 120 V, 60Hz 14
502418 Boot, dispense switch button (mounts on 502409 switch) 15
502079 Tubing, water station, thermoplastic, 1/4" OD (sold by the foot) Not shown
00192922 Splash panel, lever dispense 16
36 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

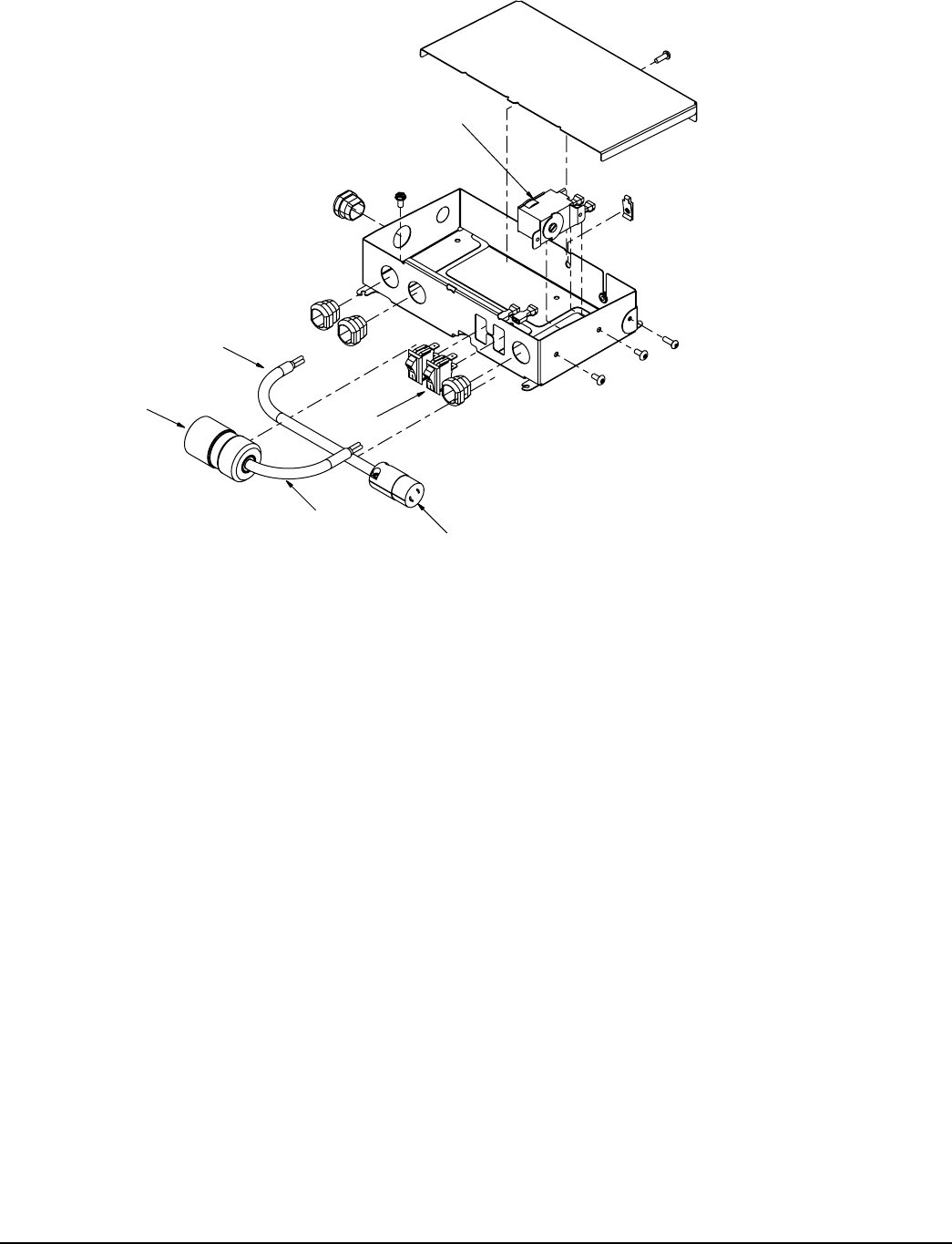

Dispenserelectricalbox–levermodels
1
6
3
4
52
Part# Description Reference
500514 Thermostat 1
502209 Switch, dispenser power 2
502209 Switch, icemaker bin signal 2
00195818 Cord and socket (female), icemaker power 3
00195826 Cord and socket (female), bin signal 4
502336 Socket (female), icemaker power 5
502334 Socket (female), bin signal 6
502776 Power cord Not shown
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 37

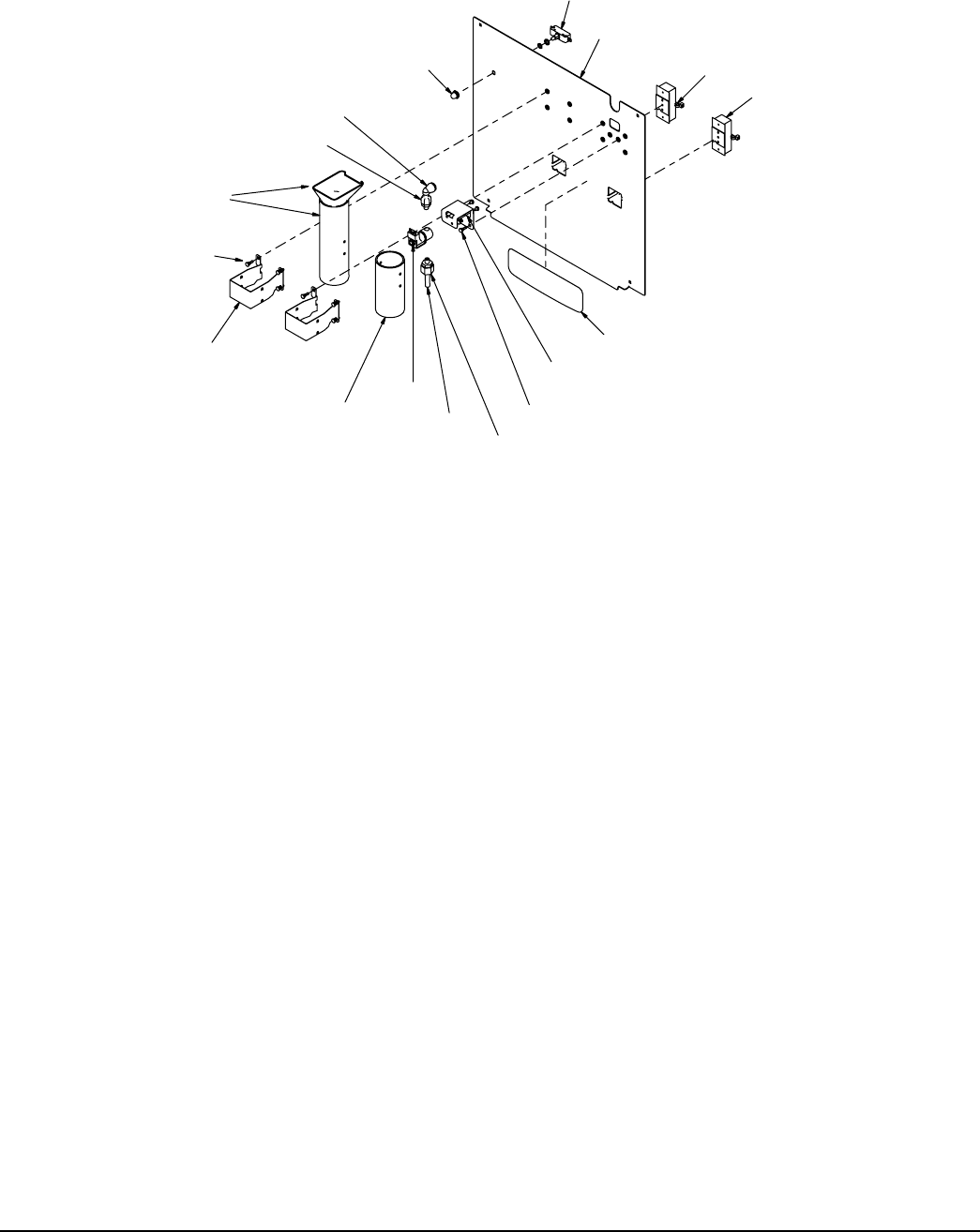

Dispensechuteandsplashpanelareas–SensorSAFEmodels
15
7
16
5
11
1
2
13
6
4
3
10
8
1
14
12
9
Part# Description Reference
502057 Fastener, dispense chute bracket 1
00187682 Tube, water station 2
00195982 Sensor, ice dispense 3
00195982 Sensor, water dispense 4
00196006 Lens, sensors 5
00192864 Bracket, chute (includes fasteners 502057) 6
502359 Clean switch, SensorSAFE (includes 501841) 7
00192948 Chute and funnel, ice 8
00184390 Chute, water 9
502925 Elbow, 3/8" 10
00182832 Bracket, water solenoid 11
502246 Fitting, inlet, 1/8" MPT x 1/4" comp 12
502262 Fitting, outlet, 1/8" MPT x 3/8" comp 13
502243 Solenoid valve, water, 120 V, 60Hz 14
501841 Boot, clean switch button (mounts on 502359 switch) 15
502079 Tubing, water station, thermoplastic, 1/4" OD (sold by the foot) Not shown
00192930 Splash panel, SensorSAFE dispense with drain pan (includes 00196006) 16
00902072 Splash panel, SensorSAFE dispense, no drain pan Not shown
38 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

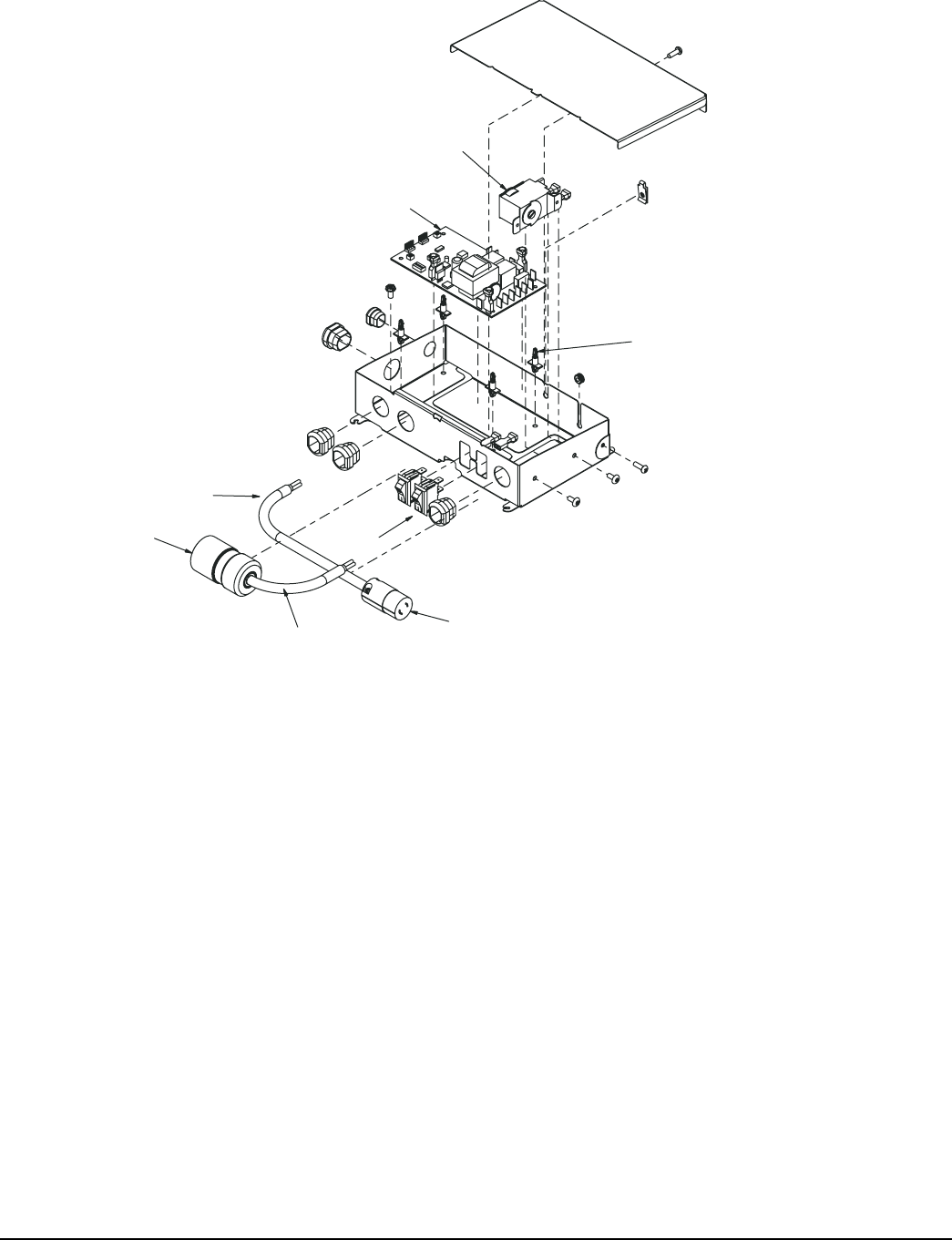

Dispenserelectricalbox–SensorSAFEmodels
1
3
7
8
5
6
2
4
Part# Description Reference
500514 Thermostat 1
502209 Switch, dispenser power 2
502209 Switch, icemaker bin signal 2
502242 Board, SensorSAFE 3
501959 Standoff, board (4 required) 4
00195818 Cord and socket (female), icemaker power 5
00195826 Cord and socket (female), bin signal 6
502336 Socket (female), icemaker power 7
502334 Socket (female), bin signal 8
502776 Power cord Not shown
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 39
Wheelmotoranddrivesystem
2
5
7
7
2
3
10
6
1
4
8
9
Part# Description Reference
501861 Wheel motor, 120V, 60Hz 1
501026 Washer, thrust 2
501607 Fan blade, wheel motor 4
00182246 Chain, pitch 64, link Not shown
502692 Sprocket, drive shaft, 35T (includes 500367) 5
501019 Sprocket, wheel motor, 10T 6
501024 Bearing, drive shaft 7
500799 Connecting link, chain Not shown
500367 Key, drive shaft 8
205991 Key, wheel motor 9
00192971 Dispenser drive assembly (parts 1-9 above) 10
40 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A
Water and drain
Countertop connections (CI)
(top view)
Wall mount connections (HI)
(bottom view)
12
13
14
16
53
2
3
4
1
7
8
910 118
Part# Description Reference
502921 Valve, water shut off 1
502922 Clip, shut off valve 2
00134502 Elbow, 1/4" x 3/8" 3
502923 Tee, 1/4" 4
502920 Strainer 5
502925 Elbow, 3/8" 6
00184549 Drain tube, hopper 7
00195958 Drain, waste 8
00195966 Fitting, water-cooled condenser inlet 9
00195966 Fitting, water-cooled condenser outlet 10
00137315 Fitting, icemaker water inlet 11
00901652 Fitting, 3/8" tube X 3/8" MPT 12
00901660 Fitting, 3/8" tube X 1/2" MPT Not shown
00901678 Fitting, 90° elbow, 3/4" barb X 3/4" MPT 13
00196113 Bottom cover, 25/50HI with drain pan Not shown
00198341 Bottom cover, 25/50HI without drain pain Not shown
00145144 Fitting, 90° elbow, 3/4" barb X 3/4" barb 14
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 41
Icemakerreplacementparts
Evaporator
Part# Description Reference
8
9
10
11
12
13
15
17
18
19
7
16
9
6
5
4
3
2
20
1
1
502735 Coupling, vee band, includes nut 1
502736 Bearing assembly, top 2
502110 Loop, ice compression, beveled 3
502737 Auger 4
502725 Evaporator (includes insulation
jacket, 502740)
5
500496 O ring, bearing housing 6
502738 Bearing assembly, bottom (includes
O rings and condensate shield)
7
501063 O ring, mounting base 8
500744 Shield, condensate 9
501080 Screw, Allen 1/4 20 x 1/2 (set of 4) 10
502733 Mounting base, evaporator
(includes 501063)
11
502227 Bolt, mounting base 12
502730 Gearbox & motor assembly 13
00164046 Mounting base, gearbox Not shown
502221 Compression nozzle, with single
drain
15
00192914 Drain pan, evaporator (includes
00185421)
16
502226 Clamp, compression nozzle and
screw
17
500680 Tubing, compression nozzle drain(s)
(sold by foot)
18
501111 Grease, Chevron SRI-2, 14oz Not shown
502739 Bracket, drain hose 19
502740 Insulation jacket, evaporator 20
502742 Relay, start, gearmotor Not shown
502775 Oil, gearmotor (1 pint) Not shown
00185421 Tube, evaporator drain Not shown
42 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

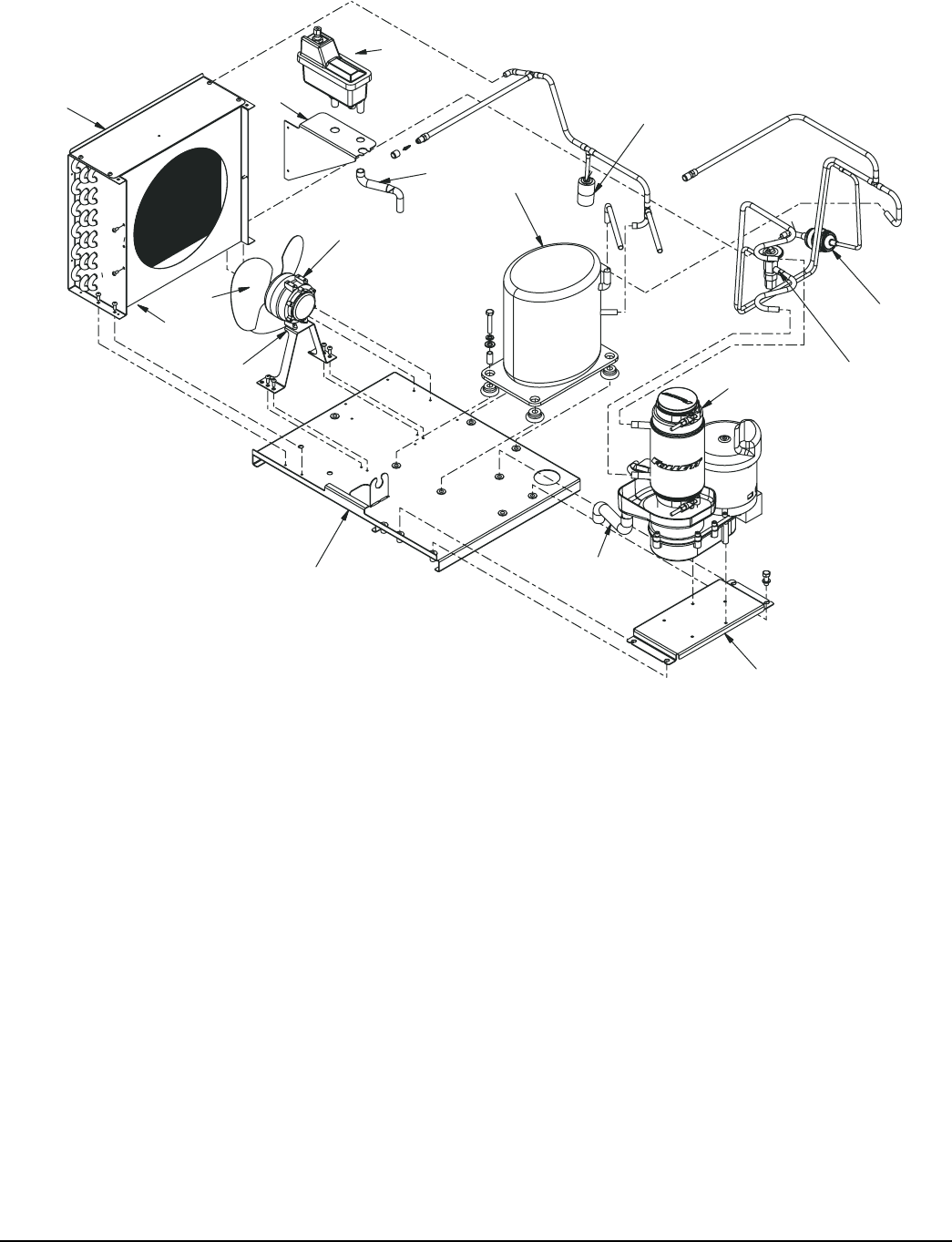

Air-cooledicemakers
1
7
3
16
5
4
8
14
13
15
2
9
6
10
11
12
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 43
Part# Description Reference
502724 Drier 1
00195917 Condenser coil, air-cooled 2
502116 Water sensor Not shown
00163824 Reservoir mounting bracket 3
500504 Float valve & reservoir 4
00187187 Reservoir overow tube 5
00141440 Evaporator water feed and drain line Not shown
Evaporator (see page 41 for complete breakdown) 6
502079 Tubing, polypropylene, reservoir supply (sold by foot) Not shown
502078 Fitting, plastic, oat valve (includes sleeve & stem) Not shown
502726 Valve, expansion, thermal (includes 502830 and 00106534) 7
502732 High pressure cutout 8
00185421 Tubing, evaporator drain 9
00164046 Mounting bracket, gearbox 10
500474 Fan blade 11
500672 Motor, fan, 115V, 60Hz 12
501188 Bracket, fan motor 13
502782 Overload, compressor, 115V, 60Hz Not shown
502731 Compressor, 115V, 60Hz 14
00192989 Base, icemaker 15
00195925 Shroud, condenser coil 16
502830 Jacket, insulation, TXV Not shown
00106534 Jacket, insulation, TXV bulb Not shown
44 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

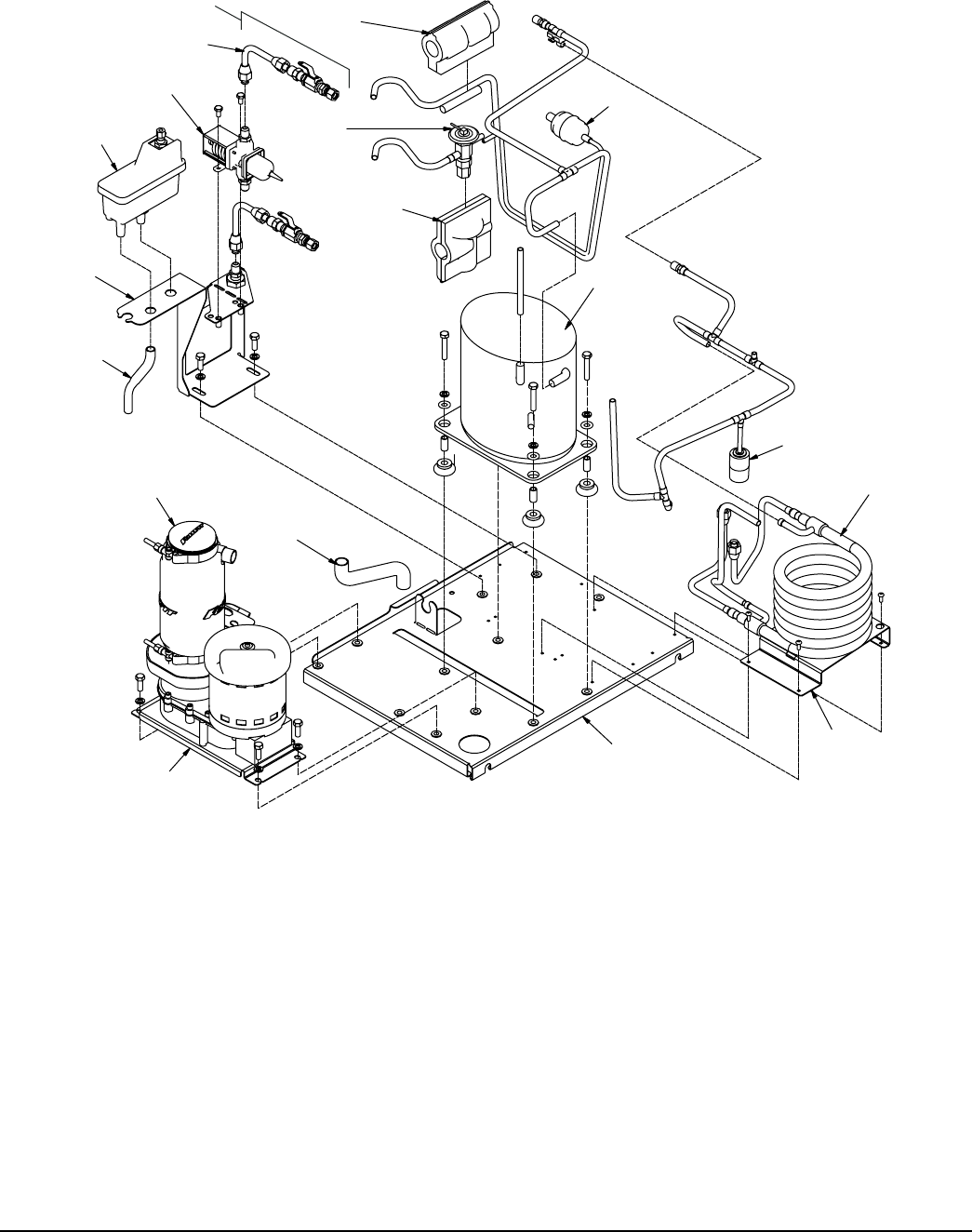

Water-cooledicemakers
1
16
17
2
3
4
18
5
10
8
13 6
12
14
11
9
15
7
25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A 45
Part# Description Reference
502724 Drier 1
500537 Valve, water regulating (includes 501810) 2
501810 Iso-washer (for water regulating valve) Not shown
502116 Water sensor Not shown
500504 Float valve & reservoir 3
00195941 Reservoir mounting bracket 4
502079 Tubing, polypropylene, reservoir supply (sold by foot) Not shown
502078 Fitting, plastic, oat valve (includes sleeve & stem) Not shown
Evaporator (see page 41 for complete breakdown) 5
00141440 Evaporator water feed and drain line Not shown
00176149 Bracket, water-cooled condenser 6
502726 Valve, expansion, thermal (includes 502830 and 00106534) 7
00185421 Tubing, evaporator drain 8
00106534 Jacket, insulation, TXV bulb 9
00164046 Mounting bracket, gearbox 10
502782 Overload compressor, 115V, 60Hz Not shown
502731 Compressor, 115V, 60Hz 11
00195933 Coil, condenser 12
00192989 Base, icemaker 13
502732 High pressure cutout 14
502830 Jacket, insulation, TXV 15
00196089 Line set, water-cooled condenser (2 required) (includes 00187211 and 00196097) 16
00187211 Water hose, 3/8" compression x 48" Not shown
00196097 Elbow, icemaker water connection 17
00187187 Reservoir overow tube 18
46 25CI400A/W • 25HI400A • 50CI400A/W • 50HI400A

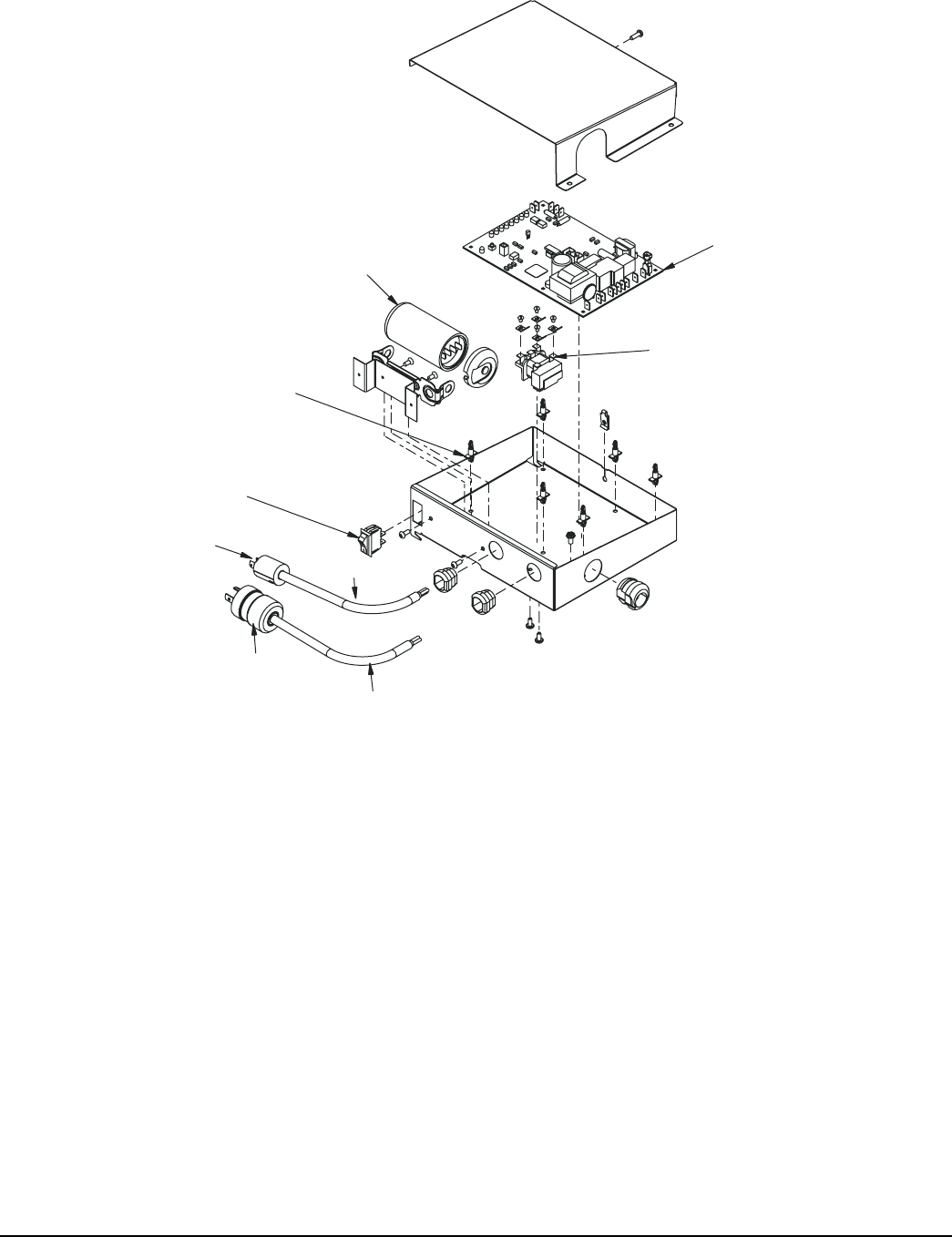

Icemakerelectricalcomponents
6
7
8
3
2
4
9
5
1
Part# Description Reference
502780 Capacitor, start, compressor, 115V, 60Hz 1
501588 Relay start, compressor, 115V, 60Hz 2
502331 Board, control circuit, 115V, 60Hz 3
502116 Water sensor Not shown
502392 Switch, on/off, compressor 4
501959 Board, stand off control (4 required) 5
00195834 Cord and plug (male), icemaker power 6
00195842 Cord and plug (male), bin signal 7
502235 Plug (male), icemaker power 8
502233 Plug (male), bin signal 9
00187153R01
07/08
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
Symphony, SensorSAFE, Maestro and SafeCLEAN are trademarks of Follett Corporation.
Chewblet is a registered trademark of Follett Corporation, registered in the US.
Follett reserves the right to change specications at any time without obligation. Certications may vary depending on country of origin.

Navigation menu
