READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
CONTENTS
•Precautions to Avoid Possible
Exposure to Excessive Microwave
Energy ................................ Inside Front Cover
•For Customer Assistance ... Inside Front Cover
•Consumer Limited Warranty ................... 1
•Product Information Card ........................ 1
•Important Safety Instructions .................. 2
•Unpacking and Installation Instructions... 3
•Grounding Instructions ............................ 3
•Information You Need to Know ............... 4 - 6
•Part Names ............................................. 7 - 8
•Before Operating ..................................... 9
•Manual Operation.................................... 9
•Special Features ..................................... 10-16
Popcorn/Sensor Reheat/Sensor Cook.. 10
Instant Action ........................................ 14
Defrost .................................................. 15
Manual Defrost ..................................... 15
Keep Warm Plus ................................... 16
•Other Convenient Features ..................... 16-18
•Cleaning and Care .................................. 18
•Service Call Check .................................. 19
•The Ultimate Accessory .......................... 19
•Cookbook Order Form ............................ 20
•Specifications .......................................... 20
•Guia Auto-Touch ...................
Parte Interior de la
Cubierta Trasera
•Auto-Touch Guide ........................ Back Cover
MICROWAVE OVEN
OPERATION MANUAL
MODEL
R-320H
followed by letter indicating color
K=black, W=white, Q=bisque
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
TO PHONE:
DIAL 1-800- BE-SHARP ( 237-4277 ) for :
SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your authorized parts distributor)
ADDITIONAL CUSTOMER INFORMATION
DIAL 1-800-642-2122 for :
ACCESSORIES and SHARP CAROUSEL COOKBOOK
TO WRITE:
Sharp Electronics Corporation
Customer Assistance Center
1300 Naperville Drive
Romeoville, IL 60446-1091
TO ACCESS INTERNET:
www.sharpusa.com
To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial
number located on the unit. We also suggest you record all the information listed and retain for future reference.
Please provide the following information when you write or call: model number, serial number, date of
purchase, your complete mailing address (including zip code), your daytime telephone number (including
area code) and description of the problem.
MODEL NUMBER ________________________ SERIAL NUMBER ______________
DATE OF PURCHASE ______________________
DEALER ____________________________ TELEPHONE ________________
SERVICER ___________________________ TELEPHONE ________________
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper with
the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken
or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
FOR CUSTOMER ASSISTANCE
1
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand
product (the “Product”), when shipped in its original container, will be free from defective workmanship and
materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part
thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the
period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s)
set forth below nor to any Product the exterior of which has been damaged or defaced, which has been
subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or
modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth
below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted
to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE
OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other
than those described herein, or to extend the duration of any warranties beyond the time period described
herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall
be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for
the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities
of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,
whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any
way responsible, for any damages or defects in the Product which were caused by repairs or attempted
repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way
responsible for any incidental or consequential economic or property damage. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
Your Product Model Number
& Description:
Warranty Period for this Product:
Additional Item(s) Excluded from
Warranty Coverage (if any):
Where to Obtain Service:
What to do to Obtain Service:
R-320H, Home Use Carousel Microwave Oven. (Be sure to have this
information available when you need service for your Product.)
One (1) year parts and labor. The warranty period continues for an
additional four (4) years, for a total of five (5) years, with respect to the
magnetron tube in the Product for parts only; labor and service are not
provided free of charge for this additional period.
Non-functional accessories, turntable and light bulb.
From a Sharp Authorized Servicer located In the United States. To find
the location of the nearest Sharp Authorized Servicer, call Sharp toll
free at 1-800-BE-SHARP (1-800-237-4277).
Ship prepaid or carry in your Product to a Sharp Authorized Servicer.
Be sure to have Proof of Purchase available. If you ship the Product,
be sure it is insured and packaged securely.
PRODUCT INFORMATION CARD
The product information card which is on the inside of the microwave oven carton should be completed within
ten days of purchase and returned. We will keep it on file and help you access the information in case of
loss, damage or theft. This will also enable us to contact you in the unlikely event that any adjustments or
modifications are ever required for your oven.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL
1-800-BE-SHARP
OR VISIT www.sharpusa.com
.
Save the proof of purchase as it is needed should your oven ever require warranty service.
2
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to
excessive microwave energy:
1. Read all instructions before using the
appliance.
2. Read and follow the specific “PRECAU-
TIONS TO AVOID POSSIBLE EXPO-
SURE TO EXCESSIVE MICROWAVE
ENERGY” on inside front cover.
3. This appliance must be grounded. Connect
only to properly grounded outlet. See
“GROUNDING INSTRUCTIONS” on
page 3.
4. Install or locate this appliance only in ac-
cordance with the provided installation
instructions.
5. Some products such as whole eggs and
sealed containers —for example, closed glass
jars — are able to explode and should not be
heated in this oven.
6. Use this appliance only for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this appli-
ance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
7. As with any appliance, close supervision is
necessary when used by children.
8. Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
9. This appliance should be serviced only by
qualified service personnel. Contact nearest
Sharp Authorized Servicer for examination,
repair or adjustment.
10. Do not cover or block any openings on the
appliance.
11. Do not store or use this appliance outdoors.
Do not use this product near water—for
example, near a kitchen sink, in a wet base-
ment, near a swimming pool or similar loca-
tions.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or
counter.
15. See door surface cleaning instructions on
page 18.
16. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend
appliance when paper, plastic or other
combustible materials are placed inside
the oven to facilitate cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
c. If materials inside the oven ignite,
keep oven door closed, turn oven off
and disconnect the power cord or
shut off power at the fuse or circuit
breaker panel.
d. Do not use the cavity for storage pur-
poses. Do not leave paper products,
cooking utensils or food in the cavity
when not in use.
17. Liquids, such as water, coffee or tea are able
to be overheated beyond the boiling point
without appearing to be boiling. Visible
bubbling or boiling when the container is
removed from the microwave oven is not
always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway
through heating it.
c. Do not use straight-sided containers
with narrow necks. Use a wide-mouthed
container.
d. After heating, allow the container to
stand in the microwave oven at least
for 20 seconds before removing the
container.
e. Use extreme care when inserting a
spoon or other utensil into the container.
18. If the oven light fails, consult a SHARP
AUTHORIZED SERVICER.
3
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H

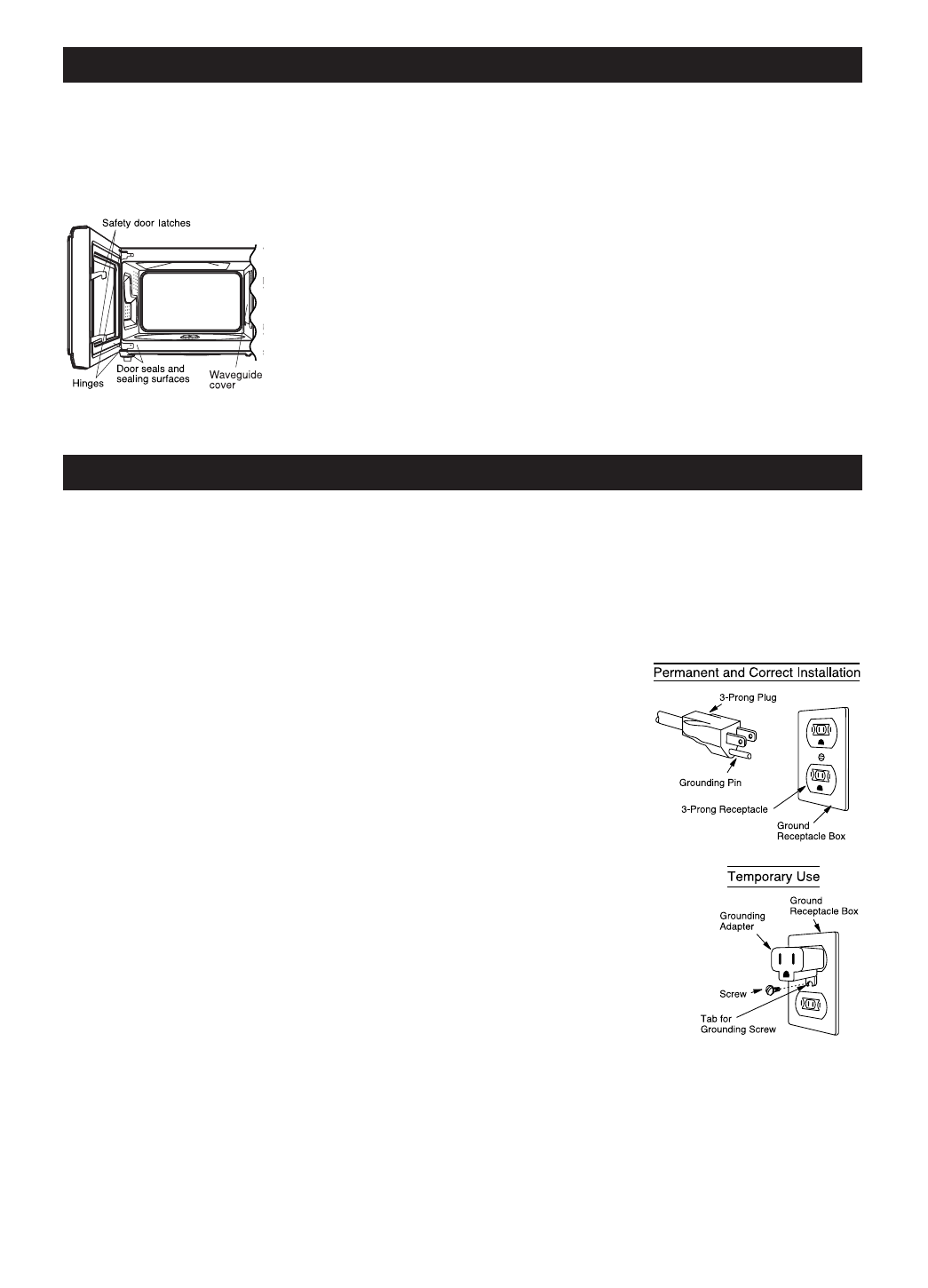

Unpacking and Examining Your Oven
Remove:
1. all packing materials from inside the oven cav-
ity; however, DO NOT REMOVE THE
WAVEGUIDE COVER, which is located on the
right cavity wall. Read
enclosures and SAVE
the Operation Manual.
2. the feature sticker, if
there is one, from the
outside of the door.
Check the oven for any
damage, such as mis-
aligned or bent door,
damaged door seals
and sealing surfaces, broken or loose door hinges
and latches and dents inside the cavity or on the
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a
grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in
accordance with the National Electrical Code and local codes and ordinances. In the event of an electri-
cal short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric
current.
WARNING – Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more
protected electrical supply. It is recommended that a separate circuit serv-
ing only this appliance be provided.
The oven is equipped with a 3-prong grounding plug. It must be plugged
into a wall receptacle that is properly installed and grounded. Should you
only have a 2-prong outlet, have a qualified electrician install a correct wall
receptacle.
A 3-prong adapter may be purchased and used temporarily if local codes
allow. Follow package directions.
A short power-supply cord is provided to reduce risk of becoming entangled
in or tripping over a longer cord.
Extension Cord
If it is necessary to use an extension cord, use only a 3-wire extension cord
that has a 3-blade grounding plug and a 3-slot receptacle that will accept
the plug on the microwave oven. The marked rating of the extension cord
should be AC 115-120 volt, 15 amp. or more.
Be careful not to drape the cord over the countertop or table where it can be
pulled on by children or tripped over accidentally.
Notes:1. If you have any questions about the grounding or electrical in-
structions, consult a qualified electrician or service person.
2. Neither Sharp nor the dealer can accept any liability for damage
to the oven or personal injury resulting from failure to observe the
correct electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV, check that the
microwave oven is on a different electrical circuit, relocate the radio or TV as far away from the oven as
feasible or check position and signal of receiving antenna.
UNPACKING AND INSTALLATION INSTRUCTIONS
GROUNDING INSTRUCTIONS
door. If there is any damage, do not operate the
oven and contact your dealer or SHARP
AUTHORIZED SERVICER.
Choosing a Location for Your Oven
You will use the oven frequently so plan its loca-
tion for ease of use. It's wise, if possible, to have
counter space on at least one side of the oven.
Allow at least 2 inches on the sides, top and at
the rear of the oven for air circulation. Do not place
or install the oven in any area where heat and
steam are generated; for example, next to or
above a conventional gas or electric range or
above a conventional wall oven. Heat and steam
may damage the electronics or the mechanical
parts of the oven.
4
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
INFORMATION YOU NEED TO KNOW
ABOUT YOUR OVEN
This Operation Manual is valuable: read it carefully and
always save it for reference.
A good microwave cookbook is a valuable asset.
Check it for microwave cooking principles, techniques,
hints and recipes. See pages 19 and 20 for ordering
the Ultimate Accessory, the Sharp Carousel Microwave
Cookbook.
NEVER use the oven without the turntable and support
nor turn the turntable over so that a large dish could be
placed in the oven. The turntable will turn both clock-
wise and counterclockwise.
ALWAYS have food in the oven when it is on to absorb
the microwave energy.
When using the oven at power levels below 100%, you
Eggs, sausages,
nuts, seeds
fruits &
vegetables
Popcorn
Baby food
General
ABOUT FOOD
•Puncture egg yolks before cooking
to prevent “explosion”.
•Pierce skins of potatoes, apples,
squash, hot dogs and sausages so
that steam escapes.
• Use specially bagged popcorn for the
microwave oven.
•Listen while popping corn for the
popping to slow to 1 or 2 seconds or
use special POPCORN pad.
•Transfer baby food to small dish and
heat carefully, stirring often. Check
temperature before serving.
•Put nipples on bottles after heating
and shake thoroughly. “Wrist” test
before feeding.
•Cut baked goods with filling after
heating to release steam and avoid
burns.
•Stir liquids briskly before heating and
allow to stand at least for 20 seconds
after heating before stirring or drink-
ing to avoid eruption.
•Use deep bowl, when cooking liquids
or cereals, to prevent boilovers.
•Cook eggs in shells.
•Reheat whole eggs.
•Dry nuts or seeds in shells.
•Pop popcorn in regular brown bags
or glass bowls.
•Exceed maximum time on popcorn
package.
•Heat baby food in original jars.
•Heat disposable bottles.
•Heat bottles with nipples on.
•Heat or cook in closed glass jars or
air tight containers.
•Can in the microwave as harmful
bacteria may not be destroyed.
•Deep fat fry.
•Dry wood, gourds, herbs or wet papers.
DO DON’T
FOOD
may hear the magnetron cycling on and off. It is normal
for the exterior of the oven to be warm to the touch
when cooking or reheating.
Condensation is a normal part of microwave cooking.
Room humidity and the moisture in food will influence
the amount of moisture that condenses in the oven.
Generally, covered foods will not cause as much con-
densation as uncovered ones. Vents on the oven back
must not be blocked.
The oven is for food preparation only. It should not be
used to dry clothes or newspapers.
Your oven is rated 1200 watts by using the IEC Test
Procedure. In using recipes or package directions,
check food a minute or two before the minimum time
and add time accordingly.
5
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
ABOUT UTENSILS AND COVERINGS
The following coverings are ideal:
•Paper towels are good for covering foods for re-
heating and absorbing fat while cooking bacon.
•Wax paper can be used for cooking and
reheating.
•Plastic wrap that is specially marked for micro-
wave use can be used for cooking and reheat-
ing. DO NOT allow plastic wrap to touch food.
Vent so steam can escape.
•Lids that are microwave-safe are a good choice
because heat is kept near the food to hasten
cooking.
•Oven cooking bags are good for large meats or
foods that need tenderizing. DO NOT use metal
twist ties. Remember to slit bag so steam can
escape.
How to use aluminum foil in your microwave
oven:
•Small flat pieces of aluminum foil placed
smoothly on the food can be used to shield
areas that are either defrosting or cooking too
quickly.
•Foil should not come closer than one inch to any
surface of the oven.
Should you have questions about utensils or coverings,
check a good microwave cookbook or follow recipe
suggestions.
ACCESSORIES There are many microwave accesso-
ries available for purchase. Evaluate carefully before
you purchase so that they meet your needs. A micro-
wave-safe thermometer will assist you in determining
correct doneness and assure you that foods have
been cooked to safe temperatures. Sharp is not
responsible for any damage to the oven when acces-
sories are used.
Children should be taught all safety precautions: use
potholders, remove coverings carefully, pay special
attention to packages that crisp food because they
may be extra hot.
Don’t assume that because a child has mastered one
cooking skill he/she can cook everything.
Children need to learn that the microwave oven is not
a toy. See page 17 for Child Lock feature.
It is not necessary to buy all new cookware. Many
pieces already in your kitchen can be used success-
fully in your new microwave oven. Make sure the uten-
sil does not touch the interior walls during cooking.
Use these utensils for safe microwave cooking
and reheating:
•glass ceramic (Pyroceram®), such as
Corningware®.
•heat-resistant glass (Pyrex®)
•microwave-safe plastics
•paper plates
•microwave-safe pottery, stoneware and
porcelain
•browning dish (Do not exceed recommended
preheating time. Follow manufacturer's
directions.)
These items can be used for short time reheat-
ing of foods that have little fat or sugar in them:
•wood, straw, wicker
DO NOT USE
•metal pans and bakeware
•dishes with metallic trim
•non-heat-resistant glass
•non-microwave-safe plastics (margarine tubs)
•recycled paper products
•brown paper bags
•food storage bags
•metal twist-ties
Should you wish to check if a dish is safe for
microwaving, place the empty dish in the oven and
microwave on HIGH for 30 seconds. A dish which
becomes very hot should not be used.
ABOUT CHILDREN AND THE MICROWAVE
Children below the age of 7 should use the microwave
oven with a supervising person very near to them.
Between the ages of 7 and 12, the supervising person
should be in the same room.
The child must be able to reach the oven comfortably;
if not, he/she should stand on a sturdy stool.
At no time should anyone be allowed to lean or swing
on the oven door.
INFORMATION YOU NEED TO KNOW
6
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
ABOUT MICROWAVE COOKING
•Arrange food carefully. Place thickest areas towards
outside of dish.
•Watch cooking time. Cook for the shortest amount
of time indicated and add more as needed. Food
severely overcooked can smoke or ignite.
•Cover foods while cooking. Check recipe or cook-
book for suggestions: paper towels, wax paper,
microwave plastic wrap or a lid. Covers prevent
spattering and help foods to cook evenly.
•Shield with small flat pieces of aluminum foil any
thin areas of meat or poultry to prevent overcooking
before dense, thick areas are cooked thoroughly.
•Stir foods from outside to center of dish once or twice
during cooking, if possible.
•Turn foods over once during microwaving to
speed cooking of such foods as chicken and ham-
burgers. Large items like roasts must be turned over
at least once.
INFORMATION YOU NEED TO KNOW
•Rearrange foods such as meatballs halfway
through cooking both from top to bottom and from
the center of the dish to the outside.
•Add standing time. Remove food from oven and
stir, if possible. Cover for standing time which allows
the food to finish cooking without overcooking.
•Check for doneness. Look for signs indicating that
cooking temperatures have been reached.
Doneness signs include:
-Food steams throughout, not just at edge.
-Center bottom of dish is very hot to the touch.
-Poultry thigh joints move easily.
-Meat and poultry show no pinkness.
-Fish is opaque and flakes easily with a fork.
•Check foods to see that they are cooked to the
United States Department of Agriculture's
recommended temperatures.
To test for doneness, insert a meat thermometer in a
thick or dense area away from fat or bone. NEVER
leave the thermometer in the food during cooking,
unless it is approved for microwave oven use.
•ALWAYS use potholders to prevent burns when
handling utensils that are in contact with hot food.
Enough heat from the food can transfer through
utensils to cause skin burns.
•Avoid steam burns by directing steam away from
the face and hands. Slowly lift the farthest edge of
a dish's covering and carefully open popcorn and
oven cooking bags away from the face.
•Stay near the oven while it's in use and check
cooking progress frequently so that there is no
chance of overcooking food.
•NEVER use the cavity for storing cookbooks or
other items.
•Select, store and handle food carefully to preserve
its high quality and minimize the spread of
foodborne bacteria.
•Keep waveguide cover clean. Food residue can
cause arcing and/or fires.
•Use care when removing items from the oven so
that the utensil, your clothes or accessories do not
touch the safety door latches.
ABOUT SAFETY
... for fresh pork, ground meat,
boneless white poultry, fish,
seafood, egg dishes and frozen
prepared food.
... for leftover, ready-to-reheat
refrigerated, and deli and carry-
out “fresh” food.
... white meat of poultry.
... dark meat of poultry.
160°F
TEMP FOOD
165°F
170°F
180°F
7
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
PART NAMES
1Door opening button
Push to open door.
2Oven door with see-through window
3Safety door latches
The oven will not operate unless the
door is securely closed.
4Door hinges
5Door seals and sealing surfaces
6Turntable motor shaft
7Removable turntable support
Carefully place the turntable support in
the center of the oven floor.
8Removable turntable
Place the turntable on the turntable
support securely. The turntable will
rotate clockwise or counterclockwise.
Only remove for cleaning.
9Ventilation openings (Rear)
10 Oven light
It will light when oven is operating or
door is open.
11 Waveguide cover: DO NOT REMOVE.

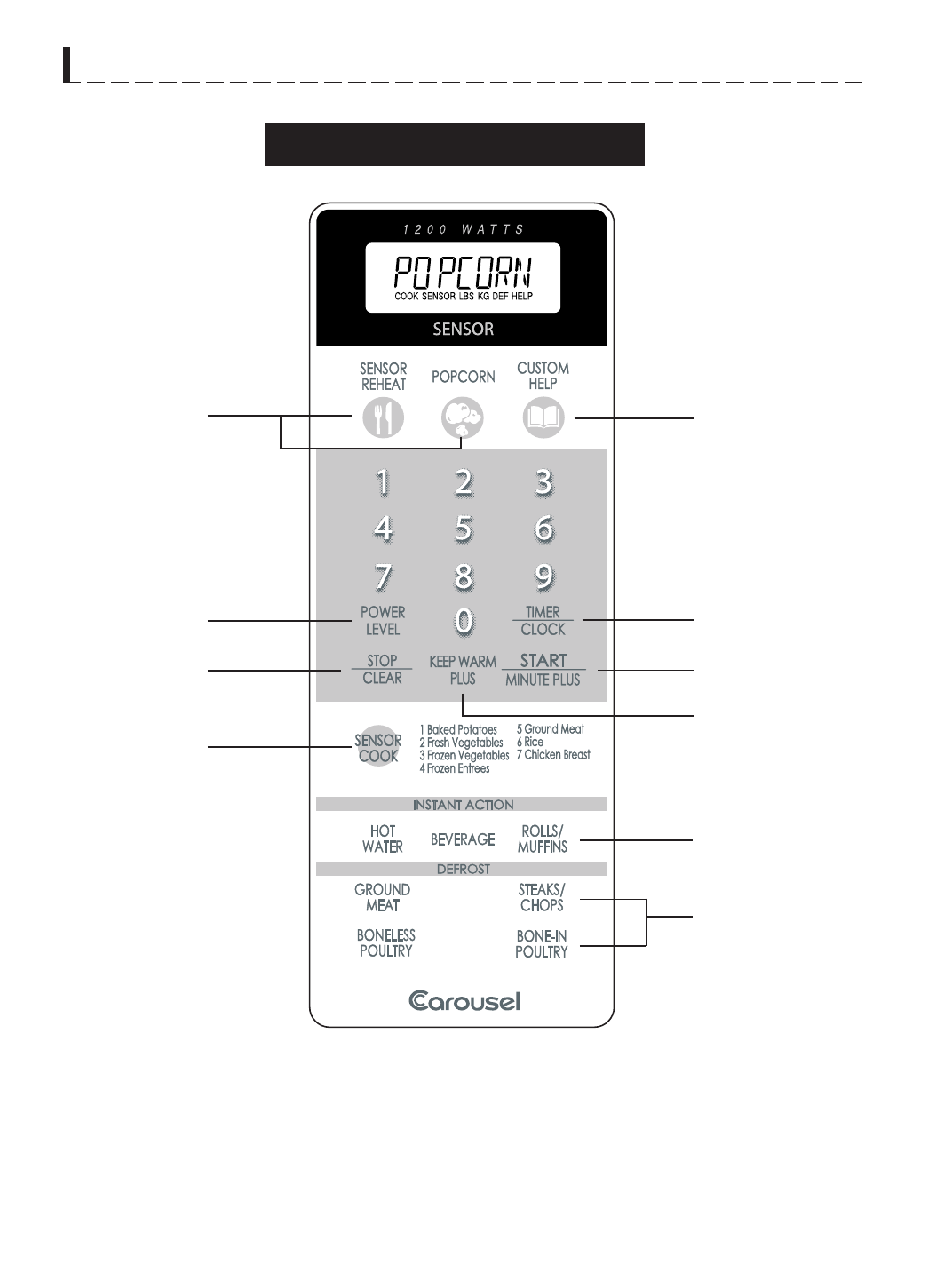

12 Auto-Touch control panel
13 Time display: 99 minutes, 99 seconds

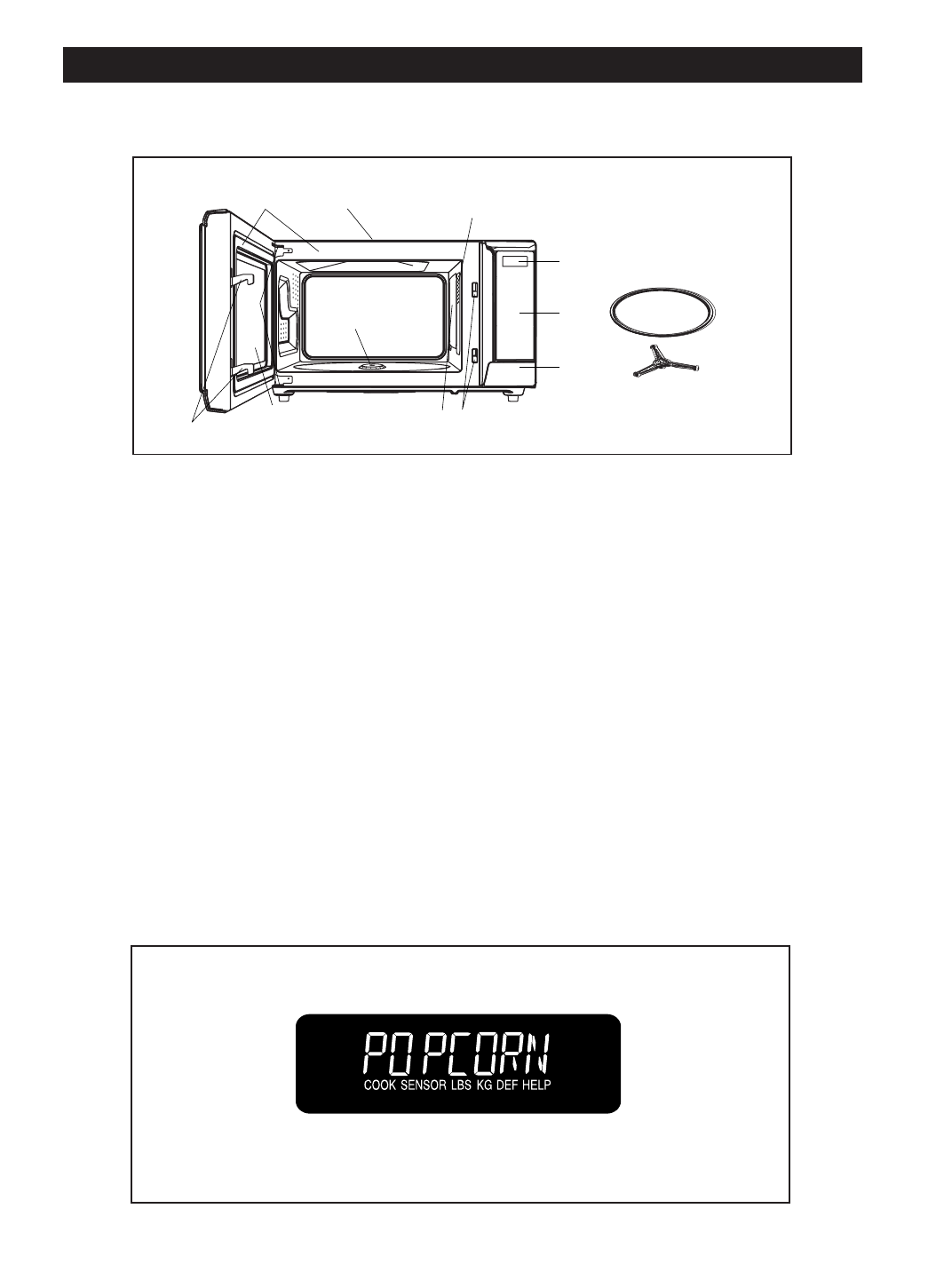

MICROWAVE OVEN PARTS
12
13
1
59 10
3
2
4
6
11 3
8
7
INTERACTIVE DISPLAY
Words in the display will light to indicate what
function is in progress.
The Interactive Display spells out operating steps and shows cooking hints. When HELP is
lighted in the display, touch the CUSTOM HELP pad to read a specific hint which may assist
you.
8
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
PART NAMES
Number next to the control panel illustration indicates page on which there are a feature
description and usage information.
R-320H
10-11 17-18
10-13
9,16,17
9
9,16
9,18
16
14
15
9
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
MANUAL OPERATION
•Before operating your new microwave oven make
sure you read and understand this operation
manual completely.
•Before the oven can be used, follow these
procedures:
1. Plug in the oven. Close the door. The oven display
will show ” ENJOY YOUR OVEN PRESS CLEAR
AND PRESS CLOCK ”.
2. Touch the STOP/CLEAR pad.
will appear.
3. Set clock.
BEFORE OPERATING
TO SET THE CLOCK
•Suppose you want to enter the correct time of day
12:30 (A.M. or P.M.).
PROCEDURE DISPLAY
1
Touch CLOCK pad and
number pad 2 .
Enter the correct time
of day by touching the
numbers in sequence.
2
3
12:30
Touch CLOCK pad again.
12:30
This is a 12 hour clock. If you attempt to enter an
incorrect clock time, will appear in the display.
Touch the STOP/CLEAR pad and re-enter the time.
•If the electrical power supply to your microwave
oven should be interrupted, the display will inter-
mittently show ” ENJOY YOUR OVEN PRESS
CLEAR AND PRESS CLOCK ”
after the power is
reinstated. If this occurs during cooking, the program
will be erased. The time of day will also be erased.
Simply touch STOP/CLEAR pad and reset the clock
for the correct time of day.
ERROR
STOP/CLEAR
Touch the STOP/CLEAR pad to:
1. Erase if you make a mistake during programming.
2. Cancel timer.
3. Stop the oven temporarily during cooking.
4. Return the time of day to the display.
5. Cancel a program during cooking, touch twice.
Your oven can be programmed for 99 minutes 99 sec-
onds (99.99). Always enter the seconds after the min-
utes, even if they are both zeros.
•Suppose you want to cook for 5 minutes at 100%.
TIME COOKING
PROCEDURE DISPLAY
1
Enter cooking time.
Touch START pad.
2
5.00
•Suppose you want to defrost for 5 minutes at 30%.
PROCEDURE DISPLAY
1
2
3
5.00
Enter defrost time.
5.00
Touch START pad.
COOK
LANGUAGE / WEIGHT SELECTION
The oven comes set for English and U.S. Customary
Unit-pounds. To change see page 18.
4
When the defrost time is complete, a long tone
will sound and
END
will appear in the display.
TO SET POWER LEVEL
There are eleven preset power levels.
Using lower power levels increases the cooking time
which is recommended for foods such as cheese, milk
and long slow cooking of meats. Consult cookbook or
recipes for specific recommendations.
ENTER
TIME
5.00
COOK
P-30
APPROXIMATE
PERCENTAGE
OF POWER
COMMON WORDS
FOR
POWER LEVELS
TOUCH POWER
LEVEL PAD
once 100% High
twice 90%
3 times 80%
4 times 70% Medium High
5 times 60%
6 times 50% Medium
7 times 40%
8 times 30% Med Low/Defrost
9 times 20%
10 times 10% Low
11 times 0%
Touch POWER LEVEL
pad 8 times or hold down
until the desired power
level appears.
2
1 2 3 0
5 0 0
5 0 0
x 8
:
10
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
SPECIAL FEATURES
POPCORN/SENSOR
REHEAT/ SENSOR COOK
Sharp's Sensor is a semi-conductor device that detects
the vapor (moisture and humidity) emitted from the food
as it heats. The sensor adjusts the cooking times and
power level for various foods and quantities.
Using Sensor Settings:
1. After oven is plugged in, wait 2 minutes before
using Popcorn, Sensor Reheat or Sensor Cook.
2. Be sure the exterior of the cooking container and
the interior of the oven are dry. Wipe off any mois-
ture with a dry cloth or paper towel.
3. The oven works with foods at normal storage tem-
perature. For example, popcorn would be at room
temperature.
4. Popcorn,Sensor Reheat and any Sensor Cook se-
lection can be programmed with More or Less Time
Adjustment. See page 16.
5. More or less food than the quantity listed in the chart
should be cooked following the guidelines in any
microwave cookbook.
6. During the first part of Popcorn, Sensor Reheat or
Sensor Cook, food name will appear on the dis-
play. Do not open the oven door or touch STOP/
CLEAR pad during this part of the cooking cycle.
The measurement of vapor will be interrupted. If
this occurs, an error message will appear. To con-
tinue cooking, touch the STOP/CLEAR pad and
cook manually.
When the sensor detects the vapor emitted from
the food, remainder of cooking time will appear.
Door may be opened when remaining cooking
time appears on the display. At this time, you may
stir or season food, as desired.
7. If the sensor does not detect vapor properly when
popping popcorn, the oven will turn off, and the
correct time of day will be displayed. If the sensor
does not detect vapor properly when cooking other
foods, an error message will be displayed, and the
oven will turn off.
8. Check food for temperature after cooking. If addi-
tional time is needed, continue to cook manually.
9. Popcorn and Sensor Reheat can only be entered
within 3 minutes after cooking, opening and clos-
ing the door or touching the STOP/CLEAR pad.
10. Each food has a cooking hint. Touch CUSTOM
HELP pad when the HELP indicator is lighted in
the display.
Covering Foods:
Some foods work best when covered. Use the cover
recommended in the chart for these foods.
1. Casserole lid.
2. Plastic wrap: Use plastic wrap recommended for
microwave cooking. Cover dish loosely; allow
approximately 1/2 inch to remain uncovered to
allow steam to escape. Plastic wrap should not
touch food.
3. Wax paper: Cover dish completely; fold excess
wrap under dish to secure. If dish is wider than
paper, overlap two pieces at least one inch to cover.
Be careful when removing any covering to allow
steam to escape away from you.
Example: POPCORN/SENSOR REHEAT
You can pop popcorn and reheat many foods by touch-
ing just one pad. You do not need to calculate cooking
time or power level.
•Suppose you want to reheat canned chili.
PROCEDURE
Touch SENSOR
REHEAT pad.
When sensor detects the vapor emitted from the
food, remainder of cooking time will appear.
1
NOTE:
The POPCORN setting has 2 choices. Follow direc-
tions in the display to choose desired option.
Popcorn
POPCORN/SENSOR REHEAT CHART
FOOD AMOUNT PROCEDURE
only 1 package
at a time
2.85 - 3.5 oz
(Regular/Regular light)
1.5 or 1.75 oz (Snack)
Place cooked foods in dish or casserole slightly larger than
amount to be reheated. Flatten, if possible. Cover with lid, plastic
wrap or wax paper. Use covers such as plastic wrap or lids with
larger quantities of more dense foods such as stews. After reheat-
ing, stir well, if possible. Re-cover and allow to stand 2 to 3 min-
utes. Foods should be very hot. If not, continue to heat with vari-
able power and time.
Sensor Reheat 4-36 oz
Use only popcorn packaged for microwave oven use. Try several brands
to decide which you like the best. Do not try to pop unpopped kernels.
Touch POPCORN pad once.
Touch POPCORN pad twice within 2 seconds.
11
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
SPECIAL FEATURES
SENSOR COOK CHART
FOOD AMOUNT PROCEDURE
Pierce. Place on paper-towel-lined turntable. After cooking, remove
from oven, wrap in aluminum foil and let stand 5 to 10 minutes.
1. Baked Potatoes 1 - 4 med.
Fresh Vegetables: Hard
Carrots, sliced
Corn on the cob
Green beans
Winter squash:
diced
halves
Wash and place in casserole. Add no water if vegetables have just
been washed. Cover with lid for tender vegetables. Use plastic wrap
for tender-crisp vegetables. Touch SENSOR COOK pad and num-
ber pad 2 once. After cooking, stir, if possible. Let stand, covered,
for 2 to 5 minutes.
2. Fresh Vegetables:Soft
Broccoli
Brussels sprouts
Cabbage
Caulif. (flowerets)
Cauliflower (whole)
Spinach
Zucchini
Baked apples
.25 - 2.0 lb
.25 - 2.0 lb
.25 - 2.0 lb
.25 - 2.0 lb
1 med.
.25 - 1.0 lb
.25 - 2.0 lb
2 - 4 med.
Place in casserole. Add 1-4 tbsp water. Cover with lid for tender
vegetables. Use plastic wrap cover for tender-crisp vegetables.
Touch SENSOR COOK pad and number pad 2 twice. After cook-
ing, stir, if possible. Let stand, covered, for 2 to 5 minutes.
.25 - 1.5 lb
2-4
.25 - 1.5 lb
.25 - 1.5 lb
1-2
Use this setting to cook ground beef or poultry as patties or in a
casserole to be added to other ingredients. Place patties on a
microwave-safe rack and cover with wax paper. Place ground meat
in a casserole and cover with wax paper or plastic wrap. When
oven stops, turn patties over or stir meat in casserole to break up
large pieces. Re-cover and touch START pad. After cooking, let
stand, covered, for 2 to 3 minutes.
5. Ground Meat .25 - 1.5 lb
Use this pad for frozen, convenience foods. It will give satisfactory
results for most brands. You may wish to try several and choose
your favorite. Remove package from outer wrapping and follow
package directions for covering. After cooking, let stand, covered,
for 1 to 3 minutes.
Add no water. Cover with lid or plastic wrap. After cooking, stir and
let stand, covered, for 3 minutes.
4. Frozen Entrees 6 - 17 oz
3. Frozen
Vegetables .25 - 1.0 lb
PROCEDURE
Example: SENSOR COOK
•Suppose you want to cook 2 baked potatoes.
NOTE:
1. The FRESH VEGETABLES setting has 2 choices.
Follow directions in the display to choose desired
option.
2. To heat or cook other foods or foods above or below
the quantity allowed on the SENSOR COOK
CHART, cook manually.
1
Select desired food by
touching number pad.
(Ex: Touch 1 for baked
potatoes.)
2
Touch SENSOR COOK once.
1
Touch START pad.
3
12
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
SPECIAL FEATURES
SENSOR COOK RECIPES
Mexican Seasoned Potatoes
Makes 6 to 8 servings
4medium baking potatoes (8 ounces each) 1/2 teaspoon oregano leaves
1/4 cup olive oil 1/4 teaspoon ground cumin
1tablespoon instant minced onion 1/2 teaspoon salt
1/2 teaspoon chili powder
1
Cut each potato lengthwise into 4 equal wedges. Place potato wedges into 10-inch square casserole. Toss
potatoes with oil to coat well.
2
In small bowl, combine remaining ingredients. Sprinkle over potatoes.
3
Cover potatoes with wax paper. Microwave using BAKED POTATOES setting. Rearrange potatoes when time
appears on display. Let stand, covered, 5 minutes.
Glazed Apple Slices
Makes 6 to 8 servings
1/4 cup brown sugar 3/4 cup orange juice
3tablespoons margarine or butter 1 tablespoon cornstarch
2tablespoons apricot preserves 4 baking apples (about 1 1/2 pounds),
1/2 teaspoon ground nutmeg peeled and sliced into 8 pieces each
1/4 teaspoon salt 3 tablespoons chopped green pistachios
1/2 cup sugar
1
Combine brown sugar, margarine and apricot preserves in a small bowl. Microwave at HIGH (100%) until
margarine melts and preserves soften, 45 seconds to 1 minute. Stir in nutmeg, salt, sugar, orange juice and
cornstarch. Microwave at HIGH (100%) until thickened, 4 to 6 minutes, stirring several times.
2
Arrange apple slices in a large microwave serving dish. Spread hot sauce over apples. Cover well with vented
plastic wrap. Microwave using FRESH VEGETABLES: Soft. Allow to cool 5 minutes before serving.
3
Sprinkle with pistachios. Serve alone or over vanilla ice cream or sponge cake.
6. Rice Place rice into a deep casserole and add double quantity of water.
Cover with lid or plastic wrap. After cooking, stir, cover and let
stand 3 to 5 minutes or until all liquid has been absorbed.
.5 - 2.0 cups
Rice Water Size of casserole
.5 cup 1 cup 1.5 quart
1 cup 2 cups 2 quart
1.5 cups 3 cups 2.5 or 3 quart
2 cups 4 cups 3 quart or larger
Cover with vented plastic wrap. When oven stops, turn over. Shield
with small, flat pieces of aluminum foil any areas that are cooking
too rapidly. Re-cover and touch START pad. After cooking, let stand,
covered, 3-5 minutes. Chicken should be 160°F.
7. Chicken Breast .5 - 1.5 lb
SENSOR COOK CHART (continued)
FOOD AMOUNT PROCEDURE
13
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
SPECIAL FEATURES
SENSOR COOK RECIPES (continued)
CONFETTI SOUP
Makes 6 servings
3tablespoons butter or margarine
1cup cubed carrots, 1/4-inch cubes
1cup rutabaga, 1/4-inch cubes
1small zucchini, 1/4-inch cubes
1/2 cup chopped onion
1/2 cup chopped celery
1cup fresh broccoli flowerets or cauliflowerets
1/4 cup all-purpose flour
1
Combine butter, carrots, rutabaga, zucchini, onion, celery and broccoli in 3-quart, covered casserole.
2
Microwave using FRESH VEGETABLES: Soft. Stir well.
3
Stir in flour, salt, pepper, sugar, milk, cheese, corn, ham and peas.
4
Microwave using SENSOR REHEAT. Stir well and serve with croutons.
1teaspoon salt
1/2 teaspoon pepper
1/4 teaspoon sugar
4cups milk
1cup shredded Cheddar cheese
1cup frozen corn, thawed
1/2 cup cooked ham, 1/4-inch cubes
1/2 cup frozen peas, thawed
MIXED COMPANY VEGETABLES
Makes 8 servings
3green onions, diagonally cut into 1-inch pieces
1teaspoon minced garlic
1/4 teaspoon crushed red pepper
2tablespoons olive oil
2tablespoons teriyaki sauce
1
In a small, microwave-safe bowl, combine green onions, garlic, crushed red pepper and oil. Microwave on HIGH
(100%) for 2 minutes. Stir in teriyaki sauce.
2
In a 3-quart casserole, place carrots, broccoli, red peppers and mushrooms. Cover with plastic wrap.
3
Microwave using FRESH VEGETABLES: Soft for tender crisp or FRESH VEGETABLES: Hard for softer vegetables.
4
Remove from oven and drain. Add green onion mixture and stir to combine. Serve immediately.
CREAMED SPINACH
Makes 8 servings
2packages (10 ounces each) frozen
chopped spinach
1/2 onion, chopped
1
In a 2-quart, covered casserole, microwave spinach using FROZEN VEGETABLES.
2
Drain and set aside.
3
Place onion and margarine in 1-quart casserole. Microwave on HIGH (100%) for 2 minutes or until onion is
tender.
4
Add cheese and milk. Stir well.
5
Pour cheese-onion and milk mixture on top of cooked spinach.
6
Cover and microwave using SENSOR REHEAT.
3/4 pound carrots, cut into 1/4-inch thick slices
1bunch of broccoli, cut into 2-inch by 1-inch pieces
1medium red pepper, sliced into matchstick-
thin strips
1/2 pound medium mushrooms, sliced
2tablespoons butter or margarine
6ounces of Boursin or soft garlic and herb cheese
1/3 cup of milk
14
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
PROCEDURE DISPLAY
SPECIAL FEATURES
INSTANT ACTION
Instant Action allows you to heat tap water or reheat
beverages, fresh and frozen rolls and muffins by touch-
ing just one pad.
•Suppose you want to reheat 1.0 cup of beverage.
Select desired setting. Touch BEVERAGE pad 2
times or hold down until the desired quantity
appears. The oven starts automatically.
x 2
1
HELP
NOTE:
1. To increase quantity, touch chosen pad until num-
ber in display is same as desired quantity to cook.
Ex: touch BEVERAGE two times for 1.0 cup. More
or less food than the quantity listed in the chart should
be heated following the guidelines in any microwave
cookbook.
2. To use any Instant Action pad, touch within 3 min-
utes after cooking, opening and closing the door or
touching the STOP/CLEAR pad.
3. Instant Action can be programmed with More or Less
Time Adjustment. See page 16.
4. The final cooking result will vary according to the food
condition (e.g. initial temperature, shape, quality).
Check food for temperature after cooking. If additional
time is needed, continue to cook manually.
5. Touch CUSTOM HELP pad when the HELP indica-
tor is lighted in the display for a helpful hint.
Use this pad to warm rolls, muffins, biscuits, bagels etc. Large
items should be considered as 2 or 3 regular size. Arrange on
plate; cover with paper towel. For refrigerated rolls or muffins, it
may be necessary to double the entered amount to ensure the
proper serving temperature. For example, enter quantity of 2 for 1
refrigerated muffin.
For frozen rolls or muffins, use More Time Adjustment.
Rolls & Muffins
1-6 pieces
This setting is good for restoring cooled beverage to a better drink-
ing temperature. Stir liquid briskly before and after heating to avoid
“eruption”.
Beverage .5 - 2 cups
Use this pad to heat tap water to prepare coffee, tea, bouillon or
instant soup as well as heat the water to cook pasta. When pre-
paring individual cups, place instant coffee, tea or bouillon in cup
and stir before heating. Allow to stand 20 seconds after heating
before stirring and drinking. Stir carefully after removing from the
oven.
When heating 4 to 6 cups of water, place in large casserole and
cover with lid or plastic wrap. When oven signals, add pasta and
continue cooking according to package directions.
Hot Water 1-6 cups
Press BEVERAGE pad Amount (cups)
Once .5
Twice 1.0
3 times 1.5
4 times 2.0
INSTANT ACTION CHART
FOOD AMOUNT PROCEDURE
1.0 CUP
HELP
15
A38941,SEC R320H O/M
SEC R320H
TINSEA976WRRZ-D32 SEC R320H
x 4
Touch START pad.
NOTE:
1. Defrost can be programmed with More or Less Time
Adjustment. Touch the POWER LEVEL pad once or
twice after selecting the amount. See page 16.
Quickly touch STEAKS/CHOPS pad 4 times
or hold down until the desired quantity
appears. The oven starts automatically.
2
After the 1st stage, open the door, turn steak over
and shield any warm portions. Close the door.
The oven will stop and directions will be
displayed.
3
After the 2nd stage, open the door and shield
any warm portions. Close the door.
Touch START pad.
4
After defrost cycle ends, cover and let stand
as indicated in chart below.
2.0
SPECIAL FEATURES
DEFROST
Defrost automatically defrosts the foods shown in the
DEFROST CHART below.
Round the weight to the nearest half pound. (Ex: if the
steak’s actual weight is 2.2 lb round to 2.0 lb If the
steak’s weight is 2.4 lb round to 2.5 lb.)
To enter weight, touch the desired DEFROST pad for
a 0.5 lb increase per touch. (Ex: touch four times for
2.0 lb.)
•Suppose you want to defrost a 2.0 pound steak .
PROCEDURE DISPLAY
1
DEF HELP
2. To defrost other foods or foods above or below the
weights allowed on DEFROST CHART. Use time and
30% power. See MANUAL DEFROST below.
3. You may choose to enter the weight in tenths of
pounds. This procedure may be easier with larger
weights such as 3 pounds because it requires
fewer touches. To program, touch desired DE-
FROST pad and enter weight by touching the num-
ber pads. Ex: touch STEAKS/CHOPS pad then
3 and 0 for a weight of 3.0 lb or touch STEAKS/
CHOPS pad then 2 and 2 for a weight of 2.2 lb.
If you attempt to enter more or less than the allowed
amount as indicated in chart below, an error mes-
sage will appear in the display.
4. To use any Defrost pad, touch within 3 minutes after
cooking, opening and closing the door or touching
the STOP/CLEAR pad.
5. Touch CUSTOM HELP pad when the HELP indica-
tor is lighted in the display for a helpful hint.
MANUAL DEFROST
If the food that you wish to defrost is not listed on the
DEFROST CHART or is above or below the limits in
the “Amount” column on the DEFROST CHART, you
need to defrost manually.
You can defrost any frozen food, either raw or previ-
ously cooked, by using 30% Power Level. See page 9.
Estimate defrosting time and touch POWER LEVEL pad
8 times for 30% when you select the power level.
For either raw or previously cooked frozen food the
rule of thumb is approximately 4 minutes per pound.
For example, defrost 4 minutes for 1 pound of frozen
spaghetti sauce.
Always stop the oven periodically to remove or sepa-
rate the portions that are defrosted. If food is not
defrosted at the end of the estimated defrosting
time, program the oven in 1 minute increments at 30%
until totally defrosted.
When using plastic containers from the freezer, defrost
only long enough to remove from the plastic in order
to place in a microwave-safe dish.
FOOD AMOUNT
DEFROST CHART
PROCEDURE
Pull apart and remove any thawed pieces after each stage.
Let stand, covered, for 5 to 10 minutes.
Ground Meat .5 - 2.0 lb
After each stage, rearrange and if there are warm or thawed portions,
shield with small flat pieces of aluminum foil. Remove any meat that is
nearly defrosted. Let stand, covered, for 10 to 20 minutes.
Steaks/Chops
Use boneless breast of chicken or turkey. After each stage, if there are
warm or thawed portions, rearrange or remove. Let stand, covered, for
10 to 20 minutes.
Boneless Poultry .5 - 1.5 lb
.5 - 3.0 lb
Arrange pieces with meatiest portions toward outside of glass dish or
microwave safe rack. After each stage, if there are warm or thawed por-
tions, rearrange or remove. Let stand, covered, for 10 to 20 minutes.
Bone-in Poultry .5 - 3.0 lb
NOTE:
Check foods when oven signals. After final stage, small sections may still be icy. Let stand to continue
thawing. Do not defrost until all ice crystals are thawed.
Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth
strips of aluminum foil to cover edges and thinner sections of the food.
SEC R320H
16
TINSEA976WRRZ-D32 SEC R320H
SPECIAL FEATURES
KEEP WARM PLUS
Keep Warm Plus allows you to keep food warm up to
30 minutes.
You can program Keep Warm Plus with manual cook-
ing to keep food warm continuously after cooking, also.
PROCEDURE
1
Touch KEEP WARM
PLUS pad.
DIRECT USE
•Suppose you want to keep a cup of soup warm for
15 minutes.
The oven will start. The display will show
and count down. KEEP WARM will appear in the
display every 10 seconds.
3
Touch START pad.
2
Enter the desired time.
MORE OR LESS TIME
ADJUSTMENT
Should you discover that you like any of the Popcorn,
Sensor Reheat, Sensor Cook, Instant Action or Defrost
settings slightly more done, touch the POWER LEVEL
pad once after touching your choice of pads.
The display will show
MORE
.
Should you discover that you like any of the Popcorn,
Sensor Reheat, Sensor Cook, Instant Action or Defrost
settings slightly less done, touch the POWER LEVEL
pad twice after touching your choice of pads.
The display will show
LESS
.
DEMONSTRATION MODE
To demonstrate, touch CLOCK, the number 0 pad
and touch START pad and hold for 3 seconds.
DEMO
ON
will appear in the display. Cooking operations and
specific special features can now be demonstrated with
no power in the oven. For example, touch MINUTE PLUS
pad and the display will show
1.00
and count down
quickly to
END
.
To cancel, touch CLOCK, then the number 0 and
STOP/CLEAR pads. If easier, unplug the oven from
the electrical outlet and replug.
OTHER CONVENIENT FEATURES
NOTE:
1. If you attempt to enter more than 30 minutes for Keep
Warm Plus, an error message will appear in the dis-
play.
2. Keep Warm Plus cannot be programmed with SPE-
CIAL FEATURES.
3. Touch CUSTOM HELP pad when the HELP indica-
tor is lighted in the display for a helpful hint.
WITH MANUAL COOKING
•Suppose you want to cook a cup of soup for 2 min-
utes at 70% and keep the soup warm for 15 minutes.
PROCEDURE
1
Touch POWER LEVEL
pad 4 times for 70%
power.
2
Touch KEEP WARM
PLUS pad.
3
Enter cooking time.
x 4
Touch START pad.
5
The operation will start. When the cooking time is
complete, a long tone will sound and Keep Warm
Plus will start. KEEP WARM will appear in the
display every 10 seconds and count down for 15
minutes.
2 0 0
4
Enter the desired time. 1 5 0 0
15.00
1 5 0 0
NOTE:
For Popcorn, Sensor Reheat and Instant
Action,the POWER LEVEL pad must be
touched within 1 second of touching your
choice of pads.
SEC R320H O/M,P16-23 03.5.21, 9:26 PM16
SEC R320H
17
TINSEA976WRRZ-D32 SEC R320H
Touch START pad.
6
Touch number 3 .
2
Enter the start time.
3
4 3 0
3
Touch CLOCK pad.
4
Enter cooking program.
5
2 0 0 0
x 6
Touch TIMER pad and
number pad 1 .
1
MULTIPLE SEQUENCE
COOKING
Your oven can be programmed for up to 4 automatic
cooking sequences, switching from one power level
setting to another automatically.
Sometimes cooking directions tell you to start on one
power level and then change to a different power
level. Your oven can do this automatically.
•Suppose you want to cook roast beef for 5 minutes
at 100% and then continue to cook for 30 minutes
at 50%.
PROCEDURE
1
Then enter second
cooking time.
Touch POWER LEVEL
pad 6 times for 50%
power.
2
First enter cooking time.
Then touch POWER
LEVEL pad once for
100% power.
NOTE:
1. If POWER LEVEL pad is touched once,
HIGH
will
be displayed.
2. If 100% is selected as the final sequence, it is not
necessary to touch the POWER LEVEL pad.
3. If you wish to know power level, simply touch the
POWER LEVEL pad. As long as your finger is touch-
ing the POWER LEVEL pad, the power level will be
displayed.
4. Keep Warm Plus can be programmed continuously
even if 4 cooking sequences have been set.
x 1
Touch START pad.
3
TIMER
•Suppose you want to time a 3-minute long distance
phone call.
PROCEDURE
2
Enter time.
Touch TIMER pad
again.
3
CUSTOM HELP
Custom Help provides 4 features which make using your
oven easy because specific instructions are provided
in the interactive display.
1. CHILD LOCK
The Child Lock prevents unwanted oven operation
such as by small children. The oven can be set so
that the control panel is deactivated or locked. To
set, touch CUSTOM HELP, the number 1 and then
touch the START pad. Should a pad be touched,
CHILD LOCK ON
will appear in the display.
To cancel, touch CUSTOM HELP and STOP/CLEAR pads.
2. AUDIBLE SIGNAL ELIMINATION
If you wish to have the oven operate with no audible
signals, touch CUSTOM HELP, the number 2 and
then touch STOP/CLEAR pad.
To cancel and restore the audible signal, touch CUSTOM
HELP, the number 2 and then touch the START pad.
3. AUTO START
If you wish to program your oven to begin cooking
automatically at a designated time of day, follow this
procedure:
•Suppose you want to start cooking a stew for 20 min-
utes on 50% at 4:30. Before setting, check to make
sure the clock is showing the correct time of day.
PROCEDURE
1
Touch CUSTOM
HELP pad.
NOTE:
1. Auto Start can be used for manual cooking if clock is set.
2. If the oven door is opened after programming
Auto Start, it is necessary to touch the START pad
for Auto Start time to appear in the readout so that
the oven will automatically begin programmed cook-
ing at the chosen Auto Start time.
3. Be sure to choose foods that can be left in the oven
safely until the Auto Start time. Acorn or butternut
squash are often a good choice.
4. If you wish to know the time of day, simply touch the
CLOCK pad. As long as your finger is touching the
CLOCK pad, the time of day will be displayed.
OTHER CONVENIENT FEATURES
x 6
3 0 0 0
5 0 0
3 0 0
1
SEC R320H O/M,P16-23 03.5.21, 9:27 PM17
SEC R320H
18
TINSEA976WRRZ-D32 SEC R320H
4. LANGUAGE / WEIGHT SELECTION
The oven comes set for English and U.S. Customary
Unit-pounds. To change, touch CUSTOM HELP and
the number 4 pad. Continue to touch number 4 until
your choice is selected from the table below. Then, touch
START pad.
•Touch number 4 pad for language and standard of
weight.
OTHER CONVENIENT FEATURES
HELP
Each setting of Popcorn, Sensor Reheat, Sensor Cook,
Instant Action, Defrost and Keep Warm Plus has a help-
ful hint. If you wish to check, touch CUSTOM HELP pad
whenever HELP is lighted in the Interactive Display.
MINUTE PLUS
Minute Plus allows you to cook for a minute at 100%
by simply touching the MINUTE PLUS pad. You can
also extend cooking time in multiples of 1 minute by
repeatedly touching the MINUTE PLUS pad during
manual cooking.
•Suppose you want to heat a cup of soup for one
minute.
PROCEDURE
Touch MINUTE PLUS pad.
NOTE:
1. To use Minute Plus, touch pad within 3 minutes after
cooking, closing the door or touching the STOP/
CLEAR pad.
2. Minute Plus cannot be used with Special Features.
1
CLEANING AND CARE
Disconnect the power cord before cleaning or
leave the door open to inactivate the oven dur-
ing cleaning.
Exterior
The outside surface is painted. Clean the outside
with mild soap and water; rinse and dry with a soft
cloth. Do not use any type of household or abra-
sive cleaner.
Door
Wipe the window on both sides with a damp cloth
to remove any spills or spatters. Metal parts will
be easier to maintain if wiped frequently with a
damp cloth. Avoid the use of spray and other
harsh cleaners as they may stain, streak or dull
the door surface.
Touch Control Panel
Wipe the panel with a cloth dampened slightly with
water only. Dry with a soft cloth. Do not scrub or
use any sort of chemical cleaners. Close door and
touch STOP/CLEAR pad.
Interior
Cleaning is easy because little heat is generated
to the interior surfaces; therefore, there is no bak-
ing and setting of spills or spattering. To clean the
interior surfaces, wipe with a soft cloth and warm
water. DO NOT USE ABRASIVE OR HARSH
CLEANERS OR SCOURING PADS. For heavier
soil, use baking soda or a mild soap; rinse thor-
oughly with hot water. NEVER SPRAY OVEN
CLEANERS DIRECTLY ONTO ANY PART OF
THE OVEN.
Waveguide Cover
The waveguide cover is made from mica so re-
quires special care. Keep the waveguide cover
clean to assure good oven performance. Care-
fully wipe with a damp cloth any food spatters from
the surface of the cover immediately after they
occur. Built-up splashes may overheat and cause
smoke or possibly catch fire. Do not remove the
waveguide cover.
Odor Removal
Occasionally, a cooking odor may remain in the
oven. To remove, combine 1 cup water, grated
peel and juice of 1 lemon and several whole cloves
in a 2-cup glass measuring cup. Boil for several
minutes using 100% power. Allow to set in oven
until cool. Wipe interior with a soft cloth.
Turntable/ Turntable Support
The turntable and turntable support can be re-
moved for easy cleaning. Wash them in mild,
sudsy water; for stubborn stains use a mild
cleanser and a non-abrasive scouring sponge.
They are also dishwasher-proof. Use upper rack
of dishwasher. The turntable motor shaft is not
sealed, so excess water or spills should be wiped
up immediately.
LANGUAGE STANDARD
OF WEIGHT
TOUCH
NUMBER 4 DISPLAY
Twice English LBS ENGLISH
Lb
3 times English KG ENGLISH
KG
4 times Spanish LBS ESPANOL
Lb
5 times Spanish KG ESPANOL
KG
6 times French LBS FRANC.
Lb
7 times French KG FRANC.
KG
SEC R320H O/M,P16-23 03.5.21, 9:27 PM18
SEC R320H
19
TINSEA976WRRZ-D32 SEC R320H
Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the oven and close the door securely.
Operate the oven for one minute at HIGH 100%.
A
Does the oven light come on? YES _______ NO _______
B
Does the cooling fan work? YES _______ NO _______
(Put your hand over the rear ventilating openings.)
C
Does the turntable rotate? YES _______ NO _______
(It is normal for the turntable to turn in either direction.)
D
Is the water in the oven warm? YES _______ NO _______
If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit
breaker. If they are functioning properly, CONTACT YOUR NEAREST SHARP AUTHORIZED SERVICER.
A microwave oven should never be serviced by a “do-it-yourself” repair person.
NOTE:
If time appearing in the display is counting down very rapidly, check DEMONSTRATION MODE on page
16 and cancel.
SERVICE CALL CHECK
TO ORDER
Simply call this toll-free number : 1-800-642-2122.
Please have your credit card ready.
If you prefer to order by mail, complete and return the
order form on page 20. Please include check or money
order (payable to Sharp Accessories & Supplies
Center) for $6.00 plus $4.25 shipping & handling and
tax, if applicable, per book.
SATISFACTION GUARANTEED
You must be completely satisfied with the Sharp
Carousel Microwave Cookbook. If, within 14 days, you
are dissatisfied for any reason, simply return the book
and we'll gladly refund your $6.00 plus tax.
Great recipes
~ Reliable microwave
reference guide
~ Many color photos
~ Step-by-step
instructions
~Nutritional
information for
each recipe
~ Durable wipe-clean
soft cover with 128
8 1/2 x 11 pages
~ Helpful tips and
special techniques
(SOLAMENTE ESCRITO EN INGLES!)
CAROUSEL MICROWAVE
COOKBOOK
THE ULTIMATE ACCESSORY
SEC R320H O/M,P16-23 03.5.21, 9:27 PM19
SEC R320H
20
TINSEA976WRRZ-D32 SEC R320H
SPECIFICATIONS
★The International Electrotechnical Commission’s standardized method for measuring output wattage. This
test method is widely recognized.
★★ Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding
food is less.
In compliance with standards set by:
FCC – Federal Communications Commission Authorized.
DHHS – Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I,
Subchapter J.
– This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.
Cut along this line.
PERSONAL RECIPES AND NOTES
I have enclosed a check made payable to Sharp Accessories & Supplies Center.
Please bill my VISA MASTERCARD AMERICAN EXPRESS
Acct. No. _______________________________________ Expiration date ____ / ____
Signature_________________________________________________________________
(All credit card orders must be signed.)
Name ____________________________________________________________________________
Address __________________________________________________________________________
City __________________________________ State ___________ Zip ________________________
Daytime Phone No. ( ) ___________________________________________________________
Please send me ______ cookbooks at $10.25 each $ _______
Illinois sales tax, (if applicable) per book $.44 no. of books _____________ $ _______
TOTAL ORDER AMOUNT $ _______
Price is subject to change without notice.
COOKBOOK ORDER FORM
Mail to: SHARP Accessories & Supplies Center
2130 Townline Road
Peoria, Illinois 61615–1560
AC Line Voltage:
AC Power Required:
Output Power:
Microwave★
(IEC Test Procedure)
Frequency:
Outside Dimensions:
Cavity Dimensions★★:
Oven Capacity★★
Cooking Uniformity:
Weight:
Single phase 120V, 60Hz, AC only
1680W 14.2 amps.
1200W
2450 MHz
20
1
/
2
"(W) x 12
1
/
4
"(H) x 17
1
/
4
"(D)
143/4"(W) x 8 7/8"(H) x 151/4"(D)
1.2 Cu. Ft.
Turntable system,
12
5
/
8
" diameter
Approx. 33 lb
SEC R320H O/M,P16-23 03.5.21, 9:27 PM20
SEC R320H
21
TINSEA976WRRZ-D32 SEC R320H
GUIA AUTO-TOUCH
Para mayor información y precauciones de seguridad, consulte el Manual de Operaciones.
x 4
x 6
OPERACION MANUAL
Cocción de Alta Potencia
1
Oprima los botones numéricos para
determinar el tiempo de cocción.
(Ej: 1 min. 30 seg.)
2
Toque el botón START.
Cocción de Potencia Variable
1
Después del paso 1 anterior, toque
el botón POWER LEVEL 6 veces.
(Ej: 50%).
2
Toque el botón START.
1
Toque el botón KEEP WARM PLUS.
2
Determine el tiempo deseado.
(Ej.: 15 min.)
3
Toque el botón START.
KEEP WARM PLUS
(MANTENER ALIMENTO CALIENTE MEJORADO)
MINUTE PLUS (MINUTO EXTRA)
Toque el botón MINUTE PLUS para un minuto al
100% de enargla, o para añadir un minuto cuando
cocine en el modo manual.
Continúe tocándolo para añadir más minutos.
1
Toque el botón que dice STEAKS/
CHOPS 4 veces para preparar 2.0
lb. El horno empezará a funcionar
automáticamente.
El horno se apagará y mostrará las
instrucciones a seguir.
2
Después de realizar el paso 1, abra la puerta.
Voltee el filete de carne y cubra cualquier
porción que esté caliente. Cierre la puerta.
Toque el botón START.
3
Después de realizar el paso 2, abra la puerta,
Cubra cualquier porción que esté caliente.
Cierre la puerta. Toque el botón START.
4
Cuando termine el ciclo de
descongelar, cúbralo y déjelo
reposar.
ALIMENTO CANTIDAD
0.5 a 2.0 libras
0.5 a 3.0 libras
0.5 a 1.5 libras
0.5 a 3.0 libras
Ground Meat(Carne molida)
Steaks/Chops(Bistec/chuleta)
Boneless Poultry(Sin hueso aves)
Bone-in Poultry(Con hueso aves)
DEFROST (DESCONGELACION)
1 0
3
1500
x 2
PARA FIJAR LA HORA
1. Toque CLOCK y el número 2 .
2. Ajuste el reloj en la hora correcta
oprimiendo los botones numéricos
en el orden respectivo. (Ej: 12:30)
3. Toque nuevamente el botón que
dice CLOCK.
Si en la pantalla se lee
88:88
toque primero STOP/CLEAR.
1230
INSTANT ACTION
(ACCION INSTANTANEA)
ALIMENTO
Toque el botón BEVERAGE 2
veces para 1 taza.
El horno empezará a funcionar
automáticamente.
Rolls & Muffins
(Pan) 1 a 6 pieces
Beverage (Bebida) 0.5 a 2.0 tazas
Hot Water
(Agua Caliente) 1 a 6 cups
CANTIDAD
1. Baked Potatoes (Papa asada)
1 a 4 medianas
2.
Fresh Vegetables: (Verdura fresca:)
Soft (Suave) 0.25 a 2.0 libras
Hard (Firme) 0.25 a 1.5 libras
3. Frozen Vegetables
(Verdura congelada) 0.25 a 1.0 libras
4. Frozen Entrees
(Plato fuerte congelado) 6 a 17 onzas
5. Ground Meat (Carne molida) 0.25 a 1.5 libras
6. Rice (Arroz) 0.5 a 2.0 libras
7. Chicken Breast
(Pechuga de pollo) 0.5 a 1.5 libras
ALIMENTO CANTIDAD
SENSOR DE COCCION
2
1Toque el botón SENSOR REHEAT.
El horno empezará a funcionar
automáticamente.
FOOD AMOUNT
Popcorn Only 1 package
Regular size 2.85 - 3.5 oz
Snack size 1.5 - 1.75 oz
Sensor Reheat 4 - 36 oz
POPCORN / SENSOR REHEAT
(PALOMITAI DE MAIZ / RECALENTAR DE SENSOR)
1. Toque el botón SENSOR COOK.
2. Seleccione el nivel SENSOR
COOK deseado.
(Ej: Toque 1 para papa asada.)
3. Toque el botón START.
SEC R320H O/M,P16-23 03.5.21, 9:27 PM21
SEC R320H
22
TINSEA976WRRZ-D32 SEC R320H
x 4
AUTO-TOUCH GUIDE
For more complete information and safety precautions, refer to your Operation Manual.
MANUAL OPERATION
High Power Cooking
1
Enter cooking time by touching
number pads. (Ex: 1 min. 30 sec.)
2
Touch START pad.
Variable Power Cooking
1
After Step 1 above, touch POWER
LEVEL pad 6 times. (Ex: 50%)
2
Touch START pad.
SET CLOCK
1
Touch CLOCK pad and number pad 2 .
2
Enter correct time of the day by
touching numbers in sequence.
(Ex: 12:30)
3
Touch CLOCK pad again.
If
88:88
is in the display, first touch STOP/CLEAR pad.
1230
130
x 6
FOOD AMOUNT
Rolls & Muffins 1 - 6 pieces
Beverage .5 - 2.0 cups
Hot Water 1 - 6 cups
Touch BEVERAGE pad 2 times
for 1 cup.
The oven will start automatically.
INSTANT ACTION
KEEP WARM PLUS
1
Touch KEEP WARM PLUS pad.
2
Enter the desired time.
(Ex: 15 min.)
3
Touch START pad.
2
FOOD AMOUNT
1. Baked Potatoes 1 - 4 med.
2. Fresh Vegetables:
Soft .25 - 2.0 lb
Hard .25 - 1.5 lb
3. Frozen Vegetables .25 - 1.0 lb
4. Frozen Entrees 6 - 17 oz
5. Ground Meat .25 - 1.5 lb
6. Rice .5 - 2.0 cups
7. Chicken Breast .5 - 1.5 lb
SENSOR COOK
1500
AMOUNTFOOD
.5 - 2.0 lb
.5 - 3.0 lb
.5 - 1.5 lb
.5 - 3.0 lb
Ground Meat
Steaks/Chops
Boneless Poultry
Bone-in Poultry
DEFROST
1
Touch STEAKS/CHOPS pad 4 times for
2.0 lb. The oven will start automatically.
The oven will stop and directions will
be displayed.
2
After the 1st stage, open the door. Turn
steak over and shield any warm portions.
Close the door. Touch START pad.
3
After the 2nd stage, open the door.
Shield any warm portions. Close the
door. Touch START pad.
4
After defrost cycle ends, cover and
let stand.
MINUTE PLUS
Touch MINUTE PLUS pad for one
minute at 100% power or to add a
minute during manual cooking. Continue
to touch for additional minutes.
x 2
1
Select desired setting. (Ex:
Touch 1 for baked potatoes.)
2
Touch SENSOR COOK pad.
1
Touch START pad.
3
Touch SENSOR REHEAT pad.
The oven will start automatically.
FOOD
Popcorn Only 1 package
Regular size 2.85 - 3.5 oz
Snack size 1.5 - 1.75 oz
Sensor Reheat 4 - 36 oz
POPCORN/SENSOR REHEAT
AMOUNT
®
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, NJ 07430-2135
TINSEA976WRRZ-D32
Printed in Thailand
Carousel® is a registered trademark of Sharp Corporation.
SEC R320H O/M,P16-23 03.5.22, 10:09 AM22

Navigation menu
