Exchange 2000 Operations Guide

Version 1.0

ISBN: 1-4005-2762-7

Information in this document, including URL and other Internet Web site

references, is subject to change without notice. Unless oth erwise noted, the

example companies, organizations, products, domain names, e-mail addresses,

logos, people, places and events depicted herein are fictitious, and no association

with any real company, organization, product, domain name, e-mail address, logo,

person, place or event is intended or should be inferred. Complying with all

applicable copyright laws is the responsibility of the user. Without limiting the

rights under copyright, no part of this document may be reproduced, stored in or

introduced into a retrieval system, or transmitted in any form or by any means

(electronic, mechanical, photocopying, recording, or otherwise), or for any purpose,

without the express written permission of Microsoft Corporation.

Microsoft may have patents, patent applications, trademarks, copyrights, or other

intellectual property rights covering subject matter in this document. Except as

expressly provided in any written license agreement from Microsoft, the furnishing

of this document does not give you any license to these patents, trademarks,

copyrights, or other intellectual property.

Microsoft, MS-DOS, Windows, Windows NT, Active Directory, Outlook, and Visual

Basic are either registered trademarks or trademarks of Microsoft Corporation in

the United States and/or other countries.

The names of actual companies and products mentioned herein may be the

trademarks of their respective owners.

iii

Contents

Chapter 1

Introduction 1

Microsoft Operations Framework (MOF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

How to Use This Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Efficiency, Continuity, and Security. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Chapter Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Planning and Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Service Level Agreements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Related Topics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 2

Capacity and Availability Management 11

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Chapter Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Capacity Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Availability Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Service Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Service Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Minimizing System Failures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Minimizing System Recovery Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Performance Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Making Changes to the Registry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

No Performance Optimizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Optimizable Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Tuning Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Upgrading from Exchange 5.5 to Exchange 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Tuning the Message Transfer Agent (MTA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Tuning SMTP Transport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Store and ESE Tuning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Contentsiv

Tuning Active Directory Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Tuning Outlook Web Access (OWA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Hardware Upgrades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Chapter 3

Change and Configuration Management 37

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Chapter Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Change Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Defining Change Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Software Control and Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Configuration Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Tools for Configuration Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Configuration Management and Change Management . . . . . . . . . . . . . . . . . . . . . . 45

Configuration Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Maintaining the Configuration Management Database . . . . . . . . . . . . . . . . . . . . . . 49

Exchange System Policies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Chapter 4

Enterprise Monitoring 53

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Chapter Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Performance Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

System Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Exchange 2000 Objects and Counters to Monitor . . . . . . . . . . . . . . . . . . . . . . . . . 55

Windows 2000 Objects and Counters to Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Centralized Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Event Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Event Viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Log Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Centralized Event Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Availability Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Monitoring and Status Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Centralized Availability Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Client Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Contents v

Chapter 5

Protection 71

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Chapter Start Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Chapter End Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Chapter Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Protection Against Hacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Firewall Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Anti-Virus Measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Staying Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Dealing With Virus Infection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Blocking Attachments at the Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Disaster Recovery Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Backing Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Restoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Recovery Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Chapter 6

Support 89

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Chapter Sections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Providing Support for End Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Reducing End User Support Costs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Exchange Problem Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Glossary 97

vii

Content Lead

Andrew Mason – Microsoft Prescriptive Architecture Group

Key Authors

Paul Slater – ContentMaster

Kent Sarff – Microsoft Consulting Services

Sasha Frljanic – Microsoft Consulting Services

Reviewers

Jon LeCroy – Microsoft ITG

Thomas Applegate – Microsoft ITG

Erik Ashby – Microsoft Exchange 2000 Product Group

Chase Carpenter – Microsoft Consulting Services

Introduction

Welcome to the Microsoft® Exchange 2000 Server Operations Guide. This guide is designed

to give you the best information available on managing operations within an Exchange

2000 environment.

To manage Exchange in a day-to-day environment, an operations team needs to perform a

wide variety of procedures, including server monitoring, backup, verification of scheduled

events, protection against attack, and user support. This guide includes instructions for the

procedures along with steps for dealing with unresolved issues in a timely manner.

Microsoft Operations Framework (MOF)

For operations to be as efficient as possible in your environment, you must manage them

effectively. To assist you, Microsoft has developed the Microsoft Operations Framework

(MOF). This is essentially a collection of best practices, principles, and models providing

you with technical guidance. Following MOF guidelines should help you to achieve mission-

critical production system reliability, availability, supportability, and manageability on

Microsoft products.

The MOF process model is split into four integrated quadrants. These are as follows:

◆Changing

◆Operating

◆Supporting

◆Optimizing

Together, the phases form a spiral life cycle (see Figure 1.1) that can apply to the opera-

tions of anything from a specific application to an entire operations environment with

Microsoft Exchange 2000 Operations Guide — Version 1.02

Figure 1.1

MOF Process Model

multiple data centers. In this case, you will be using MOF in the context of Exchange 2000

operations.

The process model is supported by 20 service management functions (SMFs) and an

integrated team model and risk model. Each quadrant is supported with a corresponding

ding operations management review (also known as review milestone), during which the

effectiveness of that quadrant’s SMFs are assessed.

Optimize cost,

performance,

capacity, and

availability.

Introduce new

service, solutuions,

technologies,

systems,

applications,

hardware, and

Execute day-to-day

operations tasks

effectively.

Track and resolve

incidents,

problems, and

inquiries quickly.

Facilitate CRM.Operations

Review

Release

Approved

Release

Review

SLA

Review

Chapter 1: Introduction 3

It is not essential to be a MOF expert to understand and use this guide, but a good under-

standing of MOF principles will assist you in managing and maintaining a reliable, avail-

able, and stable operations environment.

If you wish to learn more about MOF and how it can assist you to achieve maximum

reliability, availability, and stability in your enterprise, visit www.microsoft.com/mof for

more detailed information. For prescriptive MOF information on all 20 service manage-

ment functions, complementing the Exchange-specific information found in this guide,

examine the detailed operations guides at:

http://www.microsoft.com/technet/win2000/win2ksrv/default.asp

How to Use This Guide

While this guide is designed to be read from start to finish, you may wish to “dip in” to

the guide to assist you in particular problem areas. To assist you in doing so, the guide

contains a number of symbols that you will not find elsewhere. It is very important that

you read the following section if you are going to get the most out of your piecemeal

approach.

Efficiency, Continuity, and Security

Not every Exchange Operations manager thinks in terms of the MOF. Another way of

considering operations is in terms of the categories in which they fit. The wide variety of

tasks that constitute Exchange 2000 operations can be divided into three broadly overlap-

ping groups. Figure 1.2 on the next page shows these groups and how the operations fit

within them.

Microsoft Exchange 2000 Operations Guide — Version 1.04

Figure 1.2

Exchange 2000 Operations divided into groups

Performance Tuning

Exchange System

Policies

Capacity Management

Efficiency Continuity

Security

UPS

Recovery Testing

Availability Monitoring

Availablity Management

Storage

Management

Hardware Upgrades

Performance

Monitoring

Disaster Recovery

Support

Anti-Virus Event

Monitoring

Change

Management

Security Policies

Firewall Issues

Exchange System Policies

AD Group membership

Group Policies Backup

Chapter 1: Introduction 5

This guide covers all three areas described above. Although the chapters are structured

according to Microsoft operations principles, you will find information about all of these

areas in the guide.

Chapter Outlines

This guide consists of the following chapters, each of which takes you through a part of

the operations process. Each chapter is designed to be read in whole or in part, according

to your needs.

Chapter 2 – Capacity and Availability Management

To continue to function as it should, Exchange must be managed over time as the load on

the system increases. The chapter looks at the different tasks that you may need to perform

as the Exchange environment is used more.

This chapter deals with these topics:

◆Capacity management

◆Availability management

◆Performance tuning

◆Hardware upgrades

Chapter 3 – Change and Configuration Management

This chapter presents many of the processes used to manage an Exchange 2000 environment.

These processes will help you to evaluate, control, and document change and configuration

within your organization.

This chapter deals with the following:

◆Change management

◆Configuration management (including use of Exchange system policies)

Chapter 4 – Enterprise Monitoring

To track any problems and to ensure that your Exchange 2000 Server is running efficiently,

you need to monitor it effectively. Monitoring is not something that should occur only when

there are problems, but should be a continuous part of your maintenance program. The

chapter shows how you can monitor your Exchange 2000 to deal with any problems as

(or preferably before) they arise.

This chapter deals with these topics:

◆Creating an enterprise monitoring framework

◆Performance monitoring

◆Event monitoring

Microsoft Exchange 2000 Operations Guide — Version 1.06

◆Availability monitoring

◆Proactive monitoring

◆Availability prediction

Chapter 5 – Protection

To protect your Exchange environment from failure, you need good protection from

intrusion and attack, along with a documented and tested disaster-recovery procedure to

cope with system failure. The chapter shows how to ensure that your server running

Exchange is protected against these eventualities.

This chapter deals with the following:

◆Firewall issues

◆Anti-virus protection

◆Disaster-recovery procedures

◆Recovery testing

◆Backup

◆Restore

Chapter 6 – Support

An effective support environment allows you to deal more efficiently with unforeseen

issues, increasing the reliability of your Exchange environment. This chapter shows how

to manage your support in an Exchange 2000 environment.

This chapter deals with these topics:

◆Helpdesk support

◆Problem management

Planning and Deployment

To make the most out of your Exchange 2000 environment, you should make sure that

your operations are carefully planned and structured. The best way of ensuring that your

operations are efficient is to have operations intrinsically involved in the planning and

deployment phases of Exchange 2000, providing valuable input into those processes.

Many times deployment teams do not involve the operations team in the project until it is

near completion. If you are going to perform successful operations from the outset, you

should make sure that you plan effectively for the operations team to take over the infra-

structure and processes. Making sure that at least one member of operations attends all

planning and deployment meetings will help to ensure that your design and implementa-

tion takes operations needs into account.

Operations procedures need to be defined during the planning and deployment process.

Service level agreements, disaster-recovery documents, and monitoring procedures all need

Chapter 1: Introduction 7

to be created at this stage, because waiting until the system is live could be too late. The

operations team should be using the planning phase (and in some cases the deployment

phase) to test procedures that are defined, such as those for disaster recovery.

Planning and deployment are covered in more detail as part of the Exchange 2000 Upgrade

Series. You will find this at the following Web site:

http://www.microsoft.com/technet/exchange/guide/default.asp

Service Level Agreements

Your goal for successful operations is to produce a high quality of service at a reasonable

cost. The definition of a high quality of service will vary according to the needs of your

organization. The level of service you offer will generally be a compromise between

quality-of-service requirements and the costs necessary to provide it.

Central to the idea of successful operations is the service level agreement (SLA) process.

Success or failure of an operations environment is measured against the requirements of

the SLA. It is therefore very important that you define the SLA realistically according to

the resources you can devote to your operations environment.

Note: When it is internal to IT, an SLA is often referred to as an operating level agreement

(OLA). For the sake of clarity, this guide refers to SLAs only. However, the recommendations in

the guide apply to OLAs as well as SLAs.

Your SLAs should be a commitment to providing service in four different areas:

◆Features

◆Performance

◆Recovery

◆Support

Features

Here you state which Exchange services you will be offering to the client base. These

would include some or all of the following:

◆E-mail (via some or all of MAPI, POP3, IMAP4, and OWA)

◆Defined mailbox size for different categories of user

◆Public folder access

◆Ability to schedule meetings

◆Instant messaging

◆Chat

◆Video conferencing

Microsoft Exchange 2000 Operations Guide — Version 1.08

Performance

Here you show the performance you would expect from each of the previously mentioned

features. This would include some or all of the following:

◆Service availability (this may be given across all services or on a service-by-service

basis)

◆Service hours

◆Mail delivery times (note that you are not able to guarantee mail delivery times, either

to the Internet or within your organization, if you use the Internet as part of your intra-

organization mail topology)

◆Mailbox replication times (dependent on Active Directory™ service)

Recovery

Here is where you will specify what you expect in terms of disaster recovery. Although

you naturally hope that disaster never strikes, it is important to assume that it will and

have recovery times that will meet in a number of disaster-recovery scenarios. These

include the following:

◆Recovery from failed Exchange Store

◆Recovery from total server failure

Support

Here you specify how you will offer support to the user community, and also how you

would deal with problems with your Exchange Server environment. You would include

commitments on the following:

◆Helpdesk response time

◆When and how problems will be escalated

Of course it is one thing to determine what your SLAs should measure, and quite another

to come up with the right figures for them. You should always define them realistically

according to the needs of the business. Realistically is the key word here. For example,

while your business might want Exchange to have guaranteed uptime of 100 percent, it is

unrealistic to require this in an SLA because a single incident anywhere within your

organization will cause you to fail to meet the SLA.

Your operations environment should be built around meeting the requirements of

your SLAs.

Chapter 1: Introduction 9

Summary

This chapter has introduced you to this guide and summarized the other chapters in it.

It has also provided brief descriptions of both service level agreements and planning and

deployment. Now that you understand the organization of the guide, you can decide

whether to read it from beginning to end, or whether you want to read selected portions.

Remember that effective, successful operations require effort in all areas, not just improve-

ments in one area, so that if you decide to read the Supporting chapter first, you should go

back and read the other chapters as well.

Related Topics

The Microsoft Operations Framework provides technical guidance and industry best

practices that encompasses the complete IT Service Management environment, including

capacity management, availability management, configuration management, service

monitoring and control, service level management, and their inter-relationships. For

more information on the Microsoft Operations Framework, go to:

http://www.microsoft.com/mof

For prescriptive MOF information on capacity management, availability management,

configuration management, service monitoring and control, and service level management,

please review the detailed operations guides that can be found at:

http://www.microsoft.com/technet/win2000/win2ksrv

Capacity and Availability

Management

Introduction

In the vast majority of cases, the load on your Exchange 2000 Server computers will increase

over time. Companies increase in size, and as they do, the number of Exchange users

increases. Existing users tend to use the messaging environment more over time, not only

for traditional e-mail, but also for other collaborative purposes (for example, voicemail,

fax, instant messaging, video conferencing). The load on the messaging environment will

also vary over the course of the day (for example, there may be a morning peak) and could

vary seasonally in response to increased business activity.

The aim of your operations team should be to minimize the effect of the increased load on

your users, at all times keeping within the requirements set by your service level agreement

(SLA). You will need to ensure that existing servers running Exchange are able to cope with

the load placed upon them (and upgrade hardware if appropriate).

Another important requirement of the operations team is to minimize system downtime

at all times. The level of downtime your organization is prepared to tolerate needs to be

clearly set out in the SLA, separated into scheduled and unscheduled downtime. Many

organizations can cope perfectly well with scheduled downtime, but unscheduled down-

time almost always needs to be kept to a minimum.

Exchange 2000 is predominantly self-tuning, but there are areas where tuning your servers

running Exchange will result in an improvement in performance. It is important to identify

these areas and tune where appropriate.

Inevitably there will come a point where the load on your servers running Exchange is

such that hardware upgrades are required. If you manage this process effectively, you can

significantly reduce the costs associated with upgrading.

Microsoft Exchange 2000 Operations — Version 1.012

Chapter Sections

This chapter covers the following procedures:

◆Capacity management

◆Availability management

◆Performance tuning

◆Hardware upgrades

After reading this chapter, you will be familiar with the requirements for capacity and

availability management in an Exchange 2000 environment and the steps necessary to

ensure that the requirements of your SLA are met.

Capacity Management

Capacity management is the planning, sizing, and controlling of service capacity to ensure

that the minimum performance levels specified in your SLA are exceeded. Good capacity

management will ensure that you can provide IT services at a reasonable cost and still meet

the levels of performance you have agreed with the client.

This section will help you meet your capacity management targets for an Exchange 2000

environment.

Of course, whether an individual server reaches its SLA targets will depend greatly upon

the functions of that server. In Exchange 2000, servers can have a number of different

functions, so you will need to ensure that you categorize servers according to the functions

they perform and treat each category of server as an individual case. In particular, do not

consider servers purely in terms of the number of mailboxes they hold.

When you are looking at the capacity of a server running Exchange, consider the

following:

◆How many mailboxes are on the server?

◆What is the profile of the users? (Light, medium, or heavy use of e-mail; do they use

other services, such as video-conferencing?)

◆How much space do users require for mailboxes?

◆How many public folders are on the server?

◆How many connectors on the server are on the server?

◆How many distribution lists are configured to be expanded by the server?

◆Is the server a front-end server?

◆Is the server a domain controller/Global Catalog server? (generally not recommended)

Generally, the more functions a server has, the fewer users that server will be able to

support on the same hardware. To gain the maximum capacity from your servers, consider

having servers dedicated to a specialized function. In many cases your planning will have

Chapter 2: Capacity and Availability Management 13

resulted in specialized hardware for specialized functions, for example, in the case of front-

end servers.

To ensure that you manage capacity appropriately for your Exchange 2000 server, you

need a great deal of information about current and projected usage of your server running

Exchange. Much of this information will come from monitoring. You will need informa-

tion about patterns of usage and peak load characteristics. This information will need to be

collected on a server-by-server basis, because a problem with a single server in an Exchange

2000 environment can result in a loss of performance for thousands of users. The perfor-

mance of your network is also critical in ensuring delivery times and timely updating of

Exchange directory information.

The main areas you should monitor to ensure that your servers running Exchange exceed

your SLAs’ capacity requirements include the following:

◆CPU utilization

◆Memory utilization

◆Hard-disk space used

◆Paging levels

◆Network utilization

◆Delivery time within and between routing groups

◆Delivery time to and from foreign e-mail systems within your organization

◆Delivery time to and from the Internet (although this depends greatly on minute-by-

minute performance of your connection to the Internet and the availability of band-

width to other messaging environments)

◆Time for directory updates to complete

You will find more information on monitoring in Chapter 4.

It is fairly common to choose the size the disks of a server running Exchange based on how

many mailboxes you plan to have on the server multiplied by the maximum allowable size

of each mailbox. Using this approach, however, will generally not help you to meet your SLAs.

You should strongly consider approaching this problem from a different perspective. When

determining the capacity of your server running Exchange, consider basing it on the time it

takes to recover a server from your backup media. Recovery time is generally very important

in organizations because downtime can be extremely costly. If you are using a single store

on your server running Exchange, use the following procedure to help you size it.

1. Divide the recovery time of a database (defined in your SLA) by half. Around half the

recovery time will generally be spent on data recovery, the rest on running diagnostic

tools on the recovered files, database startup (which includes replaying all later message

logs) and making configuration changes. Of course, this is only a general figure—the

longer you leave for recovery time, the smaller the proportion of that time is required

for configuration changes.

2. Determine in a test environment how much data can be restored in this time.

Microsoft Exchange 2000 Operations — Version 1.014

3. Divide this figure by the maximum mailbox size you have determined for the server

(again listed in your SLA). This will give you the number of mailboxes you can put on

the database.

As an example, assume that your SLA defines a recovery time of four hours for a database.

In testing, your recovery solution can restore 2 gigabytes (GB) of Exchange data per hour

and your maximum mailbox size is 75Mb.

Using the preceding procedure, the following calculations can be done.

1. The recovery time divided by 2 is 2 hours.

2. 4 GB of Exchange data can be restored in this time.

3. 4 GB divided by 75 MB is 54 Mailboxes.

In this example, if you wanted to provide more mailboxes per server, you would either

have to a) alter your SLA to increase recovery time or b) find a faster restore solution.

Each server running Exchange can support up to 20 stores, spread across 4 storage groups

(in Enterprise edition). If your server running Exchange is configured with multiple stores,

recovery times can be more difficult to calculate. Stores in the same storage group are

always recovered in series, whereas ones in separate storage groups can be recovered in

parallel. You may also have created multiple stores to allow you to offer different SLAs to

different categories of user (for example, you might isolate managers on one store so that

you can offer them faster recovery times than the rest of the organization.) If you do have

multiple stores, you will need to consider the SLA on each store and the order in which

stores will be recovered to accurately determine recovery time.

As a result of the first two steps in the preceding calculations, you will have a figure for

the maximum amount of data located in your information stores. Generally, you should at

least double this to determine the appropriate disk capacity for the disks containing your

stores. This will allow you to perform offline maintenance much more quickly as files can

be quickly copied to a location on the same logical disk.

By using a key SLA to define your capacity, you are creating an environment in which you

are far more likely to meet the targets you set.

Sizing servers to meet SLAs is crucial, but servers must also meet user performance expec-

tations. Using Microsoft and third-party tools, ensure that your predicted user usage will

be accommodated on the servers.

If you have sized your database according to the techniques mentioned here, you should

be able to ensure that your database is kept to a manageable size. However, keeping an eye

on the size of your Exchange 2000 databases is still important. In a large enterprise, it is

typical for users to be moved from one server to another quite often, and for users to be

deleted. This can result in significant fragmentation of databases, which results in large

database sizes, even if you do keep the number of mailboxes below the levels you have

determined.

Chapter 2: Capacity and Availability Management 15

To deal with this problem, you should continually monitor available disk space on your

servers running Exchange. If the RAID array containing the stores gets close to half full, an

alert should be sent indicating the problem, and that the Exchange Database might need to

be defragmented offline. To do this, perform an alternate server restore (see Chapter 5 for

details) and then defragment the database on this alternate server. If this is successful and

results in a significant reduction in database size, you can perform the defragmentation at

the next scheduled maintenance time.

Performing the alternate server restore also has the advantage of ensuring that your backup

and restore procedures are working effectively. You should check this regularly in any case.

This is also covered in more detail in Chapter 5.

Probably the most important thing to remember when performing capacity planning is to

size conservatively. Doing so will minimize availability problems, and the cost reduction

will generally more than compensate for any excess capacity costs.

As well as looking at technical issues, you will need to examine staffing levels when you

are capacity planning. As your Exchange 2000 environment grows, you might need more

people to support the increased load. In particular, if there are more users requiring

increased services, there is likely to be a greater need for help desk support.

Availability Management

Availability management is the process of ensuring that any given IT service consistently

and cost-effectively delivers the level of availability required by the customer. It is not just

concerned with minimizing loss of service, but also with ensuring that appropriate action is

taken if service is lost.

One of the main aims of Exchange 2000 operations is to ensure that Exchange is avail-

able as much as possible and that both planned and unplanned interruptions to service are

minimized. Availability in an organization is typically defined by your SLAs in two

ways—service hours and service availability.

Service Hours

These are the hours when the Exchange services should be available. Typically, for a large

organization this will be all but a very few hours a month. Defining your service hours

allows you to create defined windows when offline maintenance of your servers running

Exchange can be performed without breaching the terms of your SLA.

You might choose to define in the SLA the exact times when Exchange services might be

unavailable. For example, you might state that Exchange services might be unavailable for

four hours every first Saturday of the month. However, in large organizations it is often

more practical to commit to, for example, no more than four hours of scheduled downtime

per month, with a week’s notice of any scheduled change. This allows changes to be made

much more easily across the organization, at times when the right staff can be devoted to

the tasks.

Microsoft Exchange 2000 Operations — Version 1.016

Of course, just because you have allowed for a certain amount of downtime per server per

month, this does not mean that you have to use it, and in most cases you will not. On the

other hand, just because you haven’t performed offline maintenance one month does not

mean that the hours can be carried over to the following month. Your user community will

be very unhappy if you take a system down for 2 days, even if it has been up solidly for 2

years!

You might wish to define different service hours for the different services available in

Exchange (mail, public folders, etc). This would depend on the amount of offline mainte-

nance that is typically required for each service. For example, you might determine that

your SMTP bridgehead servers and firewall servers never require offline maintenance and

so might set the level of service hours for mail delivery significantly higher than for mail-

box access. If you are prepared to spend the appropriate money on resources, it is very

possible to achieve extremely low levels of scheduled downtime, and this can be reflected

in your SLA.

Service Availability

Service availability is a measure of how available your Exchange services are during the

service hours you have defined. In other words, it defines the levels of unscheduled down-

time you can tolerate within your organization. Typically levels of availability in an SLA of

an enterprise are between 99.9 and 99.999 percent. This corresponds to a downtime of as

much as 525 and as few as 5 minutes per service per year.

Of course, ANY unscheduled downtime is inconvenient at best, and very costly at worst,

so you need to do your best to minimize it.

To ensure high levels of availability, you need to consider two key questions:

◆How often, on average, is there downtime for a service?

◆How long does it take to recover the service if there is downtime?

Once you have considered these questions, you can set about minimizing the number of

times a service fails and the time taken to recover that service.

Availability management is intrinsically linked with capacity management. If capacity

is not managed properly, then overloaded servers running Exchange might fail, causing

availability problems. A classic example of this would be running out of disk space on a

server running Exchange, which would result in the databases shutting down and in users

losing a number of services.

Minimizing System Failures

To minimize the frequency of failure in Exchange 2000, you need do the following:

◆Decrease single points of failure

◆Increase the reliability of Exchange 2000 itself.

Chapter 2: Capacity and Availability Management 17

Decreasing Single Points of Failure

You can maintain availability in Exchange 2000, even in the event of a failure, provided

you ensure that it is not a single point of failure. In some areas, such as database corrup-

tion, it is not possible to eliminate single points of failure, but in many cases you can guard

against individual failures and still maintain reliability. An obvious example is the direc-

tory. By having multiple domain controllers and Global Catalog servers available in any

part of your network, you maintain availability of Exchange even in the event of failure of

a particular domain controller or Global Catalog server. Having local domain controllers

or Global Catalog servers keeps Exchange available in the event of a non-local network

failure.

Using front-end servers is another way to avoid single points of failure. The failure of a single

front-end server will have no effect on the availability of Exchange to non-MAPI clients.

The clients will simply be rerouted to another front-end server, with no loss of service.

Exchange 2000 routing can be modified to minimize single points of failure. In particular,

you can modify Routing Group connectors to ensure that there are multiple bridgeheads

available, and thus maintain delivery from one part of the organization to another. You

can also set up Routing Group meshes, which consist of a series of fully interconnected

Routing Groups with multiple possible routes between them.

Multiple messaging routes between servers are useless if they all rely on the same net-

work connections and the network goes down. You should therefore ensure that there are

multiple network paths (using differing technologies) that Exchange and Windows 2000

can use.

One of the most significant single points of failure is a mailbox server. This can affect very

large numbers of users, depending on the server. Mailbox servers can be clustered to ensure

their continued high availability. If you are running Exchange 2000 on Windows 2000

Advanced Server, you can cluster over two nodes and you have two possible ways to cluster

the servers—active/passive and active/active. Active/passive clustering is the current recom-

mended clustering implementation for Exchange. If you choose to implement active/active

clustering, you should realize that it requires careful planning to ensure that Exchange can

fail over correctly to the other node. With Service Pack 1 of Exchange 2000 and Windows

2000 Datacenter server, you can have four nodes in your cluster. In this implementation

consider active/active/active/passive clustering.

In a standard clustered environment, however, the disk array is still the single point of

failure, so you should think seriously about using a storage area network (SAN) to maxi-

mize the availability of all your servers running Exchange.

If you are creating truly redundant Exchange 2000 servers, you shouldn’t stop at the disk

subsystem. Your servers should be equipped with redundant RAID controllers, network

interface cards (NICs), and power supplies. In fact, you should aim to have redundancy

everywhere.

Single points of failure can also be created by improper maintenance of systems. For

example, if you are using a RAID 5 array on a server running Exchange with a hot spare,

Microsoft Exchange 2000 Operations — Version 1.018

the disk subsystem becomes a single point of failure once that hot spare is invoked. If

you have robust systems in place, you must ensure that any failures are resolved promptly.

Make sure that you have notification and monitoring procedures in place and a system for

resolving problems.

Remember that Exchange relies on Active Directory and Global Catalog servers to function.

If no domain controllers are available to a server running Exchange, stores will dismount. If

Global Catalog servers are unavailable, Exchange clients will not function (as they require

a Global Catalog server to access the Global Address List). You should minimize single

points of failure on these servers as much as possible, or at least ensure that you have

redundant servers in every location.

Finally, do not forget non-computing issues. You can have the most robust e-mail system

in the world and then find that it falls apart due to a fire in a building, a power failure, or

theft of server hardware or data. You should take precautions against all these possibilities.

This would include ensuring that you have taken the following into account:

◆Good physical security

◆Protection from fire

◆Protection from flooding

◆Concealed power switches

◆Air conditioning

◆UPS systems

◆Alternate power generation

You will need to make sure that all of these services are in place and that you have defined

a drill to deal with their failure. For example, you should ensure that there are personnel

on call for all emergency systems.

You might also wish to house your servers running Exchange in separate locations from

one another to help reduce the impact of such events.

Good availability management is intrinsically linked with good change and configuration

management. If you manage change and configuration well, you are well positioned to have

good availability of your servers running Exchange. You will learn more about change and

configuration management with Exchange 2000 in Chapter 3.

Increasing the Reliability of Exchange 2000

While Exchange 2000 is a very robust messaging system, like any product, there are

configurations that in particular cases could result in a loss of reliability. In an Enterprise

environment, it is important to guard against these difficulties by continually monitoring

Exchange. For more detail on monitoring, see Chapter 4.

Chapter 2: Capacity and Availability Management 19

One area where you can guard against problems is database errors. Database errors can be

caused by a number of factors, but they are typically hardware related. You will be able to

minimize these by doing the following:

◆Ensure that your hardware is on the Hardware Compatibility List

◆Checking Event Viewer for database-related errors

◆Periodically running the Information Store Integrity Checker (isinteg.exe) on the

database to check for errors

Part of your maintenance program should also include routinely searching the Microsoft

Web site (www.microsoft.com/exchange) for any issues that need to be resolved by patches

and/or service packs. The patches and service packs will be tested and recorded as part of

your change-management program, which is covered in more detail in Chapter 3.

Minimizing System Recovery Time

To recover from failure in an Exchange 2000 environment as quickly as possible, you need

to be thoroughly prepared. You will need the following:

◆Available hardware

◆Complete configuration information

◆A recent, working backup

◆An effective disaster-recovery procedure

◆Fast access to support resources

◆Staff availability to perform the restore

System recovery is covered in more detail in Chapter 5.

Performance Tuning

When you tune for performance, you are aiming to reduce your system’s transaction

response time. Performance tuning can take a number of forms, including the following:

◆Balancing workloads between servers

◆Balancing disk traffic on individual servers

◆Using memory efficiently on servers

◆Upgrading hardware

The most effective factor in improving performance comes from upgrading the hard-

ware on your servers that are running Exchange. However, regardless of the hardware,

there are a number of software changes that you can make to maximize the efficiency

of Exchange 2000.

Microsoft Exchange 2000 Operations — Version 1.020

While obtaining the best performance from your Exchange 2000 computers is always an

important goal, it is crucial to be cautious in your tuning changes. You should track all

alterations in case you make a change that inadvertently reduces performance. Making

one change at a time makes it easy to identify which change needs to be reversed.

Customer variation is probably the greatest variable in tuning Exchange for optimum per-

formance. Even customers with similar needs often choose solutions that differ significantly.

Hardware varies in the number and speed of the processors, the available RAM, the

number of disks, and the disk configuration chosen (RAID level).

Exchange 2000 can be configured with different numbers of storage groups and databases,

and can be clustered with other servers accessing a central storage subsystem. The server

load will vary based on the total number of users with mailboxes on the server, the number

of users logged on at a given time, the actions they are performing, and any additional load

imposed by the routing of outside messages through the server.

Whenever you are doing performance tuning, you should consider the cost of extensive

analysis versus the benefits you expect to get from the tuning. Put simply, if you need to

analyze an individual server extensively to gain a 5 percent performance gain, it is prob-

ably not worth it, since you could easily spend a fraction of the money on buying better

hardware. Not only that, but in some cases performance tuning might become ineffective

as the load on the server increases, meaning further analysis might be required after a

change has been made. For this reason, this guide does not cover extensive performance

analysis; instead it concentrates on the performance tuning changes that are easy to

identify. This usually involves modifying settings in the registry.

Making Changes to the Registry

Before you edit the registry, make sure that you understand how to restore it if a problem

occurs. For information on how to do this, view the “Restoring the Registry” Help topic

in Registry Editor (Regedit.exe) or the “Restoring a Registry Key” Help topic in

Regedt32.exe.

Warning: Using Registry Editor incorrectly can cause serious problems that might require you

to reinstall your operating system. Microsoft cannot guarantee that problems resulting from

the incorrect use of Registry Editor can be solved. Use Registry Editor at your own risk.

If you are unfamiliar with the registry and how to change it, consult an expert. Even if you

are very familiar with the registry, you should always carefully document the changes that

you make, and monitor your system after each change.

For information about how to edit the registry, view the “Change Keys and Values” Help

topic in Registry Editor (Regedit.exe) or the “Add and Delete Information in the Registry”

Chapter 2: Capacity and Availability Management 21

and “Edit Registry Information” Help topics in Regedt32.exe. Note that you should back

up the registry before you edit it. If you are running the Microsoft Windows NT® or

Microsoft Windows® 2000 operating system, you should also update your emergency

repair disk (ERD).

No Performance Optimizer

The Performance Optimizer (also known as PerfWiz) is an Exchange 5.5 tool that enables

you to specify how an Exchange 5.5 computer is to be configured—for example as a

private store or a public store server. In addition, you can limit an Exchange 5.5 server’s

memory usage and specify how many users it would be expected to handle. Based on

your choices, files written by the various Exchange components (information store, message

transfer agent [MTA], and so forth) can be assigned to specific fixed disks, depending upon

available storage.

Exchange 2000 does not use a tool like Performance Optimizer. One reason for this is

that the new release of Exchange is better capable of performing certain tasks as they are

required, such as dynamically changing certain parameters, spinning up more threads, and

so on. To go beyond these dynamic changes, the administrator must manually optimize

disk utilization and manually modify registry keys, but fewer such registry changes are

necessary.

Optimizable Features

Features in Exchange 2000 that can be optimized include:

◆Disks

◆Message transfer agent (MTA)

◆Simple Mail Transfer Protocol (SMTP)

◆Information-store database

◆Extensible storage engine (ESE) cache and log buffers

◆Active Directory connector

◆Active Directory integration

◆Installable file system (IFS) handle cache, credentials cache, and mailbox cache,

DSAccess cache and DSProxy

◆Post Office Protocol v3 (POP3) and Internet Mail Access Protocol (IMAP) settings

◆Outlook Web Access (OWA)

Microsoft Exchange 2000 Operations — Version 1.022

Tuning Considerations

The efficiency and capacity of Microsoft Exchange 2000 depends on the administrator’s

choices of server and storage hardware, and on the installation’s topology. These should be

chosen based on expected types and levels of usage. Exchange can be made more efficient

through changes to various registry settings on the Exchange computer.

There are three main types of tuning parameters:

◆Those with fixed optimal values (or values that can be treated as such)

◆Those that can be dynamically tuned by the software

◆Those that must be manually tuned (using setup, the exchange system manager, the

registry, and the Active Directory Services Interface Edit tool ADSIEdit)

Some parameters may need to be manually tuned for the following reasons:

◆Hardware or Exchange configuration information may be needed and this information

cannot or will not be obtained dynamically.

◆Server load information may also be required; this cannot be obtained dynamically

either.

Upgrading from Exchange 5.5 to Exchange 2000

When Exchange 5.5 is upgraded to Exchange 2000, some registry keys altered by PerfWiz

retain their PerfWiz values, some do not, and some keys no longer appear in the registry

or they appear in a different location. This means that there might be significant differ-

ences between an Exchange 2000 Server that has been upgraded from Exchange 5.5 and

one that is a new installation, installed on new hardware. Because there are significant

performance improvements with Exchange 2000, and because optimizations do not

necessarily transfer from Exchange 5.5, it is best to start from scratch in evaluating the

optimization of Exchange 2000. It is useful in this process to know your Exchange 5.5

settings before upgrading to Exchange 2000. The text file WINNT\System32\perfopt.log

provides a record of those registry keys and disk assignments changed by PerfWiz.

Tuning the Message Transfer Agent (MTA)

As mentioned earlier, Exchange 2000 does not include a Performance Optimization

wizard, mainly because the majority of Exchange 2000 components are self-tuning.

However, when the MTA is installed, its tuning state reflects that of an Exchange 5.5

computer that has never been performance optimized.

In scenarios where an organization only has servers running Exchange 2000, the MTA

does not perform any processing, and so does not need to be performance tuned. However,

when your servers co-exist with X.400-based messaging systems and other foreign systems

(such as Lotus cc:Mail, Lotus Notes, Novell GroupWise, and Microsoft Mail) the MTA

might be used heavily and you should consider tuning the MTA registry parameters. You

will also need to tune the MTA if there is substantial co-existence with Exchange 5.5

Chapter 2: Capacity and Availability Management 23

servers. These areas are beyond the scope of the Exchange 2000 Operations Guide. If you

need to tune your Exchange 2000 MTA, consult the deployment section of the Exchange

2000 Server Upgrade Series, available on the following Web site:

http://www.microsoft.com/technet/exchange/guide/default.asp

Tuning SMTP Transport

When messages arrive into Exchange 2000 through the SMTP protocol, the data is written

to disk in the form of an NTFS file (.EML). By default, these files are written to a directory

(drive:\Program Files\Exchsrvr\mailroot) on the same disk partition as the Exchange 2000

binaries.

Mailroot Directory Location

Under certain scenarios, such as configuring a bridgehead server, a positive performance

effect can result if the SMTP mailroot directory is located on the fastest disk partition on

the computer. If you determine that the mailroot directory is not on the most optimal disk

partition, you can relocate the folder by following these steps:

Note: If you are performing this procedure on an Exchange 2000 Server active/passive

cluster, perform the following steps on the node that has the Exchange 2000 group online.

1. From your computer, log on to the domain using an account with enterprise admin

permissions.

2. Install the support tools from the \Support\Tools folder on the Windows 2000 CD-

ROM onto your computer (this does not need to be installed on the computer running

Exchange 2000).

3. Shut down the Microsoft Exchange System Attendant and World Wide Web publishing

service on the Exchange 2000 computer that you want to change.

4. Important: Explore the installation drive for the data store and make a backup copy of

the Exchsrvr\mailroot directory (the default location for this directory is \Program

Files\Exchsrvr\mailroot)

Note: If you perform the following step on a clustered Exchange 2000 server, you will need

to first start Cluster Administrator and set the Exchange group to offline.

5. Move the VSI 1 directory (and all subfolders and content) under Exchsrvr\mailroot to

the desired location.

Note: Do not move the actual mailroot directory itself.

6. Click Start, point to Programs, point to Windows 2000 Support Tools, point to Tools,

and then select ADSI Edit.

7. Expand the Configuration Container Naming Context of Active Directory.

Microsoft Exchange 2000 Operations — Version 1.024

8. Navigate to the following path: Configuration Container\ CN=Configuration,

CN=Services, CN=Microsoft Exchange, CN=<organization>,

CN=Administrative Groups, CN=<admin group>, CN=Servers, CN=<server>,

CN=Protocols, CN=SMTP, CN=1.

9. Right-click the CN=1 object, and then choose Properties.

10. Select Both from the Select which properties to view drop-down list.

11. Adjust the paths of the following attributes to the appropriate subdirectories under the

VSI 1 directory:

msExchSmtpBadMailDirectory

msExchSmtpPickupDirectory

msExchSmtpQueueDirectory

12. After editing each attribute, click Set.

13. Click OK.

14. Wait for Active Directory replication to replicate these changes to the rest of your forest

(or at least the domain controller or Global Catalog servers that your Exchange 2000

computer is referencing).

15. Start the Microsoft Exchange System Attendant service. This will copy changed paths

from the Active Directory into the metabase. In less than one minute after initialization,

you should notice three 1005 application events (Source: MSExchangeMU, Category:

General) indicating that the paths in the metabase were updated successfully.

16. Restart the Exchange 2000 computer.

SMTP File Handles

When the Exchange 2000 SMTP stack receives a new message, it writes the contents to a

file on an NTFS partition. While the message is being processed (that is, waiting for the

next hop or delivery point) a file handle is held open by the operating system. By default,

SMTP is constrained to a maximum of 1,000 open file handles. This restriction is put in

place to prevent out-of-memory problems in kernel memory and to ensure that the SMTP

service shuts down in a relatively short period of time (upon shutdown, all buffers have to

be flushed and all file handles released).

On servers with large amounts of memory (over 1 GB), you can raise the SMTP handle

threshold. Each message that is open (being processed) holds a handle and uses 5 kilobytes

(KB) of kernel memory and 10 KB of memory inside the INETINFO process. When you

raise the threshold, more messages can be open, which enables SMTP to process a large

queue at a faster rate. However, if the total number of messages in the SMTP queues is less

than 1,000, this adjustment will not improve performance. Therefore, raise the value only

if your server is heavily loaded and you consistently see large queues.

If you increase this value, you should decrease the maximum installable file system (IFS)

handles value to avoid running out of kernel memory when there is a large queue. When

Chapter 2: Capacity and Availability Management 25

your server becomes low on kernel memory, your system becomes unresponsive. To regain

control of your server, you must restart it to free up the kernel memory.

Table 2.1 shows the registry parameters you might need to alter if you are to make perfor-

mance gains on servers with more than 1 GB RAM.

Table 2.1 Registry Parameters to Alter for Large Servers

Location Parameter Default When to Recommended

Setting Change Setting

HKEY_LOCAL MsgHandle Not present, To gain Enough to

_MACHINE\System Threshold but defaults additional accomodate

\CurrentControlSet (REG_DWORD) to 0x3e8 performance the total

\Services\SMTPSVC when message number of

\Queuing queues are messages in

consistently the queues at

greater than any one time.

1,000 You should not

raise the value

to greater than

15,000

decimal

HKEY_LOCAL MsgHandle Not present, To gain Set to the

_MACHINE\System AsyncThreshold but defaults additional same

\CurrentControlSet (REG_DWORD) to 0x3e8 performance value as

\Services\SMTPSVC when message “MsgHandle

\Queuing queues are Threshold”

consistently

greater than

1,000

HKEY_LOCAL FileCache Not present, If the 0x258 (600)

_MACHINE\System MaxHandles but defaults “MsgHandle

\CurrentControlSet (REG_DWORD) to 0x320 Threshold”

\Services\Inetinfo registry

]Parameters parameter

value is

increased

from defaults

MaxMessageObjects is a registry parameter that correlates to the number of messages

that can be queued up at a given time by SMTP. Each e-mail message resident in the SMTP

queue uses at least 4 KB of memory; therefore, it is possible to run into a low memory

situation with a very large queue. Setting MaxMessageObjects lower reduces the maxi-

mum number of messages that can reside in the queue, thus decreasing the maximum

memory footprint for SMTP. After this limit is reached, each SMTP connection made to

the server will return with an out-of-memory error. For example, if MaxMessageObjects is

Microsoft Exchange 2000 Operations — Version 1.026

reduced to 10,000, SMTP will refuse any inbound mail after the queue reaches 10,000

messages.

You may need to alter the following registry entry if the Exchange 2000 computer is

running out of memory because the number of incoming messages is too great for the

server to process:

◆◆

◆Location. HKEY_LOCAL_MACHINE\Software\Microsoft\Exchange\Mailmsg

◆◆

◆Parameter. MaxMessageObjects (REG_DWORD)

◆◆

◆Default setting. Not present but defaults to 0x186a0

Store and ESE Tuning

Due to advances in the store process, the Exchange information store requires very little

manual tuning. However, better performance can be achieved with good implementation

and configuration.

Online Store Maintenance

The store requires periodic online maintenance to be run against each database. By default,

each database is set to run online maintenance between the times of 1:00 A.M. and 5:00 A.M.

Online maintenance performs a variety of tasks necessary to keep the store in good health.

These include, but are not limited to, the following:

◆Checking Active Directory to determine if there are any deleted mailboxes.

◆Removing any messages and mailboxes that are older than the configured retention

policy.

◆Performing online defragmentation of the data within the database.

All of the operations performed by online maintenance have specific performance costs and

should be understood in detail before implementing an online maintenance strategy.

Active Directory Checking

This consists of a Windows 2000 Active Directory service lookup for each user in the

database. The more users you have in each database, the more Active Directory searches

(using Lightweight Directory Access Protocol [LDAP]) will be made. These searches are

used to keep the store in sync with any Active Directory changes (specifically to check for

deleted mailboxes). The performance cost of this task is negligible on the server running

Exchange but can be significant for domain controllers, depending on the number of users,

number of databases, and the online maintenance times of each database. In a corporate

Chapter 2: Capacity and Availability Management 27

scenario, the online maintenance occurs during the night (by default) when very few users

are logged on, so the load on the Active Directory servers should be very low. The extra

domain controller load created by online maintenance should not be a problem in this

scenario.

If Exchange 2000 is installed in a global data center, serving customers from multiple time

zones, the default online maintenance time could become an issue. The effect that online

maintenance has on Active Directory is proportional to the number of users in each of the

server’s databases. A check for a deleted mailbox is performed against each user in a

database. Thus, if you have 10,000 users in a database, it will perform 10,000 LDAP

searches against Active Directory at the beginning of that database’s online maintenance.

If Active Directory servers are under moderate load at all times, it is necessary to stagger

the online maintenance (set each database to start maintenance at a different time on the

server-configuration object). This is especially critical if you have hundreds of thousands

of users spread across dozens of servers and hundreds of databases.

Message Deletion and Online Defragmentation

These are very disk-intensive tasks and only affect the server on which the maintenance

is being run. During this portion of online maintenance, the server might be perceived by

users as sluggish if many databases are set to perform online maintenance at the same time.

Again, in corporate scenarios this would occur at night where the server can easily handle

the extra load. In a global data center, it might be a good idea to stagger the databases (in

respect to each other on a single server) to spread the disk-intensive tasks over a greater

amount of time.

Defragmenting the database consists of 18 separate tasks. After a task has started, it

must complete fully before the process exits. Therefore, online maintenance can run over

the time window. The next task will execute during the next online maintenance window.

Depending upon the run window and the backup schedule, it might take a number of

days before a full defragmentation completes.

Online Backups

Online backups complicate online maintenance even further. Backing up an Exchange 2000

database halts the maintenance of any database within that storage group, although it will

restart if the backup is finished before the maintenance interval has been passed. If you have

two databases in a single storage group and one is running online maintenance, the online

defragmentation on the database that is running online maintenance will stop when a

backup is started against either database.

Microsoft Exchange 2000 Operations — Version 1.028

It is critical that the backup time for any database within a storage group does not conflict

with the maintenance times of any database within the same storage group. If it does, backup

will terminate the online defragmentation portion of the store online maintenance and the

database might never finish defragmenting.

Choosing the Correct Maintenance Strategy

The correct online maintenance strategy can be devised by examining the typical behavior

of the user community; by knowing how many users, databases, and servers are in the site;

and by coordinating this information with the online backup strategy.

On the next page is an example of an online store maintenance schedule for a corporate

Exchange 2000 mailbox server that hosts users who are in a single time zone.

First Storage Group

◆Database One

Online maintenance runs between 9:00 P.M. and 1:00 A.M.

◆Database Two

Online maintenance runs between 9:30 P.M. and 1:30 A.M.

◆Database Three

Online maintenance runs between 10:00 P.M. and 2:00 A.M.

Online Backup begins at 2:00 A.M.—it backs up all databases in the first storage group

when all of them have finished online maintenance.

Second Storage Group

◆Database Four

Online maintenance runs between 10:30 P.M. and 2:30 A.M.

◆Database Five

Online maintenance runs between 11:00 P.M. and 3:00 A.M.

◆Database Six

Online maintenance runs between 11:30 P.M. and 3:30 A.M.

Online Backup begins at 3:30 A.M and backs up all databases in the second storage

group when all databases have finished online maintenance. This configuration staggers

the Active Directory LDAP queries generated by online maintenance, which are performed

in the first minutes of the procedure, and ensures that online backup does not interfere

with online defragmentation.

Chapter 2: Capacity and Availability Management 29

Extensible Storage Engine (ESE) Heaps

When Exchange 2000 is installed on servers with more than four processors, you might

notice high virtual memory usage by the Extensible Storage Engine (ESE) multi-heap. This

can lead to performance problems, especially when the server has more than one GB of

memory, and many databases and storage groups have been configured. It is recommended

that you add the following registry parameter to all servers with more than four processors:

Location: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\ESE98\Global\OS\Memory

Parameter: MPHeap parallelism (REG_SZ)

Default setting: (Doesn’t exist) = Parallelism set to four times the number of processors

installed.

Recommended For up to four processors, take no action. If the server has four or more

setting: processors and has the maximum number of storage groups and MDBs, set

the value to “0.” When set to zero, the parallelism is set to three plus the

number of processors on the computer. For example, on eight-processor

computers, it is recommended that this registry key be set to “11.”

Note: You must restart the Exchange information store process after the preceding registry

parameter has been changed.

Store-Database Cache Size

Exchange 2000 is configured with a hard-coded maximum store-database cache size. This

default value is 900 MB. On servers with more than 2 GB of memory, it can be beneficial

to increase the size of this cache. Due to virtual address space limitations, this value should

never be set higher than 1200 MB.

Note: The 900-MB limit is in place to ensure that the store process always has ample virtual

address (memory) from which to allocate. Increasing this value too much can lead to system

instability. For more information regarding virtual address space, see Knowledge Base article

Q266096 available at:

http://support.microsoft.com/support/kb/articles/Q266/0/96.ASP?LN=EN-

US&SD=gn&FR=0&qry=Q266096&rnk=1&src=DHCS_MSPSS_gn_SRCH&SPR=MSALL

Microsoft Exchange 2000 Operations — Version 1.030

Factors which affect the virtual address-space size in the Store.exe process include the

following:

◆Initial allocation on start-up

◆Number of storage groups and databases on the server

◆Number of threads running

◆Size of the store-database cache

Prior to increasing the maximum cache size, it is recommended that you use the Windows 2000

performance monitor to monitor the memory of the server under normal load. You should

monitor the following:

Performance Object: Process

Counter: Virtual Bytes

Instance: STORE

This will give you an accurate value for the virtual address space that the store has allocated.

On a server with the /3GB setting in the boot.ini, this should be below 2.8 GB. On a server

without the /3GB setting in the boot.ini, this should be below 1.8 GB (it is recommended

that servers with 1 GB or more of memory have the /3GB switch added to boot.ini).

If you see values that are higher than this for either configuration, do not increase the size

of your max cache size. If you see values that are lower than this for either configuration,

you can safely increase the size of your database max cache size. That is, if you have a

/3 GB configured server and the performance monitor shows the virtual bytes count at

2.5 GB under heavy load, then you know you are safe to increase your max cache size by

300 MB from the default 900 MB or to 1,200 MB total.

To modify the store-database cache size, you will need to use the ADSI Edit tool, which is

included with Windows 2000 Support Tools.

1. To start ADSI Edit, click Start, point to Programs, point to Windows 2000 Support

Tools, point to Tools, and then select ADSI Edit.

2. Expand the Configuration Container Naming Context of your Active Directory.

3. Navigate to the following path:

Configuration Container | CN=Configuration, CN=Services, CN=Microsoft Exchange,

CN=<organization>, CN=Administrative Groups, CN=<Admin Group>, CN=Servers,

CN=<server>, CN=InformationStore

4. Right-click the Information Store object and then select Properties.

5. Select Both from the Select which properties to view drop-down list.

6. Select the msExchESEParamCacheSizeMax attribute and adjust the value. Although no

value will be present, the default is 230400 (which is 900 MB). The recommended

maximum for this value is 307200 (which is 1,200 MB).

Note: Be careful when setting this value, because it is very easy to make a mistake and

set the msExchESEParamCacheSizeMin attribute instead.

Chapter 2: Capacity and Availability Management 31

7. Click Set after changing the Edit Attribute field for the attribute and then click OK.

8. Close the ADSI Edit tool by closing the MMC console application.

9. Wait for Active Directory replication to replicate this new value throughout the forest

(this might take some time—using ADSIEdit elsewhere in the organization will show

you how replication is proceeding).

10. Restart the Microsoft Exchange information store service on the Exchange 2000

computer.

Log Buffers

ESE uses a set of log buffers to hold information in memory before writing to the transac-

tion logs. For back-end servers, the default value is too low. This can cause excessive disk

I/Os to the transaction log drive. A significant performance improvement will be seen when

the server is under load or when users are sending large messages. The default value is 84;

this should be increased to 9,000 on all back-end servers.

The process for setting log buffers is very similar to increasing the store-database cache

size (as detailed earlier). You will need to use ADSI Edit to navigate to the storage group

object and then find the msExchESEParamLogBuffers attribute. The value is an integer

and it should be set manually to 9,000.

Tuning Active Directory Integration

When there are numerous computers running Exchange 2000 in a Windows 2000 site, a

very large LDAP load can be put on the Active Directory servers. An Active Directory

server, by default, is configured to support a maximum of 20 active LDAP queries. If this

limit is reached, Active Directory will return the error LDAP_ADMIN_LIMIT_EXCEEDED

and will refuse to process further LDAP queries until the active number drops below 20.

Twenty is generally sufficient for most Active Directory servers, but it is necessary to increase

this value when you are running Exchange 2000 on six- or eight-processor servers, or if the

preceding error message is logged.

The maximum LDAP queries can be configured through the MaxActiveQueries attribute.

This can be adjusted using the NTDSUTIL.EXE tool. Increasing this setting will use a little

more memory in the LSASS.EXE process on the Active Directory server, so do not increase

this value any more than is necessary. The following steps show how you would increase

MaxActiveQueries to 40:

1. After opening the command prompt window, type NTDSUTIL.

2. Type LDAP POLICIES and press Enter.

3. Type CONNECTIONS and press Enter.

4. Type CONNECT TO SERVER <domain controller/Global Catalog server name> and

press Enter.

5. Type Q and press Enter.

Microsoft Exchange 2000 Operations — Version 1.032

6. Type SHOW VALUES and press Enter.

7. Type SET MAXACTIVEQUERIES TO 40 and press Enter.

8. Type COMMIT CHANGES and press Enter.

9. Type SHOW VALUES and press Enter.

10. Verify that the new setting is shown.

11. Type Q and press Enter.

12. Type Q and press Enter.

Note: This setting will be replicated to all Active Directory servers within the forest. You do not

have to restart domain controllers or Global Catalog servers for this to take effect.

Under normal circumstances, Exchange 2000 will access Global Catalog servers and the

user partition of domain controllers by consulting a dynamically created list of available

servers. While this is fine in the majority of circumstances, in some environments you might

want to change the behavior to maintain performance. For example, you might have some

underspecified domain controllers on your network, and you might wish to prevent these

from being used. Or you might have very slow links in your environment and you might

want to prevent servers running Exchange elsewhere in the domain from using these

Global Catalog servers or domain controllers.

To ensure that particular domain controllers or Global Catalog servers are used to service

requests, you can statically configure DSAccess to channel directory service loads to a

specified set of directory-service servers.

You should think carefully before deciding to statically define these entries, as you generally

run a greater risk of losing directory access entirely. DSAccess does not check to see if the

names you specify are valid, so if you spell server names wrong in the registry, you can end

up with a loss of service. Also, if static entries have been defined, then Exchange will not

check dynamic entries, even if the static ones are invalid.

The following entries can be added to statically define domain controllers and Global

Catalog servers:

HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\MSExchangeDSAccess

\Profiles\Default\UserDC1 (UserDC2, and so on)

IsGC = REG_DWORD 0x0

HostName = REG_SZ DC_DomainName.CompanyName.com

PortNumber = REG_DWORD (0x185 by default or 0x27C for SSL)

HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\MSExchangeDSAccess

\Profiles\Default\UserGC1 (UserGC2 and so on)

Chapter 2: Capacity and Availability Management 33

IsGC = REG_DWORD 0x1

HostName = REG_SZ GC_DomainName.CompanyName.com

PortNumber = REG_DWORD (0xCC4 by default or 0xCC5 for SSL)

Note: Domain controller entries are defined independently of Global Catalog server entries, so it

is conceivable that a static list would be used to locate Global Catalog servers, whereas a

dynamic list would be used to find domain controllers.

Exchange 2000 stores and reads some information in the configuration partition of Active

Directory. You might want to define which domain controllers Exchange 2000 should use

when accessing the configuration partition. This is not a particularly dangerous setting,

because it is a preference, not a requirement. If your favored domain controller is not

available, it will switch to another on the list of available domain controllers (chosen by

the method indicated previously).

To set your preferred configuration partition domain controller in the registry, alter the

following:

HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\MSExchangeDSAccess

\Instance0

ConfigDCHostName = REG_SZ configDC_DomainName.CompanyName.com

ConfigDCPortNumber = REG_DWORD (0x185 by default or 0x27C for SSL)

For more information on how Exchange 2000 selects domain controllers and Global

Catalog servers, see the Knowledge Base article Q250570 available at:

http://support.microsoft.com/support/kb/articles/Q250/5/70.ASP?LN=EN-

US&SD=gn&FR=0&qry=Q250570&rnk=1&src=DHCS_MSPSS_gn_SRCH&SPR=MSALL

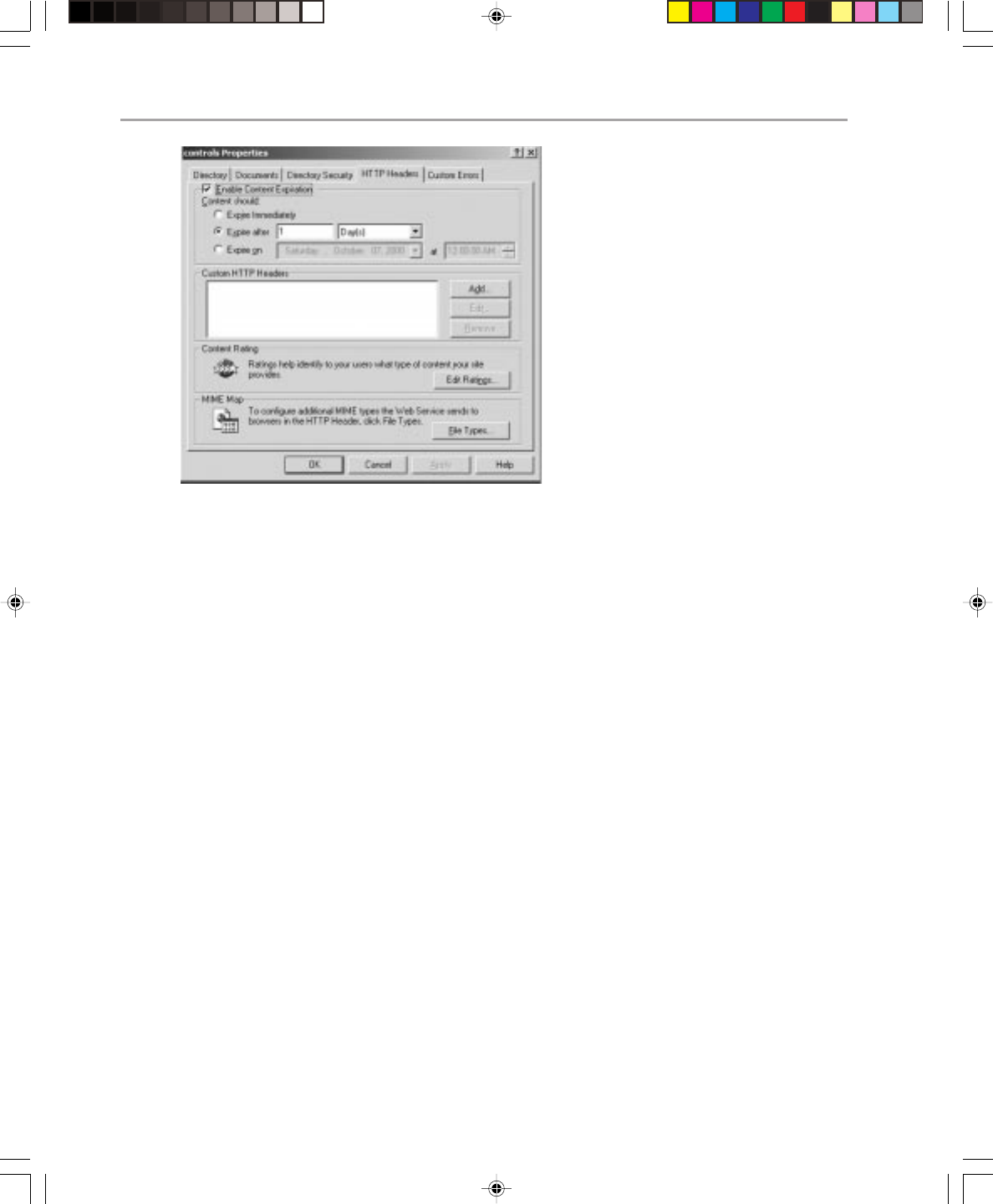

Tuning Outlook Web Access (OWA)

In environments where many users will use Outlook Web Access as their client, traffic and

resources on the Exchange 2000 server—as well as latencies apparent to the user—can all

be reduced by increasing the time until expiration of static files from the \Program Files\

Exchsrvr\Exchweb\Controls and \Img directories. These static files include all the .gif icons,

navigation or tool bars, and windows for display of messages, calendar items, and so forth.

By default, these files are marked as expiring in one day when they are received from the

server by the browser; thus, once each day, each user will request and receive these files from

the server. Except in cases where static content is modified to include system messages or adver-

tisements, these files will not change except possibly in the event of a future Exchange Service

Pack installation. Increasing the time before expiration to a month or a year (or setting the

content to not expire) might make more sense. In such a case, these objects might only be

expired out of the client’s browser cache if the cache became full and older items were

Microsoft Exchange 2000 Operations — Version 1.034

deleted. In addition, each time the user accesses Outlook Web Access, the browser will send

an “is modified” request for each static file cached; therefore, even if a future Service Pack

does modify \Exchweb content, the browser will immediately pick up the changes.

Changing this setting does not involve the registry. Instead, you will need to perform the

following steps:

1. Start the Internet Services Manager. Click Start, point to Programs, point to Adminis-

trative Tools, and select Internet Services Manager.

2. Expand the server icon.

Note: If you are performing this procedure on an Exchange 2000 Server cluster, expand the

Exchange Virtual Server instead of the Default Web Site in the following step.

3. Expand the Default Web Site.

4. Expand Exchweb, and view Properties on the \Controls and \img directories.

5. Under the HTTP Headers tab, you can either clear the Enable Content Expiration

checkbox or select the Expire after property to a value greater than the one day default.

Figure 2.1

Setting OWA Properties

Note: If you ever need to force Internet Explorer to refresh the entire content of a page, thus

ignoring data in the cache, open the URL, then hold down CTRL and press F5. In Netscape

Navigator, hold down SHIFT and click Reload.

Chapter 2: Capacity and Availability Management 35

Hardware Upgrades

Exactly when hardware upgrades are required depends on the results of your capacity

planning. If you plan your capacity well, you will be able to predict when hardware upgrades

are required, which is particularly important when there are long lead times on hardware.

Failing to predict when new hardware will be required can lead to severe availability man-

agement problems, for example if a server running Exchange were to fail because you ran

out of disk space.

It can be very beneficial to perform hardware upgrades on a regular basis, standardizing

on new hardware each time. This allows you to keep your hardware consistent across each

Exchange 2000 role and therefore reduce support costs for the new environment. Always

ensure that you test Exchange and Windows 2000 thoroughly on the new hardware to

ensure that there are no unforeseen anomalies.

In many cases hardware upgrades coincide with software changes or with consolidation of

servers. If this is the case, you must ensure that the new hardware is able to cope adequately

with the new environment and with any intermediary changes you need to make to get to

your final environment. As with all areas, ensure that you plan and document thoroughly

any changes that you make to the hardware environment. If you are rolling out hardware

changes across the entire organization over a short period, this can be a very labor

intensive period for your operations department, so ensure that you plan carefully for

the appropriate skills to be assigned.

Having a clustered environment is the best way to perform an upgrade while simulta-

neously minimizing downtime. Under these circumstances, you can perform a rolling

upgrade—manually failing over the system to node A, performing an upgrade on Node B,

failing it back over again to Node B, performing an upgrade on Node A, and then return-

ing the system to normal.

You will also need to ensure that there is provision in your SLAs for hardware upgrades.

Hardware upgrades often involve periods of scheduled downtime, especially if you do not

have clusters everywhere, and you need to allow for this when you define your SLAs. With

proper planning, both scheduled and unscheduled downtime can be kept to a bare mini-

mum.

Summary

This chapter has shown you how to manage capacity and availability in your Exchange

2000 environment. You have seen performance-tuning changes that are easy to identify

and implement to obtain better performance and you have learned how to examine what

areas to consider when implementing hardware changed in your organization.

Change and Configuration

Management

Introduction

Exchange 2000 Server is highly configurable and has the potential for huge variation in

hardware and software configuration. It is also likely to be one of the most important

elements of your IT environment. For Exchange to run as smoothly as you hope, providing

the best possible service to users, you need to make sure that your environment is carefully

managed. In particular, you need to ensure that any changes to the environment are

considered in detail before implementation and that good records are kept of all elements

of the IT environment.

The goal of the change management process is to introduce change into the IT environ-

ment quickly, with minimal disruption. All businesses are subject to change, and IT is a

business area which is subject to more change than most. A fundamental part of good IT

operations is to accept change and control it appropriately. A good change management

process also includes a method for quickly implementing urgent changes required to

quickly restore IT services. Change management should be a core and constant part of

your IT operations, not just something you visit when there is a major upgrade.

Change management is closely related to configuration management, which is the process

responsible for identifying, controlling, and tracking all of the elements of the IT environ-

ment. Good configuration management ensures that only authorized components are used

in the IT environment and that all changes are recorded in a configuration management

database.

This chapter discusses both change and configuration management, with particular

reference to Exchange 2000 Server.

Microsoft Exchange 2000 Operations Guide — Version 1.038

Prerequisites

By now you have defined a set of acceptable service level agreements for your Exchange

environment and you understand the concepts of availability management that were

discussed in Chapter 2, “Capacity and Availability Management.”

Chapter Sections

This chapter covers the following procedures:

◆Change management

◆Configuration management

Change Management

Effective change management allows you to introduce change into your IT environment

quickly and with minimal service disruption. Change management is responsible for

changes in technology, systems, applications, hardware, tools, documentation, and pro-

cesses, as well as changes in roles and responsibilities.

A key goal of the change management process is to ensure that all parties affected by a

particular change understand the impact of the impending change. Because most systems

are heavily interrelated, any change made in one part of a system can have major impacts

on others. Change management attempts to identify all affected systems and processes

before the change is implemented so that adverse effects can be minimized.

As with many areas of management, you can measure how effective your change manage-

ment is by how boring it is. Providing a smooth running change management process is

one of the most challenging aspects of IT management because of the very nature of what

you are managing—change. With the proper processes in place however, your environment

should run very smoothly.

Defining Change Type

To most effectively manage change within your organization, you need to categorize the

types of changes that could occur. In Exchange, these changes could include the following:

◆Applying Service Packs

◆Adding new servers

◆Adding new users

◆Adding new administrative groups

◆Changing routing group topology

◆Changing backup and restore procedures

◆Modifying and applying policies

◆Changing other existing settings

◆Changing a process or script used to administer servers

Chapter 3: Change and Configuration Management 39

Change can be broadly categorized into four groups, each requiring its own style of

management. The groups are:

◆Major change. Significantly impacts the IT environment, and requires major resources

to plan, build, and implement (for example, upgrading all Exchange 2000 Server

hardware).

◆Significant change. Requires substantial resources to plan, build and implement (for

example, upgrading to a new Service Pack).

◆Minor change. Requires no significant resources and doesn’t significantly impact the IT

environment (for example, modifying certain Exchange system policy settings).

◆Standard change. Follows a standard documented procedure, which should not affect

the IT environment at all (for example creating new mailboxes).

Of course, the more changes that you can successfully fit into the latter two categories, the

less likely there will be a significant disruptive impact upon your organization. This does

not mean that you should avoid significant or major change. Indeed, major or significant

change can often prevent problems with availability management later on. For example,

deploying a new Service Pack throughout your organization may enable you to avoid

encountering problems with your environment.

By thoroughly documenting as much of the Exchange environment as possible, including

how changes should be made, you can maximize the number of changes that are catego-

rized as minor or standard, thereby significantly decreasing the costs associated with

change.

Change management involves the following five activities:

◆A change is requested.

◆The impacts (technical and business) of making the change are assessed (this includes

testing in a lab environment).

◆The change is authorized.

◆The change is handed to Release Management for implementation.

◆The change is verified.

Numerous parties should be involved in Exchange change management. To see how these

parties would typically interact, examine the following major change, upgrading all servers

running Exchange to new hardware.

Step 1 – Request for Change Is Submitted to Change Manager

Everybody in your organization should be authorized to submit a request for change

(RFC). In this scenario, the likelihood is that the RFC has come from a member of your IT

staff.

Other change sources include IT staff responsible for problem management (for example,

root cause analysis), service level managers who are planning to sell new kinds of service

or upgraded levels of existing service, and so on.

Microsoft Exchange 2000 Operations Guide — Version 1.040

Step 2 – Change Manager Assesses the RFC

The change manager receives the RFC and records it in the change management log. The

manager examines the RFC, checking to see if it is a complete and practical proposal. If in

any way the proposal is deemed unsatisfactory, it is handed back to the person who

submitted the RFC (known as the change initiator) with appropriate red marks, or even if

it is approved, the change manager may pass it back to the change initiator for further

analysis

After the change is determined to be satisfactory, and appropriate information is gathered,

the change manager prioritizes the change. Change is prioritized as urgent, high, medium,

or low, which determines how soon the change will be made:

◆Urgent. Changes that must be performed immediately and are quickly transferred to the

urgent change process.

◆High priority. Changes that must be performed quickly to maintain Exchange availabil-

ity to a significant number of users.

◆Medium priority. Changes that are necessary to resolve problems, but are not of

immediate importance, or only affect a small number of users.

◆Low priority. Changes that can typically wait till the next major release of Exchange to

resolve the problem

In this case, upgrading server hardware is usually categorized as medium priority.

Now the change needs to be categorized. In this case, as already mentioned, it would be

judged as major change. The change manager will make a note of this prioritization and

categorization in the change management log.

At this stage, if the RFC is assessed as a minor or standard change, the change manager

would probably pass the RFC directly to the change owner responsible for implementing

the change. If the RFC is considered to be a significant or major change, it will be passed

to a delegated team that will prepare implementation options for consideration in the next

stage.

Step 3 – Change Is Passed to IT Executive Committee for Approval

The IT executive committee has the responsibility of approving major change in the

organization. It will typically consist of senior members of the IT staff in your organiza-

tion. It will judge if the hardware upgrade should proceed or not.

Step 4 – Change Is Passed to the Change Advisory Board for Scheduling

The change advisory board consists of a core group of individuals, people who are familiar

with business requirements, the user community, IT system technology, and the

organization’s application development, testing, and support staffs. Typically the change

advisory board includes the release, capacity, configuration, network, security, and systems

administration managers. In addition, the change manager appoints others who have

expertise relevant to the particular RFC and representatives from the group affected by the

Chapter 3: Change and Configuration Management 41

change. In this case, expertise with Exchange and hardware is very important. In fact, the

change manager may decide to appoint an OEM vendor representative to the change

advisory board.

The change advisory board determines the hardware upgrade schedule, according to IT

executive committee recommendations. The change advisory board is also responsible for

monitoring the change and it ensures that all authorized changes are coordinated and

scheduled to eliminate the possibility of one change negatively affecting another change.

Step 5 – Change Is Passed to the Change Owner

The change owner is responsible for planning and implementing the hardware upgrade

once it has been approved and scheduled by the change management process. The change

owner will provide feedback to the change advisory board, the change manager and

perhaps the change initiator during the implementation. However, the change manager

remains involved at this stage, monitoring what the change owner is doing.

After the upgrade is complete, the change owner will help the change manager and change

initiator assess the impact of the change.

All of this may seem to be a deeply complicated process, but remember this describes a

major change to the environment. Minor changes would pass through a significantly

simpler path, involving the change owner.

Step 6 – Change Process Evaluation

After the change is implemented, the entire change management process from receipt of

RFCs through implementation must be evaluated. This is done by conducting personnel

interviews and reviewing documentation. The main objective is to assess the effectiveness

of the change process. Unsuccessfully implemented changes should also be evaluated so

that problems can be identified and corrected before further changes are initiated.

Figure 3.1 illustrates the change management process, with the parties responsible for each

stage. (For the sake of clarity, this diagram largely ignores inter-related areas of manage-

ment such as configuration and availability management.)

Microsoft Exchange 2000 Operations Guide — Version 1.042

Figure 3.1

The Change Management Process

Minor and Standard Changes

The advantage of minor and standard changes is that individuals with less authority can be

pre-assigned the permissions to perform them. This is perfectly fine, because the changes

themselves are not likely to cause significant problems when implemented. Of course, the

change manager, and perhaps the change advisory board will, at some point, have deter-

mined whether a particular change is minor or standard. However, once this is done and

the nature of the change is documented, the change owner can be pre-authorized to either

perform the change in person or to delegate that authority to another person.

A classic example of a standard change is the addition of a user. This type of change

should have been anticipated, so the change manager will have already pre-authorized the

change owner to be responsible for this change. The change should be thoroughly docu-

mented with standard settings for items such as mailbox size limits and deleted item

retention time.

Scripting Minor and Standard Changes

Although minor and standard changes do not take very long, they are among the most

repetitive of tasks and therefore the ones most likely to benefit from automation.

To further reduce the amount of time spent on these tasks, you may want to consider using

automated tools. Using the example of mailbox creation, the change advisory board may

have previously categorized users according to job role. There would be a series of pre-

defined settings for each type of user. Administrators could then use a Web-based tool to

create the users, specifying the job role. Scripts would run against Active Directory to place

Chapter 3: Change and Configuration Management 43

the user in the appropriate Windows 2000 groups and create the Exchange 2000 mailbox

with the appropriate settings for that user.

Over time, your team will build a set of custom tools that are used frequently to administer

standard changes. Those tools and others will likely be used for implementing larger

changes. Treating these tools and procedures as configuration items and managing their

evolution over time is another example of the close relationship of change management

and configuration management.

Security

A very important part of effective change management is your security infrastructure. If

you do not carefully control who is capable of making which change, you can end up with

undocumented and unauthorized change occurring in your organization. You should

always ensure that your administrators only have rights to perform tasks that they have

been specifically pre-authorized to perform. In Exchange 2000 Server, administrators

require View Only Administrator rights over the Exchange 2000 organization if they are to

create and modify user accounts.

Software Control and Distribution

Updating software represents significant change. It can have a major impact on users, and

as such it should be planned very carefully to ensure that the update has minimal impact

on users. (Occasionally such a change may be urgent, and under those circumstances you

will not have time for thorough planning, but you should still plan as much as possible).

In a multi-national company with distributed administration, one of the challenges can be

to ensure that software updates are distributed as smoothly as possible. One solution to

this is Microsoft Systems Management Server, while another is to use the software assign-

ing and publishing functionality of Windows 2000.

Documentation

Linking all of the change management process together is the very strong need for up-to-

date, complete, and accurate documentation. Without thorough documentation, many of

the benefits of change management will be lost for your organization.

Thorough documentation is invaluable when implementing recurring changes. One of the

main benefits of thorough documentation is that it can turn major or significant change

into minor or standard change. Many changes are major or significant simply because you

have never made them before. But if you have, and you have documented standard proce-

dures that allow you to avoid downtime and periods of poor performance for users, it may

allow your IT executive committee or change advisory board to pre-authorize that change

for the future, significantly reducing the number of steps required to make the change the

next time.

You should ensure that entire process of change is properly documented in the change

management log. The log contains information about the change, including RFC status,

Microsoft Exchange 2000 Operations Guide — Version 1.044

schedule information, and work orders. It is the responsibility of the change initiator,

change manager, and change owner to ensure that you have appropriate documentation

about the change. Change management should also work closely with configuration

management to ensure that all changes to IT components are properly documented in the

configuration management database, which is a repository used to track the status of all

components of the IT environment. (For more information, see the “Configuration Man-

agement” section later in this chapter.)

Of course it is not enough just having the data available, it needs to be easily accessible by

those who need it, easily searchable, and of a standard form. This allows others to get to

and understand the data when they see it. If you have a good knowledge management

system in your organization, you are able to ensure that the documentation is available to

the appropriate people where and when they need it. By implementing Exchange 2000, you

will already have many of the tools to create a good knowledge management system! RFCs

can be easily submitted via Microsoft Outlook® messaging and collaboration client forms

and the change management log stored in public folders, indexed using full text indexing.

Configuration Management

You cannot accurately know where you want to go today, or indeed how to get there,

unless you know where you already are. Configuration management is a process which

determines and records exactly that.

Configuration management is responsible for identifying, controlling, and tracking all

versions of hardware, software, documentation, processes, procedures, and all other

components of the IT environment under the control of change management. These items

are referred to as configuration items and all changes to them are recorded and tracked

throughout the component lifecycle.

Central to configuration management is the configuration management database. The

configuration item data controlled by configuration management is stored in the configu-

ration management database, which is a relational database used to track configuration

items in the IT environment.

What makes configuration management so useful to your organization is that the relation-

ships and dependencies between configuration items are recorded. As a simple example,

imagine that an RFC is submitted to the change manager, requesting a memory upgrade on

all of your domain controllers. Assuming that the request is approved, the configuration

management database can be checked to see which users and which applications will be

affected when that server is taken offline. In this case, because Exchange depends upon

domain controllers for its functionality, the configuration management database would

indicate how Exchange 2000 Server functionality would be affected and the resultant

impact on the users. The users can then be forewarned of the impending problems so that

they can plan their activities around it.

Chapter 3: Change and Configuration Management 45

Another example is hardware tracking. Imagine that your hardware vendor releases a new

firmware version for the standard network adapter that you use in some or all of your

servers. If you track firmware versions of each network adapter, and the relationship of

each network adapter to a system, and the relationship of a system to a rack location, it is

straightforward to identify the physical location of each network adapter requiring the

firmware upgrade.

Tools for Configuration Management

There are numerous good tools for performing configuration management. It is not

necessary to write your own tools in most cases, especially because the existing tools are

very configurable. Before you spend much time on defining the exact form of your configu-

ration management, examine the capabilities and limitations of each tool. This allows you

to determine how your configuration management process may need to be modified to

accommodate the vagaries of your chosen tool.

Configuration Management and Change Management

Configuration management is intrinsically linked to change management. In fact, only

items that come under the control of change management are entered into the configura-

tion management database. Configuration items are initially entered into the configuration

management database when RFCs are approved for implementation by the change advi-

sory board or the IT advisory committee. From this point on, changes to and status of the

configuration items are recorded in the configuration management database.

Therefore, the configuration management database acts as a historical record of changes to

the environment and maintains a “picture” of the existing IT environment. After they are

logged into the configuration management database no changes to configuration items in

the IT environment should be made without authorization from change management by

following the RFC process as discussed in the change management process. Change and

configuration management work closely together to ensure that a clear and complete

“picture” of the environment is always available.

Configuration Items

Configuration items are objects that fall under the category of change management,

and are therefore subject to change. In Exchange 2000, configuration items include the

following:

◆Exchange Server hardware

◆Domain controller hardware

◆Hardware vendor

◆Server role (that is, a server running Exchange or domain controller)

◆Windows 2000 software

◆Exchange 2000 Server software

Microsoft Exchange 2000 Operations Guide — Version 1.046

◆Service Packs

◆Hot fixes

◆Anti-virus software

◆Fax/voice mail Gateways

◆Monitoring software

◆Backup software

◆Network equipment connecting the servers

◆Processes and procedures

◆Documentation

◆Exchange users

◆RFCs

Each configuration item will have attributes associated with it. Take as an example the

Exchange software. It will have the following attributes associated with it:

◆A software identifier

◆The RFC identifier that led to the current software version

◆The name of the application (for example, Exchange 2000 or Exchange 2000 Server

Enterprise Edition)

◆The version number of the software

◆The date the current version was installed

◆The latest Service Pack installed

◆The latest hot fix installed

◆The vendor who supplied the current software (for example, Microsoft Corporation)

◆The documentation required to support the current version of the software

The number of configuration items depends on the level of granularity you choose when

defining them. It is, of course pointless to store configuration items that you will never use.

A simple configuration management database will give you much less data to store and so

will be much less work to store. However, if you do not have data at a sufficiently granular

level, you will limit the effectiveness of the configuration management database.

You can always add more detailed information at a later date, if you want. However,

despite the initial pain, you will generally find it better to set your granularity of configura-

tion items at the level of the lowest replaceable unit. In terms of servers running Exchange,

this would be, for example at the RAID Controller, or network adapter level. For example,

this allows you to change every network adapter in every server running Exchange in your

organization, and effectively monitor and manage that change.

Chapter 3: Change and Configuration Management 47

Configuration Management Relationships

Many of the main benefits of configuration management come from the relationships

between the configuration items that are defined in the structure of the configuration

management database. Getting these relationships correct is vital for successful configura-

tion management.

The relationships grow more complex the more configuration items you have. To see the

principle, take a very simple example, with only six configuration items, showing a simple

relationship between Exchange hardware and software, as illustrated in Figure 3.2.

Hardware

Server

Printer

Software

Exchange

Server

Hotfix

Figure 3.2

Six Configuration Items and Relationships Between Them

Here the server itself is obviously hardware, but it also represents the software that is to

installed on it. These elements depend on each other. If there was no hardware, Exchange

would have nothing to be installed on, and if there is no Exchange 2000 software, there is

little point in having the hardware.

Microsoft Exchange 2000 Operations Guide — Version 1.048

Here, the printer is related to the server because it is connected to it. Exchange 2000 Server

is licensed to the server hardware. The hot fix is another configuration item, but one that

clearly has a relationship to the server running Exchange on which it is installed.

Of course with more configuration items, this process is significantly more complicated. To

see this, take a look at a slightly more complex example. Figure 3.3 illustrates nine types of

configuration items, with suggested relationships between them.

Vendor

(e.g. Microsoft)

Documentation

(e.g. Exchange

2000 Release

Notes)

System

(e.g. Exchange

2000 Server)

Software

(e.g. Exchange

2000)

Procedures

(e.g. How to

create a user)

RFCs

(e.g. Hardware

Upgrade

Requests)

Hardware

(e.g. physical

Hardware)

Users

(e.g. Carl

Lewis)

Roles

(e.g. IT Manager)

Figure 3.3

Nine Configuration Items with Relationships Between Them

As you can see, there is still a fairly small number of configuration item types at this stage,

although the configuration items themselves will differ in a substantial way (for example,

anti-virus software will have significant differences from Exchange 2000 hot fixes).

Chapter 3: Change and Configuration Management 49

Defining Configuration Items

When defining configuration items you need to decide how deeply you want to go in

recording the them. Too many configuration items makes the relationships too difficult to

manage and costs start to increase. There are strong benefits to making the configuration

management database as simple as possible to actively reflect the environment in which it

is working, then adding in additional configuration items as and when they are required.

Configuration Management and Exchange

One of the main barriers to implementing configuration management in an organization is

the perception that it must be implemented throughout the organization or not at all. This

is by no means true. Configuration management can effectively apply to one part of the

organization without touching other parts of it. It is true, of course, that the more wide-

spread configuration management is in a company, the more cost-effective it becomes, but

this does not preclude you from implementing configuration management cost-effectively

in your company, even if it affects only Exchange.

In many cases, setting up configuration management for Exchange proves to be a pre-

cursor to setting it up elsewhere. You should not be afraid of starting with Exchange for

the configuration management process if it has not been implemented before in your

company.

In the example of upgrading the servers running Exchange shown previously, you can see

from the simple set of relationships, that upgrading the hardware affects a series of related

areas:

At the very least, new hardware may affect the following elements of the configuration

management database:

◆User roles. All users who have their mailboxes located on the server may have service

interrupted and after the upgrade should expect better service. Consulting the configu-

ration management database should reveal the identity of these users.

◆The RFC. An RFC will have been submitted to initiate this change. The RFC status will

be altered as the change is implemented

◆Vendor. If the new hardware is from a different vendor, new configuration items may be

required.

◆Documentation. New documentation will be needed to support the new hardware in

place.

Maintaining the Configuration Management Database

For configuration management to work properly, it is vital that all the information in the

configuration management database is up to date and accurate. Your IT staff will very

rapidly lose confidence in the system if, for example, they consult the database to find

Microsoft Exchange 2000 Operations Guide — Version 1.050

which connectors will be affected by taking a server running Exchange offline for mainte-

nance, only to find when they actually examine the servers that different connectors are

present.

The configuration management database is initially populated by an inventory of your

existing hardware, software, tools, and processes. The configuration management database

contents change over time as the result of implemented changes of all kinds. You will want

to periodically (perhaps annually) audit the configuration management database against

reality to ensure that the configuration management database and your IT environment are

in synchronization.

To ensure that the database is maintained with accurate information, the following areas

must be tightly controlled:

◆Change management

◆Ownership of the configuration management database

◆Security of the configuration management database

◆Backup of the configuration management database

To be effective, the configuration management database must be operated as though it is a

central component of your IT environment.

Change Management

As already mentioned, change management and configuration management are intrinsi-

cally linked. If the configuration management database is to be accurate and up to date,

then no aspect of change to configuration items may be carried out without that change

also being recorded in the configuration management database. For this reason, RFCs are

recorded in the configuration management database and are the driving force behind

change in the configuration management database. By adding and modifying entries in the

RFC part of the configuration management database you will also modify the components

that act as dependencies.

Ownership

If your configuration management database is going to remain fully accurate, you must

ensure that there is ownership of each part of the configuration management process. The

configuration manager should ensure that the configuration management database is

always kept fully up to date and that only authorized personnel can modify it. Exactly who

modifies the configuration management database depends on nature of the relationship

between change and configuration management, but in many cases different configuration

items have different owners (often the corresponding change owner).

Chapter 3: Change and Configuration Management 51

Security

Security is a vital component of configuration management. The only way in which you

can maintain control over your configuration and ensure that the configuration manage-

ment database is accurate is by ensuring that only authorized personnel change configura-

tion items and that only authorized personnel can make the corresponding changes to the

configuration management database.

Backup

With good configuration, the configuration management database is an essential part of

your organization. It is therefore essential that you back it up regularly and can ensure that

you are able to recover to the point of failure. Examine carefully the configuration man-

agement tools that you use, to ensure that you have an effective back up and restore

strategy.

Exchange System Policies

Microsoft Exchange 2000 Server is equipped with policies to control recipient e-mail

addresses, server configuration, mailbox store configuration, and public folder store

configuration. Using Exchange 2000 system policies you can centrally manage as many or

as few servers running Exchange as you desire, and you can dramatically reduce your costs

in maintaining a consistent configuration across your enterprise. You can create as many

system policies as you like; however, each server can have only one server policy, mailbox

store policy, and one public folder store policy associated with it.

Administering System Policies

One of the main advantages of Exchange 2000 system policies is that it allows you to

centralize administrative control easily. The administrative model you follow determines

how you should implement system policies. It can often make sense to create one or more

management administrative groups. You would give your policy administrators rights over

these groups, plus any other administrative groups where you want the policies to be

applied. Local administrators would have rights to their own administrative groups but not

over the management groups, therefore preventing them from removing the policies or

changing anything set in the policies.

When you are creating your policies, you have a choice over which settings to determine.

Typically you will look to use policies to define almost every aspect of servers, mailbox

stores, and public folder stores. However, think carefully before deploying the Associated

Public Store parameter, because this is likely to be different for a large number of servers

and would therefore in many cases require the creation and maintenance of a large number

of policies.

Microsoft Exchange 2000 Operations Guide — Version 1.052

Summary

Whatever the size of your organization, you should consider the processes described here

and how they can benefit your organization. Remember that the change initiator, the

change manager, the change advisory board, and the IT executive board are just descrip-

tions of roles in your organization and can easily overlap.

Many organizations have some difficulty justifying the cost of implementing configuration

management. However, for most companies, the benefits of implementing and correctly

administering a configuration management process far outweighs the costs of establishing

and maintaining the process. Deciding upon a level of granularity of configuration items

that is appropriate for you allows you to decide upon a cost structure that will benefit your

organization.

If you do not have change and configuration management in your organization currently,

you can still implement it for your Exchange 2000 Server environment. It is very likely that

doing so will considerably improve the efficiency and the reliability of your operations.

Enterprise Monitoring

Introduction

Monitoring is an essential part of successful Exchange 2000 Server operations. Through

effective monitoring, you are able to determine if you are meeting service level agreements,

and if you are not, which areas are causing problems (known as reactive monitoring). You

can even use a trend analysis of the data you have collected to predict future problems for

your organization and to obtain a global picture of your Exchange 2000 Server environ-

ment (known as proactive monitoring). Good reactive and proactive monitoring will help

you to maintain high availability for your servers running Exchange.

In this chapter, you will learn how to monitor at the server level and the client level, the

key areas to monitor, and what benefits you will gain from thorough monitoring.

Prerequisites

Before beginning this chapter, you should be familiar with service level agreements and

basic operations procedures (covered in Chapter 1, “Introduction”).

Chapter Sections

This chapter covers the following procedures:

◆Performance monitoring

◆Event monitoring

◆Availability monitoring

◆Client monitoring

◆Operation personnel notification

At the end of this chapter, you will be able to monitor your Exchange 2000 Server environ-

ment effectively.

Microsoft Exchange 2000 Operations Guide — Version 1.054

Performance Monitoring

Performance Monitoring is the monitoring of existing system(s) to ensure that optimum

use is made of the hardware resources, and that agreed performance levels can be main-

tained.

Performance Monitoring allows you to determine if your server running Exchange 2000 is

meeting the performance standards you have defined in your service level agreements

(SLAs). Over time, you can use Performance Monitoring to generate data that can be used

in trend analysis. This alerts you to possible performance and availability issues in the

future, and allows you to solve problems before they arise).

One of the first tasks involved in performance monitoring is to generate a baseline. This

baseline is a measure of what figures you expect to see when measuring a healthy system.

This can then be compared to the figures you gather in day-to-day monitoring, allowing

you to track problems easily.

In this section, you will look at the objects and counters that you may want to monitor

using System Monitor. These parameters will form the basis of your baseline. You will also

examine centralized monitoring techniques for remote servers.

System Monitor

If your e-mail system was Exchange Server 5.5, you are probably accustomed to using

Microsoft Windows NT 4.0 Performance Monitor to analyze the performance of your

Exchange 5.5 server. Exchange Server 5.5 includes a series of Performance Monitor

Workspaces to allow you to quickly see in graph form a series of key counters.

The Windows 2000 operating system includes System Monitor (which consists of Perfor-

mance Monitor and Network Monitor) for analyzing the performance of your system.

When you install Exchange 2000 Server, a large number of objects are installed and

counters are associated with those objects.

It is worth noting that while real-time graphs created in System Monitor often look

very pretty, they are only of limited use, particularly if no one is looking at them. If you

continually monitor 500 different counters on your server running Exchange, the self-

monitoring uses CPU cycles. You have now undermined the performance of that server just

by monitoring it. So only monitor what you need to, and consider using Performance

Logging and Alerts, which can produce much more useful information with less of a load

on the server. Reducing the frequency of monitoring produces much less of a load on the

server and in many cases produces a more accurate picture, depending on the counters in

question.

Note: Remote monitoring is almost always better than self-monitoring, because performance

is not tainted by the load caused by monitoring. For more information about remote monitoring,

see articles Q243283, Creating a Log File to Send to Customers for Remote Monitoring and

Q240389, Error Message: Event ID: 2028 “The Service was Unable to Add the Counter

\\Server_Name\Counter_Name” in the Microsoft Knowledge Base.

Chapter 4: Enterprise Monitoring 55

Exchange 2000 Objects and Counters to Monitor

Every Exchange 2000 performance object has at least one counter associated with it. For

information on particular counters, in Performance Monitor, click Select Counters from

List, select a counter, and then click Explain.

Table 4.1 shows the various Exchange services and resources and the associated perfor-

mance objects that you can monitor.

Table 4.1 Services, Resources, and Associated Performance Objects

Service or Resource Performance Object

Active Directory DXA Connector MSExchangeADDXA

Address List MSExchangeAL

Chat Communities MSExchange Chat Communities

Chat Service MSExchange Chat Service

Directory Service Access Caches MSExchangeDSAccess Caches

Directory Service Access Contexts MSExchangeDSAccess Contexts

Directory Service Access Processes MSExchangeDSAccess Processes

Document Conferences MSExchangeCONF

Document Conferencing Manager MSExchangeDcsMgr

Document Conferencing Protocol (Multipoint MSExchangeT.120

Control Unit)

Epoxy Queues and Activity EXIPC

Event Store MSExchangeES

File Replication Connector FileReplicaConn

File Replication Settings FileRepSet

HTTP Extension Exchange Server HTTP Extension

Internet Information Server Store Driver Exchange Store Driver (IIS)

IMAP4 MSExchangeIMAP4

Web Storage System MSExchangeIS

Mailbox Store MSExchangeIS Mailbox

Public Folder Store MSExchangeIS Public

System Information Store MSExchangeIS

(continued)

Microsoft Exchange 2000 Operations Guide — Version 1.056

Service or Resource Performance Object

Lotus CC Mail MSExchangeCCMC

Lotus Notes Message Center MSExchangeNMC

Service or Resource Performance Object

Message Transfer Agent MSExchangeMTA

Message Transfer Agent Connections MSExchangeMTA Connections

MS Mail Connector Interchange MSExchangeMSMI

Exchange Referral Service MSExchangeSA-RFR

MS Mail Connector Message Transfer Agent MSExchangePCMTA

Name Service Provider Interface (AD Integration) MSExchangeSA-NSPI Proxy

Network News Transfer Protocol Commands NNTP Commands

Network News Transfer Protocol Server NNTP Server

Novell Groupwise Connector MSExchangeGWC

Object Linking and Embedding database events MSExchangeOledb Events

Object Linking and Embedding database resources MSExchangeOledb Resources

Post Office Protocol Version 3 MSExchangePOP3

Service Account MSExchangeSA

Site Replication Service MSExchangeSRS

Simple Mail Transfer Protocol SMTP

Store Driver Exchange Store Driver (Store)

Video Conferencing MSExchangeIPConf

Web Mail MSExchangeWebMail

The following sections describe the counters that are the most important to monitor,

categorized by object.

Note: In the following sections, a number of queues are mentioned. Large queue buildup on

any server usually indicates a problem, generally in routing. If you see unusually large queues

for your environment, check your connector.

Chapter 4: Enterprise Monitoring 57

Information Store Counters

MSExchangeIS

For this object, monitor the following counters:

◆User Count – This displays the number of people currently using the Information Store

(not the number of connections). It is impossible to properly judge the performance of a

server running Exchange unless you know how many people are using it.

◆RPC Requests – This shows the number of client requests currently being processed by

the store. You should expect this figure to be fairly small, typically below 25. If it is

consistently higher than this, your server is overloaded.

MSExchangeIS Mailbox and MSExchangeIS Public

For these objects, monitor the following counters:

◆Send Queue Size – This shows the queue of messages outbound from the Information

Store. In situations where the SMTP service is down or there is a reduction in perfor-

mance, you will see a nonzero value for this queue. On large busy systems (2000 users

or more) you may never see this value at zero, but on smaller ones (500 or so medium

users) you would not expect to see nonzero values for any significant period of time.

◆Messages Sent/Min – This shows the rate at which messages are sent to the transport.

This figure being low is not a problem in itself, but if the Send Queue Size is nonzero

and the value is still low compared to your baseline, then there are performance issues

that need to be resolved (you will only be able to tell what these are by monitoring

other Exchange 2000 Server and Windows 2000 counters)

◆Received Queue Size – This shows the queue of messages inbound to the Information

Store. Unlike the Send Queue size, this is often nonzero, except on a bridgehead server

with no local mailboxes. However, if the value is consistently high compared to your

baseline, it could indicate a problem.

◆Messages Received/Min – Again a low value here could simply indicate a quiet server;

however if the Receive Queue Size value is high and this value is low, it indicates that

you are receiving messages that are stacking up and are not being processed.

SMTP Server

SMTP traffic can be from SMTP Servers, such as other servers running Exchange, or it can

be from POP3 or IMAP4 Clients such as Microsoft Outlook Express. When monitoring

SMTP parameters, remember that your client base will affect these figures:

◆Local Queue Length – This shows the number of messages in the local queue (this

queue contains messages that are queued for local delivery on the server running

Exchange to an Exchange mailbox). Under normal operating conditions, this number is

Microsoft Exchange 2000 Operations Guide — Version 1.058

rarely greater than zero. A reading of greater than zero shows that the server is receiv-

ing more messages than it can process. If this number increases steadily over time, there

is probably a problem with the Exchange Store you are trying to deliver to.

◆Categorizer Queue Length – This shows the number of messages waiting for advanced

address resolution. After this, the messages either go to the local queue or are sent to

the routing engine to be delivered elsewhere. A high figure here compared to your

baseline can indicate message flow problems.

◆Inbound Connections Current – Shows the number of current inbound connections. If

this reading remains zero over time, then there may be network problems.

◆Message Bytes Sent/Second – Examine this figure in conjunction with other counters

and your baseline to determine if your SMTP Server is passing messages as quickly as it

should. If, for example, this figure is low, but queues leading to this transport are high,

then there is a problem with the SMTP transport.

◆Message Bytes Received/Second – Again, use this in conjunction with other counters

and your baseline to determine overall health. For example, there may be a problem

with the SMTP transport if a queue going into this transport is high while the Message

Bytes Received/Second is low.

◆Avg. retries/Msg delivered – When Exchange fails to deliver messages, those messages

enter a retry queue. The SMTP server is configured with a retry interval showing how

long the server will wait before a first retry, second retry, and so forth. This counter

shows how many messages are going into retry as a fraction of the overall messages

delivered. You should expect the figure to be close to zero. If large number of messages

are being retried, the figure will approach 1. This counter is therefore a good indicator

of general message delivery problems on your network.

◆Avg. retries/message sent – This counter is the same as the previous counter, except it

applies to outgoing messages as opposed to incoming ones.

MSExchangeMTA and MSExchangeMTAConnections

In a pure Exchange 2000 Server environment running in native mode, the

MSExchangeMTA and MSExchangeMTAConnections objects are not particularly impor-

tant. However, in cases of coexistence with Exchange Server 5.5, or where messages are

being relayed to and from X.400 recipients, you may want to measure the Messages/Sec

and Work Queue Length of the MSExchangeMTA object and the Queue Length of the

MSExchangeMTAConnections object.

In Exchange 2000 Server, you may find the Message Transfer Agent (MTA) shutting down

fairly frequently, especially if it cannot find a domain controller temporarily. To resolve

this problem, you may want to use the recovery actions option in services to restart the

service in the event of it being stopped.

Chapter 4: Enterprise Monitoring 59

MSExchangeIM Virtual Servers

If you are running Instant Messaging in your organization, you may find that the

organization quickly becomes as reliant on Instant Messaging as it is on e-mail. It is

therefore important that you monitor Instant Messaging Counters. You should

examine the following:

◆Current Online Users – This shows the number of users logged on to the server. Exam-

ining this parameter over time helps to determine the actual take up of Instant Messag-

ing in your organization and therefore help you to scale it properly across multiple

servers.

◆Current Subscriptions – This shows the number of subscription notifications sent to the

server by the Instant Messaging client. A subscription notification occurs when a user is

added to the contact list. This gives an indication of how heavily clients are using

Instant Messaging.

◆Inbound Subscribes/sec – This shows the average number of subscribes/second. If this

figure is low but the usage of Instant Messaging is high, it could indicate an over-

worked Instant Messaging server.

MSExchangeAL

The Recipient Update Service (RUS) plays a crucial role in the day-to-day operations of

Exchange 2000 because it is responsible for keeping e-mail addresses and membership of

address lists up to date. You should measure the Address List Queue Length when examin-

ing the RUS:

The Address List Queue Length shows the load the Recipient Update Service is under. If

this value is consistently high compared to your baseline, you should seriously consider

upgrading the server that has this role, or transferring the role from a weak or overloaded

server to a more powerful one.

Windows 2000 Objects and Counters to Monitor

A heavily used Exchange 2000 server may have a number of bottlenecks. Simply monitor-

ing Exchange 2000 Server performance objects and counters in isolation will not give you

information about the condition of the server itself. You will need to monitor for bottle-

necks in the Disk Subsystem, Memory, Processor, and the Network Subsystem. For ex-

ample, in many cases there will be multiple instances of disks and processors, so make sure

that you monitor all instances (that is, each disk or each processor). Table 4.2 shows which

objects and counters it would be most useful to monitor, along with any specific notes

regarding Exchange.

Note: When monitoring disk counters, you need to enable them to start at boot, using the

diskperf –y command.

Microsoft Exchange 2000 Operations Guide — Version 1.060

Table 4.2 Subjects and Associated Objects and Counters

Subsystem Object Counter Exchange Comments

Disk Logical Disk % Free Disk Space

Physical Disk % Disk Time Usually unreliable for RAID systems,

so rarely applicable

Physical Disk Disk Reads/sec

Physical Disk Disk Writes/sec

Physical Disk Current Disk Should occasionally dip to zero

Queue Length

Physical Disk Avg secs per read Should be analogous to published

disk speed

Physical Disk Avg secs per write Should be analogous to published

disk speed or 1-2ms if you have write

back caching enabled on your RAID

controller

Memory Memory Committed Bytes

Memory Pages/sec Exchange 2000 makes heavy use of a

pagefile. A large amount of paging is

not in itself an indication of a problem.

Memory Page Reads/sec Value should generally be below 100.

If the value is consistently high, you

may need to increase system

memory.

Memory Page Writes/sec Value should generally be below 100.

If the value is consistently high, you

may need to increase system

memory.

Paging File % Usage You may need to increase the size of

your pagefile for Exchange. Try to

keep this counter below 70%.

Process Page Faults/sec

Chapter 4: Enterprise Monitoring 61

Subsystem Object Counter Exchange Comments

Processor Processor Interrupts/sec

Processor %Processor Time The creation of indexes by Full Text

Indexing generally uses a great deal

of processor time. However, a low

priority thread is used, so it does not

necessarily cause performance

issues.

Process %Process Time Measure the following instances:

store (Information Store), inetinfo

(IIS), lsass (security system including

AD), and mad (System Attendant)

Process System Processor Queue

Length

System Context

Switches/sec

Network Network % Net Utilization

Segment

Redirector Bytes Total/sec

Redirector Network Errors/sec

Server Bytes Total/sec

Server Work Item

Shortages

Server Pool Paged Peak

Server Work Queue Length

Queues

For more information about monitoring Windows 2000 objects, see the Windows 2000

Server Resource Kit.

Microsoft Exchange 2000 Operations Guide — Version 1.062

Centralized Monitoring

In an enterprise environment, you can reduce operations costs dramatically if you can

capture performance data in a central location. Doing so moves the load of monitoring

from the monitored server to the centralized server and also allows you to compare the

performance of similarly configured servers and ensure a consistent response in the event

of a problem with a server running Exchange.

An example of a centralized monitoring tool for Exchange 2000 Server is AppManager

from NetIQ.

AppManager consists of four components:

◆Console – A collection of programs for examining and managing your AppManager

environment. It communicates with the Repository through Open Database Connectiv-

ity (ODBC).

◆Repository – A SQL Server database that is the data store for AppManager. It stores

configuration information for AppManager and information gleaned from the Agents

◆Agent – This runs on each computer that you monitor. It sends data to and receives

commands from the Management Server. It gathers information from the computer on

which it runs, returning it to the Management Server. The agent communicates with the

Management Server through RPC.

◆Management Server – This component communicates with the Repository through

ODBC, issuing commands and receiving responses from the Agents.

AppManager detects the Exchange 2000 servers in your enterprise (through registry

entries), giving you the option to install an agent on each server you want to monitor. After

the agents are installed, they communicate with the Management Server, sending it data

about the performance of the computer on which the agent is running.

AppManager collects information about Exchange 2000 Server performance objects and

counters, storing them in the repository where they can be used for long-term analysis.

However, it also monitors other aspects of performance. For example, AppManager

examines the amount of time taken to send and receive messages between servers running

Exchange, and from servers running Exchange to the Internet. It reports on e-mail traffic

flow (from message tracking logs, which it also collates). It can identify the servers (and

users) that send and receive most e-mail, and monitor the amount of space used by e-mail

on servers. AppManager issues notifications or alerts where necessary.

In a feature that is very useful for operations managers, AppManager tracks performance

of Exchange against defined service level agreements, reporting when and how these have

not been met.

Using a tool such as AppManager is not the only way to gather centralized performance

monitoring information. Exchange is a Windows Management Instrumentation (WMI)

provider, so it is possible to create your own Web interface for gathering information from

other servers on the network.

Chapter 4: Enterprise Monitoring 63

Event Monitoring

When Exchange 2000 Server is running smoothly, event monitoring does not seem espe-

cially important. However, when performance is poor, you will quickly see the benefits of

event monitoring. Event Viewer is a useful source of information about Exchange 2000

Server, along with log files that you may choose to generate. Large organizations may

require an application such as Microsoft Operations Manager for reporting on Exchange

2000 Server events.

Event Viewer

Exchange reports to the Application event log. By default, it logs all critical events to the

Application log. By increasing the logging on particular Exchange services, you can ensure

that more data is available.

To enable logging for a particular Exchange service, right click the server in Exchange

System Manager, select Properties, and then select the Diagnostics Logging tab.

The logging levels are:

◆None – Only error messages are logged (the default setting on all the services)

◆Minimum – Warning messages and error messages are logged

◆Medium – Informational, warning, and error messages are logged

◆Maximum – Troubleshooting (extra detail), informational, warning, and error messages

are logged

You can log the following services in Exchange 2000 Server:

◆IMAP4Svc (IMAP4 Protocol)

◆MS-ExhangeAL (Address List)

◆MSExchangeIS\System (Information Store System)

◆MSExchangeIS\Mailbox (Information Store Mailbox)

◆MSExchangeIS\Public Folder (Information Store Public Folders)

◆MSExchangeSRS (Site Replication Service)

◆MSExchangeTransport (SMTP Routing Engine and Transport)

◆MSExchangeMTA (MTA Service)

◆MSExchangeSA (System Attendant Service)

◆POP3SVC (POP3 Protocol)

Under normal operating conditions, it is not necessary to set logging levels any higher than

minimum, because increasing logging rapidly fills your event log with a great deal of

unnecessary information. When issues arise, you can increase the level of logging to allow

you to diagnose the problem, reducing it again after the issue has been resolved.

The Windows 2000 Resource Kit includes elogdmp.exe, a utility which allows you to

dump the information in any Event Viewer log to a file for analysis elsewhere.

Microsoft Exchange 2000 Operations Guide — Version 1.064

One of the difficulties of viewing event logs is knowing which events are more worrisome

than others. In some cases, Exchange 2000 Server issues Stop events, which record tempo-

rary issues that resolve themselves in the course of time. In other cases it records warning

events, which are indicative of more substantial problems.

In general terms, the errors and warnings that are likely to cause the most problems are

Store errors, because they can affect the ability to access e-mail. 1018 and 1019 errors can

indicate major problems for Exchange, typically caused by faulty hardware. You should

watch for these two explicitly, and for Store errors and warnings in general.

You should also be careful to watch for errors indicating that domain controllers/global

catalog (GC) servers cannot be found. If a GC cannot be found, the store will automati-

cally dismount. Similarly, if the MTA service is temporarily unable to contact a domain

controller, it will shut down. Watching for these errors allows you to diagnose quickly why

services are being lost in the event of a problem.

One of the main problems with event viewing in Exchange 2000 Server is the sheer volume

of information Exchange produces when you increase the logging level. It is often benefi-

cial to use filters in the Event Log to produce only warning and critical events, or to use

utilities that only display the more significant events.

Log Files

As well as logging events to Event Viewer directly, Exchange 2000 Server also produces a

series of log files that can prove useful in troubleshooting problems. The Protocol Logging

tool generates specific information about the commands being sent and received by SMTP

and NNTP.

To enable logging for SMTP or NNTP, select the properties of the appropriate virtual

server and enable logging. You can then alter the logging frequency and the name and

location of the log file.

To enable logging for HTTP on the default Web site, use IIS administrative tools.

Centralized Event Monitoring

As with performance monitoring, monitoring events centrally provides distinct benefits to

many organizations. A number of tools help you to do this efficiently, including Microsoft

Operations Manager, or MOM (formerly NetIQ Operations Manager) and NetIQ

AppManager.

Operations Manager pulls information from a variety of locations, including event logs,

WMI events, SNMP traps, and transaction logs. It consolidates these events from multiple

sources to give you an overall picture of the Exchange 2000 Server environment. You can

script responses to particular events, issuing notifications or taking predefined actions in

response to particular events. One particularly useful feature is the ability to integrate

events with a knowledge base, ensuring that useful explanations and recommended actions

are issued to operators when particular events occur.

Chapter 4: Enterprise Monitoring 65

NetIQ AppManager contains useful features to help with Event monitoring. It detects

whether any servers have written critical error messages to the Event Log and automates

responses to actions, including issuing SNMP traps.

Availability Monitoring

To meet your availability SLAs, you need to ensure that, as much as possible, you protect

against downtime. Because it is impossible to guarantee that there will be no unexpected

downtime in your organization, you need to ensure that you are notified quickly in the

event of unexpected downtime.

Whenever you are monitoring and measuring Exchange 2000 Server availability, it is

important to consider domain controllers as well as servers running Exchange. You may do

all you can to ensure high reliability of servers running Exchange, but they will not have

high availability if there are no domain controllers available for Exchange or the clients to

use. Therefore you should also monitor domain controller/global catalog server availability

as well as network availability.

Monitoring and Status Tool

The monitoring and status tool is available in Exchange System Manager. This tool is used

to monitor Exchange services and perform actions if the services fail. For Exchange to run

as it should, a set of default services should be running. These services are:

◆Microsoft Exchange Information Store Service

◆Microsoft Exchange MTA Stacks

◆Microsoft Exchange Routing Engine

◆Microsoft Exchange System Attendant

◆Simple Mail Transport Protocol

◆World Wide Web Publishing Service

If any of these services are not running, Exchange 2000 logs a critical state warning in

Event Viewer.

Note: The Monitoring and Status tool does not notify you if a store has become dismounted.

To ensure that you are notified of a dismounted store, you will need to use other monitoring

tools such as Prospector. Prospector is available at no charge if you engage Microsoft Consult-

ing Services (MCS). For more information about this tool, contact MCS.

Adding Services to the Default Configuration

You can add additional services to the default Microsoft Exchange services that are

monitored by the Monitoring and Status tool. If any of these additional services fail, they

log a critical state warning, just as the default services do. This is particularly useful if you

Microsoft Exchange 2000 Operations Guide — Version 1.066

have other Exchange services that are vital to the user experience in your environment (for

example, if Instant Messaging is used heavily in your organization).

Monitoring Resources

You can monitor other resources using the Monitoring and Status tool. To do so, click Add

on the Monitoring tab and select the resources you want to monitor. These resources are

monitored to see if they pass two thresholds. Resources that pass the first threshold enter a

“warning” state; those that pass the second threshold enter a “critical” state. The follow-

ing resources can be monitored:

◆Available Virtual Memory – You can set minimum availability thresholds for memory

and a minimum period of time for which available virtual memory must be above a

particular threshold.

◆CPU Utilization – You can set maximum CPU utilization thresholds for the CPU(s) in

your server running Exchange.

◆Free disk space – You can set minimum drivespace thresholds for the disk drives in your

server running Exchange.

◆SMTP queue growth – SMTP queues should not continue to grow. You can issue

notifications if they continue to grow for longer than a specified period of time.

◆X.400 queue growth – X.400 queues should not continue to grow. You can issue

notifications if they continue to grow for longer than a specified period of time.

◆Windows 2000 service – You can add additional Windows 2000 services to monitor.

These services can be added to the default configuration just as you can add other

services.

Although passing these thresholds does not necessarily affect availability directly, you will

often find that your server is close to being unavailable in these circumstances, so it is very

important to monitor them. A good example is free disk space. If you run out of disk space

on the disk containing the transaction logs, the latest transactions will be written to

res1.log and res2.log and the Exchange services will be shut down, resulting in a loss of

availability.

Notifications

When services or resources enter a warning state or a critical state, it is important that

operations staff is notified, so they can react accordingly. The configuration objects in the

Notification Container allow you to determine which server does the monitoring, which

servers, services and resources are being monitored, at what point a notification is being

sent out (at the warning state or the critical state), and what to do in the event of entering

a warning state or a critical state. You can either launch a script, or send an e-mail notifi-

cation.

Note: Be very careful about how you configure e-mail notifications. If you are notifying users of

a failure in the e-mail service, there is a possibility that the notification may never be received.

Chapter 4: Enterprise Monitoring 67

Status

The details pane of the Status container allows you to view the status of servers and

connectors in your organization.

The Status container shows the following server states:

◆Available – This shows that the server is online and all the main services are running

normally.

◆Unreachable – This shows that one of the main services on the server is down.

◆In Maintenance Mode – This shows that monitoring is disabled on this server for

maintenance.

◆Unknown –This shows that the system attendant on the monitoring server cannot

communicate with the monitored server.

When looking at connectors in the Status container, you will see the following possible

states:

◆Available –This shows that the connector is functioning normally.

◆Unavailable –This shows that something is not functioning properly on the connector

and that someone will need to investigate further.

Disabling Server Monitoring

In some circumstances it is necessary to take a server down for scheduled maintenance, or

to rebuild a server that has failed. In cases where you are already aware of the problem,

you can prevent a series of alerts from being issued by choosing the properties of the server

in the Status details pane and selecting Disable all monitoring on this server. When your

maintenance is complete, you can return to this dialog box and clear the option.

Centralized Availability Monitoring

In many environments, it is particularly important to have some sort of centralized avail-

ability monitoring if you are to meet your SLAs. Trend analysis is also very important, so

you can avoid losing availability. In particular, if you monitor and find a degradation in

performance over time, it may be an indicator of impending availability problems.

AppManager from NetIQ has a number of features that assist in availability monitoring. A

lengthy response time in sending and receiving mail to another server running Exchange

may indicate a loss of availability somewhere in the path the message would normally

follow. AppManager also tells you when services are down, when queue lengths are

abnormally high, or when public folders are inactive (perhaps because of a problem with

replication to that folder).

Regardless of whether or not you choose to use AppManager or similar third-party tools in

your organization, you should carefully consider finding a way of gathering information

centrally about your Exchange environment. It is very important that information on

existing or impending availability problems quickly reaches a person who can do some-

thing about it.

Microsoft Exchange 2000 Operations Guide — Version 1.068

Client Monitoring

While it is very important to monitor the availability and performance of servers running

Exchange, domain controllers, and the network, none of these directly cover one critical

area – the experience of the Exchange end user. This area can be very challenging because

your clients can differ greatly. They may be HTTP, POP3, or IMAP4 clients running over

an intranet or the Internet. They could be MAPI clients connecting over an internal

network, or using a VPN to tunnel in. While this makes client monitoring more difficult, it

also makes it more important. After all, the main reason you monitor at the server level is

to ensure better performance and availability for the end users of Exchange. Without

monitoring at the client level, you cannot prove that your improved server performance is

reaching the client. Furthermore, in many cases, you will be required to deliver particular

levels of performance at the client level. You will need to be in a position to prove that you

are meeting the client expectations. Client monitoring tools give you the ability to prove

that you are meeting your target levels of performance and availability.

Monitoring at the client level differs dramatically from monitoring at the server level in

that you will almost certainly not want to monitor all clients. Monitoring affects the

performance of the client, but more significantly, if you monitor all workstations, you will

generate a significant amount of network traffic, which could affect the overall perfor-

mance of Exchange. Furthermore, if a server running Exchange is unavailable, you do not

need to be told this by 5000 clients. Being told by one is usually sufficient.

There are a number of third-party tools on the market for monitoring clients. These tools

generally work by having an agent installed on the client, simulating typical Exchange

client activities (starting up Outlook, performing an address book lookup, accessing public

folders, sending e-mail, and so forth). Agents report to a central management server, which

collates their information and issues reports, notifications, and alerts in the event of

problems.

For more information about how to handle problems when they arise, see Chapter 6,

“Support.”

Think of client monitoring not as something that examines the performance levels of each

client, but rather as something that you use to verify that your server performance and

availability levels are being reflected in appropriate client performance and availability. It

is generally a good idea to ensure that you have at least one agent running per subnet

because this will help you to identify problems at the client due to lack of network connec-

tivity to a server running Exchange or to the domain controller/global catalog server. You

should also have at least one agent running for each type of client. If, for example, the

clients differ in operating system or in the Exchange client software they use, they could be

affected differently, and so should be monitored separately. If you give users some freedom

over the configuration of their computers, it is usually a good idea to run the agent on

computers that users do not directly interact with. (It is important not to confuse a loss of

service on the client due to Exchange 2000 Server issues with loss of service on the client

due to user error.)

Chapter 4: Enterprise Monitoring 69

Summary

It is impossible to operate servers running Exchange efficiently if you do not know what

they are doing. It is very important to ensure that you always have enough information

about your Exchange environment to predict problems and to verify that you are meeting

your service level agreements. However, there is such a thing as too much information.

Servers running Exchange can produce a huge amount of information, much of which is

unnecessary in a healthy Exchange environment. If your monitoring is to be useful and

efficient, you need to ensure that you collate useful data, have an understanding of what it

means, and are prepared to increase or decrease logging levels according to what is re-

quired at that time.

When monitoring Exchange, do not restrict yourself to real-time monitoring. Use recorded

data to perform trend analysis. Doing so allows you to prove that you are meeting your

SLAs and alerts you to potential problems in the future.

In larger scale environments, seriously consider a centralized approach to monitoring. This

helps to ensure that information about problems is available in the data centers where

more expertise is available. It also allows you to compare similar servers running Exchange

for performance and to get a consolidated picture of your Exchange environment.

Protection

Introduction

By its very nature, Exchange 2000 Server has a public face. You will be offering e-mail and

other functionality to a large number of users. In many cases those users will not only be

able to collaborate with other users in their own company, but also with others across the

Internet. This high visibility makes it potentially more subject to attack than other services.

You need to make sure that Exchange is well protected against potential attacks, including

hacking attempts and viruses.

This chapter also examines disaster recovery scenarios. If you are to meet your service level

agreements (SLAs) on availability, you must first ensure that your system is down as

infrequently as possible. This is covered in Chapter 2, “Capacity and Availability Manage-

ment,” but you must also make sure that if you do suffer downtime, it is kept to the bare

minimum required to restore service. Disaster recovery procedures for Exchange 2000 are

detailed in this chapter.

Chapter Start Point

At the start of this chapter, you should be familiar with basic security concepts and differ-

ent types of backup and restore hardware.

Chapter End Point

By the end of this chapter, you should be aware of appropriate measures to take when

guarding against hacker attacks and e-mail bound viruses. You will also be aware of

disaster recovery procedures in the event of a failure.

Microsoft Exchange 2000 Operations Guide — Version 1.072

Chapter Sections

This chapter covers the following procedures:

◆Protection against hacking

◆Anti-virus measures

◆Disaster recovery procedures

◆Recovery testing

◆Backup

◆Restore

Protection Against Hacking

Whenever you consider protecting your organization against malicious attack, it is worth

recalling one of the golden (and most disillusioning) rules of security: the majority of

attacks on a network security come from inside. The reasons for this are obvious. Security

is typically more relaxed on the inside of an organization than on the outside, and employ-

ees generally have far more knowledge of the workings of a company than outsiders.

Security of an e-mail system is extremely important, because of the power associated with

it. Envisage a scenario where an unhappy employee (it is possible that even your company

contains some of these people) manages to gain access to their managers e-mail account.

The unhappy employee then sends various e-mails posing as their manager, authorizing

various decisions that adversely affect the company (and thus their managers position).

To gain access to another person’s e-mail account you need to either log in as that person,

or gain administrative access to Active Directory, allowing you to grant send as and receive

as permissions on the mailbox. (Specifically, you require Account Operator or greater

access on the user object and Exchange administrative permissions on the mailbox itself to

make the changes.)

The problem with the former method of attack is that it is almost impossible for opera-

tions to spot, as the user is successfully logging in as the other party. However, there are

steps you can take. In particular, you should have a method for users to report any unusual

activity with their e-mail accounts, and you should teach the users how to report any such

activity. Typically this would be to notify the help desk. Any reported unusual activity on

e-mail should be treated as a security violation and investigated immediately.

Mailboxes that are being accessed by someone other than the primary mailbox owner are

reported in the Event Log. Wherever possible, you should ensure that you are notified

whenever a security descriptor on a mailbox is chanted. If you are able to also maintain a

list of users who should be able to access each mailbox, then you will be able to compare

any changes against this list. At the very least, you should try and collect Event Log

information that you can consult in the event of a security problem.

Chapter 5: Protection 73

To keep your Exchange Server computers secure, look carefully at group memberships.

One of the most critical groups you should monitor is the Exchange Domain Servers

Group. Any user or computer account that is a member of the Exchange Domain Servers

account has full control of the Exchange Organization, so it is extremely important to

secure membership of this group. You should also ensure that the membership of the Built-

in/Administrators group on the Exchange Server computers is also tightly locked down.

Members of this group automatically have Send As permissions on all mailboxes for that

server. The most efficient way to control membership of these groups is through Group

Policy.

You would also be advised to audit for configuration changes to Exchange. A good change

and configuration management system ensures that no changes are made to the system

which have not been pre-authorized. So, regular checks of your Event Logs (or any other

monitoring system you have chosen) allow you to see if unauthorized changes have been

made.

Your Exchange operations department should ensure that it receives security bulletins from

Microsoft. To receive these bulletins, visit the following Web site:

http://www.microsoft.com/technet/security/notify.asp

In cases where a security breach has been exposed and a new hot fix needs to be applied,

the change should generally be considered urgent and should travel through the change

configuration process accordingly.

One of the best ways of protecting against malicious use of e-mail is to use Key Manage-

ment Server. This allows you to digitally sign and seal messages so that you can determine

if a mail has actually come from the person who claims to send it and that the mail has not

been altered in transit. Of course for this to work, the security of Key Management Server

itself is paramount. Your operations practice should ensure very high security for this

server, controlling very tightly who is in the local groups on the server. A password is used

to start the Key Management Server and this should be kept on a floppy disk, physically

separate from the server after the service has been started.

Of course, you still need to protect your Exchange Server computer against external

attack. The rest of this section examines what you need to consider when you are operat-

ing one or more firewalls in your environment.

Firewall Operations

Exchange can exist in a variety of different firewall configurations. As part of your plan-

ning and deployment you will have chosen how to deploy your firewall solutions around

Exchange. Possible deployments could include a single firewall in front of servers running

Exchange, to multiple firewalls in front of and behind front-end servers.

Firewall configuration is typically rather complex, so it is very important that operations

personnel have a good idea as to exactly how firewalls are configured within their organi-

zation, what they should keep out and what they should let in, when they are correctly

Microsoft Exchange 2000 Operations Guide — Version 1.074

operating. In a multi-firewall environment, the firewalls are generally manufactured by a

number of different vendors, which can make management issues even more complex.

The responsibilities of the operations department in these circumstances will include the

following:

◆Ensuring that the firewalls continue to operate properly, implementing authorized

changes, and ensuring that there no unintended effects of authorized changes

◆Ensuring that firewalls only admit the traffic they are supposed to

◆Monitoring to detect hacker intrusion

◆Managing security breaches

Maintaining Firewall Availability

Unless your firewall(s) are up and running properly you will be unable to exchange e-mail

messages with the outside world. You should therefore place high importance on maintain-

ing the availability of your firewalls. Monitor your firewall availability just as you would

monitor the servers running Exchange and ensure that in the event of a failure, notifica-

tions are sent to the appropriate parties.

Typically when an Exchange Server computer sends messages via Simple Mail Transfer

Protocol (SMTP), it actually drops the e-mail message at the firewall, which in turn

forwards it to an external SMTP server. This means that, as far as Exchange is concerned,

the message is delivered the moment it is sent to the firewall. So, if the firewall fails,

Exchange does not detect this as a problem and reroutes messages accordingly. If a firewall

is down for any period of time, you must manually alter the configuration of your environ-

ment to make sure that messages route to other firewalls (this typically involves altering

the configuration of the SMTP Gateway on the affected route). Make sure that you plan

for firewall failure through training, exercises, and drills so you can recover your environ-

ment quickly.

Ensuring That Only the Correct Traffic Passes Through the Firewall

Your firewall is only secure if it remains configured as it should be over time. A typical

configuration of Exchange is to use front-end servers and have them sitting on a screened

subnet with one firewall in front and one behind them, protecting the back-end servers.

For example, envisage a situation where you use a front-end server for Outlook Web

Access, which you perform over a Secure Sockets Layer (SSL) connection. Table 5.1 shows

which ports need to be let through each firewall. (This scenario does not deal with outgo-

ing SMTP mail):

Table 5.1 Port-to-Firewall Configuration Example

Source Destination Service Protocol and port

Internet/External Screened Subnet HTTPS TCP 443

Screened Subnet Internal/Private Network DNS TCP, UDP 53

Chapter 5: Protection 75

Source Destination Service Protocol and port

Screened Subnet Internal/Private Network HTTP TCP 80

Screened Subnet Internal/Private Network RPC EP Mapper TCP 135

Screened Subnet Internal/Private Network KERBEROS TCP UDP 88

Screened Subnet Internal/Private Network LDAP TCP 389

Screened Subnet Internal/Private Network NETLOGON TCP 445

Screened Subnet Internal/Private Network DSAccess (GC) TCP 3268

Screened Subnet Internal/Private Network TCP High Ports TCP 1024+

You should regularly check your firewalls to ensure that the settings have not been altered

to allow traffic that should not pass. The outside firewall should only be allowing traffic

on port 443 specifically to the front-end servers, and only these front-end servers should be

allowed to communicate with the back-end servers on the ports you have defined. You

may also want to perform network monitoring to monitor the nature of the traffic that

goes through the firewall.

Monitoring Against Hacker Intrusion

No matter how good your firewall setup is, there is still a risk that a hacker may manage

to infiltrate it. You should ensure that you have a good intrusion detection system in place

to notify you of any firewall breach, and you should make sure that you always have the

ability to shut down services if necessary.

Dealing With Security Breaches

In the event of security breach, your priority should be to protect the system. In the

majority of corporate e-mail systems, the stores will contain extremely sensitive informa-

tion and should be protected. This means that, in the case of a security risk, the initial

response may be to prevent access to the internal network from the outside world. Pro-

vided you manage to catch the intrusion early enough, you will still in most cases be able

to allow internal mail to flow.

Once you have contained the breach, you should inform firewall vendors and/or Microsoft

about the nature of the breach, so that they can come up with a fix. At this point you can

revert the system to its state prior to the breach and apply the fixes supplied.

Anti-Virus Measures

As part of your planning and deployment of Exchange 2000, you will have put in place

appropriate measures against virus attack. However, regardless of how much protection

you put in place, it is quite possible that viruses may affect Exchange. It is therefore very

important that you have measures to deal with this possibility.

Microsoft Exchange 2000 Operations Guide — Version 1.076

You are likely to be protecting against viruses at several levels. These may include at the

firewall level, outside or at the SMTP Gateway, at each Exchange Server and at the client

level. You should of course bear in mind that non e-mail bound viruses can affect Ex-

change, so all your servers running Exchange should be protected against viruses in the

same way that clients are.

Virus scanning at the gateway means scanning each inbound message (and perhaps all

outbound messages as well) to detect and clean any infected content. Several vendors

provide such software. The neatest technical solution is to use an anti-virus product that

integrates as an SMTP event sink. Some vendors do not integrate with the SMTP engine

and require the use of the vendor’s proprietary SMTP engine. These solutions can work

very well, but troubleshooting an additional type of SMTP engine adds complexity to your

troubleshooting procedures.

Like gateway virus scanning, a number of vendors provide Exchange Server scanning

software. These products scan and disinfect content at the Exchange server and come in

one of two varieties:

Scanning software based on the Anti Virus API (AVAPI V2.0). This kind of anti-virus

software scans and disinfects virus-laden content before it is added to the Exchange

information store.

Scanning software that uses undocumented Exchange store interfaces. These products

generally work well, but there is additional support risk in using these products because

they use an unsupported interface. If there is a store-related incident on a server with this

product, Microsoft Product Support Services (PSS) will recommend that the anti-virus

software be disabled early in troubleshooting.

Both gateway-based and information store-based scanning products should provide an

automated mechanism for updating the virus scanning patterns. Having timely updates is

the best way to ensure that your Exchange implementation remains free of new nasty

viruses. Additionally, some scanning products offer the optional use of more than one

scanning engine, further increasing the likelihood of catching a virus before it infects your

systems.

As part of your operations you must ensure the following:

◆The virus protection is completely up to date at all levels.

◆You have defined procedures in the event of a virus infection.

◆You have a mechanism for handling attachments that pose a virus risk.

Staying Current

New viruses are constantly emerging, and they have the potential to spread worldwide

within a period of hours. If you are not fully up to date in your protection, then you run a

real risk of viruses infecting your organization. Your operations procedure should ensure

that all areas where you scan for viruses are fully up to date. You must make sure that you

receive regular security updates from your anti-virus vendors.

Chapter 5: Protection 77

In some cases you will receive a warning about a new virus before an update to your anti-

virus software is proposed. The first thing to do here is to verify that the virus is genuine.

Many problems are in fact caused by hoax virus notifications. Ensure that the virus is a

genuine problem by checking with your anti-virus vendors. After you have verified that the

virus is indeed a genuine threat, you should notify users so they know what to do if they

receive e-mail messages that may contain the virus. You should have a pre-defined mecha-

nism that the user base is fully aware of as to how they should report any suspected

viruses. As a short term measure for dealing with this eventuality, most anti-virus software

will allow you to block messages with particular subject lines or from particular sources.

This can act as a blocking mechanism until you receive an update for your anti-virus

software.

Dealing With Virus Infection

Assuming the worst does happen, and you are infected with a virus, the steps you take

next are extremely important. You should of course issue an advisory to the user commu-

nity, so that they know what to do if they receive the virus. You should also notify any

partners that you regularly associate with, along with the anti-virus vendors themselves.

Your biggest threat in spreading viruses is the user community, who are, incidentally, your

best weapon in defending against the viruses after they have attacked. It is vital that you

find a way of communicating with all users, in such a way that all are likely to listen and

take notice. If there is a new virus threat, you should e-mail a high-priority message to the

users detailing the threat and the recommended action. Make sure that the subject line of

the message prominently displays the nature of the threat. You should also advertise the

problem prominently on your intranet and use any real-time notification system you have

to notify the users, such as voicemail or public address systems. You should even consider

having a mechanism in place for putting posters at public parts of your building, for

example receptions and elevators. If the users know what to do when they receive a

particular message, you can severely restrict the flow of the messages within and outside

your organization.

After you have notified the relevant parties, you must do all you can to ensure that the

virus does not spread. If a fix is not yet available, in a worse case scenario, this could

involve restricting the flow of e-mail within your organization and outside of it (i.e.

disabling connectors and possibly network connections).

As soon as a fix is available, you must have a mechanism for deploying updates from each

of the virus vendors. In some cases, you may use the e-mail system as a means of distribut-

ing hot fixes to local administrators, but in this case, you must have an alternative mecha-

nism, because it is possible that you have had to shut down e-mail communication between

servers to prevent the virus from spreading.

Microsoft Exchange 2000 Operations Guide — Version 1.078

Blocking Attachments at the Client

One of the best ways of protecting against virus infection is to block particular attach-

ments from running. Attachments may be blocked at the server level, but they may also be

blocked at the client. You can install a security patch on Microsoft Outlook 98 and

Outlook 2000. This patch is built into Outlook 2000 Service Release 2 and Outlook 2002

(a component of Microsoft Office XP). The effect of this to prevent certain attachments

from running directly from the client (instead they must be saved first) and to prevent

other attachments (those considered more dangerous) from being downloaded at all.

Table 5.2 shows the attachments that are prevented from running.

Table 5.2 File Extensions and File Types

File Extension File Type

.ade Microsoft Access project extension

.adp Microsoft Access project

.bas Microsoft Visual Basic class module

.bat Batch file

.chm Compiled HTML help file

.cmd Microsoft Windows NT command script

.com Microsoft MS-DOS program

.cpl Control Panel extension

.crt Security certificate

.exe Executable

.hlp Help file

.hta HTML program

.inf Setup information

.ins Internet naming service

.isp Internet communication settings

.js Javascript file

.jse Javascript encoded script file

.lnk Shortcut

.mdb Microsoft Access program

.mde Microsoft Access MDE database

.msc Microsoft Common Console document

.msi Microsoft Windows Installer package

Chapter 5: Protection 79

File Extension File Type

.msp Microsoft Windows Installer patch

.mst Microsoft Visual Test source files

.pcd Photo CD image, Microsoft Visual compiled script

.pif Shortcut to MS-DOS programs

.reg Registration entries

.scr Screen saver

.sct Windows script component

.shb Shell Scrap object

.shs Shell Scrap object

.url Internet shortcut

.vb VBscript file

.vbe VBscript encoded script file

.vbs VBscript file

Note: Not all attachments considered to be dangerous are blocked by this patch. For example,

the Microsoft Access file types .mda and .mdz are not blocked, nor are zipped versions of any

of the above files.

It is good practice to quarantine all suspect content, where it can be examined individually

before deciding whether it can be safely passed on or not.

While this security patch can be useful in preventing the use of unauthorized attachments,

it is important to remember that for it to work across the user community, it depends on

everyone using a client with the patch. Therefore, to be fully protected you would need to

ensure not only that MAPI clients each contained the patch, but also prevent access via

POP3, IMAP4, or HTTP.

For more information about the Outlook Security Patch, see the knowledge base article

Q262631.

Many organizations prohibit the receipt of scripts written in Microsoft Visual Basic®

Scripting Edition (VBScripts) through e-mail. If you choose to do this, it will not prohibit

those who want to receive and run VBScripts from doing so, for they can simply ask the

sender to use a different file extension and then change it back to .vbs on arrival. It will,

however, prevent the running of VBScripts that have not been pre-arranged. If you wish to

go further in preventing the effects of VBScripts, you will need to prevent them from

running at the client at all.

Again, the best way of dealing with the threat of attachments is to educate the user

community.

Microsoft Exchange 2000 Operations Guide — Version 1.080

Disaster Recovery Procedures

Chapter 2, “Capacity and Availability Management,” examined ways of minimizing

system failures. As mentioned there, to reduce overall downtime you need to look at how

frequently a system is down, alongside how long it takes to bring a system back up again.

For more information on Availability Management, refer to Chapter 2.

It makes no sense to have a sound, well-exercised backup strategy unless it’s matched with

a similarly mature recovery strategy. Backups are meaningless if you can’t restore service

using them.

Exactly how you perform disaster recovery will depend on how much money you are

willing to spend alongside which backup products you want to use. Third parties offer a

variety of solutions, including mailbox level backup, and even message level backup in

some cases. Another alternative is real-time byte level replication. You will find a list of

third party vendors offering backup solutions for Exchange 2000 at the following Web

site:

http://www.microsoft.com/exchange/thirdparty/E2Ksolutions.htm#backup

Whichever tools you use, the Operations Manager will need to ensure that the disaster

recovery procedures meet the following criteria:

◆Backup is performed regularly and reliably.

◆Your data is protected against fire/theft/natural disaster.

◆Recovery can be performed reliably and quickly.

◆You regularly do test restorations on an offline server to ensure that backups are being

correctly created.

◆You regularly run disaster recovery drills to keep skill levels high and ensure that your

recovery procedures are up to date.

Backing Up

The rest of this section assumes that you are using Windows NT Backup as your backup

and restore software. However, much of the information contained here is relevant which-

ever backup solution you choose to adopt.

One of the major considerations when performing a backup is how long it will take. When

performing an online backup of stores on your servers running Exchange, you suspend

other online maintenance activities. Therefore, to allow appropriate time for the other

online maintenance activities to occur each night, you need to minimize the length of time

backup takes. Also, if it takes a long time to back up these servers, it will almost certainly

take a long time to restore them, and to meet your SLAs you will want to keep your

recovery times to a minimum.

Chapter 5: Protection 81

Your servers running Exchange will potentially consist of multiple stores and storage

groups. When backing up stores online, your backup utility will ensure that the appropri-

ate .stm, .edb and .log files are backed up. Although you can back up stores individually,

you should back up storage group by storage group. Each store within a storage group is

backed up in series, one immediately after the other. You therefore need to size your stores

to ensure that you can back up all of the stores in a storage group within the backup

window you have defined. By contrast, you can back up your storage groups in parallel, so

if you do this, you will not necessarily add to the length of time your backup takes.

One of the best ways of minimizing your backup time is to back up to disk rather than to

tape. You should then perform a file backup of the resulting files to an offsite location.

Typically these files would be backed up to disk, and multiple copies of the disks made in

separate locations. Backing up to disk also has the benefit of ensuring that your restore

times are quicker if your disk backup is available at restore time.

Another way of reducing backup times is to perform incremental and/or differential

backups. However, wherever possible you should not perform these, because they are likely

to increase restore time, and keeping restore times to a minimum is critical in meeting

SLAs.

The Operations Manager must ensure that the backups are safely stored in locations that

are well protected from natural disaster, fire, and theft.

Note: Think carefully about the offsite storage location you choose. In particular, you may

encounter legal difficulties if you choose to store data in another country. Some Exchange data

(such as Outlook contacts) are considered private data and may be covered under data

protection acts of certain countries.

To make sure you have full recovery of your server running Exchange, it is not enough to

simply back up the stores and log files. Exchange is unusable without Active Directory, so

you must ensure that Active Directory is being backed up properly, even if the backup itself

is not part of your remit.

In Exchange System Manager, when you make configuration changes for a server in the

Protocols container, most of those changes are written to the Microsoft Internet Informa-

tion Services (IIS) metabase (some of the same information is also kept in Active Direc-

tory.) So as well as backing up Active Directory, you should also back up the IIS metabase

successfully.

Back up the metabase by using the Internet Service Manager Microsoft Management

Console (MMC) snap-in will simply back up the metabase.bin files. However, you will also

need metabase and installation-specific security keys to allow you to start the metabase

upon restore. These are backed up when you back up the system state of the server.

Microsoft Exchange 2000 Operations Guide — Version 1.082

The metabase changes frequently during routine Exchange operations, so you should back

up your metabase as often as you back up your server running Exchange. Successful

backup of the metabase will prevent you from having to reconfigure settings when restor-

ing the server.

If you are making use of the Key Management Service (KMS) functionality in Exchange to

give you secure e-mail, it is absolutely vital that you successfully back up the right compo-

nents. If you do not, you could end up losing mail across your entire enterprise. You will

need to ensure that the following components are backed up:

◆Certification Authority (CA) certificates for each of your CA servers

◆The passwords protecting the CA certificates

◆The KMS database itself

You will also need to ensure that the KMS database startup password is kept in a secure

location.

If Exchange 2000 is co-existing with Microsoft Exchange Server 5.5, you may also want to

back up the Site Replication Service (SRS). However, this is not essential, and is beyond the

scope of this guide.

Finally, you must ensure that you have a complete record of the setup of each of your

servers running Exchange. This will allow you to configure similar hardware specifications

for similar servers. All of this information would normally be present in the Configuration

Management Database. For more information about change and configuration manage-

ment, see Chapter 3.

Offline Backup

As well as an online backup of Exchange, it may be appropriate under some circumstances

to take an offline backup. An offline backup is not always possible in many production

environments, because taking databases offline affects whether you can meet your service

level agreements. However, where they can be performed, offline backups provide a useful

alternative method for restoring an Exchange server if an online backup does not work as

it should.

Each Exchange 2000 store consists of an .edb file and an .stm file. With up to 20 stores,

public and private, on a server, you need to back up, up to 40 files per server. When you

shut down the information store correctly, all the log file information is written to the

corresponding .edb and .stm databases, so you do not need to back up the log files when

backing up offline.

Disk Imaging

You may want to consider taking a disk image of the server immediately prior to installing

Exchange on it. This will allow a recovery server to be built very quickly with all the

appropriate settings in the event of a complete server failure.

Chapter 5: Protection 83

Restoring

To ensure a swift restore of Exchange 2000, you will need the following items:

◆Available Hardware.

◆Microsoft Windows 2000 Server and Exchange 2000 Server software, plus any appro-

priate service packs and hot fixes.

◆Any other required Microsoft or third-party software.

◆Full drive backups of the system drives and other logical drives where critical applica-

tions or data are installed.

◆System state backups.

◆Exchange database backups. Along with backups of the information store database,

you may also need backups of ancillary databases such as the SRS databases and KMS

databases.

There are obviously different levels of restore which you may have to perform, varying

from recovering single messages to recovering the Exchange Configuration Database (in

other words recovering Active Directory).

Recovering Individual Messages

Exchange 2000 has a setting to allow deleted item retention time. By default, this is set to

zero. The easiest way of allowing the recovery of individual messages is to increase this

value. While there is backup software available offering individual message recovery, you

may be advised to set a uniform value for mail item retention time and offer that value as

your SLA on message-level retention.

Recovering Lost Mailboxes

Exchange 2000 also has a setting to allow deleted mailbox retention time. The default for

this is set at 30 days (although the policy default is set to zero). When you delete an

Exchange 2000 mailbox, the mailbox contents are no longer immediately deleted from the

information store database. Instead they are preserved for the time you have defined.

During the time that the deleted mailbox is on the disconnected list, you can connect that

mailbox to another user.

To connect an Exchange 2000 mailbox to another user:

1. Start Exchange System Manager.

2. Locate the database that contains the disconnected mailbox, and then click the Mail-

boxes object for the database.

3. If the mailbox is not already marked as disconnected, right-click the Mailboxes object,

and then force the Mailbox Cleanup Agent to run by clicking Run Cleanup Agent.

4. Right-click the disconnected mailbox, and then click Reconnect. A dialog box is

displayed in which you can choose the new mailbox owner.

Microsoft Exchange 2000 Operations Guide — Version 1.084

Once again, you would be advised to define your SLAs so that mailbox recovery is not

possible outside the period of time you specified in the Administrator program. While

mailbox recovery is possible outside of this time span, dependent upon your backup

software, you may have to restore an entire Exchange database to a server in a different

Windows 2000 forest to get the appropriate missing mailbox.

Recovering Exchange Stores and Storage Groups

In this scenario, there has been a problem with the database, for example a corruption in

one of the databases and you need to restore them from backup. The rest of your environ-

ment has not been affected.

Before doing anything else here, if you are recovering from tape, you should ensure that

you have made copies of your existing database files. It may be that when you have

recovered from tape, you discover that the tape is bad. You may be able to recover the files

that you archived by using troubleshooting techniques, even though the database has a

problem. If you always make sure that you never let your database drive become more

than half full, then you can quickly save a copy of a database that “crashes” on the same

logical drive, dramatically decreasing the time it takes to copy the files, and therefore your

recovery time.

When you come to do the restore, you will need to ensure that the information store

service is started, and the databases you want to restore are dismounted. You will need to

select a temporary folder for the restore. This will contain restored log and patch files,

alongside restore.env, a binary file which ensures that the log and patch files are replayed

properly at the end of the restore.

Assuming you are recovering a full backup (as opposed to incremental or differential) you

should ensure that you select the Last Restore Set in the backup set. This ensures that the

log files and patch files are replayed after the restore, taking you more or less to the point

of failure. You will not be able to mount the databases unless the last restore set option is

checked, so if you forget to do this, you will either have to run the restore again, or use

Eseutil to specify that it is the last restore set.

If you are restoring multiple storage groups simultaneously, you must specify a different

temporary folder for each one. This ensures that the different restore.envs do not overwrite

one another.

Restoring an offline backup is not generally recommended because it does not allow you to

roll forward to the current status. However, it can be useful in a situation where a restore

from an online backup has failed. The important thing to realize here is that the .edb and

.stm files should be regarded as one and restored together in the same directory. Also,

when performing the restore, you should delete all log and database files on the recovery

server before copying over the new ones. The recovery server will create its own new log

files when you start the services up again.

Chapter 5: Protection 85

Full Exchange Server Recovery

In any area where a server running Exchange is liable to fail, you will need hardware to

perform the restore. Lack of redundant hardware can often be the most significant factor

in downtime resulting from a full server failure. If you standardize your hardware for each

Exchange 2000 server role, you can significantly reduce the number of standby Exchange

2000 computers required, and make recovery more of a standard procedure. In most cases

the standby servers will need to be physically located at the data centers, so reducing the

number of data centers can also reduce the amount of redundant hardware required to

ensure fast recovery time.

Even if your Exchange Server computer suffers a catastrophic hardware failure, you

should not lose the majority of its configuration information because this is stored in

Active Directory and Active Directory will be available on many other servers.

You will need to ensure that you can quickly build the server to a point where you can

put Exchange on to it. This means that the server will need to be running the version of

Windows 2000 that Exchange was previously running on, have the same name and be a

member of the same domain that the previous server was. One of the fastest ways of

achieving this is to use disk imaging (as mentioned in a previous section).

After you have done this, it is not enough to simply re-install Exchange. This would

fail, because the Exchange configuration information is already in Active Directory and

a reinstall would try (and fail) to overwrite it. So instead, you should run setup with

the /disasterrecovery switch. This switch assumes that the configuration information for

Exchange is already in place and just installs the program files and registry settings. It

searches Active Directory for information about the Exchange Server Object and reconfi-

gures local settings according to what it finds.

When running the /disasterrecovery switch, it is important to ensure that you are aware

of which components are installed on the system, because you need to explicitly state these

when performing the recovery. This information should be in your Configuration Manage-

ment database, but it will also be visible, of course, under the server object in Active

Directory.

After you have recovered the Exchange Server, it will then be a matter of recovering stores

(as described earlier), recovering the IIS metabase and potentially recovering the SRS,

KMS, and CA databases.

Recovering Exchange After Active Directory Failure

One of your main concerns in operations should be to ensure that this never happens.

As you will have already noticed, Exchange 2000 is completely dependent on Active Direc-

tory. If you are to fully protect your Exchange environment, you should do all you can to

ensure that Active Directory is as resilient as possible.

Microsoft Exchange 2000 Operations Guide — Version 1.086

However, this does not mean that an Active Directory failure makes Exchange 2000

completely unusable. You should be able to recover an Exchange Organization, pro-

vided you have access to information about the Exchange configuration, including the

Exchange storage group and store names for each server, plus a key item, known as the

legacyExchangeDN attribute for each administrative group. Although this attribute is

designed to allow servers running Exchange 5.5 and Exchange 2000 to communicate with

one another, the attribute is used by all servers running Exchange, and the legacyExchangeDN

of the server must match that of its administrative group. It is worth noting however that

this procedure across an enterprise will cost a huge amount of time, pain and money and

should be avoided if at all possible.

Alternate Server Recovery

You may wish to perform alternate server recovery for a number of reasons. One of the

most common is that you need to perform some sort of database maintenance and you

want to check that the maintenance will not cause any problems with the database (you

should note however, that unless the hardware of the alternate server is identical, you

cannot guarantee that the same results will occur in the live environment). Another reason

for alternate server recovery is to recover a mailbox that has expired from the Exchange

Server.

Alternate server recovery is like rebuilding Exchange when you have lost Active Directory

except on a much smaller scale. If you are recovering Exchange stores onto another server

while the original server exists, the second server must be in a separate Windows 2000

forest. You will need to know the storage group and database names on the original server

and the legacyExchangeDN of the administrative group the server belongs to.

You may end up performing alternate server recovery quite regularly. For example, you

may undergo this process and then perform offline defragmentation of the database. If the

offline defragmentation produces significant reduction in the database size, you could then

take the production server offline to defragment it (depending on the terms of your SLA).

If alternate server recovery is a regular part of your operations routine (and it probably

should be, as discussed in the next section), you should have a separate Windows 2000

forest set up permanently. This forest would contain administrative groups with all the

correct legacyExchangeDNs already set up, preventing you from having to recreate it each

time you did the alternate server restore.

Recovery Testing

The key to reducing downtime during a restore procedure is to assume that system failure

will happen and that you are fully prepared for it when it does. This involves having

hardware, software, and backup sets available. It also involves having staff trained in

restore procedures available at all times.

Chapter 5: Protection 87

In training your staff, you should note that restoring to another online server while the

first is online is a very difficult procedure to the majority of disaster recovery procedures,

because you have to recover to a different forest under those circumstances. The best way

to simulate the type of restore you may have to perform in an emergency is using a test

network that is completely separate from the main network. This allows you to simulate

anything from failures of stores, to total hardware failures of servers and learn what to do

under those circumstances.

However, this does not mean you should not perform alternate server restores. These

restores tell us other information, such as the fact that the backup software/tapes/storage

procedures are working properly, and that a particular live database can be backed up and

restored with no hitches. After all, there is no point in having highly trained staff to do a

restore if the restores themselves will fail because of faulty tapes. You should ensure that

every one of your databases has been restored to an alternate server at least once every six

months.

The Operations Manager should be responsible for ensuring that the organization is fully

prepared for disaster recovery. This involves regular restores being performed for each

Exchange server and each backup device, by the staff who would be involved in restores

when they are actively required.

Summary

In an ideal world, Exchange would never suffer problems. However, we live in a world of

very diverse hardware and software, viruses and hackers, so it is inevitable that sometimes

you are going to run into difficulties with your Exchange configuration.

As you have seen here, to help you meet your SLAs it is vital to minimize the recovery time

in the event of a failure. However, in some cases it is very important that you shut down

services to protect the system, even though this will affect the availability measurement

defined in your SLA.

To protect operations against the unforeseen it is important to factor in unusual circum-

stances in your service level agreements. For example you may have established that you

have such resilient hardware and such efficient restore technology that you are able to

achieve 99.998 percent uptime in your organization (around 10 minutes downtime across

your organization per year). However, if a new virus hits your company because the anti-

virus vendor hasn’t informed you about it, then you may end up having to shut down

Exchange services just to prevent more damage. You can deal with this eventuality in two

ways. Either you can take a risk assessment on the effect of such unforeseen circumstances

and reduce the SLA accordingly, or you can simply modify the SLA so it states that if the

corporation is victim to an unforeseen hacker attack or virus attack and you are able to

show that you used your best efforts to combat the problem, then this downtime will not

count against the service level agreement.

Support

Introduction

The more you can do with a product, the more you can do wrong. Exchange 2000 Server

is an extremely diverse and complex product. If you use Exchange to its full potential, you

will be exposing more functionality to your users than ever before, thus creating more and

tougher challenges for the support environment than ever before.

To offer effective support to an Exchange 2000 Server environment, you first need to

define what is being supported. There are two broad categories of support:

◆End user support

◆Server support

In this chapter, you will learn how to create an effective support environment for dealing

with both end-user issues and server problems.

Chapter Sections

This chapter covers the following procedures:

◆Service desk support

◆Problem management

◆Troubleshooting

At the end of this chapter you will be able to ensure that your environment provides

appropriate support for users and administrators of Exchange 2000 Server.

Microsoft Exchange 2000 Operations Guide — Version 1.090

Providing Support for End Users

It is likely that almost everyone in your organization will be an e-mail user. All of those

users may require support at some point in time. In most environments, it is critical to

maintain service as much as possible to all users. A single user without e-mail may cost the

organization large amounts of money and present the organization in a bad light to any

outsiders who want to e-mail that user.

Your Exchange 2000 Server environment may be one of the most complicated and diverse

of your IT infrastructure. You may have a wide range of different clients, including the

following:

◆MAPI clients (Exchange Client, Outlook 97 , Outlook 98, Outlook 2000, and Outlook

2002)

◆POP3/IMAP4 clients (Outlook, Outlook Express, Netscape Communicator, Eudora,

and so on)

◆HTTP clients (Microsoft Internet Explorer, Netscape Communicator, and so on) for

Outlook Web Access (OWA)

◆Instant messaging client

◆Conferencing server clients (Net Meeting and others)

End users may have a number of different uses for a client. Internet Explorer can be used

for OWA or alongside Net Meeting for video conferencing. Outlook XP can be used as a

MAPI client, but also as a POP3, IMAP4, or HTTP client. In many cases it will be used

with custom forms, or have extra third-party functionality built into it (for example, the

ability to read faxes or listen to voicemail). Not only that, but your client base may be

inside or outside a firewall, on the road on laptops, accessing Exchange via dial-up lines or

via the Internet. The number of combinations is enormous.

Ironically, the very complexity of the client base is actually of benefit when trying to

maintain service to users. For example, users having problems with their Outlook client

should still be able to send and receive mail from their computer using Internet Explorer

and OWA as their client. This allows you to maintain service to the users while investigat-

ing their problem.

Reducing End User Support Costs

The following are some reasons users could require support:

◆User error

◆Client software problems

◆Client hardware problems

◆Client connectivity problems (for example, to a server running Exchange or domain

controller)

◆Server software problems (servers running Exchange or domain controllers)

Chapter 6: Support 91

◆Server hardware problems (servers running Exchange or domain controllers)

◆Server connectivity problems (to domain controllers, other servers running Exchange or

the Internet)

Educating your users is one of the key ways to reduce support costs. If users know how to

use their clients efficiently and effectively, they will need to contact the Service Desk much

less frequently. This results in fewer Service Desk incidents and reduced costs.

In the other areas, the main way of reducing costs is to ensure that the problems occur less

frequently in the first place, and that they are resolved quickly when they do occur. This is

covered in detail in the other chapters of this guide.

A best practice for reducing the cost of user support is to provide a Web site containing

help information that is accessible to all messaging users. There are significant cost savings

any time users can obtain the information they need without assistance from the Service

Desk. The following are some examples of the type of information that might be included

in the Web site:

◆Assistance for creating and managing mailboxes

◆How-to guides for client configuration (according to your standards) and for resolving

common connectivity problems

◆Answers to frequently asked questions

◆Workarounds for known problems (related to the problem-management process

discussed later in this chapter)

◆Links to other online help information (internal or external)

◆Server status and instructions for determining a user’s mailbox server

◆Information about current incidents that affect more than one user. This will reduce the

number of calls that tend to flood Service Desks when there is a major incident. A good

example is when you’ve disabled parts of the system to scan for and remove virus-

infected messages and/or attachments.

Even in the best of environments, you will still need to resolve end-user problems on

occasion. If you are going to deal with client-support issues effectively, you will need to

make sure that you clearly define which clients are supported and in what configuration

they are supported. Your change and configuration management strategy should include a

complete record of your client base. You can use Windows 2000 Group Policy and/or

Systems Management Server to ensure that workstation configuration is controlled and

that the Change Management Database (CMDB) remains accurate.

Note: It is important to periodically audit the CMDB to ensure that it reflects your inventory.

If you are dealing with clients outside the company firewall, it is much more difficult to

have tight control over the configuration. You can, however, minimize support costs by

insisting that only certain clients are supported. For example, you may choose to support

Outlook Express as a POP3 client, but not Eudora. You can also choose to minimize the

Microsoft Exchange 2000 Operations Guide — Version 1.092

number of protocols supported. For example, you may choose to only support OWA as the

means of access outside the firewall.

Not all of these problems are necessarily client issues. End users will be directly affected by

problems at the server level. The main difference is that client issues generally affect small

numbers of users, whereas server issues normally affect larger numbers of users.

Whatever the end-user support issue is, an effective support team will ensure the following:

◆Problems can be reported easily

◆End users are notified quickly that their problem is being investigated and are kept

informed of the status of their problem

◆Problems are resolved as quickly and efficiently as possible

The result of all this should be to ensure that service is restored as soon as possible in

accordance with the SLA.

Problem Reporting

Problems will typically be reported in one of two ways: as a result of your extensive

monitoring (see Chapter 5), you may receive alerts that warn you of a problem; or a user

may report a problem.

The sooner you can receive an accurate report of a problem from a user, the earlier you

can begin to solve that problem before it becomes an issue for the organization at large.

You may want to consider using Exchange itself as the basis for your Service Desk applica-

tion. You could create a custom form for Service Desk requests, which would be routed to

a public folder. The Service Desk staff would examine these requests as they came in and

either reroute them or deal with them. As the requests are being dealt with, further infor-

mation could be added to the form. Then, when the request is resolved, this information

could be routed to a second public folder and could form the basis of your internal knowl-

edge base.

Note: There is risk to using Exchange Server as the basis for your helpdesk application, as a

widespread Exchange outage will affect your ability to resolve problems.

Of course, you must not use the e-mail system as your only means of receiving user notifica-

tion of e-mail problems! Ensure that there is a telephone support line which can be used as

an alternative method of reporting problems. If you have a support-related web site, consider

adding a problem reporting page.

Chapter 6: Support 93

Dealing with User Problems

You must have a mechanism for dealing with user problems once they are reported. The

first step in this process is to determine the scope of the problem. In doing so, you should

consider the following:

◆How many users are affected by the problem? (Does it affect a single user, all users on a

server, all users in a region, and so on?

◆How critical is the problem? (Does it prevent users from using all e-mail? Can they use

another client to send e-mail? Is just calendar functionality affected?)

This information will help you to prioritize the problem. For example, as a general rule, if

one user cannot use Outlook e-mail (but can use other forms of e-mail clients), this would

be a lower priority than if an entire region were unable to access their mailboxes. Other

factors also affect the prioritizing of the problem. For example, if the CEO of a corpora-

tion is unable to access e-mail, that may be more important than the entire Milwaukee

office not being able to do so.

Once the problem has been prioritized, you will need to gather more information about the

nature of the problem to determine how it is dealt with. If you have an up-to-date Change

and Configuration Management Database and tight control over the client base, you should

be fully aware of the client configuration when a problem is reported. This is often critical

in resolving Exchange issues swiftly. The Service Desk may be able to resolve the problem

themselves, or they may need to escalate the problem further.

Notifying Users

Once you are aware of a problem, it is important to make sure that the end users are

informed of the continuing status of the problem.

Exactly how you do this depends on the nature of the problem. For example, if there is a

problem with a server running Exchange being unavailable, using e-mail to notify users is

pointless. You would generally post this kind of information on the corporate intranet. If,

however, the problem is with public folders being unavailable to users on a particular

server, it may be more appropriate to send an e-mail to all users affected, and then send

another e-mail when the problem has been resolved.

Note: Generally you should be cautious about notifying users of problems via e-mail. E-mail

notification can lead to floods of phone calls from users that would otherwise be unaffected by

the issue.

Microsoft Exchange 2000 Operations Guide — Version 1.094

If individual users have problems, it is generally inappropriate to post update information

to the intranet. In those circumstances, you should contact the user directly. If the user’s

e-mail client is unavailable, call or send an instant message. However, if only one e-mail

client is unavailable, you could remind your users that they can use other clients to access

mail. You will then be able to use e-mail to notify them of progress with their problem.

Regardless of the scope of the problem, you will need to ensure that the initial response to

the user community is quick. This ensures that they are aware that their problem is being

dealt with and when they can expect a solution (even if at this stage, the time to a solution

is unknown). You should define in your SLA an initial response time to Service Desk

queries.

Exchange Problem Management

While the Service Desk should resolve all reported incidents associated with known

problems, the role of problem management is to determine the root cause of unresolved

incidents. As problem management identifies and corrects the underlying causes of prob-

lems, it should ensure that the same problems do not occur repeatedly.

One of the most complicated things about Exchange problem management is that messag-

ing as an IT service is dependent on a large number of non-messaging technologies. The

following are some of the issues that would affect a user’s ability to access e-mail.

◆Slow client-to-server connectivity (causing RPC timeout problems for MAPI clients)

◆No DNS server listed in client (causing problems finding servers running Exchange,

Domain Controllers and Global Catalog servers)

◆Global Catalog server failure (meaning no Global Address Lists are available to clients)

◆Name-resolution problems on a server running Exchange (causing services to stop and

databases to dismount)

◆Moving of client from one location to another (resulting in the client accessing Exchange

and the Global Catalog [for address book lookups] across the WAN)

◆Network connectivity problems to Routing Group Master (causing the static routing

table to be used instead and resulting in unpredictable routing)

In just the few examples listed above, network-connectivity problems, name-resolution

issues, and failure of Global Catalog servers could all cause problems for Exchange. In

many cases, the apparent Exchange problem is not an Exchange problem at all, but is

caused by the failure of a related technology. The key to good problem management for

Exchange 2000 Server is a good understanding of the interdependencies Exchange has, and

good knowledge management in your support environment.

Chapter 6: Support 95

To help you with Exchange problem management, you should create dependency charts for

a number of scenarios. Examples include the following:

◆A chart for MAPI client connectivity that lists all dependencies, for example, DNS,

WINS, Exchange, Active Directory, and so on

◆A chart for POP and IMAP client connectivity that lists all dependencies, for example,

DNS, WINS, Exchange, Active Directory, SMTP relay, and so on

◆A chart for OWA client connectivity that lists all dependencies, for example, DNS,

WINS, Exchange, Active Directory, FE servers, and so on

◆A chart for message-delivery issues, for example, DNS, SMTP relays, Internet connection,

and so on

These charts can be modular and interrelated. For example, each of the client-connectivity

charts can all reference the same Active Directory chart.

Part of the problem management process is ensuring that you have good communication

within and across different support departments. The closest link in terms of support

should be between the Active Directory support team and the Exchange support team.

Exchange configuration information is stored in Active Directory, and Exchange clients

and servers both make heavy use of it. In some organizations you may choose to merge

these two departments, but even if you do not, you must ensure that the Exchange team is

aware of problems with access to Active Directory.

The first level of support in an organization is usually the Service Desk. Depending on

your environment, the Service Desk dealing with server problems may be the same one

that deals with end user problems. However, the more information the Service Desk has,

the less frequently it has to refer problems to outside sources and the lower the cost of

resolving the problems.

As already mentioned, you may want to use Exchange as your means of dealing with

Service Desk requests. Whichever method you use, you must make sure that Service Desk

issues are reported fully and that the solutions are stored in a knowledge base that is easily

searchable and available to all support staff. Many problems that are reported are well-

known issues. If you can ensure quick resolution of these problems, not only will those

users be helped, but you will also be able to deal more quickly with other problems. This

can also lower the number of problems that have to go beyond the Service Desk in the

future.

If you can ensure that the knowledge base is updated in real time to reflect current incidents,

problem management will be able to use it to determine the impact of a widespread problem.

You may also wish to make the application available to end users online, because this can

reduce the amount of direct service desk intervention.

Microsoft Exchange 2000 Operations Guide — Version 1.096

Do not simply rely upon your own knowledge base. The Microsoft Knowledge Base (avail-

able with TechNet or on http://support.microsoft.com) is a very useful record of support

issues that have been encountered by Microsoft. If your support staff finds problems that

have already been resolved in the Microsoft knowledge base, they should ensure that a

reference to the corresponding article in the Microsoft knowledge base is present in their

own knowledge base.

You will also find useful information in the various newsgroups and list servers available

for Exchange. While the information delivered from these sources cannot be guaranteed to

be accurate, it is often provides useful tips on how to deal with issues.

Event monitoring can be a very useful source of information to Service Desk staff trying to

resolve a problem. If you do encounter problems with an area of Exchange, the Service

Desk staff may wish to increase the monitoring level for that area of Exchange. Individual

events now have hyperlinks associated with them, to allow your Service Desk staff to find

out more information about the particular event. Event monitoring is covered in more

detail in Chapter 4.

Education of the Service Desk staff is very important too. If they are aware only of Exchange

issues, it can be difficult for them to deal with many problems themselves, and also difficult

to route problems accordingly. You should ensure that your support staff has a complete

picture of Exchange and its interdependencies.

For most organizations, it is not economically sound to have all Exchange 2000 Server

expertise directly employed within the company. Normally the higher levels of support are

contracted out. This could be to Microsoft or a third-party solution provider. However, it

is important to have these relationships already in place to ensure swift response times

when required.

Summary

Exchange 2000 Server, with its large number of interdependencies, large user base in

organizations, and sheer importance to most of those organizations is a great challenge to

support effectively. However, if you do provide effective support, the many improvements

in the product’s reliability can allow your users and support staff to gain the real benefits

offered by the product.

Glossary

Access Control Entry – ACE

An object such as a user or group that is present on an Access Control List.

Access Control List – ACL

A description of security permissions applied to an object, property, or resource. An ACL

normally includes membership (ACEs) and the associated actions or manipulations that

each member can perform on the item.

Active Directory

The Windows 2000 directory service. This replaces the Security Accounts Manager (SAM)

in Microsoft Windows NT version 4.0. Active Directory consists of a forest, domain(s),

organization units, containers, and objects. Different classes of objects can be represented

within Active Directory including users, groups, computers, printers, and applications. The

use of Active Directory is governed by its schema.

Active Directory Connector – ADC

The service that replicates information between the Exchange Server 5.5 directory and

Active Directory. Replicated objects include mailboxes, custom recipients, distribution lists,

and site configuration information. ADC uses Connection Agreements (CAs) to define

individual configurations for replication. The Exchange 2000 ADC is also used to allow

Exchange 5.x and Exchange 2000 servers to coexist within the same Exchange site.

Note that two versions of the ADC exist; one for Windows 2000 and one for Exchange

2000.

Active Directory Migration Tool – ADMT

The Active Directory Migration Tool provides an easy, secure, and fast way to migrate

from Windows NT to the Windows 2000 Server Active Directory service. You can also use

ADMT to restructure your Windows 2000 Active Directory domains. This tool can help a

system administrator diagnose any possible problems before starting migration operations.

The task-based wizards will then allow you to migrate users, groups, and computers; set

correct file permissions; and migrate Microsoft Exchange Server mailboxes. The tool’s

reporting feature allows you to assess the impact of the migration, both before and after

move operations.

Active Directory Services Interfaces – ADSI

A directory service abstraction interface that allows programming languages that are

compatible with the Component Object Model (COM), such as Visual Basic, VBScript,

JavaScript, C, and C++ to make common directory calls to an underlying directory service.

ADSI providers include Lightweight Directory Access Protocol (LDAP), NDS, Bindery, and

Windows NT (SAM). Programmers and system administrators normally use ADSI to

automate or script the bulk manipulation of directory entries.

Microsoft Exchange 2000 Operations Guide — Version 1.098

ActiveX Data Objects – ADO

A programming layer built on top of OLE DB that allows high-level programming

languages such as Visual Basic and VBScript to access an underlying data store through

a common query language. In this instance, a data store can be Active Directory, the

Exchange 2000 store, or a SQL database.

Administration group

A collection of servers running Exchange 2000 that can be administered as a single unit.

An administration group can include zero or more policies, routing groups, public folder

trees, monitors, servers, conferencing services, and chat networks. When security settings

(permissions) are applied to an administration group, all child objects in the DS tree inherit

the same Access Control Lists (ACLs) as the administration group node. Note that an

administration group does not define the routing topology for messages; this is handled

by routing groups.

ADSI Edit

A Microsoft Management Console (MMC) snap-in used to view all objects in the directory

(including schema and configuration information), modify objects, and set access control

lists on objects.

Asymmetric Cipher

The asymmetric cipher, or public-key cipher, is a means of solving the key management

problem of symmetric key encryption. This system involves using two keys, one for encryp-

tion, and the other for decryption. One of the keys is called the public key, and the other is

called the private key. You can use either the public or private key for encryption, and you

use the opposite key for decryption. The public key is placed in a directory, or a location

available to other users, but the private key is kept in a secure location, and is available

only to the owner of the key pair. By using an asymmetric cipher, the sender and recipient

do not need to agree on a key before sending data.

Block Cipher

A block cipher uses shared-key encryption. It takes a message and breaks it into fixed

length blocks, and applies the shared-key to each block. In most cases, this block size is

64 bits. The decryption operation takes the encrypted blocks, decrypts each with the same

shared-key, and rebuilds the original message.

Bridgehead

A nominated server that acts as a message transfer point between Exchange 2000 routing

groups. This term can also refer to the computer hosting a directory replication connector.

CAST

A variable key length encryption algorithm developed by Carlisle Adams and Stafford

Tavares of Northern Telecom Research. This algorithm supports keys 40 to 128 bits long.

Glossary 99

Ciphers

A cipher is a mathematical function for encrypting and decrypting data. It is performed on

readable clear text data to convert it to an unreadable version called cipher text. There are

four types of ciphers: symmetric, asymmetric, block, and stream

Clear item

A message that is not encrypted and is thus readable.

Collaboration Data Objects 1.21 – CDO 1.21

(Also known as Active Messaging and OLE Messaging)

An application programming interface (API) that allows users and applications to

access data objects within a server running Exchange. CDO defines the concept of differ-

ent object classes including messages (IPM.Note), posts (IPM.Post), and appointments

(IPM.Appointment). Message stores and folder hierarchies can also be manipulated

through CDO 1.21.

CDO 1.21 is included with Exchange Server 5.5 and its services are supplied from the

CDO.DLL file

Collaboration Data Objects (CDO) for Windows 2000

CDO for Windows 2000 is defined in the Windows 2000 section earlier in this document.

Collaboration Data Objects

An Application Programming Interface that is a superset of CDO for Windows 2000. In

addition to gaining programmatic access to the Simple Mail Transfer Protocol (SMTP) and

Network News Transfer Protocol (NNTP) stacks, CDO for Exchange 2000 provides support

for the creation and manipulation of message items, appointments, and contact cards.

(CDO) for Exchange 2000

CDO for Exchange 2000 is included with Exchange 2000 and its services are supplied

from the CDOEX.DLL file.

CDO for System Management (formerly known as Exchange Management Objects – EMO)

An API that allows administrators to programmatically access management information

on an Exchange 2000 server, including databases and mailboxes. Services are supplied out

of EMO.DLL file.

Collaboration Data Objects (CDO) for Windows 2000

A high-level application programming interface (API) that allows applications to program-

matically access Simple Mail Transfer Protocol (SMTP) and Network News Transfer Proto-

col (NNTP) protocol stacks on a computer running Windows 2000; for example, an auto-

mated mailer routine can send Web pages by e-mail which contain reports to employees.

CDO for Windows 2000 is included with the Windows 2000 operating system and its

services are supplied from the CDOSYS.DLL file.

Microsoft Exchange 2000 Operations Guide — Version 1.0100

Conferencing Management Service – CMS

The network service that coordinates the booking of virtual resources for online meetings in

the Exchange Conference Service. Each site (not domain) normally has an active

Conferencing Management Service to allow fast connection for data conferencing users.

Conference Technology Provider – CTP

A provider of data conferencing services such as real-time video, audio, and telephony

integration.

Configuration Connection Agreement – ConfigCA

A special Connection Agreement implemented as part of the Active Directory Connector

that replicates configuration naming context data from downlevel Exchange 5.x sites to

administration groups in Active Directory and vice versa. ConfigCAs work in conjunction

with the Site Replication Service.

Connection Agreement – CA

The configuration of information to be replicated using the Active Directory Connector.

This configuration information includes the servers that participate in the replication,

which object classes (mailbox, custom recipient, distribution list user, contact, and group)

to replicate, containers and organizational units to use for object placement, and the

activity time schedule.

Contact

A non-security principal that represents a user outside of the organization. A contact will

generally have an e-mail address, facilitating messaging between the local organization and

the remote object. A contact is similar to a custom recipient in Exchange Server 5.5.

Data Encipherment Standard – (DES/Triple DES)

An IBM symmetric encryption block cipher that uses a fixed 56-bit key. It was defined

and endorsed by the U.S. government in 1977 as an official standard and is regarded as the

most widely used cryptosystem in the world. A process of enciphering plain text three times

with DES and three different potential series of actions. DES-EEE3 (Three DES encrypts

with three different keys), DES-EDE3 (three DES operations in the sequence encipher-

decipher-encipher with three different keys), or DES-EEE2 and DES-EDE2 (same as the

previous formats except that the first and third operations use the same key).

Distributed Authoring and Versioning – DAV (also known as HTTP-DAV and Web-DAV)

An extension to the Hypertext Transfer Protocol 1.1 (HTTP/1.1) that allows for the

manipulation (reading and writing) of objects and attributes on a Web server. Exchange

2000 natively supports WebDAV. Although not specifically designed for the purpose, DAV

allows for the control of data using a filing system-like protocol. DAV commands include

Lock, Unlock, Propfind and Proppatch.

Glossary 101

Domain controller

A server that can authenticate users for a domain. There must be at least one domain

controller in each domain within the forest. Each domain controller holds a complete

replica of the domain naming context that the server is in and a complete replica of the

configuration and schema naming contexts for the forest. A domain controller can be

promoted and demoted through the Dcpromo utility.

Domain mode

An Active Directory domain can be in either mixed mode or native mode. In mixed mode,

the domain is restricted to limitations (such as 40,000 objects) imposed by the Windows

NT 4.0 domain model. However, Windows 2000 domain controllers and Windows NT 4.0

backup domain controllers can seamlessly co-exist within the domain without problems.

Switching to native mode, which is irreversible, allows the directory to scale up to millions

of objects and overcome the constraints of the earlier SAM, but requires that all domain

controllers be upgraded to Windows 2000. A domain in native mode allows for rich group

creation and nesting, which is advantageous to Exchange 2000.

Note that Windows NT 4.0 member servers can still exist within a native-mode domain.

Additionally, clients do not have to be upgraded before the domain mode is switched.

Domain Name Services – DNS

A major standards-based protocol that allows clients and servers to resolve names into

Internet Protocol (IP) addresses and vice versa. Windows 2000 extends this concept even

further by supplying a Dynamic Domain Name System (DDNS) service that enables clients

and servers to automatically register themselves in the database without needing adminis-

trators to manually define records.

Domain tree

A collection of domains that have a contiguous namespace, such as microsoft.com,

dog.microsoft.com and cat.microsoft.com. Domains within the forest that do not have

the same hierarchical domain name are located in a different domain tree. A disjoint

namespace is the term used to describe the relationship between different domain trees

in the forest.

DSAccess

The Exchange 2000 component that provides directory lookup services for components

such as Simple Mail Transfer Protocol (SMTP), Message Transfer Agent (MTA), and the

store. Client requests use the DSProxy service for directory access.

DSProxy

The Exchange 2000 component that can proxy (and refer) Messaging Application Pro-

gramming Interface (MAPI) directory service requests from Outlook clients to Active

Directory for Address Book lookup and name resolution.

Microsoft Exchange 2000 Operations Guide — Version 1.0102

Enterprise

See Forest.

Encryption

Encryption is the mathematical transformation of data from a readable, clear text form,

into an unreadable, cipher text form. The transformation generally requires additional

secret information available only to the sender and intended recipient. This information is

called a key. The key allows the message to be encrypted by the sender, and decrypted only

by the intended recipient using the recipient’s private key. Decryption is the opposite of

encryption — it transforms unreadable, cipher text data back into readable, clear text form.

Using cryptography provides not only privacy, but it provides an identity every time a user

logs on to a network, accesses voice mail, or uses a user name and password to access

anything. This identification is called authentication. Authentication is a crucial part of

network data security.

As electronic transaction use increases over networks, it is important to sign documents

electronically. Cryptography provides the ability to create digital signatures, which in

many cases are as legally binding as written ones.

Epoxy

See EXIPC

Event sink

A piece of code that is activated by a defined trigger, such as the reception of a new

message. The code is normally written in any COM-compatible programming language

such as Visual Basic, VBScript, JavaScript, C, or C++. Exchange 2000 supports the fol-

lowing event sinks:

◆Transport

◆Protocol

◆Store

Event sinks on the store can be synchronous (code executes as the event is triggered) or

asynchronous (code executes sometime after the event).

Exchange Conferencing Services – ECS

A service that allows users to meet in virtual rooms on a server running Exchange. Exchange

Conferencing Services defines the use of a Conferencing Management Service to coordinate

the room bookings and a T.120 Multipoint Control Unit (MCU) for the actual connection

of clients to a conferencing session.

Exchange Virtual Server – EVS

When clustering, you allocate different resources (such as storage groups) to an EVS. Upon

node failure, an EVS can be moved from the failed node to one of the remaining nodes.

Glossary 103

EXIPC (formerly known as Epoxy)

A queuing layer that allows the Internet Information Server (IIS) and store processes

(Inetinfo.exe and Store.exe) to shuttle data back and forth very quickly. This is required to

achieve the best possible performance between the protocols and database services on a

server running Exchange 2000. Conventional applications require the processor to switch

contexts when transferring data between two processes.

Exchange Server 5.5 incorporated protocols such as Network News Transfer Protocol

(NNTP), Post Office Protocol 3 (POP3), and Internet Messaging Access Protocol (IMAP)

directly into the Store.exe process, so data transfer was very efficient. The Exchange 2000

architecture separates the protocols from the database for ease of management and to

support future architectures.

Extensible Storage Engine – ESE (also known as JET)

Formerly known as Joint Engine Technologies (JET), the ESE is a method that defines a

very low-level Application Programming Interface (API) to the underlying database

structures in Exchange Server. Other databases, such as the Active Directory database

(Ntds.dit), also use ESE. Exchange 2000 uses ESE98, whereas Exchange 5.5 and Active

Directory use the older ESE97 interface.

Event Service

A Windows NT service that is installed by Exchange Server 5.5. This service allows

programmers to write programs that use Exchange’s Event Handler to process events

that occur in a Public Folder or Mailbox.

Forest (also known as enterprise)

A collection of domains and domain trees. The implicit name of the forest is the name of

the first domain installed. All domain controllers within a forest share the same configura-

tion and schema naming contexts. To join an existing forest, the Dcpromo utility is used.

The first domain within the forest cannot be removed.

Front-end/back-end

An Exchange 2000 configuration in which clients access a bank of protocol servers (the

front-end) for collaboration information, and these in turn, communicate with the data

stores on separate servers (the back-end) to retrieve the physical data. A front-end/back-

end configuration allows for a scalable, single point of contact for all Exchange-related

data.

Global Catalog

A server that holds a complete replica of the configuration and schema naming contexts

for the forest, a complete replica of the domain naming context in which the server is

installed, and a partial replica of all other domains in the forest. The global catalog knows

about every object in the forest and has representations for them in its directory, however,

it may not know about all attributes (such as job title and physical address) for objects in

other domains. The attributes that are tagged for replication to the global catalog are

assigned through the Active Directory Schema Manager Microsoft Management Console

Microsoft Exchange 2000 Operations Guide — Version 1.0104

(MMC) snap-in. There is only one policy for global catalog attribute replication in the

forest. A global catalog will listen on port 3268 for LDAP queries (that are global to the

forest), and port 389, which standard domain controllers use (for local domain queries).

A domain controller can be made into a global catalog (and vice versa) by selecting or

deselecting a check box in the Active Directory Sites and Services MMC snap-in.

Group

An object defined in Active Directory that contains members of other objects such as users,

contacts, and possibly other groups. A group may be one of two types, either distribution

or security depending on the requirement, and have a scope of either local, domain, or

universal. This is similar to a distribution list in Exchange Server 5.5.

Hash Functions

A hash function provides a means of computing an electronic fingerprint, or checksum of a

message. This electronic fingerprint is called the hash of a message.

Hashing secures messages and private key data by using them as elements in a mathemati-

cal function that creates a checksum of the package. The algorithm is then used on the

receiving end to decrypt the message. Hashes typically compute quickly, and are designed

so that every imaginable message can have a unique hash. Hash algorithms include MD-4,

MD-5, and SHA-1

Hosted organization (also known as virtual server, virtual machine, virtual organization)

A collection of Exchange services including, but not limited to virtual servers (that is,

instances of IMAP4, SMTP, POP3, NNTP, HTTP, RVP), storage space, and real-time

collaboration facilities that exist to serve the needs of a single company. A hosted

organization is normally used by Internet Service Providers to host multiple companies

on the same physical computer. However, a hosted organization is not limited to a single

server running Exchange 2000.

HTTP-DAV

See Distributed Authoring and Versioning.

Installable File System – IFS

See Web Storage System

Instant Messaging – IM

The Exchange 2000 service that allows for real-time messaging and collaboration between

users. Clients generally use the MSN Messenger client to log on to Instant Messaging and

subscribe to other users.

Instant Messaging Presence Protocol – IMPP

The standards-based protocol clients use to interact with an Instant Messaging server.

IMPP is being developed by leading vendors, including Microsoft and Lotus. The Instant

Glossary 105

Messaging service in Exchange 2000 uses a Microsoft published protocol called Rendezvous

Protocol (RVP) while IMPP is being ratified

Internet Messaging Access Protocol version 4 – IMAP4

A standard-based protocol for accessing mailbox information. IMAP4 is considered

to be more advanced than POP3 because it supports basic online capabilities and access to

folders other than the Inbox. Exchange Server 5.x and Exchange 2000 both support

IMAP4.

Joint Engine Technology – JET

Defines the low-level access to underlying database structures in Exchange Server 4.0 and

5.0. JET was superceded with the Extensible Storage Engine (ESE) in Exchange Server 5.5

and Exchange 2000.

Lightweight Directory Access Protocol – LDAP

A standards-based protocol that can be used to interact with conformant directory ser-

vices. LDAP version 2.0 allows for reading the contents of a directory database, whereas

LDAP version 3.0 (defined under RFC2251) allows users and applications to both read

and write to a directory database. LDAP was developed by Tim Howes and the University

of Michigan.

Link State Algorithm – LSA

The algorithm used to propagate routing status information between servers running

Exchange 2000. Based on ‘Dijkstra’s algorithm’, link state information is transferred

between routing groups using the X-LINK2STATE command verb over Simple Mail

Transfer Protocol (SMTP)SMTP and within a routing group using a Transmission Control

Protocol (TCP) connection to port 691.

Mail-based replication – MBR

A mechanism to replicate directory information through a messaging transport. This term

applies to Exchange 5.x inter-site directory replication, and additionally, Active Directory

replication through SMTP.

MD (Message Digest Algorithm, MD4, MD5)

Developed by Rivest, this takes a message of arbitrary length and produces a 128-bit

message digest. The algorithm is optimized for 32-bit machines. Description and source

code for MD4 and MD5 can be found as Internet RFCs 1319 – 1321.

MDB

An instance of a database implemented in Exchange server. A single MDB is normally

identified as being public or private depending on the type of data that it stores. A single

server running Exchange 2000 can accommodate up to 20 active MDBs.

Message Transfer Agent – MTA

The component in all versions of Exchange Server that transfers messages between servers

using the X.400 protocol.

Microsoft Exchange 2000 Operations Guide — Version 1.0106

Messaging Application Programming Interface – MAPI

The API that is used by Microsoft messaging applications such as Outlook to access

collaboration data. MAPI, or more specifically, MAPI Remote Procedure Calls (RPC), is

also used as the transport protocol between Outlook clients and servers running Exchange.

Metabase

A store that contains metadata such as that used by Internet Information Server IIS to

obtain its configuration data. The metabase can be viewed through utilities such as

Metaedit.

Metabase update service

A component in Exchange 2000 that reads data from Active Directory and transposes it

into the local IIS metabase. The metabase update service allows the administrator to make

remote configuration changes to virtual servers without a permanent connection to each

system.

Metadata

Data about data. In relation to Exchange, this term can be used in the context of Active

Directory, but can also be used to describe the structure within the store or the MTA.

Mixed-vintage site (also known as “PtOz”)

An Exchange 5.x site that also contains servers running Exchange 2000.

Multipoint Control Unit – MCU

A reference to the T.120 protocol that allows clients to connect to data conferencing

sessions. MCUs can communicate with each other to transfer conferencing information.

Name Service Provider Interface – NSPI

Part of the DSProxy process that can accept Outlook client directory requests and pass

them to an address book provider.

Namespace

A logical collection of resources that can be managed as a single unit. Within Active

Directory, a domain defines a namespace.

Naming context

A self-contained section of a directory hierarchy that has its own properties, such as

replication configuration and permissions structure. Active Directory includes the domain,

configuration, and schema naming contexts. Exchange Server 5.5 also uses naming con-

texts; Organization, Address Book Views, Site, Configuration, and Schema.

Network News Transfer Protocol – NNTP

A standards-based protocol that includes simple command verbs to transfer USENET

messages between clients and servers, and between servers. NNTP uses Transmission

Control Protocol/Internet Protocol (TCP/IP) port 119.

Glossary 107

OLE DB

An Application Programming Interface (API) that allows low-level programming languages

such as C and C++ to access dissimilar data stores through a common query language. OLE

DB is seen as the replacement for Open Database Connectivity (ODBC). Data stores such

as those in Exchange 2000 and SQL Server allow for OLE DB access, which makes appli-

cation development easier and faster.

High-level programming languages such as Visual Basic can use ActiveX Data Objects

(ADO) to issue queries through OLE DB.

Opaque item

Message text that cannot be read without being deciphered, also known as an enciphered

item.

Outlook Web Access

The Web browser interface to Exchange Server mailbox and public folder data. The Outlook

Web Access client in Exchange Server 5.x uses Active Server Pages to render collaboration

data into HTML, whereas the Outlook Web Access Client in Exchange 2000 uses native

access to the store.

Policy

A collection of configuration settings that can be applied to objects of the same class in

Active Directory. In relation to Exchange 2000, this may include mailbox thresholds and

deleted item retention.

Post Office Protocol version 3 – POP3

A standards-based protocol for simple access to Inbox data. All versions of Exchange

server except version 4.0 support POP3. POP3 uses TCP/IP port 110 for client to server

access.

Protocol farm

A collection of virtual servers that are used as the primary connection point for users in an

organization. The farm abstracts the connection protocols from the location of the back-

end data, which allows users to access information without having to know its physical

location.

Public folder connection agreement – PFCA

A connection agreement in the Active Directory Connector (ADC) that is responsible for

replicating Public Folder proxy objects between the Exchange 5.5 directory and Active

Directory. These objects are necessary for sending e-mails directly to the folder. Each PFCA

is hard-coded to be two-way, and will replicate between the site naming context in Ex-

change 5.5 and the ‘Microsoft Exchange System Objects’ container in the Active Directory

domain. It is normal to create one PFCA for each Exchange 5.5 site in the organization.

Microsoft Exchange 2000 Operations Guide — Version 1.0108

Public folder tree (also known as public folder root and top level hierarchy – TLH)

A collection of public folders created under the same hierarchical namespace. Previous

releases of Exchange server used only a single tree (called: All Public Folders), whereas

multiple trees can be defined in Exchange 2000. Each tree is a unit of hierarchy replication

and can be replicated to one or more Public MDBs. A Public MDB can host only one tree.

Messaging Application Programming Interface (MAPI) clients such as Outlook can only

access a single tree called All Public Folders, whereas other clients such as a Web browser

or a networking client using the Microsoft Web Storage System can access any tree that is

defined.

RC2

a variable key-size block cipher designed by Rivest for RSA Data Security. “RC” stands for

“Ron’s Code” or “Rivest’s Cipher.” It is faster than Data Encypherment Standard (DES)

and is designed as a “drop-in” replacement for DES.

Because of the variable key size it can be made more secure or less secure than DES against

exhaustive key search. The algorithm is confidential and proprietary to RSA Data Security.

RC4

A variable key-size stream cipher with byte-oriented operations designed by Rivest for RSA

Data Security.

Recipient Update Service – RUS

This is part of the Exchange System Attendant and is responsible for keeping Address Lists

up-to-date and creating proxy addresses for users.

Remote Procedure Calls – RPC

A reliable synchronous protocol that transfers data between clients and servers, and

between servers. Outlook clients use Messaging Application Programming Interface

(MAPI) RPC for accessing mailboxes and public folders, and servers running Exchange

2000 communicate with the Exchange Server 5.x Message Transfer Agent (MTA) using

RPC (in a mixed-vintage organization).

Resource

In real-time collaboration, a user object in Active Directory that represents a facility. A

resource is used by Outlook users for booking meetings and data conferences. Resources

are stored in the “System \ Exchange” Organization Unit in the Active Directory.

Resource mailbox

A mailbox that is associated with a resource instead of a user (such as a conference room

for reservation purposes). In Exchange 5.5 one user (Windows security principal) may have

had several mailbox accounts associated with it – such as a receptionist with a personal

mailbox and a conference room mailbox associated. In Exchange 2000, there must be a

one-to-one correspondence between a Windows 2000 security principal and a mailbox.

Consequently, Exchange 5.5 resource mailboxes must have a Windows 2000 security

Glossary 109

principal (usually with no logon rights) associated with it, and a resource mailbox owner

(with their own personal mailbox) is given delegated access to the resource mailbox.

Routing group

A collection of Servers running Exchange 2000 that can transfer messaging data to one

another in a single-hop without going through a bridgehead. In general, Exchange comput-

ers within a single routing group have high-bandwidth, resilient network links between

each other.

Additionally, a routing group defines the boundary for public folder access.

Routing Group Connector – RGC

A connector in Exchange 2000 that connects routing groups to one another. An RGC is

uni-directional and can have separate configuration properties (such as allowable message

types over the connection). Routing Group Connectors use the concept of local and remote

bridgeheads to dictate which servers in the routing groups can communicate over the link.

The underlying message transport for an RGC is either Simple Mail Transfer Protocol

(SMTP) or Remote Procedure Calls (RPC) and it uses link state information to route

messages efficiently.

Routing Engine

This COM component runs on the Event Service on Microsoft Exchange Server version

5.5. It acts as a simple state engine that executes and tracks multiple process instances

within a Microsoft Exchange folder. The state is advanced when events fire within the

folder. The routing engine supports the execution of flow-control activities (workflow)

directly, and it can call VBScript functions for other activities. Microsoft Exchange Server

Routing also works with the Microsoft Transaction Server (MTS)

Routing service

A component in Exchange 2000 that builds link state information.

Routing Objects

Component Object Model (COM) objects that are used to program Exchange’s routing

engine behavior. These objects allow the creation and manipulation of process maps, which

define the series of states to be tracked by the routing engine and the activities to be

performed at each step. Routing objects are used primarily in workflow applications.

Rendezvous Protocol (RVP)

(Note that this name is preliminary). The Microsoft published protocol that is used be-

tween the MSN Messenger service and the Instant Messaging server that is implemented

on Exchange 2000. RVP uses an extended subset of HTTP-DAV with an Extensible

Markup Language (XML) payload to send subscriptions and notifications between Instant

Messaging clients and servers.

Microsoft Exchange 2000 Operations Guide — Version 1.0110

SASL

Simple Authentication and Security Layer. Defined in RFC2222.

Schema

The metadata (data about data) that describes the use of objects within a given structure. In

Active Directory, the schema governs the type of objects that can exist and the mandatory

and optional attributes of each object. Windows 2000 Active Directory has an extensible

schema that allows third parties to create their own object classes.

Schemas also exist for other components such as the message transfer agent (MTA) and

information store in Exchange Server.

Secure Hash Algorithm version 1

Published in 1994 as a federal information-processing standard (FIPS PUB 180), this was

developed by the National Institute of Standards and Technology (NIST). Similar to the MD4

family of hash functions, this takes a message of less than 264 bits and produces a 160-bit

message digest. It is slightly slower than MD5 but is more secure against brute-force

collision and inversion attacks.

Security principal

A user who can log on to a domain and have access to network resources. In Active

Directory, a user object is a security principal.

A non-security principal is an object represented in Active Directory that cannot access

resources within the enterprise.

Simple Message Transfer Protocol – SMTP

A major standards-based protocol that allows for the transfer of messages between differ-

ent messaging servers. SMTP is defined under RFC821 and uses simple command verbs to

facilitate message transport over TCP/IP port 25.

Site

A collection of IP subnets. All computers that are in the same site have high-speed connec-

tivity—local area network (LAN) speeds—with one another. Unlike an Exchange site, an

Active Directory site does not include a unit of namespace; for example, multiple sites may

exist within a single domain, and conversely, a single site may span multiple domains.

Scripting Agent

Exchange Server Scripting Agent lets you use server-side scripts that run as a result of

events occurring in Exchange folders. There are four events that can trigger the scripting

agent, timer events and actions: posting, editing, receiving or deleting a message.

Sink

See Event Sink.

Glossary 111

Site Consistency Checker – SCC (also known as the SKCC)

The updated version of the Exchange Server 5.5 Knowledge Consistency Checker (KCC)

that works in conjunction with (and is part of) the Exchange Site Replication Service to

ensure that knowledge consistency of sites, administration groups and Active Directory

domains is maintained when interoperating between Exchange 2000 and Exchange 5.5.

When changes are detected in either environment, the SCC may adjust existing configura-

tion connection agreements.

Site Replication Service – SRS

A directory service (similar to the directory used in Exchange Server 5.5) implemented in

Exchange 2000 to allow the integration with downstream Exchange 5.x sites using both

Remote Procedure Calls (RPC) and mail-based replication. The SRS works in conjunction

with the Active Directory Connector to provide replication services from Active Directory

to the Exchange 5.x Directory Service.

Storage group

A collection of Exchange databases on a server running Exchange 2000 that share the

same Extensible Storage Engine (ESE) instance and transaction log. Individual databases

within a storage group can be mounted and dismounted. Each server running Exchange

2000 can architecturally host up to 16 storage groups, although only four can be defined

through the Exchange System Manager.

SSL

Secure Sockets Layer version 3.0 is defined in the Internet draft <draft-ietf-tls-ssl-version3-

00.txt>.

Store

The generic name given to the storage subsystem on a server running Exchange. This term

is used interchangeably to describe the Store.exe process and Exchange databases.

Stream Cipher

A stream cipher is another use of symmetric encryption. Stream ciphers process small units

of plaintext, usually bits. Stream ciphers are much faster than block ciphers, and can be

applied to data as it is sent or received. You do not need to know the size of the message,

or receive the entire message before beginning to decrypt the message. This is useful for

encrypted conversations over a network such as SSL rather than individually-encrypted

messages.

Symmetric Cipher

Symmetric, or shared-key, ciphers are a form of data encryption in which a single key,

known by the sender and the recipient, is used to encrypt and decrypt a message. While

this form of encryption is efficient and effective, it is often difficult to share the key

between both parties in a secure manner. It requires that the sender communicate the key

to the recipient in a secure way.

Microsoft Exchange 2000 Operations Guide — Version 1.0112

System attendant

One of the core Exchange 2000 services that performs miscellaneous functions (usually

related to directory information) such as generation of address lists, offline Address Books,

and directory lookup facilities.

T.120

A standards-based protocol used with Exchange Data Conferencing. Clients such as

Microsoft NetMeeting are T.120 compatible.

User

In Active Directory, this is a security principal (a user who can log on to the domain). A

user may have an e-mail address and/or an Exchange mailbox, making the object mail-

enabled and/or mailbox-enabled, respectively.

User Principal Name – UPN

A multi-valued attribute of each user object that the system administrator can set. A UPN

allows the underlying domain structure and complexity to be hidden from users; for

example, although 50 domains may exist within a forest, users would seamlessly log on as

if they were in the same domain. For consistency purposes, system administrators can

make the UPN and users’ SMTP address the same.

A user can log on to Active Directory through a number of different methods:

◆By specifying the user name and domain name

◆By using the convention of username@domain-name in the user box

◆By using his or her UPN, such as e-mailalias@microsoft.com

Virtual root

A shortcut pointer to a physical storage location. Virtual roots are normally defined to

allow users and applications to connect with a short ”friendly” path instead of navigating

a complex hierarchy.

Internet Information Server (IIS) uses the concept of virtual roots to expose resources

provided by a web server.

Virtual server

An instance of any service type normally implemented in Internet Information Server (IIS).

For example, a virtual server can be an instance of:

◆FTP

◆IMAP

◆Instant Messaging (RVP)

◆HTTP

◆NNTP

◆POP

◆SMTP

Glossary 113

Web-DAV

See Distributed Authoring and Versioning.

Web Storage System

The database architecture in Exchange 2000. Previous releases of Exchange only exposed

data such as public folders through MAPI, whereas Exchange 2000 exposes all of its data

through MAPI, HTTP, OLE DB and Win32 layers.

This means that an object stored in a public folder can be retrieved and manipulated

through a Web browser or a standard client with a network redirector. The Exchange 2000

store exposes itself to the operating system as an installable filing system, which means

that the underlying data can be accessed through a drive letter, and in turn, this drive and

its folders can be shared via a universal naming convention (UNC) path to allow other

clients to connect to the data.

X.509

A standard released by the International Telecommunications Union that specifies the

formatting of a mechanism to verify public keys issued to security principals in an

organization.

Ford 1 A01t.p65 To The Manual 0bd67888 701b 4623 9054 Ba1d6d0b3aa4

Navigation menu

Versions of this User Manual:

Views

Navigation
