1965/72

FORD CAR

FINAL ISSUE

Master Parts and Accessories

CATALOG

Form FP 7635-A & B

Supersends All Previous Issues, Changes and Revisions

May, 1975

FINAL ISSUE

COMPANY

Official FordManuals.com Extract

5236

without written permission of David E. LeBlanc. For information write to Forel Publishing

Company, LLC, 3999 Peregrine Ridge Ct., Woodbridge, VA 22192

Library of Congress Catalog Card Number: 2005905199

ISBN: 978-0-9673211-1-0

Forel Publishing Company, LLC

3999 Peregrine Ridge Ct.

Woodbridge, VA 22192

Email address: webmaster@FordManuals.com

Website: http://www.FordManuals.com

To my sons, David and Michael

Disclaimer

Although every effort was made to ensure the accuracy of this book, no representations or warranties of any kind are

made concerning the accuracy, completeness or suitability of the information, either expressed or implied. As a result,

the information contained within this book should be used as general information only. The author and Forel

Publishing Company, LLC shall have neither liability nor responsibility to any person or entity with respect to any loss

or damage caused, or alleged to be caused, directly or indirectly by the information contained in this book. Further, the

publisher and author are not engaged in rendering legal or other professional services. If legal, mechanical, electrical,

or other expert assistance is required, the services of a competent professional should be sought.

Introduction

Congratulations on purchasing the 1965/1972 Ford Car Master Parts and Accessory Catalog. If

you are restoring a classic Ford car, this catalog will be an invaluable resource in determining the

correct service part for your project.

This Ford Car Master Parts Catalog contains replacement parts and accessories information for

Ford, Fairlane/Torino, Mustang, Thunderbird, Bronco, Falcon, Maverick and Pinto for model

years 1965 through 1972 for U.S. and Canadian built vehicles. Use the "Text" catalog (FP-7635-

A) which contains the complete part number in conjunction with the “Illustration" catalog (FP-

7635-B) which contains the illustrations of all the parts.

This product is reproduced from the original Ford Motor Company manuals used during the 1965-

1972 era. As a result of using the original authentic documents, some of the pages may have

imperfections such as folds, lines, or off-center alignment of the pages. However, because this

catalog has not been re-typed or re-written in any way, you can be assured that what you are

reading is exactly how it appeared to Ford technicians of the era. Only the Main Menu pages are

not part of the original catalog and are provided simply to help explain how to use this manual.

How this Catalog is Organized

With over 6000 pages of information in

the Master Parts and Accessory Catalog,

it is important to understand how the

book is organized. The following

information is provided as a more

detailed explanation to what is found in

the “General Information” sections of

the Text and Illustration catalogs.

Catalogs

The Master Parts and Accessory Catalog

is actually comprised of two separate

catalogs: 1) a “Text" catalog (FP-7635-

A) which contains the complete part

number and 2) an “Illustration" catalog

(FP-7635-B) which contains the

exploded illustrations of all the parts.

Both catalog volumes are used together

to identify the correct part for a vehicle.

Groups

There are two major groups within each

catalog: Chassis Group and Body Group.

The Chassis Group contains items such

as the engine, transmission, brakes, rear axle, heater, springs, etc. The Body Group contains items

Master Parts and Accessory Catalog

• Text Catalog (FP-7635-A)

o Chassis Group

 Section 10

• Index

• Part Numbers

 Section 20

 etc. thru Section 190

o Body Group

 Section 100

 Section 200

 etc. thru Section 600

• Illustration Catalog (FP-7635-B)

o Chassis Group

 Section 10

• Index

• Illustrations

 Section 20

 etc. thru Section 190

o Body Group

 Section 100

 Section 200

 etc. thru Section 600

such as dash panel, doors, instrument panel, floor, rear seat, etc.

Sections

Both Chassis and Body Groups are then further divided into Sections which relate to a general

category of parts. For example, Front Suspension components are in Section 30; Rear Axle is

Section 40; etc. The applicable exploded illustrations for a component are generally contained in

the corresponding section of the Illustration catalog. For example, if Front Suspension part

numbers are in Section 30 of the Text Catalog, then the corresponding illustrations are generally

found in Section 30 of the Illustration Catalog. In addition, a Section contains the group numbers

(part numbers) for the entire group. That is, Section 20 would contain all numbers from 2001-

2995.

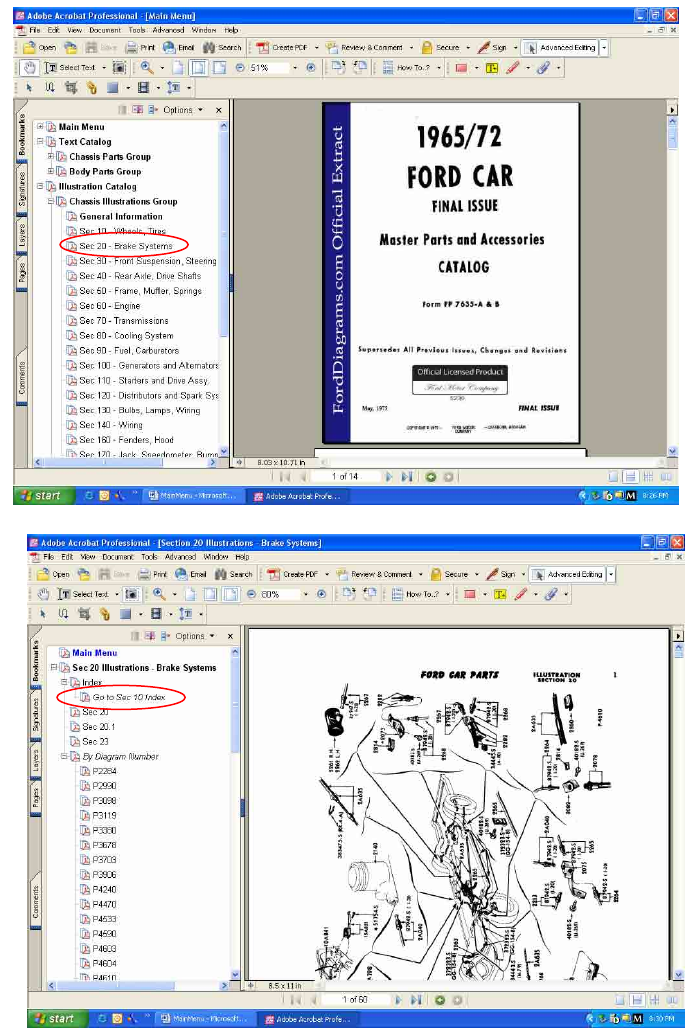

Click on the bookmark on the left to link to the quick reference list of sections. Or, for a detailed

list of sections go to page 4,5 or 6 of the Chassis General Information.

Group Numbers (Chassis)

Each Section is organized by the “Group Number” in sequential order. The Group Number should

not be confused with the Chassis Group and Body Group which are simply categories of parts and

not part numbers. As you will see later, the Group Number is an integral part of the “basic part

number” and overall part number.

The “Section numbers” are the leading numbers of the “Group number”. So, for example, if you

are in Section 20, the first two Group Numbers will be 20, 21, 22, …to 29. If you are in Section

150, the first three numbers will be 150, 151, 152,… to 159. Following the first two (or three)

numbers will be two additional numbers to uniquely identify the part. Therefore, the group number

can quickly help determine which section of the catalog the part number can be found. For

example,

2440 = Section 20 of the catalog because the first two digits “24” are between 20-29

2B450 = Section 20 of the catalog because the first two digits “24” (ignore the letter B) are

between 20-29

4374 = Section 40 because 43 is between 40-49.

13404-5 = Section 130 because 134 is between 130-139.

“Expanded Numbers” - Letters (A, B, C) may be included in the standard Group Number to make

them “expanded numbers”. Letters were added to the group number to accommodate new part

number into the system. For example, if Ford produced a new part or a variation to a part, they

might assign a “letter” to the group number. If a letter is added to a group number, the expanded

numbers will be considered to follow the same sequence as the regular basic numbers from which

they are expanded and are arranged in Catalogs as follows. This would be the sequential order with

expanded group numbers from Section 35 and 36:

3538

3C538

3634

3A635

Group Number (Body)

Body Group numbers contain two additional numbers to identify the body style. Therefore, the

“Body Type Code” are the first two digits signify the body style (2 door sedan, 4 door sedan, etc).

Body Type Codes are found on pages 31-34 of the Chassis General Information.

Example: D0DZ-6200052-A

Body Type Code = 62 (Falcon, 2 door sedan)

Group Number = 00052 (Vehicle Identification Retainer)

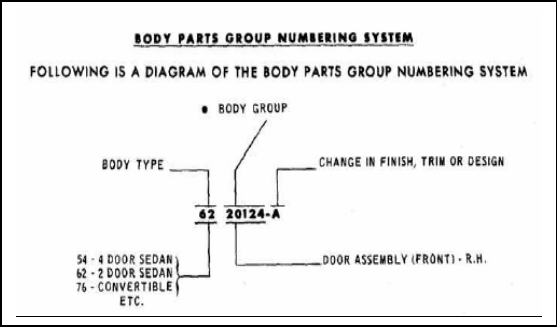

On the right is the diagram from page 4

of the Chassis General Information

section on how to decipher the Body

Parts Group Numbering System:

For a detailed list of Body Group

Numbers, go to page 9 of the Chassis

General Information.

Note: Illustrations contain basic or

group numbers only, therefore, it is

necessary to refer to the basic or group

within the "text" catalog for complete applicable part numbers

How to Read Chassis and Body Part Numbers:

Chassis parts and Body parts have two different formats, so it is important to understand the

differences.

Chassis Part Numbers:

Chassis Parts have a four character prefix, a four or five digit basic part number, and a one-letter

suffix. The first two numbers of the basic part number identify the section. Chassis part numbers

range from 1001 to 19A998

Example: C5ZZ-5255-F

(Exhaust "turn-down" tailpipe on '65-66 289 4V Non-GT Mustangs)

First digit: Decade

The first digit is a character entry relating to the decade of production.

A = 1940's (often omitted) D = 1970's

B = 1950's E = 1980's

C = 1960's F = 1990's

Second digit: Year

The second digit is the last digit of the year of part introduction or revision.

5 = 1965 9 = 1969

6 = 1966 0 = 1970

7 = 1967 1 = 1971

8 = 1968 2 = 1972

Third digit: Model

The third digit is the model application. For example a part with a model code of B

would generally apply to Bronco’s. However, there are numerous examples where the

model code is actually used for different models. For example, some of the Mustang Boss

429 parts have a C9AE prefix which corresponds to a 1969 Galaxie.

Code Description Code Description

A Ford (Generic) / Galaxie R Rotunda (Generic)(1962-69)

Ford of Europe (1970-up)

B Bronco (1970-73) S Thunderbird

C Remanufactured Parts

(1966-75) T Bronco (1966-82, Except 1970-73)

D Falcon (1960-69)

Maverick (1970-74) U Econoline/Club Wagon Van

E Truck (Cab over Engine)

(1970-73) V Lincoln

F Foreign / Trans Am Racing W Cougar (1967-80)

G Comet (1961-67)

Montego (1968-76) X Truck (Short Highway) (1970-73)

H Holman/Moody HiPo Part Y Meteor (Canada) (1962-72)

J Industrial Z Mustang

K Tilt Cab (1970-73) 2 Pinto (1972-75)

L Lincoln 4 Comet (1971-74)

M Mercury 6 Pantera (1971-75)

Topaz (1984-up)

N Tractor 7 Courier (1971-82)

O Fairlane

Torino (1969-76) 8 Capri (U.S. Parts) (1972-75)

P Autolite (Later Motorcraft) 9 Turbine Engine Parts (1970-75)

Fourth digit: Design Engineer Office

The fourth digit is the design engineering office. The design office, as the name implies,

was the office responsible for the design of the part. Some of the more common codes

are: B=body, C=chassis and E=engine.

Code Design Engineering Office

A Light Truck Engineering Division

B Body and Electrical Product Division

C Chassis

D Overseas Product Engineering

E Engine

F General Parts/Electrical and Electronics Division

H Climate Control

J Autolite/Ford Parts & Service Division

L Industrial Engine Parts & Service

M Performance/Special Vehicle Operations

N Tractor Parts

P Auto Transmission

R Manual Transmission

S Light and Heavy Truck Special Order Parts

T Heavy Truck Engineering

U Special Vehicle Operations

W Axle and Driveshaft

X Emissions, Economy and Special Vehicle Engineering (also known

as Muscle Car Parts)

Y Lincoln/Mercury Service Parts

Z Ford Service Parts

Fifth thru Eighth (or ninth, or tenth) digit: Group Number

(also referred to as the Basic Part Number)

The fifth thru perhaps the tenth digit is the Group Number or the Basic Part Number.

Example (Group numbered bolded for emphasis):

C5ZZ-5255-F

C8TZ-1A401-A (with an expanded basic part number)

Last Digit or Suffix

The last digit is usually a letter (A, B, C, etc.) and indicates a revision or change to a

particular part. If the part did not change, the suffix is not used. The letter A=the first

change, B=second change, etc.

Body Part Numbers:

Body part numbers are similar to Chassis part numbers with one exception, the group number or

basic part number uses a seven digit number. The first two digits identify the body type (see pages

31-34 of the Chassis General Instructions) and the last five numbers ("Body Group") identify the

specific part within a general body area. A one to three-letter suffix may be used, usually to

indicate color. Therefore, the first four characters of a body part number use the same format as

the chassis part number (see Chassis Part Numbers above).

Example #1: D0DZ-6200052-A

Body Type Code = 62 (Falcon, 2 door sedan)

Group Number = 00052 (Vehicle Identification Retainer)

Example#2: C6ZZ-6504290-BAB

Body Type Code = 65 (Mustang, 2 door hardtop)

Group Number = 04290 (Instrument Panel, Black)

Note: Example #2 is a Body Part number, but because it is an instrument panel pad, it is

considered a Soft Trim item. Therefore, this item is NOT found in the body parts section. Instead,

it is found in the Soft Trim Section. In this case, look under Soft Trim > 1966 > 04290 (page 47 of

the Soft Trim section).

Engineering or Casting Numbers

Service Part numbers differ from Engineering or Casting numbers. Part numbers were used for

servicing, ordering and inventory purposes and were marked on parts boxes, tags, and labels

attached to the part. Engineering or casting numbers were normally stamped or cast into the part

itself for identification during the manufacturing process. Engineering or Casting numbers are not

interchangeable with Service Part Numbers. The Ford Car Master Parts and Accessory Catalog

contains Service Part Numbers but does provide some cross references to engineering numbers. A

service part may differ from a part installed during the production of a vehicle, however, the

service part is what Ford would use to repair or replace it during servicing.

Right Hand and Left Hand Parts

The driver's side is the left hand side of the vehicle and determines whether such parts as

fenders, lamps, etc. are right or left hand,

Most Right Hand and Left Hand parts are listed in the manner shown in the

following examples. The model application pertaining to the Right Hand part also

pertains to the Left Hand part.

EXAMPLE #1 - Right Hand and Left Hand on separate lines

EXAMPLE #2 - Right Hand and Left Hand implied by quantity

EXAMPLE 3 - Right Hand and Left Hand in adjacent columns

How to Find Part Numbers in this Manual

There are generally three methods to finding part numbers:

Method #1 - By Part Name

Method #2 - By Illustration

Method #3 - By Identification Number

Before beginning a search for a part number, you must have a few pieces of information about the

vehicle: year, model (i.e. car line code). The warranty plate on vehicles provides most of the

information needed (see page 18 – 44 of the Chassis, General Information). For example: suppose you

want to locate a part number for a 1971 Thunderbird rear brake backing plate. The year is 1971 and

car line code is “S”. Knowing this information will allow you to begin your search for the rear brake

backing plate.

Method #1 - By Part Name:

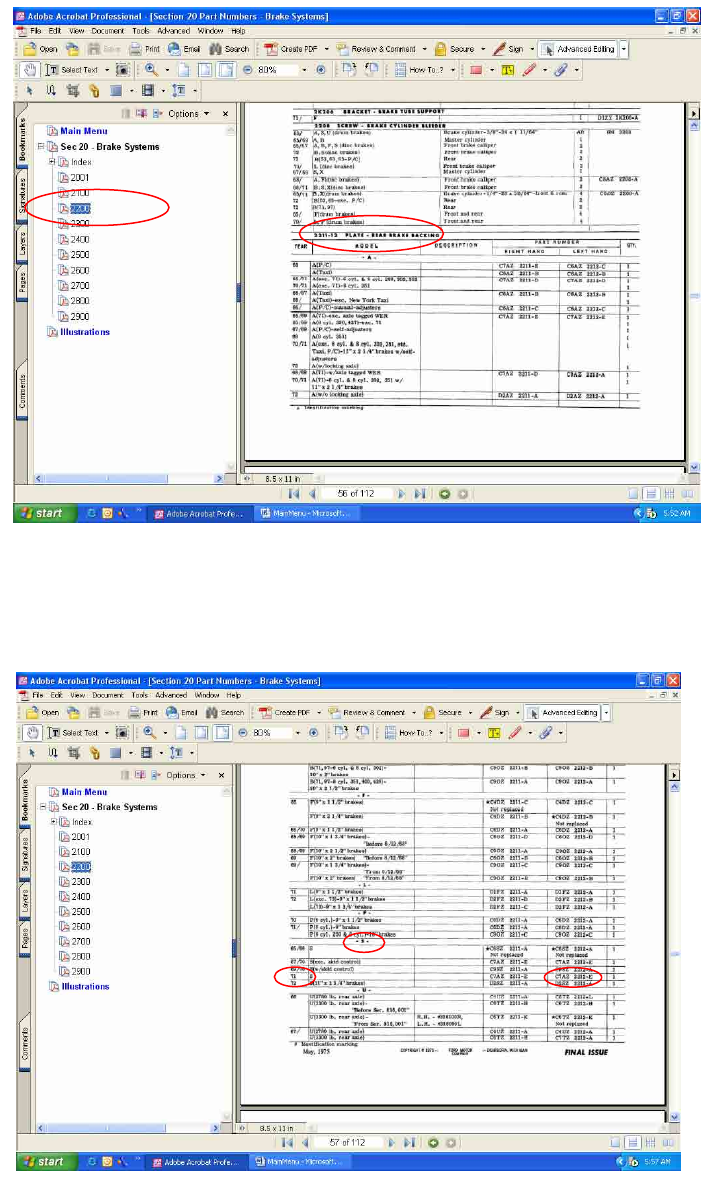

Step #1 – Because the

“Plate (rear brake

backing)” is a chassis

part, begin with the

Index in the Chassis

Parts Group.

Step #2 – Click on the

alphabetical index

under the letter “P” for

the word “plate”.

Under the letter “P” in

the index, scroll

through the entries

until locating “Plate

(rear brake backing)”.

The group number

listed is for the part is

2211-2.

Step #3 – With a group

number of 2211-2, this

means the part number

will be located in Section

20 of the Text Catalog

because this section

contains group numbers

ranging from 2000 to

2999.

Click on Section 20 –

Brake Systems

Step #4 – Once in

Section 20, you must

locate the part number

for group 2211-2.

Because the group

number is in the 2200 –

2299 range, click on the

bookmark (2200) to

quickly locate the

general area. Next,

scroll down the page

until locating group

number 2211-2 (Note –

it is thought that either

the example or the

catalog itself contains

an error because the

group number is listed

as 2211-12 but should

be 2211-2)

Now that you are in the

correct group, locate the

vehicle catalog code "S"

(for Thunderbird). Find

1971 (71) in the

"YEAR" column.

The part numbers

shown are C7AZ 2211-

E for right hand and

C7AZ 2212-E for left

hand.

Method #2 - By Illustration

When searching for a part number “By Illustration”, it is assumed that the part name or description is

unknown, but the general location on where the part is installed is known. In the example of the 71

Thunderbird, “Plate (Rear Brake Backing)”, it is assumed that you know the part is a brake component.

Therefore, the search begins in the Illustration Catalog in Section 20 – Brake Systems.

Step #1 – Refer to the

Illustration Catalog using the

bookmark “Section 20 – Brake

Systems.” "

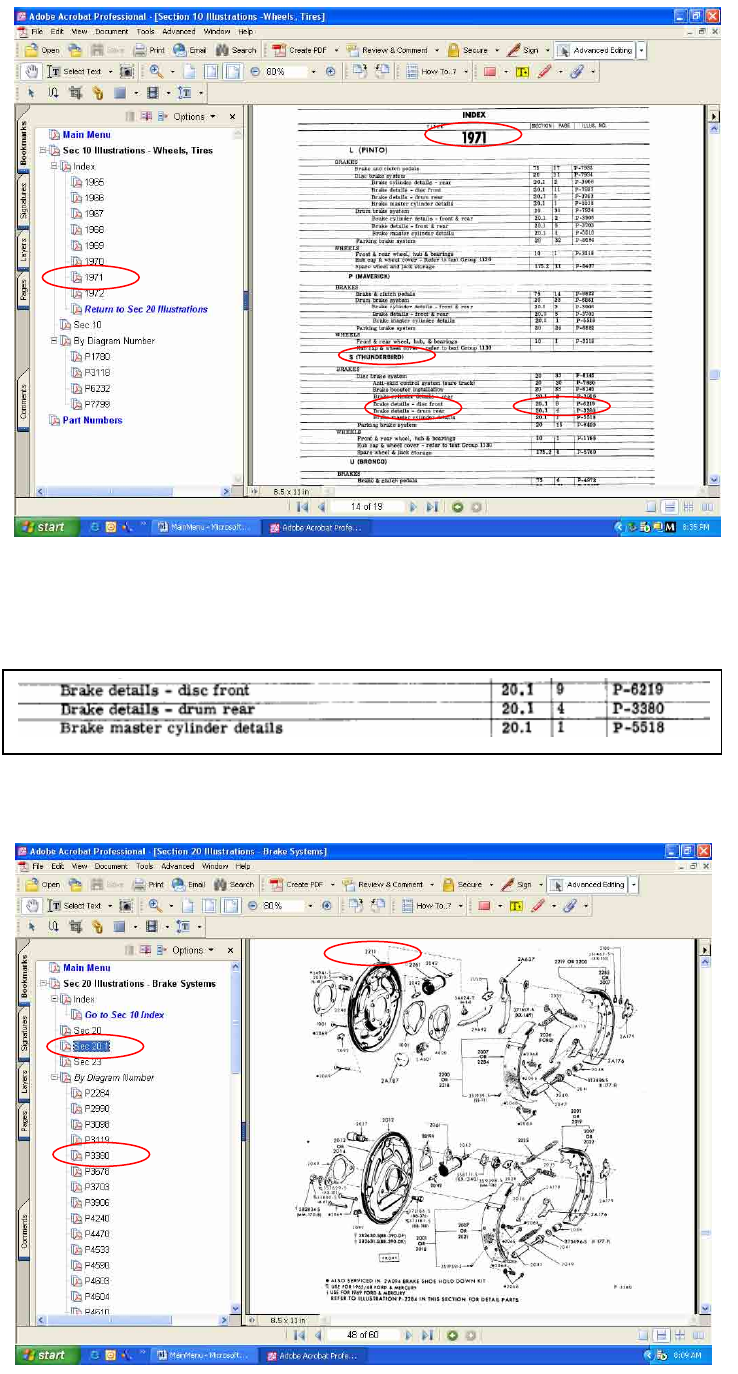

Step #2 –Refer to the index

within the section. In this

example, Ford did not create a

separate index for Section 20.

Generally, each section has its

own index but in a few sections

the indexes were consolidated.

So, under the index bookmark

you are directed to where the

brake illustration index is

located, in Section 10.

Step #2 Cont. –

Unlike the Text

Catalog where the

index is alphabetical,

the Illustration

Catalog indexes are

by model year

(1965, 1966, etc).

Therefore, for our

example of a 1971

Thunderbird, click

on the index for

1971.

Within the 1971

model year, find the

car line code “S” for

a Thunderbird.

Knowing that the

part is a brake

component, look

under "BRAKES"

to find the general area where the part might be illustrated. In this case the "Brake details

(drum rear)" illustration for the 1971 Thunderbird is a good starting point.

The illustration

information

(enlarged) for the

“Brake details –

drum rear” is found in Section 20.1 on page 4. The Illustration number is P-3380.

Step #3 – Now that

you know the

Illustration section

and Illustration

number, simply

return to the

Illustration Section

20, then to Sec 20.1

and scroll to page

four (4). Or, use the

“By Diagram

Number” listing and

click on P3380.

Step #4 – Because you knew

what the part looked like, but

did not know the name,

locate the part on the

illustration. Each part has a

group number. In this case,

2211.

Note: Illustrations contain

basic or group numbers only,

therefore, it is necessary to

refer to the basic or group

within the "text" catalog for

complete applicable part

numbers

Step #5 – Because

illustrations only contain

basic or group numbers,

simply go to the same

Section number in the

Text Catalog (i.e. Section

22) and locate the part

number in the same way

described in Method #1.

Refer to group number

2211-2 in this Text

Catalog and locate

vehicle catalog code "S"

(for Thunderbird). Find

1971 (71) in the "YEAR"

column.

The part numbers shown

are C7AZ 2211-E for

right hand and C7AZ

2212-E for left hand

Method #3 - By Identification Number

Certain parts and most major assemblies are identified with an “identification” number (sometimes

an engineering or casting number) shown on an attached tag or plate or on the part itself.

Reference to identification numbers is made throughout the catalog and cross reference charts

are included in some

sections to provide

immediate knowledge of

the service part number

when the identification

number is known.

For example, on page 4 of

“Section 40 – Rear Axles,

Drive Shafts” contains

information about

Identification Tags for a

Rear Axle.

Using the ID will provide

valuable information. For

example, a WDL-W-1 for

a 66/69 was 3.00 with a

28 spline shaft.

The ID code is also useful

in determining the correct

part number as shown in

this example.

How to Use Bookmarks

Bookmarks are provided to help navigate through

the thousands of pages of part numbers and

illustration. Bookmarks themselves are a feature

of Adobe Reader and are located on the left margin

of each page. Clicking on a bookmark will quickly

take you to a specific location within the catalog.

The “Main Menu” contains bookmarks to each

major section of the catalog and as such, allows

you to go anywhere in the catalog. This is

important, because while in a specific section (for

example Section 10), only Section 10 pages are

visible. If you need to view pages in Section 20 or

Section 50, you will need to return to the Main

Menu.

To allow rapid access to the Main Menu a

bookmark is provided at the top of each section. In

addition, each section generally contains

bookmarks for an index (expandable), group

numbers, diagram numbers (illustration catalog

only) and some cross reference links.

Some cross reference links

are provided to other catalog

sections for ease of use. For

example, in the Text

Catalog, there is generally a

link to the corresponding

section in the Illustration

Catalog. That is, if you are

in Section 10 of the Text

Catalog and want to quickly

go to Section 10 of the

Illustration Catalog, a

bookmark is provided. And,

conversely, a bookmark is

provided in the Illustration

Catalog to return to the Text

Catalog.

Vehicle Catalog Codes

Vehicle catalog codes are used throughout the catalog to identify a specific model. For

example, “X” designates a Falcon produced before January 1970.

Vehicles Catalog

Codes Catalog

Codes Vehicles

Bronco U A Ford

Falcon (before 1/70) X B

Fairlane / Torino

*Falcon

Falcon (from 1/70) B F Mustang

Fairlane / Torino B L Pinto

Ford A P Maverick

Maverick P S Thunderbird

Mustang F U Bronco

Pinto L X Falcon (before 1/70)

Thunderbird S

* Includes unit built from January

1970

Note: The Ford Galaxie and LTD are not listed on page 11 of the Chassis, General Information

section but the catalog codes for these cars are thought to be “A”.

Quick Reference (Text Catalog)

Chassis Parts Group

(Sorted by Section Number)

Chassis Section Major Group Description DVD Bookmarks

10 Wheels Paint, Wheel-

20 Brake System Brake System

30 Front Suspension Front Suspension, Steering, Front Axle

30 Steering Linkage Front Suspension, Steering, Front Axle

30 Suspension (Front) Front Suspension, Steering, Front Axle

35 Steering Gear Front Suspension, Steering, Front Axle

40 Rear Axle Rear Axle, Drive Shaft

46 Drive Shaft Rear Axle, Drive Shaft

50 Frame Frame, Muffler, Springs

52 Exhaust System Frame, Muffler, Springs

53 Springs Frame, Muffler, Springs

Chassis Section Major Group Description DVD Bookmarks

54 Stabilizer Frame, Muffler, Springs

60 Engine Engine

70 Transmission (Manual) Manual Xmsn, Clutch

71 Gear Shift Lever Manual Xmsn, Clutch

75 Clutch Manual Xmsn, Clutch

A70 Automatic Transmission Auto Xmsn

80 Cap (Radiator) Cooling, Grille

80 Cooling System Cooling, Grille

80 Grille Cooling, Grille

80 Hose (Radiator) Cooling, Grille

80 Radiator Cooling, Grille

80 Shroud (Fan) Cooling, Grille

85 Pulley (Water Pump) Cooling, Grille

85 Pump (Water) Cooling, Grille

85 Spacer (Pulley to Fan) Cooling, Grille

85 Thermostat (Water) Cooling, Grille

85 Water Pump Cooling, Grille

86 Clutch Assy. (Fan) Cooling, Grille

86 Fan, Drive Belt Cooling, Grille

90 Air Cleaner Fuel, Carburetor, Accelerator

90 Fuel Tank Fuel, Carburetor, Accelerator

93 Fuel Pump Fuel, Carburetor, Accelerator

94 Manifold Fuel, Carburetor, Accelerator

94 Thermactor Fuel, Carburetor, Accelerator

95 Carburetor Fuel, Carburetor, Accelerator

97 Accelerator Linkage Fuel, Carburetor, Accelerator

97 Speed Control Fuel, Carburetor, Accelerator

100 Generator Generators and Alternators

100 Voltage Regulator Generators and Alternators

103 Alternator Generators and Alternators

106 Battery Generators and Alternators

106 Instrument Cluster Generators and Alternators

110 Ignition Switch Starter and Drive Assemblies

120 Distributor Distributors and Spark Systems

130 Bulbs Lamps, Wiring

130 Lamps Lamps, Wiring

137 Horns Lamps, Wiring

Chassis Section Major Group Description DVD Bookmarks

140 Main Wiring Wiring

150 Electrical Accessories Electrical Accessories

160 Fenders Fender, Hood

166 Hood Fender, Hood

170 Jack Speedometer, Bumper

170 Speedometer Speedometer, Bumper

173 Tachometer Speedometer, Bumper

175 Windshield Wiper Speedometer, Bumper

176 Windshield Washer Speedometer, Bumper

177 Mirrors Speedometer, Bumper

178 Bumpers Speedometer, Bumper

180 Shock Absorber Shocks, Heater, Radio

184 Heater Shocks, Heater, Radio

184 Radio Shocks, Heater, Radio

190 Air Conditioner Air Conditioner

Note: Please refer to the Text Catalog, General Information, pages 4-10 for a detailed listing

of Section, Chassis Group, and Body Group numbers.

Chassis Parts Group

(Sorted by Bookmark)

Major Group Description DVD Bookmarks Chassis Section

Accelerator Linkage Fuel, Carburetor, Accelerator 97

Air Cleaner Fuel, Carburetor, Accelerator 90

Air Conditioner Air Conditioner 190

Alternator Generators and Alternators 103

Automatic Transmission Auto Xmsn A70

Battery Generators and Alternators 106

Brake System Brake System 20

Bulbs Lamps, Wiring 130

Bumpers Speedometer, Bumper 178

Cap (Radiator) Cooling, Grille 80

Carburetor Fuel, Carburetor, Accelerator 95

Clutch Manual Xmsn, Clutch 75

Clutch Assy. (Fan) Cooling, Grille 86

Cooling System Cooling, Grille 80

Major Group Description DVD Bookmarks Chassis Section

Distributor Distributors and Spark Systems 120

Drive Shaft Rear Axle, Drive Shaft 46

Electrical Accessories Electrical Accessories 150

Engine Engine 60

Exhaust System Frame, Muffler, Springs 52

Fan, Drive Belt Cooling, Grille 86

Fenders Fender, Hood 160

Frame Frame, Muffler, Springs 50

Front Suspension Front Suspension, Steering, Front Axle 30

Fuel Pump Fuel, Carburetor, Accelerator 93

Fuel Tank Fuel, Carburetor, Accelerator 90

Gear Shift Lever Manual Xmsn, Clutch 71

Generator Generators and Alternators 100

Grille Cooling, Grille 80

Heater Shocks, Heater, Radio 184

Hood Fender, Hood 166

Horns Lamps, Wiring 137

Hose (Radiator) Cooling, Grille 80

Ignition Switch Starter and Drive Assemblies 110

Instrument Cluster Generators and Alternators 106

Jack Speedometer, Bumper 170

Lamps Lamps, Wiring 130

Main Wiring Wiring 140

Manifold Fuel, Carburetor, Accelerator 94

Mirrors Speedometer, Bumper 177

Pulley (Water Pump) Cooling, Grille 85

Pump (Water) Cooling, Grille 85

Radiator Cooling, Grille 80

Radio Shocks, Heater, Radio 184

Rear Axle Rear Axle, Drive Shaft 40

Shock Absorber Shocks, Heater, Radio 180

Shroud (Fan) Cooling, Grille 80

Spacer (Pulley to Fan) Cooling, Grille 85

Speed Control Fuel, Carburetor, Accelerator 97

Speedometer Speedometer, Bumper 170

Springs Frame, Muffler, Springs 53

Major Group Description DVD Bookmarks Chassis Section

Stabilizer Frame, Muffler, Springs 54

Steering Gear Front Suspension, Steering, Front Axle 35

Steering Linkage Front Suspension, Steering, Front Axle 30

Suspension (Front) Front Suspension, Steering, Front Axle 30

Tachometer Speedometer, Bumper 173

Thermactor Fuel, Carburetor, Accelerator 94

Thermostat (Water) Cooling, Grille 85

Transmission (Manual) Manual Xmsn, Clutch 70

Voltage Regulator Generators and Alternators 100

Water Pump Cooling, Grille 85

Wheels Paint, Wheel- 10

Windshield Washer Speedometer, Bumper 176

Windshield Wiper Speedometer, Bumper 175

Body Parts Group

(Sorted by Section)

Section Major Group Description DVD Bookmarks

Section 000 Dash, Cowl, Console, Windshield, Vents,

Instrument Panel Dash, Cowl, Vents

Section 100 Floor Pan, Reinforcements, Unibody and

related Floor, Underbody, Sill

Section 200 Front/Rear Doors, Quarter panels, rear door

glass, belt rails Front/Rear Doors, Quarters

Section 300 Quarter Window and Trim Quarter Window, Trim

Section 400 Back Door, Rear Window, Convertible Top,

Tailgate, Trunk, Luggage Compartment Back Door, Luggage

Compartment

Section 500 Roof, Drip Moldings, Headlining, Landau

Top, Folding Top, Luggage Carrier Roof, Headlining, Top

Section 600 Seating and related, Seat Belts, Headrests Seat

Soft Trim Upholstery, windlace, door panels, carpet,

visors, floor mats Soft Trim

The following are found in the Body Illustrations Group (not in the Text catalog)

Sheet Metal Body Sheet Metal Sheet Metal

Exterior Moldings Molding/Nameplates Exterior Moldings

Interior Trim Door Handles, Trim Panels and related Interior Trim

Ford 196572 Main Menu Master Parts And Accessory Catalog User Manual To The Fc030d3a 7e16 4f6d 9604 C93bfd2db346

Navigation menu

Versions of this User Manual:

Views

Navigation
