Atheros 2T2R PCIe Module
EMP7618
2.4 / 5 GHz
802.11a/b/g/n
300Mbps
EMP7618 is a 2.4 / 5Ghz Dual Band 2T2R PCIe Half-Card
Module based on the Atheros AR9382 solution which
features improved transmission power and sensitivity by
Senao Networks.
Using the AR9382 internal FEM, it is the ideal cost effective
solution for platform integration.
With enhanced technologies such as advanced power
management and receiver boost, it makes the EMP7618 the
ideal 2.4 or 5Ghz 2T2R module.
Features
Benefits
Advanced Power Management
Unscheduled Automatic Power Save Delivery (UAPSD), it
allows the RF module to spend more time in “sleep” state.
Dynamic MIMO Power Save allows radios to downshift to less
intensive Tx configurations when traffic is light.
Receiver Boost
Utilizing Maximum Likelihood Demodulation (MLD) and
Maximal Ratio Combining (MRC) to optimize signal receiving.
V1.0 (2011-07-14)
General information
Chipset
Atheros AR9382
PA
Internal Front End Module
Interface
PCIe
Operating voltage
PCIe Slot : DC 3.3 V ± 5% with Advanced DC Power management support
Antenna connectors
2x I-PEX connectors

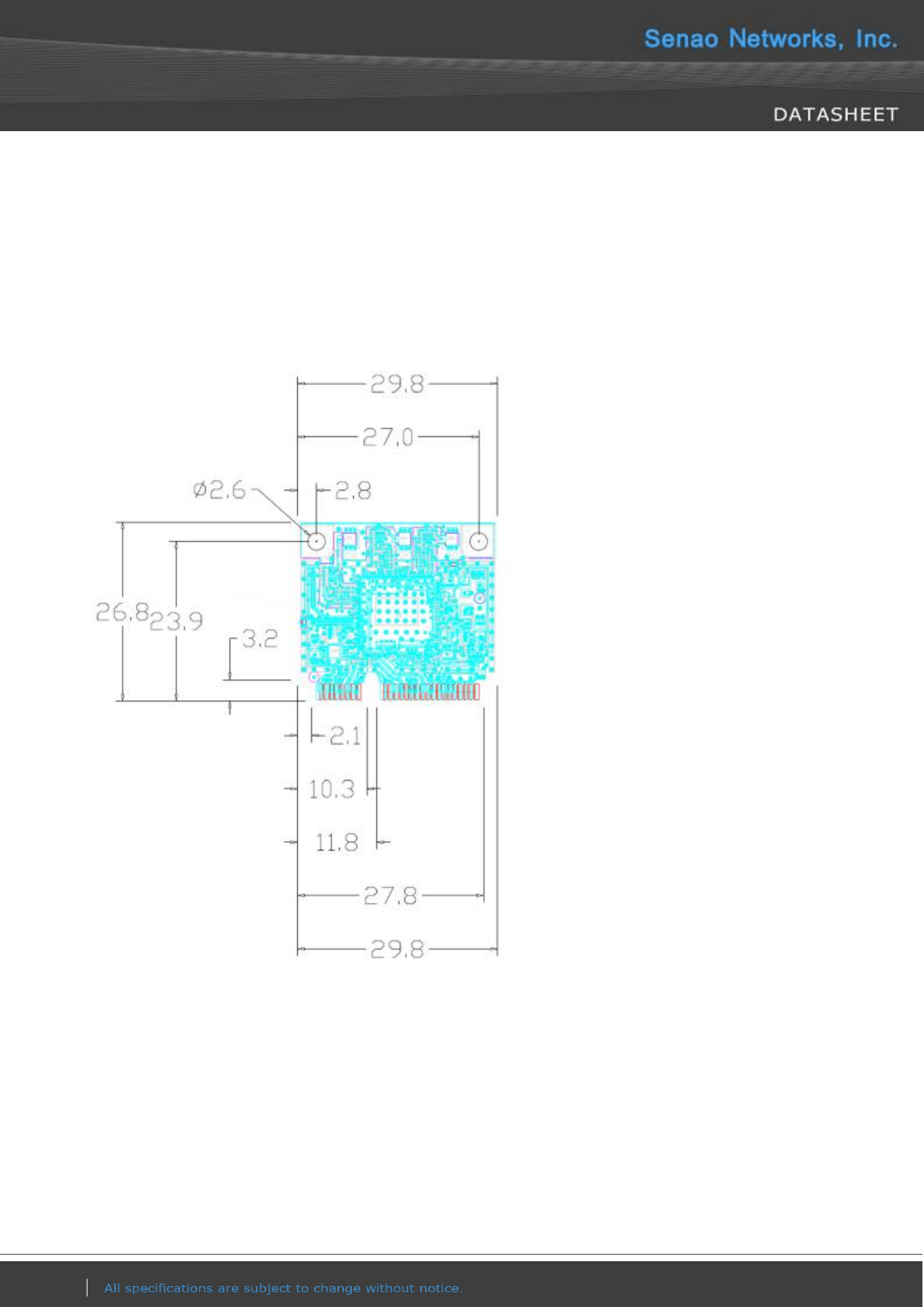

PCB Dimensions
30 x 27mm (W x L) – Half Card
Temperature range
0°C to + 55 °C (Operating temperature)
-45°C to + 85°C (Storage temperature)
Security
WPA, WPA2, 64/128 bit WEP, TKIP, and AES. hardware-based IEEE 802.11i encryption engine
Data rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b:1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: 20MHz channel:
1Nss: 65Mbps @ 800ns GI; 72.2Mbps @ 400ns GI (Max);
2Nss: 130Mbps @ 800ns GI; 144.44Mbps @ 400ns GI (Max);
802.11n: 40MHz channel:
1Nss: 135Mbps @ 800ns GI; 157.5Mbps @ 400ns GI (Max.);
2Nss: 270Mbps @ 800ns GI; 300Mbps @ 400ns GI (Max.);
Tx channel width support
20MHz / 40MHz
Standard/Compliance
WECA (Wi-Fi & Wi-Fi5 compliance), IEEE802.11,b/g/n, RoHS and WEEE
Regulation Certifications
FCC Part 15
V1.0 (2011-07-14)
Radio Frequency Band
Channel
Data rate
Tx AVG. Power
(2TX) (dBm)
Tolerance
Sensitivity
(2RX) (dBm)
Frequency Band: 2.412 ~ 2.482GHz
802.11b (2.412~2.482GHz)
1 Mbps
12
+2/-2 dB
≦-96
2 Mbps
12
+2/-2 dB
≦-94
5.5 Mbps
12
+2/-2 dB
≦-94
11 Mbps
12
+2/-2 dB
≦-91
802.11g (2.412~2.482GHz)
6 Mbps
12
+2/-2 dB
≦-93
54 Mbps
12
+2/-2 dB
≦-77
802.11n_HT20
(2.412~2.472GHz)
MCS 0/MCS 8
12
+2/-2 dB
≦-92
MCS 1/MCS 9
12
+2/-2 dB
≦-91
MCS 2/MCS 10
12
+2/-2 dB
≦-89
MCS 3/MCS 11
12
+2/-2 dB
≦-84
MCS 4/MCS 12
12
+2/-2 dB
≦-81
MCS 5/MCS 13
12
+2/-2 dB
≦-77
MCS 6/MCS 14
11
+2/-2 dB
≦-75
MCS 7/MCS 15
11
+2/-2 dB
≦-73
Operating Frequency: 2.422~2.462GHz
802.11n_HT40
MCS 0/MCS 8
12
+2/-2 dB
≦-89
MCS 1/MCS 9
12
+2/-2 dB
≦-88
MCS 2/MCS 10
12
+2/-2 dB
≦-86
MCS 3/MCS 11
12
+2/-2 dB
≦-82
MCS 4/MCS 12
12
+2/-2 dB
≦-79
MCS 5/MCS 13
12
+2/-2 dB
≦-75
MCS 6/MCS 14
11
+2/-2 dB
≦-73
MCS 7/MCS 15
11
+2/-2 dB
≦-70
V1.0 (2011-07-14)
Frequency Band 5.18~5.825GHz
802.11a (5.18~5.825GHz)
6 Mbps
11
+2/-2 dB
≦-91
54 Mbps
11
+2/-2 dB
≦-74
802.11n_HT20
MCS 0/MCS 8
11
+2/-2 dB
≦-91
MCS 1/MCS 9
11
+2/-2 dB
≦-89
MCS 2/MCS 10
11
+2/-2 dB
≦-87
MCS 3/MCS 11
11
+2/-2 dB
≦-84
MCS 4/MCS 12
11
+2/-2 dB
≦-81
MCS 5/MCS 13
11
+2/-2 dB
≦-77
MCS 6/MCS 14
10
+2/-2 dB
≦-75
MCS 7/MCS 15
10
+2/-2 dB
≦-71
Operating Frequency: 5.190~5.795GHz
802.11n_HT40
MCS 0/MCS 8
11
+2/-2 dB
≦-88
MCS 1/MCS 9
11
+2/-2 dB
≦-86
MCS 2/MCS 10
11
+2/-2 dB
≦-83
MCS 3/MCS 11
11
+2/-2 dB
≦-79
MCS 4/MCS 12
11
+2/-2 dB
≦-76
MCS 5/MCS 13
11
+2/-2 dB
≦-71
MCS 6/MCS 14
10
+2/-2 dB
≦-70
MCS 7/MCS 15
10
+2/-2 dB
≦-68
Current Consumption Information
Tx current consumption
(without Jump wire)
Continuous TX (99% duty)
≦ 3.0 W
Sleep Current
Sleep mode
≦ 100 mA
OS support
Windows 2000/XP/Vista, Linux
