FortiAPCam-214B
QuickStart Guide
June 30, 2014
1st Edition
Copyright © 2014 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®,
and certain other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein
may also be registered and/or common law trademarks of Fortinet. All other product or company
names may be trademarks of their respective owners. Performance and other metrics contained
herein were attained in internal lab tests under ideal conditions, and actual performance and other
results may vary. Network variables, different network environments and other conditions may affect
performance results. Nothing herein represents any binding commitment by Fortinet, and Fortinet
disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding
written contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that
the identified product will perform according to certain expressly-identified performance metrics
and, in such event, only the specific performance metrics expressly identified in such binding
written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited to
performance in the same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in full
any covenants, representations, and guarantees pursuant hereto, whether express or implied. Fortinet
reserves the right to change, modify, transfer, or otherwise revise this publication without notice, and
the most current version of the publication shall be applicable.
Technical Documentation http://docs.fortinet.com
Knowledge Base http://kb.fortinet.com
Forums https://support.fortinet.com/forum
Customer Service & Support https://support.fortinet.com
Training Services http://training.fortinet.com
FortiGuard Threat Research & Response http://www.fortiguard.com
Document Feedback Email: techdocs@fortinet.com
Page 4

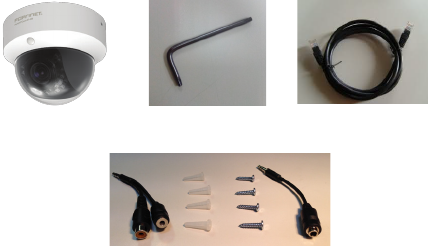

Package Contents
Your box should contain:
• FortiAPCam-214B camera
• This QuickStart Guide
• RJ45 Ethernet cable
• 1x 3.5mm male to 3.5mm female cable for audio-in
• 1x 3.5mm male to RCA/3.5mm cable for AV-out
• 1x Allen wrench for security case removal/installation
• 4x screws and 4x anchors for ceiling mounting
Ethernet cable
LRCA AV-out cable, anchors, screws, and audio-in cable
FortiAPCam-214B unit Allen wrench
Page 5
Hardware Installation
Using the provided hardware, the FortiAPCam unit can be attached to a
ceiling.
To connect
1. Fasten a single screw to the desired location on a ceiling and position
the unit so that the screw fits securely into the slot located in the
centre of the flat bottom of the unit.
2. Secure unit to the ceiling by inserting screws through the three tabs
located along the edge of the unit.
3. Attach the dome over the unit and secure it in place using the two
screws located on either side of the dome.
To reboot
• Press and hold the Reset button for less than 5 seconds to reboot
both the camera and AP part of the system.
To reset to factory default settings
• Press and hold the Reset button for more than 5 seconds to reset
both the camera and AP part of the system to factory default.
Page 6
Connecting your Unit
Using the provided mounting hardware, attach the FortiAPCam unit to a
ceiling, as described in the previous section.
Adequate grounding must be provided to the unit and the PoE injector, in
compliance with your local electrical code or regulations.
Caution: This device complies with IEEE 802.3af PoE specification. Do
not use any PoE injectors that are not IEEE 802.3af compliant as they may
damage your device.
To connect the FortiAPCam unit
1. Connect the unit to a PoE switch.
2. Connect your FortiGate or FortiWiFi unit to the switch to use the
access point function.
3. Connect your FortiRecorder to the switch to use the video
surveillance function.
Note: For FortiWiFi units, the wireless controller feature is only supported
on units running FortiOS 4.0 MR3 and higher.
Caution: This equipment is to be connected only to PoE networks without
routing to the outside plant.
Page 7
Configuring your Unit
For the camera part of the unit, configuration is done through the
connected FortiRecorder NVR. For details, see the FortiRecorder
Administration Guide at http://docs.fortinet.com.
For the access point part, no configuration is required if the unit is directly
connected to the FortiGate or FortiWiFi performing the Wireless LAN
Controller (WLC) functions, or on the same layer-2 network and subnet as
the FortiGate or FortiWiFi unit.
If the FortiAPCam wireless controller’s IP address cannot be determined
using Zero Configuration mode, or if the network uses static IP addresses,
it can be configured to use a static IP address.
To enable the FortiAPCam using Zero Configuration
1. After connecting the FortiAPCam unit, the unit goes through its boot
procedure and requests an IP address from the DHCP server.
2. If the IP address is retrieved successfully, the FortiAPCam enters
discovery mode to locate a FortiGate or FortiWiFi wireless controller.
The discovery modes are:
• Broadcast
• Multicast
• DHCP option 138
3. Verify that the FortiAPCam has successfully connected to the
controller.
Page 8
In the FortiGate Web-based Manager, go to WiFi & Switch Controller
> Managed Devices > Managed FortiAPs. A successfully discovered
unit displays an orange circle with a question mark.
4. Select the access point and click the Authorize button.
The configuration is downloaded from the wireless controller to the
FortiAP and the WiFi LED lights up.
To enable the FortiAPCam with a static IP address
1. Connect the FortiAPCam device to a separate private switch or hub,
or directly connect it to your management computer via a cross-over
cable.
2. Configure the management computer to be on the same subnet as
the internal interface of the FortiAPCam unit, which default IP address
is 192.168.1.2.
a. For example, in Windows 7, browse to the Network and
Sharing Center > Change Adapter Settings > Local Area
Connection Properties > Internet Protocol Version 4 (TCP/IPv4)
Properties.
b. Change the IP address of the management computer to
192.168.1.3 and the netmask to 255.255.255.0.
3. Use a Telnet apllication to connect to IP address 192.168.1.2.
4. Type admin in the Name field, leave the Password field blank, and
press Enter.
Page 9
5. Configure a static IP address for the FortiAPCam unit and netmask &
gateway information for your network, using the following commands:
cfg -a ADDR_MODE=STATIC
cfg –a AP_IPADDR=xxx.xxx.xxx.xx
cfg –a AP_NETMASK=255.255.255.0
cfg –a IPGW=yyy.yyy.yyy.yyy
cfg –a AC_IPADDR_1=zzz.zzz.zzz.zzz
where xxx is the IP address of the FortiAPCam unit, yyy is the
Gateway IP address and zzz is the IP address of the FortiGate
Wireless Controller.
6. Save the configuration by typing the following command:
cfg –c
7. Unplug the FortiAPCam unit and plug it back in order for the
configuration to take effect.
8. Move the FortiAPCam to the intended deployment location and
connect the Ethernet cable.
9. Log in to the FortiGate controller Web-based Manager, and go to
WiFi & Switch Controller > Managed Devices > Managed FortiAPs. A
successfully discovered unit displays an orange circle with a question
mark in the Status column.
10. Select the access point and click the Authorize button .
11. In the Edit FortiAP dialog box, select Enable Wireless Radio. Leave
the remaining settings at their default values. The configuration is
downloaded from the FortiGate unit to the FortiAPCam device.
For more information, see the Deploying Wireless Networks Guide, available
on Fortinet’s technical documentation website, http://docs.fortinet.com.
Page 10
Front and Back Views
The following images display the front and back views, respectively, of the
FortiAPCam unit.

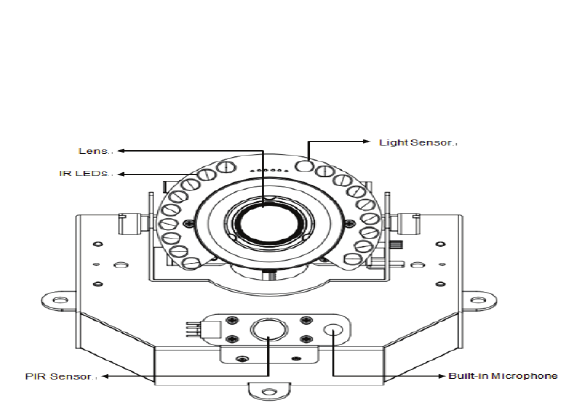

FortiAPCam-214B – Front View
Page 11

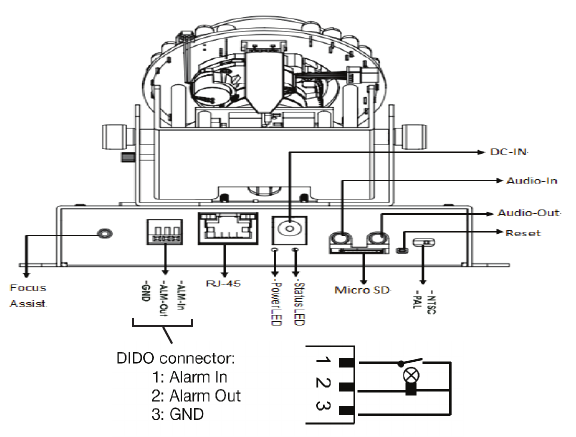

FortiAPCam-214B – Back View
(not supported)
(not supported)
(not supported)
Page 12
Technical Specifications
Camera
Format Fixed dome
Sensor Type 2 mega-pixel, 1/2.7” CMOS, WDR
Iris F1.2, 0.01 Lux B/W, 0.2 Lux colour
Focal Length f = 3 mm–9 mm
View Angle H: 93°–31.7°
IRLED/IRC 15m/yes
Streaming Protocol RTSP/HTTPS
Video Compression H.264/MJPEG/MPEG-4
Image Resolution 1920 x 1080 at 30 fps
1280 x 720 at 30 fps
720 x 480 at 30 fps
Audio Two-way line in/line out, built-in mic
Interface 1 DI, 1 DO, RJ45 Ethernet 10/100 Mbps, PIR
15 ft. (5 m)
Mounting Ceiling, 0–90°V
Page 13
Dimensions
Height x Width x
Length (in)
3.9 x 5.5 x 5.5
Height x Width x
Length (mm)
100 x 140 x 140
Weight 1.5 lbs (0.68 kg)
Environment
Power Required PoE 802.3af, 12.5W
Power
Consumption (AVG)
5.5W
Operating
Temperature
32-104°F (0-40°C)
Humidity 10-80% non-condensing
Deployment Indoor only
WiFi
Frequency Bands 802.11 b/g/n, 2.4GHz; 802.11 a/n, 5GHz
Page 14
Register for Support
Register your Fortinet product to receive:
•Technicalsupport•Newproductfeatures•Protectionfromnewthreats
Vous devez enregistrer le produit pour recevoir:
•Supporttechnique•Nouvellesfonctionnalitéesduproduit•Protectioncontredenouvellesmenaces
La reistrazione ti permette di usufruire di:
•Supportotecnico•Nuovefunzionalita•Proteezionedalleultimeminaccce
Debe registrar el producto para recibir:
•Apoyotécnico•Nuevasfuncionalidadesdelproducto•Proteccióncontraataques
下記フォーティネットからのサービスを受けるために、ご購入製品の登録が必要です:
•テクニカルサポート • 新機能の追加 • 新しい脅威への防御
注册您的飞塔产品后可以得到:
•技术支持 • 新产品特点信息 •最新威胁防护
Web: https://support.fortinet.com/
Toll free: 1 866 648 4638
Phone: 1 408 486 7899
Fax: 1 408 235 7737
Email: register@fortinet.com
Page 15
Cautions and Warnings
Environmental Specications
Refer to specic Product Model Data Sheet for Environmental Specications (Operating Temperature, Storage Temperature,
Humidity, and Altitude)
Safety
Power over Ethernet (PoE) — Do not connect this device to PoE networks with routing to the outside plant. Use this equipment in
a Network Environment 0 per IECTR 62101. Do not use PoE injectors that are not IEEE 802.3af compliant. They may damage your
device. The unit is intended to be powered by PoE source of a LPS UL Listed or Class 2 IEC certied power adaptor.
Alimentation par Ethernet — Ce matériel doit être utilisé dans un Environnement Réseau 0 par IECTR 62101. Ce matériel est
uniquement connecté aux réseaux PoE sans installation externe de routage. Cet appareil est conforme aux normes IEEE 802.3af.
Ne pas utiliser d’autres injecteurs d’alimentation non conformes sous peine d’endommager votre matériel. Le produit doit être
alimenté par une source PoE d’une alimentation à puissance limitée (UL Listed) ou par une alimentation Class 2 certiée par IEC.
Page 16
Regulatory Notices
Federal Communication Commission (FCC) – USA
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received; including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment
generates, uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the instruction manual, it
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment
Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.
Caution: Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
Page 17
Agreement / EULA
and Warranty Terms
Trademarks and Copyright Statement
Fortinet®, FortiGate®, and FortiGuard® are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be trademarks, registered or
otherwise, of Fortinet. All other product or company names may be trademarks of their respective owners. Copyright © 2002-2014 Fortinet, Inc., All Rights
reserved. Contents and terms are subject to change by Fortinet without prior notice. No part of this publication may be reproduced in any form or by any
means or used to make any derivative such as translation, transformation, or adaptation without permission from Fortinet, Inc., as stipulated by the United
States Copyright Act of 1976.
Product License Agreement
The parties to this agreement are you, the end customer, and either (i) where you have purchased your Product within the Americas, Fortinet, Inc., or (ii)
where you have purchased your Product outside of the Americas, Fortinet Singapore Private Limited (each referred to herein as “Fortinet”) .CAREFULLY
READ THE FOLLOWING LEGAL AGREEMENT (THE OR THIS “AGREEMENT” OR “EULA”). USE OF FORTINET PRODUCT(S) AND ANY UPDATES THERETO,
INCLUDING HARDWARE APPLIANCE PRODUCTS, SOFTWARE AND FIRMWARE INCLUDED THEREIN BY FORTINET, AND STAND-ALONE SOFTWARE PRODUCTS
SOLD BY FORTINET (TOGETHER, THE “PRODUCTS”) CONSTITUTES ACCEPTANCE BY YOU OF THE PROVISIONS IN THIS AGREEMENT. FORTINET SHALL NOT BE
BOUND BY ANY ADDITIONAL AND/OR CONFLICTING PROVISIONS IN ANY ORDER, RELEASE, ACCEPTANCE OR OTHER WRITTEN CORRESPONDENCE OR OTHER
WRITTEN OR VERBAL COMMUNICATION UNLESS EXPRESSLY AGREED TO IN A WRITING SIGNED BY THE GENERAL COUNSEL OF FORTINET. YOUR INSTAL-
LATION OR USE OF ANY PRODUCT REPRESENTS AGREEMENT TO THE TERMS HEREIN, AS AMENDED OR UPDATED FROM TIME TO TIME IN FORTINET’S
DISCRETION BY FORTINET PUBLISHING AN AMENDED OR UPDATED VERSION. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS AGREEMENT, DO NOT
START THE INSTALLATION PROCESS OR USE THE PRODUCTS. IF YOU DO NOT AGREE TO THE PROVISIONS OF THIS AGREEMENT, YOU SHOULD IMMEDIATELY,
AND IN NO EVENT LATER THAN FIVE (5) CALENDAR DAYS AFTER YOUR RECEIPT OF THE PRODUCT RETURN THE PRODUCTS TO THE LOCATION WHERE YOU
OBTAINED THEM FOR A FULL REFUND FROM THE PARTNER SELLING TO YOU.
1. License Grant.
This is a license, not a sales agreement, between you and Fortinet. The term “Software”, as used throughout this Agreement, includes all Fortinet and
third party rmware and software provided to you with, or incorporated into, Fortinet appliances and any stand-alone software provided to you by Fortinet,
with the exception of any open source software contained in Fortinet’s Products which is discussed in detail in section 15 below, and the term “Software”
includes any accompanying documentation, any updates and enhancements of the software or rmware provided to you by Fortinet, at its option. Fortinet
grants to you a non-transferable (except as provided in section 5 (“Transfer”) and section 15 (“Open Source Software”) below), non-exclusive, revocable
(in the event of your failure to comply with these terms or in the event Fortinet is not properly paid for the applicable Product) license to use the Software
solely for your internal business purposes (provided, if a substantial portion of your business is to provide managed service provider services to your
end-customers, you may use the Software embedded in FortiGate and supporting hardware appliances to provide those services, subject to the other re-
strictions in this Agreement), in accordance with the terms set forth in this Agreement and subject to any further restrictions in Fortinet documentation, and
solely on the Fortinet appliance, or, in the case of blades, CPUs or databases, on the single blade, CPU or database on which Fortinet installed the Software
or, for stand-alone Software, solely on a single computer running a validly licensed copy of the operating system for which the Software was designed, or,
in the case of blades, CPUs or databases, on a single blade, CPU or database. For clarity, notwithstanding anything to the contrary, all licenses of Software
to be installed on blades, CPUs or databases are licensed on a per single blade, solely for one blade and not for multiple blades that may be installed in a
chassis, per single CPU or per single database basis, as applicable. The Software is “in use” on any Fortinet appliances when it is loaded into temporary
memory (i.e. RAM). You agree that, except for the limited, specic license rights granted in this section 1, you receive no license rights to the Software.
2. Limitation on Use.
You may not attempt to, and, if you are a corporation, you are responsible to prevent your employees and contractors from attempting to, (a) modify,
Page 18
translate, reverse engineer, decompile, disassemble, create derivative works based on, sublicense, or distribute the Software; (b) rent or lease any rights
in the Software in any form to any third party or make the Software available or accessible to third parties in any other manner; (c) except as provided in
section 5, transfer assign or sublicense right to any other person or entity, or (d) remove any proprietary notice, labels, or marks on the Software, Products,
and containers.
3. Proprietary Rights.
All rights, title, interest, and all copyrights to the Software and any copy made thereof by you and to any Product remain with Fortinet. You acknowledge
that no title to the intellectual property in the Software or other Products is transferred to you and you will not acquire any rights to the Software or other
Products except for the specic license as expressly set forth in section 1 (“License Grant”) above.
4. Term and Termination.
Except for evaluation and beta licenses or other licenses where the term of the license is limited per the evaluation/beta or other agreement or in the order-
ing documents, the term of the license is for the duration of Fortinet’s copyright in the Software. Fortinet may terminate this Agreement, and the licenses
and other rights herein, immediately without notice if you breach or fail to comply with any of the terms and conditions of this Agreement. You agree that,
upon such termination, you will cease using the Software and any Product and either destroy all copies of the Fortinet documentation or return all materials
to Fortinet. The provisions of this Agreement, other than the license granted in section 1 (“License Grant”), shall survive termination.
5. Transfer.
If you are a Fortinet contracted and authorized reseller or distributor of Products, you may transfer (not rent or lease unless specically agreed to in writing
by Fortinet) the Software to one end user on a permanent basis, provided that: (i) you ensure that your customer and the end user receives a copy of
this Agreement, is bound by its terms and conditions, and, by selling the Product or Software, you hereby agree to enforce the terms in this Agreement
against such end user, (ii) you at all times comply with all applicable United States export control laws and regulations, and (iii) you agree to refund any
fees paid to you by an end user who purchased Product(s) from you but does not agree to the terms contained in this Agreement and therefore wishes to
return the Product(s) as provided for in this Agreement. Further, if you are a non-authorized reseller of Products, you are not authorized to sell Product(s) or
Software, but, regardless, by selling Product(s) or Software, you hereby agree you are bound by the restrictions and obligations herein and are bound to: (i)
ensure that your customer and the end user receive a copy of this Agreement and are bound in full by all restrictions and obligations herein (ii) enforce the
restrictions and obligations in this Agreement against such customer and/or end user, (iii) comply with all applicable United States export control laws and
regulations and all other applicable laws, and (iv) refund any fees paid to you by a customer and/or end user who purchased Product(s) from you but does
not agree to the restrictions and obligations contained in this Agreement and therefore wishes to return the Product(s) as provided for in this Agreement.
Notwithstanding anything to the contrary, distributors, resellers and other Fortinet partners (a) are not agents of Fortinet and (b) are not authorized to bind
Fortinet in any way.
6. Limited Warranty.
Fortinet provides this limited warranty for its product only to the single end-user person or entity that originally purchased the Product from Fortinet or
its authorized reseller or distributor and paid for such Product. The warranty is only valid for Products which are registered on Fortinet’s Support Website:
https://support.fortinet.com; or on the TalkSwitch support website: http://global.talkswitch.com; or such other website as provided by Fortinet. For the
below software warranty to start, registration must take place within three hundred sixty-ve (365) days from the date the Product was originally shipped
from Fortinet’s facilities or the warranty is null and void and will not be honored. For the hardware warranty, such warranty starts on the earlier of the date
of Product registration on Fortinet’s Support Website or ninety (90) days from the date that the Product was originally shipped from Fortinet’s facilities. It is
the Fortinet distributor’s and reseller’s responsibility to make clear to the end user the date the product was originally shipped from Fortinet, and it is the
end user’s responsibility to understand the original ship date from the party from which the end user purchased the product. All warranty claims must be
submitted in writing to Fortinet before the expiration of the warranty term or such claims are waived in full, i.e. ninety (90) days from the earlier of registra-
tion or the automatically started term for hardware and spare parts claims and three hundred sixty-ve (365) days from registration within three hundred
sixty-ve (365) days from shipment for software claims. Fortinet provides no warranty for any beta, donation or evaluation Products, for any spare parts not
purchased directly from Fortinet by the end-user, for any accessories, or for any stand-alone software.
Fortinet warrants that the hardware portion of the Products, including spare parts unless noted otherwise (“Hardware”) will be free from material defects
in workmanship as compared to the functional specications for the period set forth as follows and applicable to the Product type (“Hardware Warranty
Period”): a three hundred sixty-ve (365) day limited warranty for the Hardware excluding spare parts, , power supplies, and accessories (provided,
solely with respect to FortiAP indoor Wi-Fi access point Hardware appliance products and FortiSwitch Hardware appliance products other than the
FortiSwitch-5000 series (for both excluding spare parts, power supplies, and accessories), the warranty herein shall last from the start of the warranty
period as discussed above until ve (5) years following the product announced end-of-life date), and, for spare parts, power supplies, and accessories,
Page 19
solely a ninety (90) days limited warranty. Fortinet’s sole obligation shall be to repair or replace the defective Hardware at no charge to the original owner.
This obligation is exclusive of transport fees, labor or installation costs, and any other cost which are not directly associated to the Product. Such repair or
replacement will be rendered by Fortinet at an authorized Fortinet service facility as determined by Fortinet. The replacement Hardware need not be new or
of an identical make, model, or part; Fortinet may, in its discretion, replace the defective Hardware (or any part thereof) with any reconditioned Product that
Fortinet reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware. The Hardware Warranty Period for
the repaired or replacement Hardware shall be for the greater of the remaining Hardware Warranty Period or ninety days from the delivery of the repaired or
replacement Hardware. If Fortinet determines in its reasonable discretion that a material defect is incapable of correction or that it is not practical to repair
or replace defective Hardware, the price paid by the original purchaser for the defective Hardware will be refunded by Fortinet upon return to Fortinet of
the defective Hardware. All Hardware (or part thereof) that is replaced by Fortinet, or for which the purchase price is refunded, shall become the property of
Fortinet upon replacement or refund.
Fortinet warrants that the software portion of Hardware Products will substantially conform to Fortinet’s then current functional specications for the
Software, as set forth in the applicable documentation for a period of ninety (90) days (“Software Warranty Period”), if the Software is properly installed on
approved Hardware and operated as contemplated in its documentation. Fortinet’s sole obligation shall be to repair or replace the non-conforming Software
with software that substantially conforms to Fortinet’s functional specications. Except as otherwise agreed by Fortinet in writing, the replacement Software
is provided only to the original licensee, and is subject to the terms and conditions of the license granted by Fortinet for the Software. The Software War-
ranty Period shall extend for an additional ninety (90) days after any replacement software is delivered. If Fortinet determines in its reasonable discretion
that a material non-conformance is incapable of correction or that it is not practical to repair or replace the non-conforming Software, the price paid by
the original licensee for the non-conforming Software will be refunded by Fortinet; provided that the non-conforming Software (and all copies thereof) is
rst returned to Fortinet. The license granted respecting any Software for which a refund is given automatically terminates immediately upon refund. For
purpose of the above hardware and software warranties, the term “functional specications” means solely those specications authorized and published by
Fortinet that expressly state in such specications that they are the functional specications referred to in this section 6 of this Agreement, and, in the event
no such specications are provided to you with the Software or Hardware, there shall be no warranty on such Software.
7. Disclaimer of Other Warranties and Restrictions.
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED IN SECTION 6 ABOVE, THE PRODUCT AND SOFTWARE ARE PROVIDED “AS-IS” WITHOUT ANY WARRANTY
OF ANY KIND INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY, IMPLIED OR EXPRESS WARRANTY OF MERCHANTABILITY, OR WARRANTY FOR
FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A
PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL BE LIMITED TO NINETY (90) DAYS FROM THE DATE OF ORIGINAL SHIPMENT FROM
FORTINET. EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND
PERFORMANCE OF THE PRODUCT IS WITH THE PURCHASER OF THE PRODUCT. NOTWITHSTANDING ANYTHING TO THE CONTRARY, THE HARDWARE WAR-
RANTY PERIOD DISCUSSED ABOVE DOES NOT APPLY TO CERTAIN FORTINET PRODUCTS, INCLUDING FORTIFONE WHICH HAS A NINETY (90) DAY LIMITED
WARRANTY AND FORTITOKEN WHICH HAS A 365 DAY WARRANTY FROM THE DATE OF SHIPMENT FROM FORTINET’S FACILITIES, AND THE SOFTWARE
WARRANTY DOES NOT APPLY TO CERTAIN FORTINET PRODUCTS, INCLUDING FORTIGATE-ONE AND VDOM SOFTWARE.
The warranty in Section 6 above does not apply if the Software, Product or any other equipment upon which the Software is authorized to be used (a) has
been altered, except by Fortinet or its authorized representative, (b) has not been installed, operated, repaired, or maintained in accordance with instructions
supplied by Fortinet, (c) has been subjected to abnormal physical or electrical stress, misuse, negligence, or accident; (d) is licensed for beta, evaluation,
donation, testing or demonstration purposes or for which Fortinet does not charge a purchase price or license fee. In the case of beta, testing, evaluation,
donation or free Software or Product, the end user acknowledges and agrees that such Software or Product may contain bugs or errors and could cause
system failures, data loss and other issues, and the end user agrees that such Software or Product is provided “as-is” without any warranty whatsoever,
and Fortinet disclaims any warranty or liability whatsoever. An end user’s use of evaluation or beta Software or Product is limited to thirty (30) days from
original shipment unless otherwise agreed in writing by Fortinet.
8. Governing Law.
Any disputes arising out of this Agreement or Fortinet’s limited warranty shall be governed by the laws of the state of California, without regard to the
conict of laws principles. In the event of any disputes arising out of this Agreement or Fortinet’s limited warranty, the parties submit to the jurisdiction of
the federal and state courts located in Santa Clara County, California, as applicable.
9. Limitation of Liability.
TO THE MAXIMUM EXTENT PERMITTED BY LAW AND NOTWITHSTANDING ANYTHING TO THE CONTRARY, FORTINET IS NOT LIABLE UNDER ANY CONTRACT,
NEGLIGENCE, TORT, STRICT LIABILITY, INFRINGEMENT OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT OR SERVICE OR
Page 20
ANY DAMAGES OF ANY KIND WHATSOEVER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES
FOR LOSS OF GOODWILL, LOSS OF PROFIT, LOSS OF OPPORTUNITY, LOSS OR DAMAGE RELATED TO USE OF THE PRODUCT OR SERVICE IN CONNECTION
WITH HIGH RISK ACTIVITIES, DAMAGE TO PERSONAL OR REAL PROPERTY, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, COMPUTER SECURITY
BREACH, COMPUTER VIRUS INFECTION, LOSS OF INFORMATION OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT INCLUDING ANY
PRODUCT RETURNED TO FORTINET FOR WARRANTY SERVICE) RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING
OUT OF ANY BREACH OF THE LIMITED WARRANTY IN SECTION 6 ABOVE, EVEN IF FORTINET HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
THE SOLE REMEDY FOR A BREACH OF THE LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PROD-
UCT AS SPECIFICALLY STATED IN SECTION 6 ABOVE.
10. Import / Export Requirements; FCPA Compliance.
You are advised that the Products may be subject to the United States Export Administration Regulations and other import and export laws; diversion con-
trary to United States law and regulation is prohibited. You agree to comply with all applicable international and national laws that apply to the Products as
well as end user, end-use, and destination restrictions issued by U.S. and other governments. For additional information on U.S. export controls see www.
bis.doc.gov. Fortinet assumes no responsibility or liability for your failure to obtain any necessary import and export approvals. You represent that neither
the United States Bureau of Industry and Security nor any other governmental agency has issued sanctions against you or otherwise suspended, revoked
or denied your export privileges. You agree not to use or transfer the Products for any use relating to nuclear, chemical or biological weapons, or missile
technology, unless authorized by the United States Government by regulation or specic written license. Additionally, you agree not to directly or indirectly
export, import or transmit the Products contrary to the laws or regulations of any other governmental entity that has jurisdiction over such export, import,
transmission or use. Furthermore, you represent that you understand, and you hereby agree to comply with, all requirements of the U.S. Foreign Corrupt
Practices Act and all other applicable laws. For beta, testing, evaluation, donation or free Products and/or related services, you hereby agree, represent and
warrant to Fortinet that (a) receipt of the Products and/or services comply with all policies and you have obtained all necessary approvals for such Products
and/or services, (b) the Products and/or services are not provided in exchange for Fortinet maintaining current business or for new business opportunities,
and (c) the Products and/or services are not being received for the benet of, and are not being transferred to, any government entity, representative or
afliate.
11. U.S. Government End Users.
The Software and accompanying documentation are deemed to be “commercial computer software” and “commercial computer software documentation,”
respectively, pursuant to DFAR Section 227.7202 and FAR Section 12.212, as applicable. Any use, modication, reproduction, release, performance, display
or disclosure of the Software and accompanying documentation by the United States Government shall be governed solely by the terms of this Agreement
and shall be prohibited except to the extent expressly permitted by the terms of this Agreement and its successors.
12. Tax Liability.
You agree to be responsible for payment of any sales or use taxes imposed at any time on this transaction.
13. General Provisions.
Except as specically permitted and required in section 5 (“Transfer”) above, you agree not to assign this Agreement or transfer any of the rights or obliga-
tions under this Agreement without the prior written consent of Fortinet. This Agreement shall be binding upon, and inure to the benet of, the successors
and permitted assigns of the parties. The United Nations Convention on Contracts for the International Sales of Goods is expressly excluded. This Agreement
and other Fortinet agreements may be amended or supplemented only by a writing that refers explicitly to the agreement signed on behalf of both parties,
or, for this Agreement, as otherwise expressly provided in the lead-in above Section 1 above, provided, notwithstanding anything to the contrary and except
for this Agreement which may be amended or updated as expressly provided in the lead-in above Section 1 above, for any amendment or other agreement
to be binding on Fortinet, such amendment or other agreement must be signed by Fortinet’s General Counsel. No waiver will be implied from conduct or
failure to enforce rights nor effective unless in a writing signed on behalf of the party against whom the waiver is asserted. If any part of this Agreement is
found unenforceable, that part will be enforced to the maximum extent permitted and the remainder shall continue in full force and effect. You acknowledge
that you have read this Agreement, understand it, and agree to be bound by its terms and conditions.
14. Privacy.
By entering into this Agreement, you agree and consent that Fortinet may collect, retain and use personal information supplied, including name, address,
and e-mail address of individuals and payment details and other information. Personal information will be used primarily to provide services and product
functionality to end users. Fortinet may also use personal information for additional communication, subject to an opt-out notice provided by you in writing
per below. Fortinet may engage other companies and individuals to perform functions on its behalf, such as payment processing, order fulllment, market-
ing programs and customer service. Fortinet may share personal information with such subcontractors in order to perform these and other functions, but
Page 21
such subcontractors may not use your personal information for other purposes, unless you agree. By entering into this Agreement, you agree and consent
to the transfer the supplied personal information to Fortinet’s ofces in the United States and elsewhere, for the purposes stated above. For more detailed
information on the collection, use and transfer of your personal information, and for information on how to opt out of or unsubscribe from the communica-
tions described above, please read the Fortinet privacy policy on the Fortinet web site (www.Fortinet.com).
15. Open Source Software.
Fortinet’s products may include software modules that are licensed (or sublicensed) to the user under the GNU General Public License, Version 2, of June
1991 (“GPL”) or GNU Lesser General Public License, Version 2.1, of February 1999 (“LGPL”) or other open source software licenses which, among other
rights, permit the user touse, copy, modify and redistribute modules, or portions thereof, and may also require attribution disclosures and access to the
source code (“Open Source Software”). The GPL requires that for any Open Source Software covered under the GPL, which is distributed to someone in an
executable binary format, that the source code also be made available to those users. For any Open Source Software covered under the GPL, the source
code is made available on this CD or download package. If any Open Source Software licenses require that Fortinet provide rights to use, copy or modify a
Open Source Software program that are broader than the rights granted in this agreement, then such rights shall take precedence over the rights and re-
strictions herein. Fortinet will provide, for a charge reecting our standard distribution costs, the complete machine-readable copy of the modied software
modules. To obtain a complete machine-readable copy, please send your written request, along with a check in the amount of US $25.00, to General Public
License Source Code Request, Fortinet, Inc., 899 Kifer Rd, Sunnyvale, CA 94086 USA. In order to receive the modied software modules, you must also
include the following information: (a) Name, (b) Address, (c) Telephone number, (d) E-mail Address, (e) Product purchased (if applicable), (f) Product Serial
Number (if applicable). All open source software modules are licensed free of charge. There is no warranty for these modules, to the extent permitted by
applicable law. The copyright holders provide these software modules “AS-IS” without warranty of any kind, either expressed or implied. In no event will the
copyright holder for the open source software be liable to you for damages, including any special, incidental or consequential damages arising out of the
use or inability to use the software modules, even if such holder has been advised of the possibility of such damages. A full copy of this license, including
additional open source software license disclosures and third party license disclosures applicable to certain Fortinet products, may obtained by contacting
Fortinet’s Legal Department at legal@fortinet.com.
GNU GENERAL PUBLIC LICENSE GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of
this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program
or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modications and/or
translated into another language. (Hereinafter, translation is included without limitation in the term “modication”.) Each licensee is addressed as “you”.
Activities other than copying, distribution and modication are not covered by this License; they are outside its scope. The act of running the Program is not
restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by
running the Program). Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and ap-
propriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the
absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical
act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such
modications or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) You must cause the modied les to carry prominent notices stating that you changed the les and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed
as a whole at no charge to all third parties under the terms of this License.
c) If the modied program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the
most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying
Page 22
that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License.
(Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print
an announcement.)
These requirements apply to the modied work as a whole. If identiable sections of that work are not derived from the Program, and can be reasonably
considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be
on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote
it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to
control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program
with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of
this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2
above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections1 and 2 above on a
medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source
distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommer-
cial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)
Source code for a work means the preferred form of the work for making modications to it. For an executable work, complete source code means all the
source code for all modules it contains, plus any associated interface denition les, plus the scripts used to control compilation and installation of the ex-
ecutable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form)
with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies
the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to
copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along
with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify,
sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or
rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program
or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any
work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the
Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to
copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the
rights granted herein. You are not responsible for enforcing compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are
imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions
of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a
consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all
those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from
distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the
section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section
Page 23
has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people
have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is
up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder
who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permit-
ted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be
similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number.
If the Program species a version number of this License which applies to it and “any later version”, you have the option of following the terms and
conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this
License, you may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for
permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for
this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse
of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE
LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WAR-
RANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE
DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY
MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR
DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER
PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party
saying it may be distributed under the terms of this Lesser General Public License (also called “this License”). Each licensee is addressed as “you”.
A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of
those functions and data) to form executables.
The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either
the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modications
and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modication”.)
“Source code” for a work means the preferred form of the work for making modications to it. For a library, complete source code means all the source
code for all modules it contains, plus any associated interface denition les, plus the scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modication are not covered by this License; they are outside its scope. The act of running a program using
the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use
of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicuously
Page 24
and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and
to the absence of any warranty; and distribute a copy of this License along with the Library. You may charge a fee for the physical act of transferring a copy,
and you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modica-
tions or work under the terms of Section 1 above, provided that you also meet all of these conditions:
a) The modied work must itself be a software library.
b) You must cause the les modied to carry prominent notices stating that you changed the les and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modied Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as
an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such
function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.
These requirements apply to the modied work as a whole. If identiable sections of that work are not derived from the Library, and can be reasonably
considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be
on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to con-
trol the distribution of derivative or collective works based on the Library. In addition, mere aggregation of another work not based on the Library with the
Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must
alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2 instead of to this License. (If a newer
version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any
other change in these notices.
Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and
derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1
and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of
Sections 1 and 2 above on a medium customarily used for software interchange.
If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the
same place satises the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object
code.
5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a
“work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of
the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such
executables.
When a “work that uses the Library” uses material from a header le that is part of the Library, the object code for the work may be a derivative work of the
Library even though the source code is not.
Whether this is true is especially signicant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is
not precisely dened by law.
If such an object le uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in
length), then the use of the object le is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus por-
tions of the Library will still fall under Section 6.) Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under
the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.
6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work containing
portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modication of the work for your own use and
reverse engineering for debugging such modications. You must give prominent notice with each copy of the work that the Library is used in it and that
Page 25
the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you
must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one
of these things:
a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work
(which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable
“work that uses the Library”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modied executable
containing the modied Library. (It is understood that the user who changes the contents of denitions les in the Library will not necessarily be able to
recompile the application to use the modied denitions.)
b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already
present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modied version of the
library, if the user installs one, as long as the modied version is interface-compatible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specied in Subsection 6a, above, for a charge
no more than the cost of performing this distribution.
d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specied materials from
the same place.
e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.
For an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable
from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary
form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accom-
panies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany
the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.
7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this
License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is
otherwise permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distrib-
uted under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to nd the accompanying
uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy,
modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have
received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library
or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any
work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the
Library or works based on it.
10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to
copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise
of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are
imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions
of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as
a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all
those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from
distribution of the Library.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the
section as a whole is intended to apply in other circumstances.
Page 26
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section
has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have
made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to
the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is
intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder
who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted
only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions
will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version
number. If the Library species a version number of this License which applies to it and “any later version”, you have the option of following the terms and
conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number,
you may choose any version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author
to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make
exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the
sharing and reuse of software generally.
15. The warranty disclaimer contained in Sections 11 and 12 of the preceding GPL License is incorporated herein.
