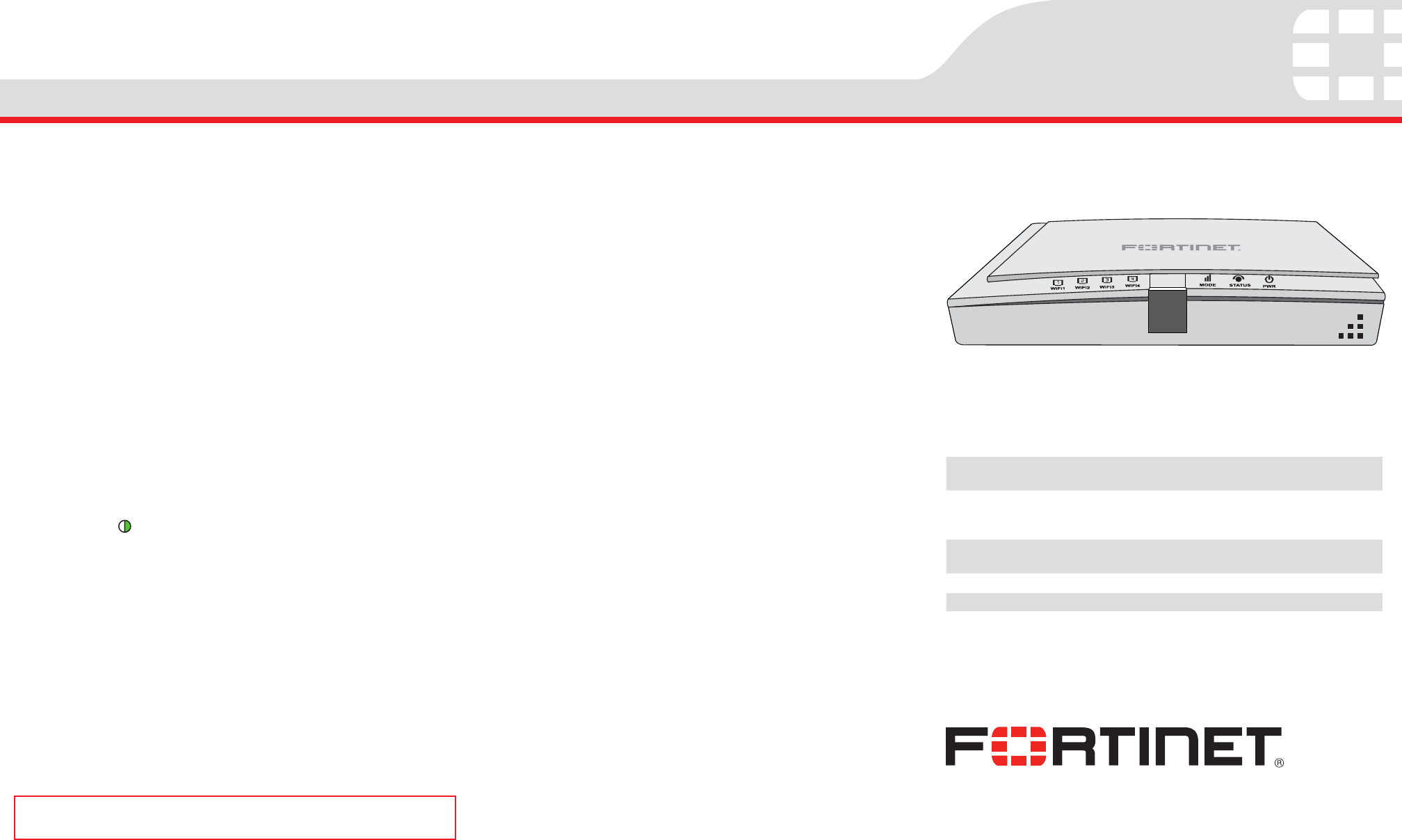

QuickStart Guide
© Copyright 2010 Fortinet Incorporated. All rights reserved.
Products mentioned in this document are trademarks or registered trademarks
of their respective holders.
Regulatory Compliance
FCC Class B Part 15, / CE Mark
7 August 2010
FortiAP-210B/220B
01-420-127515-20100702
Visit these links for more information and documentation for your Fortinet product:
Technical Documentation - http://docs.fortinet.com Fortinet Knowledge Center - http://kb.fortinet.com
Technical Support - http://support.fortinet.com Training Services - http://campus.training.fortinet.com
If the FortiGate wireless controller’s IP address cannot be determined from the
methods above or if the network uses static IP addresses, do the following:
1. Connect the FortiAP to a separate private switch or hub or directly connect
to your computer via a cross-over cable.
2. Change your computer’s IP address to 192.168.1.3
3. Telnet to IP address 192.168.1.2. This IP address is overwritten if the
FortiAP is connected to a DHCP environment. Ensure that FortiAP is in a
private network with no DHCP server for the static IP address to be acces-
sible.
4. Login with username: admin and no password.
5. Type the following commands to enter static IP address for Access Point.
netmask & gateway information for your network. Replace zzz with the IP
address of the FortiGate Wireless Controller.
cfg –a AP_IPADDR=”xxx.xxx.xxx.xx”
cfg –a AP_NETMASK=”255.255.255.0”
cfg –a IPGW=”yyy.yyy.yyy.yyy”
cfg –a AC_IPADDR_1=”zzz.zzz.zzz.zzz”
6. Save the conguration by typing the following command:
cfg –c . Unplug the FortiAP and plug it back in order for the congura-
tion to take effect.
7. Move the FortiAP to the intended deployment location and connect the
Ethernet cable as described in the Connecting section.
8. In FortiGate controller Web Cong, go to Wireless Controller > Congura-
tion > Access Point. A successfully discovered unit displays a half-lled
circle symbol.
9. Select the Access Point and click Edit.
10. In the Admin eld, select Enable.
11. In the AP Prole eld, select a prole from the list and click OK.
The conguration is downloaded from the FortiGate unit to the FortiAP and
the Wireless LED lights up.
Note: FortiGate Low encryption units must be matched up with Low Encryp tion
Access Points.
Power Required Adaptor Input 100-240V~ 50/60Hz 0.6A
Output: 12V DC 1.5A –center positive
Ports
1 x 10/100/1000 PoE (IEEE 802.3af)
1 Console127515
1 USB 2.0
Number of radios FortiAP-210B — 1
FortiAP-220B — 2
WiFi 802.11 a, b, g, n
Mount Wall or ceiling
Conguring continued... Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursu-
ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate this equipment.
For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi-
tions: (1) This device may not cause harmful interference, and (2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
IMPORTANT NOTE: Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmit-
ter.
The availability of some specic channels and/or operational frequency bands are country dependent
and are rmware programmed at the factory to match the intended destination. The rmware setting is
not accessible by the end user.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Règlement d’Industry Canada
Les conditions de fonctionnement sont sujettes à deux conditions:
1) Ce périphérique ne doit pas causer d’interférence et.
2) Ce périphérique doit accepter toute interférence, y compris les interférences pouvant perturber le
bon fonctionnement de ce périphérique.
IMPORTANT NOTE: Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
Caution:
The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interfer-
ence to co-channel mobile satellite systems.
LED DescriptionPackage Contents
USB
CONSOLE ETH PoE -48V
AC
Power
Front
Back
Wifi Radio 1
Mode Status Power
DC 12V, 1.5A
+
PoE
Power
Console
port
USB
port
Lock
Wifi Radio 2
Wifi Radio 3
(not in use)
Ethernet
Interface Description
Connecting
Administrator login
Username admin
Password <none>
Default port addresses
Port 1 192.168.1.2
To reset the FortiAP unit to the factory defaults, in the CLI type the command:
factoryreset
FortiGate -30B
Copyright 2010 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
QuickStart Guide
Power Supply
REGISTER
Factory Defaults
LED State Description
PWR
Green The unit is ready and has AC power.
Green Flashing The unit is booting.
Off The unit is off.
Status
Green The FortiAP is being managed by the
FortiGate Wireless Controller.
Amber ashing FortiAP has lost network connection to
the FortiGate wireless controller.
Amber FortiGate wireless controller has been
found but FortiAP is not managed.
Off FortiGate wireless controller has not
been found.
Mode
Green One or more radio in Monitor mode.
Green ashing One or more radio in dedicated Repeat-
er mode. To be implemented in a future
release.
Off No mode selected.
WiFi1
Green Radio 1 enabled.
Green ashing Wireless activity.
Off Radio 1 disabled or off.
WiFi2 (Only
FortiAP-220B)
Green Radio 2 enabled.
Green ashing Wireless activity.
Off Radio 2 disabled or off.
WiFi3 Not in use.
ETH
Green ashing Link activity.
Green Network speed of 1000 Mbps.
Amber Network speed of 10/100 Mbps.
Off Ethernet link unavailable.
Interface Type Speed Protocol Description
Console RJ-45 9600bps RS-232
serial
Optional connection to the
management
computer. Provides
access to the command
line
interface (CLI).
ETH PoE
-48V
IEEE
802.3af
10/100/1000
Base-T
Ethernet POE capable source port.
Power requirement of 15.4
Watts.
USB Type A 2.0 For future use.
Using the provided template and two M3 screws, attach the unit to the wall or
ceiling using the two mounting holes at the bottom of the FortiAP unit. If placing
on desktop, attach the rubber feet to the unit.
Connect the following to the FortiAP unit:
1. Insert a network cable to the ETH PoE -48V port.
• Use straight-through cable for most equipment
• Use cross-over cable if connecting to FortiGate units without auto MDI
detect
2. Insert the other end of the network cable into your LAN Ethernet edge
switch, or directly to the FortiGate Controller.
3. If using PoE, connect the cable to the ETH PoE -48V port.
4. If not using PoE, connect the power adaptor to AC outlet and insert the
power adaptor connector to the FortiAP unit.
Note: Only FortiGate-60B units or higher can act as wireless controllers.
Caution: This device complies with 802.3af PoE specication. Do not use any
PoE injectors that are not 802.3af compliant as it may damage this device.
Conguring
The FortiAP is designed to require no conguration in most networks. Zero
Conguration mode works if the FortiAP is directly connected to the FortiGate
performing the Wireless LAN Controller (WLC) functions, or on the same layer-2
network and subnet as the FortiGate.
To enable the FortiAP using Zero Conguration:
1. Connect the network and power cable as described in the Connecting sec-
tion.
2. Once power is applied, the FortiAP goes through boot procedure and re-
quests an IP address from the DHCP server.
3. If the IP address is retrieved successfully, the FortiAP enters discovery
mode to locate a FortiGate wireless controller. The discovery modes are:
• Broadcast
• Multicast
• DHCP option 138
4. If this is the rst time connecting the FortiAP to the controller, only the power
light and Port 0 LED is lit. If the FortiAP has been pre-provisioned in the
controller, the Wireless LED is also lit.
5. Verify that the FortiAP has successfully connected to the controller. In
FortiGate controller Web Cong, go to Wireless Controller > Conguration
> Access Point. A successfully discovered unit displays a half-lled circle
symbol.
6. Select the Access Point and click Edit.
7. In the Admin eld, select Enable.
8. In the AP Prole eld, select a prole from the list and click OK.
The conguration is downloaded from the FortiGate unit to the FortiAP and
the Wireless LED lights up.
