Fortinet 26155055 Secured Wireless Access Point User Manual Fortinet Information Supplement

Fortinet Inc. Secured Wireless Access Point Fortinet Information Supplement

Contents

Users Manual

FortiAP S322CR
Information

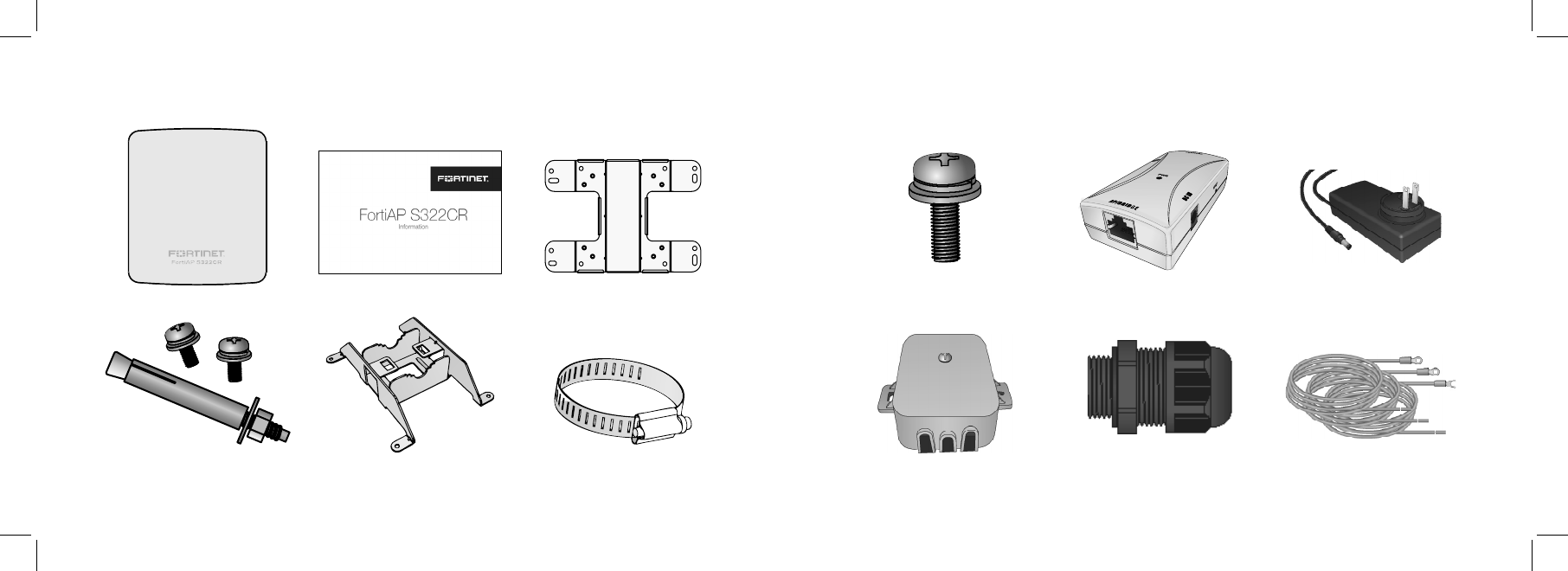

Box Includes
Information Supplement
FortiAP S322CR Wall Mount Bracket
Box Includes
PoE Injector Power Adapter
Pole Mount Strap
Pole Mount Bracket
Mounting Screws (8) & Bolts (4)
Grounding Screw
Surge Protector Waterproof Connector 3 Grounding Cables
1 2
Box Includes
5GHz Antenna (3) 2.4GHz Antenna (3)
Installation
IMPORTANT NOTE: The device must be professionally installed and must use the supplied
antennas.
The unit is designed for outdoor use and may be attached to either a pole or wall. A waterproof
connector is supplied to ensure a watertight seal for connecting the Ethernet cable to the device.
Note: The device can be mounted either outdoors or indoors. The included PoE injector and surge
protector must be mounted indoors, as they are not weatherproof.

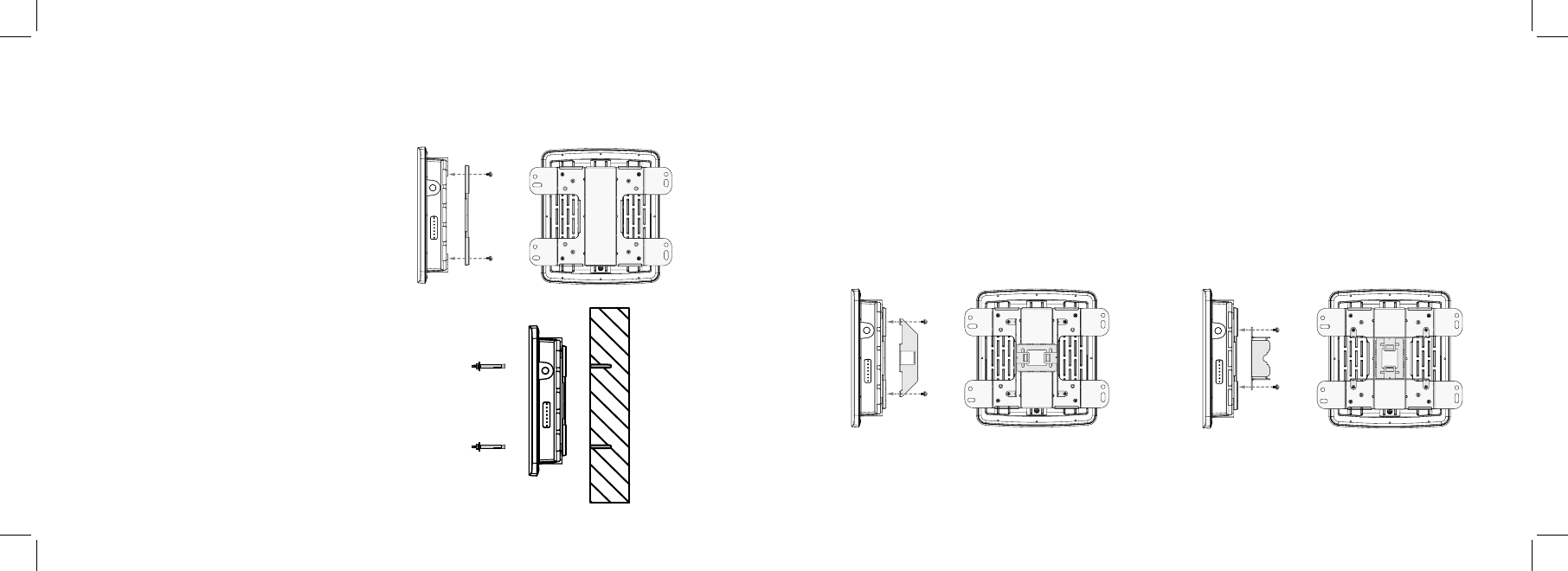

To mount the device on a wall
1. Using the wall-mount base as a template, mark the location of the mounting bolt holes on a flat
wall surface.
2. Drill the mounting holes in the marked locations.
3. Fasten the wall-mount base securely to the back of the unit using the provided mounting
screws.
3 4
4. Attach the unit and base assembly to the
wall using the provided mounting bolts.
5. Securely tighten the mounting bolts.

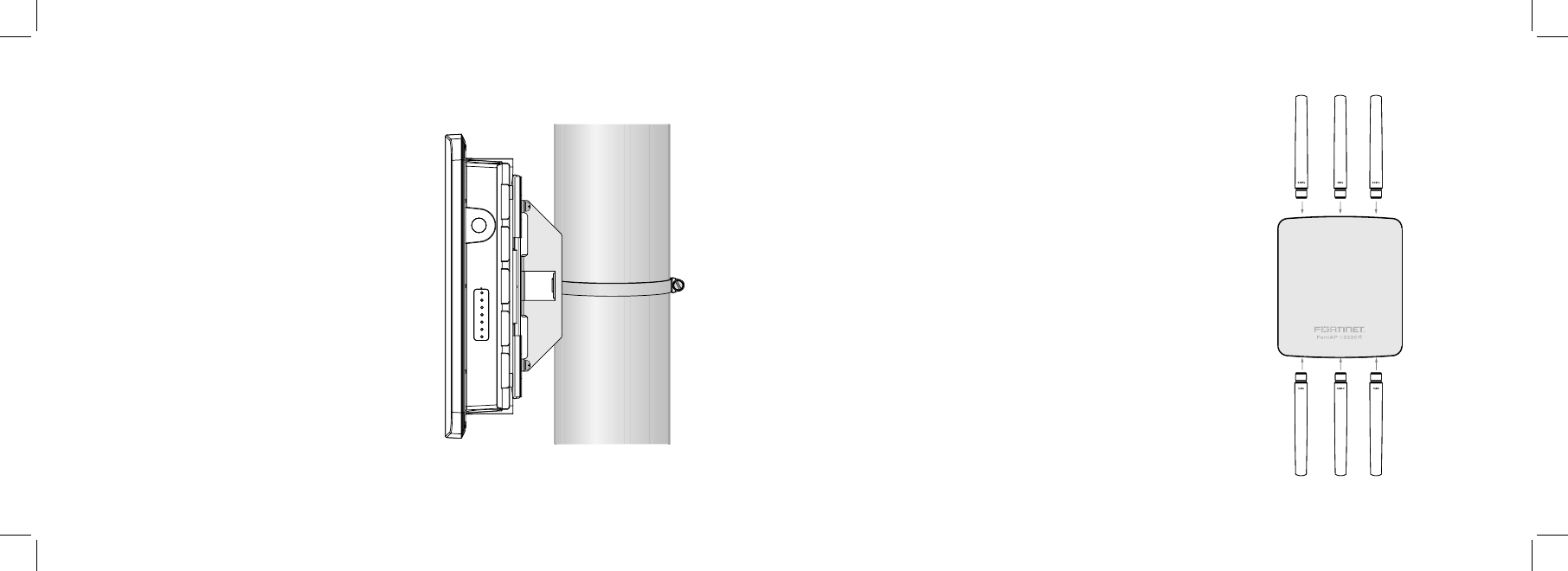

To mount the FortiAP unit on a pole
1. Fasten the wall-mount base securely to the back of the unit using the provided mounting screws.
2. Attach the pole-mount bracket to the wall-mount base using with the provided screws.
The pole-mount bracket can be attached either vertically or horizontally, as required.
5 6
3. Loop the provided pole strap through the slots
on the pole-mount bracket and then around
the pole.
4. Tighten the strap with an appropriate screw
driver and ensure that the device is firmly in
place.
Antennas
The FortiAP S322CR unit provides dual concurrent radio
signals. Use the 2.4GHz antennas to access Radio 1
(802.11 b/g/n at 300Mbps) signals, and the 5GHz
antennas to access Radio 2 (802.11 a/n/c at 867Mbps)
signals. To use both radio frequencies concurrently, use
all six WiFi antennas.
To Install the WiFi antennas
1. Insert the antenna base firmly into the appropriate
antenna mount.
2. Securely hand tighten the fastening collar.
3. Repeat for the remaining antennas.
5GHz2.4GHz 2.4GHz
2.4GHz 5GHz5GHz
7 8
Waterproof Panel
Connector
Sealing
Gland
Coupling
Ring
The unit requires 48V DC power, which is delivered by the PoE injector, through the surge
protector, over a straight-through Ethernet cable.

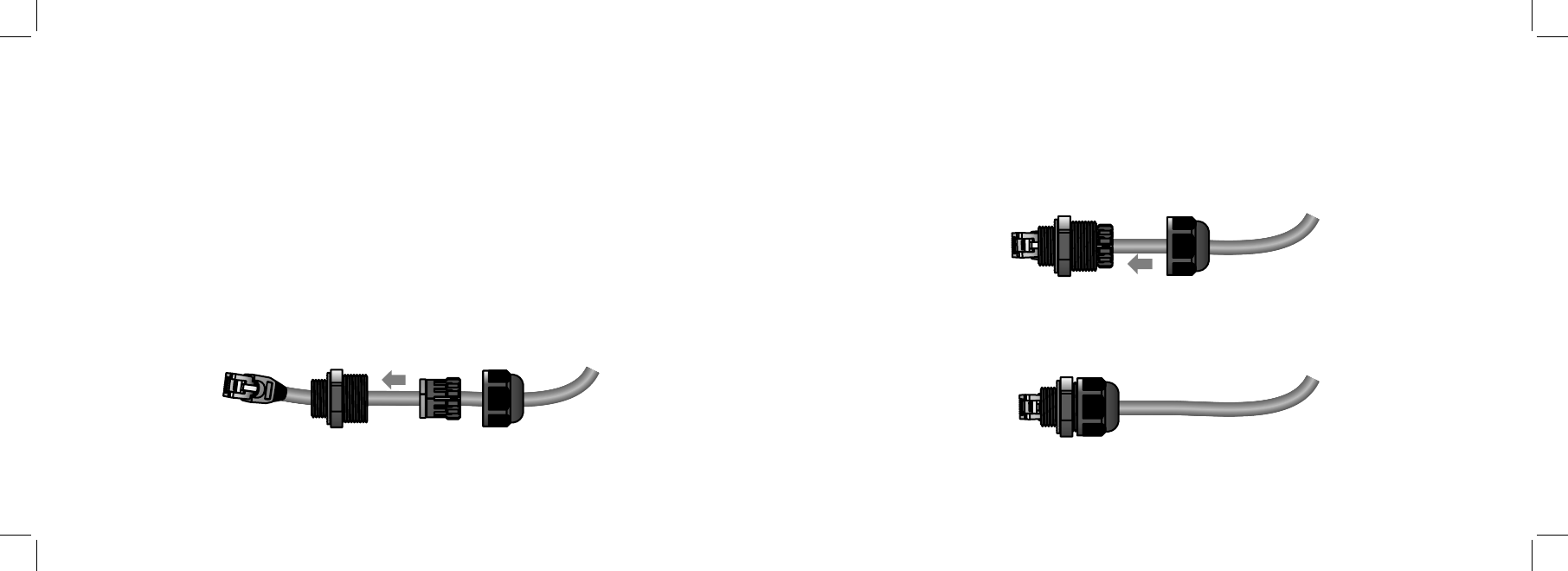

To install the weatherproof connector
1. Unscrew the coupling ring from the waterproof connector, remove the sealing gland, and
thread the RJ-45 plug through the connector components.
Cabling
2. Insert the RJ-45 plug into the PoE port on the unit and install the weatherproof panel
connector onto the threaded coupling at the port.
3. Slide the sealing gland along the cable into the panel connector.
4. Thread the coupling ring onto the panel connector and tighten it until the sealing gland is
compressed, making a watertight seal on the cable.
9 10
Connections
Adequate grounding must be provided to the FortiAP unit, the PoE injector, and the surge
protector; grounding lugs and cables are provided for this purpose. Consult a certified electrician
to ensure that all grounding and cabling is installed in compliance with the local electrical code.
Use an exterior-grade or direct burial CAT5 Ethernet cable for connecting the outdoor unit to the
surge protector. Use the supplied weatherproof connector to ensure a tight seal at the PoE port on
the unit.
Note: The PoE injector and surge protector units are not weatherproof and must
be mounted indoors. They should be mounted as close together as possible.
Caution: Do not connect the PoE injector to a PoE enabled Ethernet port.
To wire the surge protector
1. Remove the cover of the surge protector using an
appropriate screwdriver.
2. Connect the ground wire with the spade lug connector to
the grounding post between the two Ethernet connectors.
3. Connect the straight-through Ethernet cable that will
connect to the FortiAP unit to the Ethernet port on the right
side of the surge protector.
4. Connect the straight-through Ethernet cable that will
connect to the PoE injector the Ethernet port on the left
side of the surge protector.
5. Ensure that the cables comfortably pass through the
provided slots on the front of the surge protector.
6. Replace the cover onto the surge protector using an
appropriate screwdriver.
11 12
To Connect the FortiAP unit
1. Connect grounding cables to the grounding lugs on both FortiAP unit (bottom middle of unit),
using the provided grounding screw, and the PoE injector, then connect the other ends of the
cables to appropriate ground connections.
2. Connect the surge protector’s grounding cable to an appropriate ground connection.
3. Connect the region-specific AC plug adapter to the AC power adapter by inserting the round
disk into the adapter and rotating clockwise until you hear the disk lock in place.
1. Connect grounding cables to the grounding lugs on both the FortiAP unit (bottom middle of
unit), using the provided grounding screw, and the PoE injector, then connect the other ends of
the cables to appropriate ground connections.
2. Connect the surge protector’s grounding cable to an appropriate ground connection.
3. Connect the region-specific AC plug adapter to the AC power adapter by inserting the round
disk into the adapter and rotating clockwise until you hear the disk lock in place.
4. Insert the DC plug of the power adapter into the DC IN port on the PoE injector, then plug the
AC adapter into an appropriate power outlet. The Power LED will light up.
5. Connect one end of a cross-over Ethernet cable to the Network port on the PoE injector.
Connect the other end to the FortiGate controller or an Internet connection. Do not connect
the PoE injector to a PoE enabled Ethernet port.
6. Using the supplied weatherproof connector, connect the weatherproof, straight-through
Ethernet cable on the right side of the surge protector to one of the PoE ports on the bottom
of the FortiAP unit, as described in “Cabling” on page 9.
7. Connect the straight-through Ethernet cable on the left side of the surge protector into the AP/
Bridge port on the PoE injector.
13 14
Controller or Internet
PoE Injector Power
Adapter
Surge
Protector
Internet
Weatherproof
Connector
Ground Lug
Grounding cable connection
Network Port (RJ-45)
Gigabit Ethernet port
DC In
Power adapter connection
100-240V AC, 50-60Hz, 1.5A max
AP/Bridge Port (RJ-45)
48V DC PoE output.
Ethernet Port (RJ-45)
Gigabit Ethernet port with Power over
Ethernet (PoE) Powered Device (PD)
support
Power
Green: Power on & ready
Flashing Green: Booting up
Off: No power
Radio 1 - 2.4GHz
Green: Radio is enabled
Flashing Green: Transmitting & receiving at 2.4G
Off: Radio disabled or off
Radio 2 - 5GHz
Green: Radio is enabled
Flashing Green: Transmitting & receiving at 5G
Off: Radio disabled or off
LAN 1 & 2
Green: Connected
Flashing Green: Transmitting & receiving data
Off: Not connected
2.4GHz Antenna Mount (3)
5GHz Antenna Mount (3)
Device Guide
15 16
Cautions and Warnings
Environmental Specications
Refer to specific Product Model Data Sheet for Environmental
Specifications (Operating Temperature, Storage Temperature,
Humidity, and Altitude).
Safety
Grounding — To prevent damage to your equipment, connections
that enter from outside the building should pass through a
lightning / surge protector, and be properly grounded. Use
an electrostatic discharge workstation (ESD) and/or wear an
anti-static wrist strap while you work. In addition to the grounding
terminal of the plug, on the back panel, there is another, separate
terminal for earthing.
Mise à la terre — Pour éviter d’endommager votre matériel,
assurez-vous que les branchements qui entrent à partir de l’ex-
térieur du bâtiment passent par un parafoudre / parasurtenseur
et sont correctement mis à la terre. Utilisez un poste de travail
de décharge électrostatique (ESD) et / ou portez un bracelet
anti-statique lorsque vous travaillez. Ce produit possède une
borne de mise à la terre qui est prévu à l’arrière du produit, à ceci
s’ajoute la mise à la terre de la prise.
Power over Ethernet (PoE) — Do not connect this device to PoE
networks with routing to the outside plant. Use this equipment
in a Network Environment 0 per IECTR 62101. Do not use PoE
injectors that are not IEEE 802.3af compliant. They may damage
your device.
Alimentation par Ethernet — Ce matériel doit être utilisé dans
un Environnement Réseau 0 par IECTR 62101. Ce matériel est
uniquement connecté aux réseaux PoE sans installation externe
de routage. Cet appareil est conforme aux normes IEEE 802.3af.
Ne pas utiliser d’autres injecteurs d’alimentation non conformes
sous peine d’endommager votre matériel.
The connecting cable between the outdoor equipment and the
indoor ITE devices should comply with Class 3 wiring methods as
listed in NEC, Table 725.154(G) for Class 3 Cable Substitutions
Le câble connectant l’équipement extérieur et ceux d’intérieur
de type ITE doit être conforme avec les méthodes de câblage
de classe 3 tel que listé dans le standard NEC, Table 725.154(G)
pour les câbles de substitutions de classe 3.
This product has a separate protective earthing terminal provided
on the back of the product in addition to the grounding terminal
of the attachment plug. This separate protective earthing terminal
must be permanently connected to earth with a green with yellow
stripe conductor minimum size # 14 AWG and the connection is
to be installed by a qualified service personnel.
Ce produit possède une borne de mise à la terre qui est prévu à
l’arrière du produit, à ceci s’ajoute la mise à la terre de la prise.
Cette séparation protège la borne de mise à la terre qui doit être
en permanence reliée au conducteur à rayure verte et jaune de
taille minimum #14 AWG. Seul un technicien qualifié est autorisé à
effectuer le raccordement.
Regulatory Compliance
Federal Communication Commission (FCC) – USA
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver
3. Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician
for help.
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
This transmitter must not be co-located or operating in conjunc-
tion with any other antenna or transmitter.
The antenna must be installed vertically as described in the
manual for all outdoor use condition for ensuring that all emission
above 30 degree elevation will not exceed FCC 21dBm eirp limit.
This device meets all the other requirements specified in Part 15E,
Section 15.407 of the FCC Rules.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 42cm between the
radiator & your body.
Industry Canada Equipment Standard for Digital
Equipment (ICES) – Canada
CAN ICES-3 (B) / NMB-3 (B)
This device complies with RSS-247 of the Industry Canada Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation.
Ce dispositif est conforme à la norme CNR-247 d’Industrie
Canada applicable aux appareils radio exempts de licence.
Son fonctionnement est sujet aux deux conditions suivantes:
(1) le dispositif ne doit pas produire de brouillage préjudiciable,
et (2) ce dispositif doit accepter tout brouillage reçu, y compris
un brouillage susceptible de provoquer un fonctionnement
indésirable.
Caution :
(i) the device for operation in the band 5150-5250 MHz is only
for indoor use to reduce the potential for harmful interference to
co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands
5250-5350 MHz and 5470-5725 MHz shall be such that the
equipment still complies with the e.i.r.p. limit;
(iii) the maximum antenna gain permitted for devices in the band
5725-5850 MHz shall be such that the equipment still complies
with the e.i.r.p. limits specified for point-to-point and non-point-to-
point operation as appropriate; and
(iv) the worst-case tilt angle(s) necessary to remain compliant with
the e.i.r.p. elevation mask requirement set forth in Section 6.2.2(3)
shall be clearly indicated.
(v) Users should also be advised that high-power radars are
allocated as primary users (i.e. priority users) of the bands 5250-
5350 MHz and 5650-5850 MHz and that these radars could
cause interference and/or damage to LE-LAN devices.
Avertissement:
Le guide d’utilisation des dispositifs pour réseaux locaux
doit inclure des instructions précises sur les restrictions
susmentionnées, notamment :
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz
sont réservés uniquement pour une utilisation à l’intérieur afin de
réduire les risques de brouillage préjudiciable aux systèmes de
satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d’antenne permis pour les dispositifs utilisant
les bandes de 5250 à 5 350 MHz et de 5470 à 5725 MHz doit
être conforme à la limite de la p.i.r.e;
(iii) le gain maximal d’antenne permis (pour les dispositifs utilisant
la bande de 5 725 à 5 850 MHz) doit être conforme à la limite de
la p.i.r.e. spécifiée pour l’exploitation point à point et l’exploitation
non point à point, selon le cas;
(iv) les pires angles d’inclinaison nécessaires pour rester
conforme à l’exigence de la p.i.r.e. applicable au masque
d’élévation, et énoncée à la section 6.2.2 3), doivent être
clairement indiqués.
(v) De plus, les utilisateurs devraient aussi être avisés que
les utilisateurs de radars de haute puissance sont désignés
utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les
bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars
pourraient causer du brouillage et/ou des dommages aux
dispositifs LAN-EL.
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 42cm between the
radiator & your body.
Déclaration d’exposition aux radiations:
Cet équipement est conforme aux limites d’exposition aux ray-
onnements IC établies pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un minimum de 42cm
de distance entre la source de rayonnement et votre corps.
European Conformity (CE) - EU
This is a Class B product. In a domestic environment, this product
may cause radio interference, in which case the user may be
required to take adequate measures.
Professional installation instruction
1. Installation personal
This product is designed for specific application and needs to
be installed by a qualified personal who has RF and related rule
knowledge. The general user shall not attempt to install or change
the setting.
2. Installation location
The product shall be installed at a location where the radiating an-
tenna can be kept 42cm from nearby person in normal operation
condition to meet regulatory RF exposure requirement.
3. External antenna
Use only the antennas which have been approved by the man-
ufacturer. The non-approved antenna(s) may produce unwanted
spurious or excessive RF transmitting power which may lead to
the violation of FCC/IC limit and is prohibited.
4. Installation procedure
Please refer to user’s manual for the detail.
5. Warning
Please carefully select the installation position and make sure
that the final output power does not exceed the limit set force
in relevant rules. The violation of the rule could lead to serious
federal penalty.
Instructions d’installation professionnelle
1. Installation
Ce produit est destine a un usage specifique et doit etre installe
par un personnel qualifie maitrisant les radiofrequences et les
regles s’y rapportant. L’installation et les reglages ne doivent pas
etre modifies par l’utilisateur final.
2. Emplacement d’installation
En usage normal, afin de respecter les exigences reglementaires
concernant l’exposition aux radiofrequences, ce produit doit
etre installe de facon a respecter une distance de 42cm entre
l’antenne emettrice et les personnes.
3. Antenn externe.
Utiliser uniiquement les antennes approuvees par le fabricant.
L’utilisation d’autres antennes peut conduire a un niveau de
rayonnement essentiel ou non essentiel depassant les niveaux
limites definis par FCC/IC, ce qui est interdit.
4. Procedure d’installation
Consulter le manuel d’utilisation.
5. Avertissement
Choisir avec soin la position d’installation et s’assurer que la puis-
Fortinet Product License Agreement /
EULA and Warranty Terms
Trademarks and Copyright Statement
Fortinet®, FortiGate®, and FortiGuard® are registered trade-
marks of Fortinet, Inc., and other Fortinet names may also be
trademarks, registered or otherwise, of Fortinet. All other product
or company names may be trademarks of their respective
owners. Copyright © 2015 Fortinet, Inc., All Rights reserved.
Contents and terms are subject to change by Fortinet without
prior notice. No part of this publication may be reproduced in
any form or by any means or used to make any derivative such
as translation, transformation, or adaptation without permission
from Fortinet, Inc., as stipulated by the United States Copyright
Act of 1976.
Product License Agreement
The parties to this agreement are you, the end customer, and
either (i) where you have purchased your Product within the
Americas, Fortinet, Inc., or (ii) where you have purchased your
Product outside of the Americas, Fortinet Singapore Private
Limited (each referred to herein as “Fortinet”) .CAREFULLY
READ THE FOLLOWING LEGAL AGREEMENT (THE OR THIS
“AGREEMENT” OR “EULA”). USE OR INSTALLATION OF FORT-
INET PRODUCT(S) AND ANY UPDATES THERETO, INCLUDING
HARDWARE APPLIANCE PRODUCTS, SOFTWARE AND FIRM-
WARE INCLUDED THEREIN BY FORTINET, AND STAND-ALONE
SOFTWARE PRODUCTS SOLD BY FORTINET (TOGETHER, THE
“PRODUCTS”) CONSTITUTES ACCEPTANCE BY YOU OF THE
TERMS IN THIS AGREEMENT, AS AMENDED OR UPDATED
FROM TIME TO TIME IN FORTINET’S DISCRETION BY FOR-
TINET PUBLISHING AN AMENDED OR UPDATED VERSION.
FORTINET SHALL NOT BE BOUND BY ANY ADDITIONAL AND/
OR CONFLICTING PROVISIONS IN ANY ORDER, RELEASE,
ACCEPTANCE OR OTHER WRITTEN CORRESPONDENCE OR
OTHER WRITTEN OR VERBAL COMMUNICATION UNLESS
EXPRESSLY AGREED TO IN A WRITING SIGNED BY THE
GENERAL COUNSEL OF FORTINET. IF YOU DO NOT AGREE
TO ALL OF THE TERMS OF THIS AGREEMENT, DO NOT START
THE INSTALLATION PROCESS OR USE THE PRODUCTS. IF
YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT,
YOU SHOULD IMMEDIATELY, AND IN NO EVENT LATER THAN
FIVE (5) CALENDAR DAYS AFTER YOUR RECEIPT OF THE
PRODUCTIMMEDIATELY NOTIFY THE FORTINET LEGAL TEAM
IN WRITING AT LEGAL@FORTINET.COM OF REQUESTED
CHANGES TO THIS AGREEMENT.
1. License Grant.
This is a license, not a sales agreement, between you and
Fortinet. The term “Software”, as used throughout this Agree-
ment, includes all Fortinet and third party firmware and software
provided to you with, or incorporated into, Fortinet appliances
and any stand-alone software provided to you by Fortinet, with
the exception of any open source software contained in Fortinet’s
Products which is discussed in detail in section 15 below, and
the term “Software” includes any accompanying documentation,
any updates and enhancements of the software or firmware
provided to you by Fortinet, at its option. Fortinet grants to you a
non-transferable (except as provided in section 5 (“Transfer”) and
section 15 (“Open Source Software”) below), non-exclusive, revo-
cable (in the event of your failure to comply with these terms or in
the event Fortinet is not properly paid for the applicable Product)
license to use the Software solely for your internal business pur-
poses (provided, if a substantial portion of your business is to pro-
vide managed service provider services to your end-customers,
you may use the Software embedded in FortiGate and supporting
hardware appliances to provide those services, subject to the
other restrictions in this Agreement), in accordance with the terms
set forth in this Agreement and subject to any further restrictions
in Fortinet documentation, and solely on the Fortinet appliance,
or, in the case of blades, CPUs or databases, on the single blade,
CPU or database on which Fortinet installed the Software or, for
stand-alone Software, solely on a single computer running a valid-
ly licensed copy of the operating system for which the Software
was designed, or, in the case of blades, CPUs or databases,
on a single blade, CPU or database. For clarity, notwithstanding
anything to the contrary, all licenses of Software to be installed on
blades, CPUs or databases are licensed on a per single blade,
solely for one blade and not for multiple blades that may be in-
stalled in a chassis, per single CPU or per single database basis,
as applicable. The Software is “in use” on any Fortinet appliances
when it is loaded into temporary memory (i.e. RAM). You agree
that, except for the limited, specific license rights granted in this
section 1, you receive no license rights to the Software.
2. Limitation on Use.
You may not attempt to, and, if you are a corporation, you are
responsible to prevent your employees and contractors from
attempting to, (a) modify, translate, reverse engineer, decompile,
disassemble, create derivative works based on, sublicense, or
distribute the Software; (b) rent or lease any rights in the Software
in any form to any third party or make the Software available or
accessible to third parties in any other manner; (c) except as
provided in section 5, transfer assign or sublicense right to any
other person or entity, or (d) remove any proprietary notice, labels,
or marks on the Software, Products, and containers.
3. Proprietary Rights.
All rights, title, interest, and all copyrights to the Software and
any copy made thereof by you and to any Product remain with
Fortinet. You acknowledge that no title to the intellectual property
in the Software or other Products is transferred to you and you
will not acquire any rights to the Software or other Products
except for the specific license as expressly set forth in section 1
(“License Grant”) above.
4. Term and Termination.
Except for evaluation and beta licenses or other licenses where
the term of the license is limited per the evaluation/beta or other
agreement or in the ordering documents, the term of the license
is for the duration of Fortinet’s copyright in the Software. Fortinet
may terminate this Agreement, and the licenses and other rights
herein, immediately without notice if you breach or fail to comply
with any of the terms and conditions of this Agreement. You agree
that, upon such termination, you will cease using the Software
and any Product and either destroy all copies of the Fortinet
documentation or return all materials to Fortinet. The provisions
of this Agreement, other than the license granted in section 1
(“License Grant”), shall survive termination.
5. Transfer.
If you are a Fortinet contracted and authorized reseller or
distributor of Products, you may transfer (not rent or lease unless
specifically agreed to in writing by Fortinet) the Software to one
end user on a permanent basis, provided that: (i) you ensure
that your customer and the end user receives a copy of this
Agreement, is bound by its terms and conditions, and, by selling
the Product or Software, you hereby agree to enforce the terms
in this Agreement against such end user, (ii) you at all times
comply with all applicable United States export control laws and
regulations, and (iii) you agree to refund any fees paid to you by
an end user who purchased Product(s) from you but does not
agree to the terms contained in this Agreement and therefore
wishes to return the Product(s) as provided for in this Agreement.
Further, if you are a non-authorized reseller of Products, you are
not authorized to sell Product(s) or Software, but, regardless, by
selling Product(s) or Software, you hereby agree you are bound
by the restrictions and obligations herein and are bound to: (i)
ensure that your customer and the end user receive a copy of this
Agreement and are bound in full by all restrictions and obligations
herein (ii) enforce the restrictions and obligations in this Agree-
ment against such customer and/or end user, (iii) comply with all
applicable United States export control laws and regulations and
all other applicable laws, and (iv) refund any fees paid to you by
a customer and/or end user who purchased Product(s) from you
but does not agree to the restrictions and obligations contained
in this Agreement and therefore wishes to return the Product(s)
as provided for in this Agreement. Notwithstanding anything to
the contrary, distributors, resellers and other Fortinet partners
(a) are not agents of Fortinet and (b) are not authorized to bind
Fortinet in any way.
6. Limited Warranty.
Fortinet provides this limited warranty for its product only to the
single end-user person or entity that originally purchased the
Product from Fortinet or its authorized reseller or distributor and
paid for such Product. The warranty is only valid for Products
which are registered on Fortinet’s Support Website: https://
support.fortinet.com; or on the TalkSwitch support website:
http://global.talkswitch.com; or such other website as provided
by Fortinet. For the below software warranty to start, registration
must take place within three hundred sixty-five (365) days from
the date the Product was originally shipped from Fortinet’s
facilities or the warranty is null and void and will not be honored.
For the hardware warranty, such warranty starts on the earlier of
the date of Product registration on Fortinet’s Support Website
or ninety (90) days from the date that the Product was originally
shipped from Fortinet’s facilities. It is the Fortinet distributor’s and
reseller’s responsibility to make clear to the end user the date the
product was originally shipped from Fortinet, and it is the end
user’s responsibility to understand the original ship date from
the party from which the end user purchased the product. All
warranty claims must be submitted in writing to Fortinet before
the expiration of the warranty term or such claims are waived
in full, i.e. ninety (90) days from the earlier of registration or the
automatically started term for hardware and spare parts claims
and three hundred sixty-five (365) days from registration within
three hundred sixty-five (365) days from shipment for software
claims. Fortinet provides no warranty for any beta, donation or
evaluation Products, for any spare parts not purchased directly
from Fortinet by the end-user, for any accessories, or for any
stand-alone software.
Fortinet warrants that the hardware portion of the Products,
including spare parts unless noted otherwise (“Hardware”) will be
free from material defects in workmanship as compared to the
functional specifications for the period set forth as follows and ap-
plicable to the Product type (“Hardware Warranty Period”): a three
hundred sixty-five (365) day limited warranty for the Hardware ex-
cluding spare parts, power supplies, and accessories (provided,
solely with respect to FortiAP indoor Wi-Fi access point Hardware
appliance products and FortiSwitch Hardware appliance products
other than the FortiSwitch-5000 series (for both excluding spare
parts, power supplies, and accessories), the warranty herein shall
last from the start of the warranty period as discussed above until
five (5) years following the product announced end-of-life date),
and, for spare parts, power supplies, and accessories, solely a
ninety (90) days limited warranty. Fortinet’s sole obligation shall
be to repair or offer replacement Hardware for the defective
Hardware at no charge to the original owner. This obligation is
exclusive of transport fees, labor, de-installation, installation,
reconfiguration, or return shipment and handling fees and costs,
and Fortinet shall have no obligation related thereto. Such repair
or replacement will be rendered by Fortinet at an authorized For-
tinet service facility as determined by Fortinet. The replacement
Hardware need not be new or of an identical make, model, or
part; Fortinet may, in its discretion, replace the defective Hardware
(or any part thereof) with any reconditioned Product that Fortinet
reasonably determines is substantially equivalent (or superior) in
all material respects to the defective Hardware. The Hardware
Warranty Period for the repaired or replacement Hardware shall
be for the greater of the remaining Hardware Warranty Period
or ninety days from the delivery of the repaired or replacement
Hardware. If Fortinet determines in its reasonable discretion
that a material defect is incapable of correction or that it is not
practical to repair or replace defective Hardware, the price paid by
the original purchaser for the defective Hardware will be refunded
by Fortinet upon return to Fortinet of the defective Hardware.
All Hardware (or part thereof) that is replaced by Fortinet, or for
which the purchase price is refunded, shall become the property
of Fortinet upon replacement or refund.
Fortinet warrants that the software as initially shipped with the
Hardware Products will substantially conform to Fortinet’s then
current functional specifications for the Software, as set forth in
the applicable documentation for a period of ninety (90) days
(“Software Warranty Period”), if the Software is properly installed
on approved Hardware and operated as contemplated in its
documentation. Fortinet’s sole obligation shall be to repair or
offer replacement Software for the non-conforming Software
with software that substantially conforms to Fortinet’s functional
specifications. This obligation is exclusive of transport fees, labor,
de-installation, installation, reconfiguration, or return shipment
and handling fees and costs, and Fortinet shall have no obligation
related thereto. Except as otherwise agreed by Fortinet in writing,
the warranty replacement Software is provided only to the original
licensee, and is subject to the terms and conditions of the license
granted by Fortinet for the Software. The Software Warranty
Period shall extend for an additional ninety (90) days after any
warranty replacement software is delivered. If Fortinet determines
in its reasonable discretion that a material non-conformance
is incapable of correction or that it is not practical to repair or
replace the non-conforming Software, the price paid by the
original licensee for the non-conforming Software will be refunded
by Fortinet; provided that the non-conforming Software (and all
copies thereof) is first returned to Fortinet. The license granted
respecting any Software for which a refund is given automatically
terminates immediately upon refund. For purpose of the above
hardware and software warranties, the term “functional specifica-
tions” means solely those specifications authorized and published
by Fortinet that expressly state in such specifications that they
are the functional specifications referred to in this section 6 of this
Agreement, and, in the event no such specifications are provided
to you with the Software or Hardware, there shall be no warranty
on such Software.
7. Disclaimer of Other Warranties and Restrictions.
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED IN SECTION
6 ABOVE, THE PRODUCT AND SOFTWARE ARE PROVIDED
“AS-IS” WITHOUT ANY WARRANTY OF ANY KIND INCLUDING,
WITHOUT LIMITATION, ANY IMPLIED WARRANTY, IMPLIED
transfer any of the rights or obligations under this Agreement
without the prior written consent of Fortinet. This Agreement shall
be binding upon, and inure to the benefit of, the successors and
permitted assigns of the parties. The United Nations Convention
on Contracts for the International Sales of Goods is expressly
excluded. This Agreement and other Fortinet agreements may be
amended or supplemented only by a writing that refers explicitly
to the agreement signed on behalf of both parties, or, for this
Agreement, as otherwise expressly provided in the lead-in above
Section 1 above, provided, notwithstanding anything to the
contrary and except for this Agreement which may be amended
or updated as expressly provided in the lead-in above Section 1
above, for any amendment or other agreement to be binding on
Fortinet, such amendment or other agreement must be signed
by Fortinet’s General Counsel. No waiver will be implied from
conduct or failure to enforce rights nor effective unless in a writing
signed on behalf of the party against whom the waiver is assert-
ed. If any part of this Agreement is found unenforceable, that
part will be enforced to the maximum extent permitted and the
remainder shall continue in full force and effect. You acknowledge
that you have read this Agreement, understand it, and agree to be
bound by its terms and conditions.
14. Privacy.
For information regarding Fortinet’s collection, use and transfer
of your personal information please read the Fortinet privacy
policy on the Fortinet web site (http://www.fortinet.com/aboutus/
privacy.html)..
15. Open Source Software.
Fortinet’s products may include software modules that are
licensed (or sublicensed) to the user under the GNU General
Public License, Version 2, of June 1991 (“GPL”) or GNU Lesser
General Public License, Version 2.1, of February 1999 (“LGPL”) or
other open source software licenses which, among other rights,
permit the user touse, copy, modify and redistribute modules,
or portions thereof, and may also require attribution disclosures
and access to the source code (“Open Source Software”). The
GPL requires that for any Open Source Software covered under
the GPL, which is distributed to someone in an executable binary
format, that the source code also be made available to those us-
ers. For any Open Source Software covered under the GPL, the
source code is made available on this CD or download package.
If any Open Source Software licenses require that Fortinet provide
rights to use, copy or modify a Open Source Software program
that are broader than the rights granted in this agreement, then
such rights shall take precedence over the rights and restrictions
herein. Fortinet will provide, for a charge reflecting our standard
distribution costs, the complete machine-readable copy of the
modified software modules. To obtain a complete machine-read-
able copy, please send your written request, along with a check
in the amount of US $25.00, to General Public License Source
Code Request, Fortinet, Inc., 899 Kifer Rd, Sunnyvale, CA
94086 USA. In order to receive the modified software modules,
you must also include the following information: (a) Name, (b)
Address, (c) Telephone number, (d) E-mail Address, (e) Product
purchased (if applicable), (f) Product Serial Number (if applicable).
All open source software modules are licensed free of charge.
There is no warranty for these modules, to the extent permitted
by applicable law. The copyright holders provide these software
modules “AS-IS” without warranty of any kind, either expressed
or implied. In no event will the copyright holder for the open
source software be liable to you for damages, including any
special, incidental or consequential damages arising out of the
use or inability to use the software modules, even if such holder
has been advised of the possibility of such damages. A full copy
of this license, including additional open source software license
disclosures and third party license disclosures applicable to
certain Fortinet products, may obtained by contacting Fortinet’s
Legal Department at legal@fortinet.com.
GNU GENERAL PUBLIC LICENSE GNU GENERAL PUBLIC
LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND
MODIFICATION
This License applies to any program or other work which
contains a notice placed by the copyright holder saying it may
be distributed under the terms of this General Public License.
The “Program”, below, refers to any such program or work,
and a “work based on the Program” means either the Program
or any derivative work under copyright law: that is to say, a
work containing the Program or a portion of it, either verbatim
or with modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the term
“modification”.) Each licensee is addressed as “you”.
Activities other than copying, distribution and modification are
not covered by this License; they are outside its scope. The act
of running the Program is not restricted, and the output from
the Program is covered only if its contents constitute a work
based on the Program (independent of having been made by
running the Program). Whether that is true depends on what the
Program does.
1. You may copy and distribute verbatim copies of the Program’s
source code as you receive it, in any medium, provided that you
conspicuously and appropriately publish on each copy an appro-
priate copyright notice and disclaimer of warranty; keep intact all
the notices that refer to this License and to the absence of any
warranty; and give any other recipients of the Program a copy of
this License along with the Program. You may charge a fee for the
physical act of transferring a copy, and you may at your option
offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any
portion of it, thus forming a work based on the Program, and
copy and distribute such modifications or work under the terms
of Section 1 above, provided that you also meet all of these
conditions:
a) You must cause the modified files to carry prominent notices
stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in
whole or in part contains or is derived from the Program or any
part thereof, to be licensed as a whole at no charge to all third
parties under the terms of this License.
c) If the modified program normally reads commands interactively
when run, you must cause it, when started running for such
interactive use in the most ordinary way, to print or display an
announcement including an appropriate copyright notice and a
notice that there is no warranty (or else, saying that you provide
a warranty) and that users may redistribute the program under
these conditions, and telling the user how to view a copy of this
License. (Exception: if the Program itself is interactive but does
not normally print such an announcement, your work based on
the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole.
If identifiable sections of that work are not derived from the
Program, and can be reasonably considered independent and
OR EXPRESS WARRANTY OF MERCHANTABILITY, OR
WARRANTY FOR FITNESS FOR A PARTICULAR PURPOSE AND
NON-INFRINGEMENT. IF ANY IMPLIED WARRANTY CANNOT
BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS
SOLD, THE DURATION OF SUCH IMPLIED WARRANTY SHALL
BE LIMITED TO NINETY (90) DAYS FROM THE DATE OF ORIG-
INAL SHIPMENT FROM FORTINET. EXCEPT AS EXPRESSLY
COVERED UNDER THE LIMITED WARRANTY PROVIDED
HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION
AND PERFORMANCE OF THE PRODUCT IS WITH THE PUR-
CHASER OF THE PRODUCT. NOTWITHSTANDING ANYTHING
TO THE CONTRARY, THE HARDWARE WARRANTY PERIOD
DISCUSSED ABOVE DOES NOT APPLY TO CERTAIN FORTINET
PRODUCTS, INCLUDING FORTIFONE WHICH HAS A NINETY
(90) DAY LIMITED WARRANTY AND FORTITOKEN WHICH HAS
A 365 DAY WARRANTY FROM THE DATE OF SHIPMENT FROM
FORTINET’S FACILITIES, AND THE SOFTWARE WARRANTY
DOES NOT APPLY TO CERTAIN FORTINET PRODUCTS,
INCLUDING FORTIGATE-ONE AND VDOM SOFTWARE. YOU
HEREBY ACKNOWLEDGE AND AGREE THAT NO VENDOR
CAN ASSURE COMPLETE SECURITY AND NOTHING HEREIN
OR ELSEWHERE SHALL BE DEEMED TO IMPLY A SECURITY
GUARANTEE OR ASSURANCE.
The warranty in Section 6 above does not apply if the Software,
Product or any other equipment upon which the Software is au-
thorized to be used (a) has been altered, except by Fortinet or its
authorized representative, (b) has not been installed, operated, re-
paired, updated to the latest version, or maintained in accordance
with instructions supplied by Fortinet, (c) has been subjected to
abnormal physical or electrical stress, misuse, negligence, or
accident; (d) is licensed for beta, evaluation, donation, testing or
demonstration purposes or for which Fortinet does not charge
a purchase price or license fee. In the case of beta, testing,
evaluation, donation or free Software or Product, the end user
acknowledges and agrees that such Software or Product may
contain bugs or errors and could cause system failures, data loss
and other issues, and the end user agrees that such Software or
Product is provided “as-is” without any warranty whatsoever, and
Fortinet disclaims any warranty or liability whatsoever. An end
user’s use of evaluation or beta Software or Product is limited to
thirty (30) days from original shipment unless otherwise agreed in
writing by Fortinet.
8. Governing Law.
Any disputes arising out of this Agreement or Fortinet’s limited
warranty shall be governed by the laws of the state of California,
without regard to the conflict of laws principles. In the event of
any disputes arising out of this Agreement or Fortinet’s limited
warranty, the parties submit to the jurisdiction of the federal
and state courts located in Santa Clara County, California, as
applicable.
9. Limitation of Liability.
TO THE MAXIMUM EXTENT PERMITTED BY LAW AND NOT-
WITHSTANDING ANYTHING TO THE CONTRARY, FORTINET
IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE,
TORT, STRICT LIABILITY, INFRINGEMENT OR OTHER LEGAL
OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE
PRODUCT OR SERVICE OR ANY DAMAGES OF ANY KIND
WHATSOEVER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAM-
AGES FOR LOSS OF GOODWILL, LOSS OF PROFIT, LOSS OF
OPPORTUNITY, LOSS OR DAMAGE RELATED TO USE OF THE
PRODUCT OR SERVICE IN CONNECTION WITH HIGH RISK
ACTIVITIES, DE-INSTALLATION AND INSTALLATION FEES AND
COSTS, DAMAGE TO PERSONAL OR REAL PROPERTY, WORK
STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, COM-
PUTER SECURITY BREACH, COMPUTER VIRUS INFECTION,
LOSS OF INFORMATION OR DATA CONTAINED IN, STORED
ON, OR INTEGRATED WITH ANY PRODUCT INCLUDING
ANY PRODUCT RETURNED TO FORTINET FOR WARRANTY
SERVICE) RESULTING FROM THE USE OF THE PRODUCT,
RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY
BREACH OF THE LIMITED WARRANTY IN SECTION 6 ABOVE,
EVEN IF FORTINET HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES. THE SOLE REMEDY FOR A BREACH OF
THE LIMITED WARRANTY IS REPAIR, REPLACEMENT OR RE-
FUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT
AS SPECIFICALLY STATED IN SECTION 6 ABOVE.
10. Import / Export Requirements; FCPA Compliance.
You are advised that the Products may be subject to the United
States Export Administration Regulations and other import
and export laws; diversion contrary to United States law and
regulation is prohibited. You agree to comply with all applicable
international and national laws that apply to the Products as
well as end user, end-use, and destination restrictions issued
by U.S. and other governments. For additional information on
U.S. export controls see www.bis.doc.gov. Fortinet assumes no
responsibility or liability for your failure to obtain any necessary
import and export approvals. You represent that neither the
United States Bureau of Industry and Security nor any other
governmental agency has issued sanctions against you or
otherwise suspended, revoked or denied your export privileges.
You agree not to use or transfer the Products for any use relating
to nuclear, chemical or biological weapons, or missile technology,
unless authorized by the United States Government by regulation
or specific written license. Additionally, you agree not to directly
or indirectly export, import or transmit the Products contrary
to the laws or regulations of any other governmental entity that
has jurisdiction over such export, import, transmission or use.
Furthermore, you represent that you understand, and you hereby
agree to comply with, all requirements of the U.S. Foreign Corrupt
Practices Act and all other applicable laws. For beta, testing,
evaluation, donation or free Products and/or related services, you
hereby agree, represent and warrant to Fortinet that (a) receipt
of the Products and/or services comply with all policies and you
have obtained all necessary approvals for such Products and/
or services, (b) the Products and/or services are not provided in
exchange for Fortinet maintaining current business or for new
business opportunities, and (c) the Products and/or services are
not being received for the benefit of, and are not being transferred
to, any government entity, representative or affiliate.
11. U.S. Government End Users.
The Software and accompanying documentation are deemed to
be “commercial computer software” and “commercial computer
software documentation,” respectively, pursuant to DFAR Section
227.7202 and FAR Section 12.212, as applicable. Any use, mod-
ification, reproduction, release, performance, display or disclosure
of the Software and accompanying documentation by the United
States Government shall be governed solely by the terms of this
Agreement and shall be prohibited except to the extent expressly
permitted by the terms of this Agreement and its successors.
12. Tax Liability.
You agree to be responsible for payment of any sales or use taxes
imposed at any time on this transaction.
13. General Provisions.
Except as specifically permitted and required in section 5
(“Transfer”) above, you agree not to assign this Agreement or
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF
CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM,
TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT
WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT
HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM
“AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS
TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS
WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU
ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR
OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE
LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT
HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARIS-
ING OUT OF THE USE OR INABILITY TO USE THE PROGRAM
(INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA
BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM
TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH
HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
GNU LESSER GENERAL PUBLIC LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND
MODIFICATION
0. This License Agreement applies to any software library or other
program which contains a notice placed by the copyright holder
or other authorized party saying it may be distributed under the
terms of this Lesser General Public License (also called “this
License”). Each licensee is addressed as “you”.
A “library” means a collection of software functions and/or
data prepared so as to be conveniently linked with application
programs (which use some of those functions and data) to form
executables.
The “Library”, below, refers to any such software library or work
which has been distributed under these terms. A “work based on
the Library” means either the Library or any derivative work under
copyright law: that is to say, a work containing the Library or a
portion of it, either verbatim or with modifications and/or translat-
ed straightforwardly into another language. (Hereinafter, transla-
tion is included without limitation in the term “modification”.)
“Source code” for a work means the preferred form of the work
for making modifications to it. For a library, complete source
code means all the source code for all modules it contains, plus
any associated interface definition files, plus the scripts used to
control compilation and installation of the library.
Activities other than copying, distribution and modification are not
covered by this License; they are outside its scope. The act of
running a program using the Library is not restricted, and output
from such a program is covered only if its contents constitute a
work based on the Library (independent of the use of the Library
in a tool for writing it). Whether that is true depends on what the
Library does and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library’s
complete source code as you receive it, in any medium, provided
that you conspicuously and appropriately publish on each copy
an appropriate copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this License and to the absence
of any warranty; and distribute a copy of this License along with
the Library. You may charge a fee for the physical act of transfer-
ring a copy, and you may at your option offer warranty protection
in exchange for a fee.
2. You may modify your copy or copies of the Library or any por-
tion of it, thus forming a work based on the Library, and copy and
distribute such modifications or work under the terms of Section
1 above, provided that you also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices
stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no
charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table
of data to be supplied by an application program that uses the
facility, other than as an argument passed when the facility is
invoked, then you must make a good faith effort to ensure that,
in the event an application does not supply such function or
table, the facility still operates, and performs whatever part of its
purpose remains meaningful.
These requirements apply to the modified work as a whole. If
identifiable sections of that work are not derived from the Library,
and can be reasonably considered independent and separate
works in themselves, then this License, and its terms, do not
apply to those sections when you distribute them as separate
works. But when you distribute the same sections as part of a
whole which is a work based on the Library, the distribution of the
whole must be on the terms of this License, whose permissions
for other licensees extend to the entire whole, and thus to each
and every part regardless of who wrote it. Thus, it is not the
intent of this section to claim rights or contest your rights to work
written entirely by you; rather, the intent is to exercise the right
to control the distribution of derivative or collective works based
on the Library. In addition, mere aggregation of another work not
based on the Library with the Library (or with a work based on the
Library) on a volume of a storage or distribution medium does not
bring the other work under the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General
Public License instead of this License to a given copy of the
Library. To do this, you must alter all the notices that refer to this
License, so that they refer to the ordinary GNU General Public
License, version 2 instead of to this License. (If a newer version
than version 2 of the ordinary GNU General Public License has
appeared, then you can specify that version instead if you wish.)
Do not make any other change in these notices.
Once this change is made in a given copy, it is irreversible for that
copy, so the ordinary GNU General Public License applies to all
subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of
the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or
derivative of it, under Section 2) in object code or executable form
under the terms of Sections 1 and 2 above provided that you
accompany it with the complete corresponding machine-readable
source code, which must be distributed under the terms of
Sections 1 and 2 above on a medium customarily used for
software interchange.
If distribution of object code is made by offering access to copy
from a designated place, then offering equivalent access to copy
the source code from the same place satisfies the requirement
separate works in themselves, then this License, and its terms,
do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections
as part of a whole which is a work based on the Program, the
distribution of the whole must be on the terms of this License,
whose permissions for other licensees extend to the entire whole,
and thus to each and every part regardless of who wrote it..
Thus, it is not the intent of this section to claim rights or contest
your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or collec-
tive works based on the Program. In addition, mere aggregation
of another work not based on the Program with the Program (or
with a work based on the Program) on a volume of a storage
or distribution medium does not bring the other work under the
scope of this License.
3. You may copy and distribute the Program (or a work based on
it, under Section 2) in object code or executable form under the
terms of Sections 1 and 2 above provided that you also do one
of the following:
a) Accompany it with the complete corresponding machine-read-
able source code, which must be distributed under the terms
of Sections1 and 2 above on a medium customarily used for
software interchange; or,
b) Accompany it with a written offer, valid for at least three
years, to give any third party, for a charge no more than your
cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to
be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange; or,
c) Accompany it with the information you received as to the
offer to distribute corresponding source code. (This alternative
is allowed only for noncommercial distribution and only if you
received the program in object code or executable form with such
an offer, in accord with Subsection b above.)
Source code for a work means the preferred form of the work for
making modifications to it. For an executable work, complete
source code means all the source code for all modules it con-
tains, plus any associated interface definition files, plus the scripts
used to control compilation and installation of the executable.
However, as a special exception, the source code distributed
need not include anything that is normally distributed (in either
source or binary form) with the major components (compiler, ker-
nel, and so on) of the operating system on which the executable
runs, unless that component itself accompanies the executable.
If distribution of executable or object code is made by offering
access to copy from a designated place, then offering equivalent
access to copy the source code from the same place counts as
distribution of the source code, even though third parties are not
compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the
Program except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense or distribute the
Program is void, and will automatically terminate your rights
under this License. However, parties who have received copies,
or rights, from you under this License will not have their licenses
terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not
signed it. However, nothing else grants you permission to modify
or distribute the Program or its derivative works. These actions
are prohibited by law if you do not accept this License. Therefore,
by modifying or distributing the Program (or any work based on
the Program), you indicate your acceptance of this License to do
so, and all its terms and conditions for copying, distributing or
modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on
the Program), the recipient automatically receives a license from
the original licensor to copy, distribute or modify the Program
subject to these terms and conditions. You may not impose any
further restrictions on the recipients’ exercise of the rights granted
herein. You are not responsible for enforcing compliance by third
parties to this License.
7. If, as a consequence of a court judgment or allegation of
patent infringement or for any other reason (not limited to patent
issues), conditions are imposed on you (whether by court order,
agreement or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions of this
License. If you cannot distribute so as to satisfy simultaneously
your obligations under this License and any other pertinent
obligations, then as a consequence you may not distribute the
Program at all. For example, if a patent license would not permit
royalty-free redistribution of the Program by all those who receive
copies directly or indirectly through you, then the only way you
could satisfy both it and this License would be to refrain entirely
from distribution of the Program.
If any portion of this section is held invalid or unenforceable
under any particular circumstance, the balance of the section is
intended to apply and the section as a whole is intended to apply
in other circumstances.
It is not the purpose of this section to induce you to infringe any
patents or other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the
integrity of the free software distribution system, which is imple-
mented by public license practices. Many people have made
generous contributions to the wide range of software distributed
through that system in reliance on consistent application of that
system; it is up to the author/donor to decide if he or she is willing
to distribute software through any other system and a licensee
cannot impose that choice.
This section is intended to make thoroughly clear what is believed
to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in
certain countries either by patents or by copyrighted interfaces,
the original copyright holder who places the Program under this
License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in
or among countries not thus excluded. In such case, this License
incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new
versions of the General Public License from time to time. Such
new versions will be similar in spirit to the present version, but
may differ in detail to address new problems or concerns. Each
version is given a distinguishing version number. If the Program
specifies a version number of this License which applies to it and
“any later version”, you have the option of following the terms and
conditions either of that version or of any later version published
by the Free Software Foundation. If the Program does not specify
a version number of this License, you may choose any version
ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free
programs whose distribution conditions are different, write to the
author to ask for permission. For software which is copyrighted
by the Free Software Foundation, write to the Free Software
Foundation; we sometimes make exceptions for this. Our deci-
sion will be guided by the two goals of preserving the free status
of all derivatives of our free software and of promoting the sharing
and reuse of software generally.
could satisfy both it and this License would be to refrain entirely
from distribution of the Library.
If any portion of this section is held invalid or unenforceable
under any particular circumstance, the balance of the section is
intended to apply, and the section as a whole is intended to apply
in other circumstances.
It is not the purpose of this section to induce you to infringe any
patents or other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the
integrity of the free software distribution system which is imple-
mented by public license practices. Many people have made
generous contributions to the wide range of software distributed
through that system in reliance on consistent application of that
system; it is up to the author/donor to decide if he or she is willing
to distribute software through any other system and a licensee
cannot impose that choice. This section is intended to make
thoroughly clear what is believed to be a consequence of the rest
of this License.
12. If the distribution and/or use of the Library is restricted in
certain countries either by patents or by copyrighted interfaces,
the original copyright holder who places the Library under this
License may add an explicit geographical distribution limitation
excluding those countries, so that distribution is permitted only in
or among countries not thus excluded. In such case, this License
incorporates the limitation as if written in the body of this License.
13. The Free Software Foundation may publish revised and/
or new versions of the Lesser General Public License from time
to time. Such new versions will be similar in spirit to the present
version, but may differ in detail to address new problems or
concerns. Each version is given a distinguishing version number.
If the Library specifies a version number of this License which
applies to it and “any later version”, you have the option of follow-
ing the terms and conditions either of that version or of any later
version published by the Free Software Foundation. If the Library
does not specify a license version number, you may choose any
version ever published by the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free
programs whose distribution conditions are incompatible with
these, write to the author to ask for permission. For software
which is copyrighted by the Free Software Foundation, write to
the Free Software Foundation; we sometimes make exceptions
for this. Our decision will be guided by the two goals of preserv-
ing the free status of all derivatives of our free software and of
promoting the sharing and reuse of software generally.
15. The warranty disclaimer contained in Sections 11 and 12 of
the preceding GPL License is incorporated herein.
to distribute the source code, even though third parties are not
compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the Li-
brary, but is designed to work with the Library by being compiled
or linked with it, is called a “work that uses the Library”. Such
a work, in isolation, is not a derivative work of the Library, and
therefore falls outside the scope of this License.
However, linking a “work that uses the Library” with the Library
creates an executable that is a derivative of the Library (because
it contains portions of the Library), rather than a “work that uses
the library”. The executable is therefore covered by this License.
Section 6 states terms for distribution of such executables.
When a “work that uses the Library” uses material from a header
file that is part of the Library, the object code for the work may
be a derivative work of the Library even though the source
code is not.
Whether this is true is especially significant if the work can be
linked without the Library, or if the work is itself a library. The
threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data struc-
ture layouts and accessors, and small macros and small inline
functions (ten lines or less in length), then the use of the object
file is unrestricted, regardless of whether it is legally a derivative
work. (Executables containing this object code plus portions of
the Library will still fall under Section 6.) Otherwise, if the work is a
derivative of the Library, you may distribute the object code for the
work under the terms of Section 6. Any executables containing
that work also fall under Section 6, whether or not they are linked
directly with the Library itself.
6. As an exception to the Sections above, you may also combine
or link a “work that uses the Library” with the Library to produce
a work containing portions of the Library, and distribute that
work under terms of your choice, provided that the terms permit
modification of the work for your own use and reverse engineer-
ing for debugging such modifications. You must give prominent
notice with each copy of the work that the Library is used in it
and that the Library and its use are covered by this License. You
must supply a copy of this License. If the work during execution
displays copyright notices, you must include the copyright notice
for the Library among them, as well as a reference directing
the user to the copy of this License. Also, you must do one of
these things:
a) Accompany the work with the complete corresponding
machine-readable source code for the Library including whatever
changes were used in the work (which must be distributed under
Sections 1 and 2 above); and, if the work is an executable linked
with the Library, with the complete machine-readable “work that
uses the Library”, as object code and/or source code, so that the
user can modify the Library and then relink to produce a modified
executable containing the modified Library. (It is understood
that the user who changes the contents of definitions files in the
Library will not necessarily be able to recompile the application to
use the modified definitions.)
b) Use a suitable shared library mechanism for linking with the
Library. A suitable mechanism is one that (1) uses at run time a
copy of the library already present on the user’s computer sys-
tem, rather than copying library functions into the executable, and
(2) will operate properly with a modified version of the library, if the
user installs one, as long as the modified version is interface-com-
patible with the version that the work was made with.
c) Accompany the work with a written offer, valid for at least three
years, to give the same user the materials specified in Subsection
6a, above, for a charge no more than the cost of performing
this distribution.
d) If distribution of the work is made by offering access to copy
from a designated place, offer equivalent access to copy the
above specified materials from the same place.
e) Verify that the user has already received a copy of these materi-
als or that you have already sent this user a copy.
For an executable, the required form of the “work that uses
the Library” must include any data and utility programs needed
for reproducing the executable from it. However, as a special
exception, the materials to be distributed need not include
anything that is normally distributed (in either source or binary
form) with the major components (compiler, kernel, and so on) of
the operating system on which the executable runs, unless that
component itself accompanies the executable. It may happen
that this requirement contradicts the license restrictions of other
proprietary libraries that do not normally accompany the operating
system. Such a contradiction means you cannot use both them
and the Library together in an executable that you distribute.
7. You may place library facilities that are a work based on the
Library side-by-side in a single library together with other library
facilities not covered by this License, and distribute such a com-
bined library, provided that the separate distribution of the work
based on the Library and of the other library facilities is otherwise
permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work
based on the Library, uncombined with any other library facilities.
This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that
part of it is a work based on the Library, and explaining where to
find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute
the Library except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense, link with, or distrib-
ute the Library is void, and will automatically terminate your rights
under this License. However, parties who have received copies,
or rights, from you under this License will not have their licenses
terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not
signed it. However, nothing else grants you permission to modify
or distribute the Library or its derivative works. These actions are
prohibited by law if you do not accept this License. Therefore,
by modifying or distributing the Library (or any work based on
the Library), you indicate your acceptance of this License to do
so, and all its terms and conditions for copying, distributing or
modifying the Library or works based on it.
10. Each time you redistribute the Library (or any work based on
the Library), the recipient automatically receives a license from the
original licensor to copy, distribute, link with or modify the Library
subject to these terms and conditions. You may not impose any
further restrictions on the recipients’ exercise of the rights granted
herein. You are not responsible for enforcing compliance by third
parties with this License.
11. If, as a consequence of a court judgment or allegation of
patent infringement or for any other reason (not limited to patent
issues), conditions are imposed on you (whether by court order,
agreement or otherwise) that contradict the conditions of this
License, they do not excuse you from the conditions of this
License. If you cannot distribute so as to satisfy simultaneously
your obligations under this License and any other pertinent
obligations, then as a consequence you may not distribute the
Library at all. For example, if a patent license would not permit
royalty-free redistribution of the Library by all those who receive
copies directly or indirectly through you, then the only way you
Fortinet.com

Navigation menu
