Foshan Shunde Ya In Electric Appliance Manufacture C74E-AAAA02 Induction Cooktop User Manual 160803130GZU ZFB C74E AAAA02

Foshan Shunde Ya-In Electric Appliance Manufacture CO.,LTD Induction Cooktop 160803130GZU ZFB C74E AAAA02

160803130GZU_ZFB-C74E-AAAA02_User Manual

User Guide Four Burner Model:C74E-AAAA02C74E-AAAA03

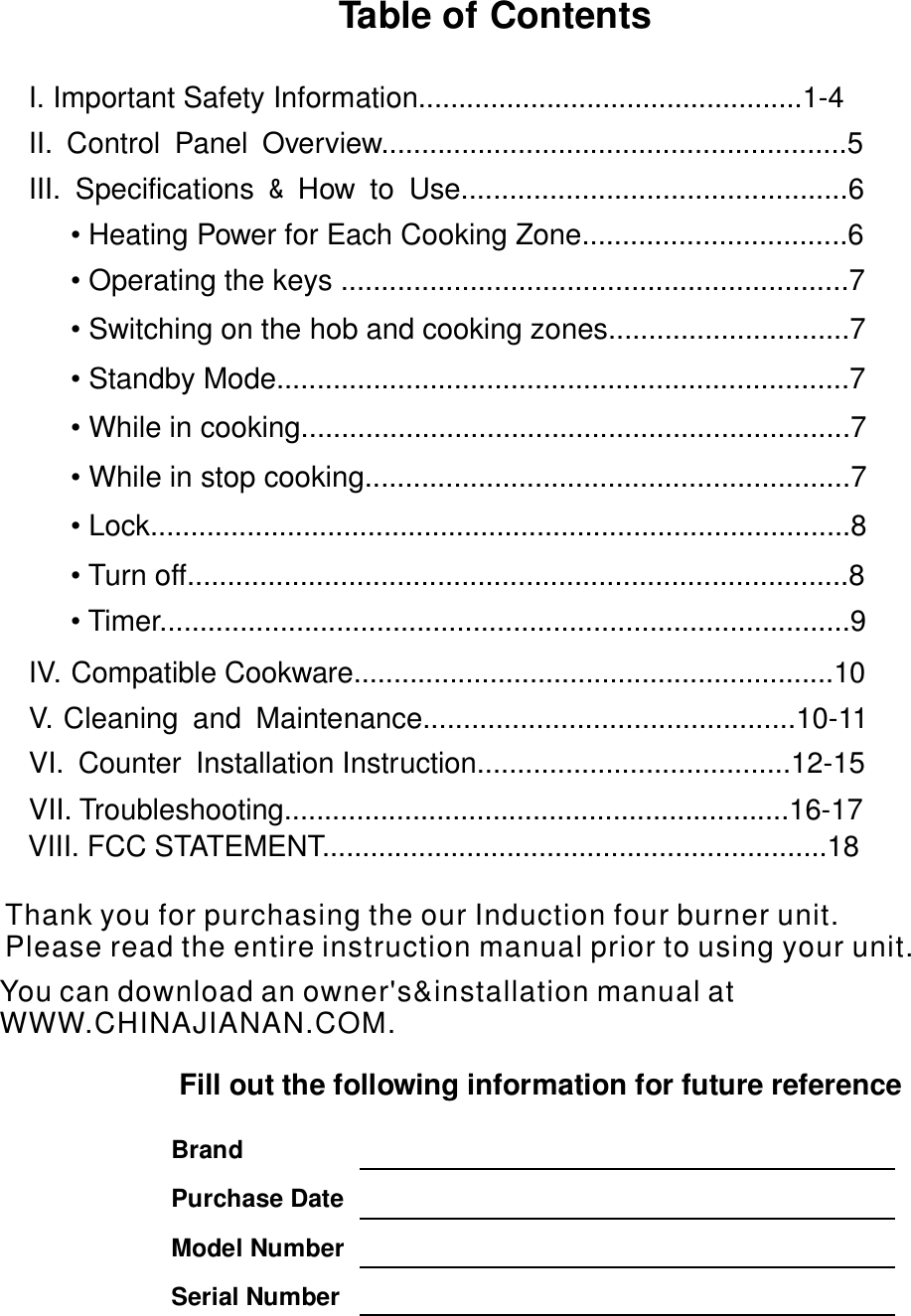

Table of Contents I. Important Safety Information................................................1-4 II. Control Panel Overview..........................................................5 III. Specifications How to Use................................................6 & • Heating Power for Each Cooking Zone.................................6 • ...............................................................7Operating the keys IV. Compatible Cookware............................................................10 V. Cleaning and Maintenance..............................................10-11 VI. Counter Installation Instruction.......................................12-15 VII. Troubleshooting...............................................................16-17 Fill out the following information for future reference Brand Purchase Date Model Number Serial Number • ..............................7Switching on the hob and cooking zones• ..................................................................7Standby Mode.....• ................................................................7While in cooking....• ............................................................7While in stop cooking• ...................................................................8Lock....................• .....................................................................8Turn off.............• Timer ......................................................................9................VII . FCC STATEMENT...............................................................18 IYou can download an owner's&installation manual at WWW.CHINAJIANAN.COM. Thank you for purchasing the our Induction four burner unit.Please read the entire instruction manual prior to using your unit.

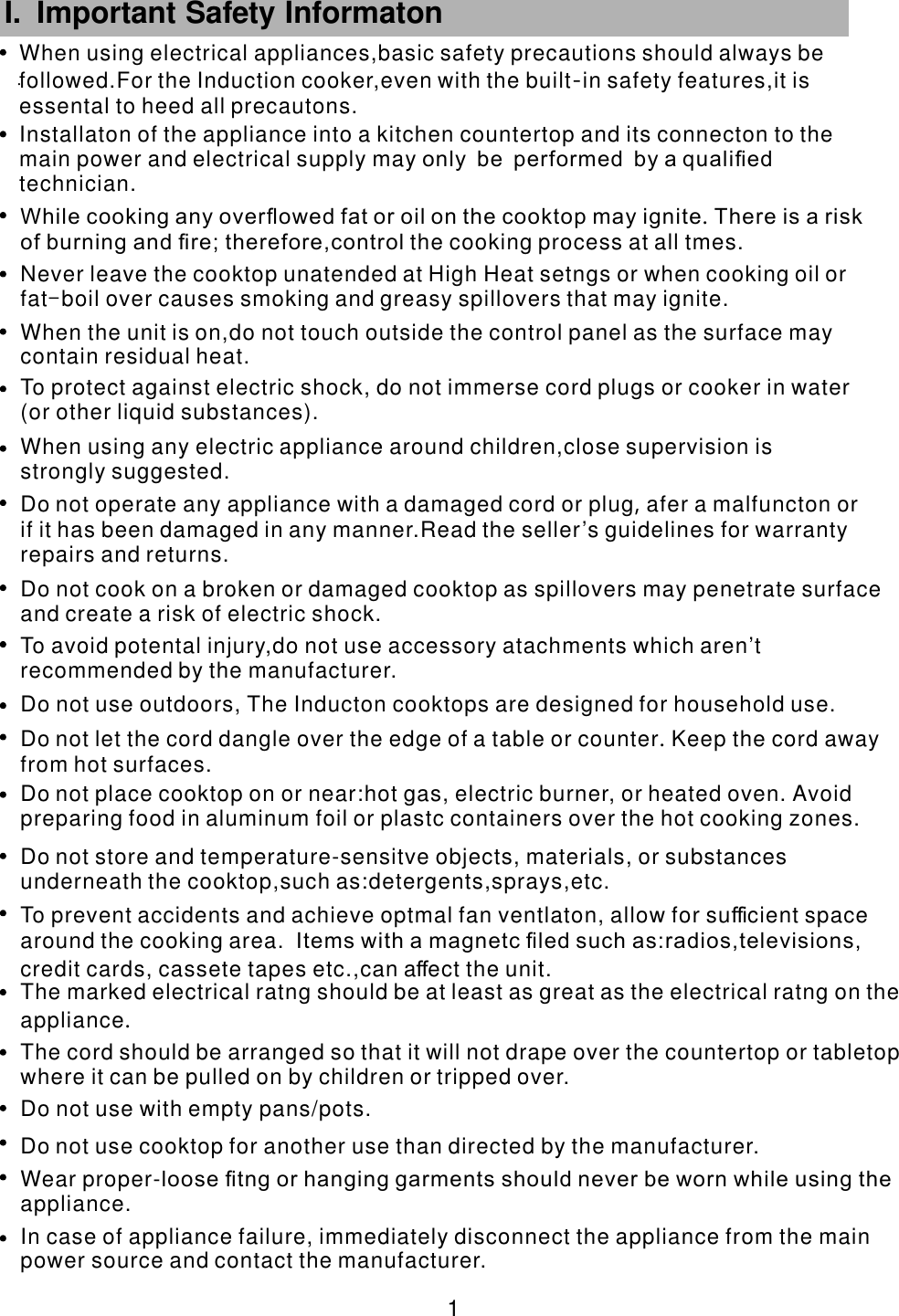

. 1 When using electrical appliances,basic safety precautions should always be followed.For the Induction cooker, even with the built in safety features,it isessental to heed all precautons. - I. Important Safety Informaton Do not use outdoors, The Inducton cooktops are designed for household use. To avoid potental injury,do not use accessory atachments which aren’trecommended by the manufacturer. In case of appliance failure, immediately disconnect the appliance from the mainpower source and contact the manufacturer.Wear proper-. loose fitng or hanging garments should never be worn while using theappliance Do not use cooktop for another use than directed by the manufacturer. Do not use with empty pans/pots. The cord should be arranged so that it will not drape over the countertop or tabletopwhere it can be pulled on by children or tripped over.The marked electrical ratng should be at least as great as the electrical ratng on theappliance . To prevent accidents and achieve optmal fan ventlaton, allow for su cient spacearound the cooking area. ffi Items with a magnetc filed such as:radios,televisions,credit cards, cassete tapes etc.,can a ect the unit. ffDo not store and temperature-s ensitve objects, materials, or substancesunderneath the cooktop,such as:detergents,sprays,etc. Do not place cooktop on or near:hot gas, electric burner, or heated oven. Avoid preparing food in aluminum foil or plastc containers over the hot cooking zones.Do not let the cord dangle over the edge of a table or counter Keep the cord awayfrom hot surfaces. . Do not cook on a broken or damaged cooktop as spillovers may penetrate surfaceand create a risk of electric shock. Do not operate any appliance with a damaged cord or plug afer a malfuncton orif it has been damaged in any , manner.Read the seller’s guidelines for warrantyrepairs and returns. When using any electric appliance around children,close supervision is strongly suggested. To protect against electric shock, do not immerse cord plugs or cooker in water (or other liquid substances). When the unit is on,do not touch outside the control panel as the surface maycontain residual heat. Never leave the cooktop unatended at High Heat setngs or when cooking oil or fat -boil over causes smoking and greasy spillovers that may ignite. While cooking any overflowed fat or oil on the cooktop may ignite There is a risk of burning and fire; therefore,control . the cooking process at all tmes. Installaton of the appliance into a kitchen countertop and its connecton to themain power and electrical supply may only be performed by a qualified technician.

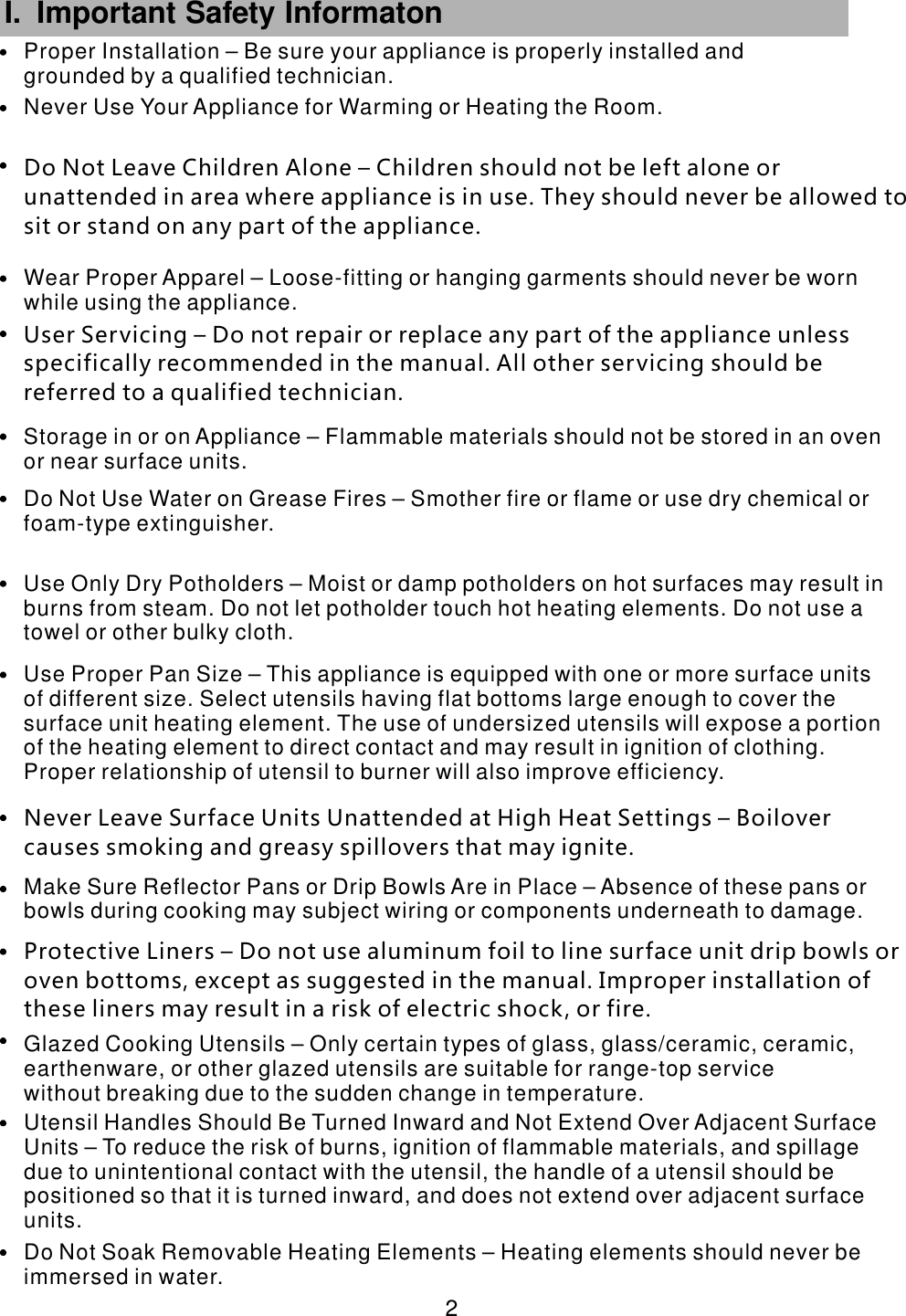

2 I. Important Safety Informaton Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units – To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.Do Not Soak Removable Heating Elements – Heating elements should never be immersed in water.Glazed Cooking Utensils – Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature.Protective Liners – Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire. Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.Use Proper Pan Size – This appliance is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency. Use Only Dry Potholders – Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth. User Servicing – Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.Do Not Use Water on Grease Fires – Smother fire or flame or use dry chemical or foam-type extinguisher.Storage in or on Appliance – Flammable materials should not be stored in an oven or near surface units.Wear Proper Apparel – Loose-fitting or hanging garments should never be worn while using the appliance.Do Not Leave Children Alone – Children should not be left alone or unattended in area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance.Never Use Your Appliance for Warming or Heating the Room.Proper Installation – Be sure your appliance is properly installed and grounded by a qualified technician.Never Leave Surface Units Unattended at High Heat Settings – Boilover causes smoking and greasy spillovers that may ignite.

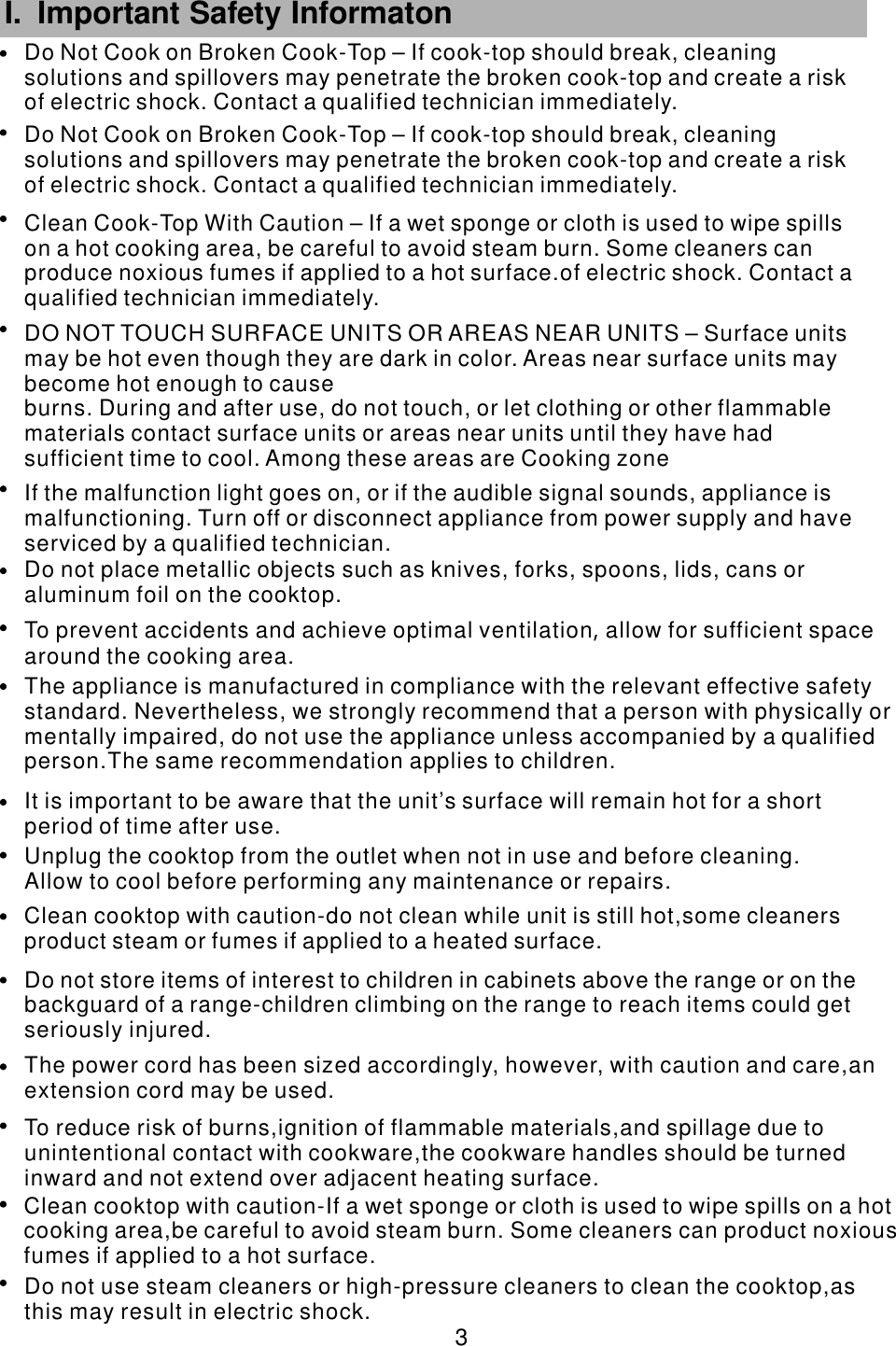

Do not place metallic objects such as knives, forks, spoons, lids, cans oraluminum foil on the cooktop. To prevent accidents and achieve optimal ventilation allow for sufficient spacearound the cooking area. , The appliance is manufactured in compliance with the relevant effective safetystandard. Nevertheless, we strongly recommend that a person with physically ormentally impaired, do not use the appliance unless accompanied by a qualifiedperson.The same recommendation applies to children. It is important to be aware that the unit’s surface will remain hot for a shortperiod of time after use. Unplug the cooktop from the outlet when not in use and before cleaning.Allow to cool before performing any maintenance or repairs. Clean cooktop with caution-do not clean while unit is still hot,some cleaners product steam or fumes if applied to a heated surface.Do not store items of interest to children in cabinets above the range or on the backguard of a range-children climbing on the range to reach items could getseriously injured. The power cord has been sized accordingly, however, with caution and care,anextension cord may be used. To reduce risk of burns,ignition of flammable materials,and spillage due tounintentional contact with cookware,the cookware handles should be turnedinward and not extend over adjacent heating surface. Clean cooktop with caution-If a wet sponge or cloth is used to wipe spills on a hot cooking area,be careful to avoid steam burn. Some cleaners can product noxiousfumes if applied to a hot surface. Do not use steam cleaners or high-pressure cleaners to clean the cooktop,asthis may result in electric shock. 3 I. Important Safety Informaton If the malfunction light goes on, or if the audible signal sounds, appliance is malfunctioning. Turn off or disconnect appliance from power supply and have serviced by a qualified technician.DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to causeburns. During and after use, do not touch, or let clothing or other flammable materials contact surface units or areas near units until they have had sufficient time to cool. Among these areas are Cooking zoneClean Cook-Top With Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.of electric shock. Contact a qualified technician immediately.Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. Contact a qualified technician immediately.Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. Contact a qualified technician immediately.

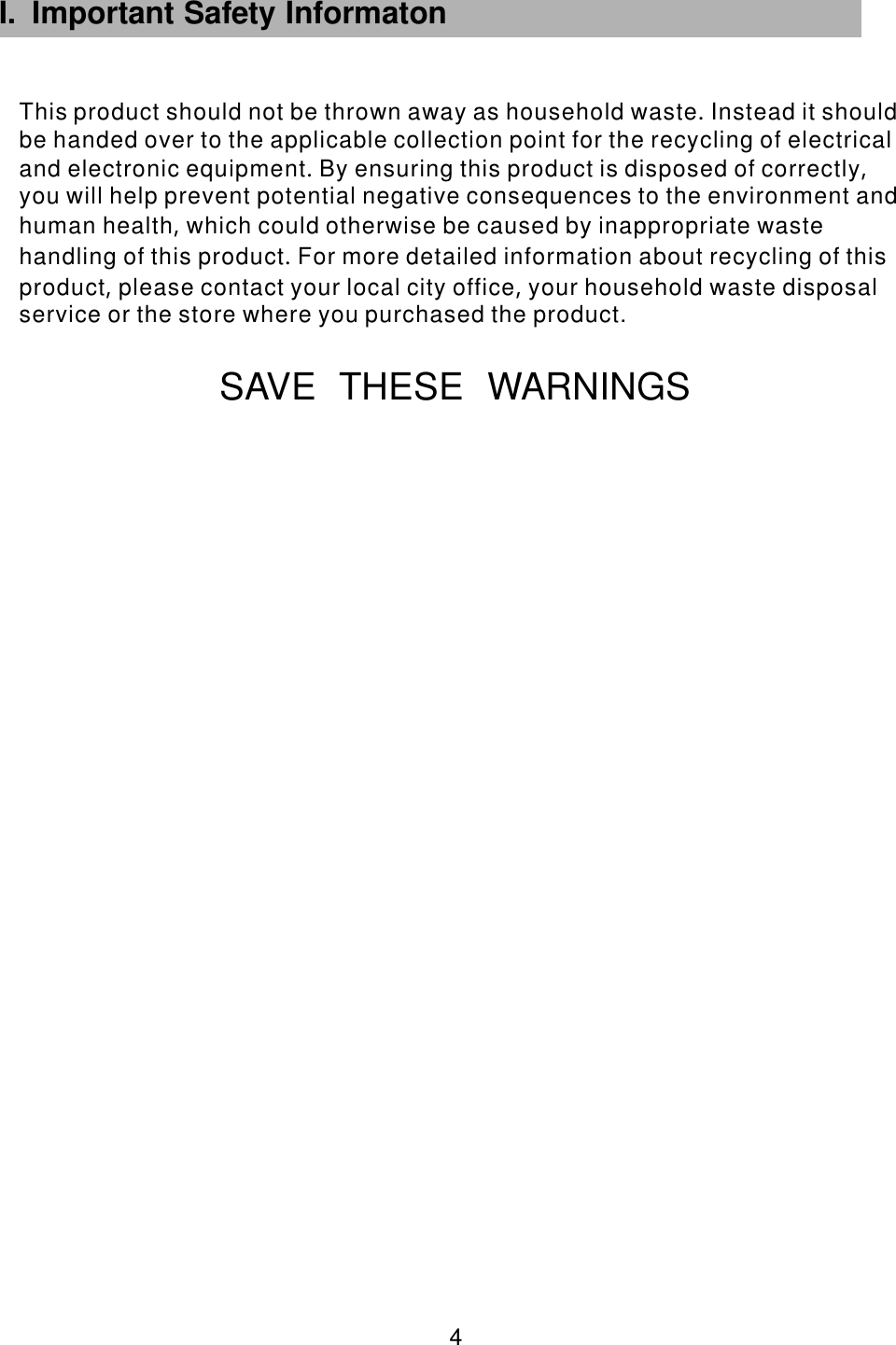

SAVE THESE WARNINGS I. Important Safety Informaton 4 This product should not be thrown away as household waste Instead it shouldbe handed over to the applicable collection point for the recycling of electricaland electronic equipment By ensuring this product is disposed of correctlyyou will help prevent potential negative consequences to the environment andhuman health which could otherwise be caused by inappropriate wastehandling of this product For more detailed information about recycling of thisproduct please contact your local city office your household waste disposalservice or the store where you purchased the product. . . , , . , ,

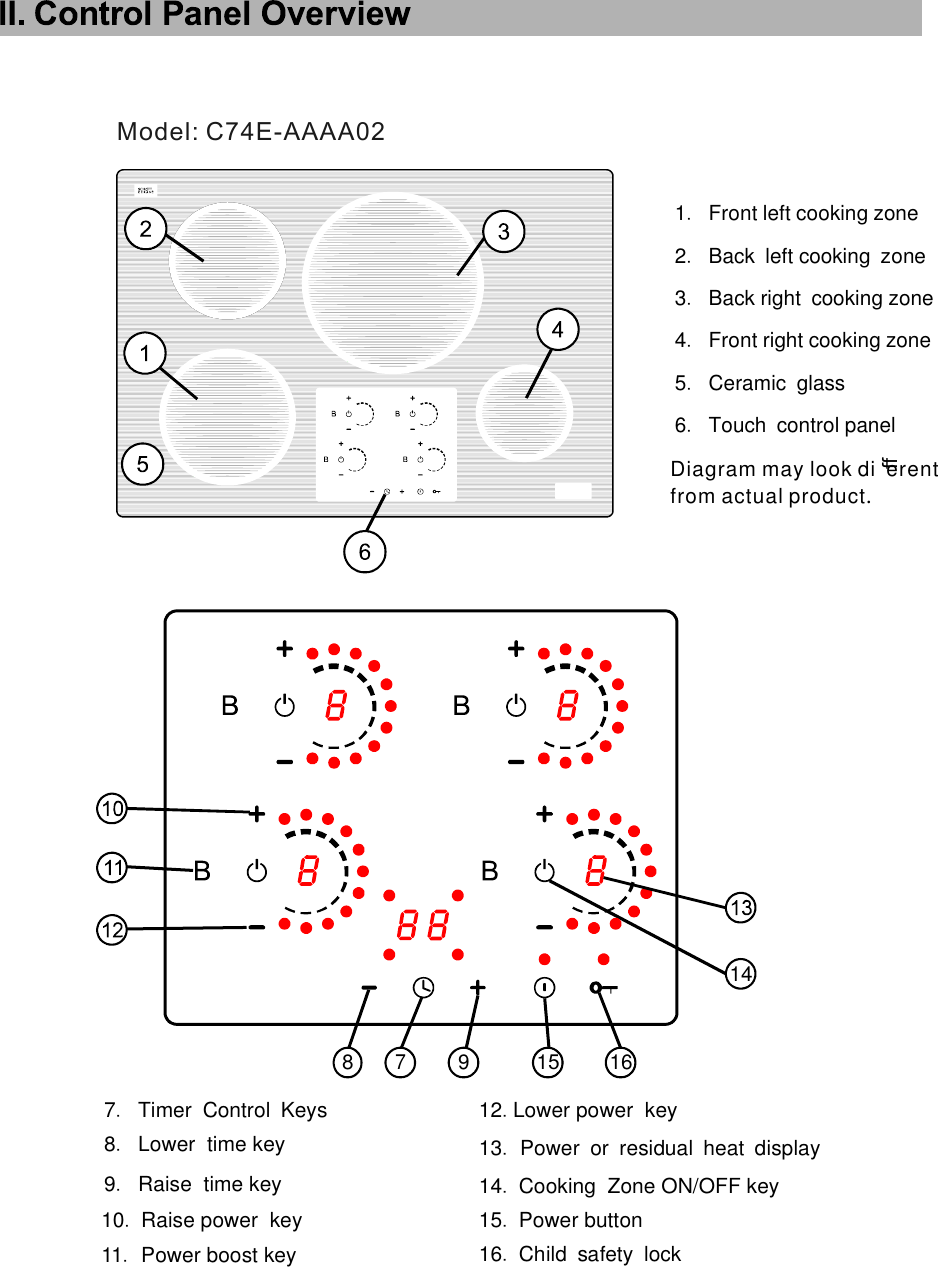

8.Lower time key7.Timer Control Keys 13.Power or residual heat display 16. Child safety lock 1.Front left cooking zone2.Back left cooking zone 3.Back right cooking zone 4.Front right cooking zone5.Ceramic glass 6.Touch control panel Diagram may look di erentfrom actual product . 159 8 16 14 7 10. Raise power key9.Raise time key 11. Power boost key15. Power button12.Lower power key14. Cooking Zone ON/OFF keyModel: C74E-AAAA02

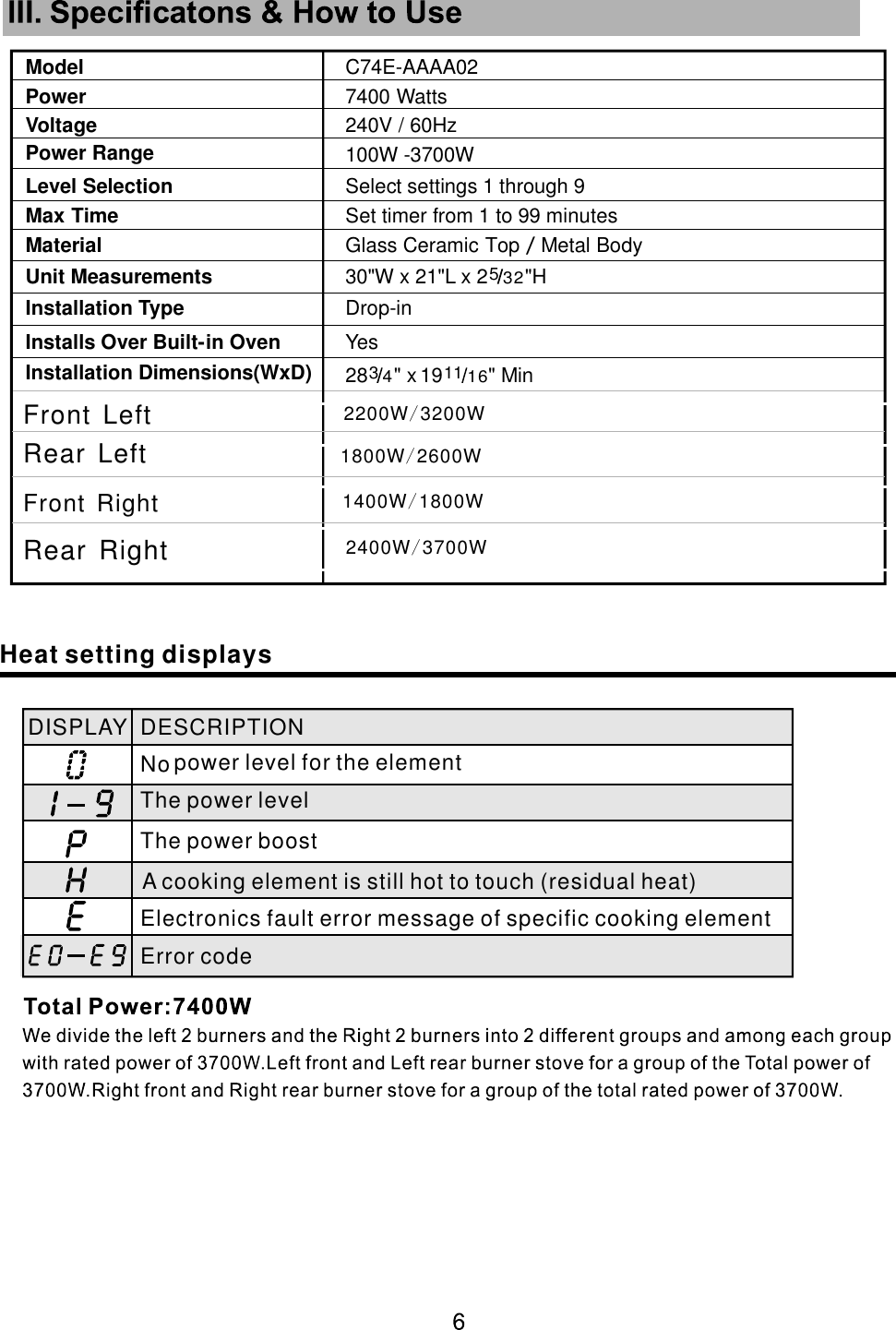

PowerVoltagePower Range Level Selection Max TimeMaterial Unit Measurements Installs Over Built- in Oven Installation Dimensions(WxD) 7400 Watts 240V / 60Hz100W -37 00W Select settings 1 through 9 Set timer from 1 to 99 minutes Glass Ceramic Top Metal Body / Drop-inYes Installation Type Model30"W x 21"L x 2 5 32"H28 3 4" x 19 11 16" Min C74E-AAAA02Front Left 2200W 3200W/Rear Left 1800W 2600W/Front Right 1400W 1800W/Rear Right 2400W 3700W/Heat setting displaysDISPLAY DESCRIPTION No power level for the element The power level The power boost A cooking element is still hot to touch (residual heat) Electronics fault error message of specific cooking element Error code

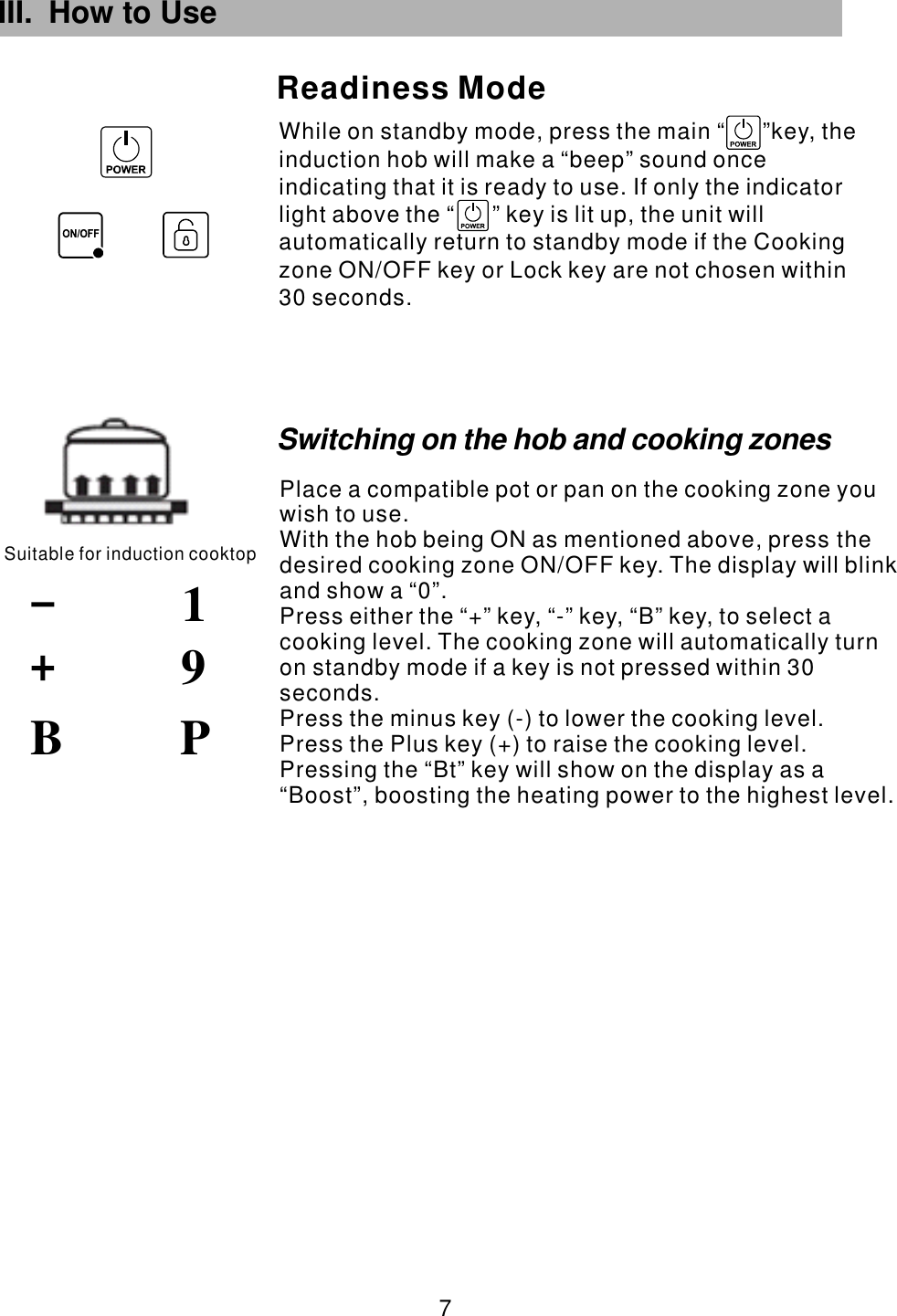

III. How to Use While on standby mode, press the main key, the induction hob will make a “beep” sound once indicating that it is ready to use. If only the indicator light above the key is lit up, the unit will automatically return to standby mode if the Cooking zone ON/OFF key or Lock key are not chosen within 30 seconds.“ ”“ ”Readiness ModeSuitable for induction cooktop91 7 PBSwitching on the hob and cooking zonesPlace a compatible pot or pan on the cooking zone you wish to use.With the hob being ON as mentioned above, press the desired cooking zone . The display will blink and show a “0”.Press either the “+” key, “-” key, to select a cooking level. The cooking zone will automatically turn on standby mode if a key is not pressed within 30 seconds.Press the minus key (-) to lower the cooking level.Press the Plus key (+) to raise the cooking level.ON/OFF key “B” key, Pressing the “Bt” key will show on the display as a “Boost”, boosting the heating power to the highest level.

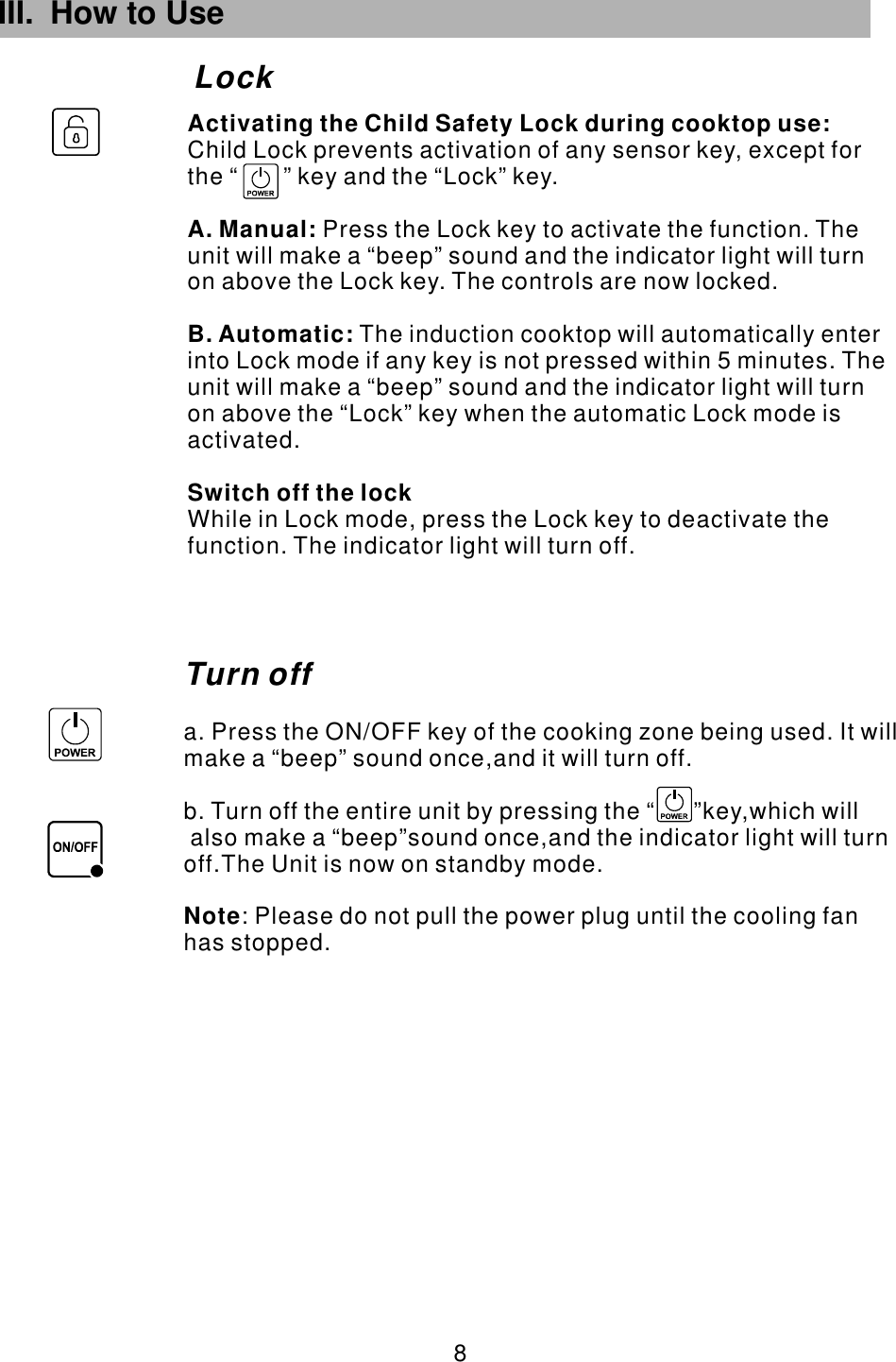

III. How to Use Lock 8 Turn offa. Press the ON/OFF key of the cooking zone being used. It will make a “beep” sound once,and it will turn off.b. Turn off the entire unit by pressing the “ ”key,which will also make a “beep”sound once,and the indicator light will turn off.The Unit is now on standby mode. : Please do not pull the power plug until the cooling fan has stopped. Note Child Lock prevents activation of any sensor key, except for the “ ” key and the “Lock” key.Press the Lock key to activate the function. The unit will make a “beep” sound and the indicator light will turn on above the Lock key. The controls are now locked. The induction cooktop will automatically enter into Lock mode if any key is not pressed within 5 minutes. The unit will make a “beep” sound and the indicator light will turn on above the “Lock” key when the automatic Lock mode is activated.While in Lock mode, press the Lock key to deactivate the function. The indicator light will turn off.Activating the Child Safety Lock during cooktop use:A. Manual: B. Automatic:Switch off the lock

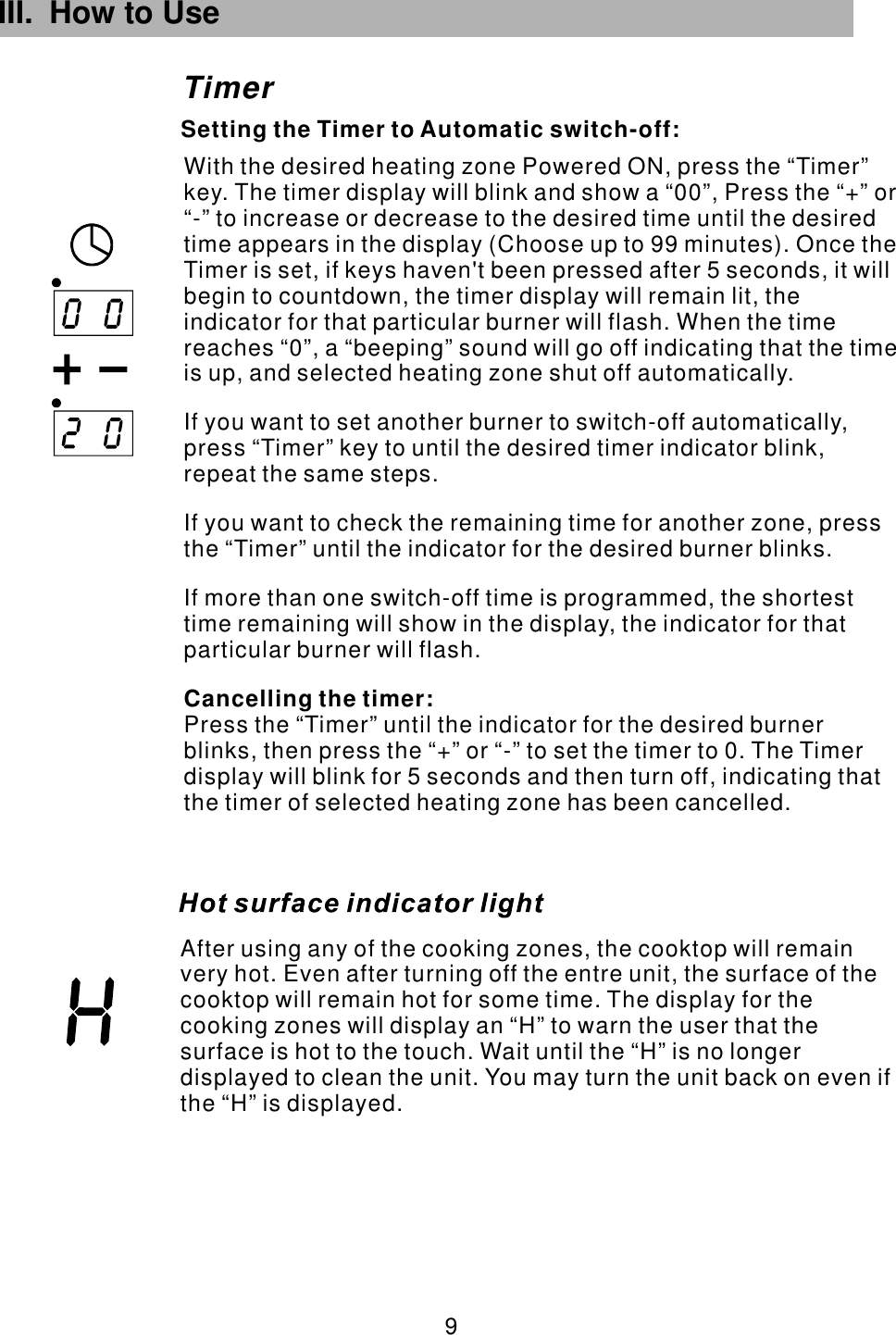

TimerSetting the Timer to Automatic switch-off:III. How to Use 9 After using any of the cooking zones, the cooktop will remain very hot. Even after turning off the entre unit, the surface of the cooktop will remain hot for some time. The display for the cooking zones will display an “H” to warn the user that the surface is hot to the touch. Wait until the “H” is no longer displayed to clean the unit. You may turn the unit back on even if the “H” is displayed.With the desired heating zone Powered ON, press the “Timer” key. The timer display will blink and show a “00”, Press the “+” or “-” to increase or decrease to the desired time until the desired time appears in the display (Choose up to 99 minutes). Once the Timer is set, if keys haven't been pressed after 5 seconds, it will begin to countdown, the timer display will remain lit, the indicator for that particular burner will flash. If you want to set another burner to switch-off automatically, repeat the same steps.If you want to check the remaining time for another zone, press the “Timer” until the indicator for the desired burner blinks.If more than one switch-off time is programmed, the shortest time remaining will show in the display, the indicator for that particular burner will flash.Press the “Timer” until the indicator for the desired burner blinks, then press the “+” or “-” to set the timer to 0. The Timer display will blink for 5 seconds and then turn off, indicating that the timer of selected heating zone has been cancelled.Cancelling the timer:When the time reaches “0”, a “beeping” sound will go off indicating that the time is up, and selected heating zone shut off automatically.press “Timer” key to until the desired timer indicator blink,

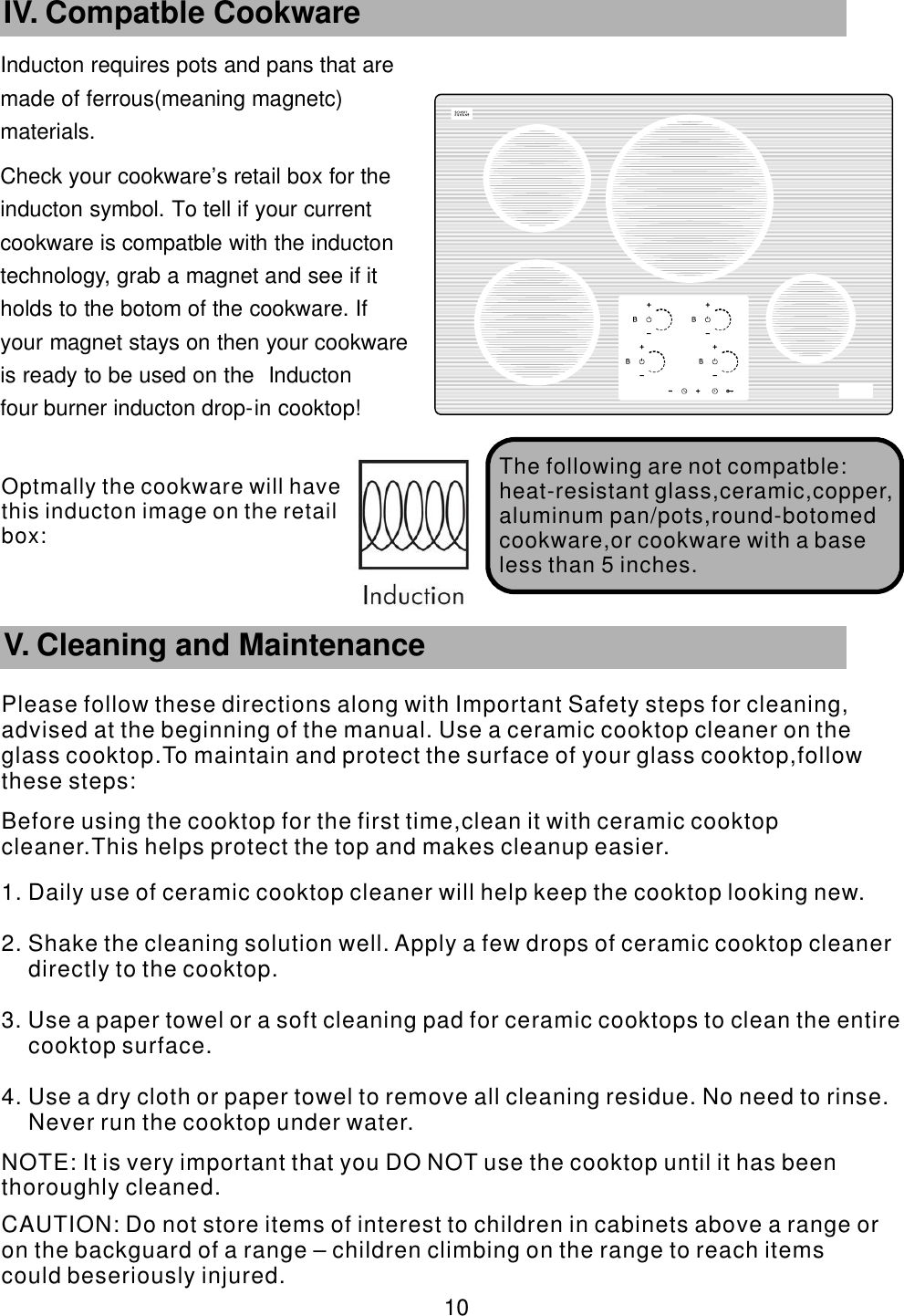

Inducton requires pots and pans that are made of ferrous(meaning magnetc) materials. Check your cookware’ s retail box for the inducton symbol. To tell if your current cookware is compatble with the inducton technology, grab a magnet and see if it holds to the botom of the cookware. If your magnet stays on then your cookware is ready to be used on the Inducton four burner inducton drop- in cooktop! 10 IV. Compatble Cookware The following are not compatble:heat-resistant glass,ceramic,copper,aluminum pan/pots,round-botomed cookware,or cookware with a base less than 5 inches. V. Cleaning and MaintenancePlease follow these directions along with Important Safety steps for cleaning, advised at the beginning of the manual. Use a ceramic cooktop cleaner on the glass cooktop.To maintain and protect the surface of your glass cooktop,follow these steps:Before using the cooktop for the first time,clean it with ceramic cooktop cleaner.This helps protect the top and makes cleanup easier.1. Daily use of ceramic cooktop cleaner will help keep the cooktop looking new.2. Shake the cleaning solution well. Apply a few drops of ceramic cooktop cleaner directly to the cooktop.3. Use a paper towel or a soft cleaning pad for ceramic cooktops to clean the entire cooktop surface.4. Use a dry cloth or paper towel to remove all cleaning residue. No need to rinse. Never run the cooktop under water. NOTE: It is very important that you DO NOT use the cooktop until it has been thoroughly cleaned. CAUTION: Do not store items of interest to children in cabinets above a range or on the backguard of a range – children climbing on the range to reach items could beseriously injured.Optmally the cookware will have this inducton image on the retail box:

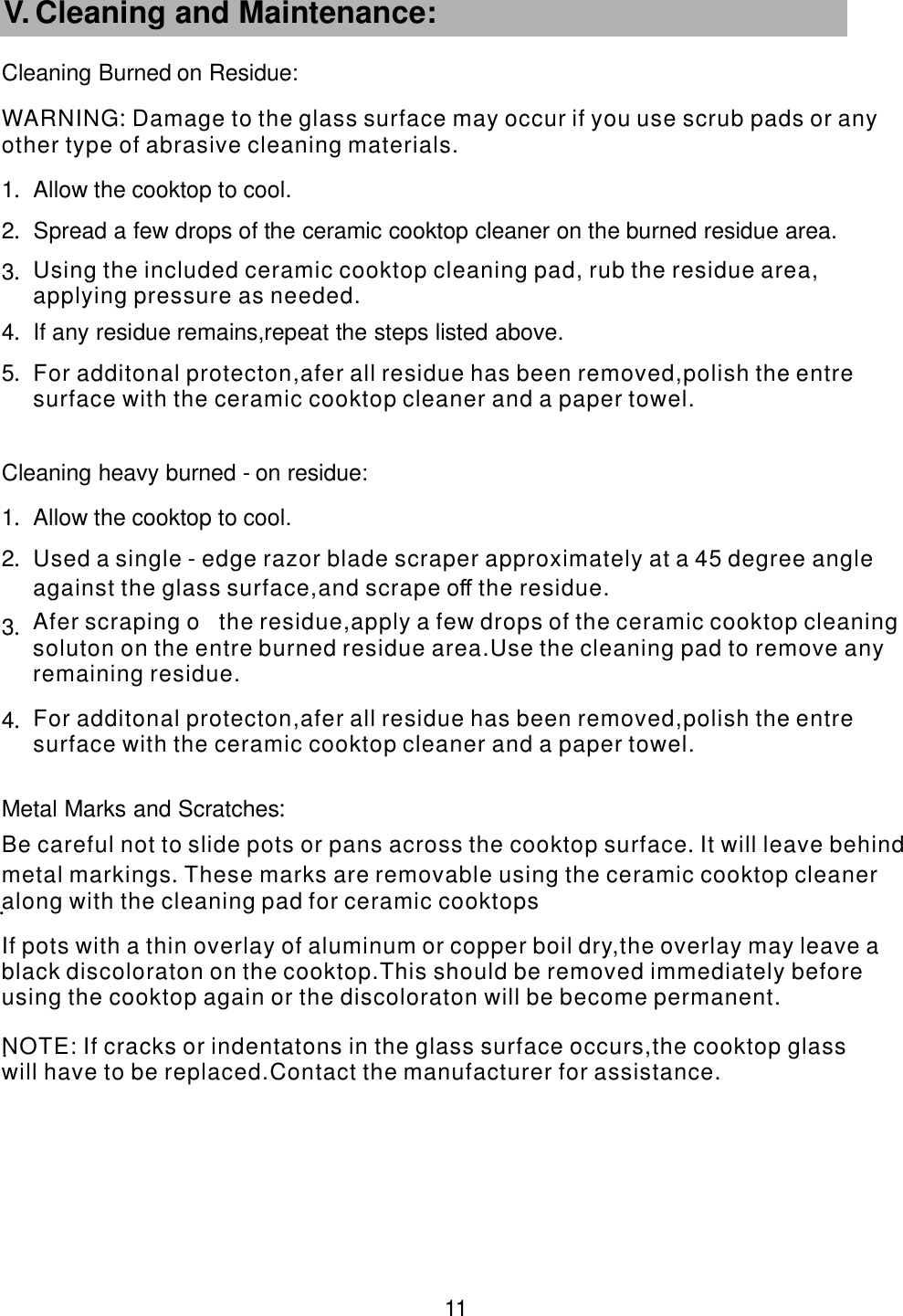

Cleaning Burned on Residue: 1.Allow the cooktop to cool.2.Spread a few drops of the ceramic cooktop cleaner on the burned residue area. 3.4.If any residue remains,repeat the steps listed above. 5.Cleaning heavy burned - on residue: 1.Allow the cooktop to cool.2.3.4.Metal Marks and Scratches : . . 11 V. Cleaning and Maintenance: NOTE: manufacturer for assistance. If cracks or indentatons in the glass surface occurs,the cooktop glasswill have to be replaced.Contact the If pots with a thin overlay of aluminum or copper boil dry,the overlay may leave a black discoloraton on the cooktop.This should be removed immediately beforeusing the cooktop again or the discoloraton will be become permanent. Be careful not to slide pots or pans across the cooktop surface It will leave behindmetal markings These marks are . . removable using the ceramic cooktop cleaneralong with the cleaning pad for ceramic cooktops For additonal protecton,afer all residue has been removed,polish the entresurface with the ceramic cooktop cleaner and a paper towel. Afer scraping o the residue,apply a few drops of the ceramic cooktop cleaning soluton on the entre burned residue area.Use the cleaning pad to remove anyremaining residue. Used a single - o the residue.edge razor blade scraper approximately at a 45 degree angleagainst the glass surface,and scrape ff For additonal protecton,afer all residue has been removed,polish the entresurface with the ceramic cooktop cleaner and a paper towel. Using the included ceramic cooktop cleaning pad, rub the residue area,applying pressure as needed. WARNING materials.: Damage to the glass surface may occur if you use scrub pads or any other type of abrasive cleaning

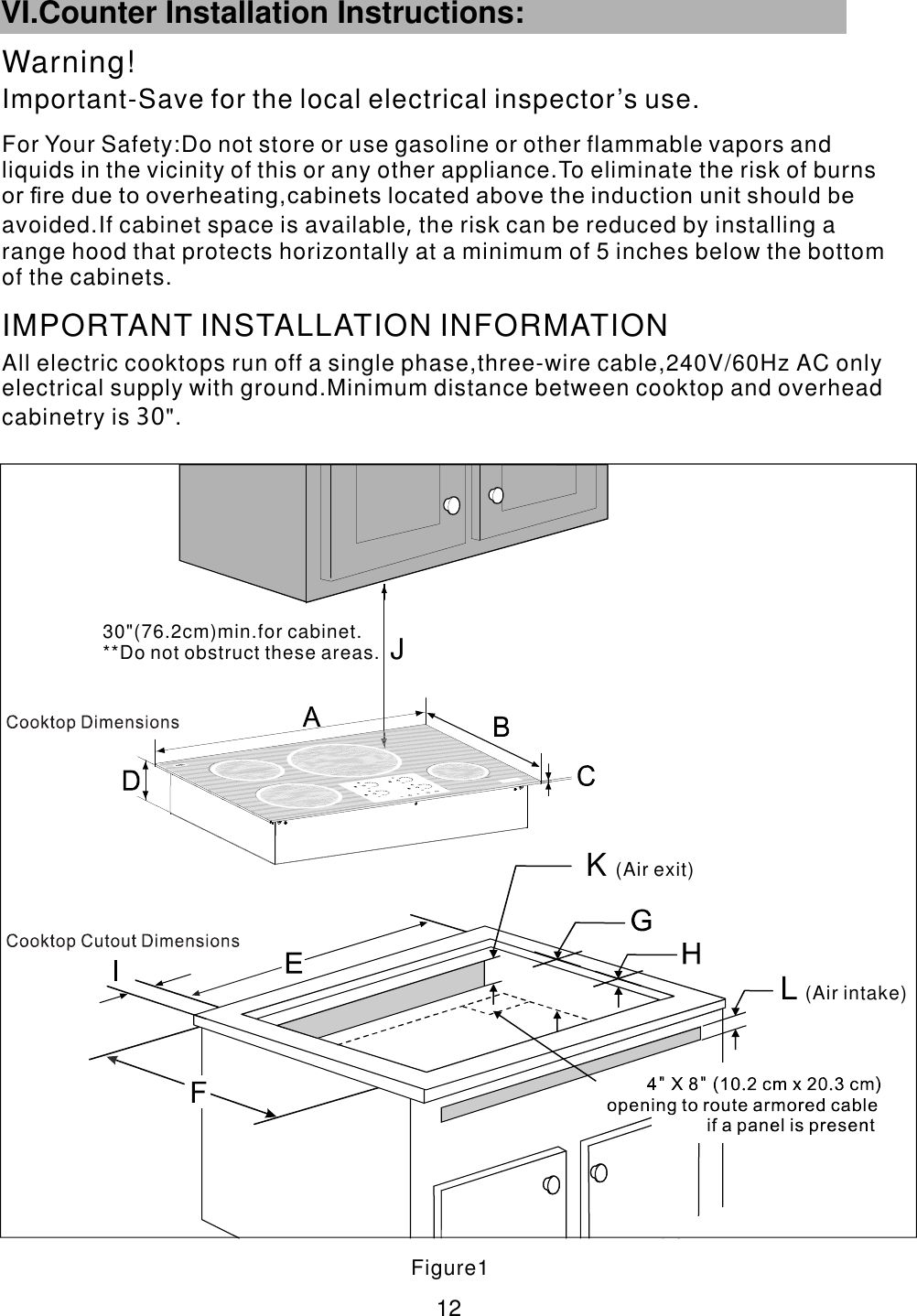

VI.Counter Installation Instructions: Warning!For Your Safety:Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.To eliminate the risk of burnsor fire due to overheating,cabinets located above the induction unit should beavoided.If cabinet space is available the risk can be reduced by installing a range hood that protects horizontally at a minimum of 5 inches below the bottomof the cabinets. , IMPORTANT INSTALLATION INFORMATIONImportant-Save for the local electrical inspector’s use.Figure1 12 J30"(76.2cm)min.for cabinet.**Do not obstruct these areas.K (Air exit)L (Air intake)All electric cooktops run off a single phase,three-wire cable,240V/60Hz AC onlyelectrical supply with ground.Minimum distance between cooktop and overheadcabinetry is ". 30
13 VI.Counter Installation Instructions: Cooktop Dimensions A Width. B. Depth C. Height 30" 21"5/32"2-5/32"D. HeightE Depth. G Depth. Minimum:28-3/4" Maximum:29-7/32"F Depth.Minimum:19-9/32" Maximum 20 1 4: - / " Cooktop Cutout Dimensions H. Depth I. Depth J. DepthMinimum 30":K. HeightL. HeightMinimum 3-11/32":Minimum 13/32": Maximum 25/32":Minimum 1-31/32":4-23/32"1-31/32"

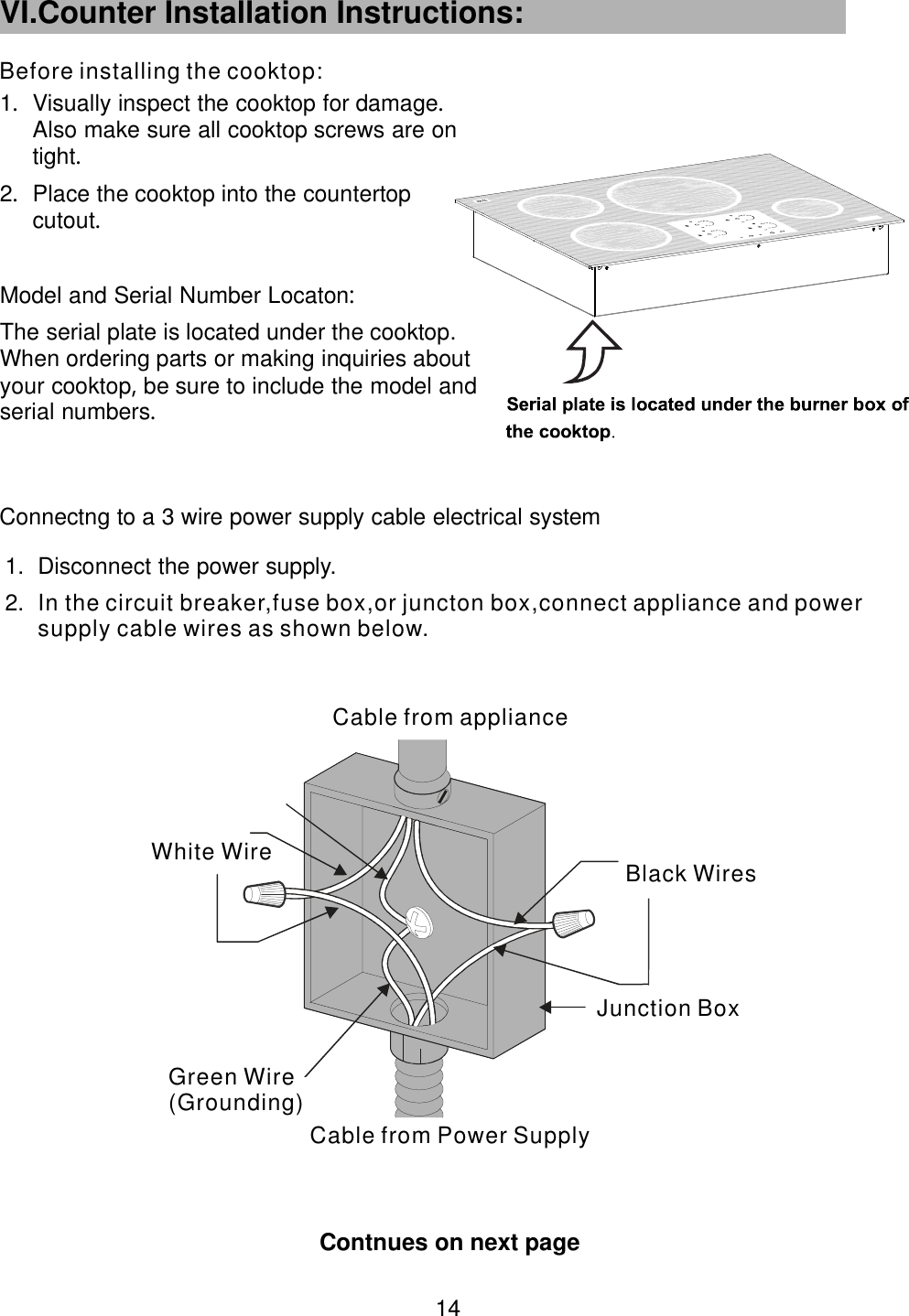

1.Visually inspect the cooktop for damage .Also make sure all cooktop screws are on tight.2.Place the cooktop into the countertop cutout.Model and Serial Number Locaton : The serial plate is located under the cooktop. When ordering parts or making inquiries about your cooktop be sure to include the model and , serial numbers . Connectng to a 3 wire power supply cable electrical system 1. Disconnect the power supply. 2.Contnues on next page Before installing the cooktop:Cable from Power SupplyGreen Wire(Grounding)Junction BoxBlack WiresWhite WireCable from appliance 14 VI.Counter Installation Instructions: In the circuit breaker,fuse box,or juncton box,connect appliance and power supply cable wires as shown below.

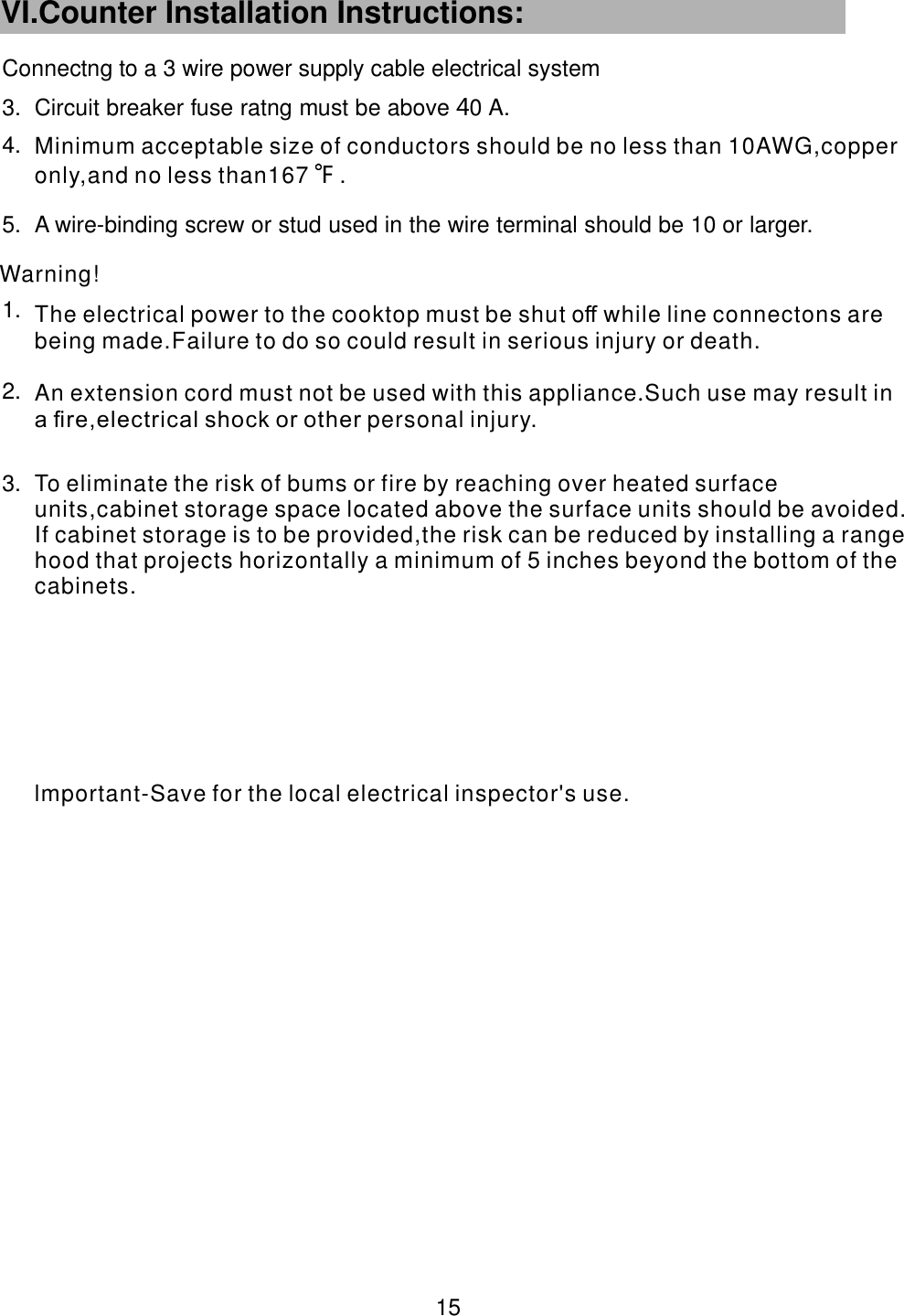

3. Circuit breaker fuse ratng must be above 0 A. 44.5. A wire-binding screw or stud used in the wire terminal should be 10 or larger. 1.2.Connectng to a 3 wire power supply cable electrical systemWarning! 15 VI.Counter Installation Instructions: 3.lmportant-Save for the local electrical inspector's use.To eliminate the risk of bums or fire by reaching over heated surface units,cabinet storage space located above the surface units should be avoided. If cabinet storage is to be provided,the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.An extension cord must not be used with this appliance Such use may result in a fire,electrical shock or other .personal injury.The electrical power to the cooktop must be shut o while line connectons are being made.Failure to do so ff could result in serious injury or death. Minimum acceptable size of conductors should be no less than 10AWG,copper only,and no less than167 .F

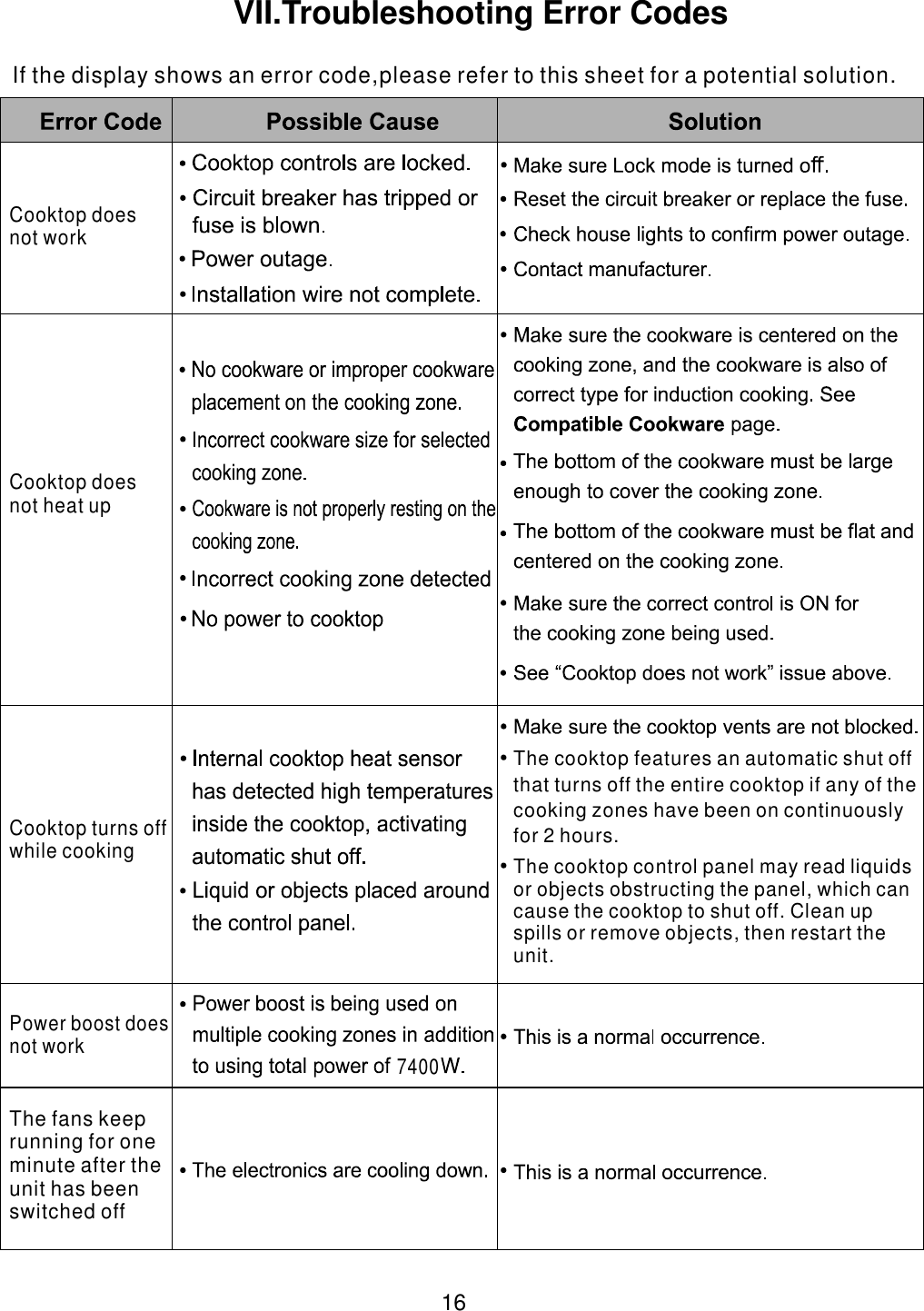

16 If the display shows an error code,please refer to this sheet for a potential solution. VII.Troubleshooting Error CodesThe cooktop features an automatic shut off that turns off the entire cooktop if any of the cooking zones have been on continuously for 2 hours.The cooktop control panel may read liquids or objects obstructing the panel, which can cause the cooktop to shut off. Clean up spills or remove objects, then restart the unit.Cooktop turns off while cookingPower boost does not workThe fans keep running for one minute after the unit has been switched offCooktop does not heat upCooktop does not work7400

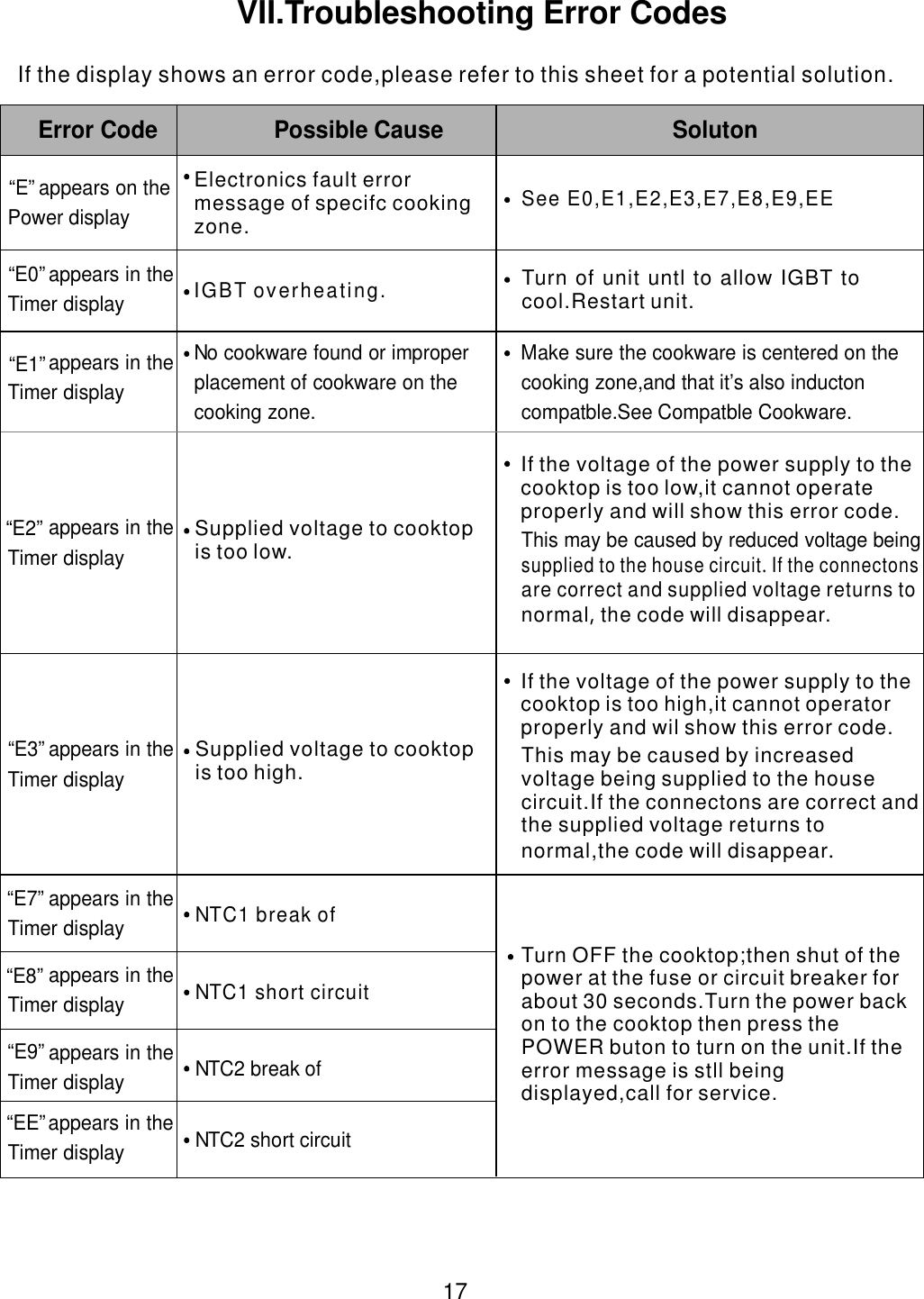

17 If the display shows an error code,please refer to this sheet for a potential solution. Error Code Possible Cause Soluton appears on the Power display See E0,E1,E2,E3,E7,E8,E9,EE “ ”E0 appears in the Timer display IGBT overheating.appears in the Timer display No cookware found or improper placement of cookware on the cooking zone. Make sure the cookware is centered on the cooking zone,and that it’ s also inducton compatble.See Compatble Cookware.appears in the Timer display This may be caused by reduced voltage being appears in the Timer display appears in the Timer display NTC1 break ofappears in the Timer display NTC1 short circuitappears in the Timer display NTC2 break ofappears in the Timer display NTC2 short circuit“ ”E1“ ”E2“ ”E3“ ”E7“ ”E8“ ”E9“ ”EE“ ”ETurn of unit untl to allow IGBT tocool.Restart unit.supplied to the house circuit If the connectons . are correct and supplied voltage returns to normal the code will disappear., VII.Troubleshooting Error CodesThis may be caused by increasedvoltage being supplied to the housecircuit.If the connectons are correct andthe supplied voltage returns to normal,the code will disappear . Turn OFF the cooktop;then shut of thepower at the fuse or circuit breaker for about 30 seconds.Turn the power backon to the cooktop then press thePOWER buton to turn on the unit.If theerror message is stll beingdisplayed,call for service. If the voltage of the power supply to the cooktop is too high,it cannot operator properly and wil show this error code. If the voltage of the power supply to the cooktop is too low,it cannot operateproperly and will show this error code. Electronics fault errormessage of specifc cookingzone. Supplied voltage to cooktopis too high.Supplied voltage to cooktopis too low.

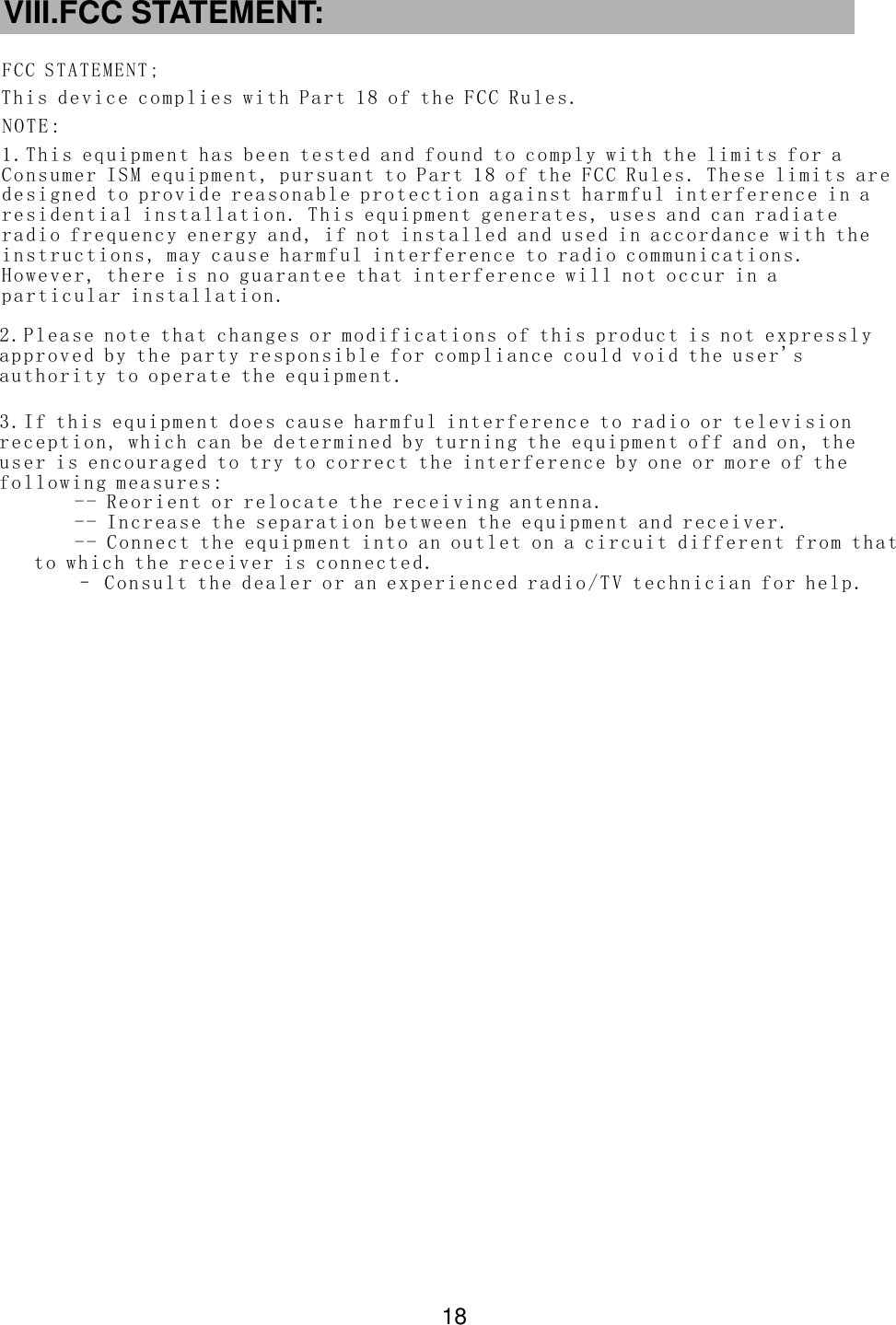

VIII.FCC STATEMENT:Th is device comp lie s with P art 18 of the FCC Rules.FCC STATEMENT;NO TE: 18 3. If thi s equi pm ent do es cau se ha rm ful in ter ferenc e t o r ad io or te levi si on re ceptio n, whi ch can b e dete rm ined b y turn in g t he eq uipm ent off an d o n, th e us er is en cour ag ed to tr y t o c or rect t he int er fere nc e b y o ne or more of t he fo llowin g m eas ure s: -- Reor ient o r relo ca te the rece ivi ng antenn a. -- Incr ease t he sep ar atio n bet wee n the eq uip ment and rec ei ver. -- Con nec t the equi pme nt i nt o an ou tle t on a c ir cuit di ff eren t from th at to whic h t he re ceiv er is c onn ect ed. – Con sult the deale r o r an exp eri enc ed ra dio /TV techn ici an for h elp .2. Please no te th at ch anges or modif ica tio ns of th is pr oduct is not expres sly ap proved by t he par ty re sp onsi ble for co mpli an ce cou ld voi d the user 's au thorit y t o o pe rate t he equ ip ment .1. This equi pme nt has b een test ed an d f oun d to com ply wi th th e lim its for a Co nsumer IS M equ ipm ent , p ur suan t to Par t 18 of th e FCC Rules . T hes e limi ts ar e de signed to p rov ide reas ona ble prote cti on aga in st har mfu l i nt erfe rence in a re sident ial in sta lla tio n. Th is equ ipm ent gener ate s, use s and can rad ia te ra dio frequ enc y ener gy an d, if n ot ins talled and use d in acc or danc e wit h t he in struct ions , may caus e h ar mful i nte rferen ce to ra dio co mmu nic ati ons . Ho wever, th er e i s n o gua ran tee that inte rfer en ce wil l not oc cur in a pa rticul ar ins tal lat ion .
