Foshan Shunde Ya In Electric Appliance Manufacture C74E-BBCC Induction Cooktop User Manual ZFB C74E BBCC
Foshan Shunde Ya-In Electric Appliance Manufacture CO.,LTD Induction Cooktop ZFB C74E BBCC
ZFB-C74E-BBCC_User Manual
User Guide

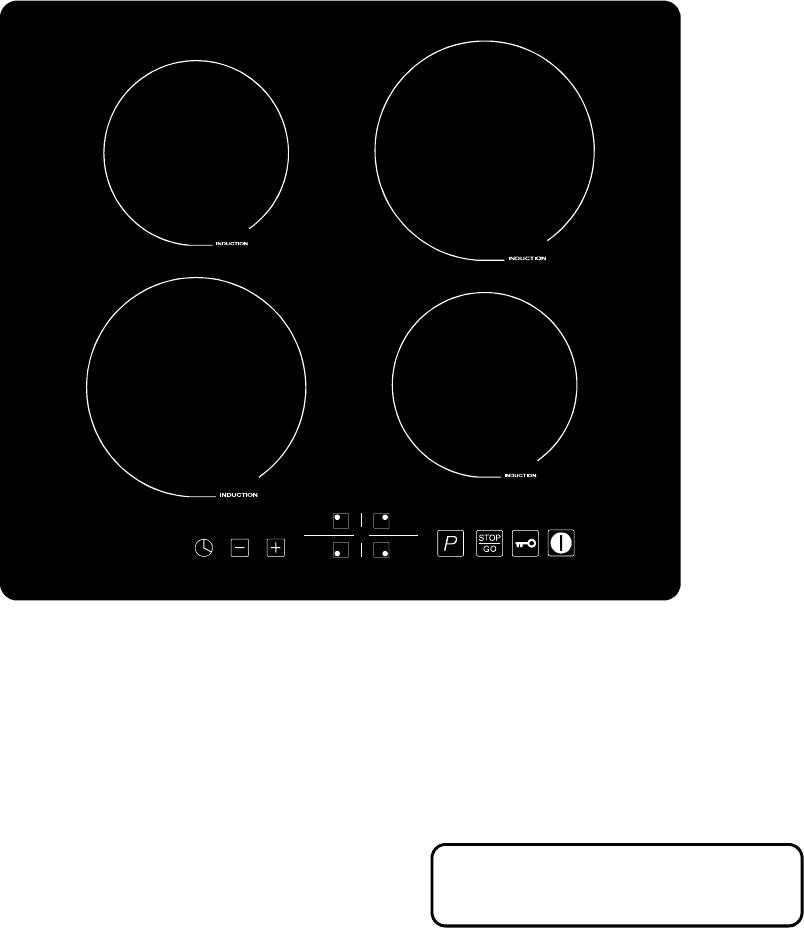

Four Burner
6TF
Model:C74E-BBCC02
Table of Contents
I. Important Safety Information................................................1-4
II. Control Panel Overview..........................................................5

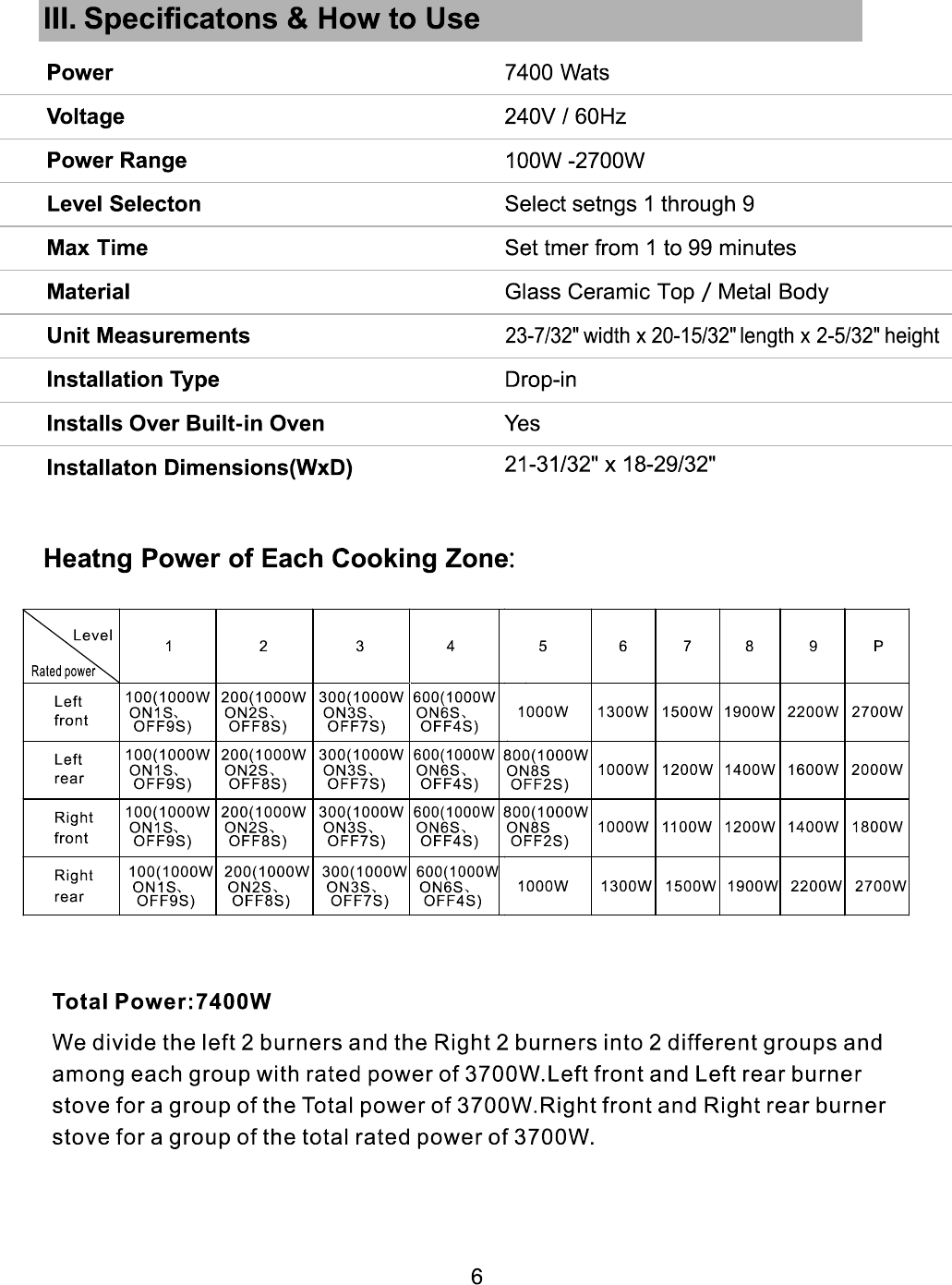

III. Specifications How to Use................................................6
&
• Heating Power for Each Cooking Zone.................................6
• ...............................................................7Operating the keys
IV. Compatible Cookware............................................................10
V. Cleaning and Maintenance..............................................10-11

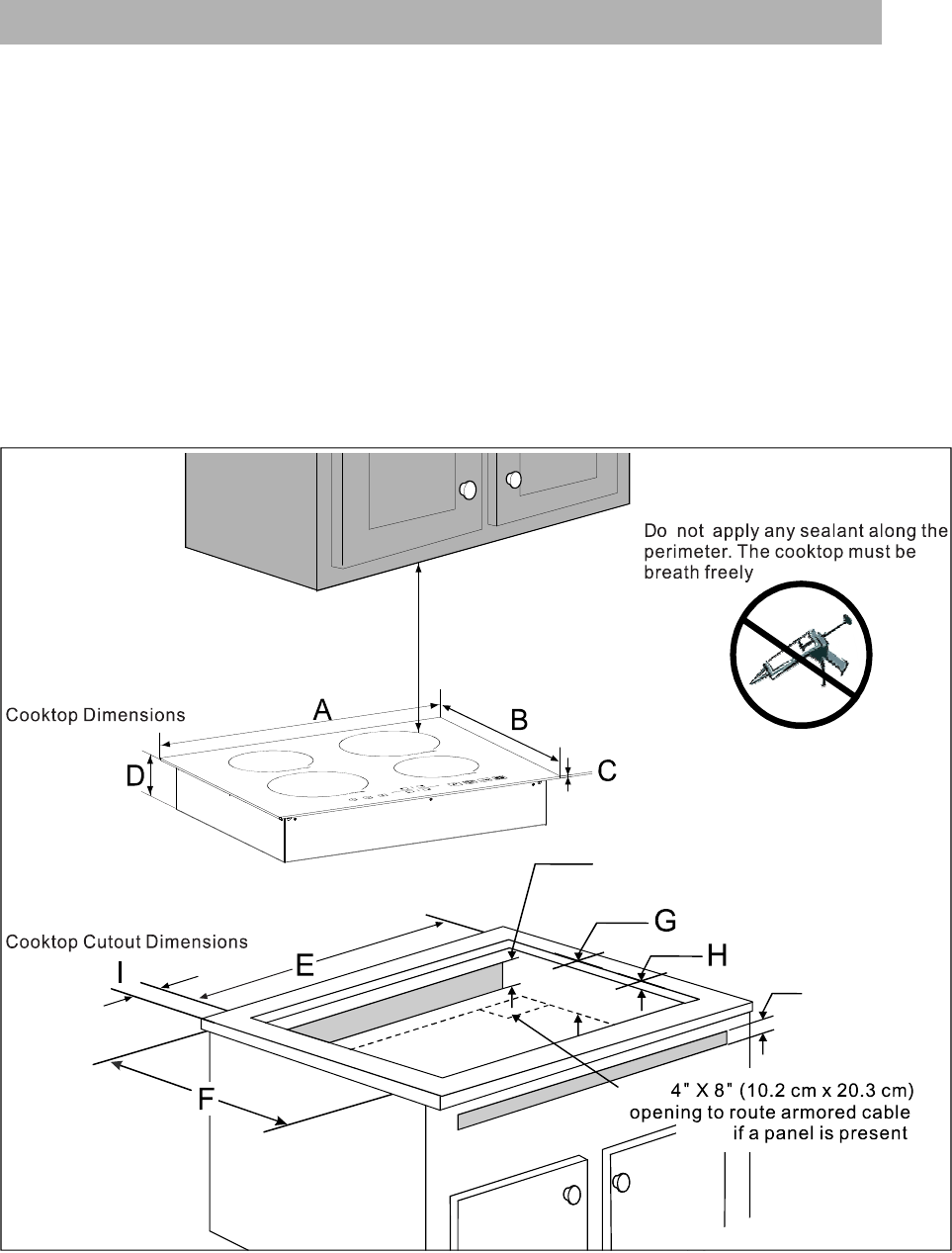

VI. Counter Installation Instruction.......................................12-15

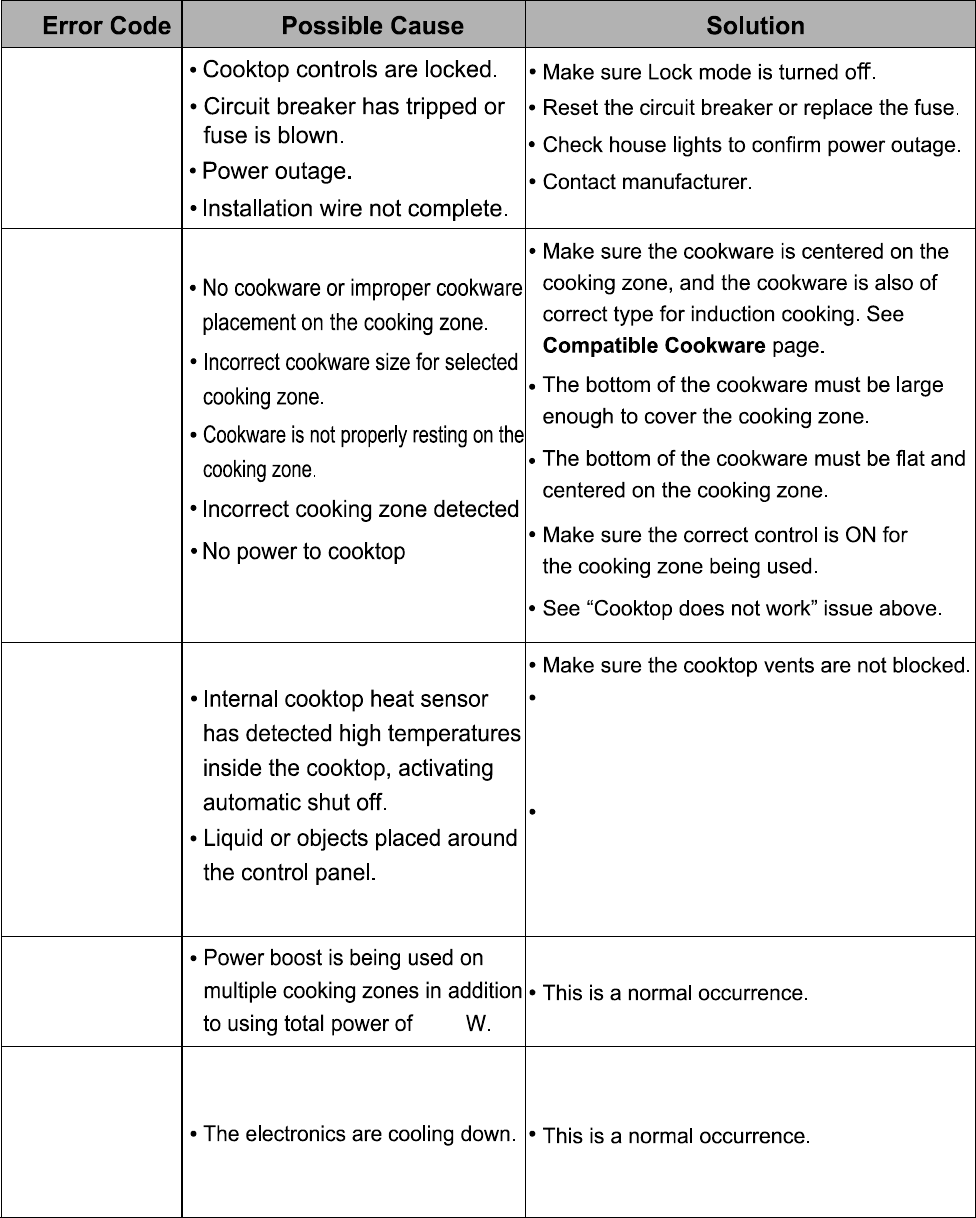

VII. Troubleshooting...............................................................16-17
Fill out the following information for future reference
Brand
Purchase Date
Model Number
Serial Number
• ..............................7Switching on the hob and cooking zones
• ..................................................................7Standby Mode.....
• ................................................................7While in cooking....
• ............................................................7While in stop cooking
• ...................................................................8Lock....................
• .....................................................................8Turn off.............
• Timer ......................................................................9................
VII . FCC STATEMENT...............................................................18 I
Thank you for purchasing the our Induction four burner unit.
Please read the entire
instruction manual prior to using your unit.
.
1
When using electrical appliances,basic safety precautions should always be
followed.For the Induction cooker,
even with the built in safety features,it is
essental to heed all precautons.
-

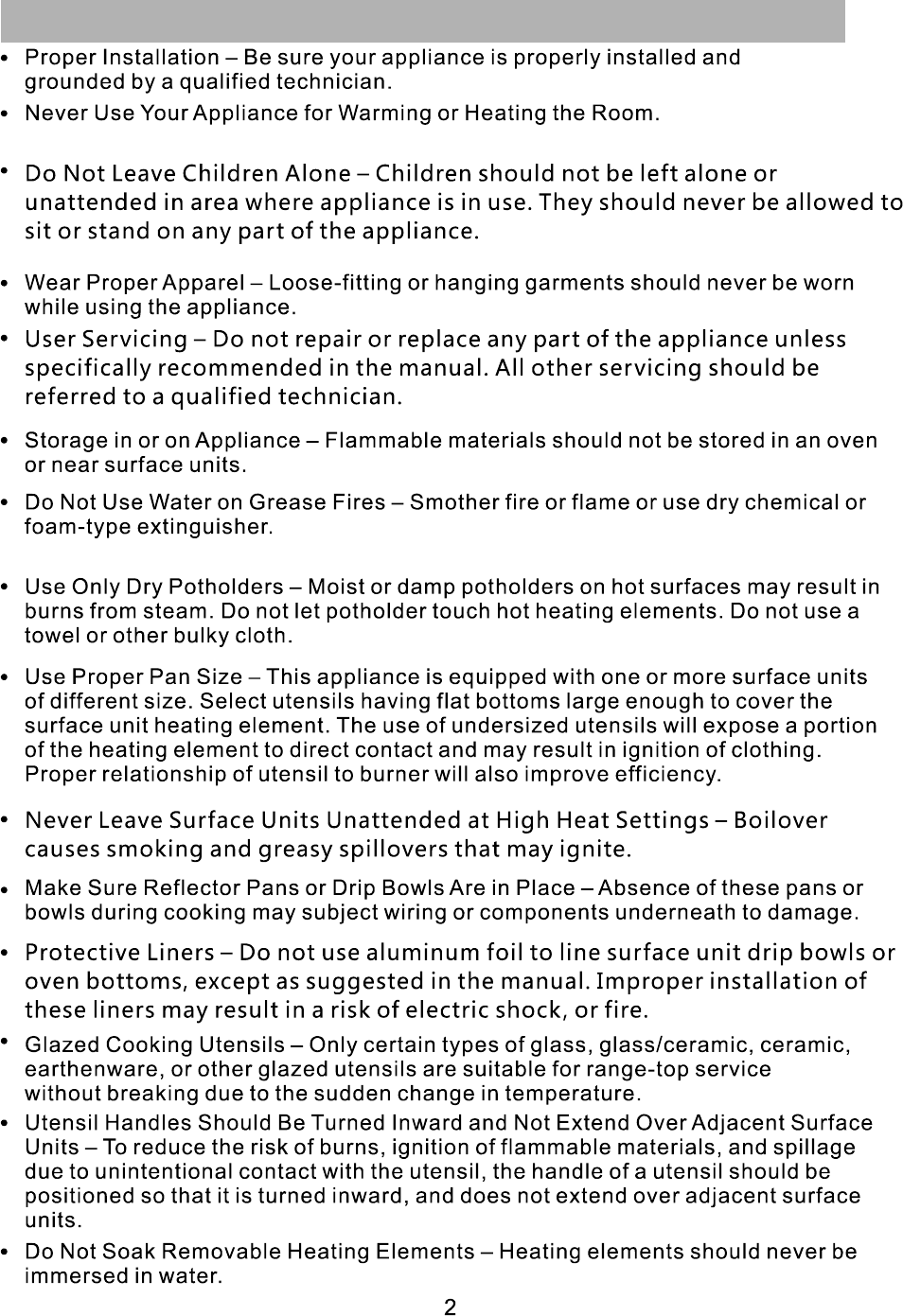

I. Important Safety Informaton
Do not use outdoors, The Inducton cooktops are designed for household use.
To avoid potental injury,do not use accessory atachments which aren’t
recommended by the manufacturer.
In case of appliance failure, immediately disconnect the appliance from the main
power source and contact the
manufacturer.
Wear proper-
.
loose fitng or hanging garments should never be worn while using the
appliance
Do not use cooktop for another use than directed by the manufacturer.
Do not use with empty pans/pots.
The cord should be arranged so that it will not drape over the countertop or tabletop
where it can be pulled on by
children or tripped over.
The marked electrical ratng should be at least as great as the electrical ratng on the
appliance
.
To prevent accidents and achieve optmal fan ventlaton, allow for su cient space
around the cooking area.
ffi
Items with a magnetc filed such as:radios,televisions,
credit cards, cassete tapes etc.,can a ect the unit.
ff
Do not store and temperature-s ensitve objects, materials, or substances
underneath the cooktop,such as:detergents,sprays,etc.
Do not place cooktop on or near:hot gas, electric burner, or heated oven.
Avoid
preparing food in aluminum foil or plastc containers over the hot cooking zones.
Do not let the cord dangle over the edge of a table or counter Keep the cord away
from hot surfaces.
.
Do not cook on a broken or damaged cooktop as spillovers may penetrate surface
and create a risk of electric shock.
Do not operate any appliance with a damaged cord or plug afer a malfuncton or
if it has been damaged in any
,
manner.Read the seller’s guidelines for warranty
repairs and returns.
When using any electric appliance around children,close supervision is
strongly suggested.
To protect against electric shock, do not immerse cord plugs or cooker in water
(or other liquid substances).
When the unit is on,do not touch outside the control panel as the surface may
contain residual heat.
Never leave the cooktop unatended at High Heat setngs or when cooking oil or
fat
-boil over causes smoking and greasy spillovers that may ignite.
While cooking any overflowed fat or oil on the cooktop may ignite There is a risk
of burning and fire; therefore,control
.
the cooking process at all tmes.

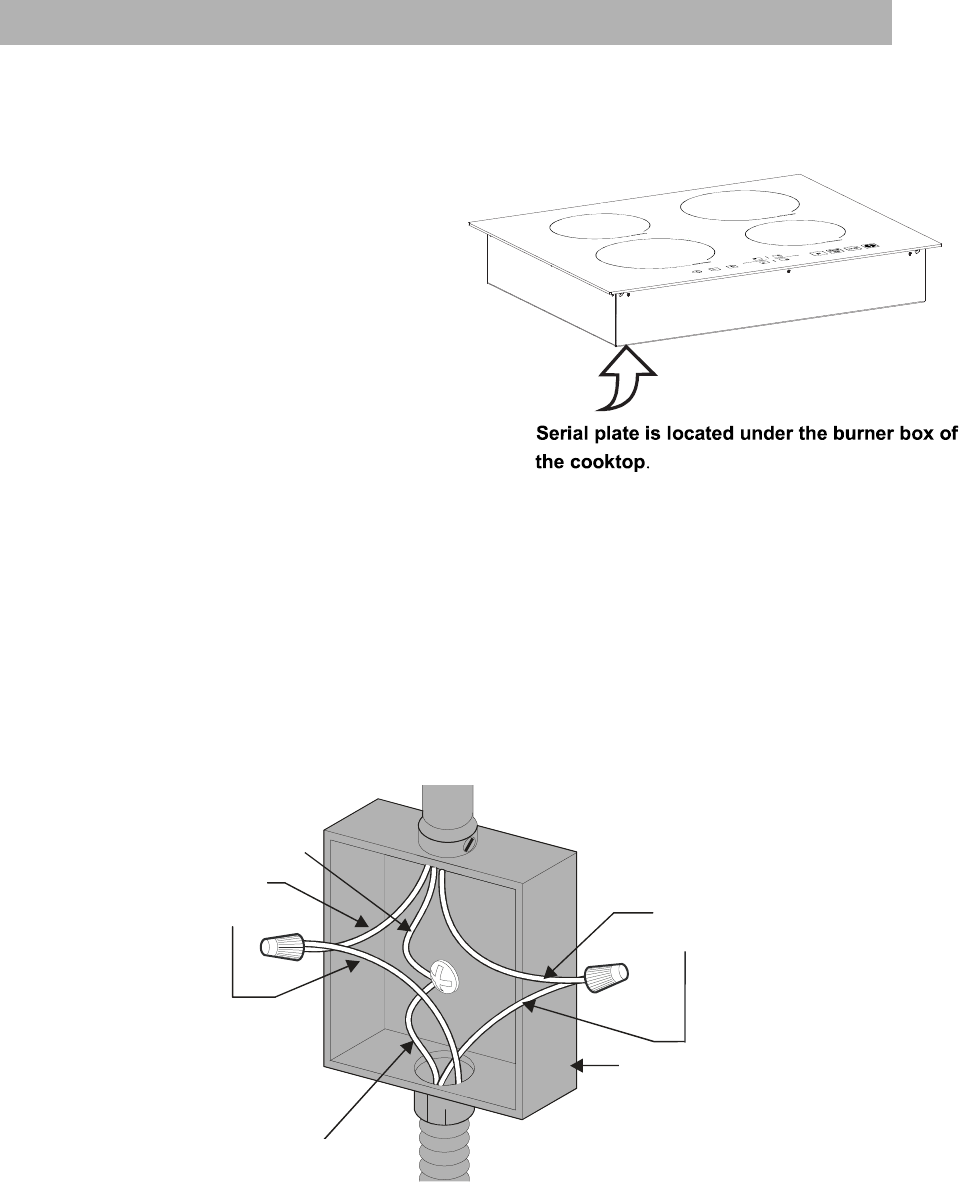

Installaton of the appliance into a kitchen countertop and its connecton to the
main power and electrical supply may
only be performed by a qualified
technician.
I. Important Safety Informaton
Do not place metallic objects such as knives, forks, spoons, lids, cans or
aluminum foil on the cooktop.
To prevent accidents and achieve optimal ventilation allow for sufficient space
around the cooking area.
,
The appliance is manufactured in compliance with the relevant effective safety
standard. Nevertheless, we strongly
recommend that a person with physically or
mentally impaired, do not use the appliance unless accompanied by a qualified
person.The same recommendation applies to children.
It is important to be aware that the unit’s surface will remain hot for a short
period of time after use.
Unplug the cooktop from the outlet when not in use and before cleaning.
Allow to cool before performing any
maintenance or repairs.
Clean cooktop with caution-do not clean while unit is still hot,some cleaners
product steam or fumes if applied to a heated
surface.
Do not store items of interest to children in cabinets above the range or on the
backguard of a range-children climbing on the range to reach items could get
seriously injured.
The power cord has been sized accordingly, however, with caution and care,an
extension cord may be used.
To reduce risk of burns,ignition of flammable materials,and spillage due to
unintentional contact with
cookware,the cookware handles should be turned
inward and not extend over adjacent heating surface.
Clean cooktop with caution-If a wet sponge or cloth is used to wipe spills on a hot
cooking area,be careful to avoid steam
burn. Some cleaners can product noxious
fumes if applied to a hot surface.
Do not use steam cleaners or high-pressure cleaners to clean the cooktop,as
this may result in electric shock.
3
I. Important Safety Informaton
If the malfunction light goes on, or if the audible signal sounds, appliance is
malfunctioning. Turn off or disconnect appliance from power supply and have
serviced by a qualified technician.
DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS – Surface units
may be hot even though they are dark in color. Areas near surface units may
become hot enough to cause
burns. During and after use, do not touch, or let clothing or other flammable
materials contact surface units or areas near units until they have had
sufficient time to cool. Among these areas are Cooking zone
Clean Cook-Top With Caution – If a wet sponge or cloth is used to wipe spills
on a hot cooking area, be careful to avoid steam burn. Some cleaners can
produce noxious fumes if applied to a hot surface.of electric shock. Contact a
qualified technician immediately.
Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning
solutions and spillovers may penetrate the broken cook-top and create a risk
of electric shock. Contact a qualified technician immediately.
Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning
solutions and spillovers may penetrate the broken cook-top and create a risk
of electric shock. Contact a qualified technician immediately.
SAVE THESE WARNINGS
4
I. Important Safety Informaton
This product should not be thrown away as household waste Instead it should
be handed over to the applicable collection point for the recycling of electrical
and electronic equipment By ensuring this product is disposed of correctly
you will help prevent potential negative consequences to the environment and
human health which could otherwise be caused by inappropriate waste
handling of this product For more detailed information about recycling of this
product please contact your local city office your household waste disposal
service or the store where you purchased the product.
.
. ,
,
.
, ,

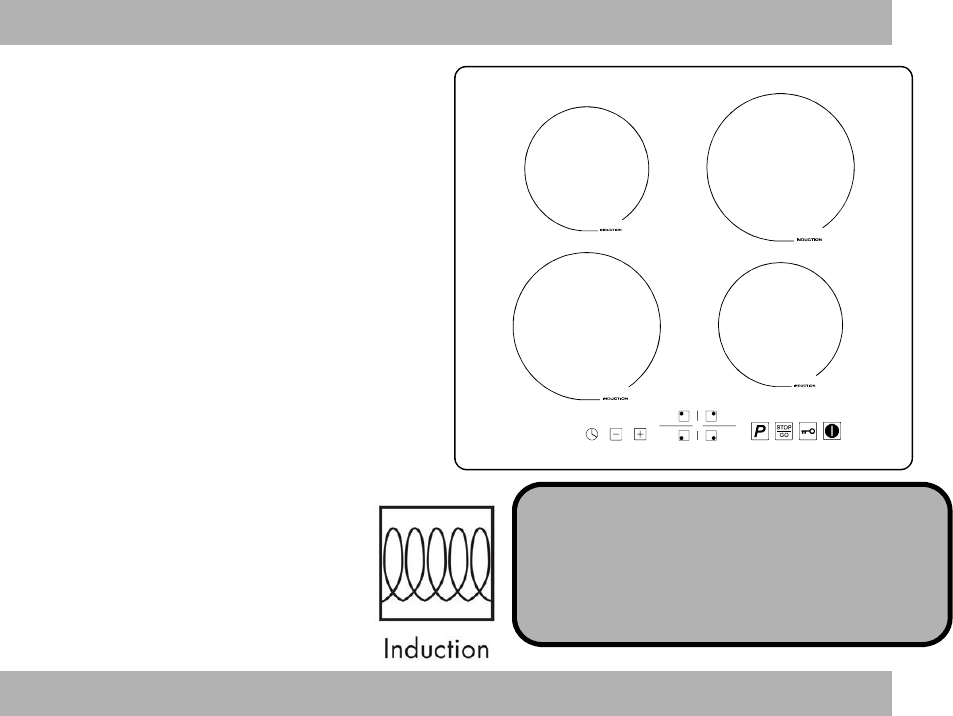

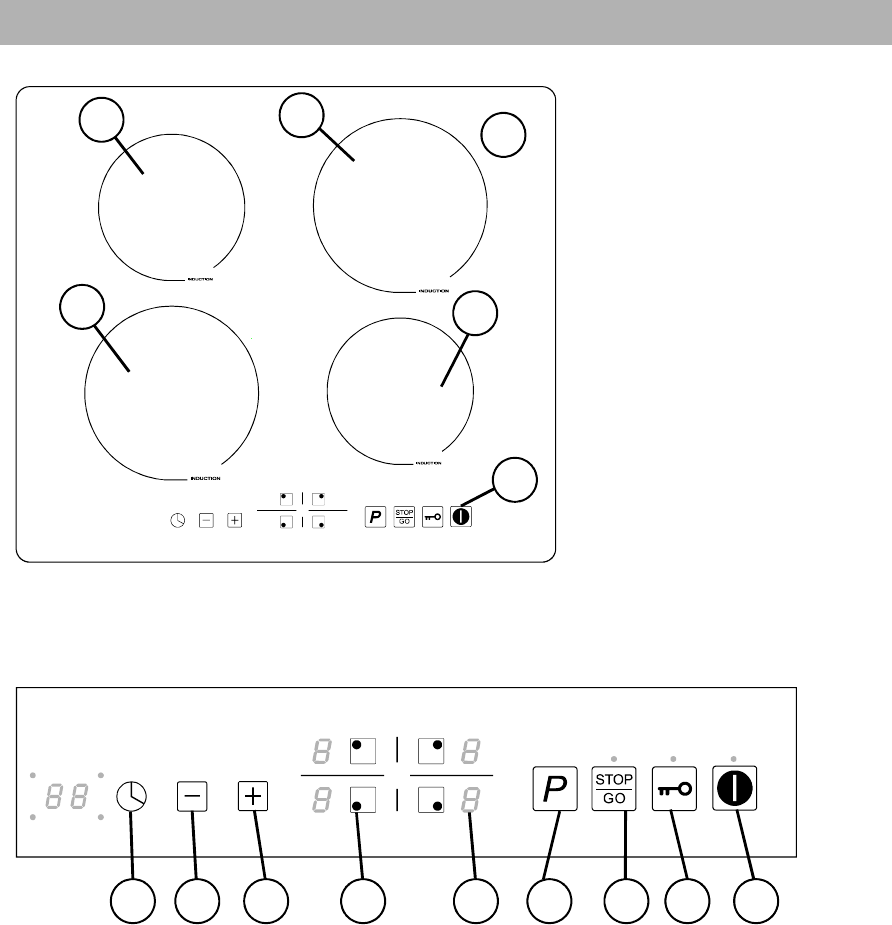

1.Front left cooking zone
2.Back left cooking zone
3.Back right cooking zone
4.Front right cooking zone
5.Ceramic glass
6.Touch control panel
1
2
3
4
5
6
8.Lower power or time key
7. Timer Control Keys
5
II. Control Panel Overview
10. Cooking heating Zone on key
11.Power or residual heat display
15. Power button
12. Power boost key
14. Child safety lock
9.Raise power or time key
11 7 9 13 148 12 10
15
13. Pause / resume heating zone
Diagram make look di erent
from actual product
.
ff

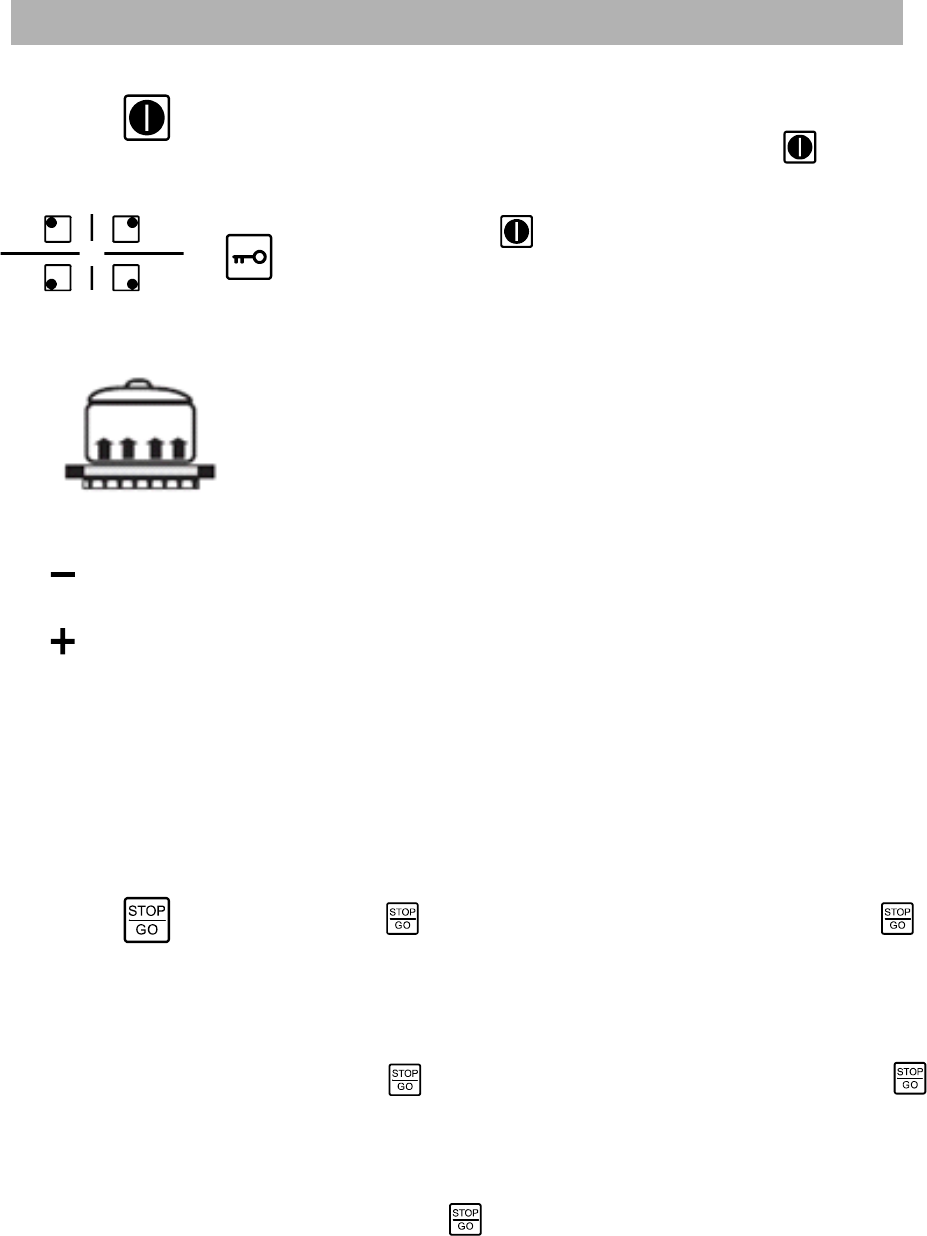

III. How to Use
While on standby mode, press the main key, the
induction hob will make a “beep” sound once
indicating that it is ready to use. If only the indicator
light above the key is lit up, the unit will
automatically return to standby mode if the Cooking
zone ON key or Lock key are not chosen
within 30 seconds.
“ ”
“ ”
heating
Readiness Mode
Suitable for induction cooktop
9
1
7
Power Boost
P
While in cooking
press“ ”key all cooking zone stop and “ ”, cooking
light blink.
Switching on the hob and cooking zones
Place a compatible pot or pan on the cooking zone you
wish to use.
With the hob being ON as mentioned above, press the
desired cooking zone . The display will blink and
show a “0”.
Press either the “+” key, “-” key, to select a
cooking level. The cooking zone will automatically turn
on standby mode if a key is not pressed within 30
seconds.
Press the minus key (-) to lower the cooking level.
Press the Plus key (+) to raise the cooking level.
ON key
“P” key,
Pressing the “P” key will show on the display as a “P”,
boosting the heating power to the highest level.
While in stop cooking
press“ ”key all cooking zone b and “ ”, , eing used
light blink.
light turn off, cooking zone will turn on standby mode if
don’t press within 10 minutes.
“ ”
III. How to Use
Lock
8
Turn off
While on turn on mode:
Note
a. Press the desired cooking zone on key until the digital
display reads “1”, press”-”key again ,the desired element will
shut off.The Unit is now on standby mode.
b. Press the desired cooking zone on key ,the digital display
will blink,press”-”key about 3s, the desired element will shut
off.The Unit is now on standby mode.
c. Turn off the entire unit by pressing the “ ”key,which will
also make a “beep”sound once,and the indicator light will turn
off.The Unit is now on standby mode.
: Please do not pull the power plug until the cooling fan
has stopped.

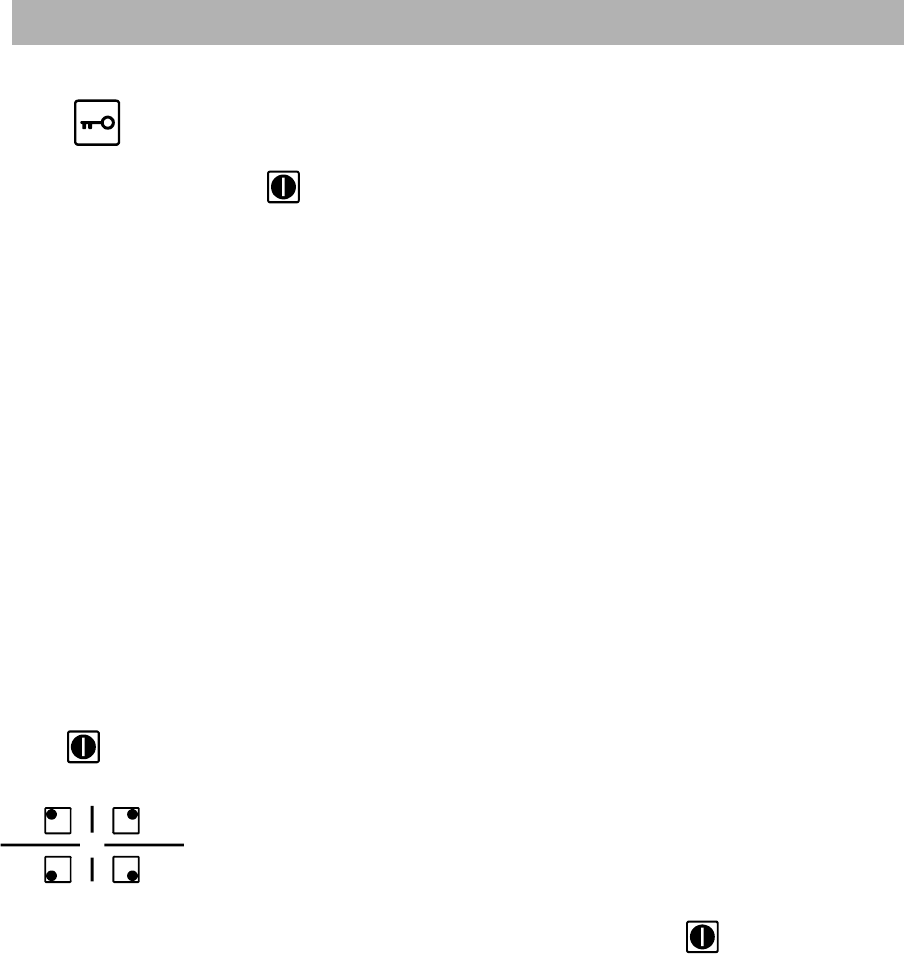

Child Lock prevents activation of any sensor key, except for
the “ ” key and the “Lock” key.
Press the Lock key to activate the function. The
unit will make a “beep” sound and the indicator light will turn
on above the Lock key. The controls are now locked.
The induction cooktop will automatically enter
into Lock mode if any key is not pressed within 5 minutes. The
unit will make a “beep” sound and the indicator light will turn
on above the “Lock” key when the automatic Lock mode is
activated.
While in Lock mode, press the Lock key to deactivate the
function. The indicator light will turn off.
Activating the Child Safety Lock during cooktop use:
A. Manual:
B. Automatic:
Switch off the lock

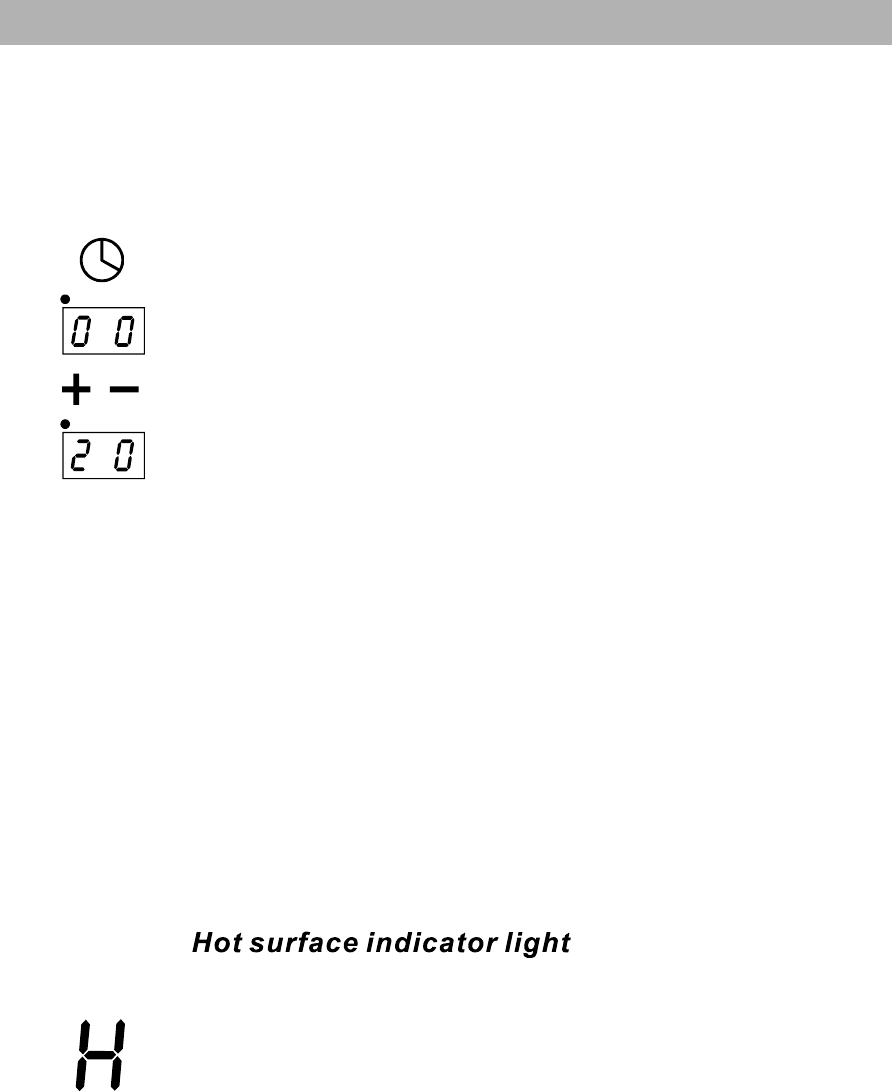

Timer
Setting the Timer to Automatic switch-off:
III. How to Use
9
After using any of the cooking zones, the cooktop will remain
very hot. Even after turning off the entre unit, the surface of the
cooktop will remain hot for some time. The display for the
cooking zones will display an “H” to warn the user that the
surface is hot to the touch. Wait until the “H” is no longer
displayed to clean the unit. You may turn the unit back on even if
the “H” is displayed.
With the desired heating zone Powered ON, press the “Timer”
key. The timer display will blink and show a “00”, Press the “+” or
“-” to increase or decrease to the desired time until the desired
time appears in the display (Choose up to 99 minutes). Once the
Timer is set, if keys haven't been pressed after 5 seconds, it will
begin to countdown, the timer display will remain lit, the
indicator for that particular burner will flash.
If you want to set another burner to switch-off automatically,
repeat the same steps.
If you want to check the remaining time for another zone, press
the “Timer” until the indicator for the desired burner blinks.
If more than one switch-off time is programmed, the shortest
time remaining will show in the display, the indicator for that
particular burner will flash.
Press the “Timer” until the indicator for the desired burner
blinks, then press the “+” or “-” to set the timer to 0. The Timer
display will blink for 5 seconds and then turn off, indicating that
the timer of selected heating zone has been cancelled.
Cancelling the timer:
When the time
reaches “0”, a “beeping” sound will go off indicating that the time
is up, and selected heating zone shut off automatically.
press “Timer” key to until the desired timer indicator blink,
Inducton requires pots and pans that are
made of ferrous(meaning magnetc)
materials.
Check your cookware’ s retail box for the
inducton symbol. To tell if your current
cookware is compatble with the inducton
technology, grab a magnet and see if it
holds to the botom of the cookware. If
your magnet stays on then your cookware
is ready to be used on the Inducton
four burner inducton drop- in cooktop!
10
IV. Compatble Cookware
The following are
not compatble:
heat-resistant glass,ceramic,copper,
aluminum pan/pots,round-botomed
cookware,or cookware with a base
less than 5 inches.
V. Cleaning and Maintenance
Please follow these directions along with Important Safety steps for cleaning,
advised at the beginning of the manual. Use a ceramic cooktop cleaner on the
glass cooktop.To maintain and protect the surface of your glass cooktop,follow
these steps:
Before using the cooktop for the first time,clean it with ceramic cooktop
cleaner.This helps protect the top and makes cleanup easier.
1. Daily use of ceramic cooktop cleaner will help keep the cooktop looking new.
2. Shake the cleaning solution well. Apply a few drops of ceramic cooktop cleaner
directly to the cooktop.
3. Use a paper towel or a soft cleaning pad for ceramic cooktops to clean the entire
cooktop surface.
4. Use a dry cloth or paper towel to remove all cleaning residue. No need to rinse.
Never run the cooktop under water.
NOTE: It is very important that you DO NOT use the cooktop until it has been
thoroughly cleaned.
CAUTION: Do not store items of interest to children in cabinets above a range or
on the backguard of a range – children climbing on the range to reach items
could beseriously injured.
Optmally the cookware will have
this
inducton image on the retail
box:
Cleaning Burned on Residue:
1.Allow the cooktop to cool.
2.Spread a few drops of the ceramic cooktop cleaner on the burned residue area.
3.
4.If any residue remains,repeat the steps listed above.
5.
Cleaning heavy burned - on residue:
1.Allow the cooktop to cool.
2.
3.
4.
Metal Marks and Scratches :
.
.
11
V. Cleaning and Maintenance:
NOTE: manufacturer for assistance.
If cracks or indentatons in the glass surface occurs,the cooktop glass
will have to be replaced.Contact the
If pots with a thin overlay of aluminum or copper boil dry,the overlay may leave a
black discoloraton on the
cooktop.This should be removed immediately before
using the cooktop again or the discoloraton will be become permanent.
Be careful not to slide pots or pans across the cooktop surface It will leave behind
metal markings These marks are
.
.
removable using the ceramic cooktop cleaner
along with the cleaning pad for ceramic cooktops
For additonal protecton,afer all residue has been removed,polish the entre
surface with the ceramic cooktop
cleaner and a paper towel.
Afer scraping o the residue,apply a few drops of the ceramic cooktop cleaning
soluton on the entre burned
residue area.Use the cleaning pad to remove any
remaining residue.
Used a single -
o the residue.
edge razor blade scraper approximately at a 45 degree angle
against the glass surface,and scrape
ff
For additonal protecton,afer all residue has been removed,polish the entre
surface with the ceramic cooktop
cleaner and a paper towel.
Using the included ceramic cooktop cleaning pad, rub the residue area,
applying pressure as needed.
WARNING materials.
: Damage to the glass surface may occur if you use scrub pads or any
other type of abrasive cleaning
VI.Counter Installation Instructions:
Warning!
For Your Safety:Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or
any other appliance.To eliminate the risk of burns
or fire due to overheating,cabinets located above the induction unit should be
avoided.If cabinet space is available the risk can be reduced by installing a
range hood that protects horizontally at a minimum of 5 inches below the bottom
of the cabinets.
,
IMPORTANT INSTALLATION INFORMATION
Figure1
12
J
30"(76.2cm)min.for cabinet.
**Do not obstruct these areas.
K (Air exit)
L (Air intake)
All electric cooktops run off a single phase,three-wire cable,240V/60Hz AC only
electrical supply
with ground.Minimum distance between cooktop and overhead
cabinetry is 24".
13
VI.Counter Installation Instructions:
Cooktop Dimensions
A Width. B. Depth
C. Height
23-7/32"
20-15/32"
5/32"
2-5/32"
D. Height
E Depth. G Depth.
Minimum:21-31/32"
Maximum 22: -7/16"
F Depth.
Minimum:18-29/32"
Maximum 19-7/8":
Minimum 13/32":
Maximum 25/32":
Cooktop Cutout Dimensions
H. Depth
I. Depth
Minimum 3-11/32":
Minimum 1-31/32":
J. Depth
Minimum 30":
K. Height
L. Height
4-23/32"
1-31/32"
1.Visually inspect the cooktop for damage .
Also make sure all cooktop screws are on
tight.
2.Place the cooktop into the countertop
cutout.
Model and Serial Number Locaton :
The serial plate is located under the cooktop.
When ordering parts or making inquiries about
your cooktop be sure to include the model and ,
serial numbers .
Connectng to a 3 wire power supply cable electrical system
1. Disconnect the power supply.
2.
Contnues on next page
Before installing the cooktop:
Cable from Power Supply
Green Wire
(Grounding)
Junction Box
Black Wires
White Wire
Cable from appliance
14
VI.Counter Installation Instructions:
In the circuit breaker,fuse box,or juncton box,connect appliance and power
supply cable wires as shown below.
3. Circuit breaker fuse ratng must be above 0 A. 4
4.
5. A wire-binding screw or stud used in the wire terminal should be 10 or larger.
1.
2.
Connectng to a 3 wire power supply cable electrical system
Warning!
15
VI.Counter Installation Instructions:
An extension cord must not be used with this appliance Such use may result in
a fire,electrical shock or other
.
personal injury.
The electrical power to the cooktop must be shut o while line connectons are
being made.Failure to do so
ff
could result in serious injury or death.
Minimum acceptable size of conductors should be no less than 10AWG,copper
only,and no less than167 .F
16
If the display shows an error code,please refer to this sheet for a potential solution.
VII.Troubleshooting Error Codes
The cooktop features an automatic shut off
that turns off the entire cooktop if any of the
cooking zones have been on continuously
for 2 hours.
The cooktop control panel may read liquids
or objects obstructing the panel, which can
cause the cooktop to shut off. Clean up
spills or remove objects, then restart the
unit.
Cooktop turns off
while cooking
Power boost does
not work
The fans keep
running for one
minute after the
unit has been
switched off
Cooktop does
not heat up
Cooktop does
not work
7400
17
If the display shows an error code,please refer to this sheet for a potential solution.
Error Code
Possible Cause
Soluton
appears on the
Power display
See E0,E1,E2,E3,E7,E8,E9,EE
“ ”E0 appears in the
Timer display
IGBT overheating.
appears in the
Timer display
No cookware found or improper
placement of cookware on the
cooking zone.
Make sure the cookware is centered on the
cooking zone,and that it’ s also inducton
compatble.See Compatble Cookware.
appears in the
Timer display
This may be caused by reduced voltage being
appears in the
Timer display
appears in the
Timer display
NTC1 break of
appears in the
Timer display
NTC1 short circuit
appears in the
Timer display
NTC2 break of
appears in the
Timer display
NTC2 short circuit
“ ”E1
“ ”E2
“ ”E3
“ ”E7
“ ”E8
“ ”E9
“ ”EE
“ ”E
Turn of unit untl to allow IGBT to
cool.Restart
unit.
supplied to the house circuit If the connectons .
are correct and supplied voltage returns to
normal the code will disappear.,
VII.Troubleshooting Error Codes
This may be caused by increased
voltage being
supplied to the house
circuit.If the connectons are correct and
the supplied voltage returns to
normal,the code will disappear
.
Turn OFF the cooktop;then shut of the
power at
the fuse or circuit breaker for
about 30 seconds.Turn the power back
on to the cooktop then press the
POWER buton to turn on the unit.If the
error message is stll being
displayed,call for service.
If the voltage of the power supply to the
cooktop
is too high,it cannot operator
properly and wil show this error code.
If the voltage of the power supply to the
cooktop
is too low,it cannot operate
properly and will show this error code.
Electronics fault error
message of
specifc cooking
zone.
Supplied voltage to cooktop
is too
high.
Supplied voltage to cooktop
is too low.
VIII.FCC STATEMENT:
Th is devi ce co mpli es with Part 1 8 of the FC C Rule s.
FCC STA TE ME NT;
NO TE:
18
3. If this e qui pmen t does c ause h arm ful int erf ere nce to radio or t ele visi on
re cept ion, w hic h c an be de term ine d by turn ing the equ ipm ent off a nd on, the
us er is enc our aged to try to co rre ct the in ter fere nce by o ne or mo re of the
fo llow ing me asu res:
-- Re orie nt or re loc ate th e r ece ivi ng antenn a.
-- In crea se th e s eparat ion bet wee n the equ ipment an d rec eive r.
-- Con nect th e eq uipm ent int o an ou tle t on a c ircuit dif fer ent from th at
to wh ich th e rece iver is conn ect ed.
– Con sult th e dea ler or a n e xper ien ced radio /TV techn icia n for he lp.
1. This eq uip men t h as be en test ed an d f ound t o comp ly wi th the li mit s f or a
Co nsum er ISM equip men t, pur suan t to Par t 1 8 of the FCC Rul es. Th ese li mit s are
de sign ed to pr ovid e reasona ble pr ote ctio n a gainst ha rmf ul int erfe rence in a
re side ntia l ins tall ati on. Th is equ ipm ent gener ates , u ses and can radia te
ra dio fre que ncy en erg y and, if n ot ins talled an d u sed in a ccor dan ce wit h the
in stru ctio ns, may cau se har mful i nte rfer ence to radi o com muni cati ons.
Ho weve r, the re is no guara ntee t hat in terf erence wi ll no t o ccur i n a
pa rtic ular i nst alla tio n.
2. Plea se not e that chan ges or mo dif icat ions of this p rod uct is no t expr essly
ap prov ed by th e p arty resp onsi ble for comp liance co uld void the u ser 's
au thor ity to opera te th e e quip men t.
