Stages Dash™
Owner’s Manual
{Translated language here}
Stages Cycling, LLC
www.stagescycling.com
Info@stagescycling.com
1-800-778-7218
Offices:
Sales, Accounting, Customer Support: 606 SE 9th Ave,
Portland, OR 97214
Design, Manufacturing, Engineering: 5335 Sterling Dr,
Boulder, CO 80301
This product is ANT+™ certified and complies with the
following specified ANT+ Device Profiles:
www.thisisant.com/directory
TSS (TRAINING STRESS SCORE ®), NP (NORMALIZED
POWER ®), and IF (INTENSITY FACTOR ®) are trademarks
of TrainingPeaks, LLC and are used with the permission.
Learn more at http://www.trainingpeaks.com.
T-score™ and Adjusted Power™ are trademarks of
Today’s Plan Pty Ltd.
2
Contents
Device Description .......................................................... 4
Dash Schematic ........................................................... 4
Charging Dash ............................................................. 4
Installing the Mount .................................................... 4
Installing/Removing Dash ........................................... 5
Initial Setup ..................................................................... 5
Power On/Off .............................................................. 5
Connecting to GPS........................................................... 6
Activity Profiles ............................................................... 6
Changing Activity Profiles ........................................... 6
Renaming Activity Profiles .......................................... 6
Enable/Disable an Activity Profile ............................... 6
Creating/Deleting an Activity Profile .......................... 7
Backlight Setting ......................................................... 7
Data Recording ............................................................ 7
Power and Cadence Zeros........................................... 7
Alerts ........................................................................... 7
Alert Categories....................................................... 7
Alert Notice ............................................................. 8
Alert Trigger Types .................................................. 8
Movement Alerts .................................................... 8
Connecting to Sensors .................................................... 8
Bluetooth and ANT+ Sensors ...................................... 8
Manual Entry ........................................................... 8
Stages Power Meter .................................................... 9
NFC Tap to Pair ........................................................ 9
Dual Channel Reception .......................................... 9
High Speed .............................................................. 9
Zero Resetting a Power Meter .................................... 9
Sensors Already Saved to Dash ................................... 9
Riding with Dash ............................................................. 9
Start a Ride .................................................................. 9
Pausing a Ride ......................................................... 9
Ending a Ride ......................................................... 10
Laps ........................................................................... 10
Navigation in Ride ..................................................... 10
Viewing Data Pages .............................................. 10
Accessing the Ride Menu in a Ride ....................... 10
Ride Data Recording ............................................. 10
Data Pages ................................................................ 10
Editing Pages ......................................................... 11
Split Screen Mode ................................................. 11
Orientation ........................................................... 11
Adding/Deleting Pages ......................................... 11
Enable/Disable Pages ............................................ 11
Data Fields ................................................................ 11
Data Field Categories ............................................ 11
Data Fields List ...................................................... 11
Displayed Units for Data Fields ............................. 13
Span ...................................................................... 13
Totaling ................................................................. 14
Editing Data Fields .................................................... 14
Resizing Fields ....................................................... 14
Riding a Workout ...................................................... 14
Using Workout Target Fields ................................ 14
Upcoming Laps...................................................... 14
Upcoming Text ...................................................... 15
Navigating Laps ..................................................... 15
Breadcrumb Trail ...................................................... 15
Altitude Profile .......................................................... 15
Training Zones .............................................................. 15
Power Zones ............................................................. 15
Setting FTP ............................................................ 15
Power Zone Calculation Method .............................. 15
Stages Power Zones .............................................. 15
Coggan Power Zones ............................................ 15
Heart Rate Zones ...................................................... 15
Setting FThr ........................................................... 15
Heart Rate Zone Calculation Method ....................... 16
Stages Heart Rate Zones ....................................... 16
Friel Heart Rate Zones .......................................... 16
3
20min Test................................................................. 16
Estimate FTP or FThr ................................................. 16
Manual Entry of Power or Heart Rate Zones ............ 16
Ride Uploading .............................................................. 16
.fit Export................................................................... 16
USB ............................................................................ 16
Stages Sync ............................................................ 17
USB Mass Storage ................................................. 17
BLE ............................................................................. 17
Ride History ................................................................... 17
Selecting a Ride ......................................................... 17
Records...................................................................... 17
Totals ......................................................................... 17
Settings .......................................................................... 17
Units .......................................................................... 17
Sleep .......................................................................... 18
Backlight Level........................................................... 18
Time Zone.................................................................. 18
Time Format .............................................................. 18
System Alerts ............................................................ 18
Rider Attributes ......................................................... 18
Weight .................................................................. 18
Age ........................................................................ 18
Gender .................................................................. 18
Other Attributes ................................................... 18
Language ................................................................... 18
Updating Firmware ................................................... 18
Factory Reset ............................................................ 19
Widgets ......................................................................... 19
Text Editor ................................................................ 19
Large Number Editor ................................................ 19
Small Number Editor ................................................ 19
Stages Link .................................................................... 19
Stages Link App ............................................................. 19
Stages Sync ................................................................... 19
Technical Specifications ................................................ 19
Device Care ................................................................... 20
Troubleshooting............................................................ 20
Trademark and Licenses ............................................... 20
Warranty .......................... Error! Bookmark not defined.
Index ............................................................................. 21
4
⚠ Warning
See Important Product Information insert provided with
product for important safety and product information.
⚠ Warning
Recycling/Disposal of device and battery: This device
includes a lithium ion battery. In compliance with your
local laws and regulations, please contact local
authorities for end of life disposal of this product and
battery. See Important Product Information insert or
Stages help site for further detailed information.
Device Description

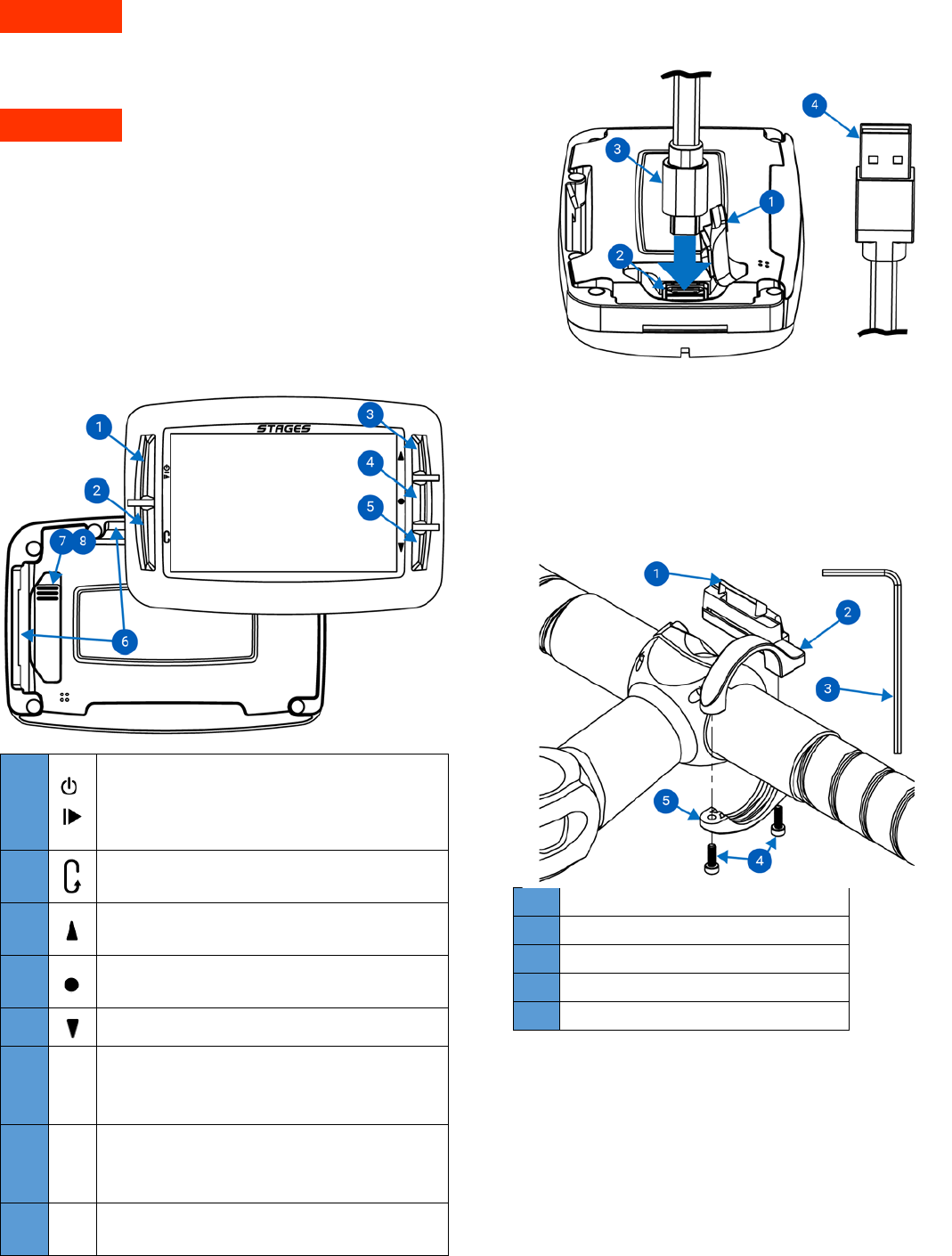

Dash Schematic
① /
On/Off - Start/Stop Button: Press to
power device on, then press to start/stop
an activity. To power the device off, hold
button for 3s.
②
Lap: Select to mark a new lap, return to
previous page within the menu
③
Up: Scrolls to previous menu item or
page
④
Enter: Selects item in menu or activity
page
⑤
Down: Scrolls to next menu item or page
⑥
Mount Locations (x2): Two rear
mounting locations allow for use in
portrait or landscape mode
⑦
USB Dust Cover: When installed
properly, protects the Micro-USB Plug
from the elements
⑧
Micro-USB port: For device charging and
data transfer
Charging Dash
To charge your Dash, lightly lift the rubber dust cover
① to allow access to the Micro-USB port ②, insert the
Micro-USB plug ③, and insert USB plug into certified
USB 2.0 5V wall-mounted charger or USB 2.0 port on
your computer④.
Installing the Mount
①
Thumb Tab
②
Main Arm
③
2.5mm Hex Key (not provided)
④
M2.5 Cap Head Screws (x2)
⑤
Handlebar Clamp Ring

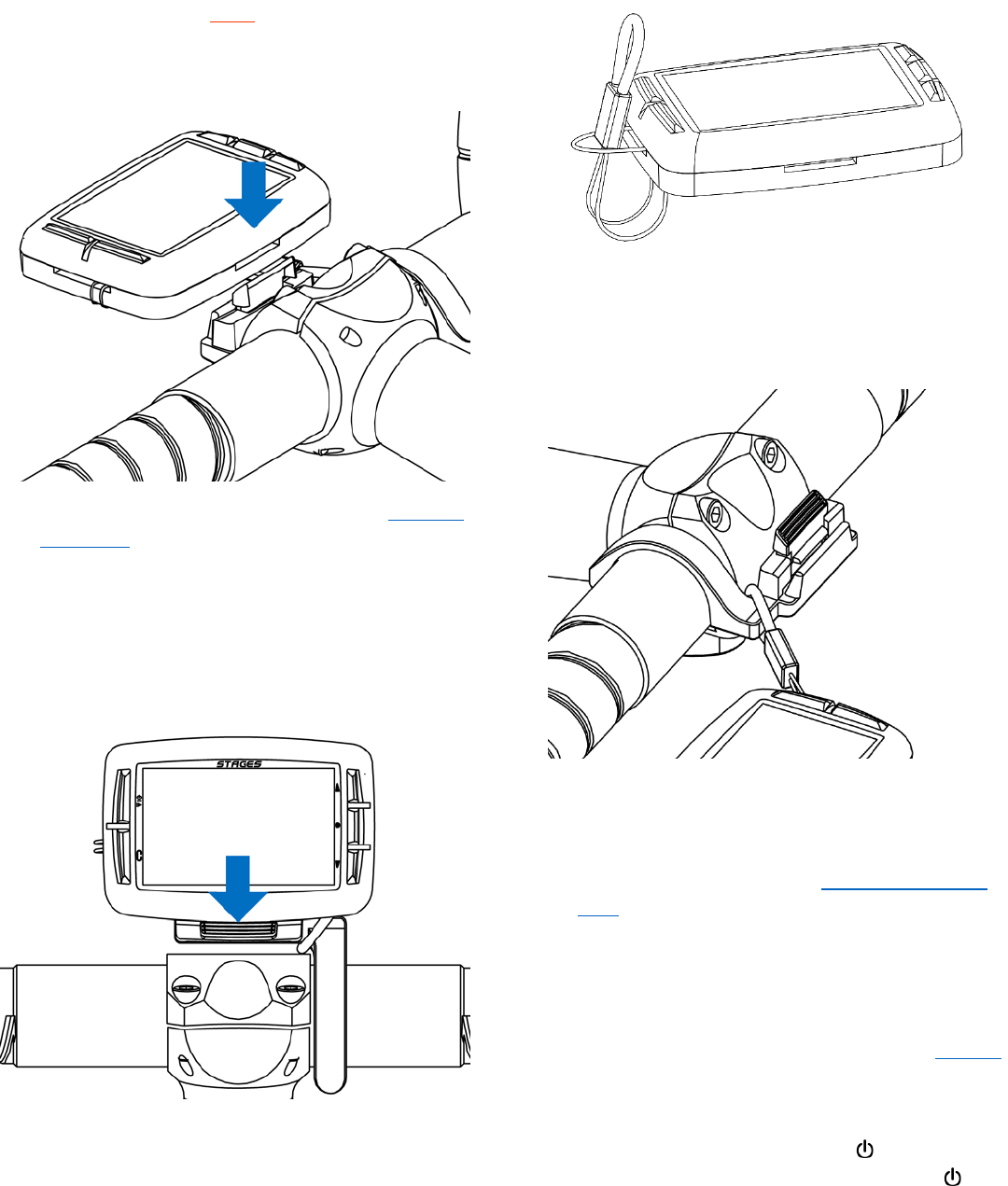

1. Position Handlebar Clamp Ring ⑤ to the right of the
stem and between any cables and the 31.8mm
handlebar
2. Insert the two M2.5 screws ④ into the holes of the
clamp ring ⑤ and use a 2.5mm hex key ③ to
loosely tighten ring on handlebars
3. Adjust mount to preferred angle
5
4. Tighten screws ④ to 2 Nm.
⚠WARNING: DO NOT OVERTIGHTEN SCREWS.
Installing/Removing Dash
1. Install mount to proper specification (see Installing
the Mount).
2. Orient device in either portrait or landscape
position and line up with mount.
3. Make sure lip of the mount is behind the aluminum
mounting rail.
4. Slide Dash downward until the thumb tab audibly
clicks tab into place.
5. Check to make sure the thumb tab is properly
seated in the mounting slot.
6. To remove, pull back on thumb tab and pull up on
dash. The Dash should come out easily, if you are
forcing it, pull further back towards the bike with
the thumb tab.
To install the included safety lanyard (recommended):
1. With the Dash removed from the mount, insert the
loop end of the lanyard into the hole on the
unused mounting location on the Dash.
2. Pull the lanyard cord end through the loop.
3. Slip the elastic side of the lanyard over the thumb
tab and mount arm.
4. Make sure the lanyard is completely clear of the
thumb tab.
5. Install the Dash onto mount (Installing/Removing
Dash).
Initial Setup
When powering on the Dash for the first time, you will
be prompted with a few questions to set up the Dash.
These settings can always be changed from the Settings
menu.
Power On/Off
• To power ON the Dash: Press .
• To power OFF the Dash: Press and hold for
3s.
6
Language Selection
Select your preferred language for set up. If your
language is not listed, it may be available to download
from www.stagescycling.com.
See Also: Settings > Language
Time Zone Selection
Select your default time zone.
See Also: Settings > Time Zone
Units
Select your preferred units for display. Display pages
can later be configured to show a combination of units
based on your preference.
See Also: Settings > Units
Power Meter?
If you will be using a power meter with Dash, select yes.
Your selection here will help Dash set up your default
activity profiles.
See Also: Connecting to Sensors
Heart Rate Monitor?
If you will be using a heart rate monitor with Dash,
select yes. Your selection here will help Dash set up
your default activity profiles.
See Also: Connecting to Sensors
Connecting to GPS
To locate GPS satellites, Dash must be in clear view of
the sky.
1. Turn on the Dash.
2. Place Dash in clear view of the sky.
3. Unless GPS is disabled, Dash should lock on to GPS
satellites in a minute or less.
Note: When you connect your Dash to GPS for the first
time, have travelled a long distance since last GPS
connection, or have drained the battery completely, it
may take up to 3 minutes to lock on to GPS satellites.
See Also: Activity Profiles > Data Recording >
Continuous with GPS Off
Activity Profiles
An Activity Profile is a group of paired sensors (See
Connecting to Sensors), Data Pages, and specific
settings that allow you to set up the Dash for different
types of riding, different bikes, or both. Up to 12 unique
activity profiles can be configured.
Changing Activity Profiles

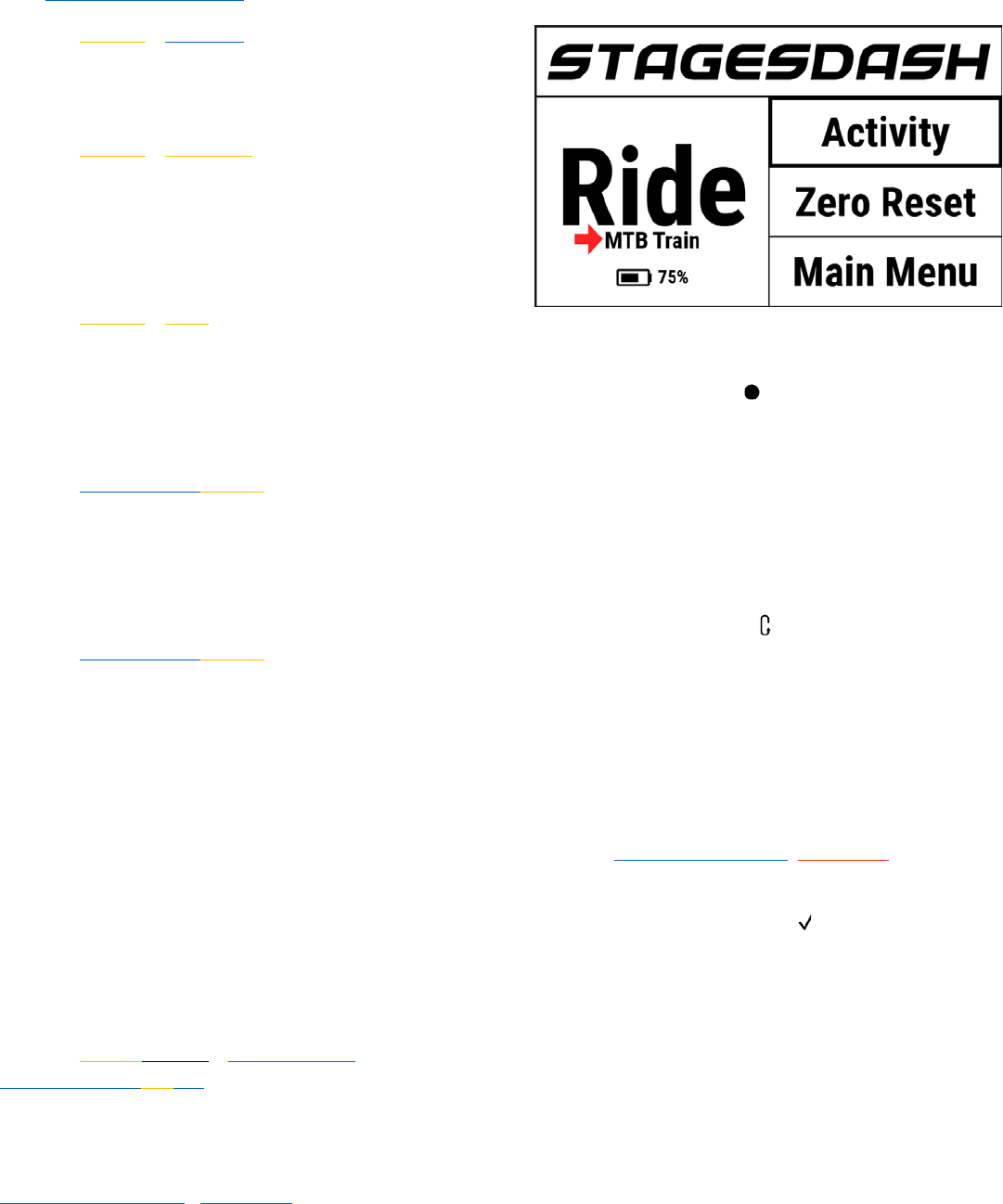

From Home Screen:
1. From the home screen, select Activity and use
the enter button to toggle selection.
2. The selected activity profile will be visible in
Ride panel of the home screen.
From Main Menu:
1. Go to Main Menu > Activity Settings > Enter to
change > Select Activity Profile.
2. From here, the chosen Activity Profile’s menu
will be displayed.
3. Use the lap button to return to the previous
screen once any changes are completed.
Renaming Activity Profiles
1. Go to Main Menu > Activity Settings > Select
Activity Profile > Rename.

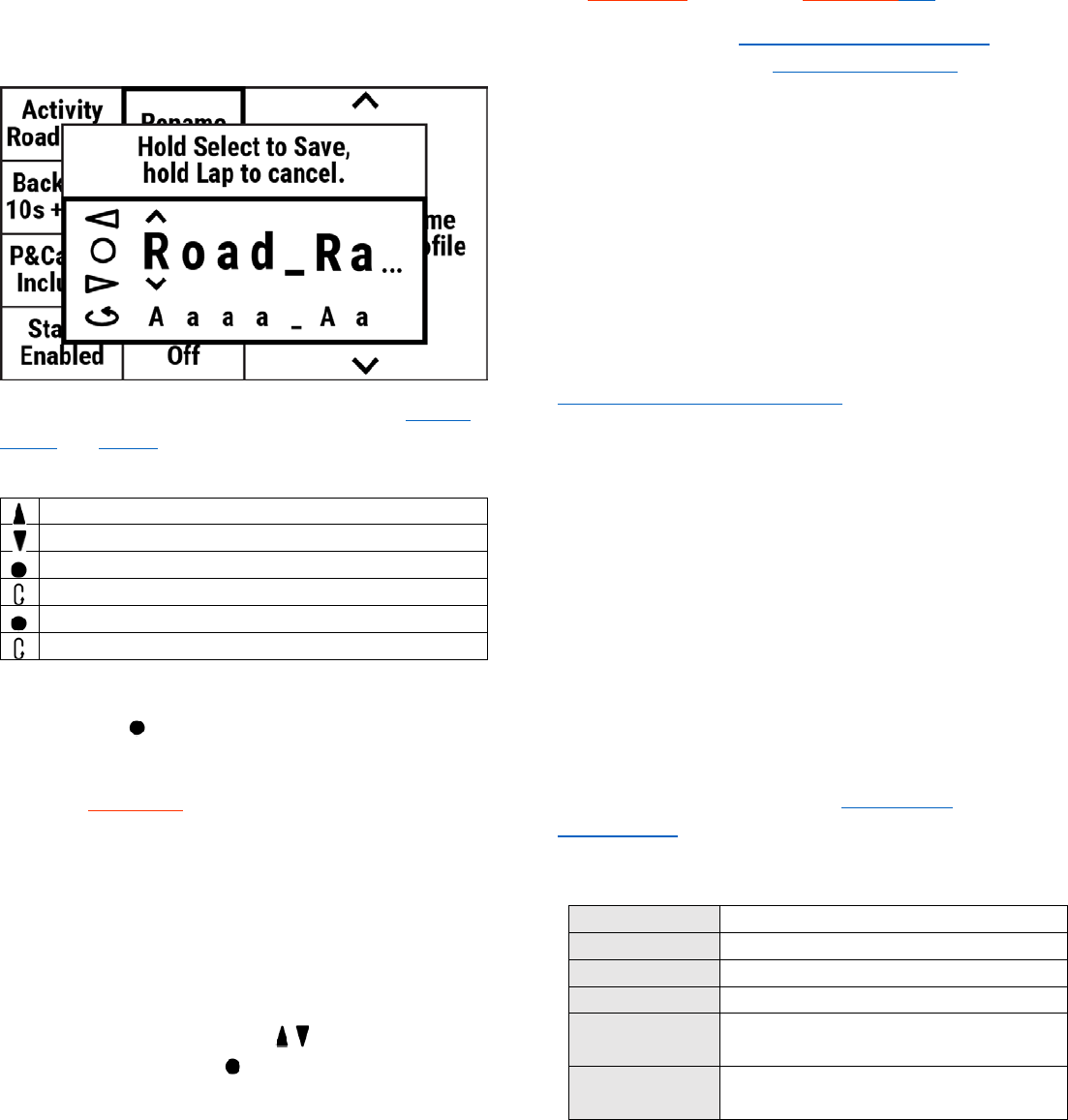

2. Enter new Activity Profile name (max 10
characters).
See Also: Using the Text Editor, Stages Link™
Enable/Disable an Activity Profile
Enabled Activity Profiles have a listed next to them in
the activity profile list.
To enable or disable an activity profile, go to: Main
Menu > Activity Settings > Select Activity Profile >
Status Enable/Disable
• Enable: Enabled activity profiles are available for
use on rides and can be selected from the home
screen.
• Disable: Disabled activity profiles will still be saved
on the device and can be selected from the activity
7
menu to use in a ride, but will not be visible from
the home screen for quick selection.
Creating/Deleting an Activity Profile
To add or delete an Activity Profile, use the Dash
Manager in Stages Link.
Backlight Setting
The LCD backlight setting for your activity profile can be
found by going to: Main Menu > Activity Settings >
Select Activity Profile > Backlight > Enabled Option:
Off
No Backlight
On
Backlight always on
Auto
Automatically turns on backlight based
on ambient light
Auto + 10
Seconds
Automatically turns on backlight based
on ambient light and stays on for 10s on
button press
10s
Button
Push
Only
Backlight stays on for 10s on button
press
See Also: Backlight Level
Data Recording
Data recording options determine when the Dash unit
will automatically stop recording data during a ride.
To update these settings, go to: Main Menu > Activity
Settings > Select Activity Profile > Recording > Enabled
Option:
GPS Pause
Records all data when user is moving
(GPS detected movement), pauses
recording when user is stopped or
when user presses the start/stop
button
Sensor
Pause
Records all data when user is moving,
or when power, cadence, or speed are
detected. Pauses when all are 0 or
when user presses the start/stop
button
Continuous
Records all data regardless of user
activity, can only be paused when the
user presses the start/stop button
Continuous
with GPS
Off
Disables the GPS chip and records all
data regardless of user activity (good
for indoor riding), can only be paused
by push of the start/stop button
Power and Cadence Zeros
While riding, Dash can either include zero values (which
occur while coasting) in average calculations or ignore
them. These settings apply only to activity data
collected while using a power meter or cadence sensor.
To update these settings, go to: Main Menu > Activity
Settings > Select Activity Profile > Recording > Enabled
Option:
Include
Includes zero values in average
calculations for power (W) and cadence
(RPM)
Ignore
Excludes zero values in average
calculations for power (W) and cadence
(RPM)
Ignore
Power
Excludes zero values in average
calculations for power (W), includes
values for cadence (RPM)
Ignore
Cadence
Excludes zero values in average
calculations for cadence (RPM), includes
values for power (W)
See Also: Connecting to Sensors
Alerts
Alerts notify the rider when specific conditions are met
and can be set for various data related triggers (to set
device alerts, see System Alerts). Alerts are specific to
each activity type and can be set within the activity
profile settings.
1. Go to: Main Menu > Activity Settings > Select
Activity Profile > Alerts.
2. Notice shows which alert is currently being edited.
3. To select an alert to edit, press the enter button
on Notice and select the Alert from the List.
Alert Categories
Time
Alert triggered each user specified
amount of time
Kilojoule
Alert triggered every time a specified
amount of kJs are accumulated
Calorie
Alerts triggered every time a specified
amount of Calories are burned
Power
Alert triggered every time power is out
of specified range.
Heart Rate
Alert triggered when HR is out of
specified range
Speed
Alert triggered when speed is out of
specified range
8
Cadence
Alert triggered when cadence is out of
specified range
Movement
Alert triggered when a change in
movement occurs
Alert Notice
• Tone: Short beep whenever alert is triggered.
• Overlay: On screen message for 3s or until button
press.
• Both: Short beep and on screen message for 3s
when alert is triggered.
• None: No alert set.
Alert Trigger Types
• Every: Triggers whenever a set total is reached.
• Above/Below: Triggers whenever data is collected
outside of the set range.
Movement Alerts
• Ride Start Alert: Asks the user to start a ride when
riding conditions are met (speed greater than
10kph).
o Both: Audio tone and on screen message for 3s
when alert is triggered.
o Overlay: On screen message for 3s when alert is
triggered, or until any button push.
o None: No notification for alert at any time.
• Pause Tone: Audio tone when pause or resume is
detected.
• Pause Overlay: On screen message is displayed for
3s when pause or resume is detected.
Connecting to Sensors
Sensors include power meters, heart rate monitors,
smart phones, or any other wireless transmitting device
that use ANT+ or Bluetooth® to transfer data.
For the Dash to find and connect to a sensor during a
ride, the sensor must first be paired to the current
Activity Profile. Once a sensor is paired to an activity
profile, the Dash will remember it until it has been
deleted from the activity profile’s sensor list.
When pairing a sensor, first select the Activity Profile in
which you will be using the sensor.
To select a different Activity Profile, see Changing
Activity Profiles.
Bluetooth and ANT+ Sensors
1. The Dash can be paired to Bluetooth and ANT+
sensors, including power meters, heart rate
monitors, speed and cadence sensors, as well as
smart trainers and other bio-sensors. To pair to
a Bluetooth or ANT+ sensor:
2. First activate or wake the sensor up
• Heart rate monitor: Put the sensor on.
• Speed/Cadence sensors: Either move or
pass by the corresponding magnet.
• Power meter: Rotate the sensor.
3. Go to Main Menu > Activity Sensors > Add
Sensor > BLE or ANT Sensors.
• A list of sensors available to the Dash
will populate
4. Select a sensor and then choose from the
following options:
• Cancel: Cancels selection and sensor
will not be added.
• Confirm: Adds sensor to the currently
selected activity profile.
• Enabled Activities: Adds sensor to all
currently enabled activity profiles.
• Add to All: Adds sensor to every activity
profile.
Manual Entry
ANT+ sensors have simple ANT+ IDs that can be entered
and saved to the Dash without using the search
function. If the sensor has a visible ANT+ ID, it can be
added directly into the activity sensors list:
1. Go to: Main Menu > Activity Sensors > Add
Sensors > Manual Entry.
2. Select Sensor Type, then use the arrow buttons
to select the correct sensor category.
3. Press the enter button to confirm selection, then
select Confirm.
4. Locate the ANT+ ID number on your sensor and
enter it into the number field.
• Use the arrow buttons to change the digit
and then use the enter button to advance to
the next digit.
• Note that if your sensor ID is shorter than the
number of fields, it should be preceded by 0s.
See Also: Large Number Editor
9
Stages Power Meter
Stages Power Meters paired to Dash have additional
functionality available explained in the following
sections:
NFC Tap to Pair
You can pair your Stages Power meter via BLE, ANT+, or
NFC (tap to pair). To use tap to pair:
1. Go to: Main Menu > Activity Sensors > Add
Sensors.
2. Touch the back of the Dash to your Stages Power
meter.
3. Wait for the beep to confirm the pairing is
completed.
Dual Channel Reception
When you pair to a Stages Power Meter, the Dash
automatically pairs to BLE and ANT simultaneously and
records data from both to ensure the best data
connectivity. If you wish to use a 3rd party app to
connect to a Stages Power Meter via Bluetooth, you will
need to disable the Bluetooth connection to your power
meter.
To enable or disable the Bluetooth connect, go to: Main
Menu > Activity Sensors > Select Stages Power Meter >
Bluetooth > Enabled / Disabled
High Speed
High speed mode is a special feature available only on
Stages Power meters connected via Bluetooth®. It is not
recommended to use this mode for normal riding, as it
will drain battery from the power meter quickly and
uses up a significant amount of memory on the Dash. It
is most useful for brief recordings, such as analyzing
short efforts (e.g. durations under 3 minutes).
To turn high speed mode on or off, go to: Main Menu >
Activity Settings > Select Activity Profile > High Speed
Zero Resetting a Power Meter
The zero reset process, also referred to as calibration or
zero offset calibration, resets the zero value on your
power meter for improved accuracy. Please refer to the
manufacturer for instructions on the zero reset process
for your power meter. To initiate a zero reset from the
Dash:
1. Ensure sensor is transmitting and paired to Dash.
• For a Stages Power meter, orient the power
meter vertically with no weight on the pedals.
2. Select Zero Reset from the home screen, or go to:
Main Menu > Activity Sensors > Select Power
Sensor > Zero Reset.
3. A screen prompt will return Success with the
value(s) from the power meter or Failure if it
cannot complete the zero reset process.
Sensors Already Saved to Dash
Once a sensor is paired to any activity profile, it will
appear in the list of saved devices found here: Main
Menu > Activity Sensors > Add Sensor > Saved Sensors.
A previously paired sensor does not need to be present
to pair to an additional Activity Profile. Simply select it
from this list and the sensor will be added to the current
activity profile. Sensors already paired to Dash will not
appear in ANT or BLE search lists!
Riding with Dash
Start a Ride
First confirm that the desired Activity Profile is selected
and listed under the word Ride on the home screen. If
not, see Changing Activity Profiles.
• Press the button to begin recording.
• During a ride, all the settings in the current Activity
Profile apply; see Activity Profiles for more
information.
Pausing a Ride
Pressing the start/stop button will manually pause
the ride. When a ride is paused, no data is recorded
from sensors, so all averages and totals will not change.
This can be useful when stopping for longer periods.
• To resume a ride, simply press start/stop again
or select Resume Ride from the on screen
message.
10
• After being paused for a long duration, the Dash
will automatically go to sleep. Press / to
wake up the Dash and resume the ride where
you left off or save the ride if it has already
been completed.
• All previously recorded data will be retained
upon entering sleep mode and can be saved or
deleted by ending the activity. However, after 3
hours of sleep, the Dash will save the current
ride and power off completely.
See Also: Sleep
Note: Manually pausing a ride with the start/stop
button is slightly different than pauses triggered by
conditions in the ride, see Data Recording for more
information.
Ending a Ride
Pressing will display a Ride Paused on screen
message with the following options:
• Resume Ride: Continues recording ride.
• End Ride and Save: Displays a brief ride summary
and saves the activity to memory. Once ride is
saved, a more in-depth summary of the ride is
available that can be navigated using arrow
buttons .
• End Ride and Delete: Discards the ride from
memory, returns to home screen.
Laps
Laps allow the rider to keep track of specific segments
of a ride through use of the lap button . At ride start,
the first lap also starts recording Lap Totals and
Averages. Each time the rider presses the lap button,
the lap re-starts and begins recording averages and
totals from the beginning of the current lap. Laps are
very useful for riding a workout, as well as keeping track
of more specific parts of rides, such as pacing up a
climb.
• Upon pressing the lap button, a new lap will begin
automatically and any lap-based data fields will
restart to include only the current lap.
• A small summary of the previous lap will be shown
with an overlay message.
• All lap data will be saved into the ride file for post-
ride evaluation.
Navigation in Ride
Viewing Data Pages
By default, all rides begin on Page 1. Use the arrow
buttons during a ride to change data pages in the
current Activity Profile.

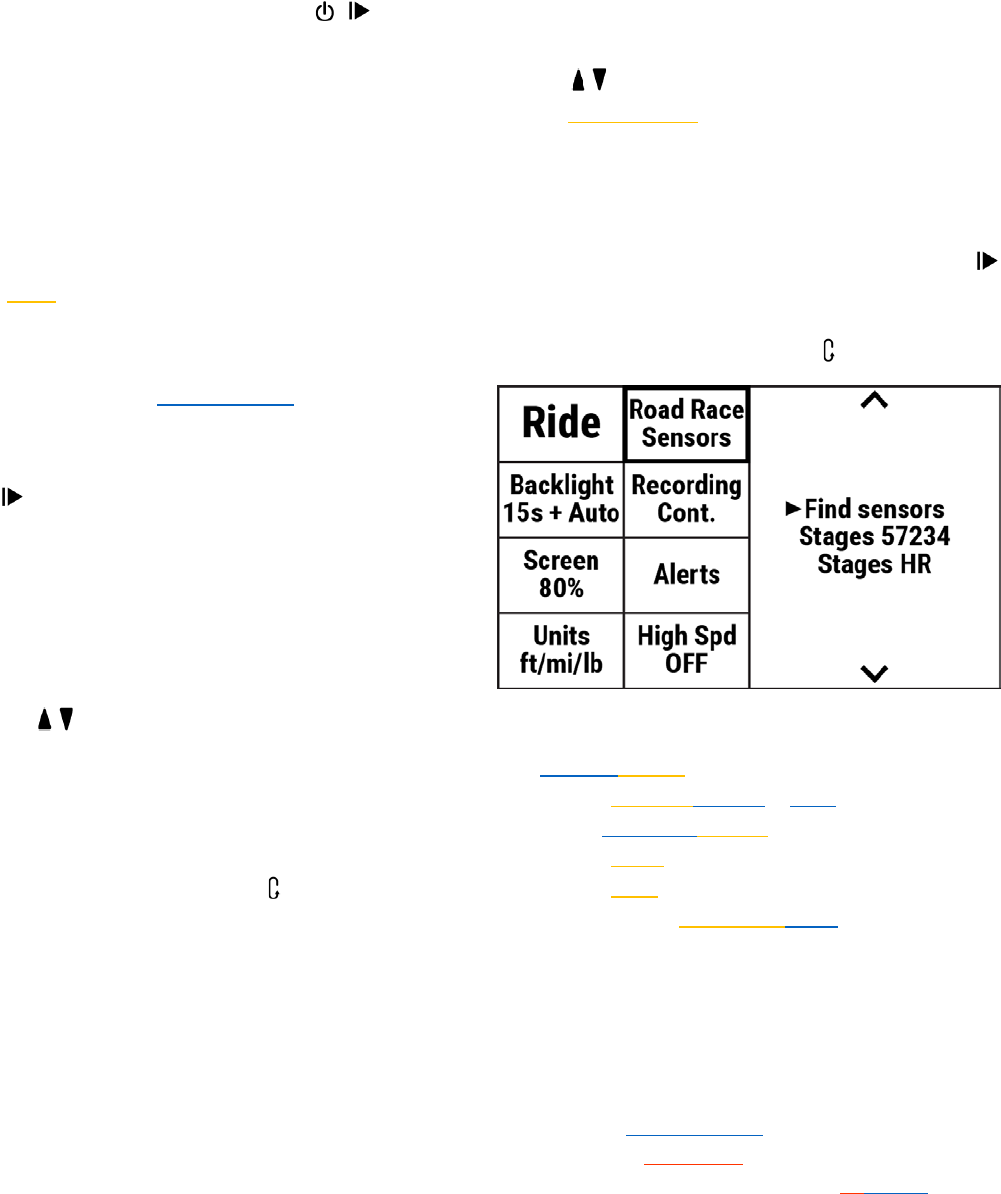

Accessing the Ride Menu in a Ride
The settings that can be changed are available in a
smaller Ride menu.
• To access the Ride Menu during a ride, Press
to Pause the Ride > Ride Menu.
• To exit the Ride Menu and return to the ride
screen, press the lap button or select Ride.
From the Ride Menu, you can:
• Manage sensors
• Change Backlight Setting or Level
• Adjust Recording Settings
• Change Alerts
• Change Units
• Enable/Disable High Speed Mode
Note: Not all Main Menu options are available in a
ride.
Ride Data Recording
Ride data is recorded to the Dash as frequently as it is
available. For more information on when data recording
is paused, see Data Recording. The Stages .rde file,
when used with Stages Link, allows more data than
standard file formats to be saved. See .fit Export for
conversion to the industry standard FIT file.
Data Pages
Data Pages consist of up to 16 fields of customizable
size and content. Each activity profile is allowed up to 5
11
data pages, with a wide range of configuration options
to view all of your preferred data metrics with ease.
Editing Pages
All pages in an activity profile can be customized by
changing the field size, metric, span, and totaling of the
field. Data pages can be edited within the unit, as well
as in Stages Link in the Dash Manager Tab. Configuring
pages in Stages Link is a simple process that allows for
you to preview each configuration before syncing them
to the Dash.
To edit pages of the current Activity Profile, go to: Main
Menu > Activity Settings > Edit Pages
See Also: Changing Activity Profile
Split Screen Mode
Creates data pages with a split view so that half of the
screen stays the same while the other half changes as
you change pages. Note that split screen mode
permanently changes the layout of your data pages, so
it is recommended to set up an Activity Profile
dedicated to this mode before using this option.
To enable split screen mode, go to: Main Menu >
Activity Settings > Select Activity Profile > Edit Pages >
Split Scn > On
Orientation
Page layout can be set to Landscape or Portrait.
• Landscape: 4x4 grid of data fields
• Portrait: 2x8 grid of data fields
Note that changing the orientation permanently
changes some data fields to fit the page, so it is
recommended to set up an Activity Profile dedicated to
this mode before changing this option.
To change your screen orientation, go to: Main Menu >
Activity Settings > Select Activity Profile > Edit Pages >
Orientation > Landscape or Portrait
Adding/Deleting Pages
To add or delete a page, use the Dash Manager in
Stages Link.
Enable/Disable Pages
Pages can be disabled to avoid having to view them
when in a ride. Enabled pages are indicated by a in
the page list.
To disable a page, go to: Main Menu > Activity Settings
> Edit Pages > Disable/Enable
Data Fields
Data fields make up the ride data pages and can be
customized by size and data displayed.
Data Field Categories
A metric refers to data recorded from a sensor or GPS
that gives information about the ride to the rider.
Metrics have been categorized to make them easier to
find when editing a field. The categories are:
• Power: All metrics related to data gathered from a
power meter.
• Heart Rate: All metrics related to data gathered
from a heart rate monitor.
• Time/Cadence: All metrics related to a timer or
cadence sensor.
• Movement: All metrics related to GPS data or
speed sensor.
• Shifting: All metrics related to electronic shifting.
• Workout: All metrics related to workout targets
and laps.
• Widgets: All preset fields.
• Special: All metrics related to the Dash or other
sensor types.
Data Fields List
The following items can be selected for any data field.
Some metrics cannot fit in the smallest 1x1 field, so
they do not have that size as an option:
12
Power
Item Displayed Definition
Power
W
Power reading in watts
LR Balance
LR
Bal Left/Right power balance (%:%)
Power Zone P
Zn
Current power zone based on
programed zones and FTP setting
w/kg W/lb
or
W/kg
Ratio of power to user set body
weight
Pedal
Smooth
Pdl
Sm
Pedal smoothness calculation
(%:%) from Left – Right power
data
Torque Eff. T
Eff
Torque effectiveness calculation
(%:%) from Left - Right power
data
Norm Power
NP
NORMALIZED POWER
Adjusted
Power
Adj
W Adjusted power
INTENSITY
FACTOR IF
INTENSITY FACTOR calculation
from NORMALIZED POWER to
FTP ratio
TSS
TSS
TRAINING STRESS SCORE
T-Score T
Scr
T-score calculation from power
data
Energy kJ
Total work in kilojoules from
power data
%FTP %
FTP
Power reading in percent of set
FTP
PM Battery
PM
Bat
Power meter battery level (%)
Heart Rate
Data Field
Displayed
Definition
Heart Rate
bpm
Heart rate from heart rate data
%FThr %FT
hr
Heart rate reading in percent of
set FThr
%hrMax %hr
Mx
Heart rate as a percent of user
set max heart rate
HR Zone HR
Zn
Heart rate zone based on zone
settings and FThr
HR-P Eff. HRP
Eff
Heart rate efficiency as a ratio of
NORMALIZED POWER to heart
rate
Hr-TSS HR
TSS
TRAINING STRESS SCORE
calculation from heart rate data
Hr-TScore HR
TSc
T-score calculation from heart
rate data
HR Batt
HR
Bat
Heart rate monitor battery level
Calories Cal
Estimated calories burned from
heart rate data
Time/Cadence
Data Field
Displayed
Definition
Ride Time
H:MM:SS
Recorded ride time
Time of Day H:MM:SS
AM or PM
Time of day (no AM / PM for 24h
time)
Elapsed
Time
H:MM:SS
Elapsed
Elapsed time, including time
spent stopped or paused
Cadence
rpm
Cadence in rotations per minute
Time
Pedaling
H:MM:SS
Pdl Time spent pedaling during ride
Time
Coasting
H:MM:SS
Cst Time spent coasting during ride
13
Movement
Data Field
Displayed
Definition
Distance
mi or km
Elapsed distance
Speed
mph or
kph Current speed
Elevation
ft or m
Current elevation
Total Ascent
ft or m
Total ascent during ride
Total
Descent ft or m Total descent during ride
VAM VAM
Average ascent speed in vertical
meters per hour
Vertical
Speed
f/s or m/s
Vertical speed in feet or meters
per second
Gradient
%
Current gradient
Heading
NSEW
Heading based on GPS data
Workout*
Data Field
Displayed
Definition
Target Power
W
Target power during workout
Target P
Zone
P
Zn
Target power zone during
workout
Target HR
bpm
Target HR during workout
Target HR
Zone
HR
Zn
Target heart rate zone during
workout
Target
Cadence rpm Target cadence during workout
Planned Lap
Time H:MM:SS
Planned lap time during
workout
Time Left in
Lap
To
Go Time left in lap during workout
Current Lap #
Lap
Current lap number during ride
RPE
RPE
Rate of perceived exertion
*All workout metrics will have the word “Target”
beneath them in the data field.
Special
Data Field
Displayed
Definition
Battery
%
Bat Battery remaining on Dash
Temperature OF or OC
Temperature reading from
internal sensor
Latitude Lat
Current Latitude coordinate
from the GPS
Longitude Lon
Current Longitude coordinate
from the GPS
Satellites
nSV
Number of Satellites connected
GPS Accuracy
GPS
GPS accuracy level
SMO2 %
O2
Percent of muscle oxygen
saturation based on SMO2
sensor data
tHb g/dL
Total hemoglobin mass based on
SMO2 sensor data
Displayed Units for Data Fields
The following data fields can be displayed in multiple
unit configurations:
Metric ft/mi/lb m/km/kg m/km/lb
W/kg
W/lb
W/kg
W/lb
Distance
mi
km
km
Speed
mph
kph
kph
Elevation
ft
m
m
Total Ascent ft m m
Total Descent ft m m
Vertical Speed f/s m/s m/s
Temperature deg F deg C deg F
See also: Units
Span
Span is the period of time over which the metric is
calculated. Some metrics include limited options for
Span, while the full list of span options includes:
• 1 Second
• 3 Second
• 10 Second (Power and Heart Rate)
• 30 Second (Power and Heart Rate)
• 1 Minute
• 1 Hour (kJs, Calories, TSS, T-Score)
• Lap
• Ride
14
Span is indicated in the data field unless it is for Ride or
1s, for those metrics by convention span is left out as it
is clear if the data pertains to the whole ride or is
instantaneously changing.
Totaling
Totaling is the way in which a metric is calculated over
the setting span. List of possible totaling values:
• Average: The average rate of a metric over the
selected span, e.g.: 3s Average Power.
• Maximum: The maximum average of the metric
over the selected span, e.g.: Max 30s Power.
• Total: The accumulated total amount of a metric
over the selected span, e.g.: kJs in this Lap.
• Per H: The rate at which something is accumulating
in an hour (kJs, Calories, TSS, T-Score) , e.g.:
Calories per Hour.
For example, if the metric Power is selected, and the
Span selected is 1 minute, Totaling could show either a
current 1 minute average or a maximum 1 minute
power achieved during the ride.
Editing Data Fields
From the Edit Data Fields menu, both the individual
data field metrics and the page layout can be updated.
To access a data field menu:
1. Go to: Main Menu > Activity Settings > Select
Activity Profile > Edit Pages.
2. Use the arrow buttons to scroll to the page you
would like to edit and press the enter button to
edit the selected page.
3. Use the arrow buttons to scroll to the metric
field you would like to update and press the enter
button to enter the menu for the selected field.
Resizing Fields
1. From the data field menu, select Field Size.
2. This will return to the data page with Height and
Width options shown in an overlay message to
adjust the field size.
3. Select either Height or Width and press enter to
toggle through the options for height and width.
4. Once you are happy with the field size, select
Confirm to save changes and return to the data
field menu.
Tip: Start editing the field size from the upper left
corner and move across the page from there. Since
resizing fields requires shifting other fields on the page,
starting in this corner will ensure that previously
adjusted fields aren’t affected by field size changes that
follow.
Riding a Workout
Workouts are ordered laps with prescribed effort that
help a rider train properly. Stages Link can provide
workouts and sync them to the Dash via USB (Stages
Sync™) or Bluetooth (Stages Link App).
All workout data is saved directly to the ride file when
riding the workout.
To select a workout to ride:
1. Go to: Main Menu > Workouts.
2. Choose from:
• Training Calendar: Lists all workouts coming up
from your Stages Link training calendar by date.
• Workouts: Lists all workouts unassociated with
a training calendar like a 20min FTP Test.
3. Select a workout from either of these lists to view
an on screen message with a description of the
workout.
4. Select Ride to begin a ride with the selected
workout file.
Using Workout Target Fields
To set up a target field, select metrics from the
Workout category of the Data Fields menu.
Workout category options:
1. Target Lap: Current workout lap
2. Target Power: Current workout power range
3. Target Heart Rate: Current workout heart rate
range
4. Target Cadence: Current workout cadence range
5. Target RPE (Rate of Perceived Exertion) : Current
workout effort prescription
6. Target Lap Time: Current lap time prescription
7. Upcoming Laps
8. Upcoming Text
Upcoming Laps
The upcoming lap data field will display a preview of the
current and next steps of a workout (depending on the
size of the data field). This will include the Lap, Time,
Power, Heart Rate, Cadence, and RPE prescribed for the
lap.
15
Upcoming Text
Workout files can also have a short text associated with
them, which can be used for additional advice,
reminders, or the whole workout can be based on this
text. Using the Upcoming Text field shows the
descriptions associated with a workout on screen for
current and upcoming laps
Navigating Laps
Within a workout, laps can be programmed to
automatically end after completing the duration or to
continue until lap press. At any point during any lap,
you can advance from the current lap to the next lap of
the workout by pressing the lap button .
Breadcrumb Trail
The breadcrumb trail is a widget that can be added to a
data page which shows the path ridden so far in the
ride. This can be useful for finding your way back to the
start.
Altitude Profile
The altitude profile shows an altitude plot of your
current ride.
Training Zones
Training zones divide up levels of effort into categories
based on physiological effects of each intensity level.
Zones are used when programming specific workout
targets and can be set separately for both power and
heart rate. You can utilize training zones when training
with a power meter or heart rate monitor.
To edit or view training zones for power or heart rate,
go to: Main Menu > Zones.
Power Zones
Power zones are calculated based on percentage of
your Functional Threshold Power (FTP) and are
commonly used for workout targets in order to give a
range of intensity for an interval.
To view or edit your power zone settings, go to: Main
Menu > Zones > Power.
Setting FTP
Functional Threshold Power (FTP) is the maximum
wattage you can sustain for a long duration, usually 1
hour. This number is the basis for setting your power
training zones and calculating several power based
metrics, such as TSS, T-Score, and IF. If you are training
with a power meter, you should enter an FTP value
here.
To update your FTP setting, go to: Main Menu > Zones
> Power > FTP.
See Also: Small Number Editor
Power Zone Calculation Method
The Dash comes preloaded with two options for
calculating power training zones based on FTP.
To update your zone calculation preference, go to:
Main Menu > Zones > Power > Method > Stages or
Coggan.
Stages Power Zones
Zone
% of FTP
Zone 1
0-59%
Zone 2
60-79%
Zone 3
80-90%
Zone 4
91-104%
Zone 5
105-120%
Zone 6
121%+
Coggan Power Zones
Zone
% of FTP
Zone 1
0-55%
Zone 2
56-75%
Zone 3
76-90%
Zone 4
91-105%
Zone 5
106-120%
Zone 6
121-150%
Zone 7
150%+
Heart Rate Zones
Heart rate zones are calculated based on percentage of
your Functional Threshold Heart Rate (FThr) and are
commonly used for workout targets in order to give a
range of intensity for an interval.
To view or edit heart rate zone settings, go to: Main
Menu > Zones > Heart Rate.
Setting FThr
Functional threshold heart rate (FThr) is an
approximation of your highest sustainable heart rate for
an hour effort. This number is the basis for setting your
heart rate training zones, as well as calculating several
heart rate based metrics that can be displayed in your
16
data fields. If you are training with a heart rate monitor,
you should enter an FThr value here.
To enter your FThr, go to: Main Menu > Zones > Heart
Rate > FThr.
See Also: Small Number Editor
Heart Rate Zone Calculation Method
The Dash comes preloaded with two preset options for
calculating heart rate training zones based on FThr.
To update your zone calculation preference, go to:
Main Menu > Zones > Heart Rate > Method > Stages or
Friel.
Stages Heart Rate Zones
Zone
% of FThr
Zone 1
0-64%
Zone 2
65-84%
Zone 3
84-91%
Zone 4
92-99%
Zone 5
100-104%
Zone 6
105%+
Friel Heart Rate Zones
Zone
% of FThr
Zone 1
0-81%
Zone 2
82-89%
Zone 3
90-93%
Zone 4
94-99%
Zone 5
100-102%
Zone 6
103-106%
Zone 7
107%+
20min Test
If you do not know your FTP or FThr, you can choose the
20min Test from the Workouts list in order to calculate
your values. This is a commonly used test to estimate
functional threshold power by performing a 20-minute
all-out effort. This test will require the usage of a power
meter or a heart rate monitor.
• For FTP, your FTP will be 95% of your 20min power
average.
• For FThr, your FThr will be your highest 20min
average heart rate.
To perform the test, go to: Main Menu > Workouts >
Select Workout > 20min Test.
Estimate FTP or FThr
If you are new to training with a power meter or heart
rate monitor, Stages Link will estimate your values
during account creation. When you are ready, we
recommend performing a threshold test. Having an
accurate threshold value will assure that training zones
and other metrics are calculated correctly.
See Also: 20min Test
Manual Entry of Power or Heart Rate Zones
Custom zones can also be configured in Stages Link and
synced to your Stages Dash.
Ride Uploading
Rides are stored on the Dash in an .rde (Stages Ride
File) format. Completed activities can be uploaded and
synced via Bluetooth (Stages Link App) or USB (Stages
Sync or USB Mass Storage drag and drop). Additionally,
Stages Link allows the automatic uploading (“Data
Broker” services) of ride files to 3rd party sites for
premium users.
.fit Export
The Dash records data into an .rde (Stages Ride File) file
format that allows it to log more data than other bike
computers. Since this format is designed to be used
with Stages Link and may not work with all other third
party sites, an option is included to convert all files to
the .fit format upon completion of the activity. With
this option enabled, all files will be stored on the device
as .fit in the fit files USB directory on the device.
REMINDER: Stages Link provides Data Brokering services
to premium users, which allows the automatic
uploading of rides to supported 3rd party sites.
To change .fit export setting, go to: Main Menu >
Settings > .fit Export.
• Keep .rde: Saves only the Stages Ride File.
• Keep .fit: Saves only the .fit file and deletes Stages
Ride File.
• Keep Both: Keeps both .fit and .rde (not
recommended).
USB
To download your ride data via USB, use the provided
USB 2.0 cord to plug the Dash into a USB 2.0 port on
your computer. This will enable USB Mode on your Dash
17
allowing you to select files manually from the Dash
storage in the activities folder.
Stages Sync
Download and install the Stages Sync desktop
application to your computer to automatically sync your
files to Stages Link. Once installed, Stages Sync will
upload all new files from the device to Stages Link. For
more information, see Stages Sync.
USB Mass Storage
When plugged into your computer, the Dash will enter
USB mode automatically and display USB Enabled on
the screen. On your computer, follow on screen
prompts to view the contents of the device.
• By default, files are saved in the .rde format and
saved into the Activities directory.
• If .fit Export is enabled, rides will be saved into the
fit files directory.
⚠WARNING: CHANGING OR DELETING FILES IN OTHER
FOLDERS MAY EFFECT THE OPERATION OF YOUR
DEVICE.
BLE
To utilize Bluetooth data transfer on your Dash, you
must first install the Stages Link App to your compatible
mobile device.
1. Download and install the Stages Link app.
2. Initiate phone pairing on the Dash by going to:
Main Menu > Activity Sensors > Phone.
3. On your mobile device, enable Bluetooth and
search for available devices.
4. Select Stages Dash from the Bluetooth menu.
5. Confirm pairing from the Bluetooth on screen
message on the Dash display.
Ride History
The ride history section includes individual ride and lap
totals information, personal records, and cumulative
totals from all rides.
To view the ride history menu, go to: Main Menu > Ride
History.
Selecting a Ride
Completed ride data can be viewed in the ride history.
Each ride history summary will include a ride total
summary, as well as individual lap summaries.
To view a summary of a past ride, go to: Main Menu >
Ride History > Select ride.
Records
The records page brings up a list of your all-time best
efforts.
To view all-time records, go to: Main Menu > Ride
History > Records.
Totals
The totals page brings up a list of all totals completed,
such as time, distance, and calories burned to date.
To view all-time totals, go to: Main Menu > Ride History
> Totals.

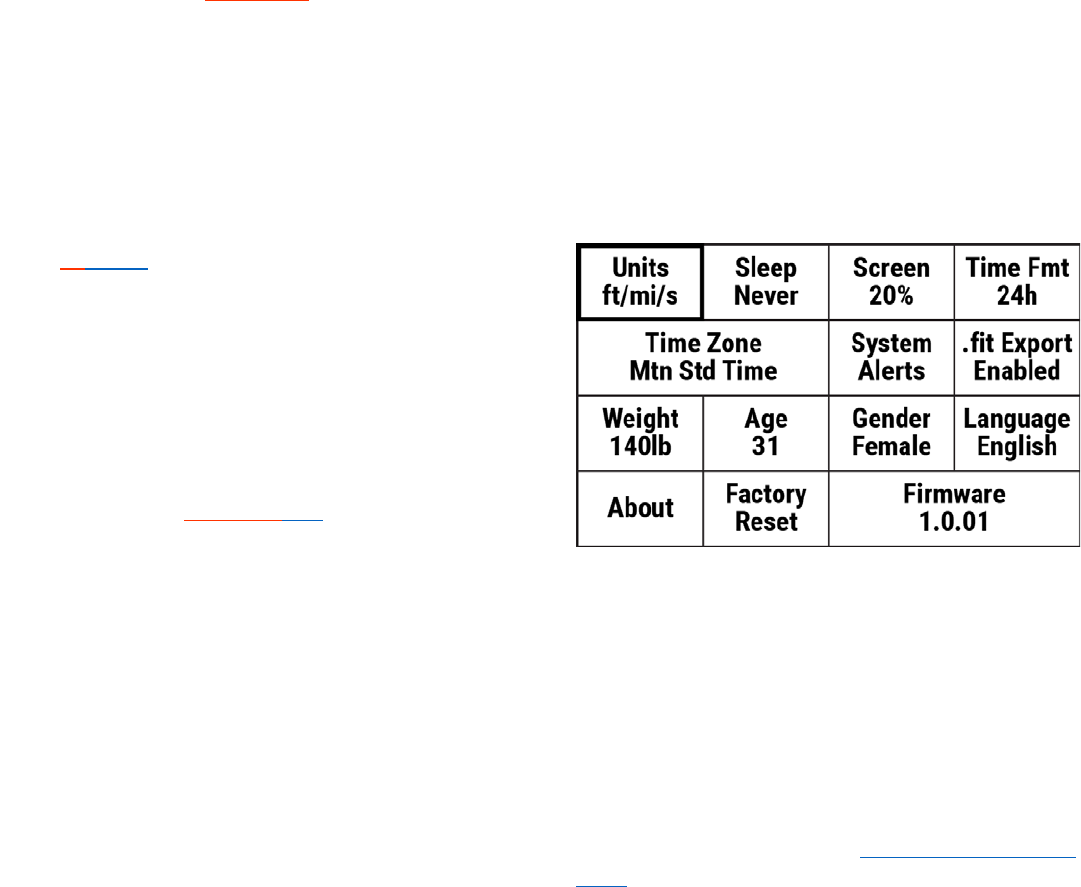

Settings
The settings menu is where you will find system
settings, rider attributes, and other items that apply to
all aspects of the Dash and are not specific to certain
activity profiles.
To access the settings menu, go to: Main Menu >
Settings.
Units
Dash allows for Imperial, metric, or a mix of both units.
For a complete list of units, see Displayed Units for Data
Fields.
• ft/mi/lb – Imperial units for all data fields.
• m/km/kg – Metric units for all data fields.
• m/km/lb – Mixed units uses metric units for
distance calculations and imperial units for body
weight and temperature.
To update your default units setting, go to: Main Menu
> Settings > Units.
18
Sleep
When not in a ride, or a ride is paused, the Dash will
enter a sleep state after a period of inactivity. Options
for sleep time are:
• 5 Minutes
• 30 Minutes
• Never
To update your sleep time preference, go to: Main
Menu > Settings > Sleep.
Backlight Level
The backlight brightness can be set by updating to your
preference from off to 100% brightness.
To update your backlight brightness level, go to: Main
Menu > Settings > Screen.
Time Zone
The time zone for the device can be updated by going
to: Main Menu > Settings > Time Zone > Select time
zone.
Time Format
The time format can be either 12h based or 24h based.
To update your time format preference, go to: Main
Menu > Settings > Time Fmt.
System Alerts
System Alerts are tones and on screen notifications for
various operations on the Dash.
To update your system alerts, go to: Main Menu >
Settings > System Alerts.
All alerts have the following notification options:
1. Tone: Audio tone alert.
2. Overlay: On screen message alert.
3. Both: Audio tone and visual alert.
4. None: No notification for alerts.
Alert Categories:
GPS
GPS fix and signal loss alerts
Pause
Button press and ride pause alerts
Related: Data Recording
Sensor
Sensor pairing alerts
Related: Connecting to Sensors
Key Press
Key press tones
Lap
Lap button press alerts
Battery
Low battery alert for Dash unit
On/Off
Power on/off alerts
Rider Attributes
Your personal attributes can also be found within the
settings menu.
Weight
To set your weight, go to: Main Menu > Settings >
Weight.
Age
To set your weight, go to: Main Menu > Settings > Age.
Gender
To set your gender, go to: Main Menu > Settings >
Gender.
Other Attributes
For training attributes, see FTP and FThr.
Language
To set your language preference, go to: Main Menu >
Settings > Language.
Additional languages are also available for download.
For more information, visit www.stagescycling.com.
Updating Firmware
Dash firmware updates can be completed via Bluetooth
or USB connection to your computer. Updating
firmware is an important way to stay on top of new
features, bug fixes, and improvements. A Stages Link
account is recommended in order to take advantage of
the full range of features built into both Stages Dash
and Stages Link. Stages Dash owners will always be able
to access Dash management features in Link for free.
• To update via Bluetooth, see Stages Link App.
• To update via USB connection, see Stages Sync.
19
Factory Reset
Factory rest will restore all factory defaults and take you
through the initial setup menu again. Using this option
will remove all saved sensors, user data, and ride totals
from the device.
To perform a factory reset, go to: Main Menu > Settings
> Factory Reset.
Widgets
Text Editor
The text editor widget allows customization of Activity
Profile and Sensor names. While using the text editor,
the button functions are as follows:
Scrolls letter selection up
Scrolls letter selection down
Advances to the next character
Changes the list of letters to choose from
Long Press: Save and Exit
Long Press: Cancel and Exit
Once you have completed your changes, press and hold
the lap button to save your changes.
Additionally, activity profile and sensor names can be
edited on Stages Link in the Dash manager tab.
Large Number Editor
The large number editor functions exactly like the text
editor, but is restricted to numerical inputs.
Small Number Editor
The small number editor allows the user to quickly edit
numbers less than 1000. To use the small number
editor, press the arrow buttons to change the digit,
then use the enter button to save.
Stages Link
The Dash is designed to fully integrate with the Stages
Link online training platform. Through the Dash tab on
Stages Link, you may set up activity profiles, customize
data pages, update settings, as well as use the training
platform to follow a training plan, sync workouts, and
analyze rides. Dash updates can then be synced to Dash
via Stages Sync (USB) or the Stages Link app (Bluetooth).
To learn more, go to www.stagescycling.com/Link or to
create an account, go to www.stages-link.com.
Stages Link App
The Stages Link app is a mobile application that works in
conjunction with the Dash and your Stages Link account
and utilizes the Dash’s Bluetooth connection to your
smart phone. The Stages Link app can be used to
automatically upload completed activities, sync
workouts, update Dash settings (changed in the app or
on Stages Link), and update Dash firmware.
To download the Stages Link app, go to:
www.stagescycling.com/LinkApp
Once installed, follow on screen instructions to pair the
Dash with your device. To enable phone pairing on the
Dash, go to: Main Menu > Activity Sensors > Phone.
Stages Sync
Stages Sync is a desktop application for both Mac® and
Windows® operating systems that works in conjunction
with the Dash and your Stages Link account via USB
connection to your computer. The Stages Sync desktop
application can be used to upload completed activities,
sync workouts, update Dash settings (changed in Stages
Link), and update Dash firmware.
To download Stages Sync, go to: www.stages-
link.com/sync
Technical Specifications
Weight
120g
Resolution
240x400
Battery
Rechargeable lithium-ion battery
Battery Life
24-30h, typical usage
Charging
Information
Input: 5V, Rate: 500mA, Charge time:
3h, Capacity: 1700mAh
Radio
Information
2.4 GHz ANT+, Bluetooth LE, NFC
20
Water Rating
IP67
Device Care
Operating use temperature range: Recommend from -
20C to 50C (-4F to 122F).
Charging temperature range: Recommend from -20C
to 40C (-4F to 104F).
Periodic cleaning: Use only a water dampened cloth to
wipe off dirt and debris. Never use any harsh cleaning
chemicals that may damage the plastic housing. No
submersion, no spraying of any liquid or water into
device seals, and no harsh scrubbing/scratching of
surfaces.
Maintenance: Internal items of the Dash unit cannot be
serviced. No items are serviceable and no attempt
should be made to adjust or alter any internal items.
Water resistance: The Stages Dash is designed to
provide excellent water resistance and tested to resist
dust and water ingress up to the IP67 standard (up to 1
meter). This provides outstanding water resistance for
cycling conditions on-road and off. Please keep in mind
this is an electronic device and the overall condition and
age of a specific device can diminish its water
resistance.
⚠ Battery Warning: Only power adaptors with output
of 5VDC, and maximum 500mA, should be used to avoid
device damage and/or electrical fire. The use of USB
splitters and hubs, or other voltage DC output than
5VDC, should be used with extreme caution. It’s also
recommended to use only direct plug-in sources, or
splitters and hubs with only one device inserted for
charging.
Troubleshooting
If the device or display is frozen, you can perform a hard
reset by pressing and holding the power button /
for 10 seconds. To reset the device back to factory
defaults, see Factory Reset.
To search our full list of troubleshooting topics,
frequently asked questions, or submit a support
request, please visit: support.stagesdash.com.
Trademark and Licenses
The Stages Dash™ and Stages Power® devices may be
protected by USA or foreign patents or patents pending.
This document may contain trademarks or registered
trademarks of Stages Cycling, LLC as represented by the
use of ™ and ® respectively. All rights reserved. Stages
Dash™, Stages Link™, Stages Sync™, and Stages Power®
are trademarks of Stages Cycling, LLC.
ANT+™ is a trademark of Dynastream Innovations Inc.
Bluetooth® is a registered trademark of Bluetooth SIG,
Inc.
Mac® is a registered trademark of Apple Inc.
Windows® is a registered trademark of Microsoft in the
US and other countries.
Other trademarks and names are owned by their
respective owners.
Legal and Regulatory Information
This is viewable within the Dash unit by going to:
Main Menu > Settings > About.
Warranty
For warranty details, visit our website FAQ page at
http://www.stagescycling.com/support.
Copyright © 2017 Stages Cycling, LLC
21
Index
Activity Profiles, 6, 7, 8, 9, 10, 11, 13, 18
Age, 18
Alerts, 7, 8, 17
System Alerts, 7, 17
auto-pause. See Sensor Pause
Backlight, 7, 17
Calories, 12
Charging, 4
Data Fields, 10, 11, 12, 13, 17
Data Pages, 6, 10
Data Recording, 6, 7, 10, 17
High Speed, 8
Power and Cadence Zeros, 7
Factory Reset, 18, 19
Firmware, 18
FThr, 12, 15, 18
FTP, 11, 13, 14, 15, 18
Gender, 18
GPS, 6, 7, 11, 12, 13, 17
Heart Rate Monitor. See Sensors
Language, 5, 6, 18
Laps, 10, 14
LR Balance, 11
Mount, 4
NORMALIZED POWER, 11, 12
Orientation, 11
Pedal smoothness, 11
Power Meter. See Sensors
Ride History, 16
Records, 7, 16
Totals, 10, 16
Sensors, 6, 7, 8, 9, 17
ANT, 8, 9, 19
Bluetooth, 8, 13, 18, 19
Heart Rate, 6, 7, 11, 12, 14, 15
Power Meter, 6, 9
Sleep, 10, 17
Sensor Pause, 7
Span, 13
Stages Link, 6, 7, 9, 10, 11, 13, 15, 18, 19
Stages Sync, 18, 19
Time Zone, 6, 17
Torque effectiveness, 11
Totaling, 13
Training Zones, 14
Heart Rate Zones, 15
Power Zones, 11, 14
T-Score, 11, 14
TSS, 11, 12, 14
Units, 6, 12, 17
VAM, 12
Warranty, 21
Weight, 18
Workout, 11, 12, 13, 14, 15
Zero Reset, 9
Important Product Information
Stages® Cycling, LLC
www.stagescycling.com
Info@stagescycling.com
Customer Support: 606 SE 9th Ave, Portland, OR 97214
1-800-778-7218
Product Name: Stages Dash™
Model Name: SDL0
FCC ID: ZBM-SDL1
IC ID: 9327A-SDL1
All warnings and cautions indicated by this icon ⚠ below must be followed and understood before using this product. Failure to following
warnings may result in injury to persons or property, with potential for events resulting in death.
Battery warnings and device care:
This device contains a lithium-ion battery. The below guidelines must be followed in order to maintain expected useful life of the device, and to
reduce risk of damage to device or personal injury.
⚠ Battery Warning: Only power adaptors with output of 5V DC, and maximum 500mA, should be used to avoid device damage and/or electrical
fire. The use of USB splitters and hubs, or other voltage DC output than 5VDC, should be used with extreme caution. It’s also recommended to
use only direct plug-in sources, or splitters and hubs with only one device inserted for charging.
Operating use temperature range: Recommend from 0C to 55C (32 to 131F).
Charging and storage temperature range: Recommend from 10C to 40C (50F to 104F).
• Keeping clean and drying the device from moisture is recommended. Keeping USB port and cover dry and free of debris is critical to
the life of product and safety of consumers.
• Internal items of the Dash unit cannot be serviced. No items are serviceable and no attempt should be made to adjust or alter any
internal items.
• Do not expose device to high heat environments over the recommend temperatures, which includes leaving the device in an
unattended vehicle in direct sunlight.
• Never expose this device or battery to open flames, incineration, sharp or piercing objects, chemicals, or the battery to water.
• Never expose battery to children, or allow them to chew or swallow any portion as chemical burns, injury, or death may result.
⚠ Recycling/Disposal of device and battery Warning: This device includes a lithium ion battery. This device must not be mixed with general
household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be
accepted free of charge. In compliance with your local laws and regulations, please contact local authorities for end of life disposal of this
product and battery. WEEE and other compliance information is available, see Stages Cycling® help site for further information.
Health Warning:
Before beginning exercise or modifying any exercise program, consult your physician. If you have a pacemakers or other internal electronic
devices, also consult your physician before using any wearable exercise device.
Navigation Hazards:
The Stages device may have features that show and recommend off-road/trail routes, please use extreme caution when following directions
that are not navigationally marked or suggest routes that are dangerous. Always be aware of safety hazards whether on-road or off-road. This
device does not authorize anyone to disregard traffic laws or other regulations. Always be aware of hazards while momentarily viewing on-
screen data. Come to a complete stop before using this device, which includes any manipulation of menus or data viewing.
Environmental:
California Proposition 65
The enclosed hardware and its packaging contain chemicals the State of California has found to cause cancer, birth defects or reproductive
harm.
FCC Compliance Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate
the equipment.
Industry Canada Statement:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
CE Compliance Statement:
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the RED Directive 2014/53/EU. The following test methods have been applied in
order to prove presumption of conformity with the essential requirements of the RED Directive 2014/53/EU:
ETSI EN 300330-1 V2.1.1
EN 300328 V2.1.1
EN 301489-1 V2.2.0
EN 301489-3 V2.1.1
EN 301489-17 V3.2.0
EN 300440 V2.1.1
EN 62479:2010
EN 60950-1
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in
France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to
obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or
network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be
limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national
spectrum authority in France. Hereby, Stages Cycling declares that these products are in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
European Union Directive 2011/65/EU on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronics Equipment,
commonly known as RoHS 2.
Warranty:
(1) One year limited warranty. In all cases a Return Authorization Number (RA#) must be issued by Stages Cycling before any product is returned for
warranty inspection and service.
HOW CONSUMER LAW RELATES TO THIS WARRANTY
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY
OR PROVINCE). OTHER THAN AS PERMITTED BY LAW, STAGES CYCLING DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER RIGHTS YOU MAY HAVE.
FOR A FULL UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR STATE.
WARRANTY LIMITATIONS THAT MAY AFFECT CONSUMER LAW
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL, WRITTEN, STATUTORY, EXPRESS OR IMPLIED. STAGES CYCLING DISCLAIMS ALL
STATUTORY AND IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT DEFECTS, TO THE EXTENT PERMITTED BY LAW. IN SO FAR AS SUCH
WARRANTIES CANNOT BE DISCLAIMED, STAGES CYCLING LIMITS THE DURATION AND REMEDIES OF SUCH WARRANTIES TO THE DURATION OF
THIS EXPRESS WARRANTY AND, AT STAGES CYCLING'S OPTION, THE REPAIR OR REPLACEMENT SERVICES DESCRIBED BELOW. IN NO EVENT WILL
THE VALUE OF THE WARRANTY PROVIDED EXCEED THE ORIGINAL PURCHASE PRICE. SOME STATES (COUNTRIES AND PROVINCES) DO NOT
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY (OR CONDITION) MAY LAST, SO THE LIMITATION DESCRIBED ABOVE MAY NOT
APPLY TO YOU.
WHAT IS COVERED BY THIS WARRANTY?
Stages Cycling warrants the Stages Cycling-branded hardware product and accessories contained in the original packaging ("Stages Cycling
Product") against defects in materials and workmanship when used normally in accordance with Stages Cycling's published guidelines for a
period of ONE (1) YEAR from the date of original retail purchase by the end-user purchaser ("Warranty Period"). This warranty only applies to
the original owner and is not transferable.
WHAT IS NOT COVERED BY THIS WARRANTY?
This warranty applies to Stages Cycling branded products including but not limited to crank arms when packaged or sold with Stages Cycling
hardware. Manufacturers, suppliers, or publishers, other than Stages Cycling, may provide their own warranties to you but Stages Cycling, in so
far as permitted by law, provides their products "AS IS". Stages Cycling does not warrant that the operation of the Stages Cycling Product will
be uninterrupted or error-free. Stages Cycling is not responsible for damage arising from failure to follow instructions relating to the Stages
Cycling Product's use. Stages Cycling's published guidelines include but are not limited to information contained in technical specifications,
user manuals and service communications.
This warranty does not apply: (a) to consumable parts, such as batteries or protective coatings that are designed to diminish over time,
unless failure has occurred due to a defect in materials or workmanship; (b) to cosmetic damage, including but not limited to scratches and
dents; (c) to damage caused by use with another product; (d) to damage caused by accident, impact, abuse, misuse, fire, earthquake or other
external cause; (e) to damage caused by operating the Stages Cycling Product outside Stages Cycling's published guidelines; (f) to damage
caused by service, modifications or alterations performed by anyone other than Stages Cycling or an authorized Stages Cycling Service
Provider (h) to defects caused by normal wear and tear or otherwise due to the normal aging of the Stages Cycling Product, or (i) if any serial
number has been removed or defaced from the Stages Cycling Product.
IMPORTANT RESTRICTION
Stages Cycling may restrict warranty service to the country where Stages Cycling or its Authorized Distributors originally sold the Stages Cycling
Product.
KCC Statement [in Korean]:
NCC Statement [in Chinese]:
Software license Agreement:
Please read and understand the below statement. By using the Stages Dash electronic device, you are agreeing to these terms and conditions.
Stages Cycling, LLC is allowing the use of this device, a limited license to use the software provided within this device. All rights and ownership
are the property of Stages Cycling. LLC, protected under US copyright and international copyright laws. You are not allowed to modify, reverse
engineer, translate all or parts of this software, or reconfigure or export into other useable forms. All source code and architecture are the
property of Stages Cycling, LLC. Exporting this software, or device holding this software, is not allowed to any country in violation of export
control laws of the USA or in violation of other countries applicable export control laws.
