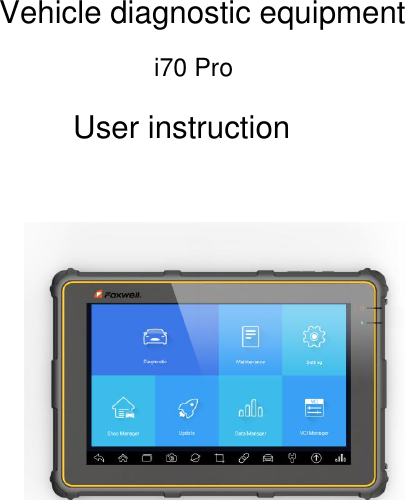

Vehicle diagnostic equipmenti70 ProUser instruction

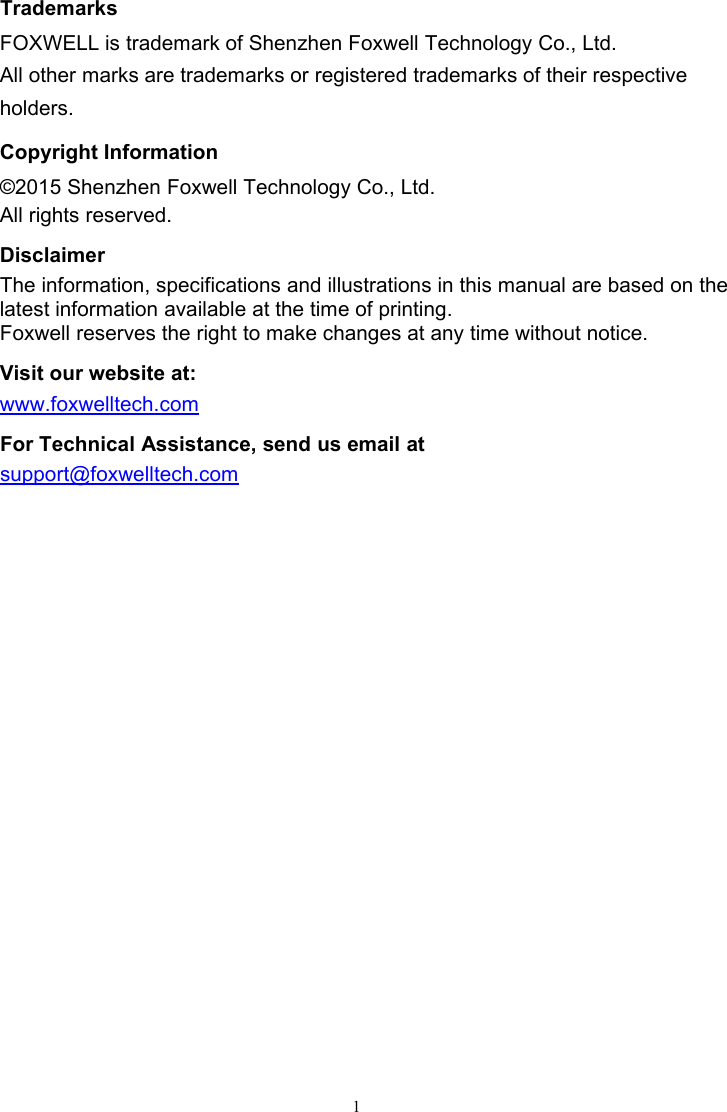

1TrademarksFOXWELL is trademark of Shenzhen Foxwell Technology Co., Ltd.All other marks are trademarks or registered trademarks of their respectiveholders.Copyright Information©2015 Shenzhen Foxwell Technology Co., Ltd.All rights reserved.DisclaimerThe information, specifications and illustrations in this manual are based on thelatest information available at the time of printing.Foxwell reserves the right to make changes at any time without notice.Visit our website at:www.foxwelltech.comFor Technical Assistance, send us email atsupport@foxwelltech.com

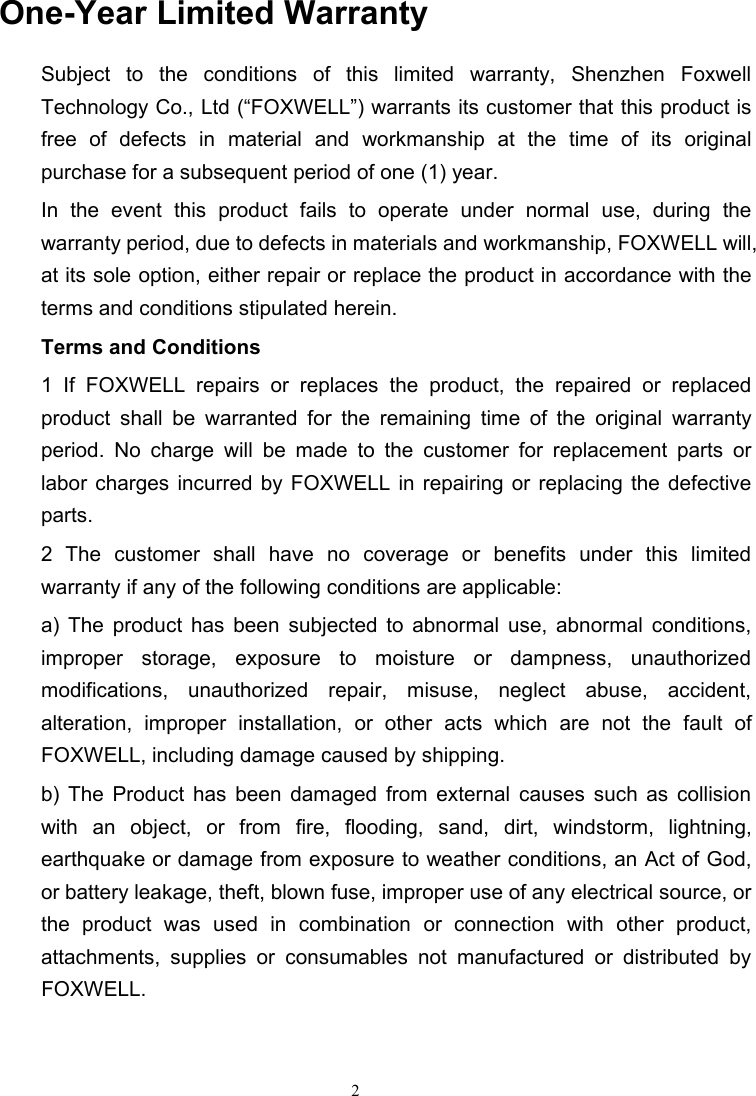

2One-Year Limited WarrantySubject to the conditions of this limited warranty, Shenzhen FoxwellTechnology Co., Ltd (“FOXWELL”) warrants its customer that this product isfree of defects in material and workmanship at the time of its originalpurchase for a subsequent period of one (1) year.In the event this product fails to operate under normal use, during thewarranty period, due to defects in materials and workmanship, FOXWELL will,at its sole option, either repair or replace the product in accordance with theterms and conditions stipulated herein.Terms and Conditions1 If FOXWELL repairs or replaces the product, the repaired or replacedproduct shall be warranted for the remaining time of the original warrantyperiod. No charge will be made to the customer for replacement parts orlabor charges incurred by FOXWELL in repairing or replacing the defectiveparts.2 The customer shall have no coverage or benefits under this limitedwarranty if any of the following conditions are applicable:a) The product has been subjected to abnormal use, abnormal conditions,improper storage, exposure to moisture or dampness, unauthorizedmodifications, unauthorized repair, misuse, neglect abuse, accident,alteration, improper installation, or other acts which are not the fault ofFOXWELL, including damage caused by shipping.b) The Product has been damaged from external causes such as collisionwith an object, or from fire, flooding, sand, dirt, windstorm, lightning,earthquake or damage from exposure to weather conditions, an Act of God,or battery leakage, theft, blown fuse, improper use of any electrical source, orthe product was used in combination or connection with other product,attachments, supplies or consumables not manufactured or distributed byFOXWELL.

33 The customer shall bear the cost of shipping the product to FOXWELL. AndFOXWELL shall bear the cost of shipping the product back to the customerafter the completion of service under this limited warranty.4 FOXWELL does not warrant uninterrupted or error-free operation of theproduct. If a problem develops during the limited warranty period, theconsumer shall take the following step-by-step procedure:a) The customer shall return the product to the place of purchase for repair orreplacement processing, contact your local FOXWELL distributor or visit ourwebsite www.foxwelltech.com to get further information.b) The customer shall include a return address, daytime phone numberand/or fax number, complete description of the problem and original invoicespecifying date of purchase and serial number.c) The customer will be billed for any parts or labor charges not covered bythis limited warranty.d) FOXWELL will repair the Product under the limited warranty within 30 daysafter receipt of the product. If FOXWELL cannot perform repairs coveredunder this limited warranty within 30 days, or after a reasonable number ofattempts to repair the same defect, FOXWELL at its option, will provide areplacement product or refund the purchase price of the product less areasonable amount for usage.e) If the product is returned during the limited warranty period, but theproblem with the product is not covered under the terms and conditions ofthis limited warranty, the customer will be notified and given an estimate ofthe charges the customer must pay to have the product repaired, with allshipping charges billed to the customer. If the estimate is refused, theproduct will be returned freight collect. If the product is returned after theexpiration of the limited warranty period, FOXWELL’ normal service policiesshall apply and the customer will be responsible for all shipping charges.5 ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FORA PARTICULAR PURPOSE OR USE, SHALL BE LIMITED TO THEDURATION OF THE FOREGOING LIMITED WRITTEN WARRANTY.OTHERWISE, THE FOREGOING LIMITED WARRANTY IS THE

4CONSUMER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALLOTHER WARRANTIES, EXPRESS OR IMPLIED. FOXWELL SHALL NOTBE LIABLE FOR SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIALDAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF ANTICIPATEDBENEFITS OR PROFITS, LOSS OF SAVINGS OR REVENUE, LOSS OFDATA, PUNITIVE DAMAGES, LOSS OF USE OF THE PRODUCT OR ANYASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANYSUBSTITUTE EQUIPMENT OR FACILITIES, DOWNTIME, THE CLAIMS OFANY THIRD PARTIES, INCLUDING CUSTOMERS, AND INJURY TOPROPERTY, RESULTING FROM THE PURC HASE OR USE OF THEPRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACHOF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGALOR EQUITABLE THEORY, EVEN IF FOXWELL KNEW OF THELIKELIHOOD OF SUCH DAMAGES. FOXWELL SHALL NOT BE LIABLEFOR DELAY IN RENDERING SERVICE UNDER THE LIMITEDWARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THEPRODUCT IS BEING REPAIRED.6. Some states do not allow limitation of how long an implied warranty lasts,so the one-year warranty limitation may not apply to you (the Consumer).Some states do not allow the exclusion or limitation of incidental andconsequential damages, so certain of the above limitations or exclusions maynot apply to you (the Consumer). This limited warranty gives the Consumerspecific legal rights and the Consumer may also have other rights which varyfrom state to state.

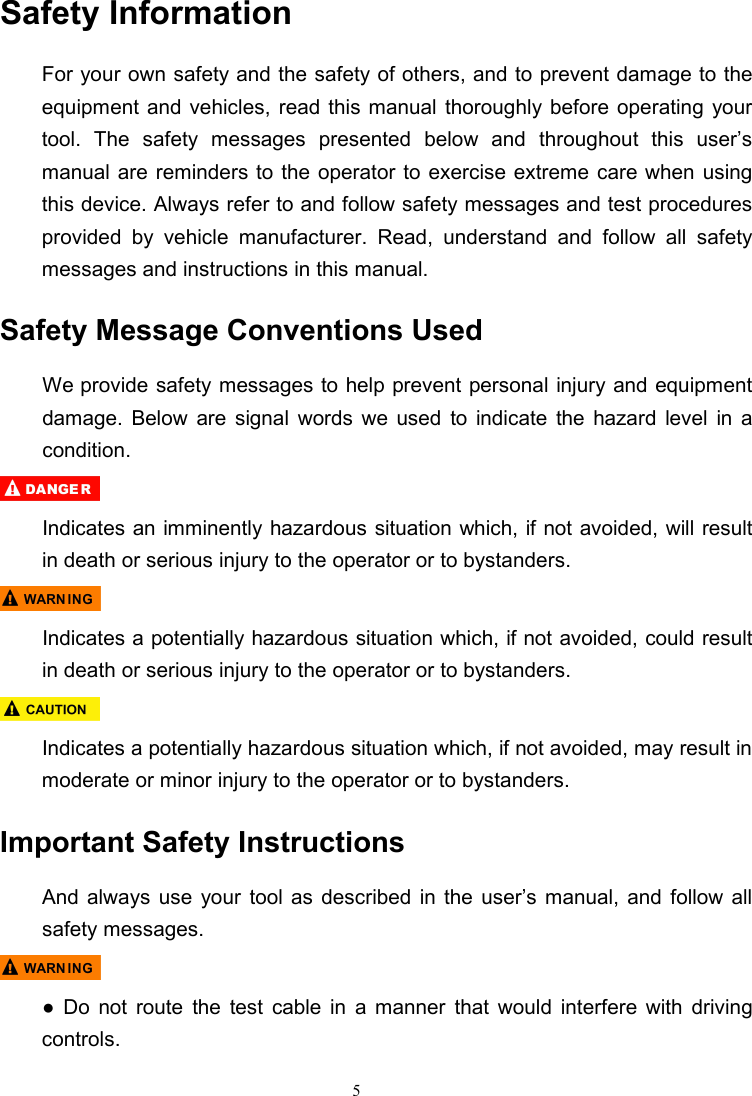

5Safety InformationFor your own safety and the safety of others, and to prevent damage to theequipment and vehicles, read this manual thoroughly before operating yourtool. The safety messages presented below and throughout this user’smanual are reminders to the operator to exercise extreme care when usingthis device. Always refer to and follow safety messages and test proceduresprovided by vehicle manufacturer. Read, understand and follow all safetymessages and instructions in this manual.Safety Message Conventions UsedWe provide safety messages to help prevent personal injury and equipmentdamage. Below are signal words we used to indicate the hazard level in acondition.Indicates an imminently hazardous situation which, if not avoided, will resultin death or serious injury to the operator or to bystanders.Indicates a potentially hazardous situation which, if not avoided, could resultin death or serious injury to the operator or to bystanders.Indicates a potentially hazardous situation which, if not avoided, may result inmoderate or minor injury to the operator or to bystanders.Important Safety InstructionsAnd always use your tool as described in the user’s manual, and follow allsafety messages.● Do not route the test cable in a manner that would interfere with drivingcontrols.

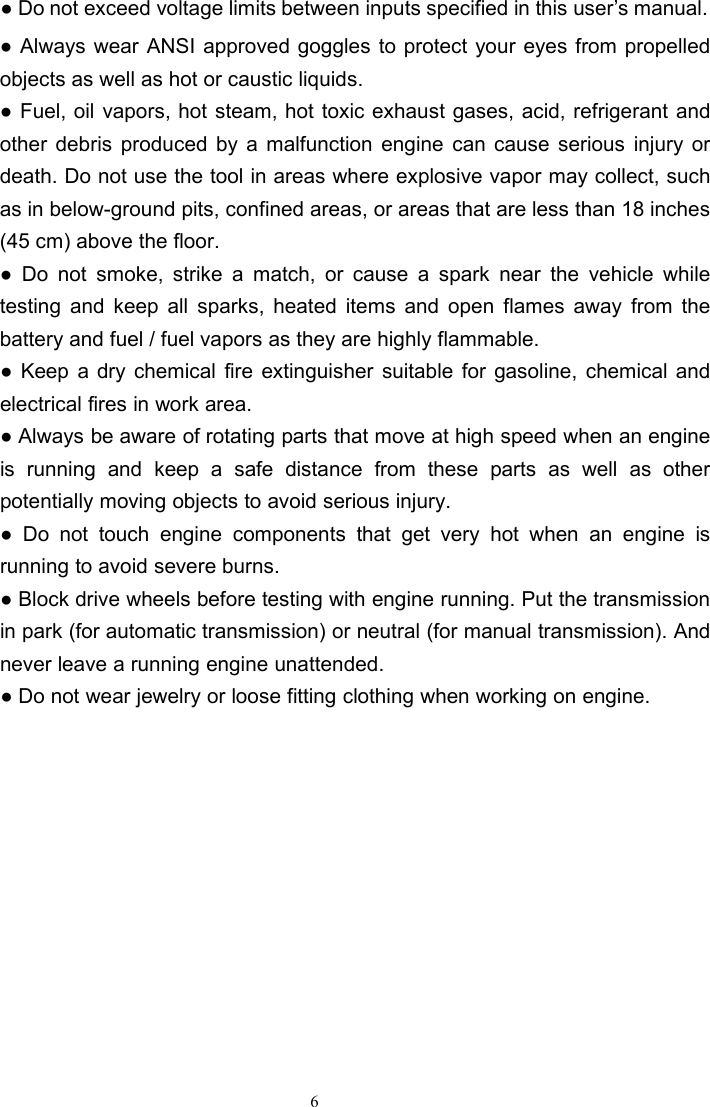

6● Do not exceed voltage limits between inputs specified in this user’s manual.● Always wear ANSI approved goggles to protect your eyes from propelledobjects as well as hot or caustic liquids.● Fuel, oil vapors, hot steam, hot toxic exhaust gases, acid, refrigerant andother debris produced by a malfunction engine can cause serious injury ordeath. Do not use the tool in areas where explosive vapor may collect, suchas in below-ground pits, confined areas, or areas that are less than 18 inches(45 cm) above the floor.● Do not smoke, strike a match, or cause a spark near the vehicle whiletesting and keep all sparks, heated items and open flames away from thebattery and fuel / fuel vapors as they are highly flammable.● Keep a dry chemical fire extinguisher suitable for gasoline, chemical andelectrical fires in work area.● Always be aware of rotating parts that move at high speed when an engineis running and keep a safe distance from these parts as well as otherpotentially moving objects to avoid serious injury.● Do not touch engine components that get very hot when an engine isrunning to avoid severe burns.● Block drive wheels before testing with engine running. Put the transmissionin park (for automatic transmission) or neutral (for manual transmission). Andnever leave a running engine unattended.● Do not wear jewelry or loose fitting clothing when working on engine.

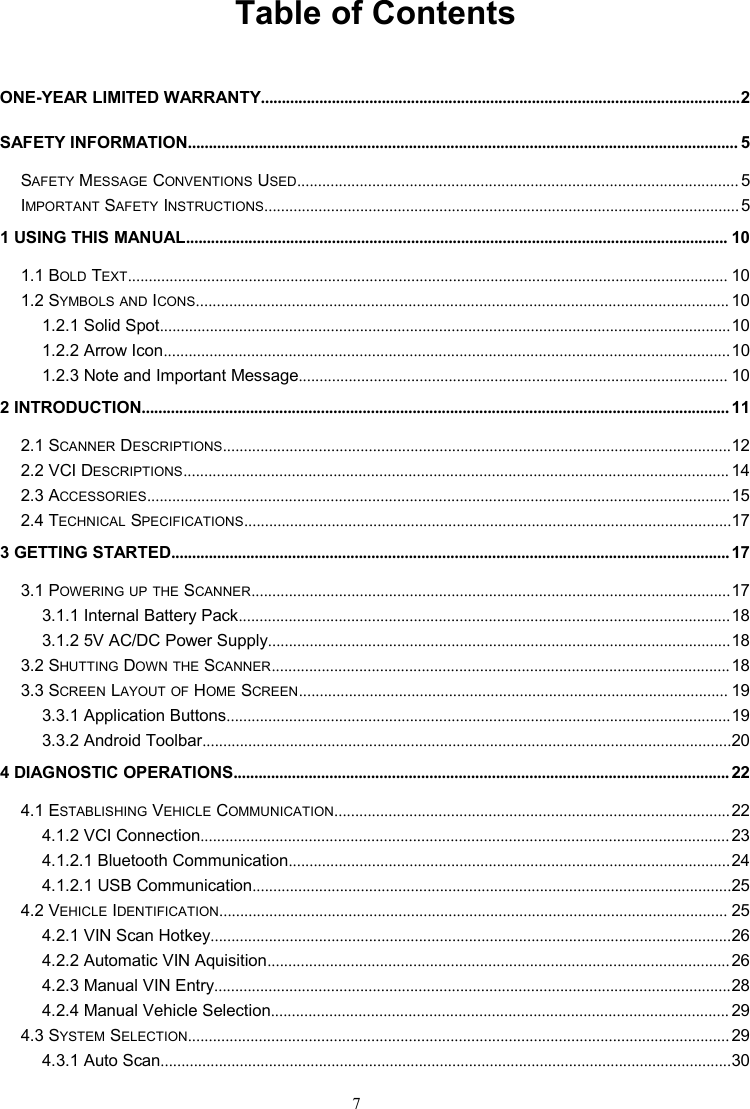

7Table of ContentsONE-YEAR LIMITED WARRANTY...................................................................................................................2SAFETY INFORMATION.................................................................................................................................... 5SAFETY MESSAGE CONVENTIONS USED.......................................................................................................... 5IMPORTANT SAFETY INSTRUCTIONS..................................................................................................................51 USING THIS MANUAL.................................................................................................................................. 101.1 BOLD TEXT................................................................................................................................................ 101.2 SYMBOLS AND ICONS................................................................................................................................ 101.2.1 Solid Spot.........................................................................................................................................101.2.2 Arrow Icon........................................................................................................................................101.2.3 Note and Important Message....................................................................................................... 102 INTRODUCTION............................................................................................................................................. 112.1 SCANNER DESCRIPTIONS..........................................................................................................................122.2 VCI DESCRIPTIONS................................................................................................................................... 142.3 ACCESSORIES............................................................................................................................................152.4 TECHNICAL SPECIFICATIONS.....................................................................................................................173 GETTING STARTED...................................................................................................................................... 173.1 POWERING UP THE SCANNER...................................................................................................................173.1.1 Internal Battery Pack......................................................................................................................183.1.2 5V AC/DC Power Supply...............................................................................................................183.2 SHUTTING DOWN THE SCANNER..............................................................................................................183.3 SCREEN LAYOUT OF HOME SCREEN....................................................................................................... 193.3.1 Application Buttons.........................................................................................................................193.3.2 Android Toolbar...............................................................................................................................204 DIAGNOSTIC OPERATIONS....................................................................................................................... 224.1 ESTABLISHING VEHICLE COMMUNICATION...............................................................................................224.1.2 VCI Connection............................................................................................................................... 234.1.2.1 Bluetooth Communication..........................................................................................................244.1.2.1 USB Communication...................................................................................................................254.2 VEHICLE IDENTIFICATION.......................................................................................................................... 254.2.1 VIN Scan Hotkey.............................................................................................................................264.2.2 Automatic VIN Aquisition...............................................................................................................264.2.3 Manual VIN Entry............................................................................................................................284.2.4 Manual Vehicle Selection.............................................................................................................. 294.3 SYSTEM SELECTION.................................................................................................................................. 294.3.1 Auto Scan.........................................................................................................................................30

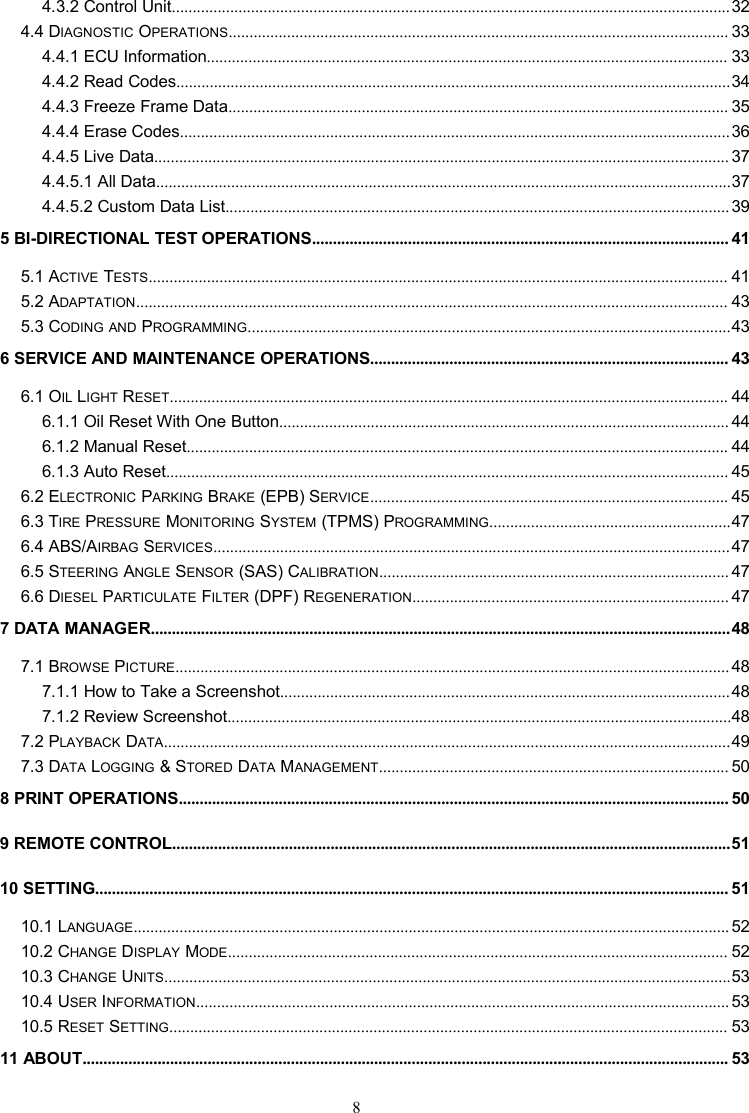

84.3.2 Control Unit......................................................................................................................................324.4 DIAGNOSTIC OPERATIONS........................................................................................................................ 334.4.1 ECU Information............................................................................................................................. 334.4.2 Read Codes.....................................................................................................................................344.4.3 Freeze Frame Data........................................................................................................................ 354.4.4 Erase Codes....................................................................................................................................364.4.5 Live Data.......................................................................................................................................... 374.4.5.1 All Data..........................................................................................................................................374.4.5.2 Custom Data List......................................................................................................................... 395 BI-DIRECTIONAL TEST OPERATIONS.................................................................................................... 415.1 ACTIVE TESTS........................................................................................................................................... 415.2 ADAPTATION.............................................................................................................................................. 435.3 CODING AND PROGRAMMING....................................................................................................................436 SERVICE AND MAINTENANCE OPERATIONS...................................................................................... 436.1 OIL LIGHT RESET...................................................................................................................................... 446.1.1 Oil Reset With One Button............................................................................................................ 446.1.2 Manual Reset.................................................................................................................................. 446.1.3 Auto Reset....................................................................................................................................... 456.2 ELECTRONIC PARKING BRAKE (EPB) SERVICE...................................................................................... 456.3 TIRE PRESSURE MONITORING SYSTEM (TPMS) PROGRAMMING..........................................................476.4 ABS/AIRBAG SERVICES............................................................................................................................476.5 STEERING ANGLE SENSOR (SAS) CALIBRATION.................................................................................... 476.6 DIESEL PARTICULATE FILTER (DPF) REGENERATION............................................................................ 477 DATA MANAGER...........................................................................................................................................487.1 BROWSE PICTURE..................................................................................................................................... 487.1.1 How to Take a Screenshot............................................................................................................487.1.2 Review Screenshot.........................................................................................................................487.2 PLAYBACK DATA........................................................................................................................................497.3 DATA LOGGING & STORED DATA MANAGEMENT.................................................................................... 508 PRINT OPERATIONS.................................................................................................................................... 509 REMOTE CONTROL......................................................................................................................................5110 SETTING........................................................................................................................................................ 5110.1 LANGUAGE............................................................................................................................................... 5210.2 CHANGE DISPLAY MODE........................................................................................................................ 5210.3 CHANGE UNITS........................................................................................................................................5310.4 USER INFORMATION................................................................................................................................ 5310.5 RESET SETTING...................................................................................................................................... 5311 ABOUT........................................................................................................................................................... 53

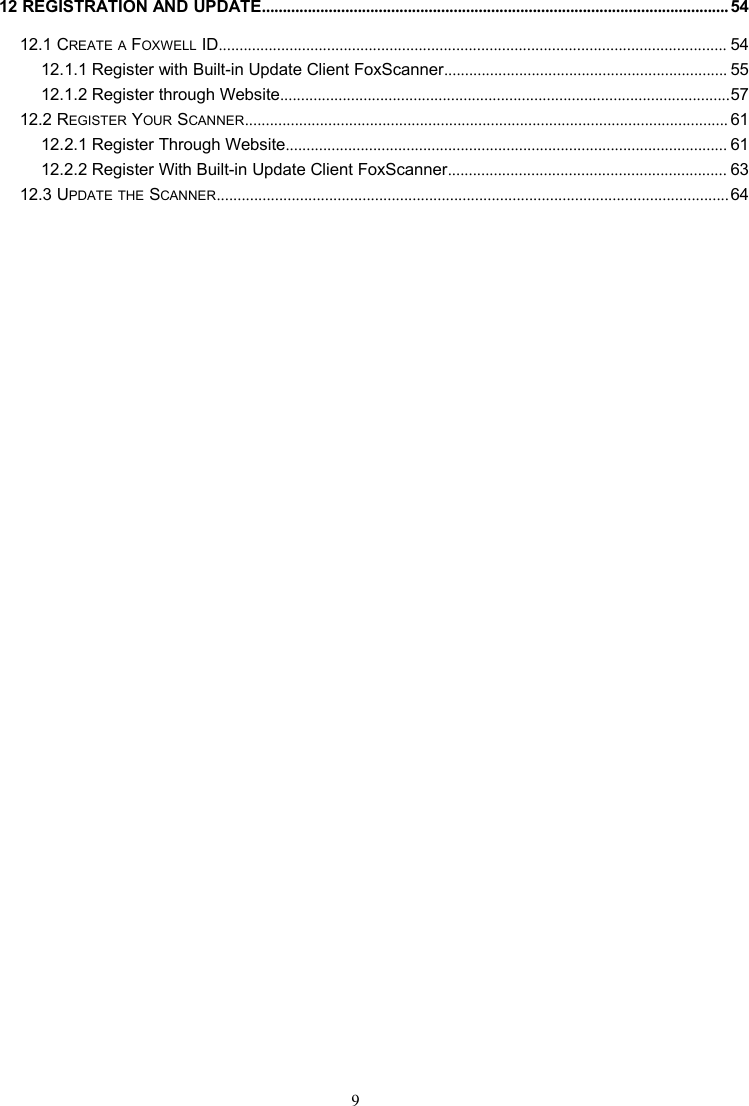

912 REGISTRATION AND UPDATE................................................................................................................5412.1 CREATE A FOXWELL ID.......................................................................................................................... 5412.1.1 Register with Built-in Update Client FoxScanner.................................................................... 5512.1.2 Register through Website............................................................................................................5712.2 REGISTER YOUR SCANNER.................................................................................................................... 6112.2.1 Register Through Website.......................................................................................................... 6112.2.2 Register With Built-in Update Client FoxScanner................................................................... 6312.3 UPDATE THE SCANNER...........................................................................................................................64

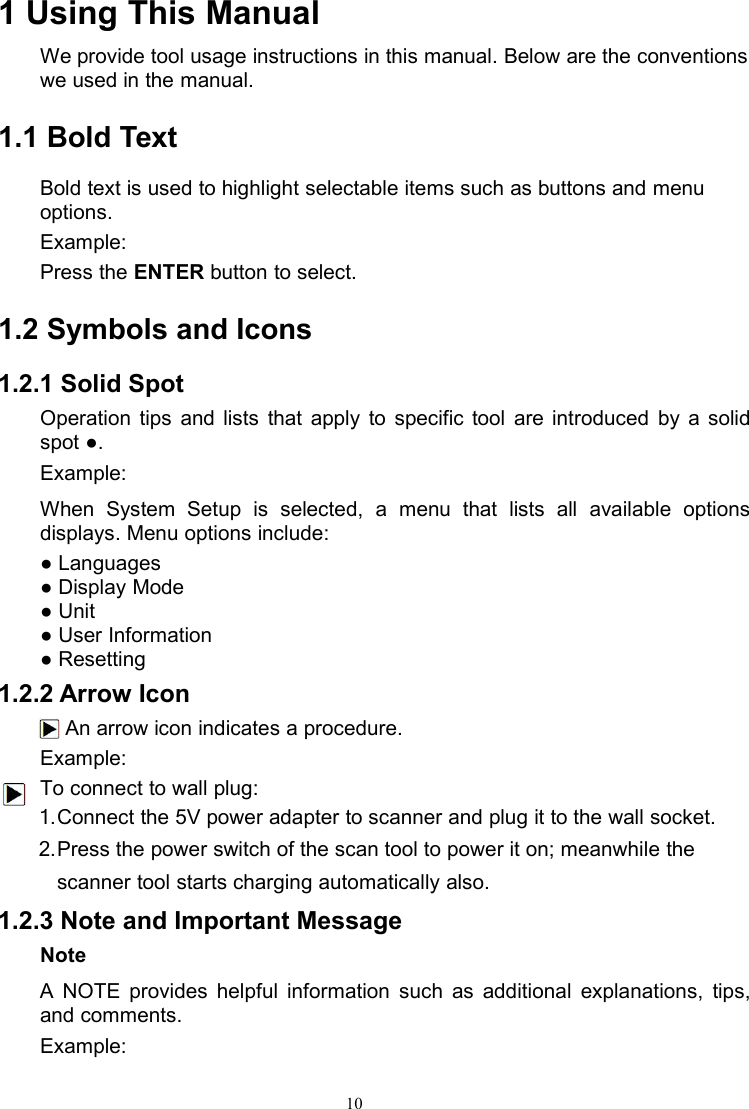

101 Using This ManualWe provide tool usage instructions in this manual. Below are the conventionswe used in the manual.1.1 Bold TextBold text is used to highlight selectable items such as buttons and menuoptions.Example:Press the ENTER button to select.1.2 Symbols and Icons1.2.1 Solid SpotOperation tips and lists that apply to specific tool are introduced by a solidspot ●.Example:When System Setup is selected, a menu that lists all available optionsdisplays. Menu options include:● Languages● Display Mode● Unit● User Information● Resetting1.2.2 Arrow IconAn arrow icon indicates a procedure.Example:To connect to wall plug:1.Connect the 5V power adapter to scanner and plug it to the wall socket.2.Press the power switch of the scan tool to power it on; meanwhile thescanner tool starts charging automatically also.1.2.3 Note and Important MessageNoteA NOTE provides helpful information such as additional explanations, tips,and comments.Example:

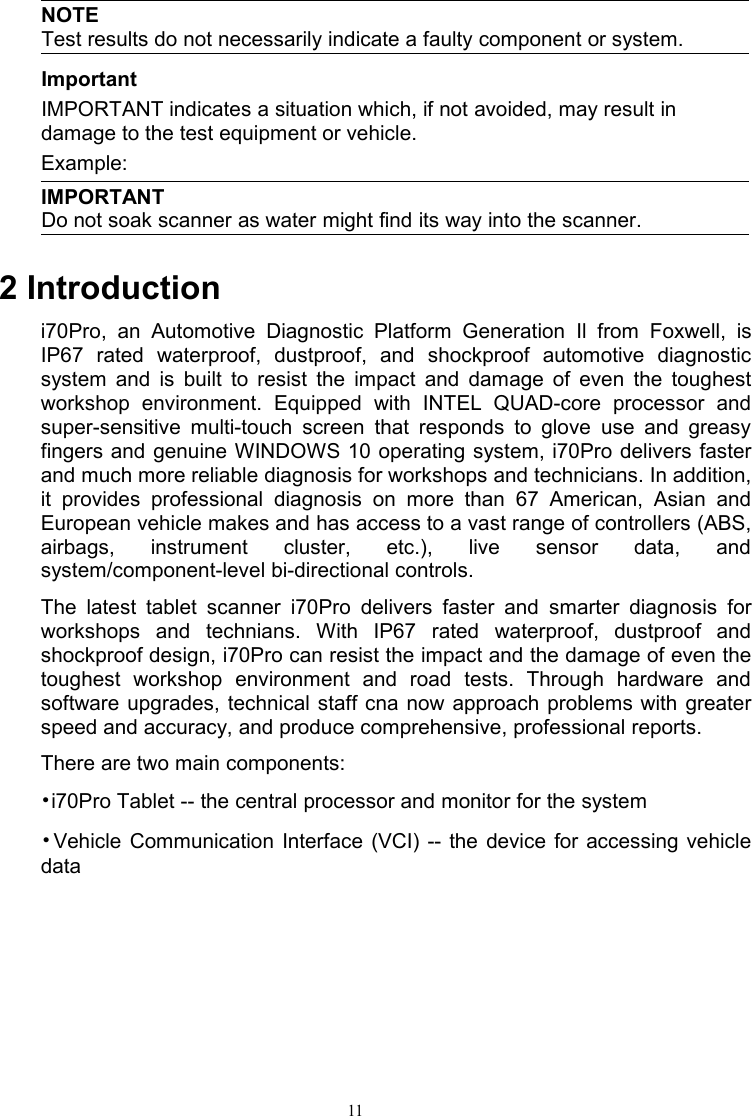

11NOTETest results do not necessarily indicate a faulty component or system.ImportantIMPORTANT indicates a situation which, if not avoided, may result indamage to the test equipment or vehicle.Example:IMPORTANTDo not soak scanner as water might find its way into the scanner.2 Introductioni70Pro, an Automotive Diagnostic Platform Generation Il from Foxwell, isIP67 rated waterproof, dustproof, and shockproof automotive diagnosticsystem and is built to resist the impact and damage of even the toughestworkshop environment. Equipped with INTEL QUAD-core processor andsuper-sensitive multi-touch screen that responds to glove use and greasyfingers and genuine WINDOWS 10 operating system, i70Pro delivers fasterand much more reliable diagnosis for workshops and technicians. In addition,it provides professional diagnosis on more than 67 American, Asian andEuropean vehicle makes and has access to a vast range of controllers (ABS,airbags, instrument cluster, etc.), live sensor data, andsystem/component-level bi-directional controls.The latest tablet scanner i70Pro delivers faster and smarter diagnosis forworkshops and technians. With IP67 rated waterproof, dustproof andshockproof design, i70Pro can resist the impact and the damage of even thetoughest workshop environment and road tests. Through hardware andsoftware upgrades, technical staff cna now approach problems with greaterspeed and accuracy, and produce comprehensive, professional reports.There are two main components:•i70Pro Tablet -- the central processor and monitor for the system•Vehicle Communication Interface (VCI) -- the device for accessing vehicledata

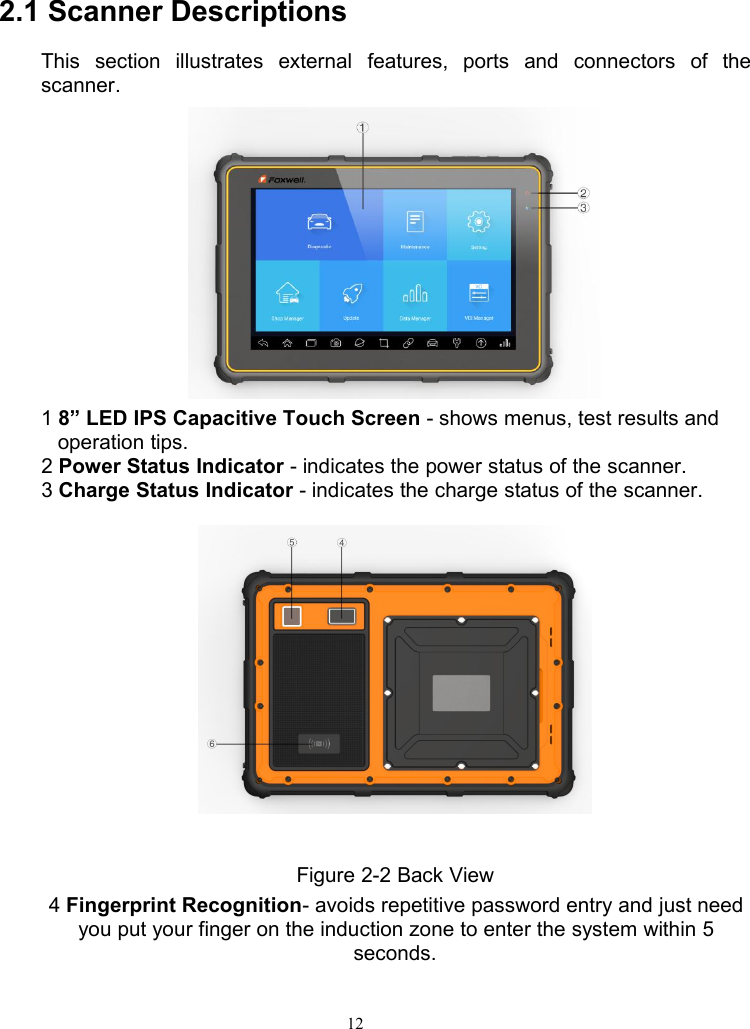

122.1 Scanner DescriptionsThis section illustrates external features, ports and connectors of thescanner.Figure 2-1 Front View18” LED IPS Capacitive Touch Screen - shows menus, test results andoperation tips.2Power Status Indicator - indicates the power status of the scanner.3Charge Status Indicator - indicates the charge status of the scanner.Figure 2-2 Back View4Fingerprint Recognition- avoids repetitive password entry and just needyou put your finger on the induction zone to enter the system within 5seconds.

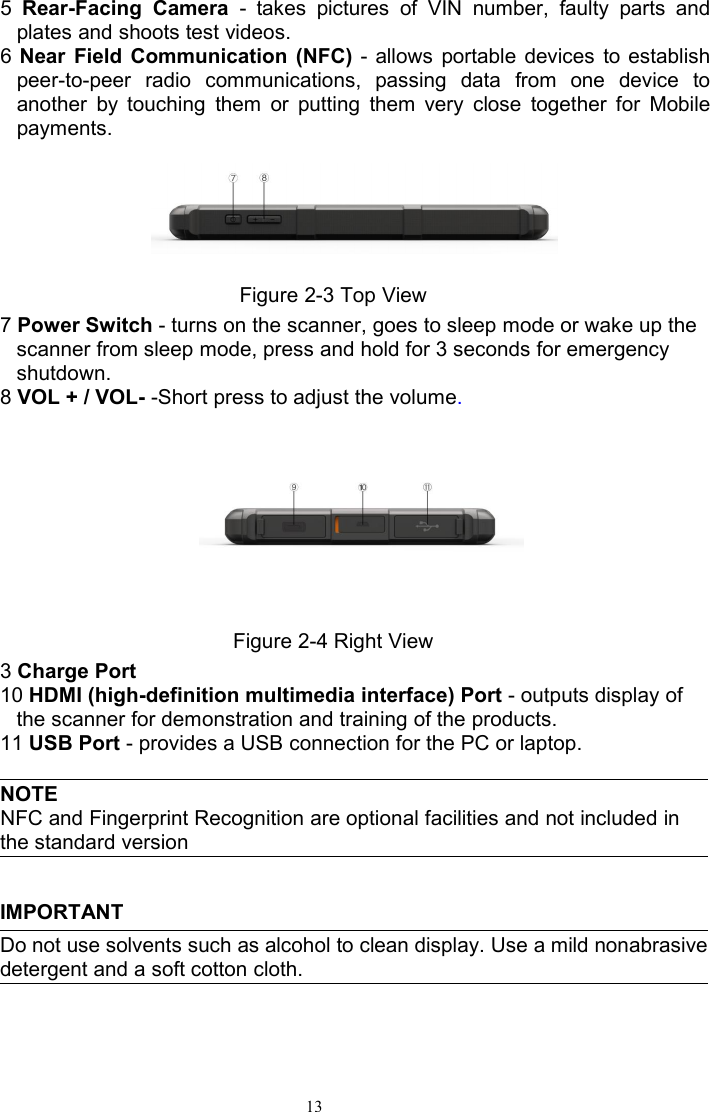

135Rear-Facing Camera - takes pictures of VIN number, faulty parts andplates and shoots test videos.6Near Field Communication (NFC) - allows portable devices to establishpeer-to-peer radio communications, passing data from one device toanother by touching them or putting them very close together for Mobilepayments.Figure 2-3 Top View7Power Switch - turns on the scanner, goes to sleep mode or wake up thescanner from sleep mode, press and hold for 3 seconds for emergencyshutdown.8VOL + / VOL- -Short press to adjust the volume.Figure 2-4 Right View3Charge Port10 HDMI (high-definition multimedia interface) Port - outputs display ofthe scanner for demonstration and training of the products.11 USB Port - provides a USB connection for the PC or laptop.NOTENFC and Fingerprint Recognition are optional facilities and not included inthe standard versionIMPORTANTDo not use solvents such as alcohol to clean display. Use a mild nonabrasivedetergent and a soft cotton cloth.

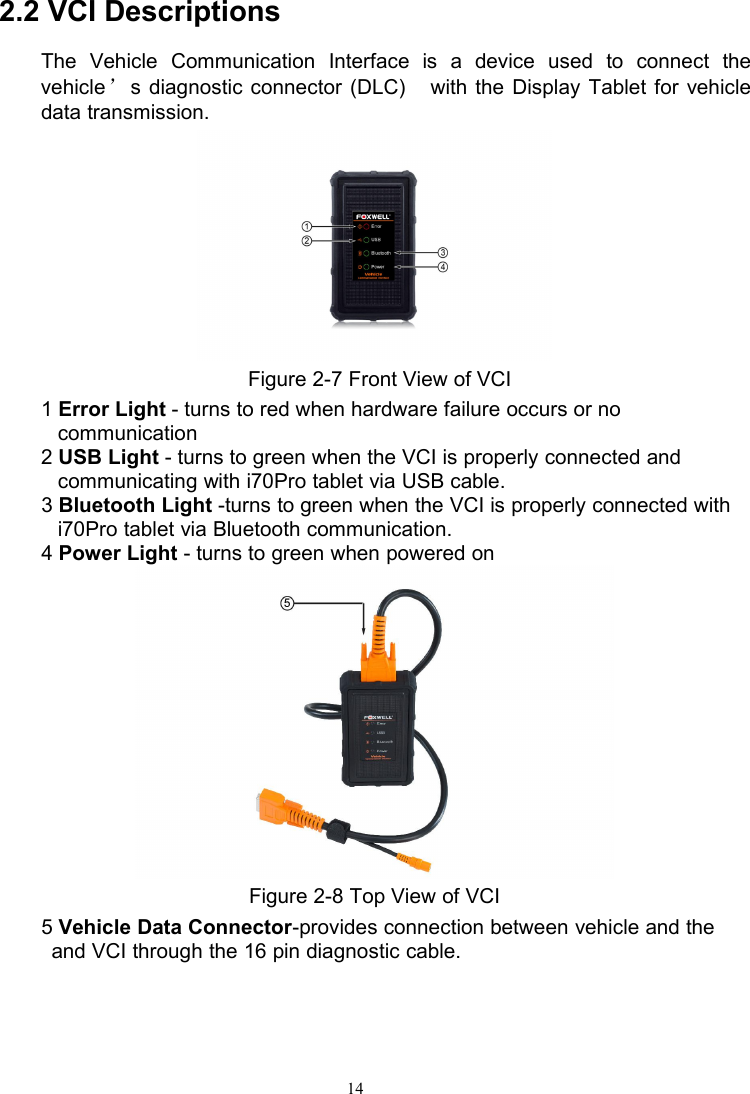

142.2 VCI DescriptionsThe Vehicle Communication Interface is a device used to connect thevehicle ’s diagnostic connector (DLC) with the Display Tablet for vehicledata transmission.Figure 2-7 Front View of VCI1Error Light - turns to red when hardware failure occurs or nocommunication2USB Light - turns to green when the VCI is properly connected andcommunicating with i70Pro tablet via USB cable.3Bluetooth Light -turns to green when the VCI is properly connected withi70Pro tablet via Bluetooth communication.4Power Light - turns to green when powered onFigure 2-8 Top View of VCI5Vehicle Data Connector-provides connection between vehicle and theand VCI through the 16 pin diagnostic cable.

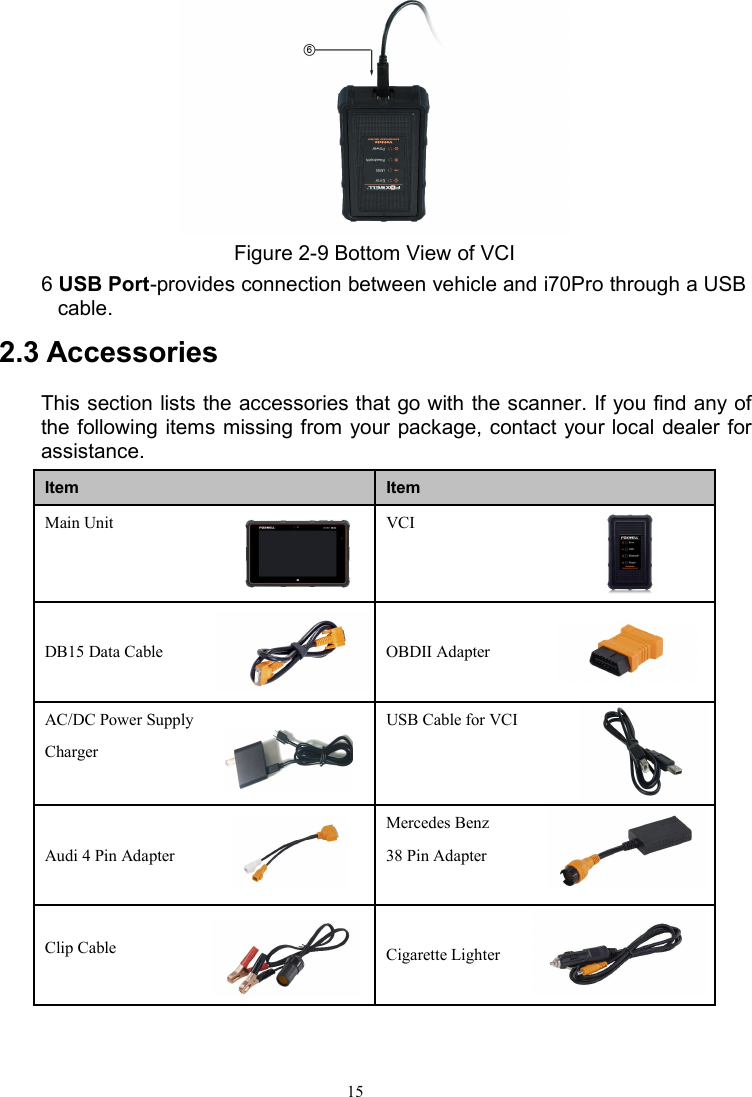

15Figure 2-9 Bottom View of VCI6USB Port-provides connection between vehicle and i70Pro through a USBcable.2.3 AccessoriesThis section lists the accessories that go with the scanner. If you find any ofthe following items missing from your package, contact your local dealer forassistance.Item ItemMain UnitVCIDB15 Data Cable OBDII AdapterAC/DC Power SupplyChargerUSB Cable for VCIAudi 4 Pin AdapterMercedes Benz38 Pin AdapterClip Cable Cigarette Lighter

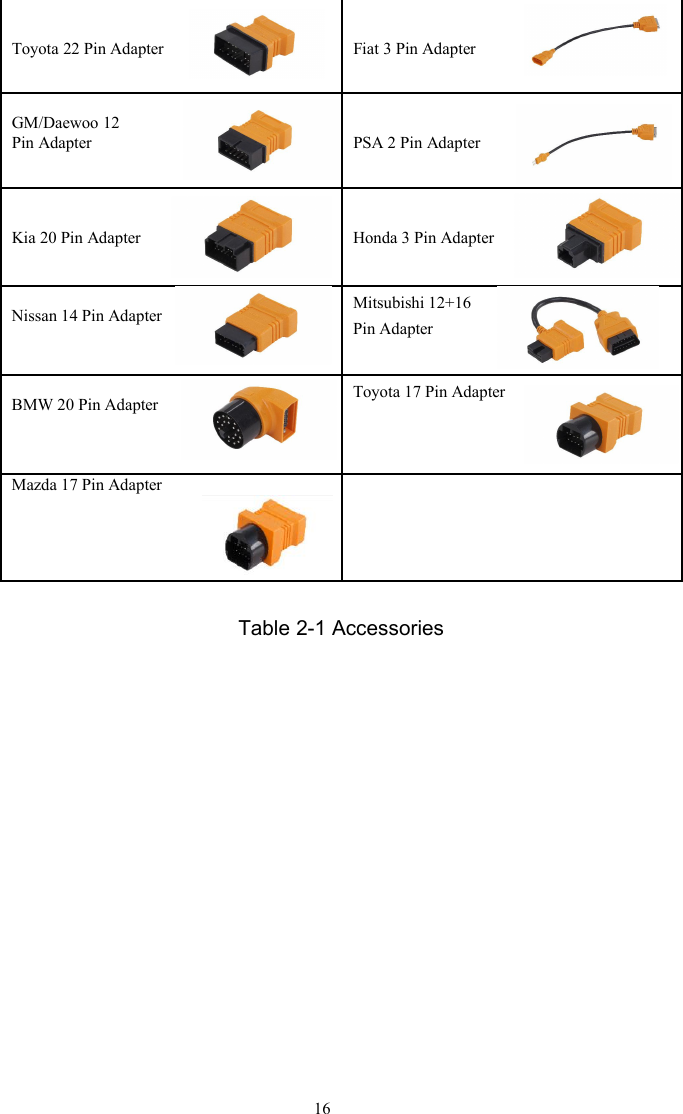

16Toyota 22 Pin Adapter Fiat 3 Pin AdapterGM/Daewoo 12Pin Adapter PSA 2 Pin AdapterKia 20 Pin Adapter Honda 3 Pin AdapterNissan 14 Pin Adapter Mitsubishi 12+16Pin AdapterBMW 20 Pin Adapter Toyota 17 Pin AdapterMazda 17 Pin AdapterTable 2-1 Accessories

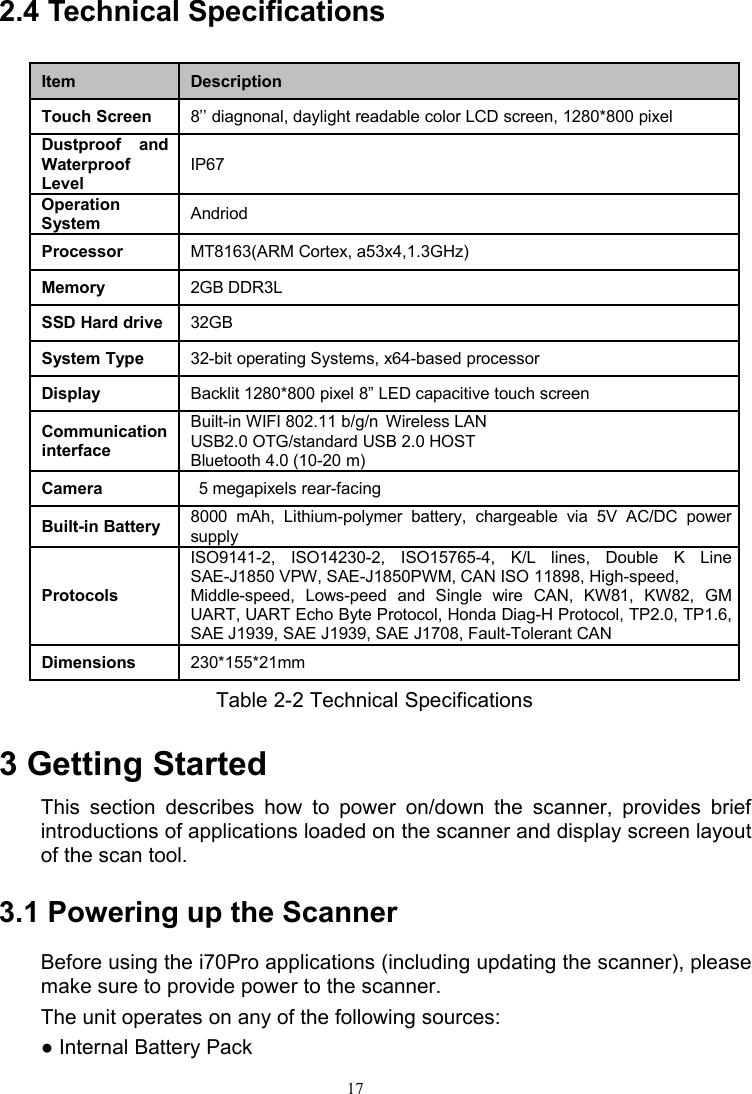

172.4 Technical SpecificationsTable 2-2 Technical Specifications3 Getting StartedThis section describes how to power on/down the scanner, provides briefintroductions of applications loaded on the scanner and display screen layoutof the scan tool.3.1 Powering up the ScannerBefore using the i70Pro applications (including updating the scanner), pleasemake sure to provide power to the scanner.The unit operates on any of the following sources:● Internal Battery PackItem DescriptionTouch Screen 8’’ diagnonal, daylight readable color LCD screen, 1280*800 pixelDustproof andWaterproofLevelIP67OperationSystem AndriodProcessor MT8163(ARM Cortex, a53x4,1.3GHz)Memory 2GB DDR3LSSD Hard drive 32GBSystem Type 32-bit operating Systems, x64-based processorDisplay Backlit 1280*800 pixel 8” LED capacitive touch screenCommunicationinterfaceBuilt-in WIFI 802.11 b/g/n Wireless LANUSB2.0 OTG/standard USB 2.0 HOSTBluetooth 4.0 (10-20 m)Camera 5 megapixels rear-facingBuilt-in Battery 8000 mAh, Lithium-polymer battery, chargeable via 5V AC/DC powersupplyProtocolsISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K LineSAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, High-speed,Middle-speed, Lows-peed and Single wire CAN, KW81, KW82, GMUART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6,SAE J1939, SAE J1939, SAE J1708, Fault-Tolerant CANDimensions 230*155*21mm

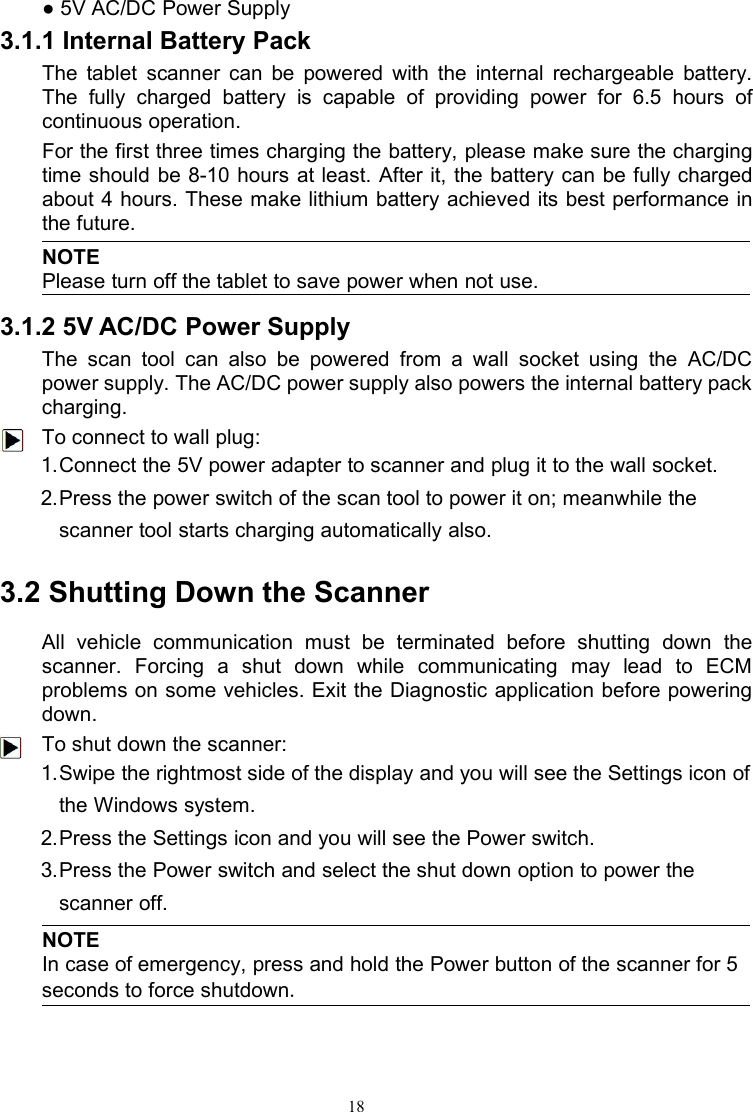

18● 5V AC/DC Power Supply3.1.1 Internal Battery PackThe tablet scanner can be powered with the internal rechargeable battery.The fully charged battery is capable of providing power for 6.5 hours ofcontinuous operation.For the first three times charging the battery, please make sure the chargingtime should be 8-10 hours at least. After it, the battery can be fully chargedabout 4 hours. These make lithium battery achieved its best performance inthe future.NOTEPlease turn off the tablet to save power when not use.3.1.2 5V AC/DC Power SupplyThe scan tool can also be powered from a wall socket using the AC/DCpower supply. The AC/DC power supply also powers the internal battery packcharging.To connect to wall plug:1.Connect the 5V power adapter to scanner and plug it to the wall socket.2.Press the power switch of the scan tool to power it on; meanwhile thescanner tool starts charging automatically also.3.2 Shutting Down the ScannerAll vehicle communication must be terminated before shutting down thescanner. Forcing a shut down while communicating may lead to ECMproblems on some vehicles. Exit the Diagnostic application before poweringdown.To shut down the scanner:1.Swipe the rightmost side of the display and you will see the Settings icon ofthe Windows system.2.Press the Settings icon and you will see the Power switch.3.Press the Power switch and select the shut down option to power thescanner off.NOTEIn case of emergency, press and hold the Power button of the scanner for 5seconds to force shutdown.

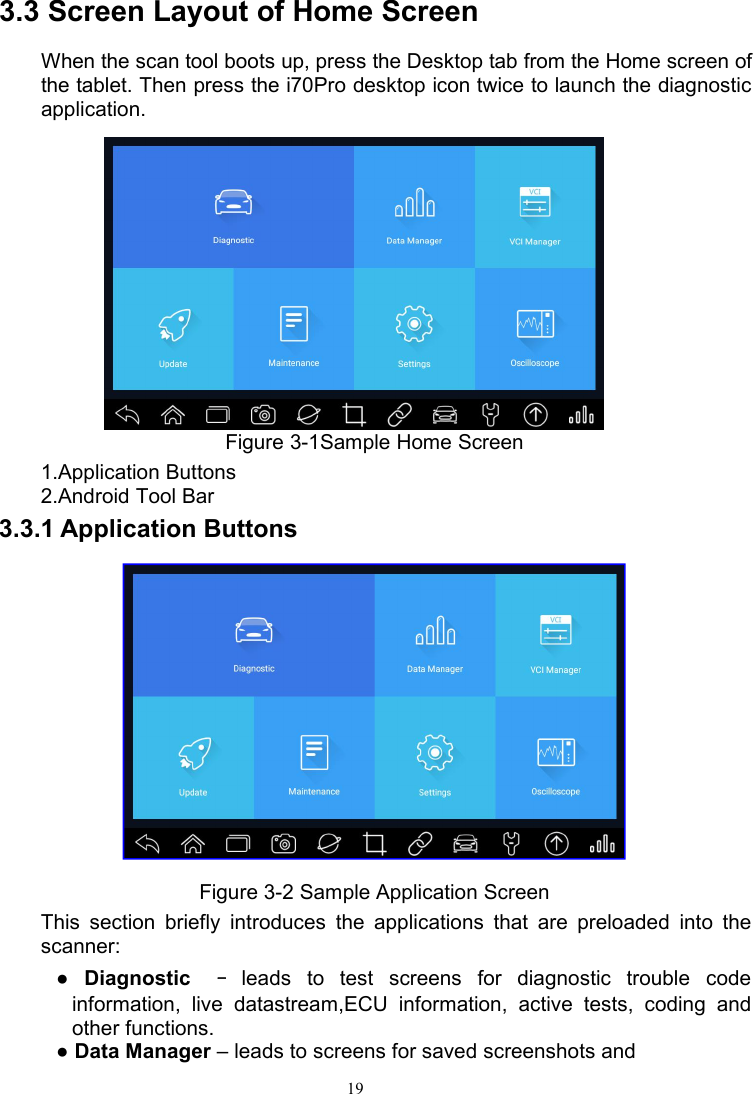

193.3 Screen Layout of Home ScreenWhen the scan tool boots up, press the Desktop tab from the Home screen ofthe tablet. Then press the i70Pro desktop icon twice to launch the diagnosticapplication.Figure 3-1Sample Home Screen1.Application Buttons2.Android Tool Bar3.3.1 Application ButtonsFigure 3-2 Sample Application ScreenThis section briefly introduces the applications that are preloaded into thescanner:●Diagnostic –leads to test screens for diagnostic trouble codeinformation, live datastream,ECU information, active tests, coding andother functions.●Data Manager – leads to screens for saved screenshots and

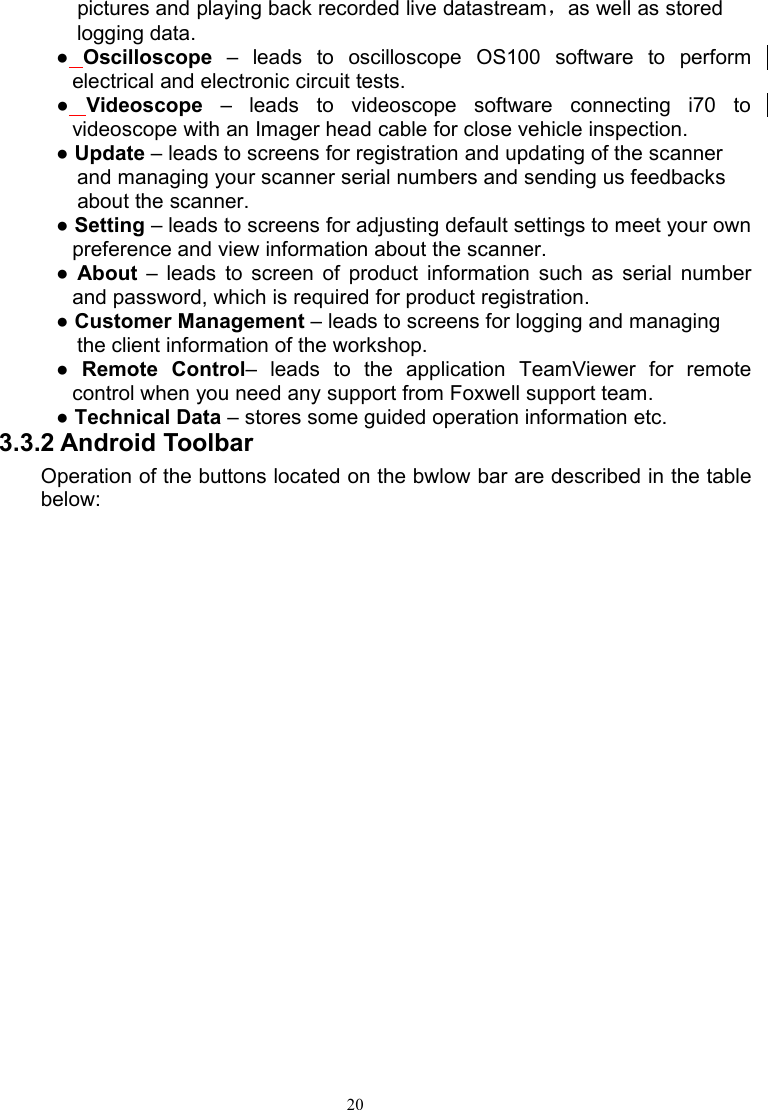

20pictures and playing back recorded live datastream，as well as storedlogging data.●Oscilloscope – leads to oscilloscope OS100 software to performelectrical and electronic circuit tests.●Videoscope – leads to videoscope software connecting i70 tovideoscope with an Imager head cable for close vehicle inspection.●Update – leads to screens for registration and updating of the scannerand managing your scanner serial numbers and sending us feedbacksabout the scanner.●Setting – leads to screens for adjusting default settings to meet your ownpreference and view information about the scanner.●About – leads to screen of product information such as serial numberand password, which is required for product registration.●Customer Management – leads to screens for logging and managingthe client information of the workshop.●Remote Control– leads to the application TeamViewer for remotecontrol when you need any support from Foxwell support team.●Technical Data – stores some guided operation information etc.3.3.2 Android ToolbarOperation of the buttons located on the bwlow bar are described in the tablebelow:

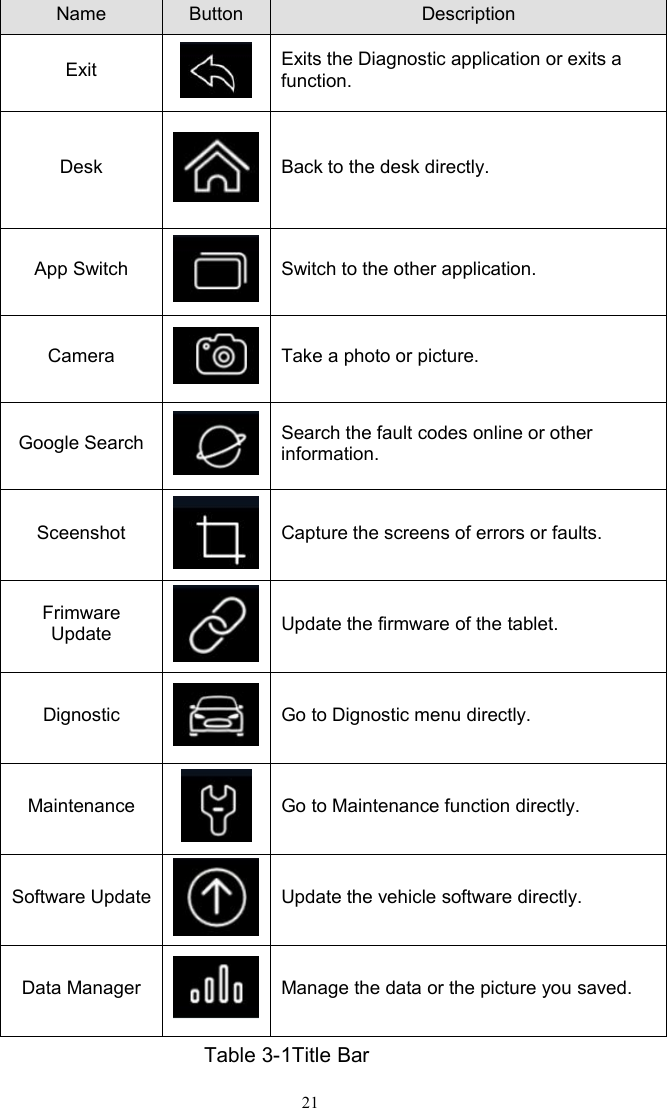

21Table 3-1Title BarName Button DescriptionExit Exits the Diagnostic application or exits afunction.Desk Back to the desk directly.App Switch Switch to the other application.Camera Take a photo or picture.Google Search Search the fault codes online or otherinformation.Sceenshot Capture the screens of errors or faults.FrimwareUpdate Update the firmware of the tablet.Dignostic Go to Dignostic menu directly.Maintenance Go to Maintenance function directly.Software Update Update the vehicle software directly.Data Manager Manage the data or the picture you saved.

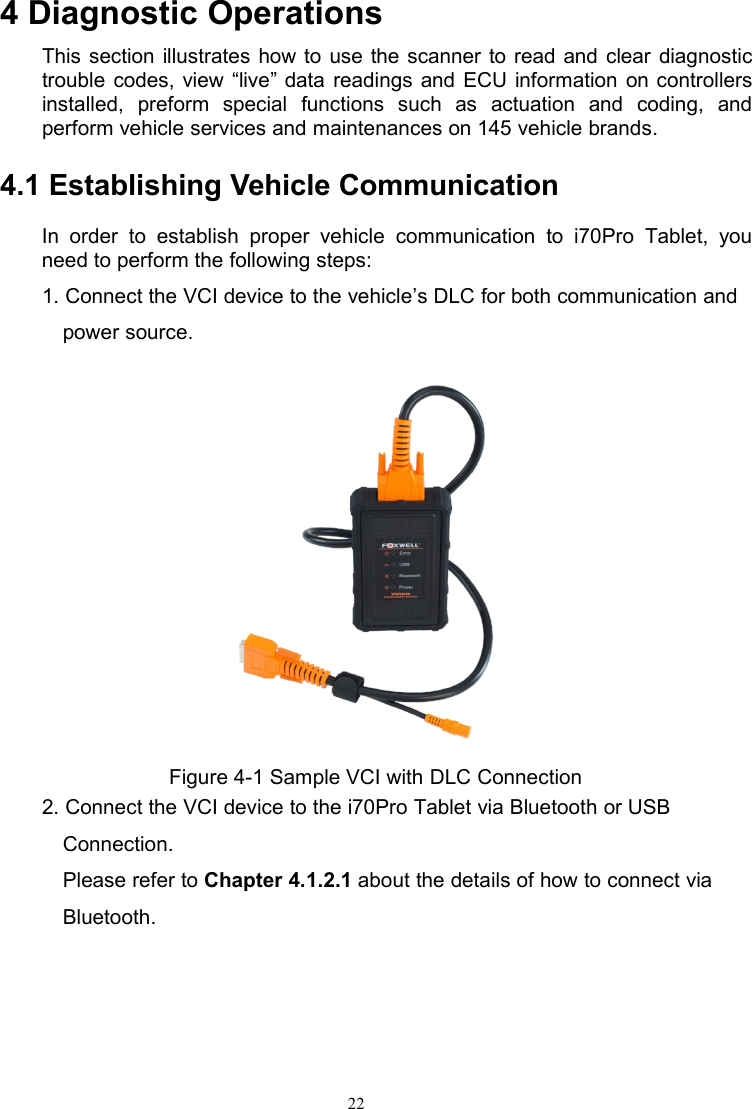

224 Diagnostic OperationsThis section illustrates how to use the scanner to read and clear diagnostictrouble codes, view “live” data readings and ECU information on controllersinstalled, preform special functions such as actuation and coding, andperform vehicle services and maintenances on 145 vehicle brands.4.1 Establishing Vehicle CommunicationIn order to establish proper vehicle communication to i70Pro Tablet, youneed to perform the following steps:1. Connect the VCI device to the vehicle’s DLC for both communication andpower source.Figure 4-1 Sample VCI with DLC Connection2. Connect the VCI device to the i70Pro Tablet via Bluetooth or USBConnection.Please refer to Chapter 4.1.2.1 about the details of how to connect viaBluetooth.

23Figure 4-2 Sample Bluetooth ConnectionPlease refer to Chapter 4.1.2.2 about the details of how to connect viaUSB cable.Figure 4-3 Sample USB Connection3.When these are done, check the VCI Communication Status Indicator buttonat the title bar, if the button turn to green, the i70Pro is ready to startvehicle diagnosis.4.1.2 VCI ConnectionThe VCI(Vehicle Communication Interface) supports two communicationmethods with the i70Pro tablet:

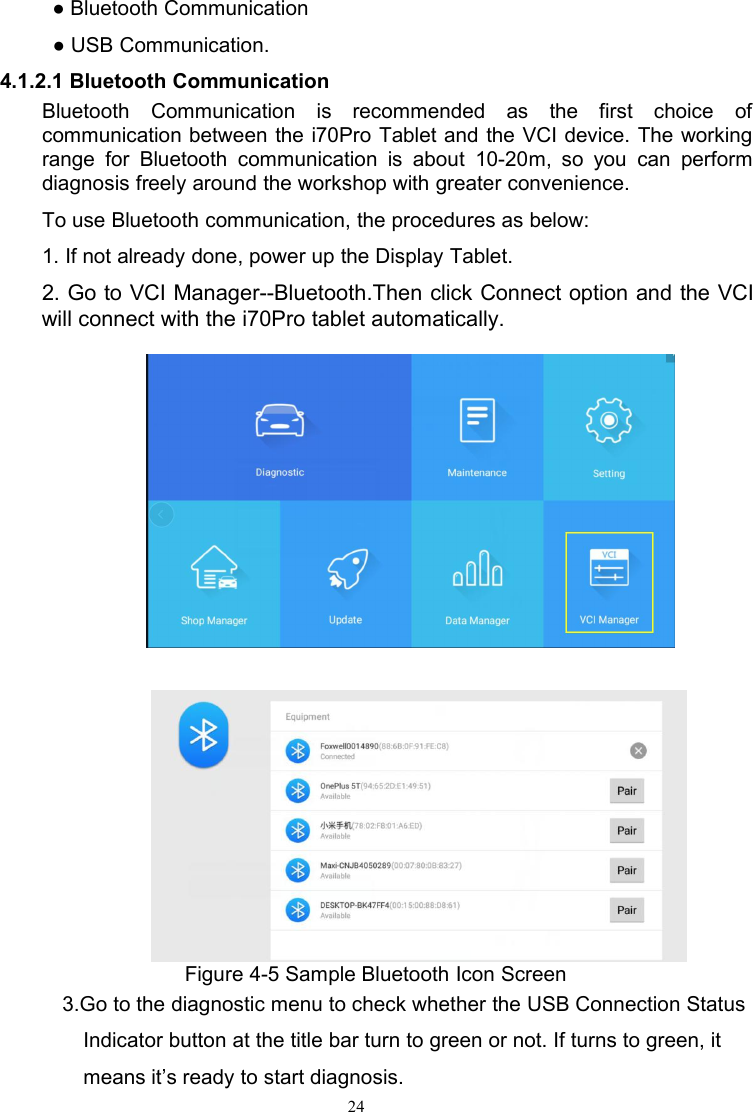

24● Bluetooth Communication● USB Communication.4.1.2.1 Bluetooth CommunicationBluetooth Communication is recommended as the first choice ofcommunication between the i70Pro Tablet and the VCI device. The workingrange for Bluetooth communication is about 10-20m, so you can performdiagnosis freely around the workshop with greater convenience.To use Bluetooth communication, the procedures as below:1. If not already done, power up the Display Tablet.2. Go to VCI Manager--Bluetooth.Then click Connect option and the VCIwill connect with the i70Pro tablet automatically.Figure 4-5 Sample Bluetooth Icon Screen3.Go to the diagnostic menu to check whether the USB Connection StatusIndicator button at the title bar turn to green or not. If turns to green, itmeans it’s ready to start diagnosis.

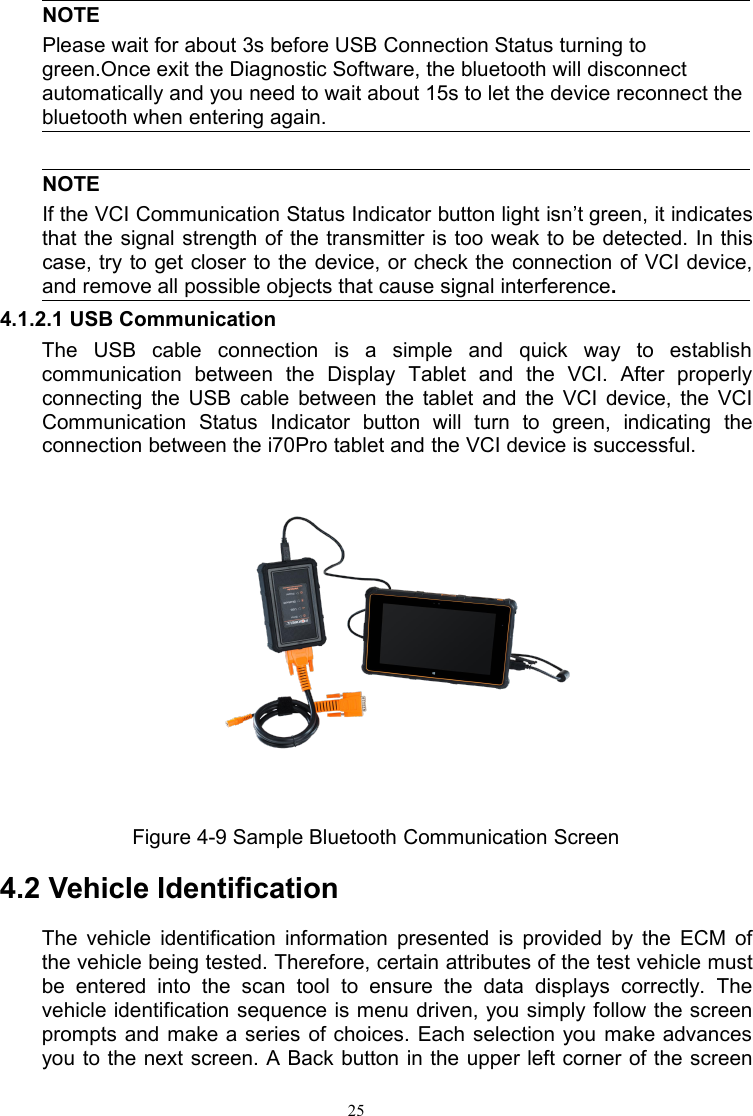

25NOTEPlease wait for about 3s before USB Connection Status turning togreen.Once exit the Diagnostic Software, the bluetooth will disconnectautomatically and you need to wait about 15s to let the device reconnect thebluetooth when entering again.NOTEIf the VCI Communication Status Indicator button light isn’t green, it indicatesthat the signal strength of the transmitter is too weak to be detected. In thiscase, try to get closer to the device, or check the connection of VCI device,and remove all possible objects that cause signal interference.4.1.2.1 USB CommunicationThe USB cable connection is a simple and quick way to establishcommunication between the Display Tablet and the VCI. After properlyconnecting the USB cable between the tablet and the VCI device, the VCICommunication Status Indicator button will turn to green, indicating theconnection between the i70Pro tablet and the VCI device is successful.Figure 4-9 Sample Bluetooth Communication Screen4.2 Vehicle IdentificationThe vehicle identification information presented is provided by the ECM ofthe vehicle being tested. Therefore, certain attributes of the test vehicle mustbe entered into the scan tool to ensure the data displays correctly. Thevehicle identification sequence is menu driven, you simply follow the screenprompts and make a series of choices. Each selection you make advancesyou to the next screen. A Back button in the upper left corner of the screen

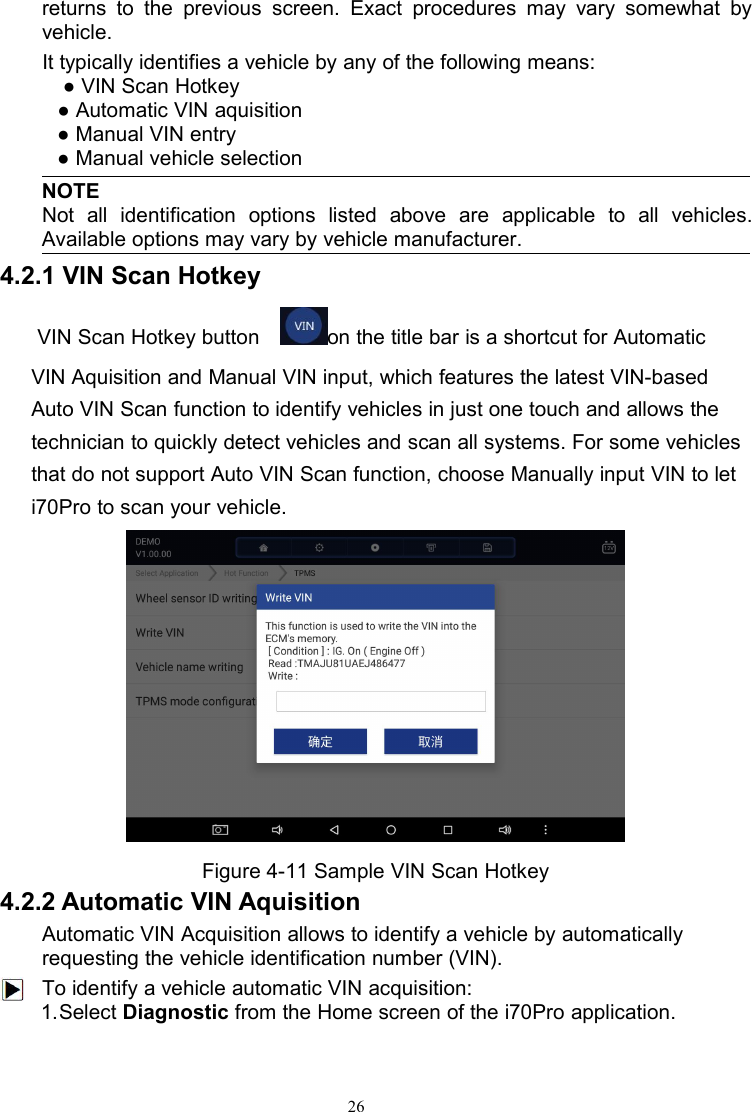

26returns to the previous screen. Exact procedures may vary somewhat byvehicle.It typically identifies a vehicle by any of the following means:● VIN Scan Hotkey● Automatic VIN aquisition● Manual VIN entry● Manual vehicle selectionNOTENot all identification options listed above are applicable to all vehicles.Available options may vary by vehicle manufacturer.4.2.1 VIN Scan HotkeyVIN Scan Hotkey button on the title bar is a shortcut for AutomaticVIN Aquisition and Manual VIN input, which features the latest VIN-basedAuto VIN Scan function to identify vehicles in just one touch and allows thetechnician to quickly detect vehicles and scan all systems. For some vehiclesthat do not support Auto VIN Scan function, choose Manually input VIN to leti70Pro to scan your vehicle.Figure 4-11 Sample VIN Scan Hotkey4.2.2 Automatic VIN AquisitionAutomatic VIN Acquisition allows to identify a vehicle by automaticallyrequesting the vehicle identification number (VIN).To identify a vehicle automatic VIN acquisition:1.Select Diagnostic from the Home screen of the i70Pro application.

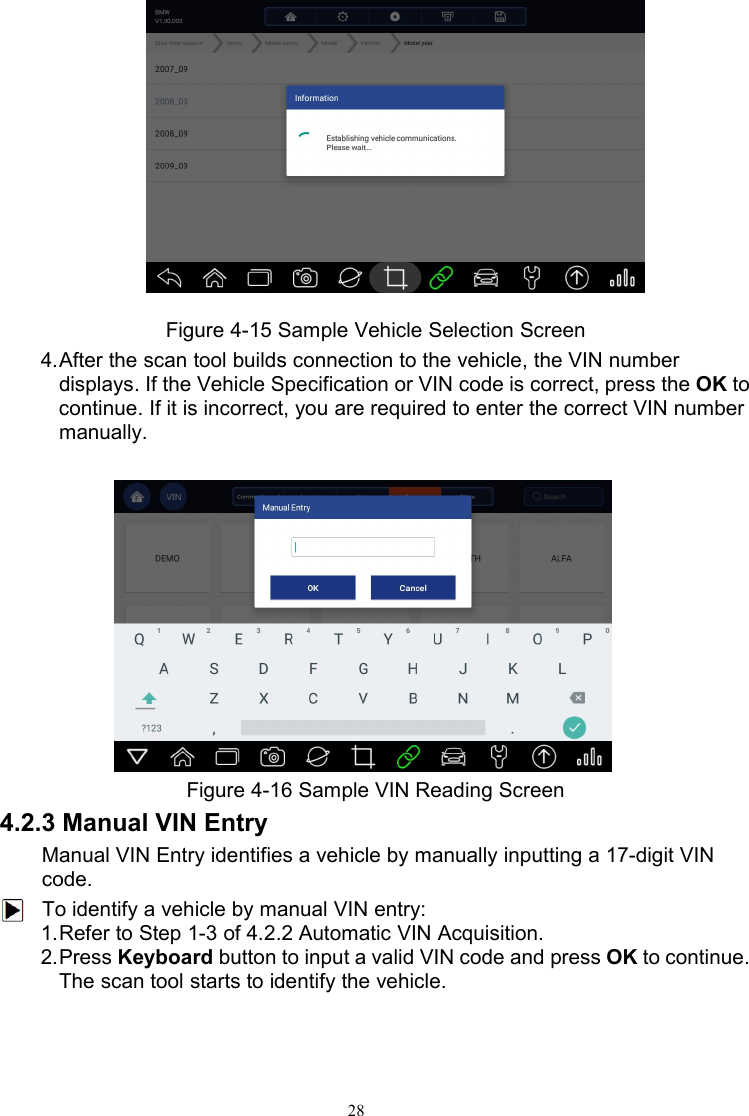

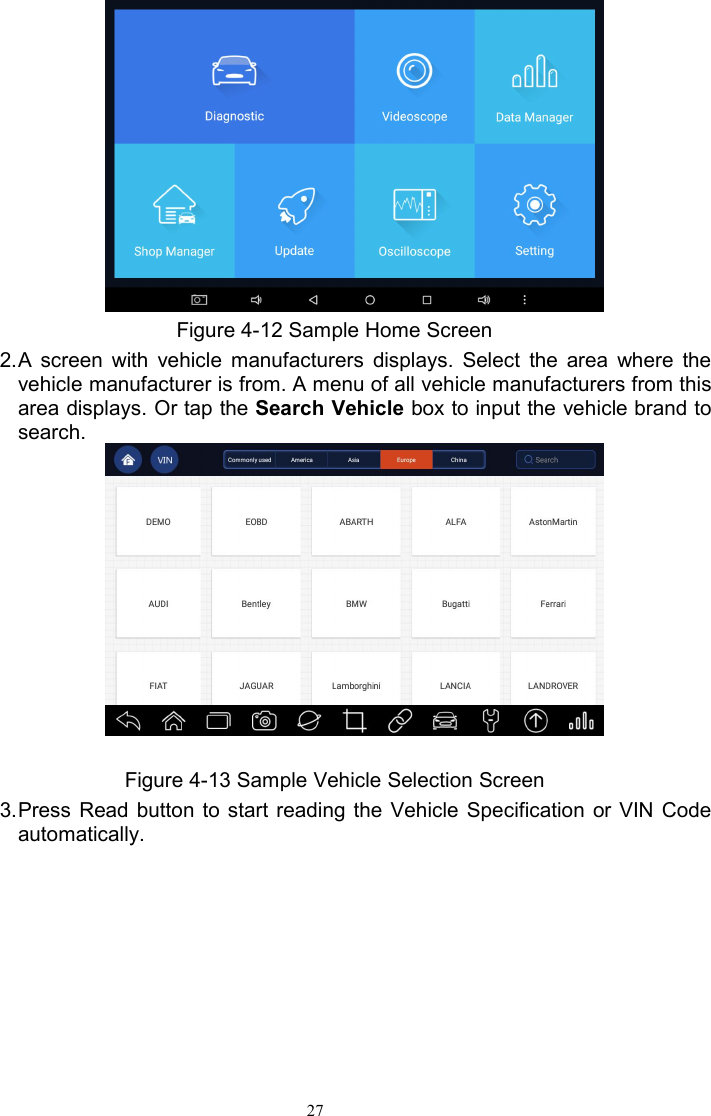

28Figure 4-15 Sample Vehicle Selection Screen4.After the scan tool builds connection to the vehicle, the VIN numberdisplays. If the Vehicle Specification or VIN code is correct, press the OK tocontinue. If it is incorrect, you are required to enter the correct VIN numbermanually.Figure 4-16 Sample VIN Reading Screen4.2.3 Manual VIN EntryManual VIN Entry identifies a vehicle by manually inputting a 17-digit VINcode.To identify a vehicle by manual VIN entry:1.Refer to Step 1-3 of 4.2.2 Automatic VIN Acquisition.2.Press Keyboard button to input a valid VIN code and press OK to continue.The scan tool starts to identify the vehicle.

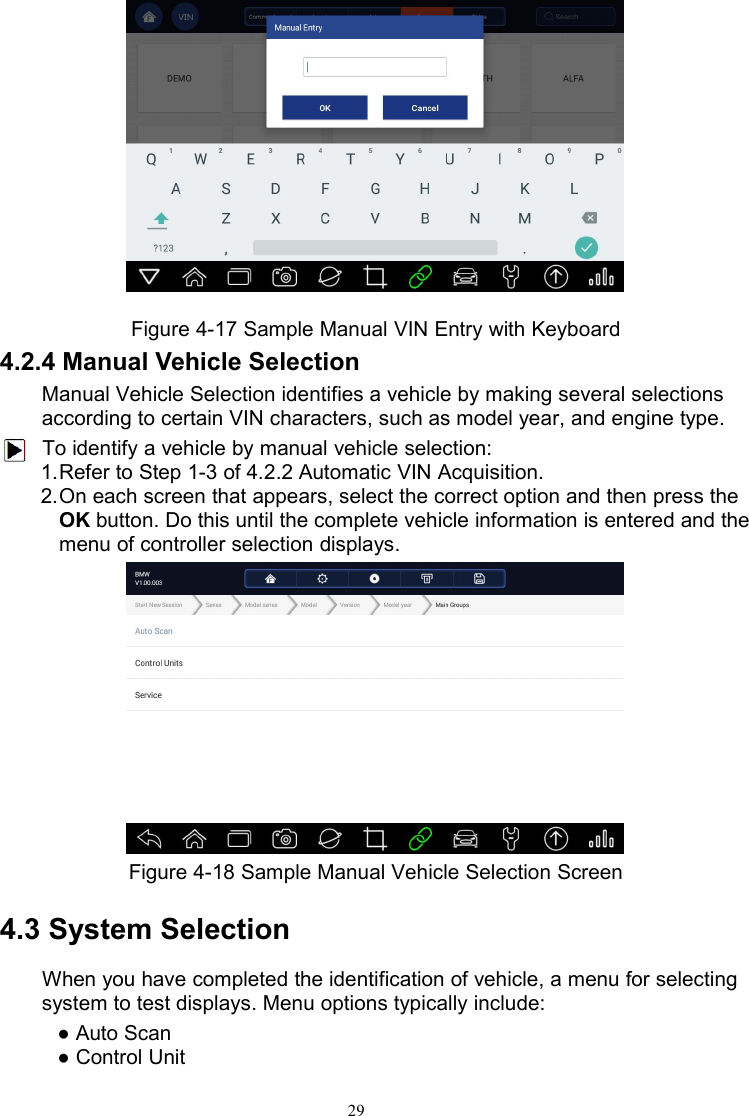

29Figure 4-17 Sample Manual VIN Entry with Keyboard4.2.4 Manual Vehicle SelectionManual Vehicle Selection identifies a vehicle by making several selectionsaccording to certain VIN characters, such as model year, and engine type.To identify a vehicle by manual vehicle selection:1.Refer to Step 1-3 of 4.2.2 Automatic VIN Acquisition.2.On each screen that appears, select the correct option and then press theOK button. Do this until the complete vehicle information is entered and themenu of controller selection displays.Figure 4-18 Sample Manual Vehicle Selection Screen4.3 System SelectionWhen you have completed the identification of vehicle, a menu for selectingsystem to test displays. Menu options typically include:● Auto Scan● Control Unit

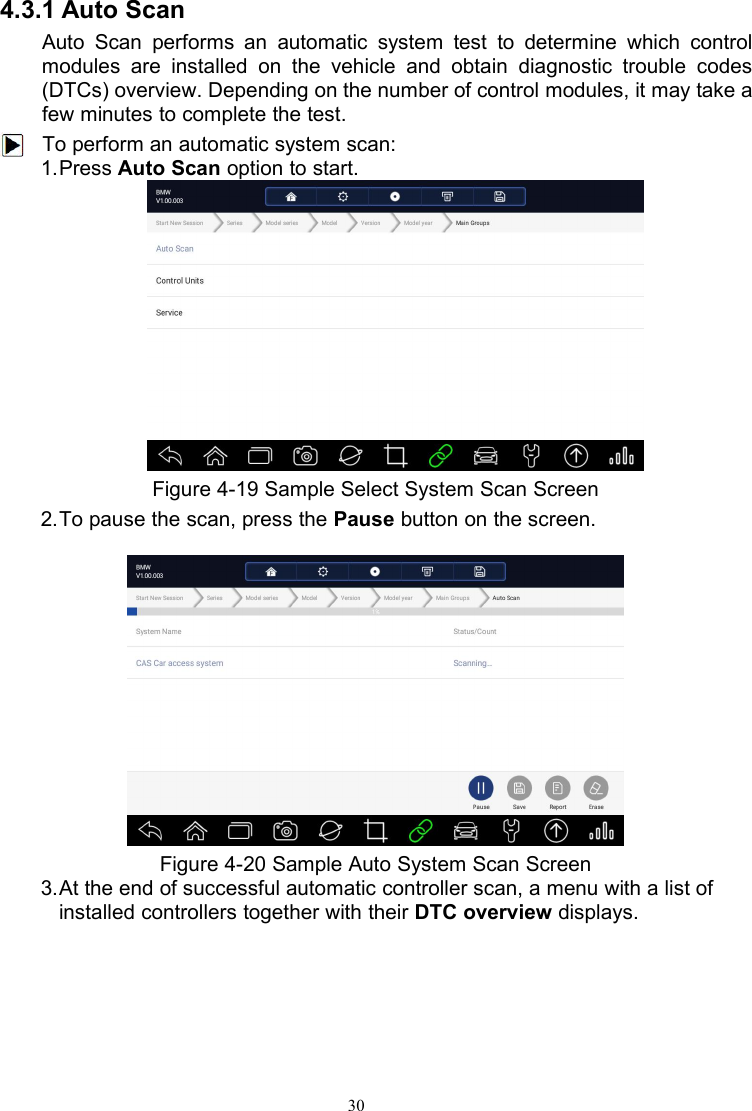

304.3.1 Auto ScanAuto Scan performs an automatic system test to determine which controlmodules are installed on the vehicle and obtain diagnostic trouble codes(DTCs) overview. Depending on the number of control modules, it may take afew minutes to complete the test.To perform an automatic system scan:1.Press Auto Scan option to start.Figure 4-19 Sample Select System Scan Screen2.To pause the scan, press the Pause button on the screen.Figure 4-20 Sample Auto System Scan Screen3.At the end of successful automatic controller scan, a menu with a list ofinstalled controllers together with their DTC overview displays.

31Figure 4-21 Sample Auto Scan Complete screen4.If there is diagnostic trouble code(s) detected in a control unit, press theReport button on the screen to view details of code information, and pressQuick Erase button to clear them.Figure 4-22 Sample Status Report screenFigure 4-23 Sample Quick Erase screen

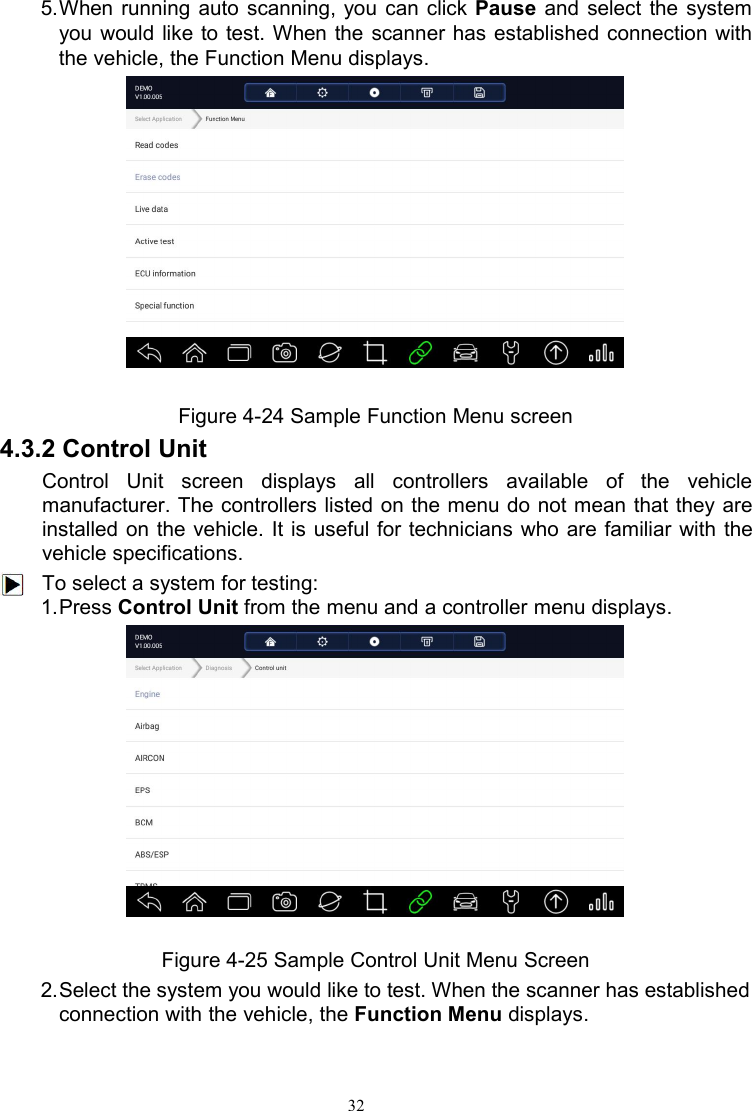

325.When running auto scanning, you can click Pause and select the systemyou would like to test. When the scanner has established connection withthe vehicle, the Function Menu displays.Figure 4-24 Sample Function Menu screen4.3.2 Control UnitControl Unit screen displays all controllers available of the vehiclemanufacturer. The controllers listed on the menu do not mean that they areinstalled on the vehicle. It is useful for technicians who are familiar with thevehicle specifications.To select a system for testing:1.Press Control Unit from the menu and a controller menu displays.Figure 4-25 Sample Control Unit Menu Screen2.Select the system you would like to test. When the scanner has establishedconnection with the vehicle, the Function Menu displays.

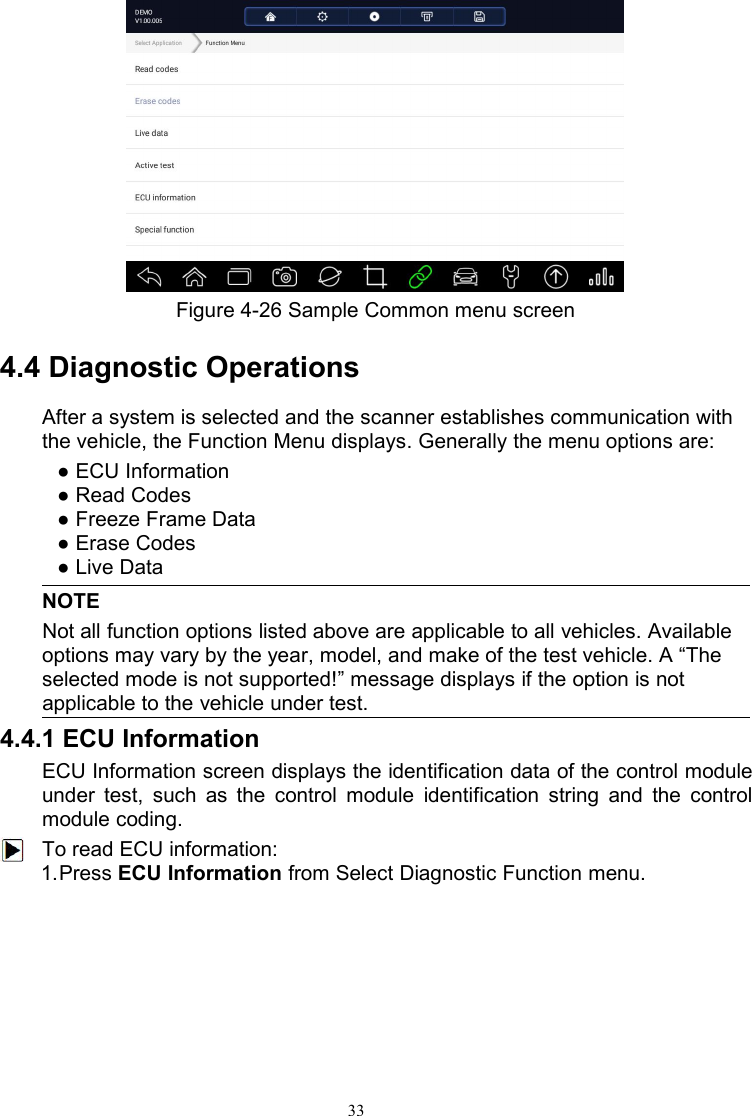

33Figure 4-26 Sample Common menu screen4.4 Diagnostic OperationsAfter a system is selected and the scanner establishes communication withthe vehicle, the Function Menu displays. Generally the menu options are:● ECU Information● Read Codes● Freeze Frame Data● Erase Codes● Live DataNOTENot all function options listed above are applicable to all vehicles. Availableoptions may vary by the year, model, and make of the test vehicle. A “Theselected mode is not supported!” message displays if the option is notapplicable to the vehicle under test.4.4.1 ECU InformationECU Information screen displays the identification data of the control moduleunder test, such as the control module identification string and the controlmodule coding.To read ECU information:1.Press ECU Information from Select Diagnostic Function menu.

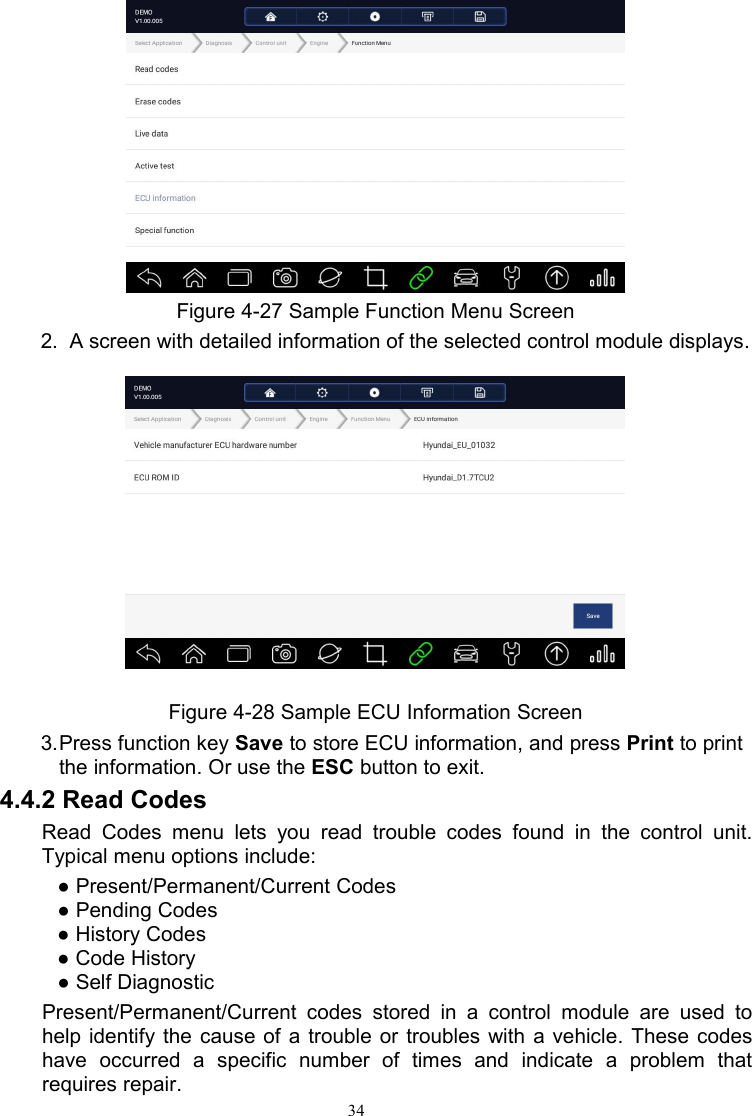

34Figure 4-27 Sample Function Menu Screen2. A screen with detailed information of the selected control module displays.Figure 4-28 Sample ECU Information Screen3.Press function key Save to store ECU information, and press Print to printthe information. Or use the ESC button to exit.4.4.2 Read CodesRead Codes menu lets you read trouble codes found in the control unit.Typical menu options include:● Present/Permanent/Current Codes● Pending Codes● History Codes● Code History● Self DiagnosticPresent/Permanent/Current codes stored in a control module are used tohelp identify the cause of a trouble or troubles with a vehicle. These codeshave occurred a specific number of times and indicate a problem thatrequires repair.

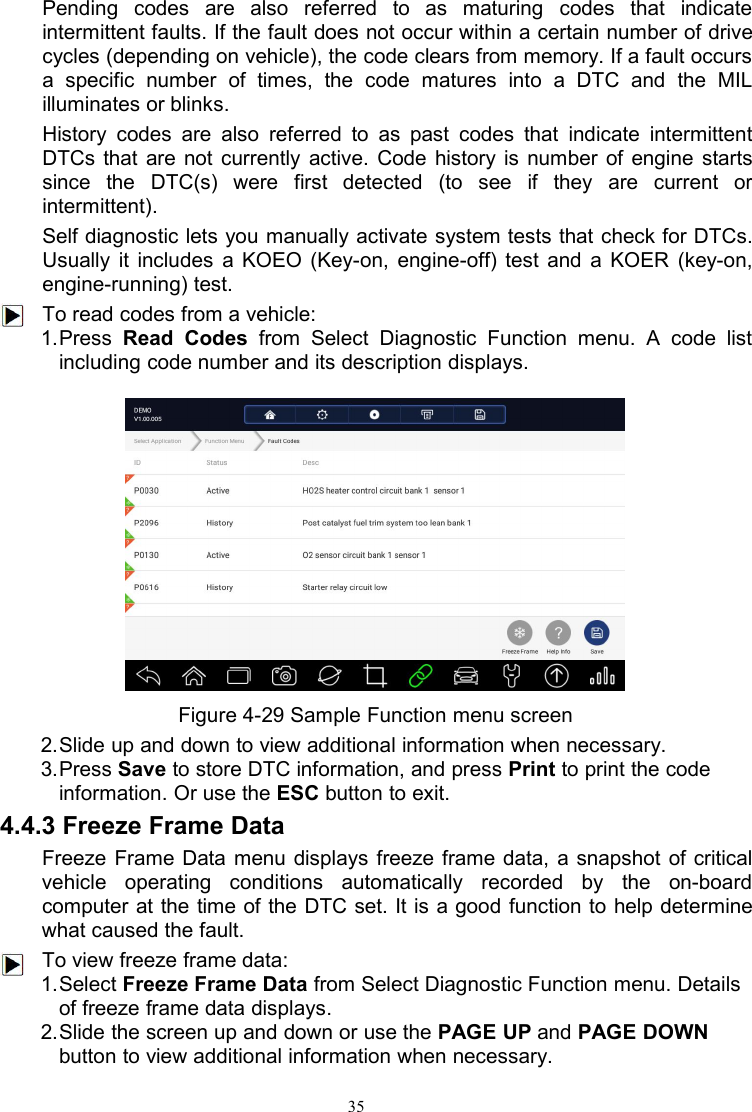

35Pending codes are also referred to as maturing codes that indicateintermittent faults. If the fault does not occur within a certain number of drivecycles (depending on vehicle), the code clears from memory. If a fault occursa specific number of times, the code matures into a DTC and the MILilluminates or blinks.History codes are also referred to as past codes that indicate intermittentDTCs that are not currently active. Code history is number of engine startssince the DTC(s) were first detected (to see if they are current orintermittent).Self diagnostic lets you manually activate system tests that check for DTCs.Usually it includes a KOEO (Key-on, engine-off) test and a KOER (key-on,engine-running) test.To read codes from a vehicle:1.Press Read Codes from Select Diagnostic Function menu. A code listincluding code number and its description displays.Figure 4-29 Sample Function menu screen2.Slide up and down to view additional information when necessary.3.Press Save to store DTC information, and press Print to print the codeinformation. Or use the ESC button to exit.4.4.3 Freeze Frame DataFreeze Frame Data menu displays freeze frame data, a snapshot of criticalvehicle operating conditions automatically recorded by the on-boardcomputer at the time of the DTC set. It is a good function to help determinewhat caused the fault.To view freeze frame data:1.Select Freeze Frame Data from Select Diagnostic Function menu. Detailsof freeze frame data displays.2.Slide the screen up and down or use the PAGE UP and PAGE DOWNbutton to view additional information when necessary.

363.Press function key Save to store freeze frame information, and press Printto print the freeze frame data. Or use the ESC button to exit.4.4.4 Erase CodesErase Codes menu lets you to clear all current and stored DTCs from aselected control module. Also it erases all temporary ECU information,including freeze frame. So make sure that the selected system arecompletely checked and serviced by technicians and no vital information willbe lost before clearing codes.NOTE● To clear codes, make sure that the ignition key is switched to ON with theengine off.● Erase Codes does not fix the problem that caused the fault! DTCs shouldonly be erased after correcting the condition(s) that caused them.To clear codes:1.Press Erase Codes from Select Diagnostic Function menu.Figure 4-31 Sample Function Menu Screen2.Follow the on-screen instructions and answer questions about the vehiclebeing tested to complete the procedure.

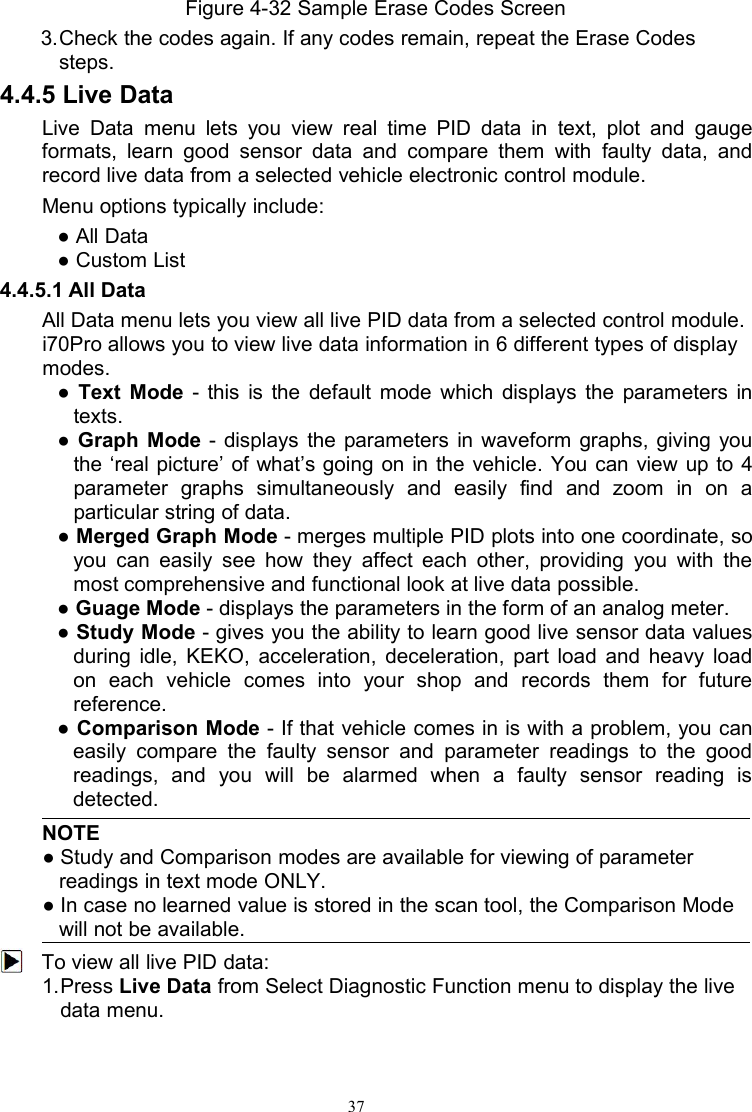

37Figure 4-32 Sample Erase Codes Screen3.Check the codes again. If any codes remain, repeat the Erase Codessteps.4.4.5 Live DataLive Data menu lets you view real time PID data in text, plot and gaugeformats, learn good sensor data and compare them with faulty data, andrecord live data from a selected vehicle electronic control module.Menu options typically include:● All Data● Custom List4.4.5.1 All DataAll Data menu lets you view all live PID data from a selected control module.i70Pro allows you to view live data information in 6 different types of displaymodes.●Text Mode - this is the default mode which displays the parameters intexts.●Graph Mode - displays the parameters in waveform graphs, giving youthe ‘real picture’ of what’s going on in the vehicle. You can view up to 4parameter graphs simultaneously and easily find and zoom in on aparticular string of data.●Merged Graph Mode - merges multiple PID plots into one coordinate, soyou can easily see how they affect each other, providing you with themost comprehensive and functional look at live data possible.●Guage Mode - displays the parameters in the form of an analog meter.●Study Mode - gives you the ability to learn good live sensor data valuesduring idle, KEKO, acceleration, deceleration, part load and heavy loadon each vehicle comes into your shop and records them for futurereference.●Comparison Mode - If that vehicle comes in is with a problem, you caneasily compare the faulty sensor and parameter readings to the goodreadings, and you will be alarmed when a faulty sensor reading isdetected.NOTE● Study and Comparison modes are available for viewing of parameterreadings in text mode ONLY.● In case no learned value is stored in the scan tool, the Comparison Modewill not be available.To view all live PID data:1.Press Live Data from Select Diagnostic Function menu to display the livedata menu.

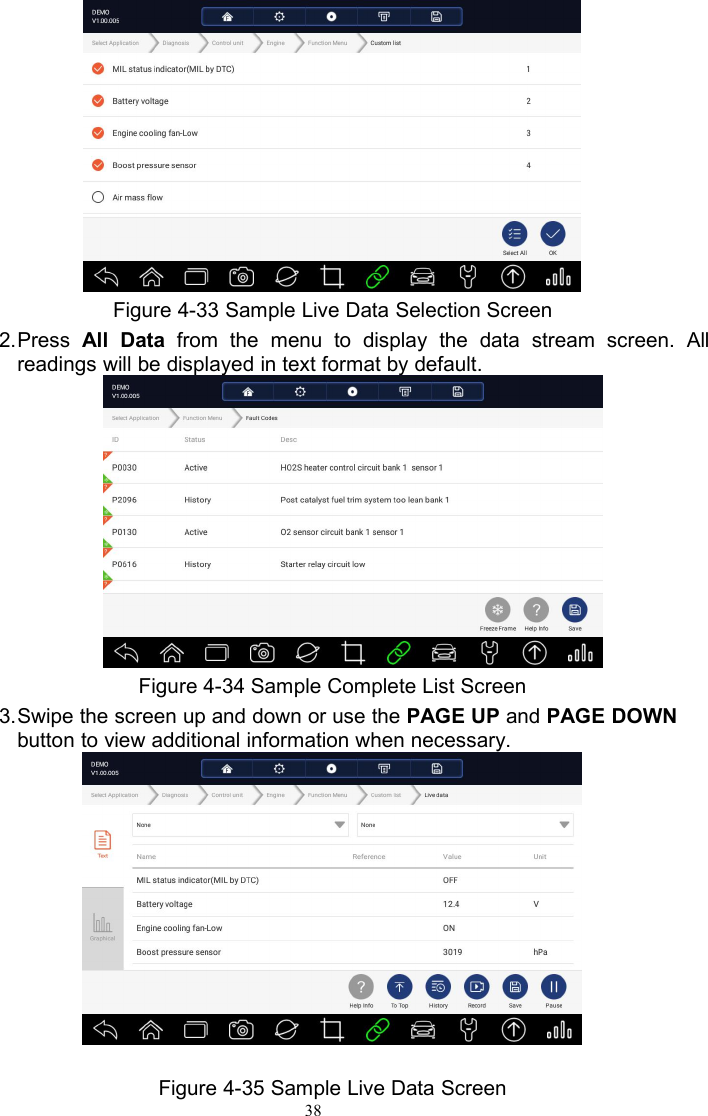

38Figure 4-33 Sample Live Data Selection Screen2.Press All Data from the menu to display the data stream screen. Allreadings will be displayed in text format by default.Figure 4-34 Sample Complete List Screen3.Swipe the screen up and down or use the PAGE UP and PAGE DOWNbutton to view additional information when necessary.Figure 4-35 Sample Live Data Screen

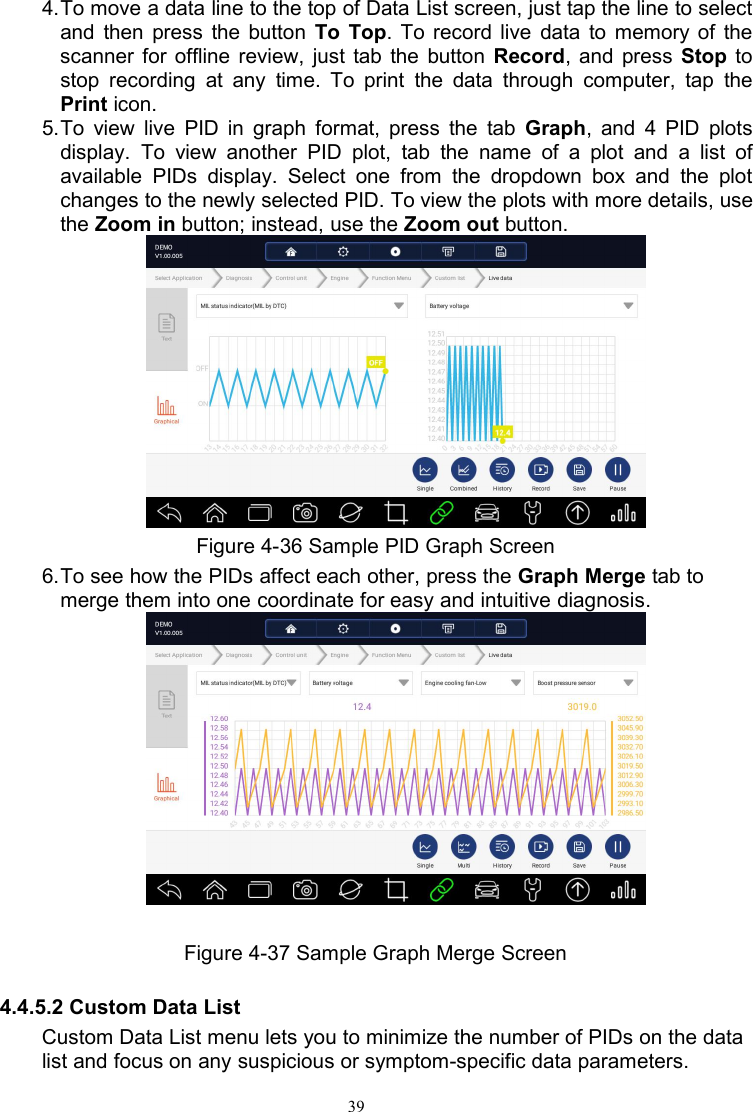

394.To move a data line to the top of Data List screen, just tap the line to selectand then press the button To Top. To record live data to memory of thescanner for offline review, just tab the button Record, and press Stop tostop recording at any time. To print the data through computer, tap thePrint icon.5.To view live PID in graph format, press the tab Graph, and 4 PID plotsdisplay. To view another PID plot, tab the name of a plot and a list ofavailable PIDs display. Select one from the dropdown box and the plotchanges to the newly selected PID. To view the plots with more details, usethe Zoom in button; instead, use the Zoom out button.Figure 4-36 Sample PID Graph Screen6.To see how the PIDs affect each other, press the Graph Merge tab tomerge them into one coordinate for easy and intuitive diagnosis.Figure 4-37 Sample Graph Merge Screen4.4.5.2 Custom Data ListCustom Data List menu lets you to minimize the number of PIDs on the datalist and focus on any suspicious or symptom-specific data parameters.

40To create a custom data list:1.Press Custom List from the menu to display all available parameters fromthe selected control module.Figure 4-39 Sample Live Data Screen2.The custom data stream selection screen displays. Tap the lines you wishto select.Figure 4-40 Sample Custom List Selection ScreenNOTETo deselect an item, tap the line again. Alternatively, tap SELECT ALL orCLEAR ALL to select or deselect all items at once.3.Press the OK button to complete the selection, and all selected parametersdisplay.

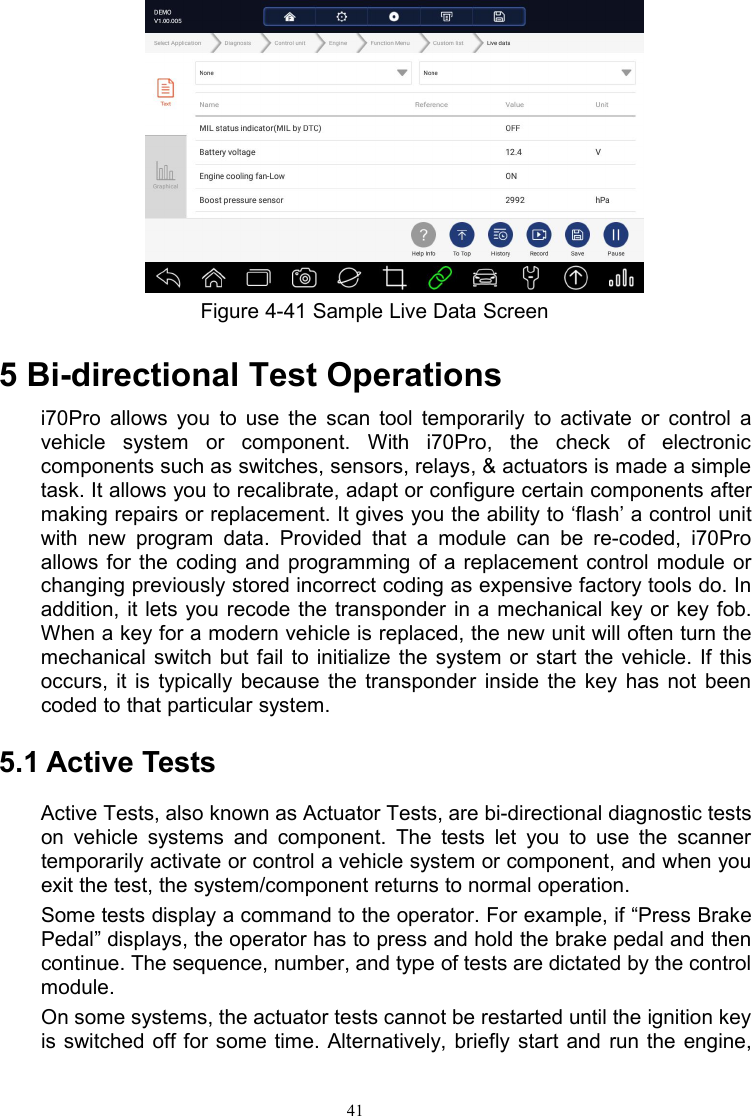

41Figure 4-41 Sample Live Data Screen5 Bi-directional Test Operationsi70Pro allows you to use the scan tool temporarily to activate or control avehicle system or component. With i70Pro, the check of electroniccomponents such as switches, sensors, relays, & actuators is made a simpletask. It allows you to recalibrate, adapt or configure certain components aftermaking repairs or replacement. It gives you the ability to ‘flash’ a control unitwith new program data. Provided that a module can be re-coded, i70Proallows for the coding and programming of a replacement control module orchanging previously stored incorrect coding as expensive factory tools do. Inaddition, it lets you recode the transponder in a mechanical key or key fob.When a key for a modern vehicle is replaced, the new unit will often turn themechanical switch but fail to initialize the system or start the vehicle. If thisoccurs, it is typically because the transponder inside the key has not beencoded to that particular system.5.1 Active TestsActive Tests, also known as Actuator Tests, are bi-directional diagnostic testson vehicle systems and component. The tests let you to use the scannertemporarily activate or control a vehicle system or component, and when youexit the test, the system/component returns to normal operation.Some tests display a command to the operator. For example, if “Press BrakePedal” displays, the operator has to press and hold the brake pedal and thencontinue. The sequence, number, and type of tests are dictated by the controlmodule.On some systems, the actuator tests cannot be restarted until the ignition keyis switched off for some time. Alternatively, briefly start and run the engine,

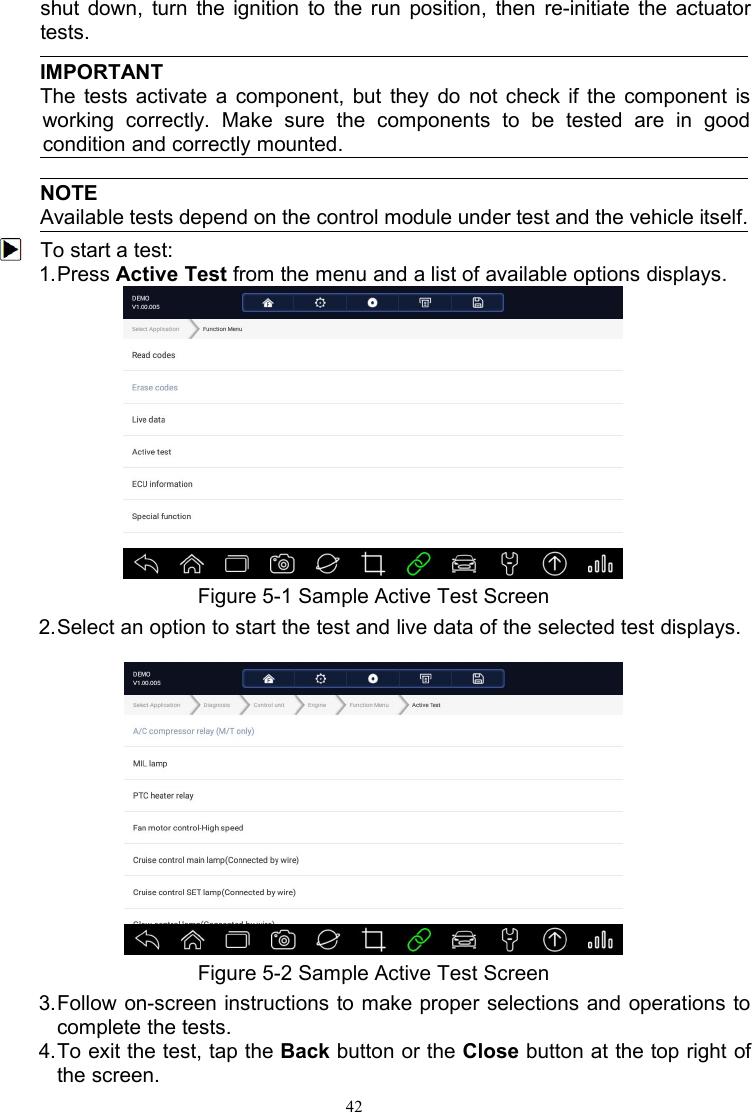

42shut down, turn the ignition to the run position, then re-initiate the actuatortests.IMPORTANTThe tests activate a component, but they do not check if the component isworking correctly. Make sure the components to be tested are in goodcondition and correctly mounted.NOTEAvailable tests depend on the control module under test and the vehicle itself.To start a test:1.Press Active Test from the menu and a list of available options displays.Figure 5-1 Sample Active Test Screen2.Select an option to start the test and live data of the selected test displays.Figure 5-2 Sample Active Test Screen3.Follow on-screen instructions to make proper selections and operations tocomplete the tests.4.To exit the test, tap the Back button or the Close button at the top right ofthe screen.

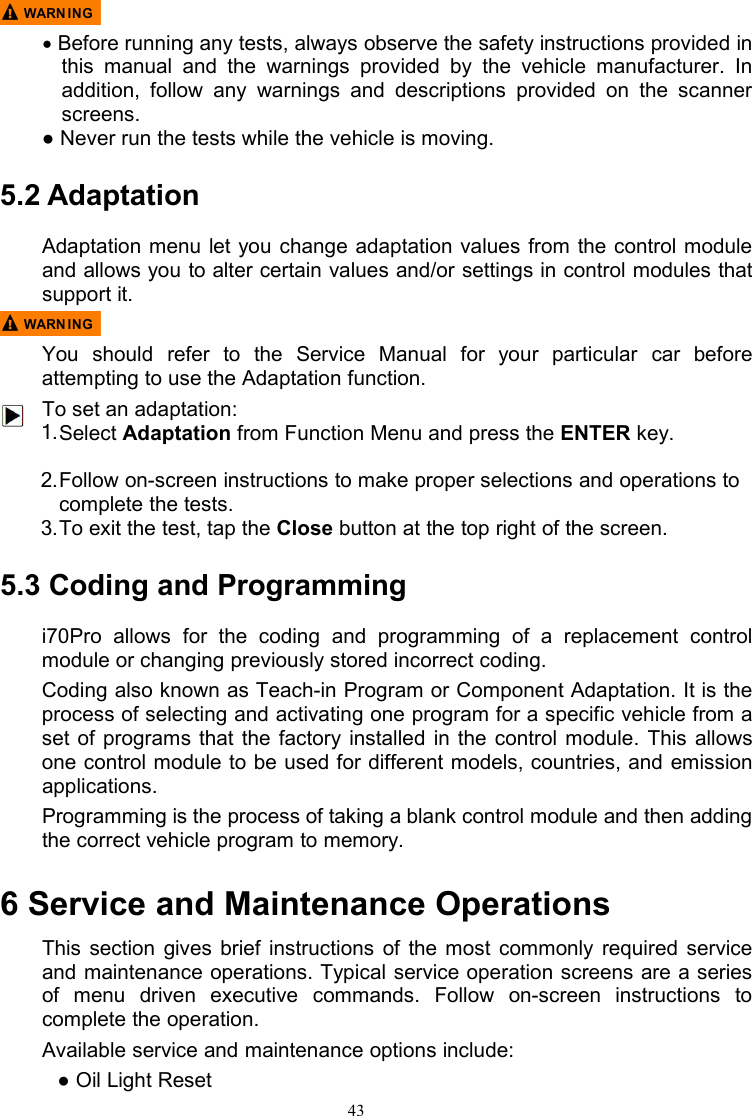

43●Before running any tests, always observe the safety instructions provided inthis manual and the warnings provided by the vehicle manufacturer. Inaddition, follow any warnings and descriptions provided on the scannerscreens.● Never run the tests while the vehicle is moving.5.2 AdaptationAdaptation menu let you change adaptation values from the control moduleand allows you to alter certain values and/or settings in control modules thatsupport it.You should refer to the Service Manual for your particular car beforeattempting to use the Adaptation function.To set an adaptation:1.Select Adaptation from Function Menu and press the ENTER key.2.Follow on-screen instructions to make proper selections and operations tocomplete the tests.3.To exit the test, tap the Close button at the top right of the screen.5.3 Coding and Programmingi70Pro allows for the coding and programming of a replacement controlmodule or changing previously stored incorrect coding.Coding also known as Teach-in Program or Component Adaptation. It is theprocess of selecting and activating one program for a specific vehicle from aset of programs that the factory installed in the control module. This allowsone control module to be used for different models, countries, and emissionapplications.Programming is the process of taking a blank control module and then addingthe correct vehicle program to memory.6 Service and Maintenance OperationsThis section gives brief instructions of the most commonly required serviceand maintenance operations. Typical service operation screens are a seriesof menu driven executive commands. Follow on-screen instructions tocomplete the operation.Available service and maintenance options include:● Oil Light Reset

44● EPB Service● TPMS Programming Service● ABS/SRS Services● SAS Calibration● DPF Regeneration6.1 Oil Light ResetOil Light Reset menu allows you to reset the service lamps on the instrumentcluster. The Service Indicator System is designed to alert the driver when thevehicle is due for a service.Oil service reset methods are determined by the vehicle being tested.Depending on the vehicle being tested, any of the following means displays:● Oil Reset With One Button● Manual Reset● Auto Reset6.1.1 Oil Reset With One ButtonOil Reset With One Button is applicable to GM models only. It offers quickand simple oil service reset with the click of one button.To do Oil Reset With One Button on a year 2010 Chevrolet passenger carmodel:1.Scroll with up and down arrow keys to highlight Oil Life Reset from theEngine Control Module menu. An Information screen displays. Press thefunction key OK to continue or Cancel key to return to the Oil Reset menu.2.Follow on-screen instruction and send a command to reset oil service. Ascreen with “Success” message displays once the lamp has been reset.Press any key to return.6.1.2 Manual ResetAlmost all Asian vehicles and most American and European vehicles havemechanical oil service indicator reset. The service tool does not have tocommunicate with the vehicle being tested, but guides you to complete theservice manually by providing step-by-step on-screen instructions.When Manual Reset is selected and the vehicle being tested identified, aprocedure opens on the screen. Scroll with arrow keys to read the entireprocedure and performing the necessary steps as directed by the on-screeninstructions. The exact order of the test operation steps may vary dependingon the test vehicle. Be sure to follow all on-screen instructions.This manual reset procedure can be interrupted and aborted if the ignitionkey position is changed.

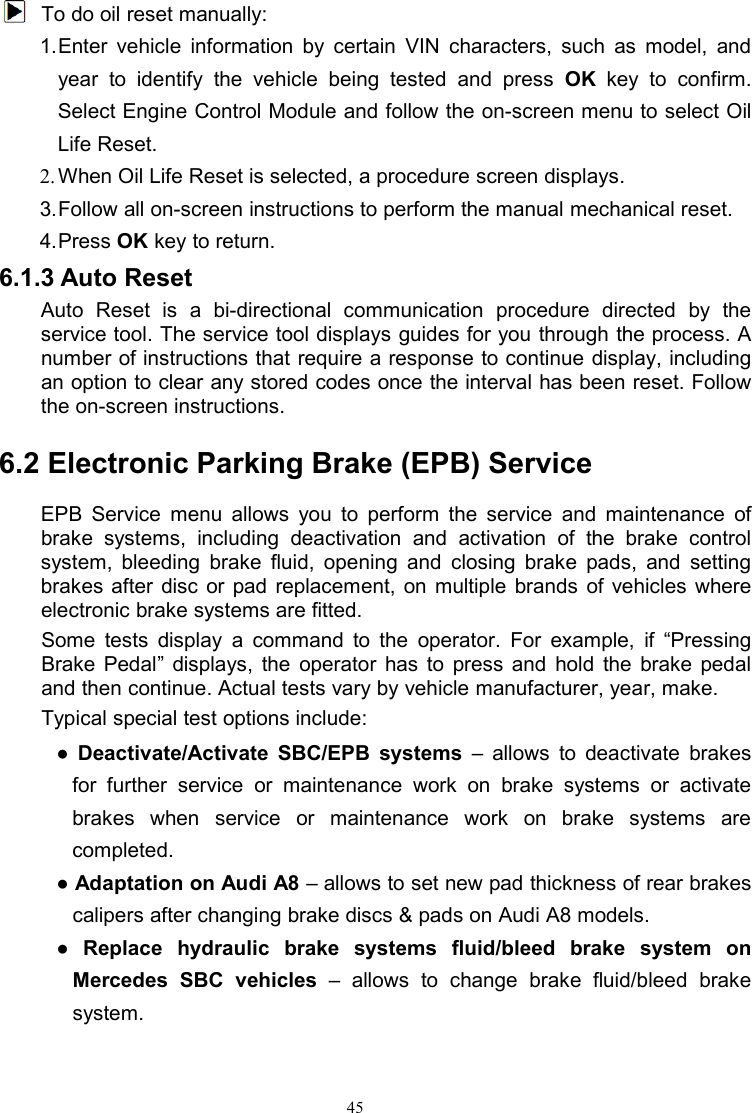

45To do oil reset manually:1.Enter vehicle information by certain VIN characters, such as model, andyear to identify the vehicle being tested and press OK key to confirm.Select Engine Control Module and follow the on-screen menu to select OilLife Reset.2. When Oil Life Reset is selected, a procedure screen displays.3.Follow all on-screen instructions to perform the manual mechanical reset.4.Press OK key to return.6.1.3 Auto ResetAuto Reset is a bi-directional communication procedure directed by theservice tool. The service tool displays guides for you through the process. Anumber of instructions that require a response to continue display, includingan option to clear any stored codes once the interval has been reset. Followthe on-screen instructions.6.2 Electronic Parking Brake (EPB) ServiceEPB Service menu allows you to perform the service and maintenance ofbrake systems, including deactivation and activation of the brake controlsystem, bleeding brake fluid, opening and closing brake pads, and settingbrakes after disc or pad replacement, on multiple brands of vehicles whereelectronic brake systems are fitted.Some tests display a command to the operator. For example, if “PressingBrake Pedal” displays, the operator has to press and hold the brake pedaland then continue. Actual tests vary by vehicle manufacturer, year, make.Typical special test options include:●Deactivate/Activate SBC/EPB systems – allows to deactivate brakesfor further service or maintenance work on brake systems or activatebrakes when service or maintenance work on brake systems arecompleted.●Adaptation on Audi A8 – allows to set new pad thickness of rear brakescalipers after changing brake discs & pads on Audi A8 models.●Replace hydraulic brake systems fluid/bleed brake system onMercedes SBC vehicles – allows to change brake fluid/bleed brakesystem.

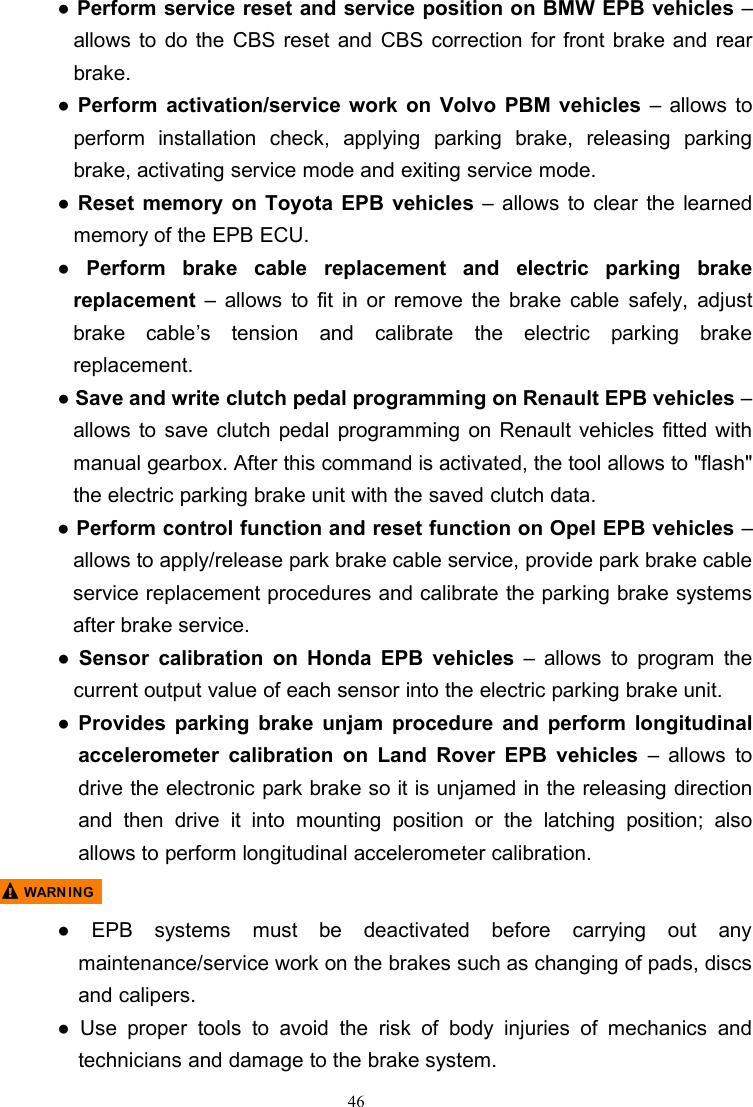

46●Perform service reset and service position on BMW EPB vehicles –allows to do the CBS reset and CBS correction for front brake and rearbrake.●Perform activation/service work on Volvo PBM vehicles – allows toperform installation check, applying parking brake, releasing parkingbrake, activating service mode and exiting service mode.●Reset memory on Toyota EPB vehicles – allows to clear the learnedmemory of the EPB ECU.●Perform brake cable replacement and electric parking brakereplacement – allows to fit in or remove the brake cable safely, adjustbrake cable’s tension and calibrate the electric parking brakereplacement.●Save and write clutch pedal programming on Renault EPB vehicles –allows to save clutch pedal programming on Renault vehicles fitted withmanual gearbox. After this command is activated, the tool allows to "flash"the electric parking brake unit with the saved clutch data.●Perform control function and reset function on Opel EPB vehicles –allows to apply/release park brake cable service, provide park brake cableservice replacement procedures and calibrate the parking brake systemsafter brake service.●Sensor calibration on Honda EPB vehicles – allows to program thecurrent output value of each sensor into the electric parking brake unit.●Provides parking brake unjam procedure and perform longitudinalaccelerometer calibration on Land Rover EPB vehicles – allows todrive the electronic park brake so it is unjamed in the releasing directionand then drive it into mounting position or the latching position; alsoallows to perform longitudinal accelerometer calibration.● EPB systems must be deactivated before carrying out anymaintenance/service work on the brakes such as changing of pads, discsand calipers.● Use proper tools to avoid the risk of body injuries of mechanics andtechnicians and damage to the brake system.

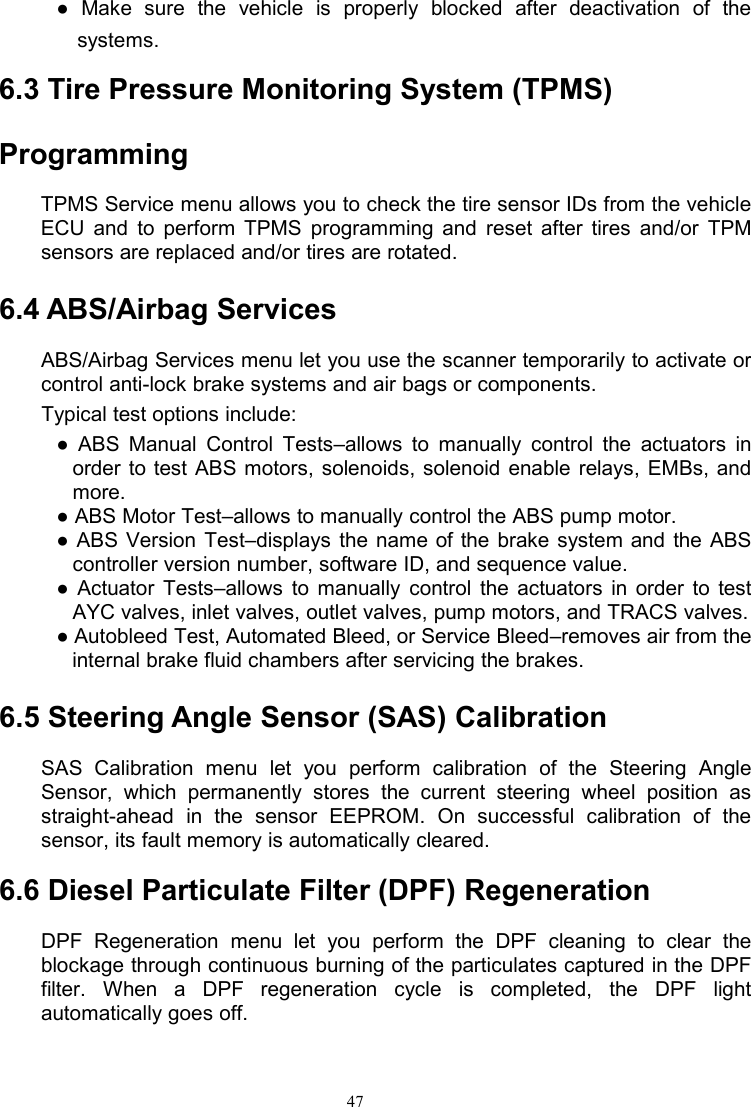

47● Make sure the vehicle is properly blocked after deactivation of thesystems.6.3 Tire Pressure Monitoring System (TPMS)ProgrammingTPMS Service menu allows you to check the tire sensor IDs from the vehicleECU and to perform TPMS programming and reset after tires and/or TPMsensors are replaced and/or tires are rotated.6.4 ABS/Airbag ServicesABS/Airbag Services menu let you use the scanner temporarily to activate orcontrol anti-lock brake systems and air bags or components.Typical test options include:● ABS Manual Control Tests–allows to manually control the actuators inorder to test ABS motors, solenoids, solenoid enable relays, EMBs, andmore.● ABS Motor Test–allows to manually control the ABS pump motor.● ABS Version Test–displays the name of the brake system and the ABScontroller version number, software ID, and sequence value.● Actuator Tests–allows to manually control the actuators in order to testAYC valves, inlet valves, outlet valves, pump motors, and TRACS valves.● Autobleed Test, Automated Bleed, or Service Bleed–removes air from theinternal brake fluid chambers after servicing the brakes.6.5 Steering Angle Sensor (SAS) CalibrationSAS Calibration menu let you perform calibration of the Steering AngleSensor, which permanently stores the current steering wheel position asstraight-ahead in the sensor EEPROM. On successful calibration of thesensor, its fault memory is automatically cleared.6.6 Diesel Particulate Filter (DPF) RegenerationDPF Regeneration menu let you perform the DPF cleaning to clear theblockage through continuous burning of the particulates captured in the DPFfilter. When a DPF regeneration cycle is completed, the DPF lightautomatically goes off.

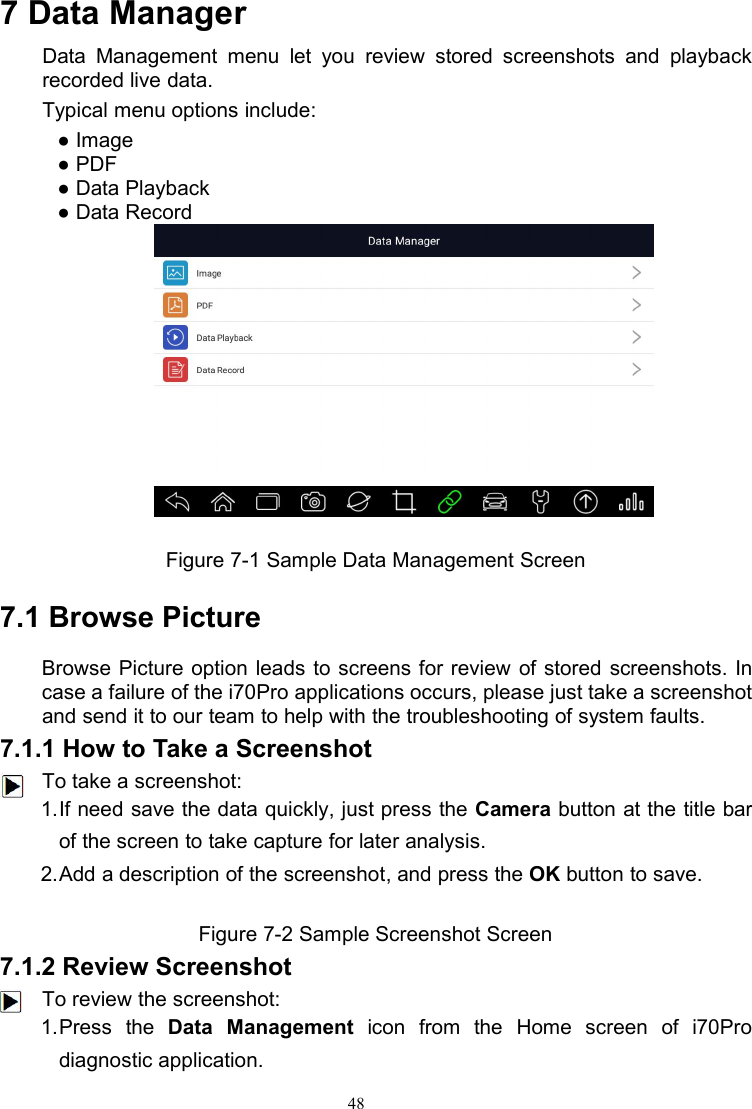

487 Data ManagerData Management menu let you review stored screenshots and playbackrecorded live data.Typical menu options include:● Image● PDF● Data Playback● Data RecordFigure 7-1 Sample Data Management Screen7.1 Browse PictureBrowse Picture option leads to screens for review of stored screenshots. Incase a failure of the i70Pro applications occurs, please just take a screenshotand send it to our team to help with the troubleshooting of system faults.7.1.1 How to Take a ScreenshotTo take a screenshot:1.If need save the data quickly, just press the Camera button at the title barof the screen to take capture for later analysis.2.Add a description of the screenshot, and press the OK button to save.Figure 7-2 Sample Screenshot Screen7.1.2 Review ScreenshotTo review the screenshot:1.Press the Data Management icon from the Home screen of i70Prodiagnostic application.

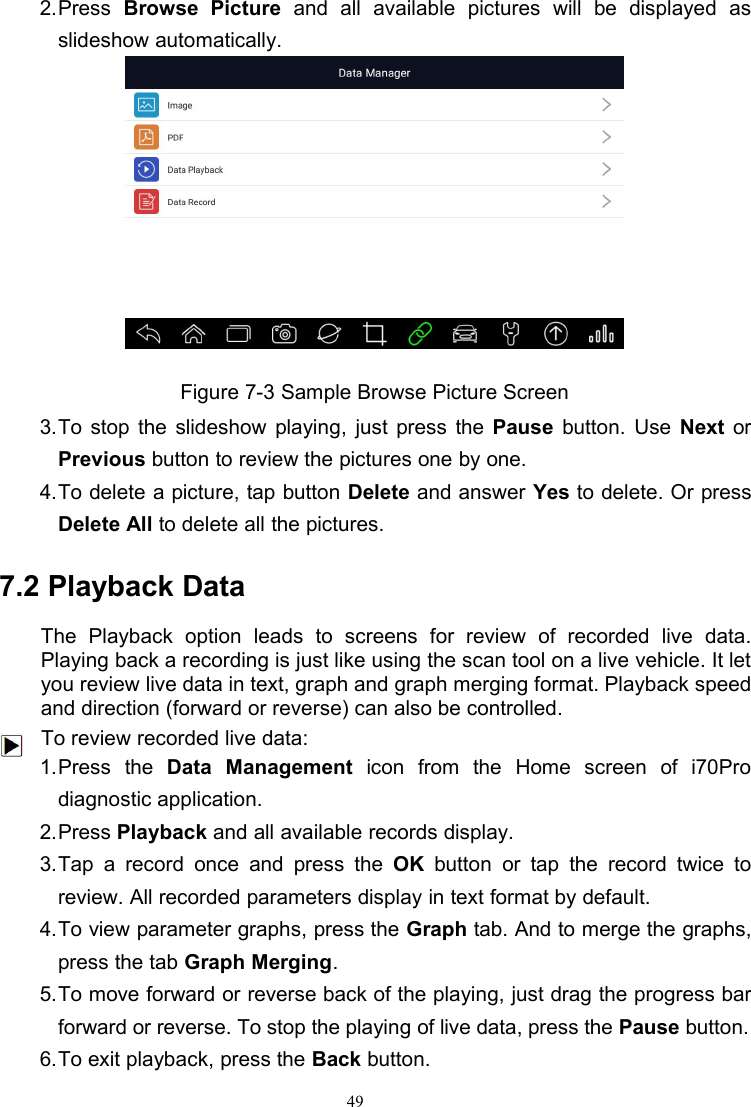

492.Press Browse Picture and all available pictures will be displayed asslideshow automatically.Figure 7-3 Sample Browse Picture Screen3.To stop the slideshow playing, just press the Pause button. Use Next orPrevious button to review the pictures one by one.4.To delete a picture, tap button Delete and answer Yes to delete. Or pressDelete All to delete all the pictures.7.2 Playback DataThe Playback option leads to screens for review of recorded live data.Playing back a recording is just like using the scan tool on a live vehicle. It letyou review live data in text, graph and graph merging format. Playback speedand direction (forward or reverse) can also be controlled.To review recorded live data:1.Press the Data Management icon from the Home screen of i70Prodiagnostic application.2.Press Playback and all available records display.3.Tap a record once and press the OK button or tap the record twice toreview. All recorded parameters display in text format by default.4.To view parameter graphs, press the Graph tab. And to merge the graphs,press the tab Graph Merging.5.To move forward or reverse back of the playing, just drag the progress barforward or reverse. To stop the playing of live data, press the Pause button.6.To exit playback, press the Back button.

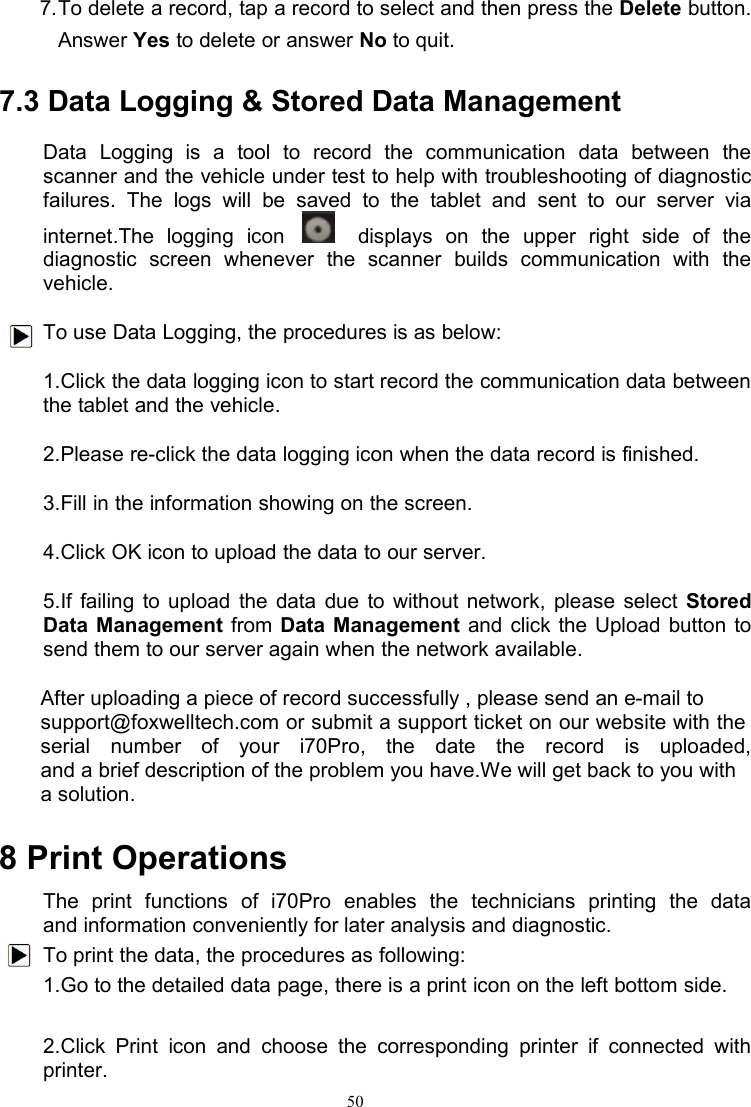

507.To delete a record, tap a record to select and then press the Delete button.Answer Yes to delete or answer No to quit.7.3 Data Logging & Stored Data ManagementData Logging is a tool to record the communication data between thescanner and the vehicle under test to help with troubleshooting of diagnosticfailures. The logs will be saved to the tablet and sent to our server viainternet.The logging icon displays on the upper right side of thediagnostic screen whenever the scanner builds communication with thevehicle.To use Data Logging, the procedures is as below:1.Click the data logging icon to start record the communication data betweenthe tablet and the vehicle.2.Please re-click the data logging icon when the data record is finished.3.Fill in the information showing on the screen.4.Click OK icon to upload the data to our server.5.If failing to upload the data due to without network, please select StoredData Management from Data Management and click the Upload button tosend them to our server again when the network available.After uploading a piece of record successfully , please send an e-mail tosupport@foxwelltech.com or submit a support ticket on our website with theserial number of your i70Pro, the date the record is uploaded,and a brief description of the problem you have.We will get back to you witha solution.8 Print OperationsThe print functions of i70Pro enables the technicians printing the dataand information conveniently for later analysis and diagnostic.To print the data, the procedures as following:1.Go to the detailed data page, there is a print icon on the left bottom side.2.Click Print icon and choose the corresponding printer if connected withprinter.

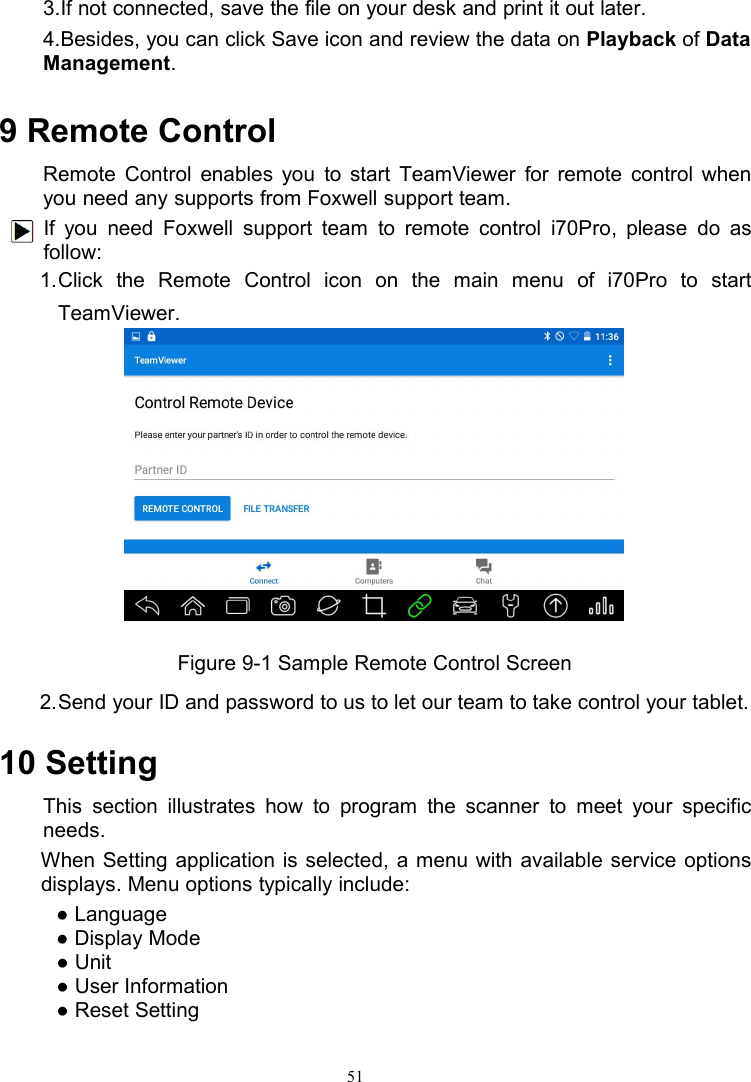

513.If not connected, save the file on your desk and print it out later.4.Besides, you can click Save icon and review the data on Playback of DataManagement.9 Remote ControlRemote Control enables you to start TeamViewer for remote control whenyou need any supports from Foxwell support team.If you need Foxwell support team to remote control i70Pro, please do asfollow:1.Click the Remote Control icon on the main menu of i70Pro to startTeamViewer.Figure 9-1 Sample Remote Control Screen2.Send your ID and password to us to let our team to take control your tablet.10 SettingThis section illustrates how to program the scanner to meet your specificneeds.When Setting application is selected, a menu with available service optionsdisplays. Menu options typically include:● Language● Display Mode● Unit● User Information● Reset Setting

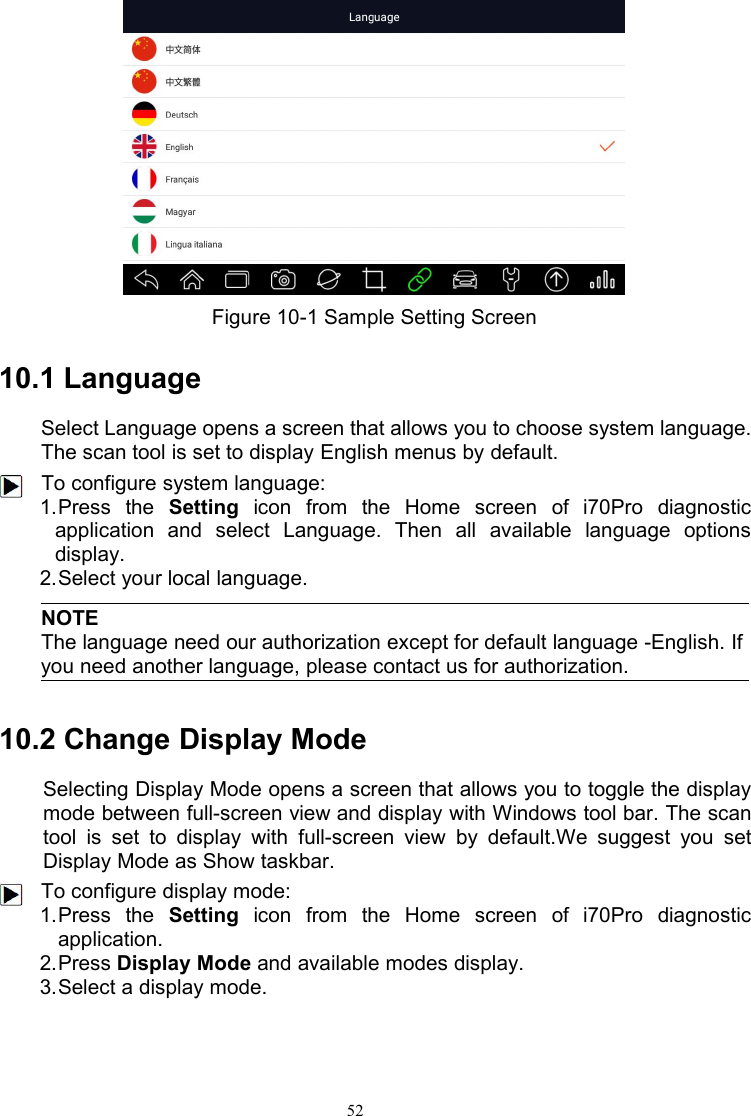

52Figure 10-1 Sample Setting Screen10.1 LanguageSelect Language opens a screen that allows you to choose system language.The scan tool is set to display English menus by default.To configure system language:1.Press the Setting icon from the Home screen of i70Pro diagnosticapplication and select Language. Then all available language optionsdisplay.2.Select your local language.NOTEThe language need our authorization except for default language -English. Ifyou need another language, please contact us for authorization.10.2 Change Display ModeSelecting Display Mode opens a screen that allows you to toggle the displaymode between full-screen view and display with Windows tool bar. The scantool is set to display with full-screen view by default.We suggest you setDisplay Mode as Show taskbar.To configure display mode:1.Press the Setting icon from the Home screen of i70Pro diagnosticapplication.2.Press Display Mode and available modes display.3.Select a display mode.

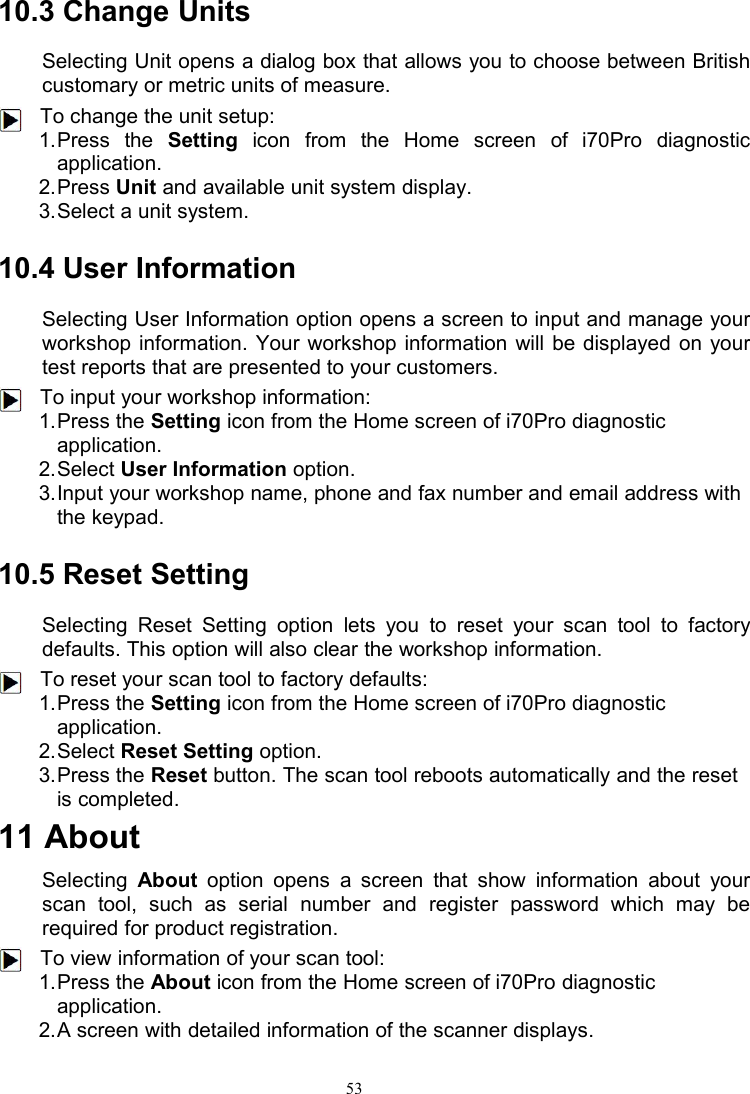

5310.3 Change UnitsSelecting Unit opens a dialog box that allows you to choose between Britishcustomary or metric units of measure.To change the unit setup:1.Press the Setting icon from the Home screen of i70Pro diagnosticapplication.2.Press Unit and available unit system display.3.Select a unit system.10.4 User InformationSelecting User Information option opens a screen to input and manage yourworkshop information. Your workshop information will be displayed on yourtest reports that are presented to your customers.To input your workshop information:1.Press the Setting icon from the Home screen of i70Pro diagnosticapplication.2.Select User Information option.3.Input your workshop name, phone and fax number and email address withthe keypad.10.5 Reset SettingSelecting Reset Setting option lets you to reset your scan tool to factorydefaults. This option will also clear the workshop information.To reset your scan tool to factory defaults:1.Press the Setting icon from the Home screen of i70Pro diagnosticapplication.2.Select Reset Setting option.3.Press the Reset button. The scan tool reboots automatically and the resetis completed.11 AboutSelecting About option opens a screen that show information about yourscan tool, such as serial number and register password which may berequired for product registration.To view information of your scan tool:1.Press the About icon from the Home screen of i70Pro diagnosticapplication.2.A screen with detailed information of the scanner displays.

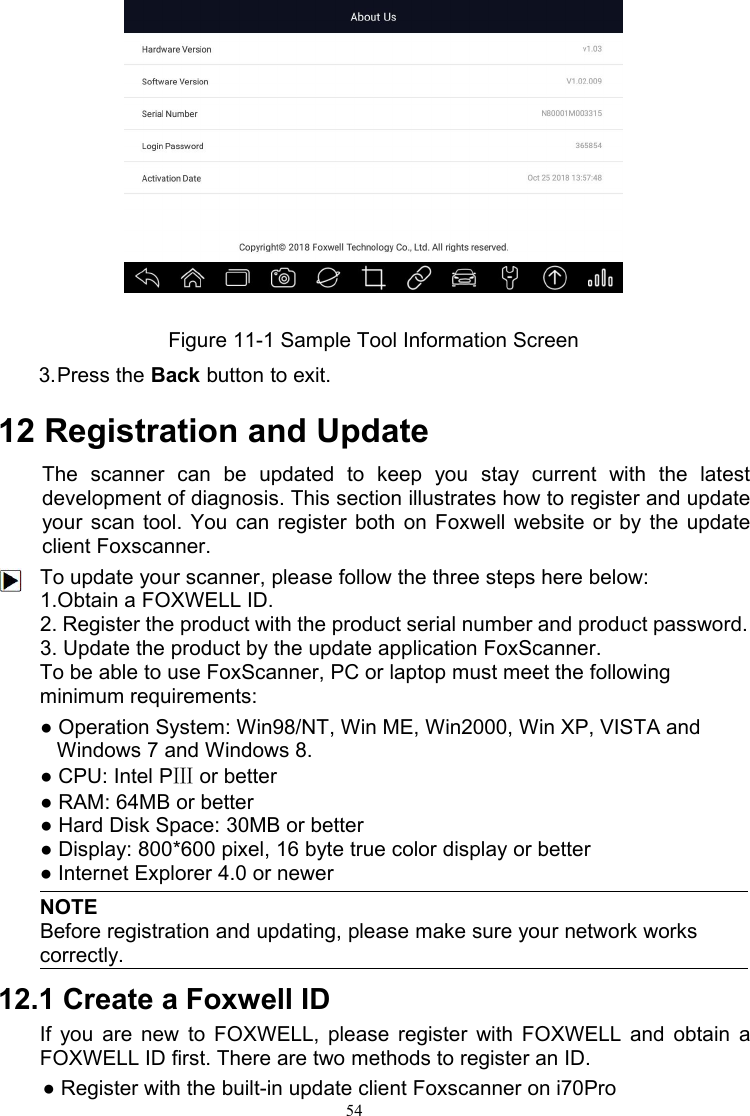

54Figure 11-1 Sample Tool Information Screen3.Press the Back button to exit.12 Registration and UpdateThe scanner can be updated to keep you stay current with the latestdevelopment of diagnosis. This section illustrates how to register and updateyour scan tool. You can register both on Foxwell website or by the updateclient Foxscanner.To update your scanner, please follow the three steps here below:1.Obtain a FOXWELL ID.2. Register the product with the product serial number and product password.3. Update the product by the update application FoxScanner.To be able to use FoxScanner, PC or laptop must meet the followingminimum requirements:● Operation System: Win98/NT, Win ME, Win2000, Win XP, VISTA andWindows 7 and Windows 8.● CPU: Intel PⅢor better● RAM: 64MB or better● Hard Disk Space: 30MB or better● Display: 800*600 pixel, 16 byte true color display or better● Internet Explorer 4.0 or newerNOTEBefore registration and updating, please make sure your network workscorrectly.12.1 Create a Foxwell IDIf you are new to FOXWELL, please register with FOXWELL and obtain aFOXWELL ID first. There are two methods to register an ID.● Register with the built-in update client Foxscanner on i70Pro

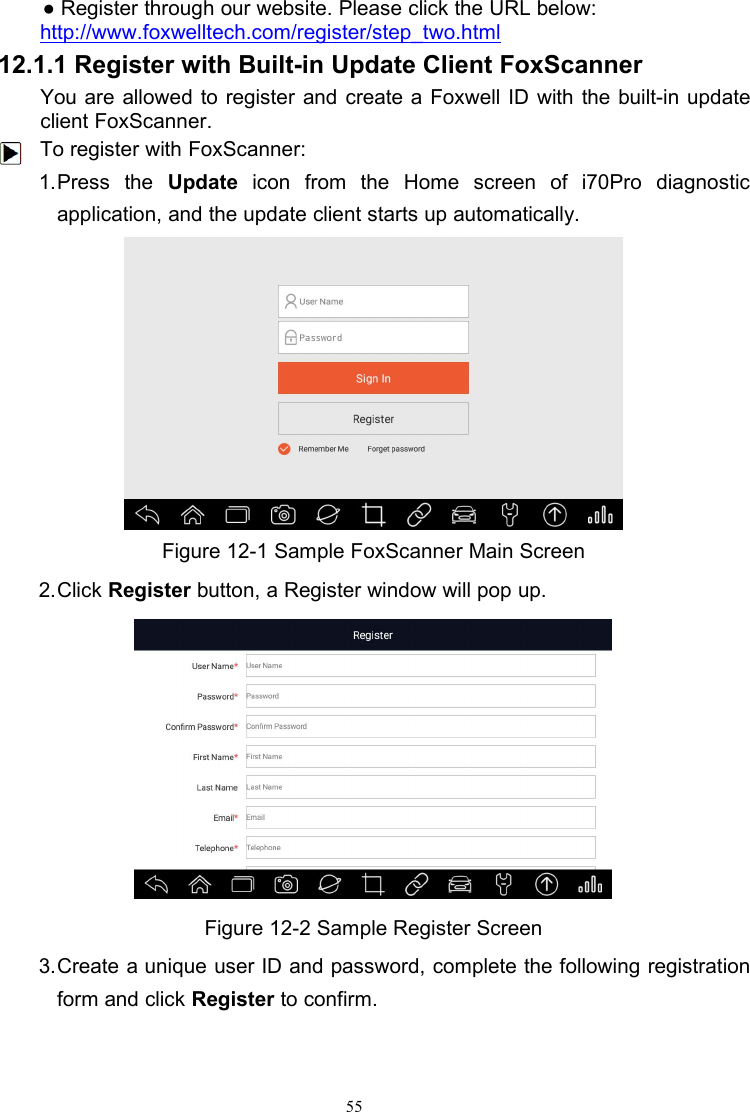

55● Register through our website. Please click the URL below:http://www.foxwelltech.com/register/step_two.html12.1.1 Register with Built-in Update Client FoxScannerYou are allowed to register and create a Foxwell ID with the built-in updateclient FoxScanner.To register with FoxScanner:1.Press the Update icon from the Home screen of i70Pro diagnosticapplication, and the update client starts up automatically.Figure 12-1 Sample FoxScanner Main Screen2.Click Register button, a Register window will pop up.Figure 12-2 Sample Register Screen3.Create a unique user ID and password, complete the following registrationform and click Register to confirm.

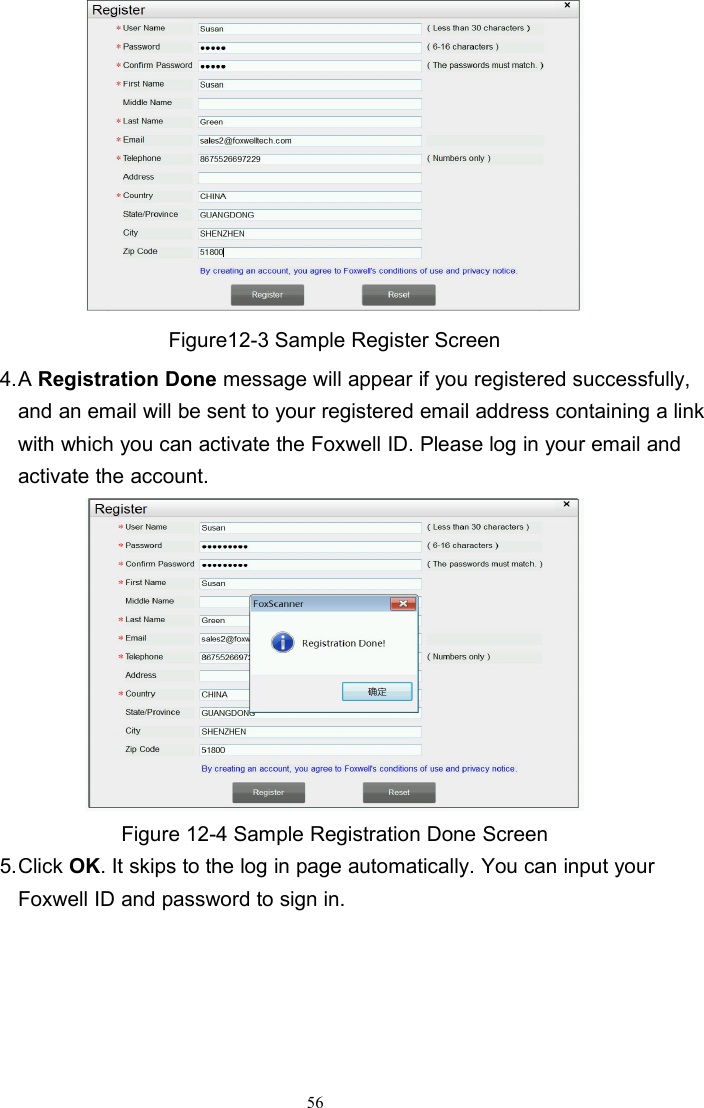

56Figure12-3 Sample Register Screen4.A Registration Done message will appear if you registered successfully,and an email will be sent to your registered email address containing a linkwith which you can activate the Foxwell ID. Please log in your email andactivate the account.Figure 12-4 Sample Registration Done Screen5.Click OK. It skips to the log in page automatically. You can input yourFoxwell ID and password to sign in.

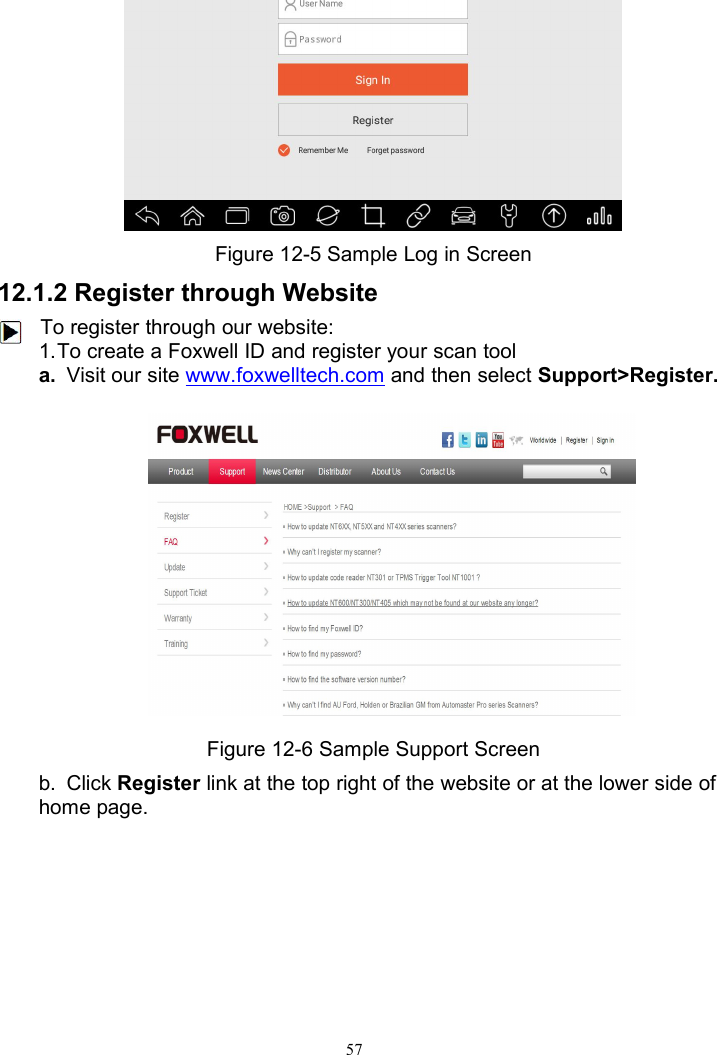

57Figure 12-5 Sample Log in Screen12.1.2 Register through WebsiteTo register through our website:1.To create a Foxwell ID and register your scan toola. Visit our site www.foxwelltech.com and then select Support>Register.Figure 13-6 Sample Register ScreenFigure 12-6 Sample Support Screenb. Click Register link at the top right of the website or at the lower side ofhome page.

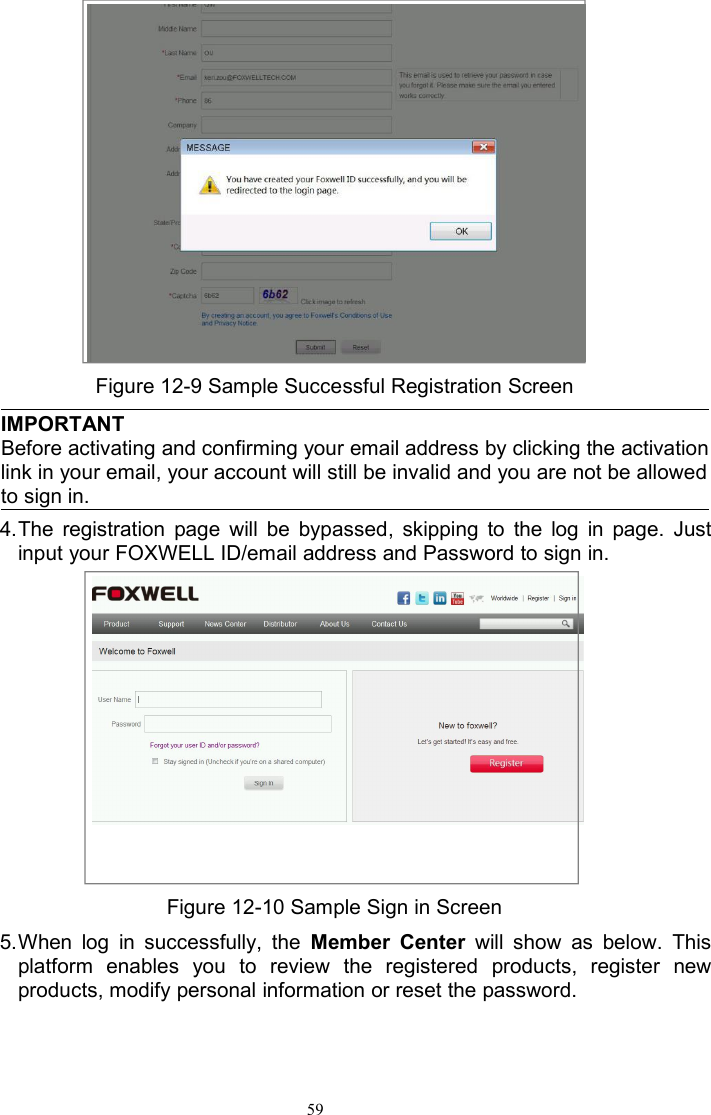

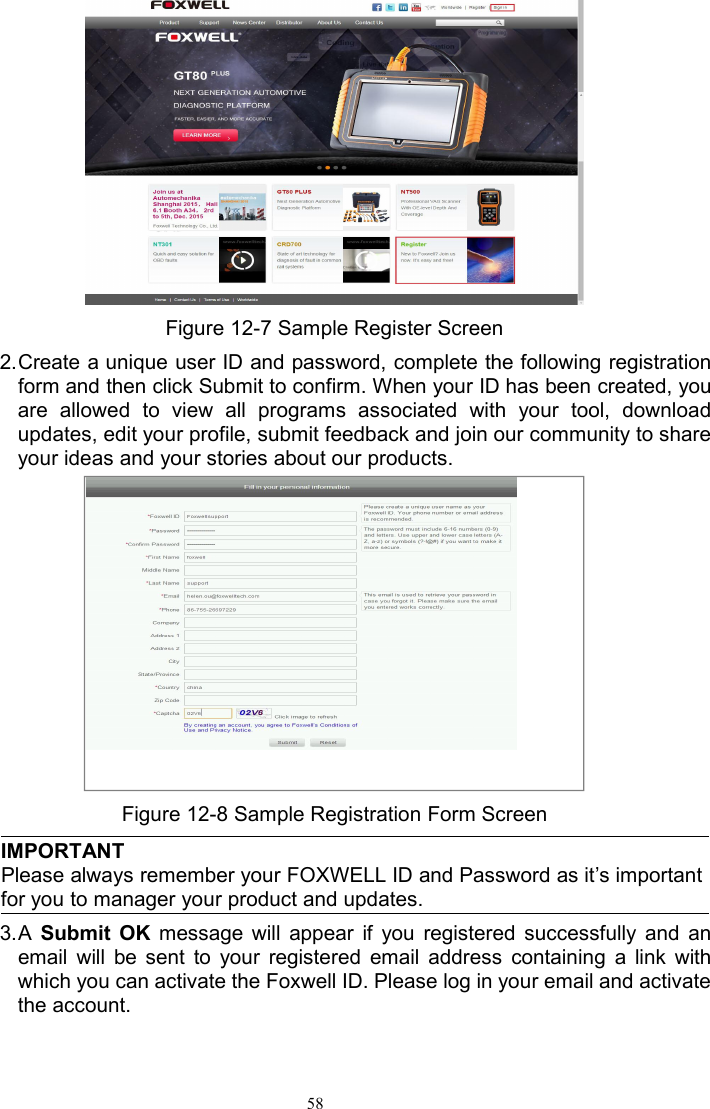

59Figure 12-9 Sample Successful Registration ScreenIMPORTANTBefore activating and confirming your email address by clicking the activationlink in your email, your account will still be invalid and you are not be allowedto sign in.4.The registration page will be bypassed, skipping to the log in page. Justinput your FOXWELL ID/email address and Password to sign in.Figure 12-10 Sample Sign in Screen5.When log in successfully, the Member Center will show as below. Thisplatform enables you to review the registered products, register newproducts, modify personal information or reset the password.

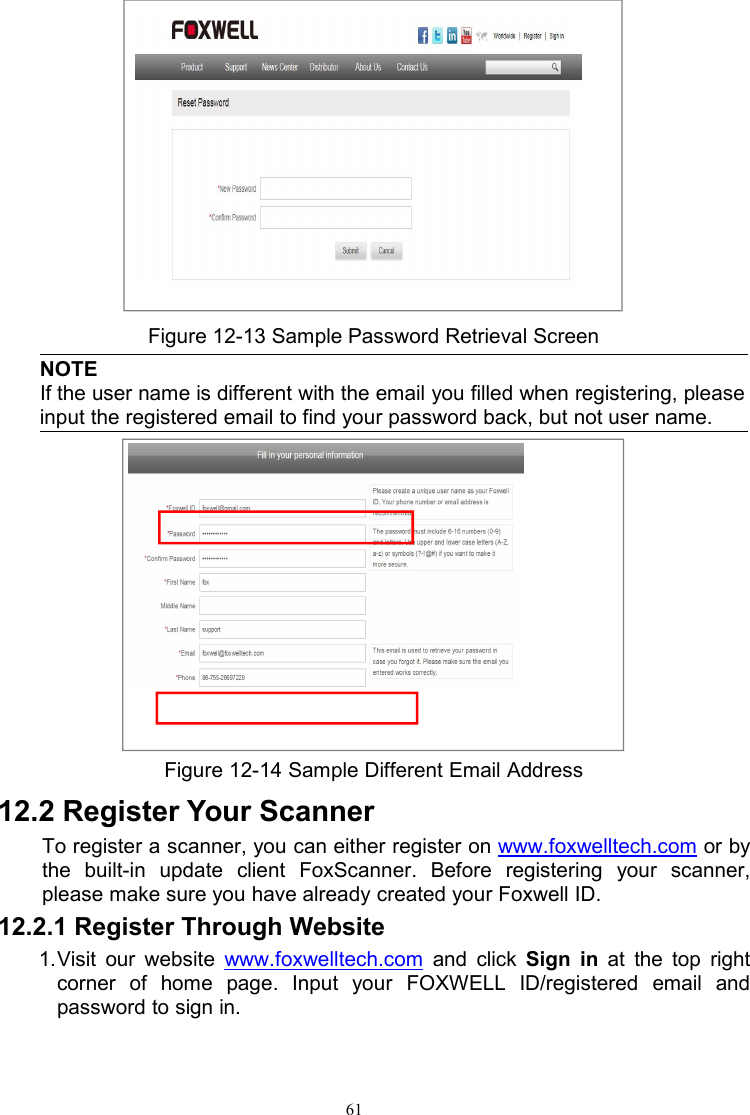

61Figure 12-13 Sample Password Retrieval ScreenNOTEIf the user name is different with the email you filled when registering, pleaseinput the registered email to find your password back, but not user name.Figure 12-14 Sample Different Email Address12.2 Register Your ScannerTo register a scanner, you can either register on www.foxwelltech.com or bythe built-in update client FoxScanner. Before registering your scanner,please make sure you have already created your Foxwell ID.12.2.1 Register Through Website1.Visit our website www.foxwelltech.com and click Sign in at the top rightcorner of home page. Input your FOXWELL ID/registered email andpassword to sign in.

62Figure 12-15 Sample Log in Screen2.When log in successfully, the Member Center will show as below.Figure 12-16 Sample Member Center Screen3.To register a product, please click My Products>New Registration. Selectthe right part number, input serial number and password and click theSubmit button to complete product registration.

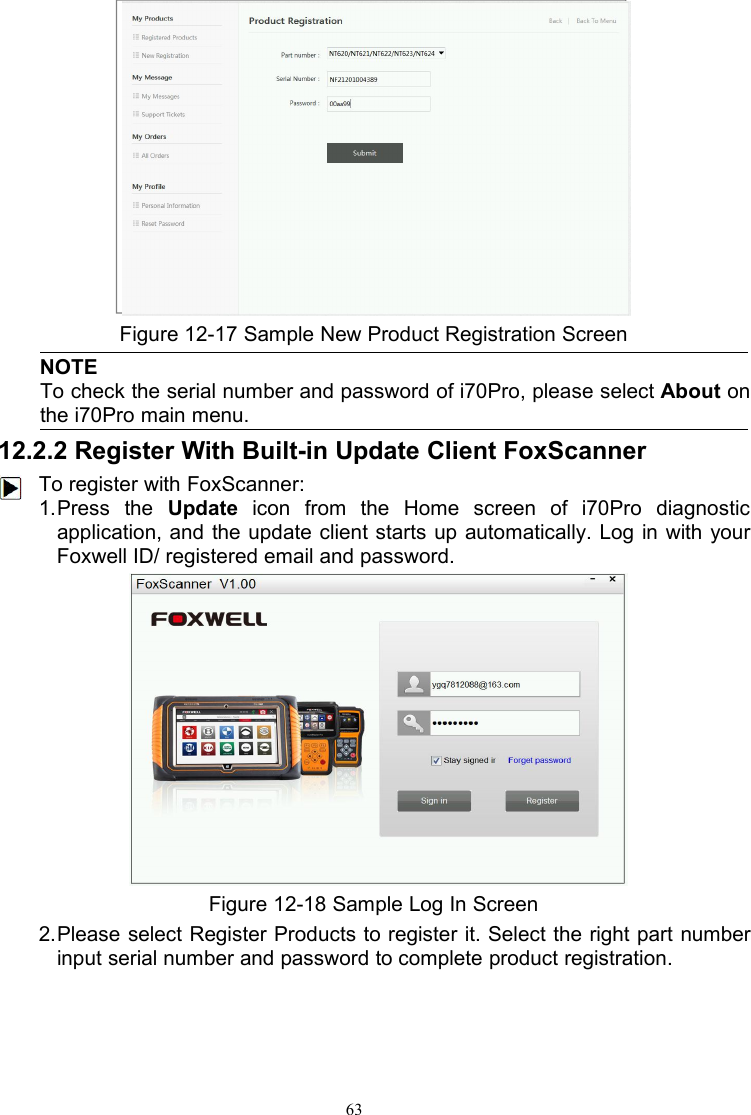

63Figure 12-17 Sample New Product Registration ScreenNOTETo check the serial number and password of i70Pro, please select About onthe i70Pro main menu.12.2.2 Register With Built-in Update Client FoxScannerTo register with FoxScanner:1.Press the Update icon from the Home screen of i70Pro diagnosticapplication, and the update client starts up automatically. Log in with yourFoxwell ID/ registered email and password.Figure 12-18 Sample Log In Screen2.Please select Register Products to register it. Select the right part numberinput serial number and password to complete product registration.

64Figure 12-19 Sample New Product Registration Screen12.3 Update the ScannerNOTE● Before updating, please make sure your network works correctly.● Before updating, please make sure you have already created a Foxwell ID.To update your scanner:1.Press the Update icon from the Home screen of i70Pro diagnosticapplication, and the update client starts up automatically. Log in with yourFoxwell ID/ registered email and password.Figure 12-20 Sample Sign in FoxScanner Screen2.Click My Updates-> Available Updates and all updates applicable to yourscanner display.

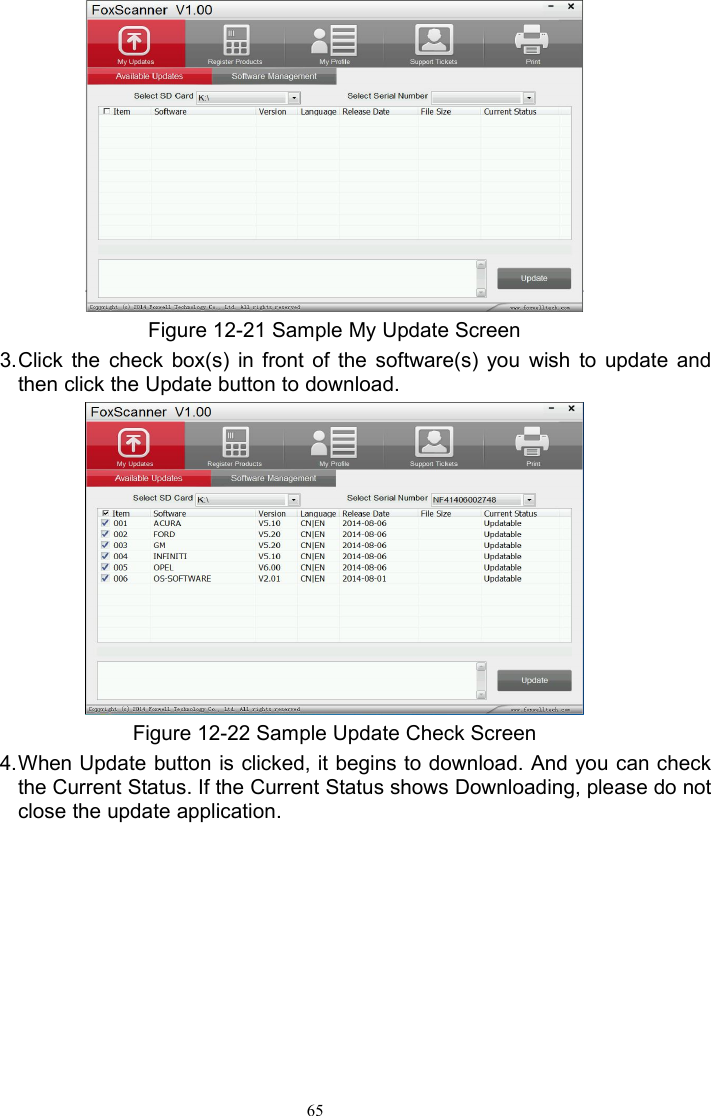

65Figure 12-21 Sample My Update Screen3.Click the check box(s) in front of the software(s) you wish to update andthen click the Update button to download.Figure 12-22 Sample Update Check Screen4.When Update button is clicked, it begins to download. And you can checkthe Current Status. If the Current Status shows Downloading, please do notclose the update application.

66Corrected issues of not communicating with 2010 MY Jeep.Figure 12-23 Sample Updating Screen5.When all the items are updated, an “Update Done!” message displays andthe Available Update items will be blank.Figure 12-24 Sample Update Completed Screen6.Please click Software Management to review all the updated software.

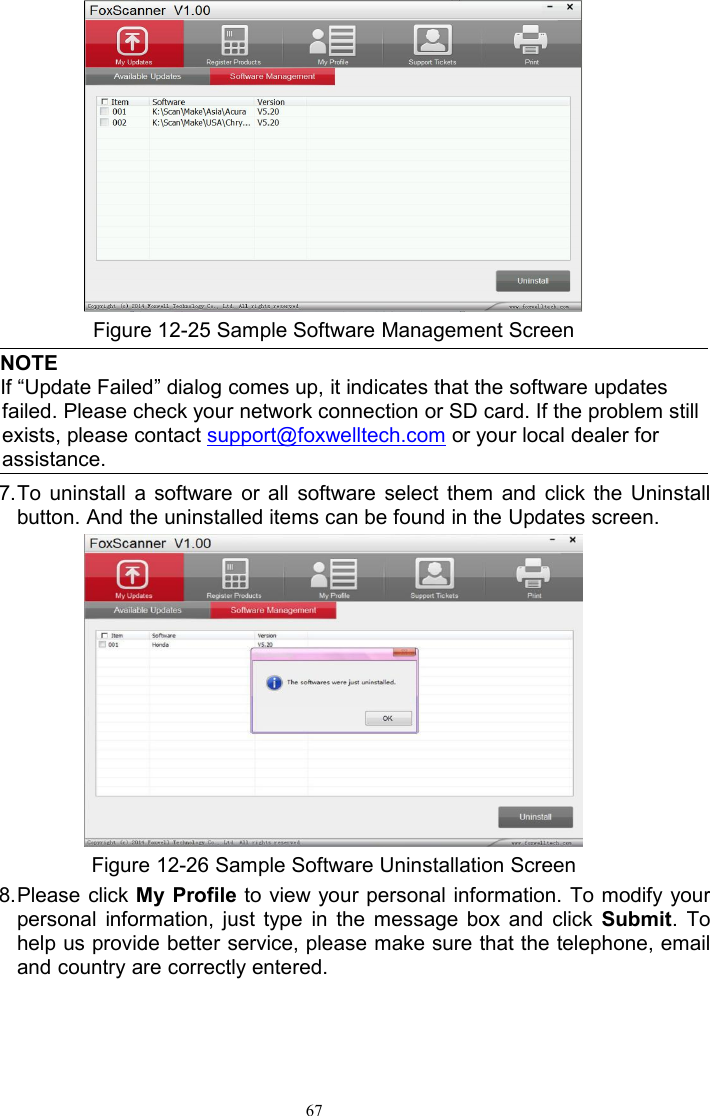

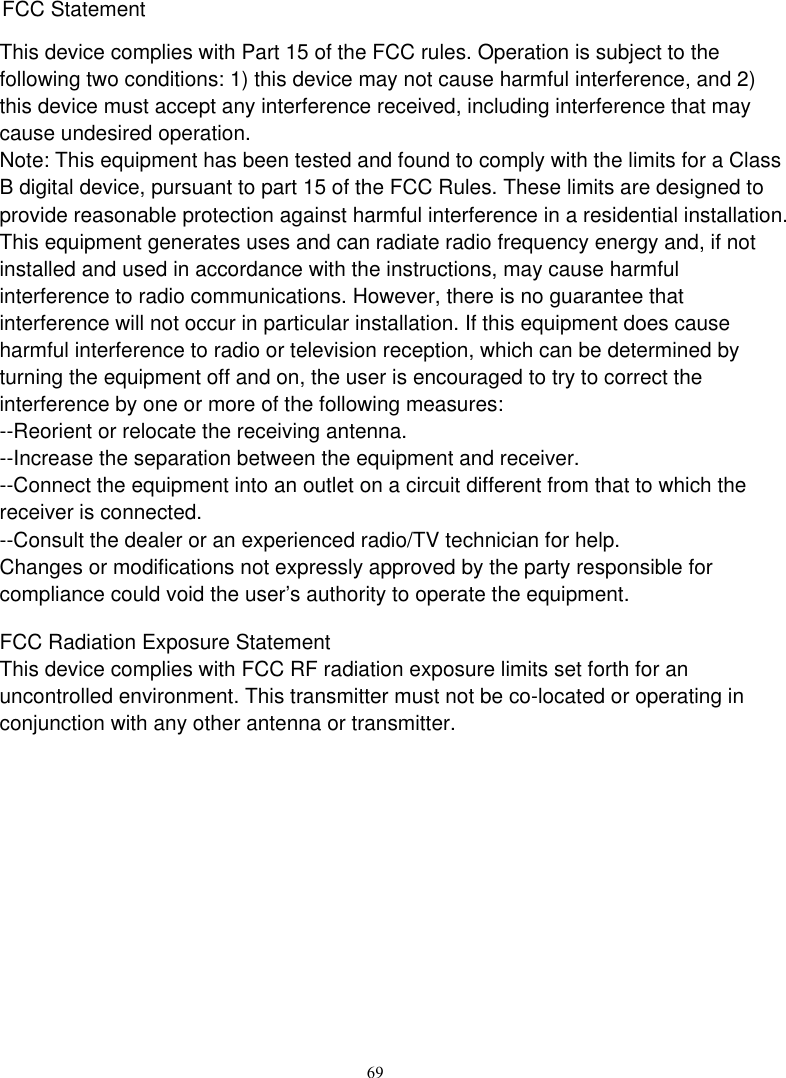

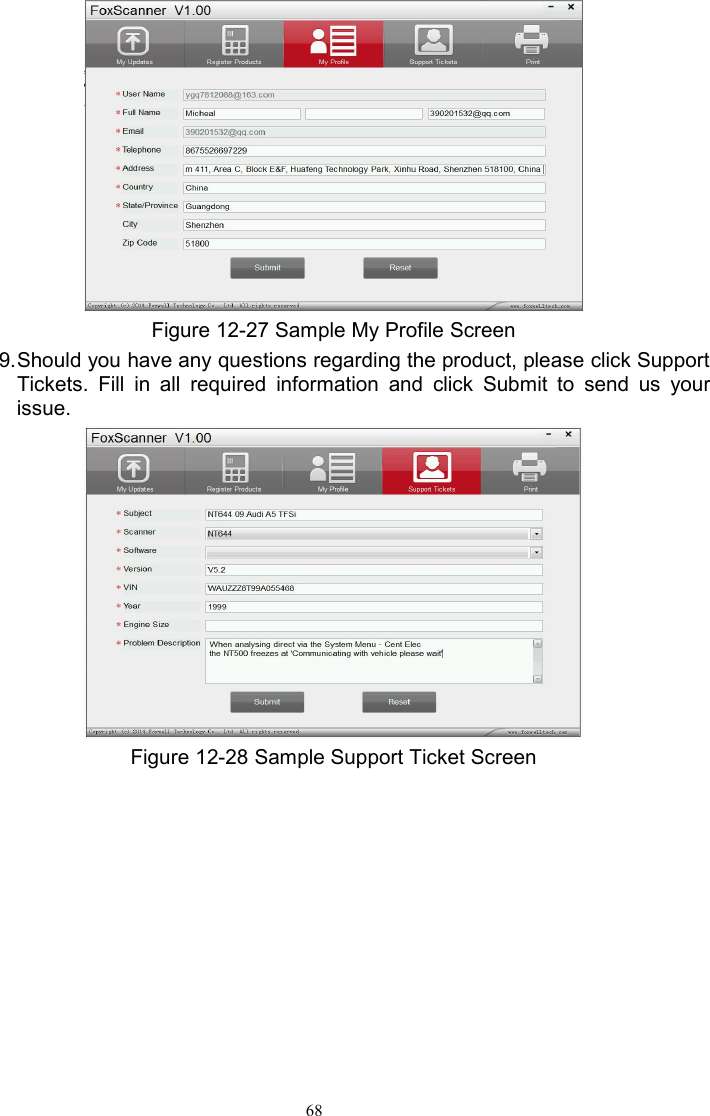

69This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:--Reorient or relocate the receiving antenna.--Increase the separation between the equipment and receiver.--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.--Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.FCC Radiation Exposure StatementThis device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.FCC Statement
