Franklin Technology FDM650 CDMA 1xEVDO Data Modem User Manual
Franklin Technology Inc. CDMA 1xEVDO Data Modem Users Manual
Users Manual
User’s Manual
(FDM-650)
Version 0.1
2013-09-13
Prepared by:
User’s Manual(FDM-650)
Regulatory Information & Safety notices
(FDM-650)
2
Confidential Franklin Technology
User’s Manual(FDM-650)
Revision History
Version Date Description Editor
0.1 12th Sep 2013 Initial release WB Song
3
Confidential Franklin Technology
User’s Manual(FDM-650)
Table of contents
1. Regulatory Notices ----------------------------------------------------------------------------- 5
2. Safety and Notices ----------------------------------------------------------------------------- 6
Important Notice -------------------------------------------------------------------------------- 6
Safety and Harzards --------------------------------------------------------------------------- 7
POTENTIALLY UNSAFE AREAS ---------------------------------------------------------- 7
4
Confidential Franklin Technology
User’s Manual(FDM-650)
1. Regulatory Notices
FCC Part 15.105 statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Part 15.21 statement
Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
FCC Part 15.19 statement
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum 20 cm between the radiator and your body. This transmitter
must not be collocated or operating in conjunction with any other antenna or
transmitter unless authorized to do so by the FCC.
5
Confidential Franklin Technology
User’s Manual(FDM-650)
2. Safety and Notices
Important Notice
Because of the nature of wireless communications, transmission and
reception of data can never be guaranteed. Data may be delayed, corrupted
(i.e., have errors), or be totally lost.
Although significant delay or losses of data are rare when wireless devices
such as the FDM-650 CDMA modem are used in a normal manner with a
well-constructed network, they should be used in situations where failure to
transmit or receive data could result in damage of any kind to the user or any
other party, including but not limited to personal injury, death, or loss or
property.
FTI accepts no responsibility for damages of any kind resulting from delays or
errors in data transmitted or received using the FDM-650 CDMA modem or
failure of FDM-650 CDMA modem to transmit or receive such data.
Safety and Harzards
Do not operate the FDM-650 CDMA modem in areas where blasting is in
progress, where explosive atmospheres may be present, near medical
equipment, life support equipment, or any equipment which may be
susceptible to any form of radio interference.
In such areas, the FDM-650 CDMA modem MUST BE POWERED OFF.
It can transmit signals that could interfere with this equipment.
Do not operate the FDM-650 CDMA modem in any aircraft, whether the
aircraft is on the ground or in flight. In aircraft, the FDM-650 CDMA
modem MUST BE POWERED OFF.
When operating, it can transmit signals that could interfere with various
onboard systems.
The driver or operator of any vehicle should not operate the FDM-650 CDMA
modem while in control of a vehicle. Doing so will detract from the driver or
operator’s control and operation of that vehicle. In some jurisdictions,
operating such communications devices while in control of a vehicle is an
offense.
6
Confidential Franklin Technology
User’s Manual(FDM-650)
POTENTIALLY UNSAFE AREAS
Posted facilities
- Turn off this modem in any facility or area when posted notices r
equire you to do so.
Blasting areas
- Turn off Modem where blasting is in progress. Observe restrictions
and follow any regulations or rules.
Potentially explosive atmospheres: Turn off Modem when you are in any
area with a potentially explosive atmosphere. Obey all signs and instructions.
Sparks in such areas could cause an explosion or fire, resulting in bodily injury
or death.
Areas with a potentially explosive atmosphere are often but not always clearly
marked.
They include:
- fuelling areas such as gas or petrol stations
- below deck on boats
- transfer or storage facilities for fuel or chemicals
- vehicles using liquefied petroleum gas, such as propane or butane
- areas when the air contains chemicals or particles such as grain,
dust or metal powders
- any other area where you would normally be advised to turn off y
our Modem.
7
Confidential Franklin Technology
User’s Manual(FDM-650)
CDMA 1xEV-DO Industrial Modem
Driver Installation guide
(FDM-650)
8
Confidential Franklin Technology
User’s Manual(FDM-650)
All data and information contained in or disclosed by this document
are confidential and proprietary information of FTI, and all rights therein
are expressly reserved. By accepting this material, the recipient agrees
that this material and the information contained therein are held in
confidence and in trust and will not be used, copied, reproduced in
whole or in part, nor its contents revealed in any manner to others
without the express written permission of FTI.
This information provided in this document is provided on an “as is”
basis.
In no event will FTI be liable for any damages arising directly or
indirectly from any use of information contained in this document.
Information in this document is preliminary and subjected to change without
any notice.
Contact Information
If you have any technical queries about this manual, please contact:
Email: wbsong@franklintech.co.kr
Revision History
Version Date Description Editor
0.1 12th Sep 2013 Initial release WB Song
9
Confidential Franklin Technology
User’s Manual(FDM-650)
Table of contents
1. Install Modem Driver ----------------------------------------------------------------- 11
1.1 Automatic modem driver install ----------------------------------------------- 11
1.2 Manual modem driver install ---------------------------------------------------12
10
Confidential Franklin Technology
User’s Manual(FDM-650)
1. Install Modem Driver
Before you can begin using the FDM-650 CDMA 1x/EVDO Modem, you must:
1.1 Automatic modem driver install
On Window 2000
On inserting Modem on Window 2000, there will not be any window and users
can run applications after the device is detected.
On Window XP

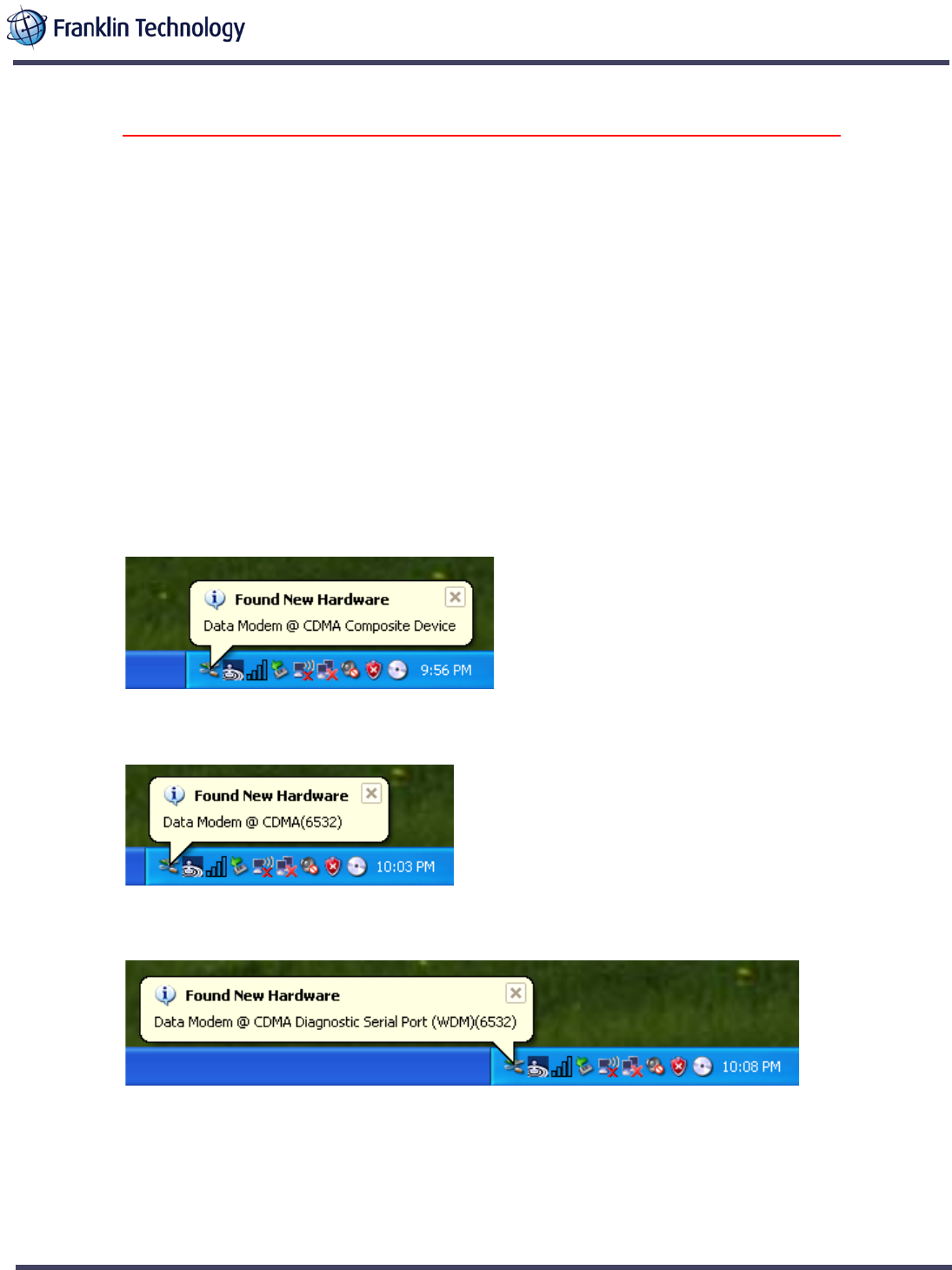

If your operation system is XP on inserting Modem, you can see “Found New
Hardware” Dialog.
11
Confidential Franklin Technology
User’s Manual(FDM-650)
1.2 Manual modem driver install

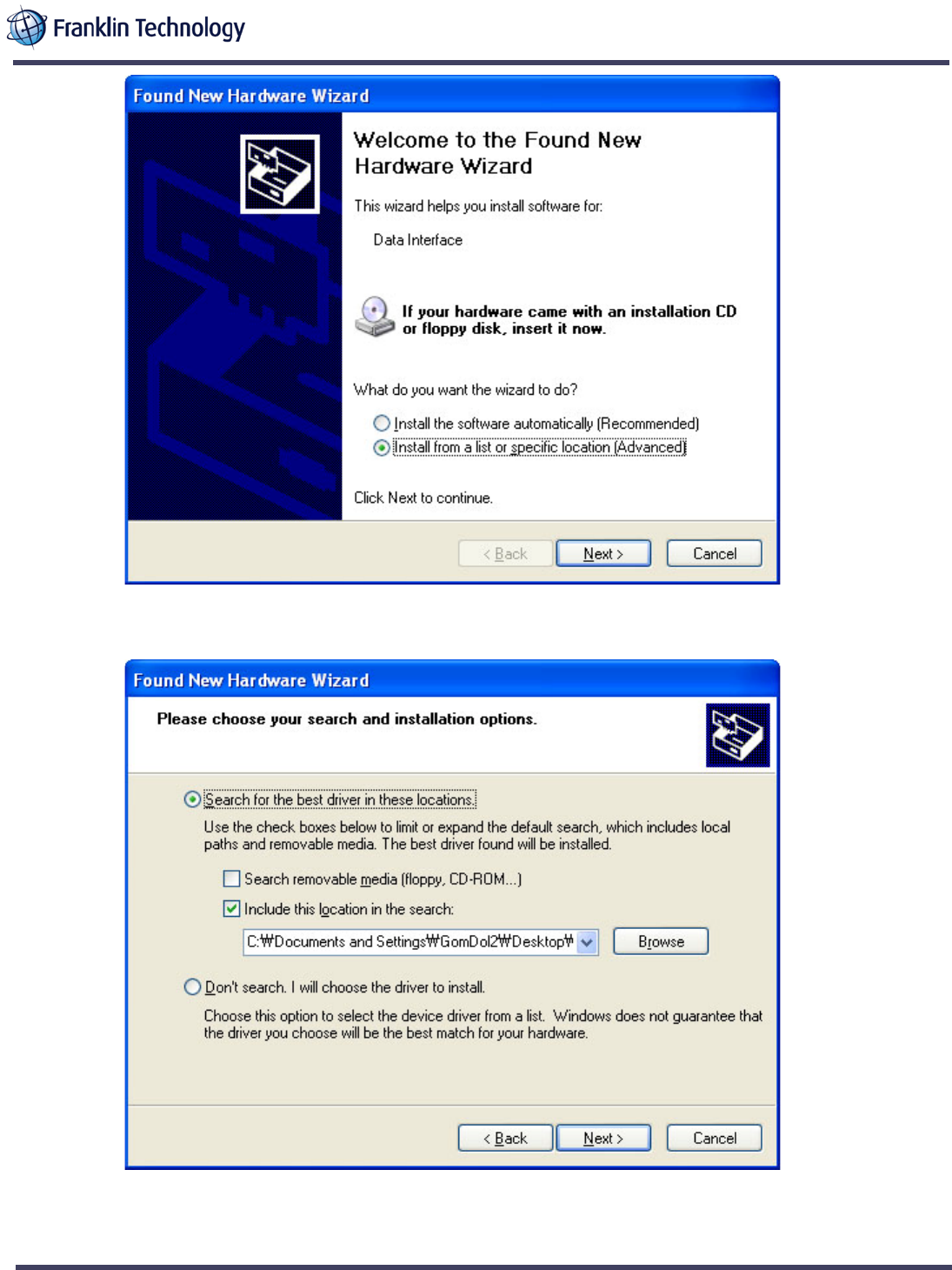

Install from a list or specific location
12
Confidential Franklin Technology
User’s Manual(FDM-650)

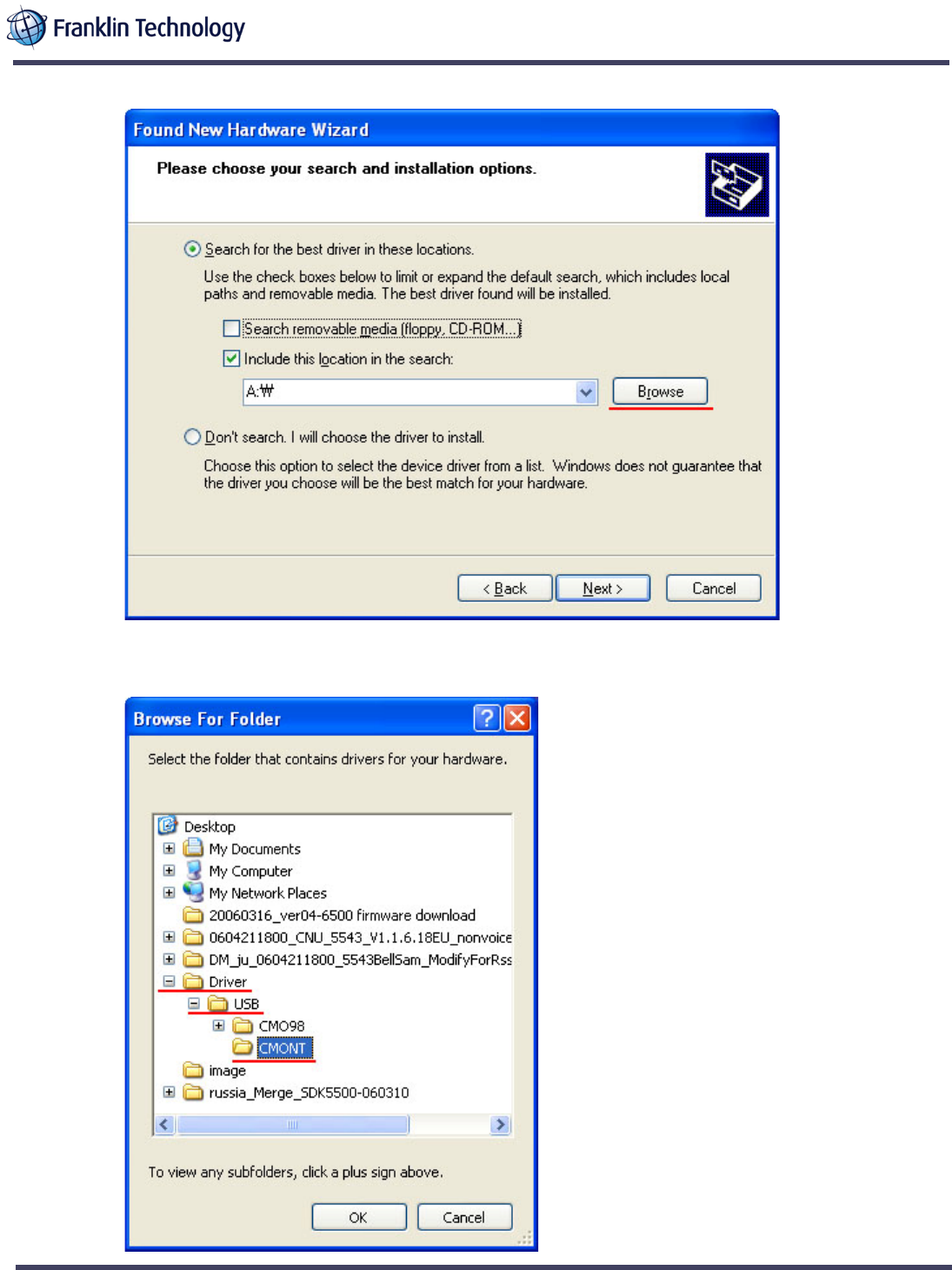

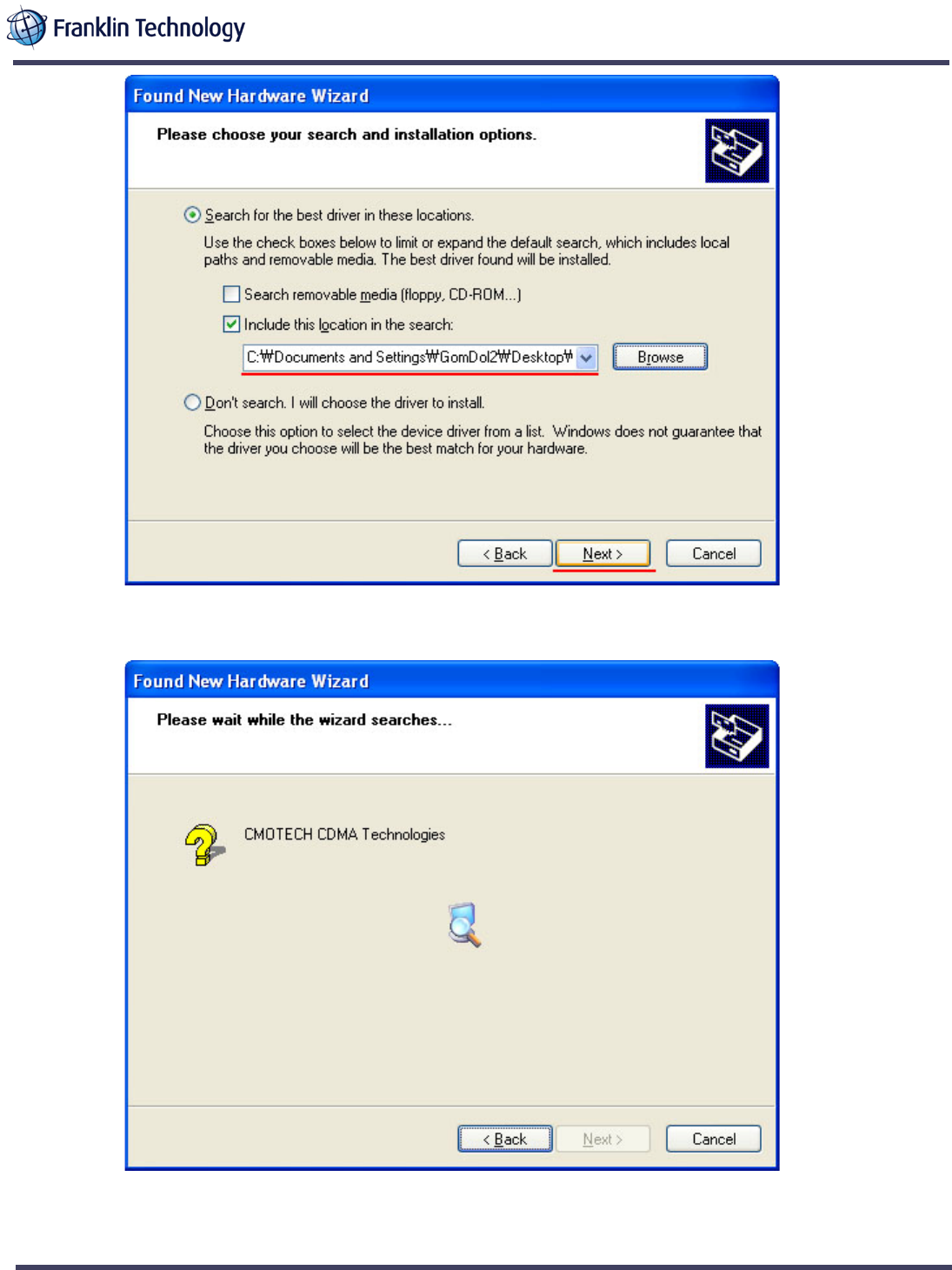

click ‘browse’
select driver folder
13
Confidential Franklin Technology
User’s Manual(FDM-650)
14
Confidential Franklin Technology
User’s Manual(FDM-650)
15
Confidential Franklin Technology
User’s Manual(FDM-650)

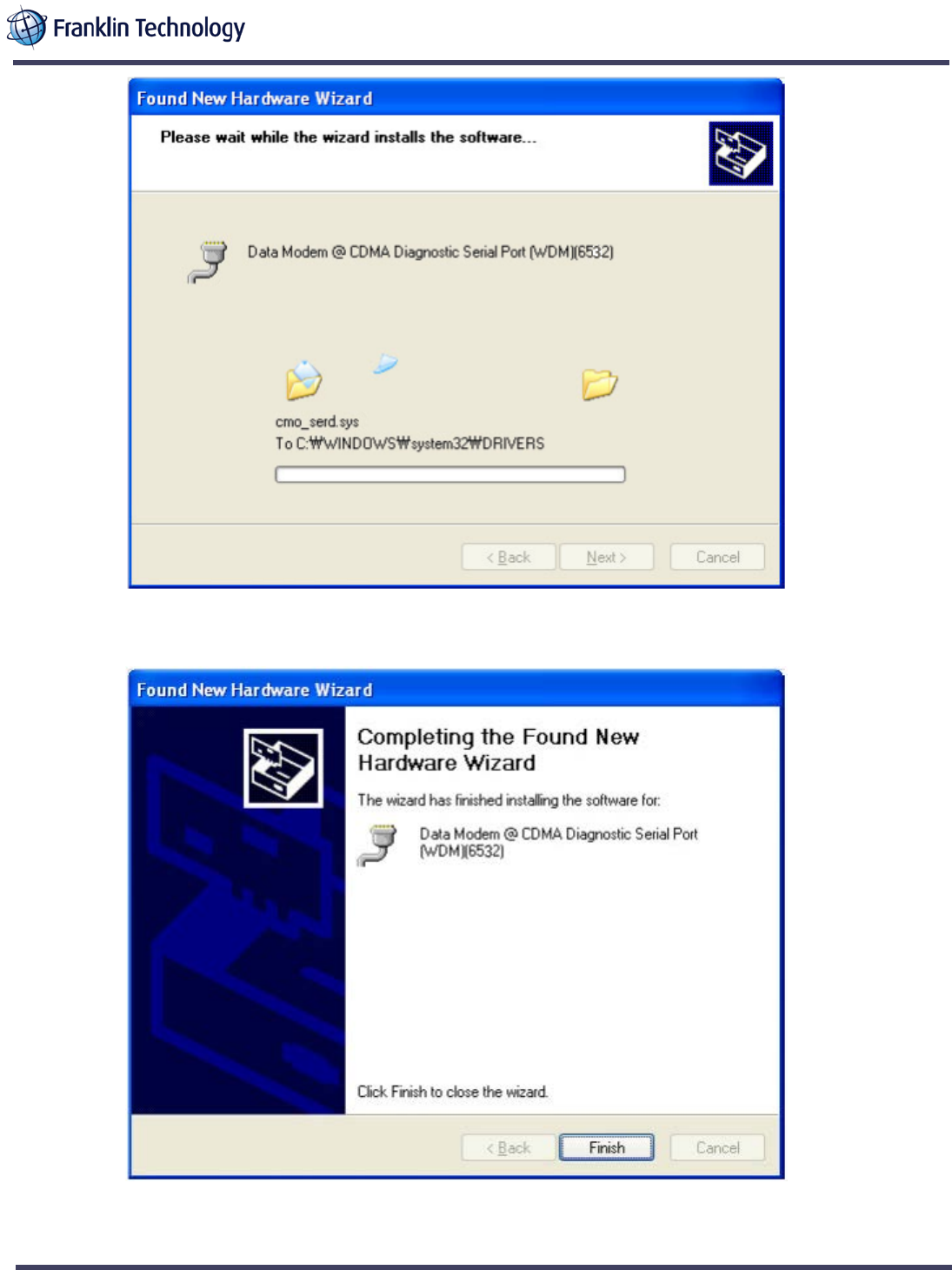

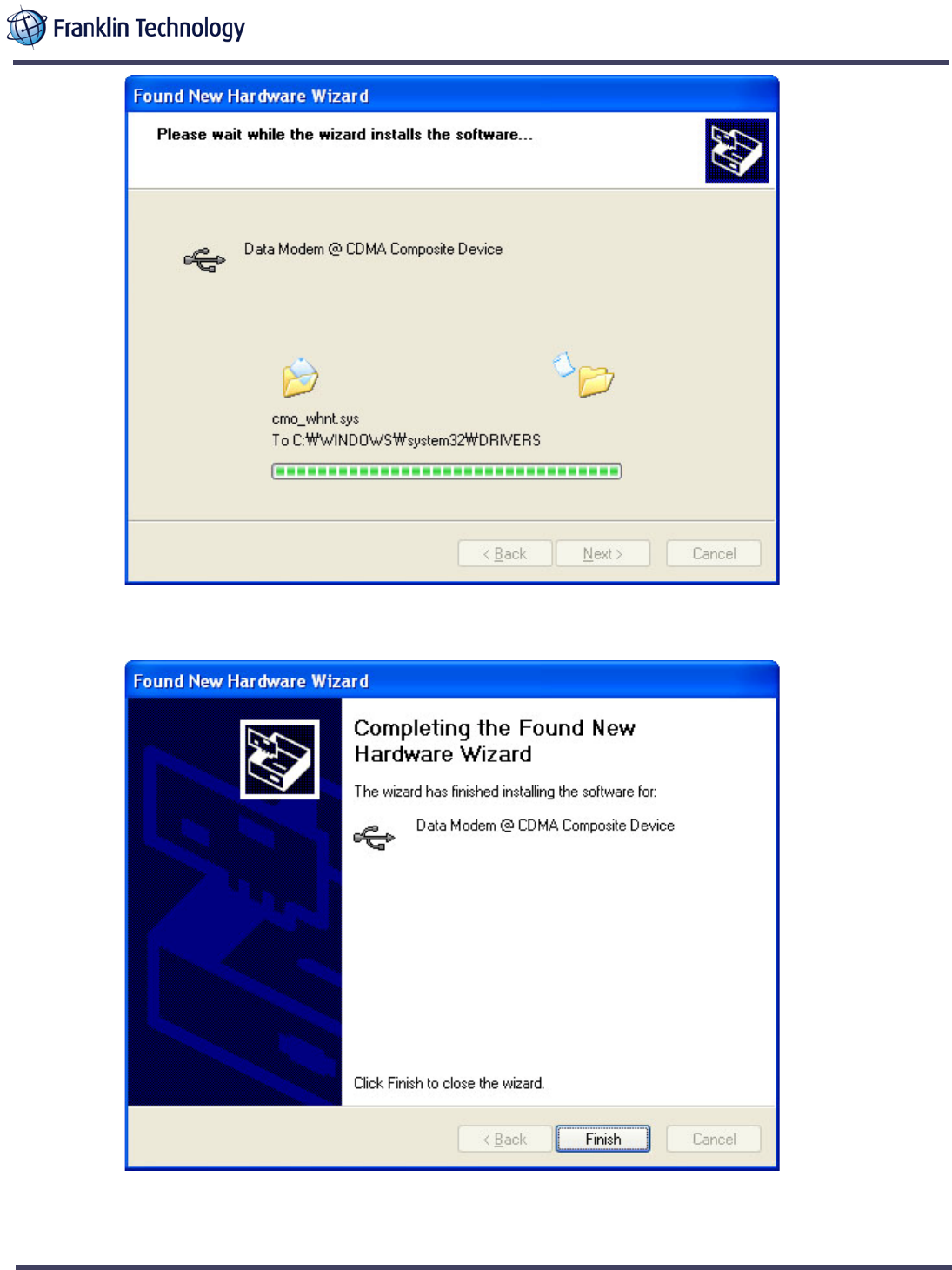

more 2 time install, you can see mcci driver install complete.
16
Confidential Franklin Technology
User’s Manual(FDM-650)
17
Confidential Franklin Technology
User’s Manual(FDM-650)
18
Confidential Franklin Technology
User’s Manual(FDM-650)
19
