Users Manual
FreeWave Technologies, Inc.
PCE4552AH Confidential Page 1
Product Specification
PCE4552AH
V. 0.2
Revision History
Version Date Revision Description
0.1 2013/04/15 Preliminary
0.2 2013/10/25 Update the TX power and dimension information
FreeWave Technologies, Inc.
PCE4552AH Confidential Page 2
PRODUCT DESCRIPTION
The PCE4552AH is adapting the next generation Wi-Fi technology, 802.11ac. It
provides the great improvement in the performance compare with 802.11n.
PCE4552AH is equipped with MMCX connector to provide more secure connection.
K
EY
F
EATURES
Main Chip: Qualcomm QCA9890B
It support data rate at 1.3Gbps
Operating frequency: 5GHz
The module is using 4.2V input for PA.
P
RODUCT
S
PECIFICATION
Hardware Specification
Standard IEEE802.11a;IEEE802.11n;802.11ac
RF For PCE4552AH: QCA9890
Interface 64-bit PCI-E
Operating Voltage 3.3V / 4.2V for PA
Antenna Connectors MMCX
Radio specification
Data rate 1300Mbps
Channel Data rate
Typical AVG. Power
@ per chain
(dB) with
tolerance ±1.5
Typical Rx Sensitivity
@ per chain
(dBm) with
tolerance ±1.5
Operating Frequency: 4.9~5.825GHz
802.11a (5.18~5.825GHz) 6Mbps 23 -88
54 Mbps 19 -72
802.11a/n_HT20(5.18~5.825GHz) MCS 0 (BPSK) 22 -88
MCS 1 (QPSK) 22 -86
MCS 2 (QPSK) 22 -82
MCS 3 (16-QAM) 22 -79
MCS 4 (16-QAM) 22 -76
MCS 5 (64-QAM) 21 -72
MCS 6 (64-QAM) 20 -71
FreeWave Technologies, Inc.
PCE4552AH Confidential Page 3
MCS 7 (64-QAM) 19 -69
802.11n_HT40 MCS 0 (BPSK) 22 -84
MCS 1 (QPSK) 22 -81
MCS 2 (QPSK) 22 -79
MCS 3 (16-QAM) 22 -76
MCS 4 (16-QAM) 22 -73
MCS 5 (64-QAM) 21 -71
MCS 6 (64-QAM) 20 -70
MCS 7 (64-QAM) 19 -68
802.11ac_HT80 MCS 0 (BPSK) 22 -82
MCS 1 (QPSK) 22 -80
MCS 2 (QPSK) 22 -78
MCS 3 (16-QAM) 22 -74
MCS 4 (16-QAM) 22 -72
MCS 5 (64-QAM) 21 -71
MCS 6 (64-QAM) 20 -70
MCS 7 (64-QAM) 19 -68
MCS 8 (256-QAM) 17 -60
MCS 9 (256-QAM) 15 -58
Package content
Bulk pack
Environment & Mechanical
Power consumption 5.9W (max)
Temperature Range -40
O
C ~ 70
O
C (Operating temperature for PCE4552AH)
--45
O
C ~ 90
O
C (Storage temperature)
Humidity (non-condensing) 5%～90% typical
Dimensions 30(W) * 50(L) * 4.1(H) mm
Weight TBD
Compliance Standard
Radio Approvals Prescan only
(FCC Part 15.247, 15.407
CE EN300.328, EN301.893)
MTBF TBD
* All RF parameters tolerance are +- 1.5dBm
FreeWave Technologies, Inc.
PCE4552AH Confidential Page 4
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
i. The module is limited to installation in mobile or fixed applications, according to Part 2.1091(b).
ii.Separate approval is required for all other operating configurations, including portable
configurations with respect to Part 2.1093 and different antenna configurations.
iii.Authorized antennas per Part 15.204 (including ant. spec.).
iv. Antenna installation requirements.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 52cm
FreeWave Technologies, Inc.
PCE4552AH Confidential Page 5
between the radiator & your body.This device is intended only for OEM integrators under
the following conditions:
1) The antenna must be installed such that 52 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However, the
OEM integrator is still responsible for testing their end-product for any additional compliance
requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 52 cm may be maintained between the antenna and users. The final end product must
be labeled in a visible area with the following: “Contains FCC ID: KNYPRW5000AB”. The
grantee's FCC ID can be used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
i. Statements required per Part 15.19 and 15.21
ii. End-users must be provided with transmitter/antenna installation requirements and operating
conditions for satisfying RF exposure compliance:
1. A separate section should clearly state “FCC RF Exposure requirements:”
2. Required operating conditions for end users.
3. Antenna/or transmitter installation requirements.
4. Authorized antennas per part 15.204 (including ant. spec.).
FreeWave Technologies, Inc.
PCE4552AH Confidential Page 6
Professional installation instruction
1. Installation personal
This product is designed for specific application and needs to be installed by a qualified personal
who has RF and related rule knowledge. The general user shall not attempt to install or change
the setting.
2. Installation location
The product shall be installed at a location where the radiating antenna can be kept 52cm from
nearby person in normal operation condition to meet regulatory RF exposure requirement.
3. External antenna
Use only the antennas which have been approved by the applicant. The non-approved
antenna(s) may produce unwanted spurious or excessive RF transmitting power which may lead
to the violation of FCC limit and is prohibited.
4. Installation procedure
Please refer to user’s manual for the detail.
5. Warning
Please carefully select the installation position and make sure that the final output power does
not exceed the limit set force in relevant rules. The violation of the rule could lead to serious
federal penalty.

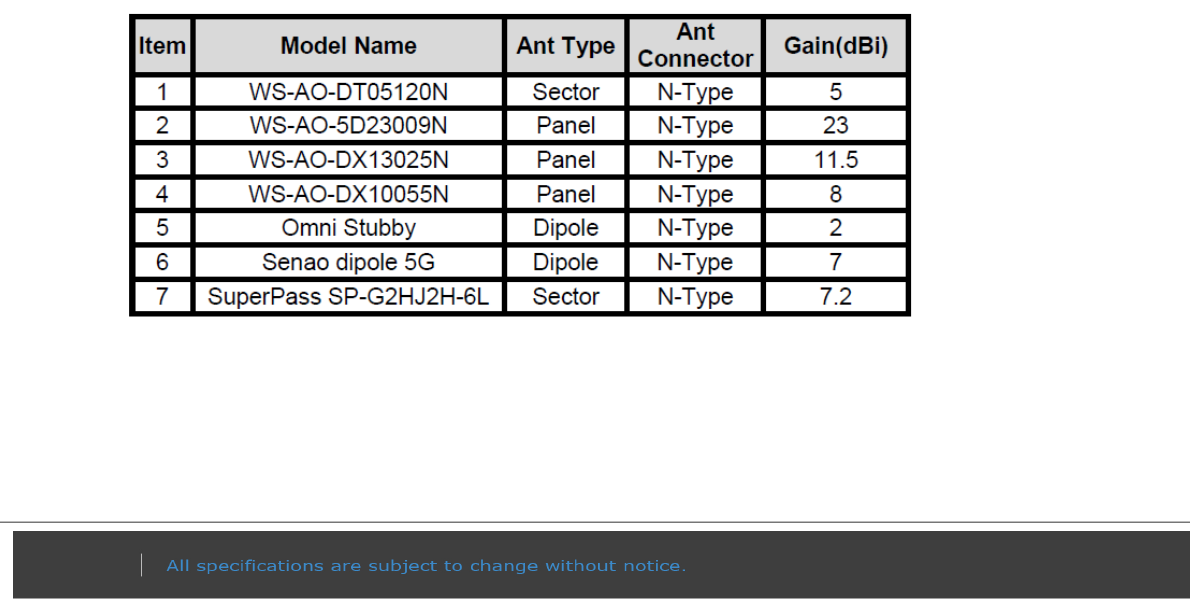

For Antenna information list:
FreeWave Technologies, Inc.
PCE4552AH Confidential Page 7

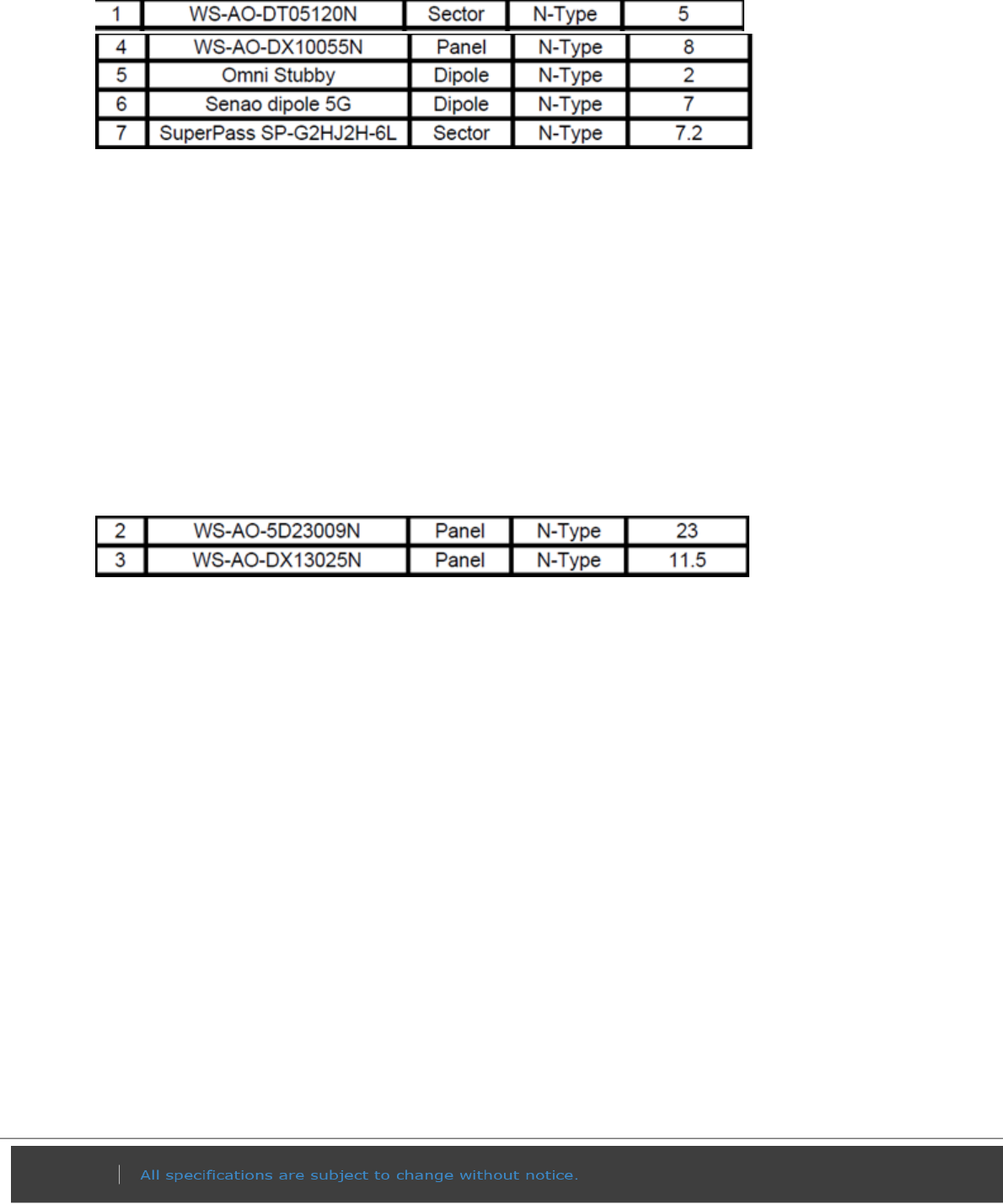

Antenna gain<10dBi
The devices listed below have been originally approved under FCC rule part 15.247. Based on
the implementation of the rule changes from docket 13-49 these devices can no longer be
manufactured, sold, imported or placed into operation after June 2, 2016. After this date these
devices must comply with the new rule changes provided in docket 13-49.
The Memorandum of Opinion and Order issued on March 6 allows for these devices to be
updated from 15.247 to compliance with new rules 15.407(b)(4)(ii) so long as there are no
hardware changes or changes to output power. Devices approved under 15.407(b)(4)(ii) may
be sold until March 2, 2020.
The following devices approved under 15.407(b)(4)(ii) may be marketed, sold and imported until
March 2, 2020. After this date these devices must comply with the emission limits of 15.407.
Antenna gain>10dBi
The devices listed below have been originally approved under FCC rule part 15.247. Based on
the implementation of the rule changes from docket 13-49 these devices can no longer be
manufactured, sold, imported or placed into operation after June 2, 2016. After this date these
devices must comply with the new rule changes provided in docket 13-49.
The Memorandum of Opinion and Order issued on March 6 allows for these devices to be
updated from 15.247 to compliance with new rules 15.407(b)(4)(ii) so long as there are no
hardware changes or changes to output power. Devices approved under 15.407(b)(4)(ii) may
be sold until March 2, 2018.
The following devices approved under 15.407(b)(4)(ii) may be marketed, sold and imported until
March 2, 2018. After this date these devices must comply with the emission limits of 15.407.
