Freescale Semiconductor 1322X-USB 1322x USB Dongle User Manual
Freescale Semiconductor, Inc. 1322x USB Dongle
Users Manual Rev 2
Document Number: 1322xUSBRM
Rev. 1.1
07/2008
1322x USB Dongle/Zniffer
Reference Manual
How to Reach Us:
Home Page:
www.freescale.com
E-mail:
support@freescale.com
USA/Europe or Locations Not Listed:
Freescale Semiconductor
Technical Information Center, CH370
1300 N. Alma School Road
Chandler, Arizona 85224
+1-800-521-6274 or +1-480-768-2130
support@freescale.com
Europe, Middle East, and Africa:
Freescale Halbleiter Deutschland GmbH
Technical Information Center
Schatzbogen 7
81829 Muenchen, Germany
+44 1296 380 456 (English)
+46 8 52200080 (English)
+49 89 92103 559 (German)
+33 1 69 35 48 48 (French)
support@freescale.com
Japan:
Freescale Semiconductor Japan Ltd.
Headquarters
ARCO Tower 15F
1-8-1, Shimo-Meguro, Meguro-ku,
Tokyo 153-0064, Japan
0120 191014 or +81 3 5437 9125
support.japan@freescale.com
Asia/Pacific:
Freescale Semiconductor Hong Kong Ltd.
Technical Information Center
2 Dai King Street
Tai Po Industrial Estate
Tai Po, N.T., Hong Kong
+800 2666 8080
support.asia@freescale.com
For Literature Requests Only:
Freescale Semiconductor Literature Distribution Center
P.O. Box 5405
Denver, Colorado 80217
1-800-521-6274 or 303-675-2140
Fax: 303-675-2150
LDCForFreescaleSemiconductor@hibbertgroup.com
Information in this document is provided solely to enable system and software implementers to use
Freescale Semiconductor products. There are no express or implied copyright licenses granted
hereunder to design or fabricate any integrated circuits or integrated circuits based on the information
in this document.
Freescale Semiconductor reserves the right to make changes without further notice to any products
herein. Freescale Semiconductor makes no warranty, representation or guarantee regarding the
suitability of its products for any particular purpose, nor does Freescale Semiconductor assume any
liability arising out of the application or use of any product or circuit, and specifically disclaims any
and all liability, including without limitation consequential or incidental damages. “Typical”
parameters that may be provided in Freescale Semiconductor data sheets and/or specifications can
and do vary in different applications and actual performance may vary over time. All operating
parameters, including “Typicals”, must be validated for each customer application by customer’s
technical experts. Freescale Semiconductor does not convey any license under its patent rights nor
the rights of others. Freescale Semiconductor products are not designed, intended, or authorized for
use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the Freescale
Semiconductor product could create a situation where personal injury or death may occur. Should
Buyer purchase or use Freescale Semiconductor products for any such unintended or unauthorized
application, Buyer shall indemnify and hold Freescale Semiconductor and its officers, employees,
subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses,
and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that Freescale
Semiconductor was negligent regarding the design or manufacture of the part.
ARM is the registered trademark of ARM Limited. ARM7TDMI-S is the trademark of ARM Limited.
Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc. All other
product or service names are the property of their respective owners.
© Freescale Semiconductor, Inc. 2005, 2006, 2007. All rights reserved.
1322x-USB Reference Manual, Rev. 1.1
Freescale Semiconductor i
Contents
About This Book
Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Chapter 1
Safety Information
1.1 FCC Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2 FCC Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2.1 47 C.F.R. Sec. 15.21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2.2 47 C.F.R. Sec.15.105(b) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.2.3 47 C.F.R. Sec.15.203 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.3 Regulatory Approval For Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.4 Disposal Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Chapter 2
1322x USB Dongle/Zniffer Overview
2.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2.2 Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
2.3 Board Level Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Chapter 3
System Overview and Functional Descriptions

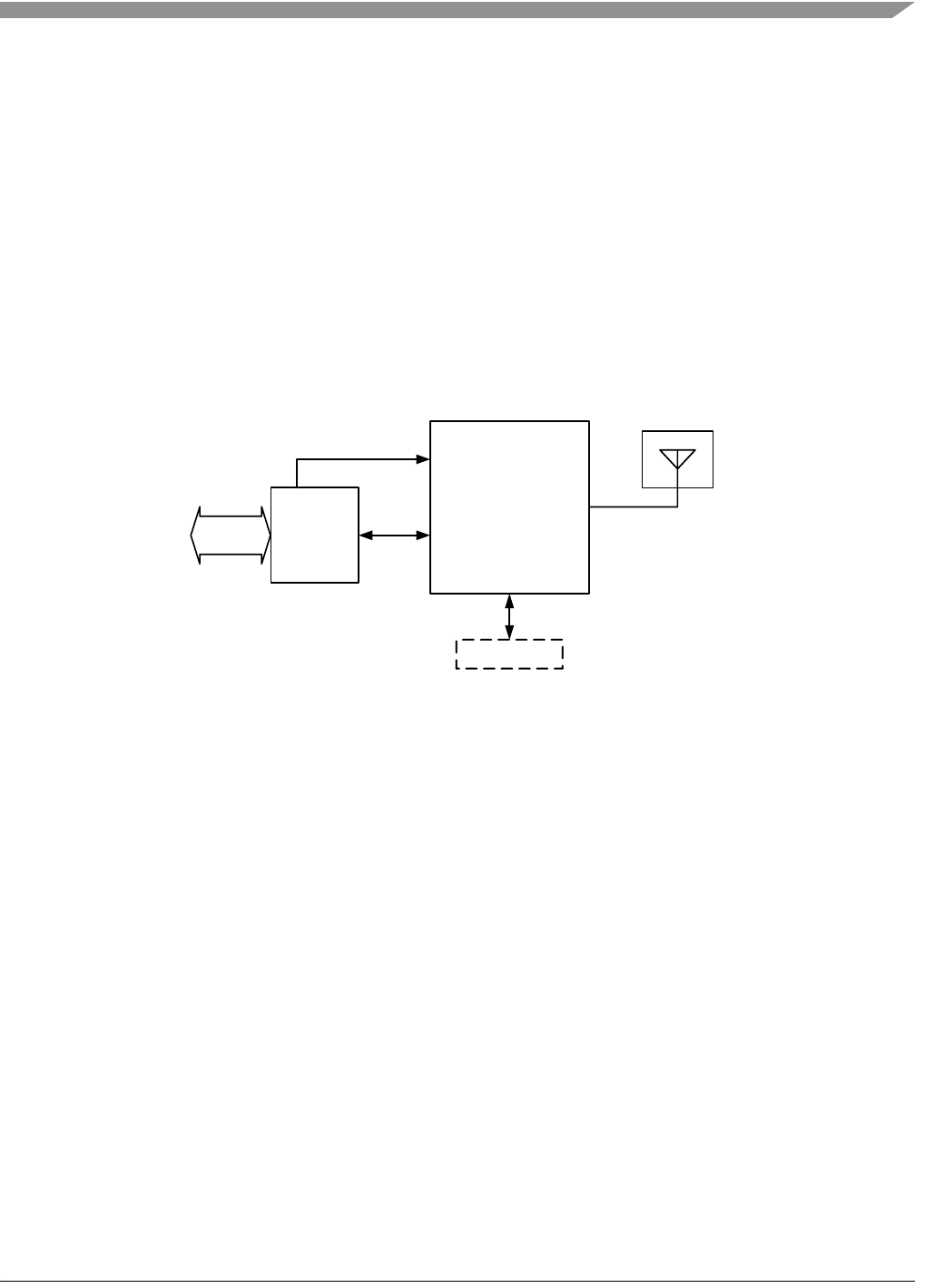

3.1 System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.2 System Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
3.3 Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
3.4 Low-cost 2.4 GHz ISM Band radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
3.5 USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
3.6 Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
3.7 Reset Switch and LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
3.8 FLASH Memory Recovery Jumpers and Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
3.9 Optional Debug/Development Interface (ARM JTAG Interface) . . . . . . . . . . . . . . . . . . . . . . . 3-6
Chapter 4

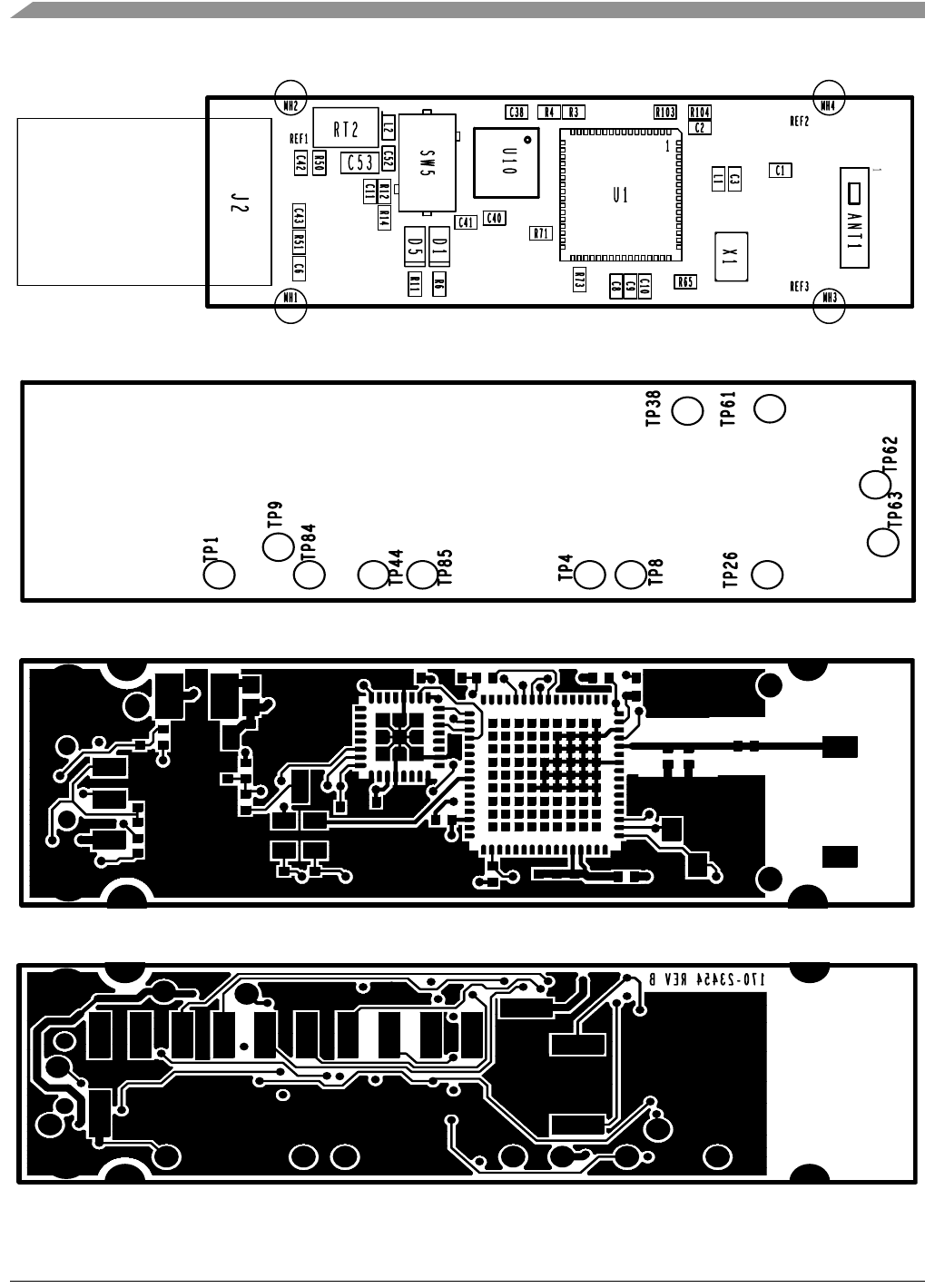

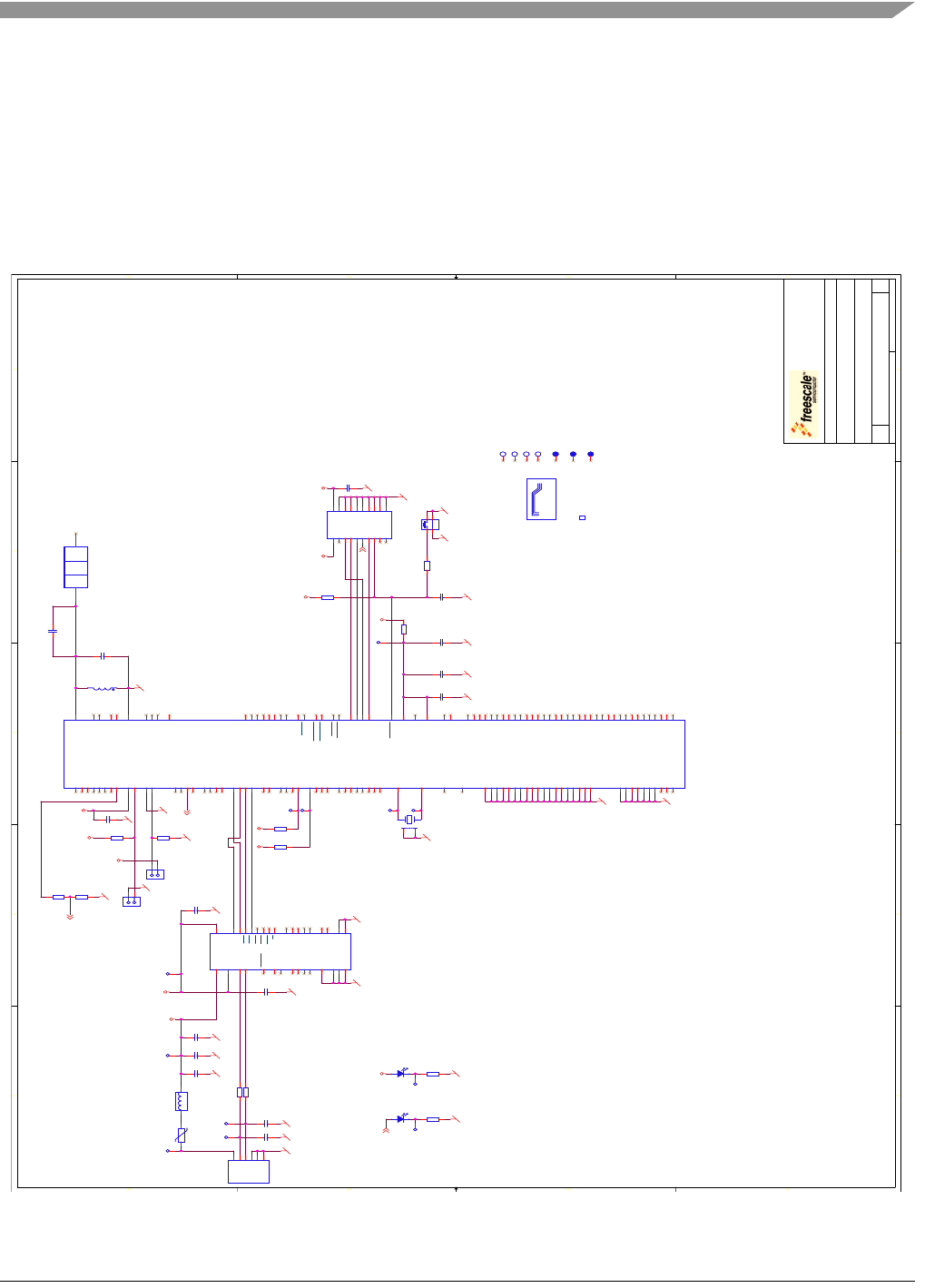

Schematic, Board Layout, and Bill of Materials
1322x-USB Reference Manual, Rev. 1.1
ii Freescale Semiconductor
1322x-USB Reference Manual, Rev. 1.1
Freescale Semiconductor iii
About This Book
This manual describes the Freescale 1322x USB Dongle/Zniffer, which is an IEEE 802.15.4 compliant
wireless node based on the Freescale MC1322x device. The 1322x USB Dongle/Zniffer provides a
platform to evaluate the MC1322x device, develop software and applications, and demonstrate IEEE
802.15.4 and ZigBee networking capabilities.
Audience
This manual is intended for system designers.
Organization
This document is organized into four chapters.
Chapter 1 Safety Information — Highlights some of the FCC requirements.
Chapter 2 1322x USB Dongle/Zniffer Overview — Introduces the 1322x USB
Dongle/Zniffer, which is an IEEE 802.15.4 compliant wireless node based on the
Freescale MC1322X device.
Chapter 3 System Overview and Functional Descriptions — Provides an overview of the
1322x USB Dongle/Zniffer and its connections.
Chapter 4 Schematic and Bill of Material — Provides the schematic, board layout, and Bill
of Materials.
Revision History
The following table summarizes revisions to this document since the previous release (Rev 1.0).
Revision History
Location Revision
Chapter 1 Updated FCC information.
1322x-USB Reference Manual, Rev. 1.1
iv Freescale Semiconductor
Definitions, Acronyms, and Abbreviations
The following list defines the acronyms and abbreviations used in this document.
ADC Analog to Digital Converter
AES Advanced Encryption Standard
ARM Advanced RISC Machine
CTS Clear to Send
DAC Digital to Analog Converter
DMA Direct Memory Access
I2C Inter-Integrated Circuit is a multi-master serial computer bus
ISM Industrial Scientific Medical 2.4 GHz radio frequency band
JTAG Joint Test Action Group
LGA Land Grid Array
MAC Media Access Controller
MCU Microcontroller Unit
NEXUS An embedded processor development tool interface that helps design engineers
identify software and hardware-level issues.
SN Sensor Node
pcb Printed circuit board
PiP Platform in Package
PWM Pulse-width modulation
RTS Request to Send
SMA Connector SubMiniature version “A” connector
SPI Serial Peripheral Interface
SSI Synchronous Serial Interface
TACT Switch A switch that provides a slight “snap” or “click” to the user to indicate function.
TELCO Telephone Company
USB Universal Serial Bus
VCP Virtual Com Port
1322x-USB Reference Manual, Rev. 1.0
Freescale Semiconductor 1-1
Chapter 1
Safety Information
1.1 FCC Guidelines
This equipment is for use by developers for evaluation purposes only and must not be incorporated into
any other device or system. This device may not be sold to the general public. Integrators will be
responsible for reevaluating the end product (including the transmitter) and obtaining a separate FCC
authorization.
FCC approval of this device only covers the original configuration of this device as supplied. Any
modifications to this product, including changes shown in this manual, may violate the rules of the Federal
Communications Commission and make operation of the product unlawful. NOTE: The statement above
applies also to the Industry Canada Approval.
1.2 FCC Labeling
FCC labels are physically located on the plastic housing.
1.2.1 47 C.F.R. Sec. 15.21
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Safety Information
1322x-USB Reference Manual, Rev. 1.0
1-2 Freescale Semiconductor
1.2.2 47 C.F.R. Sec.15.105(b)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
The antenna(s) used for this equipment must be installed to provide a separation distance of at least 8
inches (20cm) from all persons.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following three
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired
operation.
3. This device is susceptible to electrostatic discharge (ESD) and surge phenomenon.
1.2.3 47 C.F.R. Sec.15.203
An intentional radiator shall be designed to ensure that no antenna other than that furnished by the
responsible party shall be used with the device. The use of a permanently attached antenna or of an
antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with
the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be
replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. This
requirement does not apply to carrier current devices or to devices operated under the provisions of
Sections 15.211, 15.213, 15.217, 15.219, or 15.221. Further, this requirement does not apply to intentional
radiators that must be professionally installed, such as perimeter protection systems and some field
disturbance sensors, or to other intentional radiators which, in accordance with Section 15.31(d), must be
measured at the installation site. However, the installer shall be responsible for ensuring that the proper
antenna is employed so that the limits in this Part are not exceeded.
1.3 Regulatory Approval For Canada
This Class B digital apparatus complies with Canadian ICES-003 and RSS 210, Issue 7.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. NOTE: Section 1.1
of this manual also applies to the Industry Canada Approval.
1.4 Disposal Instructions
This product may be subject to special disposal requirements. For product disposal instructions, refer to
www.freescale.com/productdisposal.
1322x-USB Reference Manual, Rev. 1.1
Freescale Semiconductor 2-1
Chapter 2
1322x USB Dongle/Zniffer Overview
2.1 Introduction

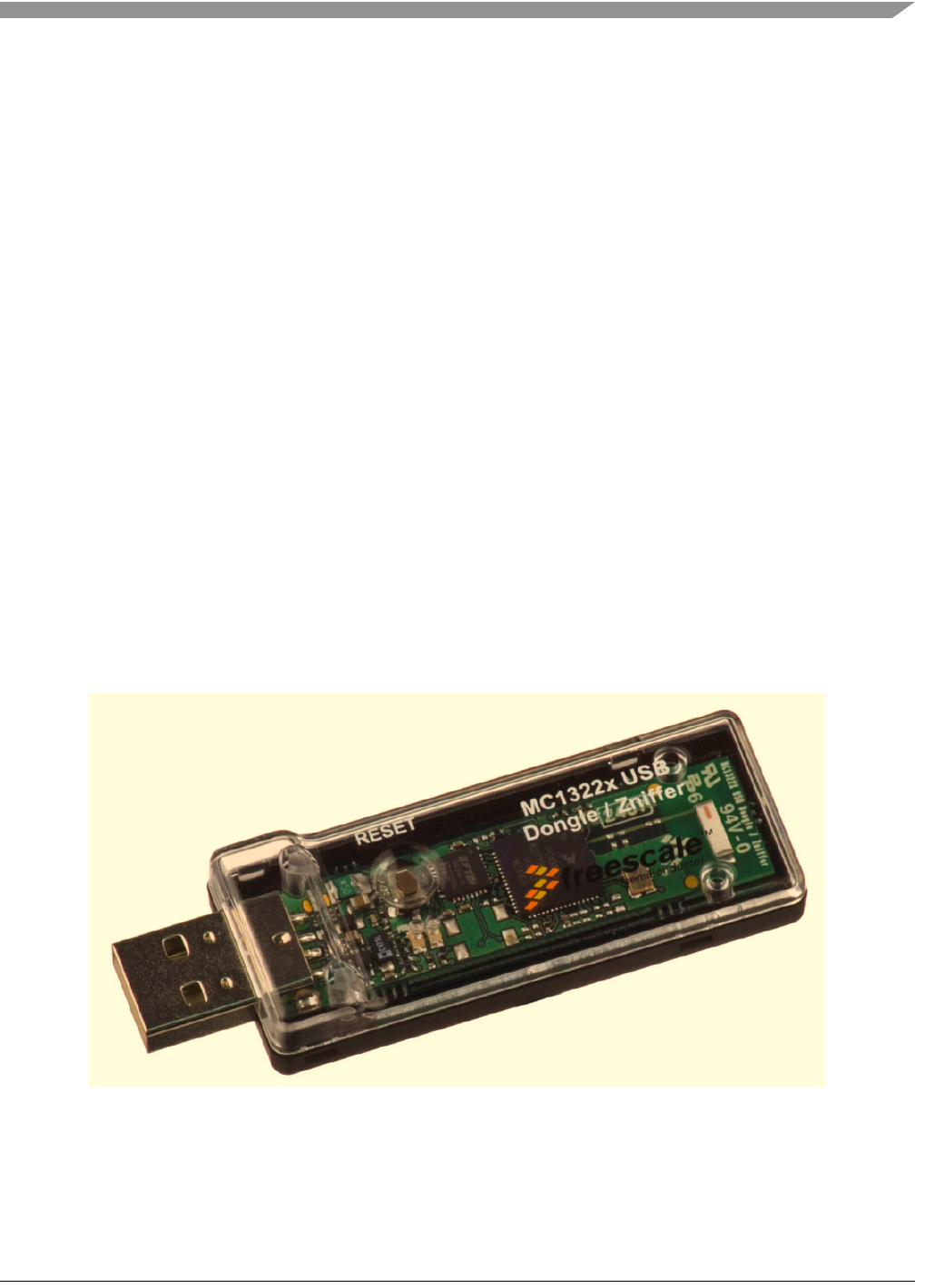

The 1322x USB Dongle/Zniffer is an IEEE 802.15.4 compliant wireless node based on the Freescale
MC1322x device. The heart of the 1322x USB module is Freescale’s MC1322x 99-pin LGA
Platform-in-Package (PiP) solution that can be used for wireless applications ranging from simple
proprietary point-to-point connectivity to complete ZigBee mesh networking. The MC1322x is designed
to provide a highly integrated, total solution, with premier processing capabilities and very low power
consumption.
The 1322x USB Dongle/Zniffer provides a platform to evaluate the MC1322x device, develop software
and applications, and demonstrate IEEE 802.15.4 and ZigBee networking capabilities. The dongle
connects the core device to a personal computer (PC) through a USB port <> UART port interface device.
The small form factor illustrates an extremely small footprint, 4-layer printed circuit board (PCB) layout
with a chip antenna. The MC1322x node typically interfaces to the PC through a virtual COM port (VCM).
As initially provided from Freescale, the dongle is loaded with a software application that implements a
wireless “sniffer” to monitor over-the-air IEEE 802.15.4 traffic.
Figure 2-1. 1322x USB Dongle/Zniffer Top View
1322x USB Dongle/Zniffer Overview
1322x-USB Reference Manual, Rev. 1.1
2-2 Freescale Semiconductor
2.2 Features
The 1322x USB Dongle/Zniffer provides the following features:
• Full IEEE 802.15.4 compliant wireless node; ZigBee capable with Freescale’s BeeStack software
stack
• Based on Freescale’s third-generation MC1322x ZigBee platform which incorporates a complete,
low power, 2.4 GHz radio frequency transceiver, 32-bit ARM7 core based MCU, hardware
acceleration for both the IEEE 802.15.4 MAC and AES security, and a full set of MCU peripherals
into a 99-pin LGA Platform-in-Package (PiP)
• MC1322x provides a highly integrated, low cost RF node
— On-board balun and antenna switch in package
— Typical -95 dBm sensitivity
— Typical 0 dBm output power, with max approximately +4 dBm
— Chip antenna
• Powered from USB interface with power-on green LED
• USB interface is full-speed compatible to the USB 2.0 and 1.1 specifications
• 20-pin site for standard JTAG debug/development interface connector
• Programmable user red LED for application purposes
• Reset switch
• Default 24 MHz crystal reference oscillator
2.3 Board Level Specifications
Table 2-1. 1322x USB Dongle/Zniffer Specifications
Parameter Units Notes/Conditions
MIN TYP MAX
General
Size (Enclosure: X, Y, Z) 60x24x12 mm
Size (PCB: X, Y) 55x15 mm
Layer build (PCB) 0.8 /
0.032 mm /
in 4-Layer
Dielectric material (PCB) FR4
Power
Voltage supply (USB) 4.4 5 5.25 V USB 2.0/1.1 standard specification
Current consumption 100 mA
Temperature
Operating temperature (see note) -30 +25 +85 °C
Storage temperature -30 +25 +85 °C
1322x USB Dongle/Zniffer Overview
1322x-USB Reference Manual, Rev. 1.1
Freescale Semiconductor 2-3
USB interface USB 2.0 and 1.1 full-speed compatible
RF
802.15.4 Frequency range 2405 2480 MHz All 16 channels in the 2450 MHz band
Range (outdoor / line of sight) 300 Meters <1% PER for 20-byte packets (point-to-point
in communications with 1322X Sensor
Reference Board)
RF Transmitter
802.15.4 Output power -30 0 +4 dBm Over range of Pout from IC control in 2 dB
steps.
Note: On channel 26, output power should
not exceed -4 dBm (power setting
0x0E) to meet FCC Part 15
requirements.
Harmonics
2nd harmonics
3rd harmonics -38
-35
dBm
dBm
Harmonics are compliant to ETSI and FCC
regulatory approval standards
RF Receiver
802.15.4 sensitivity -95 dBm <1% PER for 20-byte packets
Regulatory Approval
FCC Product is approved accordingly to the FCC
part 15 standard
CE (ETSI) Product is approved accordingly to the EN
300 328 V1.7.1 (2006-10) standard
CE (EMC) Product is approved accordingly to the EN
301 489-1 V1.6.1 (2005-09) and EN 301
489-17 V1.2.1 (2002-08) standards
Safety
UL Product is approved accordingly to the IEC
60950-1 and EN 60950-1, First Edition
standards
Environment
RoHS Product complies with the EU Directive
2002/95/EC of 27 January 2003
WEEE Product complies with the EU Directive
2002/95/EC of 27 January 2003
Table 2-1. 1322x USB Dongle/Zniffer Specifications (continued)
Parameter Units Notes/Conditions
1322x USB Dongle/Zniffer Overview
1322x-USB Reference Manual, Rev. 1.1
2-4 Freescale Semiconductor
1322x-USB Reference Manual, Rev. 1.1
Freescale Semiconductor 3-1
Chapter 3
System Overview and Functional Descriptions
This section provides an overview of the 1322x USB Dongle/Zniffer and its connections.
3.1 System Block Diagram
The following is the 1322x USB Dongle/Zniffer system level block diagram.
Figure 3-1. 1322x USB Dongle/Zniffer Block Diagram
3.2 System Overview
The heart of the 1322x USB Dongle/Zniffer is Freescale’s MC1322x 99-pin LGA Platform-in-Package
(PiP) solution that can be used for wireless applications ranging from simple proprietary point-to-point
connectivity to complete ZigBee mesh networking. The MC1322x is designed to provide a highly
integrated, total solution, with premier processing capabilities and very low power consumption.
The MC1322x MCU resources offer superior processing power for ZigBee and IEEE 802.15.4
applications. A full 32-bit ARM7TDMI-S core operates up to 26 MHz. A 128 Kbyte FLASH memory is
mirrored into a 96 Kbyte RAM for upper stack and applications software. In addition, an 80 Kbyte ROM
is available for boot software, peripheral device drivers, standardized IEEE 802.15.4 MAC and
communications stack software. A full set of peripherals and Direct Memory Access (DMA) capability for
transceiver packet data complement the processor core.
MC1322xV
Advanced ZigBee™-
Compliant PiP
USB 2.0 USB
Interface
FT232R
UART
3.3 Vdc
JTAG Debug
Chip Antenna
System Overview and Functional Descriptions
1322x-USB Reference Manual, Rev. 1.1
3-2 Freescale Semiconductor
Figure 3-2. MC1322x Block Diagram
The RF radio interface provides for low cost and high density as shown in Figure 3-3. An onboard balun
along with a TX/RX switch allows direct connection to a single-ended 50-Ω antenna. The integrated PA
provides programmable output power typically from -30 dBm to +4 dBm, and the RX LNA provides -95
dBm sensitivity. This solution also has onboard bypass capacitors and crystal load capacitors for the
smallest footprint in the industry. All components are integrated into the package except the crystal and
antenna.
Figure 3-3. MC1322x RF Interface
TIMER
MODULE
(TMR)
(4 Tmr Blocks)
UART
MODULE
(UART0)
UART
MODULE
(UART1)
SYNC SERIAL
INTERFACE
(SSI/i2S)
KEYBOARD
INTERFACE
(KBI)
INTER-IC BUS
MODULE
(I2C)
SERIAL
PERIPHERAL
INTERFACE
(SPI)
DUAL
12-BIT
ADC
MODULE
GPIO and IO
CONTROL
UP TO 64 IO PINS
ARM7
TDMI-S
32-BIT
CPU
BUS
INTERFACE
& MEMORY
ARBITRATOR
ARM
INTERRUPT
CONTROLLER
(AITC)
JTAG/
Nexus
DEBUG
ADVANCED
SECURITY
MODULE
(ASM)
CLOCK &
RESET
MODULE
(CRM)
RADIO
INTERFACE
MODULE
(RIF)
96KBYTE
SRAM
(24K WORDS x
32 BITS)
80KBYTE
ROM
(20KWORDS x
32 BITS)
RF
OSCILLATOR
&
CLOCK GENERATION
SPI
FLASH
MODULE
(SPIF)
802.15.4
MAC
ACCELERATOR
(MACA)
DIGITAL
MODEM
TX
MODEM
RX
MODEM
128KBYTE
NON-VOLATILE
MEMORY
(SERIAL
FLASH)
ANALOG
TRANSMITTER
ANALOG
RECEIVER
RF
TX/RX
SWITCH
IEEE 802.15.4 TRANSCEIVER
BALUN
ANALOG
POWER
MANAGEMENT
&
VOLTAGE
REGULATION
MC13225
Platform-in-Package (PiP)
IEEE 802.15.4/ZIGBEE SOLUTION
Buck
Regulator
24 MHz (typ) 32.768 KHz (optional)
BATTERY
DETECT
ANALOG
TRANSMITTER
ANALOG
RECEIVER
RF
TX/RX
SWITCH
BALUN
LNA
PA
System Overview and Functional Descriptions
1322x-USB Reference Manual, Rev. 1.1
Freescale Semiconductor 3-3
Augmenting the core device on the Sensor Node are:
• Low-cost 2.4 GHz ISM Band radio
• 2.0 USB connection
• User interface LED
• Optional debug / development port
• Reset switch
Users are encouraged to reference the board schematic for the topics covered in the following sections.

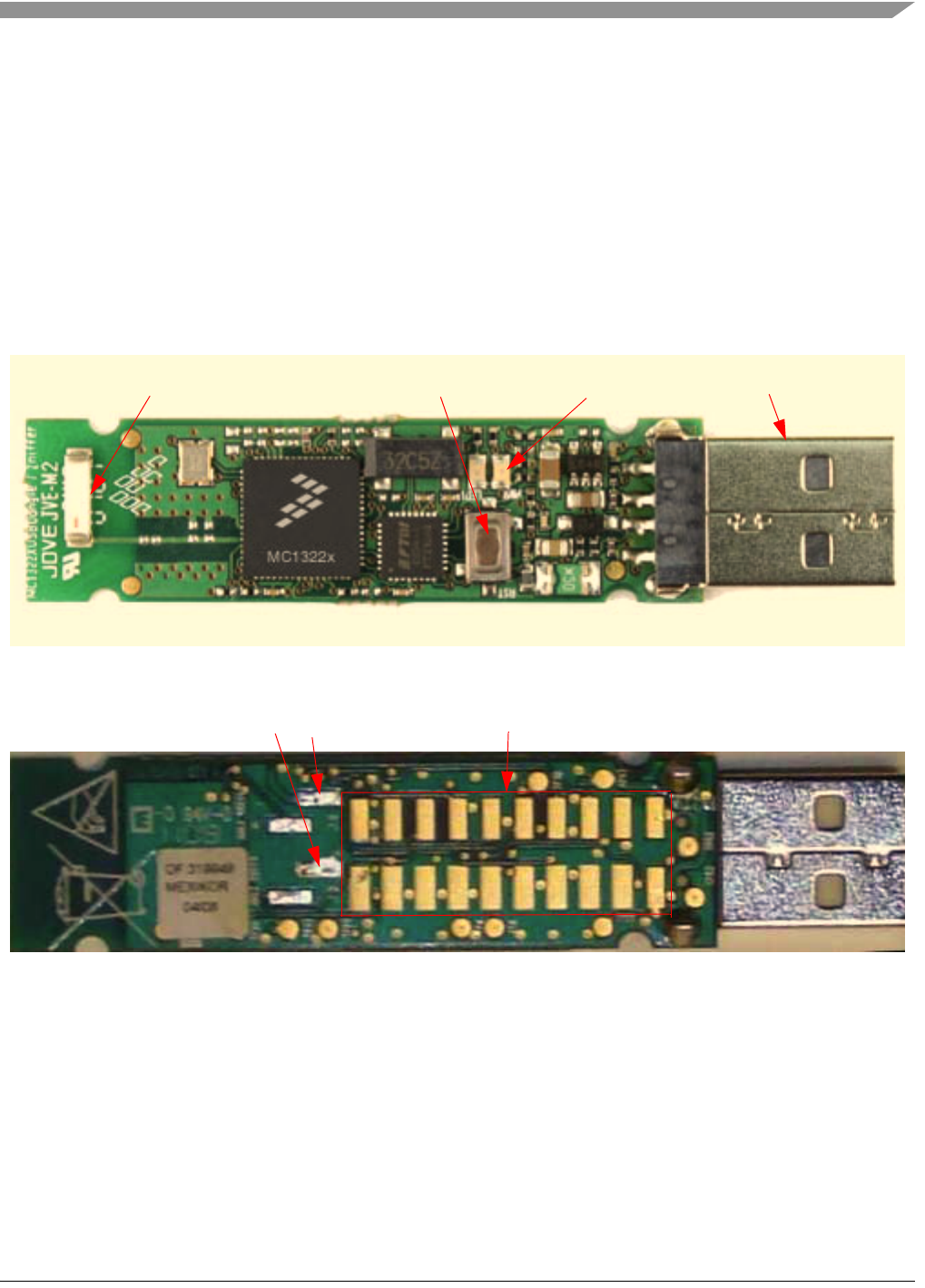

Figure 3-4 and Figure 3-5 shows the 1322x USB Dongle/Zniffer PCB top and bottom view with interface
designations.
Figure 3-4. 1322x USB Dongle/Zniffer PCB Top View
Figure 3-5. 1322x USB Dongle/Zniffer PCB Bottom View
3.3 Power Source
The device is powered directly from the USB connection
• The main source is the USB “B” Receptacle
• The USB connection powers the FTDI FT232R USB<>UART interface device. In turn, the
FT232R has an onboard 3.3 V output series regulator that powers the rest of the module.
• A green power-on LED (D5) is provided
Reset SwitchChip Antenna USB “B” Receptacle
NOTE: JTAG header footprint on PCB reverse side.
Power On LED
J3 J4 J1 (JTAG)
1
20
System Overview and Functional Descriptions
1322x-USB Reference Manual, Rev. 1.1
3-4 Freescale Semiconductor
3.4 Low-cost 2.4 GHz ISM Band radio
The MC1322x provides an onboard balun, antenna switch, and LNA. The only external component
required for the radio is an antenna. The USB dongle uses a PCB-mounted chip antenna. Figure 3-6 shows
the RF network external to the MC1322x.
• Typical nominal output power is 0 dBm, with +4 dBm max
• Typical sensitivity is -95 dBm.
• Frequency range is 2405 to 2480 MHz
• Typical range (outdoors, line of sight) is 300 meters
Figure 3-6. 1322x USB Dongle/Zniffer RF Network
3.5 USB Interface
Primary connection to the wireless node is the USB port that is provided via a USB “B” receptacle
designated as J2. Figure 3-7 shows the connector pinout.
Figure 3-7. USB Connector Pinout
The port is connected to a FTDI FT232R USB <> UART device that appears as a Virtual COM port (VCP)
to the PC. PC drivers are available with the module. The USB interface is configured as a “Bus Powered”
device and draws all required power from the USB interface. The device is USB 2.0, full speed compatible.
RF_RX_TX
CHIP ANTENNA
L3
3.9nH
Not Mounted
NC 2
RF
1
ANT2
2450AT43A100
C4
1pF
Not Mounted
C5
10pF
Not Mounted
RF_GND
System Overview and Functional Descriptions
1322x-USB Reference Manual, Rev. 1.1
Freescale Semiconductor 3-5
3.6 Clock
The MC1322x device has a primary reference oscillator of 24 MHz. Crystal X1 is used with the MC1322x
for the reference oscillator.
3.7 Reset Switch and LEDs
The USB dongle provides the following
• One green Power-On LED (D5)
• One red LED (D1) is driven by the MCU and controlled by the software application.
• Reset switch to the wireless node; does not reset the USB interface device.
Refer to Figure 3-4 for location of switches and LEDs.
3.8 FLASH Memory Recovery Jumpers and Erase
The MC1322x has an onboard serial FLASH that stores the memory image that gets loaded into RAM at
boot. If it becomes necessary to change or update the image in FLASH, there are two possible means of
doing so:
• JTAG Debug Port - if the JTAG connector is mounted and the ARM debug tools are in use, the
FLASH image can be changed.
• Load new FLASH image via USB port:
— The Freescale BeeKit IDE download provides a software tool called Test Tool. This application
runs on a PC and can be used with a client running on the MC1322x to test the platform.
— Test Tool also has the capability to load a new image into the FLASH through the USB port.
However, the FLASH must first be cleared.
The 1322x USB Dongle/Zniffer has two jumper sites designated as J3 and J4 (see Figure 3-8) located on
the non-component (back) side of the PCB (see Figure 3-5). Use these jumper sites to erase the FLASH.
1. Short Jumper J3 Pin 1 to Pin 2.
2. Short Jumper J4 Pin 1 to Pin 2.
NOTE
For development purposes SMD headers can be soldered to the header sites
to make this action easily done with shorting bars.
3. Power on the USB board by plugging it into a USB port.
4. Push the reset button on the USB board.
Table 3-1. Switch and LED Summary
Item Connection Feature
PWR (green) VCC ‘Power On’ indication
LED1 (red) KBI_1 Application specific
SW5 RESETB Reset to MC1322x
System Overview and Functional Descriptions
1322x-USB Reference Manual, Rev. 1.1
3-6 Freescale Semiconductor
5. Disconnect the USB board from USB port.
6. Remove the jumpers from both J3 and J4.
7. The board is now ready for boot operation. After the FLASH is erased, plug the module into the
USB connection again. The board is now ready to be loaded with a new image using the Freescale
Test Tool application.
NOTE
Refer to the Freescale Test Tool User’s Guide as supplied with Test Tool in
the BeeKit Wireless Connectivity Toolkit download.
Figure 3-8. FLASH Erase Headers
3.9 Optional Debug/Development Interface (ARM JTAG Interface)
The module optionally supports the standard JTAG debug port. A 20-pin footprint is provided for a
standard JTAG debug interface connector. This debug port only requires a simple interface cable to
connect to a PC and use standard ARM software development tools.
The MC1322x supports connection to a subset of the defined ARM JTAG connector. The JTAG interface
is a standard 2.54mm/0.1inch spacing, 20-pin debug interface (J1). The footprint for the 20-pin connector
is located at the rear side of the module. A Pin 1 marking is given for correct plug-in of the development
cable.
Table 3-2 shows the device pins that are connected to the associated JTAG header pin outs if the JTAG
connector is used.
NOTE
The required header is a 20-position, 0.100” straight SMD connector.
Molex/Waldom #15-91-0200 or equivalent.
1
2
J3
HDR_1X2
Not Mounted 1
2
J4
HDR_1X2
Not Mounted
1-2 ADC2_VREFH -> "0"
1-2 ADC2_VREFL -> "1"
Recove r y Mode
R104
10K
R103
10K
VCC
VCC
ADC2_VREFH
ADC2_VREFL
System Overview and Functional Descriptions
1322x-USB Reference Manual, Rev. 1.1
Freescale Semiconductor 3-7
Table 3-2. ARM JTAG 20-Pin Connector Assignments (J1)
Name1
1NC means No Connect.
Pin # Pin # Name
VCC 1 2 VCC
NC2
2MC1322x does not support separate JTAG reset TRST.
34GND
TDI 5 6 GND
TMS 7 8 GND
TCK 9 10 GND
RTCK 11 12 GND
TDO 13 14 GND
RESET3
3VCC through a 100k-ohm pullup.
15 16 GND
NC 17 18 GND
NC 19 20 GND
System Overview and Functional Descriptions
1322x-USB Reference Manual, Rev. 1.1
3-8 Freescale Semiconductor
1322x-USB Reference Manual, Rev. 1.1
Freescale Semiconductor 4-1
Chapter 4
Schematic, Board Layout, and Bill of Materials
Figure 4-1. 1322x USB Dongle/Zniffer Schematic
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VCC
VCC VCC
VCC
V_USB
VCC
VCC
VCC
VCC
VCC
VCC
VCC
RTCK
RTCK
LED1
LED1
Drawing Title:
Size Document Number Rev
Date: Sheet of
Page Title:
ICAP Classification: FCP: FIUO: PUBI:
SOURCE: SCH-23454 PDF: SPF-23454 B1
1322X-USB
C
Tuesday, May 06, 2008
Main Schematic
33
_X_ ---
---
Drawing Title:
Size Document Number Rev
Date: Sheet of
Page Title:
ICAP Classification: FCP: FIUO: PUBI:
SOURCE: SCH-23454 PDF: SPF-23454 B1
1322X-USB
C
Tuesday, May 06, 2008
Main Schematic
33
_X_ ---
---
Drawing Title:
Size Document Number Rev
Date: Sheet of
Page Title:
ICAP Classification: FCP: FIUO: PUBI:
SOURCE: SCH-23454 PDF: SPF-23454 B1
1322X-USB
C
Tuesday, May 06, 2008
Main Schematic
33
_X_ ---
---
LED
RF
JTAG Debug
DBGRQ
DBGACK
nTRST
JTAG RTCK
Enable
Reset
Button
Power ON
JTAG RTCK
Disable
USB Interface & Power
1-2 ADC2_VREFH -> "0"
3-4 ADC2_VREFL -> "1"
Recovery Mode
CHIP ANTENNA
C52
10nF
C52
10nF
C8
100pF
C8
100pF
C42
15pF
C42
15pF
R14
1K
R14
1K
TP85TP85
R11
220R
R11
220R
REF3
Ref
REF3
Ref
1
1
C53
4.7uF
C53
4.7uF
R103
10K
R103
10K
R71
10K
Not Mounted
R71
10K
Not Mounted
J2
USB-A
J2
USB-A
VUSB 1
Data- 2
Data+ 3
GND 4
SHIELD1 5
SHIELD2 6
R6
390R
R6
390R
C2
100nF
C2
100nF
R73
10K
R73
10K
MH4MH4
1
ANT1
2450AT43A100
ANT1
2450AT43A100
NC 2
RF
1
TP63TP63
SW5
SKQY
RESET
SW5
SKQY
RESET
1
3 4
2
R500R R500R
C11
1nF
C11
1nF
REF2
Ref
REF2
Ref
1
1
U10
FT232R
U10
FT232R
TxD 30
RxD 2
RTS 32
CTS 8
DTR 31
DSR 6
DCD 7
RI 3
AGND 24
GND1
4
GND2
17
VCC
19 VCCIO 1
3V3OUT
16
USBDM
15
USBDP
14
RESET
18
OSCI
27
OSCO
28
EP 33
CBUS4 9
CBUS3 11
CBUS2 10
CBUS1 21
CBUS0 22
NC1
5
NC2
12
NC3
13
GND3
20
NC4
23
NC5 25
NC6 29
TEST
26
C41
100nF
C41
100nF
TP26TP26
TP9TP9
R3
0R
R3
0R
TP8TP8
TP84TP84
X1
24.00MHz
X1
24.00MHz
R510R R510R
C3
1pF
Not Mounted
C3
1pF
Not Mounted
REF1
Ref
REF1
Ref
1
1
ZZ1
Label 1322X-USB
ZZ1
Label 1322X-USB
RT2
500mA
RT2
500mA
L1
3.9nH
Not Mounted
L1
3.9nH
Not Mounted
C40
100nF
C40
100nF
MH3MH3
1
TP62TP62
R4
0R
Not Mounted
R4
0R
Not Mounted
C38
100nF
C38
100nF
U1
MC13225
U1
MC13225
UART2_RTS
13
EVTI_B 132
MCKO/IO50 131
MSEO0_B 114
EVTO_B 123
RDY_B 122
MSEO1_B 113
VBATT 45
LREG_BK_FB 44
COIL_BK 43
ADC2_VREFL
61 ADC1_VREFL
62
ADC1_VREFH
63
ADC2_VREFH
64
ADC0
1
ADC1
2
ADC2
3
ADC3
4
ADC4
5
ADC5
6
ADC6
7
ADC7_RTCK
8
MDO00 103
MDO01 102
MDO02 112
MDO03 111
MDO04 121
MDO05 120
MDO06 130
MDO07 129
TDI 10
RF_GND 58
TDO 9
UART2_CTS
14
UART2_RX
15
TCK 11
TMS 12
RESETB 51
VREG_ANA 55
XTAL_24_OUT
49
RF_PLL_FLT 46
XTAL_24_IN
50
KBI_0_HST_WK
42
XTAL_32_IN
47
ANT_1 56
XTAL_32_OUT
48
RF_RX_TX 60
ANT_2 57
UART2_TX
16
RX_ON 59
PA_POS 54
PA_NEG 53
TX_ON 52
UART1_RTS
17
UART1_CTS
18
UART1_RX
19 UART1_TX
20
I2C_SDA
21
I2C_SCL
22
TMR3
23
TMR2
24
TMR1
25
TMR0
26
SPI_SCK
27
SPI_MOSI
28
SPI_MISO
29
SPI_SS
30
SSI_BITCK
31
SSI_FSYN
32
SSI_RX
33 SSI_TX
34
KBI_1
41 KBI_2
40 KBI_3
39 KBI_4
38 KBI_5
37 KBI_6
36 KBI_7
35
GND_FLAG_1
75
DIG_REG 124
NVM_REG 133
GND_FLAG_2
76
GND_FLAG_3
77
GND_FLAG_4
78
GND_FLAG_5
79
GND_FLAG_6
84
GND_FLAG_7
85
GND_FLAG_8
86
GND_FLAG_9
87
GND_FLAG_10
88
GND_FLAG_11
93
GND_FLAG_12
94
GND_FLAG_13
95
GND_FLAG_14
96
GND_FLAG_15
97
GND_FLAG_16
104
GND_FLAG_17
105
GND_FLAG_18
106
GND_FLAG_19
115
NC1
65
NC2
66
NC3
67
NC4
68
NC5
69
NC6
70
NC7
71
NC8
72
NC9
73
NC10
74
NC11 80
NC12 81
NC13 82
NC14 83
NC15 89
NC16 90
NC17 91
NC18 92
NC19 98
NC20 99
NC21 100
NC22 101
NC23 107
NC24 108
NC25 109
NC26 110
NC27 116
NC28 117
NC29 118
NC30 119
NC31 125
NC32 126
NC33 127
NC34 128
NC35 134
NC36 135
NC37 136
NC38 137
NC39 138
NC40 139
NC41 140
NC42 141
NC43 142
NC44 143
NC45 144
NC46 145
MH2MH2
1
PCB1
JDP7052_2
PCB1
JDP7052_2
TP1TP1
C43
15pF
C43
15pF
MH1MH1
1
R12
100K
R12
100K
J4
HDR_1X2
Not Mounted
J4
HDR_1X2
Not Mounted
1
2
C1
10pF
Not MountedC1
10pF
Not Mounted
C6
100nF
C6
100nF
C9
10nF
Not Mounted
C9
10nF
Not Mounted
TP38TP38
R65
0R
R65
0R
D5
LGR971
POWER
D5
LGR971
POWER
C10
1uF
Not Mounted
C10
1uF
Not Mounted
TP4TP4
J3
HDR_1X2
Not Mounted
J3
HDR_1X2
Not Mounted
1
2
TP44TP44
R104
10K
R104
10K
D1
LHR974
LED1
D1
LHR974
LED1
L2
60OHM
L2
60OHM
1 2
J1
TSM-110-01-L-DV
Not Mounted
J1
TSM-110-01-L-DV
Not Mounted
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
22
44
66
88
10 10
12 12
14 14
16 16
18 18
20 20
TP61TP61
Schematic, Board Layout, and Bill of Materials
1322x-USB Reference Manual, Rev. 1.1
4-2 Freescale Semiconductor
Figure 4-2. 1322x USB Dongle PCB Component Location (Top View)
Figure 4-3. 1322x USB Dongle PCB Test Points (Bottom View)
Figure 4-4. 1322x USB Dongle PCB Layout (Top View)
Figure 4-5. 1322x USB Dongle PCB Layout (Bottom View)
Schematic, Board Layout, and Bill of Materials
1322x-USB Reference Manual, Rev. 1.1
Freescale Semiconductor 4-3
Table 4-1. Bill of Materials (BOM)
Qty Part
Reference Description Value Manufacturer Manufacturer
Part Number
1 ANT1 ANTENNA 2.45GHZ SMT 50 OHM
CASE43-1 ANTENNA_2.45G
HZ JOHANSON
TECHNOLOGY 2450AT43A100
0 C1 Ceramic Capacitor C0G 10pF Murata GRM1555C1H100JZ01
5 C2,C6,C38,
C40,C41 Ceramic Capacitor X5R 100nF Murata GRM155R61A104KA01D
0 C3 Ceramic Capacitor C0G 1pF Murata GRM1555C1H1R0CZ01D
C8 Ceramic Capacitor C0G 100pF Murata GRM1555C1H101JZ01
0 C9 Ceramic Capacitor X7R 10nF Murata GRM155R71E103KA01D
0 C10 Ceramic Capacitor X5R 1uF Murata GRM155R60J105KE19B
1 C11 Ceramic Capacitor X7R 1nF Murata GRM155R71H102KA01D
2 C42,C43 Ceramic Capacitor C0G 15pF Murata GRM1555C1H150JZ01J
1 C52 Ceramic Capacitor X7R 10nF Murata GRM155R71E103KA01D
1 C53 Ceramic Multilayer Capacitor X5R 4.7uF Murata GRM219R61A475KE34D
1 D1 SMD Red topled LHR974 OSRAM Q62702P5182
1 D5 SMD Green topled LGR971 OSRAM Q65110P5179
0 J1 Dual Row Straight Pin Header SMD TSM-110-01-L-DV Samtec TSM-110-01-L-DV-M
1 J2 USB-series "A" plug USB-A Samtec USB-AM-S-S-B-SM1-R-TR
2 J3,J4 HDR 1X2 SMT 100MIL SP 380H AU HDR_1X2 SAMTEC TSM-102-01-SM-SV-P-TR
0 L1 HF Chip coil 3.9nH Murata LQG15HS3N9S02D
1 L2 IND FER BEAD 60OHM@100MHZ
500MA -- 0603 60OHM MURATA BLM18PG600SN1_
1 RT2 Polyswitch Overcurrent Protection
Device 500mA Tyco
Electronics microSMD050F
4 R3,R50,R5
1,R65 Fixed resistor RC31 0R Phillips 2322 705 91002
0 R4 Fixed resistor RC31 0R Phillips 2322 705 91002
1 R6 Fixed resistor RC31 390R Phillips 2322 705 50391
1 R11 Fixed resistor RC31 220R Phillips 2322 705 50221
1 R12 Fixed resistor RC31 100K Phillips 2322 705 50104
1 R14 Fixed resistor RC31 1K Phillips 2322 705 50102
0 R71 Fixed resistor RC31 10K Phillips 2322 705 50103
3 R73,R103,
R104 Fixed resistor RC31 10K Phillips 2322 705 50103
1 SW5 SMD Tact Switch 3.14N (2.5mm) SKQY ALPS SKQYPDE010
Schematic, Board Layout, and Bill of Materials
1322x-USB Reference Manual, Rev. 1.1
4-4 Freescale Semiconductor
1 U1 ZigBee Wireless Transceiver and
ARM7 processor MC13225 Freescale MC13225
1 U10 USB UART, PB-free FT232R FTDI FT232RQ
1 X1 Crystal SMD 24.00MHz NDK NX3225SA-24MHz (for
OA/AV and Blootooth) /
S1-3085-1510-9
Table 4-1. Bill of Materials (BOM)
