FRIEDRICHLINKFirmwareUpdateTool: Screen1

Welcome to the FriedrichLink Firmware Update Tool

Your 2012 Kühl unit(s) must receive a firmware update before downloading the Wi-Fi Configuration Tool or the

Scheduler Application.

This tool makes it easy, by guiding you through the necessary steps to complete a firmware update whether you

have one or multiple Kühl units.

To proceed to the next step of the firmware download, click on the “Download Firmware” button below.

If you have already completed your Firmware Download for all units…

Already registered? Click Here

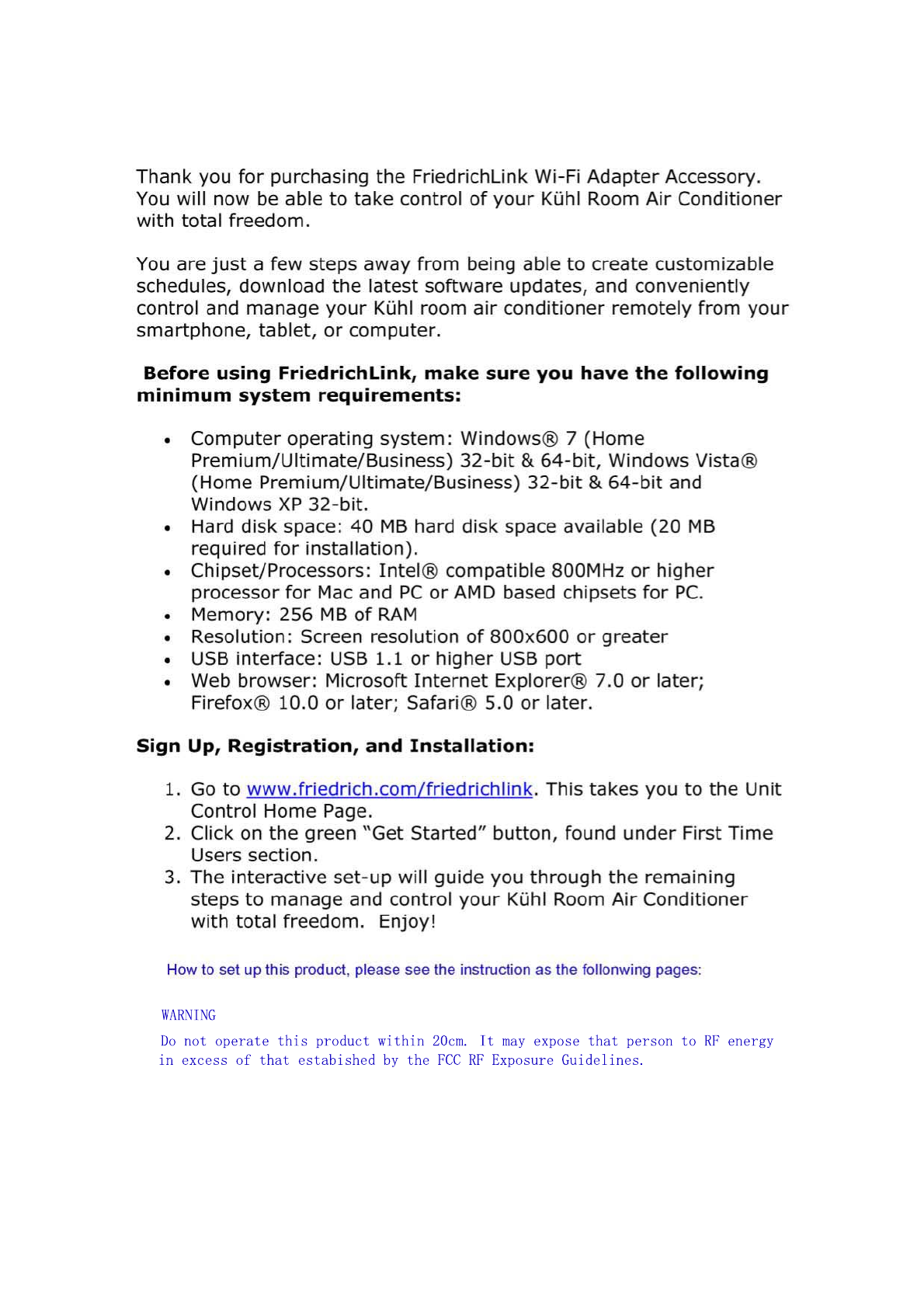

Before you begin, make sure you have the following:

•2012 Kühl room air conditioner unit or units (make sure you know the model number for each unit)

•FriedrichLink Wi-Fi Adapter Accessory (sold separately) or properly formatted flash drive and USB to micro-USB cable

•Internet connection (see FAQs for detailed system requirements)

FirmwareUpdateTool

DownloadFirmware

Proceedto

WiͲFiTool

Proceedto

WiͲFiTool

FirmwareUpdateTool

Proceedto

ScheduleApp

Proceedto

ScheduleApp

Needfinalagreement

FRIEDRICHLINKFirmwareUpdateTool:Screen2

Whileyoudidn’tproposeasoftwareagreement,Iaddedthatpageincaseitisnecessary

FirmwareUpdateTool

FRIEDRICHLINKFirmwareUpdateTool:Screen3

Step 1: Select your 2012 Kühl model number

Select the image or model number of the unit you are updating below:

Model Group 1 Model Group 2

Updating Multiple Kühl Models:

If you have multiple models from Group 1, select Model Group 1 (shown above) and complete remaining steps for 1 unit. For each remaining Group 1 unit, repeat

steps 3 and 4. (Detailed instructions provided later in this tutorial)

If you have multiple models from Group 2, select Model Group 2 (shown above) and complete remaining steps for 1 unit. For each remaining Group 2 unit, repeat

steps 3 and 4.

If you have models from both Group 1 and Group 2, update all group 1 models first (follow “multiple models from Group 1”), then repeat steps 1 – 4 for updating

all group 2 models (follow “multiple models from Group 2”).

ImageofQModel

w/ControlPanel

CallͲout

ImageofQModel

w/ControlPanel

CallͲout

ImageofNModel

w/ControlPanel

CallͲout

ImageofNModel

w/ControlPanel

CallͲout

SQ05N10, SQ06N10, SQ08N10,

SQ10N10 & EQ08N11

SQ05N10, SQ06N10, SQ08N10,

SQ10N10 & EQ08N11 SS08N10,SS10N10,SS12N10,SS14N10,SS12N30,SS15N30,SM15N10,

SM18N30,SM21N30,SM24N30,SL22N30,SL24N30,SL28N30,SL36N30,

YS10N10,YS12N33,YM18N34,YL24N35,ES12N33,ES15N33,EM18N34,

EM24N34 &EL36N35

SS08N10,SS10N10,SS12N10,SS14N10,SS12N30,SS15N30,SM15N10,

SM18N30,SM21N30,SM24N30,SL22N30,SL24N30,SL28N30,SL36N30,

YS10N10,YS12N33,YM18N34,YL24N35,ES12N33,ES15N33,EM18N34,

EM24N34 &EL36N35

Create“Model

Group2”

button

Create

“Model

Group1”

button

Canwecreate2separateroutes,forGroup1&Group2?

•Group1wouldgetinstructionsonlypertinenttotheirmodels

•Group2wouldgetinstructionsonlypertinenttotheirmodels

FRIEDRICHLINKFirmwareUpdateTool:Screen4

Step 2: Download the firmware update to your flash drive

Forthisstep,you’llneedtousetheFriedrichLinkFlashDrive,foundinyourFriedrichLinkWiͲFiAdapteraccessorypackage.(see

imagesbelow).

1.PleaseinsertFlashDriveintoanavailableUSBportonyourcomputertowritefirmwaredownload

FlashDrive

Imageofflashdriveinserted

intoacomputerUSBport

FirmwareUpdateTool

2.WritingfirmwaredownloadtoFlashDrive.

3.Firmwaredownloadsavedsuccessfully!

BothGroupswouldcomehere,sameinstructions

FRIEDRICHLINKFirmwareUpdateTool:Screen5(ifbothgroupsremaintogether)

Step 3: Connect flash drive to Kühl unit

1.OncethefirmwareupdatehasbeendownloadedtoyourFlashDrive,removeitfromyourcomputerandplugitintotheFriedrichLink

microUSBcable.(MicroUSBcableisfoundinyourFriedrichLink WiͲFiAdapteraccessorypackage).

2.Poweronyour2012KühlUnit.

Note:YouKühlunitMUSTbepoweredonpriortoplugginginthemicroUSBcableorthefirmwareupdatewillnotuploadproperly.

3.LowerthefrontpanelofyourKühlroomairconditionerandplugthemicroUSBcable(withflashdrivestillattached)intothemicroUSB

portofyourKühl,asshownbelow.Click“Next” toproceedtothenextstep.

ModelGroup1ModelGroup2

FRIEDRICHLINKFirmwareUpdateTool:Screen6(ifbothgroupsremaintogether)

Step 4: Upload firmware update into your Kühl Unit.

InordertoloadthefirmwareupdateintoyourKühl,usethefollowingbuttonsequencedependingonyourKühlmodel:

*Remember–Itiscriticaltousetheproperbuttonsequence,corresponding withyourKühlmodelandfirmwaredownload.

•ModelGroup1:Asshownbelow,presstheSYSTEM,FANMODEandUPARROWbuttonssimultaneouslyfortensecondstobeginthe

update.

•ModelGroup2:Asshownbelow,presstheFANMODE,FANSPEEDandUPARROWbuttonssimultaneouslyfortensecondstobeginthe

update

Oncetheupdateiscompletethepowerbuttonlightwillblink.Thiswillindicatethattheuploadwassuccessful!Pleaseremovetheflash

driveandcable.Click“Next” foryourfinalstep.

FRIEDRICHLINKFirmwareUpdateTool:Screen5(ifGroup1ONLY)

Step 3: Connect flash drive to Kühl (Model Group 1)

1.OncethefirmwareupdatehasbeendownloadedtoyourFlashDrive,removeitfromyourcomputerandplugitintotheFriedrichLink

microUSBcable.(MicroUSBcableisfoundinyourFriedrichLink WiͲFiAdapteraccessorypackage).

2.Poweronyour2012KühlUnit.

Note:YouKühlunitMUSTbepoweredonpriortoplugginginthe

microUSBcableorthefirmwareupdatewillnotuploadproperly.

3.LowerthefrontpanelofyourKühlandplugthemicroUSBcable

(withflashdrivestillattached)intothemicroUSBportofyourKühl,asshownontheright.

Step 4: Upload firmware update into your Kühl Unit.

InordertoloadthefirmwareupdateintoyourKühl(ModelGroup1),usethefollowingbuttonsequence(shownbelow):

PresstheSYSTEM,FANMODEandUPARROWbuttonssimultaneouslyfortensecondstobegintheupdate.

Oncetheupdateiscompletethepowerbuttonlightwillblink.Thiswillindicatethattheuploadwassuccessful!Pleaseremovetheflash

driveandcable.Click“Next” foryourfinalstep.

FRIEDRICHLINKFirmwareUpdateTool:Screen5(ifGroup2ONLY)

Step 3: Connect flash drive to Kühl (Model Group 2)

1.OncethefirmwareupdatehasbeendownloadedtoyourFlashDrive,removeitfromyourcomputerandplugitintotheFriedrichLink

microUSBcable.(MicroUSBcableisfoundinyourFriedrichLink WiͲFiAdapteraccessorypackage).

2.Poweronyour2012KühlUnit.

Note:YouKühlunitMUSTbepoweredonpriortoplugginginthe

microUSBcableorthefirmwareupdatewillnotuploadproperly.

3.LowerthefrontpanelofyourKühlandplugthemicroUSBcable

(withflashdrivestillattached)intothemicroUSBportofyourKühl,asshownontheright.

Step 4: Upload firmware update into your Kühl Unit.

InordertoloadthefirmwareupdateintoyourKühl(ModelGroup2),usethefollowingbuttonsequence(shownbelow):

PresstheFANMODE,FANSPEEDandUPARROWbuttonssimultaneouslyfortensecondstobegintheupdate.

Oncetheupdateiscompletethepowerbuttonlightwillblink.Thiswillindicatethattheuploadwassuccessful!Pleaseremovetheflash

driveandcable.Click“Next” foryourfinalstep.

FRIEDRICHLINKFirmwareUpdateTool:Screen7

CONGRATULATIONS!

Your Kühl has now been updated with the latest firmware. So what’s next?

I’ve completed the Firmware update on all of my 2012 Kühl Models:

I’m ready to go wireless!

I don’t have Wi-Fi, I’m ready download the customizable schedule application

I still have additional Kühl Models that I need to update:

(Click to complete steps 3 & 4 for remaining Group 1 models)

(Click to complete steps 3 & 4 for remaining Group 2 models)

Additional models from Group 1 & 2?

Step 1. Click on “Additional Group 1” and complete for all Group 1 1st

Step 2. Click on to go back to step 1 and complete Group 2

Proceed

to

WiͲFiTool

Proceed

to

WiͲFiTool Proceedto

ScheduleApp

Proceedto

ScheduleApp

Additional

Group1

Additional

Group1

Additional

Group2

Additional

Group2

Update

NewGroup

Update

NewGroup

*** Caution ***

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Changes of modifications not expressly approved by the party responsible for compliance could void

the user ’s authority to operate the equipment.

FCC statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.
