Room Air Conditioner

Service and Parts

Manual

Slider Casement

SV08 / SV10 / SV12 (01/05)

115Volts • SV08A10A • SV10A10A • SV12A10A

High

Cool

Med

Fan

Off

Mode

Temperature

Med

Cool

Low Cool

Low

Fan

CoolerWarmer

—2—

1. PREFACE

1.1 SAFETY PRECAUTIONS................................2

1.2 INSULATION RESISTANCE TEST.................2

1.3 SPECIFICATIONS...........................................3

1.4 FEATURES......................................................4

1.5 CONTROL LOCATIONS .................................4

2.

DISASSEMBLY INSTRUCTIONS

2.1 MECHANICAL PARTS ....................................5

2.1.1 FRONT GRILLE .....................................5

2.1.2 CABINET ................................................5

2.1.3 CONTROL BOX .....................................5

2.2 AIR HANDLING PARTS ..................................6

2.2.1 AIR GUIDE AND TURBO FAN...............6

2.2.2 FAN ........................................................6

2.2.3 SHROUD ................................................7

2.3 ELECTRICAL PARTS......................................7

2.3.1 OVERLOAD PROTECTOR ....................7

2.3.2 COMPRESSOR......................................7

2.3.3 CAPACITOR...........................................8

2.3.4 POWER CORD ......................................8

2.3.5 THERMOSTAT.......................................8

2.3.6 ROTARY SWITCH .................................8

2.3.7 MOTOR ..................................................9

2.4 REFRIGERATION CYCLE ..............................9

2.4.1 CONDENSER.........................................9

2.4.2 EVAPORATOR.......................................9

2.4.3 CAPILLARY TUBE ...............................10

3.

INSTALLATION

3.1 HOW TO INSTALL THE UNIT.......................12

3.2 CHECKING INSTALLATION .........................12

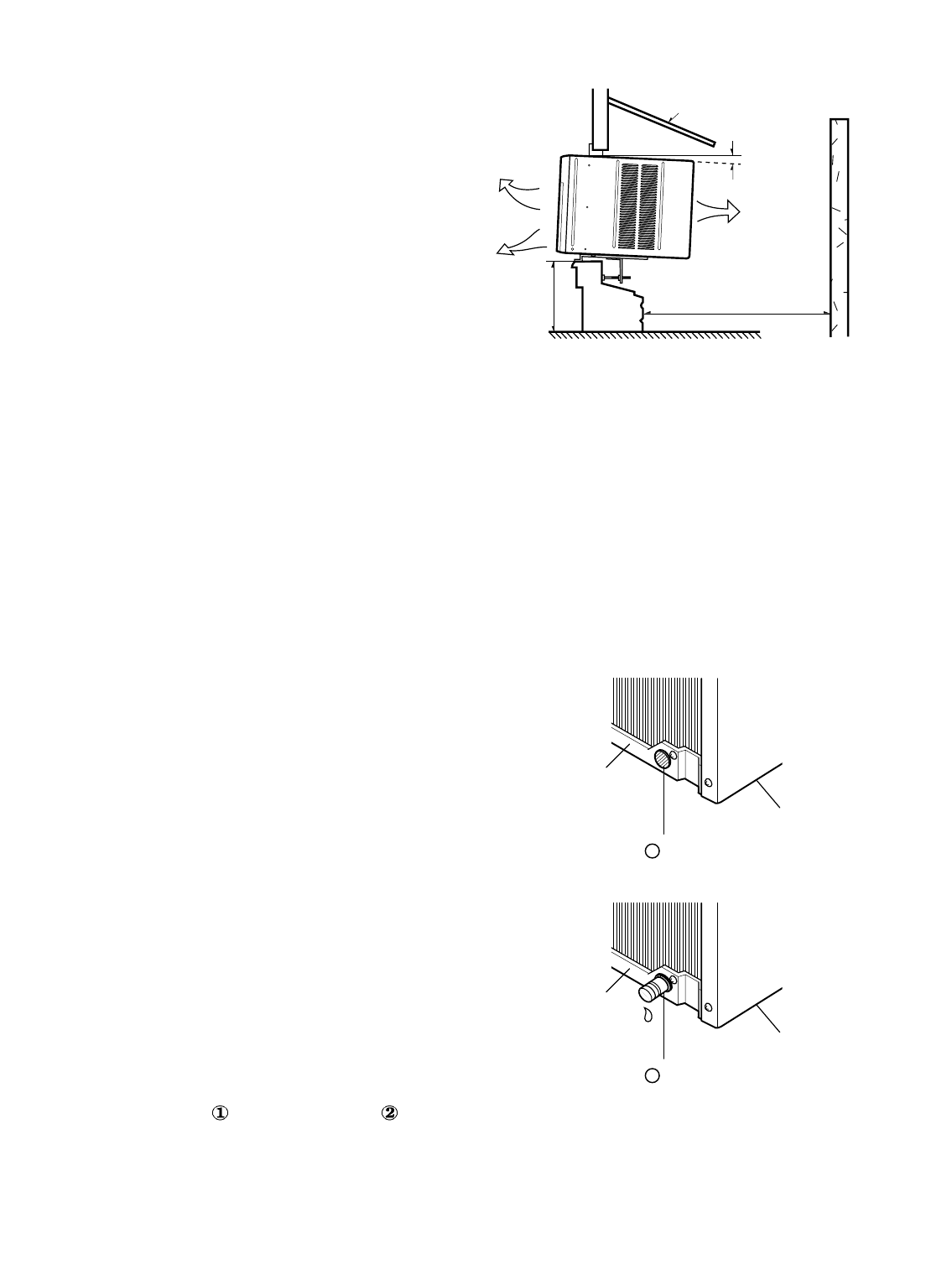

3.3 HOW TO DRAIN............................................12

3.4 WINDOW REQUIREMENTS.........................13

3.5 INSTALLATION KITS CONTENTS ...............13

3.6

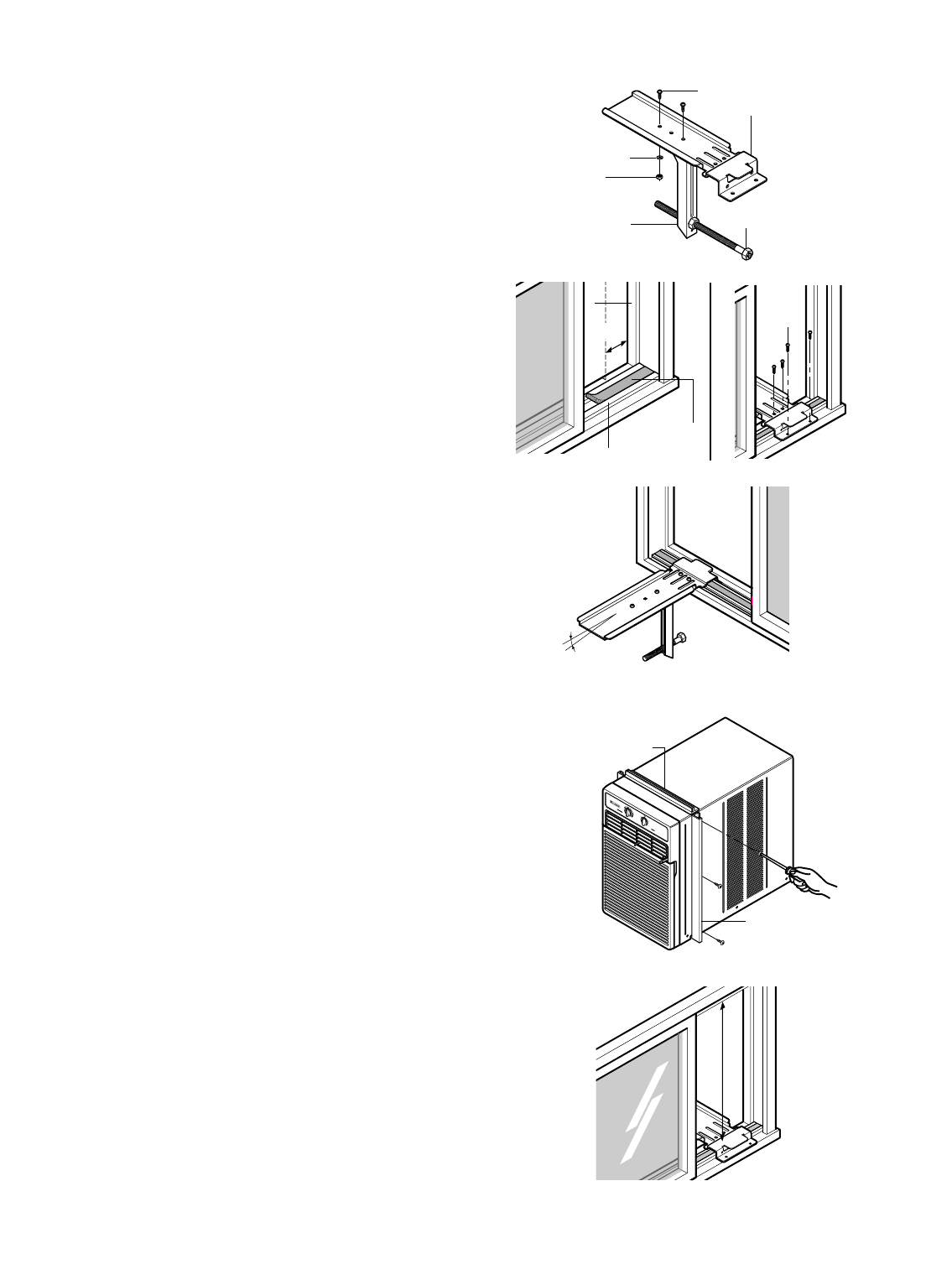

HORIZONTAL SLIDING WINDOW INSTALLATION

.....14

3.7 CASEMENT WINDOW INSTALLATION .......15

4.

TROUBLESHOOTING GUIDE

4.1 OUTSIDE DIMENSIONS...............................16

4.2 PIPING SYSTEM...........................................16

4.3 TROUBLESHOOTING GUIDE ......................17

5. SCHEMATIC DIAGRAM

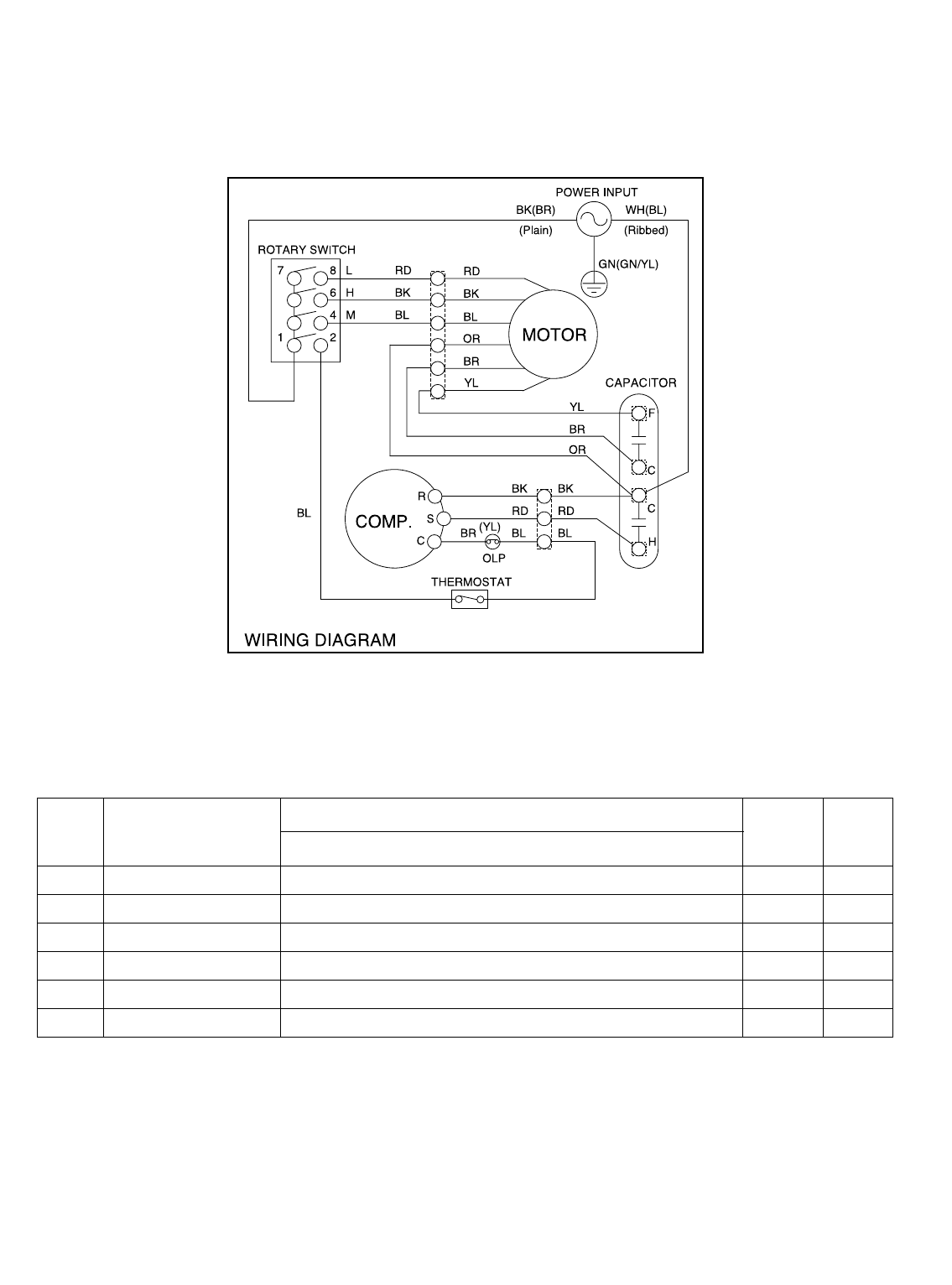

5.1 CIRCUIT DIAGRAM ......................................21

5.2 CIRCUIT DIAGRAM ......................................22

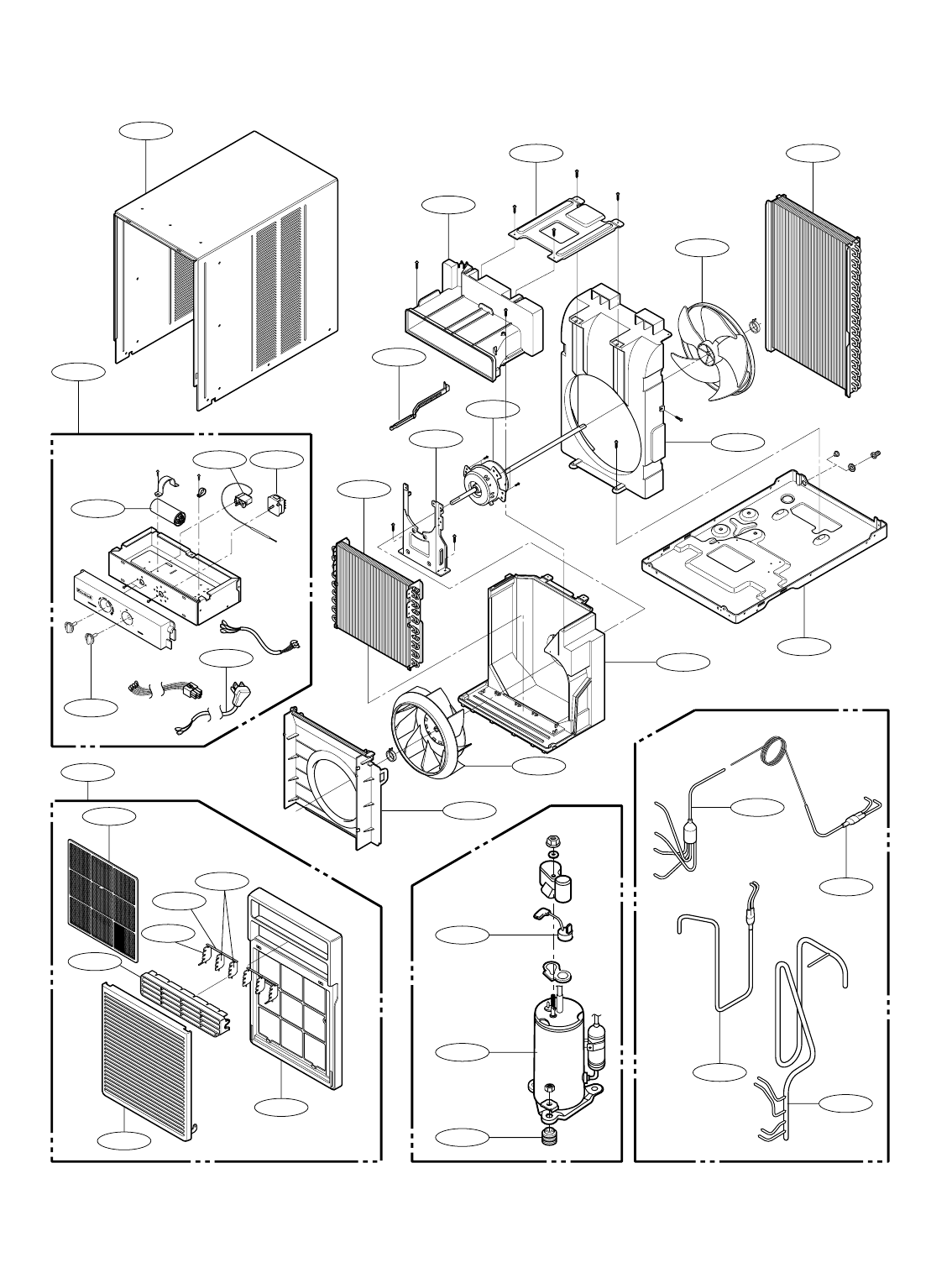

6. EXPLODED VIEW..................................23

7. REPLACEMENT PARTS LIST........24

1. PREFACE

This SERVICE MANUAL provides various service information, including the mechanical and electrical

parts etc. This room air conditioner was manufactured and assembled under a strict quality control system.

The refrigerant is charged at the factory. Be sure to read the safety precautions prior to servicing the unit.

1.1 SAFETY PRECAUTIONS

1. When servicing the unit, set the ROTARY SWITCH

or POWER SWITCH to OFF and unplug the power

cord.

2. Observe the original wire insulation.

If a short circuit is found, replace all parts which

have been overheated or damaged by the short

circuit.

3. After servicing the unit, make an insulation resis-

tance test to protect the customer from being

exposed to shock hazards.

1.2

INSULATION RESISTANCE TEST

1. Unplug the power cord and connect a jumper

between 2 pins (black and white).

2. The grounding conductor (green) is to be open.

3. Measure the resistance value with an ohm meter

between the jumpered lead and each exposed

metallic part on the equipment at all the positions

(except OFF) of the ROTARY SWITCH.

4. The value should be over 1MΩ.

CONTENTS

—3—

POWER SUPPLY

COOLING CAPACITY (Btu/h)

INPUT (W)

RUNNING CURRENT (A)

E.E.R (BTU/W.h)

INDOOR (°C)

OUTDOOR (°C)

REFRIGERANT (R-22) CHARGE

EVAPORATOR

CONDENSER

FAN, INDOOR

FAN, OUTDOOR

FAN SPEEDS, FAN/COOLING

FAN MOTOR

OPERATION CONTROL

ROOM TEMP. CONTROL

AIR DIRECTION CONTROL

CONSTRUCTION

PROTECTOR COMPRESSOR

FAN MOTOR

POWER CORD

DRAIN SYSTEM

NET WEIGHT (lbs/kg)

OUTSIDE DIMENSION (inch)

(W x H x D) (mm)

1Ø115V, 60Hz

8,000 10,000 12,000

840 1,050 1,260

7.7 9.6 11.5

9.5

26.7(DB)* 19.4(WB)**

35(DB)* 23.9(WB)**

460g(16.2 oz) 520g(18.3 oz) 615g(21.7 oz)

2 ROW 16 STACKS, SLIT FIN TYPE

3 ROW 16 STACKS, SLIT FIN TYPE

2 ROW 23 STACKS, 3 ROW 23 STACKS,

LOUVER FIN TYPE LOUVER FIN TYPE

TURBO FAN

AXIAL FAN

2/3

6 POLES

ROTARY SWITCH

THERMOSTAT

VERTICAL LOUVER (RIGHT & LEFT)

HORIZONTAL LOUVER (UP & DOWN)

TOP-DOWN CHASSIS

OVERLOAD PROTECTOR

INTERNAL THERMAL PROTECTOR

3 WIRE WITH GROUNDING

ATTACHMENT PLUG (CORD-CONNECTED TYPE)

DRAIN PIPE SPLASHED BY FAN SLINGER

66/30 77/35 79/36

141/2x 201/2x 233/5

368 x 521 x 607

SV08A10A SV10A10A SV12A10A

MODELS

ITEMS

OPERATING

CONDITION

1.3 SPECIFICATIONS

1.3.1 FOR SV08A10A / SV10A10A / SV12A10A

* DB:Dry Bulb

**

WB:Wet Bulb

—4—

1.4 FEATURES

• Designed for COOLING ONLY.

• Powerful and whispering cooling.

• Simple installation and service.

• Low air-intake, top cooled-air discharge.

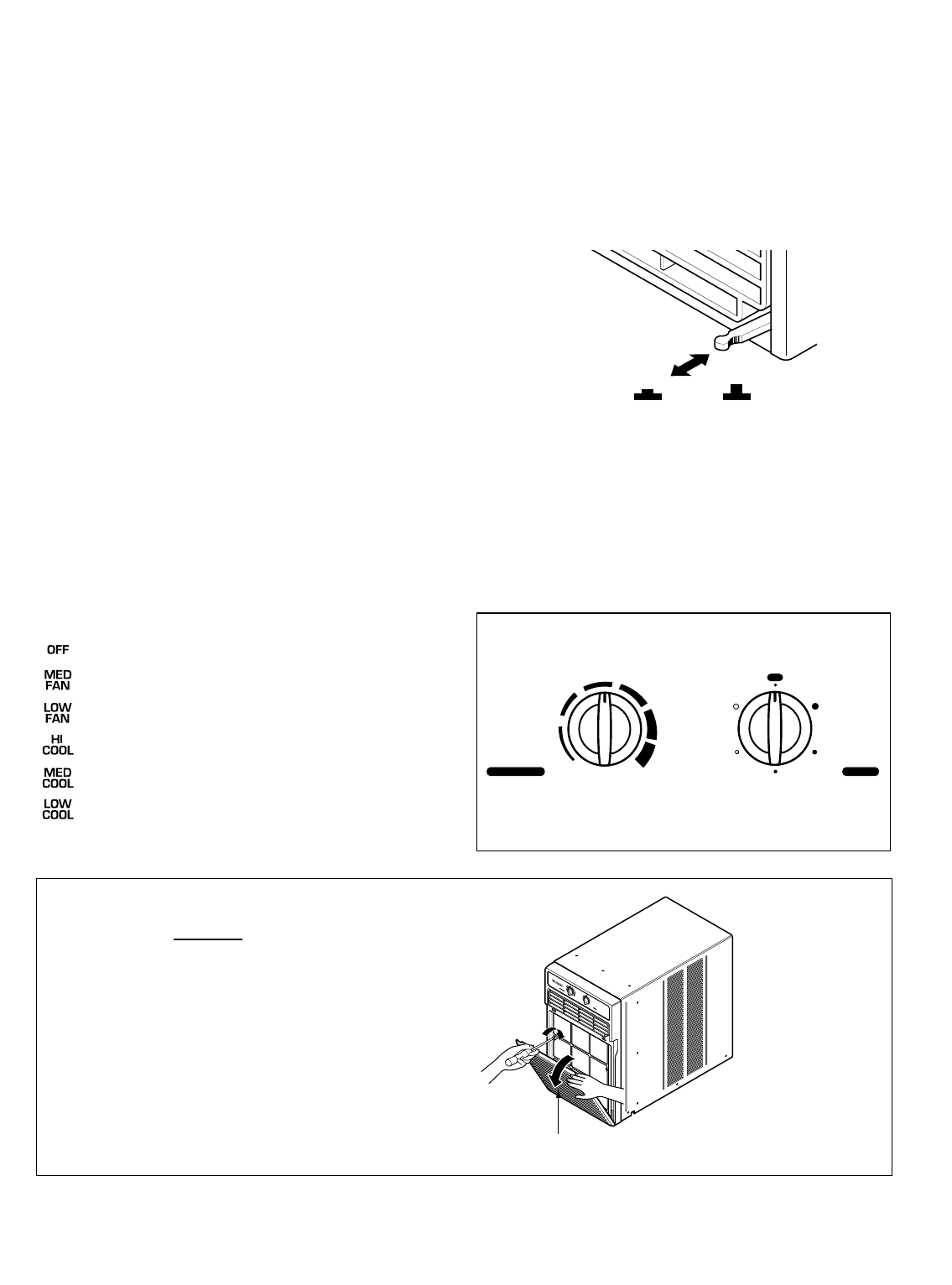

1.5 CONTROL LOCATIONS

1.5.1 COOLING ONLY MODEL

• VENTILATION

The ventilation lever must be in the CLOSE position

in order to maintain the best cooling conditions.

When fresh air is necessary in the room, set the

ventilation lever OPEN position.

The damper is opened and room air is exhausted.

• TEMPERATURE

Thermostat will automatically control the temperature

of the room. Select a higher grade for a cooler

temperature in the room. The temperature is selected

by moving the knob to the desired position.

• MODE

- Turns air conditioner off.

- Med speed fan operation without cooling.

- Low speed fan operation without cooling.

- Cooling with high speed fan operation.

- Cooling with med speed fan operation.

- Cooling with low speed fan operation.

• Built-in adjustable THERMOSTAT

• Washable one-touch filter

• Compact size

• Reliable and efficient rotary compressor is equipped.

VENTCLOSE OPEN

High

Cool

Med

Fan

Off

Mode

Temperature

Med

Cool

Low Cool

Low

Fan

CoolerWarmer

Inlet Grille

High

Cool

Med

Fan

Off

Mode

Temperature

Med

Cool

Low Cool

Low

Fan

Cooler

Warmer

NOTE!

Before using the air conditioner

secure the front grille with two screws

enclosed with the owner’s manual.

1. Open the inlet grille downward and

remove the air filter.

2. Fasten the front grille with screws.

3. Reinstall the air filter.

4. Close the inlet grille.

—5—

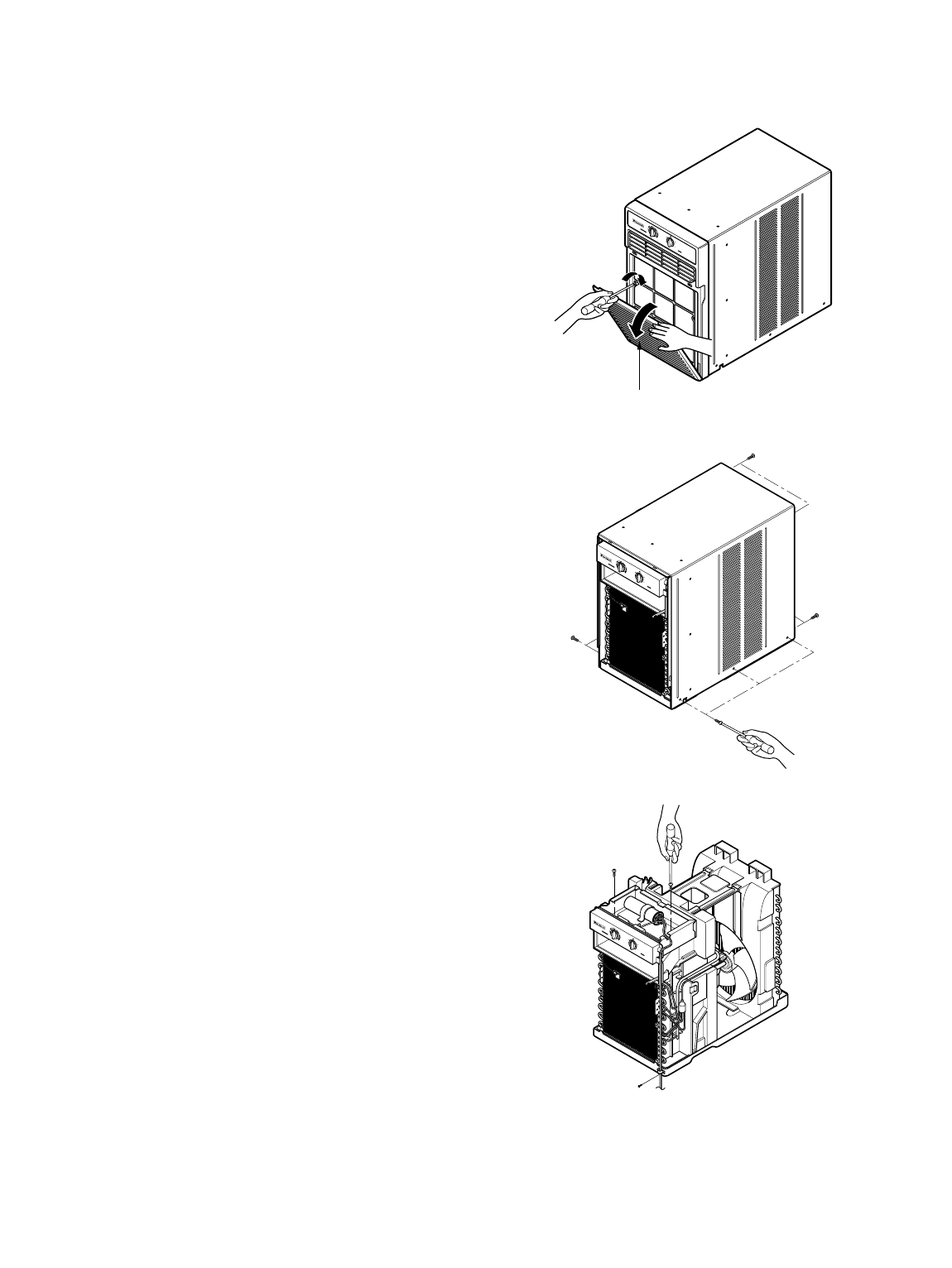

2.1 MECHANICAL PARTS

2.1.1 FRONT GRILLE

1. Open the inlet grille downward and remove the air

filter.

2. Remove the screws which fasten the front

grille.(See Figure 1)

3. Pull the front grille from the right side.

4. Remove the front grille.(There are 4 hooks.)

5. Re-install the components by referring to the

removal procedure, above.

2.1.2 CABINET

1. After disassembling the FRONT GRILLE, remove

the 6 screws which fasten the cabinet at both

sides.(See Figure 2)

2. Remove the 4 screws which fasten the cabinet at

back.

3. Remove the cabinet.

4. Re-install the components by referring to the

removal procedure, above.

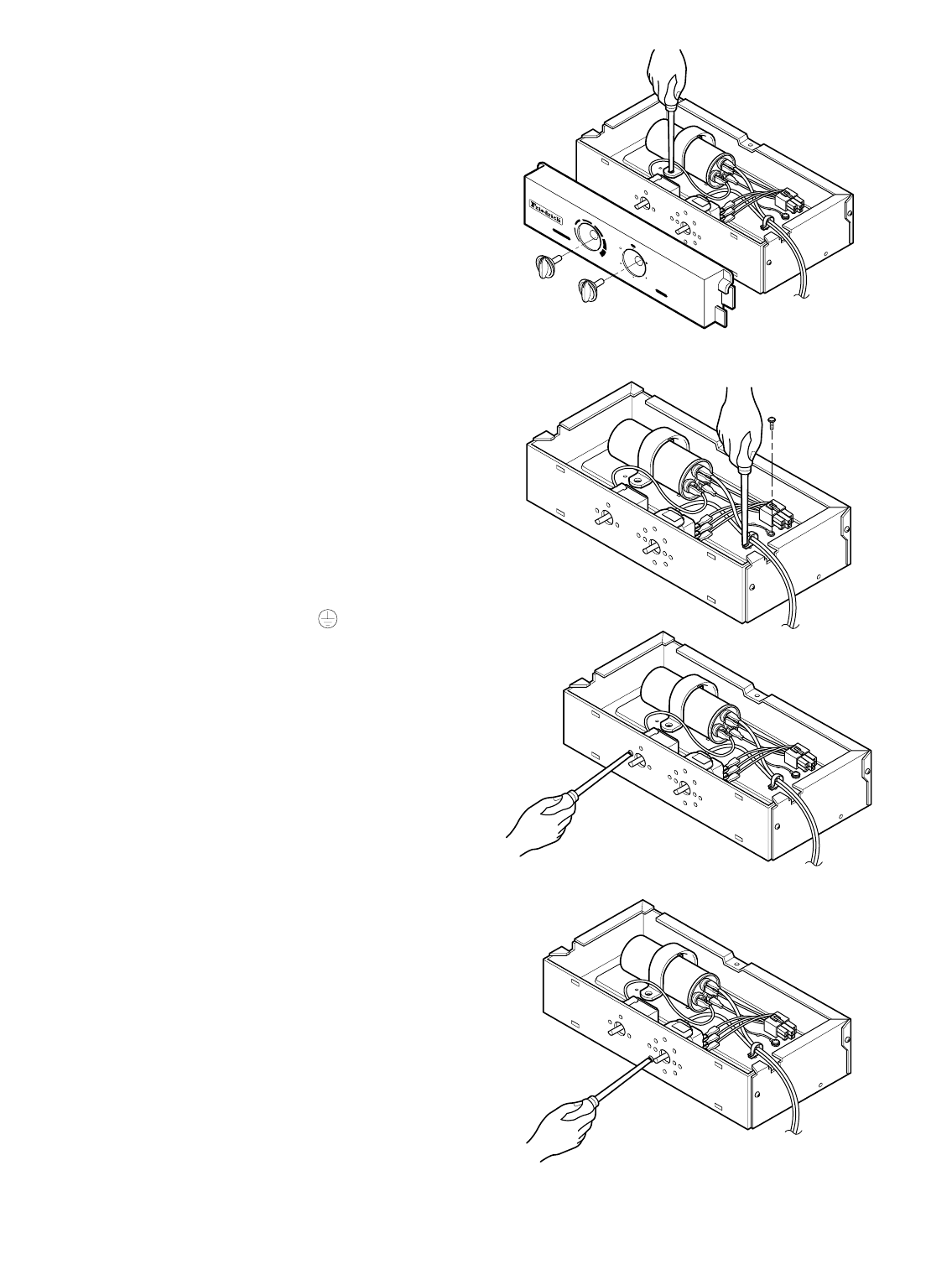

2.1.3 CONTROL BOX

1. Remove the front grille. (Refer to section 2.1.1)

2. Remove the cabinet. (Refer to section 2.1.2)

3. Remove the 1 screw which fasten the power cord.

(See Figure 3)

4. Disconnect the grounding screw from the

evaporator channel.

5. Remove the 2 screws which fasten the control

box.(See Figure 3)

6. Remove the housing which connects motor wire

in the control box.

7. Remove three leads which connect compressor.

8. Discharge the capacitor by placing a 20,000 ohm

resistor across the capacitor terminals.

9. Raise the control box upward completely.

10. Re-install the components by referring to the

removal procedure, above.

(Refer to the circuit diagram found on pages

21~22 in this manual and on the control box.)

Inlet Grille

High

Cool

Med

Fan

Off

Mode

Temperature

Med

Cool

Low Cool

Low

Fan

Cooler

Warmer

High

Cool

Med

Fan

Off

Mode

Temperature

Med

Cool

Low Cool

Low

Fan

Cooler

Warmer

High

Cool

Med

Fan

Off

Mode

Temperature

Med

Cool

Low Cool

Low

Fan

Cooler

Warmer

2. DISASSEMBLY INSTRUCTIONS

— Before the following disassembly, set POWER SWITCH to OFF and disconnect the power cord.

Figure 1

Figure 3

Figure 2

—6—

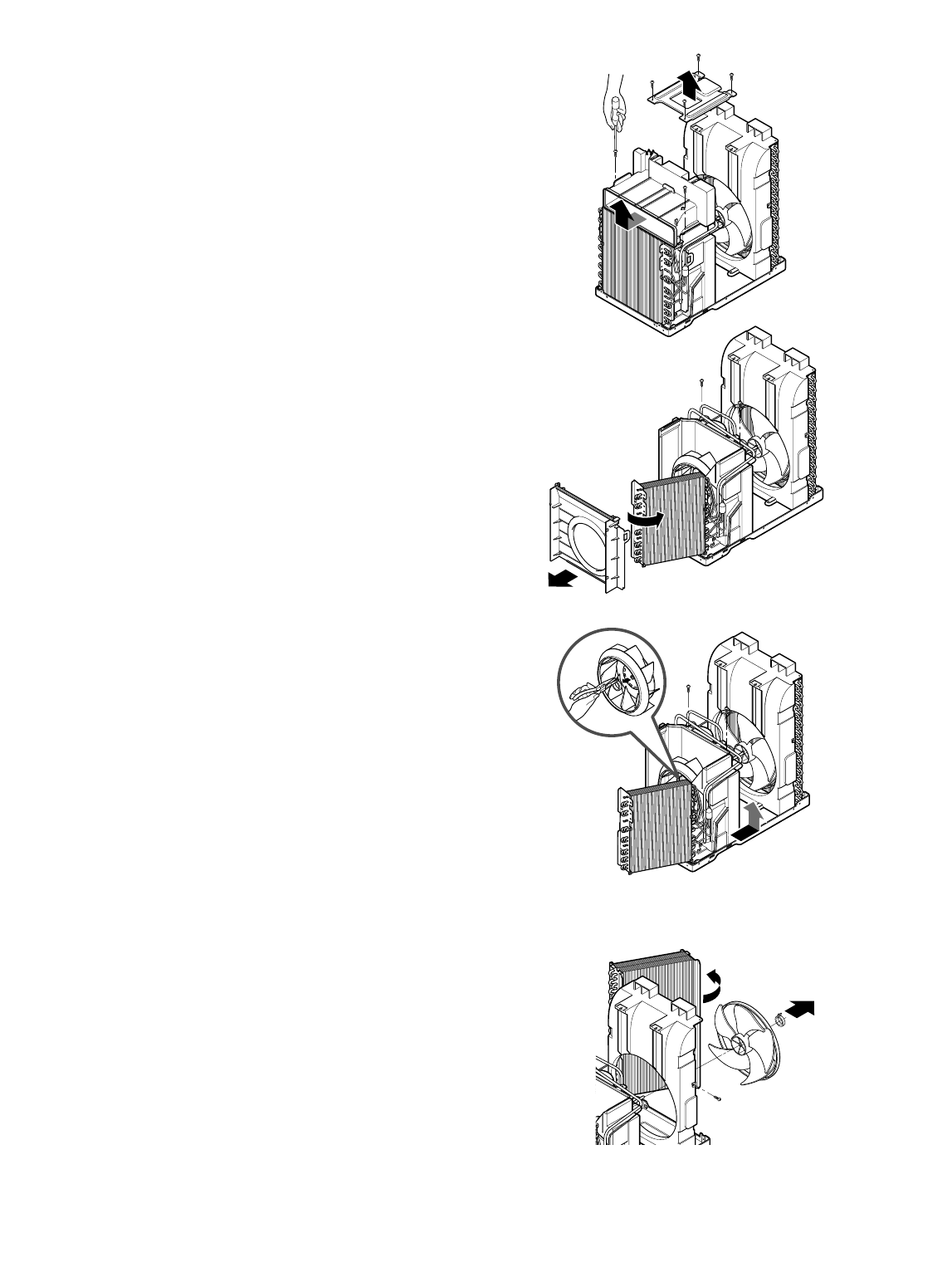

2.2 AIR HANDLING PARTS

2.2.1 AIR GUIDE AND TURBO FAN

1. Remove the front grille. (Refer to section 2.1.1)

2. Remove the cabinet. (Refer to section 2.1.2)

3. Remove the control box. (Refer to section 2.1.3)

4. Remove the 4 screws which fasten the brace.

5. Remove the brace.

6. Remove the 2 screws which fasten the upper air

guide. (See Figure 4)

7. Remove the upper air guide.

8. Remove the 2 screws which fasten the

evaporator.

9. Move the evaporator forward while pulling it

upward slightly. (See Figure 5)

10. Remove orifice by pulling two taps.

11. Remove the clamp with a hand plier which

secures the turbo fan.

12. Remove the turbo fan. (See Figure 6)

13. Remove the motor. (Refer to section 2.3.7)

14. Remove the 2 screws which fastens the lower air

guide from the base pan.

15. Remove the 2 screws which fasten the motor

mount from the base pan.

16. Remove the 2 screws which fasten the lower air

guide and motor mount.

17. Move the lower air guide backward and pull out

from the base pan. (Move the lower air guide

carefully.)

18. Re-install the components by referring to the

removal procedure, above.

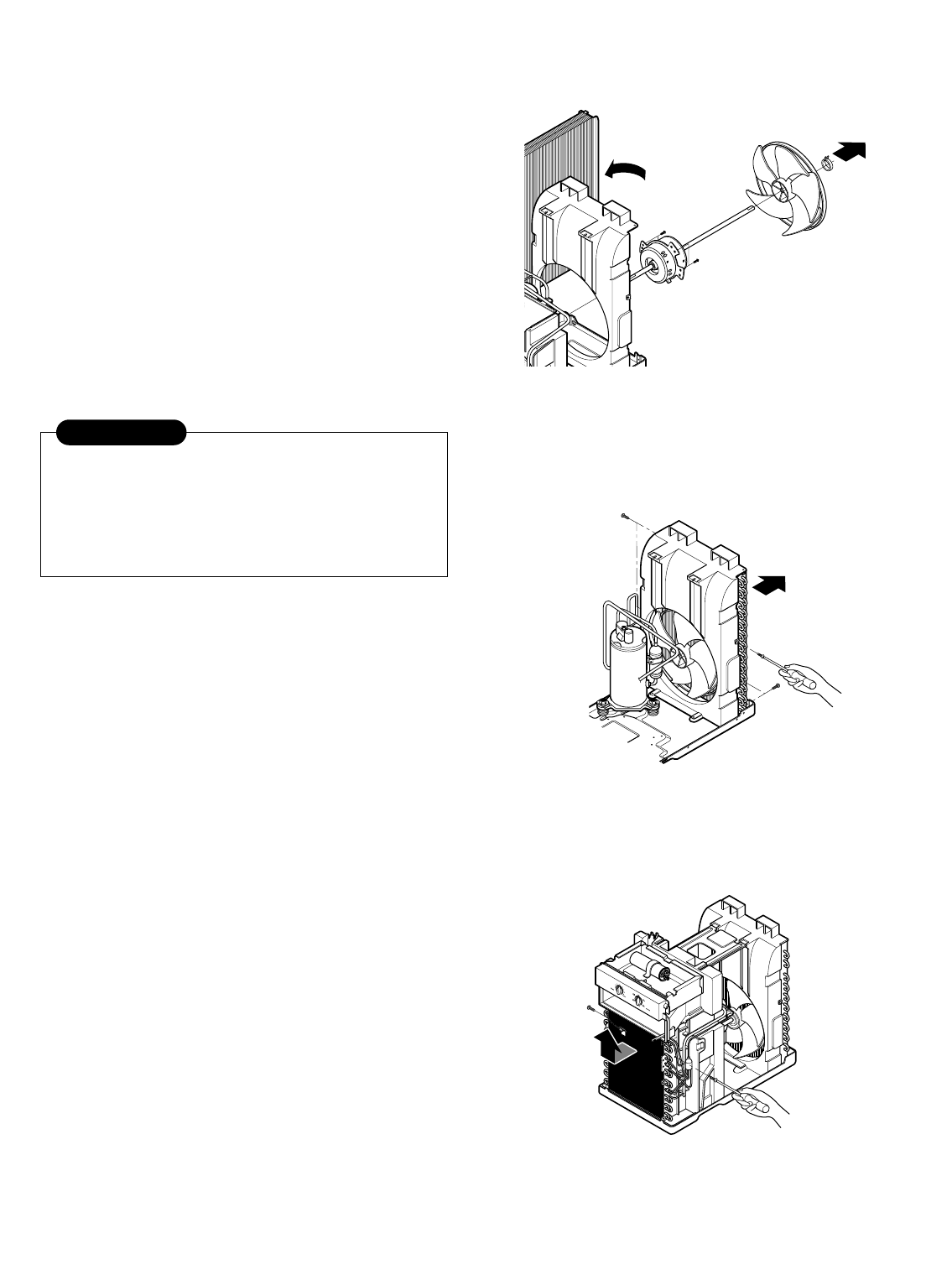

2.2.2 FAN

1. Remove the cabinet. (Refer to section 2.1.2)

2. Remove the brace (Refer to section 2.2.1)

3. Remove 6 screws which fasten the condenser.

4. Move the condenser to the right carefully.

5. Remove the clamp which secures the fan with a pair of

hand pliers.

6. Remove the fan. (See Figure 7)

7. Re-install by referring to the removal procedure.

Figure 4

Figure 5

Figure 6

Figure 7

—7—

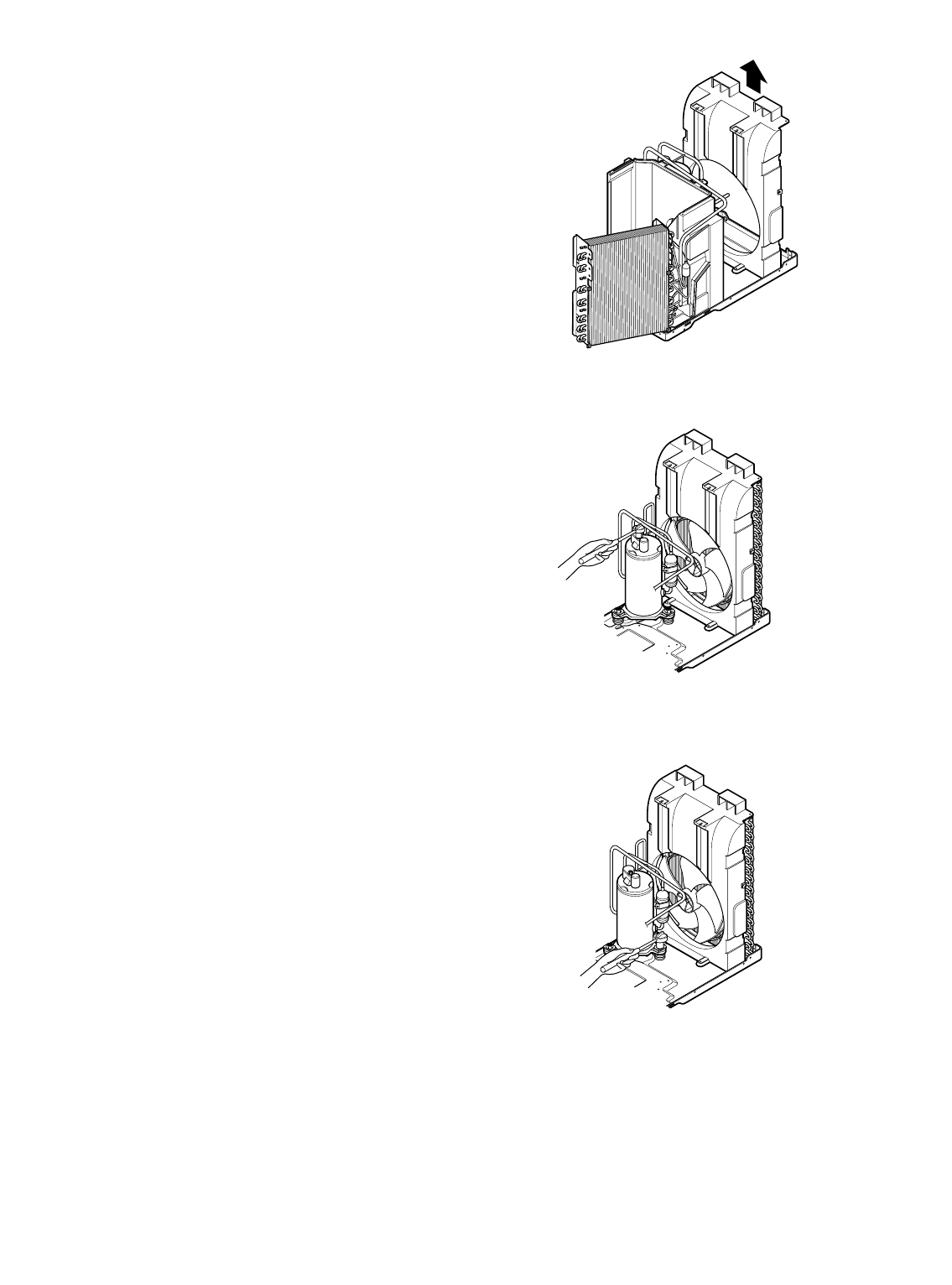

2.2.3 SHROUD

1. Remove the fan. (Refer to section 2.2.2)

2. Remove the shroud. (See Figure 8)

3. Re-install the components by referring to the

removal procedure, above.

2.3 ELECTRICAL PARTS

2.3.1 OVERLOAD PROTECTOR

1. Remove the cabinet. (Refer to section 2.1.2)

2. Remove the nut which fastens the terminal cover.

3. Remove the terminal cover. (See Figure 9)

4. Remove all the leads from the overload protector.

5. Remove the overload protector.

6. Re-install the components by referring to the

removal procedure, above.

2.3.2 COMPRESSOR

1. Remove the cabinet. (Refer to section 2.1.2)

2. Discharge the refrigerant system using a FreonTM

Recovery System.

If there is no valve to attach the recovery system to

install one (such as a WATCO A-1) before venting

the FreonTM. Leave the valve in place after

servicing the system.

3. Remove the overload protector. (Refer to section

2.3.1)

4. After purging the unit completely, unbraze the

suction and discharge tubes at the compressor

connections.

5. Remove the 3 nuts and the 3 washers which

fasten the compressor to the base pan.

6. Remove the compressor. (See Figure 10)

7. Re-install the components by referring to the

removal procedure, above.

Figure 8

Figure 9

Figure 10

—8—

2.3.3 CAPACITOR

1. Remove the cabinet. (Refer to section 2.1.2)

2. Remove the screw and the clamp which fasten the

capacitor.

3. Disconnect all the leads of capacitor terminals.

4. Re-install the components by referring to the

removal procedure, above. (See Figure 11)

2.3.4 POWER CORD

1. Remove the cabinet. (Refer to section 2.1.2)

2. Disconnect the grounding screw from the control

box.

3. Disconnect the 2 receptacles.

4. Remove a screw which fastens the cord clip.

(See Figure 12)

5. Remove the power cord.

6. Re-install the component by referring to the

removal procedure, above.

(Use only one ground-marked hole for ground

connection.)

7. If the supply cord of this appliance is damaged, it

must be replaced by the same cord that can be

obtained from an authorized parts dealer.

2.3.5 THERMOSTAT

1. Remove the cabinet. (Refer to section 2.1.2)

2. Remove the 2 screws which fasten the thermostat.

3. Disconnect 2 leads of thermostat terminals.

4. Remove the thermostat.

5. Re-install the components by referring to the above

removal procedure. (See Figure 13)

2.3.6 ROTARY SWITCH

1. Remove the cabinet. (Refer to section 2.1.2)

2. Remove the 2 screws which fasten the rotary

switch.

3. Disconnect all the leads of the rotary switch

terminals.

4. Remove the rotary switch.

5. Re-install the components by referring to the

above removal procedure. (See Figure 14)

High

Cool

Med

Fan

Off

Mode

Med

Cool

Low Cool

Low

Fan

Cooler

Warmer

Temperature

Figure 11

Figure 12

Figure 13

Figure 14

—9—

2.3.7 MOTOR

1. Remove the cabinet. (Refer to section 2.1.2)

2. Remove the turbo fan. (Refer to section 2.2.1)

3. Remove the fan. (Refer to section 2.2.2)

4. Remove the 4 screws which fasten the motor from

the Motor Mount. (See Figure 15)

5. Remove the motor.

6. Re-install the components by referring to the

removal procedure, above.(See Figure 15)

2.4 REFRIGERATING CYCLE

2.4.1 CONDENSER

1. Remove the cabinet. (Refer to section 2.1.2)

2. Remove the 4 screws which fasten the brace.

3. Remove the 4 screws which fasten the condenser

and shroud. (See Figure 16)

4. Remove the 2 screws which fasten the condenser

and base pan.

5. After discharging the refrigerant completely,

unbraze the interconnecting tube at the condenser

connections.

6. Remove the condenser.

7. Re-install the components by referring to notes on

p10. (See Figure 16)

2.4.2 EVAPORATOR

1. Remove the cabinet. (Refer to section 2.1.2)

2. Remove the control box.(Refer to section 2.1.3)

3. Remove the upper air guide. (Refer to section

2.2.1)

4. Remove the 2 screws which fasten the evaporator

to the lower air guide.

5. Carefully move the evaporator sideways.

(Refer to section 2.2.1)

6. After discharging the refrigerant completely,

unbraze the interconnecting tube at the evaporator

connections.

7. Remove the evaporator.

8. Re-install the components by referring to notes on

page 10. (See Figure 17)

Figure 15

Figure 16

Figure 17

Discharge the refrigerant system using a

FreonTM Recovery System.

If there is no valve to attach the recovery

system to install one (such as a WATCO A-1)

before venting the FreonTM. Leave the valve in

place after servicing the system.

CAUTION

—10—

— Replacement of the refrigerant.

1. When replacing the refrigerant, be sure to

Discharge the refrigerant system using a FreonTM

recovery System.

If there is no valve to attach the recovery system

to, install one (such as a WATCO A-1) before

venting the FreonTM. Leave the valve in place after

servicing the system.

2. After discharging the unit completely, remove the

desired component, and unbraze the pinch-off

tubes.

3. Solder service valves into the pinch-off tube ports,

leaving the valves open.

4. Solder the pinch-off tubes with Service valves.

5. Evacuate as follows.

1) Connect the vacuum pump, as illustrated figure

18A, on page 11.

2) Start the vacuum pump and slowly open

manifold valves A and B with two full turns

counterclockwise and leave the valves open.

The vacuum pump is now pulling through valves

A and B up to valve C by means of the manifold

and entire system.

3) Operate the vacuum pump for 20 to 30 minutes,

until 600 microns of vaccum is obtained. Close

valves A and B, and observe vacuum gauge for

a few minutes. A rise in pressure would

indicate a possible leak or moisture remaining in

the system. With valves A and B closed, stop

the vacuum pump.

4) Remove the hose from the vacuum pump and

place it on the charging cylinder. See figure

18B, on page 11.

Open valve C.

Discharge the line at the manifold connection.

5) The system is now ready for final charging.

6. Recharge as follows :

1) Refrigeration cycle systems are charged from

the High-side. If the total charge cannot be put

in the High-side, the balance will be put in the

suction line through the access valve which you

installed as the system was opened.

2) Connect the charging cylinder as shown in figure

18B, on page 11.

With valve C open, discharge the hose at the

manifold connection.

3) Open valve A and allow the proper charge to

enter the system. Valve B must remain closed.

4) If more charge is required, the high-side will not

take it. Close valve A.

5) With the unit running, open valve B and add the

balance of the charge.

a. Do not add the liquid refrigerant to the Low-

side.

b. Watch the Low-side gauge; allow pressure to

rise to 30 lbs.

c. Turn off valve B and allow pressure to drop.

d. Repeat steps b. and c. until the balance of the

charge is in the system.

6) When satisfied that the unit is operating

correctly, use the pinch-off tool with the unit still

running and clamp on to the pinch-off tube.

Using a tube cutter, cut the pinch-off tube about

2" from the top of the pinch-off tool. Use sil-fos

solder and solder pinch-off tube closed. Turn off

the unit, allow it to set for a while, and then test

the leakage of the pinch-off connection.

NOTES

If high vacuum equipment is used, adjust valves

A and B so they are opened only slightly for a few

minutes, then open slowly with the two full turns

counterclockwise. This will keep oil from foaming

and being drawn into the vacuum pump.

2.4.3 CAPILLARY TUBE

1. Remove the cabinet. (Refer to section 2.1.2)

2. After discharging the refrigerant completely,

unbraze the interconnecting tube at the capillary

tube. (see caution on previous page)

3. Remove the capillary tube.

4. Re-install the components by referring to notes on

page 11.

CAUTION

—11—

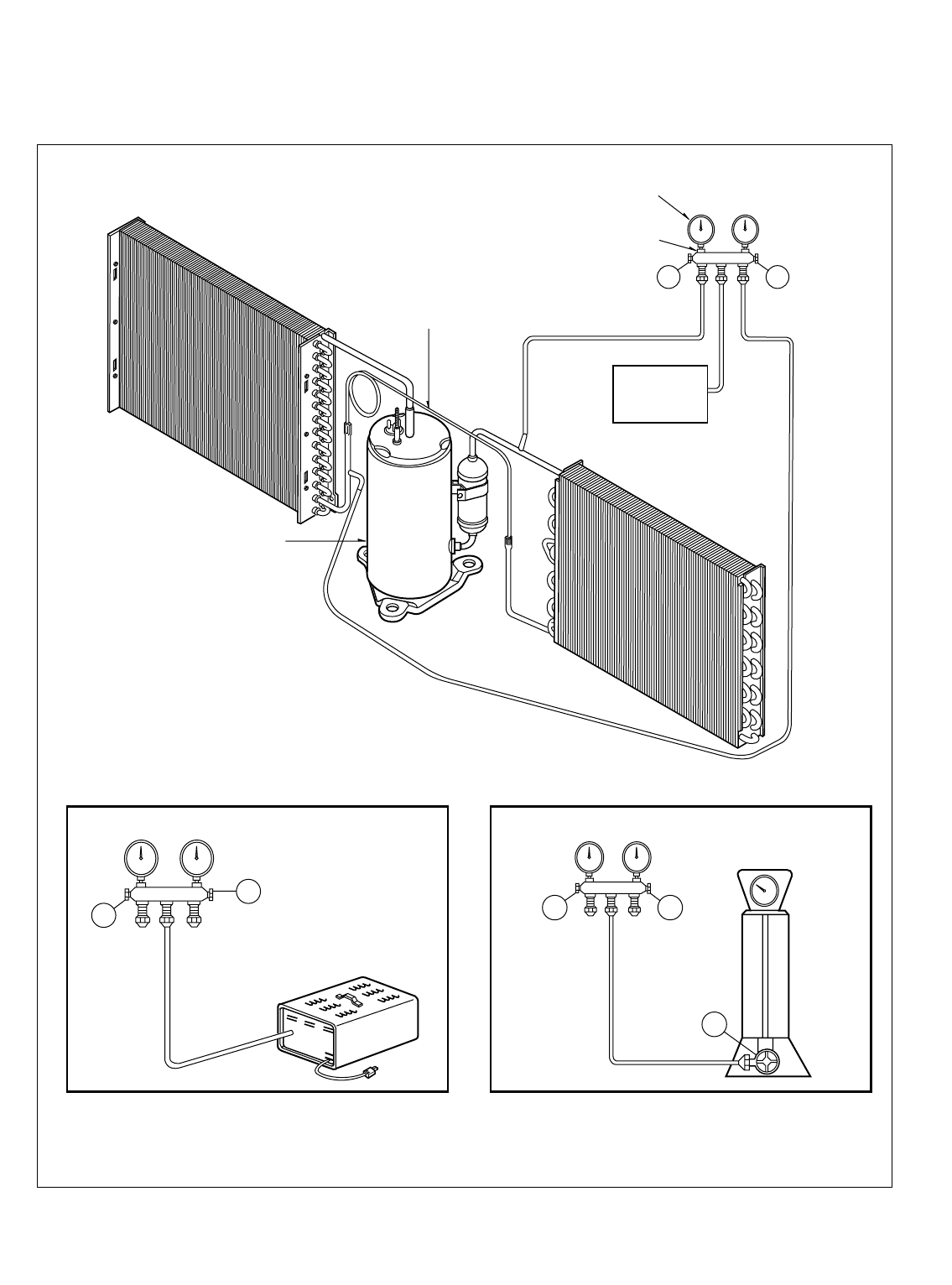

Equipment needed: Vacuum pump, Charging cylinder, Manifold gauge, Brazing equipment. Pinch-off tool

capable of making a vapor-proof seal, Leak detector, Tubing cutter, Hand Tools to remove components, Service

valve.

A

COMPOUND GAUGE

EVAPORATOR

(LOW PRESSURE SIDE)

COMPRESSOR

CAPILLARY TUBE

CONDENSER

(HIGH PRESSURE SIDE)

SEE INSETS

BELOW

MANIFOLD

GAUGE

B

Figure 18A-Pulling Vacuum Figure 18B-Charging

A

B

EXTERNAL

VACUUM PUMP

A

CHARGING

CYLINDER

LOW HI

B

C

—12—

3. INSTALLATION

3.1 HOW TO INSTALL THE UNIT

1. To avoid vibration and noise, make sure the unit is

installed securely and firmly.

2. Install the unit where the sunlight does not shine directly

on the unit.

If the unit receives direct sunlight, build an awning to

shade the cabinet.

3. There should be no obstacle, like a fence, within 20"

which might restrict heat radiation from the condenser.

4. To prevent reducing performance, install the unit so that

louvers of the cabinet are not blocked.

5. Install the unit with a slight downward slope towards the

outside (about 1/4"), to ensure that all condensate drains

outside.

6. Install the unit with its bottom portion 30~60" above the

interior floor level.

7. Stuff the foam gasket between the top of the unit and the

wall to prevent air and insects from getting into the room.

8. The power cord must be connected to an independent

circuit. The green wire must be grounded.

9. Connect the drain tube to the base pan hole in the rear

side if you need to run a drain hose.(consult a dealer).

Plastic hose or equivalent may be connected to the drain

tube.

3.2 CHECKING INSTALLATION

The setting conditions must be checked prior to

initial start up.

The items mentioned below are important check

points to review when the installation is complete.

1. A grounding wire (Green or Green and Yellow) is

provided in the power cord. The green wire must

be grounded.

2. Connect to a single-outlet 15A circuit.

3. To avoid vibration or noise, make sure the air

conditioner is securely installed.

4 Avoid placing furniture or draperies in front of the

air inlet and outlet.

3.3. HOW TO DRAIN

(When using drain pipe)

The air conditioner must be installed with a slight tilt

towards the outside for proper water drainage.

On exceptionally hot and humid days the air

conditioner may overflow condensed water to the

outside.

If the air conditioner is used in a high humidity

zone, exchange the DRAIN CAP for the

DRAIN PIPE.(See Figure 20, Figure 21)

About 1/4"

30"~60"

Awning

Cooled air

Fence

Over 20"

Heat

radiation

BOTTOM

DRAIN CAP

1

BASE PAN

BOTTOM

DRAIN PIPE

2

BASE PAN

Figure 20

Figure 21

Figure 19

—13—

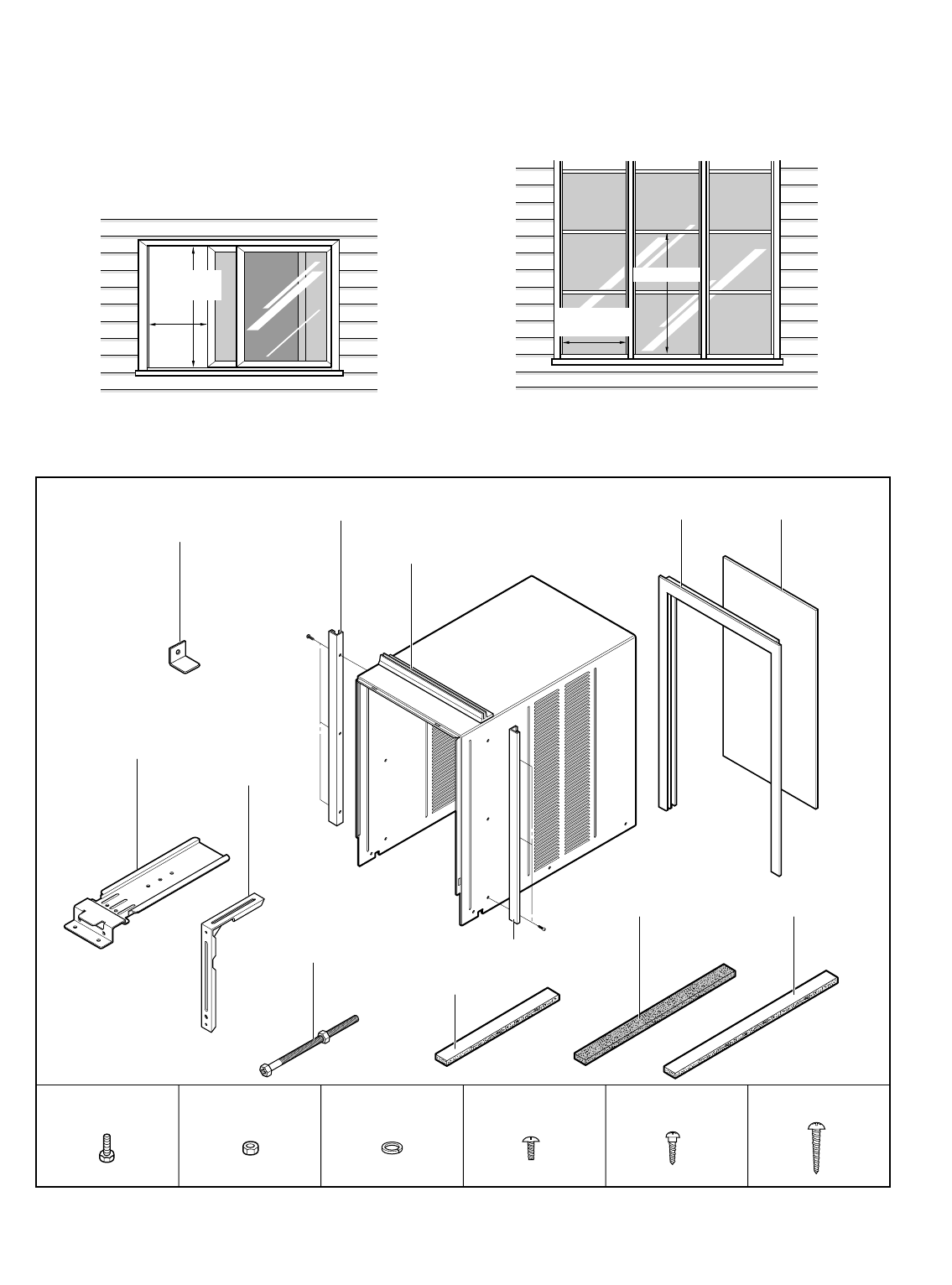

3.4 WINDOW REQUIREMENTS

1. These instructions are for a horizontal sliding or a

casement window.

2. The electrical outlet must be within reach of the

power cord.

For installation in a casement window, the window

frame assembly and the side of the building must be

adequate to support the weight of the air conditioner.

3.5 INSTALLATION KIT CONTENTS

21" min.

40 1/2" max.

15 1/2"

min.

Horizontal sliding window

21 1/2" min.

15 1/2" min.

16 1/2" max.

Casement window

Nut (2) Washer (2) Type A (9) Type B (3) Type C (8)

Bolt (2)

CurtainWindow Locking

Bracket Side Guide

Support Bracket

Leveling

bolt & nut

Bracket

Side Guide

Upper Guide

Curtain Frame

Side Guide SealFoam Seal Gasket

Window Track Seal

—14—

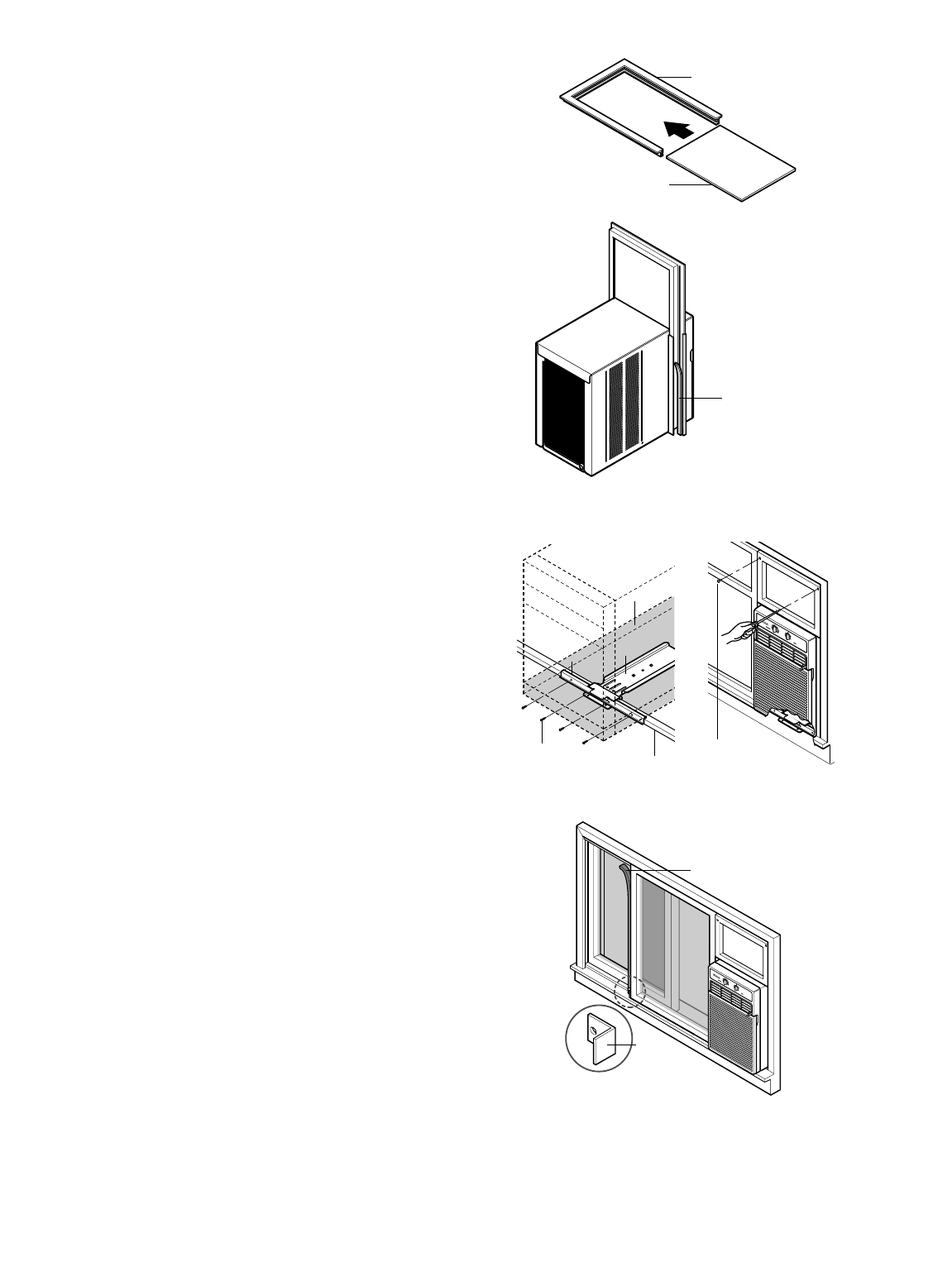

1. Loosely attach the support bracket to the bottom of

bracket using bolts, washers, and nuts. Attach the

leveling bolt and nut. (See Figure 22)

2. Remove protective backing from window track seal

and apply seal to window track. (See Figure 23)

3. Measure and lightly mark a line 8-1/4" from window

jamb. Center the support bracket assembly on the

window track and fasten with 4-type C screws. (See

Figure 23)

4. Put the support bracket against the outside wall and

tighten the bolts on top of the bracket. Adjust the

leveling bolt so that the air conditioner will be installed

with a very slight tilt (about 1/4") downward toward the

outside for proper drainage.

Tighten the nut. (See Figure 24)

NOTE: DO NOT drill a hole in the bottom of the base

pan. The air conditioner is designed to operate

with the bottom of the base pan approximately

half-full of water.

5. Fasten side guides to the sides of the air conditioner

using 3-type A screws per guide. start with first screw

at middle of guide. (See Figure 25)

6. Fasten upper guide on the top of the air conditioner

using 3-type A screws. (See Figure 25)

7. Measure height of window opening from top of

bracket assembly as shown Fig. 26.

Subtract 20-3/4". Mark this measurement on curtain

and cut the curtain. (See Figure 26)

Window Track

Window Track

Seal

Fastening Side Guides

Upper Guide

Side Guide

WindoWindow jambw jambWindow jamb

Type C screype C screwType C screw

Outside Wall

Bracket

Support Bracket

Nut

Washer

Leveling Bolt & Nut

Bolt

about 1/4"

High

Cool

Med

Fan

Off

Mode

Temperature

Med

Cool

Low Cool

Low

Fan

Cooler

Warmer

811/16"

Figure 22

Figure 23

Figure 24

Figure 25

Figure 26

3.6 HORIZONTAL SLIDING WINDOW INSTALLATION

—15—

8. Slide curtain into curtain frame. Slide curtain frame

assembly into side guides of the air conditioner

cabinet. Make sure curtain is firmly enclosed on all

sides by the frame. (See Figure 27)

9. Cut side guide seal into 2 equal lengths. Remove

protective backing and apply it to the rear side of

cabinet side guides, starting just below curtain frame

assembly. Pinch off excess length so seal is even with

the bottom of side guide. (See Figure 28)

10. Place air conditioner in window opening. It should sit

on bracket assembly so that curtain frame and

cabinet side guides are against top and side window

jambs. Mate front of bracket with base guide

attached to the bottom of base pan.

11. Drill 1/8 inch holes in window track through the

existing holes on base guide. Screw 4-type C screws

through the holes. (See Figure 29)

12. If this is a casement window installation, proceed to

casement window installation. If not, slide inner

window sash firmly against side of the cabinet.

13.

Drill 1/8 inch hole in window jamb to align with the

existing holes in the curtain frame. Attach curtain

frame to window frame with 2-type B screws.

(See

Figure 29)

NOTE: Check all seals and plug any remaining air gaps

with a suitable weatherproof caulk.

14. If this is a casement window installation, proceed to

casement window installation. If not, stuff the foam

seal strip between the vertical sash and the window

glass.

(See Figure 30)

15. Attach the window locking bracket with a type B

screw.

(See Figure 30)

3.7 CASEMENT WINDOW

INSTALLATION

• Installation procedure is the same as that described in

steps 1 through 11 and step 13 of the horizontal sliding

window installation.

• If the window opening is wider than 15-3/4" you will

need to install a filler panel. Make this panel from 3/4

inch thick wood and run it the full length of the window.

Attach it securely to the window frame and paint it to

protect it from the weather.

• Since styles and sizes of casement windows vary

widely, it is advisable to have the air conditioner

installed by someone skilled in this type of installation.

Curtain Frame

Curtain

Window

locking

bracket

Foam seal strip

Apply weather seal

to side guides

just below edge of

Curtain Frame.

Type B screwType B screw

Type C screw

Base panBase pan

BracketBracket

Window TrackWindow Track

Base GuideBase Guide

High

Cool

Med

Fan

Off

Mode

Temperature

Med

Cool

Low Cool

Low

Fan

Cooler

Warmer

High

Cool

Med

Fan

Off

Mode

Temperature

Med

Cool

Low Cool

Low

Fan

Cooler

Warmer

Figure 27

Figure 28

Figure 29

Figure 30

—16—

4. TROUBLESHOOTING GUIDE

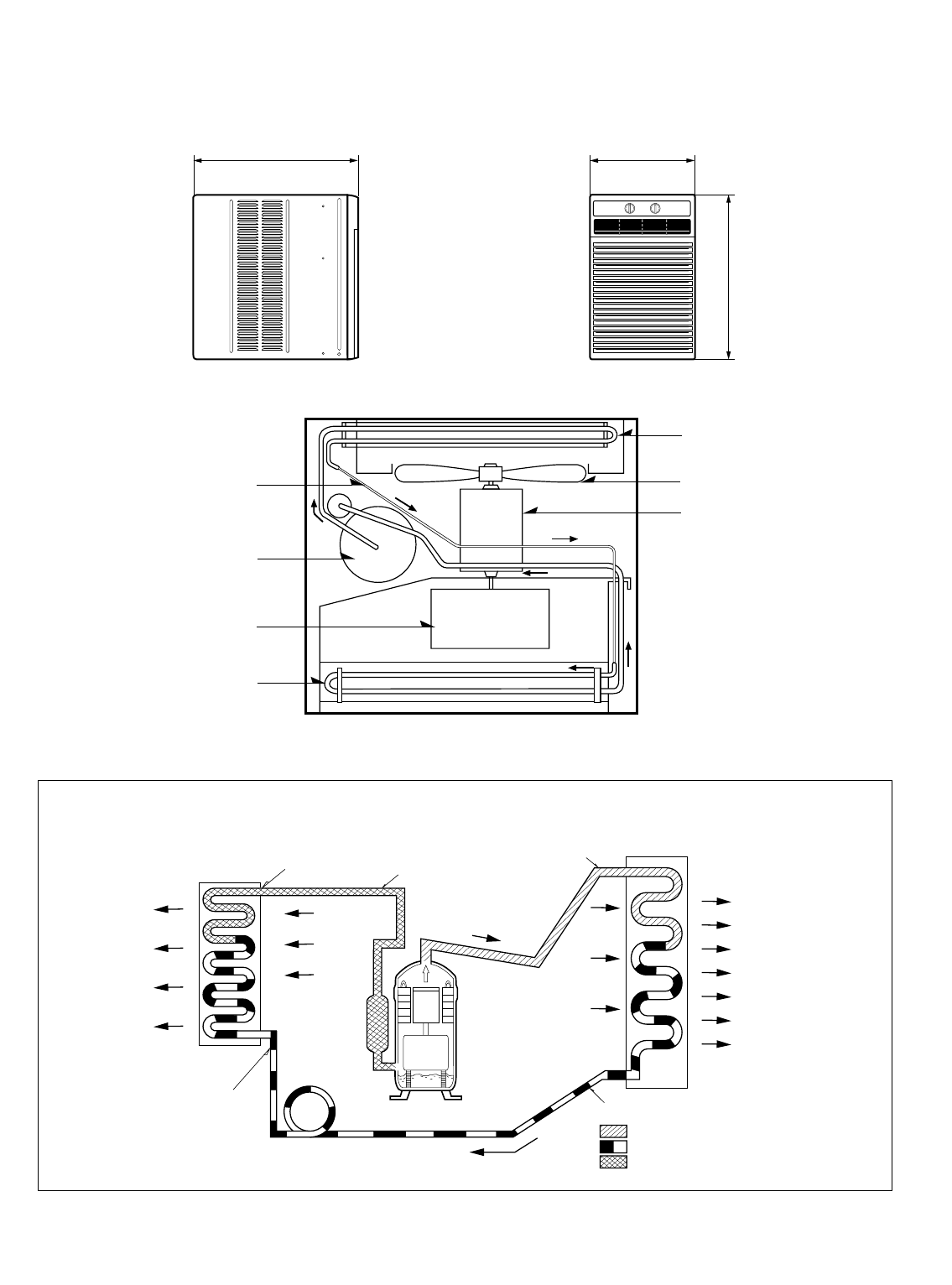

4.1 OUTSIDE DIMENSIONS

368(14 1/2)

521(20 1/2)

607(23 3/5)

CAPILLARY TUBE

COMPRESSOR

TURBO FAN

EVAPORATOR COIL

CONDENSER COIL

FAN

MOTOR

4.2 PIPING SYSTEM

Following is a brief description of the important components and their functions in the refrigeration system.

Refer to Fig. 31 to follow the refrigeration cycle and the flow of the refrigerant in the cooling cycle.

(LIQUID REFRIGERANT)

CAPILLARY TUBE

OUTSIDE COOLING

AIR FOR REFRIGERANT

PASS THROUGH

SUCTION LINE

COOL LOW PRESSURE VAPOR

COOLED

AIR

COMPLETE LIQUID

BOIL OFF POINT

LIQUID

PRESSURE

DROP

ROOM AIR HEAT LOAD

VAPOR INLET HOT

DISCHARGED

AIR

LIQUID OUTLET

HIGH PRESSURE VAPOR

LIQUID REFRIGERANT

LOW PRESSURE VAPOR

ROOM AIR CONITIONER

EVAPORATOR COIL CONDENSER COIL

CYCLE OF REFRIGERATION

MOTOR

COMPRESSOR

OIL

Figure 31

Unit: mm(inchs)

—17—

4.3 TROUBLESHOOTING GUIDE

In general, possible trouble is classified in two kinds.

The one is called Starting Failure which is caused from an electrical defect, and the other is ineffective Air

Conditioning caused by a defect in the refrigeration circuit and/or improper application.

Unit runs but poor cooling.

Ineffective Cooling

Check outdoor coil

(heat exchanger) & the fan

operation.

Check for gas leakage.

Repair gas leak.

Replace unit if the

unit is beyond repair.

Satisfactory operation with

temperature difference of

inlet & outlet air ;

44~50°F(7~10°C)

Check heat load

increase.

Clean condenser.

Not on separate circuit.

Check inside gas

pressure.

Adjustment of refrigerant

charge.

Malfunction of compressor.

Replacement of

compressor.

Check cold air circulation

for smooth flow.

Dirty indoor coil

(Heat exchanger)

Correct above problem

Check clogging in refrigera-

tion system.

Repair clogging in refrigera-

tion system.

Obstruction at air outlet

Clogged air filter

Malfunction of fan

—18—

Fails to Start

Check circuit breaker

and fuse.

Gas leakage of feeler bulb

of thermostat

Check control switch.

Fan only fails to start.

Improper wiring.

Defective of fan motor

capacitor.

Irregular motor resistance

(

).

Irregular motor insulation

(

).

Replacement of fan motor.

Tests normal but fails to start.

Replacement of compressor

(locking of rotor, metal).

Improper thermostat setting.

Loose terminal connection.

Improper wiring.

Irregular motor resistance ( )

Irregular motor insulation (

)

Replacement of compressor

(Motor damaged)

Drop of power voltage.

Capacitor check.

Replacement

Compressor only fails to

start.

Defective of compressor

capacitor.

Check power source.

Check control switch

setting.

—19—

COMPLAINT CAUSE REMEDY

Check voltage at outlet. Correct if none.

Check voltage to rotary switch. If none, check power

supply cord. Replace cord if circuit is open.

Check switch continuity. Refer to wiring diagram for

terminal identification. Replace switch if defective.

Connect wire. Refer to wiring diagram for terminal

identification. Repair or replace loose terminal.

Test capacitor.

Replace if not within ±10% of manufacturer's rating.

Replace if shorted, open, or damaged.

Fan blade hitting shroud or blower wheel hitting

scroll. Realign assembly.

Units using slinger ring for condenser fan must have

1/4to 5/16 inch clearance to the base. If it hits the

base, shim up the bottom of the fan motor with

mounting screw(s).

Check fan motor bearings; if motor shaft will not

rotate, replace the motor.

Check voltage. If not within limits, call an electrician.

Test capacitor.

Check bearings. Does the fan blade rotate freely?

If not, replace fan motor.

Pay attention to any change from high speed to

low speed. If the speed does not change, replace the

motor.

If cracked, out of balance, or partially missing,

replace it.

If cracked, out of balance, or partially missing,

replace it.

Tighten it.

If knocking sounds continue when running or loose,

replace the motor. If the motor hums or noise

appears to be internal while running, replace motor.

Check voltage.

If not within limits, call an electrician.

Check the wire connections, if loose, repair or

replace the terminal. If wires are off, refer to wiring

diagram for identification, and replace. Check wire

locations. If not per wiring diagram, correct.

Check for continuity, refer to the wiring diagram for

terminal identification. Replace the switch if circuit is

open.

No power

Power supply cord

Rotary switch

Wire disconnected or

connection loose

Capacitor (Discharge

capacitor before testing.)

Will not rotate

Revolves on overload.

Fan

Blower

Loose clamper

Worn bearings

Voltage

Wiring

Rotary

Fan motor will not run

Fan motor runs

intermittently

Fan motor noise

Compressor will not run,

but fan motor runs

NAME PLATE RATING MINIMUM MAXIMUM

115V ±10% 103.5V 126.5V

ROOM AIR CONDITIONER VOLTAGE LIMITS

—20—

COMPLAINT CAUSE REMEDY

Check the position of knob If not at the coldest

setting, advance the knob to this setting and restart

unit.

Check continuity of the thermostat. Replace

thermostat if circuit is open.

Check the capacitor.

Replace if not within ±10% of manufacturers rating.

Replace if shorted, open, or damaged.

Check the compressor for open circuit or ground. If

open or grounded, replace the compressor.

Check the compressor overload, if externally

mounted. Replace if open. (If the compressor

temperature is high, remove the overload, cool it,

and retest.)

Check the voltage.

If not within limits, call an electrician.

Check overload, if externally mounted.

Replace if open. (If the compressor temperature is

high, remove the overload, cool, and retest.)

If not running, determine the cause. Replace if

required.

Remove the cabinet. inspect the interior surface of

the condenser; if restricted, clean carefully with a

vacuum cleaner (do not damage fins) or brush.

Clean the interior base before reassembling.

If condenser fins are closed over a large area on the

coil surface, head pressures will increase, causing

the compressor to overload. Straighten the fins or

replace the coil.

Test capacitor.

Check the terminals. If loose, repair or replace.

Check the system for a restriction.

If restricted, clean or replace.

Close if open.

Determine if the unit is properly sized for the area to

be cooled.

Check the set screw or clamp. If loose or missing,

correct. If the blower or fan is hitting the air guide,

rearrange the air handling parts.

Remove the cabinet carefully and rearrange tubing

so that it doesn't contact the cabinet, compressor,

shroud, and barrier.

Thermostat

Capacitor (Discharge

capacitor before servicing.)

Compressor

Overload

Voltage

Overload

Fan motor

Condenser air flow

restriction

Condenser fins (damaged)

Capacitor

Wiring

Refrigeration System

Air filter

Exhaust damper door

Unit undersized

Blower or fan

Copper tubing

Compressor will not run,

but fan motor runs.

Compressor cycles on

overload.

Compressor cycles on

overload.

Compressor cycles on

overload.

Insufficient cooling or

heating

Excessive noise

5. SCHEMATIC DIAGRAM

5.1 CIRCUIT DIAGRAM

■MODEL : SV10A10A / SV1210A

—21—

SV10A10A SV12A10A

PART NO.

1 POWER CORD - - 1 S

2 ROTARY SWITCH 67300501 1 S

3 FAN MOTOR 67303015 1 S

4 CAPACITOR 67300709 - 1 S

5 THERMOSTAT 67300403 1 S

6 COMPRESSOR 67301614 67301615 1 S

LOCATION

NO.

DESCRIPTION

RE-

MARKS

Q'TY

PER SET

S: Service Parts

N: Non Service Parts

—22—

5.2 CIRCUIT DIAGRAM

■MODEL : SV08A10A

SV08A10A

PART NO.

1 POWER CORD 67300005 1 S

2 ROTARY SWITCH 67300501 1 S

3 FAN MOTOR 67303014 1 S

4 CAPACITOR 67300712 1 S

5 THERMOSTAT 67300403 1 S

6 COMPRESSOR 67301612 1 S

LOCATION

NO.

DESCRIPTION

RE-

MARKS

Q'TY

PER SET

S: Service Parts

N: Non Service Parts

6. EXPLODED VIEW

—23—

554030148000

352390-2

349001

349600

346811

354210

152312

147581

145200

147582-2

135312

147582-1

135301

264110

269310 266003

249950

130910

359011

130410

552111

352113

352390-1

149980

W0CZZ

567502

554160

550140

349480

135303

359012

352115

35211A

149410

High

Cool

Med

Fan

Off

Mode

Med

Cool

Low Cool

Low

Fan

Cooler

Warmer

Temperature

—24—

7. REPLACEMENT PARTS LIST

■MODEL : SV08A10A, SV10A10A, SV12A10A

P/No

SV08A10A SV10A10A SV12A10A

130410 BASE ASSEMBLY, SINGLE 67302911 67302910 R

130910 CABINET ASSEMBLY, SINGLE 67303706 R

135303 GRILLE INLET 67306105 R

135312 GRILLE ASSEMBLY, FRONT 67306007 R

147581 VANE, HORIZONTAL 67306204 R

147582 VANE, VERTICAL 67306254 67306255 R

148000 BRACE 67303904 R

149410 KNOB ASSEMBLY 67304104 R

149980 SHROUD ASSEMBLY 67303109 R

152312 FILTER ASSEMBLY 67304305 R

264110 POWER CORD ASSEMBLY 67300005 67300006 67300007 R

266003 SWITCH, ROTARY 67300501 R

269310 THERMOSTAT ASSEMBLY 67300403 R

346811 MOTOR ASSEMBLY, SINGLE 67303014 67303015 R

349001 DAMPER 67303505 R

349480 ORIFICE 67303407 R

349600 MOUNT, MOTOR 67303608 R

352380 AIR GUIDE-LOWER ASSEMBLY 67302715 R

352390 AIR GUIDE ASSEMBLY-UPPER 67302714 R

354210 EVAPORATOR ASSEMBLY 67302411 67302412 R

359011 FAN ASSEMBLY AXIAL 67303206 R

359012 FAN ASSEMBLY, TURBO 67302610 R

550140 ISOLATOR, COMP 67301900 R

552111 TUBE ASSEMBLY, CAPILLARY 67302108 67302109 67302110 R

554030 CONDENSER ASSEMBLY 67303310 67303311 R

554160 COMPRESSOR 67301612 67301614 67301615 R

567502 O.L.P 67301410 67301409 67301407 R

W0CZZ CAPACITOR, DRAWING 67300712 67300709 67300713 R

731273 INSTALLATION KIT 67306306

237900 WINDOW, DISPLAY 67308101 R

132100 FRAME, PANEL 67308100 R

749740-1 GUIDE, UPPER 67304004 R

749740-2 GUIDE, FRAME 67306402 R

W4810-1 BRACKET 67303905 R

W4810 SUPPORT, BRACKET 67303906

LOCATION

No.

DESCRIPTION

REMARK

—25—

MEMO

—26—

MEMO

Printed in the U.S.A

Post Office Box 1540 • 4200 N. Pan Am Expressway • San Antonio, Texas 78295-1540

• (210) 357-4400 • FAX (210) 357-4480

FRIEDRICH AIR CONDITIONING CO.

Visit our web site at www.friedrich.com

P/NO.: 3828A20190X

SV08 / SV10 / SV12 (01/05)

Use Factory Certified Parts...
