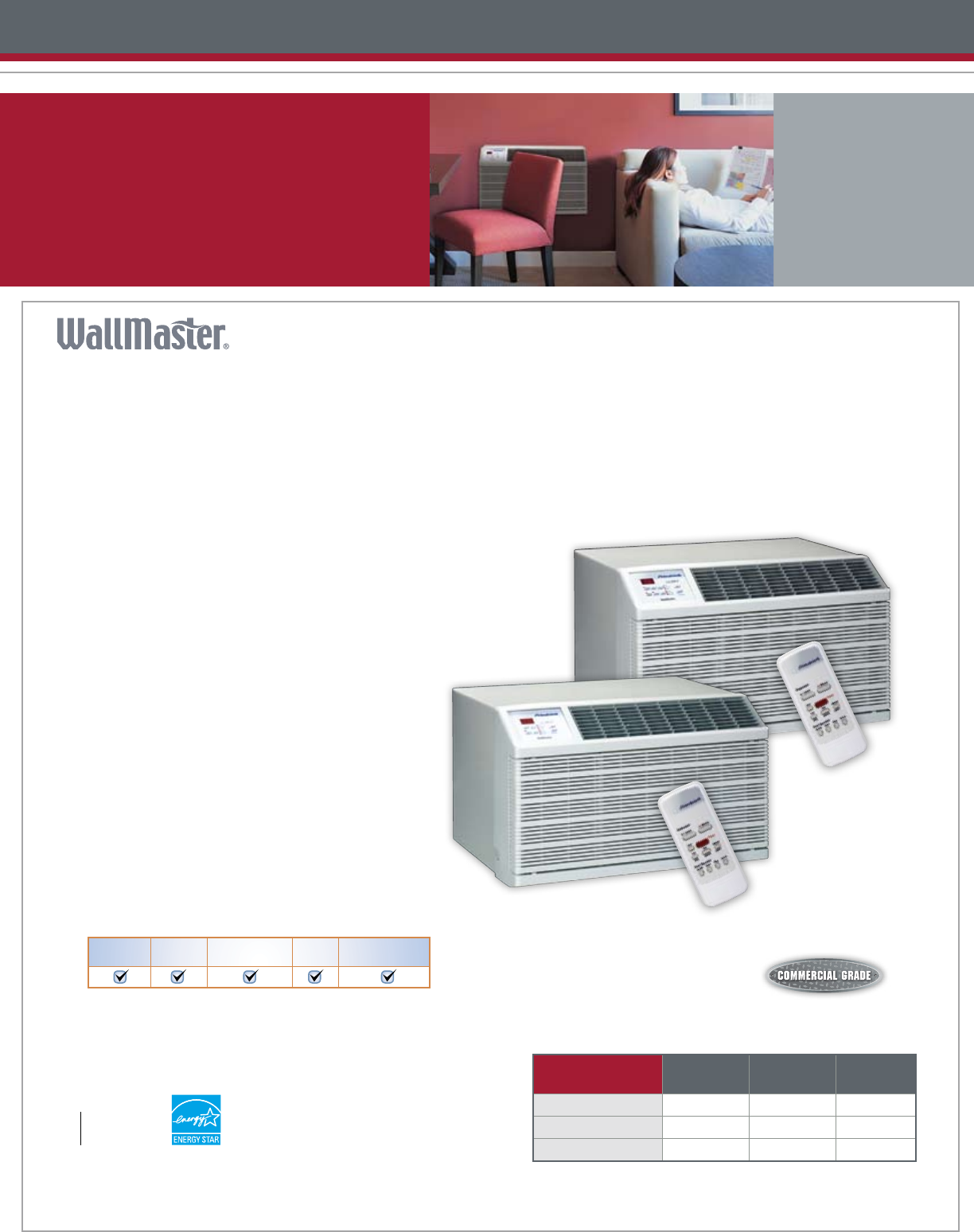

Thru-the-wall AIR CONDITIONERS
2009
COOl ONly | hEAT pumpS | ElECTRIC hEAT
• High eciency operation
saves on energy costs
• Residential/commercial
applications
• Mounts ush with the exterior
wall for a neat appearance
• A high eciency replace-
ment for 27" sleeves includ-
ing Fedders A and B*. Sleeve
measures 27" W x 16 3/4" H
• Ideal for thicker wall installa-
tions, where side ns don’t t
• Easy-to-reach, top mount
controls
• Three-speed fan
• Ecient rotary compressor
• Easy-to-clean lter
• Auto restart
• Fully functional remote control
• 24 hour programmable timer
• Money Saver® setting saves energy by
cycling the fan with the compressor
• Smart Fan auto-adjusts fan speed to
maintain desired temperature
• Auto-memory backup saves setting
should power be interrupted
DIGITAL CONTROLS fEATuRE
The Most Energy Efficient
Solid-side Air Conditioner
Chassis installs into
existing 27” sleeves
Units are shown installed in WSC sleeve (sold and shipped separately)
Sleeve Dimensions
Friedrich
WSC Sleeve
Fedders
A Sleeve
Fedders
B Sleeve*
Height (inches) 16 3/4 16 3/4 16 3/4
Width (inches) 27 27 27
Depth (inches) 16 3/4 16 3/4 19 3/4

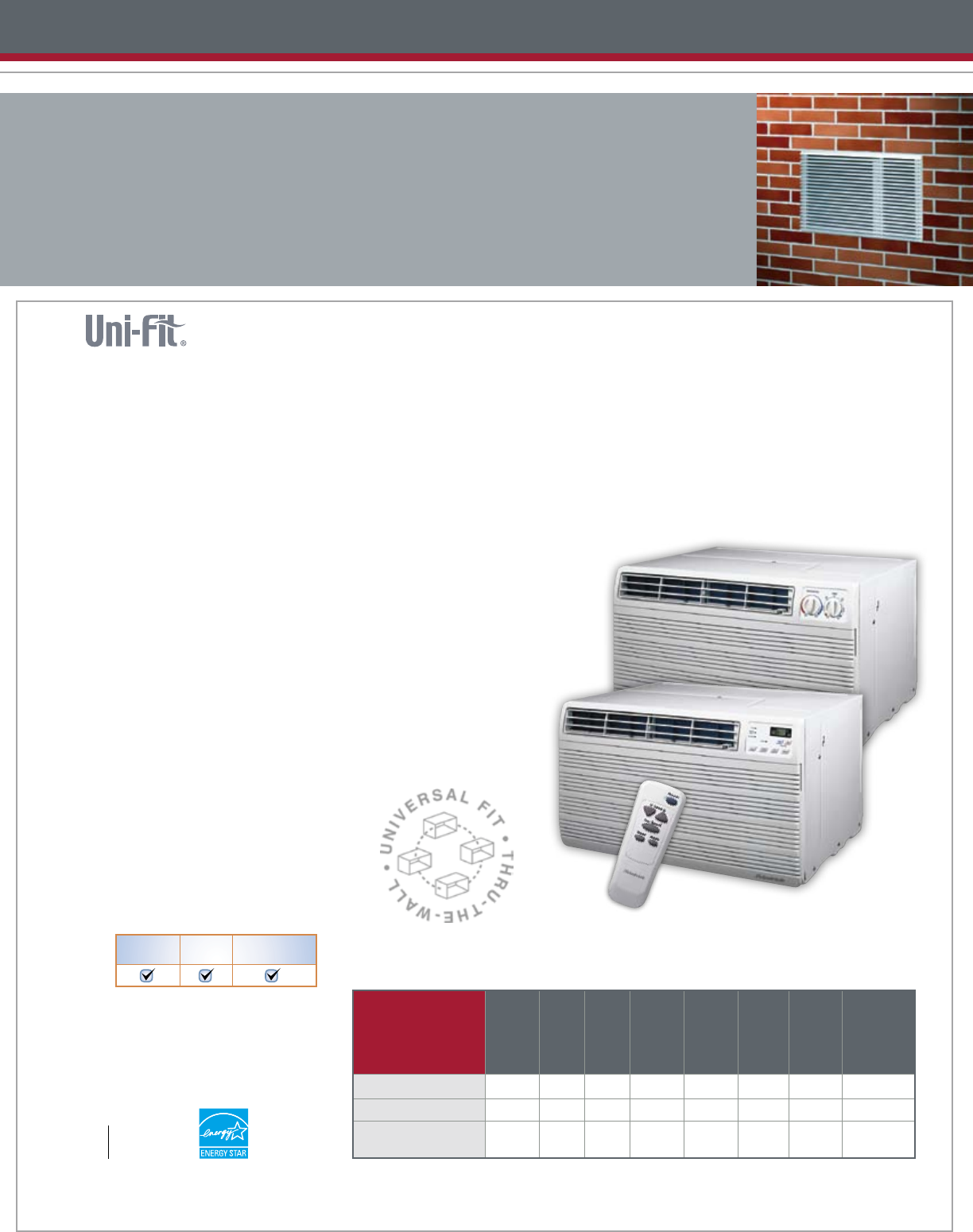

Universal Fit for Easy
Replacement
Chassis installs into
existing 26" sleeves
Units are shown without USC sleeve (USC sleeves sold and shipped separately)
REMOTE
CONTROL
12-HOuR
TIMER
MONEY SAVER
fEATuRE
• Rotary compressors
provide quiet, dependable
performance
• Six-way air ow control
• Stale air exhaust
• Auto restart
• Washable/reusable lter
• Seacoast protection
HEAT/COOL MODELS feature mechanical controls,
two cooling speeds, two heating speeds, plus
one fan-only setting.
COOLING MODELS feature electronic controls
with remote control, Money Saver® setting that
saves energy by cycling the fan with the com-
pressor and three cooling/three fan-only speeds.
*Installation in Fedders B sleeve requires a bae kit. See BAK accessory under accessories.
• 12 hour programmable timer
• Money Saver® setting saves energy by
cycling the fan with the compressor
DIGITAL CONTROLS fEATuRE (cool only models)
THRU-THE-WALL units mount
ush with exterior walls for a sleek
appearance, as well as unobstructed
window views.
(Wallmaster WSC sleeve shown with
architectural grille. Uni-t grille has
dierent appearance.)
Friedrich thru-the-wall
air conditioners are ideal
for new construction,
retrots and remodels
THRu-THE-WALL 27” sleeve THRu-THE-WALL 26” sleeve l universal t
5 En E r g y St a r ®
models
8,000 to 15,800 BTU/h COOLING l 8,100 to 11,000 BTU/h HEATING
EERs up to 10.5
8,000 to 13,000 BTU/h COOLING l 3,850 to 11,200 BTU/h HEATING
EERs up to 9.6
REMOTE
CONTROL
24-HOuR
TIMER
MONEY SAVER
fEATuRE
SMART
fAN
ANTIMICROBIAL
fILTER
5 En E r g y St a r ®
models
cool only / heat pumps / cool w/electric heat cool only, cool w/electric heat
Sleeve Dimensions
Friedrich
USC
Sleeve Amana
Carrier
(51S
Series)
Fedders/
Emerson/
Friedrich
WSC
Emerson/
Fedders
GE/
Hotpoint Whirlpool
White-
Westinghouse/
Frigidaire/
Carrier (52F
Series)
Height (inches) 15 17/32 15 5/8 16 7/8 16 3/4 15 3/4 15 5/8 16 1/2 15 1/4
Width (inches) 25 7/8 26 25 3/4 27 26 3/4 26 25 7/8 25 1/2
Depth (inches) 16 23/32 16 7/8 18 5/8 16 3/4 or
19 3/4
15 16 7/8 17 1/8
or 23
16, 17 1/2
or 22
• High eciency operation
saves on energy costs
• Residential/commercial
applications
• Mounts ush with the exterior
wall for a neat appearance
• A high eciency replace-
ment for 27" sleeves includ-
ing Fedders A and B*. Sleeve
measures 27" W x 16 3/4" H
• Ideal for thicker wall installa-
tions, where side ns don’t t
• Easy-to-reach, top mount
controls
• Three-speed fan
• Ecient rotary compressor
• Easy-to-clean lter
• Auto restart
• Fully functional remote control
• 24 hour programmable timer
• Money Saver® setting saves energy by
cycling the fan with the compressor
• Smart Fan auto-adjusts fan speed to
maintain desired temperature
• Auto-memory backup saves setting
should power be interrupted
DIGITAL CONTROLS fEATuRE
The Most Energy Efficient
Solid-side Air Conditioner
Chassis installs into
existing 27” sleeves
Units are shown installed in WSC sleeve (sold and shipped separately)
Sleeve Dimensions
Friedrich
WSC Sleeve
Fedders
A Sleeve
Fedders
B Sleeve*
Height (inches) 16 3/4 16 3/4 16 3/4
Width (inches) 27 27 27
Depth (inches) 16 3/4 16 3/4 19 3/4
Universal Fit for Easy
Replacement
Chassis installs into
existing 26" sleeves
Units are shown without USC sleeve (USC sleeves sold and shipped separately)
REMOTE
CONTROL
12-HOuR
TIMER
MONEY SAVER
fEATuRE
• Rotary compressors
provide quiet, dependable
performance
• Six-way air ow control
• Stale air exhaust
• Auto restart
• Washable/reusable lter
• Seacoast protection
HEAT/COOL MODELS feature mechanical controls,
two cooling speeds, two heating speeds, plus
one fan-only setting.
COOLING MODELS feature electronic controls
with remote control, Money Saver® setting that
saves energy by cycling the fan with the com-
pressor and three cooling/three fan-only speeds.
*Installation in Fedders B sleeve requires a bae kit. See BAK accessory under accessories.
• 12 hour programmable timer
• Money Saver® setting saves energy by
cycling the fan with the compressor
DIGITAL CONTROLS fEATuRE (cool only models)
THRU-THE-WALL units mount
ush with exterior walls for a sleek
appearance, as well as unobstructed
window views.
(Wallmaster WSC sleeve shown with
architectural grille. Uni-t grille has
dierent appearance.)
Friedrich thru-the-wall
air conditioners are ideal
for new construction,
retrots and remodels
THRu-THE-WALL 27” sleeve THRu-THE-WALL 26” sleeve l universal t
5 En E r g y St a r ®
models
8,000 to 15,800 BTU/h COOLING l 8,100 to 11,000 BTU/h HEATING
EERs up to 10.5
8,000 to 13,000 BTU/h COOLING l 3,850 to 11,200 BTU/h HEATING
EERs up to 9.6
REMOTE
CONTROL
24-HOuR
TIMER
MONEY SAVER
fEATuRE
SMART
fAN
ANTIMICROBIAL
fILTER
5 En E r g y St a r ®
models
cool only / heat pumps / cool w/electric heat cool only, cool w/electric heat
Sleeve Dimensions
Friedrich
USC
Sleeve Amana
Carrier
(51S
Series)
Fedders/
Emerson/
Friedrich
WSC
Emerson/
Fedders
GE/
Hotpoint Whirlpool
White-
Westinghouse/
Frigidaire/
Carrier (52F
Series)
Height (inches) 15 17/32 15 5/8 16 7/8 16 3/4 15 3/4 15 5/8 16 1/2 15 1/4
Width (inches) 25 7/8 26 25 3/4 27 26 3/4 26 25 7/8 25 1/2
Depth (inches) 16 23/32 16 7/8 18 5/8 16 3/4 or
19 3/4
15 16 7/8 17 1/8
or 23
16, 17 1/2
or 22

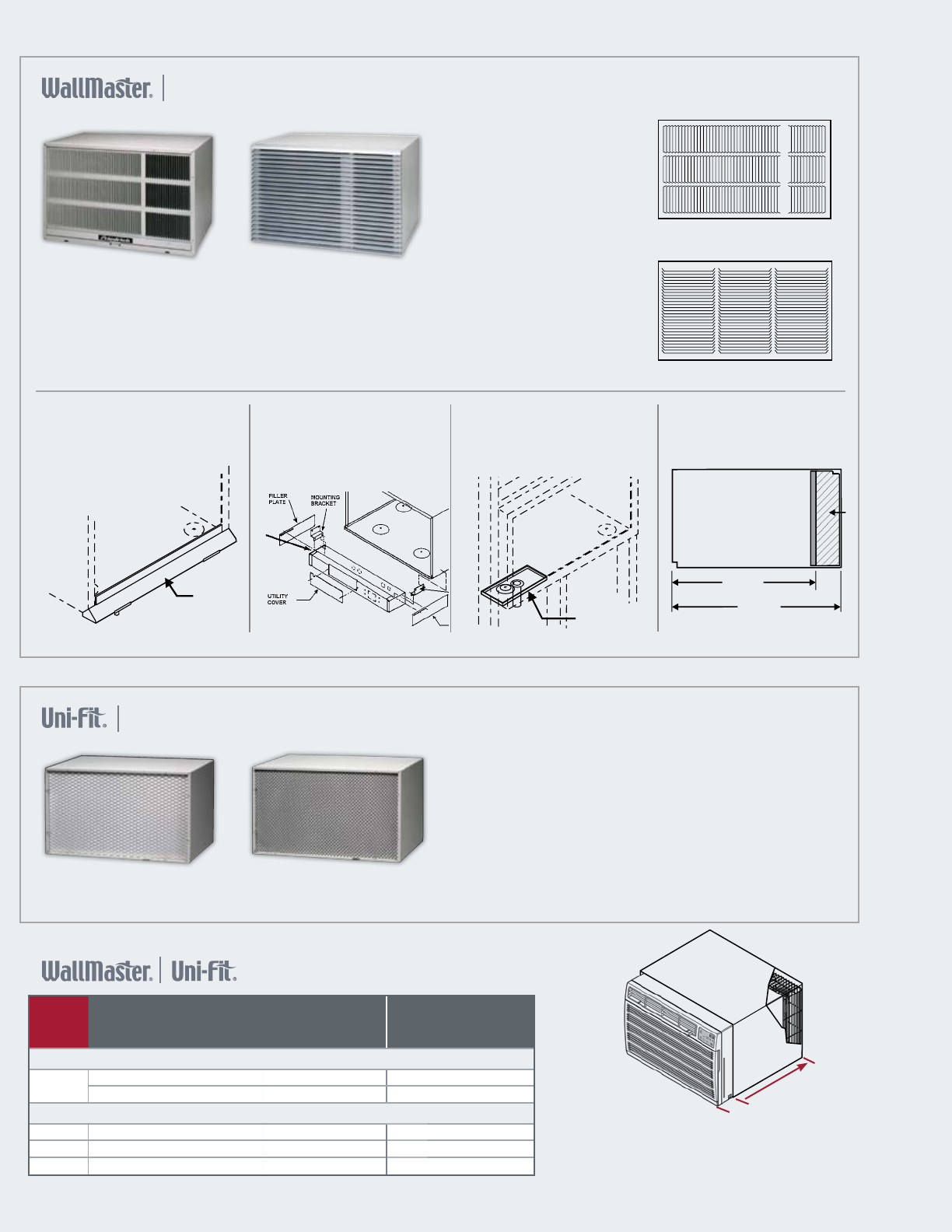

USC Sleeve
Standard Grille
STANDARD GRILLE – Ships with USC sleeve
Expanded aluminum grille designed for use with USC sleeve.
REPLACEMENT GRILLE – Ships with US/UE chassis
High-tech plastic for use on existing sleeves without any grille.
IMPORTANT:
When installing into an existing sleeve, consult Installation
Section of your Installation/Operation Manual to determine
whether or not the grille needs to be replaced and/or a bae
adapter should be used.
Installation Accessories (27” sleeve models only)
DK / Drain Kit
Installed at the back of the unit and allows
for attachment to permanent condensate
disposal system, if disposal is necessary
or desired.
SB / Sub Base
Used as a base for the unit when
it is desired to place the cord and
receptacle within the installation, or
simply as a base for the unit when
mounted low in the wall.
BAK / Bae Adapter Kit
Necessary when installing in a sleeve
deeper than 16 3/4" deep, such as
Fedders B sleeve (19 3/4" deep).
IDK / Internal Drain Kit
New construction applications where
a condensate drain system has been
built into the wall interior.
16 3/4"
Fedders B
19 3/4”
IMPORTANT:
Operating the air
conditioner with incorrect
rear grille or without Bae
Adapter Kit (on 19 3/4”
deep sleeve) will recirculate
discharge air and cause
compressor overload to trip.
CORRECT Vertical Louvers
INCORRECT Horizontal Louvers
WSC Sleeve
Standard Grille - Ships
with sleeve
Model Height Width Depth
Depth
with
Front
Minimum
Extension
Into Room
Minimum
Extension
Outside
Thru-the-wall
Finished Hole
Height Width Max. Depth
WALLMASTER
WSC Sleeve
Chassis
16 3/4" 27" 16 3/4" 23" 7 1/2" 9/16" 17 1/4" 27 1/4" 15 5/16"
15 3/4" 26 1/2" 21" 22” – – – – –
UNI-FIT
USC Sleeve 15 1/2" 25 7/8" 16 3/4" 20 1/2" – 1/2" 15 3/4" 26 1/8" 16 1/4"
US Chassis 14 3/8" 24" 20 1/8" 3 3/4" – – – –
UE Chassis 14 3/8" 24 5/8" 19 5/8" 3 1/2" – – – –
IMPORTANT: Sleeves are sold and shipped separately to accommodate new construction and replacement requirements
26” Sleeve Exterior Grilles
Sleeve/Chassis Dimensions
27” Sleeve Exterior Grilles
Sleeve shown with
Replacement Grille
WSC Sleeve
Optional Architectural Grille- AG
IMPORTANT:
US chassis w/front fully installed into USC sleeve
extends into room 3 3/8”. UE chassis w/front fully
installed into USC sleeve extends into room 2 7/8”.
US= 3 3/8”, UE= 2 7/8”

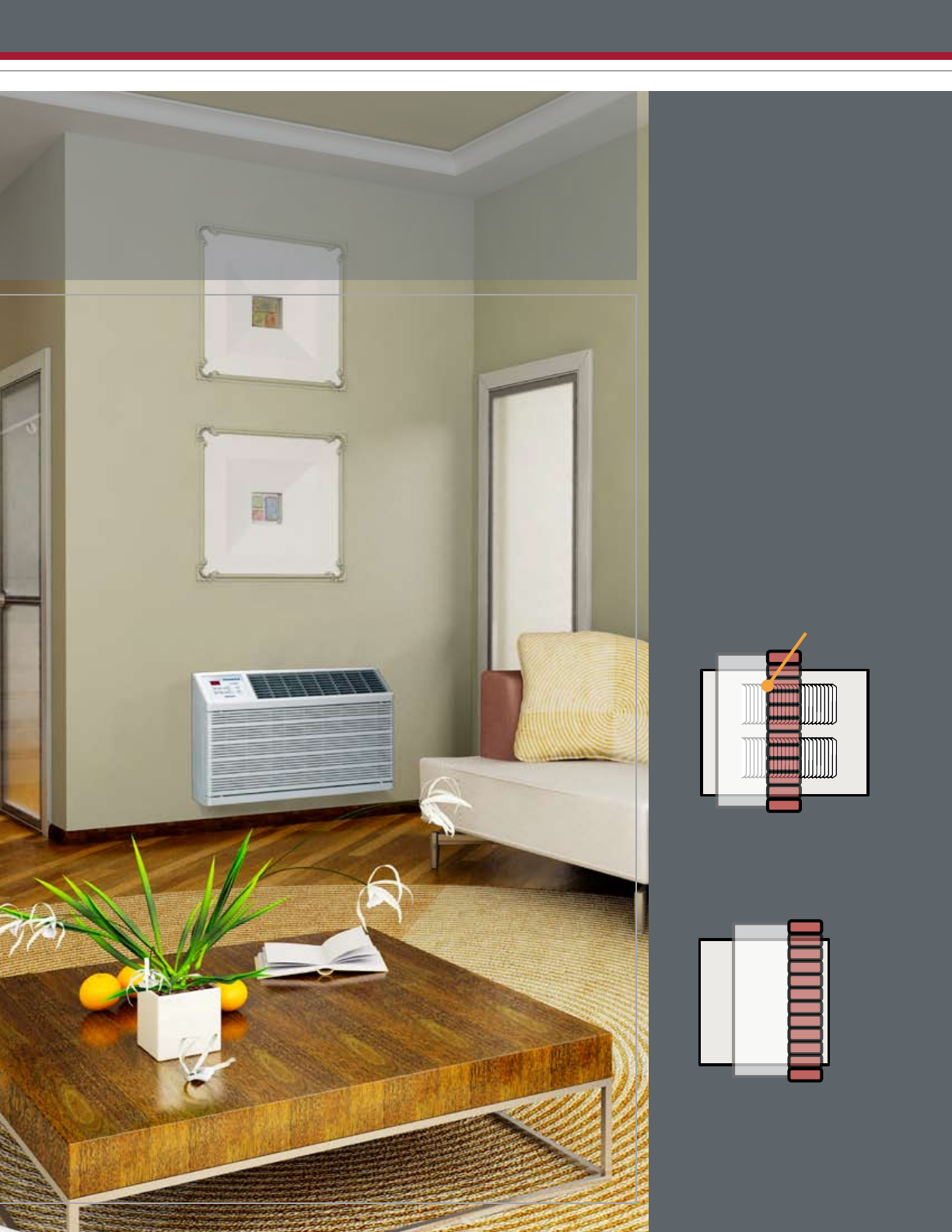

When should you
install a solid side
sleeve?
SOLID SIDE wall sleeve
allows for installation in
thick exterior walls where
the installation of room air
units with side vents would
eect performance and may
even void the warranty.
ROOM AIR CONDITIONER
Blocked side vents restrict air ow
FRIEDRICH THRU-THE-WALL
Solid-side sleeve (no side vents) can
be installed ush with exterior wall.
DIGITAL CONTROLS with REMOTE
Commercial
& Residential
Applications
Friedrich Air Conditioning Co. | P.O. Box 1540 | San Antonio, TX 78295-1540 | (800) 541-6645 | fax (210) 357-4480 | www.friedrich.com
TTW-09 (1-09) Printed in USA
As an En E r g y St a r ® partner, Friedrich Air Conditioning Co. has determined that the selected
En E r g y St a r ® models ( ) meet the En E r g y St a r ® guidelines for energy efciency.
Specications En E r g y St a r ® models
WALLMASTER HEAT PUMP
HEATING PERFORMANCE
Change-over from heat pump operation to resistance operation on models
indicated is automatic at a preset outside ambient temperature of approxi-
mately 35°F.
Calculate the heat loss of the space to be heated. As long as the heat loss does
not exceed the resistance heating capacity rating of the unit, the heating per-
formance will be satisfactory.
Note: all models will produce condensate. If condensate disposal is desired, an
optional drain kit is available.
DEFROST CONTROL: Initiated at 20°F (outdoor coil temperature) and termi-
nated at 43°F (outdoor coil temperature). During defrost, the compressor stops
and the electric heat starts, then operates with the fan to maintain indoor
comfort. Below 43°F, the unit remains in electric heat mode. During electric heat
mode, the unit will achieve the following ratings: 11000/9100 BTU/h, 16.0/14.7
amps, and 3550/2950 watts.
DEFROST DRAIN: Drain automatically opens at approximately 50°F to prevent
condensate from freezing inside drain pan.
WallMaster Heat Pump heating information (shown in red) indicates heat pump heating performance. WallMaster Electric Heat heating information (shown in red)
indicates electric heat strip performance. For WallMaster Heat Pump electric heating performance refer to corresponding WallMaster Electric Heat model.
Plug Face/ Circuit Rating
WallMaster
Model Number
Uni-Fit
Model Number
Circuit Rating
Breaker
or T-D Fuse
Plug Face
(NEMA#)
Power Cord
Length (ft.)
Wall
Outlet
Appearance
WS08B10A, WS10B10A,
WS14B10A
US08B10A, UE08A13B
US10B10B, US12B10B 125V - 15A 5 - 15P 6
WS10B30A, WS13B30B,
WS16B30A
US10B30A, US12B30C,
US14B30A 250V - 15A 6 - 15P 4
WE10B33C, WE13B33C, WE16B33C,
WY10B33C, WY13B33C UE10A33B, UE12A33C 250V - 20A 6 - 20P 4
Power cords are located on front left of WallMaster models and on front right of Uni-Fit models.

Navigation menu
