241540101 (0604)

Dishwasher

Use & Care Guide

Side-By-Side Refrigerator

Guía de Uso y Cuidado

Refrigerador de dos puertas

Guide d’utilisation et d’entretien

Réfrigérateur à compartiments juxtaposés

2Finding Information

PLEASE READ AND SAVE THIS GUIDE

Thank you for choosing Electrolux, the new premium brand in home appliances.

This Use & Care Guide is part of our commitment to customer satisfaction and

product quality throughout the service life of your new refrigerator.

We view your purchase as the beginning of a relationship. To ensure our ability to

continue serving you, please use this page to record key product information.

MAKE A RECORD FOR QUICK REFERENCE

________________________________________________

Purchase Date

________________________________________________

Electrolux Model Number

________________________________________________

Electrolux Serial Number (see picture for location)

QUESTIONS?

For toll-free telephone support in the U.S. and Canada:

1-877- 4ELECTROLUX (1-877-435-3287)

For online support and Internet product information:

www.electroluxusa.com

Post Office Box 212378, Augusta, Georgia 30917, USA

NONO

NOTETE

TETE

Registering your product with Electrolux enhances our ability to

serve you. You can register online (at the Internet address below)

or by dropping your Product Registration Card in the mail.

Attach your sales

receipt to this

page for future

reference.

Finding Information

TABLE OF CONTENTS

Finding Information ............................................ 2

Please Read And Save This Guide .................. 2

Make A Record For Quick Reference ............... 2

Questions? ....................................................... 2

Table Of Contents ............................................ 3

Safety ................................................................... 4

Important Safety Instructions ........................... 4

Electrical Information........................................ 5

Removing The Doors .......................................... 6

Getting Through Narrow Spaces ...................... 6

Connecting The Water Supply ........................... 9

About Your Refrigerator’s Water Supply .......... 9

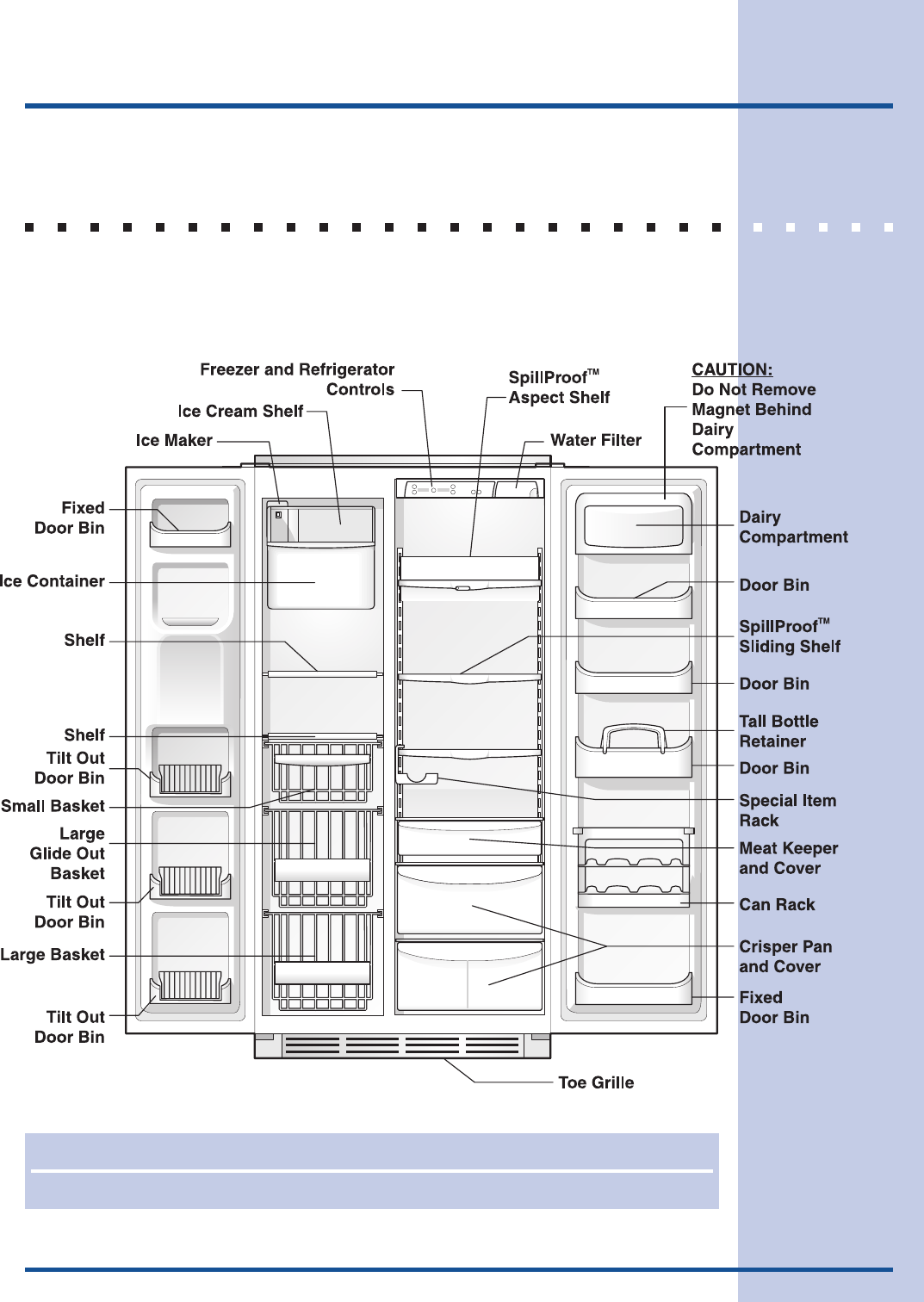

Feature Overview .............................................. 11

Understanding Features And Terms ................11

Controls & Settings .......................................... 12

Allowing Cooling Time Before Use ................. 12

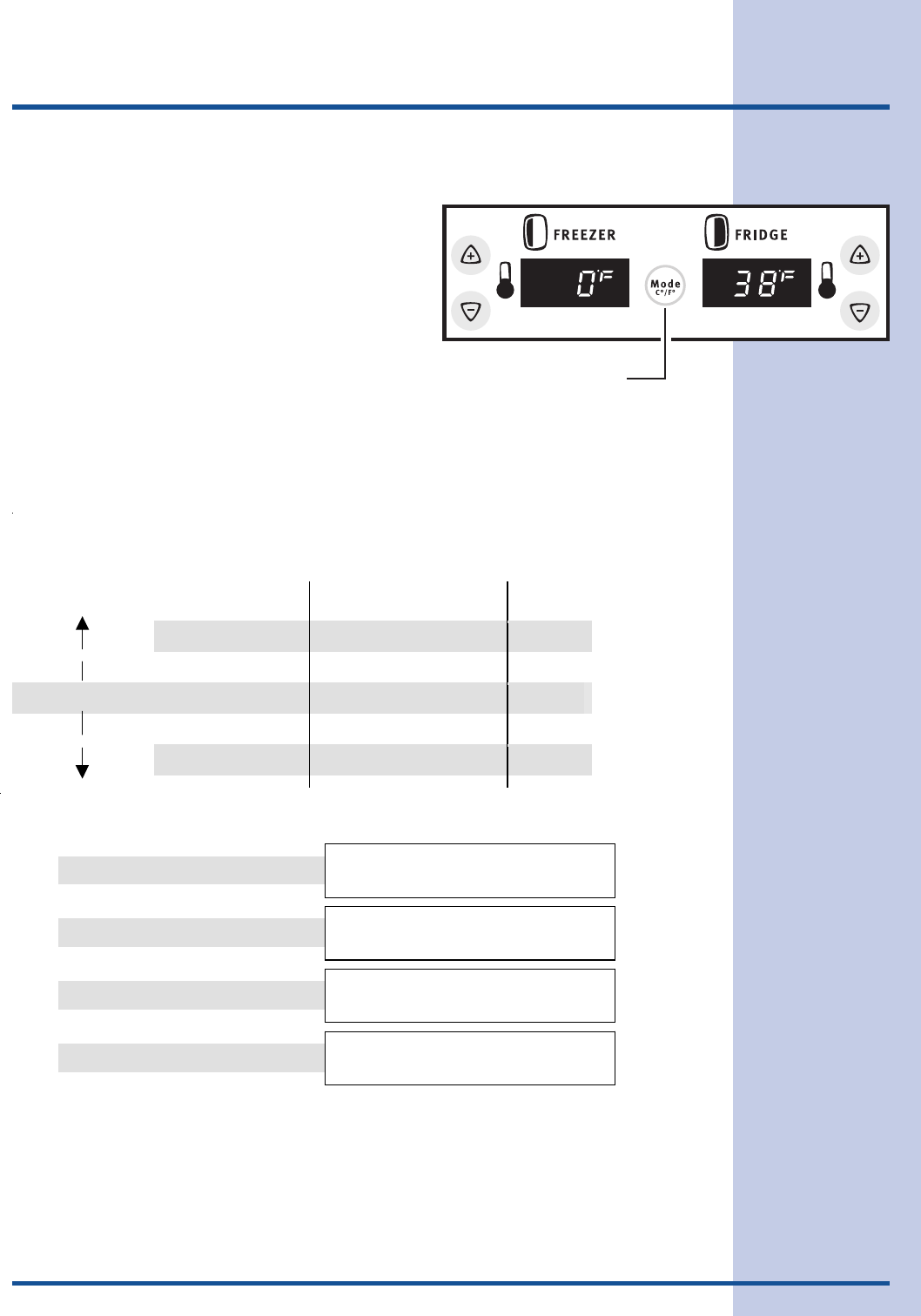

Setting Cooling Temperatures ........................ 12

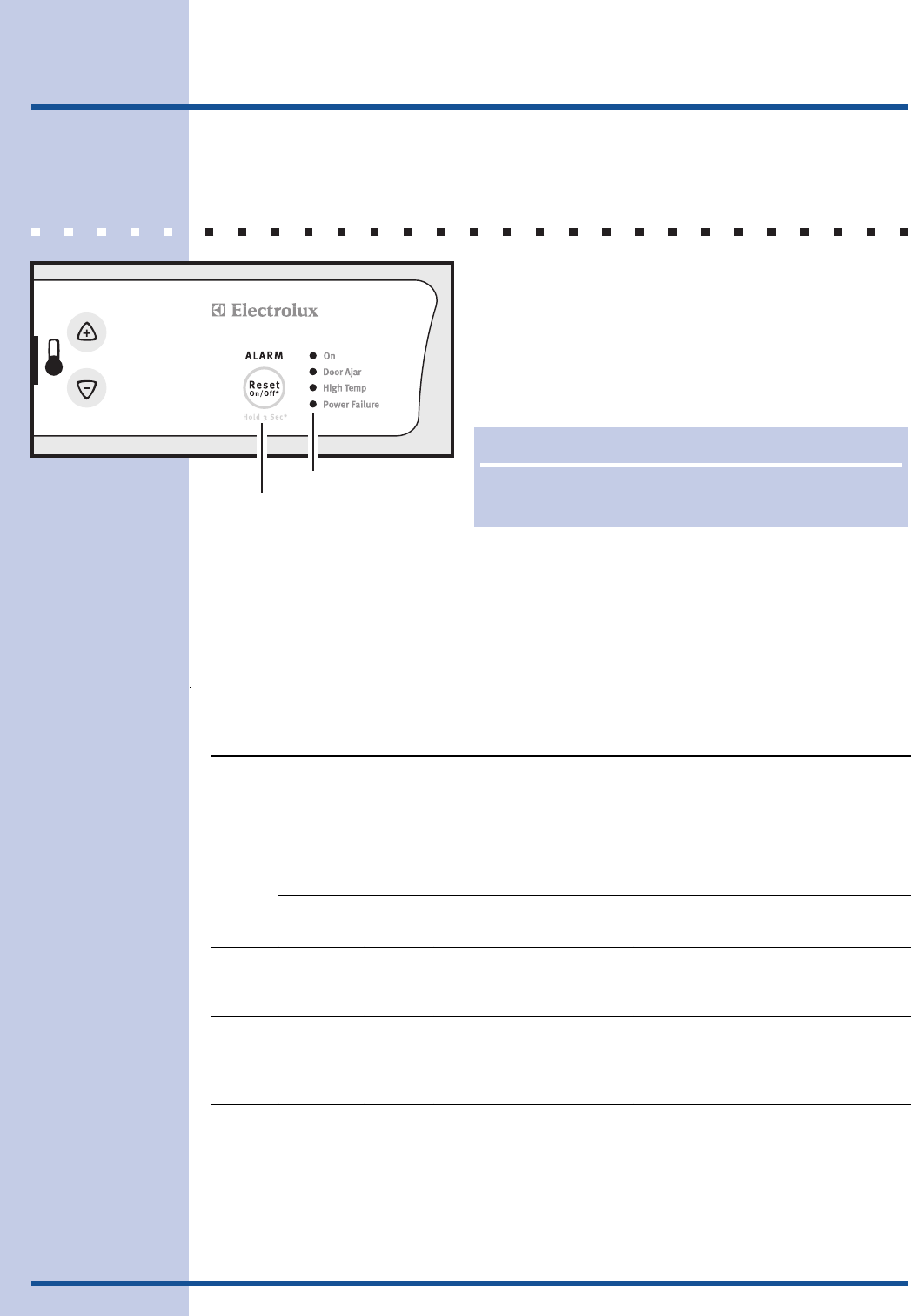

System-Monitoring Alarms ............................. 14

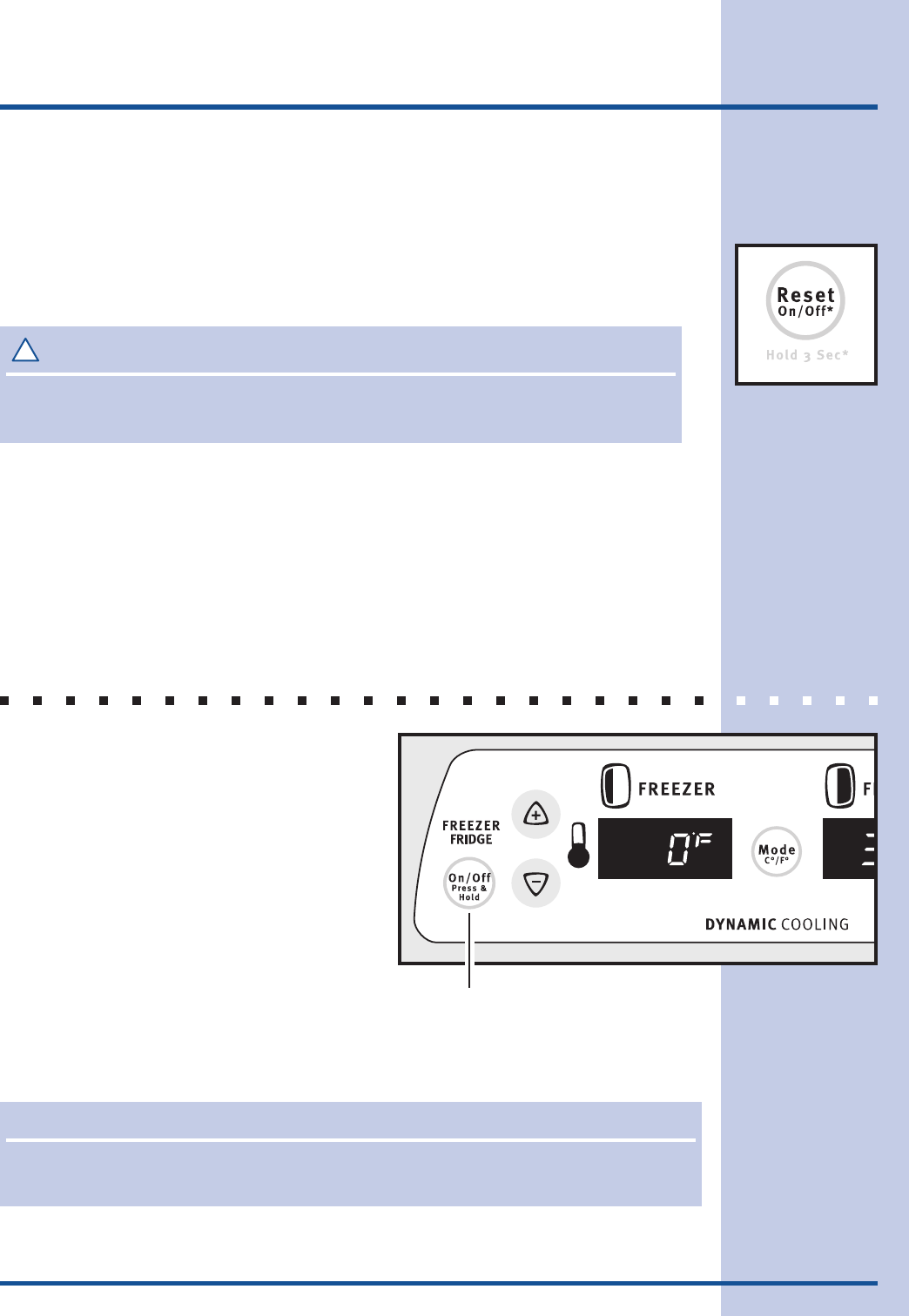

Turning The Cooling System On And Off ....... 15

Storage Features............................................... 16

Cantilever Shelves ......................................... 16

Drawers .......................................................... 17

Doors .............................................................. 18

Accessories .................................................... 19

Automatic Ice & Water Dispenser ................... 20

Using The Dispenser ...................................... 20

Using The Dispenser Control Panel ............... 21

Priming The Water Supply System ................ 22

Ice Dispenser Operation & Care .................... 23

Changing The Filter .......................................... 26

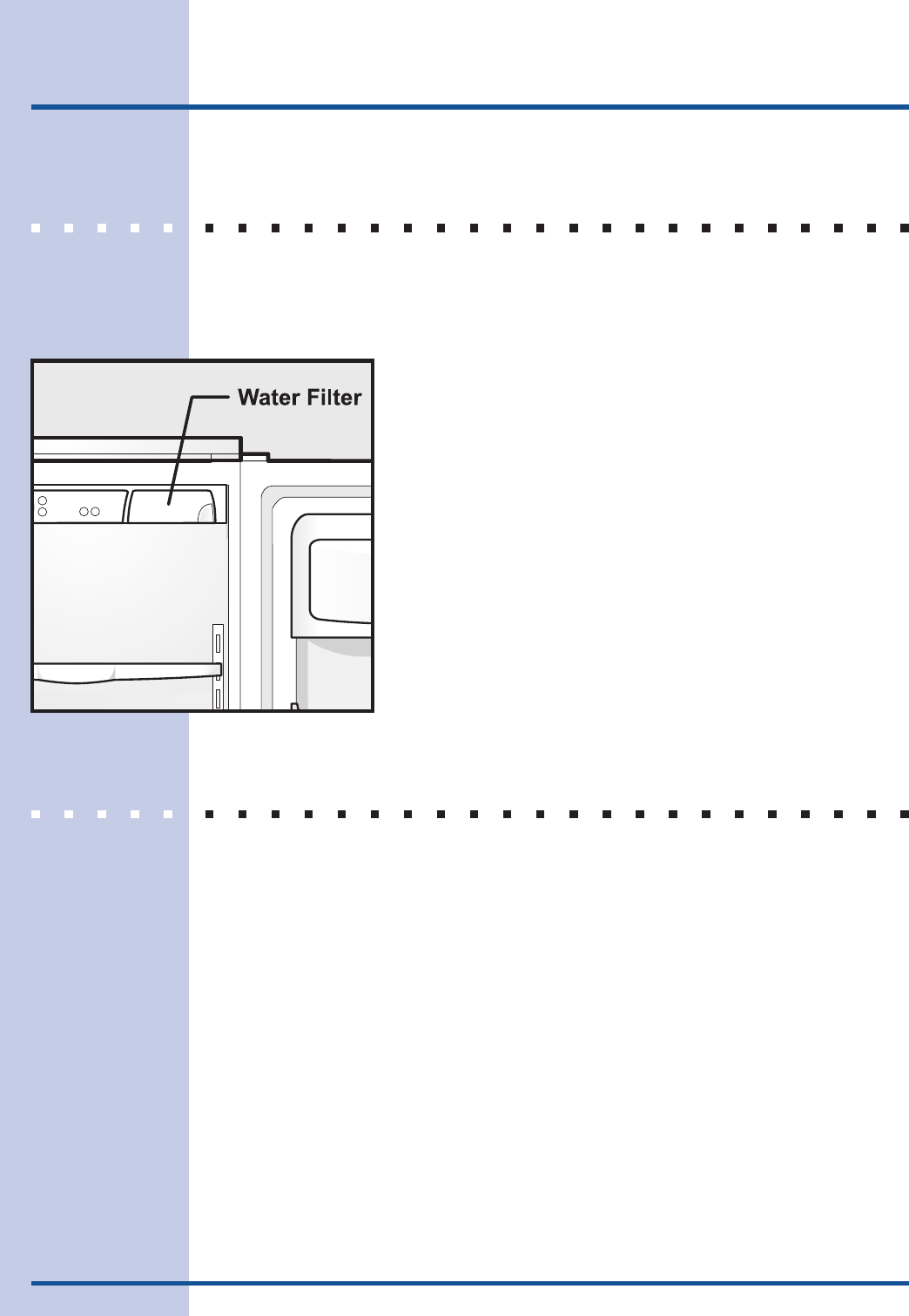

Locating The Water Filter ............................... 26

Ordering Replacement Filters ........................ 26

Replacing The Water Filter ............................. 26

Storing Food & Saving Energy ........................ 29

Ideas For Storing Foods................................. 29

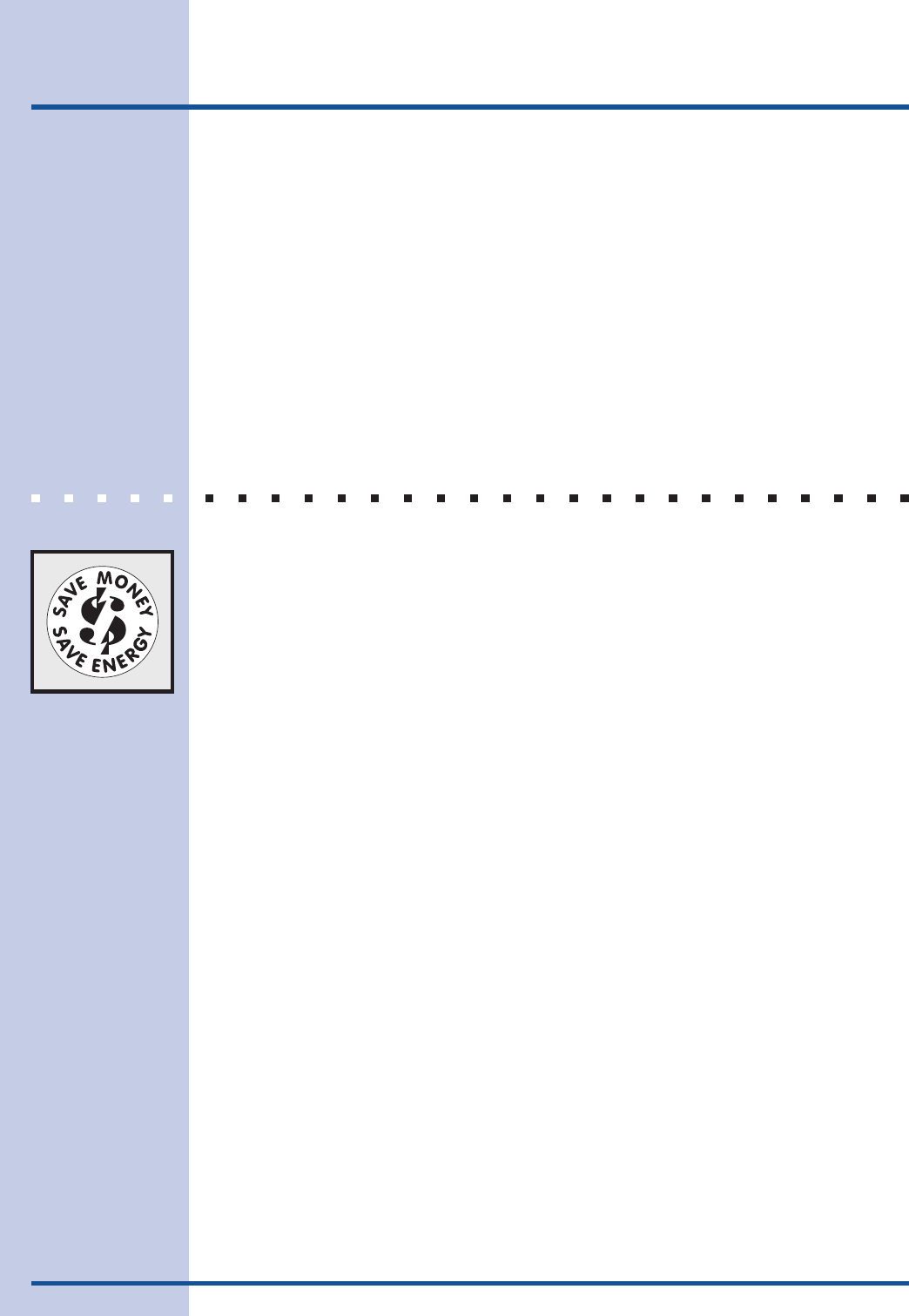

Ideas For Saving Energy ................................ 30

Normal Operating Sounds & Sights ............... 31

Understanding The Sounds You May Hear .... 31

Care & Cleaning ................................................ 32

Protecting Your Investment ............................ 32

Care & Cleaning Tips ..................................... 33

Vacation & Moving Tips .................................. 33

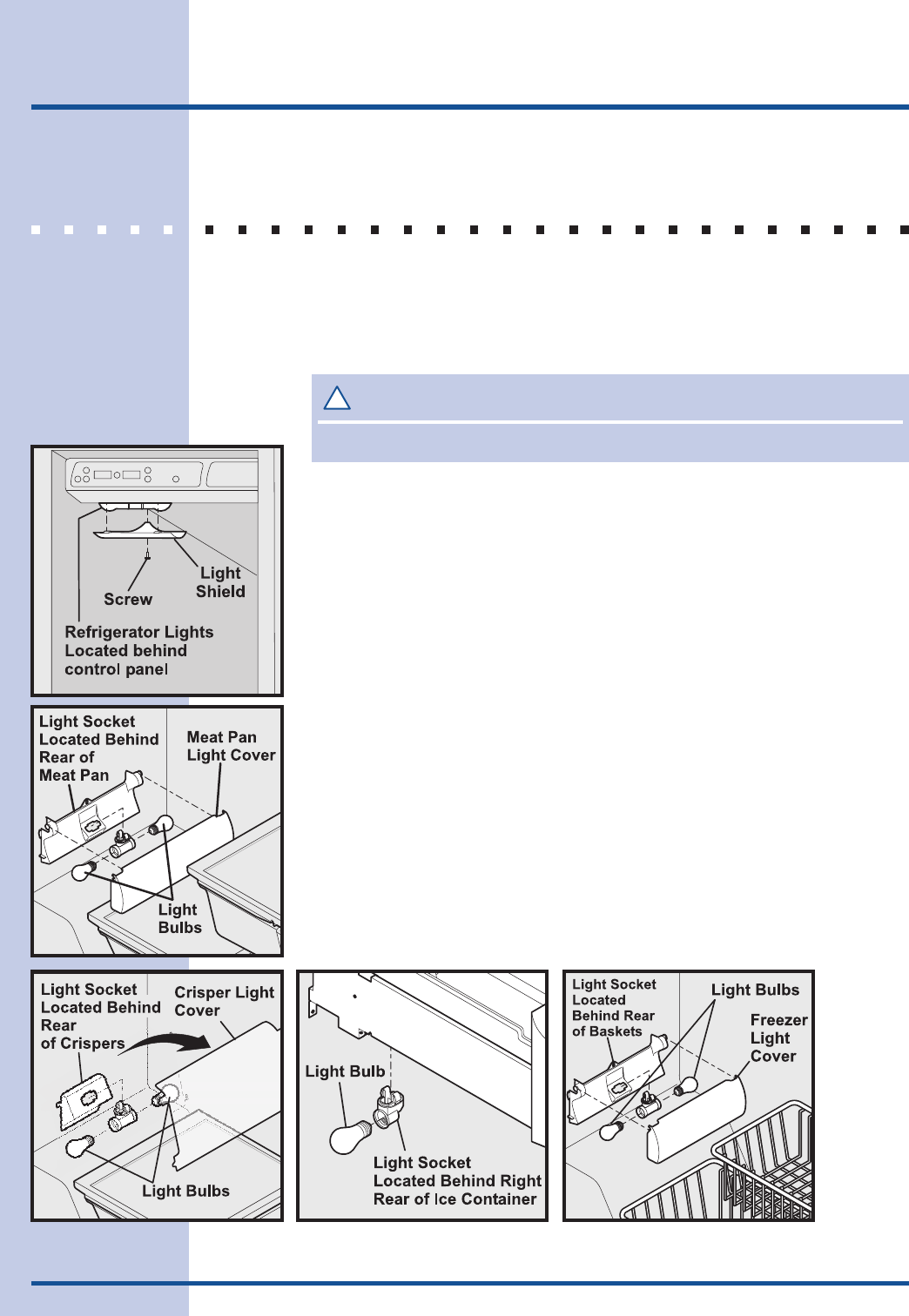

Replacing Light Bulbs .................................... 34

Warranty Information ........................................ 35

Solutions To Common Problems .................... 36

Before You Call .............................................. 36

4Safety

IMPORTANT SAFETY INSTRUCTIONS

General Safety

• Do not store or use gasoline, or other flammable liquids, near this or any

other appliance. Read product labels for warnings regarding flammability and

other hazards.

• Do not operate the refrigerator in the presence of explosive fumes.

• Avoid contact with any moving parts of the automatic ice maker.

• Remove all staples from the carton to avoid cut injuries. Staples can also

damage finishes if they come in contact with other appliances or furniture.

Child Safety

Packing Materials:

• Packing cartons covered with rugs, bedspreads, plastic sheets or stretch

wrap may become airtight chambers and can quickly cause suffocation.

• Destroy or recycle the product’s carton, plastic bags, and any other exterior

wrapping material immediately after the refrigerator is unpacked. Children

should never play with these items.

Child Entrapment And Suffocation:

• These problems are not limited to the past. Whether

junked, abandoned or temporarily stored (even for a

few hours), unattended refrigerators and freezers are

dangerous. Please take the precautions listed below.

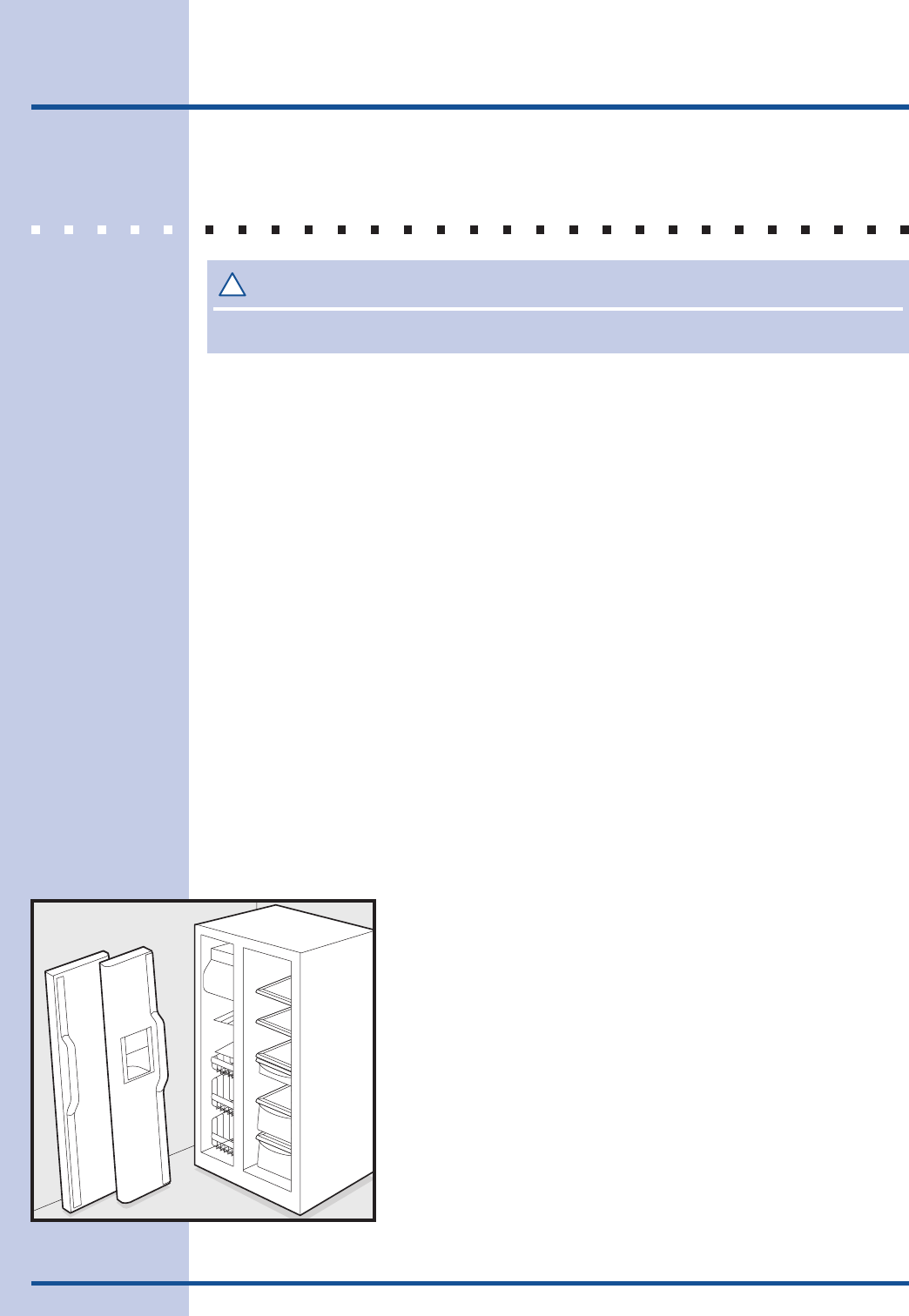

Proper Disposal Of Refrigerators And Freezers

Before you throw away your old refrigerator/freezer:

• Remove the doors.

• Leave the shelves in place so children may not easily

climb inside.

• Have refrigerant removed by a qualified service

technician.

WARNINGWARNING

WARNING

Please read all safety instructions before using your new Electrolux refrigerator.

Safety

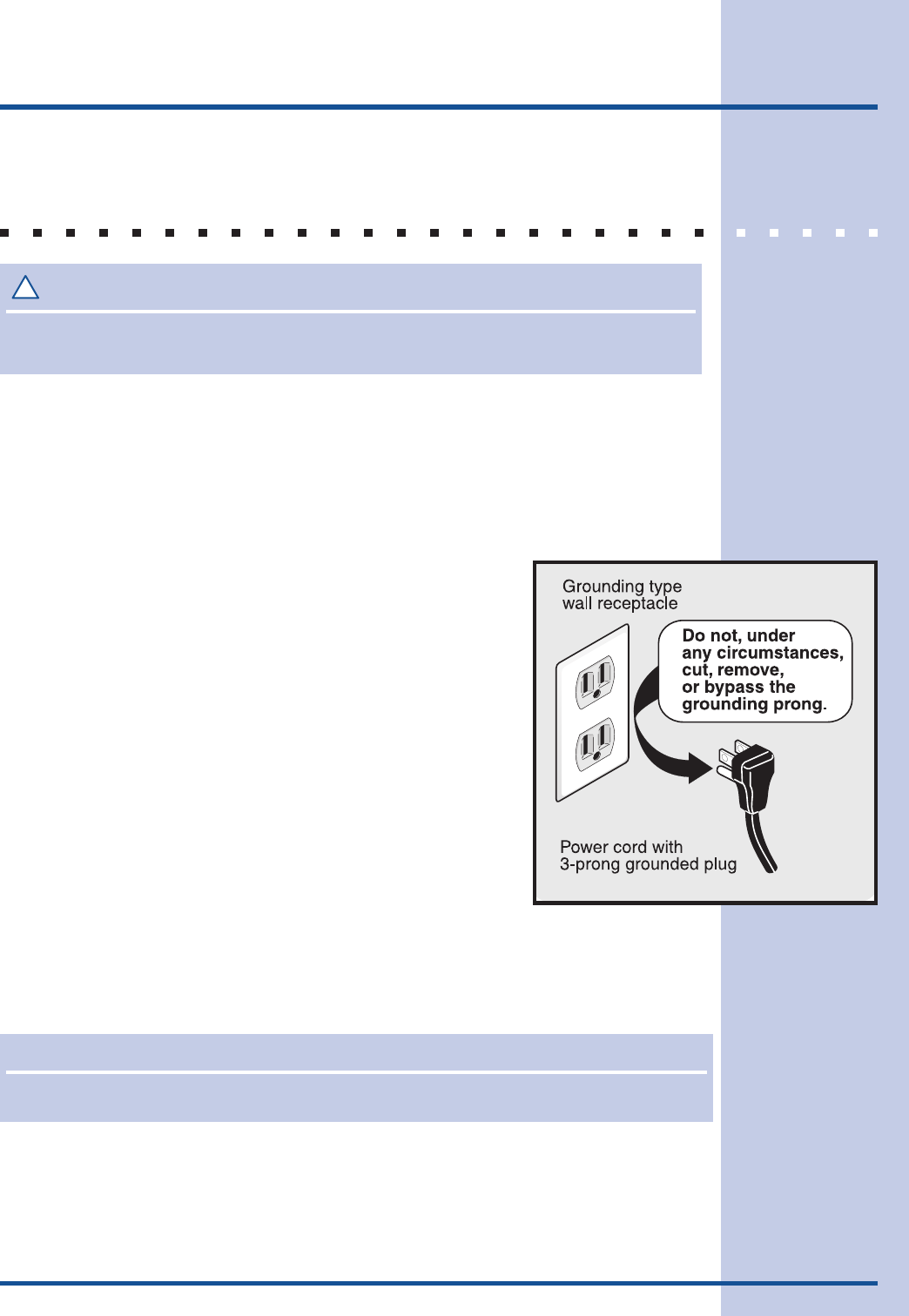

ELECTRICAL INFORMATION

•The refrigerator must be plugged into its own dedicated 115 Volt, 60 Hz.,

AC-only electric outlet. The power cord of the appliance is equipped with a

three-prong grounding plug for your protection against electrical shock

hazards. It must be plugged directly into a properly grounded three-prong

receptacle. The receptacle must be installed in accordance with local codes

and ordinances. Consult a qualified electrician. Do not use an extension

cord or adapter plug.

• If the power cord is damaged, it should be replaced by

the manufacturer, service technician or a qualified

person to prevent any risk.

• Never unplug the refrigerator by pulling on the power

cord. Always grip the plug firmly, and pull straight out

from the receptacle to prevent damaging the power

cord.

• Unplug the refrigerator before cleaning and before

replacing a light bulb to avoid electrical shock.

• Performance may be affected if the voltage varies by

10% or more. Operating the refrigerator with

insufficient power can damage the compressor. Such

damage is not covered under your warranty.

• Do not plug the unit into an outlet controlled by a wall

switch or pull cord to prevent the refrigerator from being turned off

accidentally.

• Avoid connecting refrigerator to a Ground Fault Interruptor (GFI) circuit.

IMPORIMPOR

IMPORTT

TANTANT

ANTANT

ANT

To turn off power to your refrigerator, unplug the power cord from the wall outlet.

WARNINGWARNING

WARNING

You must follow these guidelines to ensure that your refrigerator’s safety mechanisms are

operating correctly.

6Removing The Doors

GETTING THROUGH NARROW SPACES

If your refrigerator will not fit through an entrance area, you can reduce its size by

removing the doors. Check first by measuring the entrance.

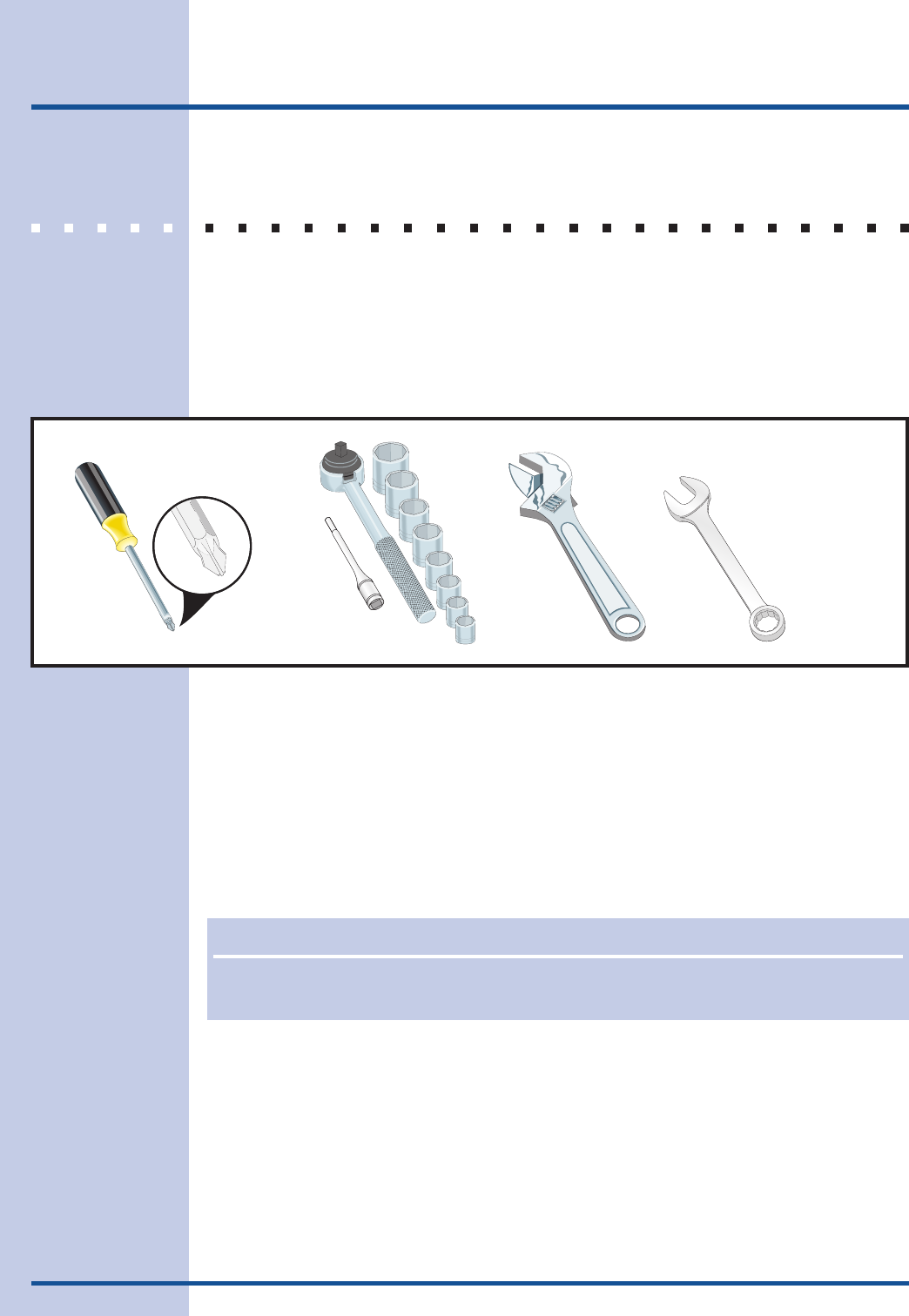

Required Tools

You will need the following tools:

To prepare for removing the doors:

1Make sure the electrical power cord is unplugged from the wall outlet.

2Open both doors and remove the toe grille (as explained in the Installation

Instructions that came with your appliance).

3Remove any food from the door shelves.

4Close the doors.

NONO

NOTETE

TETE

For more information on removing the toe grille, please refer to the Installation Instructions.

Adjustable

Wrench

Socket

Wrench Set

Phillips Head

™

Tools Necessary:

3/8” Fixed

Wrench

AND OR

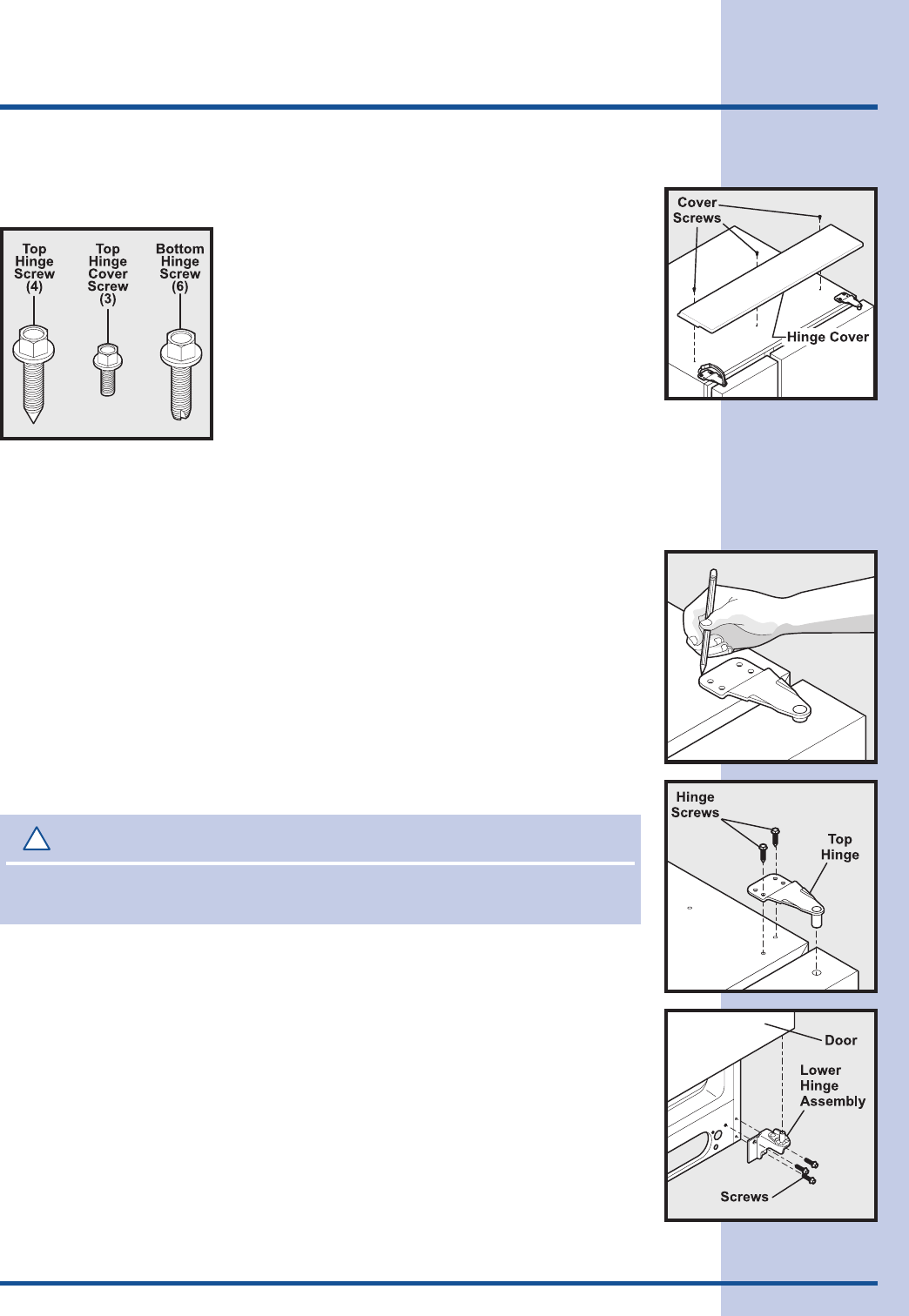

Removing The Doors

To remove the top hinge cover:

1Remove the three screws from

the cover over the top door

hinges.

2Pull the cover forward about a

half-inch and lift it off.

To remove the refrigerator door:

1Trace lightly around the door’s top hinge with a pencil. This makes

reinstallation easier.

2Remove the two screws from the top hinge. Lift the door off of the

bottom hinge and and set it aside.

3Remove the three bottom hinge screws and hinge if necessary.

To reinstall the refrigerator door, reverse the above steps. Once both doors

are in place, also replace the top hinge cover.

CACA

CAUTIONUTION

UTIONUTION

UTION

Be sure doors are set aside in a secure position where they cannot fall and cause

personal injury.

8Removing The Doors

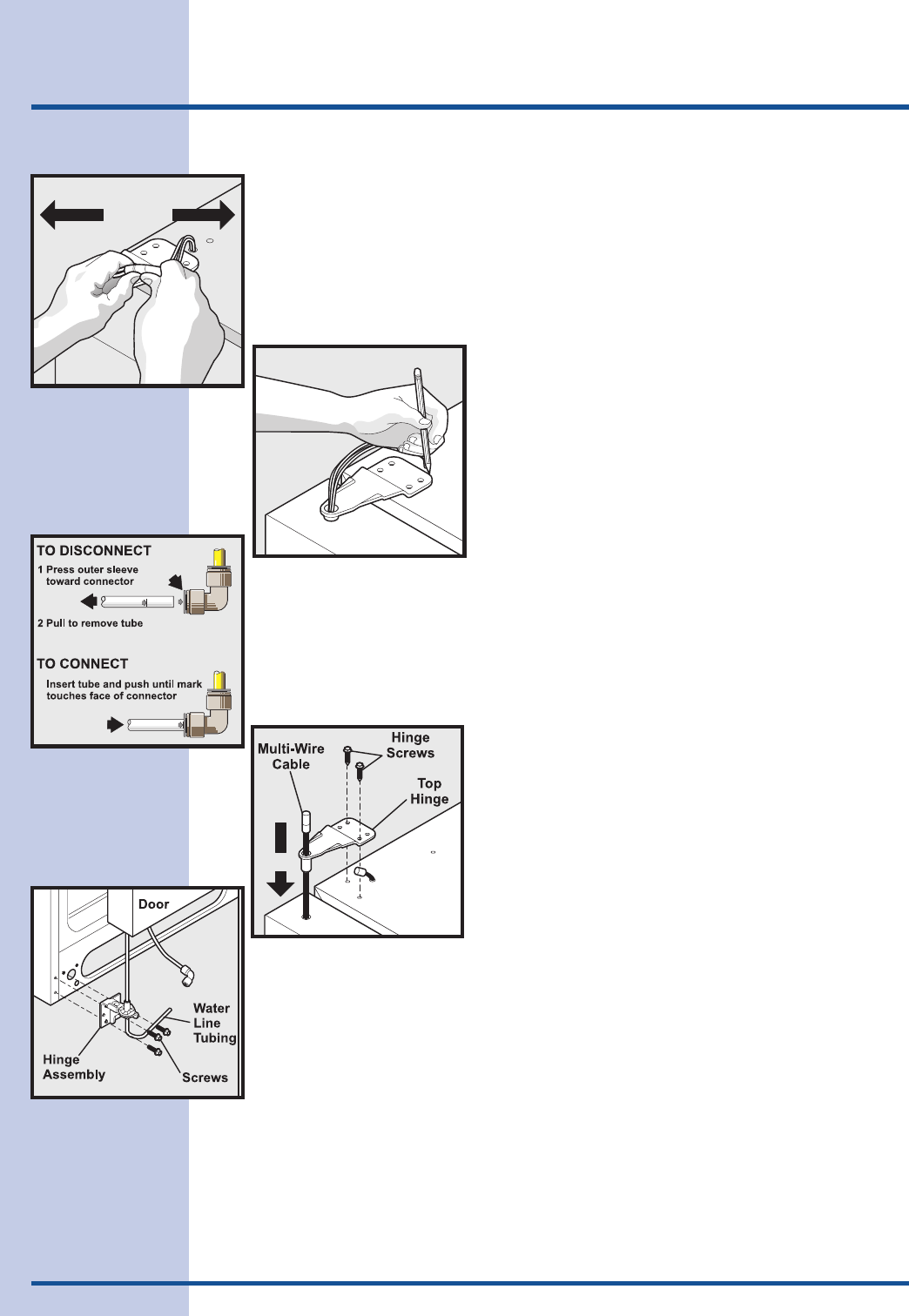

To remove the freezer door:

1Detach the multi-wire cable connector located above the top hinge.

Grasp both sides of the connector firmly and pull apart.

2Trace lightly around the hinge with a pencil.

This makes reinstallation easier.

3Detach the water tube from the connector located below the freezer

door. The connector releases when you press its outer sleeve inward.

4Remove the screws from the top hinge and

pull the multi-wire cable through it. Lift the

door off of the bottom hinge.

5Remove the three bottom hinge screws and hinge if necessary.

6Lay the door on its side to avoid damage to the water tube extending

from the bottom hinge.

To reinstall the freezer door, reverse the above steps. Once both doors

are in place, also replace the top hinge cover (see Page 7).

Connecting The Water Supply

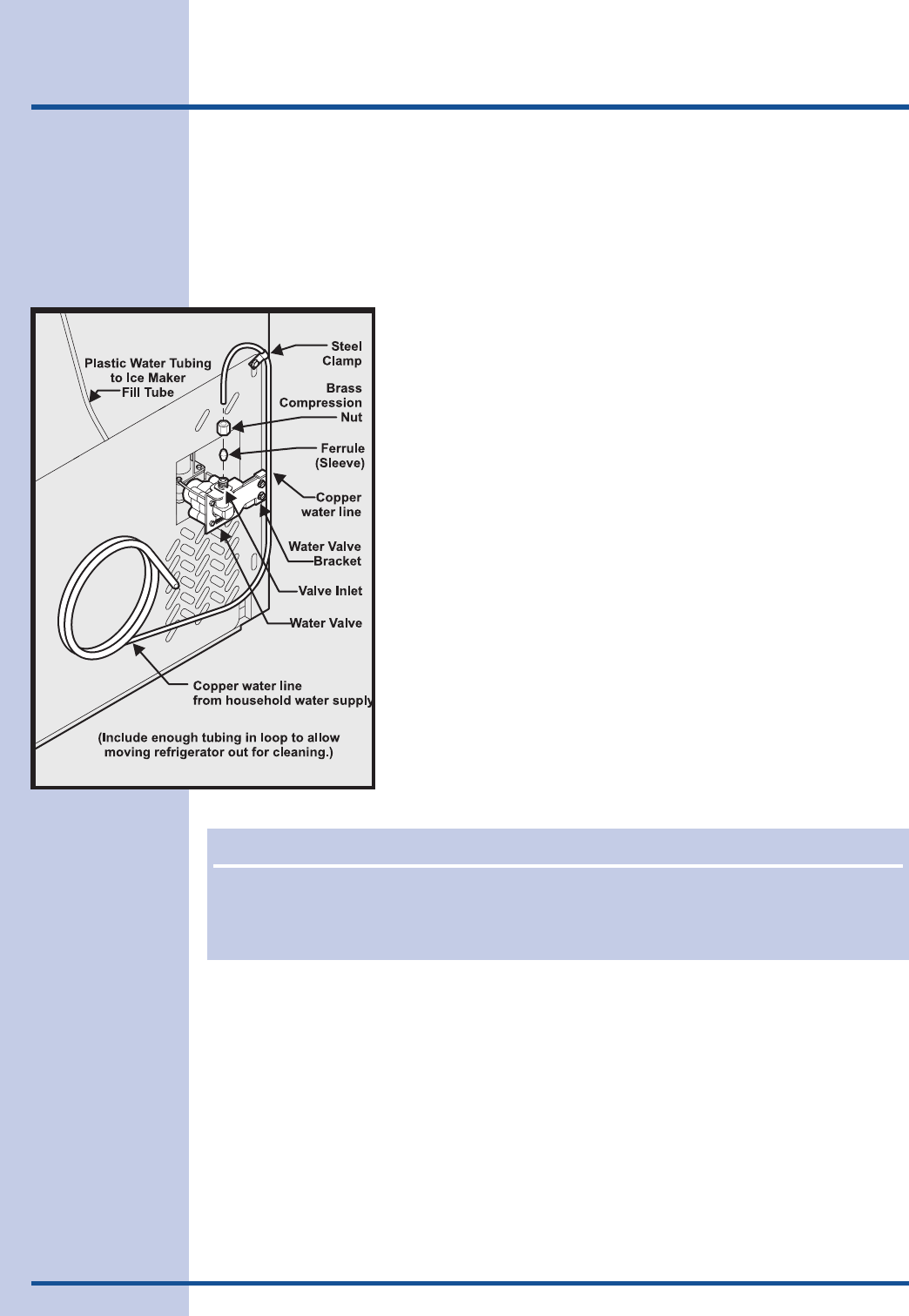

ABOUT YOUR REFRIGERATOR’S WATER SUPPLY

The automatic ice & water dispenser on your refrigerator requires a permanent

water supply to function correctly. During installation, you (or a service

professional) establish this water supply by connecting a copper tube from your

household water system to a valve at the rear of the refrigerator.

You may have already followed the directions in the Installation Instructions to

connect the water supply. This information is repeated here for future reference if

you need to relocate your refrigerator.

What you will need:

• Access to a cold water line with pressure of 20-100 psi.

• Copper tubing with ¼-inch (6.4mm) OD. Length for this tubing is the distance

from the rear of the refrigerator to your household water supply line plus 7

feet (2.1 meters).

• A shut-off valve for the connection between your household water line and

the refrigerator supply line.

Do not use a self-piercing shut-off valve.

• A compression nut and ferrule (sleeve) for the water supply connection at the

rear of your refrigerator.

CACA

CAUTIONUTION

UTIONUTION

UTION

To avoid property damage:

• Use copper tubing for the water supply line (plastic tubing is more

likely to leak). Manufacturer is not responsible for any damage if

plastic tubing is used for supply line.

• Ensure water supply complies with local plumbing codes.

• For proper dispenser operation, recommended water supply pressure

should fall between 20 psi and 100 psi. Excessive pressure may cause

water filter to malfunction.

NONO

NOTETE

TETE

Electrolux Kit #53039117950, available from your dealer, provides all materials for a water

supply installation, including 25 feet of copper tubing and full instructions.

10 Connecting The Water Supply

To connect the water supply to the rear of your refrigerator:

1Ensure that the refrigerator is not plugged in.

2Flush the supply line until water is clear by placing the end of the copper tube

in a sink or bucket and opening the shut-off valve.

3Unscrew the plastic cap from the water valve inlet at

the rear of your refrigerator. Discard the cap.

4Slide the brass compression nut, then the ferrule

(sleeve) onto copper tube.

5Push the copper tube into water valve inlet as far as it

will go (1/4 inch).

6Slide the ferrule (sleeve) into valve and finger-tighten

the compression nut onto valve. Tighten another half

turn with a wrench. Do not over-tighten.

7Secure the copper tube to your refrigerator’s rear panel

with a steel clamp and screw (see illustration).

8Coil the excess copper tubing (about 2½ turns) behind

your refrigerator as shown. Arrange coiled tubing to

avoid vibration or wear against other surfaces.

9Open water supply shut-off valve and tighten any

connections that leak.

NONO

NOTETE

TETE

After connecting the water supply, see page 22 for information about priming an empty

water supply system. Also read all topics in the “Automatic Ice & Water Dispenser” section

to learn about normal operating procedures.

Feature Overview

UNDERSTANDING FEATURES AND TERMS

Your Electrolux refrigerator is designed for optimal convenience and storage

flexibility. Use the illustration below to familiarize yourself with product features and

terminology.

NONO

NOTETE

TETE

Features may vary according to model.

12 Controls & Settings

ALLOWING COOLING TIME BEFORE USE

To ensure reliable food storage, allow your refrigerator and freezer to operate with

the doors closed for 8 to 12 hours before placing food inside. During this cooling

period, you do not need to adjust the controls, which are preset at the factory.

SETTING COOLING TEMPERATURES

Your refrigerator comes with a state-of-the-art electronic digital control system. The

system’s control panel is located at the top of the the fresh food compartment.

The two digital displays on the left half of the control panel

indicate the current temperatures of your freezer and fresh

food compartments.

To adjust the temperature to a higher or lower setting, press the Up or Down

Arrow button closest to the display. The first time you press the button, the display

shows the last setting you entered. Each press of the button after that increments

the setting by one degree.

The display shows your new setting momentarily, then changes back to the current

temperature. (Refer to page 13 for more about temperature settings.)

NONO

NOTETE

TETE

The advanced electronic control system in your refrigerator includes additional display

modes that service professionals can use to rapidly diagnose performance issues.

Controls & Settings

Choosing Fahrenheit or Centigrade

Depending on which temperature standard you

prefer to use, you can set your control panel to

display in fahrenheit or centigrade. To change

between fahrenheit and centigrade, press the

Mode button (located between the two digital

temperature displays).

Making Temperature Adjustments

After running your refrigerator for 24 hours, you can adjust temperatures as

needed. Make your adjustments small and gradual, allowing time for temperatures

to change and stabilize. Refer to the following guidelines for temperature settings.

What To Do If The Temperature Displays Flash

If ever you you see both temperature displays continuously flashing, it may indicate

that the control system has detected a performance problem. Call your Electrolux

service representative, who can interpret the flashing message.

Temperature Control Range

Freezer Fresh Food

Fahrenheit Centigrade Fahrenheit Centigrade

Warmest 6° -14° 47° 8°

Warmer

Factory Setting Midpoint 0° -18° 37° 3°

Coldest -6° -21° 33° 1°

Colder

Press to alternate between

Fahrenheit and Centigrade

Temperature Adjustment Guide

If Fresh Food compartment is too warm

Adjust Fresh Food control one degree

colder by pressing Down Arrow button.

If Fresh Food compartment is too cold

Adjust Fresh Food control one degree

warmer by pressing the Up Arrow button.

If Freezer compartment is too warm

Adjust Freezer control one degree colder

by pressing Down Arrow button.

If Freezer compartment is too cold

Adjust Freezer control one degree warmer

by pressing the Up Arrow button.

14 Controls & Settings

SYSTEM-MONITORING ALARMS

The electronic control system continuously

monitors your refrigerator/freezer for temperature

consistency, doors left ajar, and power failures.

Variances from normal operating conditions are

communicated by audible tones and a set of four

status indicator lights.

Responding to Alarms (Audible Tones & Indicator Lights)

Your refrigerator’s control system can convey the following information through

audible tones and the alarm indicator lights.

Alarm

Name

Indicator

Light

Audible

Tones

Condition

How To Respond

On (light is

off)

Alarm system is not active

while Freezer and Fresh

Food compartments are

cooling toward the current

temperature settings.

If Freezer and Fresh Food

compartments do not match your

temperature settings in three hours,

expect the control system to signal

other conditions. If cooling does not

stabilize toward your current settings,

call 1-877-435-3267 for assistance.

Steady

Green

Alarm system is active. No response required.

Door

Ajar

Flashing

Green 9 Freezer or Fresh Food

door has been open for

over five minutes.

Close door to disable and reset alarm.

High

Temp

Flashing

Amber 9 Freezer or Fresh Food

compartment has been too

warm (45° F or higher) for

over an hour.

Press Alarm Reset button to turn off

alarm. If temperatures do not improve,

call 1-877-435-3267 for assistance.

Power

Failure

Flashing

Amber

A power outage was

detected.

Press Alarm Reset button to turn off

alarm and again to reset. Check if the

power failure lasted long enough to

affect stored food temperatures.

NONO

NOTETE

TETE

Each time you make settings on the control panel, a

single audible tone acknowledges your input.

Alarm Reset Button

Indicator Lights

Controls & Settings

Using The Alarm Reset Button

You can disable or activate the alarm system by pressing and holding the Alarm

Reset button for three seconds. Use it, for example, to turn off audible tones and/

or flashing indicator lights.

Once you disable the alarm system, you must again press and hold the Alarm

Reset button for three more seconds to reset (activate) the alarm system. The On

indicator light remains off while the Freezer and Fresh Food compartments cool

toward the current temperature settings. When temperature settings are reached,

the On light displays green to indicate an active alarm system.

TURNING THE COOLING SYSTEM ON AND OFF

You can disable the cooling system in your

refrigerator by pressing the On/Off button

located on the left side of the temperature

control panel.

To ensure that you do not accidentally turn

off the cooling system, the button does not

work unless you press and hold it for three

seconds.

Once you disable the cooling system, all

refrigeration to the freezer and fresh food

compartments stops.

To turn the cooling system back on, you must again press and hold the On/Off

button for three more seconds.

CACA

CAUTIONUTION

UTIONUTION

UTION

The alarm system does not automatically reset if you disconnect and reconnect your

refrigerator’s power cord. It can only be reactivated by pressing the Alarm Reset button.

IMPORIMPOR

IMPORTT

TANTANT

ANTANT

ANT

The On/Off button only controls your refrigerator’s cooling system. Power to lights and

other electrical components continues unless you unplug the power cord.

Cooling System On/Off Button

16 Storage Features

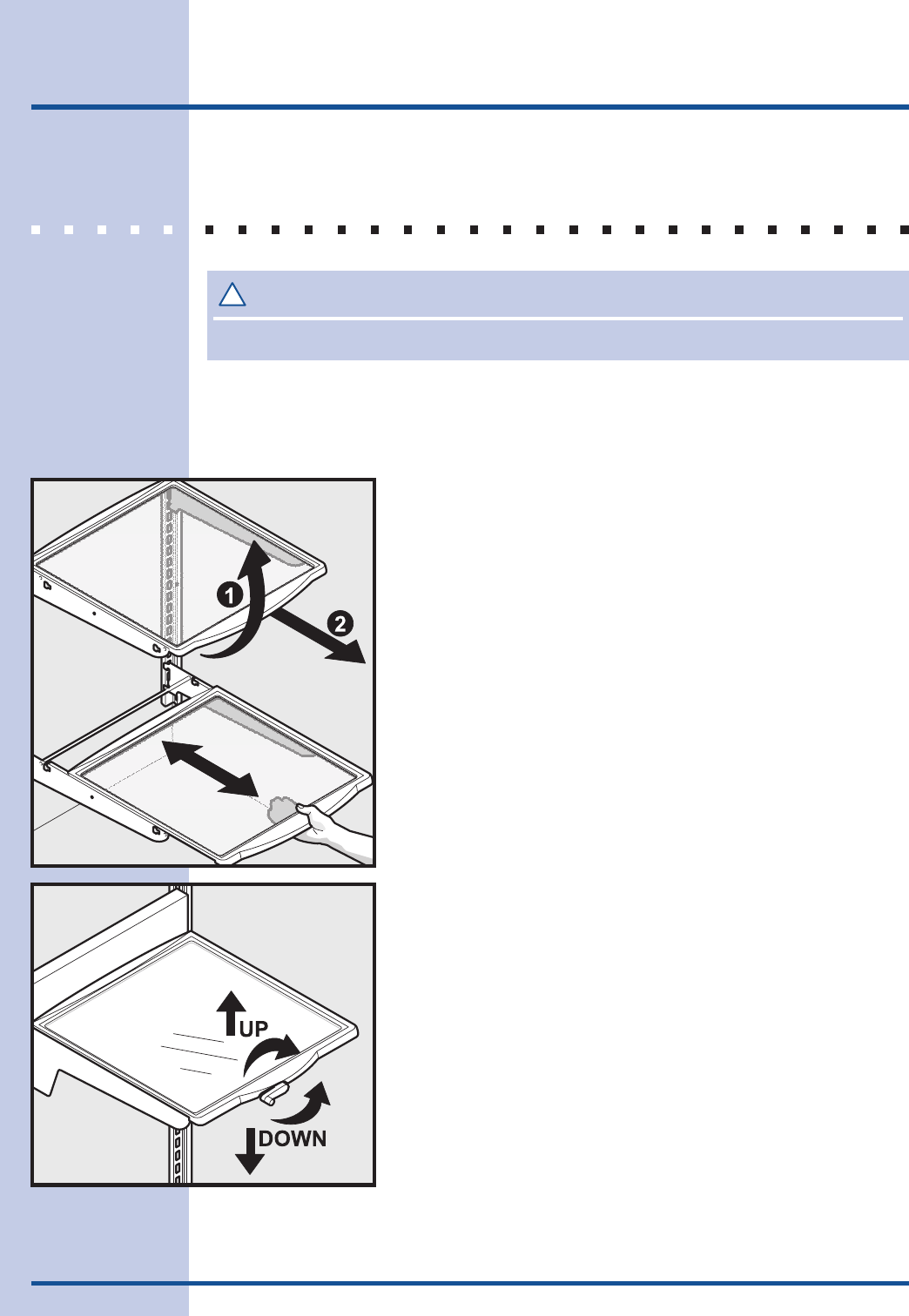

CANTILEVER SHELVES

You can easily adjust shelf positions in the freezer and fresh food compartments to

suit your needs. The shelves have mounting brackets, which attach to slotted

supports at the rear of each compartment.

To change the position of a shelf:

1Before adjusting a shelf, remove all food.

2Lift the front edge up.

3Pull the shelf out.

4Replace by inserting the mounting bracket hooks into

the desired support slots.

5Lower the shelf and lock into position.

Shelf Features

Your refrigerator includes SpillSafeTM glass shelves, which

are designed to catch and hold accidental spills. These

shelves slide out for easy access to food and faster

cleaning.

Sliding shelves can be pulled forward as far as their built-in

stops allow. Sliding shelves cannot be separated from their

mounting brackets.

CACA

CAUTIONUTION

UTIONUTION

UTION

To avoid injury from breakage, handle tempered glass shelves carefully.

Cantilever Aspect

Glass Shelf

Cantilever

Glass Shelf

Cantilever

Sliding Glass

Shelf

Storage Features

DRAWERS

Your refrigerator includes a variety of storage drawers. These drawers usually are

located in fixed positions at the bottom of the fresh food compartment.

Crispers

Crisper drawers are designed for storing fruits, vegetables,

and other fresh produce. Before storing items in a crisper:

• Wash items in clear water and remove excess water.

• Wrap any items that have strong odors or high

moisture content.

Crisper Humidity Control

Crisper drawers include a sliding control for adjusting the

humidity inside the crisper. This feature can extend the life

of certain fresh vegetables that keep longer in high

humidity.

Meat Keeper

Some models are equipped with a meat keeper drawer for

short term storage of bulk meat items. This drawer includes

a sliding control for adjusting the temperature inside.

Any meat to be kept longer than two days should be frozen.

If you store fruits or vegetables in this drawer, set it to a

warmer temperature to prevent freezing.

NONO

NOTETE

TETE

Leafy vegetables keep best when stored with the Humidity Control set on Higher Humidity,

or in a drawer without a Humidity Control. This keeps incoming air to a minimum and

maintains maximum moisture content.

Crisper

Meat Keeper

18 Storage Features

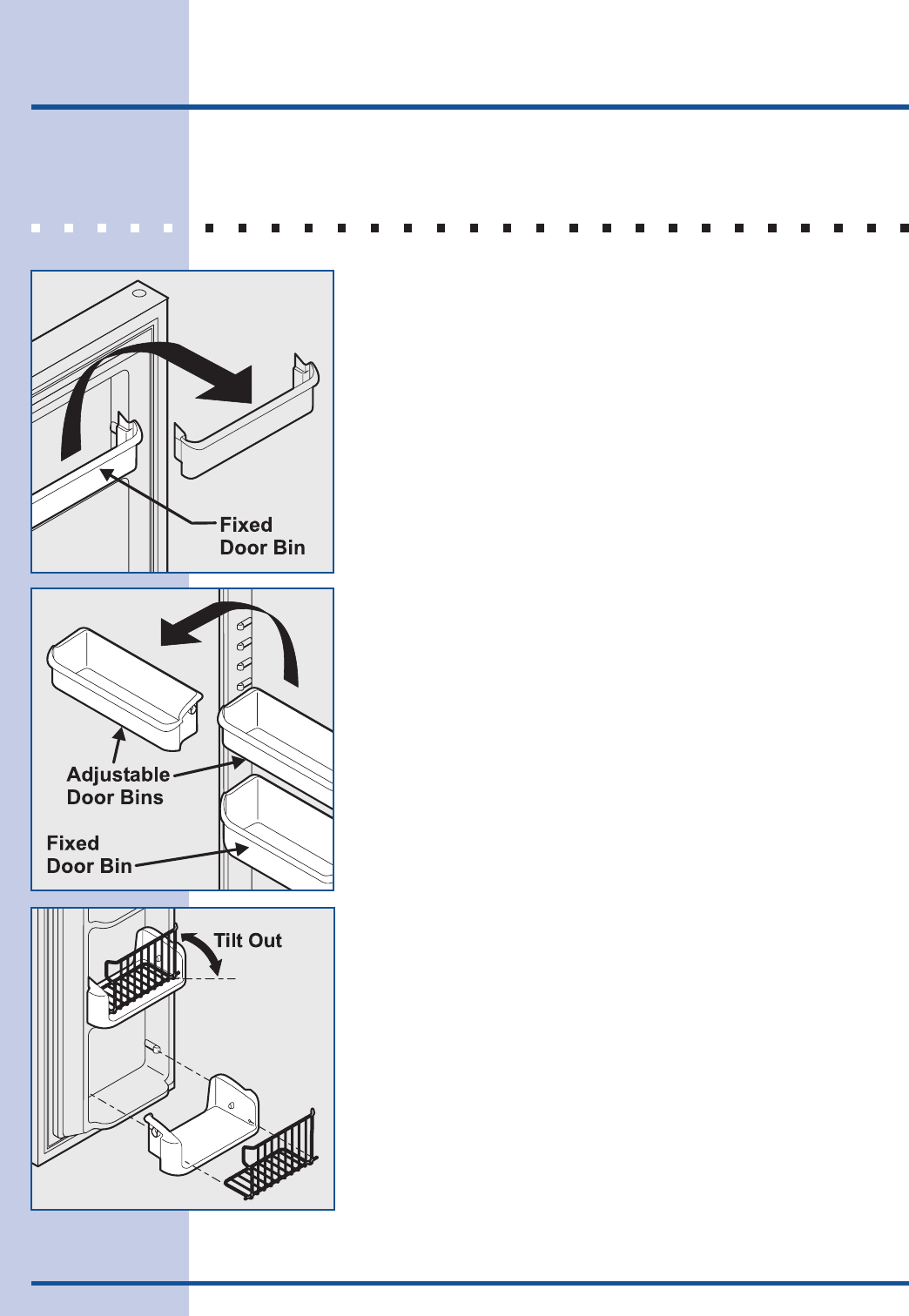

DOORS

Storage Bins

The doors to your freezer and fresh food compartments use a

system of modular storage bins. All of these bins are removable

for easy cleaning. Some of them have fixed positions, while

others can be adjusted to your needs.

Door bins are ideal for storing jars, bottles, cans, and large drink

containers. They also enable quick selection of frequently used

items.

To change the position of an adjustable door bin:

1Before adjusting a bin, remove all food.

2Grip the bin firmly with both hands and lift it upward.

3Remove the bin.

4Place the bin just above desired position.

5Lower the bin onto supports until locked in place.

Door Bin With

Tilt Shelf

Storage Features

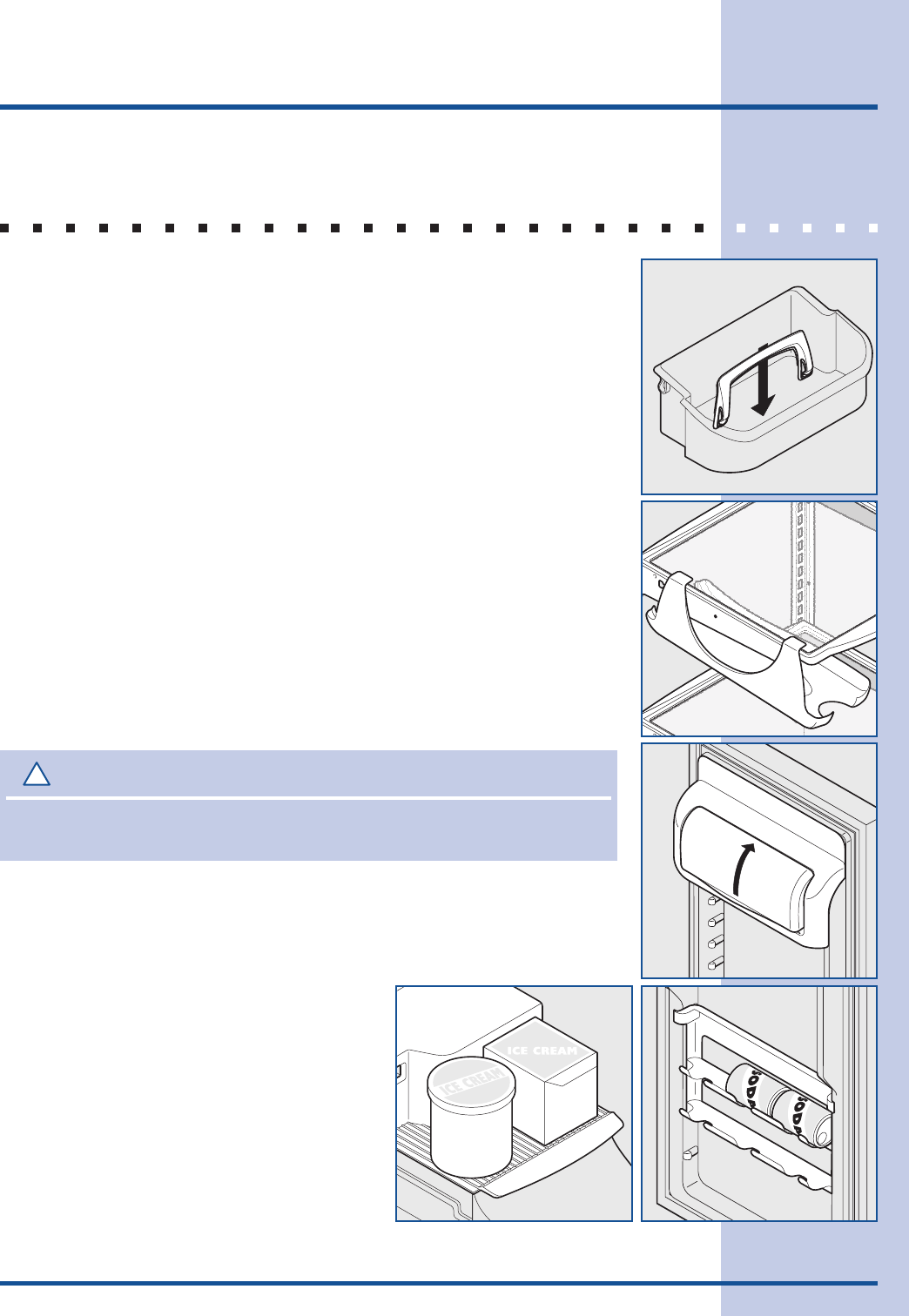

ACCESSORIES

Tall Bottle Retainer

The tall bottle retainer keeps tall containers in the bin from falling forward

when opening or closing the refrigerator door. To install, snap the ends of

the retainer over the edge of the retainer wall as shown in the illustration.

Special Items Rack

The innovative design of the special items rack allows you to store a six-

pack of 12 ounce drink cans, a bottle of wine, a two-liter soft drink bottle,

or a carton of eggs. To install, slide the special item rack onto the left

side of any shelf as shown in the illustration.

Dairy Compartment

Use the dairy compartment, at the top of the fresh food compartment

door, for short term storage of cheese, spreads, or butter. The dairy

compartment, which includes a lift-up cover, is designed to be warmer

than the open storage area to accommodate these types of food.

Can Rack

The can rack allows you to efficiently and

securely store up to six twelve-ounce cans

of beverage drink.

Ice Cream Shelf

The ice cream shelf attaches to the top of

the ice dispenser container. It allows

storage of both round and rectangular

cartons of your favorite ice cream.

Tall Bottle

Retainer

Special Items

Rack

Can Rack

Dairy

Compartment

CACA

CAUTIONUTION

UTIONUTION

UTION

To avoid errors in your refrigerator’s control system, do not remove the magnet

that is mounted behind the dairy compartment.

Ice Cream

Shelf

20 Automatic Ice & Water Dispenser

USING THE DISPENSER

Your automatic ice & water dispenser includes a control panel, a

drinking glass bay, and two push-paddles for turning on the ice and

water supplies.

Using the dispenser control panel is necessary for the ice dispenser

but not the water dispenser. The control panel also includes options

for lighting, filter monitoring, and increasing the rates of ice making

and freezing.

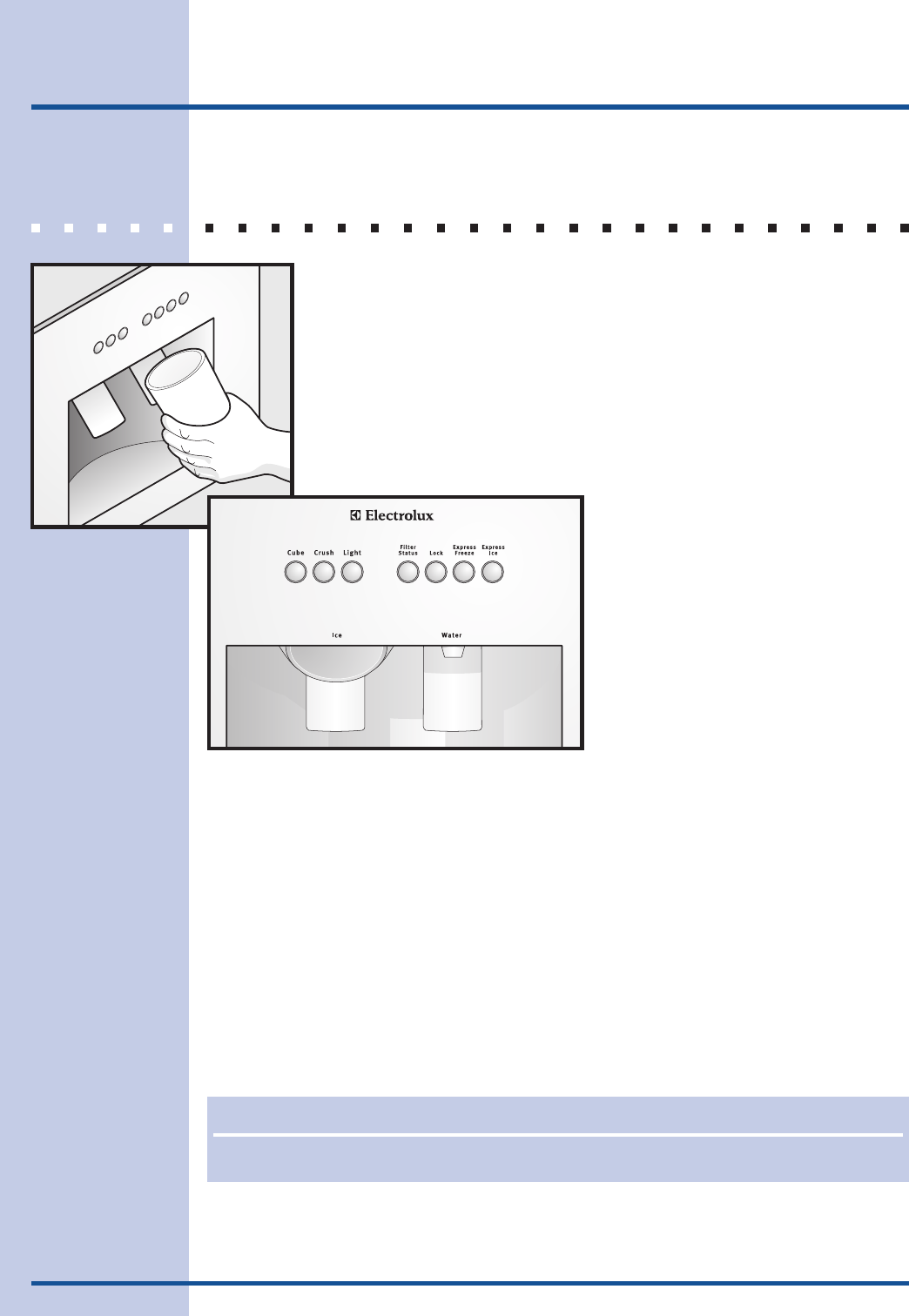

Dispensing Ice

To operate the ice dispenser, press

an option for crushed or cubed ice

on the control panel. Press a

drinking glass against the

dispensing paddle (as far up as

possible to catch all the ice). To

stop, pull the glass away from the

dispensing paddle.

See details for operating the

dispenser controls on page 21.

Dispensing Water

To operate the water dispenser, press a drinking glass against the dispensing

paddle. To stop dispensing water, pull the glass away from the dispensing paddle.

The dispensed water is not cold. For colder water, first add crushed ice or cubes to

your drinking glass.

Drip Tray

A drip tray located at the base of the dispenser bay catches small spills and allows

them to evaporate. This drip tray is removable for easy cleaning.

NONO

NOTETE

TETE

Please do not pour excess water and ice into the drip tray. It does not have a drain.

Automatic Ice & Water Dispenser

USING THE DISPENSER CONTROL PANEL

Cube Button

& Indicator Light

Press button to get cubed ice. Light displays blue.

Press glass against ice dispensing paddle, holding high up to catch

all ice.

Crush Button

& Indicator Light

Press button to get crushed ice. Light displays blue.

Press glass against ice dispensing paddle, holding high up to catch

all ice.

Light Button

& Indicator Light

Press button to turn on dispenser light. Light displays blue.

Press button again to turn off dispenser light.

Dispenser light also turns on automatically when ice and/or water is

dispensed.

Filter Status Button

& Indicator Light

Light displays in one of three possible colors each time the dispenser

is used to show status of water filter:

Green Water filter does not need changing.

Amber Water filter is about 80 percent used.

Please order a new one.

Red Water filter is 100 percent used.

Please change as soon as possible.

After replacing the water filter, reset the filter status by pressing and

holding Filter Status button for 10-15 seconds.

Lock Button

& Indicator Light

The dispenser can be locked to prevent unwanted use.

To lock, press and hold button for 3-5 seconds. Light displays blue.

To unlock, press and hold button for 3-5 seconds until light goes out.

Express Freeze Button

& Indicator Light

Press and hold button for 3-5 seconds to activate faster rate for

freezing food (preserving freshness). Light displays blue.

Press and hold button for 3-5 seconds again to deactivate.

Express Ice Button

& Indicator Light

Press and hold button for 3-5 seconds to increase ice production for

special occasions, such as parties. Light displays blue.

Press and hold button for 3-5 seconds again to deactivate.

22 Automatic Ice & Water Dispenser

PRIMING THE WATER SUPPLY SYSTEM

Your refrigerator’s water supply system includes several tubing lines, an advanced

water filter, a distribution valve bank, and a reserve tank to ensure ample supply to

the ice and water dispenser at all times. This system needs to be completely filled

with water when first connected to an external supply line.

To prime the water supply system:

1Begin filling the tank by pressing and holding a drinking glass against the

water dispenser paddle.

2Keep the glass in this position until water comes out of the dispenser. It may

take about 1½ minutes.

3Continue dispensing water for about 3 minutes to flush the system and

plumbing connections of any impurities (stopping to empty the glass as

necessary).

CACA

CAUTIONUTION

UTIONUTION

UTION

For proper dispenser operation, recommended water supply pressure should fall between

20 psi and 100 psi. Excessive pressure may cause water filter to malfunction.

NONO

NOTETE

TETE

The water dispenser has a built-in device that shuts off the water flow after 3 minutes of

continuous use. To reset this shutoff device, simply release the dispenser paddle.

CACA

CAUTIONUTION

UTIONUTION

UTION

Pushing the dispensing paddle in for more than 4 minutes may cause the dispenser motor

to overload and stop. The overload protector resets automatically after 3-4 minutes.

Automatic Ice & Water Dispenser

ICE DISPENSER OPERATION & CARE

The ice maker, ice bin, and dispenser feeding mechanism are located in the top of

the freezer compartment. After the refrigerator is installed properly and has cooled

for several hours, the ice maker can produce ice within 24 hours. It can completely

fill an ice bin in about two days.

Using The Ice Dispenser After Installation

Before making ice for the first time, be sure to prime the water supply system as

described on page 22. Air in new plumbing lines can result in two or three empty

ice maker cycles. Furthermore, if the system is not flushed, the first ice cubes may

be discolored or have an odd flavor.

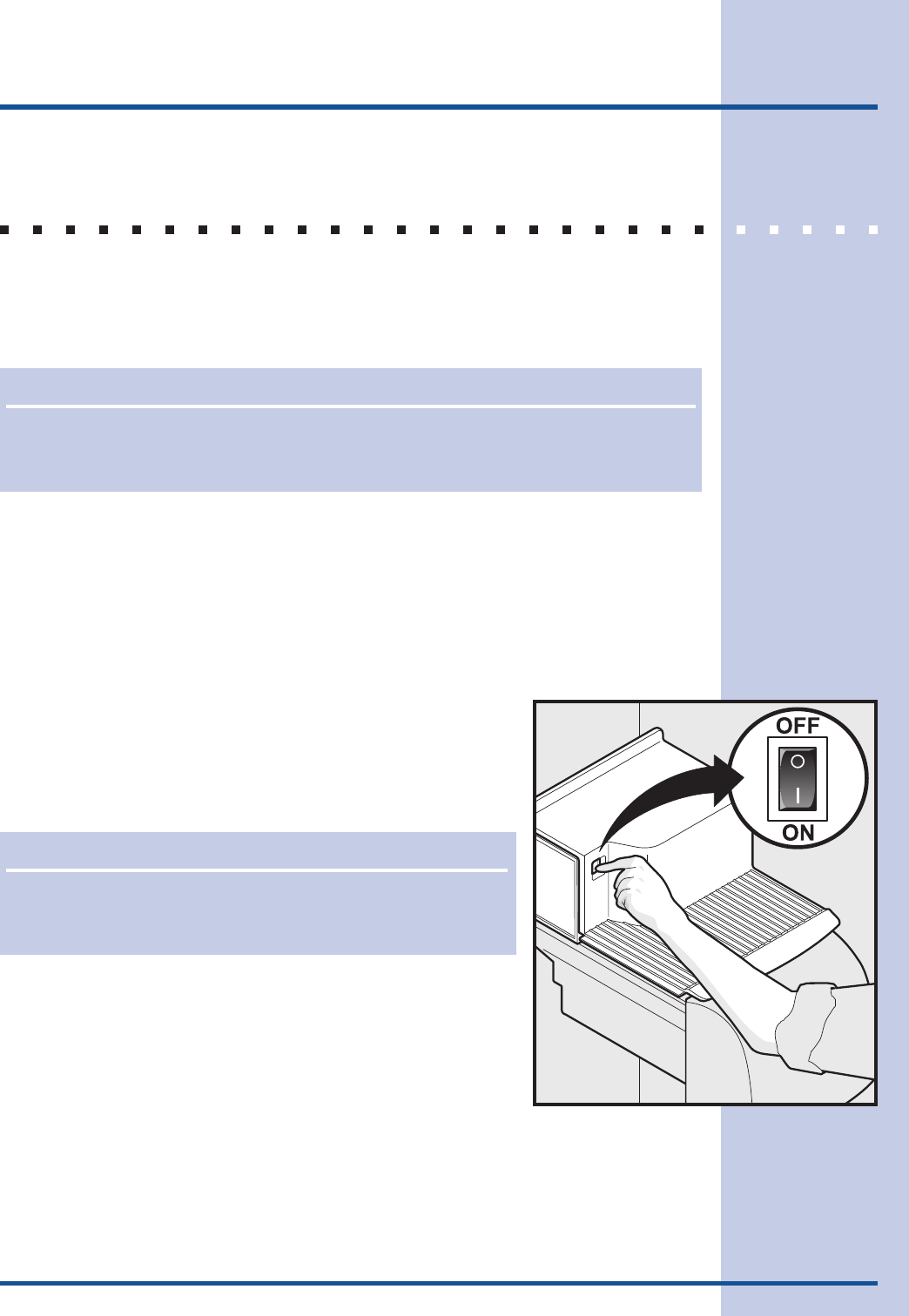

Turning The Ice Dispenser On And Off

Ice production is controlled by the ice maker’s On/Off

power switch. Press the switch to the “O” position to turn it

Off and press to the “I” position to turn it On.

IMPORIMPOR

IMPORTT

TANTANT

ANTANT

ANT

The ice maker is turned on at the factory so it can work as soon as you install your

refrigerator. If you cannot connect a water supply, turn the ice maker’s On/Off switch to Off.

Otherwise, the ice maker’s fill valve may be noisy when it attempts to operate without water.

NONO

NOTETE

TETE

The ice maker also has a built-in wire signal arm, which

automatically stops ice production when the ice bin is full. This

signal arm should not be used to manually stop the ice maker.

24 Automatic Ice & Water Dispenser

Ice Dispenser Tips

• Ice cubes stored too long may develop an odd flavor. Empty the ice container

as explained on the next page.

• Occasionally shake the ice container to keep ice separated.

• If your refrigerator is not connected to a water supply or the water supply is

turned off, turn off the ice maker by pressing the On/Off switch.

• If you need a large quantity of ice at one time, it is best to get cubes directly

from the ice container.

• The following sounds are normal when the ice maker is operating:

• Motor running

• Ice dropping into ice container

• Water valve opening or closing

• Ice loosening from tray

• Running water

• Turn off the ice maker when cleaning the freezer and during vacations.

• If you turn off the ice maker for a long period of time, you should also turn off

the water supply valve.

Cleaning The Ice Dispenser

Clean the ice maker and ice bin at regular intervals, particularly

before you take a vacation or move.

CACA

CAUTIONUTION

UTIONUTION

UTION

Chemicals from a malfunctioning water softener can damage the ice maker. If the water

supply to your refrigerator is softened, be sure the softener is maintained to work properly.

CACA

CAUTIONUTION

UTIONUTION

UTION

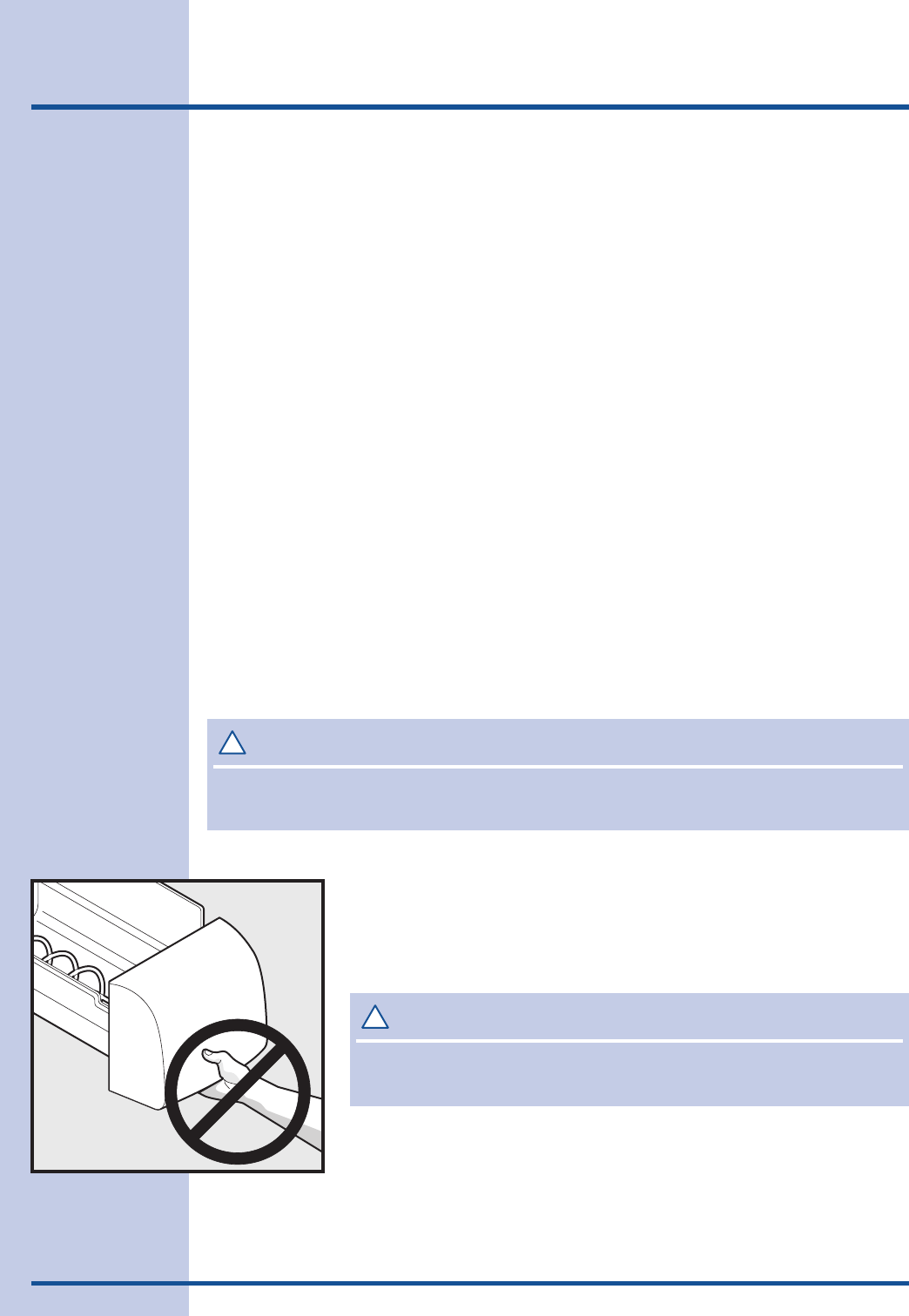

When removing the ice bin, do not grip the ice chute (beneath the front of

the bin) as a handle. Surfaces in the ice chute may be sharp.

Automatic Ice & Water Dispenser

To clean the ice dispenser:

1Turn off ice production by pressing the ice maker’s Off/On switch.

2Remove the ice bin by lifting up and out.

3Empty and carefully clean the ice bin with mild detergent. Rinse with clear

water. Do not use harsh or abrasive cleaners.

4Allow the ice bin to dry completely before replacing in the freezer.

5Remove ice chips and clean the ice bin shelf and the freezer door chute (for

more tips on care and cleaning, see page 33).

6Replace the ice bin. Press the ice maker’s Off/On switch to resume ice

production.

Remove and empty the ice storage bin if:

• An extended power failure (one hour or longer) causes ice cubes in the ice

storage bin to melt and freeze together, jamming the dispenser mechanism.

• You do not use the ice dispenser frequently. Ice cubes will freeze together

in the bin, jamming the dispenser mechanism.

Remove the ice storage bin and shake to loosen the cubes or clean as explained

above.

Never use an ice pick or similar sharp instrument to break up the ice. This could

damage the ice storage bin and dispenser mechanism.

IMPORIMPOR

IMPORTT

TANTANT

ANTANT

ANT

When removing the ice bin, avoid rotating the auger inside the bin. The

auger must align with its drive mechanism when the bin is replaced. If

you accidentally move the auger, realign by making quarter turns until the

ice bin fits back in place.

26 Changing The Filter

LOCATING THE WATER FILTER

Your refrigerator is equipped with a water filtering system. The water filter, which

uses Electrolux pure advantageTM technology, filters all dispensed drinking water

as well as the water used to produce ice.

Water Filter Location

The water filter is located at the top of the fresh food

compartment, next to the electronic control system panel.

For more information about when to replace the filter, see

“Using The Dispenser Control Panel” on page 21.

ORDERING REPLACEMENT FILTERS

Order new filters through the dealer where you bought your refrigerator, or contact

the Electrolux Customer Care Center at 1-877-435-3287, or go to our web site at

www.electroluxusa.com. You may want to consider ordering extra filters when

you first install your refrigerator. Here is the product number to request when

ordering:

Water Filter pure advantageTM replacement cartridge

Changing The Filter

REPLACING THE WATER FILTER

In general, you should change the water filter every six to nine months to ensure

highest possible water quality. The Filter Status light on the dispenser control

panel (see page 20) prompts you to replace the filter after 400 gallons of water has

flowed through the system.

If your refrigerator has not been used for a period of time (during moving for

example), change the filter before reinstalling the refrigerator.

More About Your Advanced Water Filter

The pure advantageTM and pure advantageplus ice and water filter

systems are tested and certified by NSF International, the nationally

respected, not-for-profit certification organization for public health

safety. The pure advantageTM and pure advantageplus filter systems

are tested and certified to ANSI/NSF Standards 42 and 53. See the

performance data sheet that came with your product for detailed specifications.

This system should not be used on water that is microbiologically unsafe or with

water of unknown quality unless the water has been adequately disinfected before

or after traveling through the filtration system.

NSF Test & Certification Results:

• Rated Capacity - 400 gallons

• Rated service flow - .5 gallons per minute

• Maximum Rated Pressure - 100 pounds per square inch

• Maximum Operating Temp. - 100° F

NONO

NOTETE

TETE

The pure advantageTM ice and water system can operate without filtration if you use a bypass

in place of the water filter cartridge. Please contact the Electrolux Customer Care Center at

1-877-435-3287 or visit our web site at www.electroluxusa.com to order the bypass (Part No.

240396701). The bypass does not work for pure advantageplus systems.

28 Changing The Filter

To replace your pure advantageTM water filter:

It is not necessary to turn the water supply off to change the filter. Be ready to wipe

up any small amounts of water released during the filter replacement. The bottom

of the filter housing includes two small water drainage holes, so be sure to remove

any stored food from the top shelf.

1Turn Off the ice maker power switch (see page 23 for

more about turning off the ice maker).

2Push the filter release button to the right of the

cartridge to disconnect it.

3Slide the old filter cartridge straight out of the housing

and discard it.

4Unpackage the new filter cartridge and slide it gently

into the filter housing until it stops against the snap-in

connector at the back of the housing.

5 Push firmly until the cartridge snaps into place.

When fully engaged, the front of the filter cartridge

should be flush with the filter release button.

6Turn On the ice maker power switch (see page 23 for

more about turning on the ice maker).

7Press a drinking glass against the water dispenser

while checking for any leaks at the filter housing. Any

spurts and sputters that occur as the system purges air

out of the dispenser system are normal.

8After filling one glass of water, continue flushing the

system for about three minutes.

9Press and hold the Filter Status button on the Ice &

Water Dispenser control panel for 3 seconds. The light

flashes red, amber, and green to indicate the Filter

Status has been reset.

NONO

NOTETE

TETE

The o-rings on a new water filter are lubricated. To ensure a good

seal, please do not remove this lubricant.

Storing Food & Saving Energy

IDEAS FOR STORING FOODS

Fresh Food Storage

• Keep the fresh food compartment between 34° F and 40° F with an optimum

temperature of 37° F (see page 13 for more about temperature settings).

• Avoid overcrowding the refrigerator shelves, which reduces air circulation and

causes uneven cooling.

Fruits and Vegetables

• Store fruits and vegetables in crisper drawers, where trapped moisture helps

preserve food quality for longer time periods.

Meat

• Wrap raw meat and poultry securely so leakage and contamination of other

foods or surfaces does not occur.

• Use the meat keeper drawer for short term storage. Any meat to be kept

longer than two days should be frozen.

• See page 17 for more about the meat keeper drawer.

Frozen Food Storage

• Keep the freezer compartment at 0° F or lower (see page 13 for more about

temperature settings).

• A freezer operates most efficiently when it is at least 2/3 full.

Packaging Foods for Freezing

• To minimize food dehydration and quality deterioration, use aluminum foil,

freezer wrap, freezer bags or airtight containers. Force as much air out of the

packages as possible and seal them tightly. Trapped air can cause food to

dry out, change color, and develop an off-flavor (freezer burn).

• Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.

• Do not refreeze meat that has completely thawed.

30 Storing Food & Saving Energy

Loading the Freezer

• Avoid adding too much warm food to the freezer at one time. This overloads

the freezer, slows the rate of freezing, and can raise the temperature of

frozen foods.

• Leave a space between packages, so cold air can circulate freely, allowing

food to freeze as quickly as possible.

• Avoid storing hard-to-freeze foods, such as ice cream and orange juice, on

the freezer door shelves. These foods are best stored in the freezer interior

where the temperature varies less.

IDEAS FOR SAVING ENERGY

Installation

• Locate the refrigerator in the coolest part of the room, out of direct sunlight,

and away from heating ducts or registers. Do not place the refrigerator next

to heat-producing appliances such as a range, oven, or dishwasher. If this is

not possible, a section of cabinetry or an added layer of insulation between

the two appliances will help the refrigerator operate more efficiently.

• Level the refrigerator so that the doors close tightly.

Temperature Settings

• Refer to earlier sections in this Use & Care Manual (beginning on page 12)

for recommendations on temperature control settings.

Food Storage

• Avoid overcrowding the refrigerator or blocking cold air vents. Doing so

causes the refrigerator to run longer and use more energy.

• Cover foods and wipe containers dry before placing them in the refrigerator.

This cuts down on moisture build-up inside the unit.

• Organize the refrigerator to reduce door openings. Remove as many items as

needed at one time and close the door as soon as possible.

Normal Operating Sounds & Sights

UNDERSTANDING THE SOUNDS YOU MAY HEAR

Your new high-efficiency refrigerator may introduce unfamiliar sounds. These

sounds normally indicate your refrigerator is operating correctly. Some surfaces on

floors, walls, and kitchen cabinets may make these sounds more noticeable.

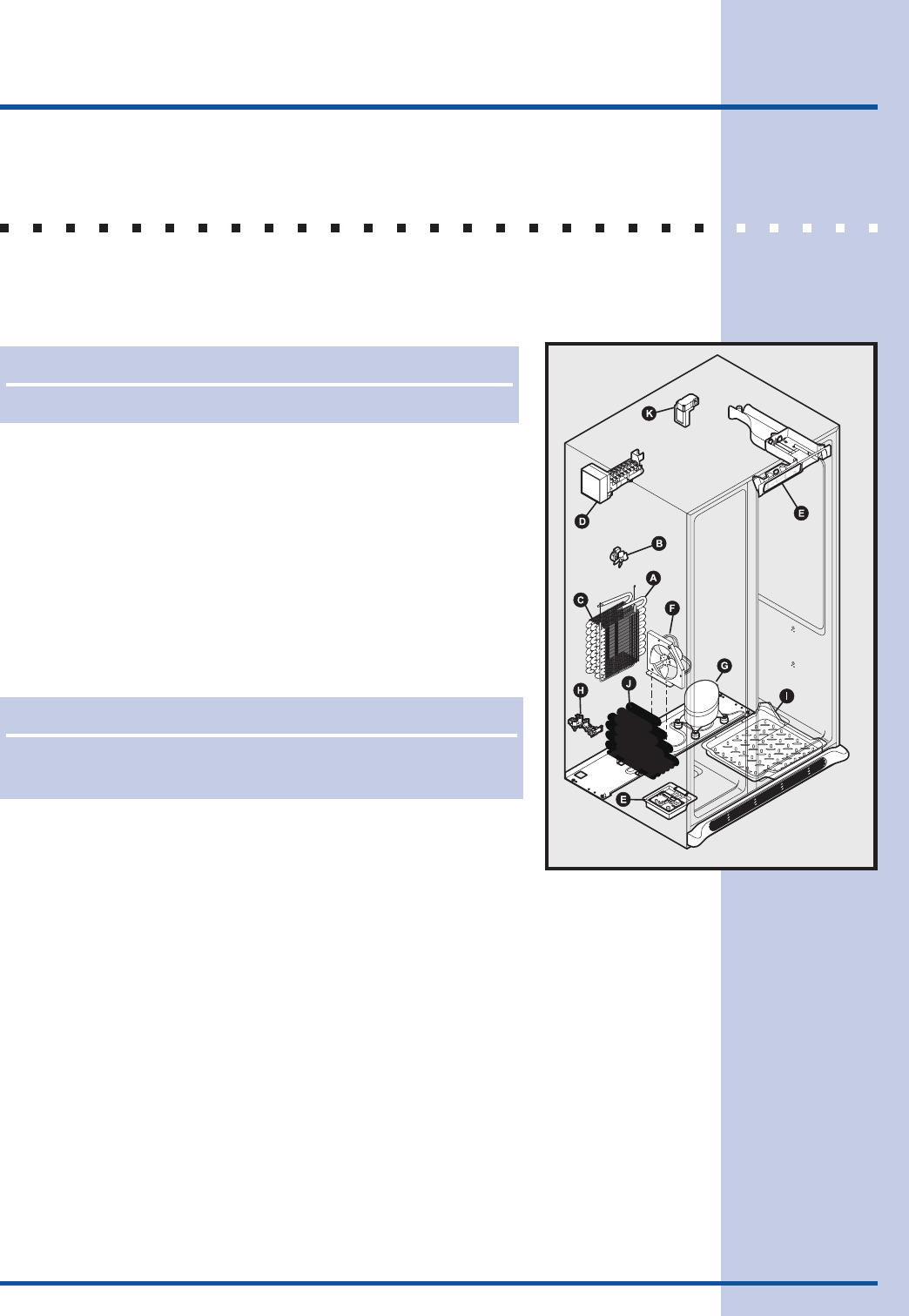

Following is a list of major components in your refrigerator and

the sounds they can cause:

AEvaporator Refrigerant through the evaporator may

create a boiling or gurgling sound.

BEvaporator Fan You may hear air being forced through

the refrigerator by the evaporator fan.

CDefrost Heater During defrost cycles, water dripping

onto the defrost heater may cause a hissing or sizzling

sound. After defrosting, a popping sound may occur.

DAutomatic Ice Maker When ice has been produced, you

will hear ice cubes falling into the ice bin.

ECold Control & Automatic Defrost Control These parts can produce a

snapping or clicking sound when turning the cooling system on and off.

FCondenser Fan You may hear air being forced through the condenser.

GCompressor Modern, high-efficiency compressors run much faster than in

the past. The compressor may have a high-pitched hum or pulsating sound.

HWater Valve Makes a buzzing sound each time it opens to fill the ice maker.

IDrain Pan (not removable) You may hear water dripping into the drain pan

during the defrost cycle.

JCondenser May create minimal sounds from forced air.

KMotorized Damper May produce a light humming during operation.

NONO

NOTETE

TETE

Energy efficient foam in your refrigerator is not a sound insulator.

IMPORIMPOR

IMPORTT

TANTANT

ANTANT

ANT

During automatic defrost cycle, a red glow in the back wall vents of

your freezer compartment is normal.

32 Care & Cleaning

PROTECTING YOUR INVESTMENT

Keeping your refrigerator clean maintains appearance and prevents odor build-up.

Wipe up any spills immediately and clean the freezer and fresh food compartments

at least twice a year. When cleaning, take the following precautions:

• Never use metallic scouring pads, brushes, abrasive cleaners or strong

alkaline solutions on any surface.

• Do not wash any removable parts in a dishwasher.

• Always unplug the electrical power cord from the wall outlet before cleaning.

• Remove adhesive labels by hand. Do not use razor blades or other sharp

instruments which can scratch the appliance surface.

• Do not remove the serial plate.

Refer to the guide on the next page for details on caring and cleaning specific

areas of your refrigerator.

NONO

NOTETE

TETE

If you set your temperature controls to turn off cooling, power to lights and other electrical

components continues until you unplug the power cord from the wall outlet.

CACA

CAUTIONUTION

UTIONUTION

UTION

• Pull the refrigerator straight out to move it. Shifting it from side to side may damage

flooring. Be careful not to move the refrigerator beyond the plumbing connections.

• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with

wet or damp hands.

IMPORIMPOR

IMPORTT

TANTANT

ANTANT

ANT

If you store or move your refrigerator in freezing temperatures, be sure to completely drain

the water supply system. Failure to do so could result in water leaks when the refrigerator is

put back into service. Contact a service representative to perform this operation.

Care & Cleaning

CARE & CLEANING TIPS

VACATION & MOVING TIPS

Part Cleaning Agents Tips and Precautions

Interior & Door

Liners

• Soap and water

• Baking soda and

water

• Use 2 tablespoons of baking soda in 1 quart of warm water.

• Be sure to wring excess water out of sponge or cloth before cleaning around

controls, light bulb or any electrical part.

Door Gaskets • Soap and water • Wipe gaskets with a clean soft cloth.

Drawers & Bins • Soap and water • Use a soft cloth to clean drawer runners and tracks.

• Do not wash any removable items (bins, drawers, etc.) in dishwasher.

Glass Shelves • Soap and water

• Glass cleaner

• Mild liquid sprays

• Allow glass to warm to room temperature before immersing in warm water.

Toe Grille • Soap and water

• Mild liquid sprays

• Vacuum attachment

• Vacuum dust from front of toe grille.

• Remove toe grille (see Installation Instructions.).

• Vacuum backside and wipe with sudsy cloth or sponge. Rinse and dry.

Exterior & Handles • Soap and water

• Non Abrasive Glass

Cleaner

• Do not use commercial household cleaners, ammonia, or alcohol to clean

handles.

• Use a soft cloth to clean smooth handles.

• Do not use a dry cloth to clean smooth doors.

Exterior & Handles

(Stainless Steel

Models Only)

• Soap and water

• Ammonia

• Stainless Steel

Cleaners

• Clean stainless steel front and handles with non-abrasive soapy water and a

dishcloth. Rinse with clean water and a soft cloth.

• Wipe stubborn spots with an ammonia-soaked paper towel, and rinse. Use a

non-abrasive stainless steel cleaner. These cleaners can be purchased at

most home improvement or major department stores. Always follow

manufacturer's instruction.

• NOTE: Always, clean, wipe and dry with grain to prevent scratching.

• Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse

well, and wipe dry with a clean soft cloth.

Occasion Tips

Short Vacations • Leave refrigerator operating during vacations of 3 weeks or less.

• Use all perishable items from refrigerator compartment.

• Turn automatic ice maker off and empty ice bucket, even if you will only be gone for a few days.

Long Vacations • Remove all food and ice if you will be gone one month or more.

• Turn the cooling system off (see page 15 for location of On/Off button) and disconnect power cord.

• Turn off automatic ice maker and turn water supply valve to closed position.

• Clean interior thoroughly.

• Leave both doors open to prevent odors and mold build-up. Block doors open if necessary.

Moving • Remove all food and ice.

• If using handcart, load from side.

• Adjust rollers all the way up to protect them during sliding or moving.

• Pad cabinet to avoid scratching surface.

34 Care & Cleaning

REPLACING LIGHT BULBS

Both the freezer and fresh food compartments of your refrigerator include light

bulbs that will need replacing from time to time. Some lights have covers that you

will need to remove before replacing the bulbs. Always use bulbs that are designed

for appliance lighting.

To replace light bulbs:

1Unplug your refrigerator’s power cord.

2Wear gloves as protection against possible broken glass.

3Remove light cover, if necessary.

4Unscrew and replace old bulb with an appliance bulb of the

same type and wattage (normally 40 watts).

5Replace light cover, if necessary.

6Plug in the refrigerator’s power cord.

CACA

CAUTIONUTION

UTIONUTION

UTION

Wear gloves when replacing light bulbs to avoid getting cut.

REFRIGERATOR WARRANTY Your refrigerator is protected by this warranty

WARRANTY

PERIOD THROUGH OUR AUTHORIZED SERVICERS,

WE WILL: THE CONSUMER WILL BE

RESPONSIBLE FOR:

FULL ONE-YEAR

WARRANTY One year from

original purchase

date.

Pay all costs for repairing or replacing any parts of this

appliance which prove to be defective in materials or

workmanship. Excludes original and replacement Ice & Water

filter cartridges (if equipped). Original and replacement

cartridges are warranted for 30 days (parts only).

Costs of service calls that are listed under

NORMAL RESPONSIBILITIES OF THE

CONSUMER.*

LIMITED 2nd– 5TH

YEAR WARRANTY

(Cabinet Liner and

Sealed System)

Second through fifth

years from original

purchase date.

Repair or replace any parts in the cabinet liner or sealed

refrigeration system (compressor, condenser, evaporator,

dryer or tubing) which prove to be defective in materials or

workmanship.

Costs for pickup and delivery of the appliance

required because of service. Costs for labor, parts

and transportation other than with respect to the

cabinet liner or Sealed Refrigeration System.

LIMITED

WARRANTY

(Applicable to the

State of Alaska)

Time periods listed

above. All of the provisions of the full warranties above and the

exclusions listed below apply. Costs of the technician's travel to the home and any

costs for pick up and delivery of the appliance

required because of service.

In the U.S.A., your appliance is warranted by Electrolux Home Products, Inc. We authorize no person to change or add to any of our obligations

under this warranty. Our obligations for service and parts under this warranty must be performed by us or an authorized Electrolux Home Products,

Inc. servicer. In Canada, your appliance is warranted by Electrolux Canada Corp.

*NORMAL

RESPONSIBILITIES

OF THE CUSTOMER

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items

listed below:

1. Proper use of the appliance in accordance with instructions provided with the product.

2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in

accordance with all local plumbing, electrical and/or gas codes.

3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose

connections or defects in house wiring.

4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which

are not a part of the appliance when it was shipped from the factory.

5. Damages to finish after installation.

6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).

EXCLUSIONS This warranty does not cover the following:

1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES

RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.

Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or

exclusion may not apply to you.

2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary

household use. The consumer shall pay for such service calls.

3. Damages caused by services performed by servicers other than Electrolux Home Products, Inc., Electrolux Canada

Corp., or its authorized servicers; use of parts other than genuine Electrolux Home Products parts; obtained from

persons other than such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.

4. Products with original serial numbers that have been removed or altered and cannot be readily determined.

IF YOU NEED

SERVICE

Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the

warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all

receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.

Service under this warranty must be obtained by contacting Electrolux Home Products, Inc. or Electrolux Canada Corp.

This warranty only applies in the 50 States of the U.S.A. and Puerto Rico, and Canada. Product features or specifications as described or illustrated

are subject to change without notice. All warranties are made by Electrolux Home Products, Inc. In Canada, your appliance is warranted by

Electrolux Canada Corp.

USA

800-944-9044

Electrolux Home Products, Inc.

P.O. Box 212378

Augusta, GA 30917

Canada

866-213-9397

Electrolux Canada Corp.

6150 McLaughlin Road

Mississauga, Ontario

L5R 4C2

Warranty Information

36 Solutions To Common Problems

BEFORE YOU CALL...

If you experience a problem with your refrigerator or notice a product behavior or

condition you do not understand, you can usually avoid a call to your service

representative by referring to this section for an answer. Beginning with the

following table, this information includes common problems, causes, and

Frigidaire 241540101 Copy Of 241540101_U&C_En User Manual To The B28e6155 2478 411b A387 96b17a90905d

Navigation menu

Versions of this User Manual:

Views

Navigation
