Frigidaire BAQG7073KW0 User Manual DRYER Manuals And Guides L0905394
FRIGIDAIRE Residential Dryer Manual L0905394 FRIGIDAIRE Residential Dryer Owner's Manual, FRIGIDAIRE Residential Dryer installation guides
User Manual: Frigidaire BAQG7073KW0 BAQG7073KW0 FRIGIDAIRE DRYER - Manuals and Guides View the owners manual for your FRIGIDAIRE DRYER #BAQG7073KW0. Home:Laundry & Garment Care Parts:Frigidaire Parts:Frigidaire DRYER Manual
Open the PDF directly: View PDF
.
Page Count: 16
TABLE OF CONTENTS
Important Safety Instructions .............................. 2-4 SolutiOns _ Common Problems.. 14-15
Features ............................................................... 5 _rran_ .................................. ii iiiiiiiiiiii:iiiii ..... 16
Operating Instructions ...................................... 6-11 Notes ....................................... 17-18
Dryer Settings Chart ..................................... 12 Fran_ais ......................................... 19
Care and Cleaning ............................................... 13 Espa_ol ...................................................... :!;_
c)
g
www.frigidaire.com USA1-800-944-9044 www.fdgidaire.ca Canada 1-800-265-8352
Pleasereadallinstructionsbeforeusingthisdryer.

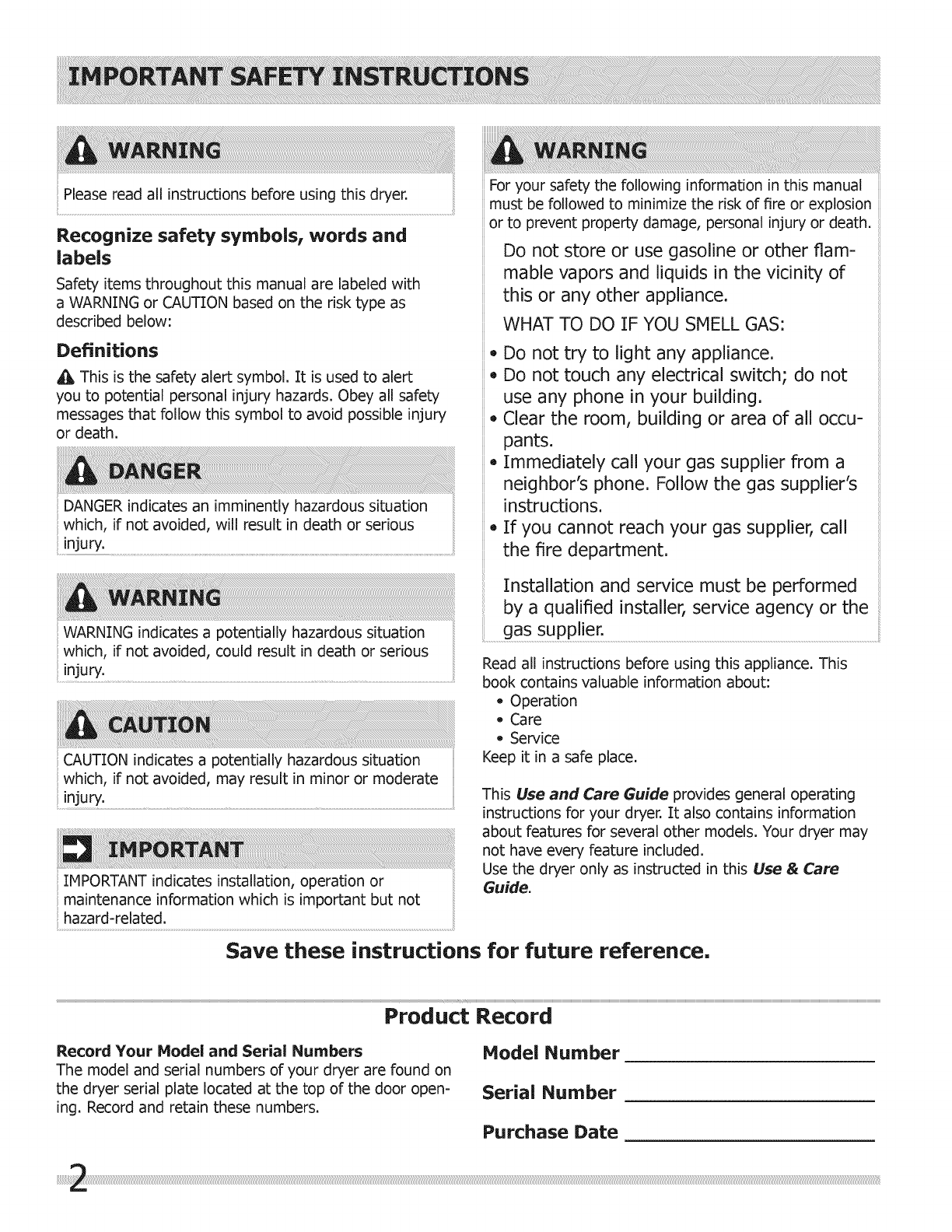

Recognize safety symbols, words and
labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:
Definitions
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
For your safety the following information in this manual
must be followed to minimize the risk of fire or explosion
or to prevent property damage, personal injury or death.
Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
, Do not try to light any appliance.
, Do not touch any electrical switch; do not
use any phone in your building.
, Clear the room, building or area of all occu-
pants.
, Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
, If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
Read all instructions before using this appliance. This
book contains valuable information about:
- Operation
- Care
- Service
Keep it in a safe place.
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
This Use and Care Guide provides general operating
instructions for your dryer. It also contains information
about features for several other models. Your dryer may
not have every feature included.
Use the dryer only as instructed in this Use & Care
Guide.
Save these instructions for future reference.
Product Record
Record Your Model and Serial Numbers
The model and serial numbers of your dryer are found on
the dryer serial plate located at the top of the door open-
ing. Record and retain these numbers.
Hodel Number
Serial Number
Purchase Date
240 v Electric Dryer
UL-approved service
cord must be installed
on electric dryers (not
provided with unit
except those
manufactured for sale
in Canada).
120 v Gas Dryer
Grounding type
wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power cord with
3-prong grounded plug
Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord or remove grounding
prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.
To reduce the risk of fire, electrical shock, or injury to persons when using this dryer, comply with the basic warnings
listed below. Failure to comply with these warnings could result in serious personal injuries.
You can be killed or seriously injured if you don't follow these Important Safety Instructions:
ii
PREVENT FIRE
- Do not dry items that have been previously cleaned in,
soaked in, or spotted with gasoline, cleaning solvents,
kerosene, waxes, etc. Do not store these items on or
near the dryer. These substances give off vapors that
could ignite or explode.
• Do not place items exposed to cooking oils in your dryer.
Items contaminated with cooking oils may contribute to
a chemical reaction that could cause a load to catch fire.
Do not dry articles containing rubber, plastic or similar ma-
terials such as bras, galoshes, bath mats, rugs, bibs, baby
pants, plastic bags and pillows that may melt or burn.
Some rubber materials, when heated, can under certain
circumstances produce fire by spontaneous combustion.
FIRE HAZARD
A clothes dryer produces combustible lint. The dryer
must be connected to an outdoors exhaust. Regularly
inspect the outdoor exhaust opening and remove any
accumulation of lint around the opening and in the
- Clean the lint screen before or after each load. The in-
terior of the dryer, lint screen housing and exhaust duct
should be cleaned approximately every 18 months by
qualified service personnel. An excessive amount of lint
build-up in these areas could result in inefficient drying
and possible fire. See Care and Cleaning.
- Do not operate the dryer if the lint screen is blocked,
damaged or missing. Fire hazard, overheating and
damage to fabrics can occur.
- Do not obstruct the flow of ventilating air. Do not stack
or place laundry or throw rugs against the front or back
of the dryer.
- Do not spray any type of aerosol into, on or near dryer
at any time.
- Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of the
fabric softener or product.
• Do not continue to use the dryer is you hear squeaking,
grinding, rubbing or other unusual noises. This could
be a sign of mechanical breakdown and lead to fire or
serious injury. Contact a qualified technician immedi-
ately.
- Failure to comply with these warnings could result in
fire, explosion, serious bodily injury and/or damage to
the rubber or plastic parts of the dryer.
PROTECT CHILDREN
- Do not aflow children to play on or in the dryer. Close
supervision of children is necessary when the dryer is
used near children. As children grow, teach them the
proper, safe use of all appliances.
o Destroy the carton, plastic bag and other packing ma-
terials after the dryer is unpacked. Children might use
them for play. Cartons covered with rugs, bedspreads
or plastic sheets can become airtight chambers.
Keep laundry products out of children's reach. To pre-
vent personal injury, observe all warnings on product
labels.
Before the dryer is removed from service or discarded,
remove the dryer door to prevent accidental entrapment.
Failure to comply with these warnings could result in
serious personal injuries.
PREVENT INJURY
• To prevent shock hazard and assure stability during
operation, the dryer must be installed and electrically
grounded by a qualified service person in accordance with
local codes. Installation instructions are packed in the
dryer for the installer's reference. Refer to INSTALLATION
INSTRUCTIONS for detailed grounding procedures. If the
dryer is moved to a new location, have it checked and
reinstalled by a qualified service person.
To prevent personal injury or damage to the dryer, the
electrical power cord of a gas dryer must be plugged into
a properly grounded and polarized 3-prong outlet. The
third grounding prong must never be removed. Never
ground the dryer to a gas pipe. Do not use an extension
cord or an adaptor plug.
ALWAYSdisconnect the dryer from the electrical supply
before attempting any service or cleaning. Failure to do so
can result in electrical shock or injury.
Do not use any type spray cleanser when cleaning dryer
interior. Hazardous fumes or electrical shock could occur.
To prevent injury, do not reach into the dryer if the drum
is moving. Wait until the dryer has stopped completely
before reaching into the drum.
PREVENT INJURY AND DAHAGE TO THE DRYER
-All repairs and servicing must be performed by an
authorized servicer unless specifically recommended in
this Owner's Guide. Use only authorized factory parts.
Do not tamper with controls.
Do not install or store the dryer where it will be ex-
posed to the weather.
A thermal limiter switch automatically turns off the
motor in the unlikely event of an overheated situation
(electric dryers only). A service technician must replace
the thermal limiter switch after correcting the fault.
Failure to comply with these warnings could result in
serious personal injuries.
The California Safe Drinking Water and Toxic Enforcement ACt requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to
warn customer of potential exposure to such substances. Included in this list are soot and carbon monoxide, both of
The instructions appearing in this Use and Care Guide are not meant to cover every possible condition and situa-
tion that may occur. Common sense and caution must be practiced when installing, operating and maintaining any
Cycle Selector
LED D_y
Control Lock
Drum Light
Large Surface
Moisture Sensor
Door Latch
Exhaust Channel
Outlet
Adjustable
Leveling Legs
Lint Filter
Reversible Door
Door Strike
Stacking Kit for Mounting
on Matching Washer* *Not all models come with drying rack and
stacking kit from the factory, They may be
purchased as accessories.
Normal Operating Sounds
You may or may not hear the following sounds from your
new dryer:
A. SUSPENSION ROLLERS The dryer drum is
supported by a set of suspension rollers. At times
there may be a thumping or rolling sound when the
dryer starts. This may happen if the dryer has not
been in use for a period of time, or after a heavy
load has remained in the dryer drum for an extended
period, creating a temporary flat spot on the edge
of the roller. The noise should dissipate as the dryer
operates and the flat spots smooth out.
B. AIR FLOW SYSTEM Your dryer is equipped with a
high volume air handling system. In some installations
there may be some sounds associated with air
movement throughout the dryer, including the air
duct, blower, and exhaust system. This is normal and
can vary with load size and type.
C. GAS VALVE (Gas models only.) The flow of gas is
controlled by electric solenoids. During operation there
may be a clicking sound as the valve opens and closes to
control the gas flow.
D. GAS BURNER (Gas models only.) When the burner
is operating, there may be sounds generated as the
air flow mixes with the gas flame. This noise is normal
and will only occur when the gas is ignited in the
combustion tube.
Do not continue to use the dryer if you hear squeaking,
grinding, rubbing or other unusual noises. This could
be a sign of mechanical breakdown and lead to fire or
serious injury. Contact a qua!!fied techn!cian !mmediate!y- ......

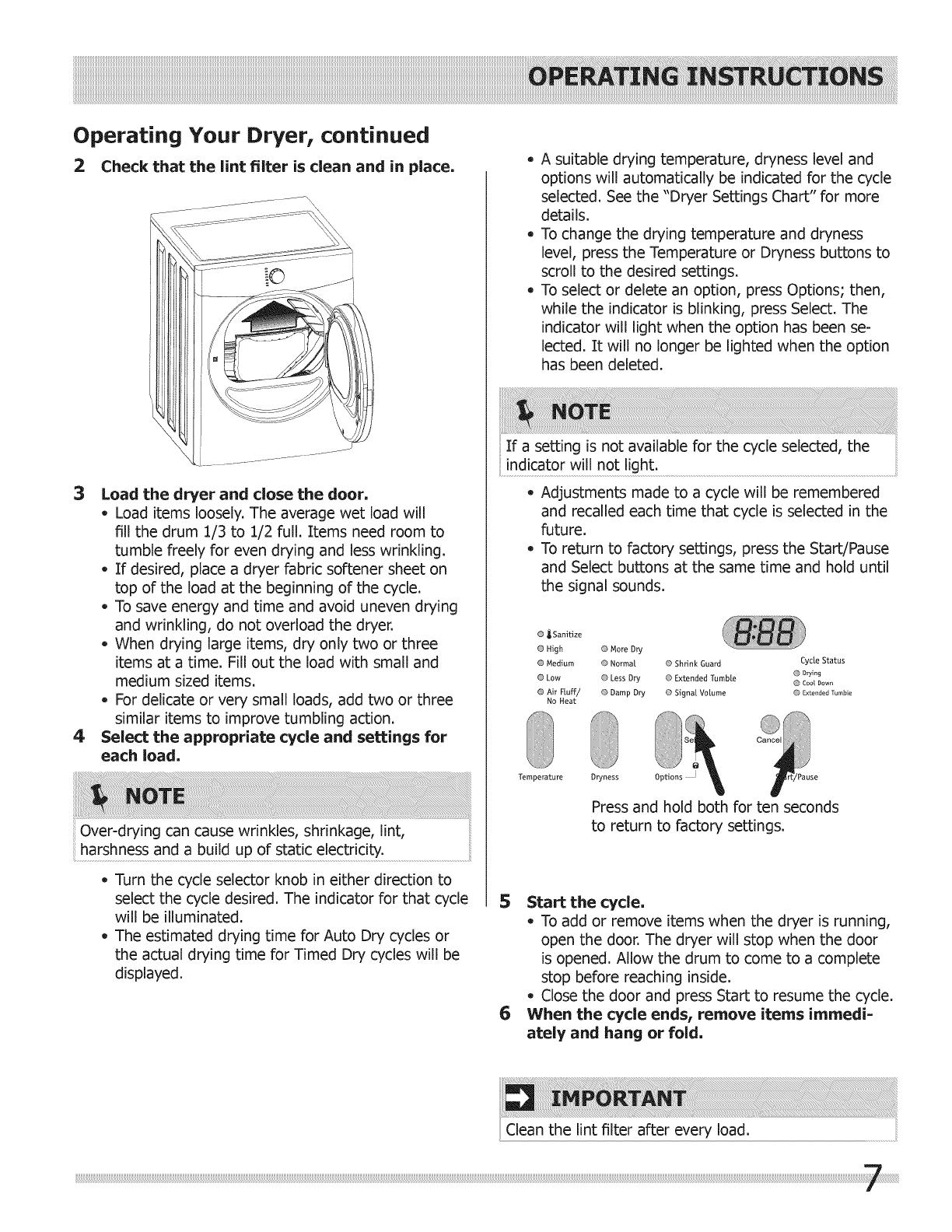

Operating Your Dryer
To reduce the risk of fire, electric shock or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS
in this Use and Care Guide before operating your dryer.
(Mesh bag not included.)
1Prepare load for drying,
o Dry items of similar fabric, weight and construction
in the same load.
Separate dark items from light-colored items. Sepa-
rate items that shed lint from those that attract lint.
Check for stains which may not have been removed
in washing. Repeat stain removal process and wash
again before drying. Dryer heat may permanently
set some stains.
Place delicate or small items in a mesh bag.
Be sure buckles, buttons and trim are heatproof
and won't damage the drum finish. Close zippers;
fasten hooks and Velcro®-Iike fasteners. Tie strings
and sashes to prevent snagging and tangling.
Operating Your Dryer, continued
2 Check that the lint filter is dean and in place,
3 Load the dryer and close the door,
-Load items loosely. The average wet load will
fill the drum 1/3 to 1/2 full. Items need room to
tumble freely for even drying and less wrinkling.
- If desired, place a dryer fabric softener sheet on
top of the load at the beginning of the cycle.
To save energy and time and avoid uneven drying
and wrinkling, do not overload the dryer.
When drying large items, dry only two or three
items at a time. Fill out the load with small and
medium sized items.
For delicate or very small loads, add two or three
similar items to improve tumbling action.
4Select the appropriate cycle and settings for
each load.
Over-drying can cause wrinkles, shrinkage, lint,
harshness and a build up of static electricity.
- Turn the cycle selector knob in either direction to
select the cycle desired. The indicator for that cycle
will be illuminated.
- The estimated drying time for Auto Dry cycles or
the actual drying time for Timed Dry cycles will be
displayed.
- A suitable drying temperature, dryness level and
options will automatically be indicated for the cycle
selected. See the "Dryer Settings Chart" for more
details.
- To change the drying temperature and dryness
level, press the Temperature or Dryness buttons to
scroll to the desired settings.
- To select or delete an option, press Options; then,
while the indicator is blinking, press Select. The
indicator will light when the option has been se-
lected. It will no longer be lighted when the option
has been deleted.
If a setting is not available for the cycle selected, the
indicator will not light.
- Adjustments made to a cycle will be remembered
and recalled each time that cycle is selected in the
future.
- To return to factory settings, press the Start/Pause
and Select buttons at the same time and hold until
the signal sounds.
@_ SaMtize
@High @ More Dry
@ Medium @ Normat Shdnk Guard Cycle Status
@ Low @ Less Dry @ Extended Tumbte @ D_llng
@ Coot Down
@Air Fluff! @ Damp Dry @ S_gna[ Volume @ Extended Tumble
NO Heat
Temperature Dryness Options _
Press and hold both for ten seconds
to return to factory settings.
5 Start the cycle.
- To add or remove items when the dryer is running,
open the door. The dryer will stop when the door
is opened. Allow the drum to come to a complete
stop before reaching inside.
- Close the door and press Start to resume the cycle.
6When the cycle ends, remove items immedi-
ately and hang or fold.
Clean the lint filter after every load.
______________
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
ToweLs/Bedding
Heavy (_
Normal
Casua[
Quick
De[icates _D
Timed Dry
@ _ Sanitize
@ High More Dry
@ Medium Normal @ Shrink Guard CycLe Status
@ Low Less Dry Extended TumbLe Drying
Cool Down
@ Air FLuff/ @ Damp Dry @ Signal VoLume @ Extended TumbLe
No Heat
Temperature Dryness
This manual covers many models and not all cycles, options, or features listed are available
on every model. Console shown above for reference only. Your model may differ.
Options _ Start/Pause
Cycle Selection

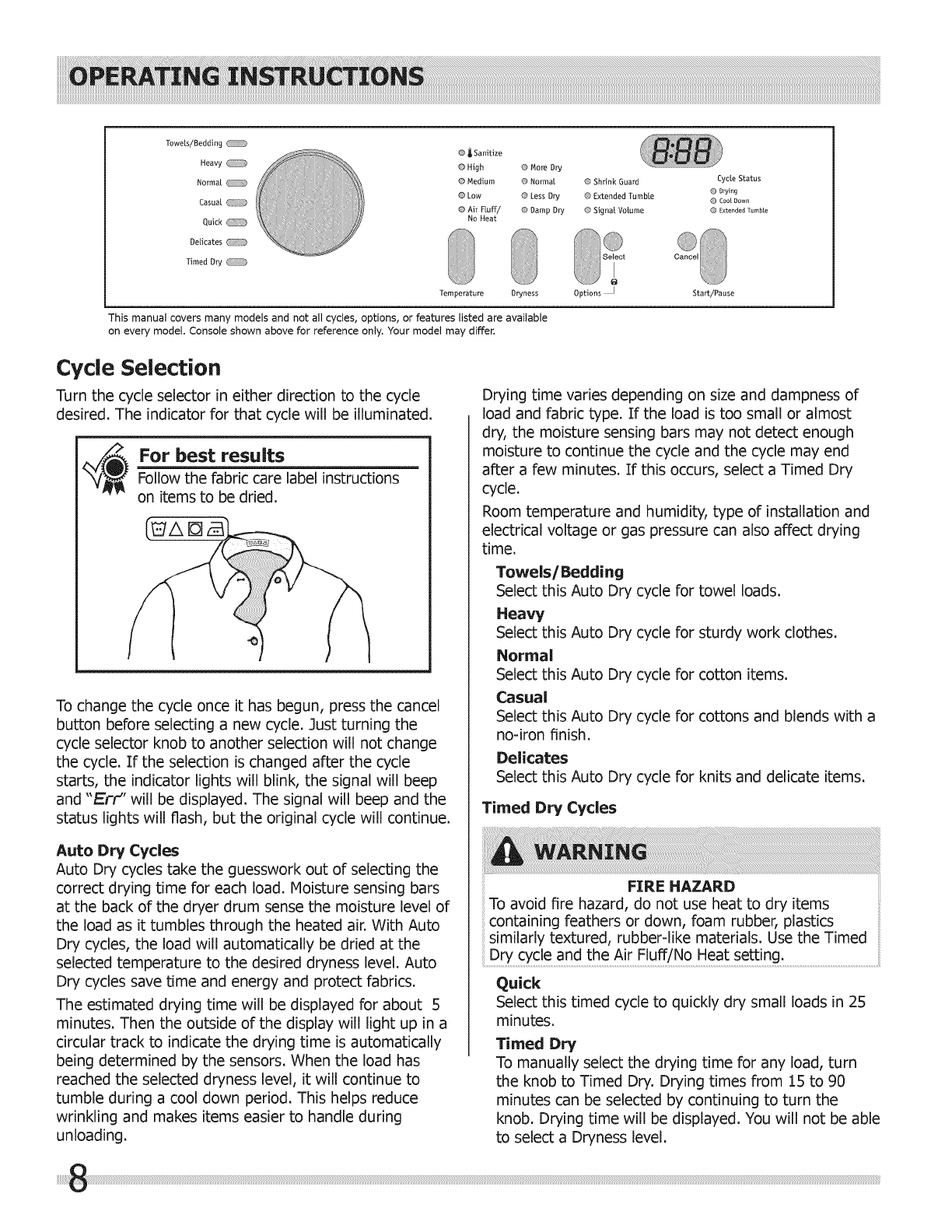

Turn the cycle selector in either direction to the cycle
desired. The indicator for that cycle will be illuminated.
For best results
Follow the fabric care label instructions
on items to be dried.
{TA []
To change the cycle once it has begun, press the cancel
button before selecting a new cycle, lust turning the
cycle selector knob to another selection will not change
the cycle. If the selection is changed after the cycle
starts, the indicator lights will blink, the signal will beep
and "Err" will be displayed. The signal will beep and the
status lights will flash, but the original cycle will continue.
Auto Dry Cycles
Auto Dry cycles take the guesswork out of selecting the
correct drying time for each load. Moisture sensing bars
at the back of the dryer drum sense the moisture level of
the load as it tumbles through the heated air. With Auto
Dry cycles, the load will automatically be dried at the
selected temperature to the desired dryness level. Auto
Dry cycles save time and energy and protect fabrics.
The estimated drying time will be displayed for about 5
minutes. Then the outside of the display will light up in a
circular track to indicate the drying time is automatically
being determined by the sensors. When the load has
reached the selected dryness level, it will continue to
tumble during a coo! down period. This helps reduce
wrinkling and makes items easier to handle during
unloading.
Drying time varies depending on size and dampness of
load and fabric type. If the load is too small or almost
dry, the moisture sensing bars may not detect enough
moisture to continue the cycle and the cycle may end
after a few minutes. If this occurs, select a Timed Dry
cycle.
Room temperature and humidity, type of installation and
electrical voltage or gas pressure can also affect drying
time.
Towels/Bedding
Select this Auto Dry cycle for towel loads.
Heavy
Select this Auto Dry cycle for sturdy work clothes.
Normal
Select this Auto Dry cycle for cotton items.
Casual
Select this Auto Dry cycle for cottons and blends with a
no-iron finish.
Delicates
Select this Auto Dry cycle for knits and delicate items.
Timed Dry Cycles
FIRE HAZARD
To avoid fire hazard, do not use heat to dry items
containing feathers or down, foam rubber, plastics
similarly textured, rubber-like materials. Use the Timed
Dry cycle and the Air Fluff/No Heat setting.
Quick
Select this timed cycle to quickly dry small loads in 25
minutes.
Timed Dry
To manually select the drying time for any load, turn
the knob to Timed Dry. Drying times from 15 to 90
minutes can be selected by continuing to turn the
knob. Drying time will be displayed. You will not be able
to select a Dryness level.
ToweLs/Bedding
Heavy
Normal C-_)
Casual
Quick _]
DetLcates
Timed Dry
® _ Sanitize
@ HLgh O More Dry
® MedLum @ Normal
@Low Less Dry
® ALr FLuff/ Damp Dry
No Heat
Shrink Guard
@ Extended TumbLe
Signal VoLume
CycLe Status
@Drying
Coat@own
@ExtendedTumbte
Temperature Dryness Options _ StaR/Pause
This manual covers many models and not all cycles, options, or features listed are available
on every model. Console shown above for reference only. Your model may differ.
Cycle Selection, continued

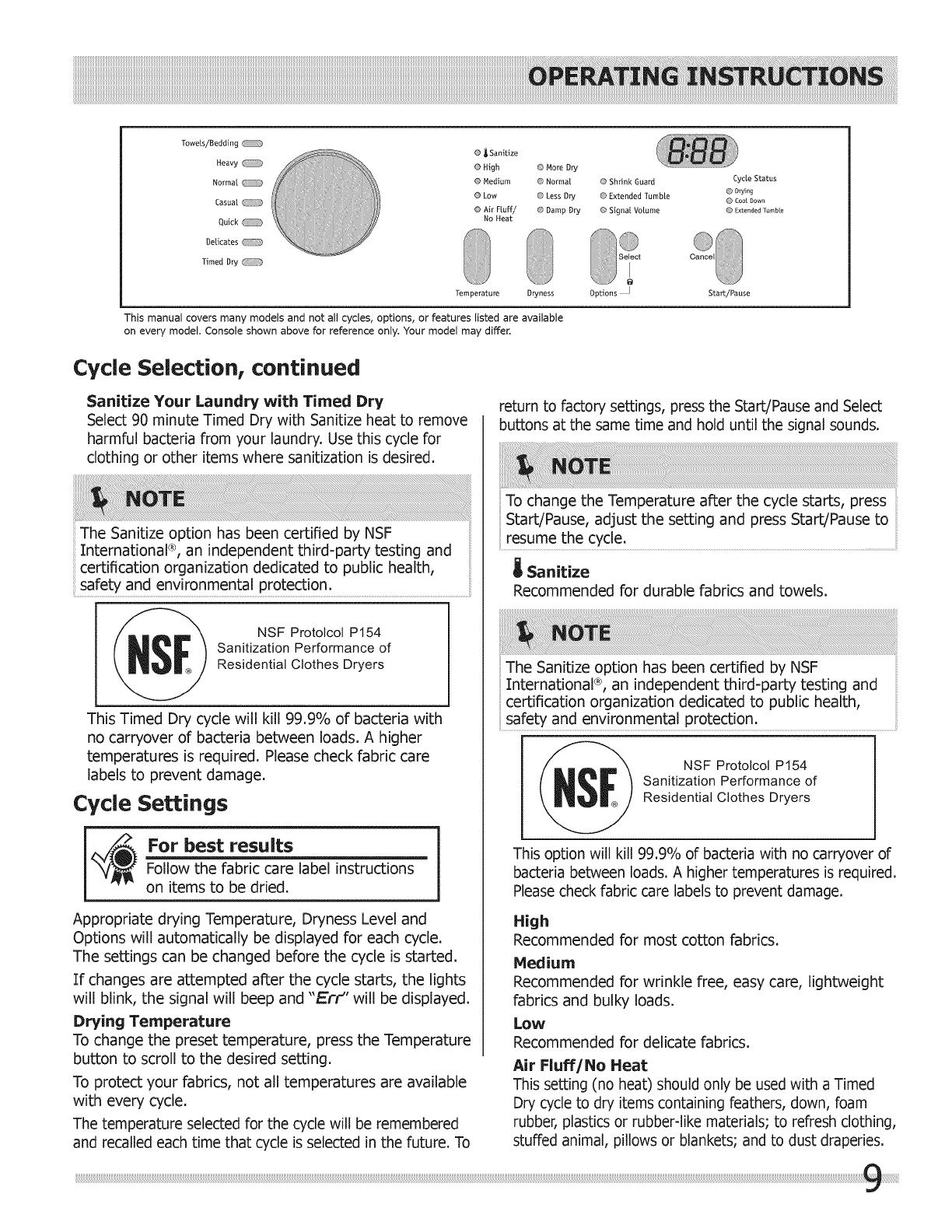

Sanitize Your Laundry with Timed Dry
Select 90 minute Timed Dry with Sanitize heat to remove
harmful bacteria from your laundry, Use this cycle for
clothing or other items where sanitization is desired.
The Sanitize option has been certified by NSF
International ®,an independent third-party testing and
certification organization dedicated to public health,
safety and environmental protection.
NSF Protolcol P154
Sanitization Performance of
Residential Clothes Dryers
This Timed Dry cycle will kill 99.9% of bacteria with
no carryover of bacteria between loads. A higher
temperatures is required. Please check fabric care
labels to prevent damage.
Cycle Se ings
For best results
Follow the fabric care label instructions
on items to be dried.
Appropriate drying Temperature, Dryness Level and
Options will automatically be displayed for each cycle.
The settings can be changed before the cycle is started.
If changes are attempted after the cycle starts, the lights
will blink, the signal will beep and "Err" will be displayed.
Drying Temperature
To change the preset temperature, press the Temperature
button to scroll to the desired setting.
To protect your fabrics, not all temperatures are available
with every cycle.
The temperature selected for the cycle will be remembered
and recalled each time that cycle is selected in the future. To
return to factory settings, press the Start/Pause and Select
buttons at the same time and hold until the signal sounds.
To change the Temperature after the cycle starts, press
Start/Pause, adjust the setting and press Start/Pause to
Sanitize
Recommended for durable fabrics and towels.
The Sanitize option has been certified by NSF
International ®, an independent third-party testing and
certification organization dedicated to public health,
safety and environmental protection.
NSF Protolcol P154
Sanitization Performance of
Residential Clothes Dryers
This option will kill 99.9% of bacteria with no carryover of
bacteria between loads. A higher temperatures is required,
Please check fabric care labels to prevent damage.
High
Recommended for most cotton fabrics.
Medium
Recommended for wrinkle free, easy care, lightweight
fabrics and bulky loads.
Low
Recommended for delicate fabrics.
Air Fluff/No Heat
This setting (no heat) should only be used with a Timed
Dry cycle to dry items containing feathers, down, foam
rubber, plastics or rubber-like materials; to refresh clothing,
stuffed animal, pillows or blankets; and to dust draperies.
ToweLs/Bedding
Heavy (_
Normal
Casual
Quick
De[icates _
Timed Dry
@ _ Sanitize
@ High More Dry
@ Medium Normal @ Shrink Guard CycLe Status
@ Low Less Dry Extended TumbLe Drying
Cool Down
® Air FLuff/ @ Damp Dry @ Signa_ VoLume @ Extended Tumble
No Heat
Temperature Dryness Options _ Start/Pause
This manual covers many models and not all cycles, options, or features listed are available
on every model. Console shown above for reference only. Your model may differ.
Cycle Settings, continued

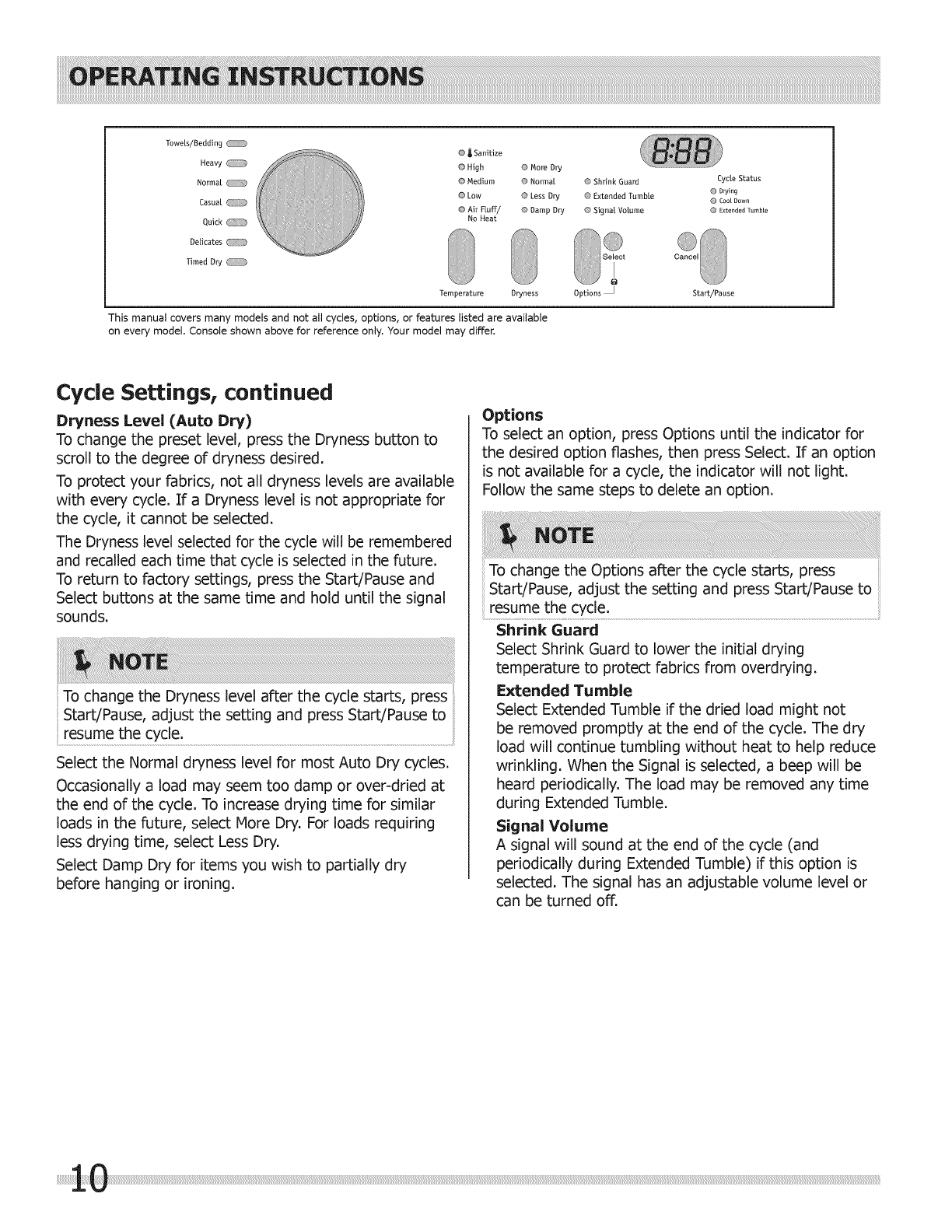

Dryness Level (Auto Dry)
To change the preset level, press the Dryness button to
scroll to the degree of dryness desired.
To protect your fabrics, not all dryness levels are available
with every cycle. If a Dryness level is not appropriate for
the cycle, it cannot be selected.
The Dryness level selected for the cycle will be remembered
and recalled each time that cycle is selected in the future.
To return to factory settings, press the Start/Pause and
Select buttons at the same time and hold until the signa!
sounds.
To change the Dryness level after the cycle starts, press
Start/Pause, adjust the setting and press Start/Pause to
resume the cycle.
Select the Normal dryness level for most Auto Dry cycles.
Occasionally a load may seem too damp or over-dried at
the end of the cycle. To increase drying time for similar
loads in the future, select More Dry. For loads requiring
less drying time, select Less Dry.
Select Damp Dry for items you wish to partially dry
before hanging or ironing.
Options
To select an option, press Options until the indicator for
the desired option flashes, then press Select. If an option
is not available for a cycle, the indicator will not light.
Follow the same steps to delete an option.
To change the Options after the cycle starts, press
Start/Pause, adjust the setting and press Start/Pause to
resume the cycle.
Shrink Guard
Select Shrink Guard to lower the initial drying
temperature to protect fabrics from overdrying.
Extended Tumble
Select Extended Tumble if the dried load might not
be removed promptly at the end of the cycle. The dry
load will continue tumbling without heat to help reduce
wrinkling. When the Signal is selected, a beep will be
heard periodically. The load may be removed any time
during Extended Tumble.
Signal Volume
A signal will sound at the end of the cycle (and
periodically during Extended Tumble) if this option is
selected. The signal has an adjustable volume level or
can be turned off.

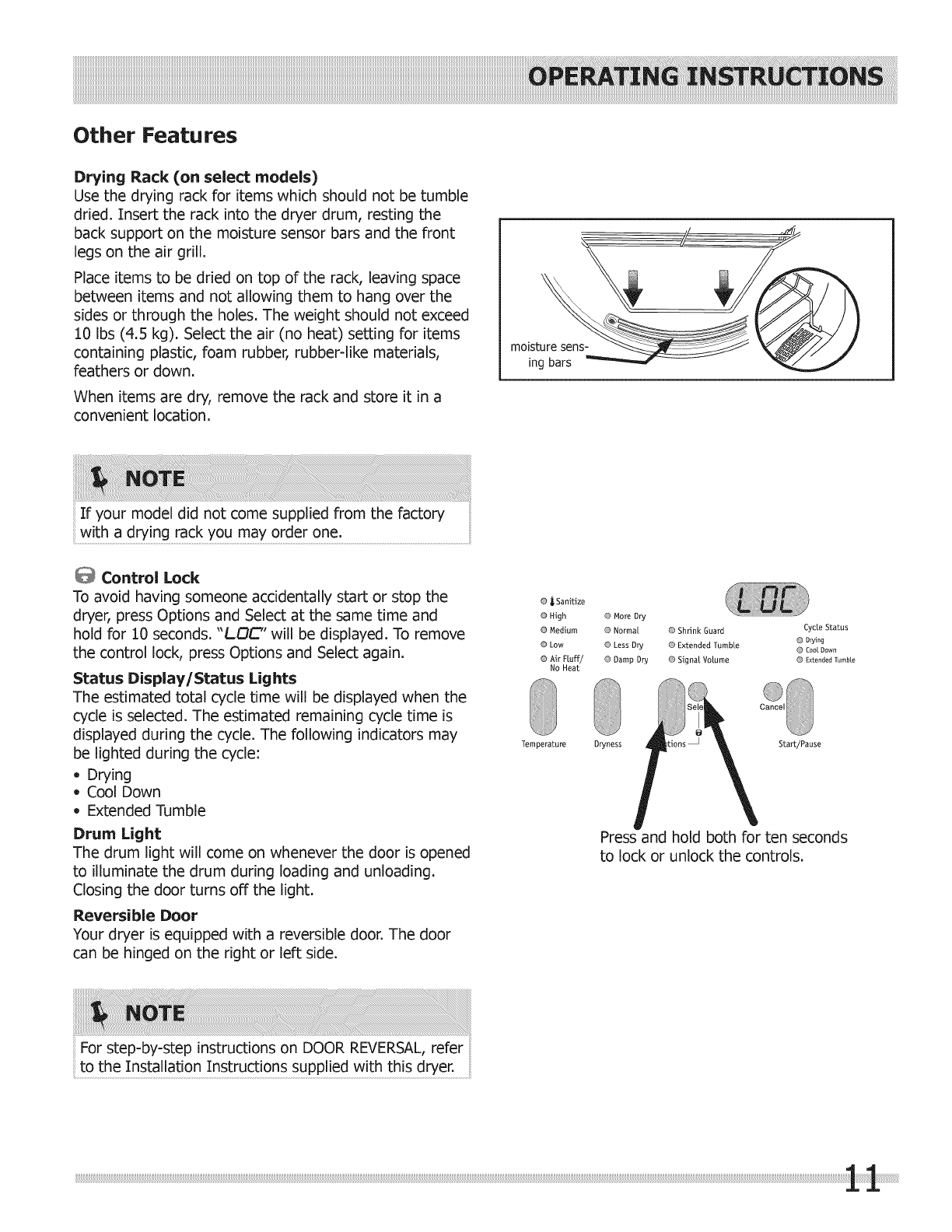

Other Features
Drying Rack (on select models)
Use the drying rack for items which should not be tumble
dried. Insert the rack into the dryer drum, resting the
back support on the moisture sensor bars and the front
legs on the air grill.
Place items to be dried on top of the rack, leaving space
between items and not allowing them to hang over the
sides or through the holes. The weight should not exceed
10 Ibs (4.5 kg). Select the air (no heat) setting for items
containing plastic, foam rubber, rubber-like materials,
feathers or down.
When items are dry, remove the rack and store it in a
convenient location.
If your model did not come supplied from the factory
with a drying rack you may order one.
ii
moisture sens-
ing bars
0Control Lock
To avoid having someone accidentally start or stop the
dryer, press Options and Select at the same time and
hold for 10 seconds. "LQC' will be displayed. To remove
the control lock, press Options and Select again.
Status Display/Status Lights
The estimated total cycle time will be displayed when the
cycle is selected. The estimated remaining cycle time is
displayed during the cycle. The following indicators may
be lighted during the cycle:
,, Drying
- Cool Down
- Extended Tumble
Drum Light
The drum light will come on whenever the door is opened
to illuminate the drum during loading and unloading.
Closing the door turns off the light.
Reversible Door
Your dryer is equipped with a reversible door. The door
can be hinged on the right or left side.
0 _ Sanitize
0 High @More Dry
0Medium @Normal
0LOW @LessDry
0 Air Fluff/ @Damp Dry
No Heat
Temperature Dryness
©Shrink Guard Cycle Status
OExtended Tumble O gr_ng
O Coo[Down
O SignaL Volume O Extended Tumbte
Start/Pause
Press and hold both for ten seconds
to lock or unlock the controls.
For step-by-step instructions on DOOR REVERSAL, refer
to the Installation Instructions supplied with this dryer.

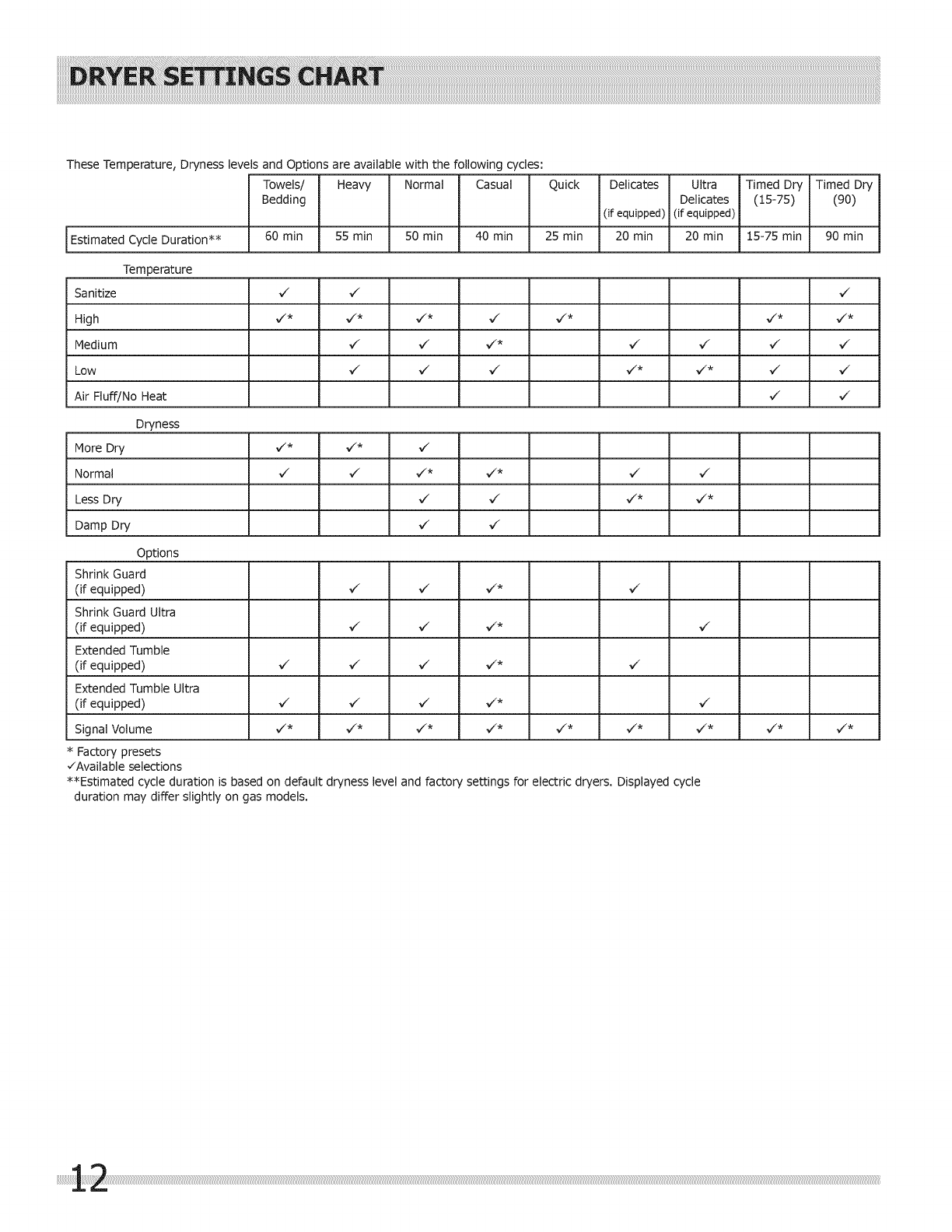

These Temperature, Drynesslevels and Options are available with the following cycles:
Towels/ Heavy Normal Casual Quick Delicates Ultra Timed Dry Timed Dry
Bedding Delicates (15-75) (90)
(if equipped) (if equipped)
Estimated CycleDuration** 60 min 55 min 50 min 40 min 25 min 20 min 20 min 15-75 min 90 min
Temperature
v" v" v"
v'* v'* v'* v" v'* v'* v'*
v" v" v'* v" v" v" v"
v" v" v" v'* v'* v" v"
v" v"
v'* v'* v"
v" v" v'* v'* v" v"
v" v" v'* v'*
v" v"
v" v" v'* v"
v" v" v'* v"
v" v" v" v'* v"
v" v" v" v'* v"
v'* v'* v'* v'* v'* v'* v'* v'* v'*
Sanitize
High
Medium
Low
Air Fluff/No Heat
Dryness
More Dry
Normal
Less Dry
Damp Dry
Options
Shrink Guard
(if equipped)
Shrink Guard Ultra
(if equipped)
Extended Tumble
(if equipped)
Extended Tumble Ultra
(if equipped)
Signal Volume
* Factory presets
,/Available selections
**Estimated cycle duration is based on default dryness level and factory settings for electric dryers. Displayed cycle
duration may differ slightly on gas models.

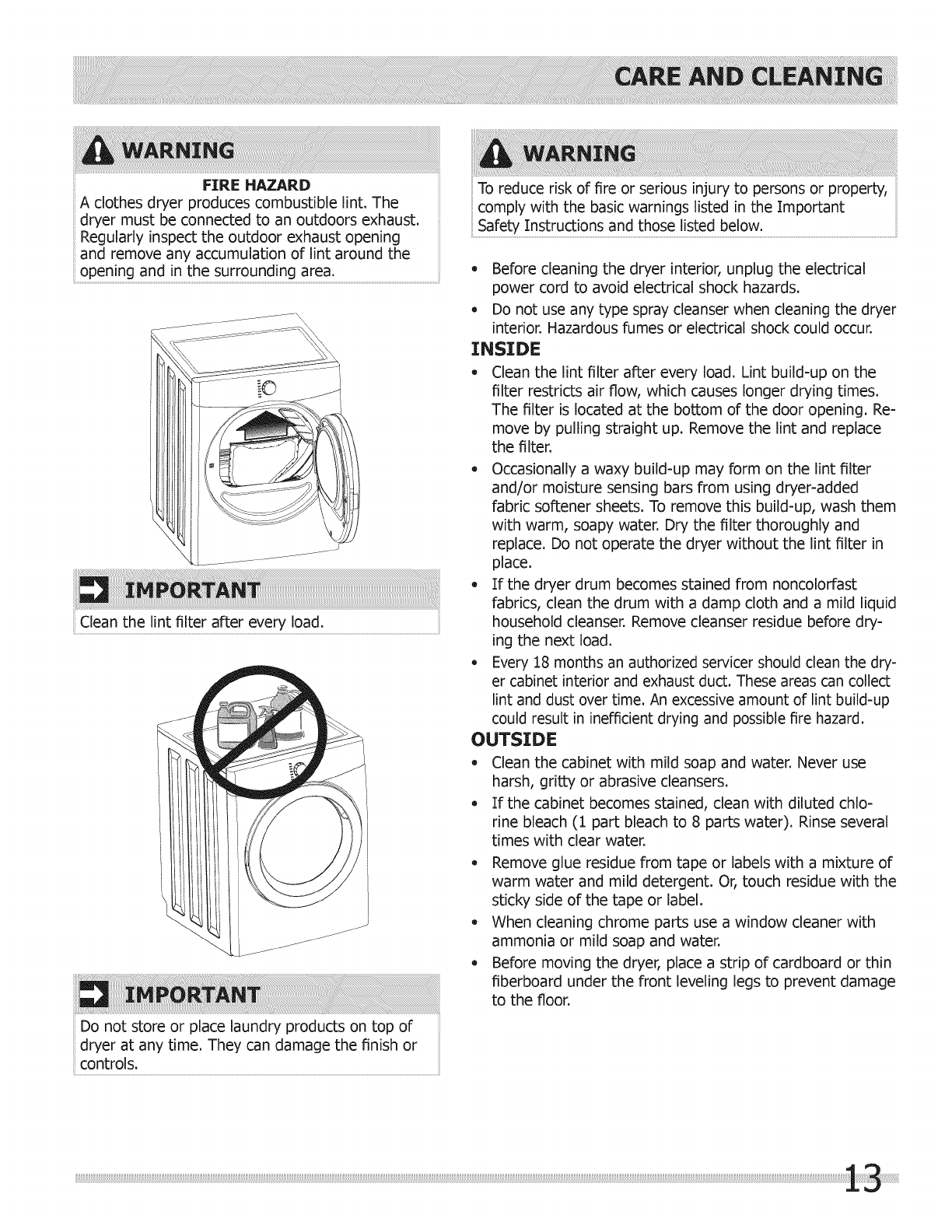

FIRE HAZARD
A clothes dryer produces combustible lint. The
dryer must be connected to an outdoors exhaust.
Regularly inspect the outdoor exhaust opening
and remove any accumulation of lint around the
open!ng and in Lhesurr°unding area: ...........................................................................................
Clean the lint filter after every load.
Do not store or place laundry products on top of
dryer at any time, They can damage the finish or
controls,
To reduce risk of fire or serious injury to persons or property,
comply with the basic warnings listed in the Important
0ose tisted below: .........................................................................................................................
- Before cleaning the dryer interior, unplug the electrical
power cord to avoid electrical shock hazards.
• Do not use any type spray cleanser when cleaning the dryer
interior. Hazardous fumes or electrical shock could occur.
INSIDE
o Clean the lint filter after every load. Lint build-up on the
filter restricts air flow, which causes longer drying times.
The filter is located at the bottom of the door opening. Re-
move by pulling straight up. Remove the lint and replace
the filter.
Occasionally a waxy build-up may form on the lint filter
and/or moisture sensing bars from using dryer-added
fabric softener sheets. To remove this build-up, wash them
with warm, soapy water. Dry the filter thoroughly and
replace. Do not operate the dryer without the lint filter in
place.
If the dryer drum becomes stained from noncolorfast
fabrics, clean the drum with a damp cloth and a mild liquid
household cleanser. Remove cleanser residue before dry-
ing the next load.
Every 18 months an authorized servicer should clean the dry-
er cabinet interior and exhaust duct. These areas can collect
lint and dust over time. An excessive amount of lint build-up
could result in inefficient drying and possible fire hazard.
OUTSIDE
Clean the cabinet with mild soap and water. Never use
harsh, gritty or abrasive cleansers.
If the cabinet becomes stained, clean with diluted chlo-
rine bleach (1 part bleach to 8 parts water). Rinse several
times with clear water.
Remove glue residue from tape or labels with a mixture of
warm water and mild detergent. Or, touch residue with the
sticky side of the tape or label.
When cleaning chrome parts use a window cleaner with
ammonia or mild soap and water.
Before moving the dryer, place a strip of cardboard or thin
fiberboard under the front leveling legs to prevent damage
to the floor.
Common Drying Problems
Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and scum, and fabric
damage. For satisfactory drying results, follow these suggestions provided by The Soap and Detergent Association.
PROBLEM
Greasy, oily
stains
Lint
Pilling
(Fibers break
off, bail up and
cling to fabric.)
Shrinking
Wrinkling
POSSIBLE CAUSES PREVENTIVE MEASURES
• Fabricsoftener sheet.
* Overloading.
. Overdrying causes static
electricity.
* Lint screen not clean when
cycle began.
. Lint is attached to "pills."
. Overdrying.
SOLUTIONS
• Rub fabric softener stains with •
bar soap. Rinse and rewash.
®
®
®
• Reduce load size and rewash •
using liquid fabric softener in the *
final rinse.
• Or, add a fabric softener sheet •
and tumble without heat.
• Use lint brush or roller to remove *
lint.
• Use a lint brush or shaver to •
remove pills.
®
• Temperature too high. • Irreversible condition. •
• Overdrying.
• Overloading.
• Leaving items in dryer after
cycle ends.
• Reduce load size and tumble at
medium or low heat for 5-10
minutes.
• Remove items immediately. Hang
or fold.
Add a few bath towels to small loads
for proper tumbling.
Some "silk-like" fabrics should be air
dried.
Use proper drying temperature.
Place fabric softener sheet on top of
load before starting the dryer.
Do not overload dryer.
Use fabric softener in washer or dryer
to reduce static electricity.
Remove items when they are slightly
damp to avoid overdrying.
Check that lint filter is clean and in
place.
Use fabric softener to lubricate fibers.
When ironing, use spray starch or
fabric finish on collars and cuffs.
Turn items inside out to reduce abra-
sion.
Follow fabric care label directions.
If shrinking is a concern, check load
often.
• Remove items while slightly damp and
hang or lay flat to complete drying.
• Block knits into shape.
• Do not overload dryer.
• Remove items as soon as cycle ends.

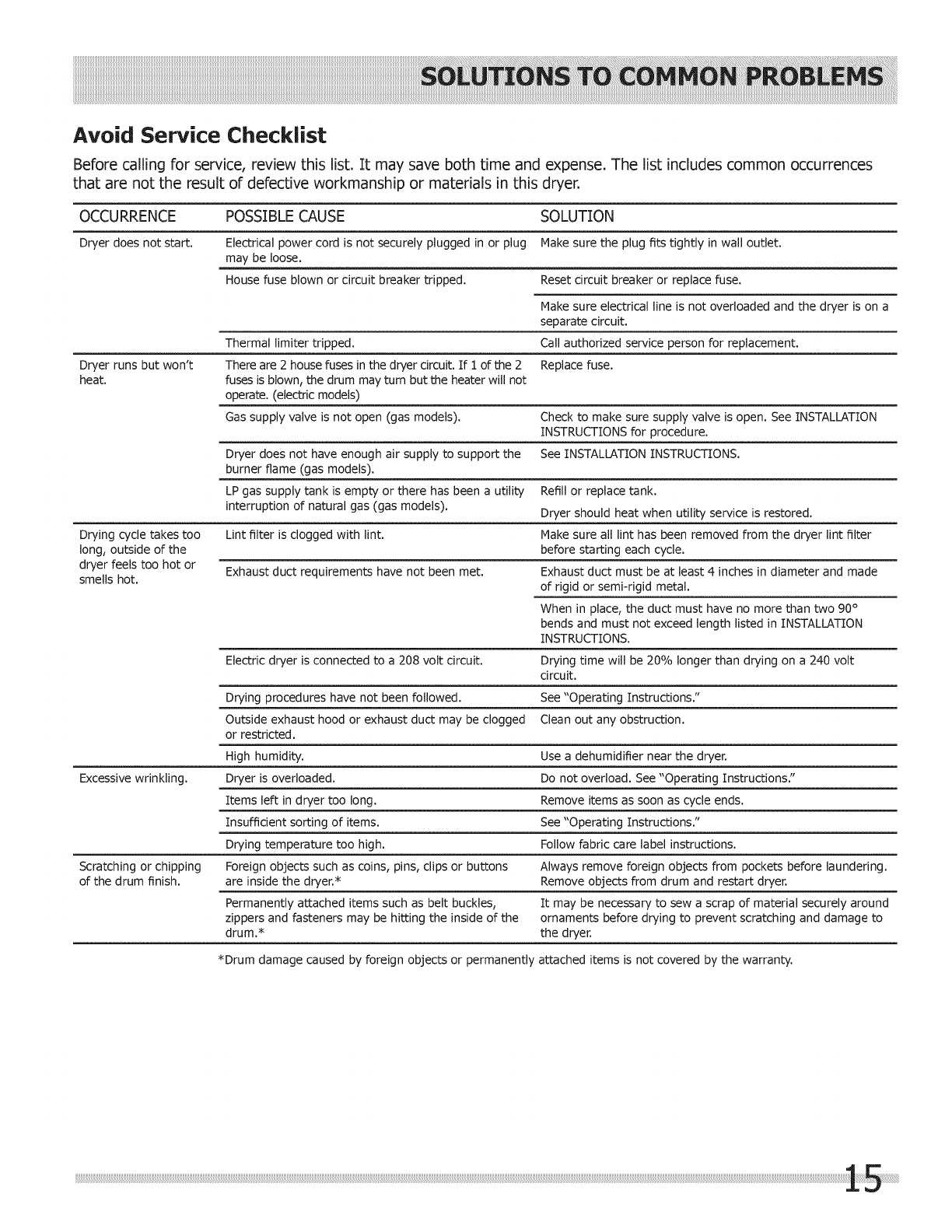

Avoid Service Checklist
Before calling for service, review this list. It may save both time and expense. The list includes common occurrences
that are not the result of defective workmanship or materials in this dryer.
OCCURRENCE POSSIBLE CAUSE SOLUTION
Dryer does not start. Electrical power cord is not securely plugged in or plug Make sure the plug fits tightly in wall outlet.
may be loose.
House fuse blown or circuit breaker tripped. Reset circuit breaker or replace fuse.
Make sure electrical line is not overloaded and the dryer is on a
separate circuit.
Call authorized service person for replacement.
Replace fuse.
Thermal limiter tripped.
Dryer runs but won't There are 2 house fuses in the dryer circuit. If i of the 2
heat. fuses is blown, the drum may turn but the heater will not
operate. (electric models)
Gas supply valve is not open (gas models). Check to make sure supply valve is open. See INSTALLATION
INSTRUCTIONS for procedure.
Dryer does not have enough air supply to support the See INSTALLATION INSTRUCTIONS.
burner flame (gas models).
LP gas supply tank is empty or there has been a utility Refill or replace tank.
interruption of natural gas (gas models). Dryer should heat when utility service is restored.
Drying cycle takes too Lint filter is clogged with lint. Make sure all lint has been removed from the dryer lint filter
long, outside of the before starting each cycle.
dryer feels too hot or Exhaust duct requirements have not been met. Exhaust duct must be at least 4 inches in diameter and made
smells hot. of rigid or semi-rigid metal.
Electric dryer is connected to a 208 volt circuit.
Drying procedures have not been followed.
Outside exhaust hood or exhaust duct may be clogged
or restricted.
High humidity.
Excessive wrinkling. Dryer is overloaded.
Items left in dryer too long.
Insufficient sorting of items.
Drying temperature too high.
Scratching or chipping Foreign objects such as coins, pins, clips or buttons
of the drum finish, are inside the dryer.*
Permanently attached items such as belt buckles,
zippers and fasteners may be hitting the inside of the
drum.*
When in place, the duct must have no more than two 90 °
bends and must not exceed length listed in INSTALLATION
INSTRUCTIONS.
Drying time will be 20% longer than drying on a 240 volt
circuit.
See "Operating Instructions."
Clean out any obstruction.
*Drum damage caused by foreign objects or permanently
Use a dehumidifier near the dryer.
Do not overload. See "Operating Instructions."
Remove items as soon as cycle ends.
See "Operating Instructions."
Follow fabric care label instructions.
Always remove foreign objects from pockets before laundering.
Remove objects from drum and restart dryer.
It may be necessary to sew a scrap of material securely around
ornaments before drying to prevent scratching and damage to
the dryer.
attached items is not covered by the warranty.

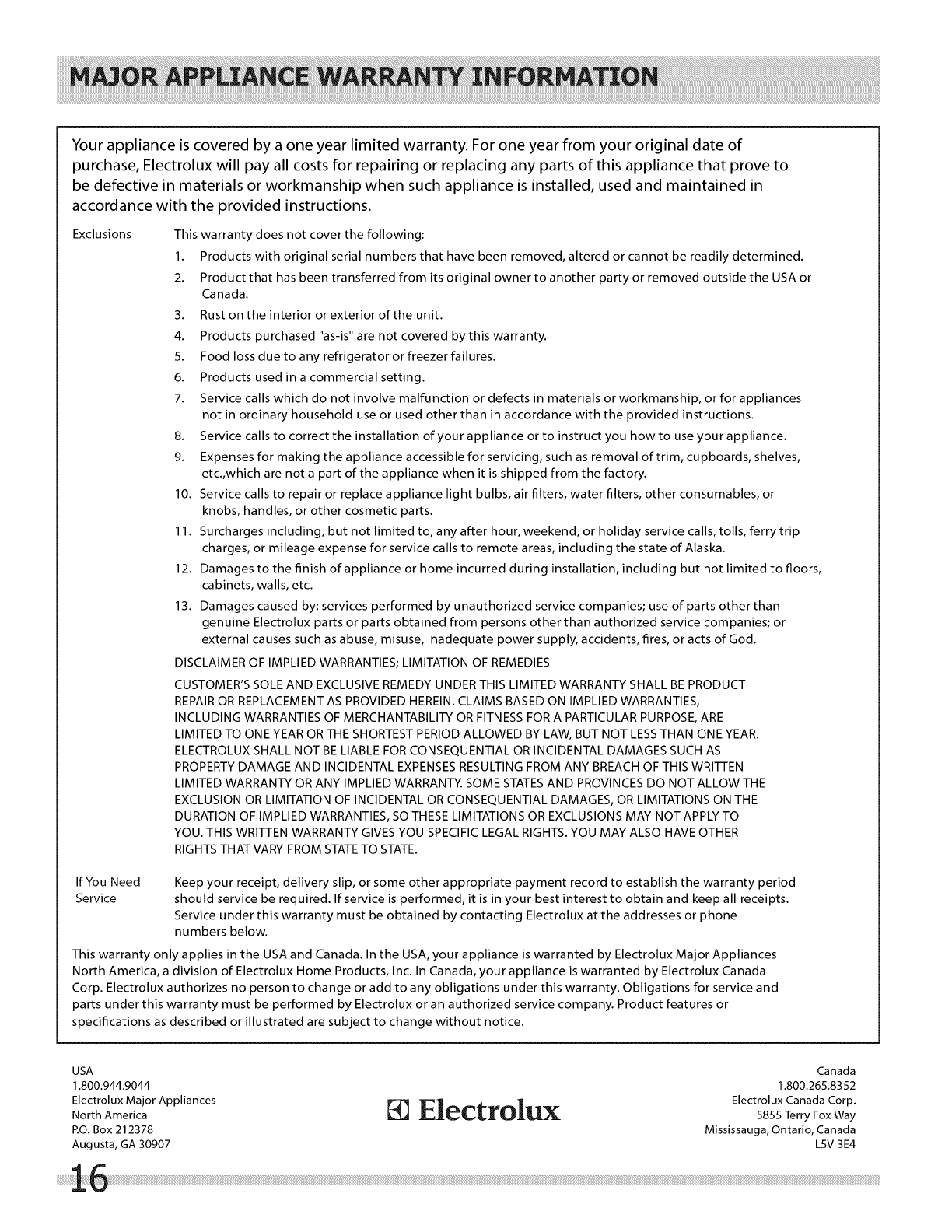

Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIROR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRI-I-i-EN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATESAND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATETO STATE.
If You Need
Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA Canada
1.800.944.9044 1.800.265.8352
Electrolux Major Appliances Electrolux Electrolux Canada Corp.
North America 5855 Terry Fox Way
RO. Box 212378 Mississauga, Ontario, Canada
Augusta, GA 30907 L5V 3E4
