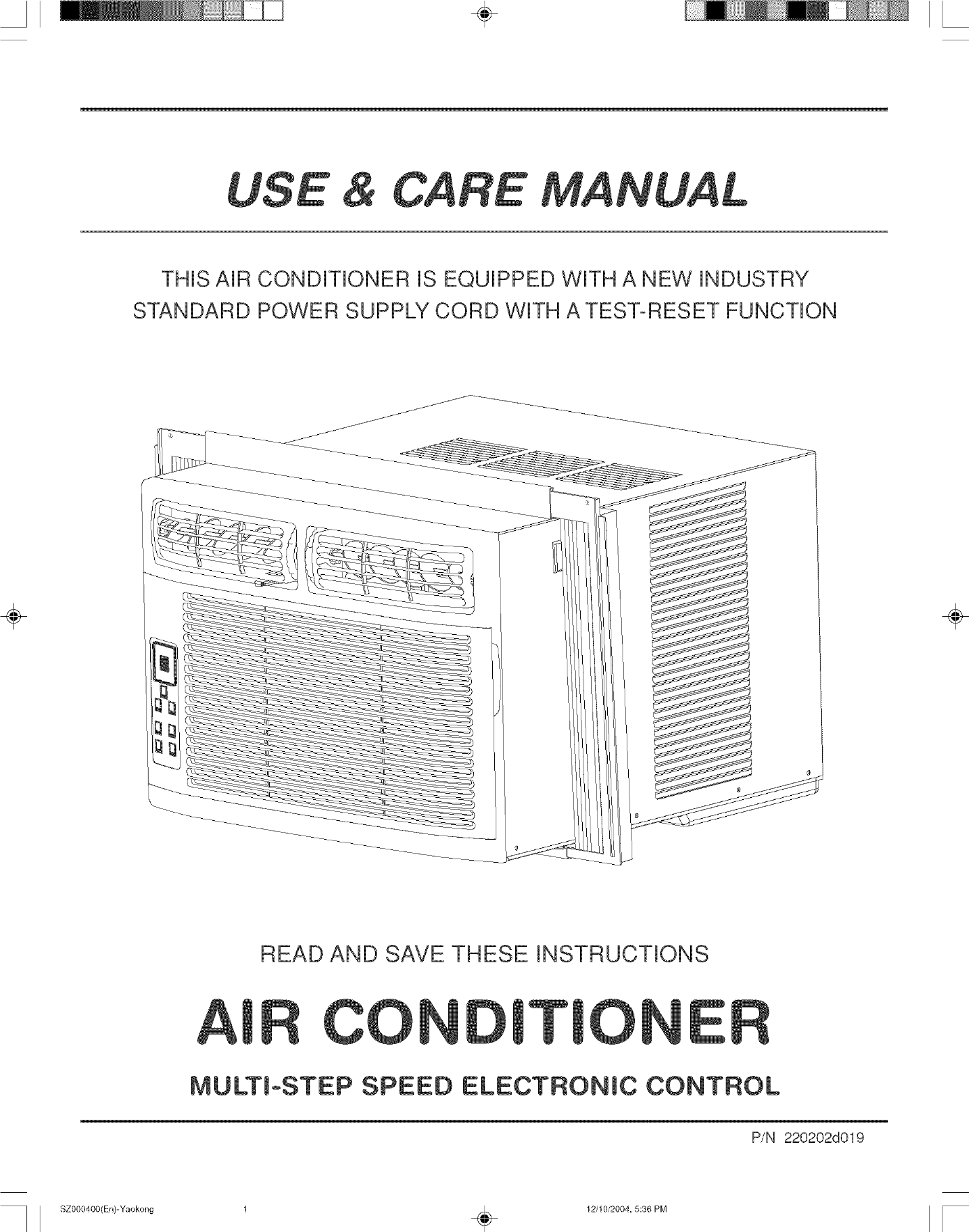

THIS AIR CONDITIONER IS EQUIPPED WITH A NEW INDUSTRY
STANDARD POWER SUPPLY CORD WITH A TEST-RESET FUNCTION
÷ ÷
READ AND SAVE THESE INSTRUCTIONS
MULTi-STEP SPEED ELECTRONIC CONTROL
P/N 220202d019
SZ000400(En)-Yaokong 1 _ 12/10/2004, 5:36 PM

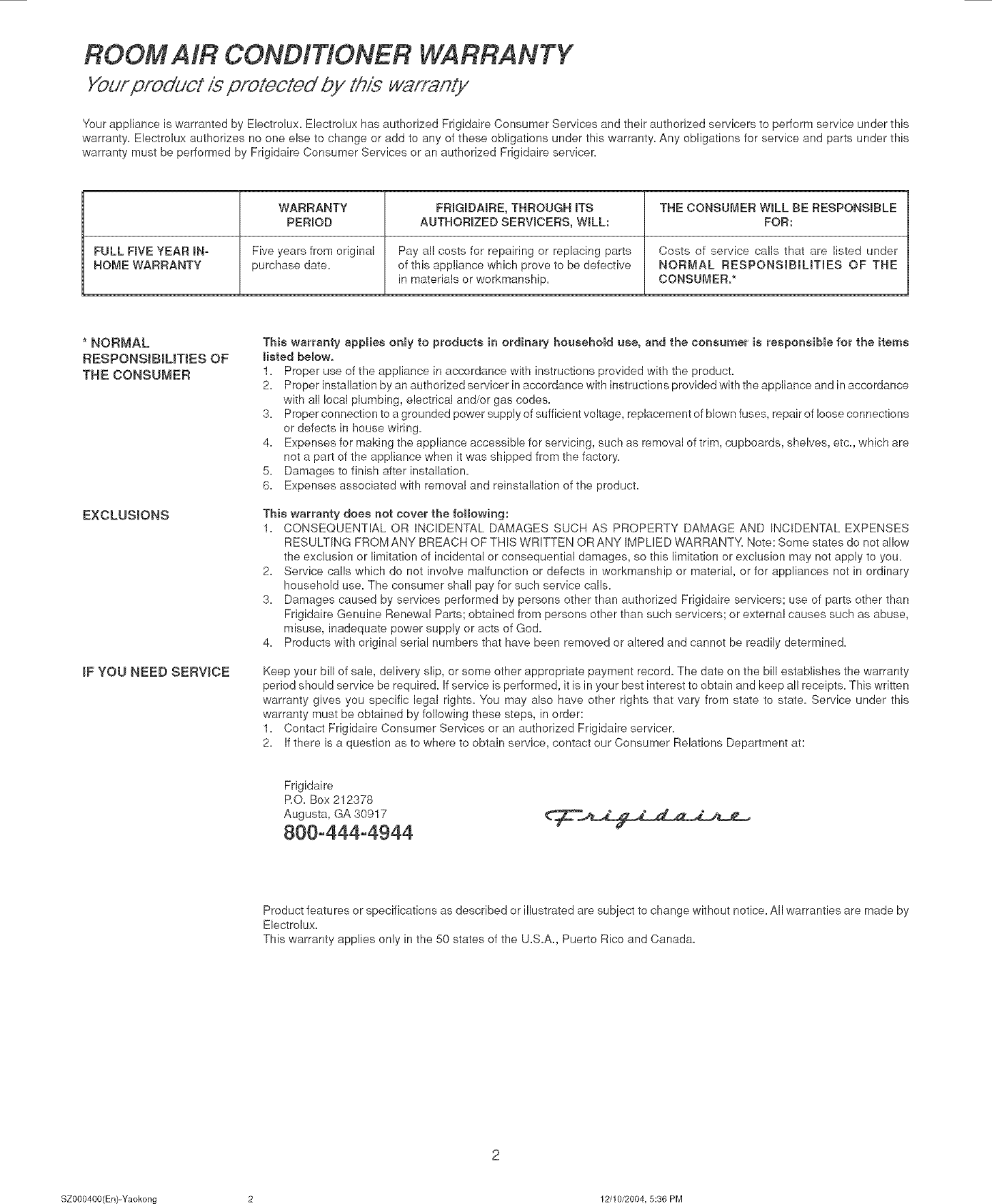

ROOM AIR CONDITIONER WARRANTY
Yourproduot is proteoted by this warranty
Your appliance is warranted by Electrolux. Electrolux has authorized Frigidaire Consumer Services and their authorized servicers to perform service under this
warranty. Electrolux authorizes no one else to change or add to any of these obligations under this warranty. Any obligations for service and parts under this
warranty must be performed by Frigidaire Consumer Services or an authorized Frigidaire servicer.
WARRANTY FRIGIDAIRE, THROUGH ITS THE CONSUMER WmLL BE RESPONSIBLE
PERIOD AUTHORIZED SERVICERS, WmLL: FOR:
FULL FIVE YEAR IN- Five years from original Pay all costs for repairing or replacing parts Costs of service calls that are listed under
HOME WARRANTY purchase date. of this appliance which prove to be defective NORMAL RESPONSIBILITIES OF THE
in materials or workmanship. CONSUMER.*
* NORMAL
RESPONSiBILITiES OF
THE CONSUMER
EXCLUSIONS
IF YOU NEED SERVICE
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below.
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in accordance
with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections
or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are
not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
8. Expenses associated with removal and reinstallation of the product.
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow
the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by persons other than authorized Frigidaire servicers; use of parts other than
Frigidaire Genuine Renewal Parts; obtained from persons other than such servicers; or external causes such as abuse,
misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty
period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written
warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under this
warranty must be obtained by following these steps, in order:
1. Contact Frigidaire Consumer Services or an authorized Frigidaire seR4cer.
2. If there is a question as to where to obtain service, contact our Consumer Relations Department at:
Frigidaire
RO. Box 212378
Augusta, GA 30917
800°444°4944
Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by
Electrolux.
This warranty applies only in the 50 states of the U.S.A., Puerto Rico and Canada.
SZ000400(En)-Yaokong 2 12/10/2004, 5:36 PM

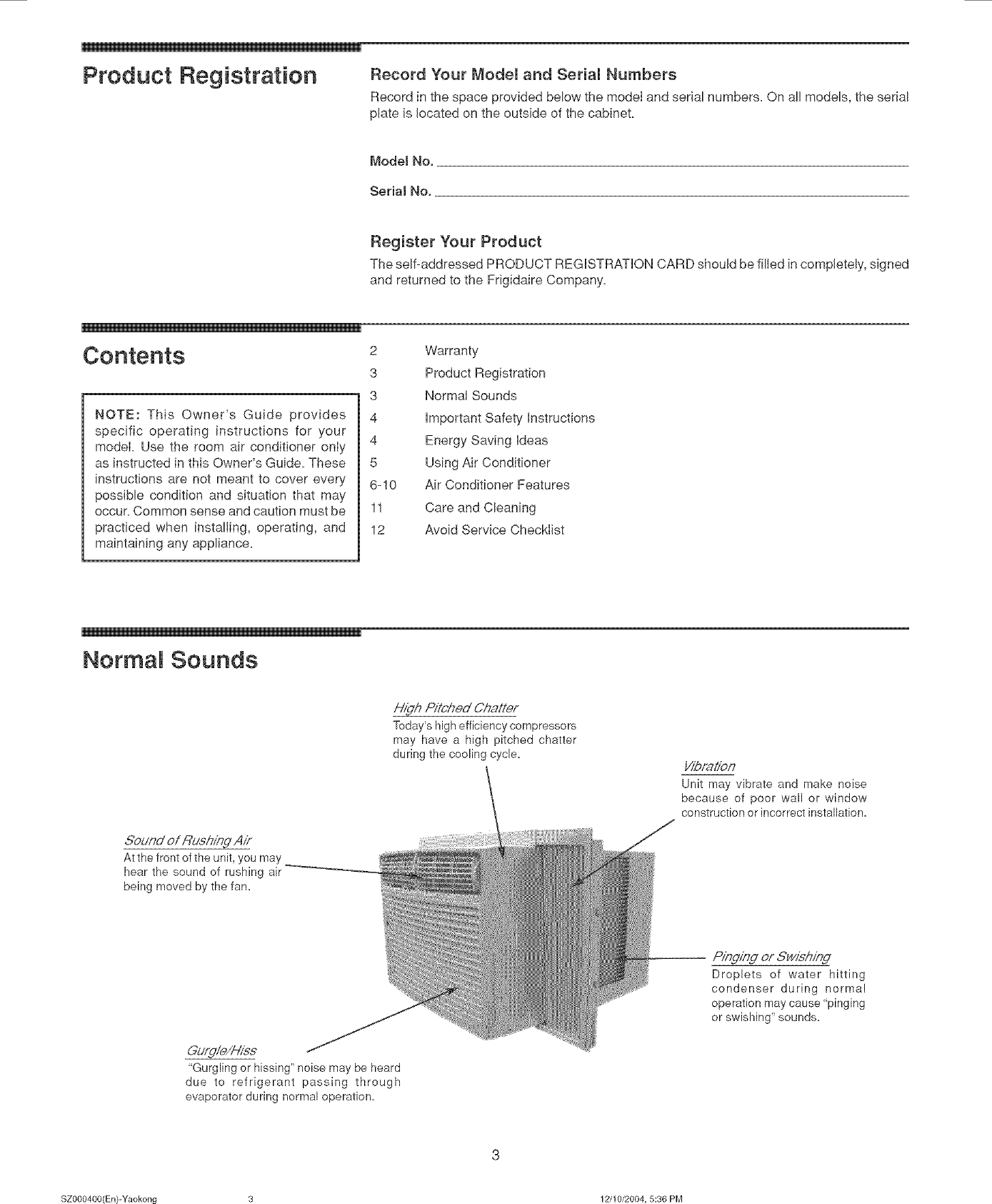

Product Registration Record Your Model and Serial Numbers
Record in the space provided below the model and serial numbers. On all models, the serial
plate is located on the outside of the cabinet.
Model No.
Serial No.
Register Your Product
The self-addressed PRODUCT REGISTRATION CARD should be filled in completely, signed
and returned to the Frigidaire Company.
Contents
NOTE: This Owner's Guide provides
specific operating instructions for your
model Use the room air conditioner onIy
as instructed in this Owner's Guide. These
instructions are not meant to cover every
possible condition and situation that may
occur. Common sense and caution must be
practiced when installing, operating, and
maintaining any appliance.
2 Warranty
3 Product Registration
3 Normai Sounds
4 Important Safety Instructions
4 Energy Saving Ideas
5 Using Air Conditioner
6-10 Air Conditioner Features
11 Care and Cleaning
12 Avoid Service Checklist
Norma Sounds
Hidh P/:fchedChatter
Todays high efficiency compressors
may have a high pitched chatter
during the cooling cycle,
8eund of F/ush/nd A/?
At the front of the unit, you may
hear the sound of rushing air
being moved by the fan,
Gurd/eA/-/hs
"Gurgling or hissing' noise may be heard
due to refrigerant passing through
evaporator during normal operation,
Vibration
Unit may vibrate and make noise
because of poor wall or window
construction or incorrect installation,
P/k_d/bg or Swhhing
Droplets of water hitting
condenser during normal
operation may cause "pinging
or swishing" sounds,
SZ000400(En)-Yaokong 3 12/10/2004, 5:36 PM

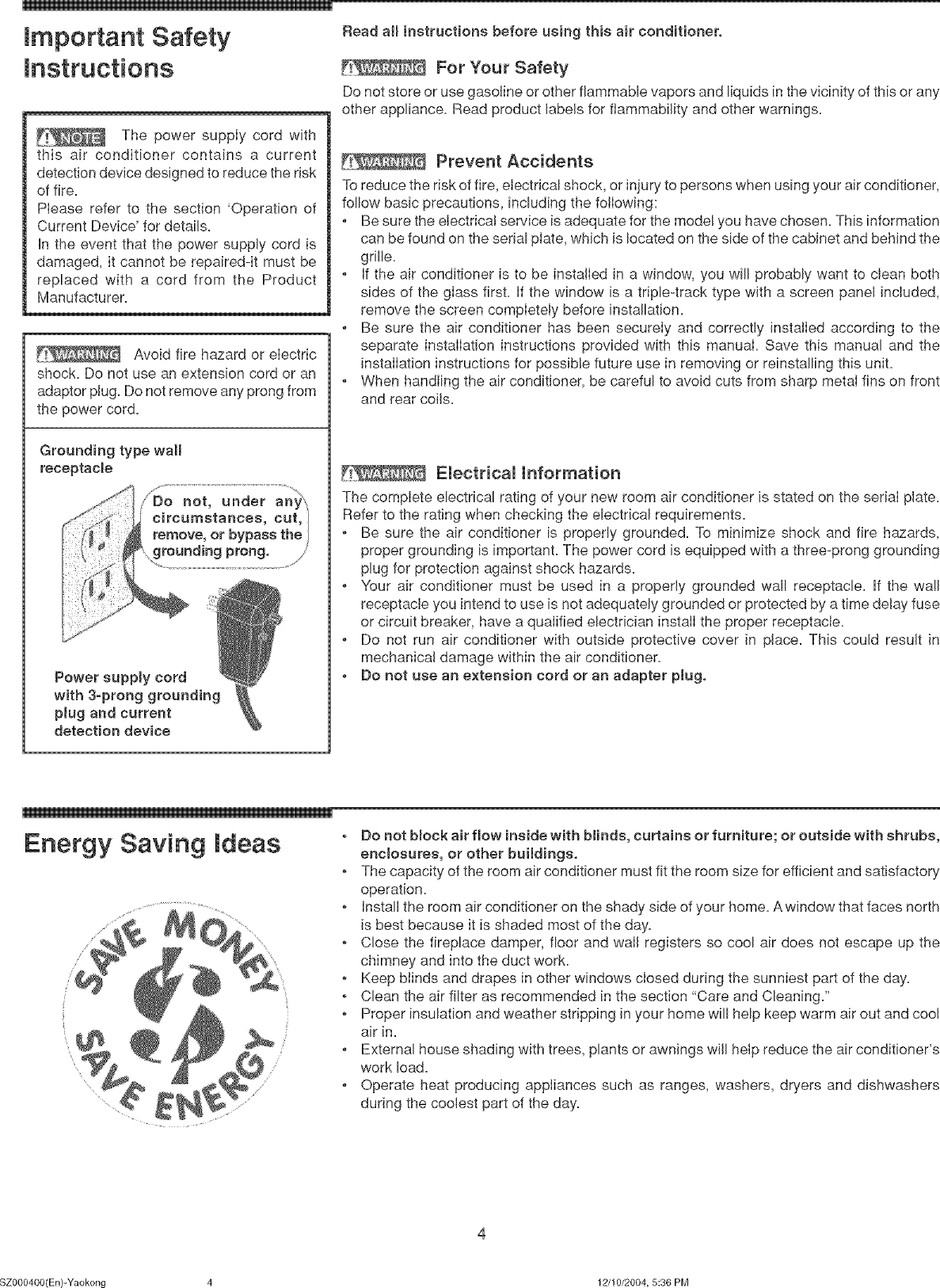

Important Safety
Instructions
The power supply cord with
this air conditioner contains a current
detection device designed to reduce the risk
of fire.
Please refer to the section 'Operation of
Current Device' for details.
In the event that the power supply cord is
damaged, it cannot be repaired-it must be
replaced with a cord from the Product
Manufacturer.
Avoid fire hazard or electric
shock. Do not use an extension cord or an
adaptor plug. Do not remove any prong from
the power cord.
Grounding type wall
receptacle
_S
Power supply cord
with 3=prong grounding
plug and current
detection device
Read aiminstructions before using this air conditioner.
For Your Safety
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance= Read product labels for flammability and other warnings=
Prevent Accidents
To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner,
follow basic precautions, including the following:
Be sure the electrica! service is adequate for the mode! you have chosen. This information
can be found on the serial plate, which is located on the side of the cabinet and behind the
grille.
If the air conditioner is to be installed in a window, you will probably want to clean both
sides of the gIass first= If the window is a triple-track type with a screen panel included,
remove the screen completely before installation.
Be sure the air conditioner has been secureIy and correctly instatIed according to the
separate instaIIation instructions provided with this manual Save this manual and the
instaIIation instructions for possible future use in removing or reinstalling this unit=
When handling the air conditioner, be careful to avoid cuts from sharp metaI fins on front
and rear coils.
Electrical information
The compiete electrical rating of your new room air conditioner is stated on the seriaI plate=
Refer to the rating when checking the electrical requirements=
Be sure the air conditioner is properly grounded= To minimize shock and fire hazards,
proper grounding is important= The power cord is equipped with a three-prong grounding
plug for protection against shock hazards=
Your air conditioner must be used in a properly grounded wall receptacle= If the wall
receptacle you intend to use is not adequately grounded or protected by a time delay fuse
or circuit breaker, have a quaIified electrician instalI the proper receptacle=
Do not run air conditioner with outside protective cover in place= This could result in
mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
Energy Saving Ideas Do not block air flow inside with btinds, curtains or furniture; or outside with shrubs,
enclosures, or other buildings.
The capacity of the room air conditioner must fit the room size for efficient and satisfactory
operation.
Install the room air conditioner on the shady side of your home. A window that faces north
is best because it is shaded most of the day.
Close the fireplace damper, floor and wail registers so cool air does not escape up the
chimney and into the duct work.
Keep blinds and drapes in other windows closed during the sunniest part of the day.
Clean the air filter as recommended in the section "Care and Cleaning."
Proper insulation and weather stripping in your home will help keep warm air out and cool
air in.
External house shading with trees, plants or awnings will help reduce the air conditioner's
work load.
Operate heat producing appliances such as ranges, washers, dryers and dishwashers
during the coolest part of the day.
SZ000400(En)-Yaokong 4 12/10/2004, 5:36 PM
To reduce the risk of fire, electric shock, or injury to persons, read the FMPORTANT
SAFETY INSTRUCTFONS before operating this appliance.

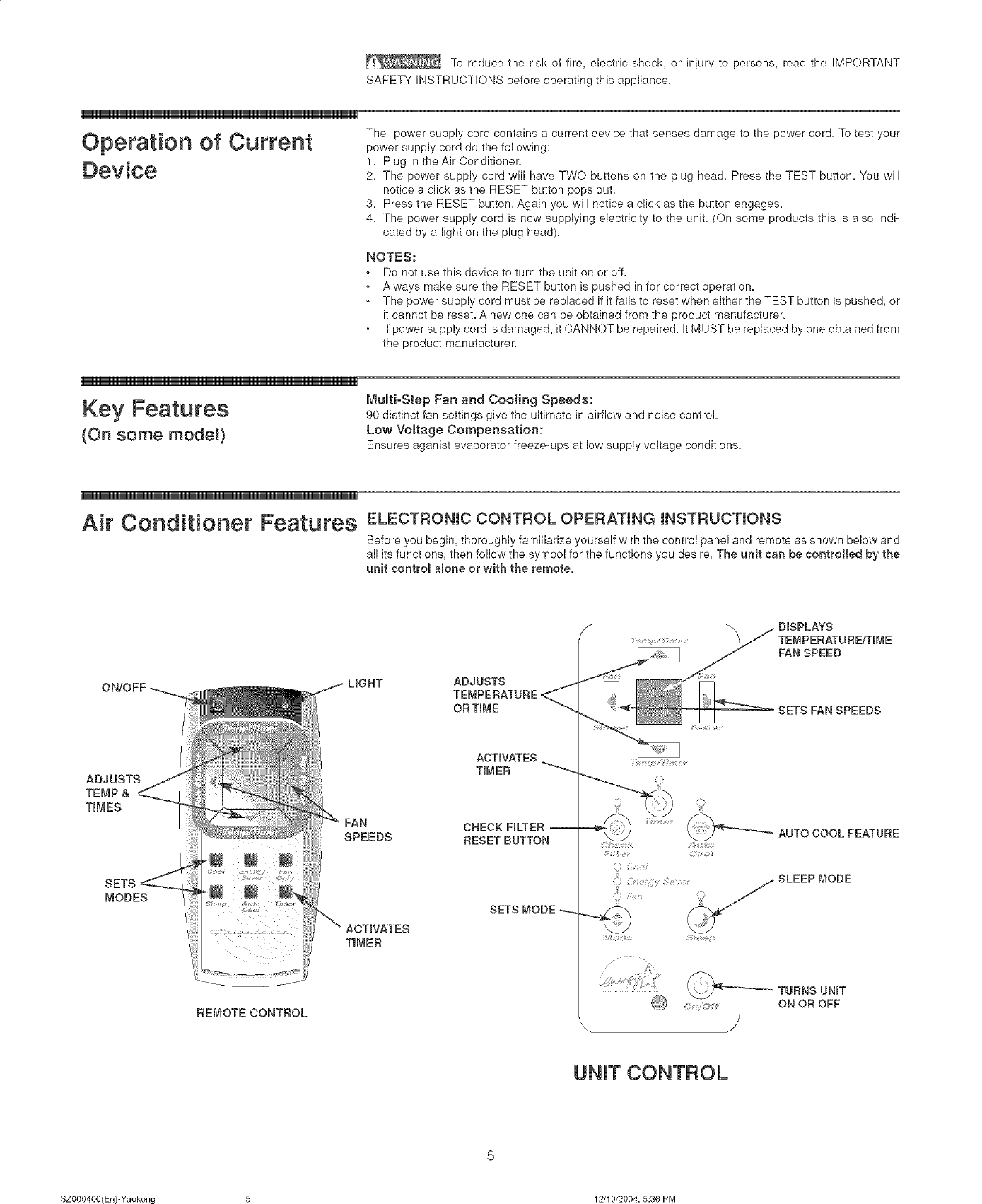

Operation of Current
Device
The power supply cord contains a current device that senses damage to the power cord. To test your
power supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will
notice a click as the RESET button pops out.
3. Press the RESET button. Again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this is also indi-
cated by a light on the plug head).
NOTES:
Do not use this device to turn the unit on or offi
• Always make sure the RESET button is pushed in for correct operation.
• The power supply cord must be replaced if it fails to reset when either the TEST button is pushed, or
it cannot be reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it CANNOT be repaired. FtMUST be replaced by one obtained from
the product manufacturer.
Key Features
(On some mode0
MumtFStep Fan and Cooming Speeds:
90 distinct fan settings give the ultimate in airflow and noise control,
Low VoBtage Compensation:
Ensures aganist evaporator freeze-ups at low supply voltage conditions,
Air Conditioner Features ELEOTRONmC CONTROL OPERATmNG INSTRUCTIONS
Before you begin, thoroughly familiarize yourself with the control panel and remote as shown below and
all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the
unit contro_ a_one or with the remote.
ON/OFF
ADJUSTS
TEMP &
TmMES
SETS
MODES
REMOTE CONTROL
UGHT ADJUSTS
TEMPERATURE <
ORTIME
ACTIVATES
TIMER
FAN CHECK FI_ER--
SPEEDS RESET BUTTON
ACTIVATES
TIMER
SETS MODE
D_SPLAYS
TEMPERATUREf'DME
FAN SPEED
SETS FAN SPEEDS
AUTO COOL FEATURE
SLEEP MODE
TURNS UNiT
ON OR OFF
UNiT CONTROL
SZ000400(En)-Yaokong 5 12/10/2004, 5:36 PM
Air Conditioner Features
(continued)
TO TURN UNIT ON:
F
NOTE: The following instructions represent the Unit Controls, the same
instructions can be used for the Remote Control,
YOU WILL SEE:
TO CHANGE TEMPERATURE
SETTING:
_i__ _'_,_,,_:_,,_i_',___,
© ©
¸
\/
DO THIS:
PRESS TO
RAISE
PRESS TO
LOWER
YOU WILL SEE:
_i;_¸_.......
©
....%_J_ii_ii_i_
l
Note: Tap or hold either up( A ) or down( V ) button until the
desired temperature is seen on the display. This temperature
will be automatically maintained anywhere between 60°F (16°C)
and 90°F (32°C). If you want the display to read the actual
room temperature. See "To Operate on Fan Only" section on
Page 7.
TO ADJUST FAN SPEEDS:
DO THIS:
PRESS TO
SELECT:
FASTER
SLOWER
YOU WILL SEE:
© ©
_' _':_iii!iJ:ili!¸¸ _
\J
A 2 Digit DispIay is used to indicate the Fan Speed setting,
from 10 through 99. When the "SLOWER" button is pressed
the motor speed will slow down at multiple intervals (90 distinct
settings), to a minimum setting of 10. To speed the motor up,
press the "FASTER" button. The speed will increase at multipIe
intervals to a maximum setting of 99. After 5 seconds the control
wilI automatically change back to displaying the set temperature.
SZ000400(En)-Yaokong 6 12/10/2004, 5:36 PM

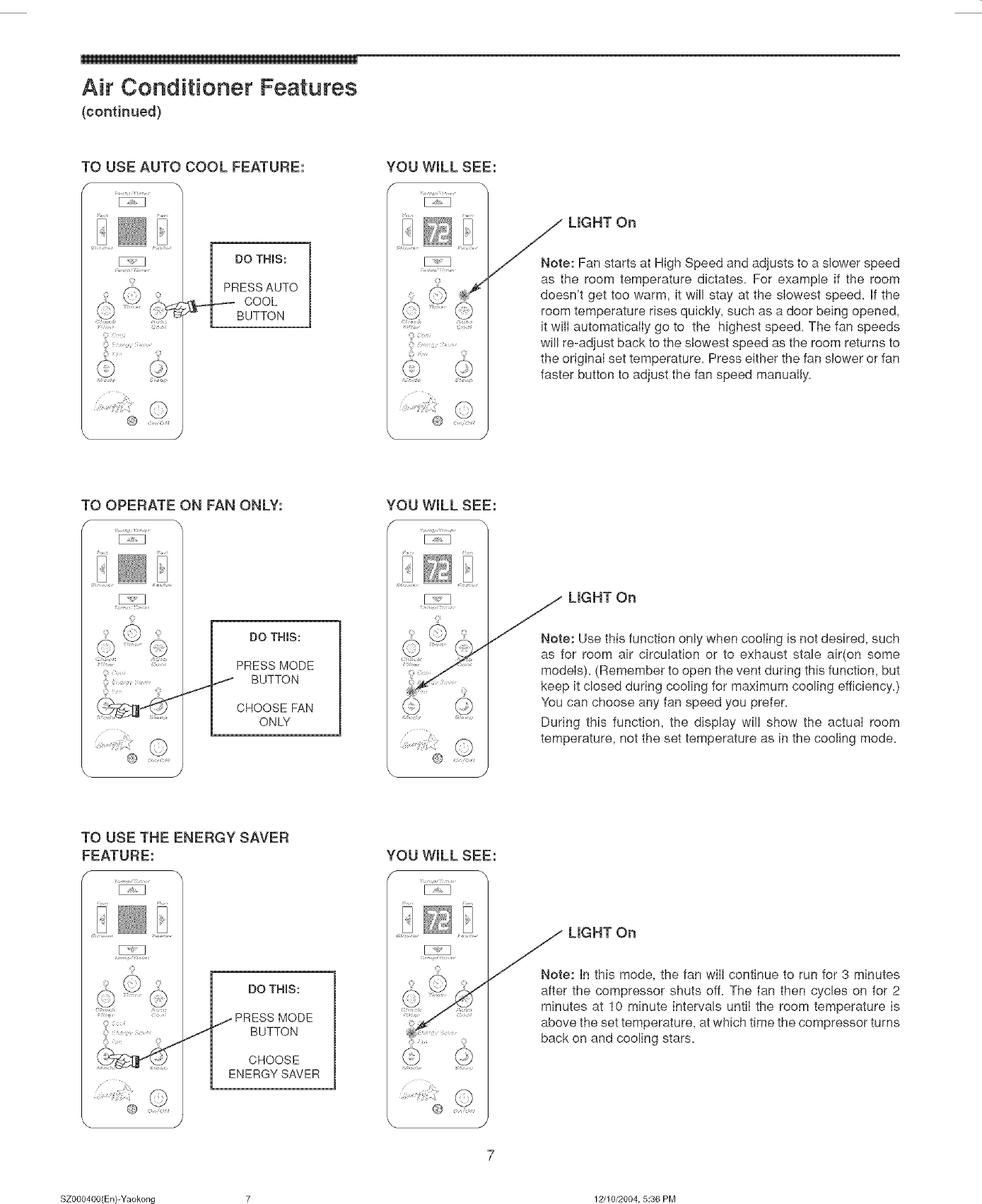

AIr Conditioner Features
(continued)
TO USE AUTO COOL FEATURE:
_ii¸¸_,_- I?
© @
__p RDO THIS:
ESS AUTO
COOL
BUTTON
YOU WILL SEE:
© @
,_'_':i_:!i?ii!!::i¸
//_Not LIGHT On
e: Fan starts at High Speed and adjusts to a slower speed
as the room temperature dictates. For example if the room
doesn't get too warm, it will stay at the slowest speed, if the
room temperature rises quickly, such as a door being opened,
it wi[I automatically go to the highest speed. The fan speeds
will re-adjust back to the slowest speed as the room returns to
the original set temperature. Press either the fan slower or fan
faster button to adjust the fan speed manually.
TO OPERATE ON FAN ONLY:
DO THIS:
PRESS MODE
11 BUTTON
CHOOSE FAN
ONLY
YOU WILL SEE:
LIGHT On
Note: Use this function only when cooling is not desired, such
as for room air circulation or to exhaust stale air(on some
models). (Remember to open the vent during this function, but
keep it closed during cooling for maximum cooling efficiency.)
"Youcan choose any fan speed you prefer.
During this function, the display wilI show the actuaI room
temperature, not the set temperature as in the cooling mode.
TO USE THE ENERGY SAVER
FEATURE:
O
@
\
/
DO THIS:
/PRESS MODE
BUTTON
CHOOSE
ENERGY SAVER
YOU WILL SEE:
© @
LIGHT On
Note: In this mode, the fan wiI! continue to run for 3 minutes
after the compressor shuts off. The fan then cycles on for 2
minutes at 10 minute intervals untiI the room temperature is
above the set temperature, at which time the compressor turns
back on and cooling stars.
SZ000400(En)-Yaokong 7 12/10/2004, 5:36 PM

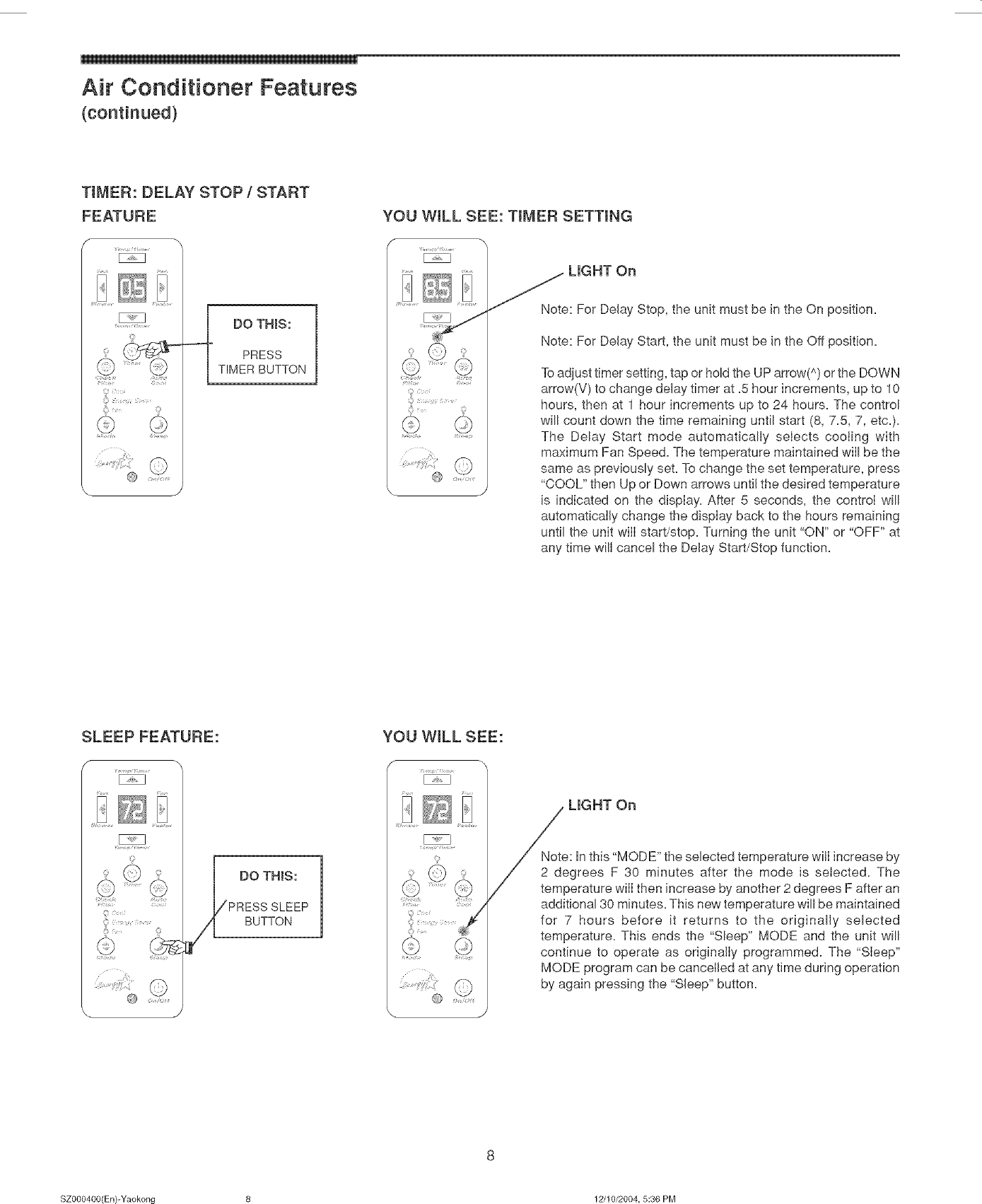

Air Conditioner Features
(continued)
TIMER: DELAY STOP !START
FEATURE
_;i_i__,'_,?:i_i!_i:iill_
DO THIS:
PRESS
TIMER BUTTON
YOU WiLL SEE: TIMER SETTmNG
S
/_Not LIGHT On
e: For Delay Stop, the unit must be in the On position,
Note: For Delay Start, the unit must be in the Off position.
To adiust timer setting, tap or hold the UP arrow(A) or the DOWN
arrow(V) to change delay timer at .5 hour increments, up to 10
hours, then at 1 hour increments up to 24 hours. The control
will count down the time remaining until start (8, 7.5, 7, etc.).
The Delay Start mode automatically selects cooling with
maximum Fan Speed. The temperature maintained wiII be the
same as previously set. To change the set temperature, press
"COOL" then Up or Down arrows until the desired temperature
is indicated on the display. After 5 seconds, the controI will
automatically change the dispIay back to the hours remaining
until the unit wiII start/stop. Turning the unit "ON" or "OFF" at
any time will cancel the Delay StaWStop function.
SLEEP FEATURE:
i_ DO THIS:
PRESS SLEEP
BUTTON
YOU WiLL SEE:
Y
©
\
LIGHT On
: In this "MODE" the selected temperature wili increase by
/2 degrees F 30 minutes after the mode is selected. The
/temperature wiii then increase by another 2 degrees F after an
additional 30 minutes. This new temperature will be maintained
for 7 hours before it returns to the originally selected
temperature. This ends the "Sleep" MODE and the unit will
continue to operate as originally programmed. The "Sleep"
MODE program can be cancelled at any time during operation
by again pressing the "Sleep" button.
SZ000400(En)-Yaokong 8 12/10/2004, 5:36 PM

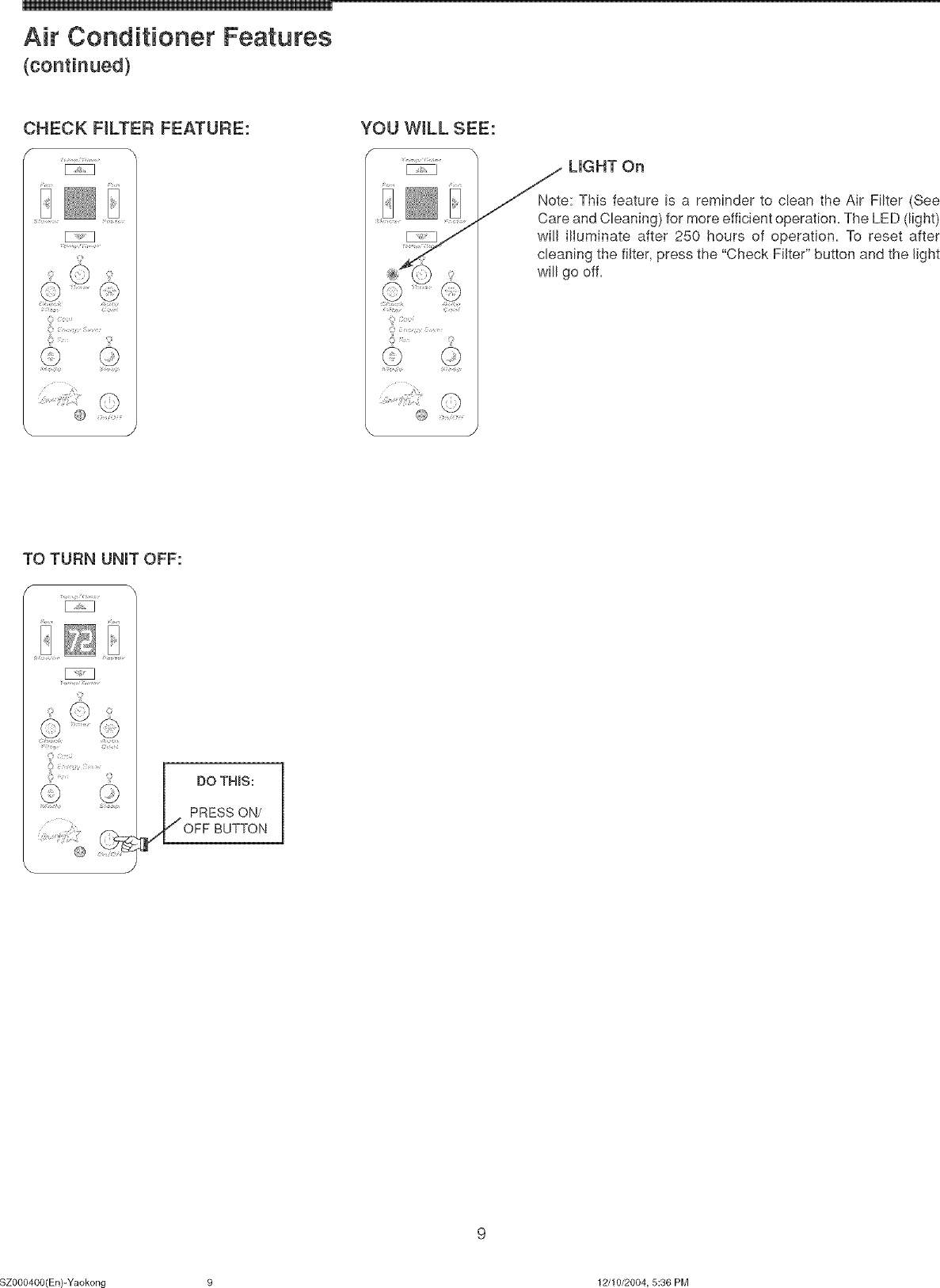

Air Conditioner Features
(continued)
CHECK FILTER FEATURE:
© ©
_b
J
YOU WILL SEE:
© Q
\
__CNaOtreLIG HT On
: This feature is a reminder to clean the Air Filter (See
e and Cleaning) for more efficient operation, The LED (light)
wilJ iliuminate after 250 hours of operation, To reset after
cleaning the fiJter, press the "Check FJJter"button and the JJght
will go off,
TO TURN UNiT OFF:
DO THIS:
1! PRESS ON/
OFF BUTTON
SZ000400(En)-Yaokong 9 12/10/2004, 5:36 PM
÷

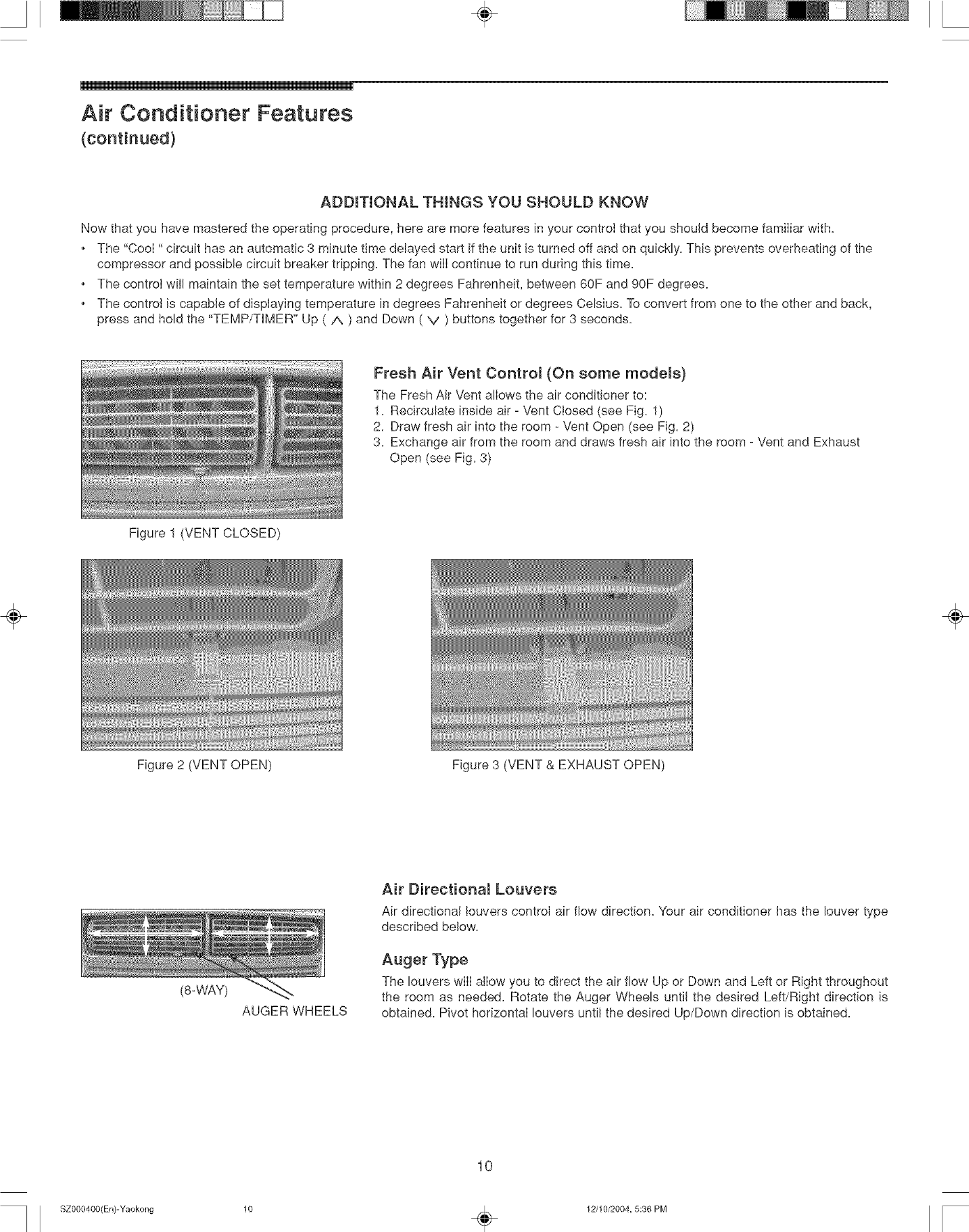

Air Conditioner Features
(continued)
ADDITmONAL THroNGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your controi that you should become familiar with,
• The "Cool "circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly= This prevents overheating of the
compressor and possible circuit breaker tripping. The fan will continue to run during this time.
• The control wilI maintain the set temperature within 2 degrees Fahrenheit, between 60F and 90F degrees.
• The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other and back,
press and hold the "TEMP/TIMER" Up ( A ) and Down ( V ) buttons together for 3 seconds.
Figure 1 (VENT CLOSED)
Figure 2 (VENT OPEN)
Fresh Air Vent Control (On some models)
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (see Fig. 1)
2. Draw fresh air into the room - Vent Open (see Fig. 2)
3. Exchange air from the room and draws fresh air into the room - Vent and Exhaust
Open (see Fig. 3)
÷
Figure 3 (VENT & EXHAUST OPEN)
÷
(8-WAY)
AUGER WHEELS
Air Directional Louvers
Air directional !ouvers control air flow direction. "(our air conditioner has the louver type
described below.
Auger Type
The louvers wiii aliow you to direct the air flow Up or Down and Left or Right throughout
the room as needed. Rotate the Auger Wheels untiJ the desired Left/Right direction is
obtained. Pivot horizontai louvers until the desired Up/Down direction is obtained.
10
SZ000400(En)-Yaokong 10 _ 12/10/2004, 5:36 PM
÷
Care and C eaning Clean your air conditioner occasionally to keep it Iooking new, Be sure to unplug the
unit before emeaning to prevent shock or fire hazards.
Air Filter Cleaning
The air fiIter shouid be checked at least once a month to see if cleaning is necessary,
Trapped particles in the filter can buiId up and cause an accumulation of frost on the
cooling cells,
Push the vent handle to the Vent Closed position (where applicable),
, Open the front panei,
, Grasp the filter by the center and pull up and out,
, Wash the filter using Iiquid dishwashing detergent and warm water, Rinse filter
thoroughly, Gently shake excess water from the filter, Be sure filter is thoroughly dry
before replacing,
, Or, instead of wasNng you may vacuum the filter clean,
Cabinet Cleaning
Be sure to unpIug the air conditioner to prevent shock or fire hazard, The cabinet and
front may be dusted with an oiI-free cloth or washed with a cloth dampened in a solution
of warm water and miId Iiquid dishwashing detergent, Rinse thoroughly and wipe dry,
Never use harsh cleaners, wax or polish on the cabinet front,
Be sure to wring excess water from the cloth before wiping around the controls, Excess
water in or around the controls may cause damage to the air conditioner,
Plug in air conditioner,
Winter Storage
If you plan to store the air conditioner during the winter, remove it carefully from the
window according to the installation instructions, Cover it with plastic or return it to the
original carton,
÷ ÷
11
SZ000400(En)-Yaokong 11 _ 12/10/2004, 5:36 PM
÷
Avoid Service Checklist Before calIing for service, review this list, Htmay save you time and expense, This list
includes common occurrences that are not the result of defective workman-ship or
materials in this appliance,
÷
OCCURRENCE SOLUTION
Air conditioner will not operate.
Air from unit does not feemcored
enough.
Wall plug disconnected. Push plug firmly into wall outlet.
Plug Current Device Tripped. Press the RESET button.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.
Control is OFR Turn Control ON and set to desired setting.
Room temperature below 60F (16':C). Cooling may not occur until room temperature rises above 60:'F (16'C).
Temperature sensing element touching cold coil, located behind air filter. Straighten away from coil.
Reset to a Lower temperature.
Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for compressor to restart
when set in the COOL mode.
Air conditioner cooling, but room is
too warm - ice forming on cooming
coil behind decorative front.
Outdoor temperature below 60'F (18':C). To defrost the coil, set FAN ONLY Mode.
Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY Mode.
Temperature is set too Low for night-time cooling. To defrost the coil, set to FAN ONLY Mode. Then, set Tem-
perature to a Higher setting.
Air conditioner cooling, but room is
too warm - NO ice forming on
cooling coil behind decorative front.
Dirty air filter - air restricted. Clean air filter. Refer to Care and Cleaning section.
Temperature is set too High. Set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of unit is blocked by drapes, blinds, furniture, etc.- restricts air distribution. Clear blockage in front of unit.
Doors, windows, registers, etc. open - cold air escapes. Close doors, windows, registers, etc.
Unit recently turned on in hot room. Allow additional time to remove 'stored heat' from walls, ceiling, floor and
furniture.
Air conditioner turns on and off
rapidmy. Dirty air filter - air restricted. Clean air filter.
Outside temperature extremely hot. Set FAN speed to a faster setting to bring air past cooling coils more
frequently.
Noise when unit is cooling. Air movement sound. This is normal. Fftoo loud, set to a slower FAN setting.
Window vibration - poor installation. Refer to installation instructions or check with installer.
Water dripping iNSiDE when unit is Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer to installation
cooling, instructions - check with installer.
Water dripping OUTSIDE when unit Unit removing large quantity of moisture from humid room. This is normal during excessively humid days.
is cooming,
Remote Sensing Deactivating • Remote control not located within range. Place remote control within 20 feet & 180, radius of the front of the
Prematurely (Some fv'iodems}, unit.
Room Too Cold.
• Remote control signal obstructed. Remove obstruction.
. Set temperature too Io% Increase set temperature.
÷
12
SZ000400(En)-Yaokong 12 _ 12/10/2004, 5:36 PM
